Objective compliance of adolescent girls with idiopathic scoliosis in a dynamic SpineCor brace

Introduction

Brace efficacy, clinical effectiveness and compliance of the patient are associated key factors for a successful treatment of moderate idiopathic scoliosis [1, 2]. Though their interaction has not been clearly quantified yet, the most commonly prescribed regimen is 20–23 h daily brace wear [3–8]. However, subjective assessments by questionnaires, diaries and interviews revealed overestimation of the time in brace [6, 8, 9] compared to valid data yielded by load and temperature measurements in rigid braces: compliance (wearing time in brace divided by advised hours) only reached fairly consistent averages of 62–67.5% [5, 7, 8]. A psychological profile with low self-esteem, anxiety, poor social support and limited success expectations seems predictive for low compliance [3]. The common denominator may be a conflict between an adolescent's strive for nice appearance, uniformity among peers and social acceptance, and the contrasting bulkiness, rigidity and temperature discomfort of rigid braces [4, 10]. Flexible braces tackle those disadvantages by being functional and discreet, and by reducing the constraints of conventional brace types. Improved comfort should raise acceptance and compliance. The flexible SpineCor System (SpineCorporation Ltd., Chesterfield, United Kingdom) consists of a plastic pelvic base, crotch and thigh bands, a bolero and corrective elastic bands, which are fitted according to the type of the curve (Fig. 1a, b). The developers labelled it the first and only truly dynamic brace for the correction of idiopathic scoliosis and base its efficiency on a 74.5% success (SRS criteria) [11] and 14.6% surgical rate in their cohort of 349 patients [12]. In contrast, a prospective, randomised study conducted by independent examiners on 43 adolescent girls revealed a significantly higher failure rate for SpineCor braces than for rigid orthoses. Patient acceptance was limited for both [13], which may transmit to low wearing times and failure. Time in rigid braces is most reliably objectified with temperature loggers [5, 8, 14]. This has never been done for flexible spinal harnesses, which put specific demands on the size and mechanical properties of the logger.

OPEN IN VIEWER

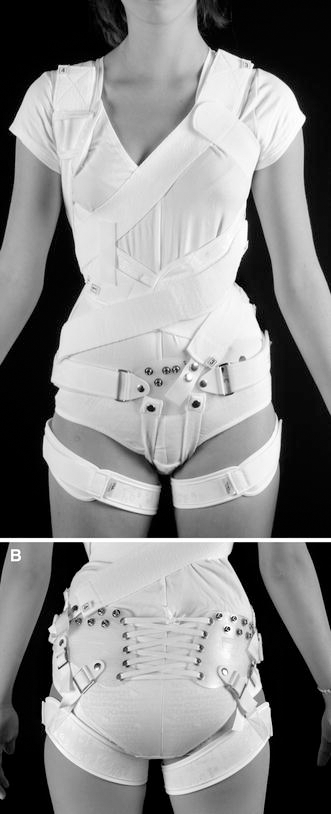

Fig. 1

a The anchoring, bottom section of the dynamic SpineCor brace consists of the pelvis base, the thigh bands and the crotch bands. The upper section with the bolero and elastic bands provides correction of the scoliotic deformity. b The posterior, triangular soft plastic parts were used to hide the temperature logging device

The purpose of this study was to objectively measure the compliance of adolescent girls in SpineCor braces and to learn more about the role of flexible braces in scoliosis treatment.

Materials and methods

After approval from the local ethical committee, we prospectively objectified wearing time with temperature loggers in 12 adolescent girls with a flexible SpineCor brace. Inclusion criteria were idiopathic juvenile or adolescent scoliosis, initial Cobb angle 20°–45°, pre-menarchal to 1 year after menarche at the time of bracing and 10 years of age or older at the time of the study. Exclusion criteria were the first 6 weeks after fitting, weaning and skin problems. At the time of SpineCor introduction at our institution, the clinical team (spine surgeon, physiotherapist and orthotist) followed instructional lessons, supervision and continuous training by the inventors. We educate patients and parents about scoliosis, its natural history and the estimated risk of curve progression. Questions about wearing time are asked at each visit and the importance of compliance is emphasised. We recommend a wearing time of 22–23 h/day until skeletal maturity (2 years post-menarchal, less than 1 cm growth/6 months) [11]. Rigid and flexible brace types are demonstrated and written information is handed out. The team fits the brace based on the SpineCor manual. The dynamic corrective movement is taught and later supervised on an outpatient basis at 3-month intervals. We encourage increasing brace-on hours to reach the full regimen at the 4–6 weeks mark.

Temperature logger

We chose a flexible, credit card-sized (86 × 54 × 1-mm) commercial device (VarioSens^®, KSW Microtec, Dresden, Germany). It is reusable, driven by a paper-thin, pollution-free battery and meets high mechanical requirements. A calibrated sensor measures at programmable intervals. The chip stores maximally 720 data points (temperature −20 to 50°C). A card reader exports the data to Excel files. The size allowed its hiding at the plastic pelvic base (Fig. 2). This base is connected to the elastic and crotch bands. It is worn over the slip and covered by clothes. We suggest to pad the inside of the base with a 4-mm thick gel foam, since most patients feel disturbed by the metallic eyelets. The concealed device allowed blinding of the patient for the logging. At the end of the observation period, we gave oral and written study information with subsequent signed consent. To our knowledge, it was the first time that a temperature logger in a flexible brace has been used. The reported values indicating the wearing of rigid braces may differ from flexible braces. In a self-test (CH) with the pelvic base on, the temperature varied between 30 and 35°C (average 32.3°C), despite different ambient temperatures (Fig. 3). We, therefore, established the threshold temperature at 30°C. The transition time from ambient temperature to the 30°C threshold after mounting the brace ranged between 6 min 20 s (outdoor, 7°C) and 1 min 50 s (indoor, 23°C). The latter scenario is the most common for donning and doffing. Vice versa, it took 20 s from removal of the brace until values below 30°C were displayed.

OPEN IN VIEWER

Fig. 2

The data logger (dimensions 86 × 54 × 1-mm) is sandwiched between the 1.5-mm-thick pelvic base and a 4-mm-thick extra layer of gel foam, which is in direct contact with the patient's slip

OPEN IN VIEWER

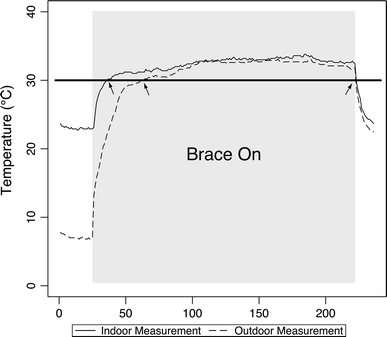

Fig. 3

Temperature adaption to donning and doffing under cold (7°C) and ambient conditions (23°C): brace off (data points 0–25 and >224) and on (26–224). The x-axis shows time intervals of 10 s between two data points. The y-axis represents temperature values (°C) recorded by the logger

Results

Measured temperatures

The number of data points per temperature interval confirmed the 30°C threshold concept (Fig. 4). The peaks at 24–25°C and 31–32°C represent brace-off and brace-on, respectively. The zones 22–25°C (room temperature) and 31–34°C each account for 31% of all points, whereas the transition zone between brace-on and brace-off only includes 3.5% of all measurements. The average brace-off temperature was 23.6°C ± 2 (minimum 16.9°C) and the brace-on temperature was 32.5°C ± 1.5 (maximum 37.6°C). Five patients were measured in the spring time, four during summer and three during autumn in moderate mid- and east-European climate. Air temperature recordings were obtained from the National Meteorological Services of Switzerland (http://www.meteoschweiz.admin.ch) and Slovenia (http://www.arso.gov.si). Only on 3 of 168 logging days did the maximal ambient temperature climb beyond the 30°C threshold (31.3–32.3°C) but the brace-on periods could still be discriminated: the average day temperature was only 23.3–24.1°C and the patients’ data showed clear step-offs in their curves, indicating donning and doffing. Moreover, one low adherer (patient 6) wore the brace only during the night and the other (patient 10) showed temperatures beyond the threshold on two heat days, which were clearly higher (average 33.4°C) than the maximal outdoor air value and, therefore, indicative for wear.

OPEN IN VIEWER

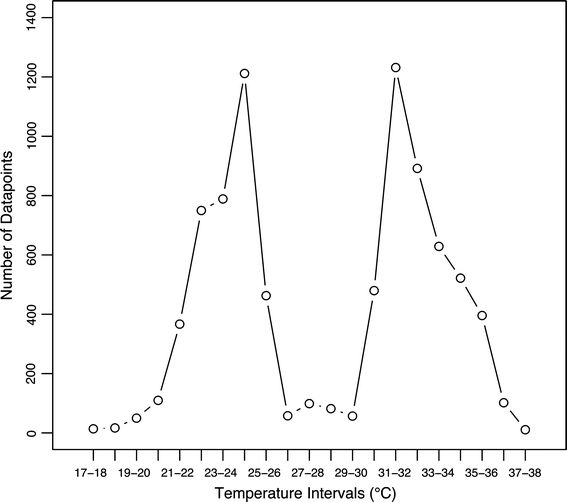

Fig. 4

The distribution of the data points of all patients indicates the clear cut-off between brace-on temperatures over the 30°C threshold and brace-off temperatures between 21 and 26°C

Compliance

The average overall compliance based on a prescribed regimen of 23-h brace wear per day was 54% ± 22.3 (range, 11.8–95.8%) (Table 1). Though most of the patients had a similar average compliance of about 50%, one (patient 4) had a significantly lower and two (patients 10, 11) a significantly higher compliance (Fig. 5). Patients aged 10–12 years were 72% (SD 23%) compliant, 12–14 years 49% (SD 30%) and 14–16 years 47% (SD 12%). The youngest patients were significantly more compliant (P < 0.05). The average daily time in the brace was 12.4 h ± 5.1 (range, 2.7–22 h). On no day was compliance significantly different than on others (ANOVA P = 0.63), particularly, weekend days did not differ. Patients tended to wear the brace longer during the day (8 am–8 pm) than the night (8 pm–8 am), average 6.6 h (55% compliance) and 5.8 h (49%), respectively (not significant, P = 0.07). The analysis based on a different ‘night definition’ (10 pm–7 am) [8] revealed less statistical difference (P = 0.27). Most patients (2, 3, 4, 6, 7, 8, 9, 10) had a scattered wearing pattern: one was a day-wearer (patient 5), one a night wearer (patient 1) and the two high adherers (patients 11, 12) showed a consistent pattern (Fig. 6).

OPEN IN VIEWER

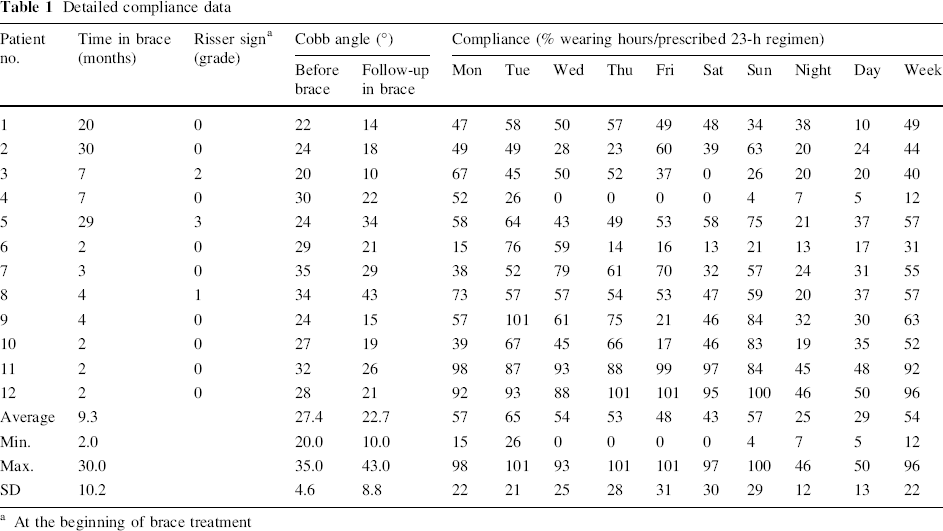

Table 1

Detailed compliance data

Patient no.	Time in brace (months)	Risser sign a (grade)	Cobb angle (°)		Compliance (% wearing hours/prescribed 23-h regimen)
			Before brace	Follow-up in brace	Mon	Tue	Wed	Thu	Fri	Sat	Sun	Night	Day	Week
1	20	0	22	14	47	58	50	57	49	48	34	38	10	49
2	30	0	24	18	49	49	28	23	60	39	63	20	24	44
3	7	2	20	10	67	45	50	52	37	0	26	20	20	40
4	7	0	30	22	52	26	0	0	0	0	4	7	5	12
5	29	3	24	34	58	64	43	49	53	58	75	21	37	57
6	2	0	29	21	15	76	59	14	16	13	21	13	17	31
7	3	0	35	29	38	52	79	61	70	32	57	24	31	55
8	4	1	34	43	73	57	57	54	53	47	59	20	37	57
9	4	0	24	15	57	101	61	75	21	46	84	32	30	63
10	2	0	27	19	39	67	45	66	17	46	83	19	35	52
11	2	0	32	26	98	87	93	88	99	97	84	45	48	92
12	2	0	28	21	92	93	88	101	101	95	100	46	50	96
Average	9.3		27.4	22.7	57	65	54	53	48	43	57	25	29	54
Min.	2.0		20.0	10.0	15	26	0	0	0	0	4	7	5	12
Max.	30.0		35.0	43.0	98	101	93	101	101	97	100	46	50	96
SD	10.2		4.6	8.8	22	21	25	28	31	30	29	12	13	22

a

At the beginning of brace treatment

OPEN IN VIEWER

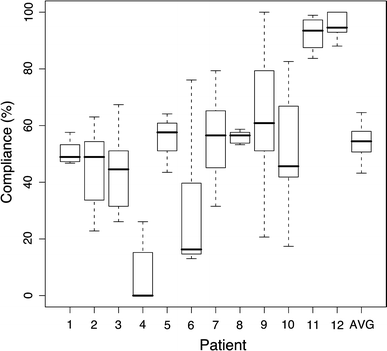

Fig. 5

Patient-specific compliance. High compliance (>90%) was found in two patients, intermediate (50–90%) in five and low (<50%) in five patients [5]. AVG average of the group

OPEN IN VIEWER

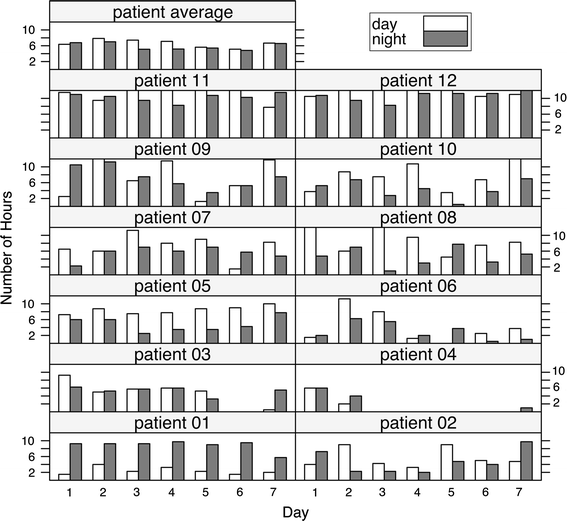

Fig. 6

Time spent in brace for each patient. Day 1 (Monday) to day 7 (Sunday)

Discussion

The SpineCor System was introduced in 1993 and represents a popular flexible brace type [16]. Doctors, patients and parents rely on results which suggest an equal efficiency to conventional braces. Based on SRS criteria [11], SpineCor was successfully (≤5° curve progression) applied by its inventors in 74% of 349 patients observed until weaning and 93% of 162 patients had stable curve to 2 years after weaning [12]. Moreover, the assessment of the three-dimensional appearance of the trunk in brace allows judgement of the evolution and potentially reduces exposure to repeat radiographs [17]. Functionality, weight, concealment under clothes, reduced physical constraint, ventilation under hot temperatures and the biofeedback concept with corrective movements contrast with the seemingly old-fashioned properties of a rigid brace and may, therefore, be appealing to a teenager. However, those superficial benefits have been questioned by gait analysis, questionnaires on acceptance and a prospective study on 43 subjects, which were randomly assigned to either SpineCor or a rigid orthosis by investigators which were involved in the development of the brace [13, 18]. The curve progression rate was significantly higher in the SpineCor group (7/22) than in the group with a rigid orthosis (1/21). In a small cohort of 12 SpineCor patients, the progression rate (11/12) even exceeded natural history [19, 20]. This raises concerns about efficiency and acceptance. The latter showed no difference between SpineCor and conventional orthosis for pain, skin irritation, pressure sores, breathing, sport, walking, sleeping and dressing [13]. Particularly, toileting seemed to be a problem with the flexible brace, while patients with rigid braces complained about hot temperatures and difficulties in donning and doffing. The corrective potential of the brace (efficacy) and the compliance are the determinants for long-term effectiveness [1, 2]. The former is difficult to investigate, since SpineCor is not based on direct force application, but on a concept of curve-specific corrective movements and neuromuscular integration, which should entail progressive correction [21]. We, therefore, focused on the objective assessment of compliance, which is reliably accomplished with temperature recording at the brace/skin interface [2, 5, 6, 8, 9, 22]. Since all parts of SpineCor are less than 1.5-mm thick and flexible, the logger needs to be thin and bendable. Specifically designed for brace wear control studies microelectronic devices are thicker than 5 mm, larger than credit card size and come with an external power source [5, 8, 22]. The smallest (60 × 48 × 19 mm) is both rigid and too thick. Hence, we used a commercially available sensor which is employed in sensitive fields such as the pharmaceutical and food industry. The small chip size limits the maximal data set to 720 time-stamped values, which is less than the range of 2,048–64,000 for formerly applied loggers [5, 8, 9] but enough to cover a period of 2 weeks at 30-min intervals. The most recent study with data recording at 2-min intervals over an average of 5.4 ± 3.1 weeks revealed compliance prediction already after the first 2 weeks [5]. A small, concealed logger is a prerequisite to blind the patient for the measurements for the lowest bias by avoiding extra motivation or misleadings. This novel approach with delayed consent was accepted by all but one of 15 patients.

The established threshold of 30°C between brace-on and -off periods, the narrow ranges of average temperatures with the brace off (23.3–23.6°C), brace on (32.5–33.1°C) and the maximal values (36.4–37.6°C) are matched well between our study on flexible braces performed in Switzerland and temperature logging in rigid braces from the United Kingdom [8] and Germany [5], which supports the reliability of temperature logging and its application to flexible braces. The climate and room temperatures are similar among those countries and the plastic pelvic base of SpineCor has similar thermal conduction properties as a conventional brace [5, 8].

Compliance in SpineCor patients was 54% ± 22.3, which is at the lower end of that objectified (57–85%) for rigid braces [2, 5, 7–9, 23]. Full blinding of the patient is a possible explanation. However, our data reflect similar acceptance as for rigid braces [13] and query the philosophy of a flexible orthosis developed to minimise constraints and improve compliance [21]. SpineCor did not challenge the wide range of compliances, the small number of full adherers (10–30%), the scattered wearing pattern in non-adherers and the negative correlation of compliance with age also found in rigid orthoses [4, 5, 8, 9]. In contrast to those studies, we could not reveal differences between school and spare time, day and night wear, nor between weekdays and weekends.

As in previous studies on temperature logging [5, 8], the present study is also limited by the small number of subjects and the lack of correlation between brace acceptance and clinical outcome. The association between the quantity of brace wear and clinical effectiveness may be different for SpineCor than for rigid braces [2]. The determination of continuous correct fit and effective wear as another confounding factor would be difficult for SpineCor. Since force application is not its mainstay, the prediction of curve progression based on the recording of strap tightness will be hampered [1]. However, repeat clinical judgement of correct fit as possible with SpineCor combined with outcome assessment in a subgroup of highly complying patients may help to discriminate the efficacy of this brace type.

Limited wear of a patient-friendly labelled, flexible brace type emphasise the irrationality behind bracing. The patient's perception of limitations of appearance, social interaction and physical activities opposes to the doctors’ and parents’ assumptions on the better acceptance of a less cumbersome device. The impact of brace therapy as such seems to be more decisive a factor than the type of brace. Most patients have no overt pathology, but psychosocial issues such as peer pressure at school, social relations and low family support triggered by individual psychological, negative predictive determinants such as lack of vitality, low expectation, anxiety about failure, low self-esteem and poor body image affect compliance behaviour [3, 4, 6, 24].

As a consequence, routine, objective determination of brace-wearing habits with pre-emptive employment of coping strategies and tailored psychological support in cases of low brace adherence may represent better optimisers of compliance than the preference of a dynamic brace over a rigid brace [10, 25].
