Effect of recombinant human thyroid stimulating hormone on serum thyroxin and thyroid scintigraphy in euthyroid cats

Abstract

This study investigated the thyroidal response to administration of recombinant human thyroid stimulating hormone (rhTSH) by means of serum total thyroxine (TT₄) concentration and pertechnetate uptake by the thyroid gland in six healthy euthyroid spayed female cats. A pertechnetate scan was performed on day 1 to calculate thyroid/salivary gland (T/S) uptake ratio. On day 3, 25 μg rhTSH was injected intravenously. Six hours later the thyroid scan was repeated as on day 1. Blood was drawn for serum TT₄ measurement prior to injection of rhTSH and performance of the pertechnetate scan. Statistically significant differences in mean serum TT₄ concentration, T/S uptake ratio before and 6 h after rhTSH administration and T/S uptake ratio between left and right lobes were noted. We can conclude that 25 μg rhTSH increases pertechnetate uptake in the thyroid glands of cats, this should be taken into account when thyroid scintigraphy after rhTSH administration is interpreted.

Evaluation of thyroidal reserve with thyrotropin stimulation (thyroid stimulating hormone, TSH) in cats has gained interest in veterinary medicine, because development of iatrogenic hypothyroidism after treatment of hyperthyroidism with radioiodine (¹³¹I) can occur in 6–30% of cases.^1–5 The combination of basal serum total T₄ (TT₄) and endogenous TSH concentration, possibly combined with free T₄ (fT₄) analysis, is recommended when diagnosing hypothyroidism. Measurement of fT₄ is expensive and no feline specific TSH assay is available.⁶ Stimulation with recombinant human TSH (rhTSH) could be a simple way to diagnose iatrogenic hypothyroidism in cats. Hyperthyroidism is the most common endocrine disorder in cats and ¹³¹I treatment is the treatment of choice.^7–9 Another possible application of rhTSH in cats is administration prior to ¹³¹I treatment of hyperthyroidism to enhance uptake of ¹³¹I and allow a decrease in effective therapeutic dose.

The diagnosis of hypothyroidism cannot be made solely based on a low serum TT₄ concentration alone, because a variety of non-thyroidal diseases can result in low serum TT₄ concentrations.¹⁰ A dynamic thyroid function test may be required when non-thyroidal illness cannot be eliminated. Several protocols for thyroid stimulation have been described in cats using bovine TSH (bTSH) which is no longer commercially available.^11–15

RhTSH is a synthetic form of TSH obtained from a line of recombinant Chinese hamster ovary cells.¹⁶ Several studies have evaluated use of rhTSH in dogs.^17–20 To date, only one in vivo study has described the use of rhTSH in cats: administration of 25 μgrhTSH to euthyroid cats was safe and led to an increase in serum TT₄ concentration with a maximum value observed 6 h after administration.²¹

Metabolic activity of the thyroid gland can be measured with technetium as pertechnetate (^99mTcO₄⁻) uptake. Pertechnetate is actively trapped by the sodium-iodide symporter (NIS) and concentrated in the thyroid in a similar way as iodine, but not incorporated in thyroid hormones. Pertechnetate has ideal imaging characteristics, is readily available, relatively inexpensive, and concentrated in the thyroid and salivary glands which are visible on the scintigraphic thyroid scan. With computer software, regions of interest (ROI) can be drawn around thyroid lobes and salivary glands. The calculated thyroid/salivary gland (T/S) uptake ratio using pertechnetate is the most commonly used parameter to determine functional status of the thyroid and is significantly correlated with serum TT₄ concentration in hyperthyroid cats although not in euthyroid cats.^22,23

When different methods of thyroidal reserve assessment such as TSH stimulation and thyroid scintigraphy are being evaluated in cats, it is important to know the influence of rhTSH on thyroid scintigraphy. The influence of rhTSH on T/S uptake ratio as part of the evaluation of thyroidal reserve has not yet been investigated in cats. These preliminary data can add value to the interpretation of thyroid scans after rhTSH administration in cats evaluated for thyroidal reserve. Moreover, this would give information whether this parameter of functional status is correlated to serum TT₄ concentration in euthyroid cats stimulated with rhTSH in a similar way as in hyperthyroid cats. The objective of this study was to investigate the change in serum TT₄ concentration and T/S uptake ratio in euthyroid cats, following administration of 25 μgrhTSH intravenously.

Materials and Methods

Animals

This study was conducted according to guidelines for animal care, with consent of the Ethical Committee of the Faculty of Veterinary Medicine from Ghent University, Belgium. Six healthy euthyroid female spayed cats, with an average age of 2 years and body weight (BW) range of 4.0–5.2 kg (mean±standard deviation [SD], 4.7±0.4), were included. To assess the health of the cats, initial screening included physical and routine laboratory examinations (complete blood count, biochemistry and serum TT₄ concentration) and urinalysis (dipstick tests, microscopic analysis, protein/creatinine ratio and urine specific gravity). Cats were included in the study when these examinations showed no abnormalities.

Experimental design

A prospective study design was used to investigate the influence of rhTSH administration on serum TT₄ concentration and pertechnetate uptake. A pertechnetate scan was performed on day 1. A dose of 74 MBq (2 mCi) pertechnetate was injected intravenously and static images with a set number of 200,000 counts were acquired 30 min after injection, with a gamma camera (Toshiba GCA 901A, Exalto SA/NV, Saintes, Belgium) equipped with a low energy high resolution (LEHR) collimator. Cats were fasted for at least 10 h before the thyroid scan. Cats were held under light anaesthesia with propofol (PropoVet, propofol 10 mg/ml, Abbott Logistics BV, Zwolle, The Netherlands) and placed in ventral recumbency over the camera. ROI were manually drawn over the left and right thyroid lobes and ipsilateral salivary glands by the same co-author (E Vandermeulen) to calculate the thyroid/salivary gland (T/S) uptake ratio in both left and right thyroid lobes. On day 3, 25 μgrhTSH (Thyrogen, Genzyme corporation, Naarden, The Netherlands) was administered intravenously, which corresponds to a mean dose of 5 μgrhTSH/kg BW in the six healthy cats. The rhTSH had been dissolved in sterile water, divided in aliquots containing 25 μgrhTSH and frozen at −20°C for a maximum of 8 weeks as described by De Roover et al.²⁴ Aliquots were allowed to thaw at room temperature shortly before injection. Six hours later, the pertechnetate scan was repeated as on day 1.

Two blood samples were taken by jugular venepuncture, before injection of the rhTSH and before the pertechnetate scan, respectively. Serum was collected after centrifugation, aliquoted and frozen at −20°C until radioactivity had decayed for measurement of TT₄ (nmol/l).

Statistical analysis

Effect of rhTSH administration on serum TT₄ concentration was evaluated by a fixed effects model with period (0 versus 6 h after rhTSH administration) as fixed effect. Effect of rhTSH administration on the T/S uptake ratio was evaluated by a mixed model with cat and lobe as random effects, and rhTSH administration, side (left versus right) and the interaction between rhTSH administration and side as fixed effects. Correlation between the difference in serum TT₄ concentration and difference in T/S uptake ratio was quantified by the Pearson correlation coefficient. Results were expressed as mean±SD. The statistical analysis was done with SAS version 9.1 (SAS Institute, Cary, USA) at the 5% significance level.

Results

Serum TT₄ concentration ranged from 12.90–25.80 nmol/l before to 49.02–65.79 nmol/l (reference values 14.19–45.15 nmol/l) after rhTSH administration, and increased significantly (P<0.0001) from 0 h (19.14±4.65 nmol/l) to 6 h (54.40±5.91 nmol/l) after rhTSH administration. The ratio between serum TT₄ concentration post TSH and baseline serum TT₄ concentration was 3.0±0.6.

There was a marginal but significant effect of rhTSH administration (P=0.013) and a significant effect of side (P=0.039) on T/S uptake ratio. There was no significant interaction between the effect of rhTSH administration and the effect of side on T/S uptake ratio (P=0.925). In the left lobe, the T/S uptake ratio increased from 1.12±0.21 nmol/l to 1.27±0.22 nmol/l from 0 to 6 h after rhTSH administration. In the right lobe, the T/S uptake ratio increased from 0.97±0.10 nmol/l to 1.13±0.17 nmol/l from 0 to 6 h after rhTSH administration. The increase in T/S uptake ratio for the left and right lobes separately in six healthy cats is presented in Figs 1 and 2.

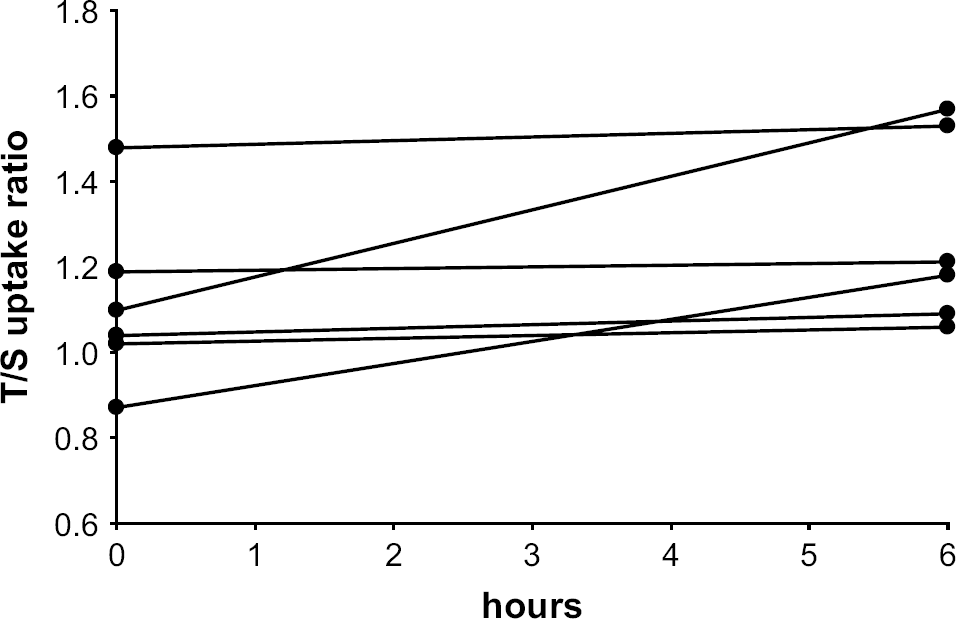

Fig 1.

T/S uptake ratio before (0 h) and 6 h after administration of 25 μgrhTSH intravenously in six healthy cats in the left lobe.

Fig 2.

T/S uptake ratio before (0 h) and 6 h after administration of 25 μgrhTSH intravenously in six healthy cats in the right lobe.

The correlation between difference in serum TT₄ concentration and T/S uptake ratio before and after rhTSH administration was −0.28 and did not differ significantly from zero (P=0.59). The correlation between the difference in serum TT₄ concentration and difference in T/S uptake ratio before and after rhTSH administration in six healthy cats is presented in Fig 3.

Fig 3.

Correlation between difference in serum TT₄ concentration and difference in T/S uptake ratio before (0 h) and 6 h after administration of 25 μgrhTSH intravenously in six healthy cats for the left (x) and right (▪) lobes in six healthy cats.

Discussion

We investigated the influence of 25 μgrhTSH on serum TT₄ concentration and pertechnetate uptake by the thyroid glands of six healthy euthyroid cats. The effect of TSH on circulating thyroid hormones has been investigated using bTSH and rhTSH in cats.^11–15,21 In this study, a dose of 25 μg of rhTSH caused an increase in serum TT₄ concentration 6 h after administration, which is similar to the findings of Stegeman et al.²¹ The 6-h period after rhTSH administration in the study by Stegeman et al²¹ and our study is also comparable to TSH stimulation protocols in cats that use bTSH.^11,15

Follicular cells respond initially to binding of TSH to the TSH receptor by increased endocytosis of colloid and release of preformed thyroid hormone from the colloid in the blood.^25,26 When TSH stimulation persists, there is an increase in expression and functionality of the NIS and an increased organification of iodine into thyroid hormone.^25,27 The effect of rhTSH on the NIS can be measured by the NIS mRNA level correlating to the NIS protein level in the cell. In vitro stimulation of TSH on iodine transport activity in thyrocytes, previously starved from TSH, is partly due to a rapid increase in NIS gene expression after 3–6 h with a maximum after 24 h. The gene expression is followed by a relatively slow NIS protein synthesis after 36 h, which parallels the increased iodine uptake, reaching a maximum after 72 h.²⁸ The increased serum TT₄ concentration after rhTSH administration can be caused by either an increased release of stored hormone or an upregulation in the production level of thyroid hormones. The time-related effects of TSH on thyroid cells described above make the latter less likely. Moreover, the thyrocytes in the in vitro study were starved from TSH which is not the case in the euthyroid healthy cats used in this study. Therefore, the response in thyrocytes not starved from TSH can be expected to be related to an upregulation of newly formed thyroid hormones and, therefore, prolonged.

A previously used index of TSH stimulation is the post-TSH/pre-TSH TT₄ concentration ratio (post-/pre-TT₄ ratio).^11,29 The post-/pre-TT₄ ratio had an approximate value of 3 for the dose of 25 μgrhTSH in the study by Stegeman et al²¹ which is comparable to the mean value of 3.0±0.6 in this study.

Several studies evaluating the use of rhTSH in euthyroid dogs or dogs suspected of hypothyroidism^17–20 use doses of 50, 75 or 100 μgrhTSH. However, when the dose per kg BW is calculated using the mean BW of the dogs, the doses of rhTSH range from 3 to 5 μg/kg BW in these studies. The post-/pre-TT₄ ratio in these studies had an approximate value higher than 1.5 (3 or 5 μg/kg BW)¹⁹ or an approximate value of 2 (3 or 4 μg/kg BW)^17,20 or 2.7 (5 μg/kg BW).²⁰ The cats in this study received a mean dose of 5 μg/kg BW rhTSH which is comparable to doses/BW used in dogs, although the post-/pre-TT₄ ratio had a mean value of 3 in this study and the study by Stegeman et al²¹ which suggests a higher biological activity of rhTSH in cats compared to dogs. The species specific β-subunit of TSH differs in exact amino acid sequence among species, however, biological cross-species reactivity allows TSH of a certain species to stimulate thyroid glands of other species, accompanied by species specific biological differences.³⁰ The sequence homology of α- and β-subunits from feline TSH are 96 and 94% compared to canine TSH, and 68 and 88% compared to human TSH.³¹ However, a homologue glycohormone of a specific species can have lower receptor affinity compared to a heterologue glycohormone.³² This can be caused by differences in glycosylation which alter bioactivity of the hormone.^30,33 The above mentioned reasons could explain the difference in biological effect of rhTSH in dogs and cats, however, controlled studies with rhTSH dosed per BW in dogs and cats are needed to evaluate a difference in biological reactivity between these species.

This study is the first report in veterinary medicine showing a marginal effect of rhTSH on T/S uptake ratio by the thyroid. Possibly, at first, the stored TT₄ is released from the thyroid and pump mechanisms are only mildly affected, because the dose of rhTSH is possibly insufficient to reach a larger intracellular response. Also, the time interval between injection of rhTSH and image acquisition could be not optimal. Use of the isotope ¹²³I as a tracer would have allowed us to perform measurements of functional activity post-rhTSH administration for a longer period after administration of the radio-tracer, because ¹²³I has a half-life of 13 h opposed to 6 h for pertechnetate.

The time between the scan on day 1 and 3 was more than 60 h (10 physical half-lives of pertechnetate), therefore, less than 0.01% of radioactivity was left which is too small to be of influence. Thyroid imaging was performed 30 min after administration of pertechnetate. Nieckarz and Daniel³⁴ showed that the time from injection to imaging is not critical if performed within a period of 20 min to 2 h after pertechnetate administration. The LEHR collimator allowed a low dose of 74 MBq pertechnetate with a good thyroid to background distinction, compared to higher doses of 111–148 MBq described in the literature where a low energy all purpose (LEAP) collimator is often used.^23,35

Sodium-iodide symporters are also present in salivary glands. NIS gene expression and NIS protein are found in salivary glands.^36,37 Cells in the salivary gland that express NIS can accumulate though not organify iodide, and TSH exerts no regulatory influence on non-thyroid iodide accumulation.³⁸ It is, therefore, not expected that TSH administration influences pertechnetate uptake in the salivary gland nor that this is a reason for the marginal increase in T/S uptake ratio. Moreover, Nieckarz and Daniel showed an increased T/S uptake ratio in euthyroid cats made hypothyroid with methimazole, expected to be caused by the increased serum TSH concentration.³⁴

No correlation between the difference in serum TT₄ correlation and the difference in T/S uptake ratio before and after rhTSH administration could be demonstrated. In the study by Daniel et al²³ there was a significant difference in T/S uptake ratio between euthyroid and severely hyperthyroid cats, but not between euthyroid and mild hyperthyroid cats. The euthyroid cats in the study reported here showed a mild increase in serum TT₄ concentration, which could possibly explain the lack of correlation between the increase in T/S uptake ratio and the increase in serum TT₄ concentration in this study.

There was a significant effect of side on the T/S uptake ratio. This difference in T/S uptake ratio between the left and the right thyroid lobes is, however, of limited influence in this study, because the effect of rhTSH on T/S uptake ratio is the same in the left and right thyroid lobes. Asymmetric thyroid lobes on pertechnetate scintigraphy³⁹ and differences in volume measured with ultrasonography have been described in euthyroid cats but not in euthyroid dogs.^40,41 It is known that in euthyroid humans, the right thyroid lobe is usually larger and more vascularised,⁴² and this is suggested to be associated with functional asymmetries related to the immune system, hypophysiotrophic neurohormones, neural pathways or a combination of the latter two factors.^43,44

The study described here could open doors to further research. In humans with nodular goitre the administration of rhTSH has gained major application because administration of rhTSH increases the uptake of ¹³¹I in the thyroid and changes the regional distribution of ¹³¹I.^45,46 This results in lower therapeutic doses needed and less irradiation to extra-thyroidal tissue.^47–49 A lower efficacious dose of ¹³¹I in cats with hyperthyroidism will reduce the surface dose-emission rate, urine radioactivity and the duration of isolation for cats treated with ¹³¹I, thereby respecting the ‘as low as reasonably achievable’ (ALARA) principle.^50,51

We can conclude from this study that the uptake of pertechnetate by the thyroid of euthyroid cats is marginally though significantly increased 6 h after administration of 25 μg rhTSH, and that this increase is not correlated to the increase in serum TT₄ concentration.

Footnotes

Acknowledgements

This work was funded by a BOF-grant from Ghent University, Belgium.

References

Theon

A.P.

Van Vechten

M.K.

Feldman

Prospective randomized comparison of intravenous versus subcutaneous administration of radioiodine for treatment of hyperthyroidism in cats, Am J Vet Res 55, 1994, 1734–1738.

Mooney

C.T.

Radioactive iodine therapy for feline hyperthyroidism: Efficacy and administration routes, J Small Anim Pract 35, 1994, 289–294.

Peterson

M.E.

Becker

D.V.

Radioiodine treatment of 524 cats with hyperthyroidism, J Am Vet Med Assoc 207, 1995, 1422–1428.

Chun

Garrett

L.D.

Sargeant

Sherman

Hoskinson

J.J.

Predictors of response to radioiodine therapy in hyperthyroid cats, Vet Radiol Ultrasound 43, 2002, 587–591.

Nykamp

S.G.

Dykes

N.L.

Zarfoss

M.K.

Scarlett

J.M.

Association of the risk of development of hypothyroidism after iodine 131 treatment with the pretreatment pattern of sodium pertechnetate Tc 99m uptake in the thyroid gland in cats with hyperthyroidism: 165 cases (1990–2002), J Am Vet Med Assoc 226, 2005, 1671–1675.

Greco

D.S.

Diagnosis of congenital and adult-onset hypothyroidism in cats, Clin Tech Small Anim Pract 21, 2006, 40–44.

Peterson

M.E.

Kintzer

P.P.

Cavanagh

P.G.

Feline hyperthyroidism: Pretreatment clinical and laboratory evaluation of 131 cases, J Am Vet Med Assoc 183, 1983, 103–110.

Thoday

K.L.

Mooney

C.T.

Historical, clinical and laboratory features of 126 hyperthyroid cats, Vet Rec 131, 1992, 257–264.

Broussard

J.D.

Peterson

M.E.

Fox

P.R.

Changes in clinical and laboratory findings in cats with hyperthyroidism from 1983 to 1993, J Am Vet Med Assoc 206, 1995, 302–305.

10.

Peterson

M.E.

Gamble

D.A.

Effect of non-thyroidal illness on serum thyroxine concentrations in cats: 494 cases (1988), J Am Vet Med Assoc 197, 1990, 1203–1208.

11.

Hoenig

Ferguson

D.C.

Assessment of thyroid functional reserve in the cat by the thyrotropin-stimulation test, Am J Vet Res 44, 1983, 1229–1232.

12.

Kemppainen

R.J.

Mansfield

P.D.

Sartin

J.L.

Endocrine responses of normal cats to TSH and synthetic ACTH administration, J Am Anim Hosp Assoc 20, 1984, 737–740.

13.

DiBartola

S.P.

Tarr

M.J.

Corticotropin and thyrotropin response tests in Abyssinian cats with familial amyloidosis, J Am Anim Hosp Assoc 25, 1989, 217–220.

14.

Sparkes

A.H.

Jones

B.R.

Gruffyddjones

T.J.

Walker

M.J.

Thyroid-function in the cat – assessment by the Trh response test and the thyrotropin stimulation test, J Small Anim Pract 32, 1991, 59–63.

15.

Mooney

C.T.

Thoday

K.L.

Doxey

D.L.

Serum thyroxine and triiodothyronine responses of hyperthyroid cats to thyrotropin, Am J Vet Res 57, 1996, 987–991.

16.

Ribela

M.T.

Bianco

A.C.

Bartolini

The use of recombinant human thyrotropin produced by Chinese hamster ovary cells for the preparation of immunoassay reagents, J Clin Endocrinol Metab 81, 1996, 249–256.

17.

Sauvé

Paradis

Use of recombinant human thyroid-stimulating hormone for thyrotropin stimulation test in euthyroid dogs, Can Vet J 41, 2000, 215–219.

18.

Boretti

F.S.

Sieber-Ruckstuhl

N.S.

Favrot

Evaluation of recombinant human thyroid-stimulating hormone to test thyroid function in dogs suspected of having hypothyroidism, Am J Vet Res 67, 2006, 2012–2016.

19.

Boretti

F.S.

Sieber-Ruckstuhl

N.S.

Willi

Lutz

Hofmann-Lehmann

Reusch

C.E.

Comparison of the biological activity of recombinant human thyroid-stimulating hormone with bovine thyroid-stimulating hormone and evaluation of recombinant human thyroid-stimulating hormone in healthy dogs of different breeds, Am J Vet Res 67, 2006, 1169–1172.

20.

Daminet

Fifle

Paradis

Duchateau

Moreau

Use of recombinant human thyroid-stimulating hormone for thyrotropin stimulation test in healthy, hypothyroid and euthyroid sick dogs, Can Vet J 48, 2007, 1273–1279.

21.

Stegeman

J.R.

Graham

P.A.

Hauptman

J.G.

Use of recombinant human thyroid-stimulating hormone for thyrotropin-stimulation testing of euthyroid cats, Am J Vet Res 64, 2003, 149–152.

22.

Mooney

C.T.

Thoday

K.L.

Nicoll

J.J.

Doxey

D.J.

Qualitative and quantitative thyroid imaging in feline hyperthyroidism using technetium-99m as pertechnetate, Vet Radiol Ultrasound 33, 1992, 313–320.

23.

Daniel

G.B.

Sharp

D.S.

Nieckarz

J.A.

Adams

Quantitative thyroid scintigraphy as a predictor of serum thyroxin concentration in normal and hyperthyroid cats, Vet Radiol Ultrasound 43, 2003, 374–382.

24.

De Roover

Duchateau

Carmichael

van Geffen

Daminet

Effect of storage of reconstituted recombinant human thyroid-stimulating hormone (rhTSH) on thyroid-stimulating hormone (TSH) response testing in euthyroid dogs, J Vet Intern Med 20, 2006, 812–817.

25.

Ekholm

Engstrom

Ericson

L.E.

Melander

Exocytosis of protein into the thyroid follicle lumen: An early effect of TSH, Endocrinology 97, 1975, 337–346.

26.

Collins

W.T.

Capen

C.C.

Ultrastructural and functional alterations of the rat thyroid gland produced by polychlorinated biphenyls compared with iodide excess and deficiency, and thyrotropin and thyroxine administration, Virchows Arch B Cell Pathol Incl Mol Pathol 33, 1980, 213–231.

27.

Nilsson

Engstrom

Ericson

L.E.

Graded response in the individual thyroid follicle cell to increasing doses of TSH, Mol Cell Endocrinol 44, 1986, 165–169.

28.

Kogai

Endo

Saito

Miyazaki

Kawaguchi

Onaya

Regulation by thyroid-stimulating hormone of sodium/iodide symporter gene expression and protein levels in FRTL-5 cells, Endocrinology 138, 1997, 2227–2232.

29.

Lorenz

M.D.

Stiff

M.E.

Serum thyroxine content before and after thyrotropin stimulation in dogs with suspected hypothyroidism, J Am Vet Med Assoc 177, 1980, 78–81.

30.

Thotakura

N.R.

Desai

R.K.

Szkudlinski

M.W.

Weintraub

B.D.

The role of the oligosaccharide chains of thyrotropin alpha- and beta-subunits in hormone action, Endocrinology 131, 1992, 82–88.

31.

Rayalam

Eizenstat

L.D.

Hoenig

Ferguson

D.C.

Cloning and sequencing of feline thyrotropin (fTSH): Heterodimeric and yoked constructs, Domest Anim Endocrinol 30, 2006, 203–217.

32.

Nunez

M.R.

Sanders

Jeffreys

Analysis of the thyrotropin receptor–thyrotropin interaction by comparative modeling, Thyroid 14, 2004, 991–1011.

33.

Szkudlinski

M.W.

Thotakura

N.R.

Bucci

Purification and characterization of recombinant human thyrotropin (TSH) isoforms produced by Chinese hamster ovary cells: The role of sialylation and sulfation in TSH bioactivity, Endocrinology 133, 1993, 1490–1503.

34.

Nieckarz

J.A.

Daniel

G.B.

The effect of methimazole on thyroid uptake of pertechnetate and radioiodine in normal cats, Vet Radiol Ultrasound 42, 2001, 448–457.

35.

Lambrechts

Jordaan

M.M.

Pilloy

W.J.

van Heerden

Clauss

R.P.

Thyroidal radioisotope uptake in euthyroid cats: A comparison between 131I and ^99mTcO₄, J S Afr Vet Assoc 68, 1997, 35–39.

36.

Jhiang

S.M.

Cho

J.Y.

Ryu

K.Y.

An immunohistochemical study of Na+/I− symporter in human thyroid tissues and salivary gland tissues, Endocrinology 139, 1998, 4416–4419.

37.

Spitzweg

Joba

Eisenmenger

Heufelder

A.E.

Analysis of human sodium iodide symporter gene expression in extrathyroidal tissues and cloning of its complementary deoxyribonucleic acids from salivary gland, mammary gland, and gastric mucosa, J Clin Endocrinol Metab 83, 1998, 1746–1751.

38.

De La Vieja

Dohan

Levy

Carrasco

Molecular analysis of the sodium/iodide symporter: Impact on thyroid and extrathyroid pathophysiology, Physiol Rev 80, 2000, 1083–1105.

39.

Scrivani

P.V.

Dykes

N.L.

Page

R.B.

Erb

H.N.

Investigation of two methods for assessing thyroid-lobe asymmetry during pertechnetate scintigraphy in suspected hyperthyroid cats, Vet Radiol Ultrasound 48, 2007, 383–387.

40.

Wisner

E.R.

Theon

A.P.

Vet

Nyland

T.G.

Hornof

W.J.

Ultrasonographic examination of the thyroid gland of hyperthyroid cats: A comparison to ^99mTcO₄⁻ scintigraphy, Vet Radiol Ultrasound 35, 1994, 53–58.

41.

Balogh

Thuroczy

Biksi

Thyroid volumetric measurement and quantitative thyroid scintigraphy in dogs, Acta Vet Hung 46, 1998, 145–156.

42.

Yildirim

Dane

Seven

Morphological asymmetry in thyroid lobes, and sex and handedness differences in healthy young subjects, Int J Neurosci 116, 2006, 1173–1179.

43.

Gerendai

Halasz

Neuroendocrine asymmetry, Front Neuroendocrinol 18, 1997, 354–381.

44.

Gontova

I.A.

Abramov

V.V.

Kozlov

V.A.

Asymmetry of delayed type hypersensitivity reaction in mice, Bull Exp Biol Med 135, 2003, 67–69.

45.

Huysmans

D.A.

Nieuwlaat

W.A.

Erdtsieck

R.J.

Administration of a single low dose of recombinant human thyrotropin significantly enhances thyroid radioiodide uptake in nontoxic nodular goiter, J Clin Endocrinol Metab 85, 2000, 3592–3596.

46.

Nieuwlaat

W.A.

Hermus

A.R.

Sivro-Prndelj

Corstens

F.H.

Huysmans

D.A.

Pretreatment with recombinant human TSH changes the regional distribution of radioiodine on thyroid scintigrams of nodular goiters, J Clin Endocrinol Metab 86, 2001, 5330–5336.

47.

Nieuwlaat

W.A.

Huysmans

D.A.

van den Bosch

H.C.

Pretreatment with a single, low dose of recombinant human thyrotropin allows dose reduction of radioiodine therapy in patients with nodular goiter, J Clin Endocrinol Metab 88, 2003, 3121–3129.

48.

Duick

D.S.

Baskin

H.J.

Significance of radioiodine uptake at 72 hours versus 24 hours after pretreatment with recombinant human thyrotropin for enhancement of radioiodine therapy in patients with symptomatic non-toxic or toxic multinodular goiter, Endocr Pract 10, 2004, 253–260.

49.

Nieuwlaat

W.A.

Hermus

A.R.

Ross

H.A.

Dosimetry of radioiodine therapy in patients with nodular goiter after pretreatment with a single, low dose of recombinant human thyroid-stimulating hormone, J Nucl Med 45, 2004, 626–633.

50.

Feeney

D.A.

Jessen

C.R.

Weichselbaum

R.C.

Cronk

D.E.

Anderson

K.L.

Relationship between orally administered dose, surface emission rate for gamma radiation, and urine radioactivity in radioiodine-treated hyperthyroid cats, Am J Vet Res 64, 2003, 1242–1247.

51.

Weichselbaum

R.C.

Feeney

D.A.

Jessen

C.R.

Evaluation of relationships between pretreatment patient variables and duration of isolation for radioiodine-treated hyperthyroid cats, Am J Vet Res 64, 2003, 425–427.
