A Blinded,Randomized,Palatability Study Comparing Variations of 2 Popular Field Water Disinfection Tablets

Background

Due to a variety of microbial pathogens, almost no untreated surface water should be considered safe to drink. ^{1 –}3 There are many ways of disinfecting water on both large and small scales, including (but not limited to) filtration, heat, ultraviolet light, and chemical. Worldwide, chemical disinfection by halogen-based iodine and chlorine-containing compounds are the most commonly used methods of disinfection. ⁴ They offer convenience for both individual and group use because of the minimal equipment required and their technical ease.

When used appropriately, popular commercially available field water disinfection tablets relying on the action of halogens have been proven effective at rendering most water sources safe for human consumption.^4,5 Halogens and related halogen-based disinfectants act as strong oxidants that destroy essential cellular structures and enzymes of water-borne pathogens. ^{4 –}6 Of the halogens, iodine is the least reactive with organic compounds and tends to form relatively stable residual concentrations in treated water. ⁴ Chlorine-based chlorine dioxide, which is frequently used in municipal water treatment facilities, is the disinfectant shown to be most effective against Cryptosporidium in commonly used concentrations. ⁴ Although proven to be generally safe for the typical consumer when used as directed, some reluctance to use halogens for disinfection may exist due to concerns about potential toxicity from the long-term use of iodine- or chlorine-related byproducts. ^{4 –}6 Moreover, the active forms of many halogens leave a residual taste in the water that may be unpleasant. For example, the palatability “objectionable threshold” has been shown to be easily reached when the iodine-containing water disinfectant tetraglycine hydroperiodide (TGHP) is used at doses appropriate for treating heavily polluted water. ⁷ This objectionable taste can be a barrier to proper use of, and compliance in using, these chemical disinfectants. ⁷

Chemical additives such as ascorbic acid are commonly used to reduce the unpleasant taste of halogen-treated water. ^{4 ,6,}7 One Vietnam era study found that Marines commonly added drink mixes to canteen water to conceal the taste of water treated by TGHP. ⁷ Later studies found that the ascorbic acid contained in some of these drink mixes reduced the active disinfectant elemental iodine to relatively tasteless and odorless iodide, which contains little residual germicidal activity. ^{4 ,7,}8 If used before the completion of disinfection, ascorbic acid may improve palatability but would be expected to reduce the disinfection effectiveness of iodine. We were unable to locate recent relevant studies in the available literature that address the effectiveness of improving the taste of halogen-treated water through the addition of ascorbic acid. We sought to compare the palatability of distilled water with water disinfected by 2 popular halogen-based chemical water disinfectants (TGHP and chlorine dioxide) with and without the addition of ascorbic acid.

Methods

This study was granted exemption from continuing review by our study site Institutional Review Board, and the need for formal informed consent was waived. Volunteer participants were enrolled as blinded “taste testers” at Madigan Army Medical Center at Fort Lewis, WA. All participants were healthy, nonpregnant adults with no known drug or food allergies, including known adverse reactions to iodine or iodine-containing compounds.

Five different water-based samples were tested by the study participants: 1) distilled water; 2) distilled water with tetraglycine hydroperiodide (TGHP); 3) distilled water with chlorine dioxide (CD); 4) distilled water with TGHP plus ascorbic acid; and 5) distilled water with CD plus ascorbic acid. The TGHP (Potable Aqua Drinking Water Germicidal Tablets: Wisconsin Pharmacal Company, Jackson, WI), CD (Potable Aqua Chlorine Dioxide Water Purification Tablets: Wisconsin Pharmacal Company, Jackson, WI), and ascorbic acid (PA Plus Tablets: Wisconsin Pharmacal Company, Jackson, WI) additives are all readily available to the lay consumer. The water disinfectants and ascorbic acid additives were mixed according to the manufacturer's instructions located on the package. When prepared as directed, solutions containing approximately 16 ppm of titratable iodine, 4 ppm of chlorine dioxide, and 45 mg of ascorbic acid per L of water are produced. ⁸ By design, the quantity of ascorbic acid in solution is sufficient to reduce all 16 ppm of titratable iodine when used in combination with TGHP. ⁸ Samples were kept at room temperature and were used on the day that they were made. Approximately 10 mL of each sample was placed in opaque cups with a lid and straw to inhibit the sight and smell of the sample. Participants were blinded as to the identity of each beverage.

Taste testers were instructed not to eat, drink, or chew gum 30 minutes prior to participation. They were given 5 numbered cups containing one of each different beverage sample. The order in which the different beverages were sampled was randomized in a predetermined, rotating fashion to reduce potential order effect. Participants sampled beverages during individual sessions without interaction with other study participants and were instructed to withhold discussing details regarding their tasting experience until after completion of the study period that day. After each sample, the participant immediately rated the taste of the beverage via a 100 mm visual analogue scale (VAS) by placing a vertical dash on the horizontal VAS line. The VAS is a well described means of assessing the palatability of a variety of beverages and foods.^9,10 The left margin (0 mm) represented a “very bad taste” and the right margin (100 mm) a “very good taste.” Between beverage samples, the participants were instructed to cleanse their palate by eating a small soda cracker. After sampling all 5 beverages, the participants were instructed to rank the samples from the “most pleasant” to the “least pleasant.”

For each sample, the 100 mm VAS result was described by its mean value with 95% CI with testing for significance via a 2-tailed t test. The samples chosen as “most pleasant” and “least pleasant” were described by their selection proportion and tested for significance via χ² analysis. Statistical analysis was completed with NCSCC and PASS (Number Cruncher Statistical Systems, 2004, Kaysville, Utah).

Results

Sixty participants evaluated the samples. On the VAS, distilled water with TGHP measured as significantly worst tasting (mean VAS: 23.7 mm; P < .05). Distilled water with CD was significantly better tasting (mean VAS: 36.5 mm) than TGHP, but second worse tasting overall (P < .05). Distilled water with TGHP plus ascorbic acid (mean VAS: 64.0 mm), distilled water alone (mean VAS: 63.1mm), and distilled water with CD plus ascorbic acid (mean VAS: 58.0 mm) all measured similarly (P > .05) as being the statistically significant best tasting samples (P < .05; see Figure). Distilled water with TGHP was ranked by 58% of participants as the “least pleasant” tasting, while distilled water with TGHP plus ascorbic acid was ranked by 40% of participants as “most pleasant” tasting (P < .05; see Table).

OPEN IN VIEWER

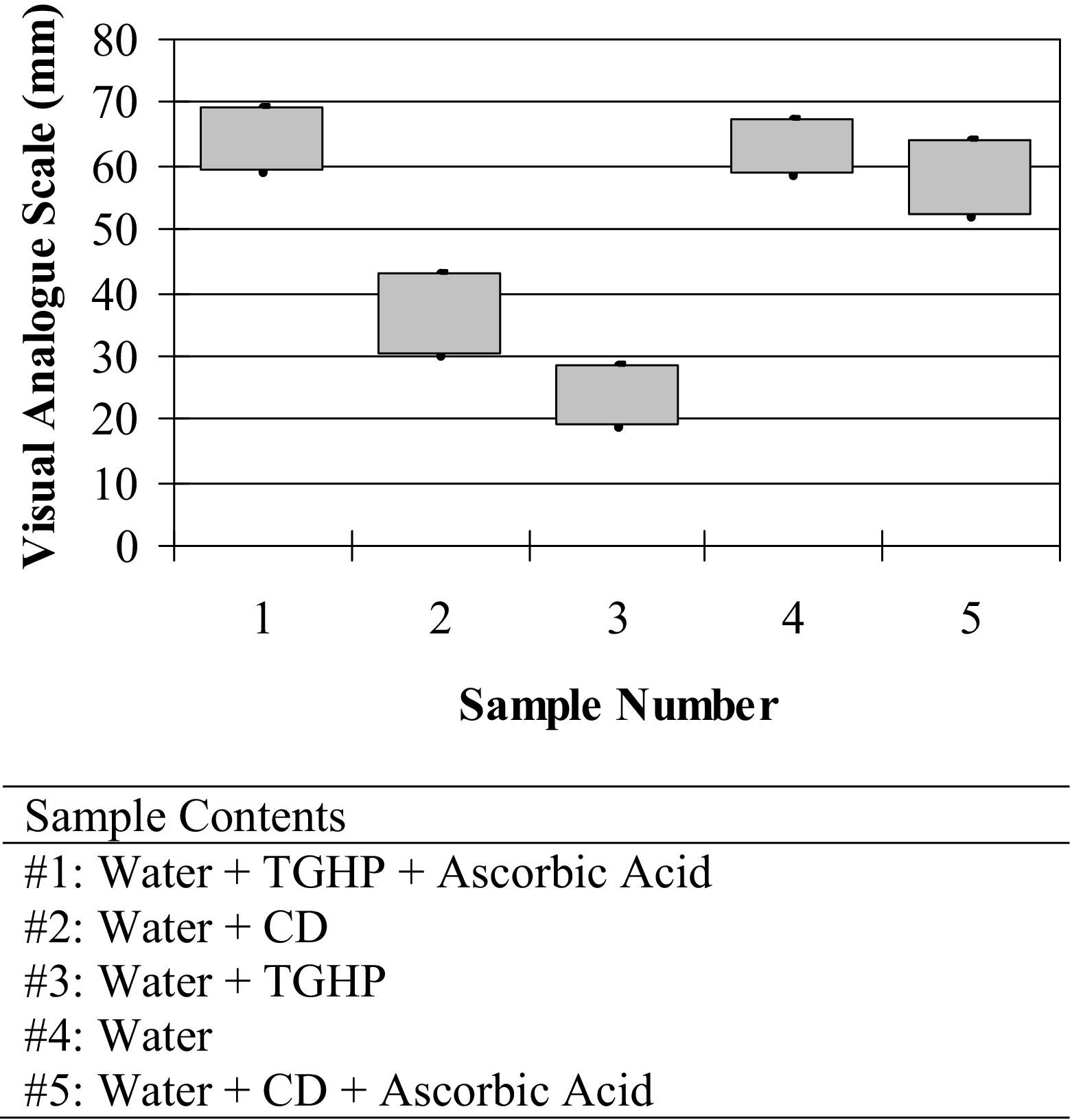

Figure

Mean palatability visual analogue scale measurements by 60 participants of the 5 water samples shown with 95% confidence intervals (Water = distilled water, TGHP = tetraglycine hydroperiodide, CD = chlorine dioxide).

Discussion

This study sought to characterize the relative palatability of halogen-based chemically treated water samples with and without a common “taste neutralizer” when rated by study participants. While iodinated water is a globally effective and available water disinfectant, our participants rated its taste “least pleasant.” Similarly, the water treated with chlorine dioxide lacked relative palatability. Proper and safe hydration can be an obstacle in austere environments when the choices of beverages may be limited to water only. The relatively displeasing taste of chemically disinfected water, although creating more potable water, may also create a barrier to proper hydration.

In our study, we observed that the addition of ascorbic acid truly did eliminate the unpleasant taste of water treated with halogen-based chemical disinfectants. The addition of the ascorbic acid rendered the 2 treated water samples statistically indistinguishable from water alone. The implication of this finding is that, with use of a taste neutralizer, halogen-disinfected water can be as palatable as water without disinfectants, and the taste neutralizer removes any taste barriers to hydration. Interestingly, when selecting the most and least pleasant sample, the majority of participants in our study ranked the iodinated water to be the “least pleasant” tasting sample and ranked the iodinated water with the addition of the ascorbic acid taste neutralizer “most pleasant.” Regardless of bench-top efficacy, a truly effective disinfectant in the real world setting is one that is likely to be used properly and consistently. Thus, if taste is a barrier to the use of chemical water treatments, this study demonstrates that the addition of ascorbic acid may be able to eliminate or reduce this barrier. However, when using ascorbic acid as a taste neutralizer in iodinated water, it is critical to add the neutralizer after treatment time is completed because it will eliminate germicidal activity if applied prior to completion of treatment.

Some potential limitations to this study should be acknowledged. While distilled water was used in all samples, different water sources and the presence of minerals may create differing intrinsic palatability, possibly resulting in different overall palatability results. Also, we examined the taste using room temperature water. The differences observed may not be seen with water at colder or warmer temperatures. The magnitude of our findings was likely influenced by the relatively high concentrations of chemical disinfectants when prepared using the manufacturer's instructions. Such differences may not exist when lower concentrations of TGHP or CD are used. It is also uncertain if the palatability observations of TGHP or CD can be assumed to be the same in other iodinated and chlorinated forms of water. It can be debated whether or not the VAS or sample ranking findings between beverages indicate a field difference in addition to a statistical difference. Finally, each participant consumed only a small amount of each water sample. In more realistic conditions, a much larger volume of disinfected water would be consumed. We have assumed that the differences in palatability that we observed would also apply to these larger volumes.

More research is needed to demonstrate the true effect of this finding on usage patterns of chemical water disinfection. Clinically relevant future studies could focus on whether adding the ascorbic acid or other taste neutralizers lead to more proper or consistent use of halogen-based disinfectants. Additionally, hydration status could be monitored as a marker for willingness to consume adequate amounts of the plain treated or taste-neutralized water sources. Whether these results will have an impact on public health and rates of disease remains to be seen; at a minimum, it provides scientific and statistical background to support the use of ascorbic acid taste neutralizers to improve the palatability of water treated with commercially available halogen-based chemical purification agents.
