High Tensile Strength Increases Multifunctional Use of Survival Blankets in Wilderness Emergencies

Introduction

Low-weight and low-bulk survival blankets with their distinctive silver and gold surfaces are essential components of first aid kits and professional emergency equipment. Historically, a thin polyethylene terephthalate sheet, called a “space blanket,” was originally used by the National Aeronautics and Space Administration’s Marshall Space Flight Center in 1964 to protect exterior surfaces of spacecraft from radiated heat. ¹ Survival blankets are multifunctional tools. The gold color and light reflection from the surface increase visibility for search and rescue services. Survival blankets can protect against hypothermia by reducing heat loss from convection, evaporation, and thermal radiation. ² Additionally, the blankets protect against ultraviolet radiation ³ and limit heat gain by reflecting infrared radiation. This is accomplished by the blanket providing shade and because aluminum increases thermal conductance from the body to the cold ground when the blanket is in direct contact with the skin. ⁴ When wearing the unfolded blanket under a waterproof jacket, it can protect against the wind. Furthermore, the foil can be used as a vapor barrier, and it can even be used to construct a stopgap bivouac sack in the wilderness.^5,6

From our literature review, no information is available on whether survival blankets are strong enough to serve as makeshift tourniquets for treatment of severe hemorrhage. Adequate tightness, proper application, and correct positioning are mandatory to achieve sufficient circumferential compression to control bleeding by completely stopping the blood flow in a limb. ⁷ An improperly placed tourniquet can increase blood loss if it is only tight enough to occlude venous return. ⁸ Tourniquets cause pain from compression and ischemia, but the rate of complications has been reported to be low. ⁹ Potential complications include nerve palsies, compartment syndrome, venous thromboembolic events, and postischemic reperfusion damage. ⁹ Although improvised tourniquets have been reported to be less reliable than commercial tourniquets, they may be better than no tourniquet. ⁸ In particular, mass casualty incidents with multiple victims and trauma with severe hemorrhage during outdoor sports in the backcountry environment might necessitate use of improvised tourniquets.

In this experimental study, we investigated the resistance to tear forces of 2 conventional survival blankets commonly used by emergency services.

Methods

Assessment of Breaking Strength and Elongation

To predict how the blankets would perform when used for circumferential compression as temporary pelvic binders or as makeshift tourniquets, we measured breaking strength and elongation with a tensile strength testing machine for metal and plastic parts (Zwick/Roell Z100/TL3A Nr.137226; ZwickRoell GmbH & Co.KG, Ulm, Germany). The blankets of each brand were cut into 2 parts, each 105 cm long. For each trial, we tied the 2 ends of a longitudinally folded survival blanket segment together with a square knot. The loops were stretched between the 2 bolts (diameter: 1.2 cm, distance between the bolts: 20.0 cm) of the testing machine (Figure 1). In the original packaging, the ARC rescue sheets were laid out in 25 accordion-pleat layers (24 folds) of 6.4 cm width; in unpacked and vertically aligned position, the segment slightly fanned out to 7.0 cm in width. The MRT rescue blankets were laid out in 23 layers (22 folds) of 6.9 cm in width; in unpacked and vertically aligned position, the segment fanned out to 7.8 cm in width. Ten samples per brand were subjected to controlled tension until failure. Breaking strength was determined by plotting the force (N) immediately before failure occurred. Elongation (cm) at failure and the distance from knot to tear (cm) were recorded. The location of the tear was categorized as either central or peripheral. The pattern of the tear was classified as longitudinal, oblique, or transverse.

OPEN IN VIEWER

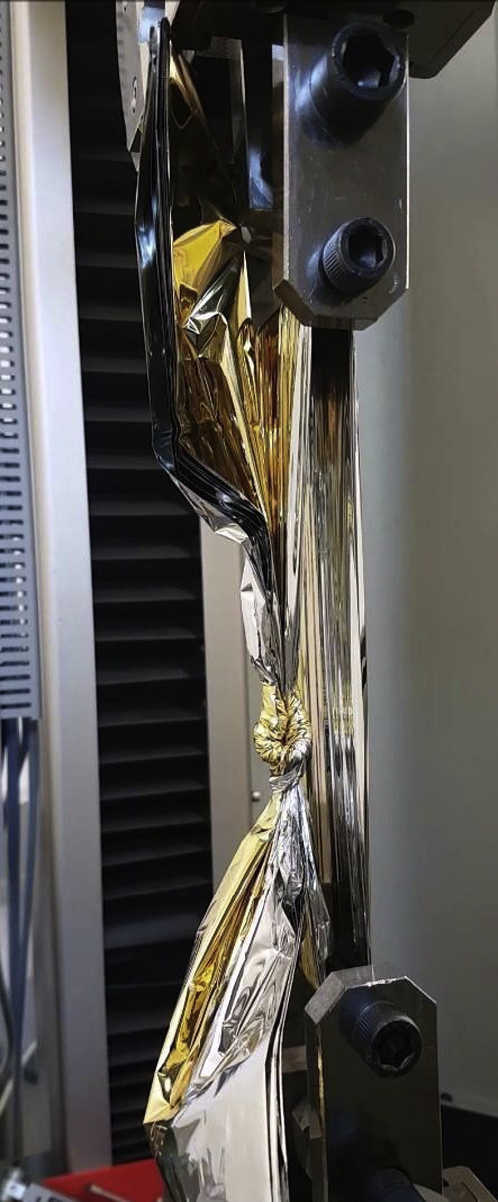

Figure 1

Tear resistance of survival blankets. Study setup with the blanket in unpacked and vertically aligned position and stretched between 2 bolts. The 2 ends of the longitudinally folded survival blanket segment are tied together with a square knot to resemble the condition of blankets used as temporary pelvic binders and makeshift tourniquets.

Results

A total of 10 samples per brand were tested in 20 trials and showed variations in breaking strength between 2.8 and 4.8 kN. Breaking strength for the longitudinally folded ARC rescue sheet (25 layers) was 4.0±0.5 (3.2–4.8) kN. The tear ran transversely in 9 of the 10 tests and obliquely in 1 of the 10 tests. It was located peripherally in 1 of the 10 tests and centrally in 9 of the 10 tests. The pattern of the tear was homogeneous (running perpendicularly through all layers) when it occurred peripherally and was staggered (running through all layers at various intervals) when it occurred centrally. The mean distance from knot to tear was 5.7±6.7 (0–24) cm. Elongation at failure was mostly due to contraction of the knot. In the tested ARC Rescue Sheets, elongation at failure ranged from 3.3 to 7.5 cm.

Breaking strength for the longitudinally folded MRT rescue blanket (23 layers) was 3.8±0.4 (2.8–4.1) kN. The tear ran transversely and was centrally located in all tests. Distance from knot to tear was 17.8±6.2 (5–26) cm. Elongation at failure ranged from 3.7 to 7.4 cm in the tested MRT rescue blankets.

We used the windlass of a commercially available tourniquet for the longitudinally folded survival blanket (approximately 7 cm wide). At a force of 0.8 kN, the windlass bent. When using a carabiner, the force exceeded 3.6 kN when failure occurred in both blankets. A mountain rescue Tyrol volunteer demonstrated the application of longitudinally folded survival blankets as a temporary pelvic binder (Figure 2a) or as a makeshift tourniquet (Figure 2b).

OPEN IN VIEWER

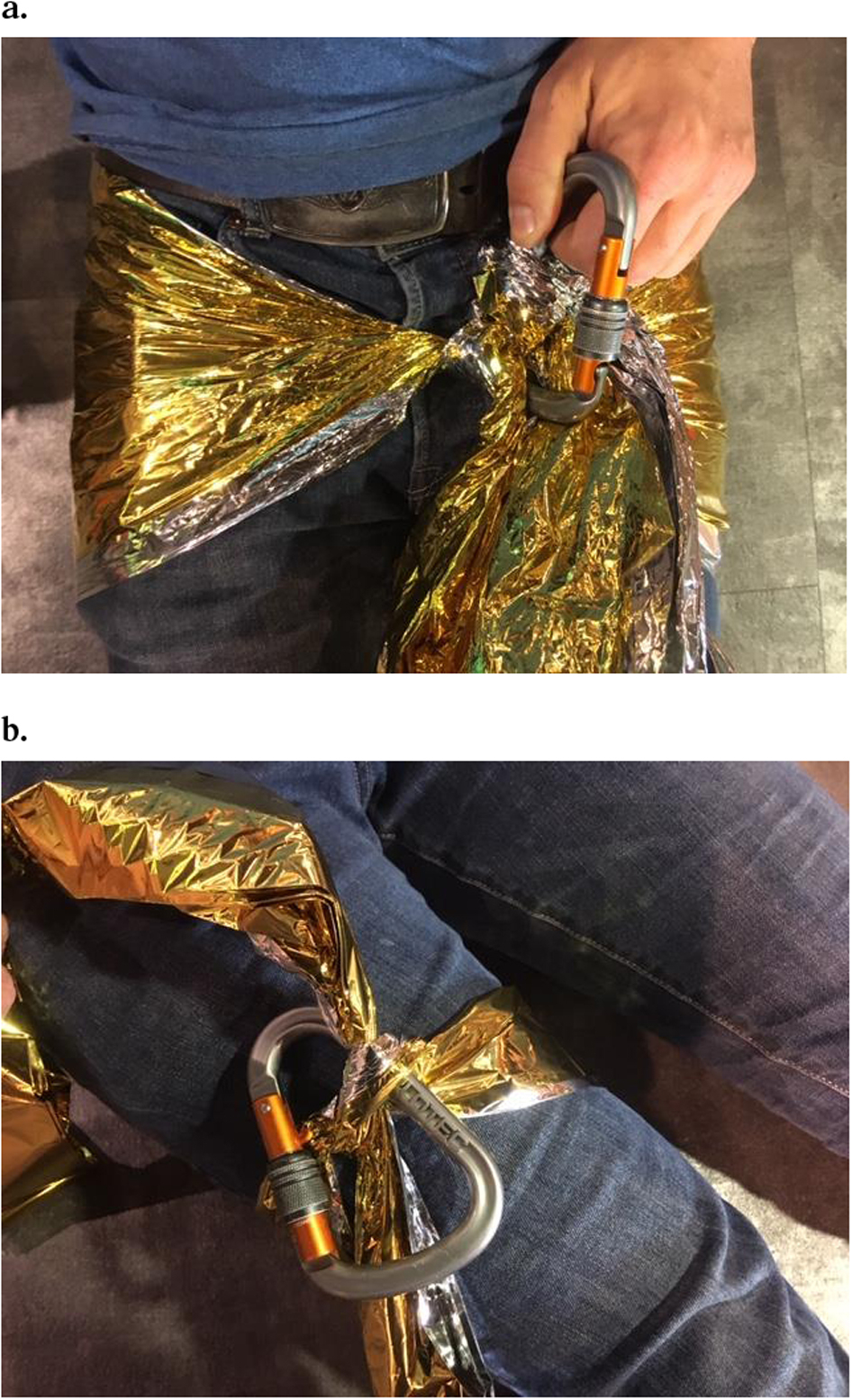

Figure 2

Multifunctional survival blankets. A, Temporary pelvic binder (approximately 21 cm wide) and (B) makeshift tourniquet (approximately 7 cm wide), each made of a commercially available survival blanket with ends tied together with square knots and a carabiner inserted between the 2 knots. The application techniques are demonstrated using a mountain rescue Tyrol volunteer as the model.

Discussion

We report breaking strengths of 2 multifunctional metallic survival blankets commonly used in sport and leisure activities and in prehospital emergency medicine. In our investigation, both tested blankets demonstrated impressive tensile strength. Our findings suggest that longitudinally folded survival blankets are flexible, strong, and wide enough to function as pelvic binders for treatment of unstable pelvic fractures and as makeshift tourniquets. In addition, the high breaking strength of survival blankets suggest that they may serve as extrication devices in the wilderness. It would be worthwhile to assess the potential of such blankets to facilitate transport of a patient in steep terrain when using 1 blanket as a hoop or 2 blankets as a hammock.

Our findings support the hypothesis that in wilderness emergencies, a survival blanket could substitute as a tourniquet when urgent control of bleeding from a limb injury is needed. Tourniquets are increasingly being used to stop bleeding and save lives.^7,10 In our study, we also compared the breaking strength of longitudinally folded survival blankets with that of commercially available tourniquets by using the same windlass. ¹¹ The strengths of the tested brands were similar to that of the tourniquets, limited only by the robustness of the commercially available windlass. We propose that in mass casualty incidents with multiple victims and in cases of trauma with severe hemorrhage in remote areas, tools such as a carabiner, a strong pair of scissors, or even a wooden stick could serve as a windlass.

When applying tear forces during the experiment, the 2 ends of the blanket were tied together with a square knot and the blanket was stretched between the 2 bolts of the testing machine. On one hand, we assumed that in the wilderness the most likely strategy for joining the 2 ends of the blankets is to tie them together. On the other hand, the strain is distributed unevenly in the strands in the vicinity of knots, significantly lowering the breaking strength in ropes. The more the curvature of strands is increased by knots, the greater the reduction in breaking strength that can be anticipated. ¹² We expected the tear to occur close to or within the knots. However, our results reveal that the tear was located close to the knot in only 1 of the 20 tests. We suggest that in an actual setting, the 2 ends can be joined using 2 common square knots with a carabiner inserted between the 2 knots (Figure 2). If we consider the breaking strength of a common carabiner with the gate closed and loaded in the main direction to be a minimum of 20 kN, then the breaking strength of a carabiner with the strength in the transverse direction is diminished to approximately 7 kN. Despite this limitation, a diagonally loaded carabiner used to tighten a makeshift tourniquet is still estimated to be 10 times stronger than a conventional windlass.

We recommend that survival blankets in wilderness emergencies be prospectively tested for use as substitutes for pelvic binders, as makeshift tourniquets, and as extrication devices before supplementing the multifunctional scope of survival blankets in international guidelines and protocols.

Conclusions

Survival blankets show impressive tensile strength, indicating that they have the potential to serve as improvised temporary pelvic binders or as makeshift tourniquets when urgent bleeding control is needed.
