Athlete’s Heart in Elite Sport Climbers: Cardiac Adaptations Determined Using ECG and Echocardiography Data

Introduction

The term athlete’s heart syndrome refers to the electrophysiological, structural, and functional myocardial adaptations associated with continuous training stimuli in the absence of pathologic significance. ¹ Such adaptations may include a 10 to 15% increase in the chamber dimensions of the left and right ventricles and a 10 to 20% increase in left ventricular wall thickness, resulting in increased stroke volume and improved cardiac filling in diastole. ² The effect of exercise on the cardiovascular system largely depends on the underlying stimulus (eg, endurance or strength training). ¹ Endurance-based training effects include reduced systolic blood pressure and increased cardiac output, thus decreasing myocardial oxygen consumption. ¹ Myocardial oxygen consumption is defined as coronary blood flow×arteriovenous difference in O₂ content. In contrast, strength-based training raises blood pressure and heart rate with a resultant increase in myocardial oxygen consumption. ¹ Despite the positive benefits to athletic performance from cardiac adaptation, the high training loads undertaken by elite athletes (defined here as athletes at National Team standard) could potentially lead to adverse adaptations resulting in sudden cardiac death (SCD). ² Of note, intense physical exercise in an athlete with an underlying cardiovascular abnormality can also lead to SCD, ³ usually as a result of an exercise-induced catecholamine surge acting on an arrhythmogenic substrate, invoking ventricular arrhythmia. ⁴

Atherosclerosis of the coronary artery is the leading cause of SCD (80%) in athletes over the age of 35 y. In contrast, inherited and acquired cardiovascular abnormalities with hypertrophic cardiomyopathies (HCM) and arrhythmogenic ventricular cardiomyopathy (AVCM) are the predominant diagnoses in younger athletes. ⁵ HCM classically presents with left ventricular hypertrophy (LVH) without adequate loading conditions in the form of increased physical activity. SCD pathology commonly presents as a result of ventricular tachycardia/fibrillation. ⁶ The prevalence of HCM is estimated to be about 0.2% in the general population and 0.07 to 0.08% in athletes. ⁷ Interestingly, SCD due to HCM is more common in high dynamic and low isometric intensity intermittent activity sports such as soccer and basketball and is rare in endurance-based sports, probably as a consequence of HCM limiting the endurance capacity of athletes and thus self-selecting them out of such sports. ⁸ When investigating the characteristics of climbing using cardiopulmonary exercise testing, the maximal oxygen consumption

V ˙

Other attributable causes of SCD in young athletes are congenital coronary artery anomalies, aortic dissection and stenosis (Marfan syndrome), electrical cardiac anomalies (Wolff-Parkinson-White syndrome, long QT syndrome, Brugada syndrome, catecholaminergic polymorphic ventricular tachycardia, acquired cardiac abnormalities such as myocarditis), and toxicity from drugs. ⁸

Overall, the incidence rate of SCD among young athletes is reported to fall between 2.3 and 4.4/100,000 per year, ^{10 -}12 with a male predominance. ¹³ The majority of nontraumatic deaths are attributed to cardiovascular abnormalities identifiable by pre-participation cardiovascular screening and effectively managed by lifestyle modifications (abstinence from exercise, pharmacotherapy, implantable cardioverter-defibrillators). ⁸ Routine screening of young athletes throughout their careers to detect early pathophysiologic changes and to better develop an understanding of the impact of individual sports in regard to pathophysiologic adaptation is essential.

An electrocardiogram (ECG) is considered the first-line test for the diagnosis of heart disease in athletes. ¹⁴ Adolescent athletes demonstrate a greater prevalence of training-related and training-unrelated ECG changes than nonathletes, such as a longer PR interval, greater frequency of sinus bradycardia, first-degree atrioventricular (AV)-block, incomplete right bundle branch block (IRBBB), voltage criteria for LVH, and early repolarization. ¹⁵ Even though its use for detecting athletes at risk of SCD is controversial, ¹⁶ ECG has clinical utility in identifying adaptations such as LVH or detecting dangerous arrhythmias such as Wolff-Parkinson-White and long QT syndrome in young athletes. ¹⁷ Furthermore, a consensus statement has recommended the implementation of a common European screening protocol based on the use of 12-lead ECG. ¹⁸

However, some cardiac structural changes can be missed on ECG but can be identified by echocardiography. ¹⁹ HCM is the leading cause of SCD in young athletes ²⁰ and initially may present as LVH. ⁶ Although LVH in athletes is not as pronounced as in HCM, the differentiation of HCM in athletes can present difficulties because some athletes develop physiologic LVH with measurements close to those in HCM. ^{21 -}23

Key parameters for investigating the adolescent heart using echocardiography and ruling out cardiomyopathy are left ventricular end-diastolic diameter (LVEDD), maximal septal thickness, left ventricular wall thickness, the transmitral E/A ratio, and the dimensions of the left atrium.^15,24,25 The E/A ratio represents the ratio of early (E) to late (A) ventricular filling velocities. In ventricular hypertrophy, the left ventricular wall becomes stiffer, which slows the early filling velocity and thus lowers the E/A ratio. Coronary artery anomalies and AVCM may be detected by echocardiographic screening, further reducing the risk of SCD in young athletes.

There is a paucity of research focusing on cardiac screening in young climbers. In Germany, each member of the German Junior National Climbing Team (GJNTC) routinely undergoes a mandatory medical examination. To estimate the effects of climbing at an elite level on the left ventricular dimensions, data from 5 y of this medical examination were analyzed retrospectively. Aside from being able to evaluate a relatively large number of high-level climbers in a cross-sectional design, we retrieved longitudinal data for a smaller number of athletes who remained on the team for at least 2 y. Because 2 y of regular endurance training is believed to lead to characteristics of the athlete’s heart, ²⁶ this seemed an appropriate time interval. To clearly differentiate the adaptations observed in the climbing team, we chose a typical endurance sport as control: athletes from the German Junior National Team of Nordic skiing (GJNTN). The aim of this study was to determine the effects of climbing at an elite level on the athlete’s heart at a young age to establish screening methods for detecting risk for SCD. The hypothesis was that climbing at an elite level would lead to structural changes detectable by echocardiography and ECG.

Methods

All participants (Table 1) and their respective legal guardians gave written, informed consent to participate in this study. The ethics committee of the University of Erlangen-Nürnberg, FRG approved the study.

Routinely collected data over a 5-y period were examined. Every athlete on the GJNTC has been and still is required to undergo a medical examination to be allowed to participate in international competitions. As a convenience sample, no blinding procedures were undertaken. Some athletes were screened multiple times because they were selected for the team several years in a row. In these cases, only the most recent examination was analyzed, the rationale being the greatest cardiovascular adaptations are likely associated with number of years climbing. The athletes who remained on the team for a minimum duration of 2 y were reevaluated after that timeframe, and the datasets of these 2 medical examinations were compared. The goal was to determine the cardiovascular adaptations of climbing at an elite level after a minimum of 24 mo.

We compared the longitudinal data from those athletes with an age-matched control group of Nordic skiers from the GJNTN—a representative endurance sport. Because members of both teams (skiing and climbing) are comparable in height and weight and with respect to age and sex, no blinding or further matching was possible.

A standard ECG was performed at rest, and the PR interval (atrial depolarization), QT interval (ventricular de- and repolarization), and deviations from the standard findings according to age were recorded. Clinically significant abnormal findings were recorded when one of the following anomalies was found: T-wave inversions in unexpected chest leads according to age or ST segment depressions, pathologic Q waves, complete left bundle branch block, epsilon wave (sign of AVCM), ventricular pre-excitation, Brugada Type 1 pattern, profound sinus bradycardia (<30 beats·min^-1), AV block, polymorphic ventricular complexes, and atrial or ventricular arrhythmias. The ECG results were interpreted by a cardiologist and an independent pediatric cardiologist. The pediatric cardiologist was an expert in the clinical peculiarities of childhood ECGs. Any disagreements were arbitrated by the chief of staff of the pediatric cardiology department. Because this was part of a routine medical examination, no blinding for the readings of the ECG was involved.

Because the data used in this study were recorded over a timeframe of 5 y and extracted from a regular medical examination of the GJNTC, it was impossible to ensure that all echocardiographic examinations were undertaken by the same cardiologist. As a consequence, the echocardiographic examinations were performed by 2 senior cardiologists.

A protocol for examining athletes from the national team was designed by our cardiologists. At the time of data collection, a standardized protocol was not available and therefore the protocol used may not be comparable to those now used by other research teams. ²⁷ For the examination, an EPIQ 7C (Philipps, Eindhoven, Netherlands) was used. The following measurements were recorded: LVEDD, interventricular septum thickness during diastole (IVSD), left ventricular posterior wall thickness (LVPW), and E/A ratio at the mitral valve. The dimensions of the left atrium were measured in the apical 4-chamber view using 2-dimensional plotting of the left atrium. These measurements were converted into Z-scores for comparison using an online Z-score calculator (http://www.parameterz.com/refs/lopez-circimaging-2017).

Anatomical variances of abnormal findings were also recorded. These included right ventricular dilation or dysfunction as sign of AVCM, congenital coronary artery anomalies, signs of aortic pathologies such as dissection or rupture, bicuspid aortic valve or other cause of aortic stenosis, mitral valve prolapse, and pulmonary hypertension measured through Doppler analysis of tricuspid insufficiency.

Statistical analysis was performed using Microsoft Excel 2000 for data collection and SPSS 12.0 (SPSS Inc., Chicago, IL). All measured values are reported as mean±SD. The Kolmogorov-Smirnov test was used to check for normal distribution. Homogeneity of variance analyzed by Levine’s F-test. For approximately normally distributed variables, differences in means between 2 related groups were analyzed using paired (dependent) t tests; for nonnormally distributed data, Wilcoxon and/or Mann-Whitney U tests were used. For normally distributed variables, differences between climbers and cross-Nordic skiers were analyzed using unpaired (independent) t tests; for nonnormally distributed data, Wilcoxon or Mann-Whitney U tests were used. All tests were 2-tailed, and a 5% level was considered significant.

Results

A total of 47 adolescent (mean age 15.6 y) climbers were examined in the time frame of the study; 27 were male and 20 were female. Fourteen climbers were reevaluated after 27.5±5.4 mo (8 boys and 6 girls) and compared to a group of 8 boys and 6 girls from the GJNTN who were evaluated twice within 28.7±9.8 mo. Both groups were comparable with respect to age, height, and weight (Table 2).

Electrocardiographic analysis of each of the athletes revealed IRBBB in 10% (3 out of 30). First-degree AV block was diagnosed in 7% (2 out of 30) of the athletes. No other abnormal findings were apparent in the ECG readings.

Echocardiography was performed on all athletes. Measurement findings are presented in Table 3, including Z-scores and literature values in athletes and nonathletes for comparison. All of our data fell within the reported values for athletes and nonathletes, ¹⁵ except for the diameter of the left atrium. With regard to the left atrial diameter, our values were much smaller. The anatomic findings were limited to 1° tricuspid insufficiency in 10, mitral valve prolapse in 1, and 1° pulmonary insufficiency in 1 participant.

Fourteen climbers received echocardiographic examinations on 2 occasions (Table 4). The Z-scores for IVSD and LVPW had increased significantly over the timeframe of 27.5 mo, but the measurements for LVEDD did not change significantly. There was no change over time in the E/A ratio in the climbers or the group of Nordic skiers.

Although the measurements for the left ventricular dimension were significantly higher in the group of Nordic skiers at the time of the first examination, by the time of the second examination, the measurements for IVSD and LVPW had become comparable: They had significantly increased in the group of climbers but not in the group of skiers. Only LVEDD remained significantly lower in the group of climbers at the second examination (Figures 1 and 2).

OPEN IN VIEWER

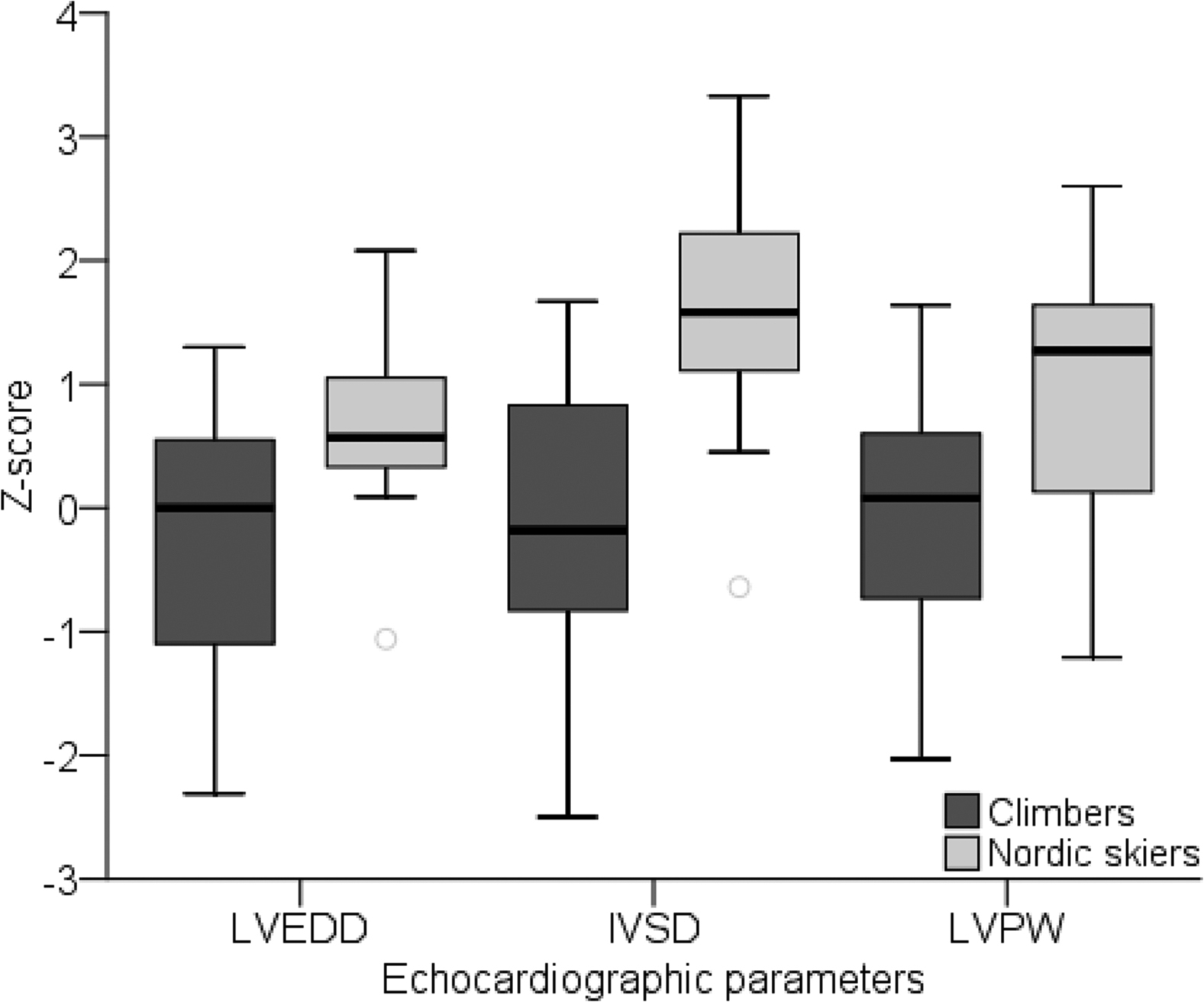

Figure 1

Z-scores of left ventricular end-diastolic diameter, interventricular septum thickness during diastole, and left ventricular posterior wall thickness of climbers and Nordic skiers at the first visit, depicted as boxplots elements. ∗Significant difference between the 2 groups.

OPEN IN VIEWER

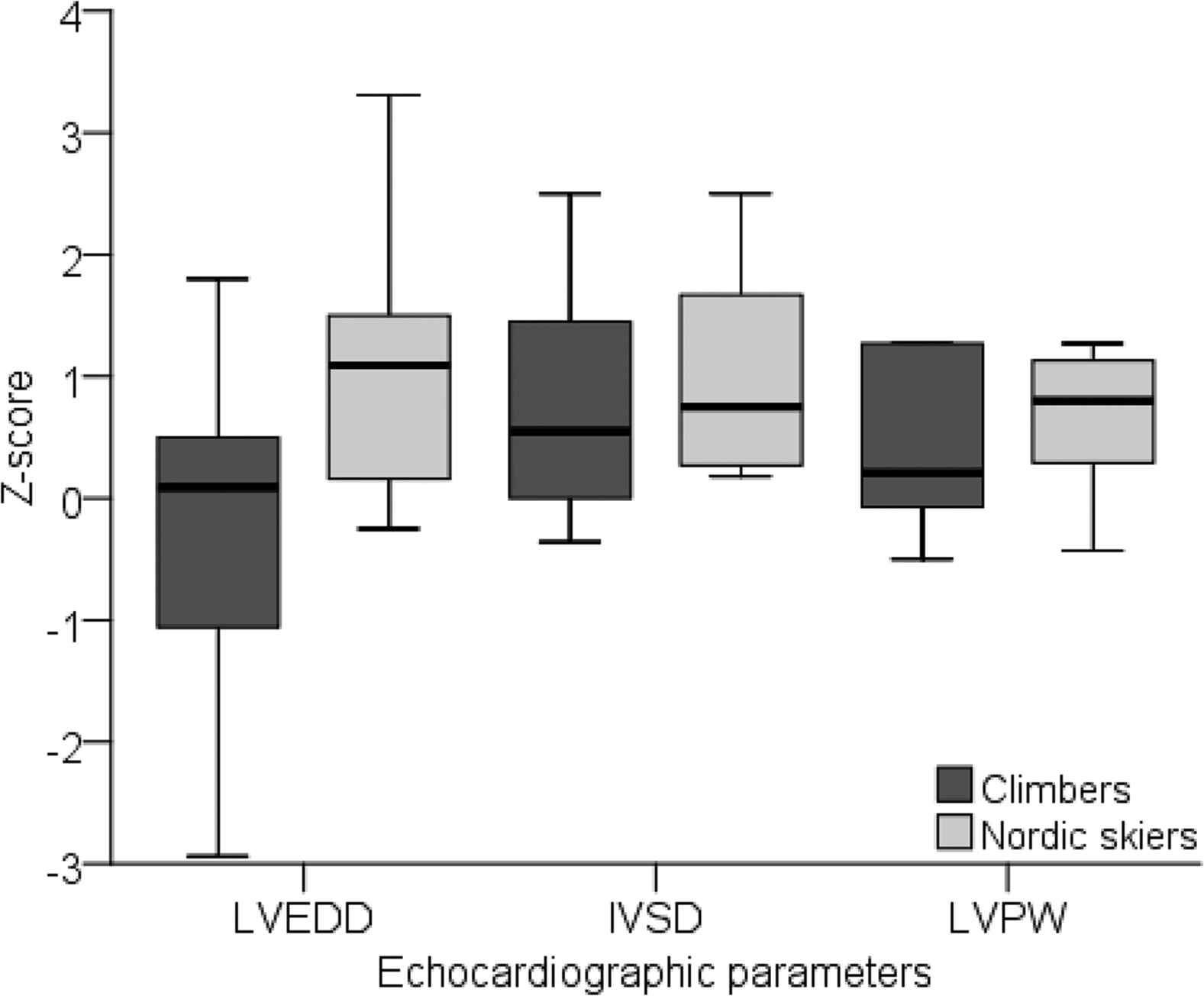

Figure 2

Z-scores of left ventricular end-diastolic diameter, interventricular septum thickness during diastole, and left ventricular posterior wall thickness of climbers and Nordic skiers at the second visit after 2 y, depicted as boxplots elements. ^∗Significant difference between the 2 groups.

Noteworthy findings during echocardiography included a single case of 1° tricuspid insufficiency, 1° pulmonary insufficiency, and mild mitral valve prolapse. All of these findings were still within physiologic limits and were not considered pathologic.

Discussion

The risk of SCD is twice as great for young athletes during sports participation than for nonathletes. ²⁸ Especially after the first reported SCD in a young Canadian sports climber during a competition in the fall of 2019 (cause yet unknown), the importance for screening young elite sport climbers has risen. So far there is no data about the sports-specific cardiac adaptations to be expected in elite climbers. The purpose of this study was to use existing ECG and echocardiography data from the yearly medical examination of the GJNTC to get a first impression of the possible effects of climbing on the left ventricular measurements of elite climbers.

Pediatric athletes are known to have a longer PR interval (148 vs 139 min) and a significantly greater frequency of sinus bradycardia (46%), first-degree AV block (2 vs <1%), IRBBB (26 vs 8%), voltage criteria for LVH (35 vs 24%), and early repolarization (37 vs 29%) when compared with pediatric nonathletes. ¹⁵ In our study, the frequency of first-degree AV block and IRBBB was comparable to these reported observations. Bradycardia, LVH, and early repolarization were not found. Thus, the adaptations in our collection of elite climbers are comparable to those seen in other sports. There were no pathologic findings.

The main morphologic feature of the athlete’s heart in adults is LVH, involving an increase in both the internal diameter and wall thickness. ²⁶ These athletic features are induced mostly by the effects of endurance training. ¹⁷ The structural adaptations of the pediatric athlete’s heart are presented in a systematic review and meta-analysis. ¹⁵ The authors found that pediatric athletes had a significantly greater LVEDD, IVSD, LVPW, and left atrial diameter than nonathletes. Our data fell between the values recorded for athletes and those for nonathletes.

It has also been suggested that Z-scores should be used to account for somatic growth. Whereas in adult cardiology, echocardiographic measurements can be reported with respect to normal range, this is impossible in children because the normal range of measurements is affected by patient growth and/or age. ²⁹ As a description of clinical and echocardiographic variables in children, the measurements are therefore often reported as Z-scores. Standard scores indicate how many standard deviations the measurements lie above or below a size- and age-specific population. ²⁹ When analyzing the Z-scores of the GJNTC, they all fall within normal limits. However, 2 y of regular physical training are needed to develop characteristics of the athlete’s heart. ²⁵ Interestingly, the longitudinal data of our climbers revealed that all Z-score of the left ventricle (LV) increased over a timeframe of 27.5 mo, but only the measurements of IVSD changed significantly. Furthermore, even though the left ventricular dimensions were significantly lower when compared to elite Nordic skiers at an age of 16 y, they were not significantly different with respect to the thickness of the interventricular septum (IVSD) or the lateral wall (LVPW) of the LV when evaluated again after 27.5 mo.

In Nordic skiing, the average speed achieved by the athlete depends mainly on the metabolic energy turnover maintained by the athlete during the workout divided by the economy of progression, or energy cost of locomotion.^30,31 Thus, Nordic skiing is generally classified as an endurance or dynamic sport. Dynamic sports are characterized by involving a high amount of movement and only minimal amount of force. This leads to increases in heart rate and stroke volume (cardiac output). Dynamic sports thus have a high volume load on the heart. As a consequence, enlargement of the left ventricular internal diameter and a proportional increase in wall thickness can be expected, termed eccentric LVH. ³² Static or so-called resistance sports, such as weightlifting, martial arts, and field throwing, involve minimal movement but a high amount of force. ³³ This in turn leads to an elevation of cardiac output as a consequence of an increase in heart rate and blood pressure, causing pressure load on the heart. The so-called concentric LVH that results from static sports includes thickening of the ventricular wall with unchanged internal dimension. ³² Nordic skiing is a pure endurance sport, and thus all the signs of eccentric LVH can be expected. However, climbing probably falls more into the category of team or combat sports, ⁹ and it is unclear what kind of adaptation, if any at all, can be expected.

The finding that the wall thickness of the LV reached measurements comparable to those of the Nordic skiers after being on the team for 2 y was surprising. The fact that the internal diameter of the LV did not change significantly over time, nor did it reach dimensions comparable to the diameter of the LV of the Nordic skiers, suggests eccentric hypertrophy. As a consequence of the small number of athletes investigated cross-sectionally in this study, a classification of climbing as a high-static sport should be discouraged at this time. Interestingly, there were no significant adaptations in the LV of the Nordic skiers after 28.7 mo. A possible explanation for these findings could be that the climbers entered the GJNTC at an early stage in their climbing career. Up to this point, most of them had not undertaken a sport-specific training regimen. Although climbing has been accepted as an Olympic sport, pronounced differences in the structure and organization of training methods exist, in contrast Nordic skiing, which is a well-developed sport with large training facilities and an early talent recruitment system in Germany. It can be expected that the Nordic skiers had already been subjected to intensive training before their first echocardiographic examination. Therefore, their cardiac adaptations were less pronounced over the examined timeframe. In contrast, the climbers who entered the GJNTC may have only started a regular training regimen; this may explain the cardiac adaptations observed in our study. Future prospective studies should take historic training diaries into account. However, because we did not record their training regimen before or after entering the team, this is only a hypothesis.

Although no pathologic findings were recorded during the echocardiographic examination, special attention needs to be paid to the anatomic evaluation of the young athlete’s heart because most of them will never have undergone echocardiography. If anatomic findings are revealed, further investigations are warranted and cardiopulmonary exercise testing should be discouraged until the results have been discussed with a pediatric cardiologist.

Conclusions

Our findings suggest that the young elite athletes of the GJNTC underwent cardiac adaptations in terms of LV wall thickness comparable to elite Nordic skiers. The internal LV diameter did not change and remained significantly smaller than that of the Nordic skiers, which may be explained by eccentric hypertrophy, as observed in static sports, rather than concentric hypertrophy, as observed in dynamic sports. However, we urge caution because the number of participants was small. More important to note is that all findings were within normal limits and no team member showed signs of cardiomyopathy or congenital heart disease. Further longitudinal and prospective studies are needed to more fully evaluate the long-term effects of climbing on the heart of the athlete.
