Hypoperfusion of the Cerebral White Matter in Multiple Sclerosis: Possible Mechanisms and Pathophysiological Significance

Abstract

Multiple sclerosis (MS) is a disease of the central nervous system characterized by patchy areas of demyelination, inflammation, axonal loss and gliosis, and a diffuse axonal degeneration throughout the so-called normal-appearing white matter (NAWM). A number of recent studies using perfusion magnetic resonance imaging in both relapsing and progressive forms of MS have shown a decreased perfusion of the NAWM, which does not appear to be secondary to axonal loss. The reduced perfusion of the NAWM in MS might be caused by a widespread astrocyte dysfunction, possibly related to a deficiency in astrocytic β₂-adrenergic receptors and a reduced formation of cAMP, resulting in a reduced uptake of K⁺ at the nodes of Ranvier and a reduced release of K⁺ in the perivascular spaces. Pathologic and imaging studies suggest that ischemic changes might be involved in the development of a subtype of focal demyelinating lesions (type III lesions), and there appears to exist a relationship between decreased white matter perfusion and cognitive dysfunction in patients with MS.

Keywords

multiple sclerosis cerebral blood flow normal-appearing white matter astrocytes white matter ischemia

Introduction

The pathology of multiple sclerosis (MS) is characterized by inflammation, demyelination, axonal loss, and gliosis. Most people with MS have a relapsing—remitting course, often followed by a more gradual decline in neurologic function, termed secondary progressive MS. Some patients have gradual worsening from the beginning, termed primary progressive MS. Relapses are caused by focal demyelinating lesions (plaques) in the brain or spinal cord. The progressive neurologic disability of secondary and primary MS is mainly based on a slowly progressive widespread axonal degeneration (Frohman et al, 2005; Keegan and Noseworthy, 2002).

The classic teaching is that MS is a T-cell-mediated autoimmune disorder of the central nervous system. However, a number of pathophysiological observations cannot be simply explained on the basis of autoimmune mechanisms. First, the progressive (neurodegenerative) component of the disease continues despite intense immunosuppressive interventions that effectively stop inflammatory disease activity (Coles et al, 1999; Metz et al, 2007; Roccatagliata et al, 2007; Samijn et al, 2006). Second, pathologic studies have shown that some demyelinating lesions develop without a preceding inflammatory reaction (Barnett and Prineas, 2004; Gay, 2007, 2006; Guseo and Jellinger, 1975; Lucchinetti et al, 2000). Third, another intriguing finding difficult to explain by autoimmune phenomena is the finding of a diffuse cerebral white matter hypoperfusion, which is the subject of this review.

White matter hypoperfusion

A number of studies using single photon emission computed tomography or positron emission tomography found reduced cerebral blood flow (CBF) in the gray and white matter of patients with MS, but these findings received little attention in terms of their possible pathophysiological significance (Brooks et al, 1984; Lycke et al, 1993; Sun et al, 1998; Swank et al, 1983).

Renewed interest in this matter arose from perfusion studies with magnetic resonance imaging, a technique allowing differentiation between white matter plaques and normal-appearing white matter (NAWM). Dynamic susceptibility contrast-enhanced magnetic resonance imaging is based on the acquisition of a series of images during the transit of a bolus of contrast material through the vasculature of brain parenchyma. It is a very fast imaging technique typically using echo planar with a temporal resolution of 1 or 2 secs. The method provides parameters of brain perfusion, such as CBF, cerebral blood volume (CBV), and vascular mean transit time. By using this technique, Law et al (2004) found a significantly decreased CBF by about 50%, and a more than twofold prolonged mean transit time, throughout the NAWM in patients with relapsing—remitting MS compared with controls. Adhya et al (2006) studied the regional pattern of tissue perfusion in the NAWM of patients with primary progressive MS, relapsing—remitting MS, and healthy controls. The CBF and CBV were significantly decreased in all NAWM regions in both forms of MS compared with controls. This shows that a globally decreased white matter perfusion is a consistent phenomenon in MS, whatever the disease subtype of MS.

The majority of nonenhancing (chronic) focal lesions in MS white matter show a more decreased perfusion when compared with contralateral NAWM (Law et al, 2004). Conversely, gadolinium-enhancing (active) lesions show increased CBF and CBV, indicative of inflammation-mediated vasodilation (Ge et al, 2005; Haselhorst et al, 2000).

Hypoperfusion of gray matter in MS (Brooks et al, 1984; Inglese et al, 2007; Lycke et al, 1993; Sun et al, 1998; Swank et al, 1983) may be caused by the same mechanism underlying the reduced CBF in NAWM, or may be the consequence of a disconnection between the cerebral cortex and the subcortical structures because of the white matter damage. A similar reduced perfusion of the cerebral cortex is also observed in ischemic white matter damage of the Binswanger type (Yao et al, 1990).

Primary or secondary phenomenon?

To assess whether hypoperfusion in NAWM in MS may be related to a primary vascular etiology or is secondary to decreased metabolic demand from axonal degeneration, Saindane et al (2007) studied the relation between perfusion and diffusion tensor imaging in normal-appearing corpus callosum in patients with relapsing—remitting MS and control subjects. Diffusion tensor imaging is a technique that quantifies the amount of nonrandom water diffusion within tissues, providing information about processes such as ischemia and axonal (Wallerian) degeneration that can affect water diffusion as a result of microstructural changes (Alexander et al, 2007). The mean diffusivity (MD) measures the magnitude of diffusion of the water molecules, whereas diffusion anisotropy indices, such as fractional anisotropy (FA), indicate the deviation from pure isotropic diffusion of water mobility in vivo.

In acute ischemia, MD is decreased because of cellular swelling, restricting the diffusion of water molecules (Munoz Maniega et al, 2004). After the acute phase, MD increases to normal values, and in the chronic phase, becomes elevated because of loss of membrane integrity and tissue necrosis, and FA progressively decreases, which is also consistent with loss of integrity of the tissue structure (Munoz Maniega et al, 2004). In MS patients, there was a highly significant correlation between CBF and MD (decreasing CBF was associated with decreasing MD), but not with FA. This finding argues against the possibility that the white matter hypoperfusion in MS is secondary to axonal degeneration, as this would be characterized by increased MD and decreased FA (Saindane et al, 2007). However, it does not exclude the possibility that a diffuse reduced axonal activity underlies or contributes to the reduced perfusion of the NAWM.

Vascular pathology in MS white matter?

Ge et al (2005) interpreted the hypoperfusion in NAWM as a vasculopathy in the context of the perivascular inflammations that occur in focal MS lesions. However, although inflammatory infiltrates in MS are typically located around smallor medium-sized veins (Adams, 1989) and in the perivascular spaces surrounding arterioles (Gay, 2006; Gay et al, 1997), microvessel thrombosis is only exceptionally being observed within these lesions (Aboul-Enein and Lassmann, 2005; Wakefield et al, 1994). A primary vascular pathology, as seen in vasculitis, would lead to regional cerebral perfusion defects rather than a generalized microvascular hemodynamic impairment as observed in MS. Furthermore, the finding that enhancing white matter lesions show increased CBF and CBV, likely caused by inflammation-mediated vasodilatation (Ge et al, 2005; Wuerfel et al, 2004), strongly argues against inflammation as the causal factor. The absence of structural (peri)vascular pathology (Aboul-Enein and Lassmann, 2005) indicates that hypoperfusion of the cerebral white matter in MS has a functional origin. The cells involved in regulating cerebral microcirculation in the central nervous system are the astrocytes.

Astrocytes and white matter perfusion

Astrocytic end-feet occupy a great proportion of the surface of intracerebral blood vessels, and convincing evidence has emerged for a direct role of astrocytes in influencing their vascular diameter and the CBF (Filosa et al, 2004; Metea and Newman, 2006; Zonta et al, 2003). Astrocytes in the white matter play a crucial role in the maintenance of ion balance at the nodes of Ranvier, where their perinodal processes form contacts with the axonal membrane (Butt et al, 1994; Raine, 1984). K⁺ released during action potential propagation at the nodes of Ranvier is soaked up by astrocytes through inward rectifying potassium channels (K_ir), especially K_ir4.1, and is ‘spatially buffered’ to restore the ionic balance in the axonodal region (Butt and Kalsi, 2006). A highly negative resting membrane potential of the astrocytes is considered critical for their K⁺ spatial buffering function (Bolton et al, 2006). White matter astrocytes, just as gray matter astrocytes, contain Ca²⁺-activated K⁺ channels in their perivascular end-feet (Price et al, 2002), through which the buffered K⁺ is released into the perivascular space to activate K_ir channels, in particular K_ir2.1, in the vascular smooth muscle cells. As a consequence, the vascular smooth muscle cells hyperpolarize, which closes voltage-dependent Ca²⁺ channels in the smooth muscle cells, promoting vasodilation (Figure 1) (Butt and Kalsi, 2006; Knot and Nelson, 1998). Thus, diminished axonal activity leading to reduced K⁺ efflux at the nodes of Ranvier might represent one mechanism by which less K⁺ is buffered and released into the perivascular space.

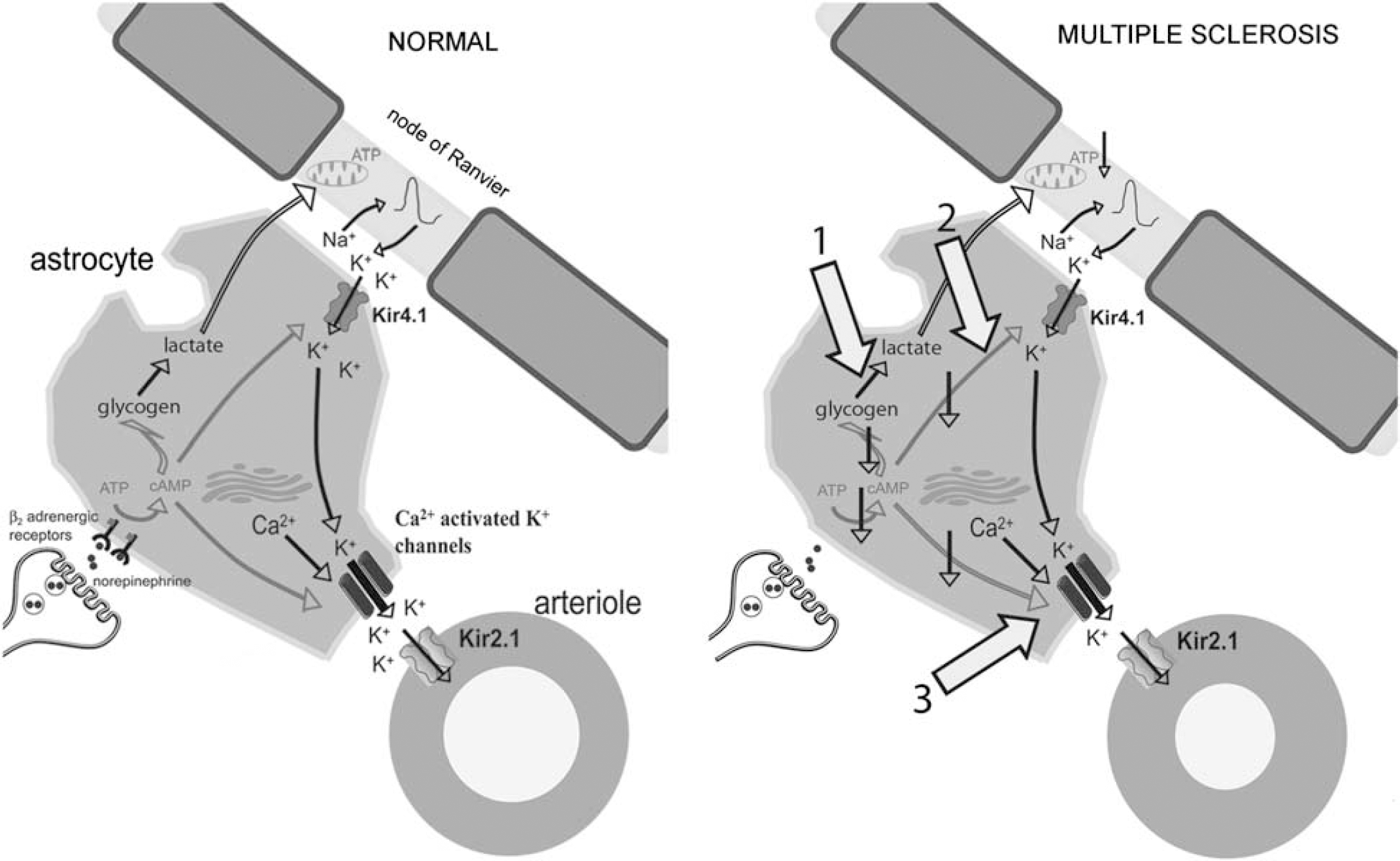

Figure 1

Hypothetical model of axon-vascular coupling in physiologic conditions and in MS. K⁺ released at the nodes of Ranvier during axonal activity is taken up by astrocytes through K_ir4.1 channels and released at perivascular end-feet through Ca²⁺-activated K⁺ channels. K⁺ released into the perivascular space induces hyperpolarization of arteriole smooth muscle cells through activation of K_ir2.1 channels, to promote vasodilation. Norepinephrine, via activation of β₂-adrenergic receptors and cAMP elevation, provides energy to axons and enhances the uptake of K⁺ and its release in the perivascular space. In MS, a lack of β₂-adrenergic receptors on astrocytes may lead to a reduced concentration of K⁺ in the perivascular space. Three mechanisms related to decreased intracellular cAMP signaling may be involved: (1) reduced K⁺ efflux at the nodes of Ranvier because of impaired axonal activity, (2) reduced uptake of K⁺ by the astrocytes, (3) reduced activity of Ca²⁺ -activated K⁺ channels.

Dysfunction of astrocytes in multiple sclerosis

Astrocytes possess a wide variety of neurotransmitter receptors (Porter and McCarthy, 1997). They express adrenergic receptors and receive noradrenergic innervation originating from the locus ceruleus (Cohen et al, 1997; Paspalas and Papadopoulos, 1996; Raichle et al, 1975; Stone and Ariano, 1989). Astrocytes in MS white matter lesions and NAWM were found to be deficient in β₂-adrenergic receptors (De Keyser et al, 1999; Zeinstra et al, 2000a). In view of important homeostatic functions mediated by these receptors, it is tempting to speculate that this abnormality plays a pathogenetic role. Activation of astrocytic β₂-adrenergic receptors by norepinephrine increases the formation of intracellular cAMP, which prevents astrocytes from transforming into facultative antigen-presenting cells (De Keyser et al, 2003; Zeinstra et al, 2003, 2000b), induces the release of trophic factors for oligodendrocytes (such as brain-derived neurotrophic factor, nerve growth factor, and neuregulin), and stimulates the conversion of glycogen to lactate, which is transported to axons as an energy source (De Keyser et al, 2004a, b ). We have hypothesized that alterations in these homeostatic mechanisms may explain the occurrence of both inflammatory and noninflammatory (primarily caused by oligodendrocyte apoptosis) focal demyelinating lesions, as well as the diffuse axonal degeneration that underlies the progressive phase of MS (De Keyser et al, 2004a, b ). Why and how β₂-adrenergic receptors are lost on astrocytes in MS is unknown. Interestingly, a disappearance of astrocytic β₂-adrenergic receptors has also been observed in canine distemper encephalitis, which can cause a chronic demyelinating disease that resembles MS (De Keyser et al, 2001).

The astrocytic β₂-adrenergic receptor deficit in MS might also be responsible for a reduced CBF in the white matter. Impaired cAMP signaling in astrocytes may limit the proportion of K⁺ released from perivascular astrocytic end-feet, and thereby reduce the degree of vasodilation by three possible mechanisms (Figure 1). First, reduction in cAMP-mediated formation of lactate in astrocytes may lead to decreased axonal activity and a reduced K⁺ efflux at the nodes of Ranvier. Second, K⁺ buffering by astrocytes may be impaired because of a decreased cAMP-mediated hyperpolarization of astrocytes, which is a driving force for the uptake of K⁺ by the astrocytes (Bolton et al, 2006). Third, the proportion of K⁺ released in the perivascular space may be limited because of a decreased cAMP-mediated stimulation of Ca²⁺ -activated K⁺ channel activity (Bates et al, 1977; Schopf et al, 1999).

Systemic vascular dysregulation?

Another factor that might contribute to reduced perfusion of the white matter in MS is a more systemic vascular dysregulation associated with increased endothelin-1 plasma levels (Pache et al, 2003). Endothelin-1 is a potent vasoconstrictor peptide, and plasma levels are increased in many disease conditions (Shah, 2007). One study found that blood flow velocities in extraocular blood vessels were reduced in patients with MS with increased endothelin-1 plasma levels (Pache et al, 2003). However, a possible effect of circulating endothelin-1 on the CBF in MS and other diseases remains to be clarified.

Pathophysiological role of white matter hypoperfusion in multiple sclerosis

Four fundamentally different patterns of demyelination have been described in MS, defined on the basis of myelin protein loss, the geography and extension of plaques, patterns of oligodendrocyte destruction, and immunopathological evidence of complement activation (Lucchinetti et al, 2000). One type of actively demyelinating lesions in MS (named type III) shows similarity with those found in acute ischemic conditions in the white matter, with a preferential loss of myelin-associated glycoprotein (located in the most distal periaxonal oligodendrocyte processes) and apoptotic-like oligodendrocyte destruction (Aboul-Enein et al, 2003). In these lesions, other myelin proteins, such as myelin basic protein and proteolipid protein (both located in compact myelin) and myelin Oligodendroglia glycoprotein (located in the cytoplasm and the more proximal processes of Oligodendroglia) remain well preserved. The same pattern of demyelination is found in acute ischemic lesions of the white matter.

Active MS lesions and acute ischemic white matter lesions with myelin-associated glycoprotein loss and oligodendrocyte apoptosis reveal a prominent nuclear expression of hypoxia inducible factor-1α (HIF-1α) in glial cells (Aboul-Enein and Lassmann, 2005; Aboul-Enein et al, 2003). HIF-1α is expressed in conditions of hypoxia and forms heterodimers with HIF-1β, which is expressed constitutively in all cells and does not respond to changes in oxygen tension, but is essential for hypoxia-induced transcriptional changes. The HIF-1 heterodimers are translocated to the nucleus where they act as transcription factors, which induce gene expression of various other molecules involved in vasomotor control, angiogenesis, cell growth (growth factors), and energy metabolism (Sharp and Bernaudin, 2004). Altogether, these proteins are expressed to render the tissue more resistant to further hypoxia-induced injury. Micro-array data provide further support to the concept that a diffuse (hypoxic?) tissue-preconditioning in NAWM is a feature of MS pathology. In a study comparing gene expression in the NAWM of patients with secondary progressive MS with that in controls, one of the most consistent differences was found in the expression of HIF-1α and its downstream genes (Graumann et al, 2003). A similar upregulation of HIF-1α in cerebral white matter has been found in leukoaraiosis attributed to white matter hypoperfusion (Fernando et al, 2006).

Could white matter ischemia contribute to focal lesion formation in MS? A longitudinal study in relapsing—remitting MS patients found that a focal increased perfusion in active lesions preceded blood—brain barrier breakdown visualized by gadolinium leakage in the lesion. However, in lesions that developed ring enhancement after contrast agent injection, patterns of CBV and CBF changes comparable to non-ring-enhancing lesions were seen only in the ‘ring tissue‘, whereas inside the ring there was a decrease in CBF and CBV, suggestive of ischemia (Wuerfel et al, 2004). In addition, a few patients have been described who developed new focal lesions with diffusion-weighted magnetic resonance imaging characteristics (reduced apparent diffusion coefficient) suggestive of acute ischemic lesions (Rosso et al, 2006; Rovira et al, 2002). From a historical perspective it is worth mentioning that a number of scientists since the middle of the nineteenth century have already put forward the hypothesis that demyelinating lesions in MS may have an ischemic origin (Gottlieb et al, 1990; Murray, 2005; Putnam, 1933), but these ideas have not gained wide acceptance by the scientific community.

Subcortical ischemic brain damage leading to leukoaraiosis is associated with reduced CBF in white matter (Markus et al, 2000) and represents a common cause of cognitive impairment. The cognitive manifestations in leukoaraioisis are very similar to those observed in MS (Schmidt et al, 2006). In a preliminary study, Inglese et al (2008) found a relationship between perfusion changes in deep gray matter and NAWM and neuropsychological dysfunction in patients with both relapsing—remitting and primary progressive MS. Further studies are required to confirm this interesting finding and to investigate whether interventions that increase white matter perfusion in MS might have a beneficial effect on cognitive functions.

Conclusions

Accumulating evidence indicates that there is a decreased perfusion throughout the NAWM in patients with MS. It occurs in both relapsing—remitting and primary progressive MS, strongly suggesting that it represents an integral part of the disease process. Ischemic changes might be involved in the development of a subtype of focal demyelinating lesions (type III lesions). There appears to be a relationship between reduced white matter perfusion and cognitive dysfunction in patients with MS. We provide a hypothetical framework for the reduced perfusion, implicating a key role of astrocyte dysfunction, possibly related to a deficiency in β₂-adrenergic receptors resulting in an impaired siphoning and release of K⁺ in the perivascular spaces. The underlying pathophysiological mechanisms need to be further elucidated as it could ultimately allow us to understand and treat this complex disease better.

References

Aboul-Enein

Lassmann

(2005) Mitochondrial damage and histotoxic hypoxia: a pathway of tissue injury in inflammatory brain disease? Acta Neuropathol 109:49–55

Aboul-Enein

Rauschka

Kornek

Stadelmann

Stefferl

Bruck

Lucchinetti

Schmidbauer

Jellinger

Lassmann

(2003) Preferential loss of myelin-associated glycoprotein reflects hypoxia-like white matter damage in stroke and inflammatory brain diseases. J Neuropathol Exp Neurol 62:25–33

Adams

CWM

(1989) Vascular aspects of multiple sclerosis. In: A colour atlas of multiple sclerosis and other myelin disorders. ( Adams

CWM

, ed), London: Wolfe Medical Publications, 184–95

Adhya

Johnson

Herbert

Jaggi

Babb

Grossman

Inglese

(2006) Pattern of hemodynamic impairment in multiple sclerosis: dynamic susceptibility contrast perfusion MR imaging at 3.0 T. Neuroimage 33:1029–35

Alexander

Lee

Lazar

Field

(2007) Diffusion tensor imaging of the brain. Neurotherapeutics 4: 316–329

Barnett

Prineas

(2004) Relapsing and remitting multiple sclerosis: pathology of the newly forming lesion. Ann Neurol 55:458–68

Bates

Weinshilboum

Campbell

Sundt

Jr (1977) The effect of lesions in the locus coeruleus on the physiological responses of the cerebral blood vessels in cats. Brain Res 136:431–43

Bolton

Greenwood

Hamilton

Butt

(2006) Regulation of the astrocyte resting membrane potential by cyclic AMP and protein kinase A. Glia 54:316–28

Brooks

Leenders

Head

Marshall

Legg

Jones

(1984) Studies on regional cerebral oxygen utilisation and cognitive function in multiple sclerosis. J Neurol Neurosurg Psychiatry 47:1182–91

10.

Butt

Duncan

Berry

(1994) Astrocyte associations with nodes of Ranvier: ultrastructural analysis of HRP-filled astrocytes in the mouse optic nerve. J Neurocytol 23:486–99

11.

Butt

Kalsi

(2006) Inwardly rectifying potassium channels (K_ir) in central nervous system glia: a special role for K_ir4.1 in glial functions. J Cell Mol Med 10:33–44

12.

Cohen

Molinatti

Hamel

(1997) Astroglial and vascular interactions of noradrenaline terminals in the rat cerebral cortex. J Cereb Blood Flow Metab 17:894–904

13.

Coles

Wing

Molyneux

Paolillo

Davie

Hale

Miller

Waldmann

Compston

(1999) Monoclonal antibody treatment exposes three mechanisms underlying the clinical course of multiple sclerosis. Ann Neurol 46:296–304

14.

De Keyser

Wilczak

Leta

Streetland

(1999) Astrocytes in multiple sclerosis lack beta-2 adrenergic receptors. Neurology 53:1628–33

15.

De Keyser

Wilczak

Walter

Zurbriggen

(2001) Disappearance of beta2-adrenergic receptors on astrocytes in canine distemper encephalitis: possible implications for the pathogenesis of multiple sclerosis. NeuroReport 12:191–4

16.

De Keyser

Zeinstra

Frohman

(2003) Are astrocytes central players in the pathophysiology of multiple sclerosis? Arch Neurol 60:132–6

17.

De Keyser

Zeinstra

Mostert

Wilczak

(2004a) Beta 2-adrenoceptor involvement in inflammatory demyelination and axonal degeneration in multiple sclerosis. Trends Pharmacol Sci 25:67–71

18.

De Keyser

Zeinstra

Wilczak

(2004b) Astrocytic beta2-adrenergic receptors and multiple sclerosis. Neurobiol Dis 15:331–9

19.

Fernando

Simpson

Matthews

Brayne

Lewis

Barber

Kalaria

Forster

Esteves

Wharton

Shaw

O'Brien

Ince

(2006) White matter lesions in an unselected cohort of the elderly: molecular pathology suggests origin from chronic hypoperfusion injury. Stroke 37:1391–8

20.

Filosa

Bonev

Nelson

(2004) Calcium dynamics in cortical astrocytes and arterioles during neurovascular coupling. Circ Res 95:e73–81

21.

Frohman

Filippi

Stuve

Waxman

Corboy

Phillips

Lucchinetti

Wilken

Karandikar

Hemmer

Monson

De Keyser

Hartung

Steinman

Oksenberg

Cree

Hauser

Racke

(2005) Characterizing the mechanisms of progression in multiple sclerosis: evidence and new hypotheses for future directions. Arch Neurol 62:1345–56

22.

Gay

(2007) Activated microglia in primary MS lesions: defenders or aggressors? Int MS J 14:78–83

23.

Gay

(2006) Early cellular events in multiple sclerosis. Intimations of an extrinsic myelinolytic antigen. Clin Neurol Neurosurg 108:234–40

24.

Gay

Drye

Dick

Esiri

(1997) The application of multifactorial cluster analysis in the staging of plaques in early multiple sclerosis. Identification and characterization of the primary demyelinating lesion. Brain 120(Part 8):1461–83

25.

Law

Johnson

Herbert

Babb

Mannon

Grossman

(2005) Dynamic susceptibility contrast perfusion MR imaging of multiple sclerosis lesions: characterizing hemodynamic impairment and inflammatory activity. AJNR Am J Neuroradiol 26:1539–47

26.

Gottlieb

Smith

Neubauer

(1990) The etiology of multiple sclerosis: a new and extended vascularischemic model. Med Hypotheses 33:23–9

27.

Graumann

Reynolds

Steck

Schaeren-Wiemers

(2003) Molecular changes in normal appearing white matter in multiple sclerosis are characteristic of neuroprotective mechanisms against hypoxic insult. Brain Pathol 13:554–73

28.

Guseo

Jellinger

(1975) The significance of perivascular infiltrations in multiple sclerosis. J Neurol 211:51–60

29.

Haselhorst

Kappos

Bilecen

Scheffler

Mori

Radu

Seelig

(2000) Dynamic susceptibility contrast MR imaging of plaque development in multiple sclerosis: application of an extended blood—brain barrier leakage correction. J Magn Reson Imaging 11: 495–505

30.

Inglese

Adhya

Johnson

Babb

Miles

Jaggi

Herbert

Grossman

(2008) Perfusion magnetic resonance imaging correlates of neuropsychological impairment in multiple sclerosis. J Cereb Blood Flow Metab 28:164–71

31.

Inglese

Park

Johnson

Babb

Miles

Jaggi

Herbert

Grossman

(2007) Deep gray matter perfusion in multiple sclerosis: dynamic susceptibility contrast perfusion magnetic resonance imaging at 3 T. Arch Neurol 64:196–202

32.

Keegan

Noseworthy

(2002) Multiple sclerosis. Annu Rev Med 53:285–302

33.

Knot

Nelson

(1998) Regulation of arterial diameter and wall [Ca²⁺] in cerebral arteries of rat by membrane potential and intravascular pressure. J Physiol 508 (Part 1):199–209

34.

Law

Saindane

Babb

Johnson

Mannon

Herbert

Grossman

(2004) Microvascular abnormality in relapsing—remitting multiple sclerosis: perfusion MR imaging findings in normal-appearing white matter. Radiology 231:645–52

35.

Lucchinetti

Bruck

Parisi

Scheithauer

Rodriguez

Lassmann

(2000) Heterogeneity of multiple sclerosis lesions: implications for the pathogenesis of demyelination. Ann Neurol 47:707–17

36.

Lycke

Wikkelso

Bergh

Jacobsson

Andersen

(1993) Regional cerebral blood flow in multiple sclerosis measured by single photon emission tomography with technetium-99m hexamethylpropylenea-mine oxime. Eur Neurol 33:163–7

37.

Markus

Lythgoe

Ostegaard

O'Sullivan

Williams

(2000) Reduced cerebral blood flow in white matter in ischaemic leukoaraiosis demonstrated using quantitative exogenous contrast based perfusion MRI. J Neurol Neurosurg Psychiatry 69:48–53

38.

Metea

Newman

(2006) Glial cells dilate and constrict blood vessels: a mechanism of neurovascular coupling. J Neurosci 26:2862–70

39.

Metz

Lucchinetti

Openshaw

Garcia-Merino

Lassmann

Freedman

Atkins

Azzarelli

Kolar

Bruck

(2007) Autologous haematopoietic stem cell transplantation fails to stop demyelination and neurodegeneration in multiple sclerosis. Brain 130:1254–62

40.

Munoz Maniega

Bastin

Armitage

Farrall

Carpenter

Hand

Cvoro

Rivers

Wardlaw

(2004) Temporal evolution of water diffusion parameters is different in grey and white matter in human ischaemic stroke. J Neurol Neurosurg Psychiatry 75:1714–8

41.

Murray

(2005) Searching for a cause of MS. In: Multiple sclerosis: the history of a disease ( Murray

, ed), New York: Demos, 229–318

42.

Pache

Kaiser

Akhalbedashvili

Lienert

Dubler

Kappos

Flammer

(2003) Extraocular blood flow and endothelin-1 plasma levels in patients with multiple sclerosis. Eur Neurol 49:164–8

43.

Paspalas

Papadopoulos

(1996) Ultrastructural relationships between noradrenergic nerve fibers and non-neuronal elements in the rat cerebral cortex. Glia 17:133–46

44.

Porter

McCarthy

(1997) Astrocytic neurotransmitter receptors in situ and in vivo. Prog Neurobiol 51:439–55

45.

Price

Ludwig

Schwarz

Ellisman

(2002) Distribution of rSlo Ca²⁺-activated K⁺ channels in rat astrocyte perivascular endfeet. Brain Res 956: 183–93

46.

Putnam

(1933) The pathogenesis of multiple sclerosis: a possible vascular origin. New Engl J Med 209:786–90

47.

Raichle

Hartman

Eichling

Sharpe

(1975) Central noradrenergic regulation of cerebral blood flow and vascular permeability. Proc Natl Acad Sci USA 72:3726–30

48.

Raine

(1984) On the association between perinodal astrocytic processes and the node of Ranvier in the CNS. J Neurocytol 13:21–7

49.

Roccatagliata

Rocca

Valsasina

Bonzano

Sormani

Saccardi

Mancardi

Filippi

(2007) The long-term effect of AHSCT on MRI measures of MS evolution: a five-year follow-up study. Mult Scler 13:1068–70

50.

Rosso

Remy

Creange

Brugieres

Cesaro

Hosseini

(2006) Diffusion-weighted MR imaging characteristics of an acute strokelike form of multiple sclerosis. AJNR Am J Neuroradiol 27:1006–8

51.

Rovira

Pericot

Alonso

Rio

Grive

Montalban

(2002) Serial diffusion-weighted MR imaging and proton MR spectroscopy of acute large demyelinating brain lesions: case report. AJNR Am J Neuroradiol 23:989–94

52.

Saindane

Law

Johnson

Babb

Grossman

(2007) Correlation of diffusion tensor and dynamic perfusion MR imaging metrics in normal-appearing corpus callosum: support for primary hypoperfusion in multiple sclerosis. AJNR Am J Neuroradiol 28:767–72

53.

Samijn

te Boekhorst

Mondria

van Doorn

Flach

van der Meche

Cornelissen

Hop

Lowenberg

Hintzen

(2006) Intense T cell depletion followed by autologous bone marrow transplantation for severe multiple sclerosis. J Neurol Neurosurg Psychiatry 77:46–50

54.

Schmidt

Enzinger

Ropele

Schmidt

Fazekas

(2006) Subcortical vascular cognitive impairment: similarities and differences with multiple sclerosis. J Neurol Sci 245:3–7

55.

Schopf

Bringmann

Reichenbach

(1999) Protein kinases A and C are opponents in modulating glial Ca²⁺-activated K⁺ channels. NeuroReport 10:1323–7

56.

Shah

(2007) Endothelins in health and disease. Eur J Intern Med 18:272–82

57.

Sharp

Bernaudin

(2004) HIF1 and oxygen sensing in the brain. Nat Rev Neurosci 5:437–48

58.

Stone

Ariano

(1989) Are glial cells targets of the central noradrenergic system? A review of the evidence. Brain Res Brain Res Rev 14:297–309

59.

Sun

Tanaka

Kondo

Okamoto

Hirai

(1998) Clinical significance of reduced cerebral metabolism in multiple sclerosis: a combined PET and MRI study. Ann Nucl Med 12:89–94

60.

Swank

Roth

Woody

Jr (1983) Cerebral blood flow and red cell delivery in normal subjects and in multiple sclerosis. Neurol Res 5:37–59

61.

Wakefield

Difford

McLaughlin

(1994) Immunohistochemical study of vascular injury in acute multiple sclerosis. J Clin Pathol 47:129–33

62.

Wuerfel

Bellmann-Strobl

Brunecker

Aktas

McFarland

Villringer

Zipp

(2004) Changes in cerebral perfusion precede plaque formation in multiple sclerosis: a longitudinal perfusion MRI study. Brain 127:111–9

63.

Yao

Sadoshima

Kuwabara

Ichiya

Fujishima

(1990) Cerebral blood flow and oxygen metabolism in patients with vascular dementia of the Binswanger type. Stroke 21:1694–9

64.

Zeinstra

Wilczak

De Keyser

(2000a) [3H]dihydro-alprenolol binding to beta adrenergic receptors in multiple sclerosis brain. Neurosci Lett 289:75–7

65.

Zeinstra

Wilczak

De Keyser

(2003) Reactive astrocytes in chronic active lesions of multiple sclerosis express co-stimulatory molecules B7-1 and B7-2. J Neuroimmunol 135:166–71

66.

Zeinstra

Wilczak

Streefland

De Keyser

(2000b) Astrocytes in chronic active multiple sclerosis plaques express MHC class II molecules. NeuroReport 11:89–91

67.

Zonta

Angulo

Gobbo

Rosengarten

Hossmann

Pozzan

Carmignoto

(2003) Neuron-to-astrocyte signaling is central to the dynamic control of brain microcirculation. Nat Neurosci 6:43–50
