TAT-Hsp70-Mediated Neuroprotection and Increased Survival of Neuronal Precursor Cells after Focal Cerebral Ischemia in Mice

Abstract

Cerebral ischemia stimulates endogenous neurogenesis within the subventricular zone and the hippocampal dentate gyrus of the adult rodent brain. However, such newly generated cells soon die after cerebral ischemia. To enhance postischemic survival of neural precursor cells (NPC) and long-lasting neural regeneration, we applied the antiapoptotic chaperone heat shock protein 70 (Hsp70) fused to a cell-penetrating peptide derived from the HIV TAT to ensure delivery across the blood-brain barrier and the cell membrane. After transient focal cerebral ischemia in mice, TAT-Hsp70 was intravenously injected concomitant with reperfusion and additionally on day 14 after stroke. TAT-Hsp70 treatment resulted in smaller infarct size (27.1 ± 9.0 versus 109.0 ± 14.0 and 88.5 ± 26.0 mm³ in controls) and in functional improvement as assessed by the rota rod, tight rope, and water maze tests when compared with saline- and TAT-hemagglutinin-treated controls. In addition, postischemic survival of endogenous doublecortin (Dcx)-positive NPC was improved within the lesioned striatum of TAT-Hsp70-treated animals for up to 4 weeks after stroke without changing overall cell proliferation of BrdU⁺ cells. Thus, TAT-Hsp70 treatment after stroke may be a promising tool to act neuroprotective and improve postischemic functional outcome, and also to increase survival of endogenous NPC after stroke.

Keywords

cerebral ischemia endogenous neurogenesis neuroprotection TAT-Hsp70

Introduction

In the adult mammalian brain, limited endogenous neurogenesis is observed in the subgranular zone of the hippocampal dentate gyrus and in the subventricular zone (SVZ) (Gross, 2000; Taupin and Gage, 2002). Here, astrocyte-like neural stem cells function as primary neural precursor cells (NPC) that eventually give rise to neuroblasts, which migrate through the rostral migratory stream toward the olfactory bulb and differentiate into mature neurons (Alvarez-Buylla and Garcia-Verdugo, 2002; Doetsch et al, 1999).

Various pathologic conditions, such as cerebral ischemia, are able to stimulate endogenous neurogenesis resulting in neuronal differentiation of proliferating 5-bromo-2′-deoxyuridine-5′-monophosphate (BrdU)-positive cells (Arvidsson et al, 2002; Li et al, 2002; Liu et al, 1998; Zhang et al, 2001). Transient focal cerebral ischemia increased the number of SVZ-derived BrdU⁺ cells followed by lesion-directed migration and subsequent coexpression of early and mature neuronal markers (Arvidsson et al, 2002; Yamashita et al, 2006).

Although a postischemic increase of SVZ-derived BrdU⁺ cells and their subsequent neuronal differentiation has recently been shown by several groups, a proof of functional relevance is still missing (Arvidsson et al, 2001; Li et al, 2002; Zhang et al, 2001). Because the majority of these cells die within several weeks after stroke, the extent of postischemic neuronal replacement by newborn cells seems to be limited (Haas et al, 2005; Parent, 2003). Different neuroprotective strategies, such as growth factor application, temporarily lead to an increase in postischemic generation of NPC, but did not result in sustained cell survival after stroke (Wada et al, 2003; Wang et al, 2004).

Proteins of the heat shock protein 70 (Hsp70) family may serve as a valuable tool to enhance postischemic cell survival of NPC. Postischemic neuroprotection by these proteins is attributed to chaperone activity as well as to inhibition of necrosis, alteration of intrinsic and extrinsic apoptotic pathways, such as the inhibition of cytochrome c release, and modulation of inflammation (Giffard et al, 2008). However, blood-brain barrier transition and cellular entry of Hsp70-like proteins is very limited. So far, Hsp70-mediated neuroprotection after stroke has only been shown by protein overexpression in transgenic mice, by transfection or viral-vector-mediated overexpression (Badin et al, 2006; Hoehn et al, 2001; Rajdev et al, 2000; Zheng et al, 2008). For effective blood-brain barrier transition and cellular entry after systemic injection in experimental stroke, Hsp70 was fused to the basic domain derived from the human immunodeficiency virus TAT protein (Nagel et al, 2008a, b ; Wheeler et al, 2003). In the study described here, TAT-Hsp70-mediated effects on infarct volume and functional outcome, as well as on lesion-specific cell proliferation and survival of NPC, were analyzed after systemic application in transient focal cerebral ischemia in mice.

Materials and methods

Expression and Purification of Hsp70 and Tat Fusion Proteins

To create an expression vector for the TAT-Hsp70 fusion protein, rat hsp70.1 cDNA was cloned into the pTAT-hemagglutinin (HA) expression vector (kindly provided by SF Dowdy, University of California in San Diego, CA, USA) as described by Nagel et al (2008a). pTAT-HA was derived from pRSET B (Invitrogen GmbH, Karlsruhe, Germany). TAT-Hsp70 and TAT-HA were expressed in Escherichia coli strain BL21 (DE3)pLysS (Novagen, San Diego, USA) and isolated in their native conformations in a 10 mmol/L Tris (pH 10), 20% glycerol, 274 mmol/L NaCl, 0.1% Pluronic, 0.02% Tween 80 buffer as described previously (Nagel et al, 2008b). Anti-HA antibodies were purchased from Covance Inc, San Diego, USA. TAT-Hsp70 was dialyzed against five changes of a 250-fold buffer solution (274 mmol/L NaCl, 10 mmol/L Tris, pH 10) before application. Protein purity was assessed by Coomassie dye (Coomassie Brilliant blue; Merck, Darmstadt, Germany)-stained SDS gels. The protein concentration was quantified by comparison with protein standards, loaded on Coomassie-stained polyacrylamide gels.

Experimental Groups

All experimental procedures were performed according to the EU guidelines for the care and use of laboratory animals and approved by local authorities. For all experiments adult male C57Bl/6N (Charles River, Sulzfeld, Germany) mice weighing 22 to 27 g were used and assigned to seven groups consisting of 7 to 8 animals each. Animals were killed on day 4 (group I to III) and on day 28 (IV to VII) after induction of transient focal cerebral ischemia. Starting with reperfusion, saline (I), 1 nmol of TAT-HA (negative control; II, IV, and VI) or 1 nmol of TAT-Hsp70 (III, V, and VII) was injected intravenously in a volume of 100 μL. Animals of groups VI and VII received a second injection on day 14. All animals received intraperitoneal BrdU injections (Sigma, Taufkirchen, Germany) on days 0 to 3 (I to III) or 8 to 18 (IV to VII; daily dose: 50 mg/kg bodyweight). Mortality rate was 0% for group I to III, 17.6% for group IV to V, and 11.2% for group VI to VII.

Induction of Focal Cerebral Ischemia

Cerebral ischemia was induced by transient occlusion of the middle cerebral artery (MCA) using the intraluminal filament technique as described previously (Weise et al, 2006). Briefly, animals were anesthetized (0.8% to 1.5% isofluran, 30.0% O₂, remainder N₂O) and rectal temperature was maintained at 36.5°C to 37.0°C using a feedback-controlled heating system. The laser-Doppler flow was recorded using a flexible fiber optic probe (Perimed, Stockholm, Sweden), which was attached to the skull overlying the core region of the MCA territory to assess cerebral blood flow (CBF). After a midline neck incision the left common and external carotid arteries were isolated and ligated. After placing a microvascular clip (Aesculap, Tuttlingen, Germany) on the internal carotid artery, a 7–0 silicon-coated nylon monofilament (Doccol, Redlands, USA) was introduced through an incision into the distal part of the common carotid artery and, after removing the clip, advanced 9 mm distal from the carotid bifurcation for MCA occlusion. After 45 mins, the thread was removed to allow reperfusion of the MCA. The laser-Doppler flow recordings continued for > 15 mins after thread removal to monitor appropriate reperfusion (> 80% of initial CBF).

Immunohistochemistry

Animals received intraperitoneal injection of chloral hydrate (420 mg/kg body weight) and were transcardially perfused with 4% paraformaldehyde at day 4 or 28 after ischemia. Brains were removed, postfixed in paraformaldehyde, and paraffin embedded before 2 ím coronal sections were prepared. Sections were deparaffmized, boiled in 0.2% citrate buffer, and incubated with blocking solution (0.3% Triton X-100; 10% normal goat serum in phosphate-buffered saline; 1 h, room temperature (RT)). For analysis of BrdU⁺ cells, we exposed sections to blocking solution and subsequently stained with a rat monoclonal anti-BrdU antibody (1:50, 18 h, 4°C; Serotec, Düsseldorf, Germany) and a goat anti-rat Alexa 594 secondary antibody (1:500, 1 h; Molecular Probes, Karlsruhe, Germany). To analyze the differentiation of BrdU⁺ cells, we incubated sections with a mouse monoclonal anti-BrdU antibody (1:500; Roche, Grenzach, Germany) and a goat polyclonal anti-doublecortin antibody (1:50; Santa Cruz Biotechnology, Heidelberg, Germany), a rat polyclonal anti-GFAP antibody (1:500; Zymed, Karlsruhe, Germany), or a rabbit polyclonal anti-NG2 antibody (1:250; Chemicon, Watford, UK) for 18 h at 4°C. For double staining against BrdU and NeuN, CNPase, or Nestin, a rat monoclonal anti-BrdU antibody (see above) and a mouse monoclonal anti-NeuN antibody (1:200, 18 h, 4°C; Chemicon, Watford, UK), a mouse monoclonal anti-CNPase antibody (1:400; Chemicon, Schwalbach, Germany), or a mouse monoclonal anti-Nestin antibody (1:500; Chemicon, Schwalbach, Germany) were used. After washing, the sections were incubated for 1 h at RT with secondary antibodies. The following secondary antibodies were used: goat anti-mouse Cy-3 (1:400; Dianova, Hamburg, Germany) or goat anti-rat Alexa 594 (1:400; Dianova, Hamburg, Germany) for BrdU staining, goat anti-rat Alexa 488 (1:250; Molecular Probes) or donkey antigoat Alexa 488 (1:250; Molecular Probes) for glial fibrillary acidic protein (GFAP) or doublecortin (Dcx) staining, goat anti-mouse Cy-3 (1:100; Jackson Immuno-Research, Newmarket, Suffolk, UK) for CNPase staining, goat antirabbit Alexa 488 (1:250; Molecular Probes) for NG2 staining, and goat anti-mouse Alexa 488 (Molecular Probes, Karlsruhe, Germany) for NeuN (1:400) and Nestin (1:250) staining. Terminal deoxynucleotidyl transferase (TdT)-mediated dUTP nick-end labeling (TUNEL) staining was performed incubating sections with proteinase K (7 mins, 37°C), followed by exposure to the terminal deoxynucleotidyl transferase enzyme reaction according to the manufacturer's manual (Roche). After several washing steps and exposure to TUNEL blocking solution (20mins, RT), sections were stained with a streptavidin-Alexa594-conjugated secondary antibody (2h, RT; Molecular Probes, Karlsruhe, Germany). For analysis of TAT-Hsp70-transduced cells 24 h after ischemia, deparaffinized sections were stained with a mouse monoclonal antibody (1:5, 2h, 37°C; Covance, Munich, Germany) directed against the HA sequence of TAT-Hsp70 followed by incubation with a goat anti-mouse Cy-3-coupled secondary antibody (1:400, 1 h, RT; Dianova, Hamburg, Germany). The number of HA⁺ cells was counted both in ischemic and in nonischemic hemispheres defining regions of interest within the basal ganglia (BG) and subsequent calculation of HA⁺ cells per square millimeter.

Quantitative Analysis of Infarct Volume and Postischemic Cell Proliferation

For infarct size determination animals were killed at days 4 and 28, respectively. Brains were removed and cut into four slices of 2 mm each. Slices were stained with 2,3,5-triphenyltetrazolium chloride (2%), and computer-based analysis of infarct volumes was performed using the software ImageJ by subtracting the area of the nonlesioned ipsilateral hemisphere from that of the contralateral side. Infarct volume sizes were calculated by integration of the lesioned areas. Quantitative analyses were performed defining regions of interest within the SVZ and the BG. Stereotactic coordinates for quantitative analysis in the SVZ were 0.14 mm anterior, 2 to 3 mm ventral, and 1 to 1.25 mm lateral from bregma. Cell count analysis within the BG was performed at 0.14 mm anterior, 2.5 to 3.25 mm ventral, and 1.5 to 2.25 mm lateral from bregma. Given the different densities of labeled cells in the structures, we performed cell counts in areas of 0.25 mm² (BrdU staining) or 0.15 mm² (TUNEL staining). Subsequently, the number of cells counted was recalculated for an area of 1 mm² (means ± s.e.m.). Two to three sections per animal and regions of interest were used. Cell death (TUNEL) was assessed within ischemic BG. The number of proliferating cells (BrdU) was determined within the BG and the SVZ.

Quantitative Analysis of Neuronal Dcx⁺ Precursor Cells

Because Dcx⁺ cells tend to form chain-like aggregates within ischemic BG, quantification was performed analyzing complete ischemic BG (0.14 mm anterior, 2.0 to 4.5 mm ventral, 1.0 to 3.0 mm lateral from bregma) and the SVZ (see above) in two sections per animal at day 28 after ischemia. Entire BG and SVZ were photographed and Dcx⁺ cells were quantified using Image Analysis software (AxioVision, Zeiss, Jena, Germany). Numbers of Dcx⁺ cells are given as cells per section analyzed (means ± s.e.m.).

Behavioral Analysis

To study TAT-Hsp70-mediated effects on motor coordination and spatial learning strategies, we tested the animals on the rota rod, the tight rope, and in the water maze test. For assessment of motor coordination (rota rod and tight rope tests), animals were trained 1 day before experimental cerebral ischemia; testing days were on day 4, 7, 10, 14, 21, and 28 after ischemia. The rota rod test was performed using an accelerating treadmill for mice (TSE Systems, Bad Homburg, Germany; 3 cm diameter). Mice were placed on the rotating drum with an accelerating speed of 4g to 40g Maximum speed was achieved after 260 secs, and maximum testing time was 300 secs. The time until animals dropped was registered and analyzed for all animals and time points tested. Using the tight rope test, we placed animals on a 60 cm long tight rope grasping the string with their forepaws. Healthy animals grasp the string with four legs and tail and move to reach a side pole, whereas mice having ischemia-induced motor deficits cannot lift their hind legs and eventually fall off onto the cage bedding placed underneath. All animals were tested twice per time point. Maximum test time was 60 secs and results were scored from 0 (min) to 20 (max) according to a validated score described earlier depending on the time animals spent on the rope and whether they reached the platform (Gerber et al, 2001). Scores were used for statistical analysis.

The water maze test was performed using a swimming pool (diameter: 100 cm; height: 30 cm) filled to a depth of 15 cm with water kept at RT (20°C). A transparent plexiglass platform (11 × 11 cm) was submerged with the top located 1 cm below the surface. Animals of groups IV to VII were tested on days 26, 27, and 28 after ischemia. A full experiment consisted of 20 trials; 4 trials performed in the morning of days 26, 27, and 28 and 4 trials in the afternoon on days 26 and 27 (maximum of 90 secs per trial, intertrial interval: 1 min). For these experiments the platform was always located in the center of the same quadrant and animals were always put into the same of one of the remaining quadrants. If an animal did not reach the platform within 90 secs, it was guided to the platform and allowed to stay there for 30 secs. For assessment of new learning strategies (task switch) the platform was set into another quadrant, animals were put into the same quadrant as before, and four trials were performed (see above) in the morning of day 28. The time needed to reach the platform was statistically analyzed using a computer-based system (TSE Systems).

Statistics

All data are given as mean ± s.e.m. For comparison between two groups the two-sided Student's t-test was used. For comparison between more than two groups one-way analysis of variance followed by the Tukey's post hoc test was performed. A P-value < 0.05 was considered statistically significant.

Results

TAT-Mediated Cerebral Tissue Transduction

Intravenous injection of TAT-Hsp70 resulted in high numbers of HA⁺ cells within the ischemic and nonischemic hemispheres of treated animals, suggesting TAT-Hsp70 to permeate sufficiently both the blood-brain barrier and the cell membranes (Figure 1). No significant differences in the number of HA⁺ cells in ischemic and nonischemic tissues were observed (673.0 ± 76.0 versus 769.0 ± 99.0 per mm²).

Figure 1

TAT-Hsp70-mediated tissue transduction. Intrastriatal detection of the hemagglutinin (HA) sequence of TAT-Hsp70 24 h after cerebral ischemia and systemic administration of TAT-Hsp70 (A, B) or saline (C) using an anti-HA antibody (A–C; red). Nuclei were co-labeled with DAPI (B; blue). Scale bar = 40 μm.

TAT-Hsp70 Reduces Cerebral Infarct Volume and Neural Cell Injury

Quantitative analysis of 2,3,5-triphenyltetrazolium chloride-stained tissues (Figure 2A) on day 4 after experimental stroke showed significant infarct size reduction (P<0.05) in TAT-Hsp70-treated animals (27.1 ± 9.0mm³) when compared with controls either treated with saline (109.0 ± 14.0 mm³) or TAT-HA (88.5 ± 26.0 mm³). As observed on day 4, after a 28-day survival period infarct volumes in TAT-Hsp70-treated animals were significantly smaller (P<0.05) when compared with TAT-HA- and saline-treated controls (42.0 ± 17.0 versus 96.7 ± 20.0 mm³). A second systemic injection of TAT-Hsp70 on day 14 after cerebral ischemia did not lead to a further reduction of infarct volumes compared with TAT-HA and saline control animals (55.7 ± 21.0 versus 106.5 ± 6.0 and 96.0 ± 9.0 mm³). Along with TAT-Hsp70-mediated reduction of infarct size administration of TAT-Hsp70 also significantly decreased the number of TUNEL⁺ cells in ischemic BG and the periinfarct zone compared with control animals (Figure 2B). These observations did not coincide with changes in CBF as animals of all treatment paradigms showed a ∼100% reperfusion rate within the first 15 mins of reperfusion (Figure 3). Because of a lack of difference in both infarct sizes and numbers of TUNEL⁺ cells of TAT-HA- and saline-treated animals, only TAT-HA-treated mice were used as (negative) controls in further experiments.

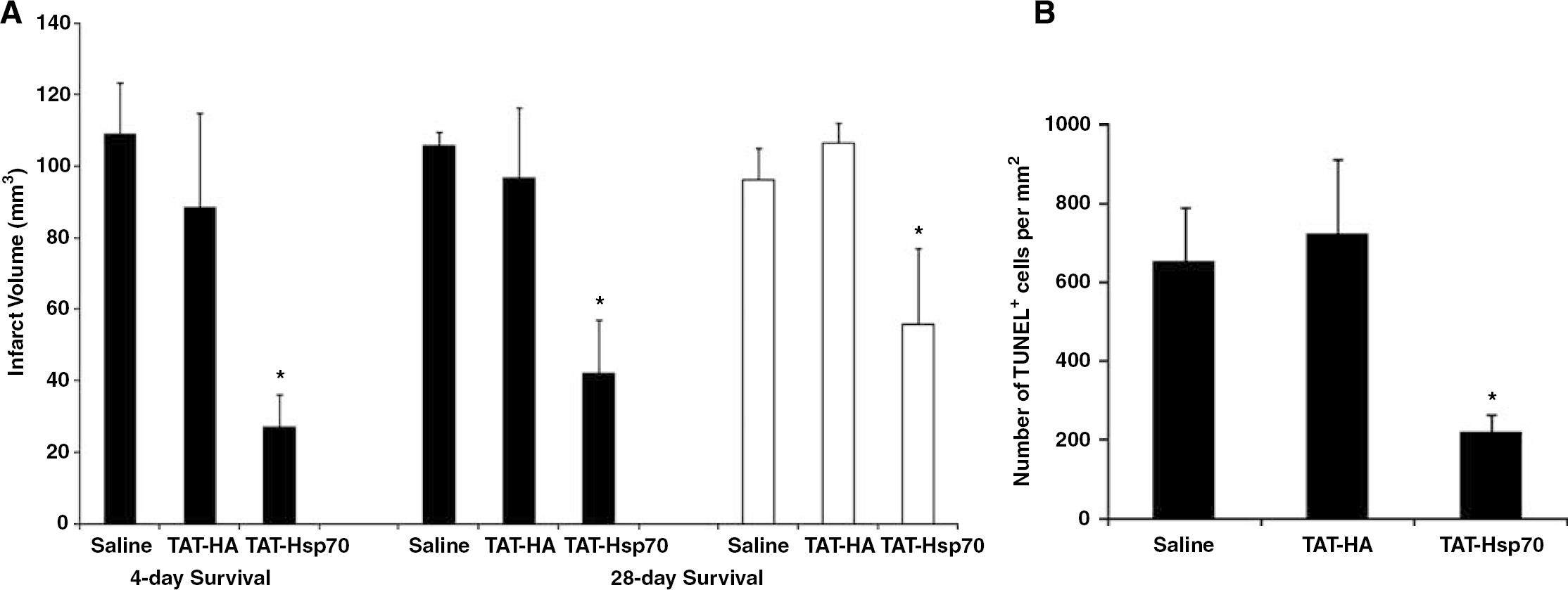

Figure 2

TAT-Hsp70-mediated reduction of infarct volume and neuroprotection. (A) Quantitative infarct volume analysis at days 4 and 28 after ischemia was based on 2,3,5-triphenyltetrazolium chloride staining. The animals were given saline, TAT-HA (negative control) or TAT-Hsp70 at the beginning of the reperfusion (closed bars). In addition, some animals also received a second systemic injection of TAT-HA and TAT-Hsp70 at day 14 after ischemia (open bars). (B) TAT-Hsp70-mediated neuroprotection as assessed by the reduction of TUNEL⁺ cells after cerebral ischemia. Treatment with TAT-Hsp70 yielded a significantly reduced number of TUNEL⁺ cells in the ischemic basal ganglia and the periinfarct zone at day 4 after ischemia. Data are given as mean ± s.e.m. *Significantly different from saline- and/or TAT-HA-treated animals, P< 0.05.

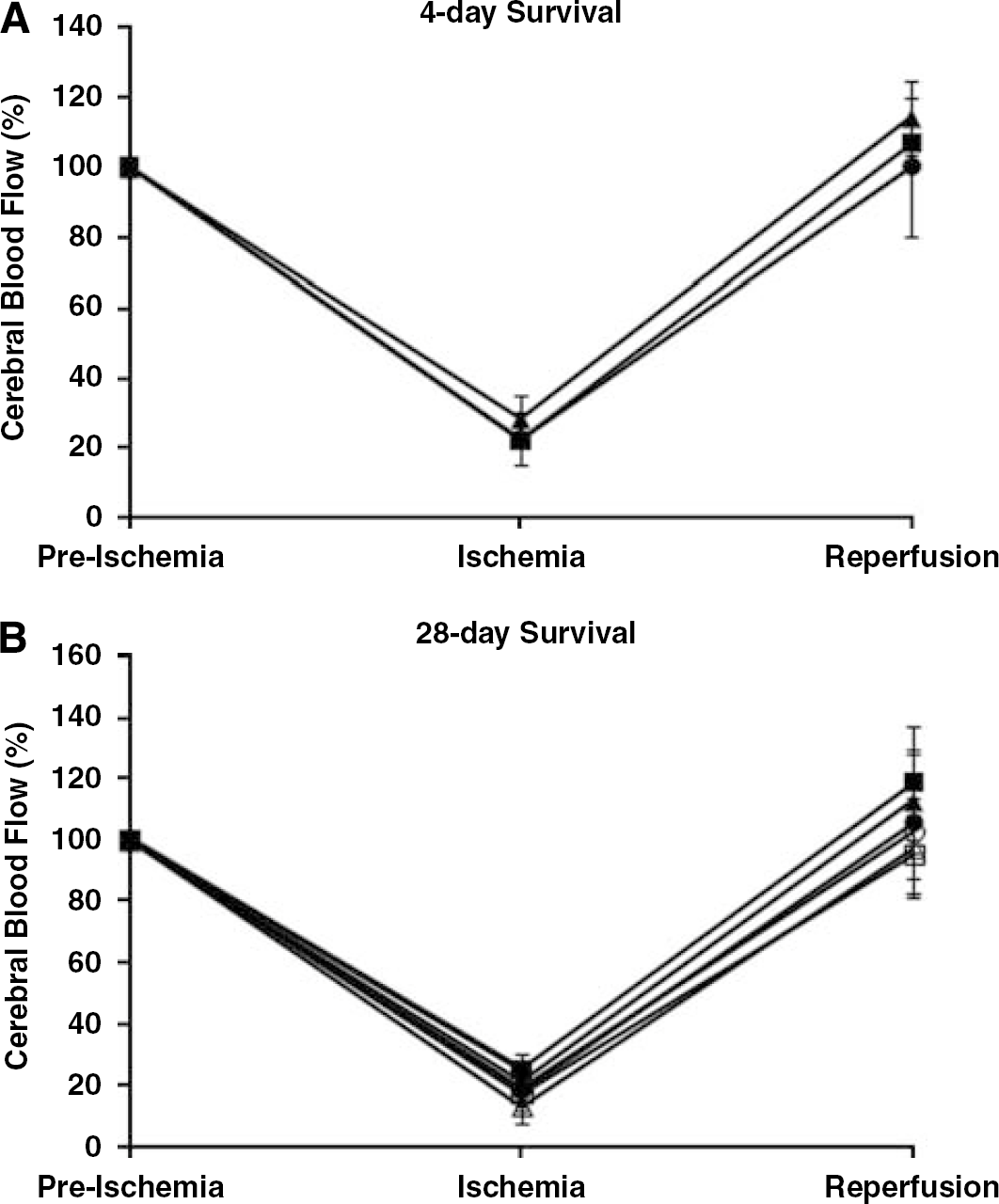

Figure 3

Recordings of cerebral blood flow (CBF). Laser-Doppler flow was continuously recorded during induction of focal cerebral ischemia and subsequent intravenous drug injection until at least 15 mins after the beginning of reperfusion. (A) Assessment of CBF in animals assigned to 4-day survival groups treated with saline (squares), TAT-HA (circles), or TAT-Hsp70 (triangles). No significant difference in CBF was observed between the different treatment groups. (B) Recordings of CBF in animals assigned to 28-day survival groups receiving either single (closed symbols) or additional injection on day 14 (open symbols). Similarly, animals treated with either saline (squares), TAT-HA (circles), or TAT-Hsp70 (triangles) did not show any significant differences in CBF. Values are given as means ± s.e.m. as percentage of preischemic CBF values.

Systemic Application of TAT-Hsp70 Reduces Functional Deficits After Cerebral Ischemia

Analysis of postischemic motor coordination deficits was performed by means of the rota rod and the tight rope tests on days 4, 7, 10, 14, 21, and 28 after cerebral ischemia. Although all animals showed better test performances over time in both the rota rod and the tight rope tests, TAT-Hsp70-treated animals always performed significantly (P<0.05) better than controls (Figures 4A and 4B). However, there was no significant difference between animals treated with one or two injections of TAT-Hsp70.

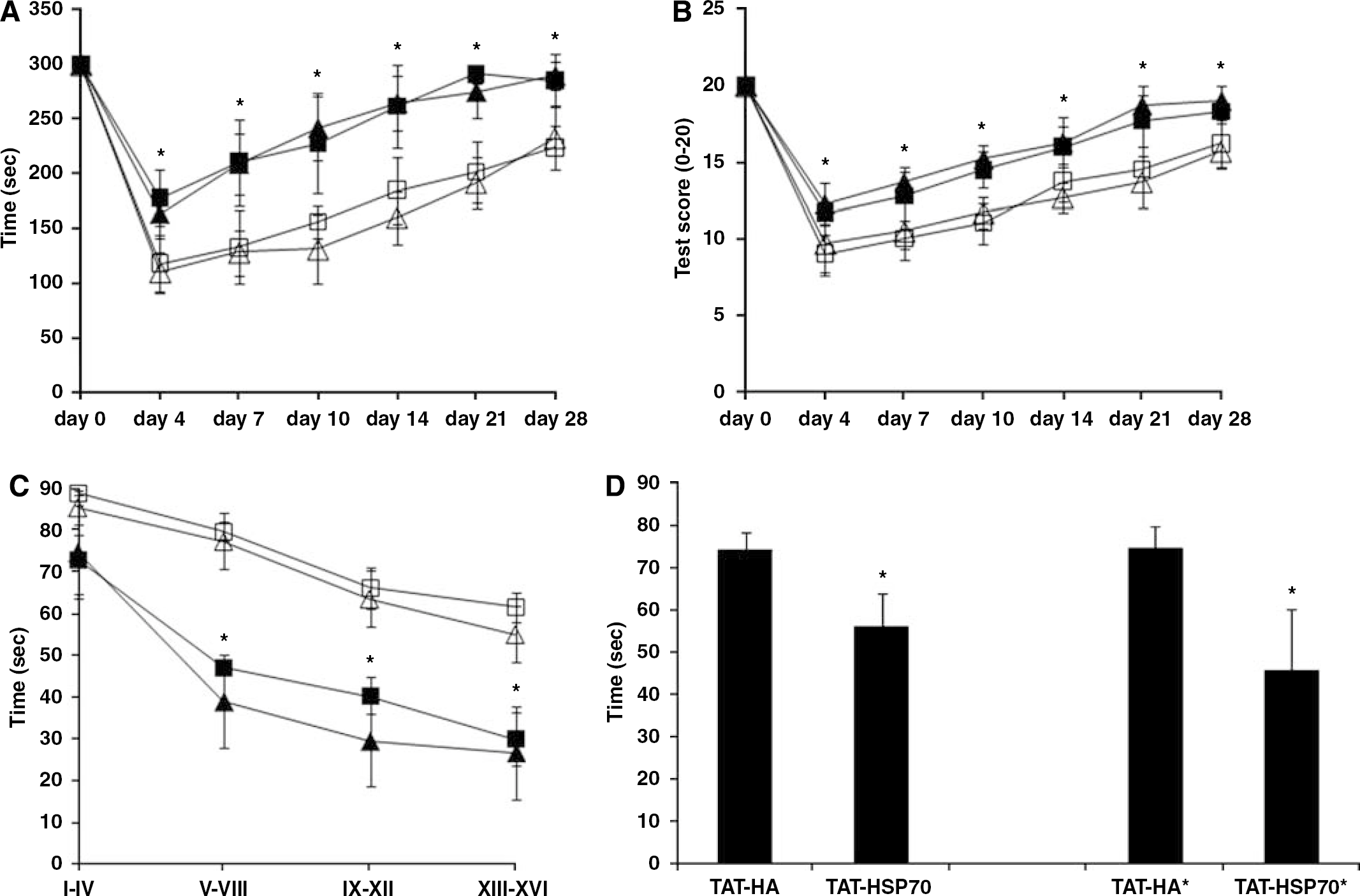

Figure 4

TAT-Hsp70 treatment decreases postischemic loss of motor function and improves spatial learning and memory capabilities. Rota rod (A) and tight rope (B) test performance of TAT-HA-treated (white squares: single injection; white triangles: second injection on day 14) and TAT-Hsp70-treated animals (black squares: single injection; black triangles: second injection on day 14). Results (A: time on rod in seconds; B: score (0 to 20)) are given as mean ± s.e.m. for all time points analyzed. (C) Modified water maze test performance on days 26 and 27 after ischemia (2 × 4 runs per day) of TAT-HA-treated (white squares and triangles: single or second injection on day 14) and TAT-Hsp70-treated animals (black squares and triangles: single or second injection on day 14). Results (time to platform in seconds) are given as mean (of four runs) ± s.e.m. (D) Time until platform was reached after change of platform position (task switch) of TAT-HA- and TAT-Hsp70-treated animals (asterisks: second systemic injection of TAT-HA and TAT-Hsp70 at day 14 after ischemia). Results are given as means (of four runs) ± s.e.m. (C, D) Maximum testing time 90 secs; animals that failed in reaching the platform were scored 90 secs. *Significantly different from controls, P<0.05.

For the modified water maze test the time necessary to reach the platform constantly decreased with the number of trials in both the control and the treatment groups suggesting that animals from all four groups were able to learn and memorize (Figure 4C). However, TAT-Hsp70-treated animals from both groups (i.e., single and double injection) were significantly (P<0.05) faster in reaching the platform than control animals. Although a change in platform position (task switch) initially reincreased the time needed to reach the platform in all animal groups, TAT-Hsp70-treated animals were significantly faster (P<0.05) in reaching the platform than TAT-HA-treated animals (Figure 4D).

TAT-Hsp70-Mediated Neuroprotection Does not Alter Postischemic Cell Proliferation

Endogenous postischemic cell proliferation was analyzed using BrdU staining. TAT-Hsp70 treatment did not affect the number of BrdU⁺ proliferating cells in both the left/ipsilateral SVZ and the (ischemic) BG, neither on day 4 (data not shown) nor on day 28, regardless of the number of TAT-Hsp70 injections (Figure 5). This suggests that TAT-Hsp70 is neuroprotective (Figure 2) rather than affecting ischemic cell proliferation.

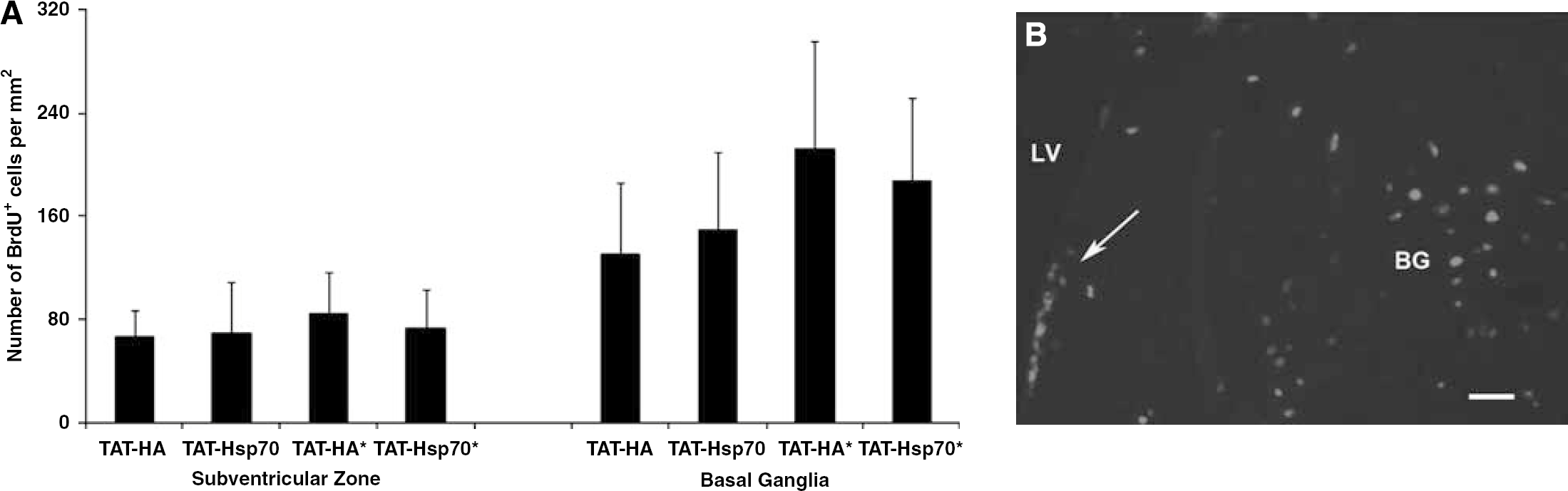

Figure 5

TAT-Hsp70 treatment does not affect postischemic cell proliferation. (A) Number of BrdU⁺ cells 28 days after cerebral ischemia within the subventricular zone (SVZ) and the ischemic basal ganglia (BG) of TAT-HA- and TAT-Hsp70-treated animals (asterisk: additional second injection on day 14). Values are given as mean ± s.e.m. (B) Immunohistochemical detection of BrdU⁺ cells in the SVZ (arrow) of the lateral ventricle (LV) and ischemic BG. Scale bar = 40 μm.

Increased Number of Neural Precursor Cells Within the Lesion Site After TAT-Hsp70 Treatment

Repeated injections of TAT-Hsp70, that is, injections on days 0 and 14, yielded a significantly (P<0.05) higher number of Dcx⁺ NPC than in controls within the ischemic BG at day 28 after cerebral ischemia (Figure 6A). Doublecortin-positive cells in TAT-Hsp70-treated animals were typically organized in clusters forming chain-like aggregates (Figures 6B and 6C). On the contrary, single injection of TAT-Hsp70 at day 0, at the beginning of the reperfusion, did not alter the number of Dcx⁺ cells significantly (Figure 6A). The number of Dcx⁺ NPC within the ipsilateral SVZ after TAT-Hsp70 treatment (days 0 and 14) was 37.0 ± 8.3 and therefore not significantly different from TAT-HA controls (34.0 ± 11.3). Doublecortin-positive cells were always restricted to the ischemic hemisphere (except for the contralateral SVZ) and could not be detected in the nonischemic BG (data not shown). We did not observe any Dcx⁺ cells within the lesion site on day 4 after cerebral ischemia in any experimental group (data not shown). These data suggest TAT-Hsp70-mediated improved survival of NPC within the lesion site after experimental ischemia.

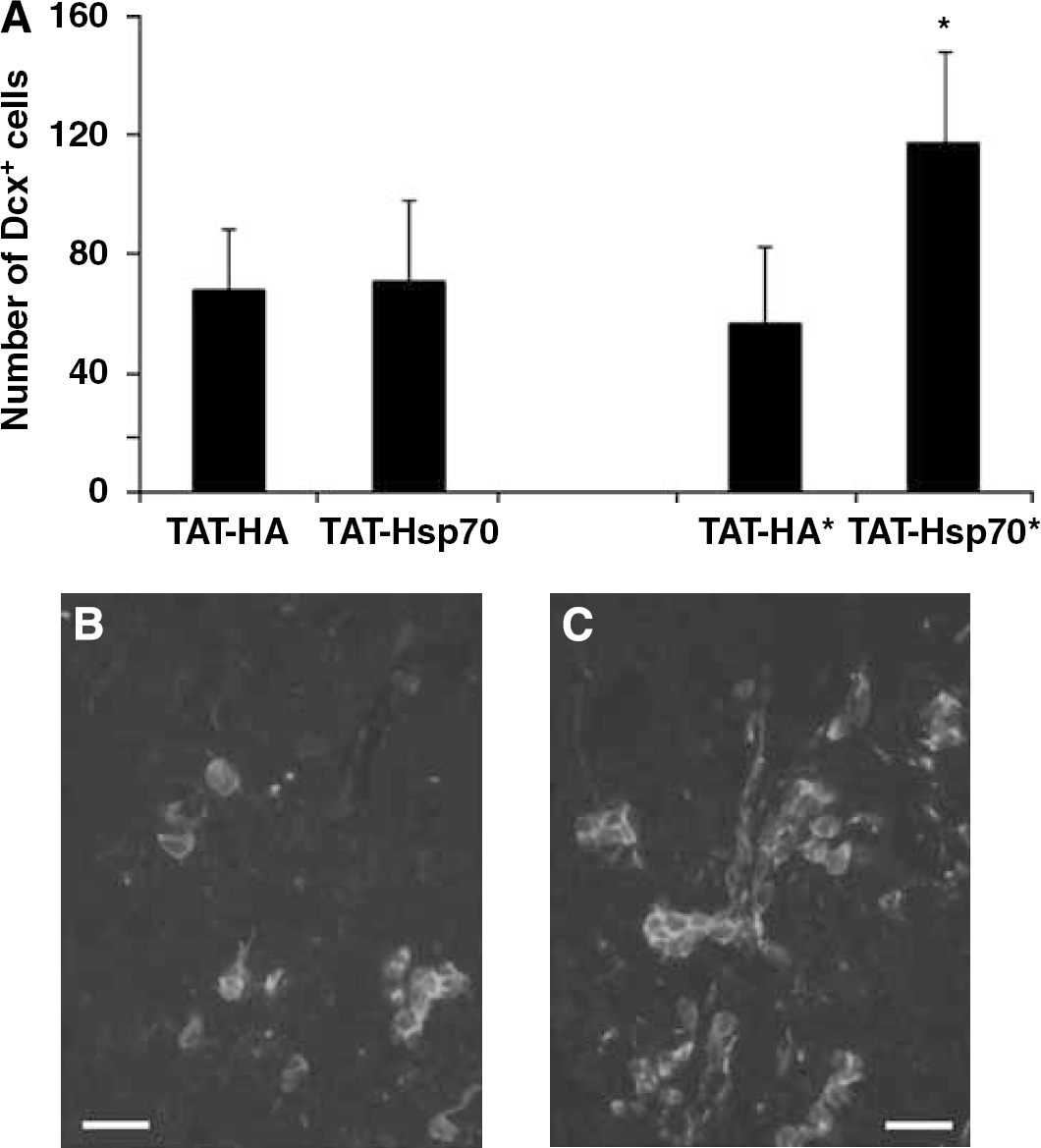

Figure 6

Increased survival of Dcx⁺ neuronal precursor cells in postischemic basal ganglia after TAT-Hsp70 treatment. (A) Numbers of Dcx⁺ neuronal precursor cells within the ischemic basal ganglia per section analyzed (mean ± s.e.m.) 28 days after lesion. Dcx⁺ cells were significantly increased in animals treated with TAT-Hsp70 both during reperfusion and on day 14 compared with TAT-HA-treated animals (TAT-HA* and TAT-Hsp70*). Single treatment with TAT-HA and TAT-Hsp70 during reperfusion, however, did not yield a significant difference between both groups. Typical chain-like aggregates of Dcx⁺ cells were mainly found in TAT-Hsp70-treated (C) but not in TAT-HA-treated animals (B). Scale bar = 20 μm. *Significantly different from controls, P < 0.05.

Postischemic Differentiation of BrdU⁺ Proliferating Cells

Although the number of BrdU⁺ proliferating cells after cerebral ischemia was not changed by TAT-Hsp70 (Figure 5A), TAT-Hsp70 treatment yielded a significantly higher number of BrdU⁺ /Dcx⁺ cells at day 28 after ischemia (Figures 7A and 7D). Repeated application of TAT-Hsp70 (days 0 and 14) resulted in 11.1% ± 5% BrdU⁺ /Dcx⁺ cells compared with 2.6% ± 1.2% cells in TAT-HA-treated animals within the lesion site at day 28 after cerebral ischemia. However, no colocalization of BrdU⁺ cells with the mature neuronal marker NeuN was observed (data not shown). Regarding astrocytic differentiation of BrdU⁺ cells 28 days after cerebral ischemia, no significant difference in the relative number of BrdU⁺/GFAP⁺ cells after repeated injection of TAT-Hsp70 (7.9% ± 4.1%) was observed as compared with TAT-HA-treated animals (5.9% ± 3.5%; Figures 7B and 7E). No colocalization with the oligodendritic markers NG2 and CNPase was observed, suggesting a lack of relevant oligodendritic differentiation of newly generated BrdU⁺ proliferating cells (data not shown). Staining against the neural marker Nestin only revealed a few scattered cells within the ischemic BG showing no significant difference between the treatment groups (Figures 7C and 7F).

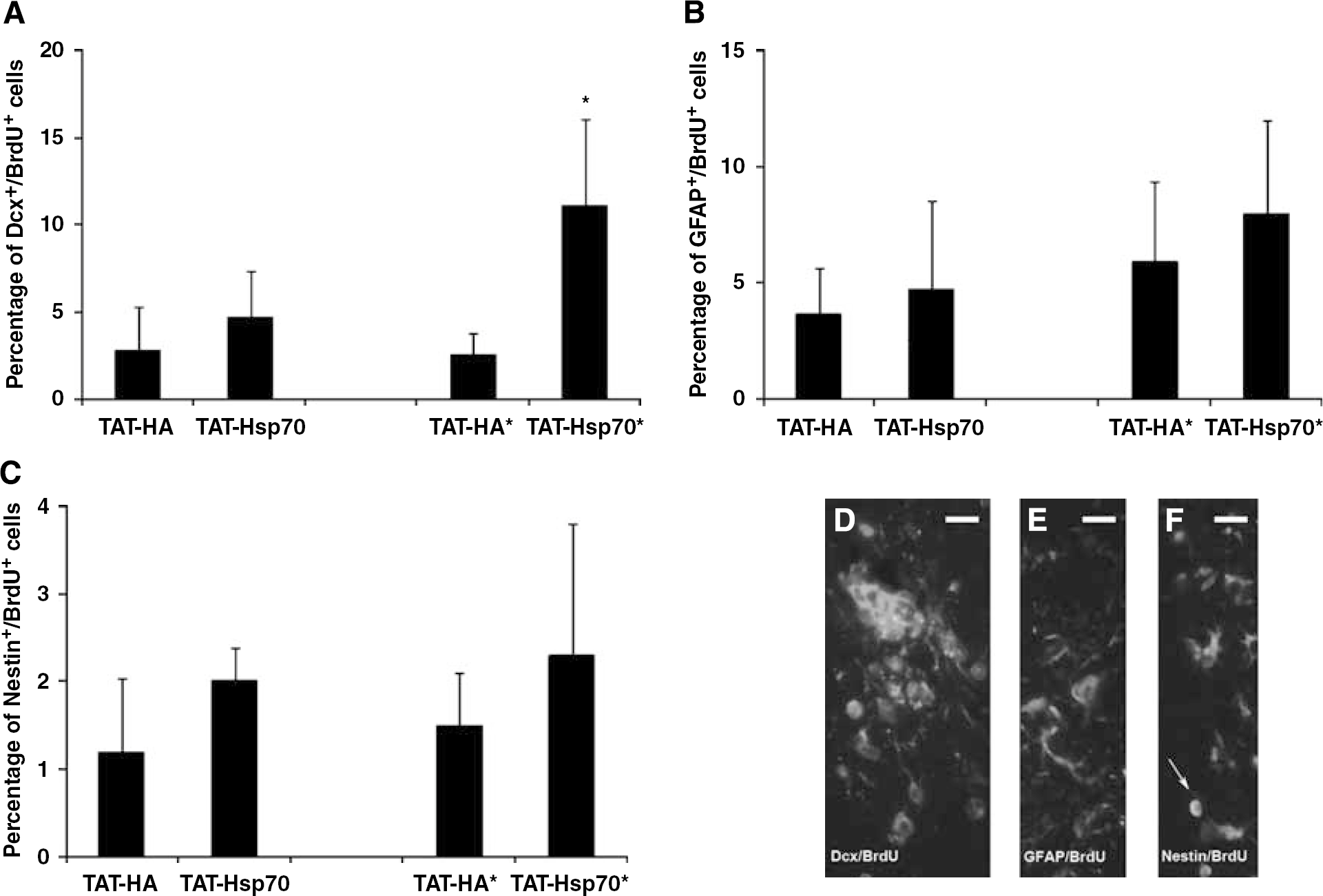

Figure 7

TAT-Hsp70 treatment increases the number of Dcx⁺/BrdU⁺ cells in postischemic basal ganglia. Quantitative analysis of BrdU⁺/Dcx⁺ cells (A), BrdU⁺/GFAP⁺ cells (B), and BrdU⁺/Nestin⁺ cells (C) in basal ganglia 28 days after cerebral ischemia. Numbers of BrdU⁺/Dcx⁺ cells were significantly increased in animals treated with two injections of TAT-Hsp70 (days 0 and 14; TAT-Hsp70*) compared with TAT-HA negative controls (TAT-HA*). Single injection of TAT-Hsp70 on day 0, however, only showed a nonsignificant trend toward a higher number of BrdU⁺/Dcx⁺ cells compared with control animals (TAT-HA and TAT-Hsp70). No significant difference in the number of BrdU⁺/GFAP⁺ (B) and BrdU⁺/Nestin⁺ (C) cells between the different treatment groups (asterisk: second injection on day 14) was observed. Cell numbers are presented as percentage of BrdU⁺ cells expressing Dcx, GFAP, or Nestin (mean ± s.e.m.). (D) Colocalization of Dcx (green) and BrdU (red). (E) Colocalization of GFAP (green) and BrdU (red). (F) Colocalization (arrow) of Nestin (green) and BrdU (red). Scale bar = 20 μm. *Significantly different from controls, P<0.05.

Discussion

In this study, TAT-Hsp70-mediated effects on infarct volume, functional outcome, cell proliferation, and survival of endogenous NPC after transient focal cerebral ischemia in mice were analyzed. In line with Nagel et al (2008a), who studied TAT-Hsp70-mediated effects in an in vivo model of Parkinson's disease, the transduction rate after systemic application of TAT-Hsp70 was high in both ischemic and nonischemic hemispheres (Figure 1). So far, Hsp70-mediated postischemic neuroprotection has only been described after protein overexpression within 2 days after the onset of cerebral ischemia (Badin et al, 2006; Hoehn et al, 2001; Sun et al, 2006; Zheng et al, 2008). Therefore, we chose a different ‘therapeutic’ approach by systemic application of TAT-Hsp70 during reperfusion (and on day 14) and analyzed infarct volumes on days 4 and 28 after experimental stroke. When compared with controls infarct size in TAT-Hsp70-treated animals (single as well as repeated administration) was significantly reduced at both time points (Figure 2A). In line with TAT-Hsp70-mediated reduction of infarct volume, fusion protein treatment also yielded a direct neuroprotective effect shown by a significantly reduced number of TUNEL⁺ cells (Figure 2B). These effects, however, were independent of CBF values as animals in all treatment groups showed an ∼100% reperfusion rate within the first 15 mins after thread removal (Figure 3).

Although overexpression of Hsp70 with subsequent short-term neuroprotection after experimental stroke has been shown before (see above), its functional relevance has not been studied sufficiently yet, and postischemic analysis of functional deficits is limited because of simplified stroke scales (Hoehn et al, 2001; Sun et al, 2006; Zheng et al, 2008). Thus, we studied postischemic functional deficits in motor coordination using the rota rod and the tight rope tests, both of which have proved to be sensitive in detecting sensorimotor functional deficits after experimental stroke in mice (Gerlai et al, 2000). Both groups of animals receiving either a single or a repeated injection of TAT-Hsp70 performed significantly better in the two tests when compared with controls (Figures 4A and 4B). Although animals from all experimental groups showed better test performance over time, at the time points analyzed, TAT-Hsp70-treated animals significantly scored better, which was also associated with smaller infarct size assessed on days 4 and 28. The improvement in motor function over time in all animals, as shown by better test results with increasing survival time, can probably be attributed to the high rate of spontaneous recovery of rodents after cerebral ischemia (Nygren and Wieloch, 2005; Winter et al, 2004). Thus, reduced loss of motor coordination deficits in TAT-Hsp70-treated animals may be associated with TAT-Hsp70-mediated neuroprotection.

As cerebral ischemia does not only affect motor coordination but also learning and memory capabilities of rodents (Bendel et al, 2005), we additionally exposed the animals to a modified water maze test. All animals receiving TAT-Hsp70 treatment, both single or repeated administration, reached the platform significantly faster when tested on days 26 and 27 after ischemia, and they achieved better test scores in the task switch on day 28 (Figures 4C and 4D) when compared with TAT-HA-treated controls. Most likely, this is because of TAT-Hsp70-mediated neuroprotection on days 4 and 28. However, one has to keep in mind that complex cognitive functions such as learning and memory do not simply depend on infarct size alone, but also on neuronal circuits between different structures like the hippocampus or the mammillary bodies, which are usually not affected by a 45 mins occlusion of the MCA (Vann and Aggleton, 2004). Therefore, the precise neuroanatomic basis for a better water maze test performance of TAT-Hsp70-treated animals remains elusive and further studies with emphasis on analysis of TAT-Hsp70-mediated effects on hippocampal neurons are needed.

Consistent with other reports (Arvidsson et al, 2002; Jin et al, 2001), focal cerebral ischemia induced endogenous cell proliferation and increased the number of NPC, labeled by BrdU and Dcx. Postischemic survival of Dcx⁺ NPC within the lesion site of animals repeatedly treated with TAT-Hsp70 after ischemia was significantly higher when compared with TAT-HA-treated controls (Figure 6). Thus, systemic application of TAT-Hsp70 may be an interesting ‘therapeutic’ approach to improve limited survival of NPC (Haas et al, 2005; Parent, 2003). However, single injection of TAT-Hsp70 at the beginning of the reperfusion did not alter the number of Dcx⁺ cells in the lesion site. The latter result might be because of a ‘delayed’ increase of endogenous neurogenesis after stroke; we did not observe any Dcx⁺ cells within the site of lesion at day 4 after induction of cerebral ischemia (own unpublished observation). Therefore, Dcx⁺ cells analyzed on day 28 within the ischemic BG must have been generated beyond day 4. We hypothesize that these late-born cells may therefore profit from a second antiapoptotic treatment on day 14 after stroke. In line with these results, animals receiving repeated injections of TAT-Hsp70 showed a higher percentage of BrdU⁺ cells expressing Dcx (Figures 7A and 7D); the cause of which is rather a TAT-Hsp70-mediated enhanced survival of NPC within the lesion, than an increased neuronal differentiation of BrdU⁺ proliferating cells. As a matter of fact, TAT-Hsp70 treatment did not alter the survival of Dcx⁺ NPC within the SVZ after cerebral ischemia (own unpublished observation). According to this, we did not observe any colocalization of BrdU⁺ cells with the neuronal marker NeuN in the lesion site at 4 weeks after cerebral ischemia (unpublished observation), arguing against a TAT-Hsp70-mediated enhanced neuronal differentiation. However, survival periods beyond 4 weeks after stroke are necessary to assess whether TAT-Hsp70-mediated increased survival of NPC eventually leads to mature neurons within the lesion site.

In contrast to a higher percentage of BrdU⁺/Dcx⁺ cells in TAT-Hsp70-treated animals, TAT-Hsp70 did not affect the total number of proliferating BrdU⁺ cells after stroke (Figure 5), which contradicts a TAT-Hsp70-mediated effect on postischemic cell proliferation. Nevertheless, the overall number of BrdU⁺ cells may not be equal to the number of proliferating NPC within the lesion site, as the thymidine analogue BrdU is integrated during cell proliferation as well as during DNA repair (Taupin, 2007). In comparison to TAT-Hsp70-mediated neuroprotection, enhanced cell injury in controls is associated with increased DNA repair, resulting in higher BrdU uptake, thereby masking a probable difference in the number of ‘genuinely’ proliferating cells between both groups.

In summary, systemic TAT-Hsp70 treatment after focal cerebral ischemia is neuroprotective resulting in reduced infarct size and less motor coordination and cognitive deficits. In addition, the survival of newly generated Dcx⁺ NPC within the lesion site is enhanced after TAT-Hsp70 treatment, indicating that this treatment approach may simultaneously affect different pathophysiological cascades and thereby provide an interesting versatile tool for the development of new neuroprotective therapies in stroke.

Footnotes

Acknowledgements

We thank Barbara Müller and Birgit Dietz for excellent technical assistance.

The authors declare that they have no competing financial interest.

References

Alvarez-Buylla

Garcia-Verdugo

(2002) Neurogenesis in adult subventricular zone. J Neurosci 22:629–34

Arvidsson

Collin

Kirik

Kokaia

Lindvall

(2002) Neuronal replacement from endogenous precursors in the adult brain after stroke. Nat Med 8:963–70

Arvidsson

Kokaia

Lindvall

(2001) AT-Methyl-D-aspartate receptor-mediated increase of neurogenesis in adult rat dentate gyrus following stroke. Eur J Neurosci 14:10–8

Badin

Lythgoe

van der Weerd

Thomas

Gadian

Latchman

(2006) Neuroprotective effects of virally delivered HSPs in experimental stroke. J Cereb Blood Flow Metab 26:371–81

Bendel

Bueters

von Euler

Ove Ogren

Sandin

von Euler

(2005) Reappearance of hippocampal CA1 neurons after ischemia is associated with recovery of learning and memory. J Cereb Blood Flow Metab 25:1586–95

Doetsch

Caille

Lim

Garcia-Verdugo

Alvarez-Buylla

(1999) Subventricular zone astrocytes are neural stem cells in the adult mammalian brain. Cell 97:703–16

Gerber

Raivich

Wellmer

Noeske

Kunst

Werner

Bruck

Nau

(2001) A mouse model of Streptococcus pneumoniae meningitis mimicking several features of human disease. Acta Neuropathol 101:499–508

Gerlai

Thibodeaux

Palmer

van Lookeren Campagne

Van Bruggen

(2000) Transient focal cerebral ischemia induces sensorimotor deficits in mice. Behav Brain Res 108:63–71

Giffard

Han

Emery

Duan

Pittet

(2008) Regulation of apoptotic and inflammatory cell signaling in cerebral ischemia: The complex roles of heat shock protein 70. Anesthesiology 109:339–48

10.

Gross

(2000) Neurogenesis in the adult brain: Death of a dogma. Nat Rev Neurosci 1:67–73

11.

Haas

Weidner

Winkler

(2005) Adult stem cell therapy in stroke. Curr Opin Neurol 18:59–64

12.

Hoehn

Ringer

Giffard

Sapolsky

Steinberg

Yenari

(2001) Overexpression of HSP72 after induction of experimental stroke protects neurons from ischemic damage. J Cereb Blood Flow Metab 21:1303–9

13.

Jin

Minami

Lan

Mao

Batteur

Simon

Greenberg

(2001) Neurogenesis in dentate subgranular zone and rostral subventricular zone after focal cerebral ischemia in the rat. Proc Natl Acad Sci USA 98:4710–5

14.

Chen

Chopp

(2002) Cell proliferation and differentiation from ependymal, subependymal and choroid plexus cells in response to stroke in rats. J Neurol Sci 193:137–46

15.

Liu

Solway

Messing

Sharp

(1998) Increased neurogenesis in the dentate gyrus after transient global ischemia in gerbils. J Neurosci 18:7768–78

16.

Nagel

Falkenburger

Tonges

Kowsky

Poppel-meyer

Schulz

Bahr

Dietz

(2008a) Tat-Hsp70 protects dopaminergic neurons in midbrain cultures and in the substantia nigra in models of Parkinson's disease. J Neurochem 105:853–64

17.

Nagel

Dohm

Bahr

Wouters

Dietz

GPH

(2008b) Quantitative evaluation of the therapeutic potential of a cell-transducible Hsp70. J Neurosci Methods 171:226–32

18.

Nygren

Wieloch

(2005) Enriched environment enhances recovery of motor function after focal ischemia in mice, and downregulates the transcription factor NGFI-A. J Cereb Blood Flow Metab 25:1625–33

19.

Parent

(2003) Injury-induced neurogenesis in the adult mammalian brain. Neuro scientist 9:261–72

20.

Rajdev

Hara

Kokubo

Mestril

Dillmann

Weinstein

Sharp

(2000) Mice overexpressing rat heat shock protein 70 are protected against cerebral infarction. Ann Neurol 47:782–91

21.

Sun

Ouyang

Chow

Anderson

Hecker

Giffard

(2006) The carboxyl-terminal domain of inducible Hsp70 protects from ischemic injury in vivo and in vitro. J Cereb Blood Flow Metab 26:937–50

22.

Taupin

(2007) BrdU immunohistochemistry for studying adult neurogenesis: Paradigms, pitfalls, limitations, and validation. Brain Res Rev 53:198–214

23.

Taupin

Gage

(2002) Adult neurogenesis and neural stem cells of the central nervous system in mammals. J Neurosci Res 69:745–9

24.

Vann

Aggleton

(2004) The mammillary bodies: Two memory systems in one? Nat Rev Neurosci 5:35–44

25.

Wada

Sugimori

Bhide

Moskowitz

Finklestein

(2003) Effect of basic fibroblast growth factor treatment on brain progenitor cells after permanent focal ischemia in rats. Stroke 34:2722–8

26.

Wang

Zhang

Wang

Zhang

Chopp

(2004) Treatment of stroke with erythropoietin enhances neurogenesis and angiogenesis and improves neurological function in rats. Stroke 35:1732–7

27.

Weise

Sandau

Schwarting

Crome

Wrede

Schulz-Schaeffer

Zerr

Bahr

(2006) Deletion of cellular prion protein results in reduced Akt activation, enhanced postischemic caspase-3 activation, and exacerbation of ischemic brain injury. Stroke 37:1296–300

28.

Wheeler

Dunsmore

Wong

(2003) Intracellular delivery of HSP70 using HIV-1 Tat protein transduction domain. Biochem Biophys Res Commun 301:54–9

29.

Winter

Bert

Fink

Dirnagl

Endres

(2004) Dysexecutive syndrome after mild cerebral ischemia? Mice learn normally but have deficits in strategy switching. Stroke 35:191–5

30.

Yamashita

Ninomiya

Hernandez Acosta

Garcia-Verdugo

Sunabori

Sakaguchi

Adachi

Kojima

Hirota

Kawase

Araki

Abe

Okano

Sawamoto

(2006) Subventricular zone-derived neuroblasts migrate and differentiate into mature neurons in the post-stroke adult striatum. J Neurosci 26:6627–36

31.

Zhang

Chopp

(2001) Proliferation and differentiation of progenitor cells in the cortex and the subventricular zone in the adult rat after focal cerebral ischemia. Neuroscience 105:33–41

32.

Zheng

Kim

Lee

Yenari

(2008) Antiinflammatory effects of the 70 kDa heat shock protein in experimental stroke. J Cereb Blood Flow Metab 28:53–63
