Persistent Increase in Oxygen Consumption and Impaired Neurovascular Coupling after Spreading Depression in Rat Neocortex

Abstract

Cortical spreading depression (CSD) is associated with a dramatic failure of brain ion homeostasis and increased energy metabolism. There is strong clinical and experimental evidence to suggest that CSD is the mechanism of migraine, and involved in progressive neuronal injury in stroke and head trauma. Here we tested the hypothesis that single episodes of CSD induced acute hypoxia, and prolonged impairment of neurovascular and neurometabolic coupling. Cortical spreading depression was induced in rat frontal cortex, whereas cortical electrical activity and local field potentials (LFPs) were recorded by glass microelectrodes, cerebral blood flow (CBF) by laser—Doppler flowmetry, and tissue oxygen tension (tpO₂) with Polarographic microelectrodes. Cortical spreading depression increased cerebral metabolic rate of oxygen (CMRO₂) by 71% ± 6.7% and CBF by 238% ± 48.1% for 1 to 2 mins. For the following 2 h, basal tpO₂ and CBF were reduced whereas basal CMRO₂ was persistently elevated by 8.1% ± 2.9%. In addition, within first hour after CSD we found impaired neurovascular coupling (LFP versus CBF), whereas neurometabolic coupling (LFP versus CMRO₂) remained unaffected. Impaired neurovascular coupling was explained by both reduced vascular reactivity and suppressed function of cortical inhibitory interneurons. The protracted effects of CSD on basal CMRO₂ and neurovascular coupling may contribute to cellular dysfunction in patients with migraine and acutely injured cerebral cortex.

Keywords

brain trauma cortical spreading depression migraine stroke

Introduction

Clinical and experimental evidence indicate that cortical spreading depression (CSD) is an essential mechanism of migraine (Lauritzen, 1994), and recent data suggest that CSD or CSD-like events occur at a high frequency in the cerebral cortex of patients with acute traumatic brain injury (Strong et al, 2002), intracerebral and subarachnoid hemorrhage (Fabricius et al, 2006; Dreier et al, 2006), or malignant stroke (Dohmen et al, 2008). The objective of the present study was to examine in detail the changes in cerebral blood flow (CBF), cerebral metabolic rate of oxygen (CMRO₂), and neurovascular and neurometabolic coupling in the first 2 h after the depolarization wave. We expected this would provide important information about energy supply and failure as a consequence of CSD, and thus help to explain why those with migraine have a higher risk of stroke (Kurth, 2007), and why some patients with traumatic or vascular brain injury develop secondary lesions (Hansen and Lauritzen, 1984).

Restoration of the ionic gradients after CSD is extremely energetically demanding, and the rise in metabolism during CSD is among the largest observed in the brain (Shinohara et al, 1979). This is matched by a huge increase in erebral blood flow (CBF), which ensures that the amount of substrate supplied matches the increased metabolic rate (Shinohara et al, 1979). In mice, CSD may cause a decrease (Ayata et al, 2004) or a minimal rise in CBF and in consequence a mismatch between O₂ use and supply that may lead to tissue hypoxia (Takano et al, 2007). Similarly, young rats (P15 to P25) have been reported to show no increase in CBF in response to CSD (Chuquet et al, 2007). We report that basal CMRO₂ was elevated for up to 2 h after CSD, whereas concurrently basal CBF and tissue oxygen partial pressure (tpO₂) were reduced. At the same time neurovascular coupling was impaired whereas neurometabolic coupling was preserved. Our results may have direct clinical implications given the involvement of CSD in migraine, and the possible contribution of CSD to neuronal dysfunction or death in acute brain disorders.

Materials and methods

Eleven male Wistar rats (308 ± 6.1 g) were anesthetized with isoflurane (induction: 5%, surgery: 2%; Baxter A/S, Allerod, Denmark) while ventilated with O₂ and air. The head was placed in a stereotactic head holder. Lidocaine (5 mg/mL) was used at the contact spots for the ear pins. A femoral artery catheter was inserted for measuring arterial blood pressure and taking blood-gas samples. A femoral vein catheter was inserted for saline infusion. The trachea was cannulated and rats were ventilated and maintained throughout the experiment at pH 7.35 to 7.45, PaCO₂ 35 to 43 mm Hg, and PaO₂ 95 to 130 mm Hg (ABL 715; Radiometer Medical Aps, Brønshøj, Denmark). Body temperature was maintained at 36 to 37°C using a custom-made heating pad. Three craniotomies were performed with a dental drill; two over homologous regions of the somatosensory cortex, and one over the frontal cortex on the registration side for elicitation of CSD (Figures 1A and 1B). Wells were made around each craniotomy using 5% agar in Ringer solution. The dura was carefully removed under a microscope. Any visible sign of brain damage or bleeding excluded the rat from the protocols. During and after removal of the dura the craniotomy sites were continuously superfused with artificial cerebrospinal fluid (composition in mmol/L: 2.0 glucose, 126.0 NaCl, 2.8 KCl, 22.0 NaHCO₃, 1.45 CaCl₂, 1.0 Na₂HPO₄, and 0.876 MgCl₂). After surgery the anesthesia was changed to α-chloralose (1,2-O-[2,2,2-trichloroethylidene]-[α]-d-glucofuranose) HBC complex (Sigma), dissolved in saline (0.5 g/mL), (bolus: 1.6 mL/kg, i.V.; continuous infusion: 1.1 mL/kg per hour, i.V.). α-Chloralose HBC complex (1 g) contains 103 mg α-chloralose. This means that our anesthesia regime equals the following α-chloralose doses of: initial bolus (1.6 mL/kg times 51.5 mg/mL) 82.4 mg/kg and continuous infusion (1.1 mL/kg per hour times 51.5 mg/mL) 56.7 mg/kg per hour. This anesthetic regime is considered ideal for studies of neurovascular and neurometabolic coupling (Bonvento et al, 1994). The level of anesthesia was checked by observing arterial blood pressure during stimulation and by tail pinch. Experiments were performed after a postoperative recovery period of at least half an hour to obtain a stable level of anesthesia, a stable laser—Doppler baseline, and an arterial blood pressure of 90 to 120 mm Hg, not varying more than 10% in the same animal. Arterial blood pressure remained constant during electrical stimulation. Thus, the CBF increases noted were not because of fluctuations in blood pressure. The signals were A/D converted, amplified, and sampled by the 1401 plus interface (Cambridge Electronic Design (CED), Cambridge, UK) connected to a PC running Spike 2 software (CED). At the end of the experiment, the heart was stopped by an intravenous bolus injection of air and the zero level of the recording parameters was seen. All experiments were conducted in full compliance with the guidelines set forth in the European Council's Convention for the Protection of Vertebrate Animals Used for Experimental and other Scientific Purposes, and were approved by the Danish National Ethics Committee.

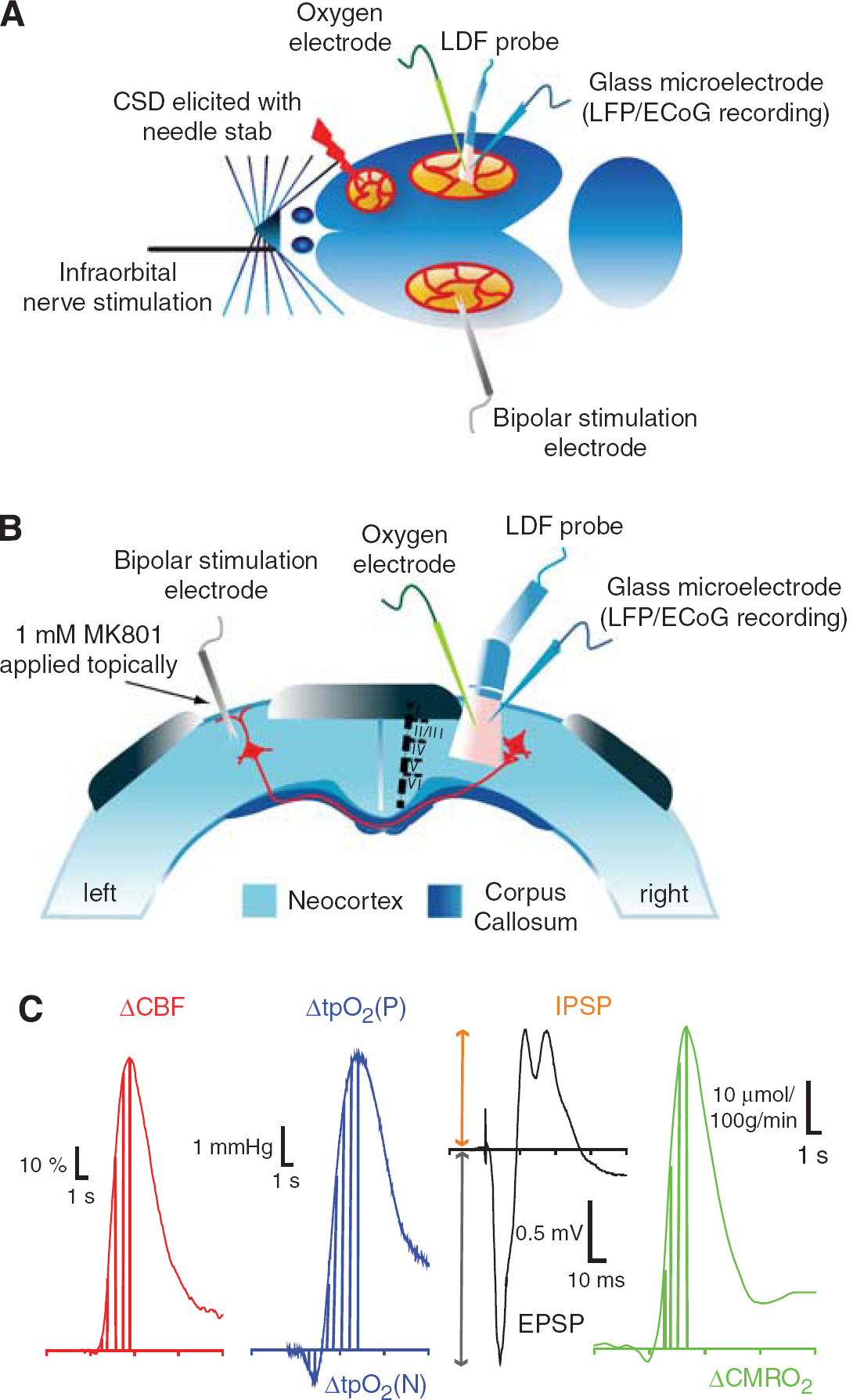

Figure 1

Experimental design. (A) Rat brain viewed from above. Cortical spreading depression was elicited in the right frontal cortex with a brief needle stab, and propagated into right somatosensory cortex monitored by a glass microelectrode recording electrocorticographic (ECoG) activity. Using the same microelectrode, we recorded local field potentials (LFPs) evoked by a bipolar stimulation electrode placed in left somatosensory cortex. Baseline and evoked changes in cerebral blood flow (CBF) were recorded by laser—Doppler flowmetry (LDF) whereas tissue oxygenation (tpO₂) was recorded using a Clark-type Polarographic glass microelectrode. Stimulation of left infraorbital nerve fibers validated that the recording position was in the whisker barrel cortex. (B) Rat brain in coronal section. The cortical surface of the stimulation side was superfused with 1 mmol/L MK801 (NMDA receptor blocker) to avoid generation of seizure activity and cortical spreading depression in that hemisphere, produced by placement of the stimulation electrode and TC stimulations (Hoffmeyer et al, 2007). (C) Evoked CBF, tpO₂, and CMRO₂ responses were defined as area under curve (AUC) from stimulation onset to peak value. Evoked LFP responses were defined by their peak amplitude.

Experimental Protocols

In all experiments described, recording electrodes and laser—Doppler probe were placed in a region devoid of large vessels (> 100 μm) as close as possible to each other at coordinates 3 mm posterior to bregma and 6 mm lateral to the midline, corresponding to the barrel cortex. To ensure that recordings were in the barrel cortex, we performed initial stimulation of the contralateral infraorbital nerve was performed and the area of recordings was ascertained by the presence of large and robust local field potential (LFP) and CBF responses. Cortical spreading depression was elicited in the right frontal cortex with a brief needle stab, and propagated into right somatosensory cortex monitored by a glass microelectrode recording electrocorticographic (ECoG) activity at a distance of approximately 6 mm from the site of elicitation.

Transcallosal Fiber Stimulation

In six experiments, a coated bipolar stainless steel electrode (SNEX 200, contact separation: 0.25 mm; RMI, Woodland Hills, CA, USA) was lowered 0.5 mm into the right sensory cortex 3.0 mm posterior to bregma and 6.0 mm lateral to the midline using stereotactic instruments. Direct current stimulation (ISO-flex; A.M.P.I., Jerusalem, Israel) was given as square wave pulses (100 μs, 1.5 mA) at 1, 2, 4, 6, 10, 20, 30, and 40 Hz in trains lasting for 1 sec. Each frequency was run three times with interstimulus intervals of 0.5 to 1.5 mins, depending on the stimulation frequency, to allow the reestablishment of a stable baseline between stimulations. Cortical stimulation elicited episodes of CSD on the stimulated side. To circumvent this problem, we applied the NMDAR antagonist MK801 to the stimulated (left) cortex in a concentration of 1 mmol/L (Figure 1B), which prevented the occurrence of CSD (Hoffmeyer et al, 2007). This procedure ensured reproducible tpO₂, LFPs, and CBF responses in the activated (right) cortex.

Tissue PO₂ Measurements

We used a modified Clark-type Polarographic oxygen microelectrode (OX-10; Unisense A/S, Aarhus, Denmark) with a guard cathode for tpO₂ measurements. The advantage of this electrode type is its small tip size (10 μm in this study) and its built-in guard cathode, which removes all oxygen from the electrolyte reservoir.

This enabled us to measure tpO₂ over time (and among different treatment conditions) with excellent long-term stability (signal drift, 0 to 0.5% per hour). The field of sensitivity is a sphere of two times the tip diameter. The electrodes used in this study were constructed so that 90% of the response time was < 1 sec and the stirring sensitivity was nearly negligible at <0.8%. Oxygen microelectrodes responded linearly to changes in oxygen concentration. Calibration of each electrode was performed before and after each experiment in both air-saturated saline and in oxygen-free solution consisting of 0.1 mol/L (+)sodium l-ascorbate and 0.1 mol/L NaOH dissolved in saline. Mean tpO₂ was 18.0± 1.9 mm Hg (meani s.e.m.; n = 11). The oxygen electrode was stepwise, vertically inserted into the somatosensory cortex and positioned at the same cortical depth as the glass microelectrode (300 to 600 μm). The distance between the two electrodes was < 200 μm. Both electrodes and the laser—Doppler flowmetry (LDF) probe were recorded from the same depth and were kept in the same position throughout the experiment. No linear drifts in baseline occurred during the experiments. The oxygen electrodes were connected to a high-impedance Pico-amperemeter (PA 2000; Unisense A/S) that sensed the currents of the oxygen electrodes. Signals were A/D converted and recorded at 100 Hz (Power 1401 and Spike 2.5; CED).

Electrophysiology

We used single-barreled glass microelectrodes, filled with 2 mol/L saline (impedance, 2 to 3 MΩ tip, 2 μm). Extracellular LFPs were recorded with a single electrode at a depth of 300 to 600 μm in the right somatosensory cortex. An Ag/AgCl ground electrode was placed in the neck muscle. The preamplified (x 10) signal was A/D converted, amplified, band pass filtered at 1 to 1000 Hz, and digitized using the 1401 plus hardware (CED) connected to a PC running the Spike 2.5 software. Digital sampling rates for LFP and ECoG were 5 kHz.

Laser—Doppler Flowmetry

Cerebral blood flow was continuously recorded using LDF. The LDF probe was at a fixed position at 0.3 mm above the pial surface in a region devoid of large blood vessels (wavelength, 780 nm; fiber separation, 250 μm; Periflux 4001 Master, Perimed, Jarfälla, Sweden). With this wavelength and fiber separation, changes in CBF were recorded to a cortical depth of 1 mm (Fabricius et al, 1997). After stable baseline recordings had been obtained, the probe was left for the duration of the experiment. The signal was A/D converted and recorded using the CED 1401 plus interface and the CED Spike 2.5 software (10 Hz digital sampling rate). The LDF monitor displays blood flow readings in arbitrary units that do not allow for measurement of CBF in terms of absolute values, but the method is valid in determining relative changes of CBF during moderate flow increases (Fabricius and Lauritzen, 1996).

Calculation of CMRO₂

To evaluate the effect of stimulation on metabolism, we calculated CMRO₂ from simultaneously obtained recordings of tpO₂ and CBF offline. Baseline values of tpO₂ and CBF were taken as the mean of a 1 sec period obtained before onset of stimulation. These values were then combined with reported values for CBF and CMRO₂ from the literature using α-chloralose anesthesia (53 mL/100 g per min and 219 μmol/100 g per min, respectively; Zhu et al, 2002) to calculate the corresponding L, the effective diffusion coefficient of oxygen in brain tissue. Standard values used in calculations: P₅₀ (36 mm Hg), h (2.7), and C_a (8 μmol/mL). This corresponded to an L value of 4.63 μmol/100 g per min per mm Hg. Cerebral blood flow and tpO₂ recordings were divided into bins of 0.1 sec, which were then used to calculate CMRO₂ (Gjedde et al, 2005). The relationship between the three variables is

{t p O}_{2} = P_{50} \sqrt[h]{\frac{2 C_{a} C B F}{{C M R O}_{2}} - 1} - \frac{{C M R O}_{2}}{2 L}

(1)

where P₅₀ is the half-saturation tension of the oxygen-hemoglobin dissociation curve, h, the Hill coefficient of the same dissociation curve, C_a, the arterial oxygen concentration, and L.

Data Analysis and Statistics

Simultaneously recorded LFP, CBF, and tpO₂ signals were used for analysis. The LFPs were averaged, and amplitudes were calculated for each stimulation period as the difference between the baseline and the first negative peak (excitatory postsynaptic potential, EPSP), and between baseline and first positive peak (inhibitory postsynaptic potential, IPSP). Stimulation-induced CBF responses (ACBF) were converted from AU to percent change from baseline (1 sec before stimulation) as the area under curve (AUC) from stimulation onset to peak value. tpO₂ values were converted from pA to mmHg, and evoked responses were calculated as AUC from stimulation onset to trough (ΔtpO₂(N)), and from onset to peak (ΔtpO₂(P)); Figure 1C shows calculated areas and amplitudes. Baseline values for CBF, tpO₂, and CMRO₂ for a given period were calculated for every animal as follows: the last second before stimulation onset for every frequency (1, 2, 4, 6, 10, 20, 30, and 40 Hz) was summed and divided by the number of stimulation frequencies (n = 8). This procedure was repeated for every animal. The group baseline level was obtained by summing the individual animal baseline levels and dividing by the number of animals (n = 11). Spike 2.5 software with a 1401 plus interface (CED) was used for data sampling and offline calculations of LFP amplitudes. Custom-made analysis programs based on Matlab 7.3 (MathWorks Inc., Natick, MA, USA) were used to calculate evoked CMRO₂ responses defined as AUC from stimulus onset to peak value. Cerebral metabolic rate of oxygen was calculated as described in the previous section. SAS version 9.1.3 (SAS Institute Inc., Cary, NC, USA) was used for statistical analyses. All SAS analyses were performed on log-transformed data. Linear regression with random effects for single animals was used before interanimal variation (proc mixed) to examine the frequency dependency of all variables measured and for examining the neurovascular and neurometabolic coupling. Two-sample paired t-test for means was used for statistical analysis when comparing pre- and post-CSD. Values are expressed as mean ± s.e.m. Values were considered statistically significant at P<0.05.

Results

We recorded colocalized changes in ECoG activity, evoked LFP responses, tpO₂, and CBF in rat barrel cortex online. CMRO₂ was calculated offline from corresponding changes in CBF and tpO₂. In the following section, we describe the effect of CSD on these variables in the acute phase (first 1 to 2 mins of the CSD), and for up to 2 h after CSD with respect to baseline changes and the evoked responses.

CSD Triggers Large Acute Rises in CBF and CMRO₂ and Occasionally Tissue Hypoxia

The effect of CSD on CBF and CMRO₂ was evaluated in 11 animals. Within 1 to 2 mins after elicitation of CSD in the right frontal cortex, the depolarization wave reached the somatosensory barrel cortex as identified by the loss of spontaneous ECoG activity and a large DC shift (Figure 2A). Coinciding with the DC shift, tpO₂ (Figure 2B, blue trace) increased by 51% from baseline levels of 18.0 ± 1.9 mmHg to 27.2 ± 2.0 mmHg (P<0.05) for 5 to 10 sec, followed by a decrease of 57% to 7.8 ± 1.9 mm Hg (P<0.05) for the following 2 to 3 mins. In 4 of 11 rats, tpO₂ decreased to 0 mm Hg. The reduction in tpO₂ occurred despite an ongoing rise in CBF (Figure 2B, red trace), which at 1 min after the DC shift reached 238% ± 48.1% above baseline values (P<0.05). After recovery of the DC shift and during recovery of spontaneous and evoked neural activity, CMRO₂ increased (Figure 2C) by 71% from baseline levels of 263.9 ± 7.8 to 451.6 ± 20.9 μmol/100 g per min (P<0.05). Group results are summarized in Figure 2D.

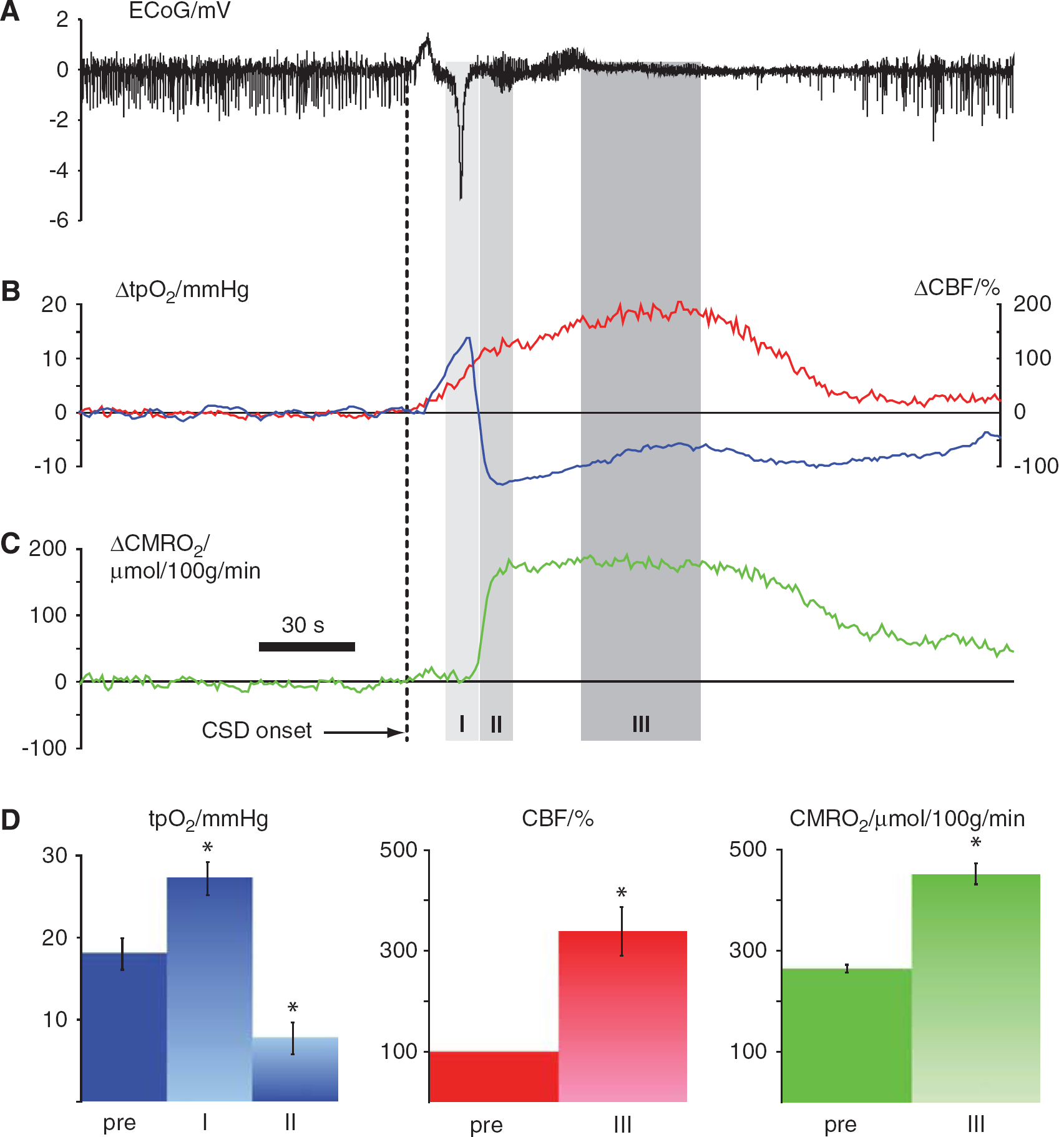

Figure 2

Vascular and metabolic changes during single episode of cortical spreading depression. Data in A, B, and C are from one animal. Average data from all animals (n = 11) are displayed in D. (A) Electrocorticogram (ECoG) showing extinction of spontaneous electrocorticographic activity during CSD and the large negative DC shift, both returning to normal after a few minutes. (B) CSD increased CBF 2- to 3-fold, whereas tpO₂ showed biphasic response with initial increase followed by persistent decrease below baseline values. (C) The cortical metabolic rate of oxygen (CMRO₂) was calculated from simultaneous recordings of CBF and tpO₂. CMRO₂ increased markedly during CSD for 2 mins, and remained at a level significantly higher than pre-CSD baseline for the following 1 to 2 h. (D) Group values (n = 11) for maximum changes in CBF, tpO₂, and CMRO₂ accompanying CSD, as illustrated for one rat in A–C. Time indications on abscissa in D correspond to time periods in A–C. Asterisk (*) indicates significant changes from pre-CSD values.

Persistent Reduction in Baseline CBF, tpO₂ and Rise in CMRO₂ at 1 to 2 h after CSD

In the same 11 animals we assessed baseline tpO₂, CBF, and CMRO₂ for 2 h after CSD. Cortical tpO₂ was persistently reduced in the first hour after CSD by 52.1% ± 5.9% (P<0.0001), whereas CBF was reduced by 15.4% ± 4.3% (P = 0.0046), and CMRO₂ was increased by 8.1% ± 2.9% (P=0.02). We further subdivided the first hour after CSD into two periods, 20 to 40 mins and 40 to 60 mins after CSD, to detect whether there were any signs of return to baseline of the three variables within the first hour; there was not. During the following hour there was a gradual return to normal of all variables, and at 120 mins all values had returned to control levels (Figure 3).

Figure 3

Time course of long-term baseline changes in CBF, tpO₂, and CMRO₂ after a single episode of CSD. CBF and metabolic rate increased dramatically in the first minutes after onset of CSD (also indicated in Figure 2). (A) After the initial reactions, CBF and tpO₂ decreased persistently below pre-CSD baseline values, whereas CMRO₂ remained elevated as shown here in data obtained from a single animal. All variables returned to pre-CSD levels within the following 2 h. (B) Group values (n = 11) of mean baseline changes in the first hour after CSD (period marked in gray in Figure 3A) showed significant decrease in basal tpO₂ and CBF and a significant increase in basal CMRO₂.

Frequency Dependency of Evoked Synaptic Responses Before, During, and After CSD

Synaptic transmission in the TC pathway is glutamatergic and results in activation of postsynaptic glutamate and GABA receptors (Kawaguchi, 1992). TC stimulation in 1 s lasting trains evoked reproducible, frequency-dependent LFP responses in the contralateral homologous somatosensory cortex. The recorded LFP responses (Figure 1C) were biphasic, consisting of an initial negative potential indicating synaptic excitation (EPSP) and a longer-lasting positive potential indicating synaptic inhibition (IPSP). Figures 4A and 4B depict the frequency-dependent response amplitudes up to the stimulation frequency at which LFP responses could be detected with certainty. The EPSP and IPSP response amplitudes declined as a function of the stimulation frequency, EPSPs became undetectable at stimulation frequencies above 20 Hz, IPSPs above 10 Hz.

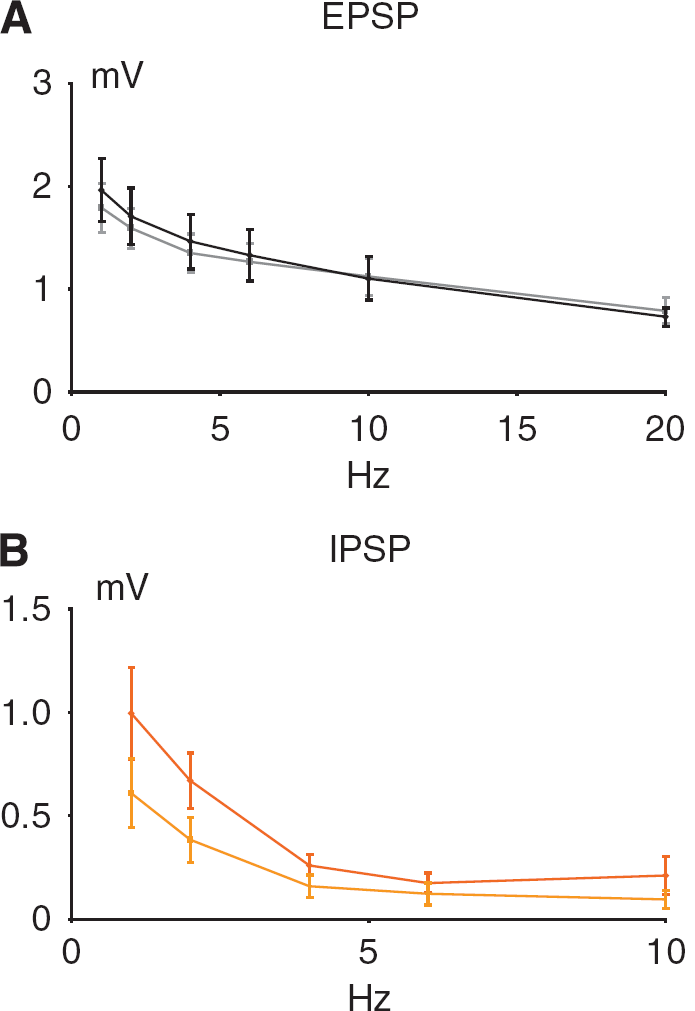

Figure 4

Frequency dependency of evoked synaptic responses before and after single episodes of CSD. The panels show the frequency dependency of the EPSP and IPSP as mean ±s.e.m. (n = 6) before (darker color) and after CSD (lighter color). For both EPSP and IPSP versus frequency no significant change in slope was found because of CSD. (A) The excitatory component of the LFP (EPSP) rapidly returned to normal after CSD and no difference in level was observed (P = 0.7458), whereas the inhibitory component of the LFP (IPSP), showed a significant decrease in level after CSD (P = 0.0384) as shown in B.

Cortical spreading depression abolished the evoked LFP responses for 1 to 2 mins, which slowly recovered simultaneously with the spontaneous ECoG activity. The response amplitude of the EPSP had returned to normal at 20 mins after the CSD (P = 0.7458 as compared with pre-CSD conditions), whereas the IPSP response amplitudes were significantly reduced after CSD (P = 0.0384) even at 60 mins. Correlation analysis revealed a linear correlation for log-transformed values of EPSPs versus log-transformed frequencies showed (before CSD: y=0.328–0.314x, R² = 0.9356; after CSD: y=0.2767–0.2579x, R² = 0.9461). Also the log-transformed values of IPSPs versus log-transformed frequencies showed a linear correlation (before CSD: y=−.0123–0.7902x, R² = 0.8908; after CSD: y=−.2121–0.8526x, R² = 0.9755). In conclusion, EPSP, but not IPSP response amplitudes had returned to normal at 1 to 2 h after a single episode of CSD.

Neurovascular and Neurometabolic Coupling Before and After a CSD

A summary of the stimulus- and frequency-dependent changes in tpO₂, CBF, and CMRO₂ after CSD is given in Figures 5A–5D. Linear regression with random effects (proc mixed) of evoked CBF responses versus frequency revealed an unchanged slope after CSD for the first 60 mins whereas there was a significant level difference between pre- and post-CSD (P < 0.0001) with gradual return to control values at 60 to 120 mins (data not shown). tpO₂ (P) showed no change in slope after CSD, but also showed a significant level difference (P = 0.0346; Figures 5B and 5C). The parallel changes in CBF and positive O₂ response are consistent with the notion that activity-dependent rises in tpO₂ are because of increased O₂ supply due to the rise in CBF. In comparison, the metabolic variables (tpO₂(N) and CMRO₂) when plotted versus the stimulation frequency showed no significant changes in slope or level after CSD (P = 0.7102 and 0.7143, respectively) (Figures 5A and 5D). Our results suggested affection of evoked vascular, but not metabolic responses following CSD.

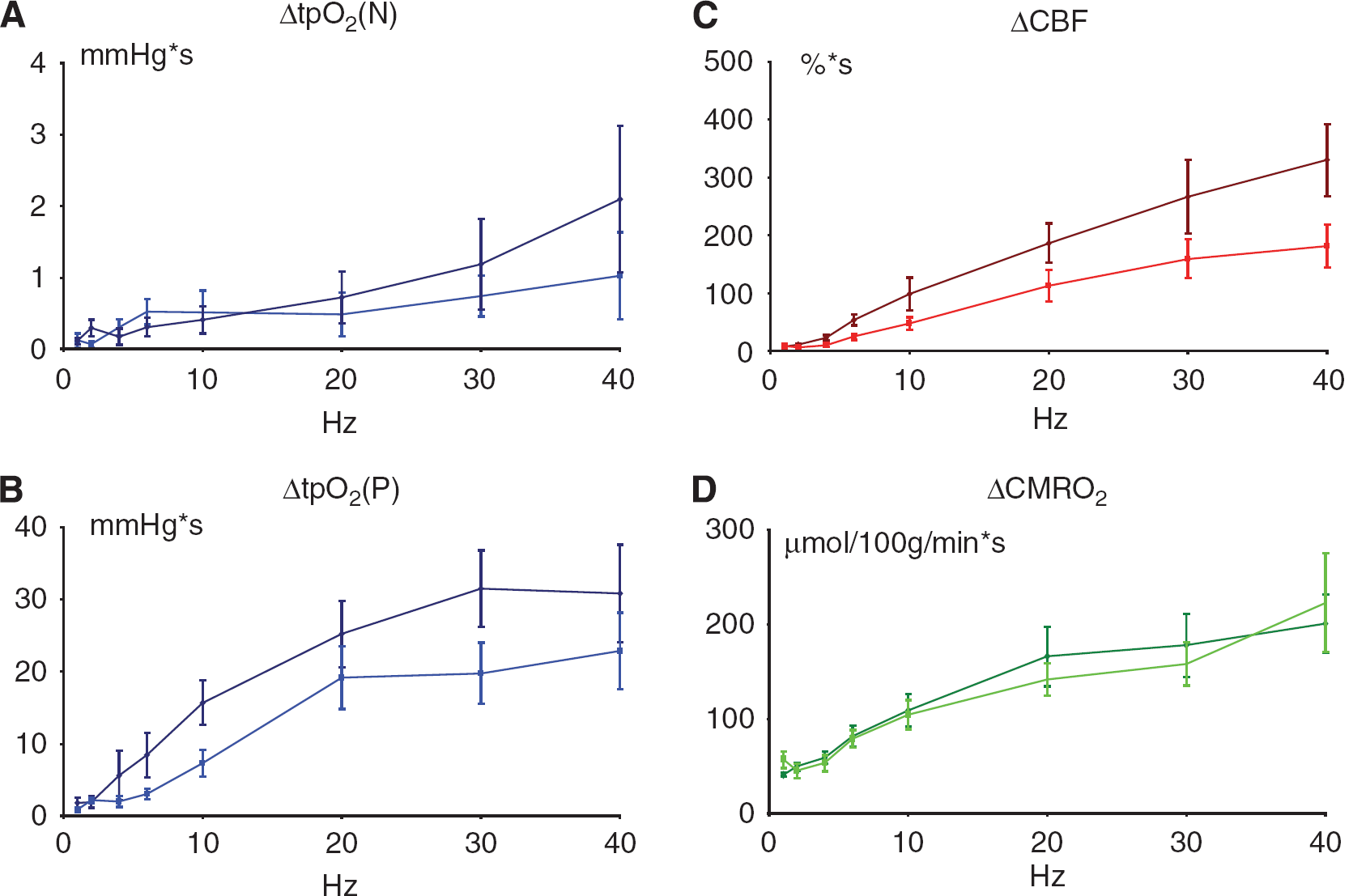

Figure 5

Stimulation frequency-dependent changes in vascular, and metabolic responses before and after a single CSD episode. Each panel shows the frequency dependency of the parameters as mean ± s.e.m. (n = 6) before (darker color) and after CSD (lighter color). For all parameters no significant change in slope was found. (A) The level (P = 0.7102) of the regression line of initial negative deflection in tpO₂ versus frequency remained constant after CSD. (B) The tpO₂ ‘overshoot’ (i.e., the area under the positive part of the tpO₂ graph) level was significantly reduced after CSD (P = 0.0346). The positive tpO₂ response is the result of increased O₂ supply and follows the activity-dependent rises in CBF, which were reduced after CSD as shown in C. Regression line of evoked CBF responses showed a significant decrease in level (P < 0.0001) after CSD. (D) Regression line of the evoked changes in CMRO₂ (calculated from simultaneous recordings of CBF and tpO₂) versus frequency showed no change in level (P = 0.7143) after CSD.

We then assessed neurovascular and neurometabolic coupling after CSD, defined as the correlation between excitatory synaptic activity and CBF-respective CMRO₂. We calculated the summed EPSP response amplitudes (ΣEPSP) for each stimulus rate and experimental condition as indicator of the total excitatory synaptic activity during the stimulation period and plotted this variable versus the observed changes in CBF-respective CMRO₂. Linear regression with random effects revealed no significant change in the slope of neurovascular coupling (ΔCBF versus ΣEPSP) because of CSD (Figure 6A) but showed a significant level difference after CSD (P <0.0001). Neurometabolic coupling (Figure 6B) showed no significant changes in slope or level after CSD for CMRO₂ versus ΣEPSP (P = 0.7888). This suggested that neurovascular, but not neurometabolic coupling was impaired for at least 1 h after an episode of CSD.

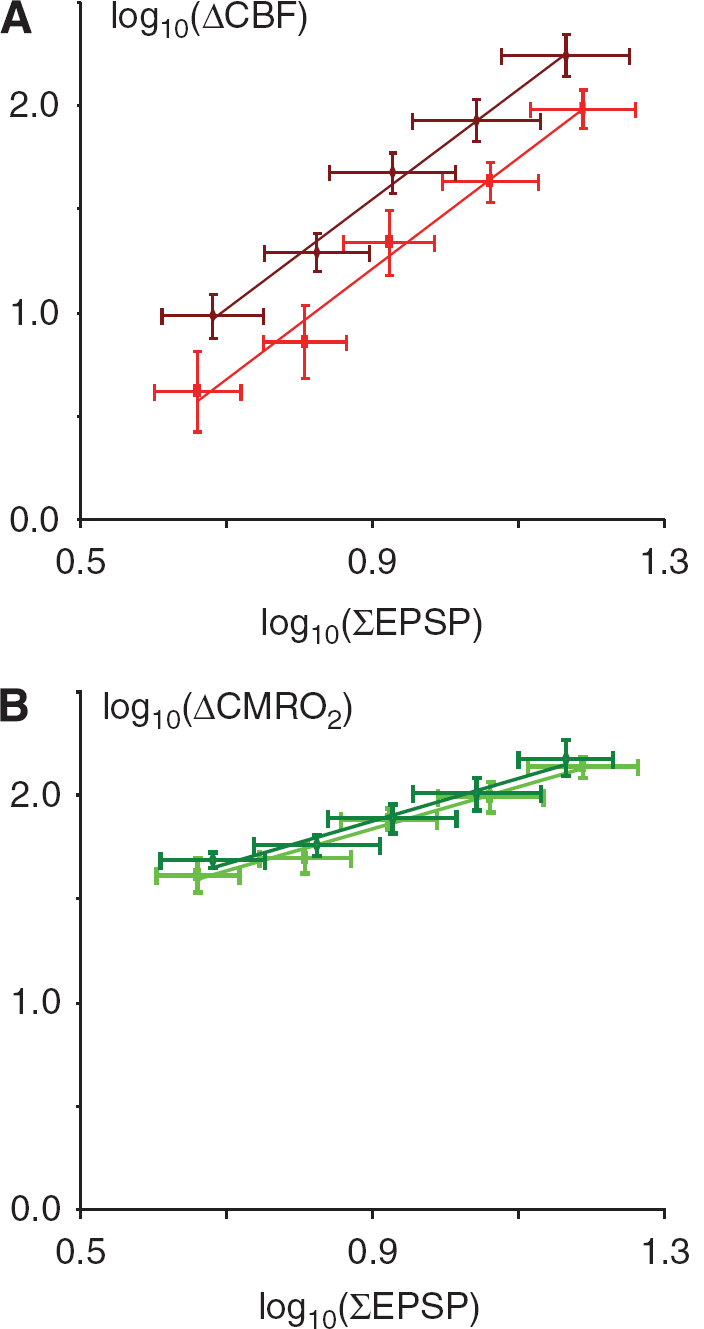

Figure 6

Neurovascular but not neurometabolic coupling is impaired after CSD. Each panel shows linear regression of log-transformed data of synaptic activity, as indicated by the summed LFP response amplitudes (ΣEPSP), versus ΔCBF and ΔCMRO₂ (n = 6). The darker color in each panel indicates the pre-CSD situation, and the lighter color represents post-CSD values. Only values obtained from 2 Hz and up to 20 Hz are included because LFP responses were absent at higher stimulation frequencies. (A) Neurovascular coupling: no significant changes in slope after CSD but a significant decrease in the level of the regression line (P < 0.0001) for ΣEPSP versus ΔCBF after CSD as compared with pre-CSD values. (B) Neurometabolic coupling: the slope of the regression line was unchanged after CSD for ΣEPSP versus ΔCMRO₂. No significant change in level was seen (P = 0.7888). The data suggested that the coupling between the summed amplitude of the excitatory postsynaptic potentials and ΔCBF, but not ΔCMRO₂, was impaired after CSD.

Discussion

CSD causes a brief dramatic increase in CMRO₂, which may be associated with a period of tissue hypoxia as described previously in the rat and mouse neocortex (Lukyanova and Bures, 1967; Lacombe et al, 1992; Takano et al, 2007). The acute changes are followed by a persistent reduction in baseline CBF and tpO₂, and a rise in baseline CMRO₂ as well as impaired neurovascular coupling for 2 h. The persistent reduction in baseline CBF and neurovascular coupling following CSD was not explained by suppression of spontaneous ECoG activity, which returned to normal at 10 to 20 mins after CSD (Leao, 1944; Bures et al, 1974), but may relate to reduced vascular reactivity (Wahl et al, 1987; Lacombe et al, 1992; Florence et al, 1994). In addition, others and we have observed that excitatory synaptic transmission is unaffected after CSD, whereas intracortical inhibition is selectively reduced as indicated by a decline of extracellularly recorded paired pulse inhibition (Kruger et al, 1996), and the persistent reduction of the evoked IPSP response amplitude as shown in this study. Intracortical inhibitory interneurons are activated by transcallosal stimulation and expected to release vasoactive molecules such as nitric oxide and vasoactive intestinal polypeptide when stimulated (Enager et al, 2009). On this background we hypothesize that reduced activity of intracortical interneurons may contribute to the observed suppression of neurovascular coupling after CSD. The persistent rise in basal CMRO₂ following CSD may be the consequence of several mechanisms that relate to the control of metabolic fluxes as described in the following.

CSD Induces Brief and Huge Rise in CBF and CMRO₂

We observed a brief rise in tpO₂ concomitant with the initial rise in CBF at the time of tissue depolarization, which is consistent with a slight decrease in CMRO₂ immediately preceding the depolarization wave (Lukyanova and Bures, 1967). The rise in tpO₂ indicates that it takes a few seconds for oxidative phosphorylation to run at such speed that CMRO₂ outlasts O₂ supply (Figure 2B). Cerebral blood flow continued to increase for the following 1 to 2 mins, whereas tpO₂ decreased to anoxic levels in one-third of the animals. This suggested that O₂ use during this period was larger than O₂ supply. The rise in CMRO₂ corresponded to the phase where extracellular [K⁺] drops from 60 to 3 mmol/L and cells repolarize because of a pronounced increase in Na⁺/K⁺-ATPase activity (LaManna and Rosenthal, 1975), which triples glucose use (Shinohara et al, 1979) and lactate release (Cruz et al, 1999). The rise in CBF occurred gradually, but although the increments were in the range of 200 to 300%, this was insufficient to match the rise in CMRO₂, as indicated by the reduction in tpO₂. The results are consistent with data obtained in mice that reveal pockets of tissue hypoxia in the most distant supply territories of cortical capillaries during CSD (Takano et al, 2007) and emphasize that restoration of normal function following CSD is a serious metabolic challenge. We observed no correlation between the cortical tpO₂ level and the duration of the DC shift, as reported for the mouse (Takano et al, 2007). Cortical spreading depression activates glycolytic pathways, as evidenced by the accompanying prolonged rise in brain lactate and reduction in brain glycogen, whereas the energy charge (i.e., the brain concentration of energy-rich phosphate compounds) remains preserved (Krivanek, 1958; Lauritzen et al, 1990). This is consistent with zones of oxidative metabolism in perivascular tissue, and glycolysis in supply territories further away from the capillaries (Takano et al, 2007). The initiation of glycolysis may be triggered by the low tpO₂, but could also reflect rises in neuronal or astrocytic Ca²⁺ (Basarsky et al, 1998) and intracellular alkalinization (Chesler and Kraig, 1987), which activates glycogen Phosphorylase (Hof et al, 1988) and lactate production (Cruz et al, 1999; Hertz and Dienel, 2002). Whether energy failure prevails and delays recovery of cortical function depends on limitations in the blood-borne O₂ and glucose supply, which may vary between species because of variations in the acute CBF response (Ayata et al, 2004). Interestingly, the ability of astrocytes to induce vasodilations over vasoconstrictions relies on the metabolic state of the rat brain tissue (Gordon et al, 2008). During CSD, oxygen availability is limited and astrocytic calcium concentration is elevated (Basarsky et al, 1998), which favors astrocytic glycolysis and lactate release. At the same time nitric oxide (Read et al, 1997) and free fatty acids (Lauritzen et al, 1990) are released, and converted to vasodilator prostaglandins and thromboxane (Busija et al, 2008). High levels of external lactate (Cruz et al, 1999) attenuate transporter-mediated uptake of prostaglandin E2 from the extracellular space, leading to accumulation of vasodilators (Gordon et al, 2008). We suggest that tissue hypoxia during recovery from depolarization will contribute to the CBF rise during CSD by such a mechanism.

Persistent Impairment of Neurovascular Regulation in Wake of CSD

Cortical spreading depression is followed by a persistent oligemia and a reduction in vascular reactivity (Lauritzen, 1984; Wahl et al, 1987; Florence et al, 1994), which are very similar to the changes in CBF and fMRI BOLD signals observed in patients during acute attacks of migraine with aura (Lauritzen, 1994; Hadjikhani et al, 2001). The reduction in cerebrovascular reactivity to chemical stimuli is independent of whether the persistent vascular reaction is vasodilatation or vasoconstriction (Wahl et al, 1987), and represents mainly a change in the response properties of the blood vessels themselves, because the reduced reactivity in part can be reproduced in rat middle cerebral arteries that are isolated after CSD in vivo (Seitz et al, 2004). We report here that the persistent reduction of CBF in the wake of CSD is accompanied by a reduction in neurovascular but not in neurometabolic coupling, as indicated by differences in the level of regression lines of the summed excitatory synaptic activity (ΣEPSP) versus ΔCBF but not ΔCMRO₂. Excitatory synaptic transmission was unaffected after the CSD, whereas there was a selectively reduced function of intracortical interneurons as indicated by the persistent reduction in the evoked IPSP amplitude in concert with previous findings (Kruger et al, 1996). This is of interest because neurovascular and neurometabolic coupling responses to transcallosal stimulation concur with activation of specific networks of principal cells including cyclooxygenase-2 expressing pyramidal cells, and GABAergic interneurons containing NOS and vasoactive intestinal polypeptide (Enager et al, 2009). The suppression of intracortical inhibition after CSD, which involves reduction of GABAergic function, may also include suppression of release of nitric oxide and vasoactive intestinal polypeptide from the same interneurons (Enager et al, 2009). Therefore, we hypothesize that the observed impairment of neurovascular coupling after CSD may be explained by both the reduced vascular reactivity (Wahl et al, 1987) and the persistent suppression of function of cortical interneurons. Our data relate to a previous study that examined the effect of CSD on functional changes in cerebral blood volume evoked by cortical electrophysiological activity for 1 h following CSD induction (Guiou et al, 2005). The records showed that the cerebral blood volume signal amplitude, duration, and time to peak showed little recovery at 60 mins after CSD, and analysis of spontaneous vasomotor activity suggested a decrease in vascular reactivity in association with attenuation of electrophysiological activity suggesting a breakdown of the neurovascular coupling relation at both the level of neurons and blood vessels.

Persistent Increase of Basal CMRO₂ in Wake of CSD

Basal CMRO₂ increased persistently for 1 to 2 h after CSD. The rise in CMRO₂ for the first 10 to 15 mins may be explained by oxidation of lactate converted to pyruvate and resynthesis of glycogen from glucose residues, but we cannot account for the rise in CMRO₂ from 15 to 60 mins after the CSD. At this time brain glucose, lactate, and glycogen have returned to normal (Lauritzen et al, 1990) and glucose use is constant (Lauritzen and Diemer, 1986). Our work may relate to recently published microdialysis data in cats that showed that CBF and dialysate lactate remained increased, and dialysate glucose remained decreased at 30 mins after a CSD (Hashemi et al, 2009). Our finding is reminiscent of the small rise in the cerebral oxygen/glucose ratio during recovery from sensory stimulation that has been observed previously in awake rats, which was not explained by delayed consumption of hexacarbon or tricarbon compounds (Madsen et al, 1999). Glucose must traverse a series of intermediate metabolic pools before it is used directly for energy metabolism, and the size of the intermediate pools may enlarge during functional activation and CSD. The subsequent increase in CMRO₂ serves to decrease the size of these pools to resting levels (Madsen et al, 1999) or to an increase in anaplerotic formation of glutamate (Serres et al, 2008) during CSD and subsequent glutamate oxidation (Hertz and Fillenz, 1999). The prolonged rise in CMRO₂ after CSD also may relate to the concept of ‘oxygen debt’, known from studies of metabolism during muscle work, which denotes a persistent rise in oxygen consumption after exercise that relates to both oxidation of lactate and to replenishment of intermediate metabolic pools (Margaria et al, 1933).

In conclusion, we have shown that CSD induces a persistent rise in CMRO₂, a reduction in basal CBF, and impairment of activity-dependent rises in CBF. The impairment of vascular function may relate to a direct effect of CSD on cortical blood vessels (Wahl et al, 1987) or to selective suppression of GABAergic function, whereas the mechanisms underlying the persistent rise in CMRO₂ appear to be more complex. We suggest that the persistent vascular and metabolic changes may contribute to the pathologic changes in cortical thickness reported in patients with chronic migraines (DaSilva et al, 2007) and to the increased risk of stroke in migraine patients (Kurth, 2007). In addition we hypothesize that the observed abnormalities of perfusion and oxygen metabolism may contribute to the development of secondary brain damage in acutely injured human brain cortex, in which CSD or periinfarct depolarizations occur in a large proportion of patients (Fabricius et al, 2006, 2008; Dreier et al, 2006; Dohmen et al, 2008).

Footnotes

Acknowledgements

We thank Mrs Marianne Kureer for expert laboratory assistance.

The authors have no conflict of interest to declare.

References

Ayata

Shin

Salomone

Ozdemir-Gursoy

Boas

Dunn

Moskowitz

(2004) Pronounced hypoperfusion during spreading depression in mouse cortex. J Cereb Blood Flow Metab 24:1172–82

Basarsky

Duffy

Andrew

MacVicar

(1998) Imaging spreading depression and associated intracellular calcium waves in brain slices. J Neurosci 18:7189–99

Bonvento

Charbonne

Correze

Borredon

Seylaz

Lacombe

(1994) Is alpha-chloralose plus halothane induction a suitable anesthetic regimen for cerebrovascular research? Brain Res 665:213–21

Bures

Buresova

Krivanek

(1974) The Mechanism and Applications of Leao's Spreading Depression of Electroencephalographic Activity. Prague: Academia

Busija

Bari

Domoki

Horiguchi

Shimizu

(2008) Mechanisms involved in the cerebrovascular dilator effects of cortical spreading depression. Prog Neurobiol 86:417–33

Chesler

Kraig

(1987) Intracellular pH of astrocytes increases rapidly with cortical stimulation. Am J Physiol 253:R666–70

Chuquet

Hollender

Nimchinsky

(2007) High-resolution in vivo imaging of the neurovascular unit during spreading depression. J Neurosci 27:4036–44

Cruz

Adachi

Dienel

(1999) Rapid efflux of lactate from cerebral cortex during K+ -induced spreading cortical depression. J Cereb Blood Flow Metab 19:380–92

DaSilva

Granziera

Snyder

Hadjikhani

(2007) Thickening in the somatosensory cortex of patients with migraine. Neurology 69:1990–5

10.

Dohmen

Sakowitz

Fabricius

Bosche

Reithmeier

Ernestus

Brinker

Dreier

Woitzik

Strong

Graf

(2008) Spreading depolarizations occur in human ischemic stroke with high incidence. Ann Neurol 63:720–8

11.

Dreier

Woitzik

Fabricius

Bhatia

Major

Drenckhahn

Lehmann

Sarrafzadeh

Willumsen

Hartings

Sakowitz

Seemann

Thieme

Lauritzen

Strong

(2006) Delayed ischaemic neurological deficits after subarachnoid haemorrhage are associated with clusters of spreading depolarizations. Brain 129:3224–37

12.

Enager

Piilgaard

Offenhauser

Kocharyan

Fernandes

Hamel

Lauritzen

(2009) Pathway-specific variations in neurovascular and neurometabolic coupling in rat primary somatosensory cortex. J Cereb Blood Flow Metab 29:976–86; e-pub ahead of print, doi:10.1038/jcbfm.2009.23

13.

Fabricius

Akgoren

Dirnagl

Lauritzen

(1997) Laminar analysis of cerebral blood flow in cortex of rats by laser—Doppler flowmetry: a pilot study. J Cereb Blood Flow Metab 17:1326–36

14.

Fabricius

Fuhr

Bhatia

Boutelle

Hashemi

Strong

Lauritzen

(2006) Cortical spreading depression and peri-infarct depolarization in acutely injured human cerebral cortex. Brain 129:778–90

15.

Fabricius

Fuhr

Willumsen

Dreier

Bhatia

Boutelle

Hartings

Bullock

Strong

Lauritzen

(2008) Association of seizures with cortical spreading depression and peri-infarct depolarisations in the acutely injured human brain. Clin Neurophysiol 119:1973–84

16.

Fabricius

Lauritzen

(1996) Laser—Doppler evaluation of rat brain microcirculation: comparison with the [14C]-iodoantipyrine method suggests discordance during cerebral blood flow increases. J Cereb Blood Flow Metab 16:156–61

17.

Florence

Bonvento

Charbonne

Seylaz

(1994) Spreading depression reversibly impairs autoregulation of cortical blood flow. Am J Physiol 266:R1136–40

18.

Gjedde

Johannsen

Cold

Ostergaard

(2005) Cerebral metabolic response to low blood flow: possible role of cytochrome oxidase inhibition. J Cereb Blood Flow Metab 25:1183–96

19.

Gordon

Choi

Rungta

Ellis-Davies

MacVicar

(2008) Brain metabolism dictates the polarity of astrocyte control over arterioles. Nature 456:745–9

20.

Guiou

Sheth

Nemoto

Walker

Pouratian

Toga

(2005) Cortical spreading depression produces long-term disruption of activity-related changes in cerebral blood volume and neurovascular coupling. J Biomed Opt 10:11004

21.

Hadjikhani

Sanchez

Schwartz

Bakker

Fischl

Kwong

Cutrer

Rosen

Tootell

Sorensen

Moskowitz

(2001) Mechanisms of migraine aura revealed by functional MRI in human visual cortex. Proc Natl Acad Sci USA 98:4687–92

22.

Hansen

Lauritzen

(1984) The role of spreading depression in acute brain disorders. An Acad Bras Cienc 56:457–79

23.

Hashemi

Bhatia

Nakamura

Dreier

Graf

Strong

Boutelle

(2009) Persisting depletion of brain glucose following cortical spreading depression, despite apparent hyperaemia: evidence for risk of an adverse effect of Leao's spreading depression. J Cereb Blood Flow Metab 29:166–75

24.

Hertz

Dienel

(2002) Energy metabolism in the brain. Int Rev Neurobiol 51:1–102

25.

Hertz

Fillenz

(1999) Does the ‘mystery of the extra glucose’ during CNS activation reflect glutamate synthesis? Neurochem Int 34:71–5

26.

Hof

Pascale

Magistretti

(1988) K+ at concentrations reached in the extracellular space during neuronal activity promotes a Ca2+-dependent glycogen hydrolysis in mouse cerebral cortex. J Neurosci 8:1922–8

27.

Hoffmeyer

Enager

Thomsen

Lauritzen

(2007) Nonlinear neurovascular coupling in rat sensory cortex by activation of transcallosal fibers. J Cereb Blood Flow Metab 27:575–87

28.

Kawaguchi

(1992) Receptor subtypes involved in callosally-induced postsynaptic potentials in rat frontal agranular cortex in vitro. Exp Brain Res 88:33–40

29.

Krivanek

(1958) Changes of brain glycogen in the spreading EEG-depression of Leao. J Neurochem 2:337–43

30.

Kruger

Luhmann

Heinemann

(1996) Repetitive spreading depression causes selective suppression of GABAergic function. Neuroreport 7:2733–6

31.

Kurth

(2007) Migraine and ischaemic vascular events. Cephalalgia 27:965–75

32.

Lacombe

Sercombe

Correze

Springhetti

Seylaz

(1992) Spreading depression induces prolonged reduction of cortical blood flow reactivity in the rat. Exp Neurol 117:278–86

33.

LaManna

Rosenthal

(1975) Effect of ouabain and phenobarbital on oxidative metabolic activity associated with spreading cortical depression in cats. Brain Res 88:145–9

34.

Lauritzen

(1984) Long-lasting reduction of cortical blood flow of the brain after spreading depression with preserved autoregulation and impaired CO₂ response. J Cereb Blood Flow Metab 4:546–54

35.

Lauritzen

(1994) Pathophysiology of the migraine aura. The spreading depression theory. Brain 117:199–210

36.

Lauritzen

Diemer

(1986) Uncoupling of cerebral blood flow and metabolism after single episode of cortical spreading depression in the rat brain. Brain Res 370:405–8

37.

Lauritzen

Hansen

Kronborg

Wieloch

(1990) Cortical spreading depression is associated with arachidonic acid accumulation and preservation of energy charge. J Cereb Blood Flow Metab 10:115–22

38.

Leao

AAP

(1944) Spreading depression of activity in cerebral cortex. J Neurophysiol 7:359–90

39.

Lukyanova

Bures

(1967) Changes in pO2 due to spreading depression in the cortex and nucleus caudatus of the rat. Physiol Bohemoslov 16:449–55

40.

Madsen

Cruz

Sokoloff

Dienel

(1999) Cerebral oxygen/glucose ratio is low during sensory stimulation and rises above normal during recovery: excess glucose consumption during stimulation is not accounted for by lactate efflux from or accumulation in brain tissue. J Cereb Blood Flow Metab 19:393–400

41.

Margaria

Edwards

Dill

(1933) The possible mechanisms of contracting and paying the oxygen debt and the role of lactic acid in muscular contraction. Am J Physiol 106:689–715

42.

Read

Smith

Hunter

Parsons

(1997) The dynamics of nitric oxide release measured directly and in real time following repeated waves of cortical spreading depression in the anaesthetised cat. Neurosci Lett 232:127–30

43.

Seitz

Dirnagl

Lindauer

(2004) Impaired vascular reactivity of isolated rat middle cerebral artery after cortical spreading depression in vivo. J Cereb Blood Flow Metab 24:526–30

44.

Serres

Raffard

Franconi

Merle

(2008) Close coupling between astrocytic and neuronal metabolisms to fulfill anaplerotic and energy needs in the rat brain. J Cereb Blood Flow Metab 28:712–24

45.

Shinohara

Dollinger

Brown

Rapoport

Sokoloff

(1979) Cerebral glucose utilization: local changes during and after recovery from spreading cortical depression. Science 203:188–90

46.

Strong

Fabricius

Boutelle

Hibbins

Hopwood

Jones

Parkin

Lauritzen

(2002) Spreading and synchronous depressions of cortical activity in acutely injured human brain. Stroke 33:2738–43

47.

Takano

Tian

Peng

Lou

Lovatt

Hansen

Kasischke

Nedergaard

(2007) Cortical spreading depression causes and coincides with tissue hypoxia. Nat Neurosci 10:754–62

48.

Wahl

Lauritzen

Schilling

(1987) Change of cerebrovascular reactivity after cortical spreading depression in cats and rats. Brain Res 411:72–80

49.

Zhu

Zhang

Tian

Lei

Zhang

Merkle

Ugurbil

Chen

(2002) Development of O-17 NMR approach for fast imaging of cerebral metabolic rate of oxygen in rat brain at high field. Proc Natl Acad Sci USA 99:13194–9
