Parametric Mapping of [ 18 F]Fluoromisonidazole Positron Emission Tomography using Basis Functions

Abstract

In this study, we show a basis function method (BAFPIC) for voxelwise calculation of kinetic parameters (K₁, k₂, k₃, K_i) and blood volume using an irreversible two-tissue compartment model. BAFPIC was applied to rat ischaemic stroke micro-positron emission tomography data acquired with the hypoxia tracer [¹⁸F]fluoromisonidazole because irreversible two-tissue compartmental modelling provided good fits to data from both hypoxic and normoxic tissues. Simulated data show that BAFPIC produces kinetic parameters with significantly lower variability and bias than nonlinear least squares (NLLS) modelling in hypoxic tissue. The advantage of BAFPIC over NLLS is less pronounced in normoxic tissue. K_i determined from BAFPIC has lower variability than that from the Patlak–Gjedde graphical analysis (PGA) by up to 40% and lower bias, except for normoxic tissue at mid-high noise levels. Consistent with the simulation results, BAFPIC parametric maps of real data suffer less noise-induced variability than do NLLS and PGA. Delineation of hypoxia on BAFPIC k₃ maps is aided by low variability in normoxic tissue, which matches that in K_i maps. BAFPIC produces K_i values that correlate well with those from PGA (r² = 0.93 to 0.97; slope 0.99 to 1.05, absolute intercept < 0.00002 mL/g per min). BAFPIC is a computationally efficient method of determining parametric maps with low bias and variance.

Keywords

basis function FMISO kinetic modelling parametric mapping positron emission tomography

Introduction

[¹⁸F]fluoromisonidazole (FMISO) positron emission tomography (PET) has been used for in vivo imaging of hypoxia in tumours (Koh et al, 1992; Rasey et al, 1996; Bruehlmeier et al, 2004; Thorwarth et al, 2005, 2006; Rajendran et al, 2006; Eschmann et al, 2007; Wang et al, 2010), ischaemic myocardium (Martin et al, 1992), and stroke (Markus et al, 2004; Takasawa et al, 2007, 2008; Spratt et al, 2009). FMISO is anitromidazole compound that diffuses freely through cell membranes and binds in hypoxic cells (Chapman et al, 1989; Casciari et al, 1995).

Most FMISO PET studies have used late imaging, with 2 to 4 hours postinjection being considered optimal because of the passive transport and slow reaction mechanism (Koh et al, 1992). These late images are then quantified through conversion to standardised uptake value (Thorwarth et al, 2006), tissue-to-blood ratio (Koh et al, 1992) or tissue-to-muscle ratio (Eschmann et al, 2007). To determine more specific information, both reversible (Bruehlmeier et al, 2004; Kelly and Brady, 2006) and irreversible (Casciari et al, 1995; Thorwarth et al, 2005; Wang et al, 2009, 2010) compartment models have been proposed to model FMISO kinetics.

Bruehlmeier et al (2004) applied both Logan graphical analysis (Logan et al, 1990) and a two-tissue reversible compartment model to tumour FMISO data, and Kelly and Brady (2006) also used this model on simulated data, with an extra parameter to model spatial diffusion of free FMISO and its reduced compounds. Casciari et al (1995) developed a comprehensive irreversible kinetic model that consists of four tissue compartments and seven model parameters, three of which were fixed to make the model more robust. Thorwarth et al (2005) presented an irreversible two-tissue compartment model with a reference tissue input which obviates blood sampling and Wang et al (2009) used a plasma input two-tissue irreversible compartment model on simulated data. Subsequently, Wang et al (2010) used this model combined with an image-based plasma input function for the analysis of clinical FMISO data.

For our FMISO data obtained in an ischaemic stroke model in the rat, Patlak–Gjedde graphical analysis (PGA, Gjedde, 1982; Patlak et al, 1983) indicated an irreversible kinetic model and regional kinetic modelling with a two-tissue irreversible model provided good fits to the data (Takasawa et al, 2007). Kinetic modelling at the voxel level has a number of advantages over its regional counterpart: it maximises the information obtained on the spatial distribution of tracer kinetics; the use of a kinetic model designed for the homogeneous tissue is more valid for voxelwise modelling; the production of parametric maps allows any subsequent region-of-interest (ROI) analysis to be tailored to kinetically homogeneous regions if required; applications such as PET-guided radiotherapy require parametric maps rather than regional information. However, the key problem with voxelwise modelling is the high noise level. For irreversible tracers, influx rate (K_i) can be determined with PGA, which is robust against noise. A disadvantage of K_i is that it is affected by tracer delivery and washout, as well as by tracer accumulation in the tissue. Compartment modelling allows these factors to be decoupled, which is especially of interest if the rate of tracer accumulation is a key parameter, as for FMISO because it can be related to tissue oxygen concentration (Casciari et al, 1995).

Determination of rate constants using nonlinear least squares solution (NLLS) of compartmental models is highly sensitive to noise and hence not suited to voxelwise modelling. In this study, we provide a basis function solution of the irreversible two-tissue compartment model. Parametric mapping with basis functions based on compartment models has been used previously for a reversible one-tissue compartment model (Koeppe et al, 1985; Lodge et al, 2000; Boellaard et al, 2005; Watabe et al, 2005), for reference tissue modelling (Gunn et al, 1997; Wu and Carson, 2002) and for the production of [¹⁸F]fluorodeoxyglucose (FDG) K_i maps with two-tissue compartment models (Hong and Fryer, 2010). This study illustrates the latter approach for FMISO K₁, k₂, k₃, V_b and K_i mapping using an irreversible two-tissue compartment model with a plasma input function. The bias-noise properties of the basis function method (BAFPIC) are compared with those of NLLS and PGA using simulated FMISO data. These methods are also assessed with real FMISO microPET data.

Materials and methods

Kinetic Modelling

Basis Function Solution of a Two-Tissue Irreversible Compartment Model (BAFPIC): For a two-tissue compartment model of an irreversible tracer, the total radioactivity concentration is given by

C_{T} = (1 - V_{b}) (C_{T} + C_{i}) + V_{b} C_{b}

(1)

where V_b is the fractional blood volume in the tissue, C_r the concentration in the reversible tissue compartment, C_i the concentration in the irreversibly trapped compartment, and C_b the concentration in whole blood. It should be noted that for clarity, the time dependence of the concentrations has been omitted.

The temporal behaviour of the above model is given by

\begin{aligned} \frac{d C_{T}}{d t} & = K_{1} C_{a} - (k_{2} + k_{3}) C_{T} \\ \frac{d C_{i}}{d t} & = k_{3} C_{T} \end{aligned}

(2)

where K₁ (mL/g per min) is the transport rate constant of tracer from the plasma to the tissue, k₂ (1/min) the efflux rate constant from the tissue to the plasma, k₃ (1/min) the rate constant into the irreversibly trapped state, and C_a the tracer concentration in arterial plasma.

Solution of the differential equations in equation (2) allows equation (1) to be rewritten as

C_{T} = \frac{(1 - V_{b}) K_{1}}{α} [k_{3} + k_{2} e^{- α t}] \otimes C_{a} + V_{b} C_{b}

(3)

where α = k₂ + k₃. equation (3) can be parameterised as

C_{T} = (θ_{1} + θ_{2} e^{- α t}) \otimes C_{a} + V_{b} C_{b}

(4)

Basis functions (e.g., N = 100) can be precalculated for the nonlinear term in equation (4) using a physiologically feasible range of α

B_{j} = e^{- α_{j} t} \otimes C_{a} j = 1, \dots, N

(5)

The range of α is tracer specific and based on values obtained from regional kinetic modelling of FMISO in an ischaemic stroke rat model, 100 basis functions with logarithmically spaced α = [0.01, 0.1] 1/min were used. With the inclusion of a diagonal matrix of weights W, calculated using the scheme of Gunn et al (1997), equation (4) can be written for each basis function as

W C_{T} = A_{j} {[\begin{matrix} θ_{1} \\ θ_{2} \\ V_{b} \end{matrix}]}_{j}

(6)

where

A_{j} = W [\int C_{a} B_{j} C_{b}]

(7)

The use of basis functions allows the linear solution of equation (6)

{[\begin{matrix} θ_{1} \\ θ_{2} \\ V_{b} \end{matrix}]}_{j} = A_{j}^{- 1} W C_{T}

(8)

To obtain the inverse of A_j, QR decomposition (Householder, 1970) was used

A_{j}^{- 1} = R_{j}^{- 1} Q_{j}^{T}

(9)

where R_j is a right triangular matrix and Q_j an orthogonal matrix. From the set of N solutions, the one with the lowest weighted residual sum of squares was chosen.

Individual kinetic parameters can then be obtained

K_{1} = \frac{θ_{1} + θ_{2}}{1 - V_{b}}

(10)

k_{2} = \frac{θ_{2} α}{θ_{1} + θ_{2}}

(11)

k_{3} = \frac{θ_{1} α}{θ_{1} + θ_{2}}

(12)

K_{i} = \frac{θ_{1}}{1 - V_{b}}

(13)

Nonlinear Least Squares Compartmental Modelling: For both simulated and real FMISO data, individual kinetic rate constants and V_b were determined from equation (3) using nonlinear weighted least squares fitting optimised with the Levenberg–Marquardt method (Marquardt, 1963), using the same weighting scheme as used for the basis function fitting. K_i was then determined from Gjedde (1982)

K_{i} = \frac{K_{1} k_{3}}{k_{2} + k_{3}}

(14)

Patlak–Gjedde Graphical Analysis: K_i was determined using linear least squares (LLS) fitting to transformed data (Gjedde, 1982; Patlak et al, 1983) for both simulated and real FMISO data. In all cases, tissue data from 75 minutes onwards were used.

Simulated [18F]Fluoromisonidazole Data

Hypoxic and normoxic time–activity curves (TACs) were generated from kinetic parameters determined by NLLS fitting to ROI data from an ischaemic stroke rat microPET study using a permanent distal middle cerebral artery occlusion (MCAo; Takasawa et al, 2007). The ROI (20.3 mm³) was defined with an intensity threshold in the hypoxic region of the summed FMISO image. It was then moved to a similar position in the contralateral hemisphere to determine the normoxic TAC. The kinetic parameters from the NLLS fits were: hypoxic: K₁ = 0.0247 mL/g per min, k₂ = 0.0191 1/min, k₃ = 0.0218 1/min, V_b = 0.0407 and normoxic: K₁ = 0.0423 mL/g per min, k₂ = 0.0487 1/min, k₃ = 0.0020 1/min, V_b = 0.0549.

Monte Carlo simulation with 1,000 realisations per noise level was performed to test the bias and variability of BAFPIC against NLLS and PGA. Noise with a Gaussian distribution (μ = 0, σ² = β(C_T(t_i)/Δt_i)) was added to the TACs, where β had 20 values spaced linearly in the range [0.001, 0.65], C_T is the average of the hypoxic and normoxic TACs at mid-frame time t_i, and Δt_i the duration of time frame i. The use of C_T in the noise model is appropriate as the filtered backprojection algorithm used to reconstruct the real data results in a noise level that is not dictated by the local voxel value (Barrett et al, 1994). The simulation was performed for the same protocol used for real microPET experiments: 80 time frames over 3 hours (24 × 5 seconds, 6 × 30 seconds, 15 × 60 seconds, 5 × 120 seconds, and 30 × 300 seconds).

For NLLS, the initial parameter estimates for fits to both hypoxic and normoxic TACs were: K₁ = 0.035 mL/g per min, k₂ = 0.035 1/min, k₃ = 0.01 1/min and V_b = 0.04. These values represent reasonable estimates in the absence of information on the degree of hypoxia, as would be the case with real data. The weights for BAFPIC and NLLS used the average TAC, C_T, within the scheme of Gunn et al (1997) in lieu of true coincidences.

microPET [18F]Fluoromisonidazole Rat Data

Data from two rats were used: the permanent MCAo rat and a control rat from the data set described in the study by Takasawa et al (2007). Parametric maps were generated for both rats and the permanent MCAo rat was also used to produce regional data from which the aforementioned simulated data were derived.

Animal experiments were performed in accordance with the UK Home Office guidelines and with the approval of the University of Cambridge Animal Ethical Review Panel. Male spontaneous hypertensive rats (Charles River Laboratory, Margate, UK) were used. The experimental procedures are detailed in the study by Takasawa et al (2007).

As the data acquisition was described in detail in Takasawa et al (2007), brief details are given here. List-mode PET data were acquired using a microPET P4 scanner (Concorde Microsystems, Knoxville, TN, USA) (Tai et al, 2001) after ~80 MBq of FMISO in 1 mL was injected intravenously as a bolus over 30 seconds using an automated syringe driver. For the MCAo rat, the tracer was administered 39 minutes after the start of MCAo. In Takasawa et al (2007), the list-mode data were histogrammed into 60 time frames, but in this study, data from the first 5 minutes were histogrammed into shorter time frames to produce 80 time frames in total, with durations as described above for the simulated data. Emission data acquisition was followed by windowed coincidence mode transmission scans for attenuation correction (acquisition time: 20 minutes) with a rotating ⁶⁸Ge/⁶⁸Ga point source.

The images were reconstructed into 0.5 × 0.5 × 0.5 mm³ voxels using the PROMIS three-dimensional filtered backprojection algorithm (Kinahan and Rogers, 1989), with corrections for randoms, dead time, background, normalisation, attenuation, sensitivity and decay applied.

Arterial blood samples were collected from two control rats to obtain average plasma and whole-blood input functions. For other rats, to limit blood loss, 4 arterial blood samples were taken at 30, 60, 120, and 180 minutes after FMISO injection and these samples were used to scale the input function from control rats.

For NLLS, the initial parameter estimates were the same as for the simulated data. The weights used for BAFPIC and NLLS were based on true coincidences, obtained by subtracting delayed coincidences from prompts, as described by Gunn et al (1997).

Voxelwise parametric mapping was constrained to brain tissue through the use of a binary mask derived from a coregistered magnetic resonance (MR) scan. The correlation between parameters estimated at the voxel level was quantified using the Pearson correlation coefficient.

Results

Evidence of Irreversible Trapping of [18F]Fluoromisonidazole

Figure 1A shows Patlak plots for hypoxic and normoxic regional TACs from the MCAo rat used to produce the simulated data. Linear regions are found for data > 75 minutes after injection, indicating irreversible trapping. The hypoxic and normoxic K_i values are 0.0123 and 0.0011 mL/g per min, respectively.

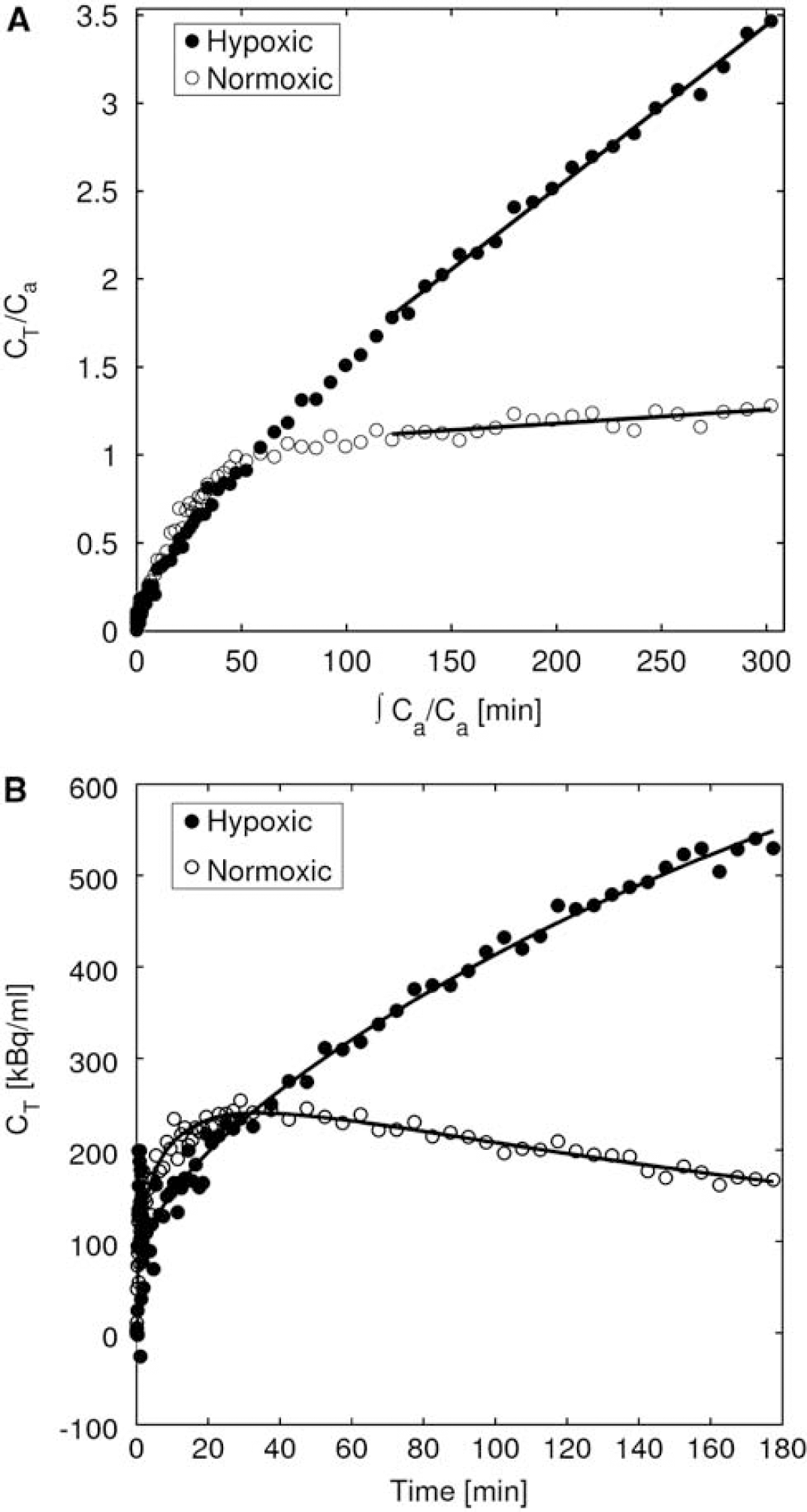

Figure 1

Patlak–Gjedde plots and time-activity curves for hypoxic and normoxic tissue. (A) Patlak–Gjedde plot of hypoxic and normoxic regional data with the linear region indicating an irreversible compartment and (B) irreversible two-tissue compartmental model fit to the hypoxic and normoxic regional data. C_T, decay-corrected total radioactivity concentration in the tissue; C_a, decay-corrected radioactivity concentration in arterial plasma.

Evidence Supporting the Validity of the Irreversible Two-Tissue Compartment Model

Figure 1B shows the TACs used in Figure 1A and the corresponding NLLS fits. These data support the use of the irreversible two-tissue compartment model (equation (3)). The kinetic parameters and blood volumes obtained from the NLLS fits were those used to produce the simulated data.

Simulated [18F]Fluoromisonidazole Data

Figure 2 gives bias-variability plots for K₁, k₂, k₃, and V_b estimated by BAFPIC and NLLS for the simulated hypoxic and normoxic TACs. Values from Figure 2 at the noise level that best corresponds to the real data (at noise level 11) are given in Table 1. This noise level was determined through visual inspection of simulated and real TACs, and by comparing the residual sum of squares from model fitting to the TACs. The variability of NLLS is significantly inferior to BAFPIC for hypoxic tissue, much less so for normoxic tissue. It should be noted that for a number of the plots in Figure 2, the variability of NLLS, especially for hypoxic tissue, is so high that a number of the 20 data points lie outside the plot. The instability of NLLS results in high biases for K₁, k₂ and k₃ in hypoxic tissue. For BAFPIC, comparable variability is found for hypoxic and normoxic tissues, with the most notable exception being much lower variability for k₃ in normoxic tissue than in hypoxic tissue.

Figure 2

Bias-variability plots of kinetic parameters estimated from simulated hypoxic and normoxic data. (A to D) Parameters estimated by BAFPIC and NLLS: (panel A) K_i, (panel B) k₂, (panel C) k₃, and (panel D) V_b. (E to F) K_i estimated by BAFPIC, NLLS, and PGA for (panel E) normoxic and (panel F) hypoxic data. The vertical lines indicate the true parameter values. The legend shown in plot A is applicable to plots A to D, whereas that shown in plot E is also applicable to plot F. BAFPIC, basis function method; NLLS, nonlinear least squares; PGA, Patlak–Gjedde graphical analysis; SD, standard deviation.

Table 1

Bias and s.d. values for kinetic parameters estimated at noise level 11 of the simulated data

Parameter	Method	Normoxic tissue		Hypoxic tissue
Parameter	Method	Bias (%)	s.d.	Bias (%)	s.d.
K ₁	NLLS	2.2	0.0080	57.9	0.0764
	BAFPIC	0.4	0.0061	2.8	0.0042
k ₂	NLLS	5.7	0.0173	559.9	0.5384
	BAFPIC	1.1	0.0112	15.2	0.0131
k ₃	NLLS	7.6	0.0017	77.1	0.1609
	BAFPIC	−5.0	0.0015	−2.4	0.0106
V _b	NLLS	−0.5	0.0226	−11.5	0.0283
	BAFPIC	0.9	0.0219	1.0	0.0217
K _i	NLLS	−5.8	0.0012	22.4	0.1013
	BAFPIC	−6.7	0.0010	0.4	0.0009
	PGA	−2.6	0.0012	−2.9	0.0013

BAFPIC, basis function method; NLLS, nonlinear least squares; PGA, Patlak-Gjedde graphical analysis.

s.d., standard deviation units: K₁ and K_i (mL/g per min), k₂ and k₃ (1/min), V_b unitless.

Some noise-induced bias is found for BAFPIC, most notably for k₂ in hypoxic tissue (Figure 2B) and k₃ (Figure 2C). The cause of this bias is positive bias of α, leading to positive bias of θ₂; the α-spectra in Supplementary Figure 1 for noise level 11 have mean values that are 2 and 12% high for normoxic and hypoxic tissues, respectively. For hypoxic tissue, the main bias is found for k₂ because the numerator of equation (11) is the product of two positively biased parameters (θ₂α), whereas for normoxic tissue, a negative bias is found for k₃ (equation (12)) because the small positive bias in θ₂ leads to a larger compensatory negative percentage bias in θ₁ because θ₂ > θ₁.

K_i values determined from the simulated data by BAFPIC, NLLS, and PGA are also shown in Figure 2 and in Table 1. For both tissue types, BAFPIC has the lowest variability, up to 40% lower than for PGA. Variability for NLLS is comparable with that for BAFPIC and PGA in normoxic tissue but significantly higher in hypoxic tissue, consistent with the variability found for K₁, k₂ and k₃ with NLLS. The BAFPIC has the lowest bias for hypoxic and normoxic tissues at low noise, but the highest bias for normoxic tissue in the middle noise levels—as for k₃, this bias in K_i (equation (13)) is caused by negative bias of θ₁. Overall, PGA gives the best bias performance for K_i in normoxic tissue.

microPET [18F]Fluoromisonidazole Rat Data

Figures 3 and 4 show parametric maps for a MCAo rat and a control rat, respectively. K₁, k₂, k₃, and V_b maps are given for NLLS and BAFPIC, and K_i is shown for PGA and BAFPIC. The PET images for each rat were coregistered to a template MR image and the same coronal slice is shown in the two figures.

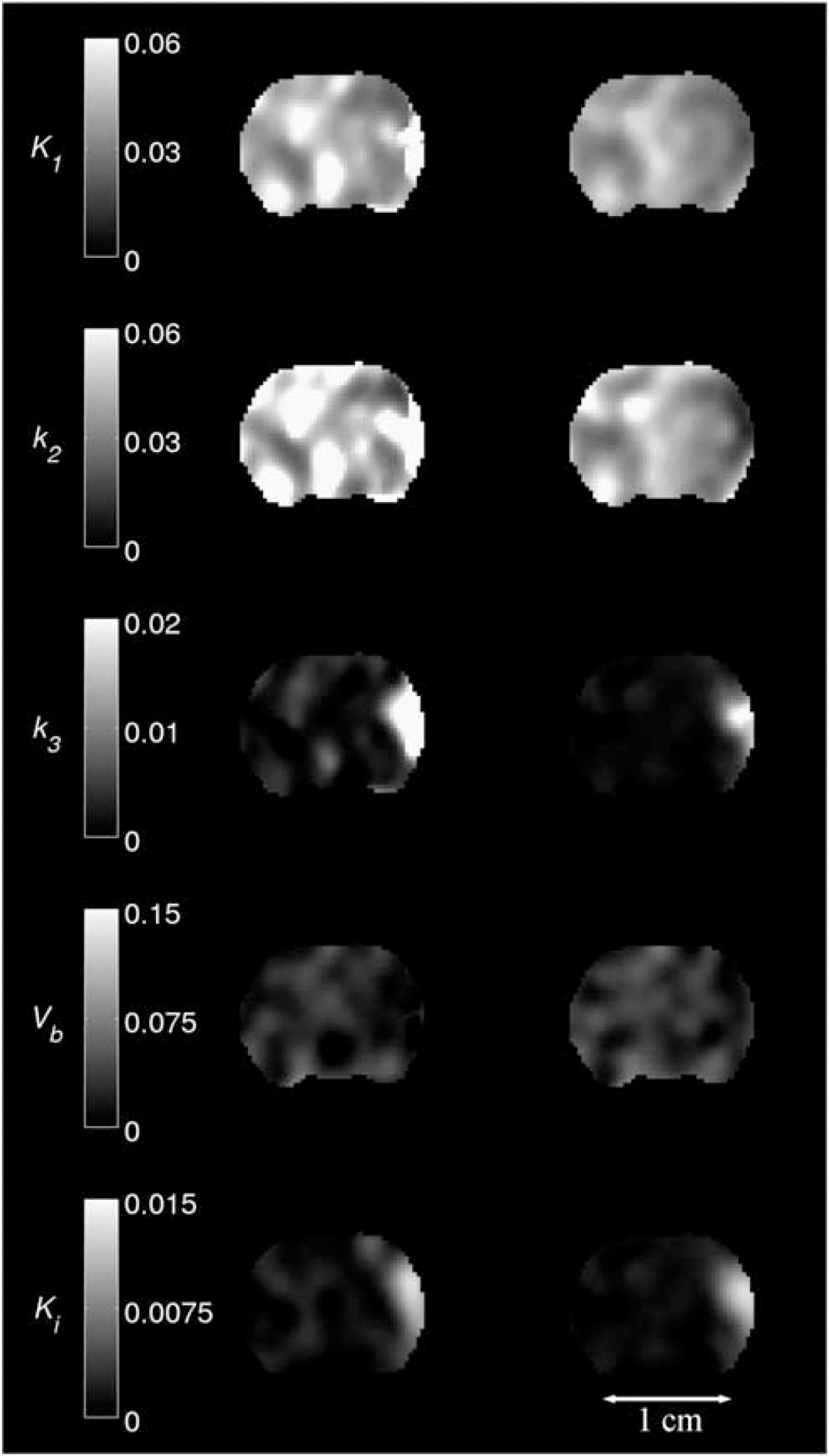

Figure 3

Parametric maps of K₁, k₂, k₃, V_b and K_i for a MCAo rat. Images in the left-hand column were produced by NLLS (K₁, k₂, k₃ and V_b) and PGA (K_i); the right-hand column shows the corresponding images for BAFPIC. Scale bar units: K₁ and K_i (mL/g per min); k₂ and k₃ (1/min); V_b unitless. BAFPIC, basis function method; MCAo, middle cerebral artery occlusion; NLLS, nonlinear least squares; PGA, Patlak–Gjedde graphical analysis.

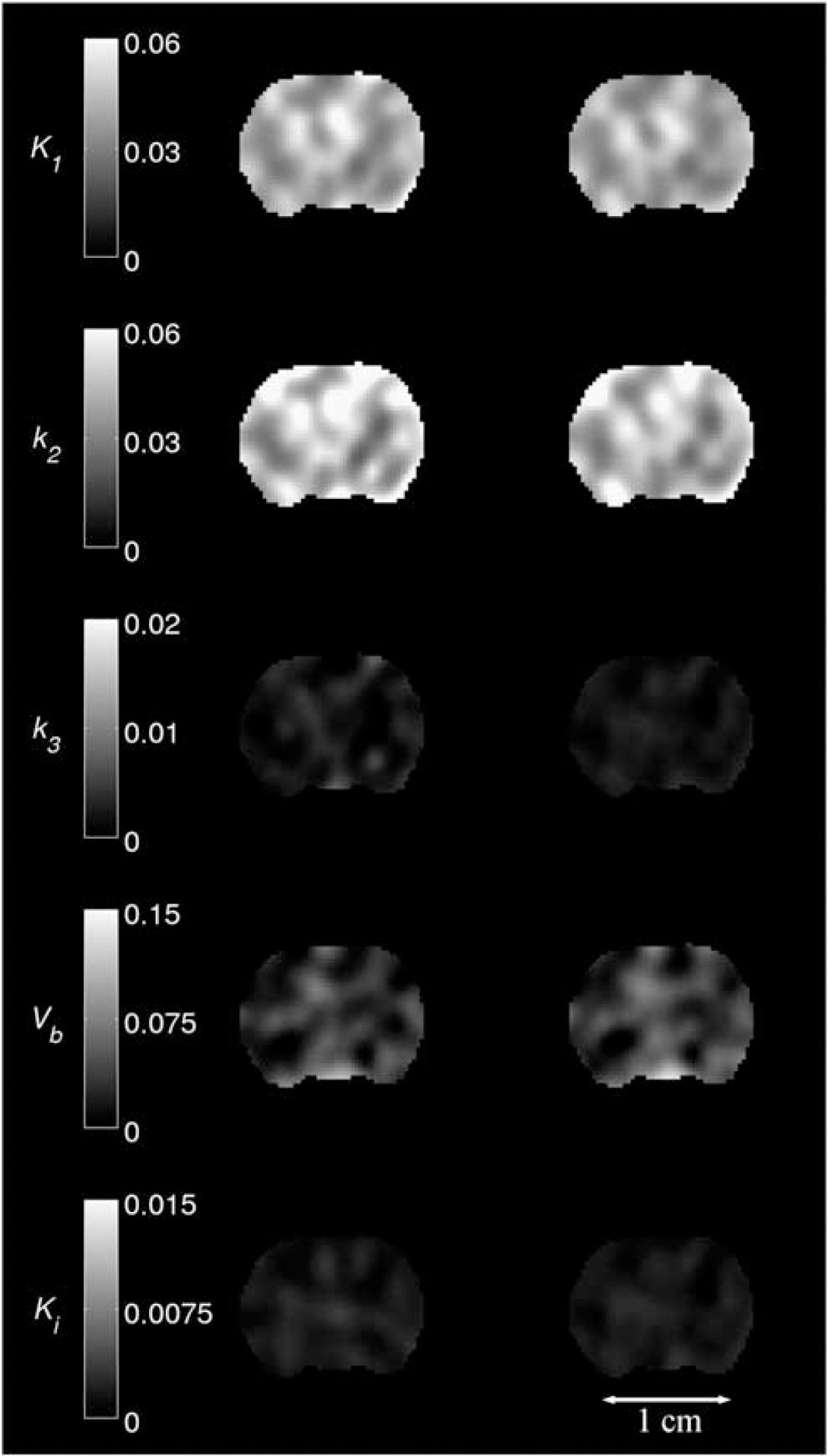

Figure 4

Parametric maps of K₁, k₂, k₃, V_b and K_i for a control rat. Images in the left-hand column were produced by NLLS (K₁, k₂, k₃ and V_b) and PGA (K_i), the right-hand column shows the corresponding images for BAFPIC. Scale bar units: K₁ and K_i (mL/g per min); k₂ and k₃ (1/min); V_b unitless. BAFPIC, basis function method; NLLS, nonlinear least squares; PGA, Patlak–Gjedde graphical analysis.

In Figure 3, MCAo occurred on the right-hand side of images and the expected patterns of reduced K₁ and k₂ are seen in the affected cortex with BAFPIC. For NLLS, reductions in K₁ and k₂ are seen superiorly, but in the focus of the occlusion, large K₁ and k₂ increases are seen. This is consistent with the findings of the simulated data where large positive biases for K₁ and k₂ were seen with NLLS in hypoxic tissue (Table 1). Both NLLS and BAFPIC show that k₃ is increased in the MCAo cortex, with the k₃ increase for NLLS being much larger than that for BAFPIC, again consistent with the positive bias found with NLLS for k₃ in simulated hypoxic tissue (Table 1). The k₃ increase for BAFPIC is consistent with the K_i increases seen for both PGA and BAFPIC, although the k₃ increase is slightly more focal. This is not unexpected as a reduction in k₂ which is greater than that in K₁, as observed, will increase K_i unless k₃ is also reduced (see equation (14)). Therefore, part of the increased K_i domain seen with both PGA and BAFPIC can be attributed to increased K₁/k₂ rather than to an increase in k₃. In the unaffected hemisphere, BAFPIC has less variability than both NLLS for K₁, k₂, k₃, and V_b and PGA for K_i, again consistent with the findings of the simulated data.

The control rat in Figure 4 does not exhibit the asymmetric changes in kinetic parameters seen with the MCAo rat. As for the unaffected hemisphere of the MCAo rat, the spatial variability of the kinetic parameters for the control rat is lower for BAFPIC than for NLLS and PGA.

Table 2 shows the correlations between parameters estimated at the voxel level by BAFPIC for MCAo and control rats within a region (4,357 voxels) delineated in the hypoxic area of the MCAo rat with K_i > 30% of the maximum. For both rats, the correlations are high between K₁ and k₂ (r = 0.90 to 0.92) and between k₃ and K_i (r = 0.71 to 0.85), with the highest of these correlations being in the MCAo rat. In addition, for the MCAo rat, high negative correlations are found between K₁/k₂ and both K₁ (r = −0.69) and k₂ (r = −0.82), and a mild correlation (r = 0.41) is found between K₁/k₂ and K_i. The increase in K₁/k₂ inferred by these data, together with the increased correlation between K₁/k₂ and K_i substantiate the idea that part of the increase in K_i in the affected cortex of the MCAo rat is attributed to increased K₁/k₂.

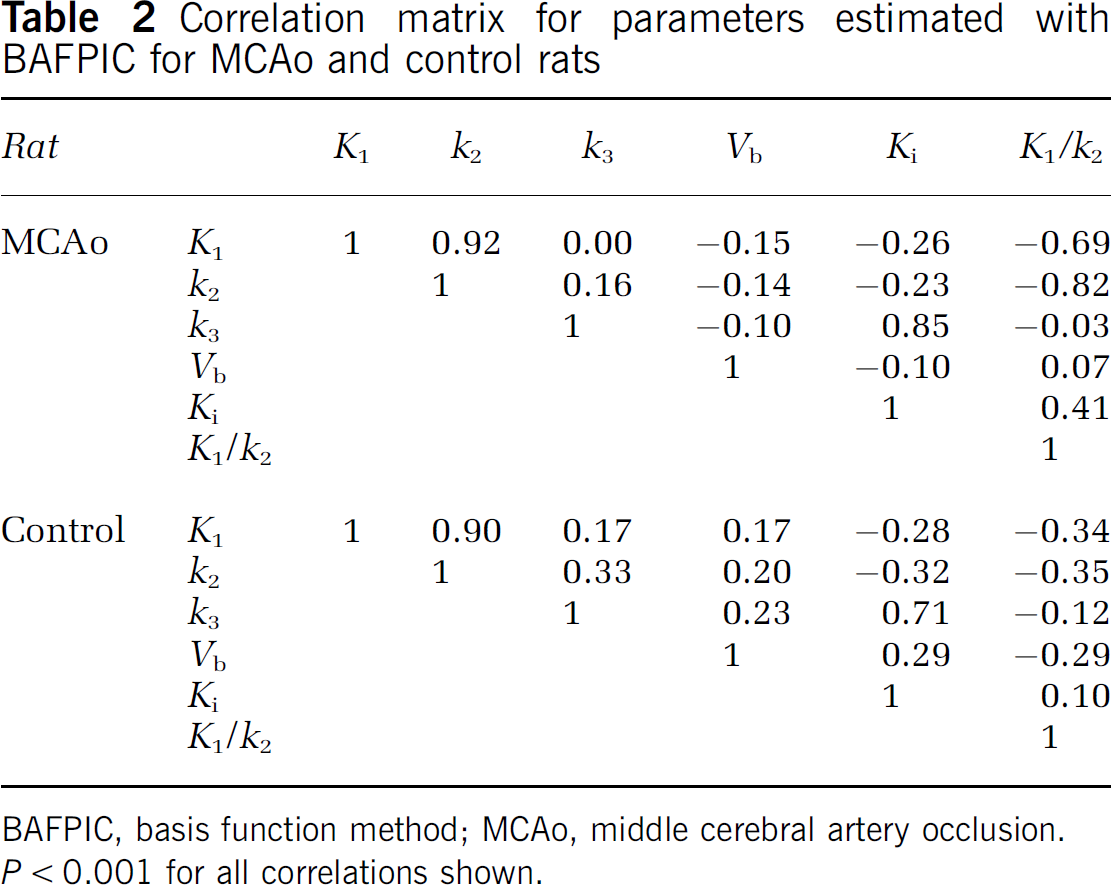

Table 2

Correlation matrix for parameters estimated with BAFPIC for MCAo and control rats

Rat		K ₁	k ₂	k ₃	V _b	K _i	K₁/k₂
MCAo	K ₁	1	0.92	0.00	−0.15	− 0.26	− 0.69
	k ₂		1	0.16	−0.14	− 0.23	− 0.82
	k ₃			1	−0.10	0.85	− 0.03
	V _b				1	− 0.10	0.07
	K _i					1	0.41
	K₁/k₂						1
Control	K ₁	1	0.90	0.17	0.17	− 0.28	− 0.34
	k ₂		1	0.33	0.20	− 0.32	− 0.35
	k ₃			1	0.23	0.71	− 0.12
	V _b				1	0.29	− 0.29
	K _i					1	0.10
	K₁/k₂						1

BAFPIC, basis function method; MCAo, middle cerebral artery occlusion.

P < 0.001 for all correlations shown.

Figure 5 shows the correlation between voxel K_i values obtained with BAFPIC and PGA for both the MCAo rat and the control rat. The correlation plots used 9,091 voxels within the MR brain mask on 12 contiguous coronal slices with enhanced K_i for the MCAo rat. Slopes near to unity are found for both rats; because of the inclusion of blood volume correction with BAFPIC (equation (13)), K_i values ~5% higher than PGA are to be expected. As the bulk of the voxels for the MCAo rat are normoxic, the correlation pattern seen with the control rat is apparent at low K_i values for the MCAo rat.

Figure 5

Correlation of K_i from BAFPIC and PGA. (A) MCAo rat shown in Figure 3 and (B) control rat shown in Figure 4. The same voxels (n = 9,091) were used for both panels A and B. BAFPIC, basis function method; MCAo, middle cerebral artery occlusion; PGA, Patlak–Gjedde graphical analysis.

Discussion

Both reversible and irreversible models have previously been used for FMISO. The key difference between the model given by Casciari et al (1995) and that used for BAFPIC here is the addition by Casciari et al of two compartments to model diffusible FMISO products in the cell and extracellular space. This diffusion pathway provides another means of tissue signal loss in addition to the reversible loss of FMISO itself. Although the model structure is different from that of Casciari et al, Bruehlmeier et al (2004) and Kelly and Brady (2006) both used a reversible two-tissue compartment model that allows for the loss of FMISO products. However, Kelly and Brady (2006) only applied their reversible model to simulated data, and in three of the seven patients studied by Bruehlmeier et al (2004), an irreversible model (k₄ = 0) was sufficient to model the data. Irreversible models have also been applied by Thorwarth et al (2005) and by Wang et al (2009, 2010). Patlak–Gjedde graphical analysis of our data indicated the existence of an irreversible compartment (Figure 1A) and an irreversible two-tissue compartment model was found to fit both hypoxic and normoxic tissue TACs (Figure 1B).

Kelly and Brady (2006) also modelled the spatial effects of diffusion of FMISO products in their reversible two-tissue compartment model. However, the diffusivity coefficient of misonidazole used by Kelly and Brady (5.5 × 10⁻¹¹ m²/sec) would result in a diffusion distance of 0.43 mm during a 3-hour PET scan. This is small compared with the resolution of the microPET P4 used in this study: 2.3 mm full-width half-maximum (FWHM) with a Hanning window cutoff at the Nyquist frequency (2.0 1/mm). Combining these two numbers in quadrature yields 2.34 mm FWHM, a negligible increase in effective spatial resolution. For human imaging, the impact of diffusion will be even less because of the poorer spatial resolution of clinical PET scanners (~5 mm FWHM). On the basis of this, together with the fits to our data and the use of irreversible models by others, we ignored the kinetic and spatial effects of diffusion in our model.

Voxelwise modelling of rate constants for two-tissue compartment models has been performed previously by LLS (Blomqvist, 1984), constrained LLS (Huang et al, 2007), generalised LLS with clustering based on principal components (Kimura et al, 2002), and nonlinear ridge regression with spatial constraint (Zhou et al, 2002). Blomqvist (1984) and Kimura et al (2002) ignored blood volume, Huang et al (2007) applied blood volume correction using a cluster value, and Zhou et al (2002) produced maps of blood volume. Feng et al (1995) showed that the estimates from the LLS algorithm are biased and consequently extended the method to generalised LLS, which was shown for FDG to have bias and variance properties similar to NLLS. To reduce the variability found with generalised LLS, Kimura et al (2002) combined it with clustering based on the principal components of TACs and applied the technique to FDG. For an irreversible two-tissue compartment model (with blood volume neglected), the clustering technique reduced variability by 23 and 33% for K_i and k₃, respectively. As a direct comparison, in Hong and Fryer (2010), BAFPIC reduced FDG K_i variability by ~60% compared with NLLS in the simulated grey matter at clinically realistic noise levels, indicating the impressive noise reduction properties of BAFPIC, which matched those of nonlinear ridge regression with spatial constraint applied to FDG (Zhou et al, 2002). Zhou et al (2002) obtained reductions in FDG k₃ variability of ~70%, whereas Huang et al (2007) reported corresponding reductions of 34%. As the tracer and physiology are different, the variability reductions quoted above cannot be directly related to those reported in this study on FMISO, in which BAFPIC reduced K_i variability compared with NLLS by 18 and 99% in normoxic and hypoxic tissues, respectively, with corresponding reductions in k₃ variability of 15 and 93% (Table 1). However, the values for FDG with similar kinetic models put the reported FMISO values into some context because there are no corresponding published numbers for voxelwise FMISO kinetic modelling, the closest being illustrative uptake at infinite time (S_∞) maps of head and neck cancer patients in Thorwarth et al (2005), and K_i and K₁ maps in Wang et al (2010) also in head and neck cancer.

The improvement in variability and bias offered by BAFPIC over NLLS is considerably higher for hypoxic than for normoxic tissue (Figure 2 and Table 1). This is likely to be because of the fact that normoxic tissue is dominated by two kinetic parameters (K₁ and k₂) as k₃≪k₂, whereas in hypoxic tissue, k₃ is comparable with k₂. The effective reduction in the numbers of free parameters from four to three for normoxic tissue results in a dramatic increase in stability for NLLS. In hypoxic tissue found in the stroke model, which has reductions in K₁ and k₂, NLLS is totally unreliable at realistic noise levels, with the exception of blood volume estimation. In contrast, BAFPIC shows the expected patterns of reduced K₁ and k₂, together with increased k₃ in the affected, i.e., ischaemic and hypoxic, cortex (Figure 3). However, even for BAFPIC, the parametric images of real data shown in Figures 3 and 4 are subjected to blotchy noise artefacts, especially for k₂, V_b, and K₁. It is important to note that even the K_i maps produced by PGA have the artefacts, which are attributed to the spatial correlation of noise by the filtered backprojection algorithm propagating into the parametric maps. The artefacts are so pronounced because the height and width of the brain in these images is only 10 and 13 mm, respectively, which is only ~5 times the spatial resolution. In a human brain image, this factor is ~30; hence, spatially correlated noise from the reconstruction process is less apparent.

Correlation analysis shows that only two pairs of the parametric maps produced by BAFPIC for real FMISO microPET data have strongly correlated voxel values: K₁ and k₂; k₃ and K_i (Table 2). The high correlation between K₁ and k₂ is to be expected because it is consistent with matched tissue influx and efflux, although in the affected cortex of the MCAo rat, significant negative correlations are found between K₁/k₂ and both K₁ and k₂ indicating that although the K₁ and k₂ reductions are correlated k₂ is reduced more. Importantly, k₂ and k₃ are not strongly correlated, indicating that high k₃ is not being falsely attributed as low k₂ or vice versa. Although k₃ and K_i are highly correlated (r = 0.71 to 0.85), increased K₁/k₂ could explain part of the increase in K_i for the MCAo rat.

As the irreversible trapping rate can be related to tissue oxygen concentration (Casciari et al, 1995), k₃ is potentially a more specific measure of hypoxia than K_i. BAFPIC reduced the variability of k₃ to match that of K_i in normoxic tissue, although it was still higher in hypoxic tissue. Further studies are warranted to determine which of k₃ and K_i is the best in vivo measure of hypoxia, particularly for scenarios subject to changes in tissue influx/efflux which potentially compromise the ability of K_i to quantify hypoxia. The stroke model used in this study is one example of this, others include tumour response to therapy studies. In addition to FMISO, mapping k₃ could be of interest for irreversible tracers such as the cellular proliferation marker [¹⁸F]fluorothymidine (de Langen et al, 2009), [¹¹C]methionine used to image amino-acid metabolism (Buus et al, 2004), and FDG, although K_i is usually the key parameter of interest for FDG because it can be converted to glucose metabolic rate. Parametric maps of k₃ produced by BAFPIC and/or the low variance K_i maps produced by BAFPIC may be particularly useful if PET information is to be used in radiotherapy treatment planning (Alber et al, 2003; Rajendran et al, 2006).

In conclusion, simulations and real data have shown that in a rat model of cortical ischaemia, a basis function approach (BAFPIC) for kinetic modelling with an irreversible two-tissue compartment model provides superior FMISO parametric maps than NLLS solution for K₁, k₂, k₃, V_b, and both NLLS solution and PGA for K_i. BAFPIC is easy to implement, computationally efficient, and could be applied to other tracers in which an irreversible two-tissue compartment model is applicable, particularly those in which k₃ is a parameter of interest as well as K_i. Although the emphasis of this study has been on voxelwise modelling, BAFPIC will also be an attractive option for kinetic parameter estimation at the regional level if the regional TAC is noisy.

Footnotes

Acknowledgements

We thank Drs M Takasawa, K Igase, and JL Hughes for their contribution to the experiments.

The authors declare no conflict of interest.
