Systematic Survey of the Design,Statistical Analysis,and Reporting of Studies Published in the 2008 Volume of the Journal of Cerebral Blood Flow and Metabolism

Publication Searches

To assess the quality of research reporting, experimental design, and statistical analysis in all original articles published in JCBFM from January 2008 through December 2008, a full version of JCBFM volume 28 (numbers 1 to 12) was secured in both electronic and hard copy format. A nonblinded reviewer (HV) then systematically identified original scientific publications within JCBFM volume 28.

Original publications were categorized according to study type: animal (including rodents, primates, canines, and birds), in vitro, or human studies, review articles, commentaries, communications, errata, and corrigenda.

Inclusion and Exclusion Criteria for Quality Assessment

All original articles published in JCBFM volume 28 were eligible for inclusion. Review articles (8), commentaries or communications (21), or errata and corrigenda (8) were excluded.

Publication Quality Assessment

Questionnaire: We developed a checklist questionnaire to capture the key aspects of the reporting of (1) experimental design, (2) experimental analysis and statistics, and (3) the overall quality of reporting. Such checklists for reporting standards are commonly used in other research domains (particularly in clinical trials), and we began by creating a catalog of possible checklist items from publications in these other domains. Some items thus identified were clearly not relevant to original articles in JCBFM, and after exclusion of these, we selected 15 main items and 9 supplementary items which, in our view, captured most of the important aspects of study reporting, which might reasonably be expected from publications in JCBFM (see Table 1).

OPEN IN VIEWER

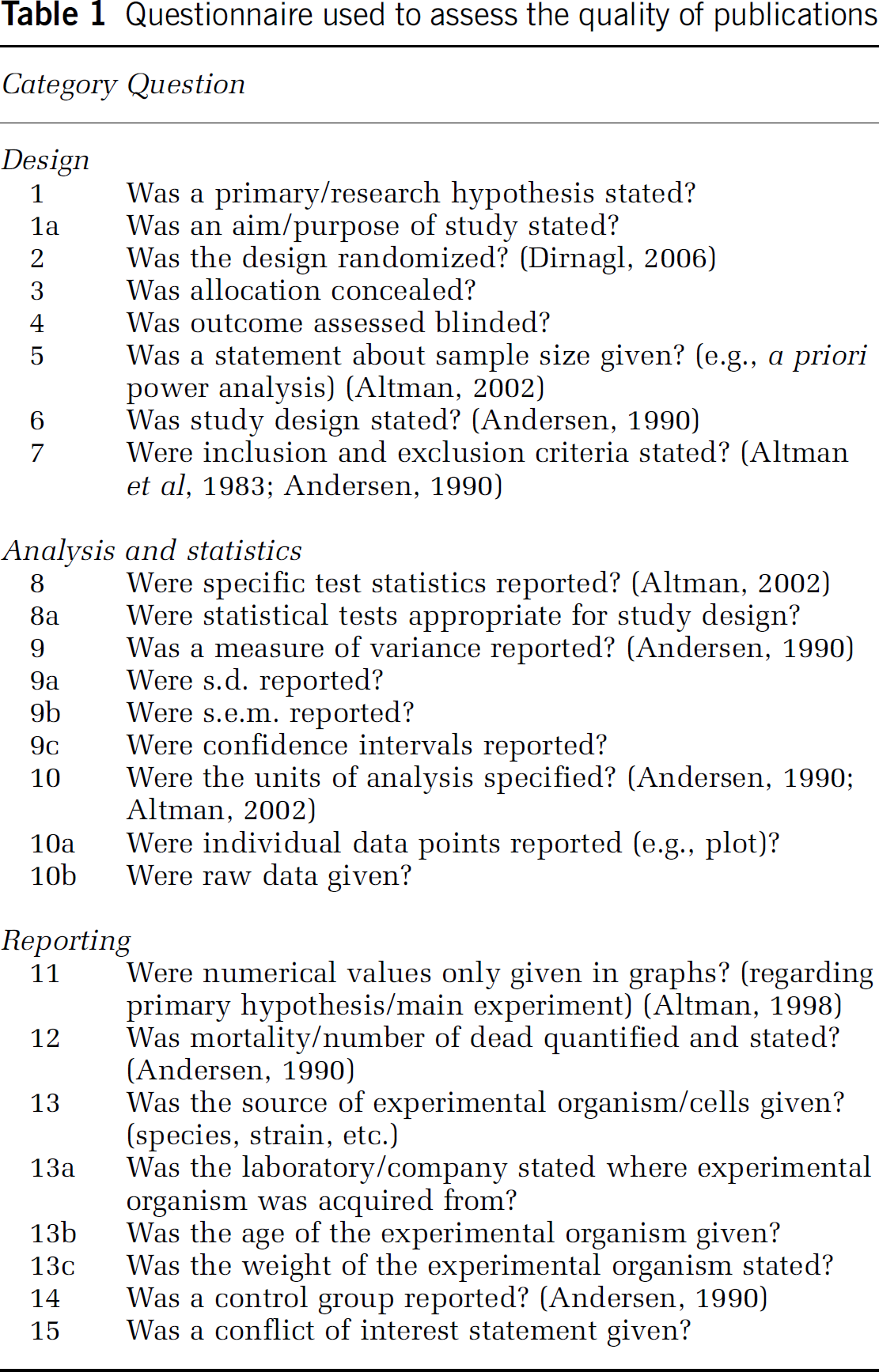

Table 1

Questionnaire used to assess the quality of publications

Category	Question
Design
1	Was a primary/research hypothesis stated?
1a	Was an aim/purpose of study stated?
2	Was the design randomized? (Dirnagl, 2006)
3	Was allocation concealed?
4	Was outcome assessed blinded?
5	Was a statement about sample size given? (e.g., a priori power analysis) (Altman, 2002)
6	Was study design stated? (Andersen, 1990)
7	Were inclusion and exclusion criteria stated? (Altman et al, 1983; Andersen, 1990)
Analysis and statistics
8	Were specific test statistics reported? (Altman, 2002)
8a	Were statistical tests appropriate for study design?
9	Was a measure of variance reported? (Andersen, 1990)
9a	Were s.d. reported?
9b	Were s.e.m. reported?
9c	Were confidence intervals reported?
10	Were the units of analysis specified? (Andersen, 1990; Altman, 2002)
10a	Were individual data points reported (e.g., plot)?
10b	Were raw data given?
Reporting
11	Were numerical values only given in graphs? (regarding primary hypothesis/main experiment) (Altman, 1998)
12	Was mortality/number of dead quantified and stated? (Andersen, 1990)
13	Was the source of experimental organism/cells given? (species, strain, etc.)
13a	Was the laboratory/company stated where experimental organism was acquired from?
13b	Was the age of the experimental organism given?
13c	Was the weight of the experimental organism stated?
14	Was a control group reported? (Andersen, 1990)
15	Was a conflict of interest statement given?

Assessment Process

For all items apart from the reporting of specific test statistics (question 8) and the appropriateness of the statistical tests used (question 8a), two nonblinded reviewers (KE and HV) independently extracted data for publication quality by reading each original article and then reporting whether the specific checklist item was met by the publication (yes), not met by the publication (no), not applicable to that publication (n.a.), or unknown.

Assessing Test Statistics

An independent, blinded expert reviewer (PS) assessed for the presence of specific test statistics (item 8) and whether the analytical test statistics were appropriate for the underlying experimental design (item 8a). In a statistical analysis, the method of choice depends on the type of data, e.g., numerical or categorical, as well as on the structure and distribution of data. Thus, it was investigated whether the chosen analysis was suitable for data at hand. For example, for a comparison of three groups with repeated continuous measurements, it was checked whether an appropriate method, such as an analysis of variance with repeated measures was chosen. To do so, statistical details reported in the selected publications were extracted and given to the reviewer alongside the publications. Moreover, the order in which publications were presented was randomized and the reviewer was blinded to authors, institution, journal, volume number, and digital object identifier number of the publications.

Interobserver Agreement

κ-Statistics, representing the extent of agreement between the two scorers, were calculated for each item, except for 8a. As κ is highly affected by the prevalence of t-positive scores, we also calculated separate indices of the proportionate agreement in the observers’ positive (‘yes’) and negative (‘no’) decisions (Feinstein and Cicchetti, 1990; Cicchetti and Feinstein, 1990).

Interobserver Agreement

To ensure appropriate robustness to the assessment, each item was determined by two investigators blinded to the assessment of the other. Interobserver agreement is given in Supplementary Table 1.

Specific Checklist Items

Hypothesis/Purpose: A clear statement on the objective of the study or its main hypothesis being tested is critical for the reader to assess the appropriateness of the study design, methods, analysis, and implications. Surprisingly, only 30% of publications explicitly stated a primary research hypothesis; however, 97% indicated the aim or purpose; 44% indicated both, and only 3% gave neither a hypothesis nor an aim (percentages given herein and below represent the mean of both reviewers).

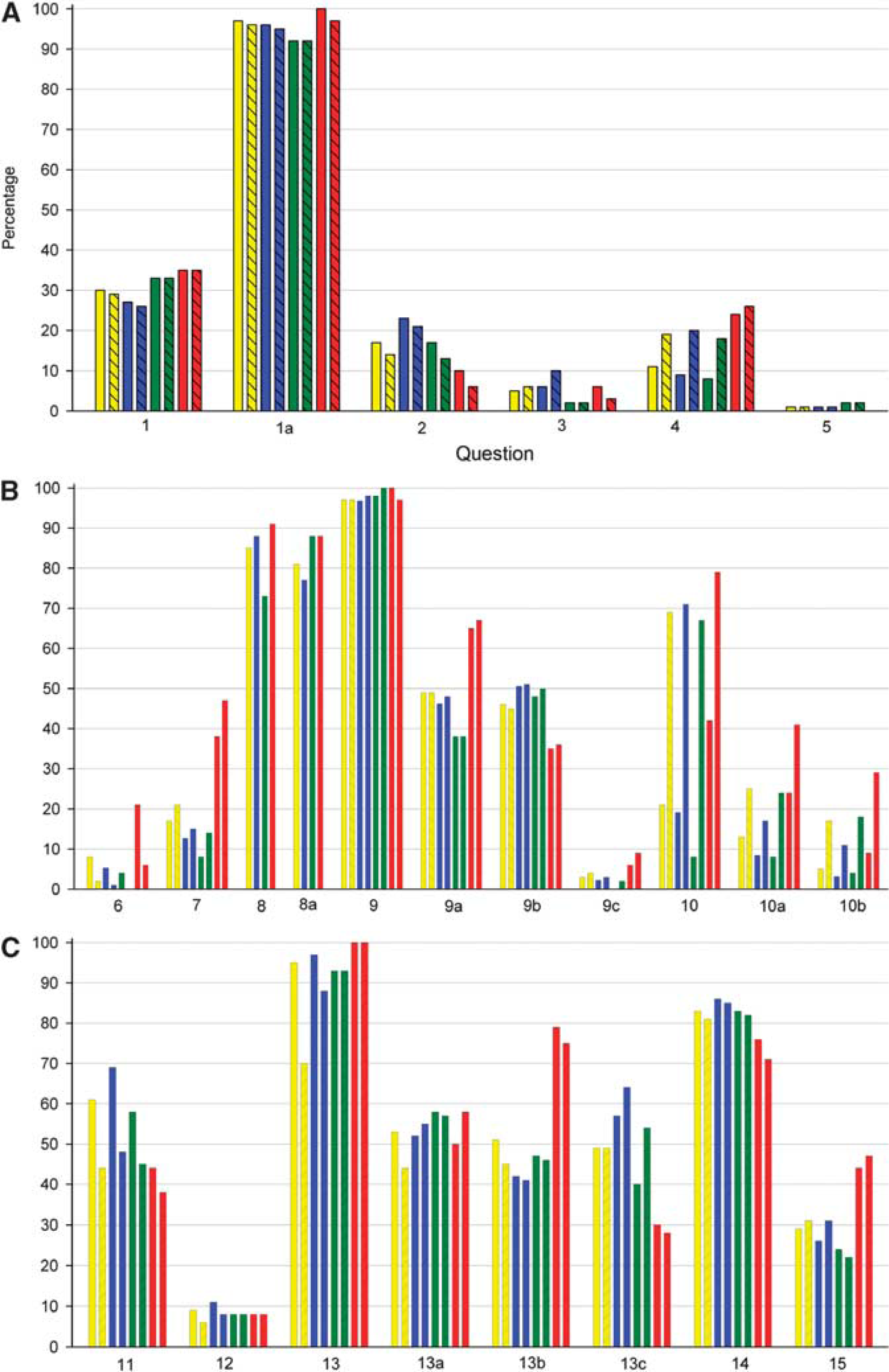

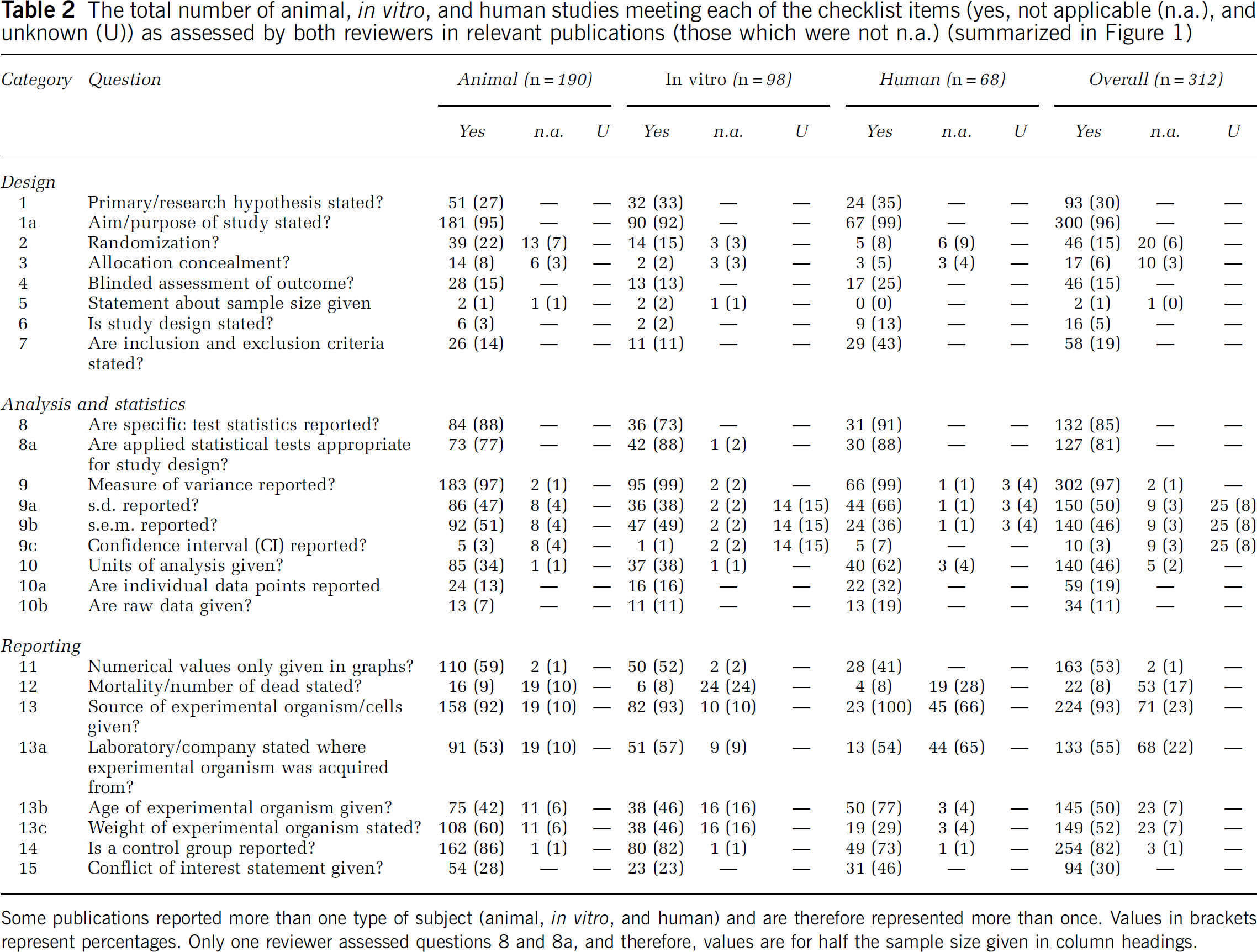

Interestingly, clinical studies involving human participants, wherein the regulatory environment is more strict, were only slightly better than experimental laboratory or in vitro studies (see Figure 1, Table 2). Where a study hypothesis is well defined and an analysis protocol agreed in advance of experiments being conducted, then the risk of chance associations being considered of significance are diminished; this is the laboratory equivalent of the post hoc subgroup analysis of clinical trial data, which can at best be considered hypothesis generating only. Where a clear hypothesis is stated, data presented that are not relevant to this can be interpreted appropriately (Andersen, 1990).

Randomization/Allocation Concealment/Blinded Assessment of Outcomes: Randomization, allocation concealment, and blinded assessment of outcomes are the key measures to reduce bias and to improve the internal validity of a study. Nevertheless, <20% of the relevant publications reported randomization, allocation concealment, or blinded assessment of outcomes. In the few studies in which randomization was mentioned, it was unclear whether proper procedures were followed. We cannot exclude the possibility that some studies may have used such measures but did not report these. Moreover, in some studies, randomization or blinded assessment may not have been feasible, or indicated. However, as reporting of these items is not common, it is often not possible for readers to assess whether such studies are indeed flawed. It should be noted that in two recent studies focusing on experimental stroke studies, roughly 50% of the included studies reported randomization (Minnerup et al, 2010; Philip et al, 2009).

Sample Size: Only 1% of the studies reported either sample size calculations or power analyses, or the effect size that could have been detected, given the variance of data and the preset levels for α (risk of committing a type I error, or false positive) and β (risk of committing a type II error, or false negative) (Sterne et al, 2001; Mulaik et al, 1997; Schlattmann and Dirnagl, 2010a). The statistical power of a study informs us not only about the risk of false negatives but it is also directly related to the reproducibility and positive-predictive value of the experimental results (Ioannidis, 2005). Again, in some of the studies in this survey, a priori sample size calculations would not have made sense. However, in the overwhelming number of studies, they would clearly have been helpful in designing experiments. Most studies included here were in fact grossly underpowered; with sample sizes of 10 per group (which is at the high end of sample sizes found), an α-value of 0.05 and a β-value of 0.8, effect sizes of 1.33 times the s.d. can be detected (two-sided, independent samples t-test). As variance in most of the reported experiments is quite high (e.g., s.d. 30% of the mean), this implies that these studies are only powered reliably to detect a 32% mean change in outcomes, such as infarct volume or neurobehavioral score.

Study Design: In this sample of publications, assessing and categorizing study design was very difficult. In our view, this was not so much to do with problems in individual manuscripts but rather to do with the lack of a well-established vocabulary to describe study design in experimental life sciences. This contrasts with the well-established nomenclature for clinical studies, in which categories such as randomized-controlled trial, cohort study, diagnostic trial, screening trial, phase I to IV trial, etc., help to quickly understand the design and assess the implications of a study. We propose to introduce an analogous terminology to the field of experimental medicine, such as phase I experimental trial (safety, tolerability, pharmacokinetics, pharmacodynamics, dose finding; not necessarily in a disease model; small group sizes), phase II experimental trial (dosing and safety in disease model, efficacy, proof of concept), and phase III experimental trial (efficacy, larger group sizes, confounders). If applicable, experimental trial types should be further specified as ‘randomized’ and ‘controlled’, if applicable.

Inclusion and Exclusion Criteria/Mortality/Control Group: Reporting inclusion and exclusion criteria in the ‘Methods’ section, and exclusions, dropouts, or mortality (including the reasons behind it) of the experimental groups in the ‘Results’ section is another key element to prevent bias and to improve the internal validity of a study. We found that <20% (29/156) of the publications reported inclusion and exclusion criteria.

Mortality was reported in only 8% (20/129) of studies in which it was relevant; a further 27 studies reported for instance imaging findings, human participants, or purely in vitro experiments. We propose that it should be made mandatory to publish mortality rates in animal experiments, as this would prevent the masking of a severe bias which could, e.g., result from excluding severely affected animals in only one of the experimental groups. Control groups are crucial measures to safeguard that an effect is a true effect of the manipulation or condition under study, and to minimize the effect of other, unintended variables on the results. More than 80% of the publications reported the use of control groups. Assuming that in a fraction of articles, control groups would not have made sense, this figure is comforting as it points to a widespread use of this key element of the scientific method.

Experimental Animals and Study Subjects: To understand the implications of a study, and potentially to be able to reproduce experiments, we need to be well informed about the specific characteristics of the experimental animal species, strain, and substrain, supplier, genetic background, age, weight, and sex, among others, which must be considered critical information for reviewers and readers alike.

General Reporting of Statistical Analysis: Specific test statistics were reported in 85% of the assessed publications. Of those, expert statistical assessment revealed that 81% (127/156 relevant publications) of the cases used appropriate approaches and test. The remaining articles either used inappropriate statistical analyses or did not supply the reader with sufficient information to comprehend the reported results. The lack of information made it difficult to evaluate the appropriateness of given statistical tests, and moreover, of the 156 assessed studies, 3 did not provide enough information to judge the methodological quality.

When performing statistical analysis, the method of choice depends on the type of data, e.g., numerical or categorical, as well as on the structure and distribution of data. In all studies assessed, the choice of statistical method was appropriate for the type of data under study.

However, in terms of structure, the results were different. Among others factors, the structure of the data is given by the number of groups considered, e.g., one, two, or more than two groups. If the number of groups is larger than two, applying multiple t-tests without correcting for multiple comparisons is not appropriate. This error occurred in 4 of the 156 studies reviewed.

Often, a more complex design is chosen, e.g., when several measurements per animal or subject are taken. In this case, the data points are dependent as we are measuring on the same subject. This introduces a correlation between individual measurements. In such cases, statistical tests that require independent data, such as the unpaired t-test or an analysis of variance, are not appropriate. This error occurred in 22 of the 156 assessed studies. As part of a series on statistics in cerebrovascular research, JCBFM presents methods that are appropriate for dependent data (Schlattmann and Dirnagl, 2010a, 2010b).

Measure of Variance: A high number of publications include a measure of variance. More than 90% (151/155) of the relevant included publications provide the assessor with s.e.m. (46%), s.d. (49%), or confidence interval (4%). A further 9% of relevant publications did not state the type of variance reported. Although popular because it produces smaller whiskers in graphs for descriptive purposes, s.e.m. is not an acceptable measure. The latter is an estimate for the precision of estimating the mean, not a description of the sample (Altman and Bland, 2005; Schlattmann and Dirnagl, 2010a).

Units of Analysis/Data Points: Most of the assessed studies represent data numerically, and more or less directly indicate the unit of analysis (e.g., an Eppendorf tube, right or left hemisphere, a single animal, a group or a cage of animals). Nonetheless, in some cases, the experimental unit/unit of analysis could not be identified.

Data for individual study objects (instead of only presenting group data) were found in 30 publications, and raw data were provided in 17 publications. Reporting raw data and individual data points can help the reader to assess the quality and dispersion of results. As most studies were reporting on rather low numbers of subjects, and because most journals allow almost unlimited publication of additional data as Supplementary material on the website of the journal, we strongly encourage authors to provide as much detailed information as useful and possible. This, in many cases, includes the plotting of individual data points in scatter plots and the listing of numerical values in tables (Schlattmann and Dirnagl, 2010a).

Limitations of this Study: Our survey has a number of limitations. None of the dichotomized percentages (yes/no) of the items of our questionnaire (Table 1) can be interpreted as quality statements in themselves. For example, if it is said that 85% of all studies did not use allocation concealment, then it must be kept in mind that not all studies may have allowed designs in which allocation could be concealed, or allocation concealment may have not made sense. We have repeatedly alluded to this constraint in the above discussion. In any case, these numbers present a first overview on the reporting and statistics practices of the surveyed volume.

Our approach was to define criteria and then apply them to all publication categories (such as experimental, animal, and clinical) rather than to define criteria specific to each. Although there might be concerns that not all criteria would be appropriate in each publication category, in fact this was not the case; each criterion was scored as being present in at least one publication from each category and at worse, one-third of publications in a category could be scored (source of experimental organism, human studies). Even with criteria specific to each publication category, we would have some in which criteria were not appropriate, and we believe that our approach has the benefit of being simple and broadly applicable.

It might be argued that some of the questions used in this survey may not be answered in an unambiguous manner. For example, we might have answered question 1: Primary/research hypothesis stated? with ‘no’, because the hypothesis was not explicitly phrased as such (‘In our study we tested the hypothesis that.’), but the author of the study might object because he might insist that the hypothesis reveals itself allusively from the text. However, we argue that a suitably skilled reader should be clearly presented with all the relevant information of a scientific communication, which includes aims, purpose, and hypotheses, to be able to understand, analyze, and potentially replicate the findings.

To assess potential bias of the assessor, we used two assessors, and found a very high degree of interrater agreement. In all categories, questions were more often answered by the scorers with ‘no’ than with ‘yes’. For many questions, a score of ‘yes’ was low. This in some instances lead to low κ-values despite high agreement between scorers (Supplementary Table 1), as κ is not reliable for rare observations because it is affected by the prevalence of observations.

Restricting our analysis to JCBFM may introduce bias, which precludes generalization of our results to studies published in other journals. This is very unlikely, as JCBFM is one of the top-ranked journals in the field of experimental cerebrovascular and stroke research. Standards for publication, authors, reviewers, etc., are similar to other journals in the field, such as Stroke. We have opted to restrict our analysis to this journal, as its scope was ideally suited to survey experimental studies and clinical proof-of-concept studies. We hypothesize that surveying related journals, and even scientific journals in other experimental-translational areas in life sciences would yield very similar results.

Conclusions

In this systematic survey, we found indicators for deficiencies in the design, reporting, and statistical analysis of the original articles in a recent volume of JCBFM, one of the leading journals in the cerebrovascular field. There is ample indirect and direct evidence that this is not a problem unique to this particular journal, or even research field. We, along with others (e.g., Fisher et al, 2009; Macleod et al, 2009), believe that quality issues in experimental life sciences are an important reason why we are currently facing roadblocks to translation from bench to bedside (and vice versa). Only a joint effort of the scientific community (authors, readers, reviewers, editors, professional societies, etc.) can improve the current situation. The results of our study, together with a thorough analysis of the measures that were successfully taken in clinical medicine to improve study quality, indicate some of the action points.

We propose that, in analogy to the CONSORT statement, a set of standards for reporting of experimental studies in biomedicine is used. Like with CONSORT, journal editors need to adopt these standards. Journals need to educate their readers and create awareness in areas, such as proper study design and analysis. Indeed, Kilkenny et al (2010) have recently proposed such reporting guidelines (Animal Research Reporting In Vivo Experiments, ARRIVE; http://www.nc3rs.org/ARRIVE) using the CONSORT statement as a foundation. Reviewers need to be more critical regarding missing hypotheses, deficiencies of experimental design, insufficient statistical power, or inadequate information in the submitted articles. Most importantly, the upcoming generation of scientists, the students, need to be trained in GSP, general principles of study design and biostatistics, etc. It has been pointed out that experimental biomedicine should not be constrained by rules and regulations. More specifically, some scientists argue that hypotheses, power calculations, or a priori defining the design of a study or its analysis might suffocate the ingenuity of the experimentalist. Quite to the contrary: scientific brilliance or serendipity are traits of the investigator that are unrelated to the standards of scientific publishing. Even the most ingenious finding must be supported by solid and reproducible experiments, which are communicated in a comprehensible manner.
