Brain Glycogen Content and Metabolism in Subjects with Type 1 Diabetes and Hypoglycemia Unawareness

Abstract

Supercompensated brain glycogen may contribute to the development of hypoglycemia unawareness in patients with type 1 diabetes by providing energy for the brain during periods of hypoglycemia. Our goal was to determine if brain glycogen content is elevated in patients with type 1 diabetes and hypoglycemia unawareness. We used in vivo¹³C nuclear magnetic resonance spectroscopy in conjunction with [1-¹³C]glucose administration in five patients with type 1 diabetes and hypoglycemia unawareness and five age-, gender-, and body mass index-matched healthy volunteers to measure brain glycogen content and metabolism. Glucose and insulin were administered intravenously over ∼51 hours at a rate titrated to maintain a blood glucose concentration of 7 mmol/L. ¹³C-glycogen levels in the occipital lobe were measured at ∼5, 8, 13, 23, 32, 37, and 50 hours, during label wash-in and wash-out. Newly synthesized glycogen levels were higher in controls than in patients (P<0.0001) for matched average blood glucose and insulin levels, which may be due to higher brain glycogen content or faster turnover in controls. Metabolic modeling indicated lower brain glycogen content in patients than in controls (P=0.07), implying that glycogen supercompensation does not contribute to the development of hypoglycemia unawareness in humans with type 1 diabetes.

Keywords

glucose glycogen hypoglycemia unawareness

Introduction

Hypoglycemia is the factor that prevents most patients with diabetes from achieving the glycemic targets known to reduce the microvascular complications of the disease (The Diabetes Control and Complications Trial Research Group, 1993; UK Prospective Diabetes Study Group, 1998). Hypoglycemia is common and when recurrent can lead to hypoglycemia unawareness; the serious clinical syndrome where a falling blood sugar is not detected until the development of neuroglycopenia (Cryer, 2004; Dagogo-Jack et al, 1993).

The mechanisms responsible for hypoglycemia unawareness remain uncertain. One possible mechanism is that recurrent hypoglycemia leads to upregulated fuel availability to the brain, either in the form of glucose (free or in glycogen reserves) or in the form of alternative fuels. Prior work suggested glucose uptake may increase (Boyle et al, 1994; Criego et al, 2005; McCall et al, 1986) or alternative fuels such as lactate may support a greater fraction of oxidative metabolism (Jiang et al, 2009; Mason et al, 2006) after recurrent hypoglycemia, both of which may serve to enhance fuel availability during subsequent periods of hypoglycemia. Another potential mechanism to enhance fuel availability during hypoglycemia is to increase brain glycogen content via a phenomenon termed ‘supercompensation’. In the adult brain, glycogen is primarily localized in astrocytes (Wiesinger et al, 1997) and may support brain function either by being used locally in astrocytes, which would spare extracellular glucose for neurons, or by being exported to neurons in the form of lactate (Brown et al, 2005; Dienel et al, 2007; DiNuzzo et al, 2010; Sickmann et al, 2009; Swanson et al, 1992; Wender et al, 2000). Glycogen is mobilized during hypoglycemia both in rodents (Canada et al, 2011; Herzog et al, 2008; Suh et al, 2007) and in humans (Öz et al, 2009). Furthermore, we have found that healthy humans and rats have increased rates of glycogen synthesis after an episode of hypoglycemia, suggesting that such an event may occur in patients with diabetes after hypoglycemia (Choi et al, 2003; Öz et al, 2009). Similarly, Alquier et al (2007) found a twofold increase in hypothalamic glycogen content in rodents exposed to recurrent 2-deoxy-d-glucose-induced neuroglucopenia. In addition, Canada et al (2011) showed brain glycogen content to be elevated in mice after acute and recurrent hypoglycemia. However, Herzog et al (2008) did not find evidence for glycogen supercompensation in rats subjected to acute and recurrent hypoglycemia.

In the current study, we sought to gain insight into the contribution of glycogen supercompensation to hypoglycemia unawareness by using ¹³C nuclear magnetic resonance (NMR) spectroscopy to assess brain glycogen content and metabolism in subjects with type 1 diabetes and hypoglycemia unawareness. As a first step of testing the hypothesis that an increase in brain glycogen content after hypoglycemia contributes to cerebral energy demands during subsequent periods of hypoglycemia, we compared brain glycogen levels of subjects with type 1 diabetes and hypoglycemia unawareness as assessed by a standardized questionnaire to those of age-, gender-, and body mass index (BMI)-matched controls.

Materials and methods

Subjects

Five subjects with type 1 diabetes mellitus and hypoglycemia unawareness (one female, four males, age 57±4 years, BMI 25±4 kg/m², mean±standard deviation) and five gender-, age-, and BMI-matched healthy volunteers (one female, four males, age 57±3 years, BMI 24±2 kg/m²) were studied after giving informed consent using procedures approved by the Institutional Review Board: Human Subjects Committee. Age was matched within 4 years and BMI was matched within 4 kg/m² between subject pairs. Patients with hypoglycemia unawareness had at least two episodes of hypoglycemia per week for the preceding 2 weeks, had a hemoglobin A1c <7.5%, and had their hypoglycemia unawareness verified by a standardized questionnaire (Clarke et al, 1995).

Experimental Design

The night before the experiment, subjects with type 1 diabetes were admitted to the General Clinical Research Center. To eliminate the impact of subcutaneously injected insulin to the insulinemia experimentally controlled during the study the next day, the at home insulin regimen was discontinued upon admission. To manage their diabetes, an intravenous infusion of insulin was administered to maintain their blood glucose between 8.3 and 13.9 mmol/L overnight. This infusion was stopped at the beginning of the study on the next day. Healthy matched controls presented to the General Clinical Research Center in the fasting state on the morning of the study. An intravenous catheter placed antegrade in a forearm was used for infusion and a catheter placed retrograde in the other arm was used for blood sampling. At 1000 h, the protocol created for this study (Figure 1) was begun. Insulin was started at a rate of 0.5 mU/kg/min and a bolus injection of 20 g of [1-¹³C]glucose (Cambridge Isotope Laboratories, Andover, MA, USA, prepared as 20% weight/volume d-glucose in water with 75% isotopic enrichment (IE)) was administered. Twenty minutes later, a continuous infusion of 2 mg/kg/min of [1-¹³C]glucose (prepared as 20% weight/volume d-glucose in water with 50% IE) was started and then adjusted to maintain blood glucose at 7 mmol/L (125 mg/dL) based on samples collected every 10–60 minutes and measured on an automatic glucose analyzer. This blood glucose target was chosen to minimize dilution of infused ¹³C-labeled glucose and maintain high IE levels in blood glucose and also because label incorporation into brain glycogen primarily occurs through turnover, rather than net synthesis, at such slight hyperglycemic conditions (Öz et al, 2007). Additional blood samples were frozen for the later determination of plasma insulin concentrations by a chemiluminescent assay (Immulite, Diagnostic Products Corporation, Los Angeles, CA, USA), and of the IE of the plasma glucose by gas chromatography-mass spectroscopy as described previously (Gruetter et al, 2001). The infusion of ¹³C-glucose continued for 32±2 hours and then switched to unlabeled glucose for another 19±2 hours (Figure 1). Two of the five subjects with type 1 diabetes (Subject #3, 61-year-old female and Subject #4, 52-year-old male) were unable to achieve target glycemia on the dose of insulin used, and therefore had the insulin rates increased to 1.0 mU/kg/min. These subjects could not be distinguished from other patients based on age, gender, BMI, average blood glucose, plasma insulin (data nor shown), or newly synthesized glycogen levels (Supplementary Figure). Control subjects were given the same insulin infusions as their matched patients and their glucose infusion were titrated to maintain target blood glucose levels. Cerebral ¹³C-glycogen levels were measured at ∼5, 8, 13, 23, 32, 37, and 50 hours using NMR spectroscopy in all subjects, except one control where the 50-h measurement was missed due to loss of intravenous access.

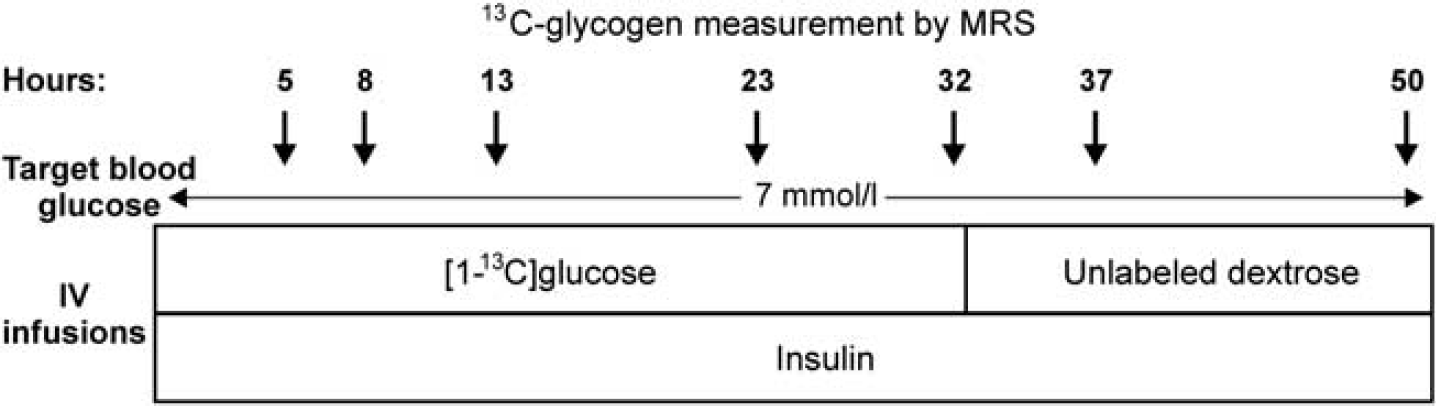

Figure 1

Experimental protocol. Timeline of [1-¹³C]glucose, unlabeled dextrose, and insulin infusions and the approximate times of MR scans are shown.

Two control subjects were studied twice with different blood glucose target levels several months apart.

Nuclear Magnetic Resonance Spectroscopy

¹³C-glycogen levels in the brain were measured using methods described before (Öz et al, 2009). Briefly, measurements were performed on a 4-T magnet (Oxford Magnet Technology Inc., Witney, UK) interfaced to a Varian ^UNITYINOVA or DirectDrive console (Varian Inc., Palo Alto, CA, USA) using a quadrature 14 cm ¹H surface coil combined with a 9-cm diameter linear ¹³C coil (Adriany and Gruetter, 1997). The [1-¹³C]glycogen NMR signal was localized in a 7 × 5 × 6 cm³ voxel in the occipital lobe by 3-D outer volume suppression combined with 1-D image-selected in vivo spectroscopy (Öz et al, 2005). Each data point presented here was acquired over 30–60 minutes; the time points given for each data point are mid-way through the glycogen data acquisition. The amount of ¹³C label in the C1 position of glycogen was quantified by the external reference method (Öz et al, 2003, 2005). The [1-¹³C]glycogen concentrations were divided by the plasma glucose IE to correct for differences in IEs between subjects and to determine the newly synthesized glycogen concentrations. Since ventricle enlargement was noted in some patients, all ¹³C-glycogen levels were corrected for the cerebrospinal fluid content of the voxel as described before (Öz et al, 2010).

Modeling Glycogen Turnover

A model of glycogen metabolism (Öz et al, 2007) was fitted to the time courses of ¹³C-glycogen using the software SAAM II (The SAAM Institute, Seattle, WA, USA). The plasma glucose IE time courses of each subject were used as the input function. Glycogen synthase (V_syn) and phosphorylase (V_phos) rates were set to be equal and brain glycogen concentration was set to be constant. Thus, the fitted variables were total glycogen concentration [Glyc] and turnover rate V_syn=V_phos. The cerebral metabolic rate of glucose (CMR_glc) in the human brain was assumed to be 0.4 μmol/g/min=24 μmol/g/h (Gruetter et al, 2001) and the glucose-6-phosphate concentration 0.1 μmol/g (Watanabe and Passonneau, 1973). As a primary analysis, the model was fitted to data obtained from each individual subject. In addition, the model was fitted to data from all five subjects in each group simultaneously. Although a statistical comparison is not possible with this simultaneous fit approach (because only one value for glycogen content and turnover is obtained per group; Table 1), this approach is valuable to constrain the model to use the information from all subjects at the same time.

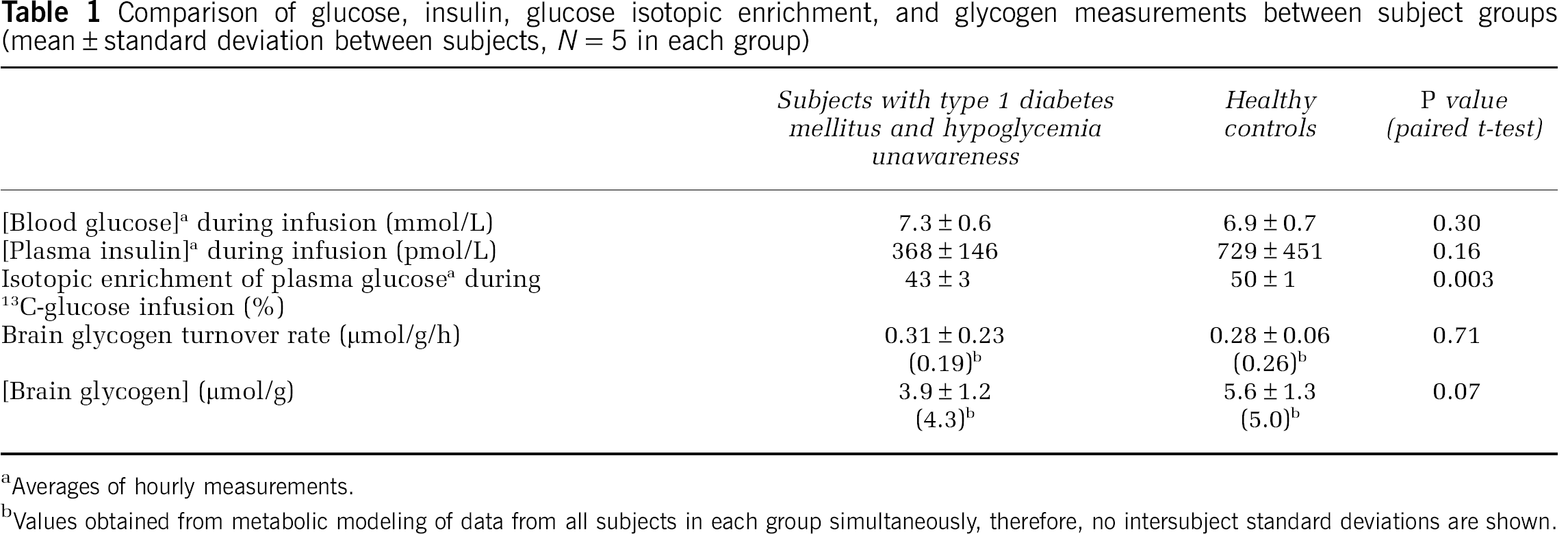

Table 1

Comparison of glucose, insulin, glucose isotopic enrichment, and glycogen measurements between subject groups (mean±standard deviation between subjects, N=5 in each group)

	Subjects with type 1 diabetes mellitus and hypoglycemia unawareness	Healthy controls	P value (paired t-test)
[Blood glucose]^a during infusion (mmol/L)	7.3±0.6	6.9±0.7	0.30
[Plasma insulin]^a during infusion (pmol/L)	368±146	729±451	0.16
Isotopic enrichment of plasma glucose^a during ¹³C-glucose infusion (%)	43±3	50±1	0.003
Brain glycogen turnover rate (μmol/g/h)	0.31±0.23 (0.19)^b	0.28±0.06 (0.26)^b	0.71
[Brain glycogen] (μmol/g)	3.9±1.2 (4.3)^b	5.6±1.3 (5.0)^b	0.07

Averages of hourly measurements.

Values obtained from metabolic modeling of data from all subjects in each group simultaneously, therefore, no intersubject standard deviations are shown.

Statistical Analysis

Summary statistics and paired t-tests were used to compare blood glucose, plasma insulin, plasma glucose IE, cerebral glycogen turnover, and content between matched pairs of subjects in the type 1 diabetes and control groups. Repeated measures analysis of variance (random effect for participant) was used to compare newly synthesized glycogen levels between the two groups both within and across times. P values for group comparisons at each of the seven measurement times were adjusted using the stepdown Bonferroni procedure (Holm, 1979).

Results

Effect of Blood Glucose Concentrations on Glycogen Labeling by [1-¹³C]glucose

To compare glycogen metabolism in subjects with type 1 diabetes and hypoglycemia unawareness to that in matched healthy controls, we infused [1-¹³C]glucose intravenously to both subject groups over ∼32 hours and monitored ¹³C label incorporation into and wash-out from glycogen by ¹³C NMR in the occipital lobe (Figure 1). While the target blood glucose level in these studies (7 mmol/L) was easily reached and exceeded on average in the patient group (Table 1), it was not reached in a subset of the controls. Therefore, the study was repeated in two control subjects both to determine the effect of blood glucose concentration on glycogen labeling kinetics and to better match average blood glucose levels of patients and controls. The newly synthesized glycogen levels were higher at higher average blood glucose concentrations in both of these volunteers (Figure 2), demonstrating the need to match blood glucose levels well between patients and their controls. Because the repeat studies of these subjects matched the average blood glucose levels of their matched patients better, the data from these repeat studies (Study 2 in Figures 2A and 2B) were used for the patient—control comparisons from here on. Note that the experimental conditions in these repeat studies were identical to the patient studies except for the glucose infusion rate, which was higher in all control studies compared with patient studies because patients required less infusion of labeled glucose to maintain target blood glucose. Therefore, no bias was introduced by using the repeat studies of these two control volunteers, who agreed and were able to participate twice in the study, in the comparisons with patient data.

Figure 2

Newly synthesized glycogen levels in two healthy volunteers (shown in A and B) in whom the infusion was repeated to investigate the effect of blood glucose levels on glycogen labeling kinetics. (A) The average blood glucose in Study 1 of this subject was 6.3 mmol/L and in Study 2 was 6.9 mmol/L. (B) The average blood glucose in Study 1 of this subject was 6.2 mmol/L and in Study 2 was 8.0 mmol/L.

Blood Glucose, Insulin, Isotopic Enrichment, and Brain Glycogen in Patients with Type 1 Diabetes Versus Controls

The average blood glucose levels matched well between patients and their controls (Table 1; Figure 3A). The plasma insulin levels tended to be higher in controls (Figure 3B), but not significantly on average (Table 1). The ¹³C IE of plasma glucose was higher in controls (Figure 3C; Table 1), and therefore it was critical to correct for this enrichment when determining newly synthesized glycogen levels (see Materials and methods). Newly synthesized cerebral glycogen levels were higher in controls than in patients on average across all time points (P<0.0001, repeated measures analysis of variance) and within most of the seven measurement times (0.01<P<0.10; Figure 4). The difference between the control and patient was clearly visible in four of the five subject pairs across the entire time course (Supplementary Figure). Higher newly synthesized glycogen levels may either be due to higher brain glycogen content or faster turnover in controls relative to patients.

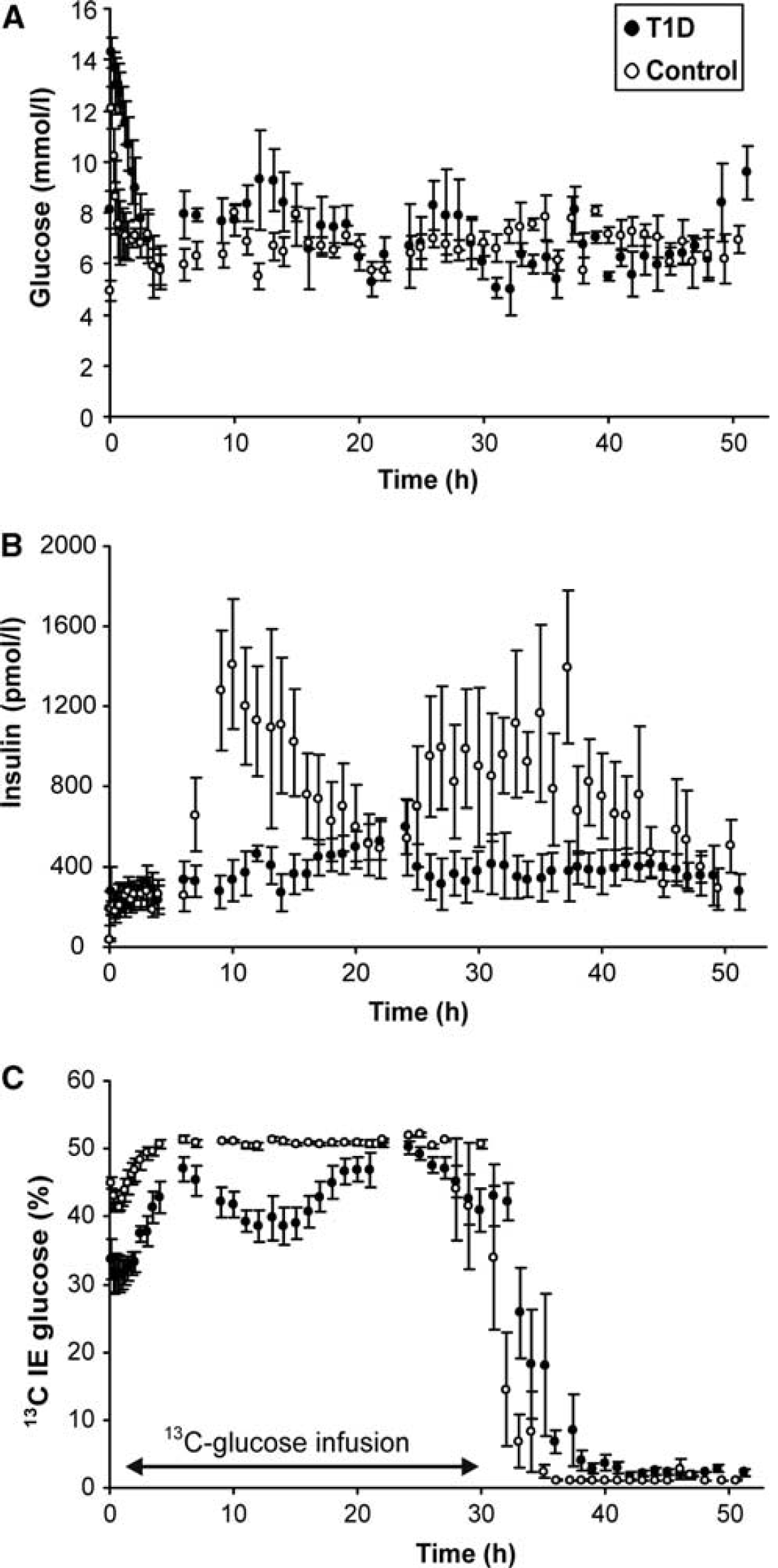

Figure 3

Time courses of average (±standard error of the mean) blood glucose (A), insulin (B), and ¹³C isotopic enrichment (IE) (C) levels in the type 1 diabetes (T1D) and control groups during the intravenous infusions.

Figure 4

Newly synthesized glycogen concentrations (average±standard deviation) in patients with type 1 diabetes (T1D) and age-, gender-, and body mass index (BMI)-matched controls during the ¹³C-glucose+insulin infusion (shown with arrow) followed by ¹²C-glucose+insulin infusion. Newly synthesized glycogen levels were significantly higher in controls than in patients on average across all time points (P<0.0001, repeated measures analysis of variance). Data points that showed a statistically significant difference when compared within measurement times are marked with an asterisk (stepdown Bonferroni adjusted P<0.05).

To distinguish these two possibilities, estimates for brain glycogen content and turnover rates were obtained for each subject by fitting a model of glycogen metabolism to their ¹³C-glycogen time courses using their individual IE time courses. This analysis indicated similar glycogen turnover rates in the two groups, but higher glycogen levels in controls than in patients (Table 1). While higher glycogen content in controls was also found when fitting the model to the data from all five subjects in each group simultaneously, this analysis also indicated a higher glycogen turnover rate in controls than in patients (Table 1).

Discussion

Here, we investigated cerebral glycogen metabolism in patients with type 1 diabetes and hypoglycemia unawareness for the first time. By labeling glycogen with ¹³C-glucose, we observed lower concentrations of newly synthesized brain glycogen in patients than age-, gender-, and BMI-matched controls, which was likely due to lower brain glycogen content based on metabolic modeling. In addition, we demonstrated that higher blood glucose levels lead to higher newly synthesized glycogen in the brain, confirming direct control of brain glycogen content by glucose concentrations.

There are methodological considerations to be made in analyzing our findings. Regarding patient selection, we have not performed a hypoglycemic clamp to confirm blunted counterregulatory response that is a critical component of the hypoglycemia-associated autonomic failure (Cryer, 2004). However, the presence of blunted counterregulation has been repeatedly demonstrated in subjects with type 1 diabetes and hypoglycemia unawareness (Criego et al, 2005), as assessed by the standardized questionnaire we have used here; therefore, the patients enrolled in our study can be assumed to have hypoglycemia-associated autonomic failure. Our studies use ¹³C NMR, which is the only in vivo method to detect glycogen in the human brain. Using this technology, we previously demonstrated that the healthy human brain contains substantial levels of glycogen (3.5–4.3 μmol/g) relative to free glucose and that brain glycogen has slow metabolism in humans, with a turnover rate of 0.16–0.20 μmol/g/h indicating that complete turnover requires 3–5 days (Öz et al, 2007, 2009). The brain glycogen content (5.0–5.6 μmol/g) and turnover (0.26–0.28 μmol/g/h) in healthy volunteers in the current study were somewhat higher than the values we previously reported. This difference is partly due to the correction for the cerebrospinal fluid contribution to the spectroscopic voxel applied in the current study, which was not done in prior studies (Öz et al, 2007, 2009). In addition, healthy volunteers received insulin infusions in the current study resulting in higher insulin levels (Table 1) than before (Öz et al, 2009), which may have increased glycogen content/turnover (see below) (Choi et al, 2003; Morgenthaler et al, 2006). However, the brain glycogen content we report here in the occipital lobe of healthy volunteers is in excellent agreement with glycogen concentrations measured in biopsied normal gray and white matter in humans (Dalsgaard et al, 2007). The slow turnover rate of glycogen necessitates extended experiments (over a period of days) to reliably measure glycogen turnover. The measured levels of newly synthesized glycogen are then applied to a metabolic model to estimate the brain glycogen turnover rate and brain glycogen content (Öz et al, 2007). The use of such metabolic modeling in the determination of brain glycogen turnover and content assumes a steady-state condition, where glycogen synthesis equals its breakdown. However, although blood glucose levels in patients and controls were matched, brain glucose levels in patients in our study may have been higher than in controls because we observed 17% higher brain glucose concentrations in patients with type 1 diabetes and hypoglycemia unawareness than controls at matched blood glucose levels in a prior study (Criego et al, 2005). Since glucose appears to serve as the main regulator of glycogen phosphorylase (Ercan-Fang et al, 2002), there may have been a net synthesis of brain glycogen in the patients in our study. The steady-state metabolic model will not be fully appropriate if there is a condition of net glycogen synthesis. Therefore, further studies with nonsteady-state metabolic modeling are necessary to better determine the reason (content or metabolism) for the lower newly synthesized glycogen levels in patients with type 1 diabetes and hypoglycemia unawareness versus controls. Note that both a lower glycogen content and slower turnover in patients versus controls were indicated when data from all five subjects in each group were fitted simultaneously (Table 1); therefore, we cannot rule out a difference in glycogen turnover between the groups. If we were to match brain glucose levels between groups (by aiming for higher blood glucose targets in controls), we would expect that the brain glycogen level difference would have been even more pronounced. Hence, the difference between the newly synthesized brain glycogen levels in patients versus controls may have even been underestimated for matched brain glucose levels in patients versus controls. The ¹³C IE of plasma glucose in controls was higher than that of patients (Figure 3C). This difference in IEs likely occurred because patients required less infusion of labeled glucose to maintain target blood glucose, leading to a higher dilution by endogenous glucose. However, differences in enrichment were corrected for when newly synthesized glycogen levels were determined.

There are also metabolic factors to consider in assessing our findings. Glucose and insulin levels can affect glycogen synthesis and labeling (Choi et al, 2003; Morgenthaler et al, 2006). High blood glucose levels can induce glycogen synthesis, as shown by the repeat studies we performed in two control subjects. Therefore, matching blood glucose levels was critical for a reliable comparison of glycogen labeling kinetics between the groups. Although blood glucose levels were comparable between groups when using the repeat studies in controls, plasma insulin levels tended to be higher in controls (Figure 3B). The higher newly synthesized glycogen levels in controls could therefore be attributed to relatively higher insulin levels, since insulin has been shown to lead to glycogen deposition in rat brain (Choi et al, 2003; Morgenthaler et al, 2006). This difference in insulin levels may not explain the group difference in newly synthesized glycogen levels at the first measurement point (at 5 hours after the start of the experiments; Figure 4), because insulin levels started to differ between groups only after ∼7 hours after the start of the experiments (Figure 3B). Of note, the 7-h time point occurred after the first meal subjects were given following the first scan. Thus, the higher insulin levels after this point were likely due to the expected postprandial insulin response in controls. It remains possible that the diabetic subjects displayed some insulin resistance by virtue of being chronically hyperglycemic, which may have contributed to the early difference in newly synthesized glycogen levels in the absence of different serum insulin levels.

While higher insulin levels/sensitivity in controls may explain the higher glycogen levels in controls, our study clearly showed that the diabetic subjects did not have higher glycogen levels than controls under the controlled blood glucose conditions of our experiment, implying that glycogen supercompensation does not contribute to the development of hypoglycemia unawareness in humans with type 1 diabetes. In reaching this conclusion, our sample size was small due to the difficulties involved in completing these studies, namely the long duration of each experiment during which stable plasma glucose levels and enrichment need to be maintained, the sophisticated NMR methodology and the expense associated with large amounts of ¹³C-glucose infused (Tesfaye et al, 2011). However, the good intersubject and intrasubject reproducibility of our methodology (Öz et al, 2007) has allowed us to detect statistically significant group differences with similar subject numbers in prior investigations by virtue of measuring time courses in individual subjects (Öz et al, 2009). Our conclusion regarding the involvement of brain glycogen supercompensation in hypoglycemia unawareness is in agreement with recent work in animal models exposed to recurrent hypoglycemia. Using a rat model, Herzog et al (2008) found that brain glycogen concentrations were not increased above baseline 6 and 24 hours after acute or recurrent hypoglycemia, despite finding blunted counterregulatory response in rats exposed to recurrent hypoglycemia. In mice, Canada et al (2011), observed brain glycogen supercompensation 6 hours after acute and recurrent hypoglycemia, but glycogen content had returned to normal by 27 hours, at a time when others had observed impaired counterregulation in mice subjected to recurrent hypoglycemia (Jacobson et al, 2006). Taken together, these findings suggest that any effect recurrent hypoglycemia might have on the subsequent detection of and response to acute hypoglycemia is not mediated by glycogen supercompensation. However, it remains possible that subjects with type 1 diabetes and poor blood glucose control have even lower brain glycogen levels, and also that hypoglycemia in the type 1 diabetic population may increase brain glycogen relative to their own baseline. Thus, it is possible that diabetes itself alters brain glycogen content/metabolism in such a way as to confound the response to recurrent hypoglycemia. Consistently, ¹³C labeling of brain metabolites from [1-¹³C]glucose was reduced in rodent models of both type 1 (Garcia-Espinosa et al, 2003) and type 2 diabetes (Sickmann et al, 2010). Furthermore, a trend for lower cortical glycogen levels was observed in Zucker diabetic fatty rats relative to controls despite elevated blood glucose levels (Sickmann et al, 2010). Future studies in which hypoglycemia-associated autonomic failure is induced in healthy volunteers will be needed to further investigate the impact of recurrent hypoglycemia on brain glycogen metabolism without the confounding effects of diabetes. In addition, studies of the hypoglycemia response of glycogen in patients with type 1 diabetes, both during and after induced hypoglycemia similar to our prior studies in healthy volunteers (Öz et al, 2009), may provide additional insight and more clinically relevant physiological conditions. Also note that the current results were obtained in a localized brain region in the occipital lobe and we cannot exclude the possibility that glycogen supercompensation in the hypothalamus, similar to what was seen with recurrent neuroglucopenia in rats (Alquier et al, 2007), may contribute to the development of hypoglycemia-associated autonomic failure. Unfortunately, the current in vivo methodology lacks the sensitivity to acquire glycogen data from a very small and deep brain region such as the hypothalamus.

The current findings regarding glycogen content/metabolism in type 1 diabetes also need to be considered within the context of fuel transport into the brain. Some studies suggested that recurrent hypoglycemia leads to an upregulation of glucose transport (Boyle et al, 1994; Criego et al, 2005; McCall et al, 1986), while others did not (Segel et al, 2001). Other studies suggested upregulation of alternative fuel transport/utilization after recurrent hypoglycemia (Jiang et al, 2009; Mason et al, 2006). If a fuel deficiency present during hypoglycemia is compensated for by increased uptake of glucose or an alternative fuel like lactate, brain glycogen may not be mobilized during hypoglycemia. If glycogen mobilization is the signal responsible for supercompensation during hypoglycemia recovery, this may explain why diabetic subjects with hypoglycemia unawareness do not have higher brain glycogen content than controls. Future experiments will be necessary to address this hypothesis. Other reasons for lower brain glycogen content in patients than in controls are unclear at this stage. This observation cannot be due to overall structural tissue damage in patients because all ¹³C-glycogen concentrations were corrected for the cerebrospinal fluid content of the occipital volume-of-interest. Namely, 11% to 17% of the NMR voxel consisted of cerebrospinal fluid in all subjects, with no difference between the subject groups (data not shown).

In conclusion, our studies have revealed that—under conditions of matched average blood glucose and insulin levels—patients with type 1 diabetes and hypoglycemia unawareness do not have higher brain glycogen levels than healthy controls. We infer from these findings that brain glycogen levels are not supercompensated in patients with type 1 diabetes and hypoglycemia unawareness, and therefore that supercompensation of brain glycogen levels does not appear to contribute to the development of hypoglycemia unawareness in the setting of type 1 diabetes. However, further studies will be necessary to investigate the effects of recurrent hypoglycemia in humans without the potential confounding effects of diabetes.

Footnotes

Acknowledgements

The authors thank the nurses and medical assistants of the General Clinical Research Center for their enthusiastic support of the glucose infusion studies and the staff of the Center for MR Research for maintaining and supporting the NMR system, in particular Dr Gregor Adriany for invaluable help with the NMR coil.

The authors declare no conflict of interest.

Notes

Supplementary Information accompanies the paper on the Journal of Cerebral Blood Flow & Metabolism website ()

References

Adriany

Gruetter

(1997) A half-volume coil for efficient proton decoupling in humans at 4 Tesla. J Magn Reson 125:178–84.

Alquier

Kawashima

Tsuji

Kahn

(2007) Role of hypothalamic adenosine 5′-monophosphate-activated protein kinase in the impaired counterregulatory response induced by repetitive neuroglucopenia. Endocrinology 148:1367–75.

Boyle

Nagy

O'Connor

Kempers

Yeo

Qualls

(1994) Adaptation in brain glucose uptake following recurrent hypoglycemia. Proc Natl Acad Sci USA 91:9352–6.

Brown

Sickmann

Fosgerau

Lund

Schousboe

Waagepetersen

Ransom

(2005) Astrocyte glycogen metabolism is required for neural activity during aglycemia or intense stimulation in mouse white matter. J Neurosci Res 79:74–80.

Canada

Weaver

Sharpe

Pederson

(2011) Brain glycogen supercompensation in the mouse after recovery from insulin-induced hypoglycemia. J Neurosci Res 89:585–91.

Choi

Seaquist

Gruetter

(2003) Effect of hypoglycemia on brain glycogen metabolism in vivo. J Neurosci Res 72:25–32.

Clarke

Cox

Gonder-Frederick

Julian

Schlundt

Polonsky

(1995) Reduced awareness of hypoglycemia in adults with IDDM. A prospective study of hypoglycemic frequency and associated symptoms. Diabetes Care 18:517–22.

Criego

Tkáč

Kumar

Thomas

Gruetter

Seaquist

(2005) Brain glucose concentrations in patients with type 1 diabetes and hypoglycemia unawareness. J Neurosci Res 79:42–7.

Cryer

(2004) Diverse causes of hypoglycemia-associated autonomic failure in diabetes. N Engl J Med 350:2272–9.

10.

Dagogo-Jack

Craft

Cryer

(1993) Hypoglycemia-associated autonomic failure in insulin-dependent diabetes mellitus. Recent antecedent hypoglycemia reduces autonomic responses to, symptoms of, and defense against subsequent hypoglycemia. J Clin Invest 91:819–28.

11.

Dalsgaard

Madsen

Secher

Laursen

Quistorff

(2007) High glycogen levels in the hippocampus of patients with epilepsy. J Cereb Blood Flow Metab 27:1137–41.

12.

Dienel

Ball

Cruz

(2007) A glycogen phosphorylase inhibitor selectively enhances local rates of glucose utilization in brain during sensory stimulation of conscious rats: implications for glycogen turnover. J Neurochem 102:466–78.

13.

DiNuzzo

Mangia

Maraviglia

Giove

(2010) Glycogenolysis in astrocytes supports blood-borne glucose channeling not glycogen-derived lactate shuttling to neurons: evidence from mathematical modeling. J Cereb Blood Flow Metab 30:1895–904.

14.

Ercan-Fang

Gannon

Rath

Treadway

Taylor

Nuttall

(2002) Integrated effects of multiple modulators on human liver glycogen phosphorylase a. Am J Physiol Endocrinol Metab 283:E29–37.

15.

Garcia-Espinosa

Garcia-Martin

Cerdan

(2003) Role of glial metabolism in diabetic encephalopathy as detected by high resolution 13C NMR. NMR Biomed 16:440–9.

16.

Gruetter

Seaquist

Ugurbil

(2001) A mathematical model of compartmentalized neurotransmitter metabolism in the human brain. Am J Physiol Endocrinol Metab 281:E100–12.

17.

Herzog

Chan

Dziura

McNay

Sherwin

(2008) Effect of acute and recurrent hypoglycemia on changes in brain glycogen concentration. Endocrinology 149:1499–504.

18.

Holm

(1979) A simple sequentially rejective Bonferroni test procedure. Scand J Statistics 6:65–70.

19.

Jacobson

Ansari

McGuinness

(2006) Counterregulatory deficits occur within 24 h of a single hypoglycemic episode in conscious, unrestrained, chronically cannulated mice. Am J Physiol Endocrinol Metab 290:E678–84.

20.

Jiang

Herzog

Mason

De Graaf

Rothman

Sherwin

Behar

(2009) Recurrent antecedent hypoglycemia alters neuronal oxidative metabolism in vivo. Diabetes 58:1266–74.

21.

Mason

Petersen

Lebon

Rothman

Shulman

(2006) Increased brain monocarboxylic acid transport and utilization in type 1 diabetes. Diabetes 55:929–34.

22.

McCall

Fixman

Fleming

Tornheim

Chick

Ruderman

(1986) Chronic hypoglycemia increases brain glucose transport. Am J Physiol Endocrinol Metab 251:E442–7.

23.

Morgenthaler

Koski

Kraftsik

Henry

Gruetter

(2006) Biochemical quantification of total brain glycogen concentration in rats under different glycemic states. Neurochem Int 48:616–22.

24.

Öz

Henry

Seaquist

Gruetter

(2003) Direct, noninvasive measurement of brain glycogen metabolism in humans. Neurochem Int 43:323–9.

25.

Henry

Tkáč

Gruetter

(2005) A localization method for the measurement of fast relaxing 13C NMR signals in humans at high magnetic fields. Appl Magn Reson 29:159–69.

26.

Öz

Hutter

Tkáč

Clark

Gross

Jiang

Eberly

Bushara

Gomez

(2010) Neurochemical alterations in spinocerebellar ataxia type 1 and their correlations with clinical status. Mov Disord 25:1253–61.

27.

Öz

Kumar

Rao

Kodl

Chow

Eberly

Seaquist

(2009) Human brain glycogen metabolism during and after hypoglycemia. Diabetes 58:1978–85.

28.

Öz

Seaquist

Kumar

Criego

Benedict

Rao

Henry

Van De Moortele

Gruetter

(2007) Human brain glycogen content and metabolism: implications on its role in brain energy metabolism. Am J Physiol Endocrinol Metab 292:E946–51.

29.

Segel

Fanelli

Dence

Markham

Videen

Paramore

Powers

Cryer

(2001) Blood-to-brain glucose transport, cerebral glucose metabolism, and cerebral blood flow are not increased after hypoglycemia. Diabetes 50:1911–7.

30.

Sickmann

Waagepetersen

Schousboe

Benie

Bouman

(2010) Obesity and type 2 diabetes in rats are associated with altered brain glycogen and amino-acid homeostasis. J Cereb Blood Flow Metab 30:1527–37.

31.

Sickmann

Walls

Schousboe

Bouman

Waagepetersen

(2009) Functional significance of brain glycogen in sustaining glutamatergic neurotransmission. J Neurochem 109(Suppl 1):80–6.

32.

Suh

Bergher

Anderson

Treadway

Fosgerau

Swanson

(2007) Astrocyte glycogen sustains neuronal activity during hypoglycemia: studies with the glycogen phosphorylase inhibitor CP-316,819 ([R-R∗,S∗]-5-chloro-N-[2-hydroxy-3-(methoxymethylamino)-3-oxo-1-(phenylmethyl)propyl]-1H-indole-2-carboxamide). J Pharmacol Exp Ther 321:45–50.

33.

Swanson

Morton

Sagar

Sharp

(1992) Sensory stimulation induces local cerebral glycogenolysis: demonstration by autoradiography. Neuroscience 51:451–61.

34.

Tesfaye

Seaquist

Öz

(2011) Noninvasive measurement of brain glycogen by nuclear magnetic resonance spectroscopy and its application to the study of brain metabolism. J Neurosci Res doi: 10.1002/jnr.22703.

35.

The Diabetes Control and Complications Trial Research Group (1993) The effect of intensive treatment of diabetes on the development and progression of long-term complications in insulin-dependent diabetes mellitus. N Engl J Med 329:977–86.

36.

UK Prospective Diabetes Study Group (1998) Intensive blood-glucose control with sulphonylureas or insulin compared with conventional treatment and risk of complications in patients with type 2 diabetes (UKPDS 33). Lancet 352:837–53.

37.

Watanabe

Passonneau

(1973) Factors affecting the turnover of cerebral glycogen and limit dextrin in vivo. J Neurochem 20:1543–54.

38.

Wender

Brown

Fern

Swanson

Farrell

Ransom

(2000) Astrocytic glycogen influences axon function and survival during glucose deprivation in central white matter. J Neurosci 20:6804–10.

39.

Wiesinger

Hamprecht

Dringen

(1997) Metabolic pathways for glucose in astrocytes. Glia 21:22–34.
