Combining PET Biodistribution and Equilibrium Dialysis Assays to Assess the Free Brain Concentration and BBB Transport of CNS Drugs

Abstract

The passage of drugs in and out of the brain is controlled by the blood—brain barrier (BBB), typically, using either passive diffusion across a concentration gradient or active transport via a protein carrier. In-vitro and preclinical measurements of BBB penetration do not always accurately predict the in-vivo situation in humans. Thus, the ability to assay the concentration of novel drug candidates in the human brain in vivo provides valuable information for derisking of candidate molecules early in drug development. Here, positron emission tomography (PET) measurements are combined with in-vitro equilibrium dialysis assays to enable assessment of transport and estimation of the free brain concentration in vivo. The PET and equilibrium dialysis data were obtained for 36 compounds in the pig. Predicted P-glycoprotein (P-gp) status of the compounds was consistent with the PET/equilibrium dialysis results. In particular, Loperamide, a well-known P-gp substrate, exhibited a significant concentration gradient consistent with active efflux and after inhibition of the P-gp process the gradient was removed. The ability to measure the free brain concentration and assess transport of novel compounds in the human brain with combined PET and equilibrium dialysis assays can be a useful tool in central nervous system (CNS) drug development.

Keywords

active transport blood—brain barrier equilibrium dialysis passive diffusion PET

Introduction

The discovery and development of central nervous system (CNS) drugs is a complex task that requires large investments of time and money with no guarantee of success. Therefore, increasing confidence in molecules early in development by derisking their chance of failure later on is of great value. For example, a key development question for CNS drugs is whether they can penetrate the blood—brain barrier (BBB) and reach the brain in pharmacologically active concentrations. Imaging techniques, such as positron emission tomography (PET), can provide important information by taking direct biological measurements in tissues of interest in preclinical and clinical species in vivo. Radiolabelling of a drug candidate with a positron emitter does not change the properties of the drug and subsequent injection of this radiolabelled drug into a subject allows for a biodistribution experiment, which measures the concentration of drug in tissues of interest. In the CNS after appropriate biomathematical correction for the contribution of radioactivity emanating from the blood vessels, it is possible to directly measure the total concentration of radiolabelled drug that reaches the brain tissue itself (Cunningham et al, 2005).

Previous applications of PET biodistribution experiments have effectively been performed in the context of a binary readout, i.e., does the drug get into the brain or not. However, the actual process is more complex and concentration gradients can exist across the BBB at equilibrium. The BBB controls passage of drugs in and out of the brain, typically, using either passive diffusion across a concentration gradient or active transport via a protein carrier. Under the process of passive diffusion, the concentration of free drug in plasma and tissue will be equal at equilibrium. However, if there are active transport mechanisms involved there will be a concentration gradient established between plasma and tissue with the magnitude of the gradient depending on the active transport system involved and the properties of the drug molecule itself. These transporters tend to act to remove drugs from the brain and this process is known as BBB carrier-mediated efflux, with the ABC (ATP) binding cassette transporters, P-glycoprotein (P-gp), and the multidrug resistance-associated proteins being the most characterized to date (Cordon-Cardo et al, 1989; Borst and Oude Elferink 2002; Giacomini et al, 2010).

A key goal in drug development is to measure the free concentration in the brain tissue, as in conjunction with other in-vitro/preclincial data it allows for an assessment of whether the drug achieves a pharmacologically active concentration in the brain (Hammarlund-Udenaes et al, 2008, 2009). Thus, it is the assay of the free brain concentration and assessment of any active transport liabilities that provide the most valuable information for derisking the compound early in development. These studies can be performed in relevant preclinical species and if performed in humans should be combined as part of a first time in human study to maximize their value.

To assay the free concentration in the brain tissue (not just the total concentration), it is necessary to account for the nonspecific component of the signal in tissue from binding to lipids and in plasma from binding to plasma proteins. This information is not independently available from the PET data itself and requires a complementary assay of the plasma- and tissue-free fractions (f_P and f_ND, respectively). f_P can be assayed in conjunction with PET experiments by applying ultrafiltration techniques to the radiolabelled compound in a plasma sample (Gandelman et al, 1994). However, ultrafiltration estimates can be poor when f_P is small and it is not possible to estimate f_ND with this approach. Here, we propose the use of equilibrium dialysis (Kalvass and Maurer 2002; Summerfield et al, 2006) to measure the nonspecific binding components of the unlabelled drug candidates in both plasma and tissue. Equilibrium dialysis allows for the measurement of free drug fractions in brain tissue (f_ND) and plasma (f_P) and has been used in drug development as an in-vitro screen for BBB penetration by considering the ratio (f_P/f_ND) as a predictor of the brain to blood partition coefficient under the assumption of passive diffusion (Summerfield et al, 2006; Jeffrey and Summerfield, 2007). In addition, under the assumption of passive diffusion and the existence of target affinity estimates, predictions of target occupancy can be made (Read and Braggio, 2010).

The work presented here aims to combine in-vivo PET measurements of a radiolabelled drug with in-vitro equilibrium dialysis assays to estimate the free brain concentration of the drug and assess its transport process. These principles were investigated using a set of 36 compounds and the Yorkshire-Landrace pig. All compounds were radiolabelled and quantitative dynamic PET experiments were performed with each compound to derive the nondisplaceable partition coefficient (V_ND). In addition, each compound was analyzed with equilibrium dialysis in pig blood and brain tissue to derive estimates of f_P and f_ND. Finally, each compound underwent an in-silico analysis to predict its P-gp status.

Materials and methods

The free concentration of a compound in tissue and plasma can be defined as

\begin{aligned} C_{F P} = & f_{p} C_{P} \\ C_{F T} = & f_{N D} C_{N D} \end{aligned}

(1)

where C_P is the total plasma concentration, C_ND is the total tissue concentration of the nondisplaceable component, C_FP and C_FT are the free concentrations in plasma and tissue, respectively, f_P and f_ND are the plasma- and tissue-free fractions, respectively. Using these equations and the definition of the equilibrium partition coefficient, V_ND, which equals the ratio of total tissue and total plasma concentration at equilibrium,

V_{N D} = \frac{C_{N D}}{C_{P}}

(2)

gives,

V_{N D} = \frac{f_{P}}{f_{N D}} \frac{C_{F T}}{C_{F P}}

(3)

Thus, the equilibrium partition coefficient is defined as the product of two ratios, the first (f_P/f_ND) is determined by nonspecific binding properties and the second (C_FT/C_FP) is determined by BBB properties. If it is assumed that the compound crosses the BBB by passive diffusion, then the free concentration in plasma and tissue at equilibrium will be equal and equation (3) reduces to the common form

V_{N D} = \frac{f_{P}}{f_{N D}}

(4)

This equation is frequently used in conjunction with f_P from ultrafiltration and V_ND from PET to derive an estimate of f_ND and subsequently correct binding outcome measures for nuisance nonspecific binding terms (Innis et al, 2007). However, it is important to remember that such corrections are only valid if the radioligand crosses the BBB by passive diffusion.

Alternatively, if no assumption about transport mechanisms is made and separate estimates of the free fractions in plasma and tissue are available, then it is possible to determine the free concentration in tissue (C_FT) or the concentration gradient at the BBB (C_FT/C_FP).

To investigate this, a set of 36 compounds that had been previously radiolabelled and used in quantitative dynamic PET studies in the Yorkshire-Landrace pig was used. All compounds underwent in-vitro equilibrium dialysis assays in pig plasma and tissue to estimate their free fractions (f_P and f_ND). P-glycoprotein was assumed to be the only active transport mechanism and a compound's P-gp status was either determined from separate experimental data or via in-silico modelling technique.

In-Silico P-Glycoprotein Assay

A proprietary categorical model was used to determine P-gp status (e.g., substrate or nonsubstrate) based on Partial least squares-Discriminant analysis. Model development used a training set of 100 P-gp substrates and 100 P-gp nonsubstrates, a test set of 454 compounds (116 substrates and 338 nonsubstrates), a validation set with 415 compounds (118 substrates and 297 nonsubstrates) measured at different concentrations (from 0.5 to 3 μmol/L) and a second validation set with 574 compounds (216 substrates and 358 nonsubstrates) measured at different concentrations (from 5 to 20 μmol/L). Coefficients were found to be negative for the Abraham Alpha and BetaH terms and total charge, and positive for ACD cLogD_7.4 and ACD clogP. A positive value signifies the molecule will be classified as P-gp substrate. Distance from the discriminant line was used as a confidence indicator in the derived classification (P-gp score).

In-Vitro Equilibrium Dialysis Assay

The equilibrium dialysis methodology followed for this work has been described previously (Summerfield et al, 2006). Briefly, test compounds were spiked into control blood, plasma, or brain homogenate at a concentration of 1 μg/g and dialyzed against PBS (pH 7.4) for 5 hours at 37°C. Aliquots (20 to 50 μL) of plasma, blood, brain, and dialysate were taken and extracted using acetonitrile containing internal standard, followed by LC-MS/MS analysis. Landrace pig plasma and fresh brain tissue were obtained from Charles River Laboratories (Tranent, Scotland). The unbound fractions were determined as the concentration ratio of analyte in dialysate to that in plasma or brain. Note: These data were obtained from different animals than those that underwent the PET scans.

In-Vivo Positron Emission Tomography Assay

All compounds (n = 36, see Table 1) were radiolabelled with either C-11 or F-18 and evaluated in PET studies in the Yorkshire/Danish Landrace pig (∼40 kg), at Aarhus University Hospital, in accordance with the Danish Animal Experimentation Act, under a license granted by the Danish Ministry of Justice. The animals were anesthetized by induction with ketamine and midazolam (both intramuscular and intravenous) during scans and maintained in deep anesthesia using isofluorane (1% to 2%; Abbott, Copenhagen, Denmark). Animals were placed supine in a Siemens ECAT EXACT HR tomograph (CTI, Knoxville, TN, USA), with the head immobilized in a custom-made head-holding device. Dynamic data were acquired in 3D mode positioned over the brain, for a duration of between 60 and 90 minutes, after intravenous administration of the radiolabelled compound (injected radioactivity: 318.0 ± 127.5 MBq, range (100 to 517 MBq)). Some scans, for tracers whose target was expressed in the cerebellum, included the addition of homologous or heterologous agents to block any specific binding component (details of the blocking agents and doses are given in Table 1). With [¹¹C]Loperamide two scans were performed, one in the absence and one in the presence of cyclosporin-A (30 mg), a known P-gp inhibitor (Qadir et al, 2005). Measured attenuation correction and scatter correction were applied and the data were reconstructed using the reprojection algorithm (Kinahan and Rogers, 1989) with an axial and transaxial Hanning filter with a 0.5 cutoff frequency. The resulting images had a spatial resolution of 5 to 7 mm full width at half maximum (Wienhard et al, 1994). During the acquisition, up to 40 × 2 mL arterial blood samples were taken from the femoral artery to assay radioactivity in arterial plasma; in addition, a subset of up to 17 were assayed for whole blood radioactivity. Total radioactivity in arterial plasma and whole blood was measured using a gamma counter (Cobra II Auto Gamma, Packard, Meriden, CT, USA). Additional arterial samples (up to 6 × 5 mL) were drawn through the scan to determine the fraction of unmetabolized tracer in plasma by high-performance liquid chromatography and gamma counting. Integrated PET images were formed and used to rigidly register the PET data to a Landrace pig brain atlas. Cerebellar time activity curves (TACs) were generated for each radiolabelled compound. The cerebellum was chosen as the region of interest for two reasons. First, it is often devoid of the receptors and transporters relevant for a large number of the radioligands considered here. Second, it is a good sized region, which provides strong imaging statistics and reduces errors associated with the PET outcome measures of interest.

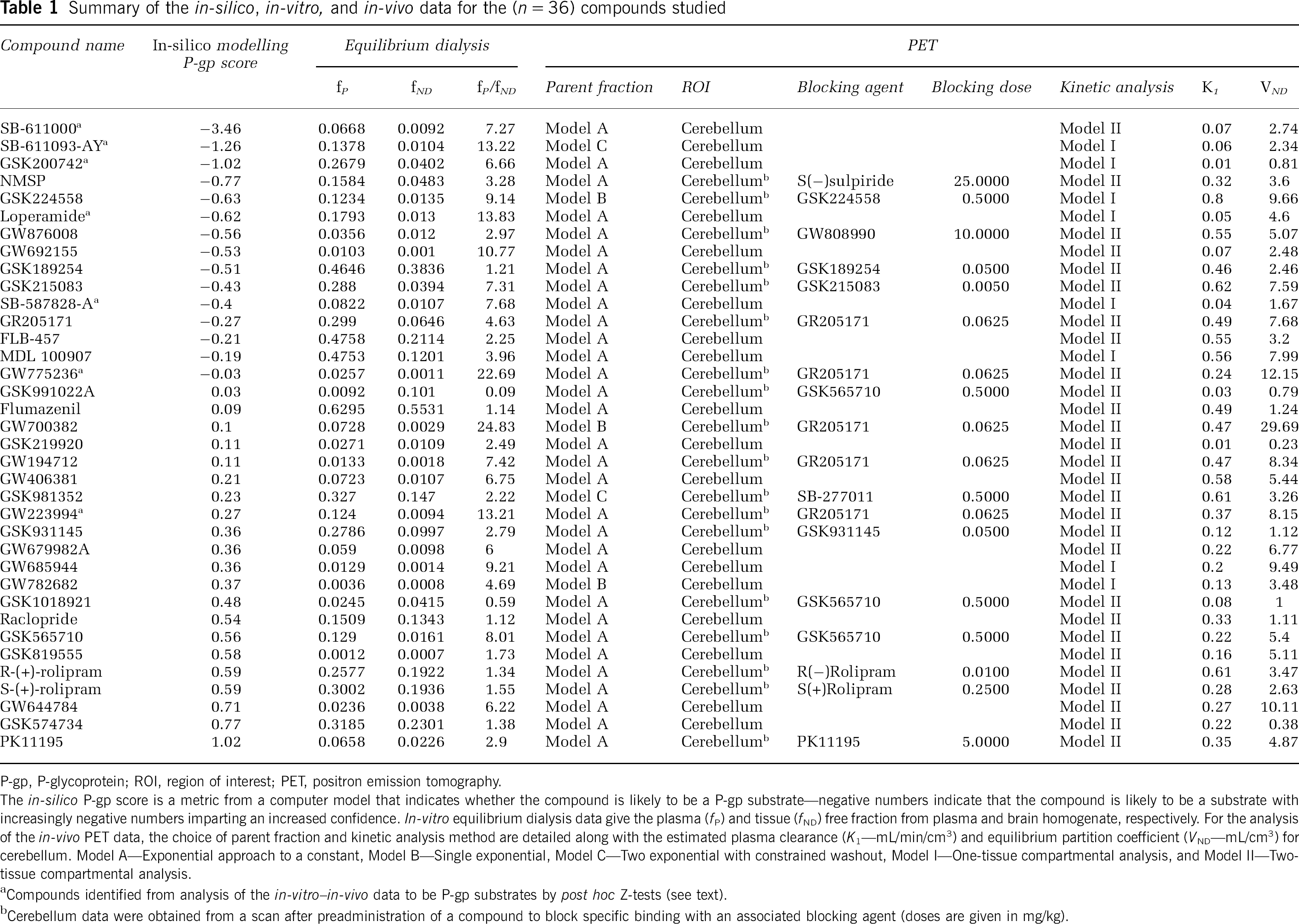

Table 1

Summary of the in-silico, in-vitro, and in-vivo data for the (n = 36) compounds studied

Compound name	In-silico modelling P-gp score	Equilibrium dialysis			PET
		f _P	f _ND	f _P /f _ND	Parent fraction	ROI	Blocking agent	Blocking dose	Kinetic analysis	K ₁	V _ND
SB-611000^a	–3.46	0.0668	0.0092	7.27	Model A	Cerebellum			Model II	0.07	2.74
SB-611093-AY^a	–1.26	0.1378	0.0104	13.22	Model C	Cerebellum			Model I	0.06	2.34
GSK200742^a	–1.02	0.2679	0.0402	6.66	Model A	Cerebellum			Model I	0.01	0.81
NMSP	–0.77	0.1584	0.0483	3.28	Model A	Cerebellum^b	S(–)sulpiride	25.0000	Model II	0.32	3.6
GSK224558	–0.63	0.1234	0.0135	9.14	Model B	Cerebellum^b	GSK224558	0.5000	Model I	0.8	9.66
Loperamide^a	–0.62	0.1793	0.013	13.83	Model A	Cerebellum			Model I	0.05	4.6
GW876008	–0.56	0.0356	0.012	2.97	Model A	Cerebellum^b	GW808990	10.0000	Model II	0.55	5.07
GW692155	–0.53	0.0103	0.001	10.77	Model A	Cerebellum			Model II	0.07	2.48
GSK189254	–0.51	0.4646	0.3836	1.21	Model A	Cerebellum^b	GSK189254	0.0500	Model II	0.46	2.46
GSK215083	–0.43	0.288	0.0394	7.31	Model A	Cerebellum^b	GSK215083	0.0050	Model II	0.62	7.59
SB-587828-A^a	–0.4	0.0822	0.0107	7.68	Model A	Cerebellum			Model I	0.04	1.67
GR205171	–0.27	0.299	0.0646	4.63	Model A	Cerebellum^b	GR205171	0.0625	Model II	0.49	7.68
FLB-457	–0.21	0.4758	0.2114	2.25	Model A	Cerebellum			Model II	0.55	3.2
MDL 100907	–0.19	0.4753	0.1201	3.96	Model A	Cerebellum			Model I	0.56	7.99
GW775236^a	–0.03	0.0257	0.0011	22.69	Model A	Cerebellum^b	GR205171	0.0625	Model II	0.24	12.15
GSK991022A	0.03	0.0092	0.101	0.09	Model A	Cerebellum^b	GSK565710	0.5000	Model II	0.03	0.79
Flumazenil	0.09	0.6295	0.5531	1.14	Model A	Cerebellum			Model II	0.49	1.24
GW700382	0.1	0.0728	0.0029	24.83	Model B	Cerebellum^b	GR205171	0.0625	Model II	0.47	29.69
GSK219920	0.11	0.0271	0.0109	2.49	Model A	Cerebellum			Model II	0.01	0.23
GW194712	0.11	0.0133	0.0018	7.42	Model A	Cerebellum^b	GR205171	0.0625	Model II	0.47	8.34
GW406381	0.21	0.0723	0.0107	6.75	Model A	Cerebellum			Model II	0.58	5.44
GSK981352	0.23	0.327	0.147	2.22	Model C	Cerebellum^b	SB-277011	0.5000	Model II	0.61	3.26
GW223994^a	0.27	0.124	0.0094	13.21	Model A	Cerebellum^b	GR205171	0.0625	Model II	0.37	8.15
GSK931145	0.36	0.2786	0.0997	2.79	Model A	Cerebellum^b	GSK931145	0.0500	Model II	0.12	1.12
GW679982A	0.36	0.059	0.0098	6	Model A	Cerebellum			Model II	0.22	6.77
GW685944	0.36	0.0129	0.0014	9.21	Model A	Cerebellum			Model I	0.2	9.49
GW782682	0.37	0.0036	0.0008	4.69	Model B	Cerebellum			Model I	0.13	3.48
GSK1018921	0.48	0.0245	0.0415	0.59	Model A	Cerebellum^b	GSK565710	0.5000	Model II	0.08	1
Raclopride	0.54	0.1509	0.1343	1.12	Model A	Cerebellum			Model II	0.33	1.11
GSK565710	0.56	0.129	0.0161	8.01	Model A	Cerebellum^b	GSK565710	0.5000	Model II	0.22	5.4
GSK819555	0.58	0.0012	0.0007	1.73	Model A	Cerebellum			Model II	0.16	5.11
R-(+)-rolipram	0.59	0.2577	0.1922	1.34	Model A	Cerebellum^b	R(–)Rolipram	0.0100	Model II	0.61	3.47
S-(+)-rolipram	0.59	0.3002	0.1936	1.55	Model A	Cerebellum^b	S(+)Rolipram	0.2500	Model II	0.28	2.63
GW644784	0.71	0.0236	0.0038	6.22	Model A	Cerebellum			Model II	0.27	10.11
GSK574734	0.77	0.3185	0.2301	1.38	Model A	Cerebellum			Model II	0.22	0.38
PK11195	1.02	0.0658	0.0226	2.9	Model A	Cerebellum^b	PK11195	5.0000	Model II	0.35	4.87

P-gp, P-glycoprotein; ROI, region of interest; PET, positron emission tomography.

The in-silico P-gp score is a metric from a computer model that indicates whether the compound is likely to be a P-gp substrate—negative numbers indicate that the compound is likely to be a substrate with increasingly negative numbers imparting an increased confidence. In-vitro equilibrium dialysis data give the plasma (f_P) and tissue (f_ND) free fraction from plasma and brain homogenate, respectively. For the analysis of the in-vivo PET data, the choice of parent fraction and kinetic analysis method are detailed along with the estimated plasma clearance (K₁—mL/min/cm³) and equilibrium partition coefficient (V_ND—mL/cm³) for cerebellum. Model A—Exponential approach to a constant, Model B—Single exponential, Model C—Two exponential with constrained washout, Model I—One-tissue compartmental analysis, and Model II—Two-tissue compartmental analysis.

Compounds identified from analysis of the in-vitro—in-vivo data to be P-gp substrates by post hoc Z-tests (see text).

Cerebellum data were obtained from a scan after preadministration of a compound to block specific binding with an associated blocking agent (doses are given in mg/kg).

Parent plasma input functions, C_p(t), were generated for each scan by interpolating the discrete plasma data using linear interpolation, and multiplying this by the continuous parent fraction derived from fitting the discrete metabolite data to an appropriate model. The parent fraction model was selected on the basis of goodness of fit from a family of possible models. The models considered were

Model A: Exponential approach to a constant

P_{F} (t) = (1 - α) e^{- β t} + α

(5)

Model B: Single exponential

P_{F} (t) = e^{- β t}

(6)

Model C: Two exponential with constrained washout

P_{F} (t) = (1 - α) e^{- β t} + α e^{- γ t}

(7)

where γ is constrained to equal the difference between (γ_CER) the terminal rate of washout of the nondisplaceable cerebellar TAC and (γ_P) the smallest elimination rate constant of the total plasma (γ = γ_CER–γ_P; Abi-Dargham et al, 1999).

A whole blood input function, C_B(t), was also generated and used to correct the cerebellar TAC for vascular radioactivity. Cerebellar V_ND estimates were obtained from kinetic analysis using either a one-tissue (Model I) or two-tissue (Model II) compartmental model according to

C_{T} (t) = V_{B} C_{B} (t) + (1 - V_{B}) I R F (t) \otimes C_{p} (t)

(8)

where IRF(t) is the impulse response function and V_B is the fractional blood volume. The impulse response function for the one-tissue model is given by

I R F (t) = ϕ_{1} e^{- θ_{1} t}

(9)

and for the two-tissue model it is given by

I R F (t) = ϕ_{1} e^{- θ_{1} t} + ϕ_{2} e^{- θ_{2} t}

(10)

The V_ND is obtained from the impulse response function as

V_{N D} \int_{0}^{\infty} I R F (t) d t

(11)

and the plasma clearance rate constant (K₁) as

K_{1} \sum_{1} ϕ_{i}

(12)

The least squares fitting procedure included a fixed 5% blood volume and was performed with a Levenberg—Marquadt optimiser in the Matlab software environment (Matlab, Natwick, MA, USA). The Akaike information criterion was used as the model selection criteria to determine the most parsimonious kinetic model.

Results

The in-silico assay of P-gp status identified 15 compounds that were more likely to be P-gp substrates and 21 that were more likely to undergo passive diffusion. The P-gp scores ranged from −3.46 to 1.02 and are listed in Table 1.

In-vitro equilibrium dialysis estimates in plasma and tissue are tabulated in Table 1. The plasma-free fraction estimates, f_P, ranged from 0.0012 to 0.63 (mean ± s.d.: 0.166 ± 0.163) and the tissue-free fraction, f_ND, ranged from 0.00069 to 0.55 (mean ± s.d.: 0.0767 ± 0.120). The free fraction ratio, f_P/f_ND, ranged from 0.090 to 25 (mean ± s.d.: 6.18 ± 5.74).

An example of the in-vivo PET image data for [¹¹C]Loperamide before and after inhibition of P-gp with cyclosporin-A (30 mg) is shown in Figure 1. The lack of brain penetration at baseline is clearly evident but high uptake ensues after inhibition of P-gp. In contrast, uptake in the pituitary, a structure that exists outside the BBB, is high and unaffected by P-gp modulation.

Figure 1

Magnetic resonance imaging (MRI) (A) and positron emission tomography (PET) (B, C) images of the Yorkshire-Landrace Pig brain in transaxial, sagittal, and coronal sections (MRI and PET data are obtained from different animals). (A) Structural T1-weighted MRI scans for anatomical reference. (B, C) [¹¹C]Loperamide PET scans (integral images 0 to 90 minutes) displayed in standardized uptake units (%ID/L); panel B is at baseline and indicates very little uptake for the known P-glycoprotein (P-gp) substrate, whereas panel C is after administration of cyclosporin-A (30 mg) which inhibits the P-gp efflux and allows for brain penetration of [¹¹C]Loperamide. In both (B) and (C), the pituitary, a structure which exists outside the blood—brain barrier (BBB), is visible and shows uptake of [¹¹C]Loperamide.

Plasma parent and whole blood input functions were successfully generated for all scans (Figure 2) with the metabolite data tending to be well described by an exponential approach to a constant (89% of compounds). Two-tissue compartment models were required for the majority of cerebellum TACs (78%) with the remaining well described by a one-tissue compartment model. The good quality of model fits for all compounds is evident from the results displayed in Figure 3 and the in-vivo PET parameter estimates derived from the kinetic analysis are tabulated in Table 1. The plasma to brain rate constant K₁ (mL/min/cm³) ranged from 0.008 to 0.80 (mean ± s.d.: 0.309 ± 0.219) and the nondisplaceable equilibrium partition coefficient V_ND (mL/cm³) ranged from 0.23 to 30 (mean ± s.d.: 5.17 ± 5.26).

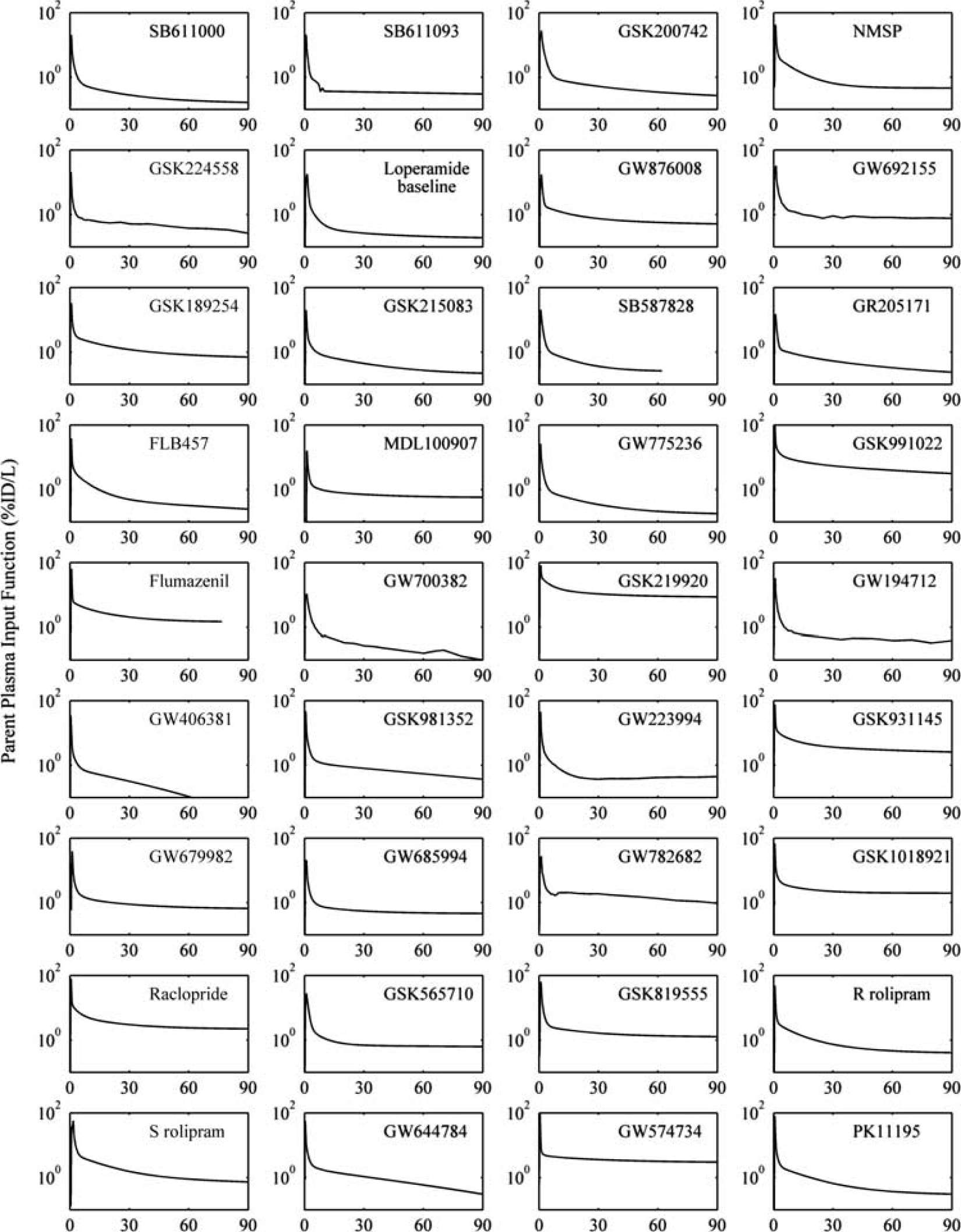

Figure 2

Positron emission tomography (PET) arterial plasma parent input functions for the (n = 36) radiolabelled compounds. For [¹¹C]Loperamide just the baseline input function is displayed.

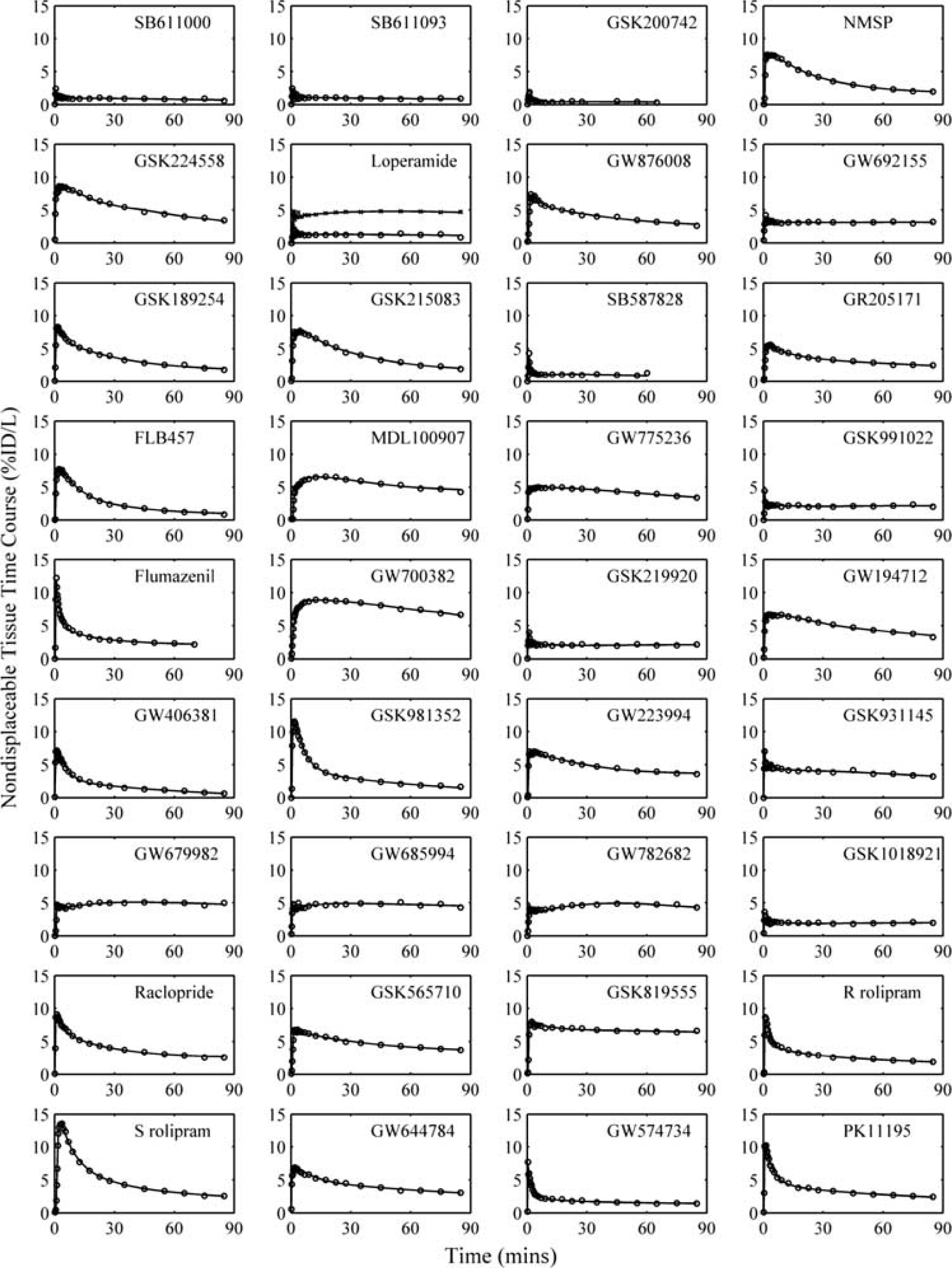

Figure 3

Positron emission tomography (PET) cerebellar time activity curves (TACs) for the (n = 36) radiolabelled compounds (○) and model fits from the parsimonious compartmental analysis (–). For [¹¹C]Loperamide two scans are shown, one at baseline (○) and the other after administration of 30 mg cyclosporin-A (×) which inhibits P-glycoprotein (P-gp).

The relationship between the equilibrium dialysis estimated free fraction ratio (f_P/f_ND) and the PET V_ND is displayed in Figure 4. In Figure 4, compounds which are predicted (in-silico assay) to be more likely to be P-gp substrates are depicted as solid circles and in Figure 4A many of these clearly fall below the line of identity which would indicate active efflux. In contrast, those compounds predicted to be more likely to undergo passive diffusion (open circles) are located around the line of identity. Furthermore, [¹¹C]Loperamide, a well-established P-gp substrate, falls well below the line of identity at baseline but returns near to it after P-gp inhibition (points joined by dashed line).

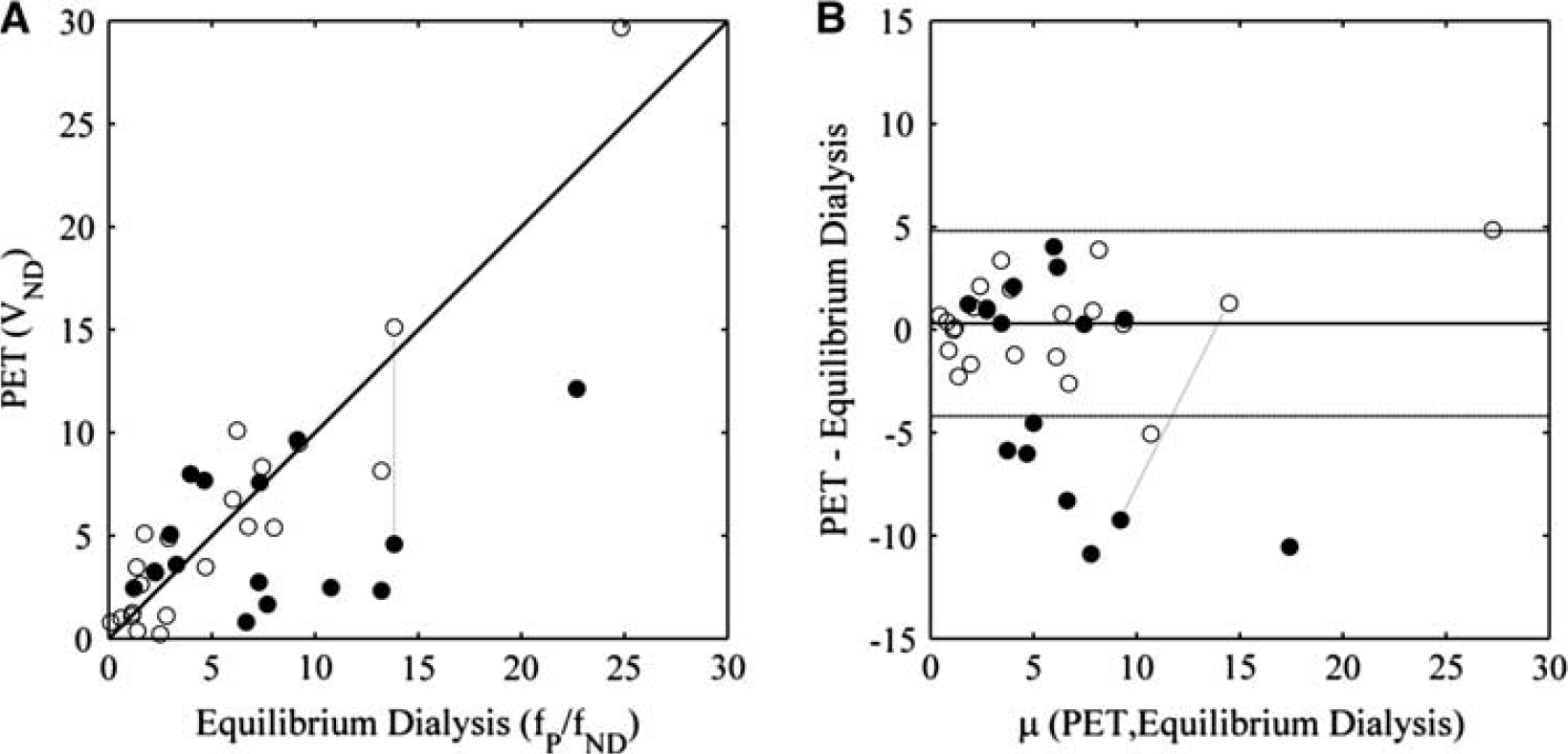

Figure 4

Comparison of in-vitro (equilibrium dialysis free fraction ratio—f_P/f_ND) and in-vivo (positron emission tomography (PET) nondisplaceable distribution volume—V_ND) measures. The symbols used indicate whether the in-silico modelling predicted that they were more likely to be P-glycoprotein (P-gp) substrates (•) or whether they were more likely to undergo passive diffusion (○). (A) Plot of equilibrium dialysis versus PET. (B) Bland-Altman plot of data in panel A using data from the compounds predicted in-silico to undergo passive diffusion (○) to define the confidence intervals (μ denotes the mean). In both plots, the data connected by the dashed line identify the results from the two [¹¹C]Loperamide scans (baseline (•) and the other after administration of 30 mg cyclosporin-A (○) which inhibits P-gp).

To explore this further, the data were transformed into a Bland-Altman plot (Altman and Bland, 1983; Figure 4B) and the compounds predicted more likely to undergo passive diffusion were used to define 95% confidence intervals (dashed lines). Using these data, Z-tests were performed to classify compounds either as undergoing passive diffusion or active transport which resulted in 8 out of the 36 compounds being predicted as undergoing active efflux (SB-611000, SB-611093-AY, GSK200742, Loperamide, GW692155, SB-587828-A, GW775236, and GW223994). Of these, seven were predicted by the in-silico method to be likely P-gp substrates and the other one was near the borderline (GW223994: P-gp score = +0.37). These classifications were also reflected in the K₁ values which were 0.11 ± 0.12 mL/min/cm³ for the 8 compounds that the Z-test identified as P-gp substrates and 0.36 ± 0.21 mL/min/cm³ for the other 28 compounds. These values were significantly different as determined from a two-sample t-test assuming unequal variance (t value = 4.29, df = 20 and P <0.0005).

Discussion

We have combined quantitative PET studies of radiolabelled compounds to determine their total in-vivo partition coefficient with in-vitro equilibrium dialysis assays of the free fractions in plasma and tissue to allow for a more comprehensive assay of BBB passage. Furthermore, the techniques that we have presented are applicable in humans and have direct relevance for human drug development strategies for CNS drugs. We explored the relationship between in-vitro equilibrium dialysis estimate of the partition coefficient (f_P/f_ND) and the in-vivo PET estimate of the partition coefficient in a region devoid of specific signal (V_ND) for 36 compounds in the Yorkshire-Landrace pig. To assess which of these compounds were likely to be P-gp substrates, we applied a proprietary in-silico prediction algorithm. For compounds that were predicted to enter the brain by passive diffusion there was good agreement between f_P/f_ND and V_ND as would be expected from theory. For about half the compounds that were predicted to be likely P-gp substrates V_ND was significantly lower than f_P/f_ND, again consistent with the theory for actively effluxed compounds. The other half was consistent with passive diffusion and it is hypothesized that this results from limitations of the in-silico modelling predictions of P-gp liability. It is important to acknowledge that the major limitation of this work is likely to be the in-silico P-gp data. Future studies using MDCK cell lines or P-gp knockouts would be required to fully confirm this hypothesis. However, to further validate the approach, we examined two of the in-vivo experiments that were performed with Loperamide, which is a well-known P-gp substrate. On its own, tracer Loperamide produced a V_ND that was substantially lower than the measured f_P/f_ND and consistent with P-gp efflux, however, on repeating the PET experiment in the presence of cyclosporin-A (a known P-gp inhibitor) the V_ND estimate was in good agreement with f_P/f_ND. These data provided a strong validation of the theory. It should also be noted that we were only able to screen for P-gp liability and so we cannot rule out the involvement of other transport systems for some of these compounds. Although the fact that all major deviations from passive diffusion were identified by the P-gp screen may render this unlikely. It is important to emphasize that the methods presented do not allow for an explicit characterization of the transport process, i.e., they do not let us explicitly say that P-gp efflux is involved. Rather, the data that are obtained from the combined equilibrium dialysis and PET measures provide information relevant to the compound transport and facilitate estimation of the free brain concentration of the compounds under investigation.

While the limitations of the in-silico prediction of P-gp liability have already been discussed, there could also be errors associated with both the PET and equilibrium dialysis measurements. For the PET data, the presence of brain penetrant metabolites cannot be ruled out for all compounds. For the equilibrium dialysis data, the duration of dialysis, temperature and buffer conditions, and the fact that different pig brains were used for the in-vitro and in-vivo data could all introduce errors into the measurements. Although, the dialysis duration of 5 hours, used in this work, has been verified previously as appropriate for a range of GSK compound structures.

Two essential characteristics of a successful CNS drug are that it crosses the BBB and then interacts with the target at a pharmacologically active concentration. Measuring this in humans is important for derisking lead compounds and streamlining the drug development process. PET is ideally suited to measuring the BBB delivery of radiolabelled compounds in humans in vivo, but while it can determine the total brain to plasma partition coefficient, in isolation it cannot directly determine the free concentration in the tissue. Here, we have introduced the combination of PET with associated equilibrium dialysis measures of the free fraction in plasma and tissue that allow for the assessment of brain penetration, the transport process involved and measurement of the free concentration in tissue. The free tissue concentration in the brain can be calculated from the measurements as

C_{F T} = V_{N D} \frac{f_{N D}}{f_{P}} C_{F P}

(13)

Further, by combining the estimate of the free brain concentration of the drug with an in-vitro estimate of the affinity for its target (K_D), it is possible to obtain an estimate of the target occupancy.

O c c = \frac{C_{F T}}{C_{F T} + K_{D}}

(14)

The resultant accuracy of such occupancy predictions is dependent on whether the in-vitro K_D truly reflects the in-vivo K_D. Some care should be taken here as there is evidence that in-vitro assay conditions such as the temperature and the buffer used are important (Laruelle et al, 1994) in addition to in-vitro—in-vivo differences in the tissue environment which adds a degree of uncertainty to this prediction of target occupancy.

The measurement of free fractions in plasma and tissue with equilibrium dialysis may have additional important advantages for the PET field. For instance, Guo et al (2009) have already used these assays in biomathematical tools to aid radiotracer discovery programs where they add particular value in helping to account for nonspecific binding. In addition, plasma-free fraction estimates are used in quantitative studies comparing binding potentials between groups of individuals where nonspecific binding may be different. It may be that equilibrium dialysis measures offer a more accurate assay over ultrafiltration methods used previously, particularly for highly protein bound compounds (Adams et al, 2004) and future studies will be needed to assess this in more detail.

In summary, equilibrium dialysis measures of the free fraction in plasma and tissue are valuable in aiding the interpretation of in-vivo PET data. While the focus of this paper has been on using them to assess free drug concentrations in the CNS, they could also have a significant role in radiotracer discovery and accurate quantification of receptor binding.
