Cellular Prion Protein Participates in Amyloid-β Transcytosis across the Blood

Abstract

The blood—brain barrier (BBB) facilitates amyloid-β (Aβ) exchange between the blood and the brain. Here, we found that the cellular prion protein (PrP^c), a putative receptor implicated in mediating Aβ neurotoxicity in Alzheimer's disease (AD), participates in Aβ transcytosis across the BBB. Using an in vitro BBB model, [¹²⁵I]-Aβ_1–40 transcytosis was reduced by genetic knockout of PrP^c or after addition of a competing PrP^c-specific antibody. Furthermore, we provide evidence that PrP^c is expressed in endothelial cells and, that monomeric Aβ_1–40 binds to PrP^c. These observations provide new mechanistic insights into the role of PrP^c in AD.

Keywords

Alzheimer's disease amyloid-β blood—brain barrier cellular prion protein transcytosis

Introduction

Alzheimer's disease (AD) is an incurable neurodegenerative disorder that is characterized by the accumulation of neurotoxic amyloid-β (Aβ) peptides in the brain and intraneuronal hyperphosphorylation of the cytoskeletal protein tau (Selkoe, 2011). Clinically, these cerebral manifestations result in memory impairment. Recent evidence suggests that the cellular prion protein (PrP^c) can mediate Aβ_1–42 oligomer-induced impairment of synaptic function and, furthermore, is required for spatial learning and memory deficits observed in an AD transgenic mouse model (Gimbel et al, 2010; Lauren et al, 2009). However, these results were challenged recently (Balducci et al, 2010).

Cellular prion protein is a glycosyl phosphatidylinositol (GPI)-anchored cell surface protein. Hence, it might require a transmembrane coreceptor to transduce signals into the cell that finally cause Aβ-induced neurodegenerative phenotypes (Lauren et al, 2009). To date this coreceptor has not been identified but a previous report showed that the low density lipoprotein receptor-related protein 1 (LRP1) is capable of internalizing PrP^c (Taylor and Hooper, 2007). In addition, LRP1 participates in Aβ_1–40 clearance across the blood—brain barrier (BBB) by means of transcytosis (Pflanzner et al, 2011; Shibata et al, 2000; Zlokovic, 2008). Interestingly, LRP1 binds Aβ_1–40 with a much higher affinity than Aβ_1–42, resulting in greater LRP1-dependent Aβ_1–40 internalization rates in endothelial cells (ECs) (Deane et al, 2004). Based on the observation that Aβ binds to PrP^c, we set out to determine if LRP1's ability to internalize PrP^c has a pathophysiological role in AD pathogenesis at the BBB. By using an in vitro transwell model of the BBB consisting of primary mouse brain capillary ECs (pMBCECs), we were able to show that PrP^c is required for Aβ_1–40 transcytosis across the BBB.

Materials and methods

Primary Mouse Brain Capillary Endothelial Cell Transwell Transport Model

Isolation and cultivation of pMBCECs have been previously described (Pflanzner et al, 2011), and are provided as Supplementary Information.

Amyloid-β transcytosis across pMBCEC monolayers was investigated after inducing high transendothelial electrical resistance. Then, 0.1 nM [¹²⁵I]-Aβ_1–40 and 1 μCi/mL [¹⁴C]-inulin (both from Perkin-Elmer, Rodgau, Germany), the latter a marker for paracellular diffusion, were diluted in serum free DMEM/Ham's F12 medium (Gibco, Darmstadt, Germany) + 550 nM hydrocortisone (Sigma, Schnelldorf, Germany) + 20 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (Lonza, Cologne, Germany) and added to the donor compartment. To inhibit Aβ binding to PrP^c, mouse monoclonal anti-PrP^c (Ab51.2) hybridoma supernatant was dialyzed against phosphate-buffered saline (PBS) over night at 4°C and used at a final concentration of 2.25 μg/mL. For details on the generation and specificity of monoclonal 51.2 antibody detecting PrP^c, please refer to Supplementary Information. Receptor-associated protein (RAP) was expressed in bacteria as a fusion protein with GST (glutathione S-transferase) and was purified as previously described (Martin et al, 2008). RAP-GST, or GST as control, was used at 500 nM to block Aβ binding to LRP1. Amyloid-β transport was studied for 2 hours in the brain to blood and for 6 hours in the blood to brain direction. From each input and at each time point, 10 and 50 μL samples were taken from the compartment the transport was investigated to (acceptor). In all, 10 μL probes were counted on a Wallac Wizard² 2470 automatic γ-counter (Perkin-Elmer) for [¹²⁵I], or on a Tri-Carb 2800 TR Liquid Scintillation Analyzer (Perkin-Elmer) for [¹⁴C]. To investigate the amount of intact [¹²⁵I]-Aβ_1–40 being transported, 50 μL of a 15% trichloroacetic acid solution was added to a 50 μL media sample and incubated for 10 minutes at 4°C before samples were centrifuged at 10,000 g for 10 minutes. Supernatant (free [¹²⁵I]) and pellet (intact [¹²⁵I]-Aβ_1–40) were counted separately for [¹²⁵I]. Transport of intact [¹²⁵I]-Aβ_1–40 across the monolayer was calculated as Aβ_1–40 TQ (transcytosis quotient):

A β_{1 - 40} T Q = \frac{([^{125} I] - A β_{1 - 40})_{a c c e p t o r} / ([^{125} I] - A β_{1 - 40})_{i n p u t}}{([^{14} C] - i n u l i n)_{a c c e p t o r} / ([^{14} C] i n u l i n)_{i n p u t}} .

Results represent the mean + s.e.m. of three independent experiments in triplicate.

Coimmunoprecipitation, Sodium Dodecylsulfate-Polyacrylamide Gel, and Western Blot Analysis

For detailed information, please see Supplementary Information.

[125I]-Aβ1–40 Binding Study

Recombinant PrP^c (rPrP^c) was synthesized as previously described (Leliveld et al, 2008). To study Aβ binding to rPrP^c, 96-well plates were coated with the indicated rPrP^c concentrations in PBS over night at 4°C on a shaker. Plates were transferred to 37°C for 30 minutes and washed twice with ice-cold PBS. Unspecific binding sites were blocked with 3% bovine serum albumin (Sigma) in PBS (w/v) for 30 minutes at 37°C on a shaker and, subsequently washed thrice with ice-cold PBS. Coated wells were incubated with 0.1 nM [¹²⁵I]-Aβ_1–40 (Perkin-Elmer) in PBS for 30 minutes at 37°C to allow Aβ binding to rPrP^c. After five washes with ice-cold PBS, proteins were dissociated by two washes with 0.2 N NaOH for 5 minutes, collected, and recovered [¹²⁵I]-Aβ_1–40 was counted on a Tri-Carb 2800 TR Liquid Scintillation Analyzer (Perkin-Elmer). Counts were normalized to input and expressed in pmol. Results represent the mean ± s.e.m. of three independent experiments in duplicate.

Statistics

All graphs and statistical analyses were prepared using GraphPad Prism 4 software (La Jolla, CA, USA). Data were analyzed by one-way analysis of variance coupled to Newman—Keuls posttest for multiple comparison or t-test. P < 0.05 was considered to be statistically significant.

Results

To determine whether PrP^c participates in Aβ transcytosis across the BBB, we investigated the transport of [¹²⁵I]-Aβ_1–40 across an in vitro BBB transwell model consisting of pMBCECs. In the brain to blood (abluminal to luminal) direction, [¹²⁵I]-Aβ_1–40 transcytosis was significantly reduced by the addition of a mouse monoclonal antibody against PrP^c (Ab51.2; for details see Supplementary Information) to levels observed in pMBCECs generated from PrP^c KO (knockout) animals (Figure 1A). Similar results were obtained when [¹²⁵I]-Aβ_1–40 transcytosis was analyzed in the blood to brain direction (Figure 1B). LRP1 has been shown to mediate Aβ transport across the BBB (Pflanzner et al, 2011). However, we observed only a nonsignificantly different decrease in Aβ transport rates when LRP1-mediated Aβ transport was additionally inhibited by RAP (synthesized as GST fusion protein) (Figure 1B). To strengthen the participation of PrP^c in Aβ transcytosis across the BBB, we analyzed protein expression in pMBCECs. Immunoblotting revealed robust expression levels of PrP^c in pMBCECs derived from wild-type (WT) animals, whereas LRP1 levels were comparable between pMBCECs prepared from WT and PrP^c KO animals (Figure 1C). Moreover, we were able to demonstrate that LRP1 coimmunoprecipitates with the most abundant 27kDa PrP^c isoform present in pMBCECs (Figures 1C and 1D). Previous results demonstrated that PrP^c binds Aβ_1–42 oligomers and mediates oligomer-induced neuronal toxicity (Lauren et al, 2009); however, these findings are controversially discussed (Balducci et al, 2010). Since we observed that PrP^c has a role in the transcytosis of monomeric Aβ_1–40 across the BBB, we set out to investigate whether PrP^c indeed binds Aβ_1–40 monomers. By using rPrP^c, we provide evidence that rPrP^c binds monomeric [¹²⁵I]-Aβ_1–40 in the low picomolar range (Figure 1E).

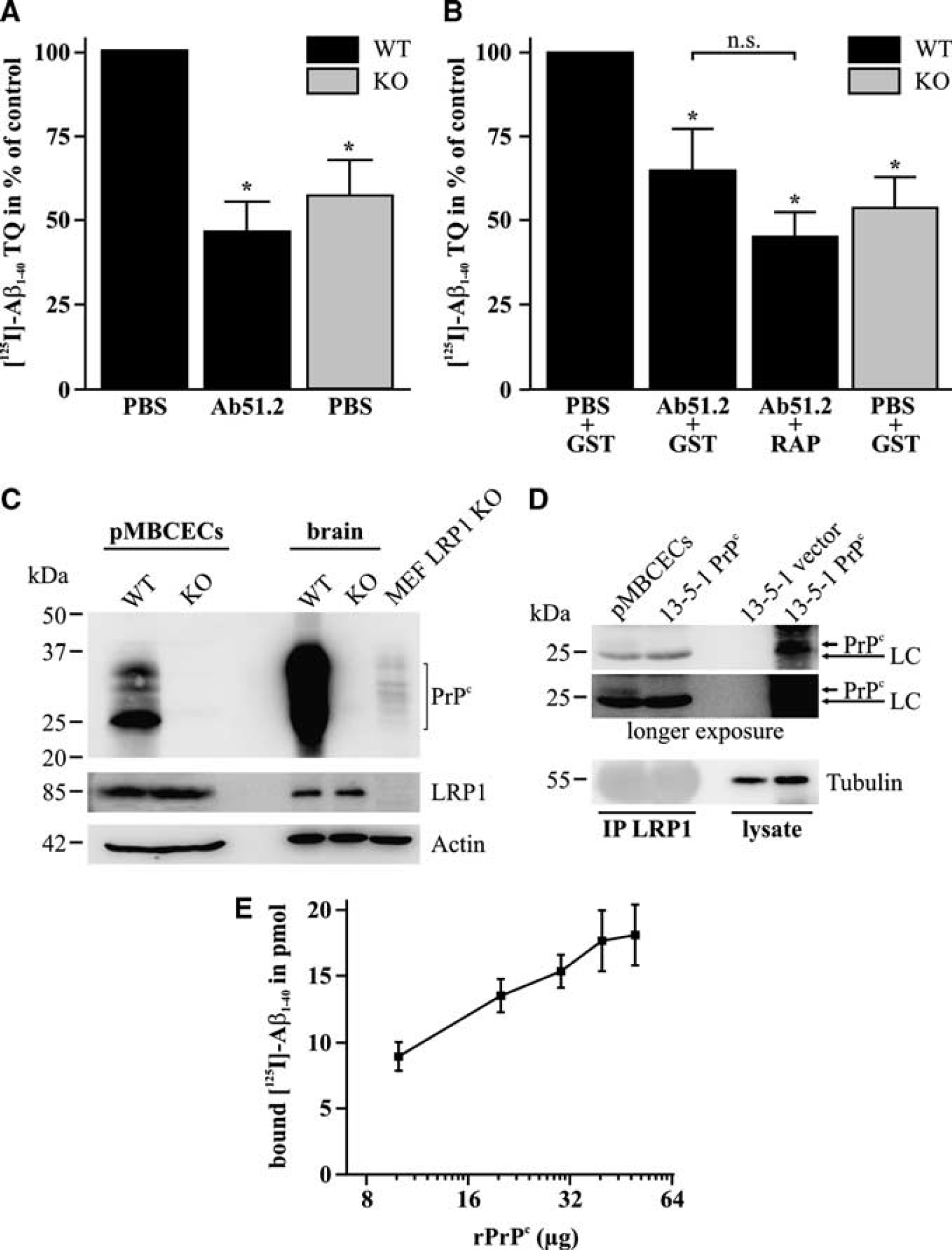

Figure 1

Cellular prion protein (PrP^c) enables amyloid-β (Aβ) endocytosis and transcytosis across the blood—brain barrier. (A, B) [¹²⁵I]-Aβ_1–40 transcytosis across primary mouse brain capillary endothelial cells (pMBCECs) from PrP^c wild-type (WT) and knockout (KO) mice was investigated in the presence of [¹⁴C]-inulin, a marker for paracellular diffusion, to determine the transcytosis quotient (TQ). Mouse monoclonal anti-PrP^c antibody (Ab51.2) decreases the [¹²⁵I]-Aβ_1–40 TQ in the brain to blood (A) and blood to brain (B) direction to levels observed in PrP^c KO pMBCECs. Simultaneous incubation of Ab51.2 and receptor-associated protein (RAP), a ligand binding inhibitor for lipoprotein receptors, did not further decrease Aβ transcytosis below pMBCECs treated with Ab51.2 alone or PrP^c KO monolayers. Results represent mean + s.e.m. of three independent experiments in triplicate. *Statistically significant difference compared with control (P < 0.05; one-way analysis of variance), n.s., not significant. (C) PrP^c expression was analyzed in pMBCECs by immunoblotting. Brain homogenates and low density lipoprotein receptor-related protein 1 (LRP1)-deficient mouse embryonic fibroblast (MEF) cell lysate were included as controls. Mouse monoclonal anti-PrP^c antibody (W226) detects strong expression levels in pMBCECs derived from WTanimals, whereas LRP1-specific rabbit polyclonal 1704 antibody does not show any differences in LRP1 expression between both genotypes. Actin was used as loading control. (D) LRP1 was immunoprecipitated from pMBCECs and LRP1-deficient Chinese hamster ovary 13-5-1 cells transiently transfected with PrP^c using 1704 antibody. Immunoblotting with W226 antibody shows that PrP^c coimmunoprecipitates with LRP1 in pMBCECs. Tubulin was used as loading control, antibody light chain (LC). (E) Increasing concentrations of immobilized recombinant PrP^c (rPrP^c) were incubated with monomeric [¹²⁵I]-Aβ_1–40. Results represent mean ± s.e.m. of three independent experiments in duplicate.

Discussion

The BBB has an important role in the pathogenesis of AD by governing bidirectional transcytosis of neuro toxic Aβ, thereby, maintaining an Aβ equilibrium that is likely critical to prevent accumulation and aggregation of Aβ species in the brain. Several transmembrane receptors and transporters have been identified to have a role in Aβ transport mechanisms at the BBB (Pflanzner et al, 2010; Zlokovic, 2008), emphasizing the complexity and necessity of these exchanges.

The PrP^c belongs to the family of GPI-anchored cell surface proteins. Its role in mediating Aβ oligomer-induced neurotoxicity is not fully resolved due to the lack of intracellular motifs that enable signal transduction into the cell. Hence, it has been suggested that PrP^c requires a transmembrane coreceptor to elicit, for example, synaptic dysfunction on Aβ oligomer binding to PrP^c (Lauren et al, 2009). To date, the low density LRP1 is the only transmembrane protein that has been shown to mediate PrP^c internalization through clathrin-coated pits through interactions between the extracellular domains of both receptors (Shyng et al, 1994; Taylor and Hooper, 2007). LRP1 endocytosis is facilitated through its cytosolic NPxYxxL motif (Li et al, 2000; Pflanzner et al, 2011), a highly conserved domain that also functions in signal transduction (Martin et al, 2008).

Genetic evidence supports that LRP1 mediates Aβ_1–40 transcytosis across the BBB (Pflanzner et al, 2011). Due to the fact that LRP1 is required for PrP^c endocytosis (Taylor and Hooper, 2007), we investigated whether PrP^c is involved in Aβ_1–40 transport across the BBB. Strikingly, on genetic deletion of PrP^c, we found that Aβ transcytosis in the brain to blood direction was reduced by ~50% in our primary in vitro BBB model. In addition, a monoclonal antibody against PrP^c diminished Aβ transport to levels observed in PrP^c-deficient endothelial monolayers (Figure 1A), indicating that the binding of monomeric Aβ_1–40 to PrP^c is required for Aβ transcytosis across the BBB. To emphasize this novel role of PrP^c, we analyzed the presence of PrP^c in our primary ECs and tested whether monomeric Aβ_1–40 binds to rPrP^c. In contrast to ECs that were derived from PrP^c KO animals, we found robust PrP^c expression levels in freshly isolated ECs, whereas LRP1 levels were comparable between both genotypes (Figure 1C). This excluded the possibility that differences in Aβ transport rates are due to altered LRP1 expression levels. Although previous efforts have focused on Aβ_1–42 oligomer binding to PrP^c (Lauren et al, 2009), recent evidence supports that low molecular weight Aβ_1–42 species also bind to PrP^c (Calella et al, 2010). In agreement with our transport studies, we demonstrate that Aβ_1–40 monomers bind to rPrP^c in the low picomolar range (Figure 1E). Therefore, the presence of PrP^c in ECs, its binding capacity for monomeric Aβ_1–40, and the role in Aβ_1–40 transcytosis across the BBB highlights an additional mechanism by which PrP^c could influence AD pathogenesis.

Since PrP^c does not contain intracellular motifs that facilitate receptor internalization, we investigated whether PrP^c facilitated Aβ_1–40 transport across the BBB might be coupled to LRP1-mediated Aβ_1–40 transcytosis. We have previously shown that inhibition of ligand binding to LRP1 with RAP or knockin mutation of the NPxYxxL endocytosis motif reduces LRP1-mediated Aβ_1–40 transcytosis across the BBB by ~50% (Pflanzner et al, 2011). Assuming that Aβ transcytosis by LRP1 and PrP^c occur independent of each other, RAP treatment should have a clear additional effect on Aβ transcytosis compared with PrP^c antibody alone. However, RAP did not further decrease Aβ transport compared with anti-PrP^c alone (Figure 1B). In line with this observation and LRP1's ability to internalize PrP^c (Taylor and Hooper, 2007), we therefore hypothesize that Aβ_1–40 transcytosis across the BBB could occur through a mechanism in which both receptors cooperate to (1) increase the amount of available Aβ-binding sites and (2) compensate for the lack of a functional endocytosis motif within PrP^c, to enhance transcytosis efficiency. RAP treatment has been shown to interfere with both LRP1-mediated Aβ transcytosis and PrP^c endocytosis through clathrin-coated pits in separate studies (Pflanzner et al, 2011; Taylor and Hooper, 2007). Taken together, these findings suggest that the role of PrP^c in Aβ transcytosis across the BBB is potentially linked to LRP1. This is further emphasized by the fact that LRP1 coimmunoprecipitates with 27 kDa PrP^c in vivo (Figure 1D), an isoform that is present on the cell surface although it is not glycosylated (Korth et al, 2000). Transcytosis of cell surface proteins including LRP1 depends on the presence of tyrosine-based motifs (Anderson et al, 2005; Donoso et al, 2009). Although these motifs are absent in some GPI-anchored proteins such as PrP^c, many GPI-anchored proteins are initially basolaterally sorted and then transcytosed to the apical membrane in polarized cells (Polishchuk et al, 2004). Cellular prion protein has been detected in early endosomes (Magalhaes et al, 2002), whereas one route of PrP^c internalization has been demonstrated to be dependent on extracellular interactions with the endocytic receptor LRP1 (Taylor and Hooper, 2007). Here, we provide evidence that PrP^c facilitates Aβ transcytosis across the BBB, conceivably in concert with LRP1, highlighting a novel role for PrP^c in AD pathogenesis.

Footnotes

The authors declare no conflict of interest.

Notes

Supplementary Information accompanies the paper on the Journal of Cerebral Blood Flow & Metabolism website ()

References

Anderson

Maday

Sfakianos

Hull

Winckler

Sheff

Folsch

Mellman

(2005) Transcytosis of NgCAM in epithelial cells reflects differential signal recognition on the endocytic and secretory pathways. J Cell Biol 170:595–605

Balducci

Beeg

Stravalaci

Bastone

Sclip

Biasini

Tapella

Colombo

Manzoni

Borsello

Chiesa

Gobbi

Salmona

Forloni

(2010) Synthetic amyloid-beta oligomers impair long-term memory independently of cellular prion protein. Proc Natl Acad Sci USA 107:2295–300

Calella

Farinelli

Nuvolone

Mirante

Moos

Falsig

Mansuy

Aguzzi

(2010) Prion protein and Abeta-related synaptic toxicity impairment. EMBO Mol Med 2:306–14

Deane

Sagare

Davis

Du Yan

Hamm

Parisi

LaRue

Spijkers

Guo

Song

Lenting

Van Nostrand

Zlokovic

(2004) LRP/amyloid beta-peptide interaction mediates differential brain efflux of Abeta isoforms. Neuron 43:333–44

Donoso

Cancino

Lee

van Kerkhof

Retamal

Gonzalez

Caceres

Marzolo

(2009) Polarized traffic of LRP1 involves AP1B and SNX17 operating on Y-dependent sorting motifs in different pathways. Mol Biol Cell 20:481–97

Gimbel

Nygaard

Coffey

Gunther

Lauren

Gimbel

Strittmatter

(2010) Memory impairment in transgenic Alzheimer mice requires cellular prion protein. J Neurosci 30:6367–74

Korth

Kaneko

Prusiner

(2000) Expression of unglycosylated mutated prion protein facilitates PrP(Sc) formation in neuroblastoma cells infected with different prion strains. J Gen Virol 81:2555–63

Lauren

Gimbel

Nygaard

Gilbert

Strittmatter

(2009) Cellular prion protein mediates impairment of synaptic plasticity by amyloid-beta oligomers. Nature 457:1128–32

Leliveld

Stitz

Korth

(2008) Expansion of the octarepeat domain alters the misfolding pathway but not the folding pathway of the prion protein. Biochemistry 47:6267–78

10.

Marzolo

van Kerkhof

Strous

(2000) The YXXL motif, but not the two NPXY motifs, serves as the dominant endocytosis signal for low density lipoprotein receptor-related protein. J Biol Chem 275:17187–94

11.

Magalhaes

Silva

Lee

Martins

Prado

Ferguson

Gomez

Brentani

Prado

(2002) Endocytic intermediates involved with the intracellular trafficking of a fluorescent cellular prion protein. J Biol Chem 277:33311–8

12.

Martin

Kuhlmann

Trossbach

Jaeger

Waldron

Roebroek

Luhmann

Laatsch

Weggen

Lessmann

Pietrzik

(2008) The functional role of the second NPXY motif of the LRP1 beta-chain in tissue-type plasminogen activator-mediated activation of N-methyl-D-aspartate receptors. J Biol Chem 283:12004–13

13.

Pflanzner

Janko

Andre-Dohmen

Reuss

Weggen

Roebroek

Kuhlmann

Pietrzik

(2011) LRP1 mediates bidirectional transcytosis of amyloid-beta across the blood-brain barrier. Neurobiol Aging 32:2323 e1–1

14.

Pflanzner

Kuhlmann

Pietrzik

(2010) Blood-brain-barrier models for the investigation of transporter- and receptor-mediated amyloid-beta clearance in Alzheimer's disease. Curr Alzheimer Res 7:578–90

15.

Polishchuk

Di Pentima

Lippincott-Schwartz

(2004) Delivery of raft-associated, GPI-anchored proteins to the apical surface of polarized MDCK cells by a transcytotic pathway. Nat Cell Biol 6:297–307

16.

Selkoe

(2011) Alzheimer's disease. Cold Spring Harb Perspect Biol; advance online publication, 1 July 2011; 3(7): pii: a004457; doi: 10.1101/cshperspect.a004457.Review

17.

Shibata

Yamada

Kumar

Calero

Bading

Frangione

Holtzman

Miller

Strickland

Ghiso

Zlokovic

(2000) Clearance of Alzheimer's amyloid-ss(1-40) peptide from brain by LDL receptor-related protein-1 at the blood-brain barrier. J Clin Invest 106:1489–99

18.

Shyng

Heuser

Harris

(1994) A glycolipid-anchored prion protein is endocytosed via clathrin-coated pits. J Cell Biol 125:1239–50

19.

Taylor

Hooper

(2007) The low-density lipoprotein receptor-related protein 1 (LRP1) mediates the endocytosis of the cellular prion protein. Biochem J 402:17–23

20.

Zlokovic

(2008) The blood-brain barrier in health and chronic neurodegenerative disorders. Neuron 57:178–201
