Microstructural Basis of Contusion Expansion in Traumatic Brain Injury: Insights from Diffusion Tensor Imaging

Abstract

Traumatic brain injury (TBI) is often exacerbated by events that lead to secondary brain injury, and represent potentially modifiable causes of mortality and morbidity. Diffusion tensor imaging was used to characterize tissue at-risk in a group of 35 patients scanned at a median of 50 hours after injury. Injury progression was assessed in a subset of 16 patients with two scans. All contusions within the first few days of injury showed a core of restricted diffusion, surrounded by an area of raised apparent diffusion coefficient (ADC). In addition to these two well-defined regions, a thinner rim of reduced ADC was observed surrounding the region of increased ADC in 91% of patients scanned within the first 3 days after injury. In patients who underwent serial imaging, the rim of ADC hypointensity was subsumed into the high ADC region as the contusion enlarged. Overall contusion enlargement tended to be more frequent with early lesions, but its extent was unrelated to the time of initial imaging, initial contusion size, or the presence of hemostatic abnormalities. This rim of hypointensity may characterize a region of microvascular failure resulting in cytotoxic edema, and may represent a ‘traumatic penumbra’ which may be rescued by effective therapy.

Keywords

contusions diffusion tensor imaging traumatic brain injury

INTRODUCTION

Traumatic brain injury (TBI) is often exacerbated by events that lead to secondary brain injury, and represent potentially modifiable cause of mortality and morbidity. Such secondary injury results from activation of a cascade of metabolic, immunological, and biochemical changes that ultimately result in irreversible cell damage. Clinical therapy aims to prevent or minimize the burden of secondary injury. However, demonstration of the benefit of individual interventions is difficult, and is hampered by clinical heterogeneity and the fact that most outcome measures are assessed months after the intervention, and may hence be confounded by multiple factors.

To date, clinical trials have been unable to show efficacy in improving the clinical outcome of such patients, perhaps because the translation from experimental therapies to clinical trials has been undertaken without adequate refinement of the interventions tested.¹ One potential means of improving such translation is to characterize tissue at-risk using early imaging studies, and define markers of injury progression in these tissue compartments. The modulation of such injury progression could then provide an imaging biomarker of intervention efficacy in the clinical setting. In principle, this approach proposes that, like the ischemic penumbra in stroke, there may be a ‘traumatic penumbra’² of at-risk tissue after TBI, which may be rescued by effective therapy. However, this area(s) is difficult to localize, as injury in TBI does not conform to vascular territories or anatomical boundaries. The only exception to this is pericontusional tissue, which is often absorbed into the contusion core over time. Indeed, microdialysis studies have identified an area of metabolically compromised tissue surrounding contusions, which may have the capacity to regain a normal metabolic pattern but also appears to have an increased vulnerability to secondary insults.³ Progression of contusions is commonly seen on X-ray computed tomography.^4–7 Some studies report that up to 65% of lesions increase in size within the first 24 hours, and that such lesion growth may be related to the presence of coagulopathy.⁴ This progression may lead to raised intracranial pressure, neurological deterioration, and/or require surgical intervention; and, in itself, has been associated with unfavorable outcome including death.^4,5 While the underlying biology of this phenomenon remains unclear in human TBI, data from experimental models of TBI indicate that contusion expansion into the penumbral region may be preceded by marked reductions in cerebral blood flow (CBF),⁸ and incorporates a phenomenon that has been described as microvascular failure.⁹

While conventional magnetic resonance imaging (MRI) can show such lesion growth, it provides limited insights into the underlying pathophysiology and its modification by therapy.

Diffusion tensor MR imaging (DTI) may provide better characterization of such pathophysiology and allow contusion growth to be used as an imaging biomarker of treatment efficacy in the early drug development. This technique characterizes the diffusion of water molecules in tissue environments, which is influenced by the microstructural organization of tissues and their constituent cells, and can provide unique insights into pathophysiology, particularly in white matter. The diffusion tensor can be used to represent the magnitude of water diffusion (quantified as the apparent diffusion coefficient, ADC), describe whether such diffusion is directionally non-uniform (anisotropy), and characterize the orientation of that direction (eigenvectors/eigenvalues). Experience from both human experimental and clinical studies, particularly in ischemic stroke, suggest that ischemic cytotoxic edema is associated with restricted diffusion (low intensity on ADC maps), while vasogenic edema is associated with increased diffusion (high intensity on ADC maps). The use of ADC maps for such characterization, rather than diffusion-weighted images (DWIs), allows the isolation of diffusion properties of tissue water from changes in T2 behavior—which result in high T2 lesions ‘shining through’ on DWIs even when there is no change in ADC.

Experimental data indicate that DTI may be of use in characterizing focal tissue damage in models of TBI^10,11 and in differentiating ischemic and traumatized tissue.¹² These data also indicate that both vasogenic and cytotoxic edema can occur after trauma.¹³ However, despite these data, most human studies focus on detecting diffuse injury away from contusions in the chronic phase of injury, a context in which DWI is clearly a promising technique.^14–17 There are few clinical studies describing DWI changes around traumatic contusions in human TBI,^18–21 with two reporting the presence of a mixed picture of vasogenic and cytotoxic edema.^20,21

This study aimed to use DTI to further characterize pathology in pericontusional tissue, and define its temporal evolution to help inform the development of imaging biomarkers of acute pathophysiology, tissue fate, and intervention efficacy.

MATERIALS AND METHODS

Thirty-five patients (29 male, 6 female, mean age 35.2(s.d. ± 12.6) years with moderate-to-severe TBI underwent MR imaging using a 3 Tesla Siemens Magnetom Total Imaging Matrix (TIM) Trio (Siemens AG, Wittelsbacherplatz, Munich, Germany). All patients were admitted to the Neuroscience Critical Care Unit and required sedation and mechanical ventilation. All patients were treated with protocol-driven therapy aimed at keeping the intracranial pressure <20 mm Hg and a cerebral perfusion pressure of 60–70 mm Hg.²² Sixteen patients underwent two scans while still receiving treatment in the intensive care unit, and sixteen (n = 8 with two acute scans) returned for follow-up scans at least 6 months after injury. Ethical approval was obtained from the Cambridgeshire 2 Local Research Ethics Committee, and written informed consent, or written assent from next-of-kin where appropriate, were obtained in all cases.

The imaging protocol included DTI, a 3D T1-weighted structural sequence (magnetization-prepared rapid gradient echo), a fluid-attenuated inversion recovery sequence, a gradient echo sequence, and a dual-spin echo (proton density/T2 weighted) sequence. The DTI parameters were as follows: 12 non-collinear directions, 5 b-values ranging from 338 to 1588 s mm⁻², 5 b = 0 images, acquisition matrix size 96 × 96, field of view 192 mm × 192 mm, 63 axial slices, 2-mm slice thickness, TR = 8300 ms, TE = 98 ms. A sequence with multiple b-values was chosen to allow accurate characterization of edema in the acute phase, as it has been shown that the use of multiple b-values for a smaller number of unique gradient directions provides ADC results that are more robust than ones obtained with a higher number of sampling directions but only one b-value.²³ Thirty-six healthy controls underwent an identical MR imaging protocol.

In four patients ¹⁵O PET imaging was performed within 72 hours of patients’ admission to the Neurosciences Critical Care Unit, on a General Electric Advance scanner (GE Medical Systems, Milwaukee, WI, USA). A transmission scan, using two rotating germanium-68 rods, was performed for all patients, and used to correct the emission data for photon attenuation. Emission data were acquired in three-dimensional mode during a 20-minute steady-state infusion of 800 MBq of H₂¹⁵O, after a 60-second inhalation of 300 MBq C¹⁵O, and in two-dimensional mode during a 20-minute steady-state inhalation of 7200 MBq of ¹⁵O₂. Images were reconstructed using PROMIS 3D filtered back projection algorithm, with corrections applied for attenuation, scatter, randoms, and dead time. From radioactivity concentrations in the brain and arterial blood, parametric maps of CBF, oxygen utilization (CMRO₂), cerebral blood volume (CBV), and OEF were calculated as described by our group previously.²⁴

Coagulation status was documented in all patients, and included the highest prothrombin time, highest activated partial thromboplastin time, and lowest platelet count for both the first 24 hours of admission and for those who had two scans, during the period until the second scan.

Image Analysis

Diffusion tensor MR imaging data were processed using the Oxford Centre for fMRI of the Brain Diffusion Toolbox, and all the b-values were used in the calculation of the tensor model (http://www.fmrib.ox.ac.uk/fsl). Regions of interest (ROIs) were drawn around contusions on ADC maps for each patient defined manually (as shown in Figure 1) by changes in contrast. Several patients exhibited multiple contusions. To simplify statistical analysis, we elected to use only the largest contusion for analysis in each patient. However, although the data are not shown in this paper, smaller contusions behaved in exactly the same way as the larger index lesion in the same patient. Such regions included a core with restricted diffusion (Region 1, seen as a low-intensity region on ADC maps), a surrounding zone of high diffusivity (Region 2, seen as a cuff of high intensity around the core on ADC maps), and an external rim of restricted diffusion (Region 3, seen as a narrow region of dark tissue external to the hyperintense cuff on ADC maps). Gradient echo maps were used to assess whether areas of apparently low ADC were secondary to true restricted diffusion, or because of signal drop out from blood products, in which case it was defined as part of the hemorrhagic core. We also defined a rim of normal-appearing brain parenchyma three voxels wide surrounding Region2/3. A corresponding ROI was also drawn, where possible, in normal-appearing tissue on the contralateral side with the same volume as the index contusion, so as to provide a ‘control region’ with a similar mix of gray and white matter. In five patients this was not possible because of the presence of bilateral contusions; in these individuals a similar volume of tissue in normal-appearing occipital lobe was chosen to represent such ‘control tissue’. In severe TBI, given the great extent of traumatic axonal injury (TAI) and edema, it can be difficult to find a truly ‘normal’ area when quantifying the ADC. To see if the patient control regions were representative of non-injured tissue, an ROI encompassing the frontal lobe (the most common lesion site) was drawn on the healthy volunteer scans. T1-weighted images from volunteers were segmented into gray and white matter regions and coregistered into the diffusion space using the vtkCISG normalized mutual information algorithm (http://www.vtk.org). This segmentation was used to create white and gray matter frontal lobe ROIs.

Figure 1

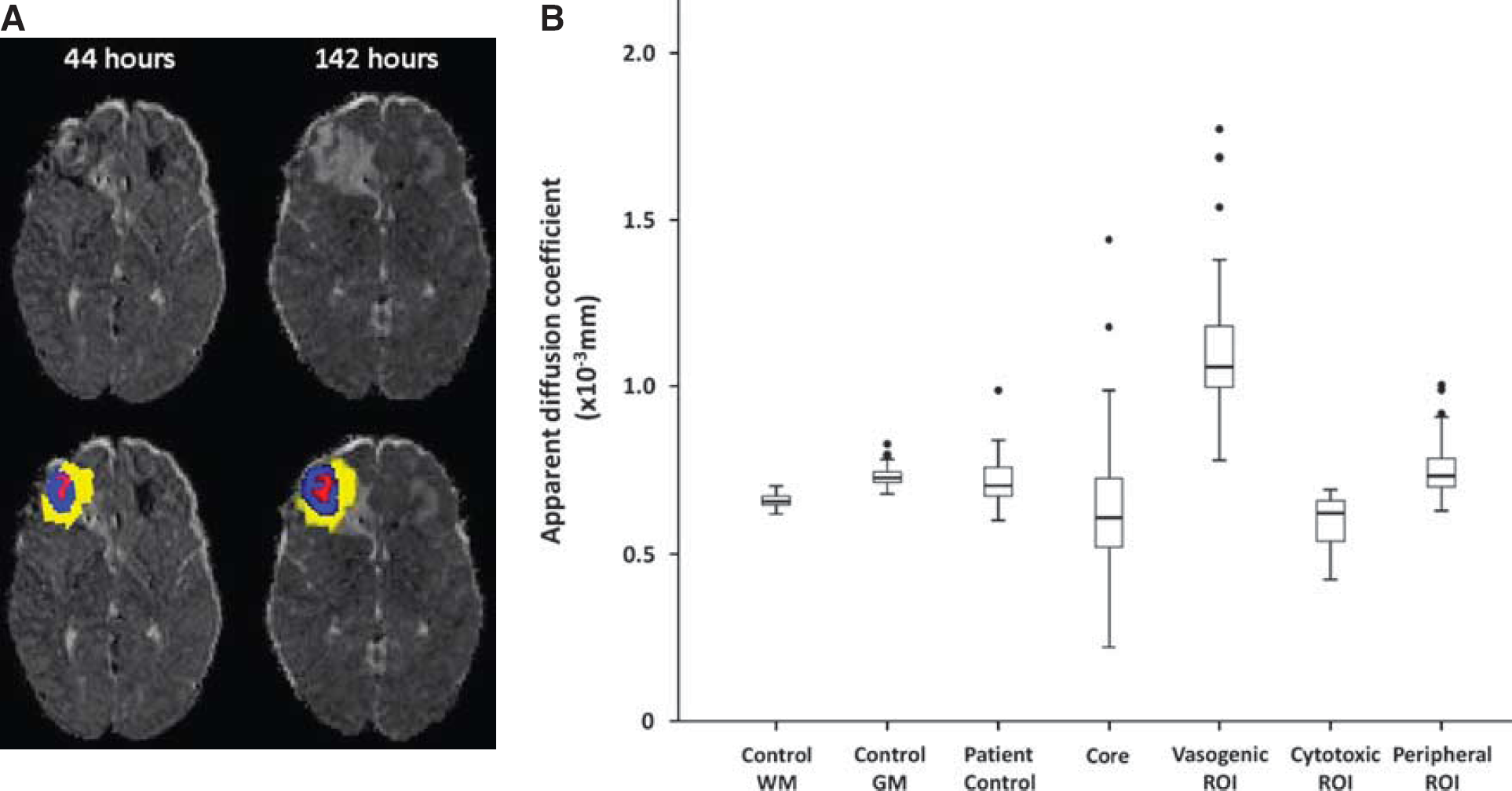

(A) Perilesional changes over time showing regions of interest (ROIs) drawn. The left apparent diffusion coefficient (ADC) map was taken ~44 hours and the right 142 hours after injury. The top left ADC map shows a right frontal contusion with a hetrogenous core, pericontusional hyperintensity, and a hypointense rim. These regions of interest have been overlaid on the image below and the same regions from the first scan overlaid on the ADC map from the second imaging session. The hypointense rim can no longer be seen by the second scan and the hyperintense region appears to be enlarged. (B) Apparent diffusion coefficient by region of interest. The central lines in the boxes denote the median values, the upper and lower edges the 75th and 25th percentiles, the error bars the 90th and 10th percentiles, and the closed circles the data outside these percentiles. GM, grey matter; WM, white matter.

Ten contusions were drawn twice by one investigator (VN) and twice by two others (HR, LM) to test for intra and interobserver reliability. In patients who were scanned twice, the ROIs from the first scan were coregistered to the second scan using the vtkCISG normalized mutual information algorithm to assess any change in that particular ROI over time. Mean ADC, axial diffusivity (major eigenvalue), and radial diffusivity (defined as the average of the smaller two eigenvalues) were defined for each ROI using in-house software (GBW).

Positron emission tomography (PET) images were analyzed using custom-designed automated software (Petan)²⁵ incorporating elements of statistical Parametric Mapping (SPM2002, Wellcome Department of Cognitive Neurology, London, UK, http://fil.ion.ucl.ac.uk/spm), Matalb 6 (MathWorks, Natick, MD, USA), and Analyze 7.0 (AnalyzeDirect, Lenexa, KS, USA). Corrected maps of CBF, CBV, CMRO₂, and OEF were generated. They were coregistered to the diffusion space using the vtkCISG normalized mutual information algorithm, and ROIs overlaid to allow qualitative assessment of the metabolic maps with the diffusion maps. As there were only four patients, no statistical comparisons were performed but the images were visually inspected to see qualitatively how the PET parameters corresponded to the ADC maps.

Statistical analyses were conducted using SPSS (SPSS 18.0, Chicago, IL, USA, http://www.spss.com). Following assessment of the data for normality, parametric and non-parametric comparisons were performed where appropriate. Mann–Whitney U-test was used for unpaired tests and the Wilcoxon signed-rank test for paired comparisons. For non-parametric correlations Spearman's Rho was used. For comparisons P < 0.05 were accepted as significant. To determine which metrics of contusion expansion was most consistent, and hence most useful as biomarkers in interventional studies of contusion growth, we determined the coefficient of variation of change in contusion volume across serial scans, and also the change in contusion volume indexed to the size of the contusion on the first image.

RESULTS

The patient demographic details are summarized in Table 1, and in more detail in Supplementary Table 1. Four of the control subjects were not used in the analysis because of excess movement artifact, leaving 32 healthy volunteers in the analysis. As all patients were sedated and ventilated for their early scans movement artifact was not observed. There were no significant differences in age between the controls and the patients, including the subgroup with two scans, and no significant difference between the group of patients scanned once vs. those scanned twice in any of the demographic or clinical details (including time to first scan). For all ROIs, the intra and interclass correlation coefficients were above 0.80, indicating strong agreement within and between observers.

Table 1

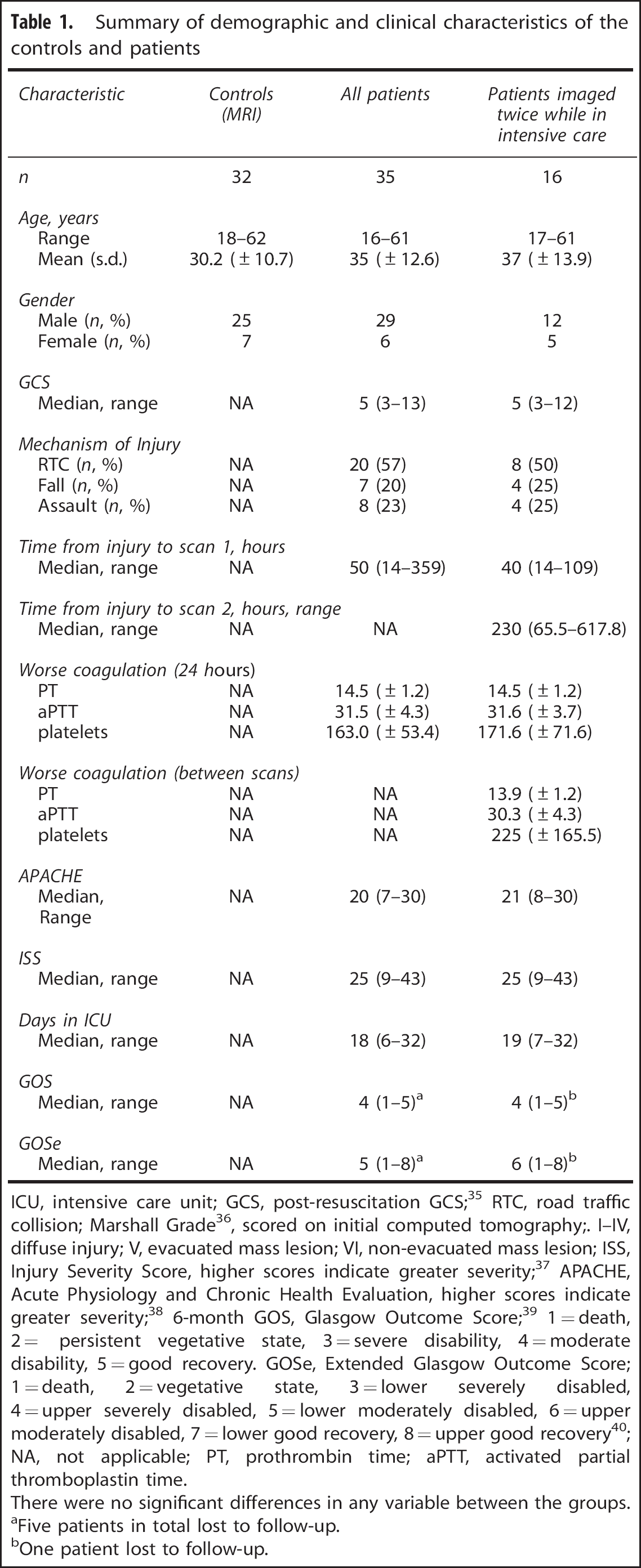

Summary of demographic and clinical characteristics of the controls and patients

Characteristic	Controls (MRI)	All patients	Patients imaged twice while in intensive care
n	32	35	16
Age, years
Range				18–62	16–61	17–61
Mean (s.d.)				30.2 (± 10.7)	35 (± 12.6)	37 (± 13.9)
Gender
Male (n, %)				25	29	12
Female (n, %)				7	6	5
GCS
Median, range				NA	5 (3–13)	5 (3–12)
Mechanism of Injury
RTC (n, %)				NA	20 (57)	8 (50)
Fall (n, %)				NA	7 (20)	4 (25)
Assault (n, %)				NA	8 (23)	4 (25)
Time from injury to scan 1, hours
Median, range				NA	50 (14–359)	40 (14–109)
Time from injury to scan 2, hours, range
Median, range				NA	NA	230 (65.5–617.8)
Worse coagulation (24 hours)
PT				NA	14.5 (± 1.2)	14.5 (± 1.2)
aPTT				NA	31.5 (± 4.3)	31.6 (± 3.7)
platelets				NA	163.0 (± 53.4)	1 71.6 (± 71.6)
Worse coagulation (between scans)
PT				NA	NA	13.9 (± 1.2)
aPTT				NA	NA	30.3 (± 4.3)
platelets				NA	NA	225 (± 165.5)
APACHE
Median, Range				NA	20 (7–30)	21 (8–30)
ISS
Median, range				NA	25 (9–43)	25 (9–43)
Days in ICU
Median, range				NA	18 (6–32)	19 (7–32)
GOS
Median, range				NA	4 (1–5)^a	4 (1–5)^b
GOSe
Median, range				NA	5 (1–8)^a	6 (1–8)^b

ICU, intensive care unit; GCS, post-resuscitation GCS;³⁵ RTC, road traffic collision; Marshall Grade³⁶, scored on initial computed tomography;. I–IV, diffuse injury; V, evacuated mass lesion; VI, non-evacuated mass lesion; ISS, Injury Severity Score, higher scores indicate greater severity;³⁷ APACHE, Acute Physiology and Chronic Health Evaluation, higher scores indicate greater severity;³⁸ 6-month GOS, Glasgow Outcome Score;³⁹ 1 = death, 2 = persistent vegetative state, 3 = severe disability, 4 = moderate disability, 5 = good recovery. GOSe, Extended Glasgow Outcome Score; 1 = death, 2 = vegetative state, 3 = lower severely disabled, 4 = upper severely disabled, 5 = lower moderately disabled, 6 = upper moderately disabled, 7 = lower good recovery, 8 = upper good recovery⁴⁰; NA, not applicable; PT, prothrombin time; aPTT, activated partial thromboplastin time.

There were no significant differences in any variable between the groups.

^aFive patients in total lost to follow-up.

^bOne patient lost to follow-up.

All contusions within the first few days of injury showed two main regions; a core of restricted diffusion surrounded by an area of raised ADC (Figure 1). While some lesions showed these regions more clearly than others, this pattern was universal. In addition to these two well-defined regions, a thinner rim of hypointensity was observed surrounding the region of increased ADC in 20 of 22 (91%) patients scanned within the first 3 days after injury. The longest injury to scan interval showing this finding was 63 hours.

Consistent with previous studies from our group,²⁴ contemporaneous PET studies in four patients showed reductions in CBF, CBV, oxygen ultilization and oxygen extraction fraction surrounding contusions. This extended past the pericontusional cuff of vasogenic edema to include the areas of presumed cytotoxic edema represented by a reduction in ADC (Figure 2).

Figure 2

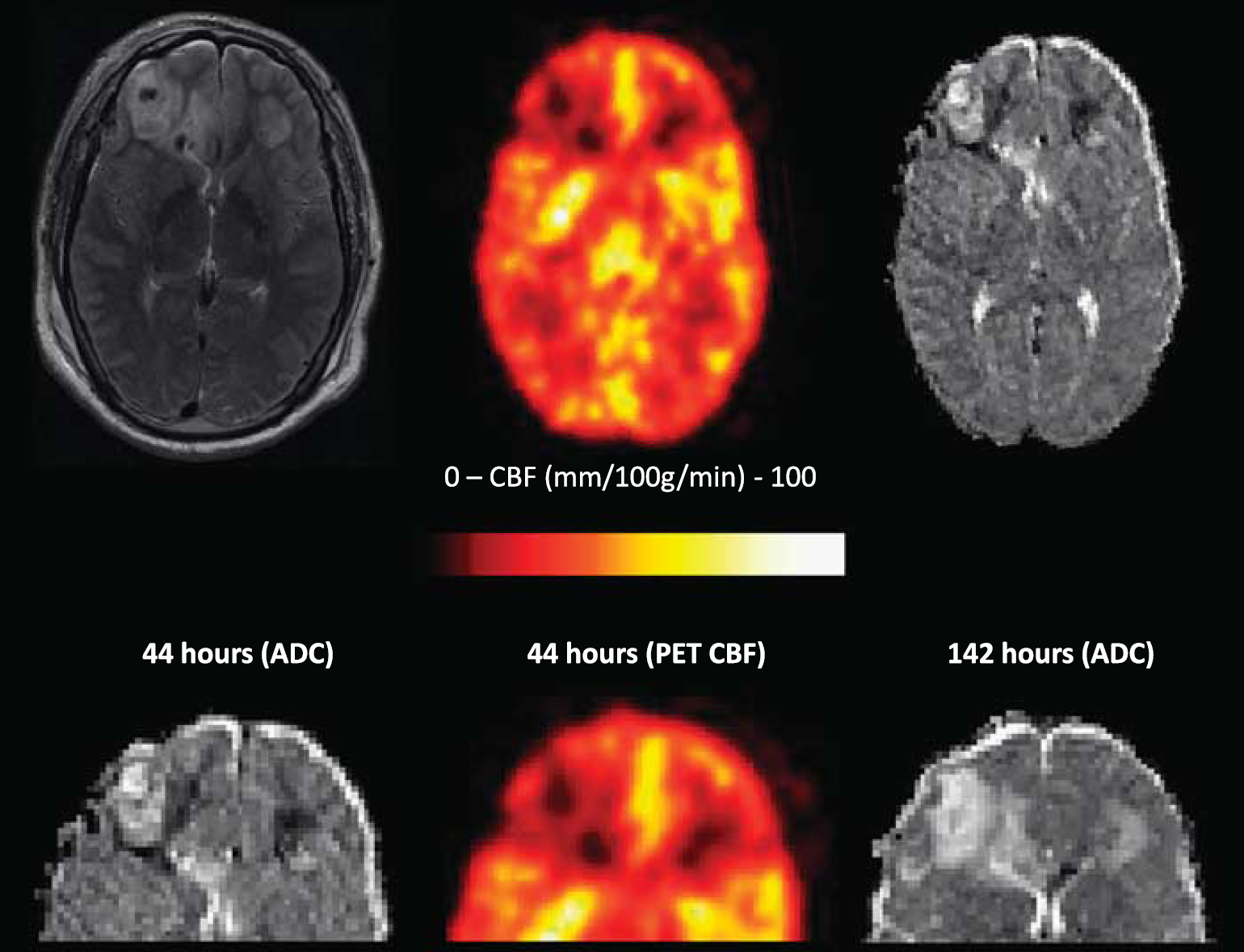

Heterogeneity in the cerebral pathophysiology after head injury. The top panel shows T2, Positron emission tomography (PET) regional cerebral blood flow (rCBF), and apparent diffusion coefficient (ADC) maps obtained at 44 hours after traumatic brain injury (TBI). The lower panel shows a detail of these images, and a follow-up image at 144 hours (5.9 days) after TBI. There is a reduction in rCBF around both frontal contusions, peripheral to the pericontusional cuff of vasogenic edema, and associated with a reduction in ADC, characteristic of cytotoxic edema. The lower images (fluid-attenuated inversion recovery sequence (FLAIR), ADC map, and PET CBF at 14 hours, with FLAIR at 6.5 days) illustrate how the rim of vasogenic edema extends to include the rim of cytotoxic edema seen at the early time point.

Table 2 shows the volume of the contusion areas. The presence or absence of growth in the contusion core over time was unrelated to initial core size, coagulation status, or time between imaging sessions (Spearman's Rho, P > 0.05). The diffusivity parameters in the individual regions identified in and around contusions were not correlated with lesion size (Spearman's Rho, P > 0.05). Comparison of serial acute scans showed that the volume of the contusion core increased in ~60% of patients and decreased in 40%. Patients who had both scans within the first 2 weeks of injury seemed to be more likely to show an increase in total volume of contusions, whereas those with later scans showed a decrease (Figure 3, panels A–F). The coefficient of variation for the total contusion volume for the first scan was 1.08, second scan 0.90, and the change in lesion volume 2.10. The coefficient of variation for indexed change in contusion volume (change in contusion volume/first contusion volume) was 2.40.

Figure 3

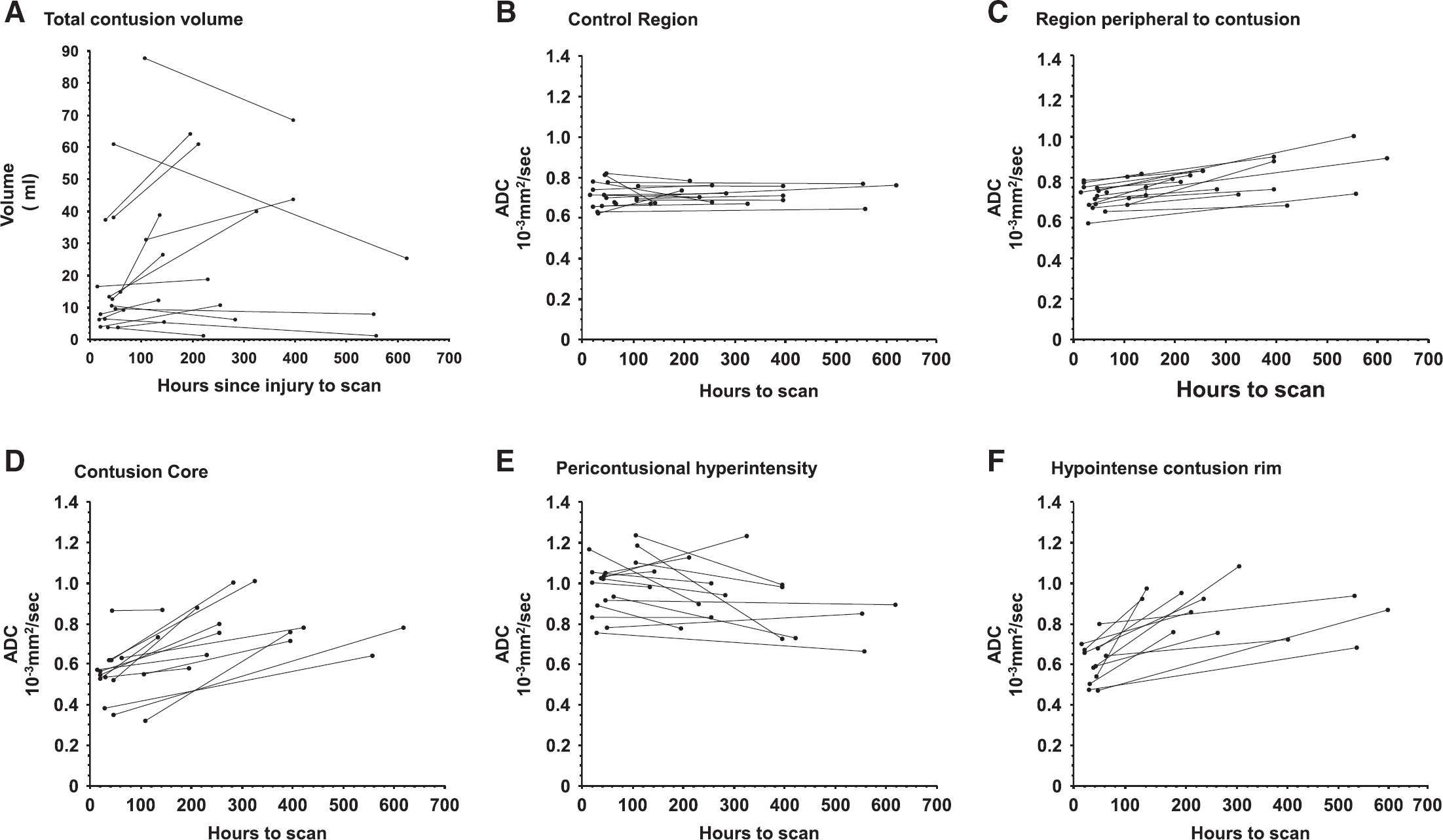

Graph A illustrates the total contusion volume over time for patients scanned twice while receiving intensive care management. Patients with two scans within the first 10 days to 2 weeks tended to show an increase in volume, while patients who had a later second scan showed a decrease in contusion size consistent with the resolution of edema. Graphs B–F show changes in the apparent diffusion coefficient (ADC) for regions of interest drawn on the earliest scan and applied to both that scan and the second scan. The core (graph D) shows a consistent increase in diffusivity, which is likely to reflect changes in the blood degradation products. The increased diffusivity in the hypointense contusion rim (graph F) may reflect the conversion of cytoxic edema to vasogenic edema.

Table 2

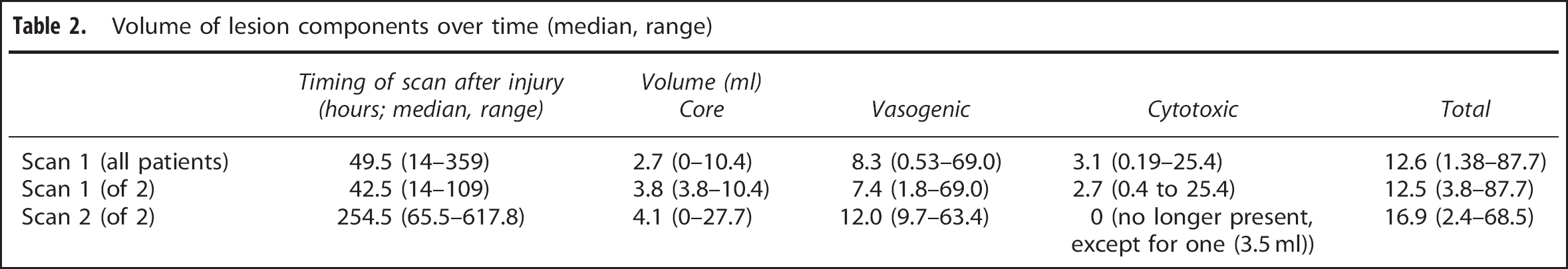

Volume of lesion components over time (median, range)

	Timing of scan after injury (hours; median, range)	Volume (ml) Core	Vasogenic	Cytotoxic	Total
Scan 1 (all patients)	49.5 (14–359)	2.7 (0–10.4)	8.3 (0.53–69.0)	3.1 (0.19–25.4)	12.6 (1.38–87.7)
Scan 1 (of 2)	42.5 (14–109)	3.8 (3.8–10.4)	7.4 (1.8–69.0)	2.7 (0.4 to 25.4)	12.5 (3.8–87.7)
Scan 2 (of 2)	254.5 (65.5–617.8)	4.1 (0–27.7)	12.0 (9.7–63.4)	0 (no longer present, except for one (3.5 ml))	16.9 (2.4–68.5)

The outer hypointense rim volume was not identifiable on scans obtained more than 3 days after TBI, but was still present on the second scan for the one patient who had a repeat scan within that period. Both the original core ROI and original outer hypointense rim showed an increase in ADC at the second scan, which was driven by predominantly by increases in radial diffusivity (Figure 3, Supplementary Figures 1 and 2). The corresponding change for the ROI with increased ADC was more variable.

To determine the pathophysiology underlying the rim of restricted diffusion (Region 3) we examined its imaging characteristics using other MR contrasts (Figure 4). In particular, we sought correlations on the b = 0 image, which possesses intrinsic T2∗ contrast, and would hence allow the detection of susceptibility effects arising from hemorrhage or local hemoglobin deoxygenation. These findings were variable. In some patients where the initial scan was early, the rim of restricted diffusion (Region 3) was hypointense on the b = 0 image. However, this hypointensity was not associated with the presence of identifiable hemorrhage. In a larger number of patients the signal intensity of Region 3 was heterogeneous on b = 0 images (with darker regions, isodense regions, and T2 shine through present in varying proportions). Overall, later scans tended to show that Region 3 exhibited high signal intensity on b = 0 images.

Figure 4

Example of change in a contusion over time in a 49-year-old female with severe traumatic brain injury (TBI) (GCS 5) after a road traffic collision. The T1-weighted image (magnetization-prepared rapid gradient echo, MPRAGE), gradient echo (GE), fluid-attenuated inversion recovery sequence (FLAIR), T2∗ (b0), and apparent diffusion coefficient (ADC) maps for each time point are shown. The top two panels illustrate progression of contusions from approximately 14 hours after injury (top) to 230 hours after injury (second panel), respectively. Overall contusion growth and increase in the volume of the bright ‘vasogenic’ rim on the ADC map can be seen. Magnified views of the T2∗ (b0) and ADC maps are shown in the bottom panel (A and B). At the earlier scan (at 14 hours, A), a vasogenic rim is surrounded by a hypointense rim that can clearly be seen on the ADC map (white arrow). The hypointense area corresponds to an area of low-signal intensity on the T2∗ (b0) map, which does not correspond to the presence of blood degradation products on the gradient echo. Classical cytoxic edema is bright on DWI (T2 shine through) and hypointense in parametric ADC maps. The discordance seen here may be secondary to hemoglobin desaturation in ischemic tissue, which is the consequence of reductions in blood flow before it evolves to infarcted tissue.

Sixteen patients had follow-up imaging 6 months or more after injury. In 14 of these the peripherally placed contusions had all been replaced by CSF, denoting encephalomalacia (Figure 5). In two, who had more deeply placed lesions (in the basal ganglia and deep white matter), there was evidence of hemosiderin deposition but no encephalomalacia.

Figure 5

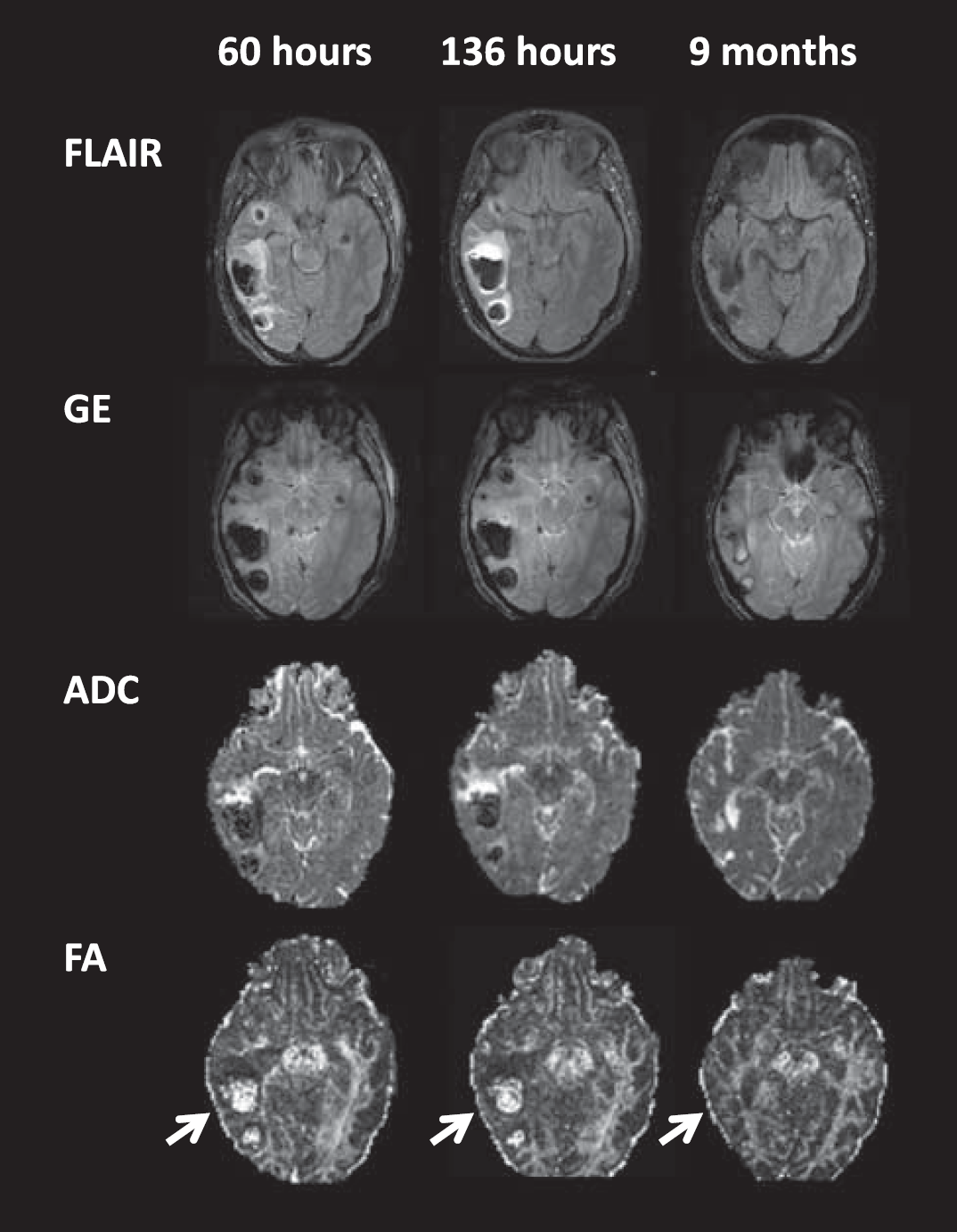

Long-term changes of contusions illustrating their evolution. Vasogenic (and cytoxic edema in the earliest scan) is clearly seen with gliosis in the late scan. The resolution of edema and contusion core allows white matter tracts to be more clearly identified on the FA maps, which appear thinner than the contralateral side (arrows). ADC, apparent diffusion coefficient; FA, fractional anisotropy; FLAIR, fluid-attenuated inversion recovery sequence; GE, gradient echo.

DISCUSSION

The pericontusional region is a well-recognized location of traumatic penumbral tissue. Prevention of contusion growth represents a potential therapeutic target in the prevention of secondary injury in TBI. However, it has been difficult to characterize such target tissue in the past. This study shows that DTI can detect three distinct regions within traumatic contusions in the majority of patients imaged within the first 3 days after injury: a core, an area of raised ADC around the core, and a thin rim of hypointensity. It is likely the areas of increased ADC represent vasogenic edema, while the area of decreased ADC represents cytotoxic edema. The heterogeneity of contusion growth is illustrated by the differing slopes of contusion volume change in Figure 2, and the large coefficients of variation for volume change suggests that individual patients have different drivers of contusion growth. These findings provide important insights into the heterogeneity of pathophysiology and its evolution in and around contusions.

The rim of vasogenic edema that surrounds such contusions is thought to be because of either a transient breakdown in the blood–brain barrier²⁶ and/or the presence of hydrostatic and oncotic pressure gradients between the hematoma and surrounding tissue.²⁷ The resulting increase in extracellular water content leads to an increase in water diffusion, therefore causing a reduction in signal on the raw DWIs and increased signal on ADC maps.

Animal studies have shown that the area surrounding the contusion core is critically ischemic,⁸ and that a decrease in ADC seen after experimental contusion is associated with cytotoxic edema.^28,29 Cytotoxic edema typically results from the intracellular accumulation of extracellular Na⁺ and other cations in neurons and astroctyes secondary to the failure of energy-dependent mechanisms of extrusion.³⁰ This drives an intracellular influx of anions to maintain intracellular neutrality, which in turn drives an influx of water, resulting in an osmotic expansion of the cell (cytotoxic edema).³⁰ The greater proportion of water inside the cell, where diffusion is relatively restricted, leads to increased signal on DWI maps and low intensity on ADC maps. Perfusion imaging in human TBI shows reductions in CBF around contusions. While conventional imaging with both computed tomography and MRI cannot characterize the consequences of such CBF reduction at an early stage, the hypointense rim on ADC images may represent an area of cytotoxic edema, because of critical ischemia, resulting from microvascular changes.^8,24

In all patients, the area of vasogenic edema increased in size, and in patients with the cytotoxic rim this area was subsumed by the vasogenic edema. In a hetrogenous group of 12 patients with focal and/or TAI, Pasco and colleagues²¹ also noted the presence of a rim of perilesional cytotoxic edema in some patients.

One critical issue is whether pericontusional tissue that exhibits low ADC values represents tissue that is irreversibly compromised. In cytotoxic edema secondary to stroke, ADC is reduced in hyperacute stage, reaching a nadir several hours later, pseudonormalizing after ~1 week and finally becoming elevated. Significant hyperintensities on T2-weighted imaging do not appear until ~6 hours after ictus.³¹ ADC in such lesions decreases below control values, despite CBF values that are above the threshold for energy failure.³² While perfusion–diffusion mismatch is classically thought to characterize salvageable tissue in acute stroke, not all of the tissue showing low ADC values (and hence sometimes operationally defined as the infract core) proceeds to infarction on follow-up studies.^33,34 The cytotoxic region seen in pericontusional tissue may therefore represent a potentially salvageable region of tissue, the ‘traumatic penumbra’. This finding is consistent with microdialysis studies, which have identified an area of metabolically compromised tissue surrounding contusions. In these studies, while the tissue has the capacity to regain a normal metabolic pattern, it also appears to have an increased vulnerability to secondary insults.³

In a few of patients, we noted areas surrounding early traumatic contusions with little or no increase in intensity on the raw DWI in regions where there is a concurrent reduction in ADC, and perfusion imaging with PET showed perilesional hypoperfusion (Figures 3 and 5). This discordance requires explanation, as classical cytotoxic edema should be bright on DWI and hypointense on parametric ADC maps. The observed discrepancy may be because of ischemia or to microhemorrhages that are too small to be recognized on structural imaging. However, unlike the core that commonly exhibits a decrease in T2∗ in the acute phase because of the presence of blood degradation products, no blood products could be visualized on gradient echo imaging in the rim of reduced ADC. An alternative explanation for the discordance is provided by hemoglobin desaturation in ischemic tissue, which is the consequence of reductions in blood flow. When such ischemia evolved to complete infarction, oxygen extraction fraction decreases. However, while such evolution is underway, physiological heterogeneity may result in islands of critically ischemic, but viable tissue associated with high oxygen extraction fraction and low T2∗ values, resulting in reduced signal intensity on DWIs (which are intrinsically heavily T2∗ weighted), despite the presence of low ADC values on parametric maps. This contrast mechanism, which we term ‘T2∗ shade back’, may be best thought of as a converse of ‘T2 shine through’ where regions of high T2 are bright on DWIs, without a corresponding reduction in ADC.

The mechanisms that underlie these imaging findings are not fully defined, but comparisons with animal studies suggest that the rim of cytotoxic edema may represent tissue experiencing microvascular failure.² This finding is supported by our limited PET data, which shows reduced CBF, CBV, and CMRO₂ in this tissue compartment, and also in the immediately adjacent tissue. These appearances suggest a continuum of tissue viability, with nonviable necrotic tissue in the contusion core, recently (but irreversibly) injured tissue in the region of vasogenic edema, critically ischemic tissue proceeding to infarction in the cytotoxic rim, and at-risk tissue with reduced blood flow in the region beyond. This conceptualization of pericontusional physiology also provides insights into possible mechanisms of contusion expansion, and suggests that interventions aimed at maintaining microvascular integrity may be useful in this setting. The large unexplained variability in the extent of contusion expansion suggests that (as yet unidentified) treatment or host factors may be important in determining the extent of lesion progression. Potential factors include hypotension (which could worsen ischemic insults) or hypertension (which could increase vasogenic edema), or the inflammatory insult provided by extracranial inflammation. In addition, this variability in incremental phenotype may be at least partly driven by functional polymorphisms in genes that govern inflammation, vascular biology, or hemostasis.

Future studies of larger number of patients with more imaging time points would provide useful corroboration of our findings. While we showed good intra and interobserver correlation for delineating these tissue compartments, analyses using hand-drawn ROIs are time consuming. If changes in contusion characteristics are to be used as biomarkers for clinical trials, automated lesion detection and segmentation may be of benefit. The frequent occurrence of multiple heterogeneous lesions, often mixed with TAI, mean that the development of such automated analysis techniques is challenging.

A more complete understanding of contusions, particularly the potentially reversible ‘traumatic penumbra’ around such lesions may allow MR (including DTI) to be used as in vivo biomarkers of tissue outcome, and help provide proof of principle of the potential efficacy of specific interventions, as well as an improved understanding of therapeutic windows. Such data may help refine selection of agents for subsequent outcome trials. These techniques may also aid the assessment of the adequacy of treatment in individual patients, and may therefore potentially guide individualized and targeted therapy after TBI.

DISCLOSURE/CONFLICT OF INTEREST

The authors declare no conflict of interest.

Supplementary Information accompanies the paper on the Journal of Cerebral Blood Flow & Metabolism website (http://www.nature.com/jcbfm)
