Measuring α4β2 ∗ Nicotinic Acetylcholine Receptor Density in Vivo with [ 18 F]nifene PET in the Nonhuman Primate

Abstract

[¹⁸F]Nifene is an agonist PET radioligand developed to image α4β2^∗ nicotinic acetylcholine receptors (nAChRs). This work aims to quantify the receptor density (B_max) of α4β2^∗ nAChRs and the in vivo (apparent) dissociation constant (K_Dapp) of [¹⁸F]nifene. Multiple-injection [¹⁸F]nifene experiments with varying cold nifene masses were conducted on four rhesus monkeys with a microPET P4 scanner. Compartment modeling techniques were used to estimate regional B_max values and a global value of K_Dapp. The fast kinetic properties of [¹⁸F]nifene also permitted alternative estimates of B_max and K_Dapp at transient equilibrium with the same experimental data using Scatchard-like methodologies. Averaged across subjects, the compartment modeling analysis yielded B_max values of 4.8 ± 1.4, 4.3 ±1.0, 1.2 ± 0.4, and 1.2 ± 0.3 pmol/mL in the regions of antereoventral thalamus, lateral geniculate, frontal cortex, and subiculum, respectively. The K_Dapp of nifene was 2.4 ± 0.3 pmol/mL. The Scatchard analysis based on graphical evaluation of the data after transient equilibrium yielded B_max estimations comparable to the modeling results with a positive bias of 28%. These findings show the utility of [¹⁸F]nifene for measuring α4β2^∗ nAChR B_max in vivo in the rhesus monkey with a single PET experiment.

Keywords

multiple injection nicotinic acetylcholine receptor PET

INTRODUCTION

Nicotinic acetylcholine receptors (nAChRs) are pentameric ligandgated ion channels distributed throughout the central nervous system. The α4β2 subtype is the most abundant subtype of this receptor system. Abnormal α4β2 nAChR pathologies have been associated with a variety of neuropsychiatric processes and diseases, including neurodevelopmental deficiencies and substance abuse. Reductions in α4β2 nAChR binding have been found in patients with autism,¹ Parkinson's disease,² Alzheimer's disease,³ and depressive disorder,⁴ whereas increased α4β2 nAChR binding was observed in abstaining smokers.⁵

Quantitative binding metrics such as the binding potential based on nondisplaceable uptake (BP_ND) depend on both receptor density (B_max) and in vivo (apparent) ligand-receptor affinity (1/K_Dapp).⁶ In the case of Alzheimer's disease, Sihver and co-workers⁷ used in vitro procedures to find that reductions in α4β2^∗ nAChR binding resulted from decreases in B_max. Conversely, lower in vivo radiotracer uptake levels found in patients with major depressive disorder analyzed in conjunction with in vitro data determined the in vivo binding reductions to result from greater concentrations of extracellular acetylcholine, which would increase K_Dapp.⁴ The ability to perform purely in vivo measurements of B_max and K_Dapp would provide a vastly improved understanding of longitudinal changes to α4β2^∗ nAChRs and synaptic acetylcholine levels related to neuropathologies.

Regional measurements throughout the brain of α4β2^∗ nAChR B_max have been made with different radioligands in a variety of species. The notation α4β2^∗ denotes small amounts of binding to other nAChR subtypes that include the α4 or β2 subunits. Reported B_max values observed with in vitro techniques include experiments with 5-[¹²⁵I]IA-85380 in humans⁸ and [³H]epibatidine in rats.⁹ A variety of tritiated ligands were also used for this measurement in the cortex of postmortem human tissue.¹⁰ Each of these studies found the largest receptor density to be present in the thalamus, particularly the lateral geniculate nucleus and antereoprincipal thalamic nucleus. Experiments were also performed using 2-[¹⁸F]FA-85380 (2-[¹⁸F]FA) to measure B_max in vivo with the PET multiple-injection (MI) approach in baboons.¹¹

In vivo B_max measurements with 2-[¹⁸F]FA are hindered by slow kinetics, resulting in scanning protocols lasting 270 minutes.¹¹ [¹⁸F]Nifene is an analog radioligand of 2-[¹⁸F]FA with faster kinetic properties, as [¹⁸F]nifene attains transient equilibrium in the thalamus within 30 minutes while maintaining elevated binding consistent with α4β2^∗ nAChR distribution in the rhesus monkey brain.^12,13 Further experiments showed rapid displacement of [¹⁸F]nifene by nicotine.¹⁴ The fast displacement of [¹⁸F]nifene by competing ligands indicates possible sensitivity to acetylcholinesterase inhibitors, a desirable yet elusive trait of PET α4β2^∗ nAChR radioligands. These kinetic properties of [¹⁸F]nifene make it a promising candidate to interrogate the α4β2^∗ nAChR system in vivo with simplified experimental protocols. The aims of this work were, first, to exploit the fast kinetic properties of [¹⁸F]nifene and develop an optimized MI experimental design to measure α4β2^∗ nAChR B_max in vivo in the rhesus monkey model with PET. The experiments were analyzed with compartment modeling to provide B_max and K_Dapp measurements. As the optimal MI experimental design provided transient equilibrium of three [¹⁸F]nifene injections at varying specific activities, B_max was also evaluated with a Scatchard-based analysis method. An additional aim was to evaluate the different analysis methods to provide a comparison of the methods for accurate B_max evaluation while considering experimental complexity. Ultimately, quantification of α4β2^∗ nAChR B_max and the K_Dapp of [¹⁸F]nifene would allow for the development of sensitive experiments to detect small changes to the α4β2^∗ nAChR system for applications involving disease models or pharmacological intervention.

MATERIALS AND METHODS

Radiochemistry

The production of [¹⁸F]nifene was performed following previously published methods.¹³ Briefly, nucleophilic substitution of the nitro pre-cursor with [¹⁸F]fluoride was performed, followed by purification of the N-boc-[¹⁸F]nifene intermediate with high-performance liquid chromatography. The intermediate was then deprotected with hydrochloric acid. The final product was pH balanced to 7.0 with sodium bicarbonate and diluted to a 10 mL volume for final formulation. Overall batch yields ranged from 0.9 to 2.4 GBq, whereas specific activities at the time of first injection were 150 to 550 GBq/μmol. Both the nitro precursor and standard compound were purchased from ABX (Radeberg, Germany). Stock solution of nifene standard with a concentration of 0.1 nmol/μL was prepared for MI studies.

Experimental Design

The D-optimal criterion, described in detail by Salinas and co-workers,¹⁵ was used to maximize the identification and precision of the kinetic parameters B_max, k_on, and k_off to select the optimal MI experimental design. Optimization of MI experiments focused on the thalamic regions of the brain. As the true parameter values were not known a priori, initial parameter estimates ranged from 0.01 to 0.5 mL/pmol per min for k_on and 0.05 to 0.5 1/min for k_off, with K_Dapp constrained to vary between 1.0 and 4.0 pmol/mL. B_max ranged from 1.0 to 6.0 pmol/mL, consistent with literature values for thalamic α4β2^∗ nAChR densities.^8,9,11 Candidate protocols included both two- and three-injection schemes and varied both the specific activity and the injection times. Arterial input functions from our previous work¹³ were used for the optimizations, which were performed with COMKAT software.¹⁶

PET Experiment Data Acquisition

PET data were acquired on a Concorde microPET P4 scanner, which has a 7.8-cm axial field of view, 19-cm transaxial field of view, and a reported in-plane spatial resolution of 1.75 mm.¹⁷ The actual spatial resolution was 2.80 mm in reconstructed images using the experimental conditions and processing methods reported herein. Scans were performed on a total of four Macaca mulatta (rhesus monkey) subjects (3 female, 1 male; 6.1 to 11. 9 kg; 4.6 to 12.9 years; subject names: RH1: BD66; RH2: BD22; RH3: BD67; RH4: AY96). Three subjects received experiments consisting of three [¹⁸F]nifene injections (RH1, RH2, and RH3), whereas another experiment was included with two [¹⁸F]nifene injections (RH4). Subjects were anesthetized before PET procedures with 10 mg/kg ketamine (intramuscularly), and maintained on 1% to 1.5% isoflurane throughout the experiment. Atropine sulfate was given to minimize secretions. Once anesthetized, the subject was placed in a stereotaxic headholder, and a 518 second transmission scan was acquired with a ⁵⁷Co point source. Emission data acquisition was initiated simultaneously with a fast bolus injection of tracer dose [¹⁸F]nifene and continued for 105 to 120 minutes. Heart rate, breathing rate, body temperature, and SpO₂ (blood oxygen saturation) levels were monitored throughout the procedure. On experiment completion, the subject was returned to its cage and monitored until fully alert. All housing and experimental guidelines were approved by the institutional animal care and use committee (IACUC). These procedures are in accordance with the stringent regulations encompassing the ethical care and use of laboratory animals, as published in the USDA ‘Federal Register’ standards, and the ‘Guide for the Care and Use of Laboratory Animals’ set forth by the NIH (Bethesda, MD, USA).

Measurement of [¹⁸F]Nifene in the Blood

Parent [¹⁸F]nifene in the blood was measured to provide a parent input function for kinetic modeling. Arterial blood samples were withdrawn throughout all PET scans, starting with rapid sampling immediately after a bolus injection of [¹⁸F]nifene and slowing to 10 minute sampling at late time points. Radioactivity measurements of the whole blood, plasma, and denatured plasma were made with a 2-inch NaI(Tl) well counter cross-calibrated with the PET scanner following our lab's previous published methods.¹³ The hematocrit was also measured to correct for the heparinized saline present in the final extract volume. Select samples were used for thin layer chromatography analysis to generate a unique metabolite correction for each subject as described previously.¹³

The implementation of the MI compartment model in COMKAT requires the definition of a distinct input function for each injection. To separate the radioactivity from each radioligand injection present in the plasma, the radioactivity concentration curves (before metabolite correction) from 20 minutes after injection until the following injection were fit to decaying exponential functions. Fitting procedures were constrained such that the late decay constant was uniform across all injections for each subject. The resulting fit functions were extrapolated to the end of the study and subtracted from all subsequent injections to generate separate input functions for each injection. The same metabolite correction was then applied to each injection curve to obtain parent [¹⁸F]nifene input data expressed as radioactivity (Bq/cm³). The metabolite-corrected radioactivity curve was divided by the specific activity expressed as a function of time to yield an input function (C_P) in units of nifene molar concentration (pmol/cm³), independent of radioactive decay. Finally, the observed plasma data were fit to the following analytic function:¹⁸

C_{p} (t) = (c_{0} (t - τ) - c_{1}) e^{-}^{y_{1} (t - τ)} + c_{2} e^{-}^{y_{2} (t - τ)} + c_{3} e^{-}^{y_{3} (t - τ)} + c_{4} e^{-}^{y_{4} (t - τ)}

(1)

where γ_i represents the different elimination rates of radioligand from the arterial plasma.

PET Image Processing

Dynamic PET data were histogrammed from list mode into time frames of 8 × 30 seconds, 6 × 1 minutes, followed by 2 minute frames until 2 minutes before a subsequent injection, with 30 second frames for the remainder of the injection. This binning scheme was repeated for all injections in the study. Sinograms were reconstructed with filtered back projection using a 0.5 1/cm ramp filter, and included corrections for arc, scatter, attenuation, and scanner normalization. The reconstructed images were subjected to a denoising algorithm¹⁹ using a 3 × 3 × 3 voxel filtering kernel. The processed images had a final matrix size of 128 × 128 × 63 with voxel dimensions of 1.90 × 1.90 × 1.21 mm³.

Regions of interest were hand drawn with multiple circles on various brain regions. The cerebellum (CB) was defined on early summed images, taking care to focus on grey matter and exclude the vermis region, with a resulting volume of 663 mm³. Regions of elevated binding were drawn on late summed images based on areas of high radiotracer uptake. The thalamus was subdivided into the general regions of the antereoventral thalamus (AVT) and lateral geniculate body (LG), with respective volumes of 231 and 161 mm³. The frontal cortex (FC) and subiculum (SB), a substructure of the hippocampus, were identified as regions of moderate uptake, and contained volumes of 763 and 314 mm³. These regions are shown in Figure 1. Time–ctivity curves were extracted from these five regions for analysis.

Figure 1.

Regions of interest identified on PET images summed from 20 to 45 minutes. These regions include the antereoventral thalamus (AVT), lateral geniculate (LG), frontal cortex (FC), subiculum (SB), and cerebellar gray matter (CB). The middle sagittal image showing the FC is taken midbrain, and the planes of the transaxial images are indicated with black lines.

Parameter Estimation: Compartment Modeling

The model constructed for experimental design and analysis was based on the two-tissue compartment model. The first compartment in the tissue is the free compartment (F(t)), which includes both free and nonspecifically bound ligand. The second tissue compartment is the specifically bound compartment (B(t)). The amount of ligand in B(t) has a maximum concentration, B_max (pmol/mL), the receptor density.²⁰ The radioligand concentration in the plasma (C_P(t)) is experimentally measured. Ligand transfer between these compartments and the plasma is described by the differential equations

\frac{d F_{i} (t)}{d t} = K_{1} C_{Pi} (t) - k_{2} F_{i} (t) - k_{o n} F_{i} (t) [B_{max} - \sum_{i} B_{i} (t)] + k_{off} B_{i} (t)

(2)

\frac{d F_{i} (t)}{d t} = k_{o n} F_{i} (t) [B_{max} - \sum_{i} B_{i} (t)] + k_{off} B_{i} (t)

(3)

The rate constants K₁ (mL/mL per min) and k₂ (1/min) parameterize the transport of ligand from the plasma to the tissue and tissue clearance, respectively. The parameters k_on (mL/pmol per min) and k_off (1/min) represent ligand binding to the receptor site and dissociation in the in vivo setting. The implementation of MI studies requires unique B(t) and F(t) compartments for each injection. Therefore, a unique set of the above equations is required to describe the ith injection.²¹

The modeled PET signal for frame j, C_{PET J}, includes radioactivity from both the B(t) and F(t) compartments at time t summed over all injections, and is expressed as follows:

C_{P E T}_{j} = \frac{1}{t_{j} - t_{j} - 1} \int_{t_{j - 1}}^{t_{j}} d t \sum_{i} s a_{i} (t) (1 - f_{v}) (F_{i} (t) + B_{i} (t)) + f_{v} A_{i} (t)

(4)

The constant f_V represents the fractional blood volume accounting for the signal from the whole blood measured in the vasculature (A_i(t)), and was set to f_V = 0.04. Model implementation requires ligand concentrations in units of molar concentrations (pmol/mL); therefore, the specific activity term sa_i(t) converts the model concentrations in F_i(t) and B_i(t) to nondecay-corrected radioactivity units of Bq/cm³.

Parameters were estimated by minimizing the residual sum of squares between the modeled PET signal and the observed PET signal (PET). The Levenberg-Marquardt optimization algorithm was used to perform this minimization with the following objective function:

o (p) = \sum_{r = 1}^{R} \sum_{j = 1}^{J} W_{r . j} {(P E T_{r, j} - C_{P E T r, j})}^{2}

(5)

The objective function was optimized over J PET frames for given parameters p, where $p \subseteq P = {k_{on}, k_{off}, V_{ND}, {(K_{1})}_{R}, {(B_{max})}_{R - 1}}$ over R = 5 regions.

The parameters included in p depended on the step in the fitting procedure (see below). The weighting factor of each PET frame was determined from the time duration by $w_{r, j} = (t_{j} - t_{j - 1})$ and included no contribution from the measured PET data.²² Model implementation and parameter estimation were performed with COMKAT software.¹⁶ A more in-depth description of the implementation of equations (2)-(5) has been detailed elsewhere.²¹

The following assumptions were made to improve parameter identifiability across brain regions:

The nondisplaceable distribution volume (V_ND = K₁/k₂) was assumed uniform and unchanging throughout all brain regions. K₁ was allowed to vary across regions to account for regional differences in blood flow, but did not vary over time throughout the experiment.

The CB was assumed to contain negligible specific binding, consistent with previous findings examining [¹⁸F]nifene in the rhesus monkey.¹⁴ Therefore, CB data were modeled without specific binding compartments (B(t)).

The ligand binding and dissociation parameters, k_on and k_off, were assumed uniform across all regions of specific binding.

These assumptions were implemented in the following three steps:

Step 1: The CB, a region of negligible [¹⁸F]nifene binding, was analyzed using a model which omitted B(t) to determine V_ND for subsequent analysis of specific binding regions. The objective function in this step was optimized for p = {K₁, V_ND}

Step 2: The high uptake regions of the AVT and LG were analyzed using the fixed V_ND value found in Step 1 to obtain estimates of the global parameters k_on and k_off, as well as the regional parameters K₁ and B_max. The objective function was therefore optimized for p = {k_on, k_off, (K₁)_r, (B_max)_r}, where r = 2.

Step 3: The k_on, k_off, and V_ND values found in previous steps were fixed to determine K₁ and B_max in the FC and SB regions. The objective function was optimized for p = {(K₁)_r,(B_max)_r}, where r = 2.

Uncertainties in parameter estimates were examined with Monte Carlo methods as reported previously.^15,23 The optimized parameters for each study were used to simulate noise-free data. Simulated noise was then introduced according to the equation

C_{noise} = C_{f i t} + (N_{(0, 1)} c_{1} \sqrt{C_{f i t}} + N_{(0, 1)} c_{2})

(6)

where C_noise is the simulated time–activity curve with added noise, C_fit is the noise-free simulated time–activity curve, N_(0,1) is a random number generated from a normal distribution with m = 0 and s = 1, and c₁ and c₂ are scaling factors to obtain noise levels similar to the experimentally observed time–activity curves (10<c₁<40, 100<c₂<500). A total of 100 noisy simulated data sets for each subject were constructed and the parameters were estimated. The coefficient of variation (cov = s.d./mean x 100%) was measured for each parameter for each subject and recorded.

Parameter Estimation: Scatchard Analysis

Analysis of the PET data included an alternative methodology to measure B_max and K_Dapp in vivo with PET using a Scatchard-type analysis, which requires equilibrium at the receptor site.²⁴ As [¹⁸F]nifene rapidly establishes transient equilibrium, B_max and K_Dapp measurements were performed with this method to compare with compartment modeling techniques. Based on previous linearized Scatchard methodologies,²⁵ the present work evaluated (B/F) at transient equilibrium to regionally estimate B_max and K_Dapp with the following linearized form of the Scatchard plot:

\frac{B}{F} = \frac{B_{max}}{K_{Dapp}} - \frac{1}{K_{Dapp}} (\frac{B}{F}) F

(7)

To determine when transient equilibrium occurred, the parameters resulting from compartment modeling analysis were used to model B(t) and F(t) throughout the experiment. The PET frames when dB(t)/dt = 0, indicating transient equilibrium, were used for Scatchard analysis. PET time–activity curves were ‘denoised’ by fitting data from 15 minutes after injection to the end of each injection to a decaying exponential function. The total PET signal from the CB was then separated into contributions from each individual [¹⁸F]nifene injection by extrapolating the resulting CB fits to the end of the scan and subtracting the extrapolated fits from all subsequent injections. The residual-free CB value for each injection was determined at transient equilibrium and recorded as CB_i for the ith injection. The free radioligand concentration F_i was calculated as

F_{i} = \sum_{j}^{i} \frac{C B_{j}}{S A_{j}}

where SA_i is the decay-corrected specific activity of the ith injection. The specific binding fit at transient equilbrium was recorded as S_i. The ratio B/F_iwas evaluated as

{(\frac{B}{F})}_{i} = \frac{S_{i}}{\sum_{j}^{i} C B_{j}} - 1.

The x-value,

{(\frac{B}{F} F)}_{i} = (\frac{S_{i}}{\sum_{j}^{i} C B_{j}} - 1) \times \sum_{j}^{i} \frac{C B_{j}}{S A_{j}},

was plotted against the y-value,

{(\frac{B}{F})}_{i} = \frac{S_{i}}{\sum_{j}^{i} C B_{j}} - 1.

Linear least-squares fitting was performed on the linearized Scatchard data to determine the slope m and y-intercept y₀ of the plot. B_max and K_Dapp were estimated as B_max = y₀K_Dapp and K_Dapp = -1/m, respectively. The uncertainties of these parameters were determined exclusively based on the regression analysis. This Scatchard analysis was only performed in experiments with three injections of [¹⁸F]nifene data (RH1-RH3).

RESULTS

Optimization of Experimental Design

Optimization of MI experimental design revealed that identification of specific binding parameters was most sensitive to the nifene dose in the second injection. A dosage of 0.8 to 2.0 nmol/kg nifene (approximately 70% to 75% receptor occupancy) administered in the second injection optimally determined B_max, k_on, and k_off (see Figure 2A). The duration of data acquisition beyond 30 minutes for any injection did not improve parameter identification. Uncoupling of B_max and k_on with the optimal experiment design is shown by the sensitivity functions illustrated in Figure 2B. The resulting experimental protocols used for the four experiments presented herein are detailed in Table 1.

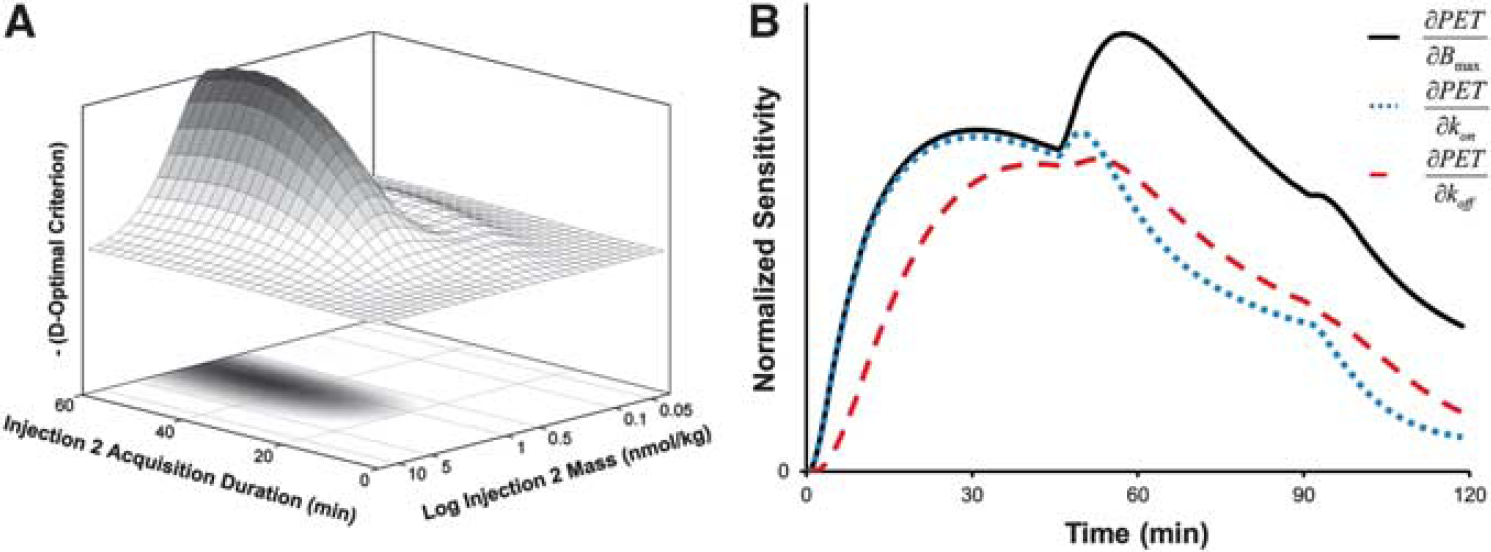

Figure 2.

Development of multiple-injection (MI) experimental design. (A) Illustrates the dependence of the D-optimal criterion on the administered nifene mass and time duration for the second injection. (B) The normalized sensitivity curves for k_off (dashed), k_on (dotted), and B_max (solid) for the optimal design used with experiments RH2 and RH3 in the thalamus.

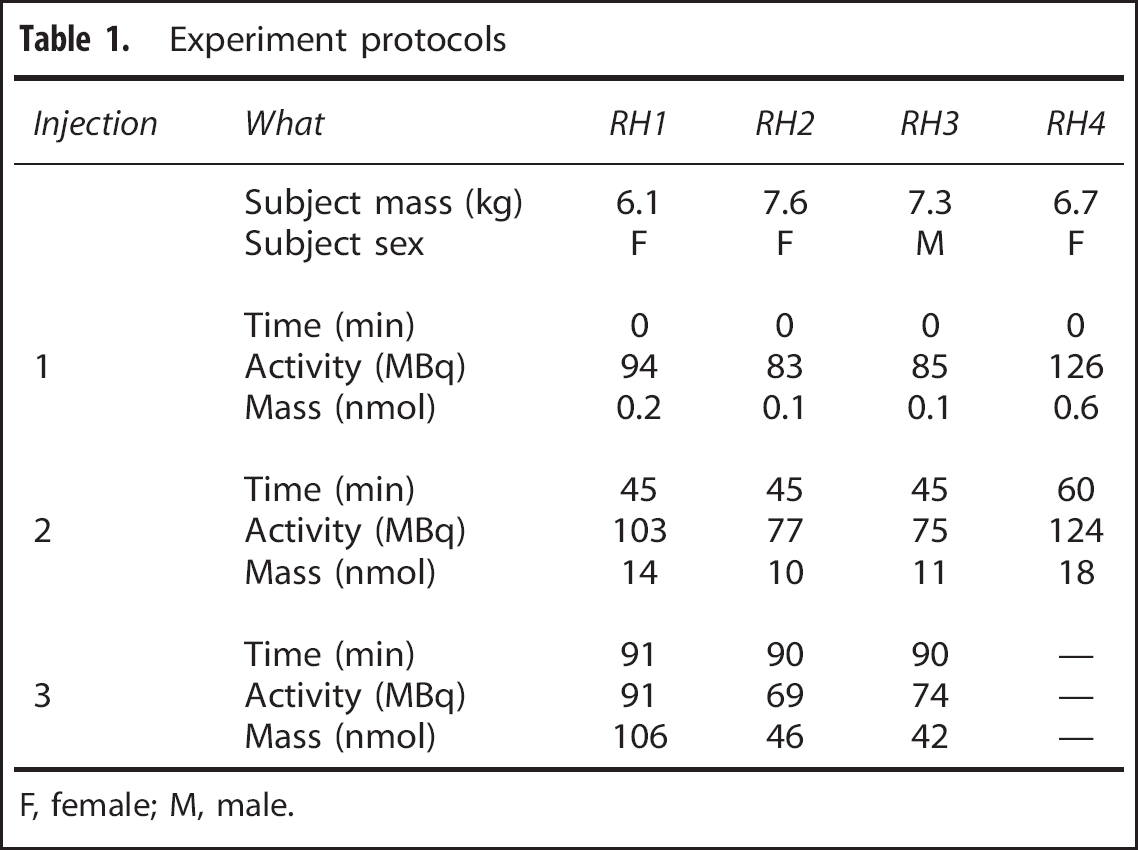

Table 1.

Experiment protocols

Injection	What	RH1	RH2	RH3	RH4
	Subject mass (kg)	6.1	7.6	7.3	6.7
	Subject sex	F	F	M	F

	Time (min)	0	0	0	0
1	Activity (MBq)	94	83	85	126
	Mass (nmol)	0.2	0.1	0.1	0.6

	Time (min)	45	45	45	60
2	Activity (MBq)	103	77	75	124
	Mass (nmol)	14	10	11	18

	Time (min)	91	90	90	—
3	Activity (MBq)	91	69	74	—
	Mass (nmol)	106	46	42	—

F, female; M, male.

Compartment Modeling Measurements of B_max and [¹⁸F]Nifene Kinetic Parameters

All input functions were analytically defined by fitting the blood data to equation (1). When radioligand was given as a slow bolus (30 to 60 seconds) for injections with a greater cold nifene mass, the third exponential term overparameterized the data (c₄ = 0). A sample fit is displayed in Figure 3 (top). No deviations to the subject's physiologic parameters were observed following the administration of high nifene masses.

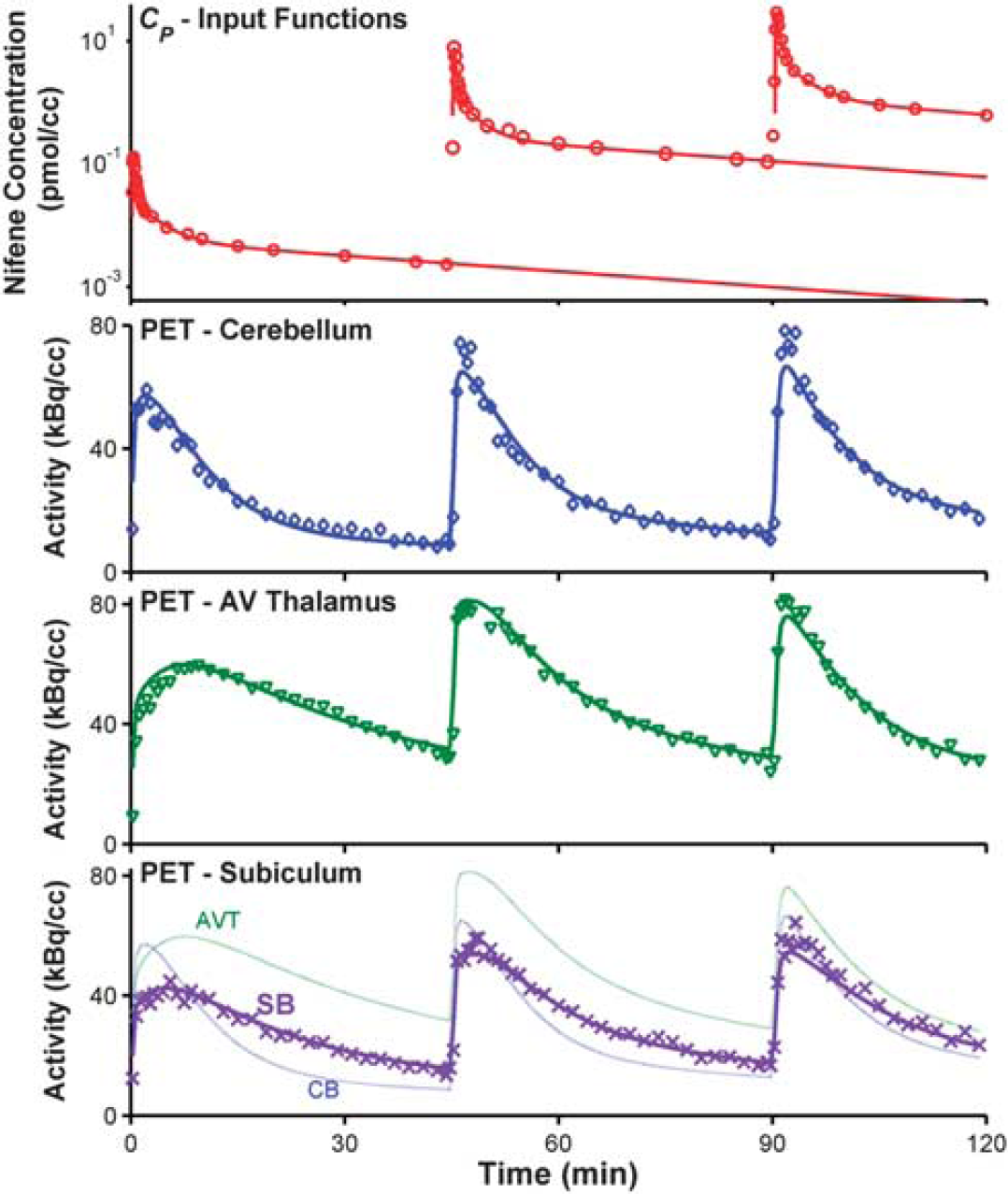

Figure 3.

Compartment modeling of [¹⁸F]nifene data. The top plot shows the parent input function C_P with measured blood data (○) and the resulting fit to an analytic function (solid lines) for a sample subject (RH2). The corresponding PET time–activity curves and model fits are shown in the bottom three plots. The observed data are indicated with discrete symbols, whereas the optimized model fit is shown with solid lines. The three regions shown include the negligible binding region of the cerebellum (CB, ◊), the high binding region of the antereoventral thalamus (AVT, ▾), and the moderate binding subiculum region (SB, x). The model fits for all three regions are shown on the bottom plot to provide direct comparison of the PET signal for different levels of specific binding.

Parameter estimates obtained with compartment modeling are listed in Table 2. High identifiability of B_max was found in the high binding thalamic regions, where average B_max values of 4.8 ± 1.4 and 4.3 ± 1.0 pmol/mL were measured in the AVT and LG, respectively. The parameters kon and koff could not be sufficiently uncoupled, as the correlation coefficient $(ρ_{k o n}, k_{o f f})$ between the two parameters was >0.93 for all experiments. Therefore, measurements of the composite parameter K_Dapp = k_off/k_on are presented. The average value of K_Dapp was 2.4 ± 0.3 pmol/mL. In the moderate receptor density regions of the FC and SB, average B_max values of 1.2 ± 0.4 and 1.2 ± 0.3 pmol/mL were observed. The uncertainty of each parameter estimate was estimated with Monte Carlo methods. These simulations found the highest variability in the B_max parameters (cov = 12% to 15% for all regions) and K_Dapp (cov = 18%). Sample fits of the measured PET time course for three regions (CB, AVT, and SB) are included in Figure 3.

Table 2.

Parameter estimation, compartment modeling (full experiment)

Region	Parameter (units)	RH1	RH2	RH3	RH4	M.C. cov^a (%)	Pop. mean
CB	K₁ (mL/mL per min)	0.83	1.03	0.84	1.14	3	0.96±0.15
	k₂ (1/min)	0.18	0.22	0.17	0.27	3	0.21 ±0.05
	V_ND (unitless)	4.65	4.78	4.91	4.14	2	4.62±0.34

AVT and LG	K_Dapp (pmol/mL)	2.14	2.81	2.36	2.23	18	2.39±0.30

AVT	K₁ (mL/mL per min)	0.80	0.89	0.69	1.13	4	0.88±0.19
	B_max (pmol/mL)	5.97	5.88	4.31	3.12	13	4.82 ± 1.37

LG	K₁ (mL/mL per min)	0.62	0.80	0.61	0.83	5	0.72±0.12
	B_max (pmol/mL)	4.21	5.34	4.56	2.98	15	4.27 ± 0.98

FC	K₁ (ml/mL per min)	0.62	0.88	0.74	0.93	4	0.79 ±0.14
	B_max (pmol/mL)	1.33	1.28	1.62	0.68	14	1.23 ± 0.39

SB	K₁ (mL/mL per min)	0.54	0.74	0.54	0.28	4	0.53 ±0.19
	B_max (pmol/mL)	1.50	1.21	1.23	0.72	12	1.17 ±0.32

AVT, antereoventral thalamus; CB, cerebellum; FC, frontal cortex; LG, lateral geniculate body; SB, subiculum.

^aThe average coefficient of variation (cov = s.d./mean x 100%) for parameter estimates determined using Monte Carlo methods.

The sensitivity curves in Figure 2B showed little parameter uncoupling during the third injection. Therefore, compartment modeling parameter and uncertainty analysis was performed on the first two injections of data from experiments with three injections. A comparison of the resulting values from the two injection and three injection analyses yielded estimations of B_max and K_Dapp within 1σ of the values determined with the full scan of data. No significant bias was apparent in the thalamic specific binding parameters (Figure 5B).

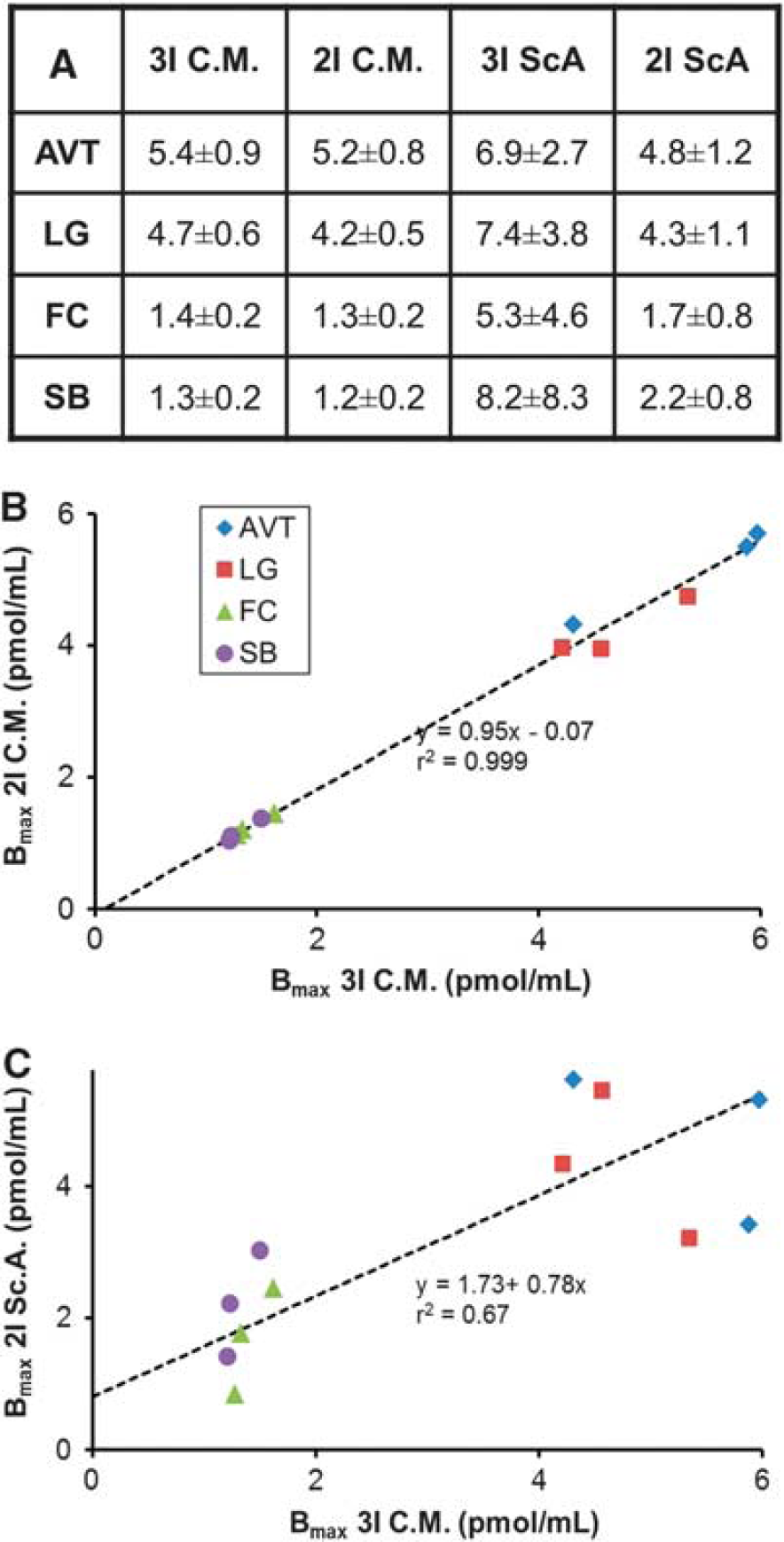

Figure 5.

Comparison of B_max values, in pmol/mL, estimated with four different analysis methods: compartment modeling of three injections (3I C.M.), compartment modeling of two injections (2I C.M.), three-point Scatchard Plots (3I Sc.A.), and two-point Scatchard plots (2I Sc.A.). Regions examined include the antereoventral thalamus (AVT, ♦), lateral geniculate (LG, ▀), frontal cortex (FC, ▴), and subiculum (SB, •). (A) Summarizes the average regional B_max values for the different analysis methods. Uncertainty values are based on the standard deviation of the three subjects analyzed (RH1, RH2, and RH3). (B) Compares 3I C.M. with 2I C.M. (C) Compares 3I C.M. with 2I Sc.A.

Scatchard Measurements of B_max and K_Dapp

Modeling of the kinetic parameters resulting from the MI analysis determined that transient equilibrium was established within 35 minutes after injection for all injections. Measurements of B_max and K_Dapp with Scatchard plots are shown in Figure 4. Using uncertainties from the linear fit, cov values of 17% to 30% and 14% to 28% were found for B_max and K_Dapp, respectively, in thalamic regions. Estimates of B_max and K_Dapp with this graphical analysis are compared with the MI technique, as shown in Figure 5A. As the three-point Scatchard plots tended to exhibit nonlinearity, two-point Scatchard plots were generated for experiments RH1-RH3 in each of the specific binding regions. A slight positive bias in the B_max estimations was apparent with the two-point Scatchard plots relative to the values found with the compartment modeling (Figure 5C).

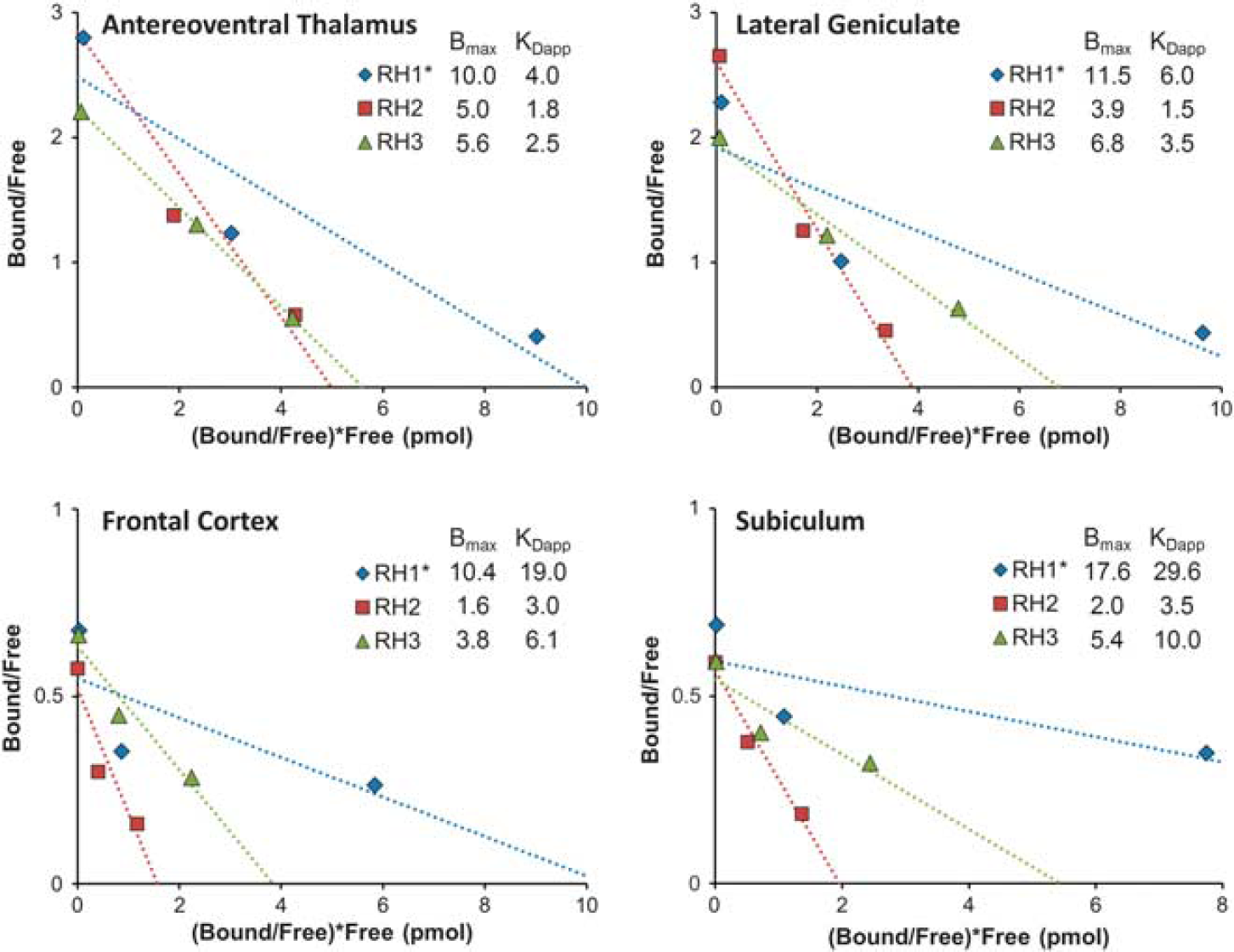

Figure 4.

Measurements of B_max and K_Dapp with a Scatchard-type analysis in four different regions (labeled top left). ^∗Denotes the poor fit in experiment RH1 because of receptor saturation by the high nifene dosage given in the third injection.

DISCUSSION

This work developed experiments that used [¹⁸F]nifene to measure directly in vivo α4β2^∗ nAChR receptor density. Compartment modeling of these experiments yielded B_max values of 4.8 ± 1.4 pmol/mL in the AVT and 4.3 ± 1.0 pmol/mL in the LG of the rhesus monkey. Extrathalamic B_max measurements made assuming the thalamic K_Dapp value in cortical regions yielded estimates of 1.2 ± 0.4 pmol/mL in the FC and 1.2 ± 0.3 pmol/mL in the SB. A previous in vivo measurement of α4β2^∗ nAChR B_max was made by Gallezot and co-workers,¹¹ who found values of 3.0 ± 0.4 pmol/mL in the thalamus and 0.6 ±0.1 pmol/mL in the FC using 2-[¹⁸F]FA with MI techniques in baboons. The reported regional in vitro assays included values of 1.5 ± 0.6 pmol/g of tissue in the thalamus and 0.45 ± 0.03 pmol/g of tissue in the cingulate cortex with 5-[¹²⁵I]IA-85380 in humans,⁸ and 0.9 pmol/g of tissue measured with [³H]epibatidine in human cerebral cortex.⁹ Although these experiments were performed in a variety of species with different methodologies, the similarities within order of magnitude indicate agreement with the B_max values presented herein.

A first precise measure of [¹⁸F]nifene K_Dapp, 2.4 ± 0.3 pmol/mL, is reported. This value compares well with our previous work, which preliminarily estimated a K_Dapp of 3 ± 1 pmol/mL for [¹⁸F]nifene in the rhesus monkey with a Scatchard-like analysis assuming the same K_Dapp across all subjects.¹³ The different affinities for nAChR α4- and β2-inclusive subtypes likely influenced the observed K_Dapp value. As nifene lacks the sensitivity to differentiate between these subtype affinities, the observed value is likely most representative of [¹⁸F]nifene's K_Dapp for the α4β2 subtype because of its high thalamic density relative to other nAChR subtypes. The only other α4β2^∗ nAChR radioligand with an in vivo K_Dapp measurement is 2-[¹⁸F]FA, which was found to have a K_DV_R value of 1.3 ± 0.4 pmol/mL.¹¹ Given the larger BP_ND of 2-[¹⁸F]FA compared with that of [¹⁸F]nifene, a larger K_Dapp value would be expected for [¹⁸F]nifene assuming both tracers bind to the same receptor sites (i.e., have the same B_max).

Analysis with Compartment Modeling

Successful identification of kinetic parameters with MI experiments requires precise experimental design. The D-optimal criterion, which focused on uncoupling B_max, k_on, and k_off in the thalamus, determined the optimal cold ligand dose and injection times. The resulting protocol uncoupled B_max from k_on and k_off with the administration of a nifene dose eliciting a peak transient occupancy of 70% to 75% in the second injection. The optimization results further suggested that a roughly 6 nmol/kg nifene dose (>90% occupancy) given in the third injection would separately identify k_on and k_off. In practice, however, these parameters were not uncoupled during analysis of the experimental data (as shown in Figure 2B), as initial simulations underestimated k_on and k_off.

To provide insight into k_on and k_off values, a family of simulated thalamic PET curves was generated using the measured parameter values from Table 2 while incrementing k_on and k_off with K_Dapp fixed to compare with the observed PET data. This brief analysis revealed that k_off values slower than 0.1 1/min significantly reduced the quality of fit, making this a lower bound for k_off for this experimental design. In this work, the experiment with the lowest correlation coefficient between kon and koff (RH3, $ρ_{k o n}, k_{o f f}$ = 0.93) resulted in k_off = 0.32 ± 0.07 1/min and k_on = 0.14 ± 0.03 mL/pmol per min, yielding speculative values likely biased by parameter coupling in the fit. For comparison 2-[¹⁸F]FA was found to have a k_off value of 0.33 ± 0.071/min.¹¹ The fast k_on and k_off values partially explain the inability to separate the two parameters. The close similarity in k₂ (~0.2 1/min) and k_off (>0.1 1/min) also likely contributed to the inability to identify uniquely k_on and k_off, as the two transfer routes occur at similar rates that the model cannot readily distinguish.

The specific binding parameters B_max and k_on were coupled to k2 because of the fast ligand binding and dissociation rates of [¹⁸F]nifene. To examine the repercussions of an unconstrained V_ND in regions of specific binding, a model was implemented to simultaneously estimate K₁, V_ND, B_max, and K_Dapp exclusively in the AVT and LG. This model configuration yielded an 11% inflation of V_ND and reductions in B_max (-20%) and K_Dapp (-16%). Therefore, to minimize potential parameter coupling between the radioligand delivery and specific binding parameters, V_ND was measured in the CB, and subsequently assumed constant throughout the brain by fixing V_ND (but not K₁) in regions with specific binding. The assumption of a uniform V_ND is commonly made with a reference region graphical analysis techniques.²⁶ When data exclusively from the CB was modeled to measure separate V_T values for each injection, these values agreed within 6% with no appreciable correlation of V_T with nifene mass, justifying the omission of specific binding in modeling the CB.

The initial model for parameter estimation was constructed to generate unique B_max, kon, and k_off values for each region; however, high coupling of B_max and K_Dapp in the cortical regions resulted in unidentifiability of those parameters in the FC and SB ( $(ρ_{B}_{_{max}}, k_{o n} > 0.9)$ >0.9). Separate K_Dapp values in the AVT and LG were within 10% of each other, suggesting K_Dapp may be uniform in the thalamus. The assumption of a uniform K_Dapp was extended to the FC and SB to provide preliminary estimations of B_max in the cortical regions. A similar approach was used in experiments estimating extrastriatal D2 B_max by fixing k_off to the value observed in the basal ganglia.²⁷ Assuming a global K_Dapp represents a limitation in the present results, as our group has previously shown regional K_Dapp variations in experiments examining the serotonin system with MI techniques.²⁸ Consequently, the extrathalamic B_max estimations may be biased if endogenous concentrations of acetylcholine vary across different brain regions. A different experimental design explicitly optimized for cortical regions is necessary to properly measure B_max and K_Dapp in the cortex.

Uptake of [¹⁸F]nifene into the tissue occurred rapidly, as an average K₁ value of 1.0 ±0.1 mL/mL per min was observed in the CB with values of 0.8 ± 0.2 mL/mL per min found in both the AVT and LG. These high K₁ values are consistent with complete extraction of radioligand from the plasma to tissue. Previous in vitro studies have indicated that transfer of 2-[¹⁸F]FA across the blood–brain-barrier (BBB) principally occurs because of free diffusion.²⁹ Although [¹⁸F]nifene (log P = −0.5;¹²) is more lipophilic than 2-[¹⁸F]FA (log D =-1.5; ⁹), both radioligands exhibit low lipophilicity, which predicts slow diffusion rates across the BBB.³⁰ The order of magnitude variation in K₁ between the two radioligands, however, suggests the possibility of a transport mechanism to account for the fast uptake rates of [¹⁸F]nifene. One possible candidate for this mechanism is the BBB amine transporter.³¹ Previous studies have found that another α4β2^∗ nAChR radioligand, [¹⁸F]flubatine (formerly [¹⁸F]NCFHEB), also interacts with this transporter.³² We investigated using a model with separate K1 parameters for each injection to account for high mass potentially altering transfer rates of [¹⁸F]nifene across the BBB. This model reduced parameter identifiability while yielding K1 estimates that did not correlate with administered nifene mass. Therefore, K1 was assumed unvarying throughout the entire experiment. The BBB amine transporter is an area of interest for future experiments aimed at improving understanding of the passage of [¹⁸F]nifene across the BBB.³³

As the third injection of data could not uncouple kon and koff, data from only the first two injections of the three injection experiments were analyzed with the same model. This analysis yielded B_max and K_Dapp values consistent with results from analyzing the full three-injection data set, as shown in Figure 5B. The precision of the two-injection analysis was comparable, with average B_max cov values of 15%, whereas K_Dapp cov values were 19%. A slight underestimation of the specific binding parameters was observed with the two-injection analysis; however, the estimates were within 1σ of the three-injection parameter values. Our previous work included two experiments with two-injection [¹⁸F]nifene protocols of appropriate mass to provide approximations of B_max and K_Dapp.¹³ One experiment was not included in this work because of different blood sampling methods, whereas the other was included (M2 from ref. 13 corresponds to RH4 here). Modifications to the data processing of this subject (e.g., different regions of interest, input function interpolation) resulted in estimates of BP_ND and V_ND that are comparable but not identical to previously reported values. This subject (RH4) had the lowest B_max value and was also the oldest, with an age of 12.9 years compared with other subjects (4.6 to 5.2 years). Although only four subjects were reported here, this lower receptor density may result from differences in age groups.³⁴

Analysis with the Scatchard Method

MI experiments provide measurements of B_max in a non-equilibrium setting, which distinguishes this method from Scatchard-like methods requiring equilibrium for successful B_max measurements. The optimal MI experimental design for measurement of B_max and K_Dapp with [¹⁸F]nifene, however, included transient equilibrium for each injection because of the fast kinetic properties of this radioligand. Consequently, measurements of B_max and K_Dapp were also made with a Scatchard methodology to compare directly the compartment modeling method with a method that did not require blood sampling. It should be stressed, however, that the selected doses for the present experiments were based on the optimal design for MI (nonequilibrium) analysis rather than Scatchard analysis. Therefore, alternative dosages are likely more appropriate for experiments utilizing a Scatchard analysis.

The resulting Scatchard plots, shown in Figure 4, yielded B_max values compatible with compartment modeling results in the thalamic regions in two experiments (RH2 and RH3). Experiment RH1 exhibited a nonlinear trend resulting in overestimations of B_max and K_Dapp; however, the administered nifene dose in the third injection for this experiment more than doubled the mass given for RH2 and RH3 (see Table 1). We conclude that this dose (17.4 nmol/kg) saturated the receptors and yielded unreliable results. Indeed, the third injection for RH2 and RH3 may have saturated the extrathalamic regions, indicated by the slight nonlinearity in the Scatchard plots and large positive bias in B_max compared with compartment modeling methods. A two-point Scatchard analysis, which ignored data from the third near-saturation injection to avoid the resulting nonlinearities, was also performed. Although two-point Scatchard measurements are vulnerable to inaccuracies resulting from fitting two points to a line, this brief analysis estimated B_max values in better agreement with those measured with compartment modeling (Figure 5C). Lower nifene dosages, yielding receptor occupancies of roughly 30% to 50% and 70% to 75%, respectively, for each injection, may yield improved B_max and K_Dapp measurements with the three-point Scatchard analysis method. A bolus-infusion protocol achieving true equilibrium could also improve the accuracy and precision of this method,²⁵ but at the expense of increased experimental complexity.

It is difficult to compare directly the presented analysis techniques as the experiments were optimized for compartment modeling analysis but not Scatchard analysis. Based on the available data, the two-injection compartment model paradigm provided the best method for measurements of B_max and K_Dapp with a better combination of experimental simplicity and parameter precision. Reducing the experimental protocol from three injections to two injections lessened the duration of scanning procedures to 90 minutes of data acquisition, and simulations suggest this could be further shortened to 70 minutes. Conversely, accurate estimates of B_max and K_Dapp with Scatchard analysis would require at least three injections of [¹⁸F]nifene and 120 minutes of scanning. The compartment modeling techniques also showed higher parameter precision. Although the fast kinetics of [¹⁸F]nifene prevented unique identification of k_on and k_off with the compartment modeling analysis, this technique yielded excellent identification of B_max ( $ρ_{B}_{_{max}}, k_{o n}$ <0.3), giving a high degree of confidence in the presented measurements. Theoretical advantages of MI techniques for measurement of B_max and K_Dapp are further discussed elsewhere.^21,35

Applicability to Human Studies

The separate evaluation of α4β2^∗ nAChR B_max and K_Dapp is important for human translation for research applications in a variety of complex neuropsychiatric processes. For example, these measurements would improve the understanding of longitudinal changes undergone by acetylcholine receptors, ligand-receptor affinity, and synaptic acetylcholine concentrations in the progression of Alzheimer's disease.³ Information regarding how receptor density and synaptic acetylcholine are differentially modulated during tobacco exposure and abstinence could lead to improved design of smoking cessation treatments.⁵ Similar experiments could also improve understanding and treatment of depressive disorder.⁴

Future toxicological and pharmacological measurements of nifene are needed to determine if nifene doses inducing significant receptor occupancies would be ethical in humans. The 0.6 nmol/kg dose used for the present experiments resulted in α4β2^∗ nAChR occupancies of roughly 70%; however, saturation of these receptors has been reported with no adverse side effects in 2-[¹⁸F]FA smoking studies.³⁶

The rhesus monkey appears to be a unique species with negligible α4β2^∗ binding in the CB, as baboons and humans have detecTable 2-[¹⁸F]FA specific binding in this region.^11,37 Alternative reference regions, such as the corpus callosum or pons, were not evaluated in this work because of the absence of anatomical MRI data to aid in region identification. In the absence of a valid reference region, modifications to the modeling methods presented herein may be necessary for accurate parameter measurements in human studies. Compartment modeling techniques simultaneously incorporating data from regions of low [¹⁸F]nifene uptake with high binding regions may more precisely aid in the identification of a global VND without an explicit reference region. Alternatively, previous PET and SPECT experiments found that smoking to satiety resulted in α4β2^∗ nAChR occupancies of 70% to 100%.^36,38 These data suggest the possibility of incorporating a complete displacement dose of nicotine to regionally determine VND in MI studies.

CONCLUSION

This work presents an in vivo measurement of α4β2^∗ nAChR B_max in the rhesus monkey and a first measurement of K_Dapp for [¹⁸F]nifene using MI techniques. Experiments consisting of two injections in 90 minutes or less precisely identified these parameters, which reduces the experimental complexity from more traditional three-injection designs. Therefore, [¹⁸F]nifene enables simplified methods of measuring α4β2^∗ nAChR B_max, allowing for interrogation of this receptor system in disease models and alterations to synaptic levels of acetylcholine because of substance abuse or therapeutic drugs.

DISCLOSURE/CONFLICT OF INTEREST

The authors declare no conflict of interest.

Footnotes

ACKNOWLEDGEMENTS

We thank Professor R Jerry Nickles, Drs Jonathan Engle and Gregory Severin, and Hector Valdovinos for assistance in radioisotope production, Andrew Higgins for contributions with image processing, and Professor Jim Holden for insightful technical discussions. We are grateful to Julie Larson, Leslie Resch, and the staff at the Harlow Center for Biological Psychology (RR000167) for assistance in animal handing and data acquisition.
