A Novel Neuroprotective Strategy for Ischemic Stroke: Transient Mild Acidosis Treatment by CO 2 Inhalation at Reperfusion

Abstract

Acidosis is one of the key components in cerebral ischemic postconditioning that has emerged recently as an endogenous strategy for neuroprotection. We set out to test whether acidosis treatment at reperfusion can protect against cerebral ischemia/reperfusion injury. Adult male C57BL/6 J mice were subjected to 60-minute middle cerebral arterial occlusion followed by 24-hour reperfusion. Acidosis treatment by inhaling 10%, 20%, or 30% CO₂ for 5 or 10 minutes at 5, 50, or 100 minutes after reperfusion was applied. Our results showed that inhaling 20% CO₂ for 5 minutes at 5 minutes after reperfusion-induced optimal neuroprotection, as revealed by reduced infarct volume. Attenuating brain acidosis with NaHCO₃ significantly compromised the acidosis or ischemic postconditioning-induced neuroprotection. Consistently, both acidosis-treated primary cultured cortical neurons and acute corticostriatal slices were more resistant to oxygen–glucose deprivation/reperfusion insult. In addition, acidosis inhibited ischemia/reperfusion-induced apoptosis, caspase-3 expression, cytochrome c release to cytoplasm, and mitochondrial permeability transition pore (mPTP) opening. The neuroprotection of acidosis was inhibited by the mPTP opener atractyloside both in vivo and in vitro. Taken together, these findings indicate that transient mild acidosis treatment at reperfusion protects against cerebral ischemia/reperfusion injury. This neuroprotection is likely achieved, at least partly, by inhibiting mPTP opening and mitochondria-dependent apoptosis.

Keywords

acidosis treatment cerebral ischemia mPTP neuroprotection

INTRODUCTION

Ischemic postconditioning, a neuroprotective strategy for ischemic stroke, has attracted much attention over the past 7 years. It is defined as a series of cycles of brief reperfusion and ischemia applied at the onset of reperfusion, which can mobilize the brain's own endogenous adaptive mechanisms and limit the extent of reperfusion injury. In 2006, Zhao et al¹ first reported that ischemic postconditioning reduces infarct volume in experimental cerebral ischemia and reperfusion (I/R) injury. Since then, its cerebral protective effects have been confirmed in several distinct ischemia models.^{2, 3, 4, 5} However, the clinical application of ischemic postconditioning may be limited because of the difficulties in achieving well-controlled interruptions of reperfusion and the risks associated with these manipulations.⁶ Hypoxia, as a key component of ischemia, is a feasible treatment for ischemic stroke in theory. Surprisingly, we have recently found that an early application of hypoxic postconditioning after reperfusion does not induce neuroprotection against cerebral I/R injury.⁷ Thus, attempts should be undertaken to identify the other key factors, which are responsible for the protection afforded by ischemic postconditioning, and to develop a new therapeutic strategy, which is relatively safe and practical.

Acidosis is another key component of ischemia besides hypoxia and glucose depletion. Extracellular pH can fall from 7.2 to below 6.5 in the core during focal cerebral ischemia.^{8, 9} Acidosis treatment at reperfusion induces cardioprotection.^{10, 11, 12, 13} Cohen et al¹¹ provided the experimental evidence, in the isolated rabbit heart, that alkalotic buffer blocked ischemic postconditioning-conferred protection, and transient acidic reperfusion immediately applied at the onset of reperfusion protected against cardiac ischemia. The studies of acidosis treatment on hearts have provided much theoretical support for the acidosis therapeutic strategy toward ischemic stroke.

Recently, we showed that mild acidosis pretreatment may produce a preconditioning-like neuroprotective effect in a forebrain ischemia model.¹⁴ Although transient acidosis treatment before cerebral ischemia may be beneficial to the ischemic brain, the unpredictable occurrence of stroke greatly limits the translational relevance of this treatment. Therefore, the transient mild acidosis treatment at reperfusion after ischemia would be more feasible and have wider clinical applications. However, only indirect evidence was presented about severe acidosis treatment during recovery, which was performed in a metabolic inhibition model in cultured neurons.¹⁵

The present study was designed to investigate the neuroprotective effects of transient mild acidosis at reperfusion in cerebral I/R models both in vivo and in vitro. We further tested the hypothesis that this acidosis treatment reduces I/R-induced neuronal death by inhibiting mitochondrial permeability transition pore (mPTP) opening and mitochondria-dependent apoptosis.

MATERIALS AND METHODS

Animals

Male adult C57BL/6 mice (8 to 10 weeks) weighing 22 to 25 g were provided by the Experimental Animal Centre of the Zhejiang University and housed under diurnal lighting conditions (12 hours darkness/light). Our manuscript was written according to ARRIVE guidelines. All experimental protocols and animal handling procedures were in complete compliance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals and the experimental protocols were approved by the Zhejiang University Animal Experimentation Committee. Every effort was made to minimize any pain or discomfort, and the minimum number of animals was used.

Transient Focal Cerebral Ischemia

Mice were anesthetized with an intraperitoneal injection of choral hydrate (400 mg/kg). Transient focal cerebral ischemia was induced by middle cerebral artery occlusion (MCAO), as previously described.¹⁶ Briefly, a 6-0 nylon monofilament suture, blunted at the tip and coated with 1% poly-L-lysine, was advanced 10 mm into the internal carotid to occlude the origin of the middle cerebral artery (MCA). Reperfusion was allowed after 60 minutes by monofilament removal. Cerebral blood flow (CBF) in the territory of the MCA was determined by laser Doppler flowmetry (Periflux System 5010; Perimed, Jarfalla, Sweden), as previously described.¹⁶ A flexible fiberoptic probe was affixed to the skull over the cortex supplied by the proximal part (core; 2 mm caudal to bregma and 6 mm lateral to midline) and the peripheral part (periphery; 2 mm caudal to bregma and 3 mm lateral to midline) of the right MCA. Cerebral blood flow was expressed as a percentage of the value before MCAO. Animals with <80% reduction in CBF in the core region of the MCA territory were excluded from the study. Body temperature was maintained at 37°C by a heat lamp (FHC, Bowdoinham, ME, USA) during surgery and for 2 hours after the onset of reperfusion. Mean arterial blood pressure and heart rate of the mice were measured by tailcuff method with a computerized, automated system (BP-98A, Softron, Tokyo, Japan). Arterial pH, pO2, pCO2 were monitored using an ABL700 series blood gas analyzer (Radiometer, Copenhagen, Denmark).

Infarct volume was determined 24 hours or 72 hours after reperfusion by 2,3,5-triphenyltetrazolium hydrochloride (0.25%) staining, and the extent of the normal and infarcted areas was analyzed with ImageJ software and determined by the indirect method, which corrects for edema (contralateral hemisphere volume minus nonischemic ipsilateral hemisphere volume). The percentage of the corrected infarct volume was calculated by dividing the infarct volume by the total contralateral hemispheric volume, and this ratio was then multiplied by 100.

Neurologic deficit scores were evaluated, as previously described,¹⁷ at 24 hours of reperfusion. 0, no deficit; 1, flexion of contralateral forelimb upon lifting of the whole animal by the tail; 2, circling to the contralateral side; 3, falling to contralateral side; and 4, no spontaneous motor activity.

Protocols of Acidosis Treatment and Ischemic Postconditioning In Vivo

For postconditioning experiments, mice were randomly assigned to each group. For acidosis treatment, the mice were maintained by inhaling CO₂ (21% O₂ supplemented with N₂), and the flow rate was 1 L/minute. For time-window experiments, after 60 minutes of MCAO, reperfusion was established for 5, 50, or 100 minutes and then mice were subjected to 5-minute 20% CO₂ inhalation. For time course experiments, inhaling 20% CO₂ for 5 or 10 minutes was applied at 5 minutes after 60-minute MCAO. For concentration-dependence experiments, inhaling 10%, 20%, or 30% CO₂ for 5 minutes was applied at 5 minutes after 60-minute MCAO. For ischemic postconditioning, the bilateral common carotid arteries were transiently occluded for 5 minutes at 5 or 50 minutes after reperfusion using aneurysm clips. In the NaHCO₃ treatment groups, NaHCO₃ (2 μL/animal, 78 mg/mL) was intracerebroventricularly injected at 3 minutes after reperfusion. Corresponding control groups were injected with artificial cerebrospinal fluid (ACSF; 2 μL/animal, intracerebroventricularly). The mPTP opener, atractyloside (2 μL per animal, 3 mmol/L, intracerebroventricularly) was injected 5 minutes before reperfusion.

Intracerebral pH Measurement after Ischemia

For continuous measurement of pH in the brain, a fiberoptic pH micro system (pH-Optica, WPI, Sarasota, FL, USA) was used, as previously described.¹⁸ A glass fiber with its pH-sensitive tip (140 μm OD) was stereotaxically implanted into the brain immediately after MCAO at the following coordinates: 0.1 mm caudal to bregma, 2.4 mm lateral to midline, and 2.2 mm deep. The pH value was continuously measured for 30 minutes. The instrument was calibrated with standard solutions (pH 4.0, 5.0, 6.0, 7.0, 8.0, and 9.0) before and after the experiments. To mimic the brain environment, the standard solutions were prewarmed to 37°C and the calibration was performed in the absence of light. Acidosis treatment-induced changes in pH were evaluated.

Preparation of Brain Slices, Oxygen–Glucose Deprivation Procedures, and Slice Viability Determination

Acute brain slices were prepared from adult male C57BL/6 mice and oxygen–glucose deprivation (OGD) procedures were carried out, as we previously described.⁶ Briefly, corticostriatal slices (400-μm thick) were cut in ice-cold ACSF bubbled with 5% CO₂ and 95% O₂ (pH 7.4). The slices were immersed in oxygenated ACSF for 1 hour and then at 37°C for 15 minutes before experiments. For OGD, slices were transferred into glucose-free ACSF bubbled with 5% CO₂ and 95% N₂ for 15 minutes, then returned to oxygenated ACSF for 1 hour. Control slices were kept in oxygenated ACSF. For acidosis treatment, slices were transferred to acidic buffer equilibrated with 80% O₂ and 20% CO₂ (pH 6.8) for 1, 3, or 5 minutes at 0, 5, 15, or 30 minutes after simulated reperfusion. Slice viability was determined by 0.25% 2,3,5-triphenyltetrazolium hydrochloride staining. Formazan extracted with ethanol/dimethylsulfoxide (1:1) was measured at 490 nm. Viability was determined by absorbance normalized to the dry weight of the slice and expressed as the percentage of control slices included in each experiment.

Cell Culture, Oxygen–Glucose Deprivation Procedures, and Cell Viability Determination

Primary cortical neuronal cultures were made with embryonic day 17 Sprague–Dawley rat fetuses, as previously described.¹⁴ After trypsin digestion, separated cells were seeded onto poly-D-lysine-coated plates. Cells were routinely cultured and maintained for 8 days before further treatment. To perform OGD, neurons were refreshed with glucose-free Dulbecco's Modified Eagle Medium before being placed in an anaerobic chamber fully flushed with 20% CO₂ and 80% N₂ (pH 6.8; mimicking the acidic environment of ischemic brain in vivo) at 37°C for 2 hours. Simulated reperfusion was carried out by refreshing the culture with normal medium and further incubated for 24 hours. For acidosis treatment, cells were exposed to an acidic culture medium (pH 6.8) equilibrated with normoxic mixed gas containing 20% CO₂ for 5, 15, or 30 minutes at 0, 5, 15, or 30 minutes after reperfusion. Atractyloside (100 μmol/L) was applied at the onset of simulated reperfusion and was present throughout the reperfusion process. Cell viability was determined by the 3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromide assay. The cell viability of vehicle-treated controls was set as 100%.

Terminal Deoxynucleotidyl Transferase dUTP Nick End Labeling Assays

Apoptosis was determined by terminal deoxynucleotidyl transferase dUTP nick end labeling assays using an in situ cell death detection kit (Roche Diagnostics Corporation, Indianapolis, IN, USA), according to the manufacturer's protocol. Images of five random fields were captured from each sample. The results were expressed as percentage of terminal deoxynucleotidyl transferase dUTP nick end labeling-positive cells to total 4′,6-diamidino-2-phenylindole-stained cells. Each experiment was repeated at least six times.

Assessment of Mitochondrial Membrane Potential (ΔΨ _m) and Mitochondrial Permeability Transition Pore Opening

JC-1 staining indicates the changes in relative ΔΨ_m.¹⁹ Cells were incubated with 2.5 μg/mL JC-1 (Beyotime, Jiangsu, China) dissolved in Dulbecco's Modified Eagle Medium for 15 minutes at 5 minutes after reperfusion and excited at 488 nm under a fluorescence microscope. In the acidosis treatment group, the JC-1-containing Dulbecco's Modified Eagle Medium was equilibrated with normoxic mixed gas containing 20% CO₂. Images of five random fields were captured from each sample. Green JC-1 staining indicated impaired and red indicated normalΔΨ_m. Data were calculated as the average green/red ratio using Image-Pro Plus 5.0 (Media Cybernetics, MD, USA). The results are expressed as the percentage of control. Each experiment was repeated at least six times.

To assay mPTP opening, mice were killed at 3 hours after reperfusion, the brain was quickly removed, and immediately frozen in liquid nitrogen. Brains were cut at a 30-μm thickness on a freezing microtome. Then, the mPTP opening of the slices was measured using an mPTP fluorescent assay kit (GENMED, Shanghai, China) according to the manufacturer's instructions. The fluorescent dye is calcein-AM, which is applied in the presence of cobalt chloride to quench cytoplasmic signal. Opening of mPTP is marked by a loss in green fluorescence from mitochondria.²⁰ Images of five random fields were captured from each sample. Data were calculated as the integrated intensity of green fluorescence using Image-Pro Plus 5.0 (Media Cybernetics). The results are expressed as the percentage of control.

Western Blot Analysis

For Western blot, protein samples were separated on 12% SDS-PAGE and blotted onto nitrocellulose membranes. The blocked membranes were incubated with anti-cleaved caspase-3 (1:1,000; CST, Danvers, MA, USA), anti-cytochrome C (1:1,000; CST) anti-glyceraldehyde 3-phosphate dehydrogenase (1:3000; Kangcheng Biotech, Shanghai, China), and further incubated with either IRDye 800 anti-rabbit (1:10,000; LI-COR Biosciences, Lincoln, NE, USA), or IRDye 700 anti-mouse (1:5000, LI-COR Biosciences). Band density was analyzed. The results are presented as the anti-caspase-3/glyceraldehyde 3-phosphate dehydrogenase or cytochrome c/glyceraldehyde 3-phosphate dehydrogenase ratio and normalized to that in the control groups.

Statistical Analysis

All data were collected and analyzed in a masked fashion. Data are presented as mean±s.e.m. One-way analysis of variance with least significant difference or Dunnett's T3 post hoc test (where equal variances were not assumed) was applied for multiple comparisons, whereas Student's t-test was used for comparisons between two groups. Neurologic deficit scores were analyzed with the nonparametric Mann–Whitney U test. P<0.05 was considered statistically significant.

RESULTS

Acidosis Treatment at Reperfusion Reduced Infarct Volume

To determine the effect of acidosis treatment, mice were maintained under 20% CO₂ with various permutations after transient MCAO. Five minutes of acidosis treatment initiated at 5 minutes after the onset of reperfusion reduced infarct volume by ∼50% (P<0.01, Figure 1A), and the animals exhibited lower neurologic deficit scores at 24 hours (MCAO alone group: 2.33±0.17, n=9; acidosis treatment group: 1.44±0.18, n=9; P<0.01). The neuroprotection was still robust, even when the onset time was delayed to 50 minutes after reperfusion. However, acidosis treatment initiated at 100 minutes did not block the I/R injury. In addition, the neuroprotection disappeared when the duration of acidosis treatment was prolonged to 10 minutes (Figure 1B). Furthermore, 10% or 20% CO₂ inhalation for 5 minutes applied at 5 minutes after reperfusion significantly reduced infarct volume (P<0.01) whereas more severe acidosis treatment (30% CO₂) failed to induce neuroprotection. We measured the pH in the ischemic cortex of mice and found that breathing 10%, 20%, and 30% CO₂ for 5 minutes reduced pH by ∼0.16, ∼0.24, and ∼0.36, respectively, whereas the pH increased by ∼0.19 in the MCAO alone group at the same time point (Figure 1C). Correspondingly, the arterial pCO₂ significantly increased after 20% CO₂ inhalation (MCAO alone group: 54.58±4.62 mm Hg, n=4; acidosis treatment group: 140.50±11.92 mm Hg, n=4; P<0.01), and the arterial pH value also significantly decreased (MCAO alone group: 7.20±0.02, n=4; acidosis treatment group: 6.81±0.03, n=4; P<0.001). The pH value of ischemic brain tissue at 50 minutes after reperfusion in the MCAO alone group still did not completely recovery to normal pH (6.92±0.07, n=6), whereas an alkalosis was observed at 100 minutes after reperfusion (7.19±0.06, n=6). To further confirm that the protection by CO₂ is attributable to the acidosis of brain tissue, an alkaline solution (NaHCO₃) was infused intracerebroventricularly before 20% CO₂ inhalation. NaHCO₃ reversed the neuroprotection induced by 20% CO₂ inhalation for 5 minutes at 5 minutes after reperfusion (P<0.01), whereas NaHCO₃ alone had no effect on I/R injury (Figure 1D). During the 20% CO₂ inhalation period, a significant elevation of CBF in the core and peripheral regions of the MCA territory was observed compared with MCAO alone group, and the CBF quickly recovered at 10 minutes after withdrawing CO₂ (Figure 1E). NaHCO₃ did not attenuate the elevation of CBF induced by CO₂ inhalation. The 20% CO₂ inhalation also induced a slight decrease of mean arterial blood pressure and heart rate, whereas NaHCO₃ (intracerebroventricularly) did not inhibit this decrease (Supplementary Figure 1). In addition, 5-minute acidosis treatment (20% CO₂) initiated at 5 minutes after reperfusion also significantly decreased infarct volume at 72 hours after reperfusion (P<0.01, Figure 1F).

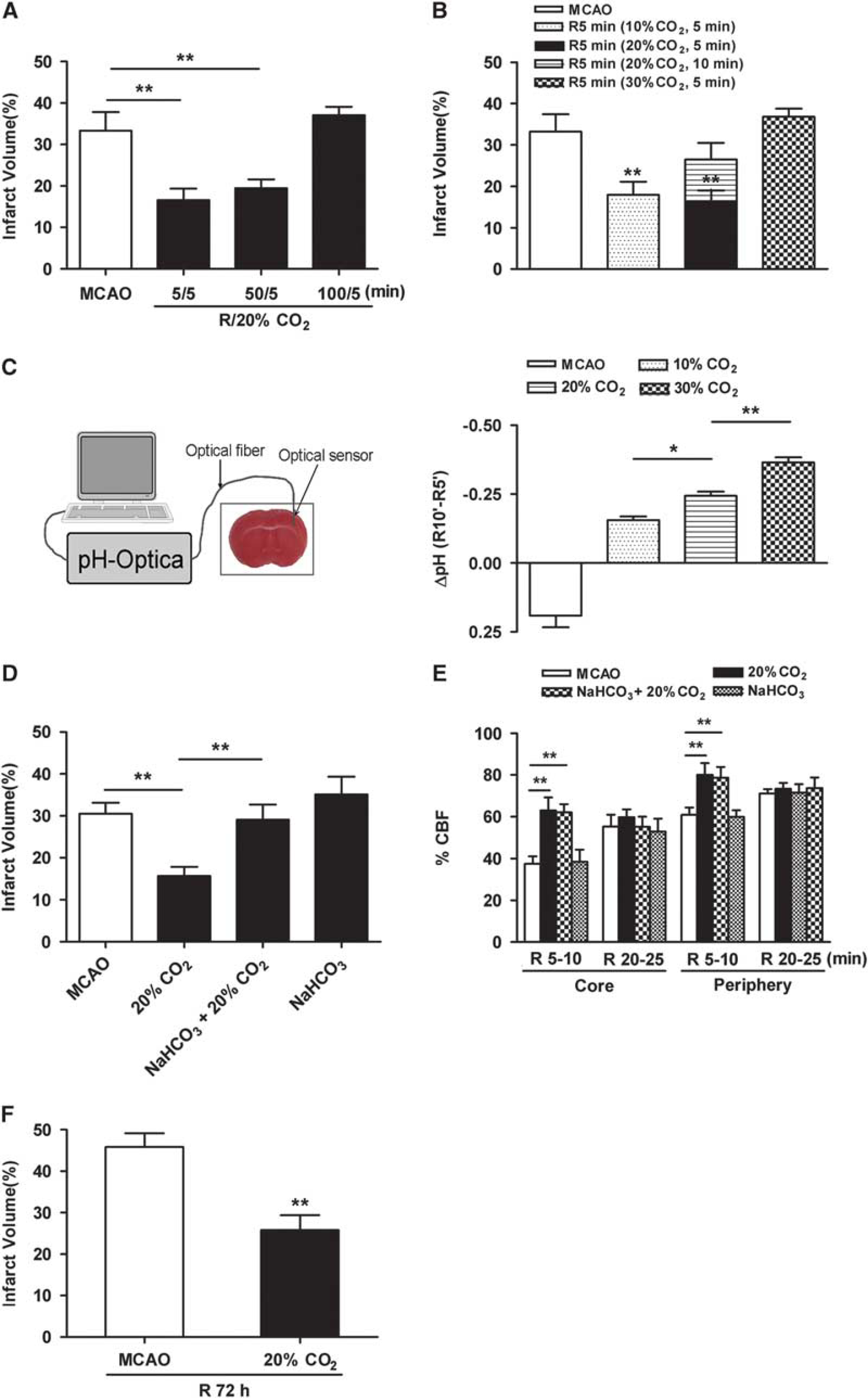

Figure 1.

Effects of acidosis treatment on infarct volume after transient middle cerebral artery occlusion (MCAO). Animals were subjected to 60-minute MCAO. Infarct volume was quantified by 2,3,5-triphenyltetrazolium hydrochloride staining at 24 hours after reperfusion. (A) Time-window: animals with acidosis were treated by inhaling 20% CO₂ for 5 minutes at 5, 50, or 100 minutes after reperfusion. (B) Concentration-dependence and time course: animals with acidosis were treated by inhaling 10%, 20%, or 30% CO₂ for the indicated times. ∗∗P<0.01 versus MCAO alone group. (C) The cerebral pH difference between 10 minutes and 5 minutes after reperfusion. Acidosis treatment (10%, 20% or 30% CO₂) was applied for 5 minutes at 5 minutes after reperfusion. (D) Effects of NaHCO₃ on acidosis treatment-induced neuroprotection. NaHCO₃ (2 μL per animal, 78 mg/mL, intracerebroventricularly) was infused at 3 minutes before acidosis treatment, which was applied for 5 minutes at 5 minutes after reperfusion by inhaling 20% CO₂. (E) Average cerebral blood flow values in the core and peripheral regions of the MCA territory at 5 to 10 minutes and 20 to 25 minutes after reperfusion. (F) Effect of 5-minute acidosis treatment (20% CO₂) initiated at 5 minutes after reperfusion on infarct volume at 72 hour after reperfusion. Values show mean±s.e.m. n=8 to 10 for each group; ∗P<0.05 and ∗∗P<0.01. R, reperfusion.

NaHCO₃ Reversed Ischemic Postconditioning-Induced Neuroprotection

To compare the time-windows of ischemic postconditioning with that of acidosis treatment, animals were subjected to postconditioning with 5 minutes of bilateral common carotid artery occlusions at 5 or 50 minutes after 60-minute MCAO (Figure 2). Ischemic postconditioning initiated at 5 but not 50 minutes after the onset of reperfusion reduced infarct volume (P<0.01). To assess the contribution of acidosis in ischemic postconditioning-induced neuroprotection, alkalization of the ischemic brain with NaHCO₃ (intracerebroventricularly) was applied before ischemic postconditioning. Indeed, NaHCO₃ reversed the neuroprotection induced by ischemic postconditioning (P<0.01).

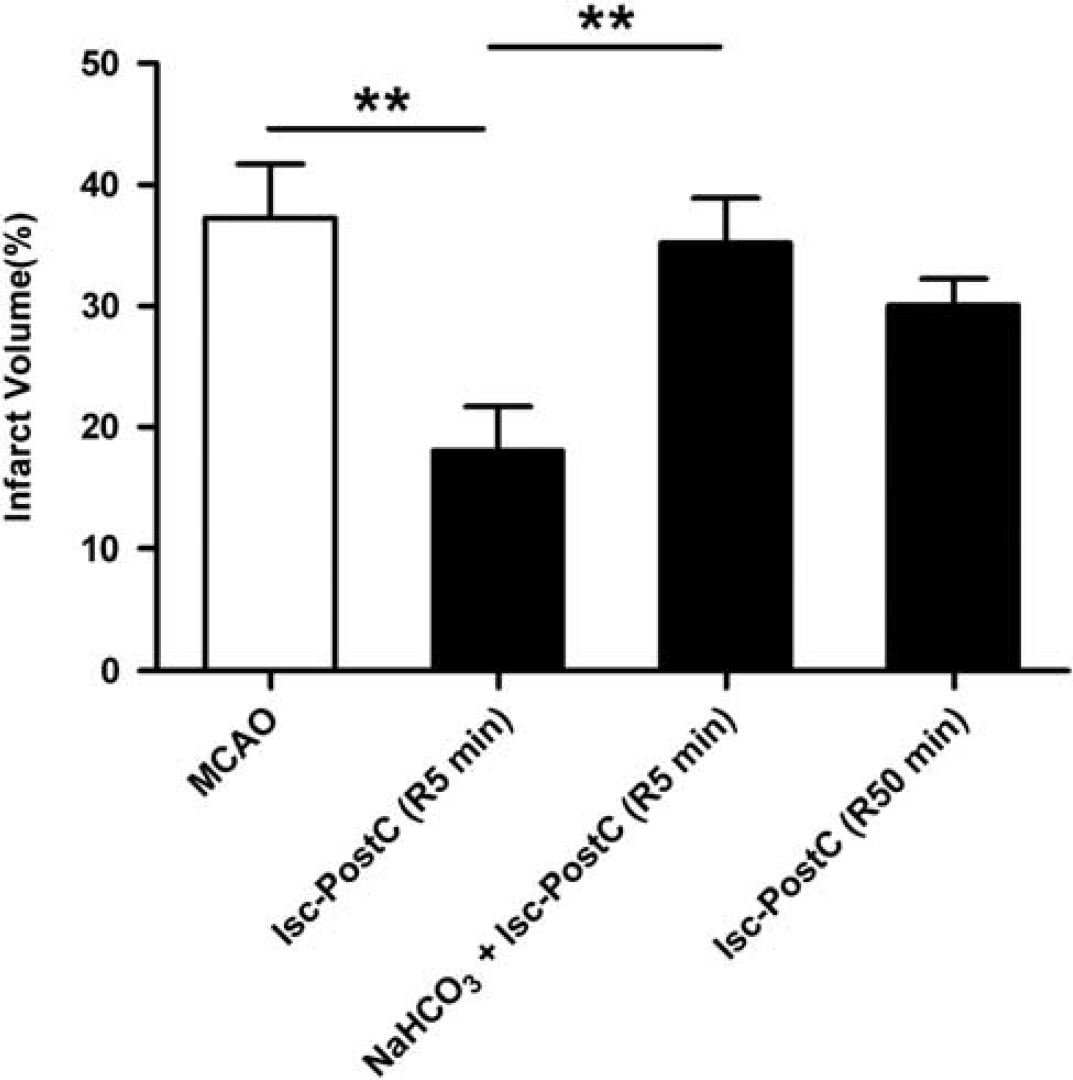

Figure 2.

Effects of NaHCO₃ on ischemic postconditioning-induced neuroprotection. Animals were subjected to 60-minute middle cerebral artery occlusion (MCAO). In the ischemic postconditioning group, bilateral common carotid arteries were occluded for 5 minutes at 5 or 50 minutes after reperfusion. NaHCO₃ (2 μL per animal, 78 mg/mL, intracerebroventricularly) was infused at 3 minutes before ischemic postconditioning. Infarct volume was quantified by 2,3,5-triphenyltetrazolium hydrochloride(TTC) staining at 24 hours after reperfusion. Values show mean±s.e.m. n=8 to 10 for each group; ∗∗P<0.01. Isc-PostC, ischemic postconditioning; R, reperfusion.

Acidosis Treatment at Reperfusion-Induced Neuroprotection in vitro

We also established in vitro models with OGD-treated primary cultured neurons and acute brain slices. In cultured neurons, both 5 and 15 minutes of acidosis treatment significantly improved viability at 24 hours after 120-minute OGD, whereas 30 minutes did not (Figure 3A). The neuroprotection by acidosis treatment remained protective within 15 minutes after reperfusion, whereas 30 minutes did not (Figure 3B). Five minutes of recovery and then 15 minutes of acidosis treatment induced the optimal neuroprotection, which was used in further studies. In brain slices, acidosis treatment also protected against OGD/reperfusion-induced injury in an onset time- and duration-dependent manner (Figures 3C and 3D). In detail, 3 minutes of acidosis treatment initiated at 5 minutes after the onset of reperfusion achieved the maximum neuroprotection.

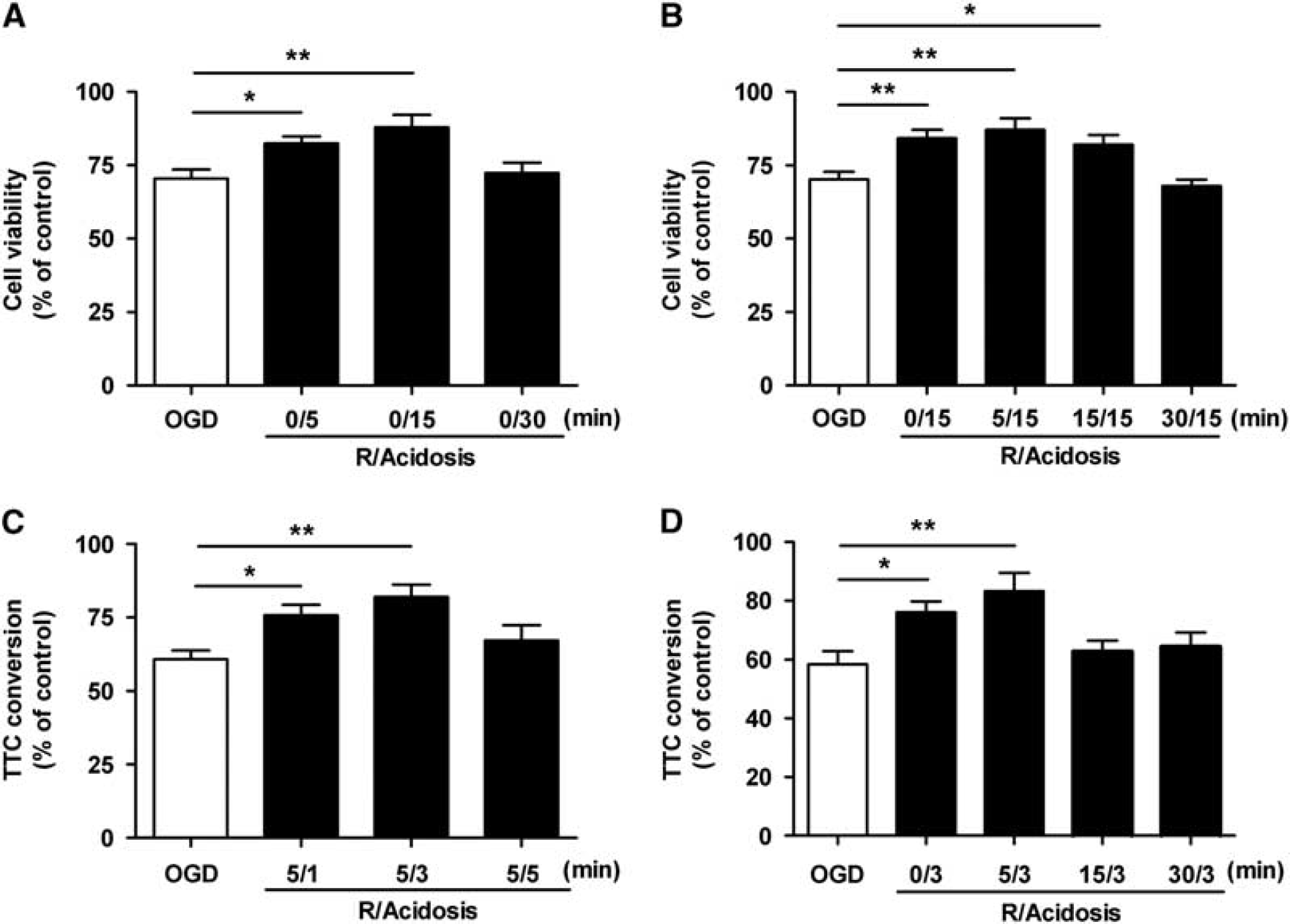

Figure 3.

Effects of acidosis treatment on oxygen–glucose deprivation (OGD)/reperfusion-induced injury in cultured neurons and corticostriatal slices. Cultured neurons (A, B) and corticostriatal slices (C, D) were treated with acidosis (pH 6.8) for indicated durations (A, C) and indicated recovery periods (B, D) after OGD. The cell viability was assessed by the 3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromide assay at 24 hours after reperfusion, and corticostriatal slice viability was quantified by TTC assay at 1 hour after reperfusion. Values show mean±s.e.m. n=6 to 8 for each group; ∗P<0.05 and ∗∗P<0.01. R, reperfusion.

Acidosis Treatment Inhibited Ischemia and Reperfusion-Induced Apoptosis and Mitochondrial Permeability Transition Pore Opening

To test whether acidosis treatment prevents ischemia-induced neuronal apoptosis, the apoptotic ratio was determined by terminal deoxynucleotidyl transferase dUTP nick end labeling staining. Acidosis treatment reduced the OGD/reperfusion-induced apoptotic ratio from 42.4±4.6 to 23.2±3.0% (P<0.01; Figure 4A). The cleaved caspase-3 expression was also inhibited by acidosis treatment in both primary cultured neurons and ischemic brain (P<0.01 versus OGD group and P<0.05 versus MCAO group; Figures 4B and 4C). In addition, cytochrome c release to the cytoplasm was also attenuated by acidosis treatment in cultured neurons (P<0.05 versus OGD group; Figure 4D). These data suggest that acidosis treatment protects against ischemia-induced neuronal injury by, at least partly, reducing mitochondria-dependent apoptosis.

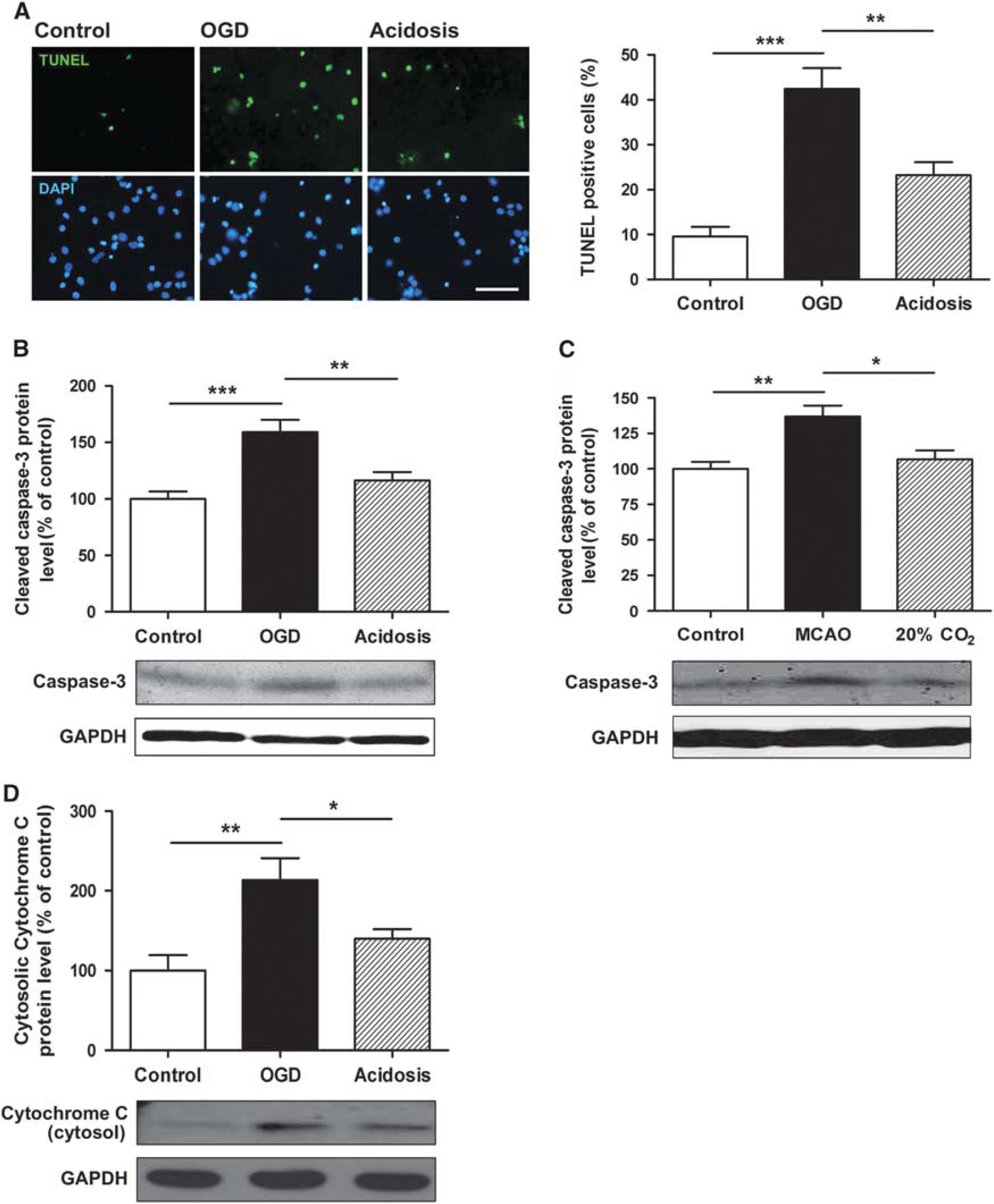

Figure 4.

Effects of acidosis treatment on ischemia and reperfusion-induced apoptosis. Cultured neurons were treated with acidosis (pH 6.8) for 15 minutes at 5 minutes after reperfusion, and animals were treated with acidosis by inhaling 20% CO₂ for 5 minutes at 5 minutes after reperfusion. Apoptosis was determined at 24 hours after reperfusion using terminal Deoxynucleotidyl Transferase dUTP Nick End Labeling (TUNEL) staining. (A) Representative images of TUNEL-positive cells (green) and 4′,6-diamidino-2-phenylindole (DAPI) counterstaining (blue). Quantitative analysis (right panel) showed that acidosis treatment reduced the percentage of TUNEL-positive cells. Cleaved caspase-3 expression in cultured neurons (B) and the periphery of the middle cerebral artery territory (C) with indicated treatment at 24 hours after reperfusion. (D) Cytochrome c expression in the cytoplasm in cultured neurons with indicated treatment at 6 hours after reperfusion. Values show mean±s.e.m. n=6 to 8 for each group; ∗P<0.05, ∗∗P<0.01, and ∗∗∗P<0.001. Scale bar, 50 μm. GAPDH, glyceraldehyde 3-phosphate dehydrogenase; OGD, oxygen–glucose deprivation.

Mitochondria-dependent apoptosis is triggered by opening of the mPTP as marked by dissipation of ΔΨ_m and loss of the mitochondrial calcein fluorescence.^{20, 21, 22} Dissipation of the ΔΨ_m was observed at 20 minutes after reperfusion in the cultured neurons (P<0.001 versus control group; Figure 5A), and this was attenuated by acidosis treatment (P<0.05 versus OGD group). In in vivo model, after 1-hour MCAO and 3-hour reperfusion, green fluorescence of calcein in the periphery of the MCA territory strongly attenuated (P<0.001 versus control group), which means the openning of mPTP, whereas acidosis treatment significantly inhibited the I/R-induced mPTP opening (P<0.05) as shown by increased green calcein fluorescence compared with the MCAO group (Figure 5B). Further, the neuroprotection by acidosis treatment was blocked when the mPTP opener atractyloside was applied to cultured neurons and the ischemic brain (Figures 5C and 5D).

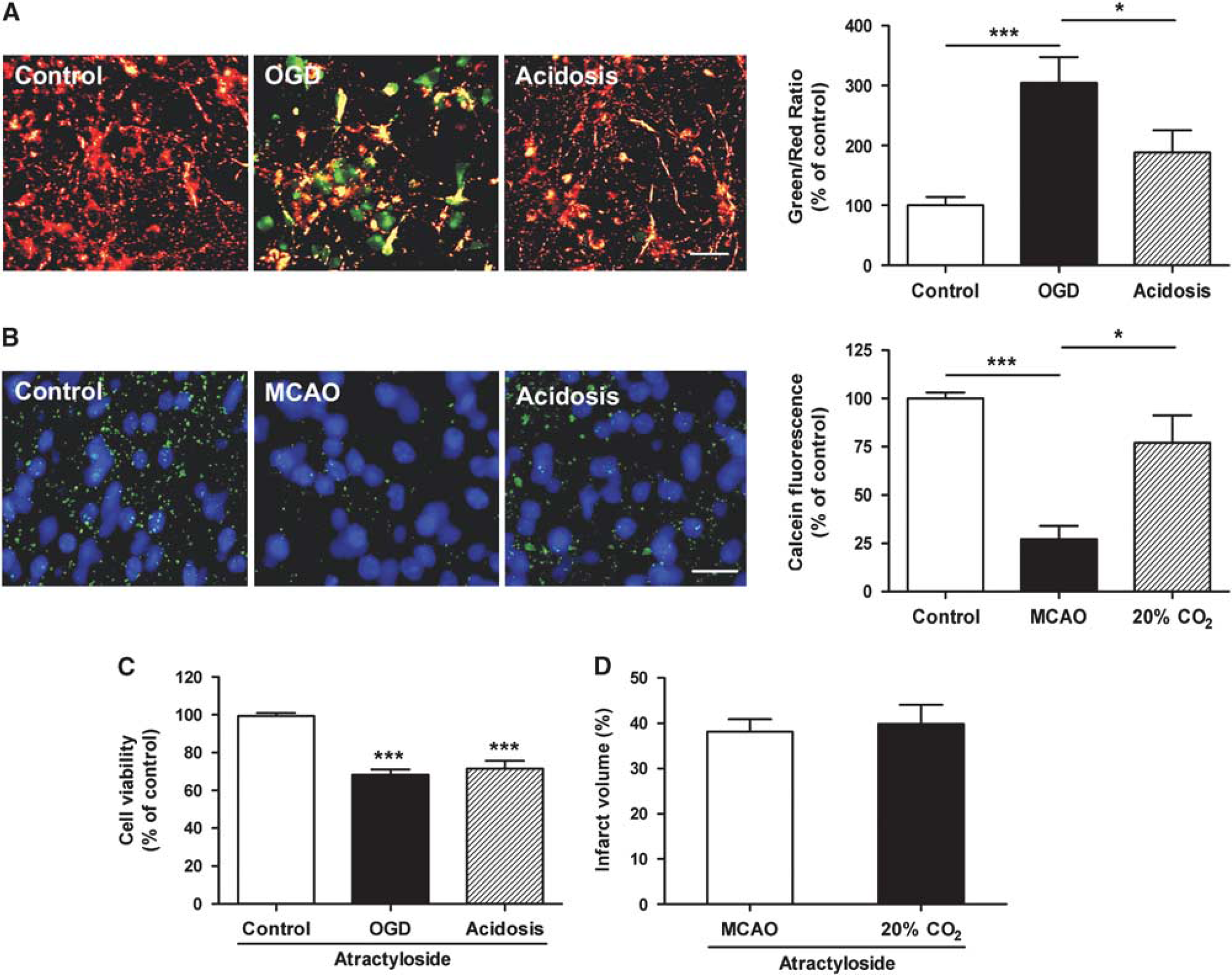

Figure 5.

Effects of acidosis treatment on ischemia and reperfusion-induced mitochondrial permeability transition pore (mPTP) opening. Cultured neurons were treated with acidosis (pH 6.8) for 15 minutes at 5 minutes after reperfusion, and animals were treated with acidosis by inhaling 20% CO₂ for 5 minutes at 5 minutes after reperfusion. (A) Effects of acidosis treatment on ΔΨ_m at 20 minutes after reperfusion in cultured neurons. The left panel shows the representative images of treated cells from each group stained with JC-1 probe and imaged by a fluorescence microscope. Scale bar, 50 μm. The right panel shows average green/red ratios for each group. (B) Effects of acidosis treatment on mPTP opening at 3 hours after reperfusion in ischemic brains. The left panel shows the representative images in the periphery of the middle cerebral artery territory from each group stained with calcein (green) and 4′,6-diamidino-2-phenylindole (DAPI) (blue). Scale bar, 20 μm. The right panel shows the quantification of fluorescent images. (C) Cell viability and (D) infarct volume at 24 hours after reperfusion for each group. In cultured neurons, atractyloside (100 μmol/L) was administered at the time of reperfusion onset. In in vivo model, atractyloside (2 μL per animal, 3 mmol/L, intracerebroventricularly) was infused at 5 minutes before reperfusion. Values show mean±s.e.m. n=6 to 8 for each group; ∗P<0.05 and ∗∗∗P<0.001.

DISCUSSION

In the present study, we showed for the first time that transient mild acidosis treatment at reperfusion protected I/R-induced neuronal injury both in vivo and in vitro. The acidosis treatment by briefly inhaling CO₂ afforded a better outcome in adult mice, as shown by a remarkable reduction in infarct volume. This protection was comparable with that achieved by ischemic postconditioning, and the time-window was as long as 50 minutes. The protection was robust, as we observe less infarction in the brain 72 hours after reperfusion, which suggests that acidosis treatment results in long-lasting neuroprotection. Interestingly, we found that alkalosis by intracerebroventricularly injection of NaHCO₃ completely aborted the protection by ischemic postconditioning or acidosis treatment, which implies that acidosis might be a main contributor to ischemic postconditioning-induced neuroprotection. Furthermore, the effect of acidosis treatment was supported by our in vitro models, in which acidosis treatment with acidic medium equilibrated with normoxic mixed gas containing 20% CO₂ protected both acute corticostriatal slices and primary cultured neurons against OGD/R-induced injury. These data strongly suggest that acidosis treatment by briefly inhaling CO₂ could be a feasible and promising therapeutic strategy for ischemic stroke.

It has been reported that in the transient focal cerebral ischemic injury model, the initial time-window of ischemic postconditioning is no more than 10 minutes.³ This narrow time-window may limit the application of ischemic postconditioning. Here, we found that optimal protection was obtained with a single 5-minute period of acidosis treatment administered 5 minutes after the 60-minute MCAO. Interestingly, even when the onset of acidosis treatment was delayed for 50 minutes, the neuroprotection was still robust and reduced the infarct volume by ∼42%, whereas, at the same time point, ischemic postconditioning did not induce neuroprotection. These results indicate that the time-window of acidosis treatment is much wider than that of ischemic postconditioning. The wide time-window implies that patients can easily receive effective therapy without a lot of risk. The discrepancy between acidosis treatment and ischemic postconditioning in time-window implies that the acidosis applied at 50 minutes after reperfusion confers its neuroprotection by mechanisms distinct from that of delayed ischemic postconditioning. In addition, the time-windows are also different between brain and heart. It has been shown that acidosis treatment applied immediately at the onset of reperfusion is optimal in the ischemic heart.¹¹ Delaying treatment for even 1 minute eliminates protection in the isolated heart, which implies that acidosis at reperfusion for treatment of ischemic stroke might be a more practical therapeutic strategy than for treatment of cardiac ischemia.

Besides the onset time, the change of pH and duration of acidosis are also critical for neuroprotection. Interestingly, we found that acidosis treatment showed pH-dependent neuroprotection against MCAO/reperfusion. Both 10% and 20% CO₂ inhalation induced a robust reduction in the infarct volume, and the corresponding pH measured by pH-Optica in the ischemic cortex decreased by ∼0.16 and ∼0.24, respectively (Figure 1C). However, 30% CO₂ inhalation, in which the pH decreased by ∼0.36, failed to induce neuroprotection. These results suggest that excessive downregulation of pH may not be necessary or beneficial for effective clinical acidosis treatment. The 10% CO₂ level may be a better dose, because this concentration is closer to the 5% CO₂ in oxygen supplies for medicine, and would lower the risk of hypercapnic acidosis in the clinic. In addition, excessive duration is also not beneficial for inducing neuroprotection, as a 5-minute acidosis treatment was more effective in preventing MCAO/reperfusion-induced brain injury than a prolonged 10-minute acidosis treatment. Consistently, in our in vitro models, prolonged acidosis in neural cells (30 minutes) and brain slices (5 minutes) did not improve the survival rate. These results are in accord with those in acidosis treatment-protected cardiac cells and acidic pretreatment in brain slices in our previous report.^{12, 14} Therefore, the duration of acidosis might be a crucial factor contributing to acidosis treatment-induced neuroprotection.

It has been known that CO₂ enhances vasodilatation and increases CBF.^{23, 24} In this study, a slight elevation of CBF was also observed during CO₂ inhalation, and the CBF quickly recovered at 10 minutes after withdrawing CO₂. The transient elevation of CBF induced by CO₂ inhalation may alleviate I/R injury. However, alkalization of the ischemic brain with NaHCO₃ attenuated the neuroprotection of CO₂ inhalation but had no effect on the CBF. In addition, in vitro, substrate availability is always perfect in contrast with milieu in vivo where it depends on the CBF level, and the neuroprotection of acidosis treatment can still be found in acute corticostriatal slices and primary cultured neurons. These data eliminate the possibility that the neuroprotection induced by acidosis treatment is solely due to a modification of CBF, so it is reasonable to propose that there is additional neuroprotective mechanism besides the elevation of CBF.

In the reperfusion phase, the rapid return of pH values from acidic to normal worsens the injury, which is called ‘pH paradox’.¹⁰ The mPTP regulation is one of the mechanisms involved in the ‘pH paradox’ phenomenon, which has been found in myocardium but still uncertain in neurons.^{11, 25} Rapid relative alkalosis at the early phase of reperfusion may facilitate mPTP opening, whereas low pH is a potent blocker.^{11, 26, 27} Here, it was observed that acidosis treatment at reperfusion prevented OGD/reperfusion-induced ΔΨ_m loss in vitro and inhibited mPTP opening in vivo. Importantly, the mPTP opener atractyloside almost compeletly reversed the neuroprotection of acidosis treatment, suggesting that acidosis treatment ameliorated I/R-induced injury mainly by, if not all, inhibiting mPTP opening. The mPTP opening is a prerequisite for mitochondria-dependent apoptosis.^{21, 22} As a result, we further found that acidosis treatment decreased apoptotic cell number, caspase-3 expression and cytochrome c release to cytosol, which is similar with the previously reported ischemic postconditioning-induced anti-apoptotic effects.^{1, 2} These data indicate that acidosis treatment retard reperfusion-induced pH increase, subsequently inhibit mPTP opening and mitochondria-dependent apoptosis.

Overall, the current data indicate that mild acidosis treatment at reperfusion protected against I/R-induced brain injury both in vivo and in vitro, and inhibiting mPTP opening and mitochondria-dependent apoptosis is involved in the acidosis-induced neuroprotection. Taking into account the practical advantages, this research may provide a novel and promising strategy to reduce or even prevent cerebral I/R injury in patients treated with intravenous thrombolytic agents or suffering from surgically induced circulation arrest, as acidosis treatment by inhaling CO₂ may be easily translated into clinical practice if the onset time, duration, and pH change can be well controlled.

Footnotes

The authors declare no conflict of interest.

ACKNOWLEDGMENTS

We are grateful to Dr IC Bruce for reading the manuscript.

Notes

Supplementary Information accompanies the paper on the Journal of Cerebral Blood Flow & Metabolism website ()

References

Zhao

Sapolsky

Steinberg

. Interrupting reperfusion as a stroke therapy: Ischemic postconditioning reduces infarct size after focal ischemia in rats. J Cereb Blood Flow Metab 2006; 26: 1114–1121.

Xing

Chen

Zhang

Zhao

Jiang

Liu

. Ischemic postconditioning inhibits apoptosis after focal cerebral ischemia/reperfusion injury in the rat. Stroke 2008; 39: 2362–2369.

Pignataro

Meiler

Inoue

Ordonez

Ashley

Xiong

. In vivo and in vitro characterization of a novel neuroprotective strategy for stroke: ischemic postconditioning. J Cereb Blood Flow Metab 2008; 28: 232–241.

Wang

Shen

Gao

Yang

Liang

. Ischemic postconditioning protects against global cerebral ischemia/reperfusion-induced injury in rats. Stroke 2008; 39: 983–990.

Gao

Ren

Zhao

. Protective effects of ischemic postconditioning compared with gradual reperfusion or preconditioning. J Neurosci Res 2008; 86: 2505–2511.

Lee

Jung

Zuo

. Postconditioning with isoflurane reduced ischemia-induced brain injury in rats. Anesthesiology 2008; 108: 1055–1062.

Fan

Zhang

Shen

Wang

. Transient lack of glucose but not 02 is involved in ischemic postconditioning-induced neuroprotection. CNS Neurosci Ther 2013; 19: 30–37.

Rehncrona

. Brain acidosis. Ann Emerg Med 1985; 14: 770–776.

Nedergaard

Kraig

Tanabe

Pulsinelli

. Dynamics of interstitial and intracellular pH in evolving brain infarct. Am J Physiol 1991; 260: R581–R588.

10.

Bond

Herman

Lemasters

. Protection by acidotic pH against anoxia/reoxygenation injury to rat neonatal cardiac myocytes. Biochem Biophys Res Commun 1991; 179: 798–803.

11.

Cohen

Yang

Downey

. The pH hypothesis of postconditioning: Staccato reperfusion reintroduces oxygen and perpetuates myocardial acidosis. Circulation 2007; 115: 1895–1903.

12.

Inserte

Barba

Hernando

Abellan

Ruiz-Meana

Rodriguez-Sinovas

. Effect of acidic reperfusion on prolongation of intracellular acidosis and myocardial salvage. Cardiovasc Res 2008; 77: 782–790.

13.

Inserte

Barba

Hernando

Garcia-Dorado

. Delayed recovery of intracellular acidosis during reperfusion prevents calpain activation and determines protection in postconditioned myocardium. Cardiovasc Res 2009; 81: 116–122.

14.

Zhang

Fan

Wang

Xiong

Tang

Gao

. Acidic preconditioning protects against ischemia-induced brain injury. Neurosci Lett 2012; 523:3–8.

15.

Vornov

Thomas

. Protective effects of extracellular acidosis and blockade of sodium/hydrogen ion exchange during recovery from metabolic inhibition in neuronal tissue culture. J Neurochem 1996; 67: 2379–2389.

16.

Fan

Dai

Zhang

. Activation of the central histaminergic system is involved in hypoxia-induced stroke tolerance in adult mice. J Cereb Blood Flow Metab 2011; 31: 305–314.

17.

Longa

Weinstein

Carlson

Cummins

. Reversible middle cerebral artery occlusion without craniectomy in rats. Stroke 1989; 20: 84–91.

18.

Pignataro

Simon

Xiong

. Prolonged activation of ASIC1a and the time window for neuroprotection in cerebral ischaemia. Brain 2007; 130: 151–158.

19.

Zuliani

Duval

Jayat

Schnebert

Andre

Dumas

Sensitive and reliable JC-1 and TOTO-3 double staining to assess mitochondrial transmembrane potential and plasma membrane integrity: Interest for cell death investigations. Cytometry A 2003; 54: 100–108.

20.

Petronilli

Miotto

Canton

Colonna

Bernardi

Di Lisa

. Imaging the mitochondrial permeability transition pore in intact cells. Biofactors 1998; 8: 263–272.

21.

Zamzami

Marchetti

Castedo

Hirsch

Susin

Masse

Inhibitors of permeability transition interfere with the disruption of the mitochondrial transmembrane potential during apoptosis. FEBS Lett 1996; 384: 53–57.

22.

Narita

Shimizu

Ito

Chittenden

Lutz

Matsuda

Bax interacts with the permeability transition pore to induce permeability transition and cytochrome c release in isolated mitochondria. Proc Natl Acad Sci USA 1998; 95: 14681–14686.

23.

Thompson

. Reactivity of cerebral blood flow to CO 2 in patients with transient cerebral ischemic attacks. Stroke 1971; 2: 273–278.

24.

Simon

Niro

Gwinn

. Brain acidosis induced by hypercarbic ventilation attenuates focal ischemic injury. J Pharmacol Exp Ther 1993; 267: 1428–1431.

25.

Kristian

Bernardi

Siesjo

. Acidosis promotes the permeability transition in energized mitochondria: Implications for reperfusion injury. J Neurotrauma 2001; 18: 1059–1074.

26.

Halestrap

. Calcium-dependent opening of a non-specific pore in the mitochondrial inner membrane is inhibited at pH values below 7. Implications for the protective effect of low pH against chemical and hypoxic cell damage. Biochem J 1991; 278: 715–719.

27.

Halestrap

. The mitochondrial permeability transition: Its molecular mechanism and role in reperfusion injury. Biochem Soc Symp 1999; 66: 181–203.
