The Efficiency of Glutamate Uptake Differs between Neonatal and Adult Cortical Microvascular Endothelial Cells

Animals

Ten-day-old (P10; neonate) or P50 (adult) NMRI mice (Janvier; Le Genest-St-Isle, France) were used. Animals were given food and water ad libitum and maintained on a 12 hour:12hour light/dark cycle. Protocols were approved by the Ethics Committee for Animal Experimentation of Normandy, France (agreement N/02–09–06/15).

Chemicals and Antibodies

The culture medium Dulbecco's modified Eagle's medium, normal donkey serum, and Alexa Fluor-linked secondary antibodies (A21206; A11055; A21209) were obtained from Invitrogen (Cergy-Pontoise, France). The anti-PECAM antibody (5550274) was from BD Biosciences (Meylan, France). Anti-EAAT1 (sc15316), 2 (sc7760), and 3 (sc52658), and peroxidase-conjugated secondary antibodies (sc2030; sc2031; sc2033) were from Santa Cruz Biotechnology (Santa Cruz, CA, USA). Cell lysis buffer was from Cell Signaling Technology (Boston, MA, USA). The EAAT inhibitor TFB-TBAO was from TOCRIS (Bristol, UK). All other materials used, including the anti-β-actin antibody (A5441) and glutamate, were from Sigma-Aldrich (Saint-Quentin Fallavier, France).

Preparation of Brain Sections

Neonatal and adult mice were anesthetized with isoflurane (inhaled) and pentobarbital (intramuscular), respectively, and perfused transcardially with paraformaldehyde (4% in PBS; pH 7.4; 4°C). Brains were immersed overnight in the same fixative (4°C) and stored in 25% sucrose/PBS solution for 48 hours before freezing. Coronal sections (40 μm) were cut on a cryostat (Leica, Rueil-Malmaison, France).

Cortical Microvessel Isolation

Cortical microvessels from neonate and adult mice were prepared as previously described. ⁹ Sample were frozen (−;80 °C) until western blot analysis or resuspended in cold paraformaldehyde (4% in PBS; pH 7.4), spread on slides overnight at 4°C, rinsed twice with PBS, and frozen at −;20°C for immunocytochemistry.

Primary Cultures of Cortical Microvessel Endothelial Cells

As previously described, ⁴ freshly isolated microvessels were digested with collagenase/dispase and DNAse, erythrocytes were lysed, and then microvessels were seeded onto 24-well plates. Presence of astrocytes in both microvessels and CMECs was controlled by western blot and immunolabeling against GFAP (Supplementary Figure 1). When CMECs reached confluence (3–5 DIV), cells were used for western blot analysis or exposed up to 60 minutes to 500 μL of Dulbecco's modified Eagle's medium containing glutamate (50 μmol/L) in the presence or absence of the EAAT inhibitor, TFB-TBAO (600 nmol/L). Media were then collected from 5 to 60 minutes and frozen at −80 °C for glutamate concentration assays.

Immunolabeling

Samples were incubated overnight at 4°C with antibodies to PECAM, EAAT1, EAAT2 or EAAT3 in PBS containing 0.1% normal donkey serum and 3% Triton X-100. Tissues were incubated for 2 hours with the corresponding Alexa Fluor-linked secondary antibody. Cell nuclei were visualized with 1 μg/mL Hoechst 33258. Fluorescent labeling of isolated microvessels and brain sections were observed under a Leica DMI-600B fluorescence and a TCS-SP2 confocal microscope, respectively. The specificity of immunolabeling was assessed by omitting the primary antibody.

Western Blot Analysis

Proteins from cortical microvessels or CMECs extracts were loaded onto 10% SDS-polyacrylamide gels and electroblotted onto nitrocellulose membranes. Membranes were incubated overnight (4°C) with primary antibodies to β-actin, EAAT1, EAAT2, or EAAT3. After incubation with the corresponding peroxidase-coupled secondary antibodies, proteins were visualized using the ECL Plus immunoblotting detection kit (Amersham, UK). The intensity of immunoreactive bands was quantified using a blot analysis system (BioRad Laboratories, Marnes-la-coquette, France) and data expressed as the ratio of protein to β-actin.

OPEN IN VIEWER

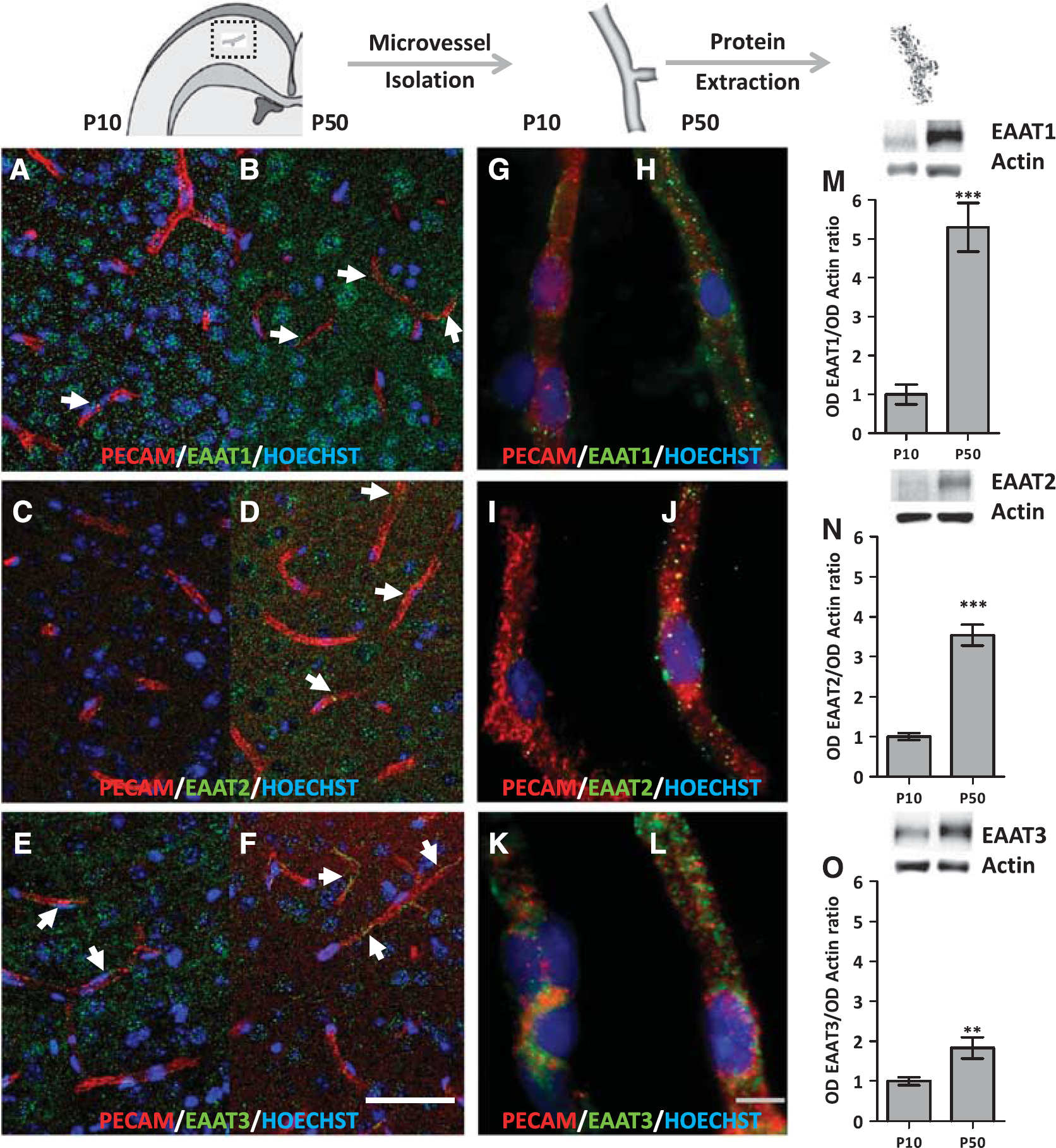

Figure 1.

Expression of excitatory amino-acid transporter (EAAT) 1–3 in cortical microvessels derived from neonatal (P10) and adult (P50) mice. (A–F) Visualization of EAAT1–3 (green) and PECAM (red) immunolabeling in brain sections from P10 and P50 mice. Scale bar = 50 μm. (G–L) Visualization of EAAT1–3 and PECAM immunolabeling in isolated microvessels from P10 and P50 mice. Nuclei are visualized in blue with Hoechst. Scale bar = 5 μm. (M–O) Western blot quantification of EAAT1 (M), EAAT2 (N), and EAAT3 (O) expression in microvessels isolated from P10 and P50 mouse cortices. Data were obtained from nine independent enriched-microvessel preparations, expressed as protein to actin ratio and normalized to neonate microvessels. **P<0.01 and ***P<0.001 vs neonate microvessel levels.

Glutamate Concentration Assay

The glutamate concentration of media from CMECs was quantified following the instructions provided with the Glutamate Assay Kit (Biovision, Milpitas, CA, USA). Absorbance was measured at 450 nm using a Chameleon plate reader (Mustionkatu, Turku, Finland).

Statistical Analysis

Data are expressed as means ± s.e.m. Relative optical densities from immunoblots were compared using an unpaired t-test. Glutamate concentrations in culture media were compared using a two-way analysis of variance followed by a Bonferroni post hoc test. All analyses were performed using GraphPad Prism 4 software (GraphPad Software, La Jolla, CA, USA). A P-value of <0.05 was considered statistically significant.

Expression Pattern of EAATs in Neonate and Adult Cortical Microvessels

Using an antibody against the endothelial cell marker PECAM, a double-immunolabeling approach was used to visualize the expression of EAATs in cortical vessels from P10 and P50 brain slices (Figures 1A–F). At P10, numerous EAAT1-positive cells were seen in the neocortex (Figure 1A). Few puncta were colocalized with PECAM-positive microvessels (Figure 1A, arrow), indicating that most of the EAAT1 labeling was associated with non-endothelial, probably neural cells (Figure 1A). At P50, the density of EAAT1 puncta was clearly higher than at P10. This increase concerned both microvessels and non-endothelial cells (Figure 1B, arrows). Although EAAT2 immunolabeling was very low at P10, a similar increase in puncta density was observed in microvessels and non-endothelial cells at P50 (Figures 1C and 1D). In contrast, the density of EAAT3-labeled puncta decreased between P10 and P50 in the parenchyma, whereas there did not appear to be a marked difference in microvessels (Figures 1E and 1F, arrows).

Because EAAT immunoreactivity was observed in both endothelial and non-endothelial cells, we performed immunocytochemistry (Figures 1G–L) and western blotting experiments (Figures 1M–O) with isolated cortical microvessels. At P10, immunoreactivity for EAAT1 and 2 was quite low (Figures 1G and II) whereas EAAT3 was still detectable (Figure 1K). At P50, immunolabeling for all three EAATs was observed (Figures 1H, 1J, and 1L). EAAT labeling was thus more pronounced in adult than in neonatal microvessels (Figures 1G–L). The expression levels of EAATs in isolated microvessels at P10 and P50 were quantified by western blotting (Figures 1M–O). When compared with neonates, adult microvessels exhibited a 5.3-, 3.5-, and 1.8-fold increase in EAAT1, EAAT2, and EAAT3 protein levels, respectively (P<0.01; P<0.001, Figures 1M–O).

Quantification of Glutamate Uptake by Neonate and Adult CMECs

Because immunocytochemistry and western blotting revealed age-specific expression patterns of the EAATs in cortex-enriched microvessels, we hypothesized that nCMECs and aCMECs could differ in terms of glutamate uptake. First, we controlled that age-dependent specificities persisted in cultured CMECs (Figures 2A–D). When compared with nCMEC, aCMEC did not exhibit significant differences of EAAT1 protein levels. In contrast, aCMEC presented a 1.7- and 1.9-fold increase in EAAT2 and EAAT3 protein levels, respectively (P<0.01, Figures 2B–D). We therefore incubated aCMECs and nCMECs with 50 μM of glutamate in the presence or absence of the large-spectrum EAAT inhibitor TFB-TBAO (600 nM) for 5 to 60 minutes (Figure 2E). Five minutes after application of 50 μM glutamate, concentrations in media were significantly decreased to 22.46 ± 2.11 μM (P<0.001) and 41.70 ± 5.93 μM (P<0.05) in aCMEC and nCMEC, respectively (Figure 2F). While in aCMEC glutamate levels remained significantly decreased at 60 minutes, in nCMEC they progressively returned to the control value (t0). For each time-point, glutamate concentrations measured in aCMEC were significantly lower than in nCMEC media (P< 0.001). Addition of TFB-TBOA (600 nM) prevented the decrease of glutamate levels in both neonate and adult CMEC and, surprisingly, it induced a transient but significant (P<0.05) increase in aCMEC and nCMEC media (Figure 2F). In the presence of TFB-TBOA, no significant variations of glutamate levels were found between nCMEC and aCMEC media.

OPEN IN VIEWER

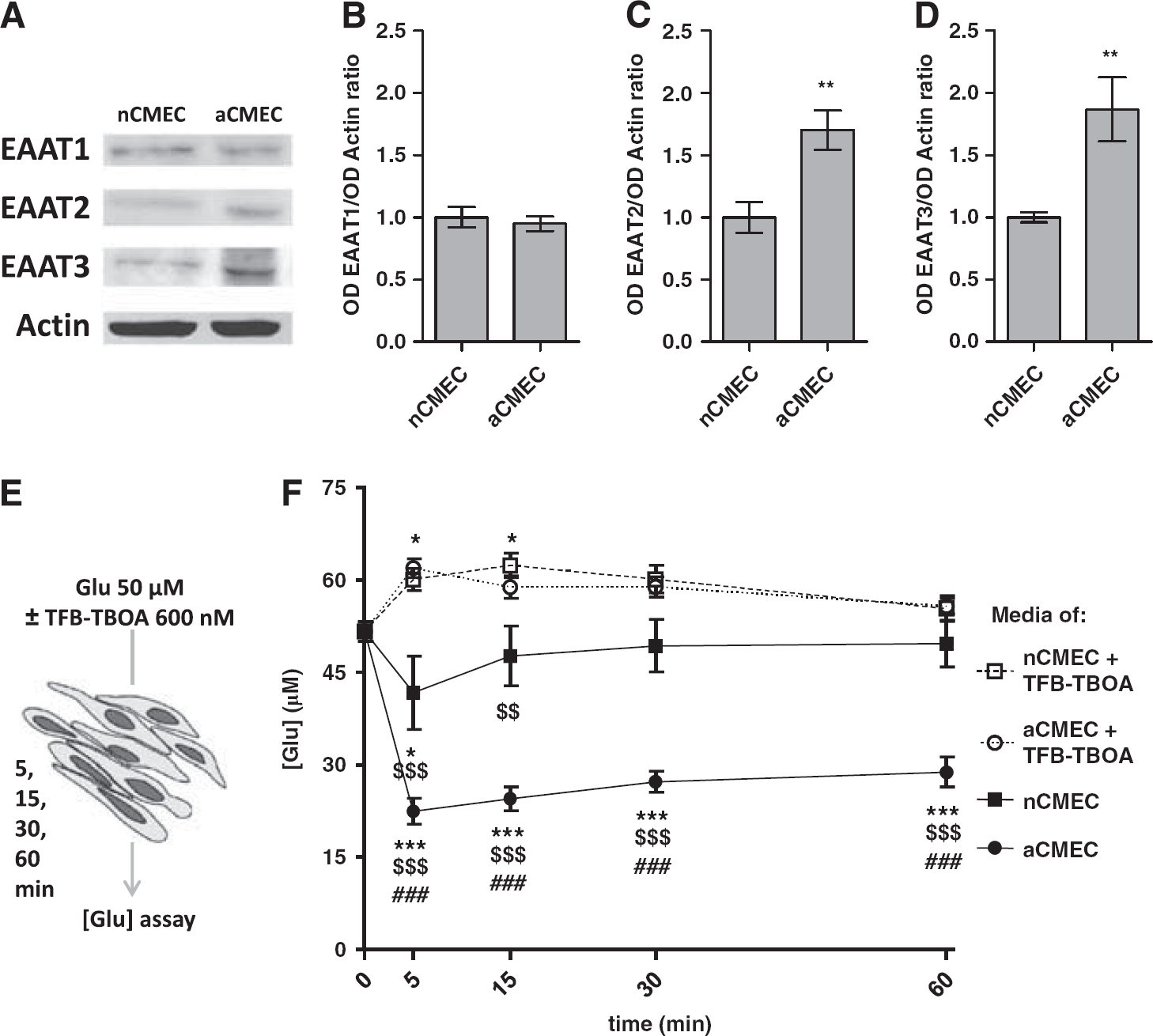

Figure 2.

Quantification of glutamate uptake by neonatal and adult CMECs. (A–D) Visualization (A) and quantification of EAAT1 (B), EAAT2 (C), EAAT3 (D), and actin immunoblots from nCMEC and aCMEC. Data were obtained from six independent cultures, expressed as actin ratio and normalized to nCMEC levels. **P<0.01 vs nCMEC. (E) Experimental design: glutamate (50 μmol/L) was applied alone or with the EAAT inhibitor TFB-TBAO (600 nmol/L) to nCMECs and aCMECs from 5 to 60 minutes. Media were collected at 5, 15, 30, and 60 minutes for glutamate assays. (F) Time-course evolution of glutamate levels in control (to) media and after exposure of nCMECs (squares) and aCMECs (circles) to glutamate alone (filled symbols) or with TFB-TBAO (600 nmol/L; open symbols). Data were obtained from five independent cultures, expressed as means ± s.e.m. *P<0.05, ***P<0.001 vs t = 0. ^###P<0.001 vs nCMEC media; ^$$P<0.01, ^$$$P<0.001 vs CMEC media containing TFB-TBOA.
