Imaging in Vivo Glutamate Fluctuations with [ 11 C]ABP688: A GLT-1 Challenge with Ceftriaxone

Abstract

Molecular imaging offers unprecedented opportunities for investigating dynamic changes underlying neuropsychiatric conditions. Here, we evaluated whether [¹¹C]ABP688, a positron emission tomography (PET) ligand that binds to the allosteric site of the metabotropic glutamate receptor type 5 (mGluR5), is sensitive to glutamate fluctuations after a pharmacological challenge. For this, we used ceftriaxone (CEF) administration in rats, an activator of the GLT-1 transporter (EAAT2), which is known to decrease extracellular levels of glutamate. MicroPET [¹¹C]ABP688 dynamic acquisitions were conducted in rats after a venous injection of either saline (baseline) or CEF 200 mg/kg (challenge). Binding potentials (BP_ND) were obtained using the simplified reference tissue method. Between-condition statistical parametric maps indicating brain regions showing the highest CEF effects guided placement of microdialysis probes for subsequent assessment of extracellular levels of glutamate. The CEF administration increased [¹¹C]ABP688 BP_ND in the thalamic ventral anterior (VA) nucleus bilaterally. Subsequent microdialysis assessment revealed declines in extracellular glutamate concentrations in the VA. The present results support the concept that availability of mGluR5 allosteric binding sites is sensitive to extracellular concentrations of glutamate. This interesting property of mGluR5 allosteric binding sites has potential applications for assessing the role of glutamate in the pathogenesis of neuropsychiatric conditions.

Keywords

ceftriaxone glutamate GLT-1 mGluR5 positron emission tomography

INTRODUCTION

Glutamate is the major excitatory neurotransmitter in the mammalian brain, acting on ionotropic (AMPAr, KAr and NMDAr) and metabotropic (mGluRs) receptors. The ionotropic receptors produce fast-acting excitatory effects, while mGluRs (G proteincoupled receptors) have a crucial role in the modulation of glutamatergic neurotransmission.¹ Since glutamate is not degraded in the extracellular compartment, two major astrocytic transporters, GLT-1 (EAAT2) and GLAST (EAAT1), remove glutamate from the synapses and provide the regulation necessary to orchestrate receptor excitability.² The disruption of this fine-tuning mechanism causes hyperactivation of glutamatergic receptors, a well-established detrimental scenario termed excitotoxicity, which is described as a fundamental player in the pathophysiology of several neurologic and psychiatric disorders.^3,4 Due to the glutamatergic system's involvement in a large array of neuropsychiatric conditions, techniques allowing for noninvasive in vivo estimation of glutamatergic neurotransmission are highly desirable.

Positron emission tomography (PET) is an imaging technique that allows for the in vivo measurement of biologic processes such as receptor availability or fluctuations of endogenous neurotransmitters.⁵ Advances in pharmacology have allowed for the development of PET radiopharmaceuticals targeting allosteric binding sites of the metabotropic glutamate receptor type 5 (mGluR5).⁶ Previous PET studies showed that pharmacological challenges with N-acetylcysteine, a facilitator of the cysteine-glutamate antiporter that increases the release of nonsynaptic glutamate, produced a decrease in the binding of the PET radiopharmaceutical [¹¹C]ABP688, an allosteric and highly selective mGluR5 antagonist, in baboons⁷ and in rhesus monkeys.⁸ In contrast, a recent study showed no effect of N-acetylcysteine on [¹¹C]ABP688 binding in rats.⁹ In fact, little is known regarding noncompetitive interactions between glutamate and the availability of mGluR5 allosteric binding sites. Although important, none of the previous studies tested whether pharmacologically induced declines of extracellular glutamate concentrations increased the availability of mGluR5 allosteric binding sites.

With this in mind, we used ceftriaxone (CEF)—a potent GLT-1 activator, which decreases extracellular levels of glutamate^10–12—to investigate whether the PET radiopharmaceutical [¹¹C]ABP688 is sensitive to declines in extracellular glutamate concentrations.

MATERIALS AND METHODS

Animals

Sprague-Dawley rats (n = 5, 392.10±58.69 g) were scanned twice within 2 to 7 days (baseline and challenge). The scanning was conducted between 1030 h and 1330 h. Additional Sprague-Dawley rats (n = 6, 452.10±68.69 g) were used for microdialysis. The microdialysis was conducted between 1030 h and 1530 h. Animals were kept in a room with controlled temperature (21°C) under a 12-hour light/12-hour dark cycle (lights on 0800 h), with ad libitum access to food and water. All procedures were performed according the Guide to the Care and Use of Experimental Animals (Ed2) of the Canadian Council on Animal Care. The protocols for PET imaging, surgery, and microdialysis were approved by the Animal Care Committee of McGill University (Montreal, QC, Canada).

Radiosynthesis, Pharmaceuticals, and Imaging Procedures

[¹¹C]ABP688 was synthesized as described previously.¹³ The mean specific radioactivity for the baseline was 12.35±5.75 TBq/mmol and for the challenge 12.74±2.49 TBq/mmol (mean ± s.d.). The PET acquisitions were performed using a Concorde MicroPET R4 scanner (Siemens-CTI, Knoxville, TN, USA), as previously described by Elmenhorst.¹³ Rats were placed in a prone position with the head immobilized by both the body holder and the nose cone of the anesthesia system (2% isoflurane at 0.5 L/min oxygen flow). The brain was positioned in the center of the field of view. A 10-min transmission scan with a rotating [⁵⁷Co] point source was acquired to correct for attenuation followed by the 60-minute emission scan. For the baseline, they received a tail vein injection of saline 30 minutes before the scan (Figure 1A). For the challenge, they received a tail vein injection of CEF 200 mg/kg 30 minutes before the scan (Figure 1B). Subsequently, [¹¹C] ABP688 was administered as a bolus injection (0.2 mL) into the tail vein. Respiratory rate, heart rate, and body temperature were monitored throughout the scan (Biopac Systems MP150, Goleta, CA, USA). Mean injected radioactivity was 17.02±2.89 MBq for baseline and 16.62±4.31 MBq for challenge (mean ± s.d.). Ceftriaxone was dissolved in saline (200 mg/kg).

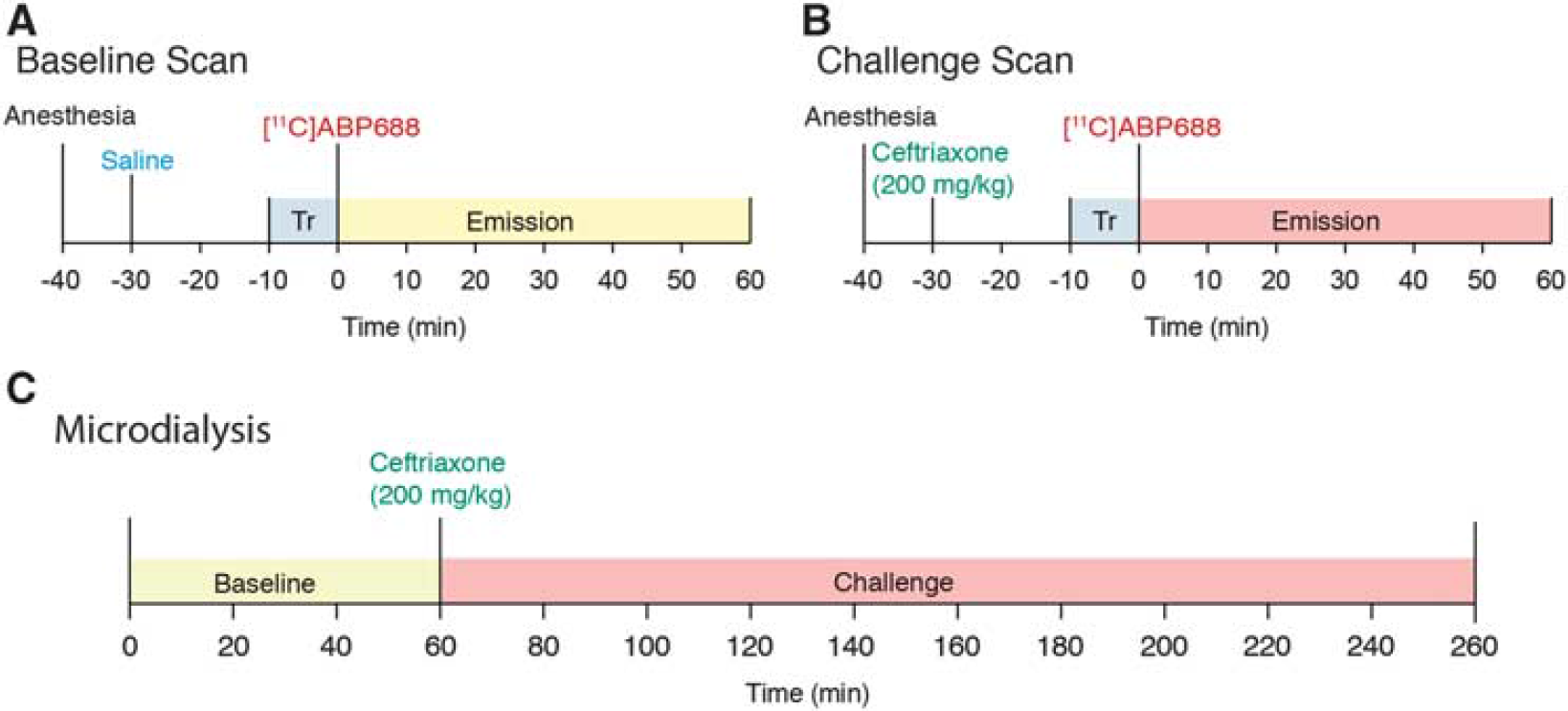

Figure 1.

[¹¹C]ABP688 and ceftriaxone (CEF) challenge study design. (A) MicroPET baseline: rats received a saline tail vein injection 30 minutes before the scan, a 10-minute transmission (Tr) scan preceded the 60-minute emission scan; (B) MicroPET challenge: the same rats used for baseline, received a CEF tail vein injection (200 mg/kg) 30 minutes before the scan, a 10-minute Tr scan preceded the 60-minute emission scan; (C) Microdialysis: additional rats are used for microdialysis, a baseline microdialysis was performed during 60 minutes (three samples) followed by a CEF tail vein injection (200 mg/kg) and microdialysis challenge sampling during 200 minutes (10 samples). PET, positron emission tomography.

Image Reconstruction, Analysis, Processing, and Estimation of Binding Parameters

Images were reconstructed using an MAP (maximum a posteriori) algorithm, normalized and corrected for scatter, dead time, and decay. Imaging analysis was conducted using minctools (http://www.bic.mni.mcgill.ca/ServicesSoftware/). Time-averaged tissue-radioactivity images were manually coregistered to a standard rat histologic template.¹⁴ The image outcome measure, nondisplaceable binding potential (BPND), was estimated using the simplified reference tissue model,¹⁵ with the cerebellum as a reference region due to its low [¹¹C]ABP688 binding.¹³ [¹¹C]ABP688 BP_ND was estimated for every dynamic scan, with resulting images convolved using a 2.4-mm Gaussian kernel. The PET images were corrected for motion by realigning each frame to a reference frame using mutual information as the cost function.¹⁶ For detailed information regarding PET methodology (including error analysis, parameter sensitivity analysis, and scan duration) and simplified reference tissue model analytical details, see Elmenhorst.¹³

Microdialysis Surgery, Procedure, and Histology

Rats were anesthetized with sodium isoflurane (2% isoflurane at 0.5 L/min oxygen flow), and stereotaxically implanted with 22 gauge stainless steel guides into the left frontal cortex (FC), anteroposterior (AP): 4.20 mm, mediolateral (ML): 1.0 mm, dorsoventral (DV): 5.0 mm) and into the right thalamic ventral anterior (VA) (AP:- 1.88 mm, ML: 2.0 mm, DV: 6.5 mm) following Paxinos coordinates.¹⁷ These cannulas were used to insert the microdialysis probes into the target sites. Cannulas were secured with acrylic dental cement and a single anchor screw threaded into the cranium. Carprofen (5 mg/kg, subcutaneously) was used for postoperative analgesia (once daily for 2 days). Animals were allowed 1 week for recovery (housed one per cage) before testing. Microdialysis was performed as previously described by Lupinsky.¹⁸ Probes were calibrated in artificial cerebrospinal fluid (26 mmol/L NaHCO₃, 3 mmol/L NaH₂PO₄, 1.3 mmol/L MgCl₂, 2.3 mmol/L CaCl₂, 3.0 mmol/L KCl, 126 mmol/L NaCl, 0.2 mmol/L L-ascorbic acid) containing 100 ng/ml aspartate, GLU, and GABA. In vitro probe recovery ranged from 14% to 19% at a flow rate of 2 μL/min. Computer-controlled microinfusion pumps were used to deliver perfusate to the probes, and the dialysate was collected from the fused silica outlet line (dead volume: 0.79 μL).

Microdialysis was performed under isoflurane anesthesia (2% isoflurane at 0.5 L/min oxygen flow). Two microdialysis probes (see Figures 4A and 4B) were inserted into the animals' indwelling guide cannula and perfused with sterile artificial cerebrospinal fluid (flow rate set at 1 μL/min). Samples were then taken at 20-minute intervals for 1 hour (baseline), followed by CEF (200 mg/kg) injection in the tail vein, while still collecting samples for 4 hours (challenge, Figure 1C). Each 20-μL dialysate sample was collected in a fraction vial preloaded with 1 μL of 0.25 mol/L perchloric acid to prevent analyte degradation and immediately stored at 4°C for subsequent analysis. After microdialysis, animal brains were dissected and stored in 4% paraformaldehyde and subsequently cryoprotected in a 30% sucrose solution. Brains were sliced in 20-μm-thick samples (coronal) and stained with cresyl violet (Nissl staining) for confirmation of probes placement.

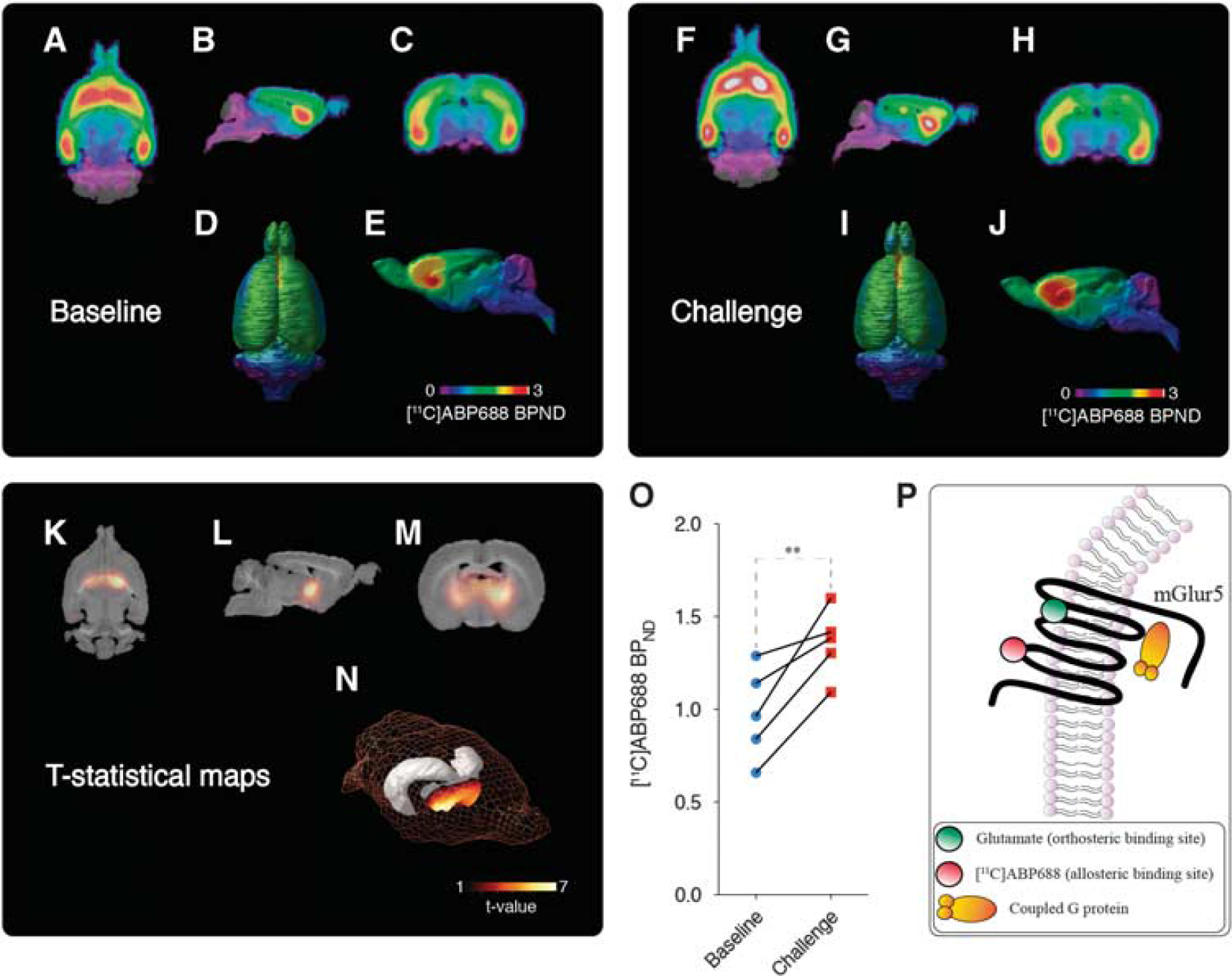

Figure 3.

Baseline and ceftriaxone (CEF) challenge averaged [¹¹C]ABP688 nondisplaceable binding potential (BP_ND). Averaged [¹¹C]ABP688 BP_ND images obtained during the baseline overlaid on a histologic template are shown in axial (A), sagittal (B), coronal (C), as well as dorsal (D) and mid-sagittal surface projections (E). Averaged [¹¹C]ABP688 BP_ND images obtained after CEF challenge overlaid on a histologic template are shown in axial (F), sagittal (G), coronal (H), as well as dorsal (I) and mid-sagittal surface projections (J). Statistical parametric images (t-stats contrast (CEF challenge > baseline)) overlaid on a histologic template are shown on axial view (K); sagittal view (L); coronal view (M); and rat brain 3D surface showing (N) peak t-stat region (the gray object represents hippocampal position in the 3D surface). Note group differences showing a symmetric cluster in the anterior thalamus, encompassing basal forebrain and posterior striatum with the local maxima at the thalamic VA. [¹¹C]ABP688 BP_ND in the local maxima, during baseline and challenge microPET scans (O). Schematic representation of [¹¹C]ABP688 BP_ND binding in the metabotropic glutamate receptor type 5 (mGlur5) allosteric site (P). Images represented as [¹¹C]ABP688 BP_ND and t-value. Graph represented as mean ± s.d., n = 5. ^**P < 0.01. PET, positron emission tomography.

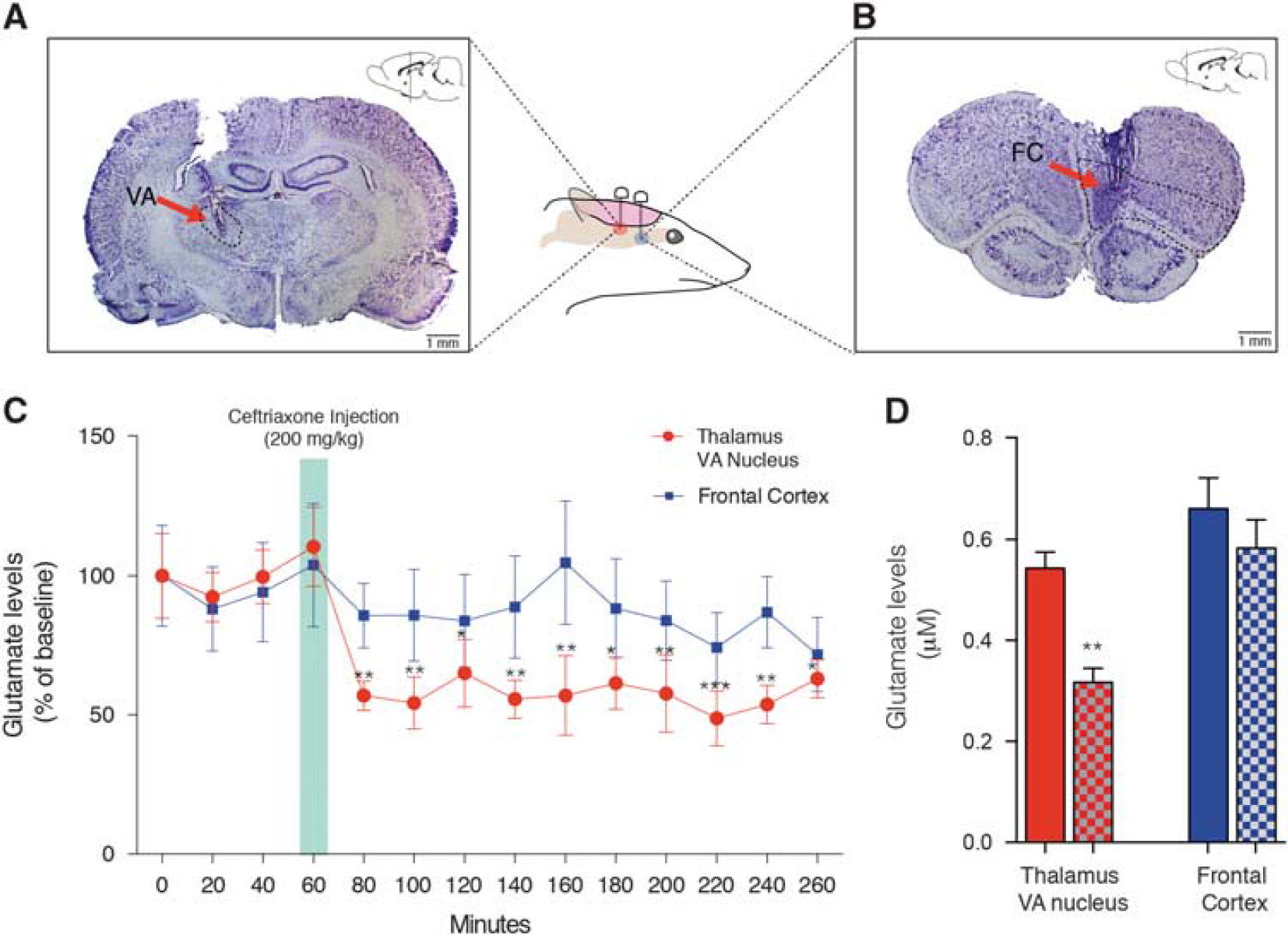

Figure 4.

Ceftriaxone reduced levels of glutamate in the thalamic ventral nucleus but not in the frontal cortex (FC). (A) Histologic verification (cresyl violet) at VA (anteroposterior (AP): −1.88 mm, mediolateral (ML): 2.0 mm, dorsoventral (DV): 6.5 mm) microdialysis probes; (B) Histologic verification (cresyl violet) at FC (AP: 4.20 mm, ML: 1.0 mm, DV: 5.0 mm) microdialysis probes; (C) Levels of glutamate measured by microdialysis in the VA and in the FC during baseline (60 minutes) and challenge (200 minutes) conditions; (D) Comparison between levels of glutamate during baseline (solid bars) and challenge (checkered bars) at 60 minutes (the same duration as the PET scanning period). Data presented as mean ± s.e.m, N = 6. ^*P < 0.05, ^**P < 0.01, ^***P < 0.001.

Lysate High-Performance Liquid Chromatography Analysis

Glutamate levels were determined as previously described by Lupinsky.¹⁸ A high-performance liquid chromatography precolumn derivatization with electrochemical detection was used to determine glutamate levels. The chromatographic system consisted of an ESA pump (model 582) and an ESA injector (model 542) coupled to a Waters Xterra MS C18 3.0 × 50 mm 5 μm analytical column. The mobile phase was prepared as needed and consisted of 3.5% acetonitrile, 20% methanol, and 100 mmol/L sodium phosphate dibasic (Na₂HPO₄) adjusted to pH 6.7 with 85% phosphoric acid. The flow rate was set at 0.5 mL/min, and the electrochemical detector ESA Coularray 5600 A, Chelmsford, MA, USA) was set at potentials of +150 mV and +550 mV. Working standards (100 ng/mL) and derivatization reagents were prepared fresh daily from stock solutions and loaded with samples into a refrigerated (10°C) ESA autosampler (model 542, Chelmsford, MA, USA). Before injection onto the analytical column, each fraction was sequentially mixed with 20 μL of o-phthaldehyde (0.0143 mol/L) diluted with 0.1 mol/L sodium tetraborate and 20 μL of 3-mercaptopropionic acid (0.071 mol/L) diluted with H₂O and allowed to react for 5 minutes. After each injection, the injection loop was flushed with 20% methanol to prevent contamination of subsequent samples. Under these conditions, the retention time for GLU was 2.4 minutes with a total run time of 30 minutes/sample. Chromatographic peak analysis was accomplished by identification of unknown peaks in a sample matched according to retention times from known standards using ESA's CoulArray software.

Statistical Analysis

A paired Student's t-test was used to calculate differences in the [¹¹C]ABP688 BP_ND between challenge and baseline. Comparisons between baseline and challenge were conducted at the voxel level using t-statistic analyses (RMINC, https://launchpad.net/rminc). Regions showing high specific binding were adjusted for a statistical cluster-wise threshold of P<0.05, and corrected for multiple comparisons using random field theory.¹⁹ For microdialysis, two-way ANOVA with repeated measures followed by Bonferroni correction was used. Differences were considered statistically significant at P<0.05.

RESULTS

Ceftriaxone Challenge Increased [¹¹C]ABP688 BP_ND with Peak Effect in the Thalamic Ventral Anterior Nucleus

Figure 2 shows the representative time-activity curves of reference region (cerebellum, Figure 2A) and of a high-binding region (thalamic VA nucleus, Figure 2B). Averaged BPND images showed consistent brain uptake of [¹¹C]ABP688, and no global differences between baseline and challenge (baseline: 1.06±0.24; challenge: 1.14±0.26; t₍₄₎ = 0.5135, P = 0.6347; Figures 3A and 3J). Voxel-based analysis showed a large bilateral symmetric cluster with increased [¹¹C]ABP688 BP_ND in the thalamus, with peak effect in the thalamic ventral nucleus (VA) (peak t₍₄₎ = 6.78, P = 0.0025, Figures 3K–3N) after the challenge with CEF. Paired t-test showed a significant increase in the [¹¹C]ABP688 BP_ND in the VA (local maxima) after challenge with CEF (t₍₄₎ = 5.295, P = 0.0061, baseline: 0.9781±0.24; challenge: 1.379±0.08 Figure 3O).

Figure 2.

[¹¹C]ABP688 time-activity curves (TACs) obtained from baseline and challenge conditions. (A) Baseline and post ceftriaxone TACs from the cerebellum (reference region) and (B) the thalamic VA nucleus (high-binding region) of a single rat. Blue squares represent baseline condition and red squares the challenge condition.

Ceftriaxone Evoked Glutamate Reductions in the Thalamic Ventral Nucleus

Repeated measures two-way ANOVA revealed an effect of drug (F_(13,130) = 5.379, P =0.0001) but not of region (F_(1,10)= 1.373, P= 0.2685). A significant interaction between drug and region (F_(13,130) = 2.109, P = 0.0175) was observed. Bonferroni post hoc analysis revealed decreased glutamate concentrations after challenge in the VA (P_(range) = 0.0004 to 0.0314) but not in the FC (P_(range) = 0.2526 to 0.999; Figure 4C). Comparison between averages of baseline and CEF challenge during the scan period also showed decreased extracellular levels of glutamate in the VA (t₍₅₎ = 4.183, P = 0.0086), but not in the FC (t₍₅₎=1.482, P = 0.20; Figure 4D).

DISCUSSION

The present study showed for the first time the effect of the reduction of extracellular glutamate levels, using a GLT-1 pharmacological challenge with CEF, on PET [¹¹C]ABP688 binding.

In a previous study, we validated the cerebellum as a suitable reference region for the quantification of mGluR5 availability using [¹¹C]ABP688 in rats, via in vivo (microPET) and in vitro (autoradiography) techniques. Additionally, we performed a blood-based pharmacokinetics analysis and a blocking study with 1,2-methyl-6-(phenylethynyl)-pyridine, an antagonist of mGluR5 allosteric binding site and a competitor of [¹¹C]ABP688.¹³ Furthermore, we evaluated the reproducibility of [¹¹C]ABP688 binding in a test-retest study and examined several pharmacokinetic models for determination of binding potential (BPND), showing that the simplified reference tissue model is the pharmacokinetic model that presents lowest variability.²⁰

These validation studies allowed us to proceed with a pharmacological challenge aiming to identify the impact of reduced glutamate concentrations on [¹¹C]ABP688 binding in rats. Here, we show that the acute CEF challenge increased [¹¹C]ABP688 binding in the thalamic VA. Beyond the considerable expression levels of GLT-1,²¹ the thalamic VA receives massive glutamatergic afferents from the cerebellum and basal ganglia²² and drives several connections with prefrontal, premotor, and motor cortices, a piece of the so-called thalamocortical network.^23,24

Interestingly, [¹¹C]ABP688 binding to the transmembrane allosteric site instead of orthosteric binding site of glutamate (Figure 3P) is highly dependent on the tertiary and quaternary receptor conformations.²⁵ Additionally, mGluR5 can assume oligomeric or heteromeric forms,^26–28 which may have an impact on the availability of the allosteric site. One could also argue that glutamate levels alter mGluR5 conformational states. In fact, affinity shift in the receptor-radioligand interactions is a phenomenon already described in the case of dopamine D2 receptors, where an amphetamine challenge altered the affinity of a D2 PET radiopharmaceutical.^29–31

Guided by [¹¹C]ABP688 microPET data, a microdialysis study was performed to confirm the reduction of glutamate levels in the VA. As expected, since [¹¹C]ABP668 binding was not altered in the cerebral cortex, levels of glutamate in the FC (used as a control region) remained stable after CEF injection. In contrast, 20 minutes after CEF injection glutamate levels were reduced in the VA. However, the reason why this thalamic region is the first to be affected by CEF since GLT-1 and mGluR5 are expressed in almost all brain regions remains unknown and requires further investigation. One could argue that the differential expression and splice variants of GLT-1 in diverse brain regions may yield distinct activation by CEF.^32,33 Further studies are necessary to validate this observation; however, it seems unlikely that the changes in [¹¹C]ABP688 binding are the result of a direct displacement by CEF, since CEF does not bind to the mGluR5 allosteric site. In fact, further methodological developments are necessary to better understand noncompetitive interactions using PET. Altogether, our results support a theoretical framework in which synaptic glutamate concentrations anticorrelate with [¹¹C]ABP688 binding (i.e., low levels of glutamate will produce increased [¹¹C]ABP688 binding and high levels of glutamate decreased [¹¹C]ABP688 binding). Interestingly, two recent studies showed that [¹¹C]ABP688 PET was capable of identifying reductions in mGluR5 availability in patients with major depressive disorder,³⁴ and in an epilepsy rat model.³⁵ On the basis of our assumptions, reduced [¹¹C]ABP688 PET binding in this study may indicate increased glutamate levels, a possible sign of early excitotoxicity. This seems reasonable since excitotoxicity is an important pathological entity in both major depression³⁶ and epilepsy.³⁷

In summary, molecular imaging using [¹¹C]ABP688 seems to constitute a valuable tool for noninvasive and in vivo assessment of glutamatergic neurotransmission. Studies encompassing a wide range of clinical populations displaying glutamate-related neurologic and neuropsychiatric conditions are necessary to fully evaluate the feasibility and potential of [¹¹C]ABP688 for measuring clinically-relevant glutamatergic fluctuations. If these clinical studies succeed, then [¹¹C]ABP688 PET imaging will offer the opportunity of identifying glutamate abnormalities (e.g., brain excitotoxicity), which may allow for the development of glutamate-based disease signatures and for the evaluation of glutamate focused therapies.

AUTHOR CONTRIBUTIONS

ERZ and PRN were responsible for the design, drafting and revising the manuscript. ERZ and MJP were responsible for imaging processing and analysis. AL was responsible for drafting and revising the manuscript. ERZ, Arturo A and AA were responsible for microPET procedures and histology. ERZ, Arturo A and LM were responsible for microdialysis procedures. ESS and JPS were responsible for the radiochemistry. AG, SG and PRN critically revised the final version of the manuscript. PRN and AG were responsible for overseeing the entire PET and microdialysis procedures, respectively.

DISCLOSURE/CONFLICT OF INTEREST

The authors declare no conflict of interest.

Footnotes

This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License. The images or other third party material in this article are included in the article's Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit

References

Schaeffer

Duplantier

. Glutamate and neurodegenerative fisease. In: Dominguez

(ed.) Neurodegenerative diseases vol. 6. Springer: Berlin, Heidelberg, 2010 pp 91–147.

Danbolt

. Glutamate uptake. Prog Neurobiol 2001; 65: 1–105.

Mark

Prost

Ulmer

Smith

Daniels

Strottmann

. Pictorial review of glutamate excitotoxicity: fundamental concepts for neuroimaging. AJNR Am J Neuroradiol 2001; 22: 1813–1824.

Mehta

Prabhakar

Kumar

Deshmukh

Sharma

. Excitotoxicity: bridge to various triggers in neurodegenerative disorders. Eur J Pharmacol 2013; 698: 6–18.

Jacobs

Winkeler

Hilker

Knoess

Ruger

. PET-based molecular imaging in neuroscience. Eur J Nucl Med Mol Imaging 2003; 30: 1051–1065.

Ametamey

Kessler

Honer

Wyss

Buck

Hintermann

. Radiosynthesis and preclinical evaluation of 11C-ABP688 as a probe for imaging the metabotropic glutamate receptor subtype 5. J Nucl Med 2006; 47: 698–705.

Miyake

Skinbjerg

Easwaramoorthy

Kumar

Girgis

. Imaging changes in glutamate transmission in vivo with the metabotropic glutamate receptor 5 tracer [11C] ABP688 and N-acetylcysteine challenge. Biol Psychiatry 2011; 69: 822–824.

Sandiego

Nabulsi

Lin

Labaree

Najafzadeh

Huang

. Studies of the metabotropic glutamate receptor 5 radioligand [(1)(1)C]ABP688 with N-acetylcysteine challenge in rhesus monkeys. Synapse 2013; 67: 489–501.

Wyckhuys

Verhaeghe

Wyffels

Langlois

Schmidt

Stroobants

. N-acetylcysteine- and MK-801-induced changes in glutamate levels do not affect in vivo binding of metabotropic glutamate 5 receptor radioligand 11C-ABP688 in rat brain. J Nucl Med 2013; 54: 1954–1961.

10.

Rothstein

Patel

Regan

Haenggeli

Huang

Bergles

. Betalactam antibiotics offer neuroprotection by increasing glutamate transporter expression. Nature 2005; 433: 73–77.

11.

Rasmussen

Baron

Kim

Unterwald

Rawls

. beta-Lactam antibiotic produces a sustained reduction in extracellular glutamate in the nucleus accumbens of rats. Amino Acids 2011; 40: 761–764.

12.

Thone-Reineke

Neumann

Namsolleck

Schmerbach

Krikov

Schefe

. The beta-lactam antibiotic, ceftriaxone, dramatically improves survival, increases glutamate uptake and induces neurotrophins in stroke. J Hypertens 2008; 26: 2426–2435.

13.

Elmenhorst

Minuzzi

Aliaga

Rowley

Massarweh

Diksic

. In vivo and in vitro validation of reference tissue models for the mGluR(5) ligand [(11)C] ABP688. J Cereb Blood Flow Metab 2010; 30: 1538–1549.

14.

Rubins

Melega

Lacan

Way

Plenevaux

Luxen

. Development and evaluation of an automated atlas-based image analysis method for microPET studies of the rat brain. Neuroimage 2003; 20: 2100–2118.

15.

Lammertsma

Hume

. Simplified reference tissue model for PET receptor studies. Neuroimage 1996; 4(3 Pt 1): 153–158.

16.

Gunn

Lammertsma

Hume

Cunningham

. Parametric imaging of ligand-receptor binding in PET using a simplified reference region model. NeuroImage 1997; 6: 279–287.

17.

Paxinos

Watson

. The rat brain in stereotaxic coordinates, 4th ed. Academic Press: San Diego, 1998.

18.

Lupinsky

Moquin

Gratton

. Interhemispheric regulation of the medial prefrontal cortical glutamate stress response in rats. J Neurosci 2010; 30: 7624–7633.

19.

Worsley

Marrett

Neelin

Vandal

Friston

Evans

. A unified statistical approach for determining significant signals in images of cerebral activation. Hum Brain Mapp 1996; 4: 58–73.

20.

Elmenhorst

Aliaga

Bauer

Rosa-Neto

. Test-retest stability of cerebral mGluR(5) quantification using [(1)(1)C]ABP688 and positron emission tomography in rats. Synapse 2012; 66: 552–560.

21.

Ozawa

Nakagawa

Shige

Minami

Satoh

. Changes in the expression of glial glutamate transporters in the rat brain accompanied with morphine dependence and naloxone-precipitated withdrawal. Brain research 2001; 905: 254–258.

22.

Kuramoto

Fujiyama

Nakamura

Tanaka

Hioki

Kaneko

. Complementary distribution of glutamatergic cerebellar and GABAergic basal ganglia afferents to the rat motor thalamic nuclei. Eur J Neurosci 2011; 33: 95–109.

23.

Zikopoulos

Barbas

. Parallel driving and modulatory pathways link the prefrontal cortex and thalamus. PLoS One 2007; 2: e848.

24.

Ngomba

Santolini

Salt

Ferraguti

Battaglia

Nicoletti

. Metabotropic glutamate receptors in the thalamocortical network: strategic targets for the treatment of absence epilepsy. Epilepsia 2011; 52: 1211–1222.

25.

Changeux

J-P

Edelstein

. Allosteric mechanisms of signal transduction. Science 2005; 308: 1424–1428.

26.

Canela

Fernandez-Duenas

Albergaria

Watanabe

Lluis

Mallol

. The association of metabotropic glutamate receptor type 5 with the neuronal Ca2+-binding protein 2 modulates receptor function. Journal of neurochemistry 2009; 111: 555–567.

27.

Cabello

Gandia

Bertarelli

Watanabe

Lluis

Franco

. Metabotropic glutamate type 5, dopamine D2 and adenosine A2a receptors form higherorder oligomers in living cells. Journal of neurochemistry 2009; 109: 1497–1507.

28.

Romano

Yang

O'Malley

. Metabotropic glutamate receptor 5 is a disulfide-linked dimer. J Biol Chem 1996; 271: 28612–28616.

29.

Narendran

Hwang

Slifstein

Talbot

Erritzoe

Huang

. In vivo vulnerability to competition by endogenous dopamine: comparison of the D2 receptor agonist radiotracer (-)-N-[11C]propyl-norapomorphine ([11C]NPA) with the D2 receptor antagonist radiotracer [11C]-raclopride. Synapse 2004; 52: 188–208.

30.

Seneca

Finnema

Farde

Gulyas

Wikstrom

Halldin

. Effect of amphetamine on dopamine D2 receptor binding in nonhuman primate brain: a comparison of the agonist radioligand [11C]MNPA and antagonist [11C]raclopride. Synapse 2006; 59: 260–269.

31.

Wilson

McCormick

Kapur

Willeit

Garcia

Hussey

. Radiosynthesis and evaluation of [11C]-(+)-4-propyl-3,4,4a,5,6,10b-hexahydro-2H-naphtho[1,2-b][1,4]oxazin-9-ol as a potential radiotracer for in vivo imaging of the dopamine D2 high-affinity state with positron emission tomography. Journal of medicinal chemistry 2005; 48: 4153–4160.

32.

Reye

Sullivan

Scott

Pow

. Distribution of two splice variants of the glutamate transporter GLT-1 in rat brain and pituitary. Glia 2002; 38: 246–255.

33.

Torp

Hoover

Danbolt

Storm-Mathisen

Ottersen

. Differential distribution of the glutamate transporters GLT1 and rEAAC1 in rat cerebral cortex and thalamus: an in situ hybridization analysis. Anat Embryol (Berl) 1997; 195: 317–326.

34.

Deschwanden

Karolewicz

Feyissa

Treyer

Ametamey

Johayem

. Reduced metabotropic glutamate receptor 5 density in major depression determined by [(11)C]ABP688 PET and postmortem study. Am J Psychiatry 2011; 168: 727–734.

35.

Choi

Kim

Hwang do

Kang

. In Vivo Imaging of mGluR5 Changes during Epileptogenesis Using [11C]ABP688 PET in Pilocarpine-Induced Epilepsy Rat Model. PLoS One 2014; 9: e92765.

36.

Hashimoto

. Emerging role of glutamate in the pathophysiology of major depressive disorder. Brain Res Rev 2009; 61: 105–123.

37.

Meldrum

. The role of glutamate in epilepsy and other CNS disorders. Neurology 1994; 44(11 Suppl 8): S14–S23.
