Location and Function of VPAC 1,VPAC 2 and NPR-C Receptors in VIP-Induced Vasodilation of Porcine Basilar Arteries

Abstract

Vasoactive intestinal peptide (VIP) is a vasodilator peptide present in cerebrovascular nerves. Vasoactive intestinal peptide can activate VPAC₁, VPAC₂ and the NPR-C receptor. This study sought to determine the receptors involved in VIP-induced vasodilation of porcine basilar arteries. Porcine basilar arteries contained the messenger ribonucleic acid of all three receptors. Immunocytochemical analysis of porcine basilar arteries revealed that the VPAC₁ receptor is expressed on the endothelium, VPAC₂ on the outer layers of the media and the NPR-C receptor throughout the artery, including nerves. Vasodilator responses to all receptor agonists showed that the receptors are functional. The vasodilator response to the VPAC₁ receptor agonist was inhibited by l-NAME and abolished by endothelial denudation. Vasodilation induced by Ro-25–1553, the VPAC₂ agonist, was unaffected by NOS inhibition or removal of the endothelium. Activation of the NPR-C receptor produced a vasodilation, which was susceptible to NOS inhibition and independent of endothelium. The vasodilator response to electrical stimulation at 20 Hz was attenuated by PG-99–465, the VPAC₂ antagonist. This study shows that all known VIP receptors are involved in VIP-mediated vasodilation of porcine basilar arteries. The VPAC₁ receptor is located on the endothelium and elicits vasodilation by generating nitric oxide (NO). The VPAC₂ receptor is mainly expressed in the outer layers of the smooth muscle and induces vasodilation independently of NO in response to VIP released from intramural nerves. The NPR-C receptor produces NO-dependent vasodilation independently of the endothelium by stimulation of nNOS in intramural nerves.

Keywords

NPR-C receptor vasoactive intestinal peptide VPAC receptors

Introduction

Vasoactive intestinal peptide (VIP) is an important neurotransmitter in cerebral arteries, and has been located in cerebral perivascular nerves of rats, rabbits, pigs and humans (Nozaki et al, 1993; Dalsgaard et al, 2003; Larsson et al, 1976; Gulbenkian et al, 1995). Vasoactive intestinal peptide is a highly potent cerebral vasodilator both in vitro (Duckles and Said, 1982; Gaw et al, 1991; Matthew et al, 1997; Toda et al, 1997; Seebeck et al, 2002) and in vivo (Kitazono et al, 1993). Moreover, infusion of VIP into the carotid artery of baboons causes a marked increase in cerebral blood flow accompanied with electroencephalogram changes, indicative of the activation of cerebral neurones (McCulloch and Edvinsson, 1980). Vasoactive intestinal peptide also increases cerebral blood flow after intracerebroventricular administration in rabbits, goats, dogs and rats (Heistad et al, 1980; Larsen et al, 1981; Wilson et al, 1981; Tuor et al, 1990).

The cerebral vasodilator action of VIP involves the participation of nitric oxide (NO). Thus, inhibition of NO synthesis results in the attenuation of VIP-induced vasodilation of endothelium-denuded sheep middle cerebral arteries (Gaw et al, 1991) and bovine cerebral arteries (Gonzalez et al, 1997). In addition, the relaxant effect of VIP on isolated rat basilar arteries is inhibited by ω-conotoxin or 7-nitroindazole (7-NI), showing that nitrergic neurons are activated by VIP (Seebeck et al, 2002). Moreover, transmural nerve stimulation (TNS) of isolated cerebral arteries results in relaxation, which is susceptible to NO synthesis inhibition (Toda and Okamura, 1990a, b ; Gaw et al, 1991; Ayajiki et al, 1993; Matthew and Wadsworth, 1997; Matthew et al, 1997; Tanaka et al, 1999). Stimulation of the facial nerve of the cat results in the release of VIP into the superfusate of the cerebral cortex, showing that VIP is also released after vasodilator nerve stimulation (Goadsby and Shelley, 1990). Vasoactive intestinal peptide antiserum has been shown to inhibit TNS-induced relaxation of sheep middle cerebral arteries (Matthew et al, 1997) and different cat cerebral arteries (Brayden and Bevan, 1986). In addition, the nonspecific VIP receptor antagonist, VIP(7–28), significantly reduced the TNS-induced relaxation in the rabbit basilar artery (Olivar et al, 2000).

Three different receptor subtypes are known with which VIP is capable of interacting. Within the group II secretin receptor G protein-coupled receptor family, the VPAC₁ and VPAC₂ receptors have been identified, cloned (Harmar et al, 1998) and are considered to be the main physiological receptors that mediate the effects of VIP. Members of this family couple to the production of cAMP, and are capable of activating additional signalling pathways (McCulloch et al, 2002). Both VPAC₁ and VPAC₂ receptors have been shown to be expressed in equal amounts in human cerebral arteries regardless of endothelium; however, their location remains undetermined (Knutsson and Edvinsson, 2002). This finding concurs with previous experiments which have shown that VIP-induced vasodilation of cerebral arteries is independent of endothelium (Duckles and Said, 1982; Lee et al, 1984; Edvinsson and McCulloch, 1985; Nozaki et al, 1990; Gaw et al, 1991; Stojic et al, 2003). A third receptor has been identified to mediate VIP-induced relaxation of gastric smooth muscle: this is the natriuretic peptide clearance receptor (NPR-C) receptor (Akiho et al, 1995; Murthy et al, 2000). NPR-C receptor activation inhibits adenylate cyclase via coupling to G_i-1 and G_i-2 proteins (Murthy et al, 2000). The VIP-mediated stimulation of NPR-C receptors in rabbit gastric smooth muscle cells activates endothelial nitric oxide synthase (eNOS) via a G_i-1- and G_i-2-mediated Ca²⁺ influx (Murthy et al, 1998). However, it is not known whether the NPR-C receptor is present or has any vasoactive function in the cerebral circulation.

The objectives of the present study were to determine the VPAC₁, VPAC₂ and NPR-C receptor messenger ribonucleic acid (mRNA) expression in porcine basilar arteries and their localisation. Functional data, including the role of these receptors in neurogenic relaxation, was obtained with the use of recently developed ligands for these receptors and the role of NO was also investigated.

Materials and methods

Basilar arteries were isolated from pig heads obtained from an abattoir within 90 mins of slaughter and placed in Krebs-Henseleit solution (composition, mmol/L: 118.3 NaCl, NaHCO₃, 11.1 glucose, 4.7 KCl, 1.2 MgSO₄, 1.2 KH₂PO₄ and 2.5 CaCl₂), gassed with 95% O₂ and 5% CO₂. Using light microscopy, connective and brain tissue was removed from the basilar artery and any remaining intraluminal blood was gently flushed out with Krebs-Henseleit solution.

Ribonucleic Acid (RNA) Isolation and Reverse Transcriptase-Polymerase Chain Reaction (RT-PCR)

Five basilar arteries were immediately snap-frozen at −80°C and ground up in liquid nitrogen with a prefrozen (–80°C) mortar and pestle. For control reactions, RNA was extracted from tissue obtained from four separate brain regions of the pig: cortex, thalamus, hypothalamus and cerebellum. Total RNA extraction was performed using the RNAzol reagent (Biogenesis Ltd, UK). First-strand cDNA was synthesised from 10 μg of total RNA using the Superscript II RT First Strand Synthesis System (Invitrogen Life Technologies, UK) and random hexamers.

Oligonucleotide primers were designed to amplify the VPAC₂ and NPR-C receptor sequences in pig based on the conserved regions identified through comparison of the published sequences of the mouse, rat and human genes, respectively. For the VPAC₂ receptor, the primers used were VPAC2fp: 5'-TGCCTCTTCAGGAAGCTGCACTG-3' and VPAC2rp: 5'-GCAAACACCATGTAGTGGACGCC-3', and for the NPR-C receptor the primers used were NPRCfp: 5'-GG AGCGGAACTGCTACTTCAC-3' and NPRCrp: 5'-GTTTC; TCAACTGAACTTTTCACCTCC-3'. Specific primers for the pig VPAC₁ receptor were derived from the published cDNA sequence accession number U49434, pVPAC1fp: 5'-GCACA CCCTACTTGCCGTG-3' and pVPAC1rp: 5'-CTCCTGACGGG TGCTGGTATTTG-3'. Specific primers for the pig PAC₁ receptor were derived from the published gene sequence accession number AC091758, pPAC1.fp 5'-TTTGATGCCTGT GGGTTTGATGAG-3' and pPAC1.rp [5'-GAGAACAGCCACC ACGAAGCC-3'. PCR amplification for each receptor was performed with first-strand cDNA with 15 pmol of the respective forward and reverse primers using Taq Polymerase (Promega, UK) according to the manufacturer's instructions. The reactions were first heated to 95°C for 2 min, followed by 35 cycles of 94°C for 30 secs, 60°C for 30 secs and 72°C for 90 secs. Amplified DNA products were analysed by agarose gel electrophoresis, with positive and negative controls. Amplified products were subcloned and verified by sequence analysis.

Immunocytochemistry

The basilar artery was immediately fixed in neutral buffered saline (formalin) and dehydrated through graded alcohol to xylene. The artery section was then orientated for cross-section or longtitudinal sectioning, wax embedded, and 4-μm sections were cut using a rotary microtome (Leica RM2125 RTF, Leica Instruments GmbH, Germany). The sections were then mounted onto presilanated slides and rehydrated through graded alcohol to water. The sections were then placed in 0.3% H₂O₂ for 10 min to inhibit endogenous peroxidases and washed in Tris buffered saline (TBS) for 5 min. Antigen retrieval pretreatment was performed by microwave pressure-cooking for 5 min (0.37 g ethylenediamine tetraacetic acid (EDTA) and 0.55 g Tris were added to 1 L of distilled water). The sections were then washed in TBS for 5 min and 20% normal goat serum (in TBS) was added for 20 min to block nonspecific binding of the secondary antibody, a biotinylated goat anti-rabbit/anti-mouse antibody. The normal goat serum was then drained before addition of the primary antibody. Primary antibodies used were rabbit polyclonal, anti-human VPAC₁ and VPAC₂ antibodies (both 1:100, generous gifts from S Schulz, Otto-von-Guericke University Magdeburg, Germany – see Schulz et al, 2004), rabbit polyclonal, antihuman NPR-C antibody (1:1000, kind gift from K Omori, Tanabe, Seiyaku Co. Ltd, Osaka, Japan – see Fujishige et al, 1998), rabbit polyclonal, antiporcine VIP antibody (1:25, Europath, UK), mouse monoclonal, anti-human eNOS antibody (1:400, BD Biosciences, UK), mouse monoclonal, antihuman neuronal nitric oxide synthase (nNOS) antibody (1:1000, BD Biosciences, UK) and mouse monoclonal, antihuman neurofilament (1:400, Dako, UK). All of the primary antibodies used were applied for 60 min, then drained off, and the sections washed in TBS for 5 min. Each staining run contained a negative control slide, processed in the absence of a primary antibody. The biotinylated goat antirabbit/antimouse secondary antibody (LSAB2 kit, Dako, UK) was then added for 30 min; then the sections were washed in TBS for 5 min. The streptavidin—horseradish peroxidase complex tertiary antibody (LSAB2 kit, Dako, UK) was then applied for 40 min, then washed off in TBS for 5 min. The sections were then placed in 0.5% diaminobenzidine tetrahydrochloride (DAB) (activated with 700 μL of 30% H₂O₂) for 10 min, resulting in an insoluble brown precipitate formation at the site of the bound primary antibody. The sections were then rinsed in water, then counterstained in haematoxylin for 3 min, and then rinsed in water. Sections were then immersed in 0.5% acid alcohol (10 dips), washed in water, then placed in Scott's substitute tap water (SSTW) for 30 secs. After washing in water, the sections were then placed in 0.5% copper sulphate to intensify the stain. After completion of the staining, sections were then dehydrated by sequential immersion in water, through graded alcohols to xylene and then mounted in DPX (xylene-based mountant) with a glass coverslip. The sections were then viewed with a light microscope fitted with a daylight filter. Each staining run contained a negative control where the primary antibody was omitted from the protocol. All staining results were verified by duplicating the results in different arteries and in control tissues (gut, lung and brain, not shown, n = 3–5). Images were magnified with a light microscope (Nikon Eclipse E600) and captured with a digital camera (Fujix HC 300Z).

Myography Studies of Vascular Relaxation

Rings of porcine basilar arteries (2-mm long) were mounted on two 40-μm diameter wires in a 4-channel myograph (MultiMyograph 610, Danish Myo Technology, Aarhus, Denmark) in Krebs-Henseleit solution, gassed with 95% O₂ and 5% CO₂ at 36°C to reduce spontaneous activity of the arteries (Osol and Halpern, 1988). The responses were recorded via computer software (MyoDaq V.2.01, Danish Myo Technology, Aarhus, Denmark). A passive tension of 1.5 g was applied gradually over 60 min. The vessels were then allowed to equilibrate for 30 min before the addition of 40 mmol/L KCl to confirm contractile viability of each vessel. The chambers were then washed 3 times to ensure that the KCl was removed and the vessels were allowed to return to the passive tension of 1.5 g. The tension was readjusted if necessary. U46619 (0.1 μmol/L; was used to obtain a reproducible, stable contraction of the arteries before cumulative generation of relaxant responses to either VIP, the VPAC₁ agonist ([K¹⁵,R¹⁶,L²⁷]VIP(1–7)/GRF(8–27)), the VPAC₂ agonist (Ro-25–1553) or the NPR-C agonist (cANP(4–23)). Any subsequent concentration response curves were generated after a 60-min equilibration period and only 2 concentration—response curves were generated per artery ring to avoid tachyphylaxis. Selective VPAC₁ ([AcHis¹,DPhe²,K¹⁵,R¹⁶,L²⁷ VIP/GRF]), VPAC₂ (PG-99–465) and NPR-C (ANP(1–11)) antagonists were also tested for their effect on the relaxation induced by the different agonists. Endothelium was removed in some experiments by gently rubbing the luminal surface with a roughened wire three times. Successful removal of the endothelium was confirmed by a subsequent lack of response to carbachol.

Transmural Nerve Stimulation

Pig basilar artery rings (2-mm long) were mounted in a 4-channel myograph as above using nonconducting nylon myograph jaws incorporating platinum electrodes. Guanethidine (5 μmol/L) and 1 μmol/L atropine were present throughout the experiment to eliminate the influence of adrenergic and cholinergic nerves on nitrergic nerves. During the contraction to U46619, the vessels were stimulated with square wave pulses delivered by an electrical stimulator (Grass S44, Quincy, MA, USA) via the platinum electrodes. Optimum stimulating voltage (10–150 V) for each vessel was then obtained and test responses were obtained in U46619-contracted vessels, causing a rapid, transient and submaximal (∼50%) relaxation of the artery smooth muscle. The frequencies studied were 8 and 20 Hz. These were applied for 10 secs, delivering square wave pulses, 0.2 ms in duration. The vessels were then washed free of U46619, allowed to equilibrate for 30 min, recontracted with U46619 and tested a second time to obtain time controls. Parallel experiments repeated the stimulation with selected pharmacological interventions. The relaxant responses were expressed as a percentage of the maximum relaxation, which was obtained with 1 μmol/L forskolin.

Drugs and Solutions

Formalin composition was 100 mL of 40% formaldehyde in 900 mL phosphate buffer (4 g NaH₂PO₄ · 2H₂O and 6.5 g NaHPO₄/L). Tris buffer: 0.038 mol/L (6.06 g/L) Trizma HCl and 0.011 mol/L (1.39 g/l) Trizma base dissolved in distilled water. Tris buffered saline: 1 part Tris buffer, 9 parts saline (0.9% (w/v) NaCl dissolved in distilled water). DAB: 1 vial of frozen DAB (30 mL aliquot, 0.5% w/v) dissolved in 300 mL Tris buffer. Scott's substitute tap water (SSTW): 0.08 mol/L (20 g/L) MgSO₄ · 7H₂O and 0.08 mol/L (3.5 g/L) NaHCO₃ in distilled water. Copper sulphate solution (0.5%): 0.008 mol/L (5 g/L) copper sulphate in saline.

Trizma base, Trizma HCl, DAB, NaCl, NaHCO₃, MgSO₄, silane (3-aminopropyltriethoxy silane), U46619 (9,11-dideoxy-11α, 9α-epoxymethanoprostaglandin F_2α), carbachol, guanethidine and atropine were purchased form Sigma, UK. Copper sulphate, KCl, glucose, KH₂PO₄, CaCl₂ and DPX mounting media were purchased from VWR International, Poole, UK. H₂O₂ was bought from AAH Pharmaceuticals Ltd, UK. Paraffin wax was bought from TCS Microbiology, Boltof Claydon, UK. Xylene and industrial alcohol were purchased from Genta Medical, York, UK. Microscope slides were purchased from Menzel-Glazer, Germany. [K¹⁵,R¹⁶,L²⁷]VIP(1–7)/GRF(8–27), Ro-25–1553, AcHis¹,DPhe²,K¹⁵,R¹⁶,L²⁷ (VIP/GRF) and PG-99–465 were kind gifts from Professor Robberecht (Department of Biochemistry and Nutrition, University of Brussels, Belgium). ANP(1–11) and cANP(4–23) were purchased from American Peptide Co. (Sunnyvale, CA, USA).

Statistical Analysis

Statistical analysis of concentration—response curves was performed by ANOVA with repeated measures (cross-over model), which determines a significant difference between two curves overall. A paired Student's t-test was used to compare TNS responses. n = number of arteries from different animals. Any statistical test yielding a P-value > 0.05 was considered significant.

Results

Since the vasodilator action of VIP on blood vessels could possibly be mediated by three different receptors, we first investigated which were expressed in porcine cerebral arteries by RT-PCR analysis. Polymerase chain reaction products of the expected sizes for the VPAC₁ (550 base pair (bp)), VPAC₂ (580 bp) and NPR-C (410 bp) receptors were amplified from porcine basilar arteries (shown in Figure 1). For the VPAC₂ receptor, the 580 bp fragment was detected also in the thalamus and cerebellum and weakly in the cortex and hypothalamus, whereas the 550 bp fragment corresponding to the VPAC₁ receptor was only very weakly detected in the cerebellum and hypothalamus. In addition, a smaller 300 bp product was amplified from all brain tissues with the pVPAC₁ primers. The 410 bp fragment corresponding to the NPR-C receptor is expressed also in a rat SCN2.2 cell line used as a positive control in this study (Earnest et al, 1999). We next determined that the amplified DNA fragments corresponded to the correct receptor gene sequence by sequence analysis (data not shown). The small 300 bp amplification product amplified by the pVPAC₁ receptor primers was also sequenced and determined to be nonspecific.

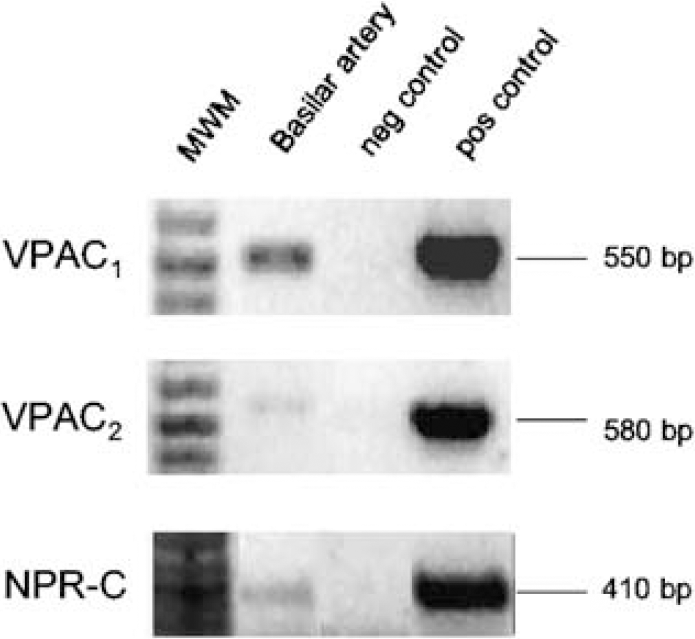

Figure 1

Reverse transcriptase-polymerase chain reaction results from porcine basilar arteries. The amplified products (35 PCR cycles) correspond to the mRNA encoding porcine VPAC₁, VPAC₂ and NPR-C receptors. The top panel shows the 550 bp product of the VPAC₁ receptor from porcine basilar arteries. The middle panel shows the 580 bp product of the VPAC₂ receptor found in the pig basilar artery. The bottom panel shows the 410 bp product of the NPR-C receptor found in the pig basilar artery. MWM = molecular weight marker, negative control = negative control DNA, positive control = pig VPAC₁ cDNA, human VPAC₂ cDNA and rat SCN for VPAC₁, VPAC₂ and NPR-C receptors, respectively.

The distribution of the receptor proteins was determined by immunocytochemical analysis. Porcine basilar arteries were found to be densely innervated by nerve bundles in the adventitia parallel to the lumen in addition to a network of fine nerve fibres (Figure 2A). Vasoactive intestinal peptide immunoreactivity was detected in the media/adventitial border, suggesting that this peptide is released from intramural nerves in the vicinity of the smooth muscle cells (Figure 2B). Endothelial cells stained positively for the VPAC₁ receptor, but no immunoreactivity was observed in smooth muscle cells (Figure 2C). Immunoreactivity for the VPAC₂ receptor is most prominent in the outer layers of the media, with immunoreactivity also detected in the endothelium (Figure 2D). The NPR-C receptor appears to have widespread cellular distribution, with immunoreactivity detected in the endothelium, smooth muscle, adventitia and nerve bundles (Figure 2E). The PACAP-specific receptor, PAC₁, was not detected in porcine basilar arteries by RT-PCR or immunocytochemistry (data not shown). The constitutive NOS isozymes, eNOS and nNOS, were also detected on the endothelium and nerves, respectively (data not shown). Negative controls were obtained by omitting the primary antibody from the protocol and did not result in any staining (not shown).

Figure 2

(A) Immunocytochemical detection of neurofilament in a cross-section of porcine basilar artery showing the presence of nerve bundles and individual nerve fibres present in the adventitia (arrows). (B) Vasoactive intestinal peptide immunoreactivity in a longitudinal section of porcine basilar artery showing few nerve fibres containing VIP located in the adventitia immediately external to the media (arrows). (C) Immunoreactivity in a cross-section of porcine basilar artery showing the VPAC₁ receptor localised to the endothelium (arrows). (D) Cross-section of a porcine basilar artery showing VPAC₂ receptor immunoreactivity in the outer layers of the media and in the endothelium (arrows). (E) NPR-C receptors were detected in the endothelium, smooth muscle and nerves (arrows).

The functional activity of VIP and VIP receptor-specific agonists and antagonists was then investigated on intact basilar artery rings. Vasoactive intestinal peptide added cumulatively at a range of 10⁻⁹–3 × 10⁻⁷ mol/L produced concentration-dependent relaxation of the U46619-induced tone (maximum relaxation ∼100%). All generated concentration-dependent relaxations of U46619-contracted pig basilar arteries were reproducible. The NOS inhibitor N^G-nitro-l-arginine methyl ester (l-NAME) (100 μmol/L) significantly attenuated the vasorelaxation induced by VIP (Figure 3A). The first contractile response to U46619 was 1.4 ± 0.3 g and the second contractile response produced 1.4 ± 0.4 g. The VPAC₁ agonist [K¹⁵,R¹⁶,L²⁷]VIP(1–7)/GRF(8–27) produced relaxations at a range of 10⁻⁹–3 × 10⁻⁷ mol/L (maximum relaxation ∼70%) and the effect was inhibited by l-NAME (Figure 3B). Ro-25–1553 was active between 10⁻¹⁰ and 3 × 10⁻⁸ mol/L (maximum relaxation ∼100%) and was not susceptible to NOS inhibition (Figure 3C). cANP(4–23) was vasoactive at a range of 10⁻¹²–3 × 10⁻⁹ mol/L (maximum relaxation ∼70%) and the response was significantly inhibited by l-NAME (Figure 3D). Vasoactive intestinal peptide, VPAC₁ agonist, Ro-25–1553 and cANP(4–23) all generated reproducible concentration-dependent relaxations of U46619-contracted pig basilar arteries reproducible after 60 min equilibration between concentration—response curves (data not shown). Vasodilation elicited by VIP was significantly attenuated by VPAC₁ antagonist, PG-99–465 or ANP(1–11), as shown in Figure 4. Relaxant responses obtained with VPAC₁ agonist Ro-25–1553 or cANP(4–23) were each significantly inhibited by the antagonists of the same receptor (data not shown). No nonspecific inhibition of vasodilation generated by VPAC₁, VPAC₂ or NPR-C receptor agonists was observed with antagonists of either of the other two receptors (data not shown). Removal of the endothelium did not alter the response to VIP tested before denudation (Figure 5A). In contrast, removal of the endothelium abolished the response to the VPAC₁ agonist (Figure 5B). Neither Ro-25–1553- nor cANP(4–23)-elicited responses were affected by endothelial denudation (Figures 5C and 5D).

Figure 3

Porcine basilar arteries precontracted with 0.1 μmol/L U46619. (A) The vasodilator effect of VIP was significantly inhibited by incubation of 100 μmol/L l-NAME (P > 0.01, n = 7). (B) The relaxant effect induced by the VPAC₁ receptor agonist was significantly inhibited after NOS inhibition (P > 0.01, n = 6). (C) The VPAC₂ receptor agonist Ro-25–1553 induced relaxation that was independent of NO generation (n = 6). (D) NPR-C activation produced an NO-dependent relaxation of porcine basilar arteries (P > 0.05, n = 7). * denotes P > 0.05; ** denotes P > 0.01.

Figure 4

Porcine basilar arteries precontracted with 0.1 μmol/L U46619. Specific inhibition of VIP-induced relaxation of porcine basilar arteries by (A) 1 μmol/L VPAC₁ antagonist (n = 6, P > 0.01), (B) 0.1 μmol/L PG-99–465 (n = 6, P > 0.05) and (C) 10 μmol/L ANP(1–11) (n = 6, P > 0.05). * denotes P > 0.05; ** denotes P > 0.01.

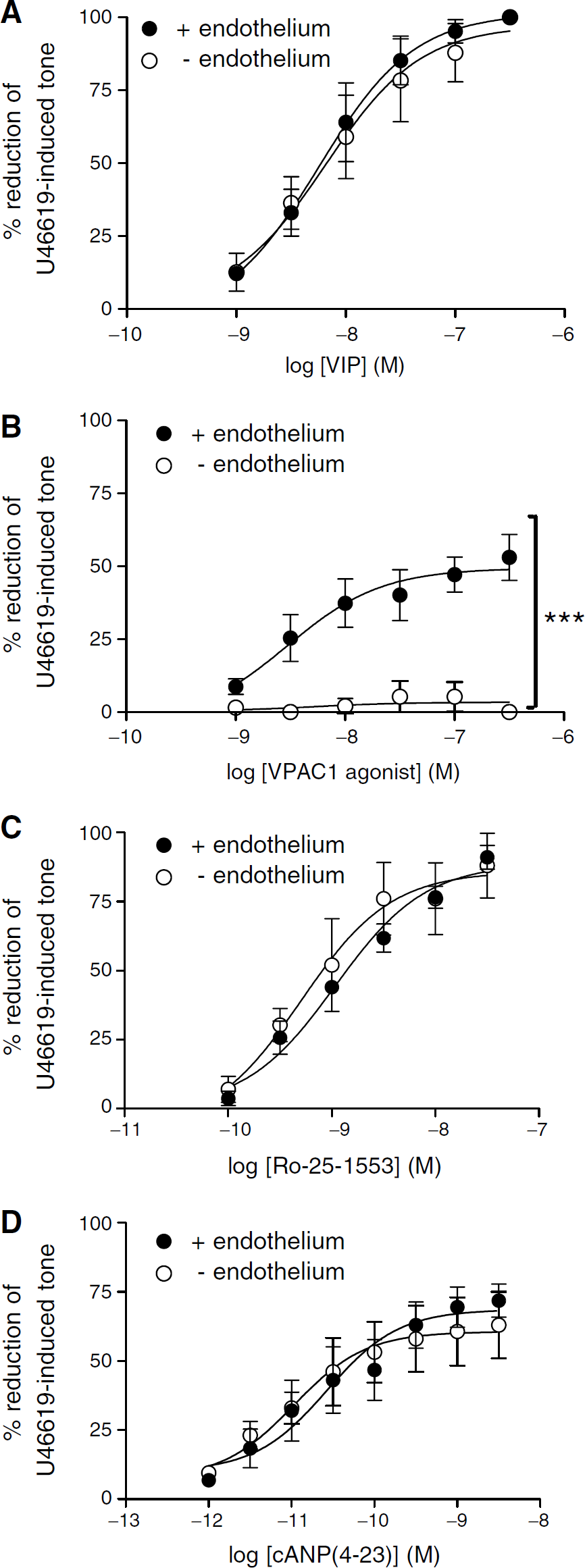

Figure 5

Precontracted porcine basilar arteries (0.1 μmol/L U46619). (A) The vasodilator effect of VIP was unaffected by removal of the endothelium (n = 6). (B) Removal of the endothelium abolished the vasorelaxant effect of the VPAC₁ receptor agonist (n = 6, P > 0.001). (C) Ro-25–1553 elicited endothelium-independent relaxation of porcine basilar arteries (n = 6). (D) The NPR-C receptor agonist, cANP(4–23), induced endothelium-independent relaxation (n = 6). *** denotes P > 0.001.

Transmural nerve stimulation responses at 20 Hz were reproducible when repeated after a 30-min interval (Figure 6A) and abolished by tetrodotoxin (TTX) or l-NAME (Figures 6B and 6C). Flurbiprofen did not affect the response (data not shown); however, phosphoramidon (a neutral endopeptidase inhibitor) significantly augmented the response (data not shown). The VPAC₁ antagonist and ANP(1–11) had no effect (Figures 6D and 6F). Incubation with PG-99–465 significantly attenuated the response (Figure 6E). Transient relaxations obtained by TNS at 8 Hz were reproducible when repeated after a 30-min interval. The relaxation was abolished by TTX or l-NAME, but was not influenced by flurbiprofen, phosphoramidon, VPAC₁ antagonist, PG-99–465 or ANP(1–11) (data not shown).

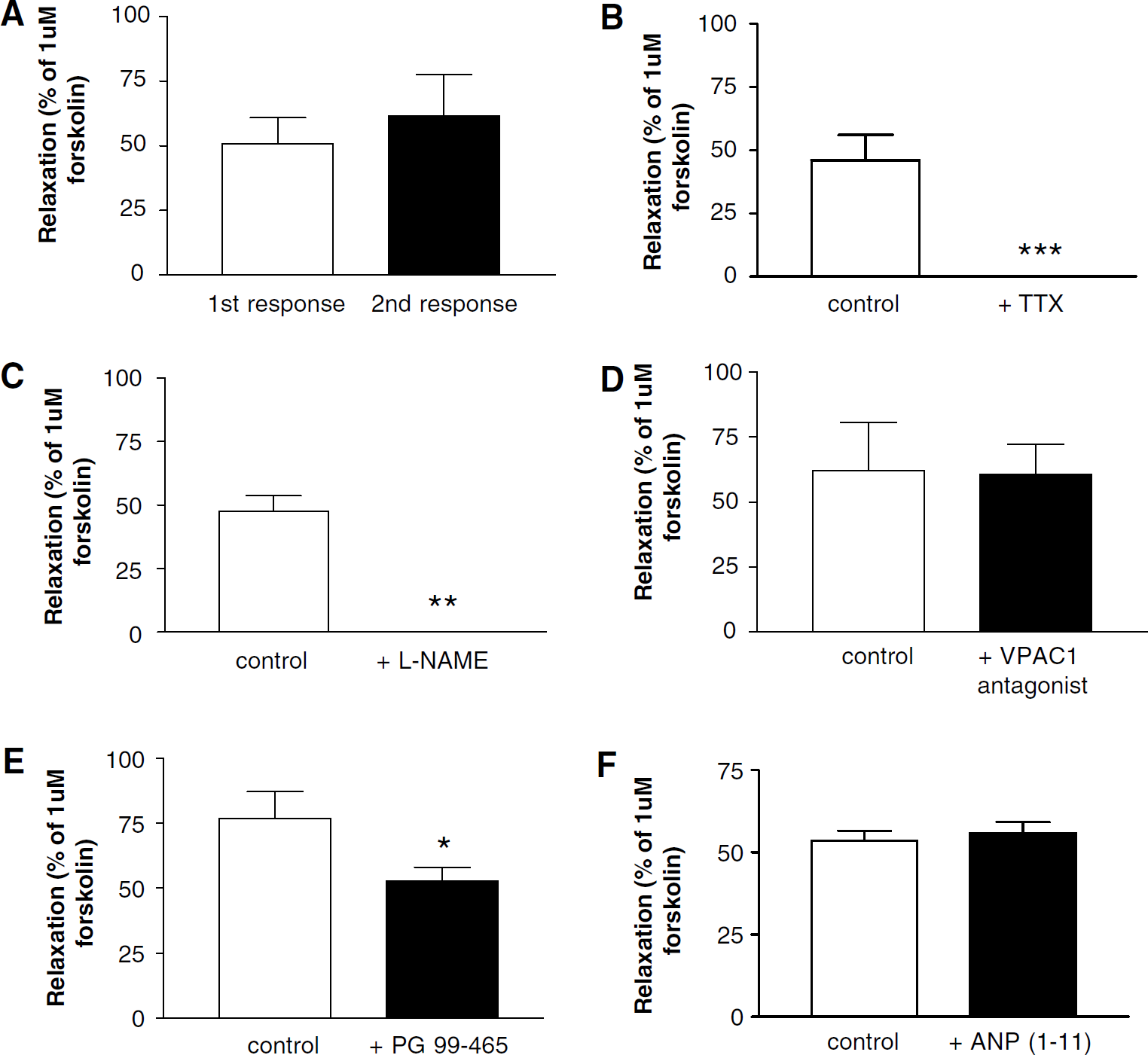

Figure 6

Porcine basilar arteries precontracted with 0.1 μmol/L U46619. (A) Reproducible TNS relaxant responses obtained by a 10-sec stimulation at 20 Hz (n = 5). The TNS vasodilator response was (B) abolished by 0.3 μmol/L TTX and by (C) 100 μmol/L l-NAME (both n = 6). (D) The TNS relaxation was not altered by blocking (D) VPAC₁ receptors using 1 μmol/L VPAC₁ antagonist or by blocking (F) NPR-C receptors using 10 μmol/L ANP(1–11) (both n = 6). (E) Transmural nerve stimulation relaxation was significantly attenuated by 0.1 μmol/L PG-99–465 (P > 0.05, n = 7). * denotes P > 0.05; ** denotes P > 0.01; *** denotes P > 0.001.

Discussion

Vasoactive intestinal peptide produced a concentration-dependent relaxation of U46619-contracted porcine basilar arteries and the response was attenuated with l-NAME, showing that the relaxation is induced, in part, by NO generation. Using selective VPAC and NPR-C ligands for the first time in cerebral arteries, we have shown that all three receptors (VPAC₁, VPAC₂ and NPR-C) are functional in the pig basilar artery and induce vasodilation when activated. However, the mechanism of vasodilation depends on which receptor is activated. Moreover, the vasodilator pathway as revealed by the functional studies closely agrees with the location of each receptor subtype determined by immunocytochemistry.

In the present study, the VPAC₁ receptor was identified in the endothelium. The VPAC₁ agonist induces NO- and endothelial-dependent vasodilation over the same concentration range as VIP, which is in agreement with the immunocytochemical findings that this receptor is located on the endothelium. This is in contrast to a previous study, which identified VPAC₁ receptors on vascular smooth muscle cells of rat superficial cerebral arteries (Fahrenkrug et al, 2000). This highlights a possible species difference or a difference between the distributions of the VPAC₁ receptor in basilar and superficial cerebral arteries (i.e. large versus small diameter arteries).

The VPAC₂ receptor was most prominent in the outer layers of the media. Ro-25–1553, the VPAC₂ agonist, is roughly 10 × more potent than VIP. This is due to the increased stability consequent on resistance to peptidases (Bolin et al, 1997; Xia et al, 1997). The response to VPAC₂ stimulation is both NO- and endothelium-independent and probably induces relaxation via the cAMP pathway in smooth muscle cells. This finding is in agreement with the immunocytochemical detection of VPAC₂ receptors in the outer layers of the smooth muscle. PG-99–465 significantly attenuated the neurogenic relaxation obtained by TNS at 20 Hz. This suggests that VIP released from intramural nerves (identified at the media-adventitial border) acts on VPAC₂ receptors in the outer layers of the media to contribute to the relaxation. As NOS inhibition abolishes this response, NO generation is also implicated. The model of interaction between VIP and NO is not clear; however, it is possible that NO induces VIP release during high-frequency stimulation. This is a possible model of interaction as NOS inhibition completely inhibits the TNS response, but in the absence of NOS inhibition VPAC₂ receptor antagonism attenuates the relaxation, suggesting that VIP might also be released by NO. Nitric oxide-induced VIP release has also been proposed in models of gastrointestinal smooth muscle relaxation. This was initially proposed after the observation that electrically induced VIP release from guinea-pig stomach smooth muscle strips was reduced by l-NAME (Grider et al, 1992). l-NAME-mediated reductions in VIP release have also been reported in rat and rabbit gastric fundus smooth muscle preparations and in isolated perfused dog ileal segments (Daniel et al, 1994; Jin et al, 1996; Chakder and Rattan, 1998). In addition, NO donors have been used to enhance VIP release from rat intestinal synaptosomal preparations, showing that VIP release is stimulated by NO (Allescher et al, 1996; Kurjak et al, 2001). Additional evidence for peptide involvement in the relaxation at this frequency of TNS is provided by the augmentation of the response by phosphoramidon. These findings agree with previous reports showing that VIP release occurs after high-frequency (16–20 Hz) stimulation rather than low-frequency (1–8 Hz) stimulation (Lundberg et al, 1981; Goadsby and Shelley, 1990; Feliciano and Henning, 1998; Mule and Serio, 2003).

The NPR-C agonist cANP(4–23) was vasoactive, showing that this receptor is functional. This response was obtained independently of endothelium, and was significantly inhibited by l-NAME. The relaxant effect mediated by activation of this receptor therefore appears to involve NO generation from an extra-endothelial source, possibly from nerves, which are nNOS immunoreactive. Vasoactive intestinal peptide induces vasodilation of porcine basilar arteries partly via generation of NO, but independent of endothelium. Possible NO sources through which VIP might be exerting this action include the endothelial VPAC₁ receptors and NPR-C-positive nerves, which are also nNOS positive. This is the first demonstration of the NPR-C receptor in cerebral arteries, as shown by RT-PCR and immunocytochemistry.

The relaxant response to VIP is preserved in denuded porcine basilar arteries, suggesting that the contribution of the VPAC₁ receptor (and the endothelium) is not essential for the vasodilator effect VIP. This suggests that the other receptors can compensate for the lack of the VPAC₁ receptor. This would explain why there are multiple receptor types present (an in-built redundancy of some receptors due to the importance of VIP-induced vasodilation). This is in agreement with previous studies which have shown endothelium-independent VIP-induced vasodilation of cerebral arteries (Duckles and Said, 1982; Lee et al, 1984; Gaw et al, 1991; Stojic et al, 2003). Additional evidence that VIP acts through each of these receptors in porcine basilar arteries is provided by the significant attenuation of VIP-induced vasodilation by VPAC₁, VPAC₂ or NPR-C antagonists. The VPAC₁ and VPAC₂ agonists and antagonists used in the present study were developed using rat and human VPAC₁ and VPAC₂ receptors expressed in Chinese hamster ovary cells using binding studies and adenylate cyclase activation assays (Gourlet et al, 1997a—c; Moreno et al, 2000). The compounds have high potency and specificity as determined from inhibition curves of tracer ([¹²⁵I]VIP) binding. Thus, the VPAC₁ agonist had an IC₅₀ = 1 nmol/L on hVPAC₁ and ≥30,000 nmol/L on hVPAC₂. The VPAC₁ antagonist had an IC₅₀ = 2 nmol/L on hVPAC₁ and 3,000 nmol/L on hVPAC₂. The VPAC₂ agonist Ro-25–1553 had an IC₅₀ = 1 ± 1 nmol/L on hVPAC₂ compared with an IC₅₀ = 800 ± 100 nmol/L on hVPAC₁. The VPAC2 antagonist PG-99–465 had an IC₅₀ = 2 ± 1 nmol/L on hVPAC₂ compared with an IC₅₀ = 200 ± 30 nmol/L on hVPAC₁. The current study is the first to utilise selective VPAC ligands, and shows their selectivity for porcine VPAC₁ and VPAC₂ receptors. The NPR-C receptor agonist and antagonist used in this study also showed their selectivity for the porcine NPR-C receptor. These ligands have previously been shown to be selective for rabbit and guinea pig NPR-C receptors (Murthy et al, 1998, 2000).

In conclusion, the vasodilator effect of exogenously applied VIP in porcine basilar arteries involves NO generation and appears to be a mixture of the effects mediated by VPAC₁, VPAC₂ and NPR-C receptors. Neurally released VIP induces relaxation of smooth muscle cells by activation of VPAC₂ receptors. The NO-dependent component of VIP-induced relaxation of porcine basilar arteries is mediated by VPAC₁ receptors, which generate NO in endothelial cells and NPR-C receptors, which generate NO in nitrergic nerves. The characteristic location of each receptor suggests that each has a functional specialisation. These findings have relevance to the onset of cerebral vasospasm, as VIP levels have been reported to be decreased in the CSF of patients after subarachnoid haemorrhage (SAH; Juul et al, 1995). In addition, the relaxation of isolated rabbit basilar arteries in response to exogenous VIP is reduced after experimental SAH, suggestive of changes in the receptor(s) that VIP activates (Tsukahara et al, 1989). Therefore, administration of VIP or a VIP analogue may provide a novel therapeutic approach to reverse arterial narrowing after SAH.

Footnotes

Acknowledgements

We thank S Schulz for supplying the VPAC₁ and VPAC₂ antibodies and K Omori for the NPR-C antibody. We also thank P Robberecht for kindly supplying the VPAC₁ and VPAC₂ ligands. We are also indebted to AA Preston for his technical assistance.

References

Akiho

Chijiiwa

Okabe

Harada

Nawata

(1995) Interaction between atrial natriuretic peptide and vasoactive intestinal peptide in guinea pig cecal smooth muscle. Gastroenterology 109:1105–12

Allescher

Kurjak

Huber

Trudrung

Schusdziarra

(1996) Regulation of VIP release from rat enteric nerve terminals: evidence for a stimulatory effect of NO. Am J Physiol 271:G568–74

Ayajiki

Okamura

Toda

(1993) Nitric oxide mediates and acetylcholine modulates, neurally induced relaxation of bovine cerebral arteries. Neuroscience 54:819–25

Bolin

Michalewsky

Wasserman

O'Donnell

(1997) Design and development of a vasoactive intestinal peptide analog as a novel therapeutic for bronchial asthma. Biopolymers 37:57–66

Brayden

Bevan

(1986) Evidence that vasoactive intestinal polypeptide mediates neurogenic vasodilation of feline cerebral arteries. Stroke 17:1189–92

Chakder

Rattan

(1998) Involvement of pituitary adenylate cyclase-activating peptide in opossum internal anal sphincter relaxation. Am J Physiol 275:G769–77

Dalsgaard

Hannibal

Fahrenkrug

Larsen

Ottesen

(2003) VIP and PACAP display different vasodilatory effects in rabbit coronary and cerebral arteries. Regul Pept 110:179–88

Daniel

Haugh

Woskowska

Cipris

Jury

Fox-Threkeld

(1994) Role of nitric oxide-related inhibition in intestinal function: relation to vasoactive intestinal polypeptide. Am J Physiol 266:G31–9

Duckles

Said

(1982) Vasoactive intestinal peptide as a neurotransmitter in the cerebral circulation. Eur J Pharmacol 78:371–4

10.

Earnest

Liang

F-Q

Ratcliff

Cassone

(1999) Immortal time: circadian clock properties of rat suprachiasmatic cell lines. Science 283:693–5

11.

Edvinsson

McCulloch

(1985) Distribution and vasomotor effects of peptide HI (PHI) in feline cerebral blood vessels in vitro and in situ Regul Pept 10:345–356

12.

Fahrenkrug

Hannibal

Tams

Georg

(2000) Immunohistochemical localization of the VIP₁ receptor (VPAC₁R) in rat cerebral blood vessels: relation to PACAP and VIP containing nerves. J Cereb Blood Flow Metab 20:1205–14

13.

Feliciano

Henning

(1998) Vagal nerve stimulation releases vasoactive intestinal peptide which significantly increases coronary artery blood flow. Cardiovasc Res 40:45–55

14.

Fujishige

Yanaka

Akatsuka

Omori

(1998) Localization of clearance receptor in rat lung and trachea: association with chondrogenic differentiation. Am J Physiol 274:L425–31

15.

Gaw

Aberdeen

Humphrey

Wadsworth

Burnstock

(1991) Relaxation of sheep cerebral arteries by vasoactive intestinal polypeptide and neurogenic stimulation: inhibition by l-N^G-mono-methyl arginine in endothelium-denuded vessels. Br J Pharmacol 102:567–72

16.

Goadsby

Shelley

(1990) High-frequency stimulation of the facial nerve results in local cortical release of vasoactive intestinal polypeptide in the anesthetised cat. Neurosci Lett 12:282–9

17.

Gonzalez

Barroso

Martin

Gulbenkian

Estrada

(1997) Neuronal nitric oxide synthase activation by vasoactive intestinal peptide in bovine cerebral arteries. J Cereb Blood Flow Metab 17:977–84

18.

Gourlet

De Neef

Cnudde

Waelbroek

Robberecht

(1997a) In vitro properties of a high affinity selective antagonist of the VIP₁ receptor. Peptides 18:1555–1560

19.

Gourlet

Vendermeers

Vertongen

Rathe

De Neef

Cnudde

(1997b) Development of high affinity VIP₁ receptor agonists. Peptides 18:1539–45

20.

Gourlet

Vertongen

Vandermeers

Vandermeers-Piret

Rathe

De Neef

(1997c) The long-acting vasoactive intestinal polypeptide agonist RO 25–1553 is highly selective of the VIP₂ receptor subclass. Peptides 18:403–8

21.

Grider

Murthy

Jin

Makhlouf

(1992) Stimulation of nitric oxide from muscle cells by VIP: prejunctional enhancement of VIP release. Am J Physiol 262:G774–8

22.

Gulbenkian

Barroso

Cunha e Sa

Edvinsson

(1995) The peptidergic innervation of human coronary and cerebral vessels. Ital J Anat Embryol 100:317–27

23.

Harmar

Arimura

Gozes

Journot

Laburthe

Pisegna

(1998) International Union of Pharmacology. XVIII. Nomenclature of receptors for vasoactive intestinal peptide and pituitary adenylate cyclase-activating polypeptide. Pharmacol Rev 50:265–70

24.

Heistad

Marcus

Said

Gross

(1980) Effect of acetylcholine and vasoactive intestinal peptide on cerebral blood flow. Am J Physiol 239:H73–80

25.

Jin

Murthy

Grider

Makhlouf

(1996) Stoichiometry of neurally induced VIP release, NO formation, and relaxation in rabbit and rat gastric muscle. Am J Physiol 271:G357–69

26.

Juul

Hara

Gisvold

Brubakk

Fredriksen

(1995) Alterations in perivascular dilatory neuropeptides (CGRP, SP, VIP) in the external jugular vein and in the cerebrospinal fluid following subarachnoid haemorrhage in man. Acta Neurochir 132:32–41

27.

Kitazono

Heistad

Faraci

(1993) Role of ATP-sensitive K⁺ channels in CGRP-induced dilatation of basilar artery in vivo. Am J Physiol 265:H581–5

28.

Knutsson

Edvinsson

(2002) Distribution of mRNA for VIP and PACAP receptors in human cerebral arteries and cranial ganglia. Neuroreport 13:507–9

29.

Kurjak

Fritsch

Saur

Schusdziarra

Allescher

(2001) Functional coupling between nitric oxide synthesis and VIP release within enteric nerve terminals of the rat: involvement of protein kinase G and phosphodiesterase 5. J Physiol 534:827–36

30.

Larsen

Boeck

Ottesen

(1981) Effect of vasoactive intestinal polypeptide on cerebral blood flow in the goat. Acta Physiol Scand 111:471–4

31.

Larsson

Edvinsson

Fahrenkrug

Hakanson

Owman

Schaffalitzky de Muckadell

(1976) Immunohistochemical localization of vasoactive intestinal polypeptide in cerebrovascular nerves. Brain Res 2:400–4

32.

Lee

Saito

Berezin

(1984) Vasoactive intestinal polypeptide-like substance: the potential transmitter for cerebral vasodilation. Science 224:898–901

33.

Lundberg

Fahrenkrug

Brimijoin

(1981) Characteristics of the axonal transport of vasoactive intestinal polypeptide (VIP) in the nerves of the cat. Acta Physiol Scand 112:427–36

34.

Matthew

Wadsworth

(1997) The role of nitric oxide in the inhibitory neurotransmission in the middle cerebral artery of the sheep. Gen Pharmacol 28:393–7

35.

Matthew

Wadsworth

McPhaden

(1997) Inhibition of vasodilator neurotransmission in the sheep middle cerebral artery by VIP antiserum. J Auton Pharmacol 17:13–9

36.

McCulloch

MacKenzie

Johnson

Robertson

Holland

Ronaldson

(2002) Additional signals from VPAC/PAC family receptors. Biochem Soc Trans 30:441–6

37.

McCulloch

Edvinsson

(1980) Cerebral circulatory and metabolic effects of vasoactive intestinal polypeptide. Am J Physiol 238:H449–56

38.

Moreno

Gourlet

De Neef

Cnudde

Waelbroeck

Robberecht

(2000) Development of selective agonists and antagonists for the human vasoactive intestinal polypeptide VPAC₂ receptor. Peptides 21:1543–9

39.

Mule

Serio

(2003) NANC inhibitory neurotransmission in mouse isolated stomach: involvement of nitric oxide, ATP and vasoactive intestinal polypeptide. Br J Pharmacol 140:431–7

40.

Murthy

Teng

B-Q

Jin

J-G

Makhlouf

(1998) G protein-dependent activation of smooth muscle eNOS via natriuretic peptide clearance receptor. Am J Physiol 275:C1409–16

41.

Murthy

Teng

B-Q

Zhou

Jin

J-G

Grider

Makhlouf

(2000) G_i-1 and G_i-2-dependent signaling by single-transmembrane natriuretic peptide clearance receptor. Am J Physiol 278:G974–80

42.

Nozaki

Okamoto

Uemura

Kikuchi

Mizuno

(1990) Vascular relaxation properties of calcitonin gene-related peptide and vasoactive intestinal polypeptide in subarachnoid hemorrhage. J Neurosurg 72:792–7

43.

Nozaki

Moskowitz

Maynard

Koketsu

Dawson

Bredt

(1993) Possible origins and distribution of immunoreactive nitric oxide synthase-containing nerve fibers in cerebral arteries. J Cereb Blood Flow Metab 13:70–9

44.

Olivar

Razzaque

Nwagwu

Longmore

(2000) Neurogenic vasodilation in rabbit basilar isolated artery: involvement of calcitonin-gene related peptide. Eur J Pharmacol 395:61–8

45.

Osol

Halpern

(1988) Spontaneous vasomotion in pressurized cerebral arteries from genetically hypertensive rats. Am J Physiol 254:H28–33

46.

Schulz

Röcken

Mawrin

Weise

Höllt

Schulz

(2004) Immunocytochemical identification of VPAC₁, VPAC₂ and PAC₁ receptors in normal and neoplastic human tissues using subtype-specific antibodies. Clin Cancer Res 10:8235–42

47.

Seebeck

Lowe

Kruse

Schmidt

Mehdorn

Ziegler

(2002) The vasorelaxant effect of pituitary adenylate cyclase activating polypeptide and vasoactive intestinal polypeptide in isolated rat basilar arteries is partially mediated by activation of nitrergic neurons. Regul Pept 107:115–23

48.

Stojic

Radenkovic

Krsljak

Popovic

Pesic

Grbovic

(2003) Influence of the endothelium on the vasorelaxant response to acetylcholine and vasoactive intestinal polypeptide in the isolated rabbit facial artery. Eur J Oral Sci 111:137–43

49.

Tanaka

Okamura

Handa

Toda

(1999) Neurogenic vasodilation mediated by nitric oxide in porcine cerebral arteries. J Cardiovasc Pharmacol 33:56–64

50.

Toda

Ayajiki

Okamura

(1997) Inhibition of nitroxidergic nerve function by neurogenic acetylcholine in monkey cerebral arteries. J Physiol 498:453–61

51.

Toda

Okamura

(1990a) Mechanism underlying the response to vasodilator nerve stimulation in isolated dog and monkey cerebral arteries. Am J Physiol 261:H1740–5

52.

Toda

Okamura

(1990b) Possible role of nitric oxide in transmitting information from vasodilator nerve to cerebroarterial smooth muscle. Biochem Biophys Res Commun 170:308–13

53.

Tsukahara

Hongo

Kassell

Ogawa

(1989) The influence of experimental subarachnoid hemorrhage on the relaxation induced by vasoactive intestinal polypeptide in the cerebral arteries of the rabbit. Neurosurgery 24:731–5

54.

Tuor

Edvinsson

Kelly

McCulloch

(1990) Local cerebral blood flow following the intrastriatal administration of vasoactive intestinal peptide or peptide histidine isoleucine in the rat. Regul Pept 28:255–64

55.

Wilson

O'Neill

Said

Traystman

(1981) Vasoactive intestinal polypeptide and the canine cerebral circulation. Circ Res 48:138–48

56.

Xia

Sreedharan

Bolin

Gaufo

Goetzl

(1997) Novel cyclic peptide agonist of high potency and selectivity for the type II vasoactive intestinal peptide receptor. J Pharmacol Exp Ther 281:629–33
