Evaluation of Reference Tissue Models for the Analysis of [ 11 C]( R )-PK11195 Studies

Overview of Kinetic Models

In total, nine models, in which a reference tissue was used, were evaluated. The main characteristics of the models are shown in Table 1. A more detailed description of these models is given in Appendix A. Five of these models were true reference tissue models, in that the reference tissue curve was used as the input function. These models were:

OPEN IN VIEWER

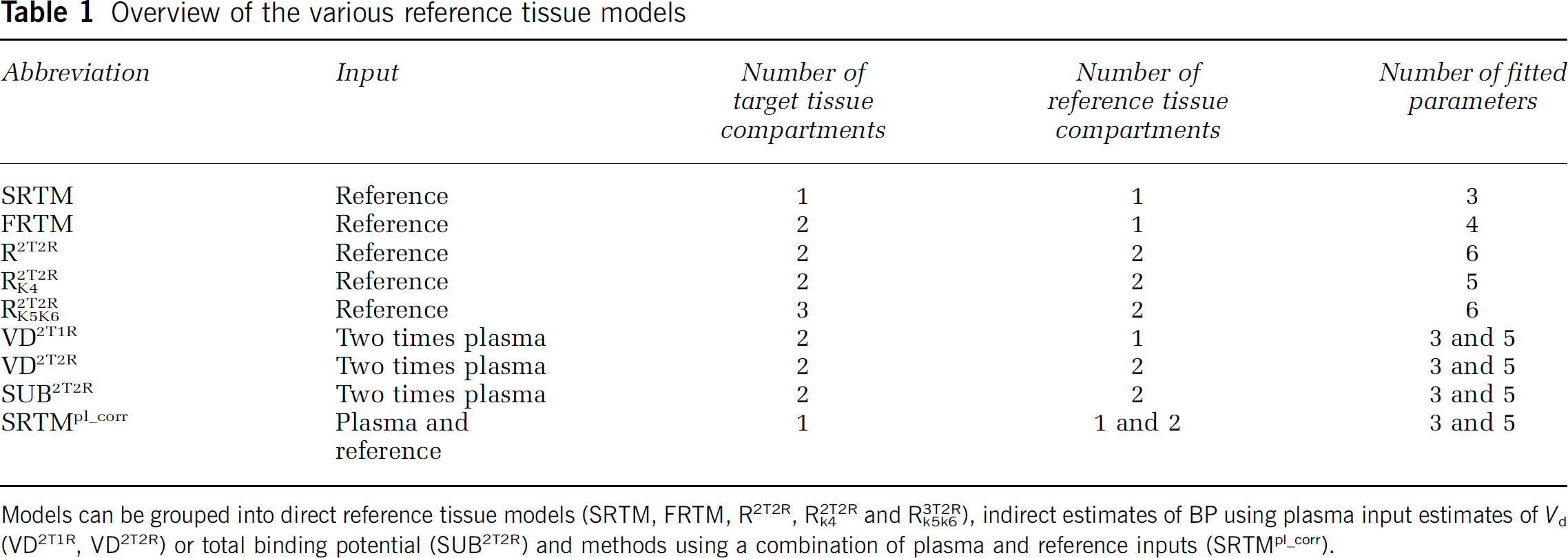

Table 1

Overview of the various reference tissue models

Abbreviation	Input	Number of target tissue compartments	Number of reference tissue compartments	Number of fitted parameters
SRTM	Reference	1	1	3
FRTM	Reference	2	1	4
R2T2R	Reference	2	2	6
R2T2RK4	Reference	2	2	5
R2T2RK5K6	Reference	3	2	6
VD2T2R	Two times plasma	2	1	3 and 4
VD2T2R	Two times plasma	2	2	3 and 5
SUB2T2R	Two times plasma	2	2	3 and 5
SRTMp1-oorr	Plasma and reference	1	1 and 2	3 and 5

Models can be grouped into direct reference tissue models (SRTM, FRTM, R_2T2R, R^2T2R_k4 and R^3T2R_k5k6), indirect estimates of BP using plasma input estimates of V_d (VD^2T1R, VD^2T2R) or total binding potential (SUB^2T2R) and methods using a combination of plasma and reference inputs (SRTM^pl_corr).

Two plasma input models were used in this study. One model was used for comparison with the reference tissue models. This model was a two-tissue reversible compartment model with the K₁/k₂ ratio fixed to the value obtained for whole cortex. In a previous study, it was demonstrated that this is the optimal plasma input model for [₁₁C](R)-PK11195 studies (Kropholler et al, 2005). The other plasma input model was a three-tissue compartment model with different compartments for specific and nonspecific binding (Gunn et al, 2001) and was used to generate tissue time-activity curves (TACs) for the Monte Carlo simulations.

Clinical Evaluation

Subjects: Five subjects with traumatic brain injury (five males, mean age±s.d. = 39 ±17 years), scanned 28±2 weeks after trauma, and eight elderly healthy subjects (eight males, age 67±8 years) were included in the study. These two subject groups were selected in order to be able to evaluate the various models over the full range of microglia activation seen in clinical practice. The study was approved by the medical ethics committee of the VU University Medical Centre. All subjects gave informed consent before inclusion. In the present study, clinical data were used only for model comparison. Clinical interpretation of the results in these subjects is beyond the scope of the present study and will be reported elsewhere.

Scanning protocol: Studies were performed in 3D acquisition mode using an ECAT Exact HR+ scanner (CTI/Siemens, Knoxville, TN, USA). Characteristics of this scanner have been described elsewhere (Brix et al, 1997; Adam et al, 1997). Before tracer administration, a 10 mins transmission scan was performed, which was used to correct the subsequent emission scans for attenuation. First, a [₁₅O]H₂O emission scan was performed, but this scan was not used in the present study. Next, A 1-h dynamic [₁₁C](R)-PK11195 emission scan was performed. Time frames used for the [₁₁C](R)-PK11195 scan were 1 × 30, 1 × 15,1 × 5,1 × 10, 2 × 15, 2 × 30, 3 × 60, 4 × 150, 5 × 300 and 2 × 600secs. The first frame was used to correct for possible background radioactivity resulting from the previous [¹⁵O]H₂O scan. 328±95 MBq [¹¹C](R)-PK11195 with a specific activity of 83±23 GBq/μmol at end of synthesis was administered as a bolus simultaneously with the start of the second frame. A neuro-insert (CTI/Siemens, Knoxville, TN, USA) was used to reduce the contribution of scattered photons. Arterial blood was withdrawn continuously using an online blood-sampling device described previously (Boellaard et al, 2001). At 3, 5, 10, 20, 30, 40 and 60 mins after tracer injection blood sampling was interrupted briefly for withdrawal of manual samples, followed by flushing of the arterial line with heparinised saline. Plasma and whole-blood activity were measured and metabolite levels in plasma were determined using HPLC as described previously (Greuter et al, 2004).

In addition, T1 weighted magnetic resonance imaging (MRI) scans were acquired using a 1 T IMPACT scanner (Siemens Medical Solutions, Erlangen, Germany).

Image reconstructions: All emission scans were normalized and corrected for attenuation, randoms, dead time, scatter and decay. Emission scans were reconstructed using filtered backprojection and a Hanning filter with a cutoff of 0.5 times the Nyquist frequency, resulting in a spatial resolution of approximately 7 mm full-width at half-maximum at the center of the field of view. A zoom factor of two and a matrix size of 256 × 256 × 63 were used resulting in a voxel size of 1.2 × 1.2 × 2.4 mm³.

Image analysis: The skull was removed from the MRI scans using a brain extraction tool (Smith, 2002), which is part of the FMRIB software library (www.fmrib.ox.ac.uk/fsl, Image analysis group, Oxford, UK). Deskulled brain and corresponding PET scans were aligned using a mutual information algorithm included in the image registration package MIRIT (Maes et al, 1997; West et al, 1997). Correct alignment was checked visually.

For trauma patients, a voxel-by-voxel Logan plot (Logan, 2000) was performed to obtain an initial overview of regions with high and low binding. Next, these V_d images were used to draw regions of interest (ROIs). The thalamus was found to have high V_d and was used as target ROI. In this group, a large cortical region with low V_d was used as a reference tissue ROI. For patients suffering from neurotrauma activation of microglia and thus elevated [¹¹C](R)-PK11195 binding might have been present in the cerebellum as well. By defining a ROI on initial estimates of [₁₁C](R)-PK11195 binding it was attempted to obtain a reference tissue curve with minimal or no increased [¹¹C](R)-PK11195 binding. Moreover, patient head motion during scanning could not be avoided for this specific patient group and by defining a large cortical ROI with low uptake, the effects of patient motion on the quality of the reference tissue TAC was further minimized. Note that even with this strategy, it is not guaranteed that the reference tissue was free of activated microglia, but binding in these reference tissues turned out to be sufficiently low to study relative increases of [¹¹C](R)-PK11195 binding in the thalamus and it did not systematically effect the (inter-)comparison of reference tissue models against plasma input data.

For the control group of healthy elderly subjects, there is increased microglia activation in the thalamus (Cagnin et al, 2001a). This region has been drawn as target ROI. The cerebellum was used as a reference tissue region for elderly subjects, assuming low or no specific binding in this area, as was also performed by other investigators (Gerhard et al, 2005a), although use of the cerebellum as reference is still a matter of debate.

Kinetic analysis: Kinetic modeling was performed using dedicated software developed within matlab 5.3 (The Mathworks, Natick, MA, USA). A metabolite corrected plasma input function was generated as described previously (Kropholler et al, 2005). Separate input functions for whole blood (to estimate V_b) and metabolite corrected plasma concentrations were used in all (plasma input) fits. Delay between injection and arrival of the [₁₁C](R)-PK11195 bolus was estimated by fitting a reversible two-tissue compartment model, including V_b and delay to the subjects' whole-cortex TAC. Delay was then fixed to this value for all other ROIs.

Target ROIs were fitted to the various reference tissue based models. In addition, ROIs were fitted to the two-tissue reversible plasma input compartment model with K₁/k₂ fixed to the cortical value. Correlations between this plasma input model and the various reference tissue based models were evaluated.

Monte Carlo Simulations

Biases of the reference tissue models, when all parameters were set to the true values and at 0% noise level, are shown in Table 2. In addition, bias and COV for 10% noise level are given. Several models showed considerable bias, notably SRTM, FRTM and VD^2T2R, and for the 10% noise level R^2T2R and R^3T2R_k5k6. Coefficient of variation was very high for models R^2T2R, VD^2T2R and SUB^2T2R.

OPEN IN VIEWER

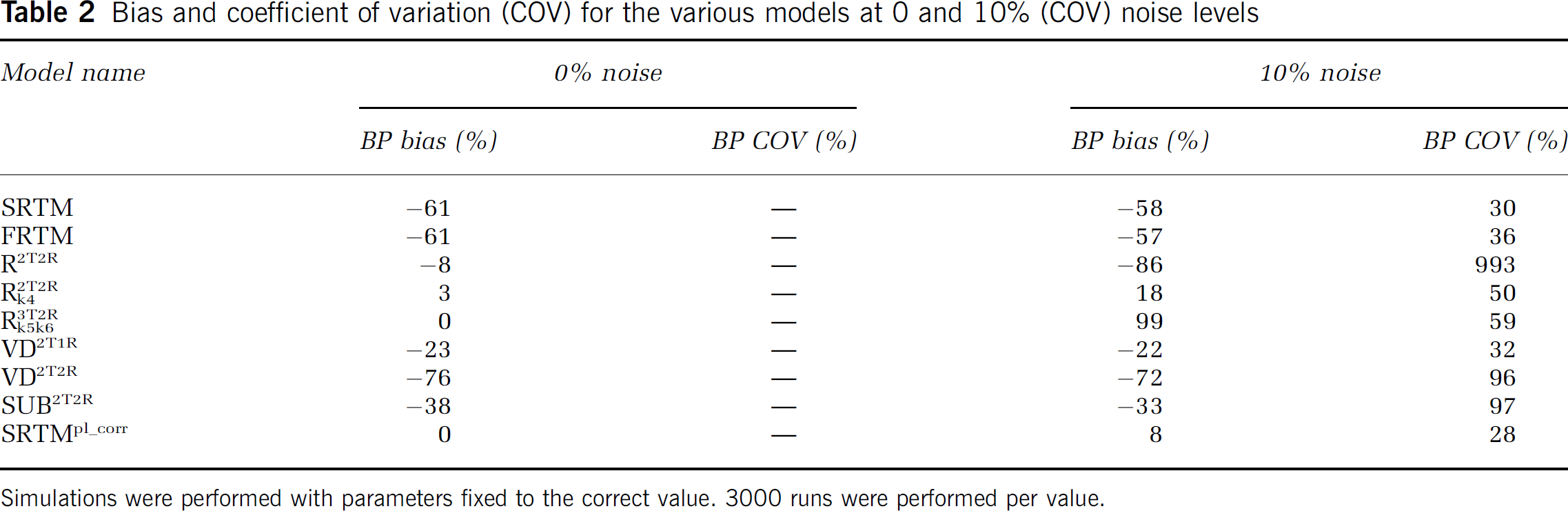

Table 2

Bias and coefficient of variation (COV) for the various models at 0 and 10% (COV) noise levels

Model name	0% noise		10% noise
	BP bias (%)	BP COV(%)	BP bias (%)	BP COV (%)
SRTM	−61	—	−58	30
FRTM	−61	—	−57	36
R2T2R	-8	—	−86	993
R2T2Rk4	3	—	18	50
R3T2Rk5k6	0	—	99	59
VD2T1R	−23	—	−22	32
VD2T2R	−76	—	−72	96
SUB2T2R	−38	—	−33	97
SRTMpl_corr	0	—	8	28

Simulations were performed with parameters fixed to the correct value. 3000 runs were performed per value.

All models showed relatively constant BP_sp with varying noise levels, except for R^2T2R and R^3T2R_k2k6, which both showed large (~ 100%) variation in bias (Figure 1A). Coefficient of variation increased with increasing noise level, especially for models R^2T2R, VD^2T2R and SUB^2T2R (Figure 1B). Models SRTM, FRTM, R^2T2R_k4, SRTMp_{1_corr} all performed well with a maximum COV between 25 and 30%.

OPEN IN VIEWER

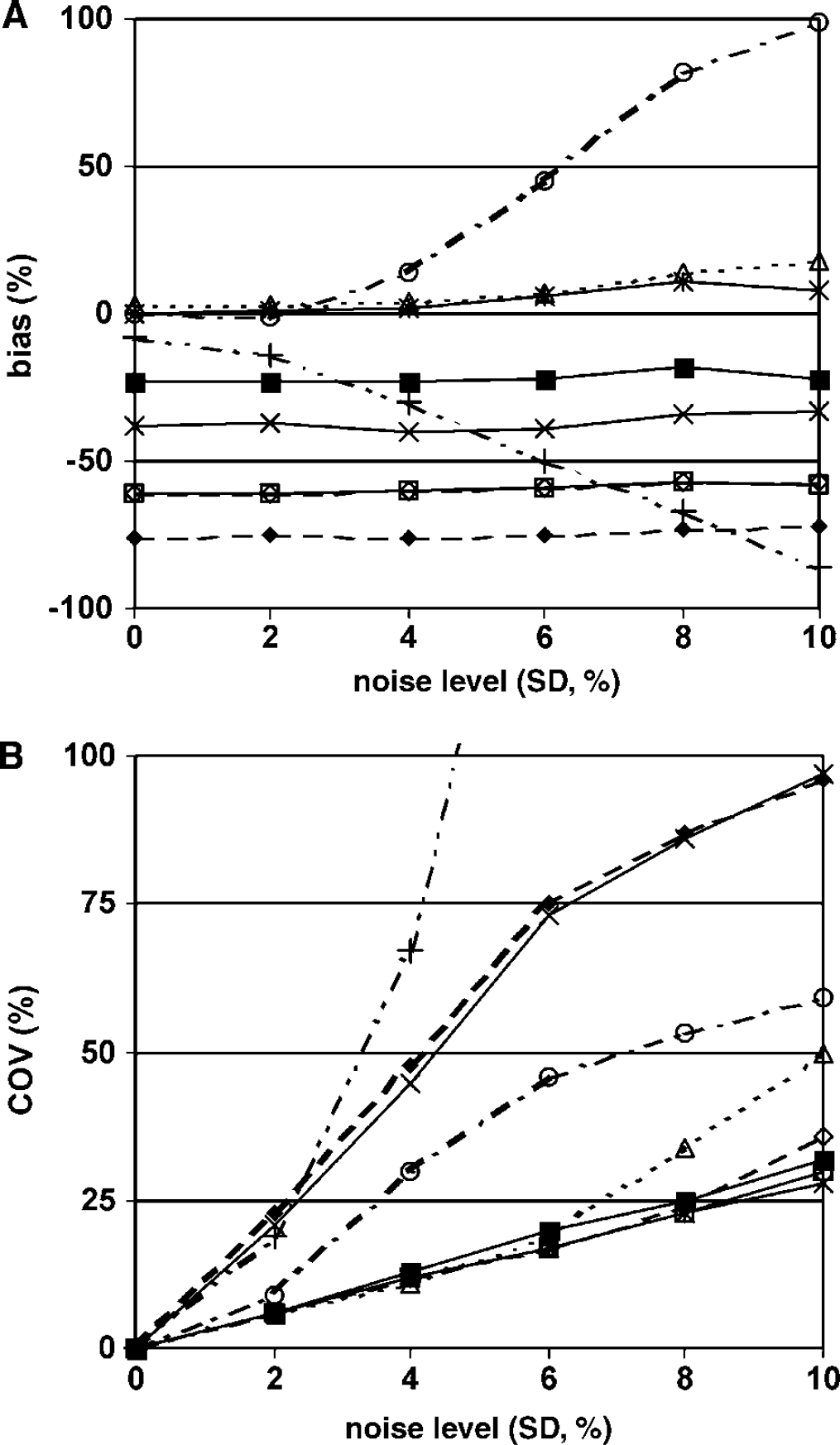

Figure 1

Bias (A) and coefficient of variation COV (B) of binding Dotential as a function of noise level, based on Monte Carlo simulations. Models shown are SRTM (□), FRTM (◊), R^2T2R(+), R^2T2R_k4 (Δ), R^3T2R_k5k6 (○), VD^2T1R (■), VD^2T2R (♦), SUB^2T2R (×) and SRTM^pl_corr (*).

All models except SRTM and VD^2T2R showed large variations in bias when BP_sp became small (Figure 2A). This was especially the case for R^3T2R_k5k6, R^2T2R_k5k6 and VD^2T1R with biases larger than 100%. Coefficient of variation also became large in the case of small BP_sp (Figure 2B). Here, VD^2T1R performed best with a COV of 37% at low BP_sp, while COV became approximately 80% for SRTM and SRTM^pl_corr. For all other models, COV became much larger than 100%. Coefficient of variation for R^3T2R_k5k6 is outside the scale and therefore not visible in Figure 2B.

OPEN IN VIEWER

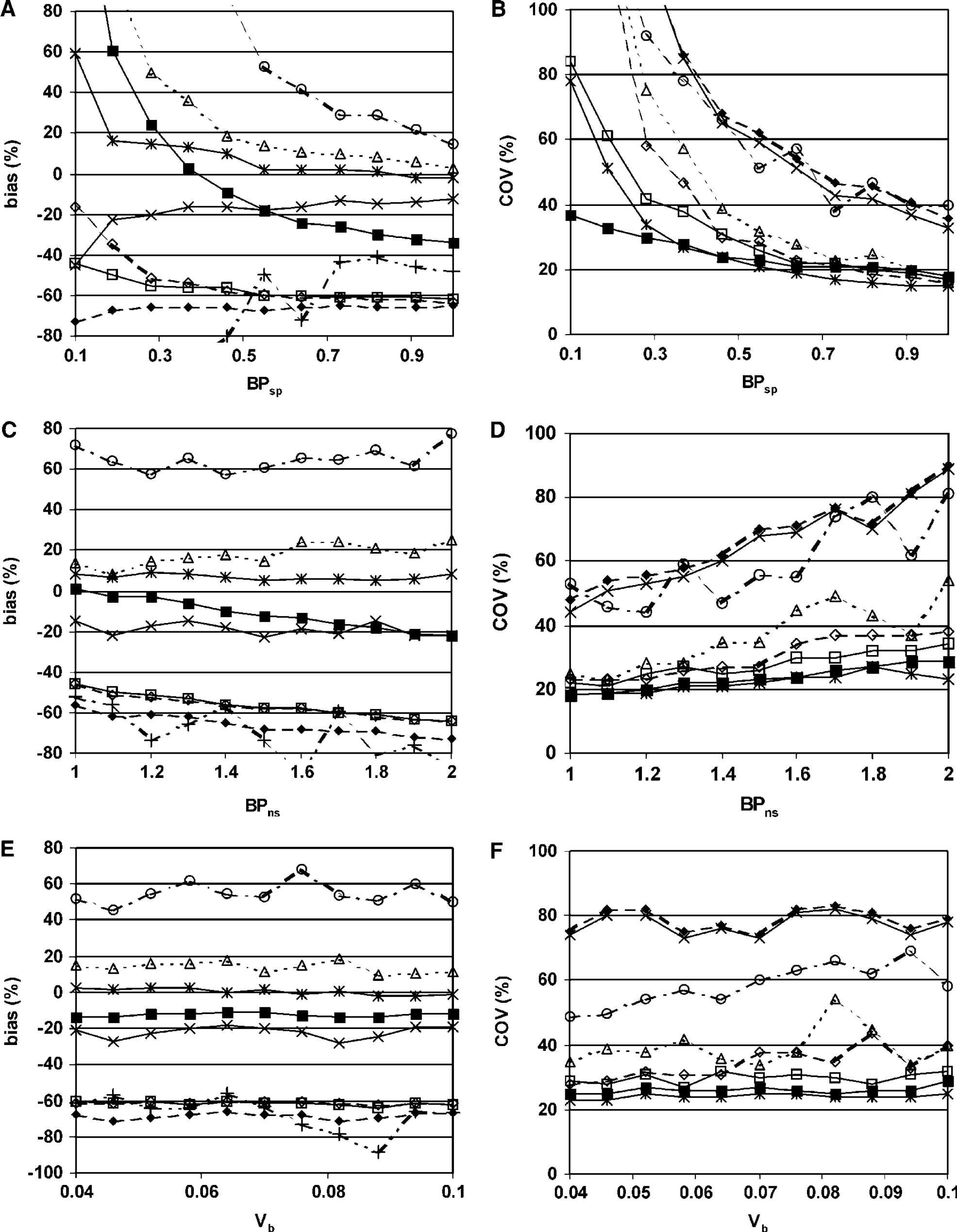

Figure 2

Effects of variation in specific binding (A, B), nonspecific binding (C, D) and blood volume (E, F) on bias (A, C, E) and coefficient of variation COV (B, D, F) of binding potential, based on Monte Carlo simulations using a 7.5% noise level. Models shown are SRTM (□), FRTM (◊), R^2T2R (+), R^2T2R_k4 (Δ), R^3T2R_k5k6 (○), VD^2T1R (■), VD^2T2R (♦), SUB^2T2R (×) and SRTM^pl_corr (*). Model R^2T2R is not visible in (B), (D) and (E) because all values are outside the scales.

Models R^2T2R_k4, SUB^2T2R and SRTM^pl_corr had little or no bias with varying BP_ns (Figure 2C). All other models showed considerable bias. For all models, COV increases with increasing BP_ns (Figure 2D). The increase was especially large for R^2T2R (not visible, COV > 100%), R^3T2R_k5k6, VD^2T2R and SUB^2T2R and smallest for SRTM^pl_corr.

Varying V_b did not change bias of the models (Figure 2E). In addition, increasing V_b did not result in a change in observed COV, except for R^3T2R_k5k6 (Figure 2F).

Clinical Evaluation

Occasionally, some of the reference tissue models provided unrealistic BP_sp. These poor fits mainly occurred for models with high number of fit parameters. These results were excluded from the analysis. For reference models with a low number of fit parameters, such as SRTM and SRTM^pl_corr, no poor fits were observed. Correlation coefficients of the regressions between the two-tissue reversible plasma input model with K₁/k₂ fixed to whole cortex and the reference tissue models are shown in Table 3. Scatter plots between plasma input and reference tissue BP for the best reference tissue models are shown in Figure 3. Note that the errors in SRTM^pl_corr were calculated assuming no correlation between BP_sp and BP_ns, which is strictly not valid. The SRTM^pl_corr model performs best, followed by SRTM and FRTM. The indirect methods (VD^2T1R and VD^2T2R) and especially the direct reference tissue models R^3T2R_k5k6 and R^2T2R did not perform very well.

OPEN IN VIEWER

Table 3

Correlation coefficients between binding potential as obtained from the various reference tissue models and that from the two-tissue reversible plasma input model with K₁/k₂ fixed to the whole cortex

Model name	R2
SRTM	0.78
FRTM	0.74
R2T2R	0.00
R2T2Rk4	0.49
R3T2Rk5k6	0.04
VD2T1R	0.32
VD2T2R	0.32
SUB2T2R	0.45
SRTMp1-oorr	0.82

OPEN IN VIEWER

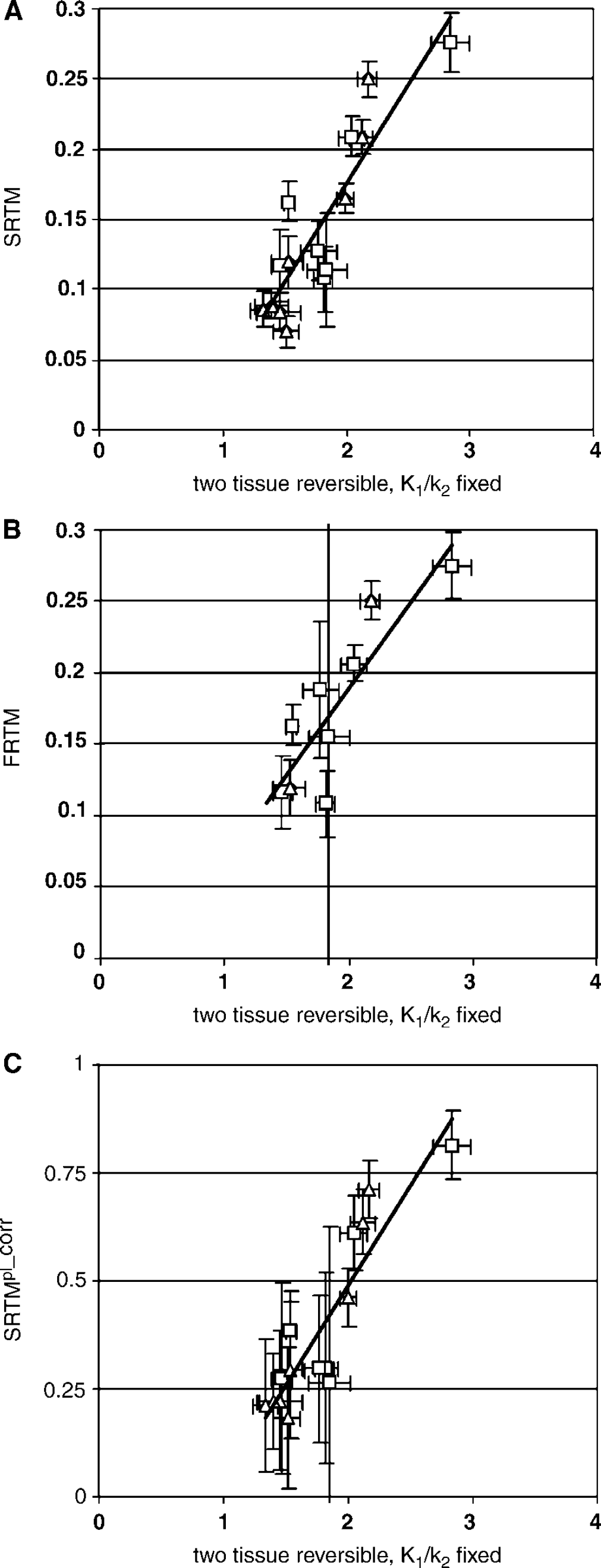

Figure 3

Correlations between binding potential calculated using various reference tissue models and the two-tissue reversible plasma input model with K₁/k₂ fixed to the whole cortex value. Results are shown from neurotrauma subjects (¡) and from elderly normal controls (Δ). Only results for models with a correlation coefficient of more than 0.7 are shown.

Monte Carlo Simulations

When evaluating the results from the simulations, SRTM performed equally well or better than FRTM in all aspects.

When the correct parameter values were used in the simulations, all models show bias at the 10% noise level (Table 2). For SRTM (and FRTM), a bias of approximately 1/(1 + BP_ns) is expected because of the nonspecific binding. Bias, however, is acceptable if it remains relatively constant under physiologic variation between region and subjects. In contrast, large COV, as observed in R^2T2R, VD^2T2R and SUB^2T2R (~ 100% or more), seriously limits applicability.

As noise levels vary and, to a large degree, are unknown, bias for a good reference tissue model should be insensitive to changes in noise level. Models R^2T2R and R^3T2R_k5k6 showed biases that were very dependent on noise level (Figure 1A), limiting their applicability in clinical studies.

Measuring small BP_sp with high accuracy and reproducibility proved to be difficult (Figures 2A and 2B). This is expected as it is difficult to distinguish a small specific signal from the much larger nonspecific signal. Both SRTM and SRTM^pl_corr performed relatively well here, although increase in bias for SRTM^pl_corr was substantial. The results for small BP_sp seriously limit the applicability of models VD^2T2R and SUB^2T2R (high COV), VD^2T1R (high bias), and R^2T2R, R^2T2R_k4 and R^3T2R_k5k6 (high bias and COV).

For several models (SRTM, R^2T2R, R^2T2R_k4, VD^2T1R and VD^2T2R), the change in bias because of variations in BP_ns was smaller (Figure 2C) than the change caused by variation in BP_sp, and therefore less important in model evaluation. Increased COV with increasing BP_ns (Figure 2D) for R^3T2R_k5k6, VD^2T2R and SUB^2T2R is a serious limitation of these models.

Varying V_b had little effect on bias and COV. For R^3T2R_k5k6, increasing V_b resulted in a substantial, but acceptable increase in COV.

Clinical Evaluation

In general, correlations between reference tissue model BPs and plasma input BPs were low due to both high noise levels in [¹¹C](R)-PK11195 studies (low uptake and high nonspecific binding) and different effects of nonspecific binding on plasma input and reference tissue models.

Only correlations for SRTM^pl_corr, SRTM and FRTM were acceptable. The poor performance of R^2T2R, R^3T2R_k4 and to a lesser degree R^3T2R_k5k6 is probably due to the increased number of fitting parameters. The model SUB^2T2R suffers from an increase in COV because BP_sp is calculated by subtracting two fitted parameters (of similar magnitude) with resulting error propagation. Similarly, models VD^2T2R and VD^2T1R also calculated BP_sp by combining two V_d values of similar magnitude resulting in unfavorable error propagation, explaining the poor correlations for these models (Table 2).

The results indicate that SRTM BP_sp correlate well with plasma input BPs. From a theoretical point of view, a perfect correlation is not expected because the plasma input model measures the sum of BP_sp and BP_ns while SRTM measures specific BP alone. Since nonspecific binding is high (for subjects with neurotraumatic injury, plasma input BPs are in the order of ~2 while SRTM BPs are ~0.5), the plasma input model cannot be treated as the golden standard. The influence of BP_ns on the calculated BP_sp using reference tissue models will further decrease the reproducibility of measured BP_sp (due to the bias of 1/(1 + BP_ns)in BP_sp) and to a lesser extend for SRTM^pl_corr. Therefore, SRTM^pl_corr is an improvement over SRTM. However, by including a correction for nonspecific binding, systematic and statistical errors in metabolite corrections might result in errors and increased uncertainties in observed specific binding using SRTM^pl_corr.

Limitations

The reference tissues used in this study were cerebellum for the elderly healthy subjects and an (apparently) unaffected cortical region for neurotrauma patients. The cerebellum has been used previously (Groom et al, 1995; Banati et al, 1999; Versijpt et al, 2003; Gerhard et al, 2005a), while an unaffected region was chosen to approximate those areas that would be found by cluster analysis as used in several reports (Banati et al, 2000, 2001; Cagnin et al, 2001a, b; Gerhard et al, 2003; Turner et al, 2004). Both these reference regions might, however, not be ‘perfect’ as reference tissue, because increased specific binding in these structures cannot be excluded. Increased specific binding in the reference tissue would results in an underestimation of specific binding in the target areas. As in all models, the same reference region was used, possible presence of (a small degree of) specific binding in the reference region will only have a small effect on the comparisons based on the clinical data. For clinical data, the observed correlations between plasma input and reference tissue models could be reduced because of specific binding in the reference tissue, but it should affect all reference tissue models to a similar extent. Therefore, it should still be possible to identify the optimal reference tissue model.

The present study was not concerned with identifying the ‘best’ reference tissue. Further studies are required to identify optimal reference tissues for different clinical conditions (stroke, Alzheimer, neurotrauma, etc). In addition, further studies are needed to assess methods that enable automatic extraction of reference tissue curves (e.g. cluster analysis).

General Conclusion

In this study, several reference tissue models were evaluated using both Monte Carlo simulations and clinical data. Among these models, SRTM^pl_corr and SRTM performed best both in Monte Carlo simulations and in a clinical evaluation. Simplified reference tissue model does not require a metabolite corrected plasma input curve, and is therefore recommended for studies when only a reference tissue input is available. SRTM^pl_corr, in which a correction for bias due to nonspecific binding is performed, performs better than SRTM, especially when measuring low BP_sp. It has the advantage over the two-tissue reversible compartment model with K₁/k₂ fixed to whole cortex that it measures BP_sp instead of the sum of BP_sp and BP_ns which is very relevant for [¹¹C](R)-PK11195 as it is a tracer with large BP_ns. Therefore, SRTM^pl_corr is recommended for analyzing [¹¹C](R)-PK11195 studies when a metabolite corrected plasma input curve is available, while SRTM is recommended when only a reference tissue input can be used.
