From Homogeneous to Fractal Normal and Tumorous Microvascular Networks in the Brain

Cell Line

The 9L gliosarcoma cell line used was originally established by Benda et al (1971) by the intravenous injection of N-methylnitrosourea for 26 weeks to CD Fischer rats. Cells were grown as monolayers with Dulbecco's modified Eagle's medium (DMEM) (Gibco-Invitrogen-France, Cergy-Pontoise, France) without sodium pyruvate (with 4,5 mg/L of glucose and pyridoxine HCL, supplemented with 10% fetal calf serum and 0.2% penicillin/streptomycin. They were incubated at 37°C in a mixture of air/CO₂ (95/5%).

Tumor Implantation

The male Fischer 344 rats (180 to 280 g, Charles River, L'Arbresle, France) were anesthetized by a 5% isoflurane inhalation followed by an intraperitoneal injection of 400 mg/kg of chloral hydrate. The rats were placed on a stereotactic head holder (model 900, David Kopf Instruments, Tujunga, USA) after anesthesia. Before injection into the brain, 10⁴ cells were suspended into 1 μL of DMEM with antibiotics (1%). The cell suspension was manually injected according to a method derived from (Kobayashi et al, 1980) using a 1 μL Hamilton syringe through a burr hole (0.8 mm diameter) in the right caudate nucleus (7.5 mm anterior to the zero earbars, 3.5 mm lateral to the midline, 3 mm depth from the dura). The syringe was gently removed 1 min after the injection. The burr hole was plugged with dental cement and the scalp was sutured. The operative field was cleaned with povidone-iodine before closure of the scalp incision. The rats were temporarily housed in a 27°C thermostated incubator, to minimize the surgical shock. The duration of the housing at 27°C depended on the duration of the anesthesia. The rat stayed in the incubator for about 2 h, from the time it was anesthetized, until it was able to stand up and walk. It was then sent back to the rodent housing area, where food and water were provided ad libitum.

The tumors were implanted according to a standard in-house procedure, also used for other experiments. With this procedure it is known that

All procedures related to animal care strictly conformed to the Guidelines of the French Government (licenses 380324/380456 and A3818510002).

Contrast Agent Injection

The injections were performed from D + 12 to D + 16 after implantation. The animals were euthanized by lethal intraperitoneal injection of pentobarbital before contrast agent injection. The same injections were also performed on healthy rats and adult marmoset monkeys (Callithrix jacchus, 350 to 450 g obtained from the CERCO rearing facilities in Toulouse). Details of the tissue preparation protocol can be found in a previous publication (Plouraboué et al, 2004). Briefly, after a surgical step allowing injection of the contrast agent (suspension of barium sulfate solid particles at a concentration of 600 mg/mL), the brain was dissected and fixed in formol 10%. After fixation, samples were cut by means of a cylindrical surgical biopsy punch having an internal diameter of 3 mm.

Tissue Samples

In rats the samples were taken at the tumor injection site (T1 to T4, in four different rats), or in similar sites for two control rats (R1 and R2). In two monkeys, different cortical areas (visual, somato-sensory, somato-motor, temporal cortex) were sampled (M1 to M5). These samples were then dehydrated and included in resin. This procedure induced a 20% to 30% volume shrinkage of the tissue. This volume shrinkage was directly quantified by comparing the apparent diameter of the sample to its original 3 mm. A simple homothetic rule was then applied to transform voxel measurements into physical distances, like those given in Table 1.

OPEN IN VIEWER

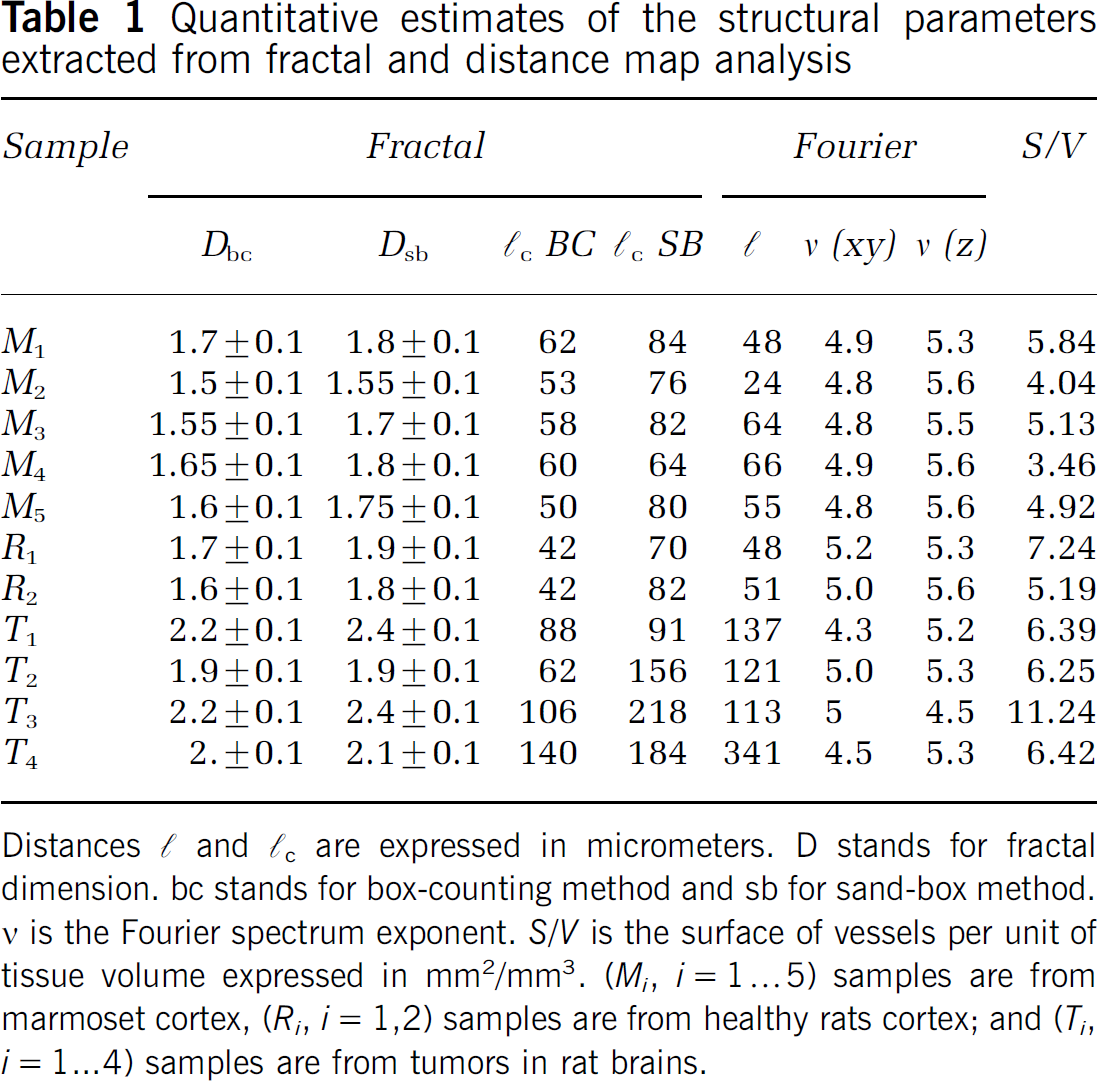

Table 1

Quantitative estimates of the structural parameters extracted from fractal and distance map analysis

Sample	Fractal				Fourier			S/V
	D bc	D sb	ℓc BC	ℓcSB	ℓ	v(xy)	v (z)
M 1	1.7±0.1	1.8±0.1	62	84	48	4.9	5.3	5.84
M 2	1.5±0.1	1.55±0.1	53	76	24	4.8	5.6	4.04
M 3	1.55±0.1	1.7±0.1	58	82	64	4.8	5.5	5.13
M 4	1.65±0.1	1.8±0.1	60	64	66	4.9	5.6	3.46
M 5	1.6±0.1	1.75±0.1	50	80	55	4.8	5.6	4.92
R 1	1.7±0.1	1.9±0.1	42	70	48	5.2	5.3	7.24
R 2	1.6±0.1	1.8±0.1	42	82	51	5.0	5.6	5.19
T 1	2.2±0.1	2.4±0.1	88	91	137	4.3	5.2	6.39
T 2	1.9±0.1	1.9±0.1	62	156	121	5.0	5.3	6.25
T 3	2.2±0.1	2.4±0.1	106	218	113	5	4.5	11.24
T 4	2.±0.1	2.1±0.1	140	184	341	4.5	5.3	6.42

Distances ℓ and ℓ_c are expressed in micrometers. D stands for fractal dimension. bc stands for box-counting method and sb for sand-box method. V is the Fourier spectrum exponent. S/V is the surface of vessels per unit of tissue volume expressed in mm²/mm³. (M_i, i =1…5) samples are from marmoset cortex, (R_i, i = 1,2) samples are from healthy rats cortex; and (T_i, i = 1…4) samples are from tumors in rat brains.

Image Acquisition

After casting in epoxy-resin, the tissue samples had cylindrical shapes approximately 2.5 mm in diameter and tens of millimeters in length. The diameter of the cylinders was increased to 6 mm with an extra epoxy layer for easy and safe handling of the samples. During image acquisition, the cylinder axis was set vertically, approximately parallel to the z axis of rotation. The samples were imaged with a very intense, monochromatic and parallel synchrotron X-ray beam at experimental station ID19 of the European Synchrotron Radiation Facility (ESRF). The absorption imaging mode was chosen to obtain a signal proportional to the local concentration of contrast agent injected into the vascular network. One thousand and two hundred radiographic projections were acquired for each sample, associated with an angle increment of 180/1200. The X-ray energy was set to 20.5 keV and a spatial resolution of 1.4 μm was chosen for the optical system.

The projections were recorded on a 2048 × 2048 pixel CCD camera, resulting in a total field view of 2.8 × 2.8 mm² (see (Plouraboué et al (2004) for more technical details about the imaging procedure). These radiographic projections were processed using the usual filtered back-projection algorithm associated with the inversion of the Radon transformation. The resulting 3D images were re-cast on 256 gray levels for each voxel. The voxel gray level at each point of the image was proportional to the linear attenuation coefficient related to the contrast agent solution. Because of the very high contrast agent concentrations, the resulting image contrast was very good. This allowed the smallest capillary structures to be displayed in both rat and primate cortex.

Image Analysis

The extremely large data sets generated by the 3D images (each image represents 4 to 5 GB of data), obliged us to develop specific numerical approaches for the image analysis and the data processing. The analysis tools were developed within a native program in C language, so that the successive post-treatment steps could be automated. Images were produced using the commercial software Amira (Mercury, Richmond, TX, USA), which has proven to be a useful tool in this context (Cassot et al, 2006). No prior filtering of the gray-level images has been performed to preserve the information obtained at the capillary scale, as the spatial resolution (1.4 μm) is not so far from the smallest capillary diameter (3 to 5 μm). The first step of the image analysis was the segmentation of the image, transforming 256 gray levels into two distinct levels. We use a standard hysteresis thresholding technique to obtain a first rough binary image. Hysteresis thresholding consists in using two thresholds to select edges. The higher one serves to detect strong edges between ‘white’ voxels to ‘gray’ ones, while the lower covers weak edges that distinguish ‘gray’ voxels from ‘black’ ones. The gray voxels having strong edges are then converted to ‘white’ voxels for they are in their neighborhood. This conversion is applied iteratively until no more change is obtained in the number of voxels in each class. Then the gray voxels are converted to black. Because of the high quality of the image contrast, this binarization procedure was weakly dependent on the chosen values for the thresholds. The resulting binary image was then subjected to conventional 3D erosion-dilation morphological operators processes. Erosion-dilation operators can be visualized as coating or etching the white voxels surfaces so that their surface expands or contracts. These operations enable artificial islands to be eliminated both inside the vessels (black island inside white pixels) and outside the vessels (white island inside black background). A careful inspection of the resulting images showed that, after a few iterations of erosion-dilation operators, the artificial islands inside the vessels had been removed, with very little alteration of the vessel diameters. Four examples of binary images are shown white voxel are represented in yellow, of marmoset cortex in Figure 1 and rat tumor in Figure 2.

OPEN IN VIEWER

Figure 1

(A,B) Volume rendering of a marmoset monkey cortical vascular network of sample in three dimensions. Threedimensional (3D) scale-bar (in red) is 100 μm in each direction. (A) 3D image obtained from the pia (top) to white matter (bottom) (B) extracted 512³ voxels block in the gray matter. (C,D) Same conventions as (A,B) for sample M₅.

OPEN IN VIEWER

Figure 2

Volume rendering of an implanted tumor cortical vascular network in rat cortex for samples T₁ (A,B) and T₄ (C,D). Same conventions as in Figure 1.

Data Processing

We applied different multiscale analyses to the binary images. Conventional box-counting and sand-box fractal analyses (Gazit et al, 1995; Feder, 1988) were used. We do not give details of these methods here as many textbooks and papers explain their principles and implementation (see, e.g., Feder, 1988). As a complement to these approaches, we also analyzed the distance map of the resulting network. The distance map represents the distance of any black voxel (tissue point) of the image from the nearest vessel, that is, the nearest white voxel, when considering binary images. Hence it quantifies the α-vascular space inside the cerebral tissue. Any white voxel has an associated distance equal to zero. The distance d(i,j,l) was computed in three dimensions along the discrete Cartesian coordinates based on the image voxels. This distance is interesting as it gives a quantitative measurement of the spatial distribution of the vascular network inside the cortical tissue. By computing how ‘far’ any point in the neural tissue is from the vascular network, one can obtain insights into the spatial distribution of oxygen by the vascular network and how the network drains metabolic products. It is interesting to note that this information cannot be retrieved from a simple cumulated histogram of the distance map, which only describes how variable the distance to any vessel is. The comparison between the distance maps of healthy (Figure 3A1) and tumorous tissue (Figure 3B1) shows that the typical vessel/tissue distances, associated with the histogram's mode, are very similar, about 22 μm. Nevertheless, the information contained in this histogram smears-out the existence of large or small, poorly or densely vascularized local regions. Figure 3A2 and 3B2 give two examples of two-dimensional sections through the 3D distance map. The comparison of the figures first shows that both vascular networks display a wide distribution of dense (black) or loose (white) local vascular density. This is the signature of some scale-invariance on the small scale.

OPEN IN VIEWER

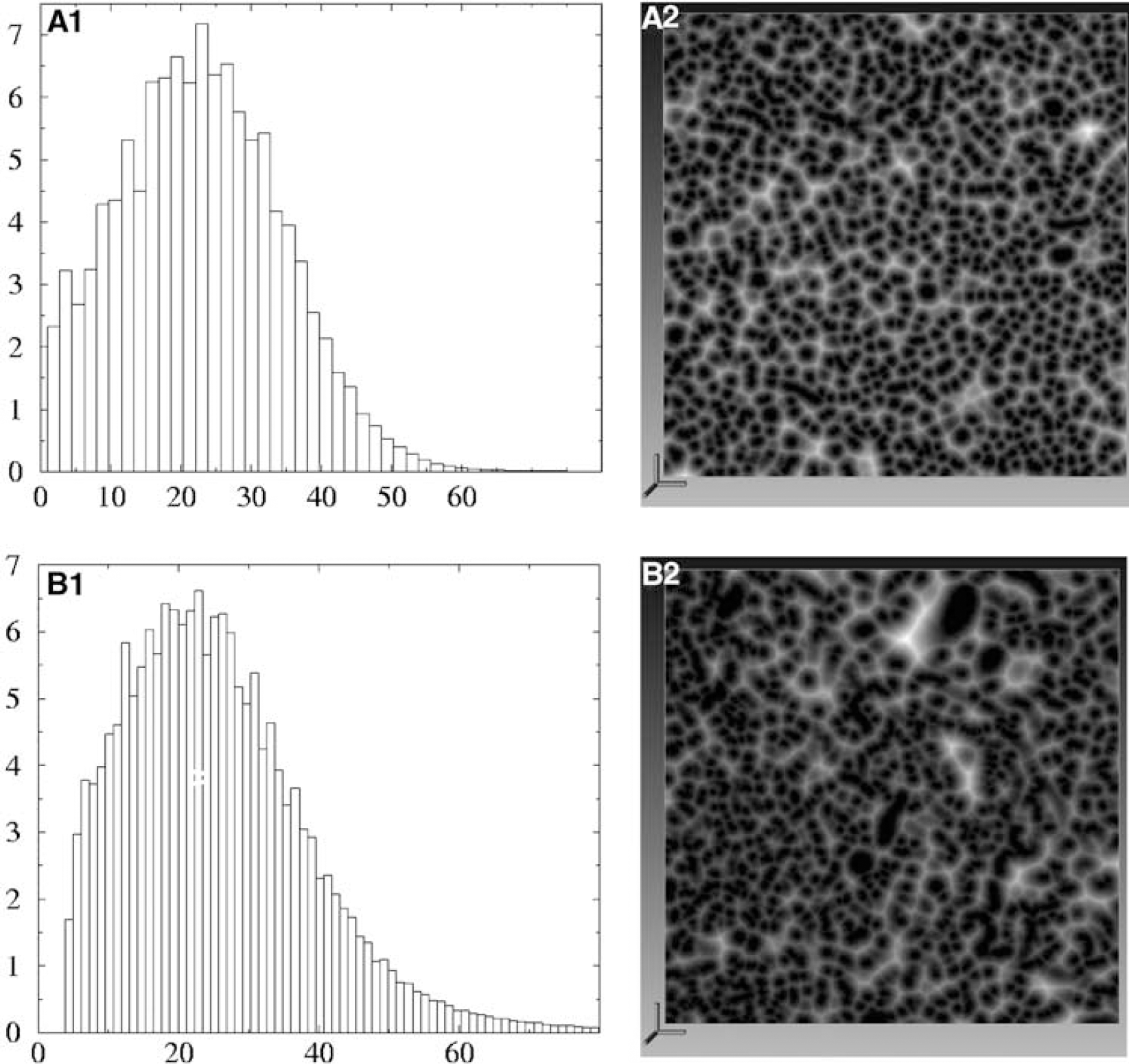

Figure 3

(A1,B1) Normalized histograms of the 3D distance map d in micrometer computed for the monkey microvascular cortex shown on Figure 1 in (A1) and the implanted tumors in rat brain shown on Figure 2 in (B1). (A2,B2) Representation of the corresponding 3D distance map projected in a (x, z) plane, coded in gray scale between white for maximal distances to black for minimal distances equal to 0. Three dimensional scale-bar is 100 mm in each direction.

Nevertheless, tumor distance maps (Figure 3b2) look much more heterogeneous than normal ones (Figure 3b2). Hence, while the average vessel/tissue distance of tumorous and normal microvascular networks is quite similar, the local vessel density is significantly different. This property can be further quantified by computing the correlation function of the distance map d(i,j,l) also called covariance function in statistics. It gives a quantitative estimation of the correlation of the distance map at a given distance along the discrete grid directions x,y, or z. This correlation permits the quantification of the qualitative texturing of the distance map field observed on Figures 3a2 and 3b2. Moreover, the way this texturing varies in space is related to the variations of the correlation function with the distance, as precisely quantified by the covariance function. But the computation of this covariance function is difficult in three dimensions (it requires the evaluation of a convolution product in each dimension of space). It becomes almost impossible with a single computer when images as large as those obtained from our acquisition are involved (e.g, 1024 × 1024 × 1024 voxels). The conventional way around this technical difficulty is to consider the Fourier transform of the distance map, which we will note d͠(k_i, k_j, k_l) As a matter of fact, the modulus of the Fourier transform |;d͠(k_i, k_j, k_l)|; ² is closely related to the Fourier transform of the covariance of the distance map (according to Wiener–Kintchine theorem). Hence, computing the modulus of the Fourier transform, also called the power spectrum P(k_i, k_j, k_l) = |;d͠k_i, k_j, k_l |;² gives the same information about the spatial distribution of the correlation as computing the covariance. As the computational cost of 3D Fourier transformations is very reasonable when fast-Fourier transform methods are used, in the following we will consider the Fourier spectrum of the distance map. For that purpose the distance map d(i, j, l) is periodized in each direction of space so as to prevent aliasing artifacts. This method is widely used in many practical applications for the investigation of multiscaled properties of random signals (Feder, 1988; Plouraboué and Boehm, 1999). In three dimensions, it is a very powerful method as it permits the analysis of the possible anisotropy of the multiscaled properties, as opposed to the fractal box counting methods.

Imaging

Healthy and tumorous vascular networks present distinct structural properties, whereas no significant differences could be observed between healthy marmoset monkey and rat tissue. The vessel density observed in Figures 1 and 2 illustrates the quality of the preparation. The apparent high density results from the projection over a thickness of 2.5 mm. The average vessel volume density is smaller for the normal monkey vascular network of Figure 1B (2%) than for the tumor of Figure 2B (5.7%). Moreover, the vessel diameter distributions are different: 80% of the normal cortical vascular network of Figure 1B has a diameter smaller than 10.4 mm whereas this value reaches 24.4 mm for the tumorous vessels of Figure 2B. The values are only illustrative, as the systematic comparison of such local parameters is not the purpose of our study. The vertical z-axis of the image is approximately perpendicular to the cortex surface so that the large vessels in the upper part are pie-merial. Normal vascular networks show conspicuous large arteriolar and venular columns whose orientation is approximately orthogonal to the cortex surface. This anisotropy of the normal vascular cortex in primate was generic for all the cortical regions investigated. Normal rat cortex has similar properties (see, for e.g., Plouraboué et al, 2004). However, implanted tumors present rather concentric vascular networks, as illustrated in Figure 2B. This is consistent with an expansion mode of implanted tumor, which develops from the central injection point. Moreover, it can be seen that the local vessel density at small scale varies more in Figure 2B than in Figure 1B. This qualitative observation will be further investigated quantitatively using fractal analysis and the distance map power spectrum.

Fractal Analysis

The box-counting and sandbox methods used in Figures 4 and 5 illustrate two generic properties. On the small scale, the microvascular network shows a multiscale fractal behavior between the voxel size (1.4 mm) to some upper cutoff cc. It can be observed that the use of very large data sets for the fractal analysis leads to clearcut linear trends with very small error bars in the estimated slopes. Above this lengthscale, the 3D vascular network appears as a homogeneous 3D object associated with the cubic behavior of both curves. Hence, cc gives the scale above which the vascular network can be considered as homogeneous and can no longer be considered as multiscaled. In the porous media literature, such a scale is called a REV lengthscale. This lengthscale is important as it could be considered as the one associated with some vascular modular spatial extension. In fact, this scale has been found to be larger in tumorous microvascular networks than in normal ones. For example cc is equal to 42 and 56 μm in Figures 4A and 4B and to 88 and 91 μm in Figure 5A and B, respectively. All the other results are presented in Table 1. These properties are self-consistent with the results obtained from the distance map analysis given below.

OPEN IN VIEWER

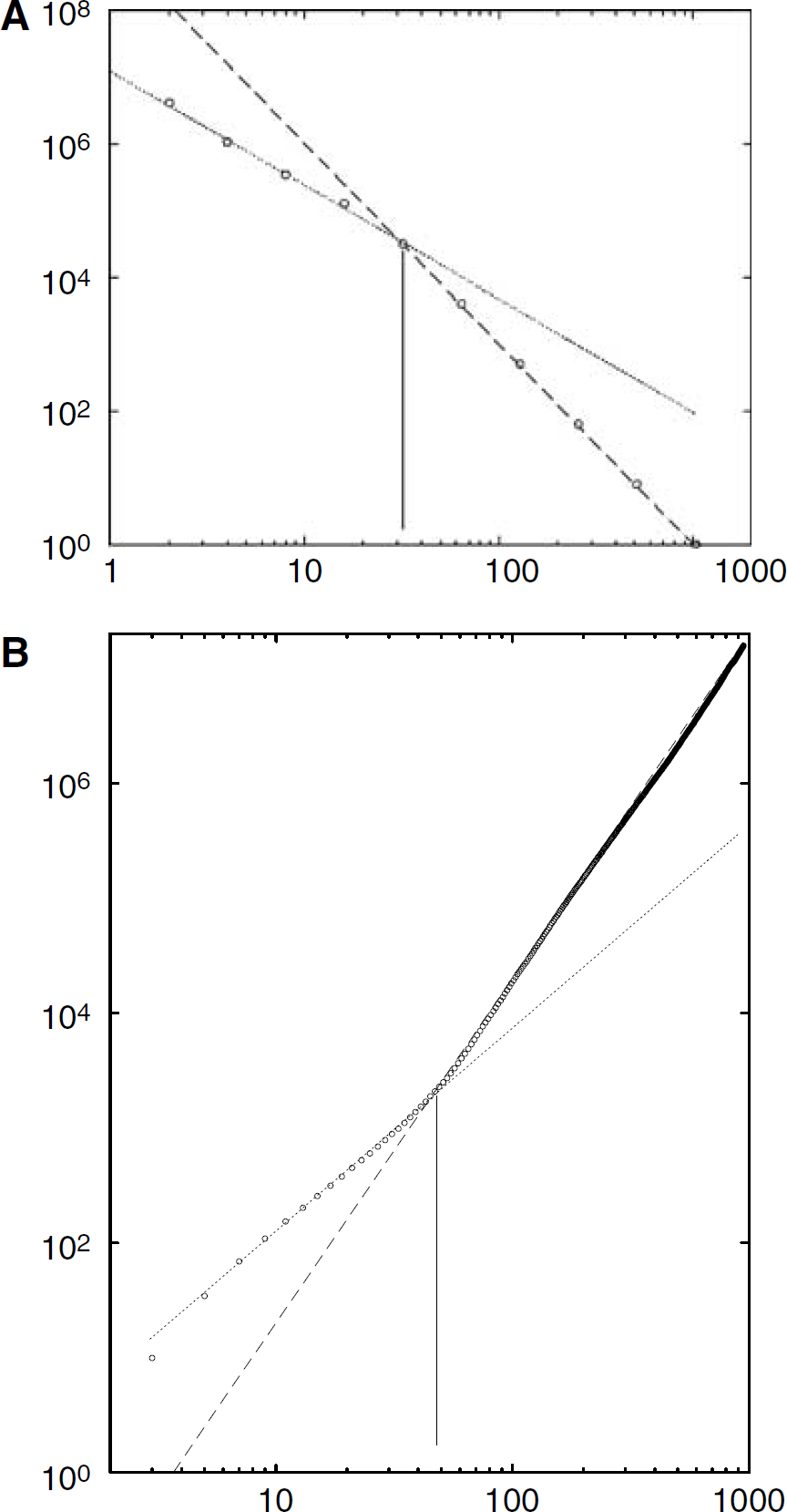

Figure 4

Fractal analysis on the vascular network of marmoset sample M₁ shown in Figure 1. The fractal regime is represented by a dotted line, while the homogeneous regime associated with a slope equal to 3 is plotted with long dashes. (A) Box-counting method in bi-logarithmic coordinates where the scale Δ is in voxel units. The slope of the dotted line leads to a fractal dimension equal to 1.7±0.1. (B) Sand-box counting method. The slope of the dotted line leadsto a fractal dimension equal to 1.8±0.1.

OPEN IN VIEWER

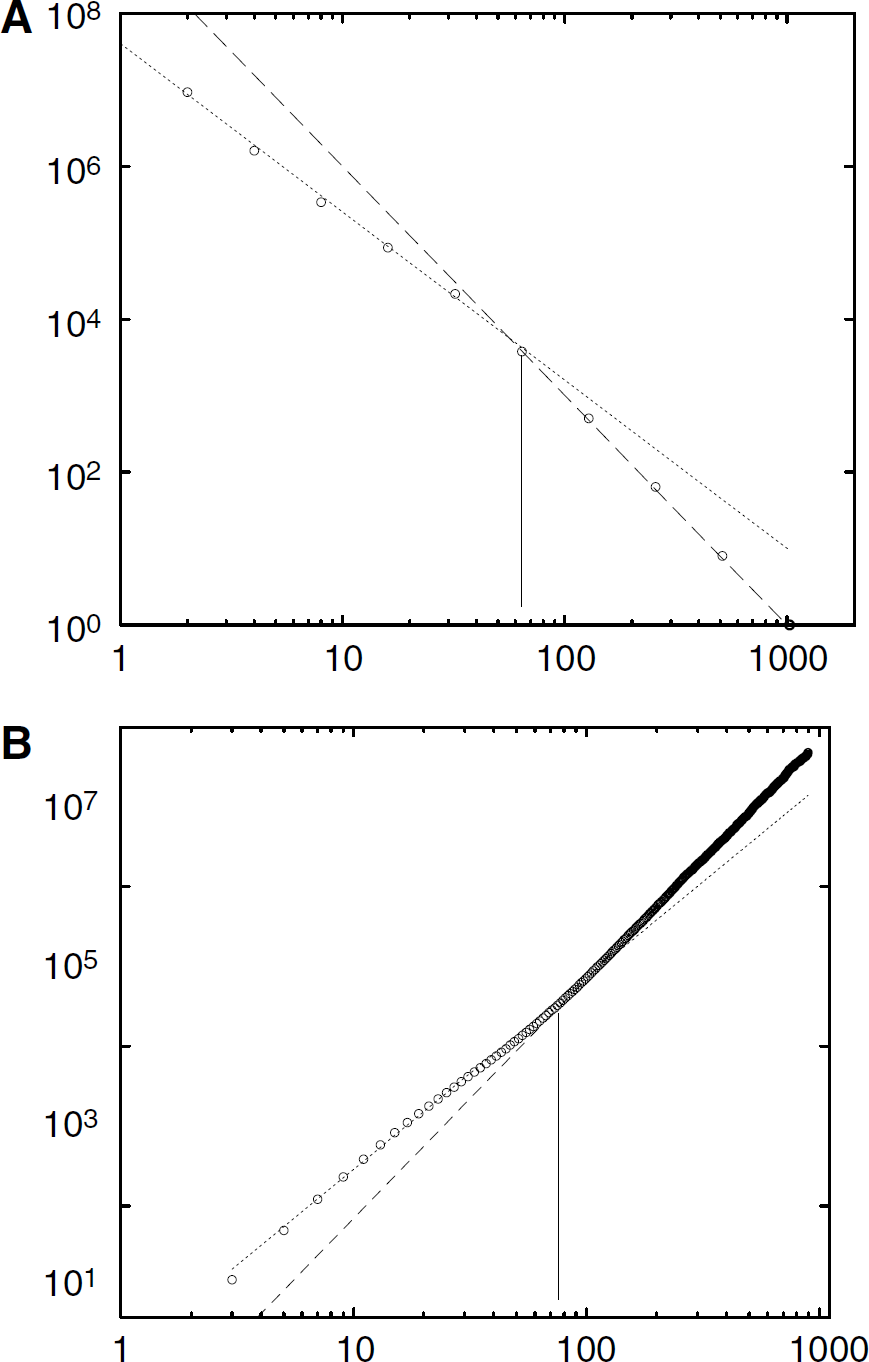

Figure 5

Same conventions as Figure 4 applied to the vascular network of tumorous rat sample T₁ shown in Figure 2. (A) The slope of the dotted line leads to a fractal dimension equal to 2 ± 0.1. (B) The slope of the dotted line leads to a fractal dimension equal to 2.2 ± 0.1.

A-Vascular Space Analysis

The power spectrum of the distance map was used to investigate the spatial distribution of the nonvascularized tissue. Both (x, y) and z directions were analyzed separately to look for any anisotropic properties of the vascular network. Figure 6 shows both types of spectra, which display the same generic properties. For large wavelengths, corresponding to small scales, the distance map has a power-law behavior |;d͠|;² ~ k^−v. The exponent v of this power law is different in the (x, y) and z directions. For example in the case of Figure 6 obtained on data of the sample shown in Figure 1 associated with marmoset normal vascular network, the power-laws are |;d͠|;² ~ k_XY^−4.9 and |;d͠|;² ~ k_Z^−5.3, respectively, in the (X, Y) and Z directions. This behavior is consistent with the observed anisotropy of normal cortical vascular networks shown in Figure 1, for which the Z direction perpendicular to the cortex surface displays highly correlated structures associated with vascular cortical columns. This anisotropy is still observed on tumorous vascular networks, for which the power-law observed in the (X, Y) and Z directions of Figures 7A and 7B are, respectively, |;d͠|;² ~ k_XY^−4.3 and |;d͠|;² ~ k_Z^−5.2. This property was confirmed on each tumorous sample that was analyzed in the same way, as described in Table 1. Furthermore, below some critical wavelength, the Fourier spectrum saturates. This saturation is associated with a lower cutoff of the Fourier spectrum, which is directly related with the correlation length ℓ, as indicated in Figures 6 and 7. Table 1 gives the comparison between this correlation length ℓ and the REV length-scale ℓ_c estimated from the Fractal analysis. ℓ and ℓ_c are complementary measurements of a similar network property, the scale above which either the vascular density or the vascular distance can be considered as homogeneous.

OPEN IN VIEWER

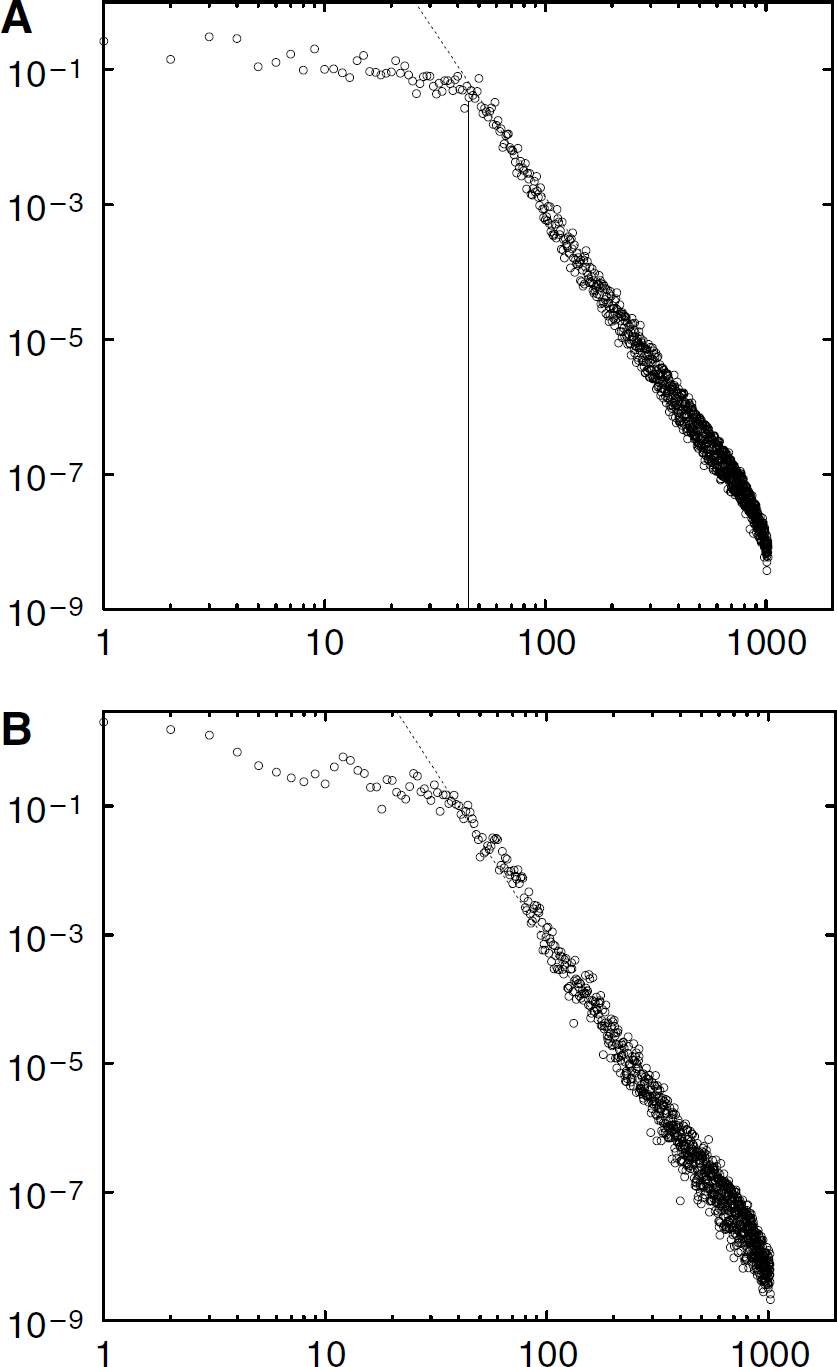

Figure 6

Averaged power spectra |;d͠|;²(k) of the distance map computed for the vascular network of Figure 1 in bi-logarithmic coordinates. The vertical line indicates the wavelength cutoff associated with the power law behavior (A) versus ( k x y = k x 2 + k y 2 ) and (B) versus k_Z.

OPEN IN VIEWER

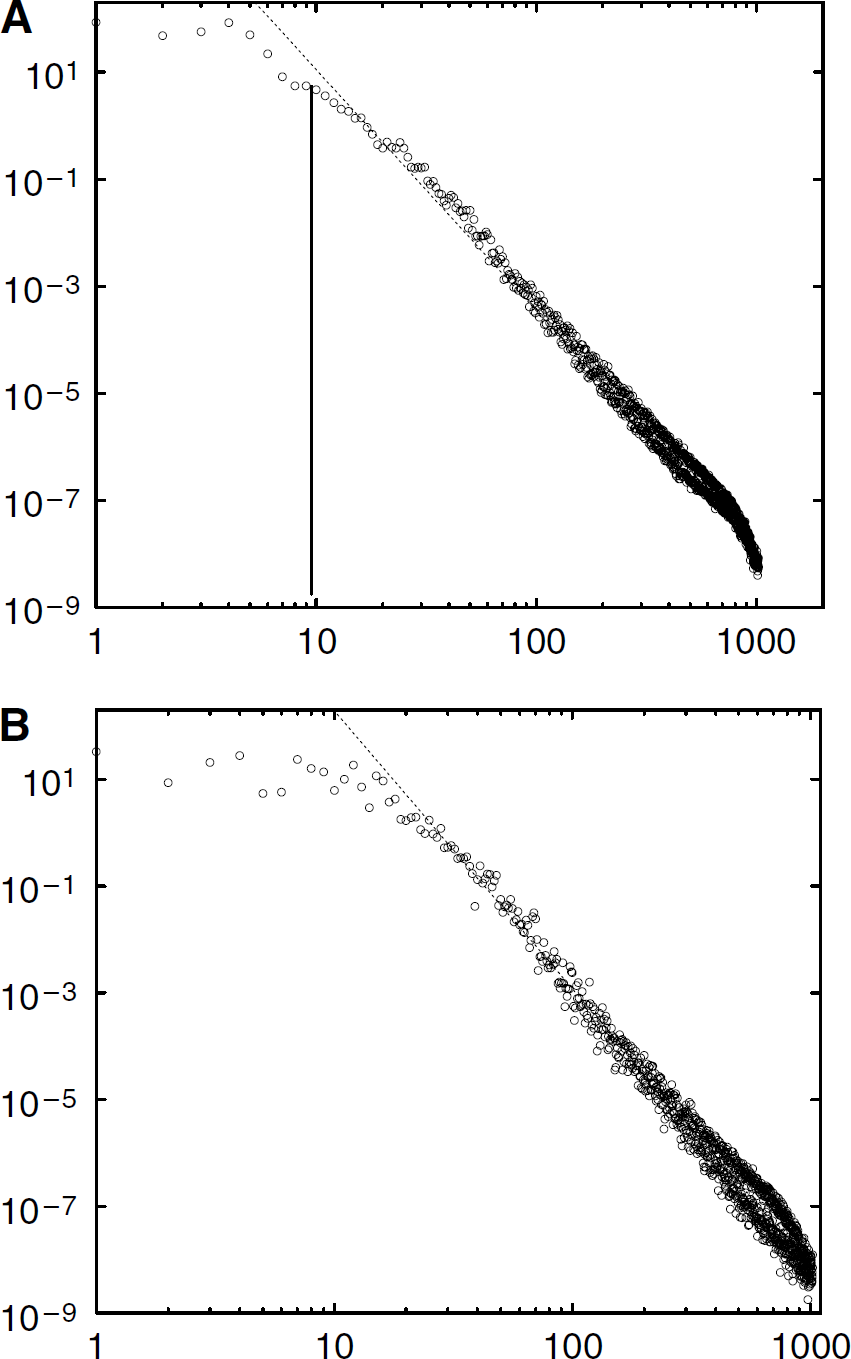

Figure 7

Same conventions as Figure 6 for the distance map of the tumorous vascular network of Figure 2.

Statistical Analysis

First, it can be qualitatively observed that both ℓ (obtained from the Fourier spectrum) and ℓ_c (obtained from the fractal box counting method) are positively correlated, the degree of correlation nevertheless depending on the fractal analysis method. A correlation coefficient r =0.9 was found between ℓ and ℓ_cBC and r = 0.66 for ℓ_cSB. In both cases, the correlation was found statistically significant at the 5% level. Moreover, comparing the measurements of ℓ and ℓ_c in Table 1 on normal tissues either in rat (R_i, i =1,2 samples) or in marmoset (M_i, i =1….5 samples) with measurements on implanted tumor networks (T_i, i =1…4 samples) seems to indicate that tumor vascular networks are fractal over much larger scales. We have then investigated the statistical relevance of this observation. Using a Wilcoxon rank test we first tested, for the three parameters ℓ, ℓ_cBC and ℓ_cSC the possible equality between R_i and M_i samples. None of the parameters was found to be significantly different at the 5% level. Using this first result, the data associated with R_i and M_i samples were combined, and their possible equality with tumor samples T_i tested. We found a highly significant difference for all three parameters ℓ, ℓ _cBC and ℓ _cSC with an associated probability of 0.3% much smaller than the 5% level.

Another interesting question about Table 1 is whether the observed fractal dimensions are different for healthy and tumorous vascular networks. A similar Wilcoxon rank test was applied to both BC and SB measurements. In the same way we first tested the equality of fractal dimensions measured for R_i and M_i samples. Neither D_BC nor D_SB were found to be significantly different with associated probability of 30% and 9% both larger than the 5% level. However, when the fractal dimensions obtained for R_i and M_i samples were combined and the equality with tumor samples T_i was tested, a very significant difference was found, associated with a probability 0.03% much smaller than the 5% level. From this, it can be concluded that the fractal dimension associated with tumorous vascular networks is significantly larger than those measured on healthy vascular networks.

Finally, we also analyzed the surface to volume ratio of the vascular network reported in the last column of Table 1. A statistical analysis of these data using a Mann–Whitney test shows that the Marmosets sample M_i, i = 1‥5 and the healthy rat R_j, j =1,2 cannot be considered as different with an associated probability P =0.12 larger than the 5% level. As previously we have then agregated the M and R groups and then tested their difference with sample T_i, i= 1‥4. We found a significant difference between both with an associated probability P= 0.038. We then conclude that the surface exchange of vessels in tumour is larger than in healthy tissues.
