Pyruvate Improves Recovery after PARP-1-Associated Energy Failure Induced by Oxidative Stress in Neonatal Rat Cerebrocortical Slices

Abstract

Previous neuron and glial cell culture studies of excessive poly (ADP-ribose) polymerase (PARP-1) activation found NAD⁺ depletion, glycolytic arrest, and cell death that could be avoided by exogenous tricarboxylic acid cycle (TCA) metabolites, especially pyruvate (pyr). Pyruvate neuroprotection has been attributed to cytosolic NAD⁺ replenishment, TCA metabolism, and antioxidant activity. We investigated the first two mechanisms in respiring cerebrocortical slices after a 1-h H₂O₂ exposure to activate PARP-1. H₂O₂ was followed by a 4-h recovery with oxy-artificial cerebrospinal fluid superfusion having either: (1) no glucose (glc) or pyruvate; (2) 10 mmol/L glc only; (3) 10 mmol/L pyruvate only; (4) both 10 mmol/L glc and 10 mmol/L pyruvate. Poly-ADP-ribosylation was quantified from Western blots and immunohistochemistry. Perchloric acid extracts were quantified with 14.1 T ³¹P nuclear magnetic resonance spectroscopy. Just after H₂O₂ exposure, ATP and NAD⁺ decreased by ≈50%, PCr decreased by 75%, and the ADP/ATP ratio approximately doubled. ATP and NAD⁺ changes, but not PCr changes, were nearly eliminated if PARP inhibitors accompanied the H₂O₂. Recovery with both pyruvate and glc was better than with glc alone, having higher ATP (0.161 versus 0.075, P < 0.01) and PCr levels (0.144 versus 0.078, P < 0.01), and higher viable cell counts in TUNEL and Fluoro-Jade B staining. Two-dimensional [¹H-¹³C] HSQC spectra showed metabolism during recovery of ¹³C glc or pyr. Pyruvate metabolism was primarily via pyruvate dehydrogenase, with some via pyruvate carboxylation. Pyruvate superfusion of PARP-injured brain slices helps replenish NAD⁺ while providing metabolic fuel. Although this augments recovery, a strong antioxidant role for pyruvate has not been ruled out.

Keywords

ATP brain slices NMR oxidative stress poly (ADP-ribose) polymerase pyruvate

Introduction

For approximately 20 years, it has been known that hyperactivation of poly (ADP-ribose) polymerase-1 (PARP-1, E. C.2.4.2.30), an enzyme abundant in cell nuclei, occurs in response to DNA damage from conditions such as hypoxia, ischemia, hypoglycemia, and free radical injury (Schraufstatter et al, 1986; Suh et al, 2003; Ueda and Hayaishi, 1985). Recent review articles summarize in vivo and in vitro associations between PARP-1 hyperactivation from DNA damage and subsequent severe cell injury and death (Chiarugi, 2005; Virag and Szabo, 2002). Articles specific for PARP-1's influence in central nervous system injury and protection (Chiarugi, 2005; Eliasson et al, 1997; Endres et al, 1997) describe that as in other tissues, PARP-1 inhibition in the central nervous system during numerous types of stress reduces injury and death. Given the large number of studies that showed impressive in vivo protections by PARP inhibitors, including those showing enhanced protection in genetically engineered PARP knockout animals (Hagberg et al, 2004), it is easy to appreciate the importance of developing pharmacological interventions for PARP-1 inhibition. However, because energy failure has been strongly implicated in PARP-1-related injury, it is important to know whether metabolic manipulations exist that are protective despite PARP-1 activation.

Mechanistic explanations of PARP-associated injury emphasize the depletion of NAD⁺ (β-nicotinamide adenine dinucleotide) (Berger, 1991; Cochrane, 1991; Ying et al, 2002). Activated PARP-1 cleaves NAD⁺ into nicotinamide and ADP-ribose, and attaches ADP-ribose polymers onto various nearby nuclear proteins, including itself, which causes self-inactivation (Virag and Szabo, 2002). It has been suggested that in healthy cells having only small amounts of DNA damage, poly-ADP-ribosylation efficiently starts the process of DNA repair by recruiting appropriate proteins that act after poly-ADP-ribose glycohydrolase (PARG, E.C.3.2.1.144) removes the poly-ADP-ribose units, undoing PARP's work (Bonicalzi et al, 2005; Malanga and Althaus, 2005).

It has been hypothesized that in cells having heavily damaged DNA, intense overconsumption of NAD⁺ is triggered by back-to-back action of PARP-1 and PARG, that is, by futile cycling that has PARP repeatedly attaching ADP-ribose units as PARG repeatedly removes them (Berger, 1991). Energy metabolism can be disrupted by excessive consumption of NAD⁺, a key redox participant in cytosolic glycolysis. NAD⁺'s redox couple, NADH, is a key participant in mitochondrial ATP production that can potentially be affected by associated decreases in NAD⁺. Additionally, NAD⁺ restoration adds to energy depletion, because four ATP molecules are required to resynthesize one NAD⁺ (Zhang et al, 1994). The futile-cycle hypothesis is supported by results of monolayer neuron and astrocyte cell culture experiments (Ying et al, 2005, 2002), which found that PARP hyperactivation by N-methyl-N-nitrosoguanidine or H₂O₂ led to cytosolic NAD⁺ depletion, glycolytic arrest, and cell death from energy failure. More significantly, cell death in those studies was prevented or reversed by administration of PARP inhibitors or tricarboxylic acid cycle (TCA) substrates such as pyruvate, glutamine, and α-ketoglutarate.

Because acute brain slice preparations provide tissue conditions closer to those found in vivo, we used them to further investigate energy failure hypotheses underlying injury after PARP activation. One expectation was that phenomena would at least approximately resemble those found in cell culture studies, but with differences in important details of NAD⁺ decreases, glycolytic arrest, and prevention/rescue by TCA substrates.

Materials and Methods

Materials

Reagents were purchased from Sigma Chemical Co (St Louis, MO, USA), except where noted.

Perfused Brain Slice Preparation and Experimental Design

Respiring cerebrocortical slices from 7-day old (P7) neonatal Sprague-Dawley rats were obtained, recovered, and maintained according to a previously described protocol (Hirai et al, 2002; Litt et al, 2003; Zeng et al, 2004) that was approved by the UCSF Committee on Animal Research. Individual experiments used 20 slices (350 μm thick) from 10 P7 rats, were at 37°C at an artificial cerebrospinal fluid (ACSF) flow rate of 10–15 mL/min, and maintained at constant PCO₂ (40 mm Hg), PO₂ (600 to 650 mm Hg), and pH (7.4).

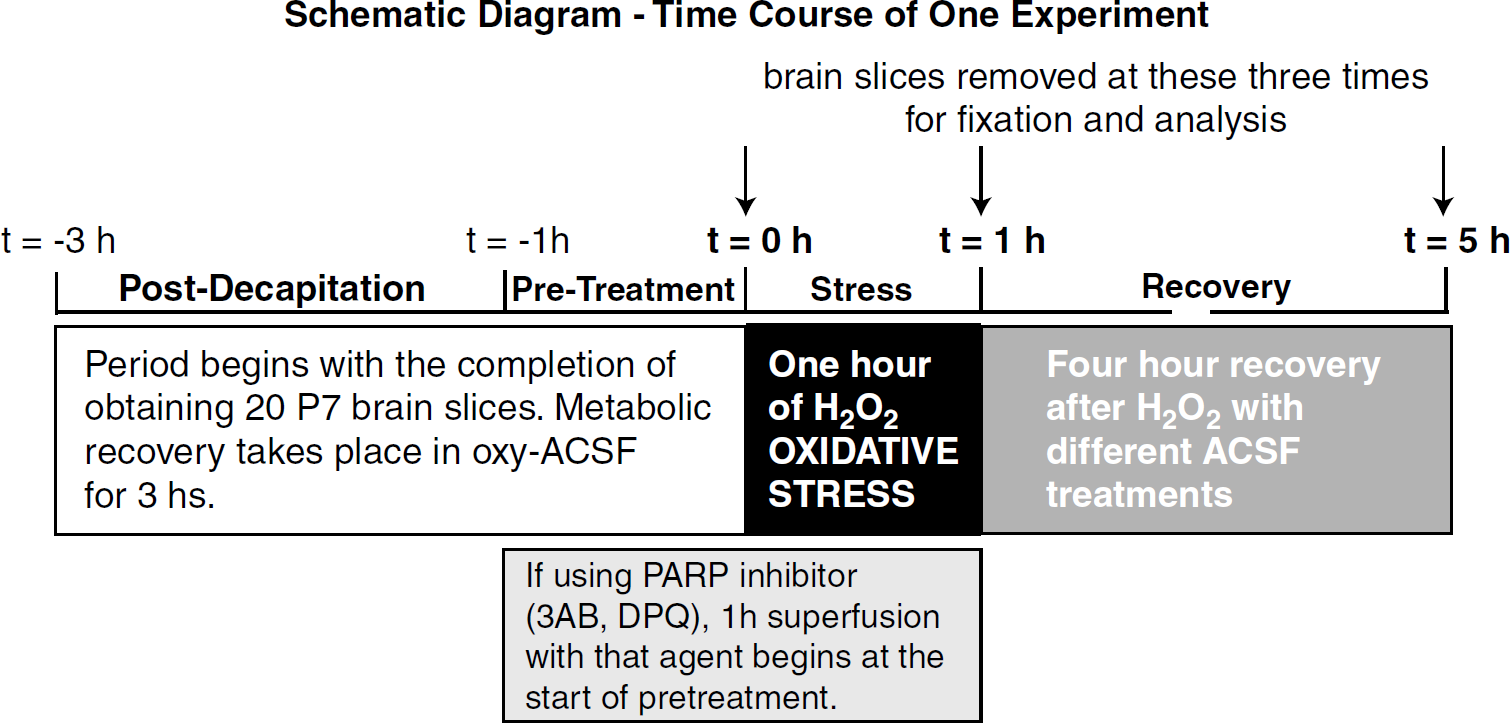

Figure 1 shows a schematic diagram for one experiment. After 3 h of metabolic recovery, PARP activation was induced by 1 h of oxidative stress, produced by superfusion with 2 mmol/L H₂O₂ in glucose-free artificial cerebrospinal fluid (Davis et al, 1998). The H₂O₂ exposure was followed by 4 h of recovery (from t = 1 to 5 h) with four groups of different well-oxygenated superfusates: (1) only glucose (10 mmol/L); or (2) only pyruvate (10 mmol/L); or (3) 10 mmol/L glucose together with 10 mmol/L pyruvate; (4) no glucose or pyruvate. ACSF with pyruvate was prepared immediately before use, because of the known dimerization and transformation of pyruvate in solution, first to pyruvate hydrate (2,2-dihydroxypropanoic acid), which happens in minutes (≈20% conversion), and then to parapyruvate (γ-methyl-γ-hydroxy-α-ketoglutaric acid) ≈25% at 24 h (Montgomery and Webb, 1956). Slice sampling was taken at t =0, 1, and 5 h as indicated in Figure 1. Removed slices were washed rapidly in 4°C normal saline, frozen immediately in liquid nitrogen (LN₂), and stored at −80°C for subsequent processing.

Figure 1

Twenty brain slices were obtained for each experiment, and then treated as shown in this schematic diagram, where earliest times are to the left. Five predetermined times are indicated. For the primary protocol, slices were removed at the three times marked by arrows.

In two additional experimental groups, PARP inhibition was investigated by augmenting the superfusate with either 3-aminobenzamide (3AB) or 3,4-dihydro-5-[4-(1-piperidinyl)butoxyl]-1(2 H)-isoquinolineone (DPQ). Administration of 3AB or DPQ started 1 h before the H₂O₂ insult (t = −1 h) and stopped simultaneously with H₂O₂ termination (t = 1 h). Additional slice sampling was performed at t =20 mins during H₂O₂ exposure. Additional control studies were done, including slice superfusion with no oxidative stress, with and without various PARP inhibitors and metabolic substrates.

Western Blots of Poly (ADP-ribose)

Three frozen slices from each time point (≈3 × 50 mg wet weight) were placed in an ice-cold lysis buffer (20 mmol/L HEPES-KOH at pH 7.5, 10 mmol/L KCl, 1.5 mmol/L MgCl₂, 1 mmol/L ethylene diaminetetraacetic acid (EDTA), 1 mmol/L ethylene glycol-bis (2-aminoethyl ether)-N,N, N',N'-tetraacetic acid (EGTA), 0.1% sodium dodecyl sulfate, 1 x Protease inhibitor cocktail). The mixture was sonicated and centrifuged (10,000g) at 4°C for 20 mins. The supernatant was used as the whole-cell protein extraction. Proteins were separated by sodium dodecyl sulfate-polyacrylamide electrophoresis on a 4% to 12% Bis Tris gel (Invitrogen, Carlsbad, CA, USA). Separated proteins were transferred from the gel to a polyvinylidine difluoride membrane (Millipore, Bedford, MA, USA), which was then incubated for 1 h in a blocking buffer containing 5% blotting grade nonfat dry milk in 0.1 mol/L sodium phosphate buffer (pH 7.4). Next, the membrane was incubated overnight with mouse anti-PAR monoclonal antibody 4335-MC (Trevigen, Gaithersburg, MD, USA) diluted 1:1,000, washed, and incubated for 1 h with a 1:10,000 dilution of peroxidase conjugated anti-mouse IgG (Amersham Life Science, Piscataway, NJ, USA). Bound antibody was visualized by chemiluminescence (Amersham Life Science, Piscataway, NJ, USA). β-Actin was measured as a check on protein loading. Poly (ADP-ribose) was quantified from optical densities (OD) obtained by the program Kodak ID 3.5.3 for molecular weights between 80 and 270 kDa. After quantifying the OD of β-Actin as an internal control, the following and OD ratios were determined for each time point: (poly (ADP-ribose))/(β-actin). Measured intensities for different blots on different days were normalized using quantifications of bands from a reference lane on each blot that always came from the same source and always had the same amount of protein.

Immunohistochemistry of Poly (ADP-ribose)

Sections 8 μm thick were incubated in 3% H₂O₂ at room temperature for 5 mins, blocked with 1% bovine serum albumin for 30 mins, and then blocked with 10% normal horse serum for 60 mins. After overnight incubation at 4°C with a monoclonal anti-PAR antibody (Trevigen, Gaithersburg, MD, USA) diluted 1:500, slice sections reacted for 1 h at room temperature with biotinylated horse anti-mouse IgG (Vector Laboratories, Burlingame, CA, USA) diluted 1:1,000. Excess antibody was removed and the bound antibody was visualized with the ABC streptavidin detection system and 3,3'-diaminobenzidene (Vector Laboratories, Burlingame, CA, USA). Nuclei were counterstained with methyl green solution (Zymed, South SF, CA, USA).

Enzymatic NAD+ Assay

Total intracellular NAD⁺ in brain slices was measured using a previously described enzymatic recycling assay (Szabo et al, 1996; Ying et al, 2001) with minor modifications. For each time point, NAD⁺ was measured separately in three slices, and the average was taken as the value for that time point. The enzymatic recycling method starts with conversion of all NAD⁺ to NADH, this being performed with alcohol dehydrogenase (Roche Diagnostic, Indianapolis, IN, USA). NADH reduces 3-(4,5-demethylthiaol-2-yl)-2,5-diphenyl tetrazolium bromide (faint yellow) to formazan through an intermediate, phenazine methosulfate, which makes the mixture dark yellow. Optical density measurements at 560 nm were made of rate reductions, after calibrating against NAD⁺ standards. Results were normalized to total protein concentration as determined by bicinchonic acid method.

Perchloric Acid Extraction of Metabolites and Sample Preparations for Nuclear Magnetic Resonance Studies

Seven frozen slices from each time point were pulverized in LN2. The resulting fine powder was placed in 7 mL of 12% perchloric acid (PCA) at 4°C. Our previously described procedure for PCA extraction was followed (Espanol et al, 1998), and final extracts were then lyophilized (BenchTop 2K Lyophilizer, Virtis, Gardiner, NY, USA). Each lyophilized sample was dissolved in 450 μL of 99.9% D₂O. Centrifugation then followed, and a 300 μL aliquot of supernatant was removed. One microliter of 700 mmol/L 3-(trimethylsilyl)-tetradeuterosodium propionate (TSP) was added as an internal nuclear magnetic resonance (NMR) reference. After pD was adjusted to 7.0 to 7.4, the extract was transferred into a 5-mm Shigemi NMR tube (Shigemi Co, Tokyo, Japan) and ¹H and ¹³C NMR spectroscopy were performed. Before ³¹P spectroscopy EDTA was used to chelate and remove line-broadening cations; 2 μl of 330 mmol/L methylene diphosphonate (MDP) was added as a ³¹P NMR reference; and the pD was again adjusted to 7.0 to 7.4.

31P Nuclear Magnetic Resonance Spectroscopy at 14.1 T

Nuclear magnetic resonance (NMR) studies were performed in the UCSF Magnetic Resonance Laboratory using a 14.1-T (600-MHz) Varian UNITY spectrometer with an INOVA console and a customized, multinuclear Z-SPECT radiofrequency probe that was optimized for this project (3NG600-8, Nalorac Division of Varian, Martinez, CA, USA). Basic one-pulse, 90° tip-angle RF sequences were used for obtaining ¹H spectra at 599.92 MHz and ³¹P spectra at 242.86 MHz. The extra homogeneity provided by the Shigemi NMR tubes and the Varian INOVA shimming software typically resulted in spectral line-widths of 0.004 parts per million (p.p.m.) full width at half-maximum (FWHM) for ¹H water protons and 0.01 p.p.m. FWHM for the ³¹P of phosphocreatine. Phosphorous spectra were obtained with proton decoupling and a 1-s interpulse delay during 8-h runs.

Figure 2A shows a typical high-energy phosphate spectrum from well oxygenated control slices. The phosphocreatine (PCr) resonance, which has been assigned to a frequency of 0 p.p.m., is at the left edge, and β-NTP at the right edge. Figures 2B–2E show higher magnification images of portions of Figure 2A. The notation ‘NTP’ and ‘NDP’ is conventionally used in in vivo and low-resolution ³¹P NMR spectroscopy to represent the nucleoside triphosphates and diphosphates that occur with any of four different bases: adenine, cytosine, guanine, and uracil. In in vivo and low-resolution spectroscopy chemical shifts for any one phosphate are too close to resolve for different bases. At low spectral resolution, one typically has one broad β-NDP peak, with contributions to it coming from β-ADP, β-CDP, β-GDP, and β-UDP. Figures 2B and 2C show that the high spectroscopic resolution of our 14.1 T system allows the very small chemical shift differences for certain different bases to be resolved. Figure 2D shows a doublet resonance for both the α and β phosphates of NAD⁺. NAD⁺ quantifications were derived from the integrated NMR signal intensity for the β phosphate doublet centered at ≈−8.40 p.p.m., as that region in our spectra did not have any other significant background resonances. As can be seen in the Figures 2C and 2D, NAD's α phosphate doublet sits in a region crowded by other peaks, which in brain tissue are known to include UDP-diphosphates (Lutz et al, 1997). Figure 2E shows the apparent triplet (overlapping doublet) resonance for β-ATP, with minimal background contributions from UTP and CTP. ADP was quantified by integrating the clearly separated signal for α-ADP (Figure 2C), while ATP was similarly quantified from β-ATP. Relaxation time corrections were not introduced, as the same NMR pulsing sequence was used for all runs and the goal of the analysis was primarily to detect large differences from control.

Figure 2

Enlarged sections are presented (B through E) for a representative high-resolution 14.1 T ³¹P NMR spectrum of PCA extracts from control brain slices (A). Vertical peaks, sharpened by proton decoupling and EDTA chelation of metal ions, identify radiofrequency resonance energy absorption at ³¹P Larmor frequencies (x-axis) for various molecular positions. Frequency units along the x-axis are in parts per million (p.p.m.) of the ³¹P Larmor frequency, 242.95 MHz. The extracts are in D₂O. Signal amplitudes are measured relative to an internal standard, MDP whose resonance peak is off scale to the left. The PCr resonance was assigned to 0 p.p.m. Resonances towards the right at lower p.p.m. values, which is upfield of resonances to the left, come from molecular positions where the applied 14.1 T magnetic field is more heavily shielded by the parent molecule. (A) The high-energy phosphate region is shown for resonances between PCr and β-ATP Because the spectrum is compressed in this tracing, separate resonances for ADP, CDF, GDP and UDP cannot be discerned, and these are collectively referred to as NDP Similarly, there are resonances marked NTP (B) and (C) An expanded view of the spectral regions near β-ADP and α-ADP shows that these nucleoside diphosphates are resolvable from other NDP resonances, and therefore quantifiable. (D) ³¹P doublet peaks are shaded for both the α and β phosphates of NAD ⁺. The line shapes and chemical shifts of these peaks were verified in test runs containing pure NAD⁺ (data not shown). Only the β peak was used for NMR quantifications of NAD⁺. (E) The 1:2:1 splitting of β-ATP comes from ³¹P-³¹P coupling to α and γ phosphates. It is clearly discernable, and seen to have only a small contamination from the UTP and CTP triplets.

Indirect Detection of 13C Metabolites with Two-Dimensional Heteronuclear Single Quantum Coherence Spectroscopy

Special studies were carried out at 25°C using a different 14.1 T Varian UNITY-INOVA spectrometer equipped with an actively shielded 5-mm triple resonance cryogenic probe with a Z-axis pulsed field gradient coil (¹H at 600MHz, ¹³C at 150.9MHz). Sensitivity-enhanced hetero-nuclear single quantum coherence spectroscopy (HSQC) spectra were obtained (Kay et al, 1992; Palmer et al, 1991). Transients were acquired with a 1-sec relaxation delay, 8 scans per increment, a ¹H spectral width of 7,200 Hz (acquisition time of 142 ms) and a ¹³C spectral width of 15,000Hz with a maximum evolution time of 133 ms. The NIH programs NMRPipe and nmrDraw (Delaglio et al, 1995) were used to process spectra to yield pure absorption mode spectra. Apodization was applied using sine-squared window functions in the ¹H and ¹³C dimensions. Resulting two-dimensional (2D) spectra were then analyzed and displayed with SPARKY (TD Goddard and D G Kneller, SPARKY 3, University of California, San Francisco, CA, USA). TSP was used as a chemical shift standard, with lactate referenced to 1.33 p.p.m. (¹H) and 21.3 p.p.m. (¹³C).

In Situ Labeling of DNA Fragmentation and Fluoro-Jade B Staining

Manifestations of cell death were sought using fluorescent in situ terminal deoxynucleotidyl transferase-mediated uridine 5'-triphosphate-biotin nick end labeling (TUNEL staining). Sections were first permeabilized in 0.1% Triton X-100 in phosphate-buffered saline (PBS) for 8 mins. TUNEL reaction mixture was obtained by adding terminal deoxynucleotidyl transferase to nucleotide mixture, as instructed by the manufacturer's manual (Roche Diagnostics, Mannheim, Germany). Each section was then incubated with 50 μL TUNEL reaction mixture in a humidified chamber at 37°C in dark for 60 mins. After rinsing with PBS, sections were counterstained nuclei with 0.5 μg/mL propidium iodide (PI). Propidium iodide was used after fixation to permeate all cells. Propidium iodide here did not provide vital staining. Wavelengths for fluorescence were excitation at 488 nm with emissions > 515 nm for fluorescein; and excitations < 535 nm with emission at about 615 nm for PI.

Nonviable neurons were identified by Fluoro-Jade B (FJB) staining (Schmued and Hopkins, 2000), and conterstained by 0.0002% 4',6-diamidino-2-phenylindole dihydrochloride (DAPI). The tissue was then examined using a microscope with blue (450 to 490 nm) excitation light and detected with emissions > 515 nm. DAPI counterstained nuclei were visualized when excited by ultraviolet (330 to 380 nm) light.

Quantifications and Statistical Analysis

Quantifications of positive cells in TUNEL staining and FJB staining were performed by taking images in five regions of slice sections at a magnification of 400 x. Cell counts were obtained by counting nuclei for healthy and injured neurons and glia. Counts of positive cells, given in the results as percentages of total numbers of cells, were performed for regions below the pial layer but above the injury layer.

All data are shown as mean ± s.e. Data in Figures 3, 5 were compared using unpaired t-tests. Data in Figure 6 were assessed by analysis of variance followed by the Fisher's protected least significant difference post hoc test, with P-values less than 0.05 were considered statistically significant.

Figure 3

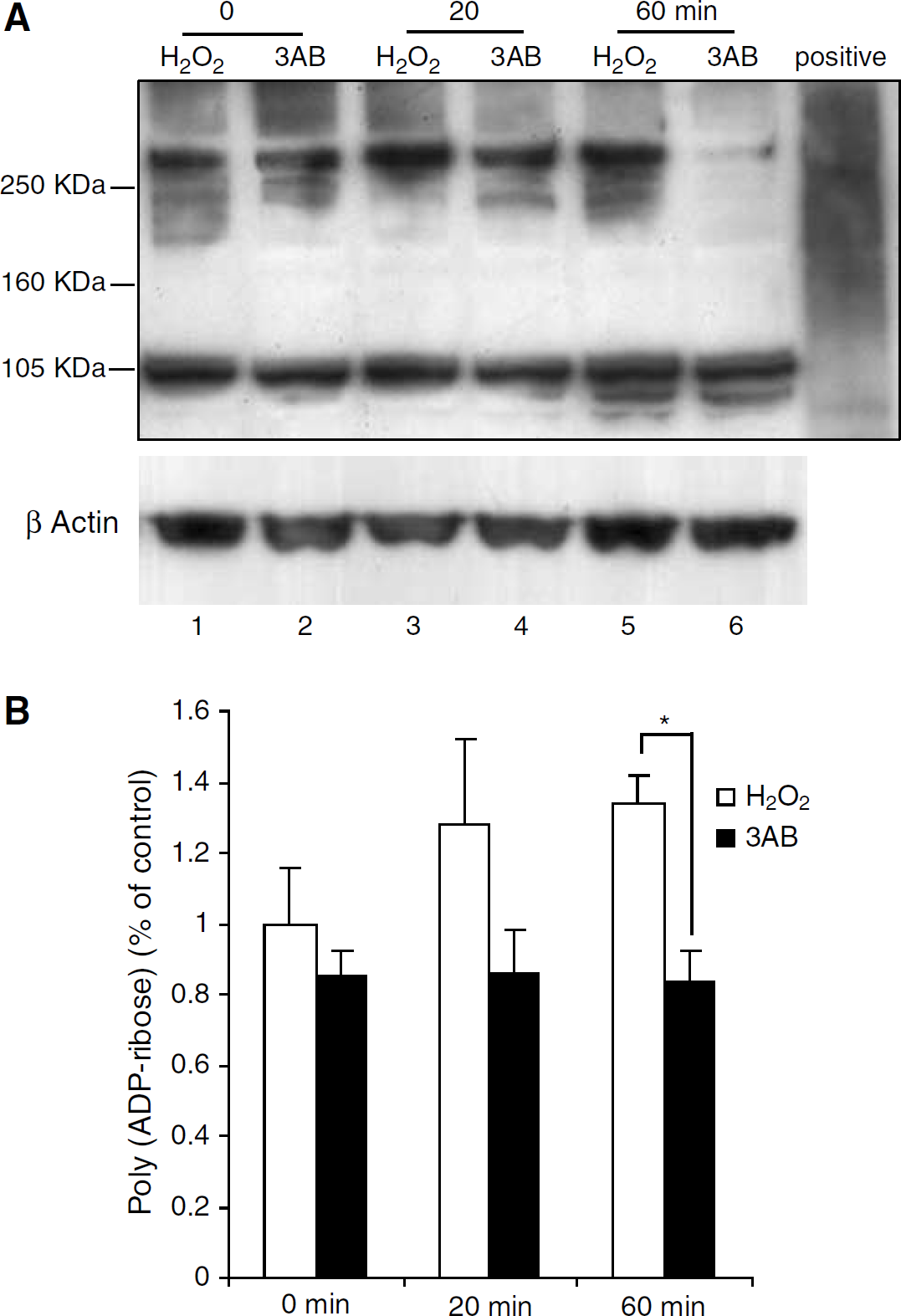

(A) Representative Western blots of poly (ADP-ribose) in whole-cell fractions. Slices for lanes 1 and 2, removed at t = 0, were never exposed to H₂O₂. Slices in lane 2 were pretreated for 1 h with 3AB. Lanes 3 and 5 were from slices treated only with H₂O₂. Lanes 4 and 6 were from slices treated with both H₂O₂ and 3AB. The lane marked ‘positive’ contained Trevigen's poly-ADP ribosylated protein control samples from E. coli. Poly (ADP-ribose) immunoreactivity, evident in the range of 80 to 270 kDa, was increased most at t = 60 mins after H₂O₂ treatment, whereas it was significantly inhibited at t = 60 mins with 3AB preincubation. As noted in the text, there is polyribosylation at t = 0, presumably from decapitation and recovery. (BM) Columns give quantifications of OD ratios (poly (ADP-ribose))/(β-actin), averaged from three experiments and shown as mean±s.e. *P < 0.05.

Figure 4

Immunohistology images showing 3AB's inhibition of H₂O₂ induced poly (ADP-ribose) formation in brain slices. Poly (ADP-ribose) immunoreactivity (brown) is shown in 8 μm thick section from representative slice taken at t = 1 h. Nuclei were counterstained with methyl green. For (A-C) the scale bar represents 10 μm. (A) before H₂O₂ or 3AB treatment; (B) after 1 h of 2 mmol/L H₂O₂ treatment; (C) with 5 mmol/L 3AB preincubation.

Figure 5

(A) to (E) Quantifications of high-energy phosphates from integrated NMR signal intensities relative to that of MDP, which was assigned a value of 1.00. After H₂O₂ exposure, there were decreases in ATP, PCr, NAD⁺, and an increase in the ADP/ATP These changes were prevented by the PARP inhibitor 3AB. Enzymatic NAD⁺ determinations (F) and integrated NMR signal intensities (E) produced similar results. Averages are given as mean+s.e., *P < 0.05, **P < 0.01, n = 3 per group.

Figure 6

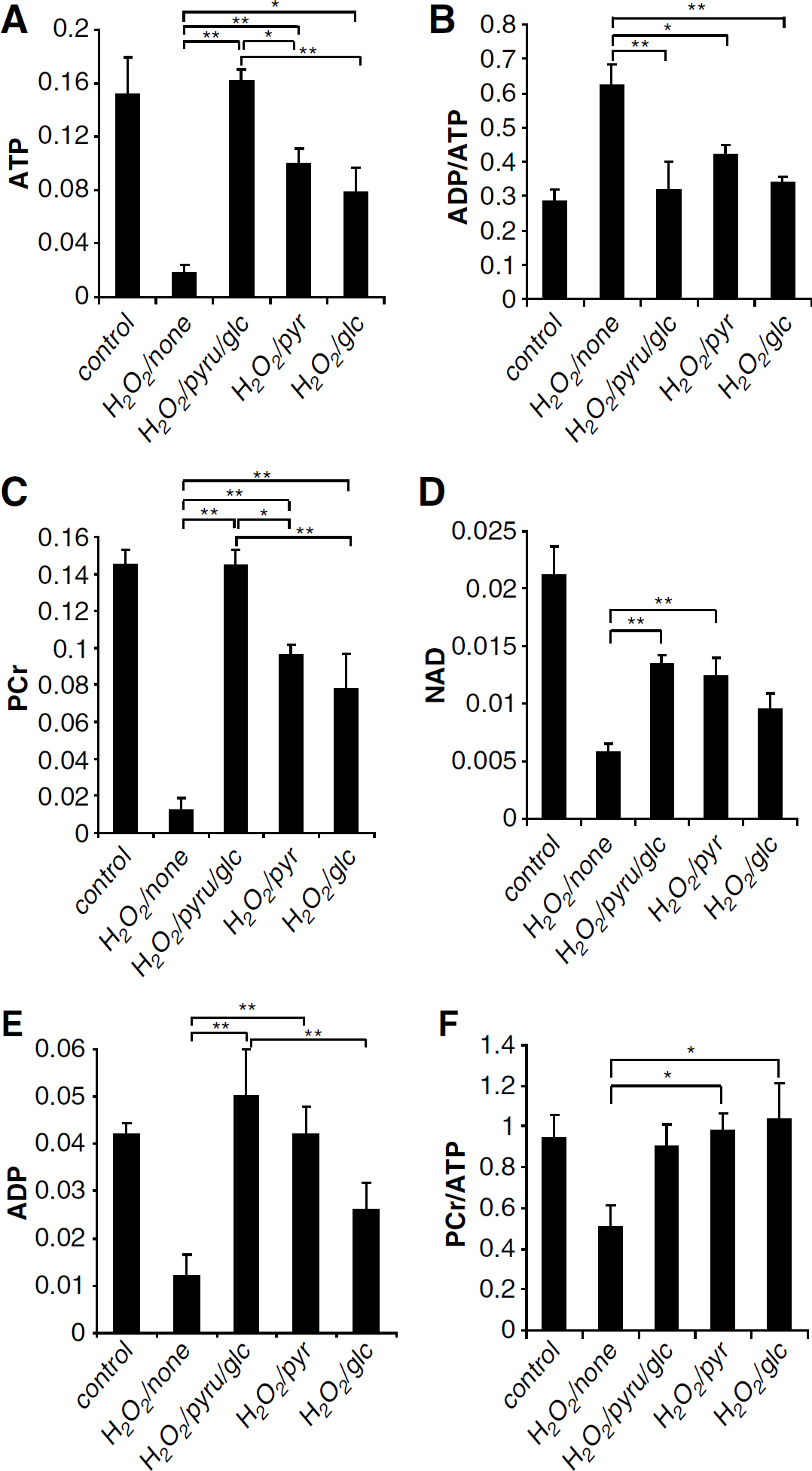

NAD⁺ and high-energy phosphate outcomes at t =5 h with different substrates during recovery after H₂O₂ insults. Using no glycolytic substrate produced an outcome that was significantly worse than that of each of the other three groups. Using both pyruvate and glucose was better than using glucose alone. Recovery with both pyruvate and glucose came closest to fully restoring all of the plotted variables. Averages are given as mean±s.e., *P < 0.05, **P < 0.01, n = 3 per group. Pyr, pyruvate; Glc, glucose; None, no pyruvate or glucose.

Results

Poly (ADP-ribose) Detection after Poly (ADP-Ribose)-Polymerase 1 Activation

Figure 3 presents Western blot results for poly (ADP-ribose) staining during special experiments that examined PARP-1 inhibition during 60 min exposures to 2 mmol/L H₂O₂. Increased poly (ADP-ribose) appears as a diffuse increase in PAR immunoreactivity in the range 80 to 270 kDa, the poly (ADP-ribose) range exhibited in Trevigen's poly-ADP ribosylated protein control samples from Escherichia coli. Such is clearly evident in Figure 3A at t =20 mins and t =60 mins (columns 3 and 5 from the left). The PARP-1 inhibitor 3AB significantly reduced PAR-polymer formation (columns 4 and 6 from the left). Numerical values in Figure 3B for the ratio (poly (ADP-ribose))/(β-Actin) were 1.25 ± 0.14 at t =20 mins, compared with 0.9 ± 0.13 in 5 mmol/L 3AB-treated slices; and 1.35±0.15 at t =60 mins compared with 0.86 ± 0.11 (P < 0.01) in 3AB-treated slices. Additional parallel control experiments were performed under well-oxygenated conditions with no H₂O₂ exposure. Poly (ADP-ribose) staining versus time showed basic PARP activity that had similar poly (ADP-ribose) intensity as column 1 (data not shown).

Figure 4 shows poly (ADP-ribose) as brown immunostaining in slices removed at t =1 h, that is, at the end of the H₂O₂ exposure. Figure 4A shows mild brown staining in control slices that were not treated with H₂O₂ or 3AB, indicating basic PARP activity in our brain slices. The dark brown staining in Figure 4B provides evidence of intense PARP activation during the H₂O₂ treatment. Poly (ADP-ribose) accumulations are seen in both cytosolic and nuclear regions. Reduced poly (ADP-ribose) staining in Figure 4C demonstrates the inhibition of PARP activation in slices pretreated with 3AB.

NAD+, ATP, ADP, and PCr after Poly (ADP-Ribose)-Polymerase-1 Activation

Figures 5A–5E gives comparisons of high-energy phosphate ratios for the beginning and end of H₂O₂ exposures, with ATP, ADP, NAD⁺, and PCr signal intensities first being compared with that of MDP, and then being compared with each other. Although relaxation time corrections are needed for obtaining true concentration ratios for different metabolites, such corrections are not needed for obtaining ratios of the same metabolite at different times, as in Figure 5. The results showed that ATP, PCr, NAD⁺ dramatically decreased (0.148 versus 0.078, 0.145 versus 0.043, and 0.0211 versus 0.0135 respectively, P < 0.01) and ratio of ADP/ATP was increased (0.284 versus 0.485, P < 0.01) after H₂O₂ insults. Such high-energy phosphate changes were prevented by the PARP inhibitor, 5 mmol/L 3AB. Figures 5E and 5F show a comparison of NAD⁺ quantifications found by different methodologies: integration of NMR signal intensities and enzymatic determinations as in Ying et al (2002) study. Similar results were obtained when NAD ⁺ was significantly consumed after 1 h treatment of 2 mmol/L H₂O₂ and NAD⁺ reduction can be prevented by 5 μmol/L 3AB pretreatment. Additional parallel experiments were carried out with 50 μmol/L DPQ and same protection was found (data not shown).

NAD+ and High-Energy Phosphate Outcomes at 5h with Different Substrates during Recovery

Figure 6 shows NMR outcomes for four groups, each having a different nutrient administration in the recovery period (between t = +1 and +5 h): (0 glc, 10 mmol/L pyruvate), (10 mmol/L glc, 0 pyruvate), (10 mmol/L glc, 10 mmol/L pyruvate), and (0 glc, 0 pyruvate). Not shown are NMR control data where unstressed brain slices were superfused for 4 h without any metabolic substrates and slices energy was well reserved.

The use of no glycolytic or TCA substrate during recovery significantly produced the worst outcome for all measures (P < 0.05). In contrast, recovery with the pyruvate–glucose combination came closest to fully restoring all plotted variables. Moreover, using pyruvate–glucose combination was better than using glucose alone for achieving higher ATP and PCr levels (0.161 versus 0.075 and 0.144 versus 0.078, P < 0.01).

Confirmation of Pyruvate and Glucose Metabolism in Heteronuclear Single Quantum Coherence Spectroscopy Spectra

Figure 7 shows the superposition of corresponding sections from two 2D [¹H-¹³C] HSQC NMR spectra. Each spectrum appears as a contour plot of three-dimensional peaks coming up out of the paper towards the reader. ¹H chemical shifts (p.p.m.) are along the x-axis, with higher values at the left. ¹³C chemical shifts (p.p.m.) are along the y-axis, with higher values towards the bottom. The familiar lactate peak does not appear because it is off scale to the upper right at (1.33 p.p.m., 21.3 p.p.m.). Both spectra were obtained from slices taken at t =5h, with purple contours plotted for the case where [U-¹³C]glucose was administered in the post-H₂O₂ recovery period, and green contours plotted for the use of [3-¹³C]pyruvate in the post-H₂O₂ recovery period. Multiple peaks within the projections of the aspartate-C3 and malate-C3 resonance areas along the ¹³C axis, as well as the wide doublet structure in the succinate resonance projection along the ¹H axis, arise from there being one or more additional, neighboring ¹³C nuclei on these metabolites. Background contributions from naturally abundant ¹³C compounds are negligible.

Figure 7

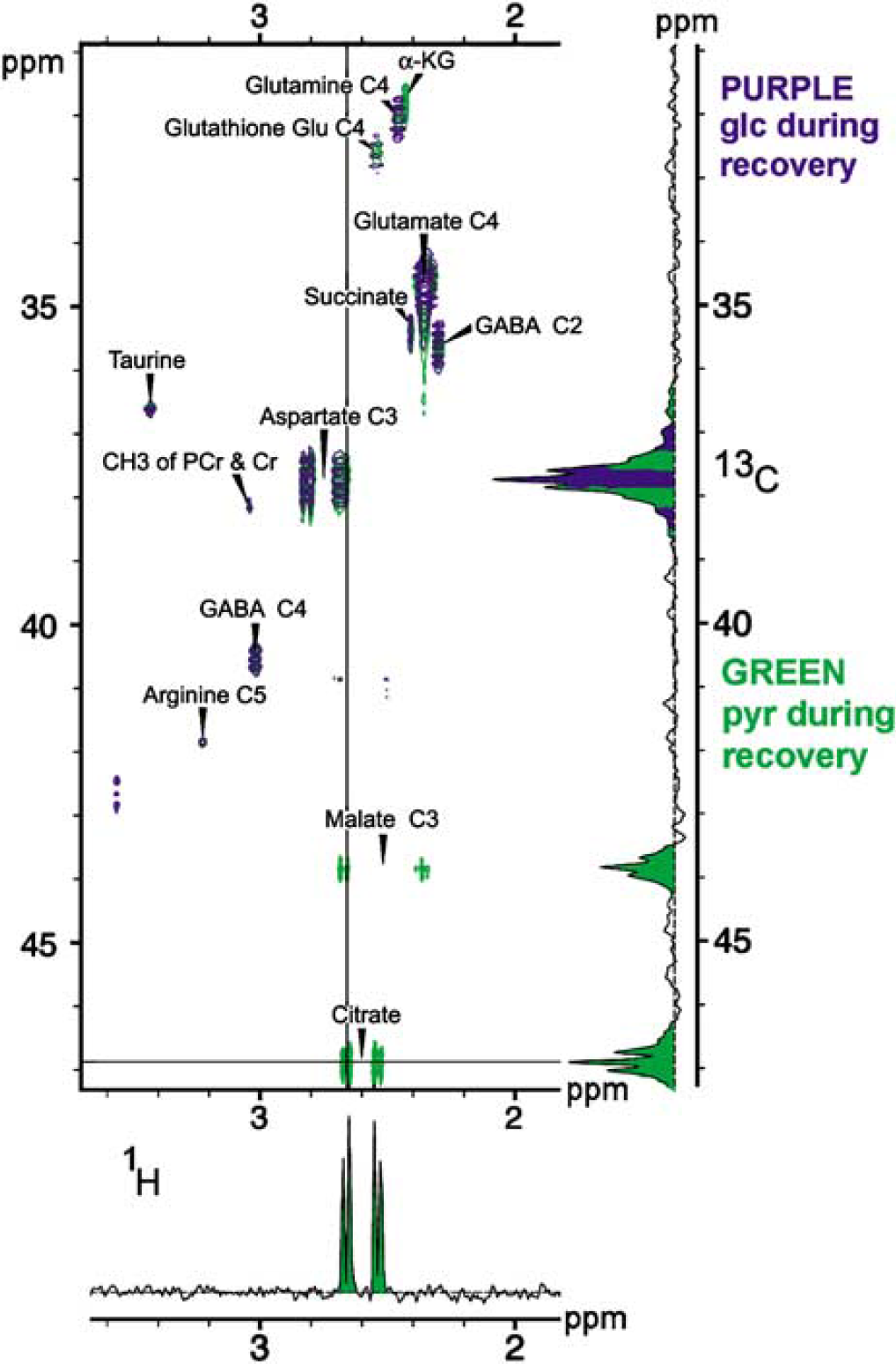

An overlay of two representative HSQC spectra is presented, each coming from slices removed at the end of the 4-h recovery period after H₂O₂ exposure. Parts per million (p.p.m.) frequency units are used for each axis, with ¹³C chemical shifts plotted vertically, and ¹H chemical shifts plotted horizontally. A 2D NMR plot presents 3D information about resonance peaks rising up out of the plane of the figure at different (¹H, ¹³C) chemical shift coordinates, where these correspond to chemical shift values of adjacent (coupled) ¹H and ¹³C atoms. For example, methyl protons on C3 of lactate are known to have a ¹H chemical shift of 1.33 p.p.m., while lactate's C3 is known to have a ¹³C chemical shift of 21.3p.p.m. Thus, an upward cone for lactate C3 (not shown in the figure) occurs with p.p.m. coordinates of (1.33, 21.3). For each rising peak contours around it are shown for different heights, representing intersections of the peaks with planes parallel to the plane of the ¹H and ¹³C axes. Purple data are from a run where [U-¹³C]glucose alone was given in the recovery period. Green data are from a run where [3-¹³C]pyruvate alone was given in the recovery period. Because glucose metabolism produces [1,2,3-¹³C]pyruvate from [U-¹³C]glucose and feeds it into the TCA cycle, green tracings would always overlap with a purple tracing if the metabolic fate of exogenously given [3-¹³C]pyruvate were identical to that of glycolytic pyruvate. Green resonance peak tracings for malate, succinate, and α-ketoglutarate can be seen that do not overlap with purple resonances, indicating that these metabolites of pyruvate are produced at a far greater rate than occurs with normal glucose metabolism. Corresponding 1D spectra are shown as projections along the ¹³C and ¹H axes. Purple and green colors were used to fill in the ¹³C projection for aspartate C3, indicating that it was produced by both pyruvate and glucose. The multiplet structures seen in ¹³C projections indicate the presence of more than one isotopomer with a ¹³C at the designated position, which can come from recycling of metabolites as well as from complex contributions from the use of [U-¹³C]glucose. Although an analysis of isotopomer compositions provides important information, this is not necessary for discerning the macroscopic differences that prove exogenous pyruvate was metabolized.

This plot qualitatively shows that ¹³C spin labels from exogenous glucose and pyruvate were metabolized and incorporated into TCA cycle compounds, and that there was metabolite recycling. Isotopomers (a word formed from ‘isotope’ and ‘isomer‘) are molecules having atomic configurations that are identical except for their isotope composition. For example, particular compounds can be composed with different populations of ¹²C and ¹³C isotopes, as in the isotopomers [3-¹³C]pyruvate and [2,3-¹³C]pyruvate. Molecular locations with isotopomer sets produced from [U-¹³C]glucose were often the same as locations having isotopomer sets produced from [3-¹³C]pyruvate. The isotopomer compositions of the sets, however, are not identical. Figure 8, which shows an overlay of the separate 2D spectra found for glucose and pyruvate recoveries, illustrates that aspartate-C3, glutamate-C4, and GABA-C2, for example, had isotopomer multiplets with both recovery substrates. However, exogenous administration of pyruvate resulted in additional ¹³C isotopomer sets, such as those for citrate, malate, and α-ketoglutarate. Labeling of these metabolites is known to occur from pyruvate metabolism through pyruvate carboxylase, an enzyme associated with glia but not with neurons. In addition, we used the UT-Southwestern Rogers NMR Center program TCASIM (http://www4.utsouthwestern.edu/rogersnmr/software.htm) to confirm that pyruvate carboxylase would produce the ¹³C isotopomers that occurred after [3-¹³C]pyruvate administration, but not after [U-¹³C]glucose administration.

Figure 8

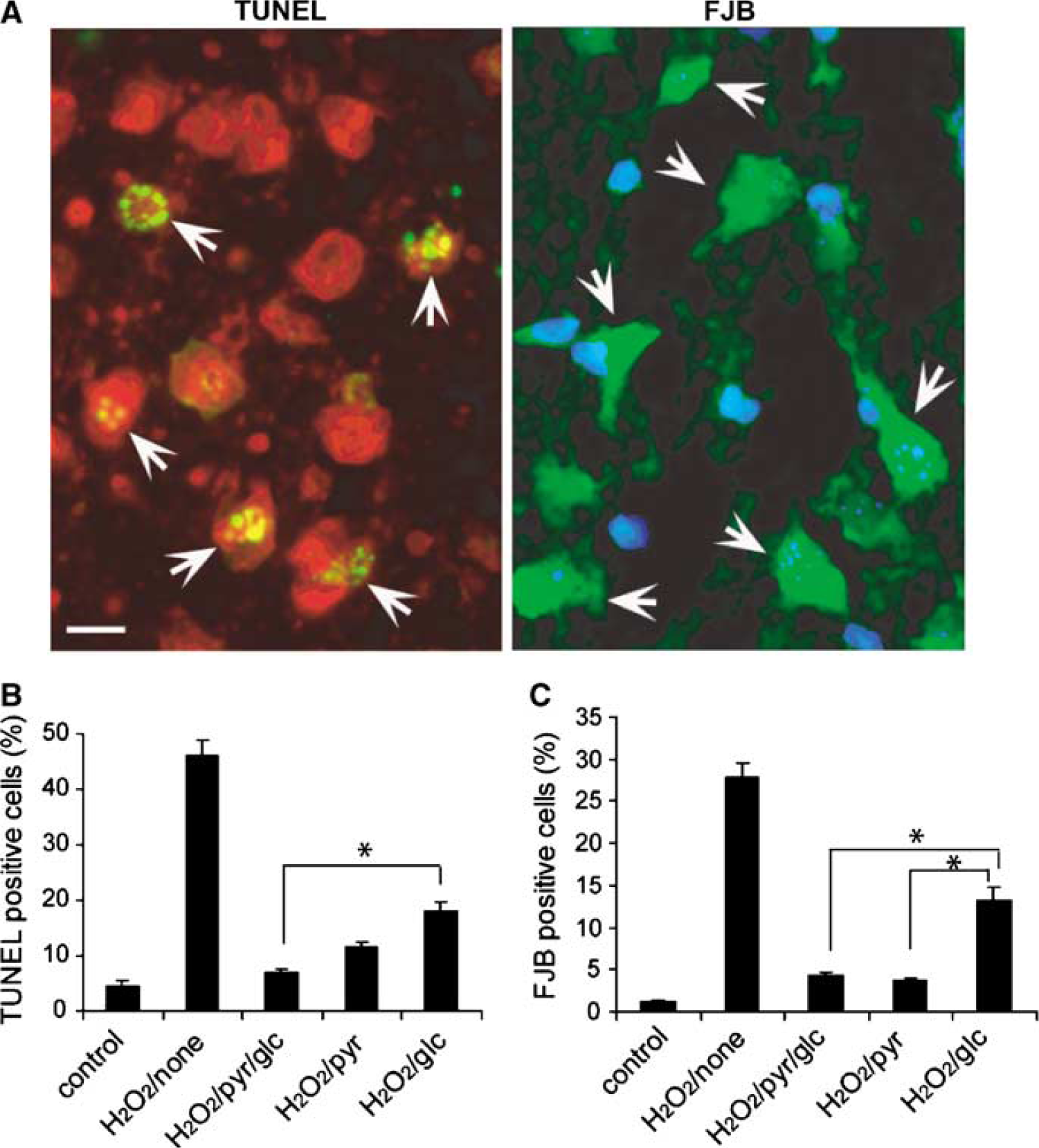

(A) Representative double-stained TUNEL-positive cells and degenerated neurons in FJB staining (arrows). Images for TUNEL staining have an overlay of green fluorescence from the TUNEL stain with red fluorescence from PI. Images for FJB-stained neurons have an overlay of green fluorescence from FJB staining with blue fluorescence from DAPI. TUNEL-positive cells appear with shrunken and fragmented nuclei. FJB identifies dead or dying neurons. The scale bar represents 10 μm. (B) and (C) Percentages of total cell counts that are either TUNEL positive or FJB stained. Averages are given as mean ± s.e., *P < 0.05, n = 3 per group.

Immunohistochemistry and Cell Viability for Different Recovery Substrates

Figure 8A shows representative cellular morphology, both for TUNEL-positive cells (left) and for FJB-stained neurons (right). Images for TUNEL staining consisted of an overlay of green fluorescence from the TUNEL stain and red fluorescence from PI. Images for FJB-stained neuron were an overlay of green fluorescence from FJB-staining and blue fluorescence from DAPI. Punctate patterns inside TUNEL-positive cells (marked with arrowheads) arise from shrunken, fragmented nuclei. Green fluorescence of FJB is especially bright in dead or dying neurons. The smallest percentage of TUNEL-positive cells occurred with the pyruvate–glucose recovery (Figure 8B, P < 0.05), while the largest percentage of FJB-stained dead neurons occurred with the glucose-only recovery solution (Figure 8C, P < 0.05). Differences between the glucose-only group and the glucose–pyruvate group were statistically significant (P < 0.05).

Discussion

By all measures (Figures 6 and 8) slice recovery was best with the pyruvate–glucose mixture. However, while pyruvate alone appears just as good as pyruvate–glucose for replenishing NAD⁺ (Figure 6D), pyruvate alone is not as good as pyruvate–glucose for replenishing ATP (Figure 6A, P < 0.05). A likely explanation is that exogenous pyruvate helps replenish NAD⁺ by cytosolic conversion to lactate via lactate dehydrogenase. Excessive lactate, being at a metabolic dead-end, passes to the extracellular space and gets washed away. This conversion is known to be important when TCA metabolism fails to produce sufficient NAD⁺ from NADH, for example during hypoxia. Besides replenishing the NAD⁺ needed for gylcolysis, exogenous pyruvate also serves as a direct TCA cycle substrate, one that bypasses glycolysis, adding to whatever ATP production there was from glucose. Pyruvate is known to enter TCA cycle through pyruvate dehydrogenase, which produces acetyl-CoA. Acetyl-CoA flux into the TCA cycle, being quite low in slices compared with levels in the active in vivo brain, should easily be driven higher. In glia, pyruvate can also enter the TCA cycle via a second, independent pathway, through conversion by glial pyruvate carboxylase to oxaloacetate (Alano et al, 2004; Izumi et al, 1994; Matsumoto et al, 1994). This requires ATP utilization, which is another potential reason for ATP being lower during rescue by pyruvate alone. In both glia and neurons, pyruvate can enter the TCA cycle via a third pathway, carboxylation via Malic Enzyme (EC 1.1.1.40). In one in vitro neuron study, Malic Enzyme's carboxylation of pyruvate was found to account for approximately 30% of the metabolism of endogenous pyruvate (Hassel, 2000, 2001; Hassel and Brathe, 2000). All the above point to metabolic rescue mechanisms for exogenous pyruvate.

We included 2D [¹H-¹³C] HSQC NMR spectra in this paper (Figure 7) to show the metabolism of exogenous [3-¹³C]pyruvate in our system. In previous studies by others and us, exogenous fructose-(1,6)-bisphosphate (FBP) administered after hypoxia/ischemia was found to augment ATP levels and speed recovery. The original mechanistic hypothesis was that exogenous FBP entered cells as a glycolytic substrate. However, earlier studies carefully looked for and could not find evidence for metabolism of exogenous FBP in brain cells (Bickler and Buck, 1996; Espanol et al, 1998; Kelleher et al, 1995). In this study, as in a study where [3-¹³C]pyruvate was given to isolated mitochondria (Offermann et al, 1992), composite ¹³C peaks were seen for TCA metabolites of [3-¹³C]pyruvate such as citrate, α-ketoglutarate, glutamate, citrate, and malate. Our similar detection of such labeled compounds, as well as the rapid appearance of [3-¹³C]lactate in cell extracts, confirmed the metabolism of exogenous pyruvate. A full analysis of the ¹³C isotopomer compositions is beyond the scope of this paper.

Changes in the high-energy phosphates PCr, ATP, and ADP after H₂O₂ exposure were typical for energy failure (Figure 5), and then typical 4 h later for energy recovery (Figure 6). The creatine phosphokinase (CPK) reaction, PCr + ADP + H⁺ ↔ Cr + ATP, suggests that a decrease in PCr will be among the earliest responses to the increase in ADP and H⁺ (acidosis) that is associated with inadequate ATP production (Gyulai et al, 1985). That normal levels of ATP can be maintained until PCr is almost gone has long been known (Gyulai et al, 1985) and also verified in vivo with ³¹P NMR spectroscopy (Litt et al, 1986). Acidosis alone, however, can drive the CPK reaction to the right, causing PCr to decrease while other reactions sustain normal levels of ADP and ATP. Thus, in Figure 5 the statistically significant decrease in PCr and increase in the ADP/ATP ratio that occurred with H₂O₂ alone represents early energy failure plus some amount of accompanying acidosis. In contrast, early energy failure is not involved in the statistically significant decrease in PCr and relatively unchanged ADP/ATP ratio that occurred with H₂O₂ in the presence of 3AB. Because the sum of PCr and Cr was approximately constant for the 3AB runs (as determined by ¹H spectroscopy, data not shown), the PCr decrease that occurred in the presence of 3AB must have been at least in part due to an acidosis, something that could have been caused by even a small amount of PARP activation (Affar el et al, 2002). In Figure 6 the higher values of PCr/ATP and lower values of ADP/ATP represent energy recovery.

However, Figure 6 showed pyruvate's effect being more marginal rather than spectacular. Heterogeneity among cells and their responses might account for this. All cells in a slice contributed to measurements of high-energy phosphates and NAD⁺. If one attributes cell death to inadequate TCA cycle substrates, then a small response to exogenous pyruvate could result if cells with the biggest NAD⁺ depletions were also less capable of using pyruvate. Such could be the case if neurons were more sensitive to glycolytic arrest than glia, which have an additional pathway (pyruvate carboxylase) for pyruvate to be converted to a TCA cycle intermediate.

While our findings are similar to those in experiments with cultured neurons and astrocytes (Ying et al, 2002), intracellular energy depletion in our brain slices was not as severe. Additionally, in our brain slice study but not in the cited cell culture studies, treatment with glucose alone caused substantial brain slice recovery after PARP activation. Poly (ADP-ribose)-polymerase activation was more direct and specific in in vitro studies, because intercalating compounds such as N-methyl-N-nitrosoguanidine were used to efficiently nick nuclear DNA. Immunohistology showed that some PARP activation occurred from blade trauma at the slice edge where it separated from the brain. This accounts for the background poly (ADP-ribose) immunopositivity seen in Figure 3 for the two t = 0 lanes, which were for slices not exposed to H₂O₂.

We appreciate that PARP activation is not only mechanism by which H₂O₂ kills cells. Additional mechanisms for H₂O₂-induced cell death include direct injury by secondary radicals coming from ironmediated formation (Balla et al, 1990; Starke and Farber, 1985), and direct inhibition of caspase activity (Hampton and Orrenius, 1997). Poly (ADP-ribose)-polymerase actions are also intertwined with many nonmetabolic mechanisms known to be important in hypoxic/ischemic injury, such as those relating to apoptosis, rescue kinases, and inflammatory mediators (Chiarugi and Moskowitz, 2003; Narasimhan et al, 2003; Yu et al, 2003; Yu et al, 2002). Although we chose the highest H₂O₂ concentration that permitted recovery in our preliminary experiments, the existence of many ways for H₂O₂ to cause injury makes it plausible that PARP activation was not severe enough to completely shut down gylcolysis. We also appreciate that because of delayed neuron death, our TUNEL and FJB death markers at t =5 h did not identify all neurons destined to die. Our focus was clearly on early mechanisms.

The general agreement in Figure 5 between NMR and enzymatic quantifications of NAD⁺ is not surprising, as each used PCA extracts that were identically prepared. As in other PARP studies, we have focused on total NAD⁺ quantifications. Regrettably, we did not have enough metabolic information to consider redox ratios, which are crucial to bioenergetic viability. It has long been known that many intricacies permit cells to maintain a cytosolic [NAD⁺]/[NADH] ratio appropriate for supplying lots of NAD⁺ to glycolysis, while also maintaining an approximately 10-fold smaller mitochondrial ratio appropriate for supplying NADH to the electron transport chain (Newsholme and Start, 1973). Future 2D NMR experiments with ¹³C-labeled nutrients might help provide insight into cytosolic and mitochondrial [NAD⁺]/[NADH] ratios, which in the cytosol are proportional to the pyruvate/lactate ratio, and which in mitochondria are proportional to the acetoacetate/3-hydroxybutyrate ratio (Newsholme and Start, 1973).

Improvement by exogenous pyruvate could also have come from its antioxidant properties. A recent review of protection by ethyl pyruvate (Fink, 2003) cited studies of potent, nonenzymatic radical scavenging by pyruvate and other compounds that similarly have an α-keto carboxyl group (DeBoer et al, 1993; Desagher et al, 1997). In brain slice studies by others, free-radical protection has been found after having the superfusate contain ascorbate, an antioxidant, or edaravone, a new radical scavenger (Brahma et al, 2000; Okuda-Nakano et al, 2006). Had pyruvate in our study been coadministered with H₂O₂, a big antioxidant effect would have been a concern, because pyruvate's α-keto carboxyl group reacts very efficiently with H₂O₂ to form CO₂ and H₂O. However, H₂O₂ was stopped before starting pyruvate/glucose rescue superfusion, so that any and all of pyruvate's antioxidant effects were confined to the recovery period. An interesting experiment to be performed would have been recovery with a superfusate containing glucose and an antioxidant.

In summary, it is possible to use oxidative stress to induce PARP activation and associated energy failure in robust, well-superfused, well-oxygenated brain slices. Exogenously given pyruvate does enter the TCA cycle, and when added to glucose after H₂O₂, it improves recovery from PARP-associated energy impairment. Although it is possible to pharmacologically target several molecular mechanisms known for PARP-related injury and survival in the paradigm that was studied, substantial benefits can also come from focusing on basic metabolic manipulations.

Footnotes

Acknowledgement

The authors are very grateful to Dr Moriz Mayer for expert technical assistance related to NMR spectroscopy.

References

Affar el

Shah

Dallaire

Castonguay

Shah

(2002) Role of poly(ADP-ribose) polymerase in rapid intracellular acidification induced by alkylating DNA damage. Proc Natl Acad Sci USA 99:245–50

Alano

Ying

Swanson

(2004) Poly(ADP-ribose) polymerase-1-mediated cell death in astrocytes requires NAD⁺ depletion and mitochondrial permeability transition. J Biol Chem 279:18895–902

Balla

Vercellotti

Eaton

Jacob

(1990) Iron loading of endothelial cells augments oxidant damage. J Lab Clin Med 116:546–54

Berger

(1991) Oxidant-induced cytotoxicity: a challenge for metabolic modulation. Am J Respir Cell Mol Biol 4:1–3

Bickler

Buck

(1996) Effects of fructose-1,6-bisphosphate on glutamate release and ATP loss from rat brain slices during hypoxia. J Neurochem 67:1463–8

Bonicalzi

Haince

Droit

Poirier

(2005) Regulation of poly(ADP-ribose) metabolism by poly (ADP-ribose) glycohydrolase: where and when? Cell Mol Life Sci 62:739–50

Brahma

Forman

Stewart

Nicholson

Rice

(2000) Ascorbate inhibits edema in brain slices. J Neurochem 74:1263–70

Chiarugi

(2005) Poly(ADP-ribosyl)ation and stroke. Pharmacol Res 52:15–24

Chiarugi

Moskowitz

(2003) Poly(ADP-ribose) polymerase-1 activity promotes NF-kappaB-driven transcription and microglial activation: implication for neurodegenerative disorders. J Neurochem 85:306–17

10.

Cochrane

(1991) Cellular injury by oxidants. Am J Med 91:23S–30S

11.

Davis

Mysore

Browning

Hsieh

Katsikis

(1998) In situ staining for poly(ADP-ribose) polymerase activity using an NAD analogue. J Histochem Cytochem 46:1279–89

12.

DeBoer

Bekx

Han

Steinke

(1993) Pyruvate enhances recovery of rat hearts after ischemia and reperfusion by preventing free radical generation. Am J Physiol 265:H1571–6.

13.

Delaglio

Grzesiek

Vuister

Zhu

Pfeifer

Bax

(1995) NMRPipe: a multidimensional spectral processing system based on UNIX pipes. J Biomol NMR 6:277–93

14.

Desagher

Glowinski

Premont

(1997) Pyruvate protects neurons against hydrogen peroxide-induced toxicity. J Neurosci 17:9060–7

15.

Eliasson

Sampei

Mandir

Hurn

Traystman

Bao

(1997) Poly(ADP-ribose) polymerase gene disruption renders mice resistant to cerebral ischemia. Nat Med 3:1089–95

16.

Endres

Wang

Namura

Waeber

Moskowitz

(1997) Ischemic brain injury is mediated by the activation of poly(ADP-ribose)polymerase. J Cereb Blood Flow Metab 17:1143–51

17.

Espanol

Litt

Hasegawa

Chang

Macdonald

Gregory

(1998) Fructose-1,6-bisphosphate preserves adenosine triphosphate but not intracellular pH during hypoxia in respiring neonatal rat brain slices. Anesthesiology 88:461–72

18.

Fink

(2003) Ethyl pyruvate: a novel anti-inflammatory agent. Crit Care Med 31:S51–6

19.

Gyulai

Roth

Leigh

Jr Chance

(1985) Bioenergetic studies of mitochondrial oxidative phosphorylation using 31phosphorus NMR. J Biol Chem 260:3947–54

20.

Hagberg

Wilson

Matsushita

Zhu

Lange

Gustavsson

(2004) PARP-1 gene disruption in mice preferentially protects males from perinatal brain injury. J Neurochem 90:1068–75

21.

Hampton

Orrenius

(1997) Dual regulation of caspase activity by hydrogen peroxide: implications for apoptosis. FEBS Lett 414:552–6

22.

Hassel

(2000) Carboxylation and anaplerosis in neurons and glia. Mol Neurobiol 22:21–40

23.

Hassel

(2001) Pyruvate carboxylation in neurons. J Neurosci Res 66:755–62

24.

Hassel

Brathe

(2000) Neuronal pyruvate carboxylation supports formation of transmitter glutamate. J Neurosci 20:1342–7

25.

Hirai

Sugawara

Chan

Basus

James

Litt

(2002) Cytochrome c associated apoptosis during ATP recovery after hypoxia in neonatal rat cerebrocortical slices. J Neurochem 83:309–19

26.

Izumi

Benz

Zorumski

Olney

(1994) Effects of lactate and pyruvate on glucose deprivation in rat hippocampal slices. Neuroreport 5:617–20

27.

Kay

Keifer

Saarinen

(1992) Prue absorption gradient enhanced heteronuclear single quantum correlation spectroscopy with improved sensitivity. J Am chem soc 114:10663–5

28.

Kelleher

Chan

Gregory

(1995) Energy metabolism in hypoxic astrocytes: protective mechanism of fructose-1,6-bisphosphate. Neurochem Res 20:785–92

29.

Litt

Gonzalez-Mendez

Weinstein

Severinghaus

Hamilton

Shuleshko

(1986) An in vivo 31P NMR study of cerebral hypoxic hypoxia in rats. Magn Reson Med 3:619–25

30.

Litt

Hirai

Basus

James

(2003) Temperature control of respiring rat brain slices during high field NMR spectroscopy. Brain Res Brain Res Protoc 10:191–8

31.

Lutz

Yahi

Fantini

Cozzone

(1997) Perturbations of glucose metabolism associated with HIV infection in human intestinal epithelial cells: a multinuclear magnetic resonance spectroscopy study. Aids 11:147–55

32.

Malanga

Althaus

(2005) The role of poly(ADP-ribose) in the DNA damage signaling network. Biochem Cell Biol 83:354–64

33.

Matsumoto

Yamada

Kohmura

Kinoshita

Hayakawa

(1994) Role of pyruvate in ischaemia-like conditions on cultured neurons. Neurol Res 16:460–4

34.

Montgomery

Webb

(1956) Metabolic studies on heart mitochondria. II. The inhibitory action of parapyruvate on the tricarboxylic acid cycle. J Biol Chem 221:359–68

35.

Narasimhan

Fujimura

Noshita

Chan

(2003) Role of superoxide in poly(ADP-ribose) polymerase upregulation after transient cerebral ischemia. Brain Res Mol Brain Res 113:28–36

36.

Newsholme

Start

(1973) Appendix 7.1. In: Regulation in metabolism. New York: John Wiley & Sons, 324–7

37.

Offermann

Evi Fiedler

Helmle-Kolb

Hofer

Kugel

Reese

(1992) Online monitoring of the Krebs cycle in isolated heart mitochondria by 13C NMR spectroscopy. Magn Reson Chem 30:347–58

38.

Okuda-Nakano

Hasegawa

Hirai

Ochiai-Kanai

Morimoto

Sugimoto

(2006) Effects of edaravone on N-methyl-D-aspartate(NMDA) mediated cytochrome c release and apoptosis in neonatal rat cerebrocortical slices. (submitted, under review)

39.

Palmer

III Cavanagh

Wright

Rance

(1991) Sensitivity improvement in proton-detected two-dimensional heteronuclear correlation NMR spectroscopy. J Magn Reson 93:151–70

40.

Schmued

Hopkins

(2000) Fluoro-Jade B: a high affinity fluorescent marker for the localization of neuronal degeneration. Brain Res 874:123–30

41.

Schraufstatter

Hyslop

Hinshaw

Spragg

Sklar

Cochrane

(1986) Hydrogen peroxide-induced injury of cells and its prevention by inhibitors of poly(ADP-ribose) polymerase. Proc Natl Acad Sci USA 83:4908–12

42.

Starke

Farber

(1985) Ferric iron and superoxide ions are required for the killing of cultured hepatocytes by hydrogen peroxide. Evidence for the participation of hydroxyl radicals formed by an iron-catalyzed Haber–Weiss reaction. J Biol Chem 260:10099–104

43.

Suh

Aoyama

Chen

Garnier

Matsumori

Gum

(2003) Hypoglycemic neuronal death and cognitive impairment are prevented by poly(ADP-ribose) polymerase inhibitors administered after hypoglycemia. J Neurosci 23:10681–90

44.

Szabo

Zingarelli

O'Connor

Salzman

(1996) DNA strand breakage, activation of poly (ADP-ribose) synthetase, and cellular energy depletion are involved in the cytotoxicity of macrophages and smooth muscle cells exposed to peroxynitrite. Proc Natl Acad Sci USA 93:1753–8

45.

Ueda

Hayaishi

(1985) ADP-ribosylation. Annu Rev Biochem 54:73–100

46.

Virag

Szabo

(2002) The therapeutic potential of poly(ADP-ribose) polymerase inhibitors. Pharmacol Rev 54:375–429

47.

Ying

Alano

Garnier

Swanson

(2005) NAD⁺ as a metabolic link between DNA damage and cell death. J Neurosci Res 79:216–23

48.

Ying

Chen

Alano

Swanson

(2002) Tricarboxylic acid cycle substrates prevent PARP-mediated death of neurons and astrocytes. J Cereb Blood Flow Metab 22:774–9

49.

Ying

Sevigny

Chen

Swanson

(2001) Poly(ADP-ribose) glycohydrolase mediates oxidative and excitotoxic neuronal death. Proc Natl Acad Sci USA 98:12227–32

50.

Wang

Dawson

(2003) Poly(ADP-ribose) polymerase-1 and apoptosis inducing factor in neurotoxicity. Neurobiol Dis 14:303–17

51.

Wang

Poitras

Coombs

Bowers

Federoff

(2002) Mediation of poly(ADP-ribose) polymerase-1-dependent cell death by apoptosis-inducing factor. Science 297:259–63

52.

Zeng

Hirai

Yang

Ying

Swanson

Kelly

(2004) Using 31P NMR spectroscopy at 14.1 Tesla to investigate PARP-1 associated energy failure and metabolic rescue in cerebrocortical slices. J Bioenerg Biomembr 36:415–9

53.

Zhang

Dawson

Snyder

(1994) Nitric oxide activation of poly(ADP-ribose) synthetase in neurotoxicity. Science 263:687–9
