Regulation of Store-Operated and Voltage-Operated Ca 2+ Channels in the Proliferation and Death of Oligodendrocyte Precursor Cells by Golli Proteins

Abstract

OPCs (oligodendrocyte precursor cells) express golli proteins which, through regulation of Ca²⁺ influx, appear to be important in OPC process extension/retraction and migration. The aim of the present study was to examine further the role of golli in regulating OPC development. The effects of golli ablation and overexpression were examined in primary cultures of OPCs prepared from golli-KO (knockout) and JOE (golli J37-overexpressing) mice. In OPCs lacking golli, or overexpressing golli, differentiation induced by growth factor withdrawal was impaired. Proliferation analysis in the presence of PDGF (platelet-derived growth factor), revealed that golli enhanced the mitogen-stimulated proliferation of OPCs through activation of SOCCs (store-operated Ca²⁺ channels). PDGF treatment induced a biphasic increase in OPC intracellular Ca²⁺, and golli specifically increased Ca²⁺ influx during the second SOCC-dependent phase that followed the initial release of Ca²⁺ from intracellular stores. This store-operated Ca²⁺ uptake appeared to be essential for cell division, since specific SOCC antagonists completely blocked the effects of PDGF and golli on OPC proliferation. Additionally, in OPCs overexpressing golli, increased cell death was observed after mitogen withdrawal. This phenomenon could be prevented by exposure to VOCC (voltage-operated Ca²⁺ channel) blockers, indicating that the effect of golli on cell death involved increased Ca²⁺ influx through VOCCs. The results showed a clear effect of golli on OPC development and support a role for golli in modulating multiple Ca²⁺-regulatory events through VOCCs and SOCCs. Our results also suggest that PDGF engagement of its receptor resulting in OPC proliferation proceeds through activation of SOCCs.

Keywords

apoptosis calcium influx cell cycle golli protein oligodendrocyte platelet-derived growth factor (PDGF)

INTRODUCTION

The golli–MBP (myelin basic protein) proteins are generated from the MBP gene from a promoter that is different from that which controls expression of the classic MBPs. Since their original description (Campagnoni et al., 1993; Pribyl et al., 1993), numerous studies have documented the expression of golli in the immune system and nervous system of several species, including mice and humans. Golli proteins have been found to be up-regulated in adult OPCs (oligodendrocyte precursor cells) and microglia/macrophages around multiple sclerosis lesions (Filipovic et al., 2002). Moscarello et al. (2002) identified golli as a component of remyelination induced by treatment of demyelinating transgenic mice with paclitaxel (taxol). These studies suggested a dual role of golli proteins in regulating activation of some immune cells as well as the early stages of OPC migration and proliferation.

Ca²⁺ ions are regulators of numerous cellular processes, including survival, motility, apoptosis and differentiation (Berridge et al., 1998), and a growing amount of evidence suggests a critical role for Ca²⁺ in controlling proliferative events (Estacion and Mordan, 1993; Berridge, 1995; Munaron, 2002; Kahl and Means, 2003). The golli proteins are not constituents of myelin, but they appear to play a basic role in the regulation of Ca²⁺ homoeostasis in immune cells and in OPCs (Feng et al., 2006; Paez et al., 2007). Cell membrane depolarization by high potassium (K⁺) activates VOCCs (voltage-operated Ca²⁺ channels), while depletion of intracellular Ca²⁺ stores triggers Ca²⁺ influx via SOCCs (store-operated Ca²⁺ channels). Recent work has shown that changes in golli expression alter the magnitude of voltage-sensitive Ca²⁺ currents as well as SOCCs in OPCs, a finding that has potentially important consequences on multiple aspects of OPC maturation and survival (Paez et al., 2007, 2008).

Golli proteins can modulate Ca²⁺ levels during a critical phase of oligodendrocyte development through an action on rates of cell migration and process extension and retraction, presumably post-mitotic events (Paez et al., 2007). We wondered whether golli could also influence earlier events in OPC biology, such as proliferation, through modulation of Ca²⁺ influx. In the present study, we explored the relationship between golli, Ca²⁺ influx and OPC proliferation and survival. We observed that the overexpression of golli promotes OPC proliferation through activation of SOCCs, but at the same time golli increased apoptotic cell death mediated by Ca²⁺ influx through VOCCs. Interestingly, we found that golli were able to modulate the mitogenic effects of PDGF (platelet-derived growth factor), thus providing new insights into the role of golli in the regulation of OPC development.

MATERIALS AND METHODS

Animal experimentation

Animals were maintained by qualified staff in the UCLA Vivarium. The use of these animals was governed by the ‘Principles for Use of Animals’ and ‘Guide for the Care and Use of Laboratory Animals’ from the Office for Protection from Research Risks of the National Institutes of Health.

Transgenic mice

Golli-KO (knockout) mouse

We previously generated a golli-KO mouse in which the golli products of the Mbp gene were selectively ablated while permitting normal expression of the classic MBPs (Jacobs et al., 2005). Through non-brother–sister crosses, a line was generated that is homozygous for the golli ablation on a background that is 50% 129S7/SvEvBrd and 50% C57BL6/J. A control line (KO control) was established that was also 50% 129S7/SvEvBrd and 50% C57BL6/J, but was negative for the golli ablation. The golli-KO phenotype was observed before keeping the lines separate and then was studied over at least eight generations and remained stable.

JOE (golli J37-overexpressing) mouse

We generated a transgenic mouse that overexpresses the golli J37 isoform in oligodendrocytes under the control of a classic Mbp promoter (Martin et al., 2007). In this transgenic mouse, the J37 golli isoform is driven by a 1.9-kb region of the classic Mbp promoter, thus directing overexpression of the protein specifically to oligodendrocytes in the CNS (central nervous system) (Reyes et al., 2003). These mice are called JOE mice for golli J37-overexpressing. A line was generated that is heterozygous for the MBP 1.9-J37 transgene on a background that is 50% BALB/cByJ, 37–50% C57BL/6 and 0–12% C3H/He. A control line (JOE control) was established that was also 50% BALB/cByJ, 37–50% C57BL/6 and 0–12% C3H/He.

Primary cultures of cortical oligodendrocytes

Enriched oligodendrocytes were prepared as described by Amur-Umarjee et al. (1993). First, cerebral hemispheres from 1-day-old mice were mechanically dissociated and were plated on poly-D-lysine-coated flasks in DMEM (Dulbecco's modified Eagle's medium) and Ham's F12 (1:1, v/v) (Invitrogen Life Technologies), containing 100 μg/ml gentamycin and supplemented with 4 mg/ml dextrose anhydrous, 3.75 mg/ml Hepes buffer, 2.4 mg/ml sodium bicarbonate and 10% (v/v) FBS (fetal bovine serum) (Omega Scientific). After 24 h, the medium was changed, and the cells were grown in DMEM/Ham's F12 supplemented with 5 μg/ml insulin, 50 μg/ml human transferrin, 30 nM sodium selenite, 10 mM D-biotin, 0.1% BSA (Sigma–Aldrich), 1% (v/v) horse serum and 1% (v/v) FBS. After 9 days, OPCs were purified from the mixed glial culture by the differential shaking and adhesion procedure of Suzumura et al. (1984) and were allowed to grow on poly-D-lysine-coated coverslips in defined culture medium (Agresti et al., 1996) plus 10 ng/ml PDGF-AA and 10 ng/ml bFGF (basic fibroblast growth factor) (Peprotech). OPCs were kept in mitogens (PDGF and bFGF) for 2 days and then induced to exit from the cell cycle and differentiate by switching the cells to a mitogen-free medium (mN2) (Oh et al., 2003). mN2 is DMEM/Ham's F12 supplemented with 4.5 g/l D-glucose, 5 μg/ml insulin, 50 μg/ml human transferrin, 30 nM sodium selenite, 15 nM T₃ (tri-iodothyronine), 10 mM D-biotin, 10 nM hydrocortisone, 0.1% BSA, 1% (v/v) horse serum and 1% (v/v) FBS.

Immunocytochemistry

Cells were stained with antibodies against NG2 (nerve/glial antigen 2), O4 antigen, GC (galactocerebroside), MBP and phospho-histone H3 (Ser¹⁰) and examined by confocal microscopy. For MBP and phospho-histone H3 (Ser¹⁰) immunostaining, the cells were rinsed briefly in PBS and fixed in 4% (w/v) buffered paraformaldehyde (pH 7.6) for 30 min at room temperature (20°C). After rinsing in PBS, the cells were permeabilized with 0.1% Triton X-100 in PBS for 10 min at room temperature and then processed for immunocytochemistry following the protocol as outlined by Reyes and Campagnoni (2002). Essentially, fixed cells were incubated in a blocking solution (5% goat serum in PBS) followed by an overnight incubation at 4°C with a polyclonal antibody against MBP (1:700) or phospho-histone H3 (Ser¹⁰) (1:100; Upstate Biotechnology). Staining with anti-NG2 (1:100; Chemicon International), anti-(O4 antigen) (1:20) and anti-GC (1:20) was performed on live cells without permeabilization for 1 h at room temperature before fixation. Cells were then incubated with the appropriate secondary antibodies (1:200; Jackson ImmunoResearch Laboratories), mounted on to slides with Aquamount (Lerner Laboratories), and fluorescent images were obtained using a Olympus spinning-disc confocal microscope. Nuclei were stained with the fluorescent dye Hoechst 33342 (5 μg/ml in 1% DMSO) in order to determine the total number of cells. Quantitative analysis of the results was carried out by counting the antigen-positive and Hoechst 33342-positive cells in 20 randomly selected fields, which resulted in counts of >2000 cells for each experimental condition. Counts of antigen-positive cells were normalized to the counts of total Hoechst 33342-positive cells for each condition.

Cell morphology assessment

Process formation of oligodendrocytes was evaluated by estimating the percentage of O4-positive cells having processes with a length which was equal to or longer than four times the cell body diameter. This method has been used previously for monitoring morphological changes in oligodendrocytes as well as other cell types (Yong et al., 1988, 1991). To obtain the percentage of cells with long processes, fields were randomly chosen on oligodendrocyte-bearing coverslips and all of the O4-positive cells were determined (~500 cells for each experimental condition), as well as the number of oligodendrocytes having processes four times the cell body diameter, as described by Yong et al. (1988, 1991).

Incorporation of BrdU (bromodeoxyuridine)

Pulses of 10 μM BrdU (BD Pharmingen) were applied for 24 h at 0, 24, 48 and 72 h. After each BrdU pulse, cells were fixed and immunostained in order to determine the number of positive cells. The cells were fixed in 4% (w/v) paraformaldehyde in PBS. After treatment with 6 M HCl and 1% (v/v) Triton X-100 to denature nuclear DNA, the cells were incubated in 0.1 M sodium borate (in PBS and 1% Triton X-100) for 10 min. Immunocytochemistry was carried out using an anti-BrdU antibody (1:1000; BD Pharmingen) and an anti-NG2 antibody (1:100; Chemicon International) with the corresponding fluorescent secondary antibodies. The percentage of BrdU-positive cells was estimated on the basis of the total number of NG2-positive cells.

T _c (cell-cycle time) analysis

To examine T _c, mixed glial culture of GFP (green fluorescent protein)-labelled OPCs were used. These experiments were performed using a double-transgenic mouse created by breeding the golli-KO and JOE mice with a line expressing GFP under the control of the Plp (proteolipid protein) promoter (Mallon et al., 2002). Mixed glial cultures were prepared as described above (in the Primary cultures of cortical oligodendrocytes section). These cultures were incubated in a stage-top chamber with 5% CO₂ at 37°C, which was placed on the stage of a spinning-disc inverted confocal microscope equipped with a motorized stage, an atmosphere regulator and shutter control. Fluorescent field images were obtained with a specific GFP filter at 6 min intervals. Individual clones of GFP-labelled OPCs (OPC~GFPs) were monitored for a period of 48 h beginning at 2, 4 and 6 DIV (days in vitro) before the shake-off. In these time-lapse experiments, ~30 clones were analysed per experimental condition.

SlideBook™ 4.1 (Intelligent Imaging Innovations) was used in the analysis of videomicroscopic image sequences. The SlideBook™ software allows an investigator to cycle back and forth through the movie files frame-by-frame (minute-by-minute), facilitating the accurate determination of event time. To quantitatively analyse the dynamics of cell division, 120 cytokinetic events were randomly selected from movies at 2, 4 and 6 DIV. Cell proliferation was assessed by calculating the average T _c (time between birth cytokinesis and division cytokinesis) in different OPC~GFP clones. Tracking of cells was performed by visual observation of image sequences as described above. In some cases, the cells were semi-automatically followed in SlideBook™ by attaching a number to the cell, which was propagated from frame to frame. Tracking was performed forwards and backwards in time from each cytokinesis event identified to maximize the number of linearly related cytokineses identified.

Cell viability analysis

A Trypan Blue exclusion assay was used to determine cell viability. Following different experimental treatments, OPCs grown on coverslips for 1, 2, 3 and 4 DIV were incubated in medium containing Trypan Blue (0.04% final concentration) for 10 min at 37°C. Viable cells were counted in a total of six experiments, four random fields, on triplicate coverslips.

MTT [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide] assay

The MTT survival assay was performed as described by Mosmann (1983). The sterile solution of MTT (Molecular Probes) was added to all wells, and the microplate was incubated at 37°C for 45 min. The reaction was stopped by addition of SDS, and the product was quantified by spectrophotometry at 570 nm.

Caspase 3 assay

NucView™ 488 caspase 3 substrate (Biotium), a novel cell membrane-permeable fluorigenic caspase substrate designed for detecting caspase 3 activity within live cells in real time, was used in accordance with the manufacturer's recommendations. Briefly, OPC primary cultures were incubated in medium containing NucView™ 488 caspase 3 substrate (5 μM final concentration) in a stage-top chamber with 5% CO₂ at 37°C, which was placed on the stage of a spinning-disc inverted confocal microscope. Fluorescent field images were obtained with a specific GFP filter at 6 min intervals for a total of 12 h. SlideBook™ 4.1 software was used to assess apoptotic cell death by calculating the percentage of caspase 3-positive cells in a total of five experiments on four random fields.

Calcium imaging

Methods were similar to those described previously (Colwell, 2000; Michel et al., 2002; Paz Soldán et al., 2003). Briefly, a cooled CCD (charge-coupled device) camera (Hamamatsu ORCA-ER) was added to the Olympus spinning-disc confocal microscope to measure fluorescence. To load the dye into cells, the coverslips were washed in serum and Phenol Red-free DMEM, and the cells were incubated for 45 min at 37°C in 5% CO2 in the same medium containing a final concentration of 4 μM fura 2/AM (fura 2 acetoxymethyl ester) (TefLabs) plus 0.08% Pluronic® F127 (Molecular Probes), then washed four times in DMEM and stored in DMEM for up to 1 h before being imaged (Paz Soldán et al., 2003). Measurements of resting Ca²⁺ levels were made in serum-free HBSS (Hanks balanced salt solution) containing 2 mM Ca²⁺, but no Mg²⁺. Other measurements were made in HBSS. Ca²⁺ influx and resting Ca²⁺ levels were measured on individual cells, and the results were pooled from five separate coverslips representing five separate cells preparations for each condition. The fluorescence of fura 2 was excited alternately at wavelengths of 340 and 380 nm by means of a high-speed wavelength-switching device (Lambda DG-4; Sutter Instruments). SlideBook™ software was then used to select several ‘regions of interest’ within the field from which measurements were taken. To minimize bleaching, the intensity of excitation light and sampling frequency was kept as low as possible. In these experiments, measurements were normally made once every 2 s.

Calibration of Ca²⁺ signals

Free [Ca²⁺] was estimated from the ratio (R) of fluorescence at 340 and 380 nm, using the following equation: [Ca²⁺] = K _d × slope factor × (R–R _min)/(R _max–R) (Grynkiewicz et al., 1985). The K _d was assumed to be 140 nM, whereas values for R _min and R _max were all determined via calibration methods. An in vitro method (fura 2 Ca²⁺ imaging calibration kit, Molecular Probes) was used to make estimated values. Using this method, glass coverslips were filled with a high-Ca²⁺ (fura 2 plus 10 mM Ca²⁺), a low-Ca²⁺ (fura 2 plus 10 mM EGTA) or a control solution without fura 2. Each solution also contained a dilute suspension of 15 μm polystyrene micro-spheres to ensure uniform coverslip/slide separation and facilitate microscope focusing. The fluorescence (F) at 380 nm excitation of the low-Ca²⁺ solution was imaged, and the exposure of the camera was adjusted to maximize the signal. These camera settings were then fixed, and measurements were made with 380 and 340 nm excitation of the three solutions. R _min = F ₃₄₀ in low-Ca²⁺/F ₃₈₀ in low-Ca²⁺; R _max=F ₃₄₀ in high-Ca²⁺/F ₃₈₀ in high-Ca²⁺; Sf=F ₃₈₀ in low-Ca²⁺/F ₃₈₀ in high-Ca²⁺.

Statistical analysis

Data are presented as means ± S.E.M. unless noted otherwise. For fura 2 and T _c experiments, statistical comparison between different experimental groups was performed using ANCOVA (analysis of covariance). Measurements of the percentage of positive cells (NG2, O4, GC, MBP, phospho-histone H3, BrdU, Trypan Blue and caspase 3) were carried out using Student's paired t test, in which P<0.05 was defined as statistically significant.

RESULTS

Golli stimulates OPC proliferation in the presence of mitogens

Immediately after shake-off from mixed glial cultures, OPCs were grown in the presence of PDGF-AA (10 ng/ml) and bFGF (10 ng/ml) for 48 h and then induced to exit the cell cycle and to differentiate by transferring the cells to a mitogen-free medium (mN2) (Figure 1A) (Oh et al., 2003). To determine the effect of golli on OPC proliferation, we calculated the percentage of proliferating cells each day over a period of 4 DIV. Since actively proliferating cells duplicate their DNA content, we labelled proliferating OPCs from golli-KO and JOE mice with the thymidine analogue BrdU. Pulses of 10 μM BrdU for 24 h were given at 0 h (immediately after shake-off), 24, 48 and 72 h (Figure 1A). After each BrdU pulse, proliferating progenitors were identified by double immunofluorescence for BrdU and NG2, and the relative number of NG2-positive/BrdU-positive cells was quantified in each cell population (Figure 1B). In all cell populations, proliferation declined after transfer to mitogen-free medium at 3 and 4 DIV, as expected, but during the proliferative period, cell proliferation was lower in the golli-KO populations and higher in the JOE populations than in controls (Figure 1C). For example, after 1 DIV, the average number of proliferating cells in the golli-KO population (27%) was significantly lower than that of the genotype control group (41%, P<0.01) (Figure 1C). In similar experiments, the average percentage of proliferating OPCs in JOE cells was almost 30% higher than of the genotype control cells (52 and 37% respectively, P<0.001) (Figure 1C). Golli overexpression did not interfere with the ability of OPCs to exit the cell cycle after mitogen deprivation, since, in JOE cultures, less than 10% of the cells incorporated BrdU at 4 DIV (Figure 1C). Neither did the absence of golli modify the response of progenitor cells to mitogen withdrawal, since the percentage of NG2-positive/BrdU-positive cells was also quite low, ranging from 10 to 15% at 3 DIV and from 5 to 10% at 4 DIV (Figure 1C). Additionally, we evaluated the total number of NG2-positive cells in golli-overexpressing cultures at 1 and 2 DIV. In agreement with our previous findings, golli overexpression was able to significantly increase the total number of NG2-positive cells by ~40% after 1 DIV (1475 ± 34 cells for JOE, compared with 1049 ± 52 cells for JOE control, P<0.01) and by ~30% after 2 DIV (1132 ± 57 cells for JOE, compared with 789 ± 62 cells for JOE control, P<0.01).

Figure 1

(A) Pure OPC cultures from golli-KO and JOE mice were grown for 2 days (i.e. 1 and 2 DIV) in defined culture medium plus PDGF (10 ng/ml) and bFGF (10 ng/ml). Then, the medium was changed, and the cells were cultured in a mitogen-free medium (mN2) for another 2 days (i.e. 3 and 4 DIV). Pulses of 10 μM BrdU for 24 h were begun at 0, 24, 48 and 72 h. After each BrdU pulse, cells were fixed and immunostained with anti-BrdU and anti-NG2 antibodies. (B) Photomicrographs showing NG2-positive/BrdU-positive cells at 1, 2 and 3 DIV. Green shows NG2 immunostaining, and red shows BrdU immunostaining. Scale bar, 80 μm. (C) The percentage of NG2-positive/BrdU-positive cells under each condition was compared with respective controls. Results are means ± S.E.M. for four independent experiments. **P<0.01, ***P<0.001, compared with control cells.

Confirmation of the BrdU cell proliferation results in the JOE OPC population was made using an anti-(phospho-histone H3) (Ser²⁸) antibody as a marker of mitotic cells. Phosphorylation of histone H3 at Ser¹⁰ and Ser²⁸ is very important for chromosome condensation and segregation during mitosis (Wei et al., 1999). The phosphorylation of histone H3 at Ser²⁸ occurs in chromosomes predominantly during early mitosis and coincides with the initiation of mitotic chromosome condensation in various mammalian cell lines (Goto et al., 1999). After 1 and 2 DIV in the presence of mitogens, there were more H3-positive cells in the JOE cell population than in the JOE control cells (Figure 2), but 24 h after mitogen withdrawal (3 DIV), no significant differences between groups were found (Figure 2B).

Figure 2

OPCs from JOE mouse were cultured as indicated in Figure 1(A). (A) Immunofluorescent images of JOE cells immunostained with anti-(phospho-histone H3) antibody superimposed upon brightfield at 1 and 2 DIV. Scale bar, 40 μm. (B) The percentage of phospho-histone H3-positive cells in each experimental condition was measured as described in the Materials and methods section. Results are means ± S.E.M. for four independent experiments. ***P<0.001 compared with control cells.

An increase in JOE OPC divisions and a decrease in golli-KO cell proliferation could be due to a change in cell-cycle kinetics. To explore this possibility, we measured the T _c of the golli-KO, JOE and control cells by performing time-lapse imaging in mixed glial cultures using OPC~GFPs. The OPCs used in these experiments were obtained from double-transgenic mice created by breeding the golli-KO and JOE mice with a line expressing GFP under the control of the Plp promoter (Mallon et al., 2002). In these mice, GFP expression provides a convenient marker for OPCs in the imaging experiments in mixed glial cultures. We imaged individual clones of OPC~GFPs in the presence of an astrocyte monolayer, a known source of growth factors such as PDGF, bFGF and IGF-1 (insulin-like growth factor 1) (Hicks and Franklin, 1999). These experiments were performed for a period of 48 h, beginning at 2, 4 and 6 DIV before the shake-off (Figure 3A). We denote days in vitro in experiments in the mixed cultures with the lower-case div. In these time-lapse experiments, cell proliferation was assessed by calculating the average T_c in different OPC~GFP clones. T _c was defined as the period between when a cell was first generated by cytokinesis and when that cell subsequently divided, giving birth to two daughter cells. The time at which cytokinesis occurred was considered to be the first appearance of a distinct border between two daughter cells in videomicroscopic image sequence (see the Materials and methods section). Examples of cytokinetic events in OPC~GFPs from golli-KO and JOE mice grown for 4 days on an astrocyte monolayer (4 div) are shown in Figure 3(B). At 2 div, control OPCs showed a T _c of ~ 24 h, whereas the golli-KO cells showed a T _c of ~ 29 h. In contrast, the T _c of JOE OPCs was decreased to ~18 h at 2 div and ~14 h at 4 div (Figure 3C).

Figure 3

(A) Mixed glial cultures were incubated in a stage-top chamber with 5% CO₂ at 37°C, which was placed on the stage of a spinning-disc inverted confocal microscope. OPC~GFP clones were imaged with a specific GFP filter at 6 min intervals for a period of 48 h beginning at 2, 4 and 6 div before the shake-off. (B) Time-lapse series of OPC~GFP clones from golli-KO and JOE mice grown for 4 days on an astrocyte monolayer (4 div). Yellow arrowheads designate cytokinesis events. Tracking of cells between birth cytokinesis and division cytokinesis was performed by attaching a yellow asterisk to the cell, which was propagated from frame to frame. Each frame represents a single section of a time-lapse video sequence taken at the time indicated. Scale bar, 60 μm. (C) Estimated T _c values were determined as described in the Materials and methods section for each experimental condition. Results are means ± S.E.M. for four independent experiments. *P<0.05, **P<0.01 compared with control cells.

These results indicated by several independent measures that golli promoted OPC proliferation in the presence of growth factors, i.e. an increase in the number of BrdU-positive cells, a decrease in the T _c and an increase in the number of cells in S-phase. This effect disappeared when PDGF and bFGF were removed from the culture medium, suggesting that golli does not influence the ability of OPCs to exit from the cell cycle in response to mitogen deprivation.

After mitogen withdrawal, cells overexpressing golli are more sensitive to cell death

The effect of golli expression on OPC survival was examined using the Trypan Blue exclusion assay and the MTT quantitative colorimetric method for cell viability. The results revealed statistically significant differences in the percentage of Trypan Blue-positive (dead) cells between control and JOE OPCs. At both 3 and 4 DIV, JOE cultures showed a significant increase in the number of Trypan Blue-positive cells (Figure 4A). Similar results were found using the MTT assay for live cells: after 3 DIV, OPC viability was higher in control cells than in the JOE group (Figure 4B). In contrast, golli-KO OPCs showed no significant changes in cell viability relative to control using either the Trypan Blue exclusion assay or the MTT technique (Figure 4), suggesting that the decrease in BrdU incorporation in the golli-KO cells is not a consequence of cell death.

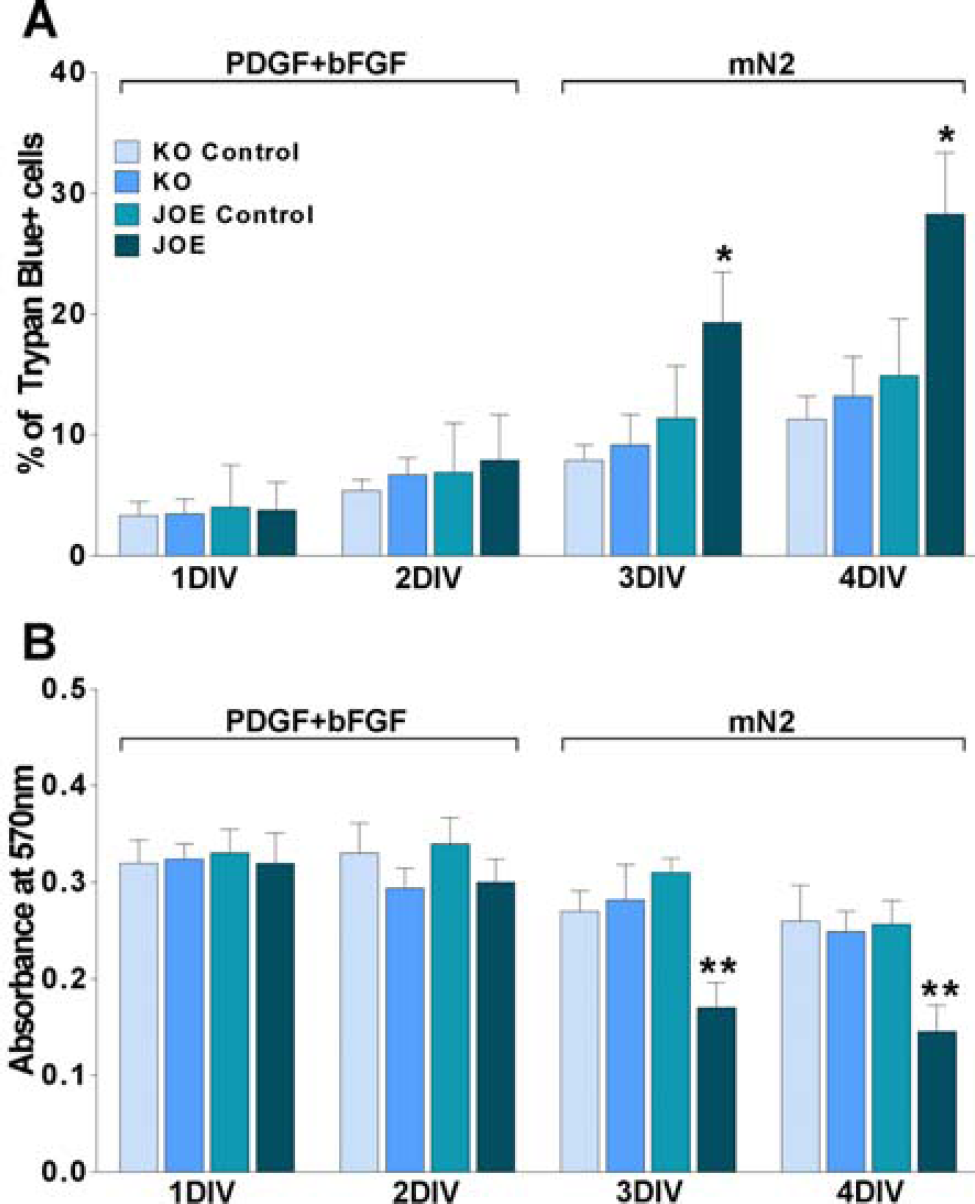

Figure 4

OPCs were cultured as indicated in Figure 1(A). (A) The percentage of Trypan Blue-positive cells in each genotype was determined as described in the Materials and methods section. (B) Golli-KO and JOE cell viability was evaluated using the MTT survival assay. Results are means ± S.E.M. for two independent experiments, with duplicate cultures for each experimental condition. *P<0.05, **P<0.01 compared with control cells.

We also examined the role of golli on OPC apoptotic cell death in golli-KO and JOE OPCs after 3 DIV. Sequential activation of caspases plays a central role in the execution phase of cell apoptosis. Members of the caspase family of proteases have been identified as crucial mediators of the complex biochemical events associated with apoptosis. Caspase 3 is a key effector in the apoptotic pathway, amplifying the signal from initiator caspases and signifying full commitment to cellular disassembly. For these studies, we used a real-time caspase 3 assay, which detects caspase 3 activity within individual living cells. This assay is bifunctional in that it is able to detect both intracellular caspase 3 activity and also stain the cell nucleus, which undergoes morphological changes during the apoptotic process. Examples of such measurements are shown in Figure 5(A). Consistent with the MTT and Trypan Blue results, the combined use of real-time confocal microscopy and the caspase 3 indicator revealed that JOE OPCs at 3 DIV displayed a significant increase in the percentage of caspase 3-positive cells after 12 h (Figure 5B). Parallel experiments with golli-KO compared with control OPCs showed no increase in caspase labelling (Figure 5B).

Figure 5

OPCs were cultured as indicated in Figure 1(A). (A) Real-time caspase 3 assay, using NucView™ 488 caspase 3 substrate, was performed as described in the Materials and methods section. Fluorescent field images were obtained with a specific GFP filter at 6 min intervals for a period of 12 h beginning at 3 DIV. Brightfield images were superimposed to show the cell morphology. Yellow arrowheads designate some apoptotic JOE OPCs (caspase 3-positive cells). Images shown were taken at 2 h intervals. Scale bar, 60 μm. (B) Golli-KO and JOE cell death was evaluated by measuring the percentage of caspase 3-positive cells for a period of 12 h at 1, 2 and 3 DIV. Results are means ± S.E.M. for five independent experiments. *P<0.05 compared with control cells.

Golli expression plays a role in OPC differentiation

There is an obligate relationship between proliferation and differentiation, because cell-cycle exit is a prerequisite for oligodendrocyte differentiation (Casaccia-Bonnefil and Liu, 2003). The results described above clearly indicate that endogenous golli expression modulates OPC proliferation and survival. Since these two events are essential for OPC lineage progression, we investigated further the effect of golli on OPC differentiation. Primary cultures of OPCs were kept in mitogens (PDGF and bFGF) for 2 DIV and then induced to exit the cell cycle by switching the cells to a mitogen-free medium (mN2). Under these conditions, there is a general decline in early immunocytochemical markers, such as NG2, and an increase in intermediate (e.g. O4) and mature (e.g. GC, MBP) markers consistent with differentiation of the OPCs (Figure 6). Analysis of these markers showed that, in cells lacking golli, the number of cells positive for the most mature oligodendrocyte markers, GC and MBP, was significantly lower than in their corresponding genotype controls (Figures 6C and 6D). OPCs from both control and golli-KO mice progressively acquired O4, GC and MBP immunoreactivity, but the percentage of golli-KO cells positive for these antigens was always lower than that found in control cells. After removal of growth factors (3 and 4 DIV), the number of cells positive for O4, GC and MBP increased by approx. 50% in control cultures, whereas in the golli-KO OPCs, there was still no significant change in the number of GC-positive or MBP-positive cells over this period, suggesting a lag in the differentiation of OPCs in the absence of golli after mitogen withdrawal. Consistent with this, we observed a significantly greater decrease in the percentage of immature NG2-positive cells in control compared with golli-KO OPCs (Figure 6A). As shown in Figure 7, similar results were obtained in JOE OPCs. After 1 DIV, the number of cells expressing the intermediate marker O4 increased significantly, and there was a steady decline in the number of cells expressing the immature marker NG2 in the control and JOE cells populations (Figures 7A and 7B). However, after removing the growth factors from the culture medium, the increase in the number of O4-, GC- and MBP-positive cells was only seen in control cells (Figures 7B, 7C and 7D). These results suggested that differentiation of OPCs was sensitive to the levels of golli expressed in the cells.

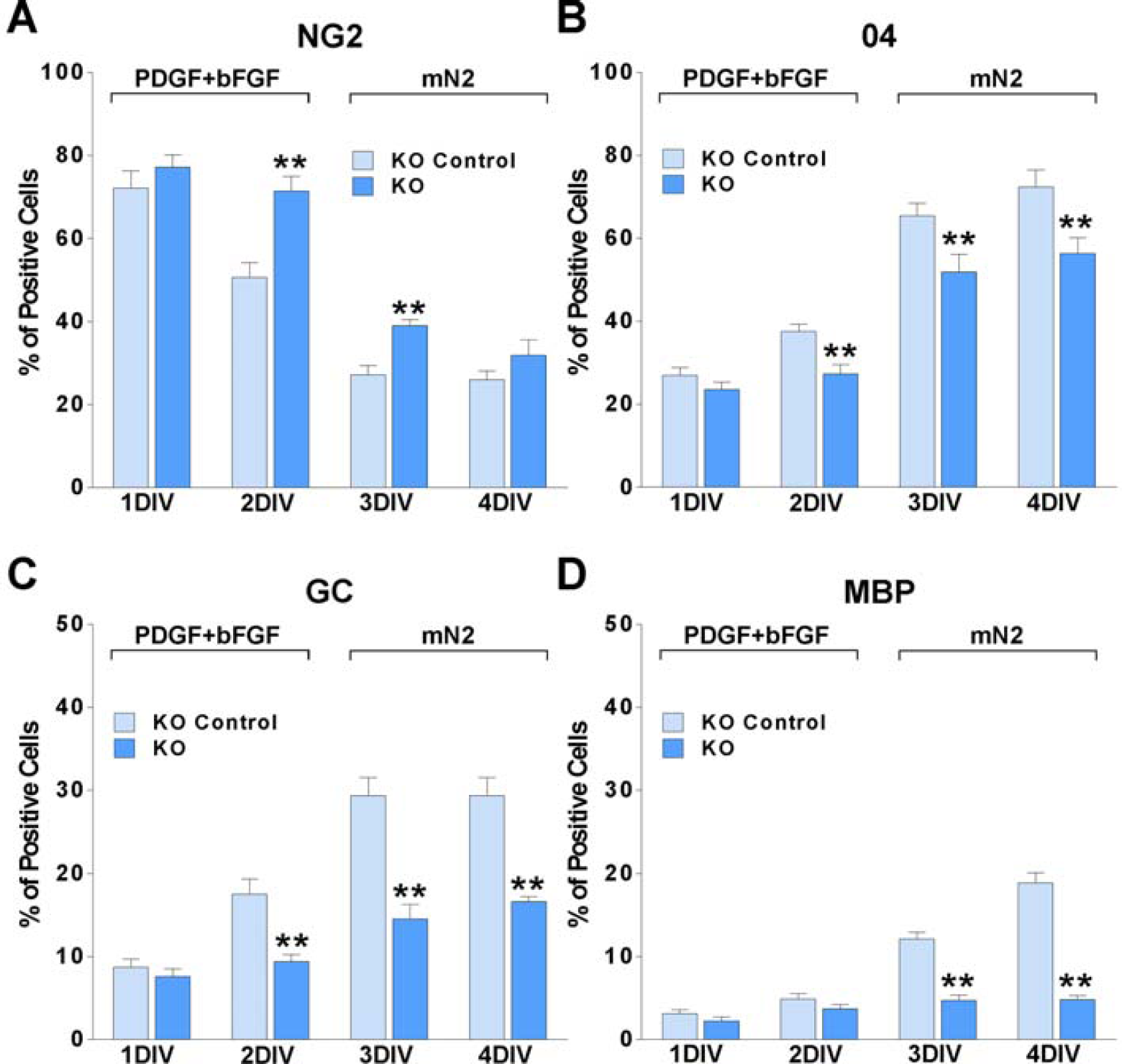

Figure 6

Pure OPCs from control and golli-KO mice were cultured for 2 days (1 and 2 DIV) in defined culture media plus PDGF (10 ng/ml) and bFGF (10 ng/ml). Then, the medium was changed and the cells were cultured in a mitogen-free medium (mN2) for another 2 days (3 and 4 DIV). OPCs were immunostained with anti-NG2 (A), O4 (B), anti-GC (C) and anti-MBP (D) antibodies and the fluorescent dye Hoechst 33342. The percentage of positive cells under each experimental condition was measured as described in the Materials and methods section. Results are means ± S.E.M. for four independent experiments. **P<0.01 compared with control cells.

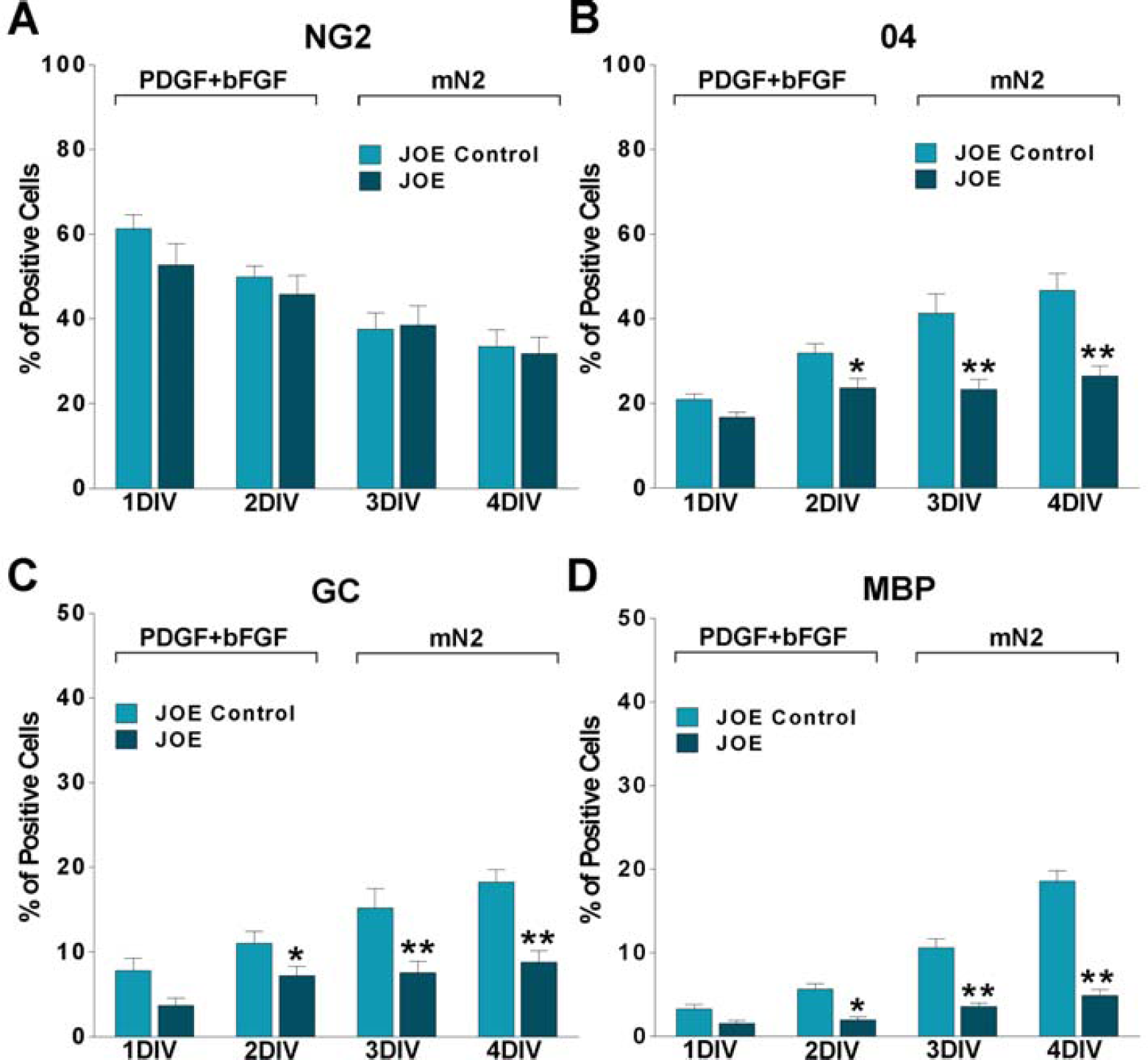

Figure 7

OPCs from a JOE mouse were cultured as indicated in Figure 6. OPCs were immunostained with anti-NG2 (A), anti-O4 (B), anti-GC (C) or anti-MBP (D) antibodies and the fluorescent dye Hoechst 33342. The percentage of positive cells under each experimental condition was measured as described in the Materials and methods section. Results are means ± S.E.M. for four independent experiments. *P<0.05, **P<0.01 compared with control cells.

As expected, in all genotypes, the cells were mostly bipolar during the first 2 DIV in the presence of PDGF and bFGF. However, removal of growth factors increased the morphological differentiation of the cells towards a more complex cell shape similar to that observed in post-mitotic more mature oligodendrocytes. As described by Jacobs et al. (2005), analysis of the morphological complexity of oligodendrocytes (Sperber and McMorris, 2001) showed that, although the golli-KO oligodendrocytes elaborated processes and membrane sheets, these were not as extensive as those elaborated by control oligodendrocytes (Jacobs et al., 2005). In contrast, JOE OPCs were generally flattened and were roughly bipolar during the first 2 DIV, but after growth factor withdrawal at 3 and 4 DIV, they elaborated larger processes and membrane sheets (Figure 8A). The observed morphological differences were confirmed by quantitative assessment of the percentage of OPCs with processes having lengths equal to or greater than four times the mean cell body diameter of the OPC population (Figure 8B). During the first 2 DIV, JOE cells meeting this criterion comprised approx. 20% of the population. But, after these cells were transferred to differentiation medium without growth factors, the proportion of JOE cells with large processes rose to ~60% (Figure 8B).

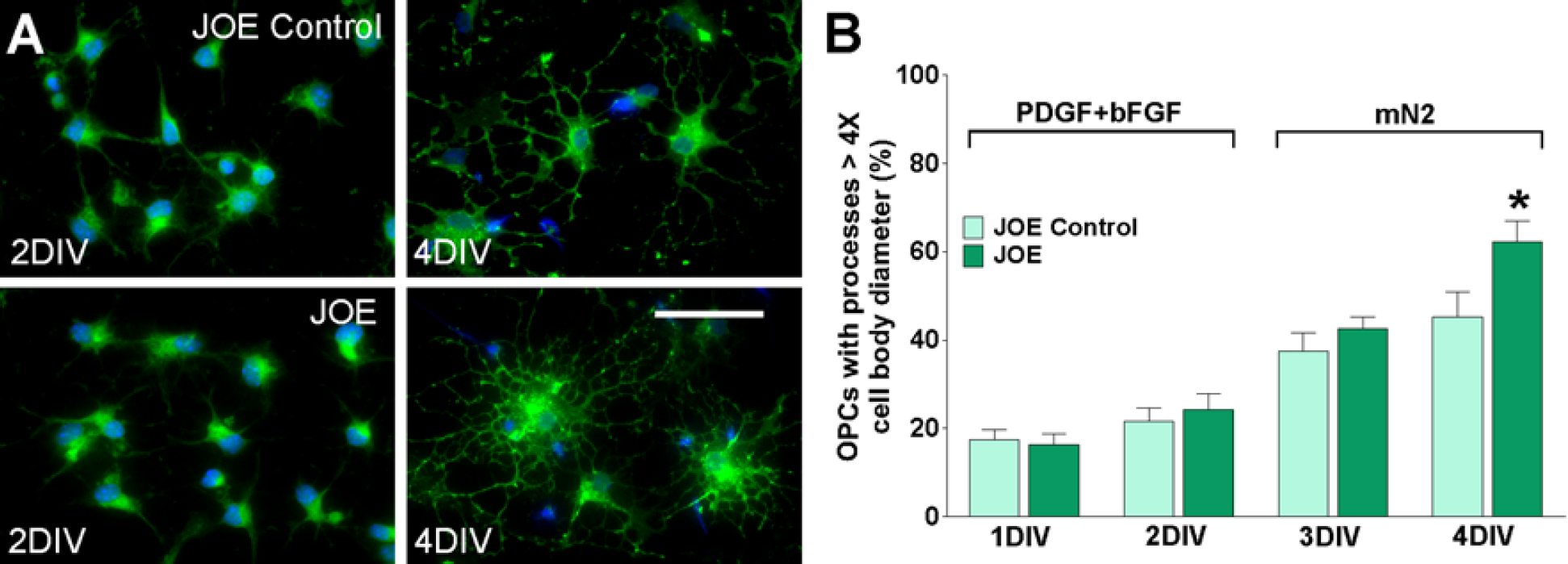

Figure 8

OPCs were cultured as indicated in Figure 6. (A) Fluorescent images of JOE cells immunostained with an anti-O4 antibody at 2 and 4 DIV. Scale bar, 35 μm. (B) O4-positive cells were scored for morphological complexity (see the Materials and methods section), and the percentage of cells with processes greater or equal to four times the cell body diameter was plotted. Results are means ± S.E.M. for four independent experiments. *P<0.05 compared with control cells.

These results are consistent with the notion that golli promotes process/membrane sheet formation, taking OPCs to an apparently more mature morphological state. However, the available data suggest that golli does not affect the genetic programme leading to the establishment of the composition of myelin. These results are consistent with previous studies on golli overexpression in transfected oligodendrocyte cell lines (Reyes and Campagnoni, 2002).

Golli increases the response of OPCs to PDGF

PDGF is the most potent proliferative factor for OPCs, and the effect of golli on OPC proliferation occurs only in the presence of growth factors. Since golli modulation of PDGF mitotic activity could be a possible explanation for our results, we decided to investigate further the effect of golli on PDGF mitogenic action. OPC primary cultures were treated with different concentrations of PDGF, in the presence of bFGF (10 ng/ml), for the first 24 h after plating. In order to examine the ability of PDGF to induce proliferation of control, golli-KO and JOE cells, the relative number of NG2-positive/BrdU-positive OPCs was quantified in each cell population. In Figure 9, the percentage of NG2-positive/BrdU-positive cells in golli-KO and JOE OPCs compared with genotype control OPCs is plotted as a function of PDGF concentration. At all concentrations of growth factor, proliferation of the golli-KO OPC population was significantly lower than controls. The average percentage of proliferating OPCs in the golli-KO population was found to be almost half of the golli-KO control cells at all PDGF concentrations tested (Figure 9). In contrast, proliferation of the JOE OPCs was significantly higher than genotype controls (Figure 9). At higher PDGF concentrations (40–80 ng/ml), the percentage of JOE NG2-positive/BrdU-positive OPCs was almost ~50% higher than control OPCs.

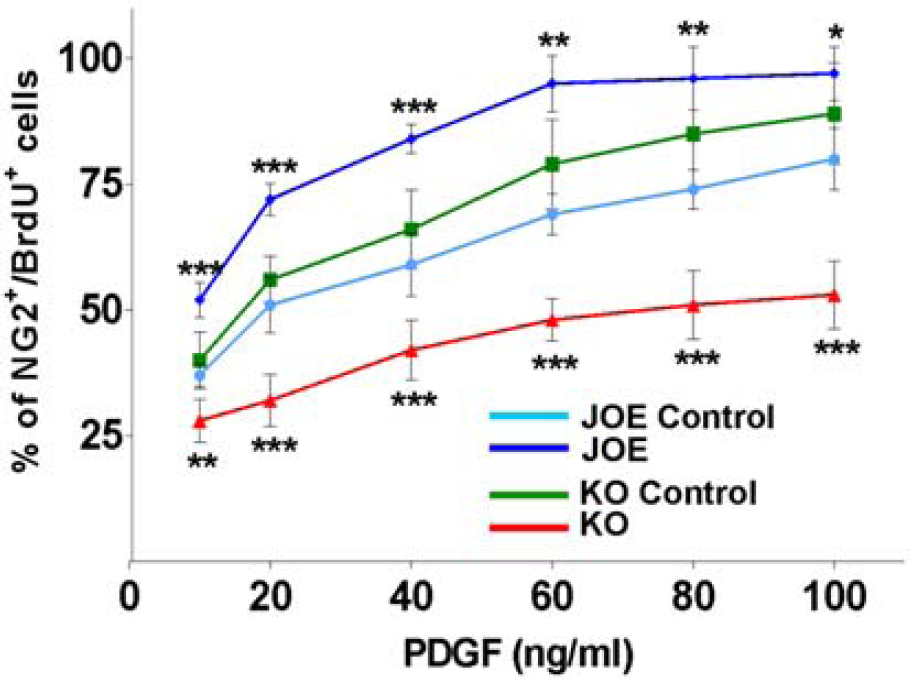

Figure 9

Pure OPC cultures from golli-KO and JOE mice were treated, during the first 24 h after plating (1 DIV), with different concentrations of PDGF in the presence of bFGF (10 ng/ml). To test the mitogenic effect of PDGF, the relative number of NG2-positive/BrdU-positive OPCs was quantified in each cell population. Results are means ± S.E.M. for four independent experiments. *P<0.05, **P<0.01, ***P<0.001 compared with control cells.

PDGF is the best characterized and the most active proliferative factor for OPCs. It exerts its effect through interaction with receptors bearing intrinsic tyrosine kinase activity (Taniguchi, 1995). Ca²⁺ signals activated after membrane receptor recruitment is one of the most conserved responses triggered in the target cells in which PDGF exert a mitogenic activity (Fatatis and Miller, 1997). It was shown previously that golli proteins play a key role in the regulation of Ca²⁺ homoeostasis in OPCs (Paez et al., 2007). For this reason, we examined the effect of PGDF on intracellular Ca²⁺ levels in control and JOE OPCs. PDGF (40 ng/ml) induced a biphasic increase in OPC intracellular Ca²⁺ ([Ca²⁺]_int). The first phase consisted of a sharp peak characteristic of a large transient increase in [Ca²⁺]_int (transient phase) (Figure 10A), which was followed by a second phase of slowly declining internal Ca²⁺ concentrations (sustained phase) (Figure 10A). The amplitude of the first phase of [Ca²⁺]_int increase induced by PDGF in the JOE cells was not significantly different from those observed in control OPCs (188 ± 3.4 and 191 ± 2.8 nM respectively, n=45) (Figures 10A and 10B). However, during the first 2 min of the second (sustained) phase, [Ca²⁺]_int was significantly higher in JOE cells than in control cells (148 ± 4.2 and 116 ± 3.6 nM respectively, n=45, P<0.05) (Figures 10A and 10B).

Figure 10

(A and B) Fura 2 ratio of Ca²⁺ response to 40 ng/ml PDGF in OPCs from control and JOE mice at 1 DIV. (C) JOE OPCs treated with 40 ng/ml PDGF in the absence of extracellular Ca²⁺. (D) JOE OPCs were pre-treated with 100 μM thapsigargin (Tg) in Ca²⁺-free medium to deplete intracellular stores, and then treated with 40 ng/ml PDGF. Note that each trace corresponds to a single OPC. (E) Averaged Ca²⁺ response to PDGF stimulation in golli-KO and JOE OPCs at 1 DIV (n>500 cells for each genotype). Following depletion of the intracellular Ca²⁺ store by PDGF treatment in the absence of extracellular Ca²⁺,2 mM Ca²⁺ was added back to the culture medium. The times of addition of PDGF and Ca²⁺-containing external solutions are indicated by the horizontal bars. (F) Averaged data (means ± S.E.M., n>500 cells for each genotype) indicating the integrated Ca²⁺ signal (i.e. area under the Ca²⁺ trace) measured for 5 min following re-addition of extracellular Ca²⁺.**P<0.01 compared with control cells (C).

After pre-incubation of the cells in the absence of external Ca²⁺ the second (sustained) phase of increased internal Ca²⁺ levels disappeared (Figure 10C), but the first (transient) [Ca²⁺]_int peak was unchanged. In contrast, treatment of the cells with thapsigargin (Tg) in Ca²⁺-free medium to deplete intracellular stores, suppressed the transient [Ca²⁺]_int increase as well as the sustained phase of higher internal Ca²⁺ levels (Figure 10D). These results indicated that the first (transient) [Ca²⁺]_int increase after PDGF treatment was mediated primarily by Ca²⁺ release from intracellular stores and that the sustained phase was mediated by extracellular Ca²⁺ influx into the cells. To analyse the effect of golli on Ca²⁺ entry induced by PDGF, a protocol was used that involved store depletion by PDGF application in the absence of extracellular Ca²⁺, followed by activation of Ca²⁺ entry owing to re-addition of Ca²⁺ to the extracellular medium. As shown in Figure 10(E), application of PDGF to the cells in Ca²⁺-free medium evoked an initial rise in [Ca²⁺]_int which was due to release from intracellular stores. After this increase in [Ca²⁺]_int had returned to baseline levels, Ca²⁺ was added to the extracellular medium, resulting in an elevation in [Ca²⁺]_int due to influx across the plasma membrane. Re-exposure to Ca²⁺-containing medium triggered a significantly larger increase in the fura 2 signal in JOE cells in comparison with responses in controls (Figures 10E and 10F). Interestingly, opposite effects were observed in golli-KO OPCs (Figures 10E and 10F).

We then examined the Ca²⁺ channels responsible for the increase in [Ca²⁺]_int during the sustained phase. The transient increases in [Ca²⁺]_int stimulated by PDGF, in both control and JOE cells, and the Ca²⁺ sustained phase were unaffected by pre-treatment with 50 μM verapamil, a VOCC blocker (Figure 11A). However, in both control and JOE cells, 25 μM 2-APB (2-aminoethoxydiphenyl borate), a specific SOCC inhibitor, completely abolished the sustained phase in the [Ca²⁺]_int increase due to PDGF treatment (Figure 11B). This was also manifest as a decrease in both the peak Ca²⁺ signal and integrated Ca²⁺ transient following Ca²⁺ re-addition (Figures 11C and 11D). MRS-1845, another specific blocker of store-operated Ca²⁺ entry, exhibited a similar degree of inhibition upon Ca²⁺ influx following store depletion with PDGF (Figures 11C and 11D). Thus the first phase of [Ca²⁺]_int increase in OPCs after PDGF treatment was due to Ca²⁺ release from intracellular Ca²⁺ stores, whereas the second (sustained) phase of [Ca²⁺]_int increase was due to extracellular Ca²⁺ influx through SOCCs located on the plasma membrane.

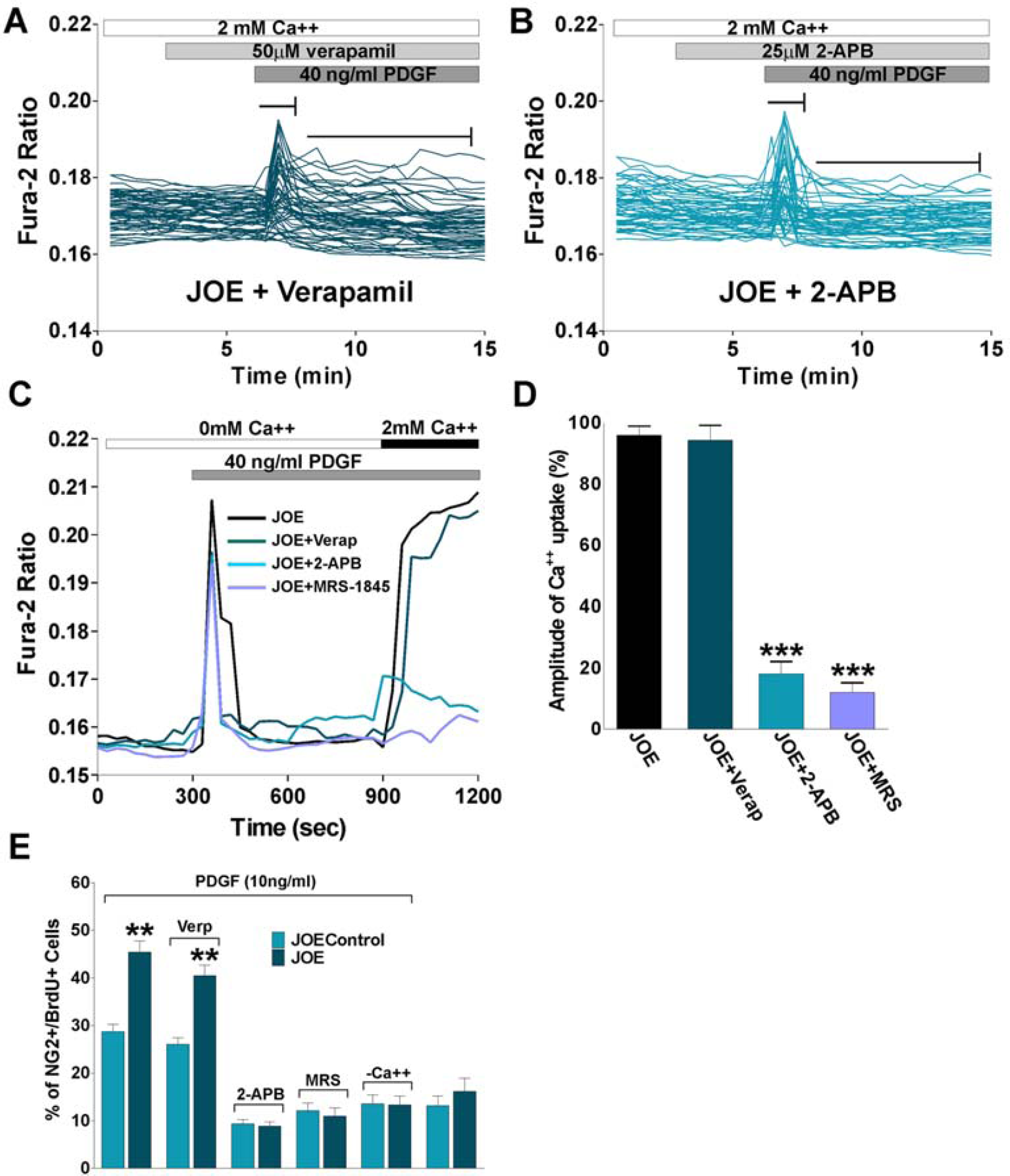

Figure 11

(A and B) JOE cells were treated with verapamil (50 μM) or 2-APB (25 μM) and then stimulated with PDGF (40 ng/ml). Note that each trace corresponds to a single OPC and the times of addition of verapamil, 2-APB and PDGF are indicated by the horizontal bars. (C) Averaged Ca²⁺ response to PDGF stimulation in JOE OPCs (n>500 cells). Following depletion of the intracellular Ca²⁺ store by PDGF, extracellular Ca²⁺ (2 mM) was added back to the cells in the presence of verapamil (Verap; 50 μM), 2-APB (25 μM) or MRS-1845 (20 μM). The times of addition of PDGF and Ca²⁺-containing external solutions are indicated by the horizontal bars. (D) Averaged data (means ± S.E.M., n>500 cells for each experimental condition) indicating the integrated Ca²⁺ signal (i.e. area under the Ca²⁺ trace) measured for 5 min following re-addition of extracellular Ca²⁺. ***P<0.001 compared with JOE cells. (E) Pulses of 10 μM BrdU for 24 h were begun at 24 h after the shake-off. BrdU incorporation was determined in JOE OPCs stimulated with PDGF (10 ng/ml) in the presence of verapamil (Verp; 50 μM), 2-APB (25 μM) or MRS-1845 (MRS; 20 μM) or in the absence of extracellular Ca²⁺ (-Ca⁺⁺). Results are means ± S.E.M. for five independent experiments. **P<0.01 compared with control cells.

These results indicate that golli may influence the effects of PDGF on OPCs by modulating Ca²⁺ influx through SOCCs. Further evidence for this interpretation came from exposure of the cells to BrdU for 24 h in the presence of channel blockers to measure proliferation (Figure 11E). These experiments revealed that pharmacological blockers of SOCCs inhibited the golli-enhanced proliferation of OPCs in the presence of PDGF, whereas there was no effect in the presence of the VOCC blocker verapamil. Additionally, these experiments are the first to demonstrate that extracellular Ca²⁺ uptake through SOCCs is an important component in the mechanism of PDGF on OPC proliferation.

High VOCC activity induces apoptosis in JOE OPCs

In a second set of experiments, we explored the hypothesis that the effect of golli on cell death could also be a consequence of golli-dependent Ca²⁺ homoeostasis in OPCs. We performed live imaging experiments to examine and correlate cell death with Ca²⁺ changes in OPC cultures. Addition of 20 mM K⁺ to the bathing medium, a manipulation that affects [Ca²⁺]_int by depolarizing the membrane potential and activating VOCCs, caused an increase of the percentage of caspase 3-positive cells (Figure 12A). These effects were more marked in JOE OPCs (Figure 12A). A reduced effect compared with controls was noted in golli-KO OPCs, which appeared to be more resistant to apoptosis than control cells after high K⁺ treatment (Figure 12B). Importantly, differences in the percentage of caspase 3-positive cells between genotypes were blocked by verapamil and were abolished in the absence of Ca²⁺ (Figures 12A and 12B), confirming that Ca²⁺ influx via VOCCs are directly involved in golli-mediated modulation of OPC death. Similar results were found using the MTT assay for live cells. After 3 DIV, as shown in Figure 4(B), OPC viability was higher in control cells than in the JOE group, but here the differences in cell viability were abolished by the VOCC inhibitors verapamil and Cd²⁺, and the absence of extracellular Ca²⁺ (Figure 12C).

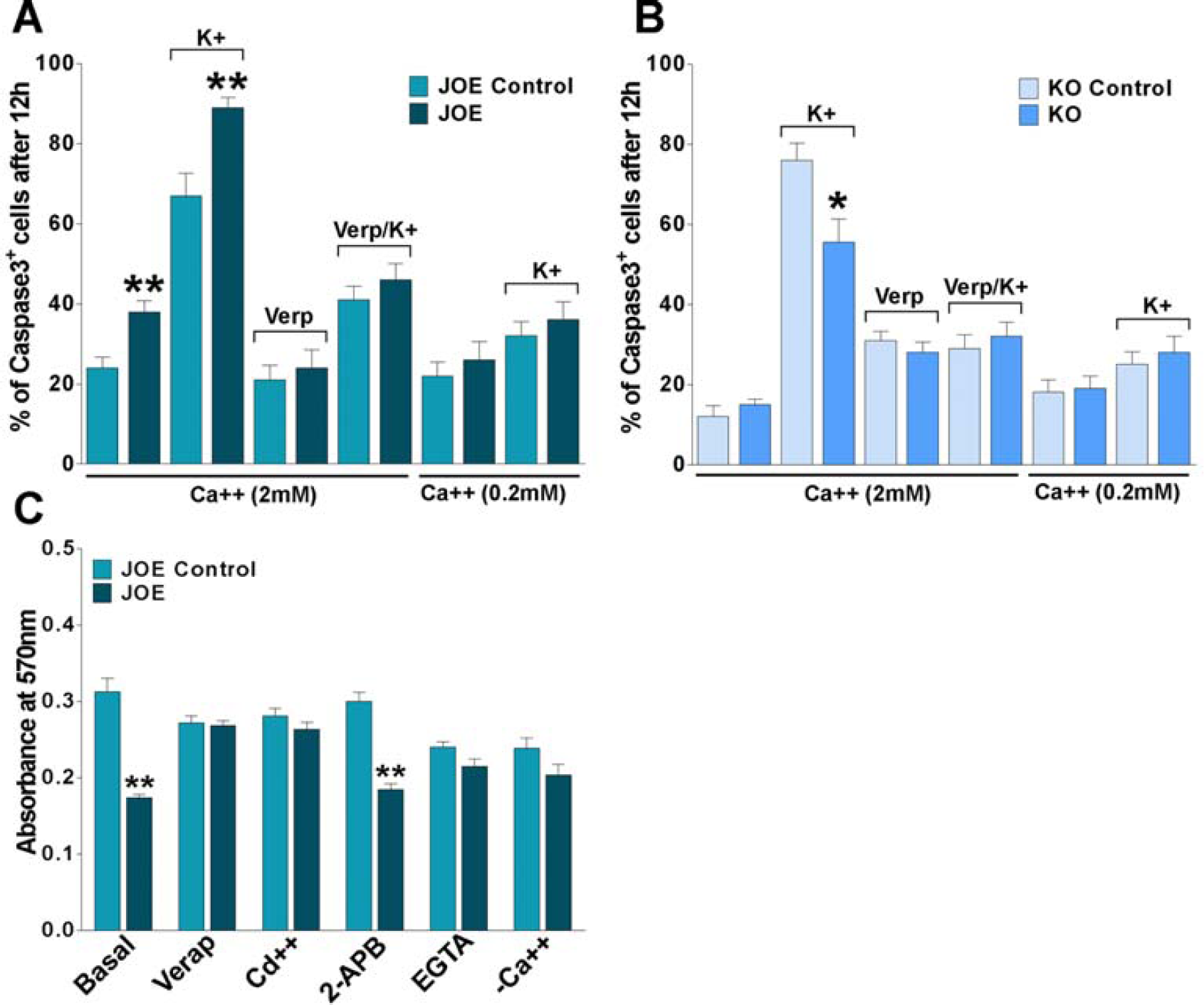

Figure 12

(A and B) Real-time caspase 3 assay, using NucView™ 488 caspase 3 substrate, was performed for a period of 12 h beginning at 3 DIV. Verapamil (Verp; 25 μM) and high-K⁺ (20 mM) were added to the culture medium, or extracellular Ca²⁺ concentrations were lowered from 2 mM to 0.2 mM. The effects of each treatment on golli-KO and JOE cell death were evaluated by measuring the percentage of caspase 3-positive cells as described in the Materials and methods section. Results are means ± S.E.M. for five independent experiments. *P<0.05, **P<0.01 compared with control cells. (C) Verapamil (Verap; 25 μM), Cd²⁺ (10 μM), 2-APB (25 μM) and EGTA (1 mM), were added to the medium in separate experiments, or extracellular Ca²⁺ concentrations were lowered from 2 to 0.2 mM (-Ca⁺⁺). The effects of each treatment on JOE cells viability were evaluated for a period of 12 h beginning at 3 DIV using the MTT survival assay. Results are means ± S.E.M. for two independent experiments, with duplicate cultures for each experimental condition. **P<0.01 compared with control cells.

DISCUSSION

Oligodendrocytes and their functions are impaired by the selective ablation of golli proteins due to abnormalities in Ca²⁺ uptake and hypomyelination (Jacobs et al., 2005). Similarly, targeted overexpression of golli in oligodendrocytes also impairs Ca²⁺ homoeostasis and myelination in vivo and in vitro (Martin et al., 2007; Paez et al., 2007). Consequently, OPCs isolated from golli-KO and JOE mice provide useful reagents for probing regulation of Ca²⁺ channels by the golli proteins as well as the role of Ca²⁺ channels in OPC function.

OPC proliferation is modulated by golli

Proliferation of OPCs is clearly important for normal myelination as well as for remyelination in demyelinating diseases. The present study indicates that golli overexpression increases the proliferation rate of OPCs as assessed by several parameters including a decrease in the T _c. In contrast, golli-KO OPCs proliferated less robustly and showed a significant increase in the length of the cell cycle. Thus it is likely that golli promotes enhanced proliferation of OPCs in the presence of mitogens. In this regard, Filipovic and Zecevic (2005) reported that LPS (lipopolysaccharide)-induced inflammation promoted OPC proliferation through secretion of golli proteins from activated microglia.

The differences we noted in cell proliferation in the two genotypes are likely to be explained by changes in the cell cycle duration, since the length of T _c could progressively increase the probability that an OPC stops dividing and terminally differentiates (Gao et al., 1998; Tang et al., 2000). The effect of high golli expression could be interpreted either as increased proliferation or delayed exit from the cell cycle. However, since the effect of golli on OPC proliferation disappeared after 24 h of mitogen deprivation, we interpret our results to indicate a golli-modulated enhancement of mitosis rather than an effect on delayed exit from the cell cycle. Furthermore, our data also suggest that, after cell-cycle exit, the differentiation of both golli-KO and JOE OPCs is arrested.

The results described in the present paper indicate clearly that endogenous golli expression can modulate OPC proliferation in the presence of PDGF. No significant changes were found in the proliferation rate of JOE OPCs compared with genotype controls when bFGF was added separately to the culture medium. Evidence for this interpretation is shown in Figure 11(E), where, at 2 DIV, the effect of golli on OPC proliferation disappears in the absence of PDGF.

Golli mitogenic stimulation results in a biphasic Ca²⁺ response mediated by SOCCs

The BrdU-incorporation data obtained at different concentrations of PDGF (Figure 9) indicate that golli enhanced the proliferative activity of PDGF, a potent mitogen that induces OPCs to proliferate in vitro and can prevent premature differentiation in vivo (Calver et al., 1998; Noble et al., 1988; Raff et al., 1988). PDGF binds to the PDGFα receptor, which belongs to a family of tyrosine kinase receptors that has its own cytoplasmic associated tyrosine kinase activity (Taniguchi, 1995). Our findings indicate that golli produces an increase in the response of OPCs to the mitogenic stimulus of PDGF, suggesting a novel and relevant physiological role of golli in the control of OPC proliferation and differentiation.

Few growth factors have been shown to mediate their actions via oligodendroglial Ca²⁺ signalling, with the exception of PDGF, which is a potent mitogen for OPCs and evokes oscillatory and non-oscillatory Ca²⁺ signals in cultured oligodendrocyte cell lines (Fatatis and Miller, 1997). In the present study, we have found that PDGF induced a biphasic transient increase in [Ca²⁺]_int. The first phase occurred in the absence of external Ca²⁺, was completely abolished by thapsigargin pre-treatment and was unaffected by verapamil, indicating that the first phase was due to Ca²⁺ release from intracellular stores. The second phase was completely abolished by the SOCC inhibitors 2-APB and MRS-1845, and was unaffected by the VOCC inhibitor verapamil, indicating that SOCCs, but not VOCCs were involved in maintaining the elevated [Ca²⁺]_int characteristic of this phase. The store-operated Ca²⁺ influx was higher in JOE cells, indicating that the mechanism responsible for the effect of golli on OPC proliferation was mediated through an increase in Ca²⁺ influx through SOCCs. Recently, Cuddon et al. (2008) reported that PDGF activates store-operated Ca²⁺ entry in neuronal precursor cells, a finding that supports our data indicating that store-operated Ca²⁺ uptake is an essential component of the PDGF mitotic mechanism in OPCs.

Overstimulation of VOCCs induces apoptosis in JOE OPCs

The role of Ca²⁺ as a death trigger was discovered three decades ago in myocytes subjected to ischaemic insults (Fleckenstein et al., 1974). Since then, numerous studies have described that lethal influx of Ca²⁺ can occur in many cell types as a consequence of receptor overstimulation and exposure to cytotoxic agents (Orrenius et al., 2003). Oligodendroglial cells, like neurons, are vulnerable to Ca²⁺ overload resulting from dysregulation of ion channels or pumps, which triggers either apoptotic or necrotic cell death. Glutamate- and K⁺-mediated Ca²⁺ influx has been reported to cause oligodendrocyte death and myelin disruption, and may be implicated in multiple sclerosis and ischaemia. Other studies have shown that Ca²⁺ ionophores cause retraction of membrane sheets and necrosis in cultured oligodendrocytes and induction of vesicular demyelination in vivo (Schlaepfer, 1977; Benjamins and Nedelkoska, 1996; Smith and Hall, 1994).

Sustained Ca²⁺ increases that overwhelm extrusion and buffering mechanisms in oligodendrocytes trigger apoptosis. Excessive Ca²⁺ uptake can activate the mitochondrial pathway of apoptosis signalling. This requires permeabilization of the outer mitochondrial membrane and the release of pro-apoptotic mitochondrial proteins such as cytochrome c. Ultimately, the apoptotic cascade activates proteases such as caspases and calpains, which cleave numerous substrates including key components of the Ca²⁺ signalling system such as the plasma membrane Ca²⁺-ATPase (Paszty et al., 2002).

In the present study, we found increased apoptotic cell death in JOE cells under basal culture conditions and after high-K⁺ stimulation. JOE cell death could be prevented by the VOCC inhibitor verapamil, and disappeared in the absence of Ca²⁺, confirming that mechanisms involving Ca²⁺ influx via VOCCs are related directly to the effect of increased golli levels on OPC death. In contrast, opposite results were found in golli-KO cells; after high-K⁺ treatment, golli-KO OPCs were more resistant to apoptotic death.

To date, the role of VOCCs in oligodendrocyte death remains unclear. Earlier studies in models of optic nerve or spinal cord white matter anoxia showed that VOCCs participate in CNS white matter hypoxic injury (Fern et al., 1995; Fern, 1998; Imaizumi et al., 1999). Agrawal et al. (2000) examined the role of VOCCs in mediating post-traumatic axonal conduction abnormalities in an in vitro model. They showed physiological and immunohistochemical evidence, suggesting that traumatic spinal cord white matter injury is associated with Ca²⁺ influx through VOCCs expressed on periaxonal astrocytes and oligodendrocytes. These studies support the notion that a sustained rise in intracellular Ca²⁺ through VOCCs is a potential trigger for OPC/oligodendrocyte cell death leading to subsequent deleterious consequences on myelination.

In conclusion, the present study has shown that golli serves as a regulating molecule that modulates oligodendrocyte proliferation and death through two different classes of Ca²⁺ channels, SOCCs and VOCCs respectively. Golli action on cell proliferation seems to be mediated by Ca²⁺ influx initiated by the growth factor PDGF. The present study has not only underscored the importance of golli on OPC differentiation, but also revealed separate Ca²⁺ signalling pathways by which OPC proliferation and death may be regulated.
