Piezoelectric materials and systems for tissue engineering and implantable energy harvesting devices for biomedical applications

Background and context

The global observatory on donation and transplantation (GODT), the most comprehensive source of data on organ donation and transplantation worldwide, reported 153,863 annual organ transplants in 2019 at a rate of 17.5 organ transplants every hour [1]. This level is projected to increase in the short term at 6.25% between 2019 and 2024 [2]. Typically, the only treatment for organ failure is transplantation (World Health Organisation) [3], therefore, there is a significant need for biologically compatible sources of organs and tissues. Furthermore, many tissues, such as those found in the central nervous system (CNS), have no natural ability to regenerate [4,5]. Therefore, the production and restoration of damaged tissues and organs is a highly pertinent area of research.

Tissue engineering has been a paradigm shift in the field of regenerative medicine. The ability to construct systems which improve and encourage the restoration and maintenance of damaged tissues has the potential to save and improve the lives of hundreds of thousands of people worldwide. Within tissue engineering, the study of smart piezoelectric scaffolds has been a burgeoning field over the past decade, where there is a peak in publication frequency in the last five years, according to publications indexed by the Web of Science (Figure 1). While many recent reviews have provided in-depth synopses, they tend to be either tissue-specific [6–8] or focus on applications in the wider context of biomedical devices [9]. The most comprehensive reviews to date were by Ribeiro et al. [10] and Hossein et al. [11] in 2015, which provide overviews of piezoelectric materials and biomaterials, respectively, and provide an excellent introduction to both the background and the state-of-the-art in the field. Since the publication of these reviews there has been resurgence in research activity on these materials, along with the development in the techniques that demonstrate their promise and potential in the field of tissue engineering.OPEN IN VIEWER

This review will not only focus on this recent resurgence in research activity but will take a deeper examination of the analytical techniques employed for characterisation and the biomedical devices which utilise these emerging technologies for clinical applications. Since tissue engineering is a multidisciplinary field that combines the collective knowledge of biology, chemistry and engineering, this review presents a collective combination of piezoelectric biomaterials, tissue types and characterisation methods to bridge the gap between the areas of expertise.

Piezoelectricity

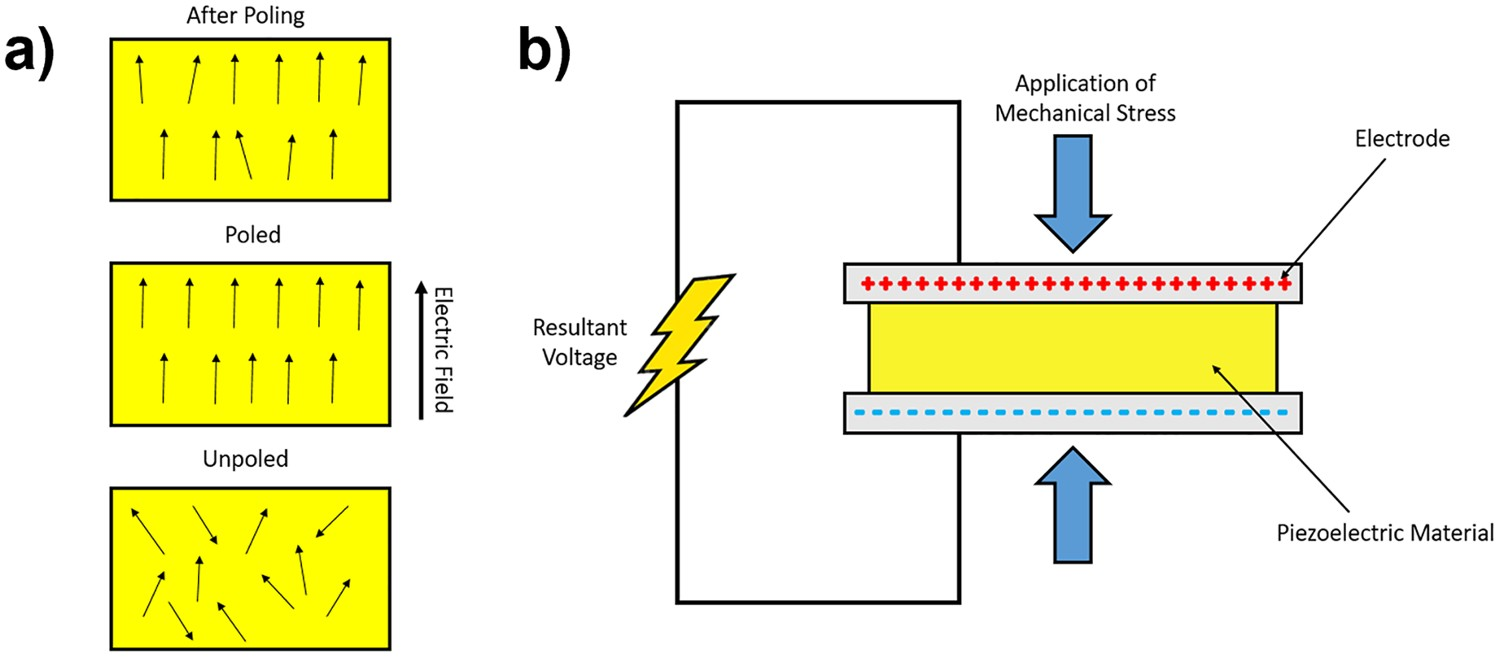

Piezoelectric materials are a class of materials that develop an electrical polarisation when strained through applied stress; this is termed the direct piezoelectric effect. Ferroelectric materials are a sub-class of piezoelectric materials whose polarisation direction can be switched by an externally applied electric field. Typically, to activate this response in a ferroelectric-based piezoelectric, the material has to be poled, by the application of a high electric field to align the dipoles (unit cells with inherent equal and opposite charges separated by a given distance). Scaffolds and biomedical devices fabricated from ferroelectric materials are, therefore, subjected to such a poling process before application. This is achieved by subjecting the materials to an electric field above the material’s coercive field (E_c ) and typically at elevated temperatures to facilitate dipole and domain alignment in the electric field direction, as in Figure 2(a), to overcome the multiplicity of randomly oriented domains within the material [12]. The electric field is maintained while the material is cooled down to room temperature and the poling field is then removed. This poling process leads to bulk polarisation and a net piezoelectric response. Following poling, the application of strain induces a charge and a transient current that can flow in an external circuit as a result of its change in polarisation [12], see Figure 2(b).OPEN IN VIEWER

Since the Curie temperature (T_c ) represents the upper temperature limit and tends to be over 100°C for typical ferroelectric ceramics, the loss of polarisation and piezoelectric properties at biological temperatures in not a significant concern; for example, for BaTiO₃ T_c ∼ 120°C, potassium sodium niobate (KNN) T_c ∼ 420°C and lead zirconate titanate (PZT) T_c ∼ 490°C. For non-ferroelectric piezoelectric materials, such as ZnO, the polarisation direction cannot be switched by an electric field; these materials are therefore typically used in single crystal or highly aligned form, such as nanowires (NWs), to achieve a net polarisation of the material.

The charge generated by a piezoelectric material can be defined by the coefficient d_ij and is characterised by the change of polarisation (C m⁻²) with applied stress (N m⁻²). This coefficient will be used throughout the review and used as a direct measure of a material’s piezoelectric potential, since it is a measure of the charge generated by an applied mechanical load, making it a useful parameter for quantifying the surface charge of the scaffolds in direct contact with tissue. In addition to the charge generated by the piezoelectric effect, the open-circuit voltage generated from applied stress can be determined by the g_ij coefficient, where g_ij  = d_ij /ϵ_ij where ϵ_ij is the permittivity of the material, making it a useful parameter when discussing the potential of biomedical sensing and energy harvesting devices.

Fundamentals of tissue engineering

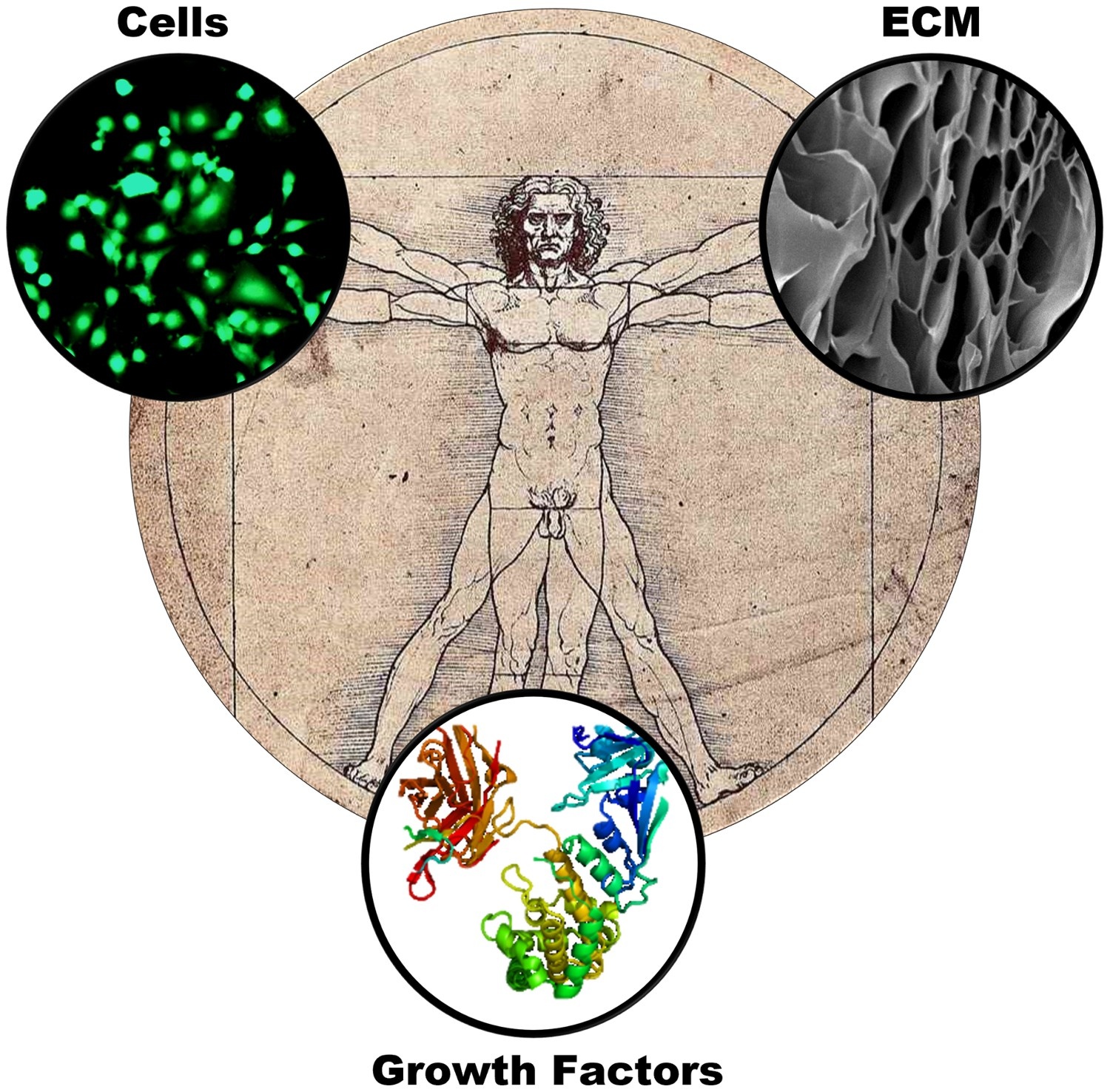

Tissue engineering is defined as ‘an interdisciplinary field that applies the principles of engineering and the life sciences toward the development of biological substitutes that restore, maintain, or improve tissue function’ [13] and is characterised by a triad of engineering disciplines: cell-based technologies, biomolecules/growth factors and extracellular environments/matrices. Figure 3 graphically illustrates this triad. In brief, cells are extracted and isolated via biopsy from a donor, they are then cultured in vitro, seeded onto a scaffold, typically with growth factors, proliferated (rapid cell number expansion by cell division) to form tissues and transplanted back into the host [14]. A key aspect of engineering cells in an extracellular environment is to create an optimum cell scaffolding using substrate materials which support cell attachment, proliferation and development.OPEN IN VIEWER

Mechanism of piezoelectric stimulation in mammalian cells

Cells have a natural difference in electric potential between the interior and exterior of the cell across the cell’s lipid bilayer, this is known as the transmembrane potential (V_mem ) and is maintained by the balance of inter- and extracellular ion concentrations. These potentials can regulate cell proliferation, migration and differentiation and are characteristic of different cell types [67]. The underlying hypothesis of piezoelectric-based tissue engineering is that these endogenous electric fields can be manipulated to facilitate effects that are beneficial to the regeneration of tissues.

To understand piezoelectric-based tissue engineering we must first understand the biochemical processes which facilitate the effects observed on cell behaviour. In 1972, Cone proposed a ‘unified theory for the basic mechanism of normal mitotic control’ (control of cell division and consequently ‘growth’) in which it was observed that V_mem in non-proliferating cells can act as an obstruction for mitosis, or its associated preparative events, but upon stimulation V_mem can be changed to levels appropriate for proliferation [68].

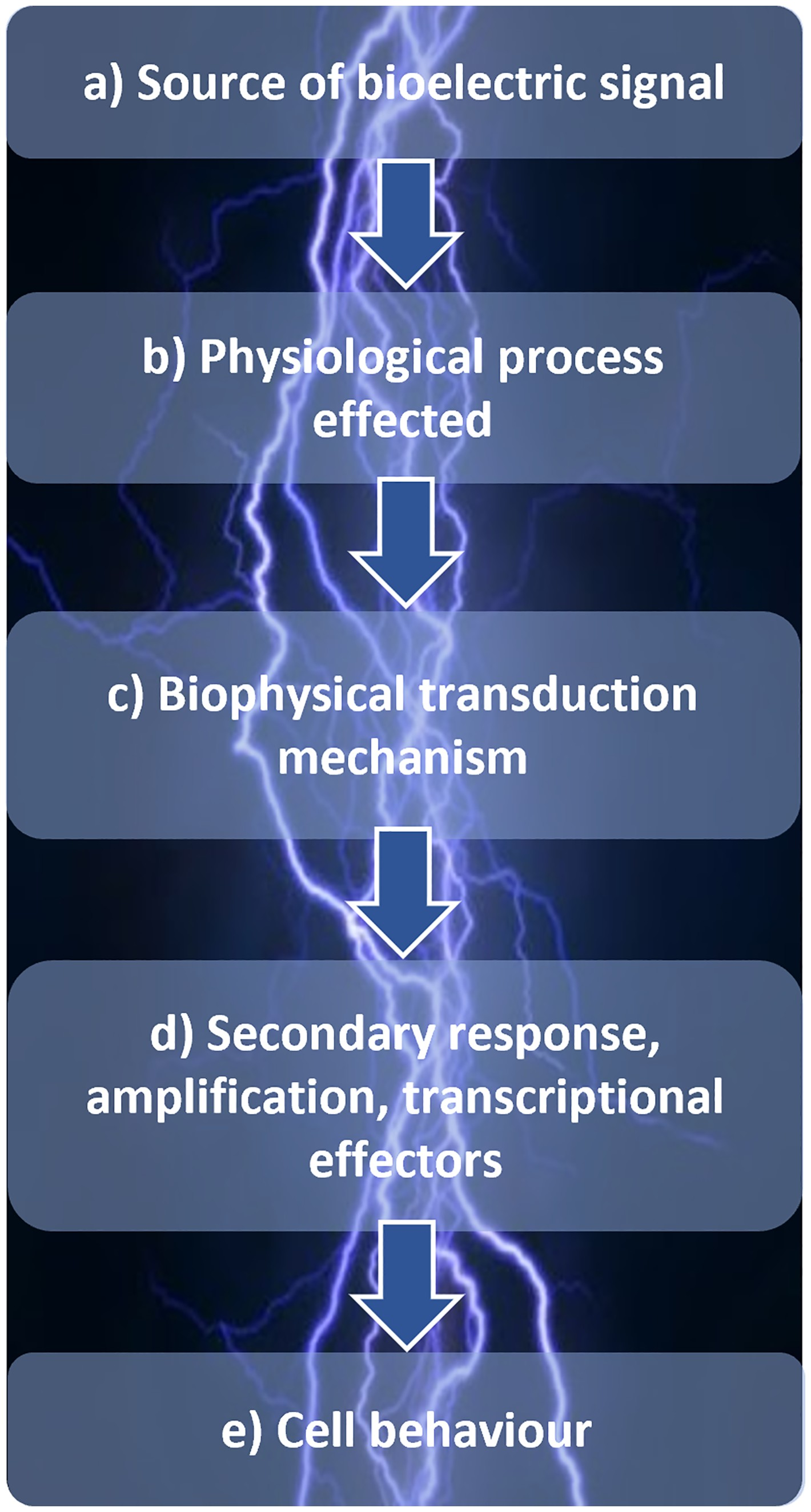

Sundelacruz et al. [67] outlined the bioelectric pathways which facilitate the modulation of cell proliferation and differentiation, as outlined in Figure 4. In brief, the initial bioelectrical event (ion transporters at cell membrane, transfer of ions and signalling molecules between cells and/or by breakage in epithelial sheet causing a transepithelial potential) (Figure 4(a)) induces a physiological response (membrane voltage, pH gradient, ion flux and/or electric field) (Figure 4(b)) which results in a variety of biochemical mechanisms (Ca ²⁺ influx, loss of intracellular K⁺, electro-osmosis, electrophoretic movement of signalling molecules and/or changes in membrane voltage gates) (Figure 4(c)) that trigger a secondary response that activate early response genes (genes which are activated rapidly and temporarily) (Figure 4(d)). This culminates in the modulation of cell behaviour whether that be cell number (proliferation or apoptosis) or cell pathway (differentiation or dedifferentiation) (Figure 4(e)). These biochemical cascades can be activated by changing V_mem , and importantly they can also be monitored by observing the biochemical and biophysical effects at differing stages of the cascade using a range of analytical techniques, many of which will be presented in this review. Therefore, piezoelectric materials, through the generation of an external ES, have the potential to change V_mem and consequently induce a response in cell behaviour such as apoptosis, proliferation and differentiation.OPEN IN VIEWER

Manufacture

For ferroelectric piezoceramics such as lead zirconate titanate (PZT) [69], barium titanate (BT) [70] or barium strontium titanate (BST) [71] the most common method of production is via solid-state/mechanochemical reaction. In brief, this involves two main processes, calcining and sintering. Calcining involves the reduction of precursor oxides by heat treatment, allowing ions of the reactants to inter-diffuse across their interfaces of the ceramics constituents [12]. This process is typically proceded and followed by milling to reduce particle size and maximise the interfacial surface area. Sintering involves heating the ceramic before the point of liquefaction to densify it, fusing the individual particles of ceramic to create a homogenous system. The driving force for the sintering process is the high surface area of the fine ceramic particles.

While common in the literature, solid-state synthesis is generally performed at high temperatures (∼800–1400°C), over long periods of time (hours) where volatile ion species make stoichiometric control of the ceramic unreliable [72]. A development that seeks to overcome this is microwave-based heating which drastically decreases calcining and sintering times [73], and can be used in combination with classical solid-state techniques [74–77].

The sol–gel method is another technique which features prominently in the literature in the synthesis of barium calcium zirconium titanate (BCZT) [78], ZnO [79] and PZT [80] based materials. It is a wet technique and has the distinct advantage of, not only being able to produce dense and porous materials, but can be used to coat other materials such as thin films or structures which contain nano-periodicity [81–83]. While this process has its distinct advantages, the sol–gel process is more complex than solid-state synthesis due to its larger variety of possible precursors and more intricate processing methodology. In brief, the sol–gel process involves a metal alkoxide (M[OR] _n ) or metal salt precursor solutions with the necessary ionic ratio undergoing hydrolysis and polycondensation, typically under acid or base catalysis (<100°C) forming a inorganic network (sol) [84,85]. Due to their propensity to lose their ligands during hydrolysis and thermal treatment, and their ability to produce highly pure hydrated oxide [86], metal alkoxides are the most common precursors. However, nitrates, acetates, stearates and oxides have also been utilised in the sol–gel process in the formation of piezoelectric ceramics such as BT [72]. The sol produced can be used to coat or cast using a mould forming a malleable wet-gel after rapid evaporation (<100°C), which then undergoes further drying to remove any remaining solvent to crystallise and shrink the gel network, thereby making the gel compact and similar to a conventionally sintered ceramic, but at low temperature (<150°C) [85]. To remove any excess organic substituent, the powder undergoes further heating (<500°C) to produce a dry-gel which can be sintered for further densification (∼1000–1400°C) [78,85]. In addition to the lower synthesis temperature and morphological variability, another key advantage of this process is its liquid phase, which provides a better and more homogenous reaction media compared to its pure solid-phase counterpart.

The hydrothermal process is another wet synthesis method used in the tissue engineering literature, which is primarily used to produce hydroxyapatite (HA) [78]; although it has been used in the production of a variety of ferroelectric piezoelectric ceramics, such as KNN [87], PZT [88] and BT [89,90]. The hydrothermal method, like the sol–gel process, utilises low processing temperatures (∼200°C) [87–90] and can be used to cast on a variety of substrates, but unlike the sol–gel process can produce thick films and piezoceramics with self-aligned structures, such as NWs and nano-rods [90–93]. The process involves the treatment of aqueous solutions or suspension of precursor chemicals (a mixture of inorganic powders and solutions) at an elevated temperature in a pressurised vessel, typically over 24 h [94]. A variety of precursor chemicals have been used including oxides, hydroxides, phosphates, nitrates and chlorides [78,87,90,95].

For the construction of reticulated porous structures, a foam skeleton can be utilised as a backbone on which ceramics can be built around. This approach is known as foam replication [96], and has been used in the literature for the construction of BT-gelatine/hydroxyapaptite (BT-Gel/HA) composites with a high volume of interconnected porosity [97]; although it is not limited to BT and has been used successfully with PZT [98] and HA [99,100]. During the foam replication of BT-Gel/HA, a polymer foam, polyurethane (PU), was coated in a ceramic slurry of BT in a polyvinyl alcohol (PVA) solution, after which the PU was burned away during heat treatment (350°C for 30 min) and sintered (1100–1400°C) [97]. The disadvantage of this technique is the mechanical fragility of the highly porous ceramic system [101], although the authors consolidated the ceramic by dip-coating and in situ precipitation with gelatine and HA, respectively, and cross-linking using glutaraldehyde vapour in order to improve water resistance [97].

Electrospinning is a promising technique for the introduction of nanoscale properties to a scaffold in order to mimic cells local ECM. Electrospinning involves the extrusion of fibres from a variety of polymer solution or melts at a high applied voltage (1–30 kV), charging the liquid body and utilising electrostatic repulsion to overcome the droplets surface tension to elongate it into a fibre, whose diameter is dependent of this applied voltage [102]. Fibre sizes can range from 3 nm to 5 μm, depending on the viscoelastic properties of the polymer and the electrostatic field applied to the extruder [103].

Scaffold characterisation

Each scaffold must be tested and evaluated in variety of different ways to determine its overall performance. This includes an evaluation of topological and chemical surface characterisation, cytotoxicity, biocompatibility, cell attachment and proliferation of cells on the materials surface, as well as a range of extensive cell assays and analyses for morphology, differentiation, protein and gene expression.

Cell internalisation

In the case of piezoelectric nanoparticles, cells must uptake the particles into their cytoplasm to allow stimulation to occur, this internalisation must therefore be confirmed and characterised. TEM is the primary technique used to visualise nanoparticles in the cytoplasm of (fixed) cells. In the literature, the resultant micrograph is described for boron nitride nanotubes (BNNT) as a ‘noncellular electron-dense material with cytoplasmatic vesicle localization, compatible in terms of appearance and size with the BNNTs’ [119] discerning the nanoparticles from the surrounding cell body.

Electron energy loss spectroscopy (EELS) can be used to identify the individual (light) chemical elements of internalised nanoparticles. EELS is an analytical technique which can determine the chemical or structural properties of a sample by exposing it to electrons of known kinetic energies in a given range, the change in kinetic energy due to elastic and inelastic scattering is measured and is indicative of the specimen’s properties.

Inductively coupled plasma mass spectrometry (ICP-MS) is a type of mass spectroscopy which utilises an argon plasma to ionise the material being tested, atomising the sample and producing polyatomic ions which can be detected and characterised by mass and charge. For materials internalised by cells, they must first go through the process of cell lysis, nitric acid treatment (to completely disrupt any organic component) and freeze drying.

Cell viability and proliferation

Cytocompatibility tends to be defined by two main factors in the literature, cell viability and activity/proliferation in the presence of the material. The most common cells viability test in the literature is a LIVE/DEAD assay. The LIVE/DEAD assay is a fluorescence-based assay technique that stains cells with two different colours to differentiate living and dead populations from each other. The most common of these is based on calcein acetoxymethyl (calcein-AM) as the LIVE stain, counterstained with ethidium bromide (EtBr) [119,120] or propidium iodide (PI) as the DEAD stain [121]. Calcein-AM is a non-fluorescent compound which can be transported through a cell’s membrane via diffusion into the cytoplasm of living cells where it can be hydrolysed by intracellular esterases to produce calcein, a strongly fluorescent compound retained in cells cytoplasm, appearing green [122]. In contrast, EtBr and PI are both non-membrane-permeable DNA intercalating agents which can only permeate the membranes of dying or dead cells that have undergone rupture or degradation of their cell membrane [123]; these dyes bind to nucleic acids in DNA and are thus indicative of cell death typically appearing red [122].

4′, 6-diamidino-2-phenylindole (DAPI) is another example of DNA bind staining, and is primarily used in cell counting. DAPI is a fluorescent probe which is typically used once cells are fixed, therefore excluding the need to duplicate samples by allowing multiple uses of the same cells [124].

Tetrazolium reduction assays such as MTT, MTS and WST-1 assays are a set of simple metabolic, colourimetric assays typical of those seen in the literature as a technique to derive the cells proliferation rate and viability through the measurement of its metabolic rate. These fall into two categories; the first which is a positively charged membrane-permeable tetrazolium salts such as MTT, these are converted to coloured formazans (absorbance ∼570 nm) by mitochondrial enzymes present in the living cell [125]. The second, such as MTS and WST-1, are negatively charged tetrazolium salts which cannot readily infiltrate cells, except in the presence of an intermediate membrane-permeable electron acceptor, where they can be reduced in the cells by mitochondrial enzymes [125]. Principally these all work in the same way, the reagents work colourimetrically and develop colour in response to cell activity (enzymatic reduction of the tetrazolium salt) that is directly proportional to the amount of viable and proliferating cells. This can then be measured by a spectrophotometer [126].

Apoptotic phenomenona, a form of programmed cell death, have been investigated using fluorescein isothiocyanate-labeled annexin V (annexin V-FITC) with PI, a red fluorescent DNA-intercalator. During early-stage apoptosis, most mammalian cells migrate phosphatidylserine from the inner face of the plasma membrane to the cell surface. Once at the surface, the phosphatidylserine can be stained with annexin V-FITC by the strong binding between the protein annexin and phosphatidylserine [127]. Necrotic cells are stained red, apoptotic cells in their early stages green, apoptotic cells both red and green and normal cells remain unstained.

Another important phenomenon to consider when understanding the longevity of cell life is the production and build-up of reactive oxygen species (ROS), which can be responsible for the damage of DNA and proteins and early cell apoptosis [128]. Fluorescent assays have been used to confirm ROS production and apoptotic phenomenon in the exposure of cells to a BNNT material. ROS production was detected using an assay based on 5-(and-6)- carboxy-2′,7′-dichlorodihydrofluorescein diacetate (carboxy-H₂ DCFDA), which is a commonly used fluorogenic marker for the detection of ROS in living cells [129]. The non-fluorescent stain permeates live cells and, when in contact with nonspecific ROS that are produced during oxidative stress, it oxidises the fluorescein compound and fluoresces green [129].

Finally, the wound-healing assay is a useful tool to understand the coordinated migration of a population of cells across a ‘wounded area’ and is specifically used to monitor the proliferation of fibroblasts (NIH/3T3) [105]. In brief, a cell-free area (wound) is created in a culture either mechanically, thermally or chemically, and cells then migrate into the gap and a sequence of representative images is taken over several hours or until a confluent layer is produced [130].

General cell differentiation

Cellular differentiation is the process in which cells gain features are specialised to their purpose, these specialisations are unique to individual cell types and therefore must be tested and quantified with an equally wide range of methodologies. Below, we outline those methodologies which specifically apply to the methods which characterise the differentiation of the cell-lines identified.

Reverse transcriptase polymerase chain reaction (RT-PCR) is a technique used to measure gene expression by reverse transcription of RNA to a complementary cDNA strand [131]. This can then be used as a template for PCR to produce millions/billions of copies of that specific strand for further study.

Western blot analysis, sometimes referred to as protein immunoblot analysis, is used to detect the expression of specific proteins. In brief, an extract of a protein source is taken from cell culture, this extract then undergoes gel electrophoresis to separate proteins by weight to provide an initial indication of the protein, although many others could be in the same weight band. The sample is then treated with monoclonal antibodies (antibodies are large Y-shaped proteins which binds to a specific protein/antigen), and this new antigen–antibody complex can be detected colourmetrically using chemiluminescence or fluorescence to quantify its abundance in the sample.

Cell bioactivity

As outlined in Mechanism of Piezoelectric Stimulation in Mammalian Cells , a key mechanism through which piezoelectric stimulation occurs is the modulation of V_mem , which is primarily achieved through influencing the dynamic of intracellular ions (Ca²⁺ and Na⁺). Intracellular Ca²⁺ dynamics have been monitored using fluorescence imaging in response to BNNT and ultrasound (US) stimulation [109]. Cells can be incubated with Fluo-4 AM, a non-fluorescent dye which cleaves to its fluorescent counterpart Fluo-4 inside cells and can bind to Ca²⁺ in situ. This dye can pass the cell membranes while being attached to Ca²⁺ and permeate ion channels [144], where the fluorescence can be measured in comparison to background fluorescence (ΔF/F ₀). This can similarly be performed for Na⁺ activity using CoroNa Green AM, a sodium ion-indicating dye [145].

Ciofani et al. also performed inhibitor studies, similar to those described in the subsection entitled Skeletal Muscle Cells , to block the mechano-sensitive ion channels of neuron-like SH-SY5Y cells using gentamicin, a mechano-sensitive cation channel blocker [146]. Another method to study the electrophysiology of cells is a patch clamp assay, a method used to study ionic currents in individual cells. The principle of this technique involves a glass pipette containing an electrolytic solution which seals and isolates a section of the cell membrane, and ion currents flowing through the channel can be recorded by an electrode connected to a highly sensitive amplifier [147].

In vivo Implantation

In vivo implantation of scaffolds serves as a model to monitor the effect of a scaffold on living tissues and therefore provides a useful insight into its power as a biomedical implant. Many studies have been performed on Sprague–Dawley (SD) and Wistar rats (WRs), which are species of rat specifically bred for scientific research. In general, in vivo implantation involves the introduction of a defect into a given specimens tissues, followed by the introduction of a scaffold to the damaged area and monitoring its regeneration over time.

Ribeiro et al. [148] performed prototypical in vivo studies on the femurs of four WR using electrospun PVDF. Two 3 mm large bone defects were made in each WR’s femur, after which the scaffolds were inserted, the wounds were sutured and the animals were returned to their cages. After four weeks, the animals were euthanised, and the femurs exhumed. The femurs were then prepared, fixed with formalin overnight, decalcified, dehydrated, embedded in paraffin to infiltrate the tissues and underwent histological analysis. The histological analysis involves a cross-sectional study of the given tissue for signs of disease by examination under a microscope. Haematoxylin and eosin (H&E) stain is typically used in this examination as the ‘gold standard’ in the pathological analysis [149].

On examination of the field as a whole, extensive studies have been undertaken into the effects of piezoelectric scaffolds on cells, which include a variety of cell and tissue types, and a range of piezoelectric materials. Due to the interdisciplinary nature of the field, there is a need for standardisation when assessing materials effectiveness. First and foremost is understanding the material properties of the scaffold. There is a distinct lack of dielectric characterisation (polarisation-electric field, impedance and piezoelectric coefficients) of these scaffolds, which provides a fundamental understanding of how these materials generate charge and voltage, especially in vitro or in vivo. Consequently, this results in a lack of electrochemical characterisation of the materials surface, which would provide a more fundamental understanding of the interface between cell and scaffold. In addition, while there are some reports on the piezoelectric charge coefficients (d_ij ) of the materials employed, few evaluate other relevant coefficients (such as g_ij voltage coefficients) resulting in a lack of a cohesive trend between the piezoelectric properties of the materials and improved cell and tissue outcomes.

Lead zirconate titanate (PZT)

Lead zirconate titanate (PZT) is among the most extensively studied ferroelectric/piezoelectric materials for energy harvesting devices and wireless sensors due to its high piezoelectric coefficient (d ₃₃), which range from d ₃₃ ∼ 200–620 pC/N [146–149]. Despite the high toxicity of PZT, due to the presence of Pb, the material has been investigated in tissue engineering to help elucidate the mechanisms which underpin piezoelectric stimulation.

Wen et al. [138] used a poled PZT ceramic with a piezoelectric coefficient of d ₃₃ ∼ 480 pC/N to modulate axonal growth in rat cortical neurons. Cells cultured on PZT slides showed a significant increase of more than 100% in axonal extension, compared to the control material but there was also a decrease of 20–40% in cell density. In a patch clamp assay, as described in Cell Bioactivity , PZT was observed to significantly increase both the frequency and amplitude of excitatory postsynaptic currents associated with increased influx of positively charged ions (Ca²⁺) compared to the control; thereby suggesting that piezoelectricity could be attributed to neuronal activity. Ca²⁺ ions are present in neurons and are involved in the growth of dendritic spines and axons [163–165]. Furthermore, immunocytochemistry confirmed a clear activation of the netrin–DCC interaction, which has been linked with neurite outgrowth [166]. However, the toxicity of PZT due to lead (Pb) can lead to serious health problems, even in low doses, and has prevented further studies. Nevertheless, this work has provided new insights and increased attention to developing lead-free systems, which will be described below.

Barium titanate (BT)

BT, another ferroelectric piezoceramic, provides a lead-free alternative with a relatively high piezoelectric coefficient of d ₃₃ ∼ 330 pC N⁻¹ [167] and low cytotoxicity [168]. Ciofani et al. feature prominently in the BT literature, utilising unpoled barium titanate nanoparticles (BTNP) to stimulate neuroblastoma (SH-SY5Y) both individually [109] and in a composite with P(VDF-TrFE) ferroelectric polymers [151]. Their earliest work in 2012 involved the stimulation of mesenchymal stem cells (MSCs) in order to enhance proliferation and differentiation, as well as elucidating the electrophysiological mechanism [169].

Barium titanate nanoparticles (BTNP)

In their work, Ciofani et al. [169] initially demonstrate the excellent cytocompatibility of their BTNP with MSCs up to 100 μg/mL in culture using viability (Live/Dead), especially early apoptotic phenomena (annexin V-FITC) and production of ROS (carboxy-H₂ DCFDA), and proliferation assays (WST-1). Interestingly, to stabilise the BTNP from forming large aggregates, due to their hydrophobicity, they were wrapped in glycol-chitosan (GC) which is a commonly used water-soluble encapsulating polymer in the burgeoning field of theranostics [170–173] and is frequently used due to its low toxicity, cytocompatibility and fast uptake by a variety of endocytic pathways [174].

The primary focus of their work was to study the effects of BTNP uptake on MSCs. After confirming NP internalisation by SEM and TEM, they monitored the influence of BTNP on the arrangement and mechanical properties of the cell’s cytoskeletons via staining for the microfilament monomeric subunit f-actin. These microfilaments are a system of protein filaments that constitute a cell’s cytoskeletons, and provide cells with mechanical strength, control of shape and a means to drive motion [175]. They used the staining of f-actin and AFM to determine the increased amounts of BTNP internalisation, which result in more cytoskeletal rearrangement and a stiffer cytoplasmic cell region. This was then correlated with an increase in HA deposition (quantified by OsteoImage), which is a clear indicator of osteogenesis. Furthermore, it has been reported that the regulation of the differential fate of MSCs to either adipocytes (fat cells) or osteoblasts is contingent on cell shape, more specifically its cytoskeletal tension and surrounding mechanical cues [176].OPEN IN VIEWER

Figure 7.

Scheme summarising all characterisation methods utilised to test piezoelectric scaffolds with respect to (a) cell viability and proliferation, (b) in vivo implantation, (c) material properties, (d) cell internalisation, (e) cell bioactivity and (f) differentiation.

OPEN IN VIEWER

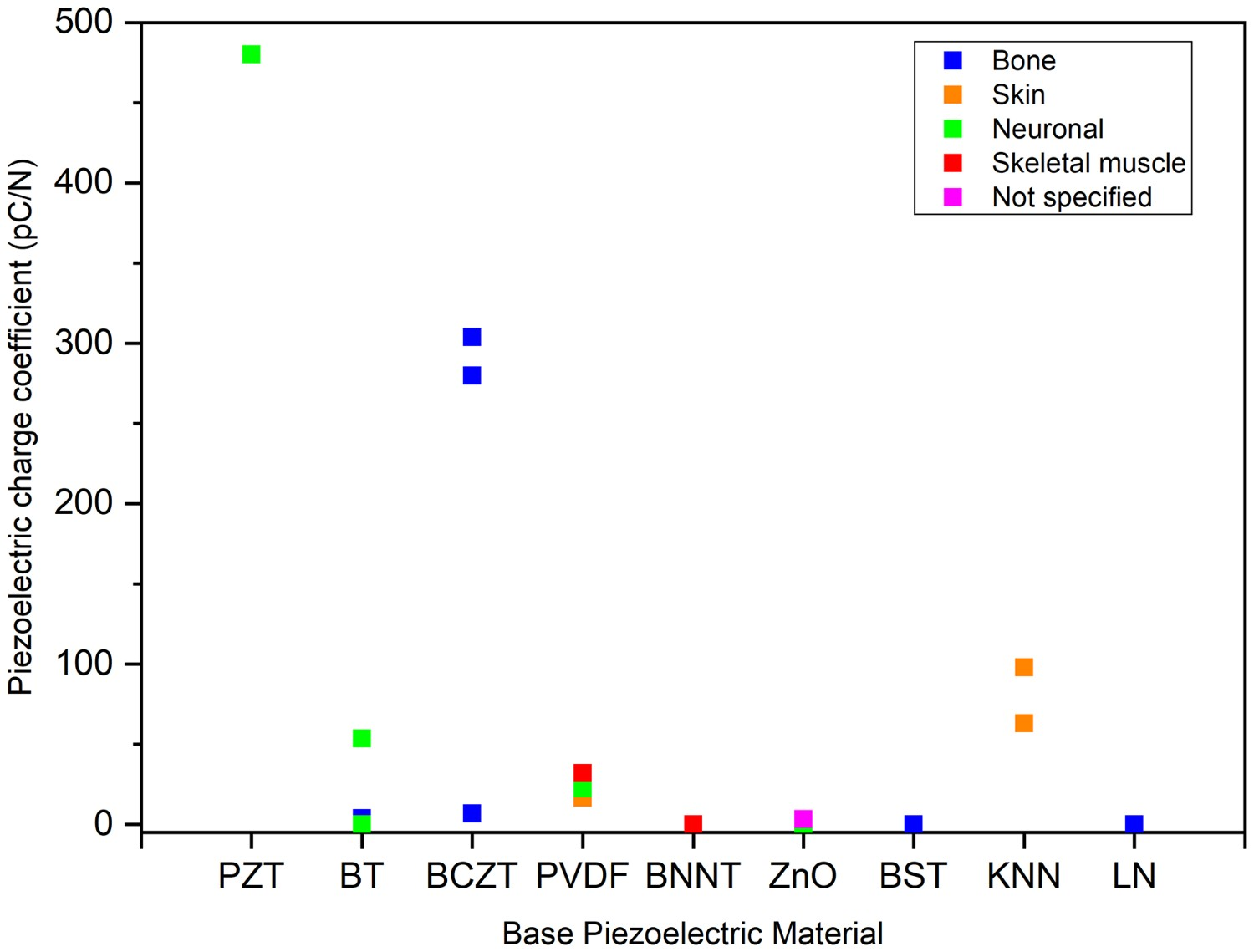

Figure 8.

Graph showing the trend of piezoelectric materials, their piezoelectric coefficients and their uses in the tissue engineering literature. PZT was utilised primarily on neuronal cell lines [138]. BT was utilised on bone [150,97] and neuronal cell lines [151]. BCZT was utilised primarily on bone cell lines [78,152]. PVDF was utilised on bone [148,156,153], skin [105], neuronal [157,158] and skeletal muscle [154,155] cell lines. BNNT was utilised on neuronal [119] and skeletal muscle [159] cell lines. ZnO was utilised on neuronal [160], skin [79] and cell lines and non-specifically [161]. BST was utilised primarily on bone cell lines [71]. KNN and LN were utilised primarily on skin [118] and bone [162] cell lines, respectively.

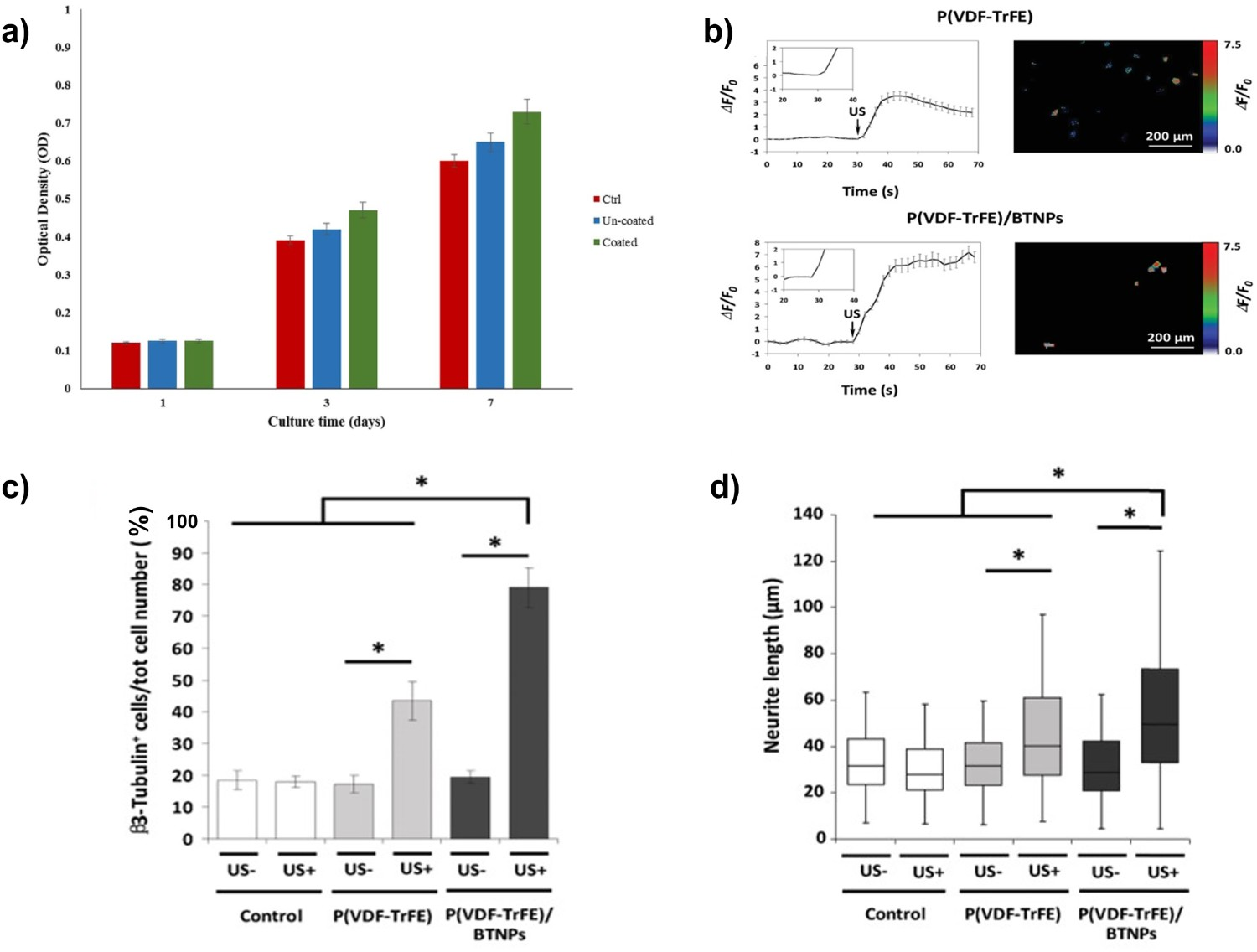

Ferroelectric BTNP with an asymmetric tetragonal crystal structure have been utilised to electrically stimulate neuron-like SH-SY5Y cells through the application of ultrasonic (US) stimulation to observe the effects on calcium and sodium influx [109]. CFM showed strong associations between BNTP (red) and SH-SY5Y’s plasma membrane (green), with no internalisation (Figure 9(a)). Under ultrasonic stimulation a high influx of Ca²⁺ and Na⁺ transience moving through ion channels was observed in cultures with BTNP when compared to cultures with no NP’s, with no transience under similar conditions (Figure 9(b)). A deeper investigation of this pathway performed with Ca²⁺ and Na⁺ ion channel inhibitors under stimulation shows that the transience in the uninhibited channel was greatly reduced in the presence of both inhibitors, with and without ultrasonic stimulation. The origin of Ca²⁺ was found to be stored in the endoplasmic reticulum (ER). The observation of high Ca²⁺ peaks (ΔF/F ₀) in the presence of gentamicin, a mechano-sensitive cation channel blocker [146], when compared to the lower peaks without BTNP, indicates that the effects observed under dynamic conditions are a result of piezoelectric stimulation of BT. This agrees with the lack of an observed response for non-ferroelectric and non-piezoelectric cubic BT crystals, whose transience was the same as ultrasound on its own. Furthermore, higher frequency ultrasonic stimulation was shown to increase local temperature [177] which causes the ER to release Ca²⁺ [178]. When tested, with an ER-specific heat-sensitive fluorescent dye, the application of ultrasonic stimulation was shown to increase the temperature of the ER by 1.66 ± 0.30°C and 1.68 ± 0.31°C with and without BTNP respectively, but no significant differences in the two conditions were seen. Ciofani et al. provided an interesting insight into the effects of piezoelectric stimulation, with their studies indicating that ferroelectric domains from the piezoelectrically active tetragonal phase of BT provide the means for stimulation of neuron-like cells. This raises a question for piezoelectric stimulation as to the distinction of ferroelectric and non-ferroelectric states vs poled/unpoled conditions and how they individually contribute stimulation of cells.OPEN IN VIEWER

Figure 9.

(a) Barium titanate nanoparticles (BTNP) characterised by confocal fluorescence microscopy of BTNPs associating with SHY5Y cells and cell's neurites. (b) Calcium imaging of SH-SY5Y-derived neurons in response to ultrasonic stimulation at 0.8 W cm−2 without BTNP and with BTNP [109]. (Reproduced from Ref [109] with permissions of American Chemical Society (Copyright 2018)).

Barium strontium titanate (BST)

BST is a ferroelectric ceramic and is particularly interesting since Sr²⁺ has been shown to stimulate proliferation of osteoblasts, while supressing the differentiation of osteoclasts, a type of bone cell which breaks down bone tissue [185]. Tariverdian et al. [71] integrated BST into 0–50 wt-% β-tricalcium phosphate (β-TCP), which is an osteoconductive matrix material that biodegrades into calcium and phosphorus ions that can facilitate osteoblast activity [186]. BST/β-TCP scaffolds were either pressed into disks or underwent 3D-printing by injecting the solution to produce a 3D interconnected macroporous structure. Density and compressive strength testing (uniaxial pressing) of the disks showed that a higher density correlated to increased compressive strength. However, the density varied in a non-linear manner due to the interaction of β-TCP on the composite grain boundaries. Finally, the dielectric constant/relative permittivity (ε_r ) of the composites (measured by an LCR meter) increased from ε_r ∼3 to ε_r ∼10⁴ as the BST content increased from 60 to 100 wt.%, in agreement with previous research [182,183].

The scaffold biodegradation rate was monitored under dynamic conditions in simulated body fluid by measuring the change in scaffold mass and the surrounding solution pH. Although pure BST showed a diminutive mass loss, the β-TCP composites showed not only steady degradation but an increase in degradation rate with an increase in β-TCP content. As the samples decreased in mass, there was an increase in pH as a result of the release of Ca²⁺ ions from the β-TCP (Ca₃[PO₄]₂) matrix. Galow et al. [187] reported that an alkaline pH (pH ∼ 8.0–8.4) increased the proliferation of osteoblasts, therefore an increase in alkalinity due to degradation could play a beneficial role in further enhancing bone regeneration. In addition, the surface bioactivity of scaffolds was characterised by the presence of HA deposition using SEM and energy-dispersive X-ray spectroscopy (EDX). Both methods showed the presence of apatite crystals and clear peaks in the EDX associated with crystals on the surface of all samples, except 100% BST. The amount of HA on the surface increased as the amount of β-TCP in the composite increased.

An MTT assay was performed on human bone marrow-derived mesenchymal stem cells (BM-hMSC) to assess scaffold cytotoxicity. Although all composites had a lower cytocompatibility compared to the control, the difference was not sufficiently large to regard the scaffolds are cytologically toxic. Light microscopy was then used with alizarin red staining on BM-hMSC to quantify mineralisation. It was observed that as the β-TCP level increases so does the intensity of the red stain, indicating an increase in mineralisation with the highest intensity observed for BST with 60 wt-% β-TCP. Finally, an ALP assay was performed on MG63 cells to determine osteoblast activity. Following testing, the BST with 60 wt-% β-TCP was observed to have the greatest ALP activity. This is likely due to the material having the highest β-TCP content as phosphate and calcium ions are important for ALP (section entitled Bone Cells ). It would be of interest in further work to compare these scaffolds to pure β-TCP and probe both ends of the compositional extremes.

Barium calcium zirconium titanate (BCZT)

BCZT has also been evaluated due to its ferroelectric and piezoelectric properties (d ₃₃ ∼ 650 pC/N) [188]. Poon et al. [189] prepared BCZT by a solid-state reaction and tested cell cytotoxicity and proliferation with primary human osteoblast (HOB) cells and primary human umbilical vein endothelial cells (HUVEC). Initially, the piezoelectric properties of BCZT were tested and a polarisation-electric field hysteresis loop was derived (Figure 11(a)) with piezoelectric coefficients of d ₃₃ ∼ 280 pC/N. The cytotoxicity and morphology of HOB and HUVEC were observed using a LIVE/DEAD assay and compared to polystyrene (PS), a widely accepted polymer surface for cell culture [190]. For all scaffolds, both cell lines presented well-spread filopodia, but significantly more HOB cells were detected with BZCT scaffolds compared to a PS control. Following this, cell viability was determined by the WST assay where consistently high cell viability was seen for the BCZT scaffolds for both cell lines compared to PS (Figure 11(b)). Cell proliferation was measured using a cell counter (Scepter™ 2.0) (Figure 11(c)). HUVECs and HOB cells both showed consistent proliferation over the initial 7 days, but this decreased towards the end of the study at 10 days, while PS showed a consistent cell number increase over the whole testing period for both cell types.OPEN IN VIEWER

Manohar et al. [78] produced BCZT-HA composites of varying compositions (10–50 wt.% BCZT) via hydrothermal and sol–gel synthetic routes for HA and BCZT, respectively. The composites were poled, but only pristine BCZT (d ₃₃ ∼ 304 pC/N) and 50:50 HA-BCZT (d ₃₃ ∼ 7 pC/N) showed measurable d ₃₃ values. The effect of the composites on proliferation was quantified colourimetrically by an MTT assay test using an MC3T3 cell line on unpoled scaffolds of varying weight ratios. For all weight ratios, the composites showed greater cell proliferation compared to pristine HA, with the highest proliferation observed at 10 wt-% BCZT, see Figure 11(d). It would be of interest to repeat these studies on poled composites at both extremes of high and low d ₃₃ values to explore the link between piezoelectric activity (d ₃₃ magnitude) and cell response. It would also be of critical importance to perform dielectric characterisation to determine why composites with up to 90% BCZT loading showed no measurable d ₃₃ coefficients, when similar composites made with BT showed high piezoelectric coefficients of d ₃₃ ∼ 57.8 ± 10.8 pC/N [191].

Polyvinylidene fluoride (PVDF)

Discovered by Professor Heiji Kawai in 1969 [192], PVDF is a flexible, non-toxic ferroelectric polymer [193] that has found prominence in the biomedical field for sensing [194–198] and as a scaffold for tissue engineering [199–201]. Although PVDF does not have the high piezoelectric d ₃₃ charge coefficient of the ferroelectric ceramics, it has the advantage of being a polymer, and is therefore easily processable [202] and can be flexible and formed into a variety of 3D structures [203]. It is therefore adaptable for use on different kinds of tissues that require different mechanical and topological properties. The low permittivity of the material also leads to relatively high voltage coefficients, g_ij  = d_ij /ϵ_ij . Ribeiro et al. have assessed PVDF both in vitro and in vivo, demonstrating its capabilities for tissue engineering for bone and muscle cell lines.

Ribeiro et al. [153] monitored the cellular response of MC3T3-E1 on poled and unpoled PVDF (d ₃₃ ∼ −32pC N⁻¹), with and without a titanium electrode layer (∼ 30 nm). They grew cells on the positively poled (+) PVDF surface, as studies have shown that osteoblast cells show better adhesion to and proliferation on the positively charged surfaces of hydroxyapatite, a naturally occurring mineral found in bones [204,205]. Surface characterisation (AFM and WCA) showed the titanium layer increased surface roughness and decreased wettability, while (+) poling proved to produce the most hydrophilic scaffolds. MC3T3-E1 cell viability was validated (LIVE/DEAD assay) and MTT assay was performed under both static and dynamic conditions (1 Hz). Following the testing period, the poled (+) PVDF under static conditions had the greatest proliferation rate with and without a titanium electrode. However, throughout the initial stages of the study during days 1–3, the (+) PVDF that was subjected to dynamic stimulation showed significantly improved proliferation compared to all other groups tested.

Similarly, Ribeiro et al. [154] also reported the response of C2C12 myoblast cells on poled and unpoled PVDF of varying morphologies such as films, aligned fibres and randomly oriented fibres. The LIVE/DEAD assay showed high cell viability on all scaffolds and cells clearly aligned on scaffolds that were fibrous. Moreover, fluoresce microscopy (DAPI) showed that the poled scaffolds showed the highest cell adhesion and proliferation, with the (−) poled scaffold performing the best. These results were mirrored following MTS activity assay (see Cell Viability and Proliferation), as shown. Both the unpoled aligned and randomly oriented fibres showed elongated cell morphologies along their fibre length under SEM. This degree of directionality is highly useful for muscle tissue growth. However, they also showed the lowest proliferation and activity compared to the glass control. It is of interest to note that WCA measurements showed the (–) and (+) poled scaffolds to be the most hydrophilic with contact angles of 45.0° and 51.3°, respectively.

Ribeiro et al. [155] subsequently undertook further in vitro studies with PVDF (d ₃₃ ∼ −32 pC/N) on C2C12 myoblasts using immunofluorescence stain in characterisation to analyse the presence of MHCs and determine the degree of cell maturation in two different growth media. They used basal medium (BM), a general cell growth medium that supports cell growth in mammalian cells, and differentiation media (DM) to enhance myoblast differentiation. All samples showed a clear presence of MHC, indicating that even without DM the PVDF was sufficient to promote myogenic differentiation. This differentiation was further quantified as a function of fusion index and maturation index, where the poled PVDF performed the best in respective measurements. The positively poled PVDF had the highest fusion index in both media, while both positively and negatively poled surfaces showed similar maturation indices. Studies on average myotube length, diameter and density were also undertaken since the myotube size is closely related to the contractile force generation of muscle tissue, which is a key parameter for good muscle tissue function [134]. Overall, the poled scaffolds led to the longest myotubes, with and without DM in respective studies, and the myotube diameter was generally the same, except for a large mean diameter in the control cultures.

Stem cells have a great potential in the field of tissue engineering but one of their key drawbacks is their scarcity in the human body, since they are typically derived from bone marrow MSCs which are only 1/34,000 of the cells population [155,206]. Ribeiro et al. [156] attempted to overcome the scarcity of this typical stem cell source by stimulating adipose-derived stem cells (ADSC) which occur at a higher frequency of 1/50 [207]. Ribeiro et al. [156] also utilised PVDF (d ₃₃ ∼ −32 pC/N)-coated with fibronectin (both covalently and non-covalently) to stimulate human adipose stem cells (hASC) and promote osteogenic proliferation. Osteogenic differentiation was quantified by ALP activity assays under both static and dynamic conditions in a bioreactor (Figure 12(a)) (1 Hz, 1 mm amplitude) in both BM and an osteogenic medium (OM). The highest ALP activity was seen in those cells grown in OM under static and dynamic conditions, in most cases and conditions the (−) poled scaffolds performed the best, although this was difficult to assess due to the lack of a control material. This is particularly important in the context of previous studies by Ribeiro et al. when PVDF has been shown to perform less well than glass during MTS studies performed on MC3T3-E1, a pre-osteoblast cell line [208] and to have performed similarly to glass during MTT studies on MC3T3-E1, an osteoblastic cell line [209].OPEN IN VIEWER

This investigation was in agreement with Li et al. [210] who proposed a PVDF scaffold for pre-differentiated ADSC for peripheral nervous system damage repair. Conductive scaffolds have been shown to enhance neural differentiation of stem cells [211–213], more importantly, this has recently been shown on ADSC [214,215] and well as differentiation into other cell lines such as osteoblasts [216].

Ribeiro et al. [148] performed in vivo studies on four WRs (Figure 12(b)) using electrospun PVDF (fibre diameters of 500 nm with a d ₃₃ ∼ −24 pC/N). Upon defect introduction, the degree of regeneration was quantified by obtaining cross-section images through the site of the defect. Non-poled PVDF showed no regeneration around the defect (Figure 12(c)) and was worse than that of the control with no scaffold (Figure 12(d)). In comparison, the poled PVDF scaffolds (Figure 12(e)) showed the formation of bone marrow and trabecular bone, which almost filled the whole defect. Randomly oriented PVDF fibres showed advanced regeneration with cell infiltration of the porous structure of the spun system, but with some inflammatory cell infiltration (Figure 12(f)). However, both spun and unspun (poled and unpoled) materials were shown to have improved regeneration compared to no scaffold.

Hoop et al. [157] studied the effect of PVDF (d ₃₃ ∼ −30 ± 2 pC/N) and ultrasound stimulation on neuron-like PC12 cells in order to elucidate the mechanism of piezoelectric stimulation. β-PVDF was compared to non-ferroelectric and non-piezoelectric α-PVDF and tissue culture plastic (TCP) as controls, and all were treated in poly-L-lysine to increase cell adhesion. PC12 cell cultures were exposed to ultrasound and compared to unstimulated cultures as a negative control and NGF was used as a positive control. A phase-contrast microscopy was used to monitor neurite outgrowth. In these studies, only neurites 10 μm or larger were considered differentiated neurites. The only significant outgrowth was seen for the cells grown with NGF (34.5± 9.5 μm) and on poled and ultrasonically stimulated β-PVDF (22.9 ± 6.8 μm), see Figure 13(a).OPEN IN VIEWER

Inhibitory studies were then performed to determine the mechanism by which piezoelectric stimulation occurs. PC12 cultures were treated with three inhibitors K525a and roscovitine (RV), to block NGF-specific pathways (Figure 13(b,c)) and LaCl₃, a nonspecific calcium ion channel blocker (Figure 13(d)) that has been observed to completely inhibit electrically induced differentiation [143]. K252a and RV inhibited NGF-treated PC12 cells, decreasing the average neurite length. K252a completely inhibited any differentiation and RV mainly reduced neurite growth, while LaCl₃ partially decreased neurite length (Figure 13(e)). For the stimulated PC12s, K252a and RV had no effect on neurite growth, but LaCl₃ significantly reduced average neurite length, indicating the positive effects of piezoelectric stimulation are likely to be due to the activation of calcium channels (Figure 13(f)). Finally, Hoop et al. tested ultrasonically stimulated β-PVDF with NGF to determine if any synergistic effects occur, but they found no significant increase in neurite length compared to NGF alone (Figure 13(g)), indicating that mutual activation of these independent pathways does not affect ‘differentiation efficiency’ [157].

Royo-Gascon et al. [158] tested the effects of PVDF (d ₃₁ ∼ 22.6 ± 1.2 pC/N) on a mixed culture of spinal cord neurons obtained from rat embryos. Following rheological analysis, the voltage output across the 20 μm films was found to peak at 52 mV under experimental conditions, using culture plates filled with water. Proceeding cell culture, the PVDF was coated in poly-D-lysine. Poled and unpoled PVDF films were then tested with and without mechanical stimulation (via a mechanical vibration isolation platform), neurons were stained for MAP2 and underwent fluoresce microscopy. Neurons with ≥180° of spatial freedom were analysed for better identification of individual neurons and to eliminate contributions of potential cell–cell interactions. Neurons were then imaged and the branching points, terminal points and total number of neurites and neuronal density were analysed.

Although the vibrational conditions had little effect on cells grown on the non-poled films, the poled films showed an increase in branching points (116%), number of terminal points (84%) and neurites (79%) during vibration. This was similarly reflected in neuronal density measurements, while mechanical stimulation reduced the density of neurons on non-poled PVDF, it greatly increased the cell density on poled samples (115%). The neurite number as a function of branching order on the poled materials showed an increase in all orders of branching complexity measured when the vibrational stimulation was applied. Sholl analysis [217] was used to quantify the number of dendric branches at the point which a neuron splits into new dendric trees (intersection points). The unpoled films, both stimulated and non-stimulated, showed few neurites after 75 μM of a dendric branch, while the piezoelectric films showed neurites significantly further up the dendric branch (100 μM) and more intersections than those on the stimulated unpoled films.

Guo et al. [105] prepared polyurethane/polyvinylidenefluoride (PU/PVDF) scaffolds via electrospinning for both in vitro studies on NIH/3T3 fibroblast and in vivo studies on SD rats. The mechanical and piezoelectric properties of the scaffolds were characterised for a variety of different PU:PVDF compositions/ratios (1:3 to 3:1) and a ratio of 1:1 was determined to be the most optimal due to a balance of piezoelectric properties (d ₃₃ determined by thin/thick film piezoelectric analyzer) and mechanical properties (tensile strength and elongation at break determined by UTM). The proliferating NIH/3T3 fibroblast cells on PU/PVDF had normal cell morphology, from SEM and LSCM, indicated by secretion of the ECM, proliferation and forming of a cell layer that covered almost the whole scaffold. Cell viability and proliferation were measured colourimetrically using a WST-8 assay and were comparable to TCP. A wound-healing assay was performed to monitor cell migration under dynamic stimulation provided by a computer-regulated bioreactor and the wound healing rate was measured periodically. It was observed that the PU/PVDF scaffolds that were subjected to dynamic stimulation showed the most rapid wound healing. After 24 h, the poled and stimulated scaffolds showed a confluence of 100%, compared to the control scaffolds (unpoled and stimulated PU/PVDF, and dynamically stimulated PU) which both had a confluence ∼ 50%. Similar effects were also observed with respect to cell attachment. Under dynamic stimulation, 1.6 times as many cells adhered to the surface of the PU/PVDF scaffolds compared to the control scaffolds.

RT-PCR and WBA were used to quantify the mRNA expression levels and specific proteins relevant to cell upkeep; collagen type I (Colla1), elastin (Eln) and fibronectin 1 (Fn1). In all cases, the stimulated, poled PU/PVDF scaffolds expressed the highest levels of all proteins compared to the control scaffolds. In vivo testing was performed on SD rats where the PU and PU/PVDF scaffolds were implanted in the vertex, abdomen and the back of the rats and subjected to different degrees of bending. During testing, no signs of systematic or neurological toxicity were detected. Cells were stained with H&E and characterised by flow cytometry, which showed primarily fibroblasts in all regions. Samples taken in vivo were then compared by level of fibrosis (wound healing) where in all cases the PU/PVDF scaffolds proved superior with respect to wound healing. The fibrosis levels of PU/PVDF scaffolds implanted in the back and abdomen were comparable to those found in the vertex, which naturally has a richer blood supply but undergoes much less deformation than the other regions due to its role in supporting the cranium.

Boron nitride (BN)

Ciofani et al. have promoted the use of non-ferroelectric piezoelectric BNNT for both in vitro [119–218] and in vivo [219] testing and use on freshwater flatworms [220]. They utilised stable dispersions of BNNT-glycol-chitosan (GC) to stimulate PC12 and SH-SY5Y cells and monitor neurite outgrowth and differentiation, respectively (Figure 14(a)) [221]. Following analysis and confirmation of cellular internalisation of BNNT (TEM and EELS), PC12 cytocompatibility was evaluated (using LIVE/DEAD, apoptotic analysis, ROS detection and WST-1 viability assay) showing high levels of cytocompatibility of up to 50 μg/mL.OPEN IN VIEWER

PC12 cultures were subjected to ultrasound (US) in the presence of varying amounts of BNNT (0, 5 and 10 μg/mL) to observe neurite growth, neuronal processes and the number of differentiated cells in culture. Differentiation was observed with fluorescence microscopy and both stimulated and unstimulated cultures did not differ in differentiation compared to the control. With respect to neuronal processes and neurite length, the cultures that were incubated with both BNNT and US stimulation (BNNT + US) had, on average, more and longer neurites (30% longer), see Figure 14(b,c). To clarify the mechanism underlying these observations, inhibitory studies were performed using K252a and LaCl₃, after which their differentiation status was evaluated. Cultures treated with K252a had poor differentiation (5–10%) until treated with a combination of BNNT + US where differentiation increased significantly (∼25%). Similarly, neurite growth exhibited a large increase (∼ 8 to 20 μm) for cultures treated with BNNT + US compared to all others conditions tested. Differentiation was lower in the cultures treated with K252a. However, the LaCl₃ studies showed no significant difference with respect to number of differentiated cells or neurites; a notable increase in neurite length (∼15%) was observed when cells were treated with BNNT + US, although these neurites were much smaller than in cultures without LaCl₃.

Studies were also performed on SH-SY5Y cells, which can be differentiated through a route that does not involve the NGF-activated TrkA pathway [222,223]. This allows further probing of the mechanism of electrically induced stimulation. All cultures tested showed similar and moderate amounts of differentiation (∼ 40%) and no difference in number of neurites. However, those treated with BNNT + US showed a large increase in neurite length (∼30%), indicating the significant effects of piezoelectric stimulation, even without the induction of the TrkA pathway.

Ricott et al. [159] utilised BNNT for the stimulation of normal human dermal fibroblasts (nHDF) and skeletal muscle (C2C12 myoblasts) co-cultures on micro-grooved polyacrylamide gels. The C2C12 cells were seeded on top of the nHDF. BNNT cell internalisation was confirmed and quantified by ICP-MS, TEM and EELS where BNNT were found in both early and mature endosomes (membrane-bound vesicles that function to internalise and transport materials in the cell membrane) in C2C12, but not in the nHDF layer beneath it. In vitro genetic analysis for the expression of 10 genes associated with skeletal muscle differentiation was evaluated using RT-PCR, both at the early stages and at the end of the study. Early cultures treated with BNNT + US showed increases in expression of myogenin and MLP, which are two genes that play key roles in myogenesis and MYH2 which is a late differentiation marker indicating an acceleration in differentiation. No significant increase was seen for those genes encoding the production of ECM protein, see Figure 14(d). This was mirrored by an increase in fusion index for those samples exposed by BNNT + US (Figure 14(e,f)). Late stage cultures treated with BNNT + US showed a higher expression of genes that were associated with proteins that are key for motor function in muscle contraction (myosin and α-actinin) and an almost complete switching-off of genes related to early-stage differentiation, indicating that cells have reached maturity. This was performed in tandem with fluoresce immunostaining of myosin and α-actinin, thereby confirming cultures treated with BNNT + US had larger multinucleated myotubes with more peripheral nuclei, a key indicator of advanced differentiation.

Zinc oxide (ZnO)

Zinc oxide (ZnO) is a non-ferroelectric piezoelectric material that is highly prevalent in the biomedical literature [224] due to its antibacterial [225,226], antimicrobial [227,228] and antifungal [229,230] properties. ZnO nanoparticles are used in bioimaging as photoluminescent [231] as well as a pharmaceutical carrier of chemotherapeutic [232,233]. Furthermore, it is a non-ferroelectric material that is inherently piezoelectric, due to its non-centrosymmetric wurtzite crystal structure, and therefore does not require poling to exhibit piezoelectric properties when used in single crystal or highly textured form [234]. Despite this, there are limited studies on the application of this material in the field of tissue engineering as opposed to its lead-free ferroelectric ceramic counterparts. This is possibly due to its potential cytotoxicity [235–237], and that is why ZnO-based scaffolds are often encapsulated in a polymer matrix.

Seil and Webster [160] utilised polyurethane, zinc oxide nanoparticle composites (ZnO-PU) of varying ZnO weight ratios to decrease astroglial cell density. Reactive astrocytes (those which reacting to CNS damage, form ‘glial scars’ during the wound healing process) are vital during healing to provide a physical and molecular barrier to inflammation, protecting the remaining fragile tissues [238]. However, this scarring comes at a cost of being highly obstructive to regrowth of major axon projection pathways [239]. Therefore, at the site of injury, it can be pertinent to limit astrocyte growth to better allow overall CNS regeneration. The authors hypothesise that the differing surface roughness and resulting surface energies result in differing protein surface absorption, which in turn create different environments for cells. Following surface analysis (SEM, XPS, surface energy and wettability), proliferation was quantified using fluorescence microscopy and generally showed a reduction in both astrocyte adhesion and proliferation as ZnO particle concentration increased (Figure 15).OPEN IN VIEWER

Amna et al. [79] evaluated the cytocompatibility of electrospun ZnO-PU composites using NIH 3T3 fibroblasts. Following morphological (field emission-SEM) and compositional analyses (XRD, EDX, TEM, electron probe microanalysis and FTIR), scaffold cytocompatibility was determined by the MTT assay and was considered to be non-toxic. Furthermore, cell morphology on the nanofibres, both pristine and doped, was analysed (SEM) showing that fibroblast growth was more active on the ZnO-doped composite compared to the pristine PU and healthy fibroblast proliferation, with no stress-related cells was observed on both scaffolds. This was further elucidated using LIVE/DEAD staining. While both pristine and doped scaffolds showed no dead cells , the doped scaffolds showed a much higher density of cells.

Recent work has utilised ZnO thin films sputtered on a polyethylene terephthalate (PET) polymer matrix [161]. While yet to be tested on cells, the materials exhibit good piezoelectric coefficients (d ₃₃ ∼ 3.2–3.6 pC/N), uniform nucleation on the top of the substrate, high stability and good substrate adhesion.

Potassium sodium niobate (KNN)

Potassium sodium niobate (KNN) is another ferroelectric material seeking to replace lead-based piezoelectric ceramics due to increasingly strict enforced environmental regulations against the use of lead-based materials in electronic devices [240,241]. Kuo et al. [118] prepared KNN (d ₃₃ ∼ 63 pC/N) and 6 mol-% Li-doped LKNN (d ₃₃ ∼ 98 pC/N) for evaluation of cytotoxicity and degradation (in saline solution) using L929 mouse fibroblasts. The ceramics were prepared by typical solid-state reaction and underwent analysis of mechanical properties (elastic moduli and biaxial strength) following and proceeding soaking where the elastic modulus of KNN was found to decrease (19%) and SEM revealed cracks on the materials surface, while the KNLN increased in strength (15%).

During the soaking period of LKNN’s, the d ₃₃ coefficient greatly decreased (30%), falling below that of KNN whose d ₃₃ increased (19%) halfway through the soaking period. The authors commented on this unusual change in piezoelectric behaviour, stating that LKNN’s two morphological phases (monoclinic and tetragonal), confirmed by XRD, compared to KNN’s single monoclinic phase, allow for more dipole directions and therefore a larger d ₃₃ . However, the significant Li⁺ ion release from the LKNN, that was confirmed, results in structural distortions and a decrease in d ₃₃. Degradation was monitored as a function of pH and ion concentration in solution (ICP-AES). Generally, the pH of the surrounding environment of a cell is of great importance to cell growth. For fibroblasts, a reduction in intracellular pH inhibits cell growth via anchorage-independent growth pathways [242]. Therefore, it is logical that the material which maintained the most alkaline environment would be the most beneficial. The normal saline solution decreased in pH over time (pH = 6.7–5.6) as CO₂ from the air dissolved into it, while LKNN followed a similar trend to normal saline (pH = 6.4–5.6) and KNN had a higher pH (pH = 7.0–5.7) than both solutions. The ion concentrations of K⁺, Na⁺, Nb⁵⁺ and/or Li⁺ in the solution (ppm) were determined and initially, large amounts of K⁺ and Na⁺ were released from both KNN and LKNN. However, KNN showed a slightly higher concentration of both ions. The concentration of Nb⁵⁺ remained consistently low for both samples and while LKNN had a small percentage of Li present (6 mol-%) the amount of Li⁺ in the solution was an order of magnitude larger than Nb⁵⁺, indicating the high solubility of Li⁺.

Cytotoxic evaluation (MTT assay) was performed in accordance with the international standard for pre-market materials cytotoxicity (ISO10993-5) [243] and showed that for the raw extracted cells KNN had a much higher viability (84%) than LKNN (58%) which the authors ascribe to a change in pH. Following adjustment for pH, the viability of both KNN (79%) and LKNN (72%) remains relatively high, thereby indicating both materials are not directly harmful to cell viability.

As a final example, Carville et al. [162] showed ferroelectric polarisation of lithium niobate wafers improves osteoblast proliferation (Figure 16(a)) and cell mineralisation (Figure 16(b)) of MC3T3 on both positively (+z) and negatively (−z) charged surfaces compared to unpoled lithium niobate wafers. The next section will now focus on examples of piezoelectric-based biomedical devices.OPEN IN VIEWER

These observations indicate a range of piezoelectric materials having positive effects on a variety of cells and tissue, but there is currently no clear implication of how the magnitude of piezoelectric activity effects cells differently. While it is worth noting that reports which actively stimulate their materials (Ciofani et al. [169,221], Genchi et al. [151], Ribeiro et al. [209], Hoop et al. [157], Guo et al. [105] and Ricott et al. [159]) all show positive outcomes for cell in vitro. These observations are particularly relevant since the application of dynamic loads leads to charge generation during each stress cycle and indicates that stimulation is needed to continually change the polarisation of the material and develop charge to piezoelectrically stimulate cells. A detailed understanding of how specific piezoelectric properties, such as d_ij charge coefficients or g_ij voltage coefficients, affect cells and tissues is currently not available. An examination of these research questions would allow the field to quantifying how, and to what extent, piezoelectric stimulation directly affects cells.

Lead-based implants

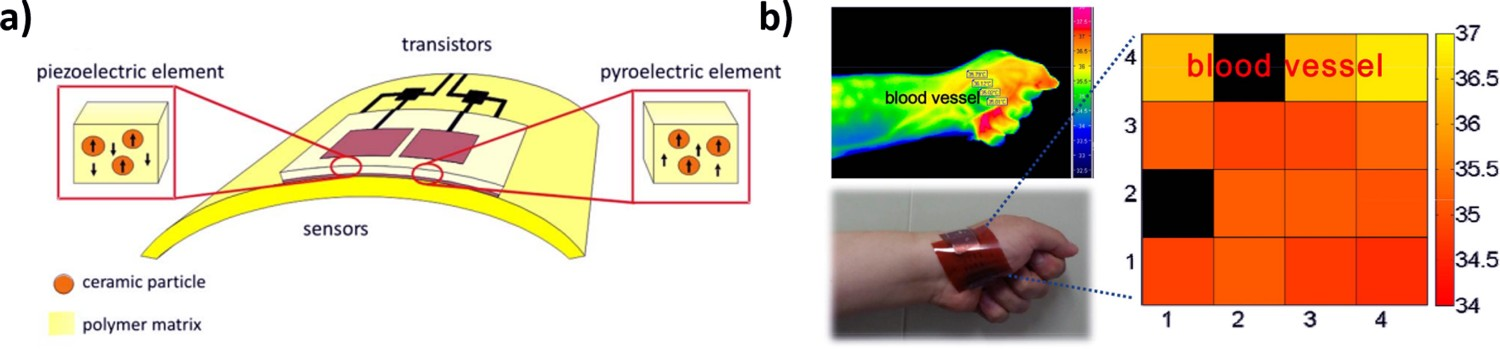

Lead-based ceramics feature prominently throughout these devices due to their exceptional piezoelectric properties and therefore excellent mechanical harvesting potential. Conventional PZT and doped lead titanate (PT) derivatives have shown very good piezoelectric properties (d ₃₃ ∼ 200–620 pC/N) [271] and are therefore often the first choice for energy harvesting devices.

Lead-free biomedical devices

Despite the inherent toxicity of lead and its oxides, lead-based systems have demonstrated potential as biomedical devices due to their excellent piezoelectric properties. While long-term studies on the effects of exposure to these lead-based devices in the body are currently lacking, lead itself has been shown to be cytotoxic to an array of human cells (CNS, prostate, colon, breast and lung cells) [293], a carcinogen [294] and even low levels of contamination can induce oxidative stress to the brain, heart kidney and reproductive system [295]. This leaves an almost insurmountable barrier between these devices and their use in a clinical environment. Consequentially, this has opened up opportunities for the development lead-free alternatives. For a more far-reaching and comprehensive study into the lead-free systems, the reader is referred to the work of Saito et al. [296] and Zhang et al. [297] who have outlined the important progress required for lead-free systems to flourish in the field. Wu [298] has also published a key textbook in the recement advances in lead-free systems. Examples of promising lead-free-based devices are now outlined.

Biomolecular piezoelectrics for biomedical applications

Biomolecular piezoelectric materials are an auspicious set of materials which have shown great promise in recent years with encouraging piezoelectric properties and excellent biocompatibility which makes them a compelling candidate for the next generation of piezoelectric biomedical devices [331]. Piezoelectric biomolecules are plentiful in nature and include chitin in the shells of crustaceans [332], cellulose in the wood of trees [66], viruses [333] and the constituent molecules that make life possible, DNA [334] amino acids, peptides and proteins [331]. Their piezoelectric properties arise from highly ordered, low symmetry structures which lack an inversion centre [335]. The archetypal example mentioned in literature is the amino acid glycine which forms three distinct polymorphs (α,β and γ), two of which as non-centrosymmetric and show ferroelectric properties (β and γ) [336]. Glycine-based devices developed by Yang et al. [337] have shown a d ₃₃ of 5–6 pC/N, and a peak-to-peak voltage and a short-circuit current of 4.1 V and 360 nA, respectively. The device performance is comparable to those of inorganic piezoelectric devices discussed previously, while being both biocompatible in vitro with human fibroblast cells and in vivo with SD rat specimens, and biodegradable in both PBS buffer (5 days) and in a SD rat (1 day). Furthermore, these devices successfully detected muscle contraction in both the leg and chest of the SD rat, showing both potential as a biomedical device and a material for tissue engineering.

Glycine is not the only example of this, dl-alanine crystals have shown a d ₃₃ as high as 3.5 pC/N and a max V_oc of 0.8 V [338], diphenylalanine-based devices obtained a d ₃₃ of 17.9 pm V⁻¹ via PFM and a V_oc of 1.4 V [65]. Systems based on spider silk developed by Karan et al. [339] generated voltages and current as high as 21.3 V and 0.68 μA and could sense arterial pulse, swallowing, coughing, drinking and was even sensitive enough to distinguish between the vibrations caused by the words ‘START’ and ‘NANOGENERATOR’ when attached to the throat. Virus-based systems developed by Park et al. [340] also showed a peak voltage and current of 2.8 V and 120 nA (17 N), with a five-phase-based integrated energy harvester producing an output voltage and current of 12 V and 300 nA, respectively, by pressing the device with a finger.

There is further potential to be explored in piezoelectric biomolecules, collagen fibril in the human cornea has shown d ₃₃ values of up to 2250 pC/N [341] and prestin, a motor protein in inner ear hair cells, has shown a d ₃₃ of 20 mC/N [342] which is orders of magnitude greater than any synthetic piezoelectric material thus far. Guerin et al. [343,344] have performed density functional theory modelling on glycine’s polymorphs and the amino acids that make up collagen and found β-glycine to have a d ₁₆ of 178 ± 11 pm V⁻¹, similar in magnitude to inorganic piezoelectrics, and hydroxy-L-proline to have a d ₂₅ of 25 ± 5pC/N. The potential of these materials warrants extensive future exploration, for further information into these materials the reader is referred to the works of Xu et al. [345], Kim et al. [331] and Guerin et al. [346] in ‘Construction of bio-piezoelectric platforms: from structures and synthesis to applications’, ‘Biomolecular piezoelectric materials: from amino acids to living tissues’ and ‘Organic piezoelectric materials: milestones and potential’, which comprehensively outline these materials rise to prominence and future potential in the field.

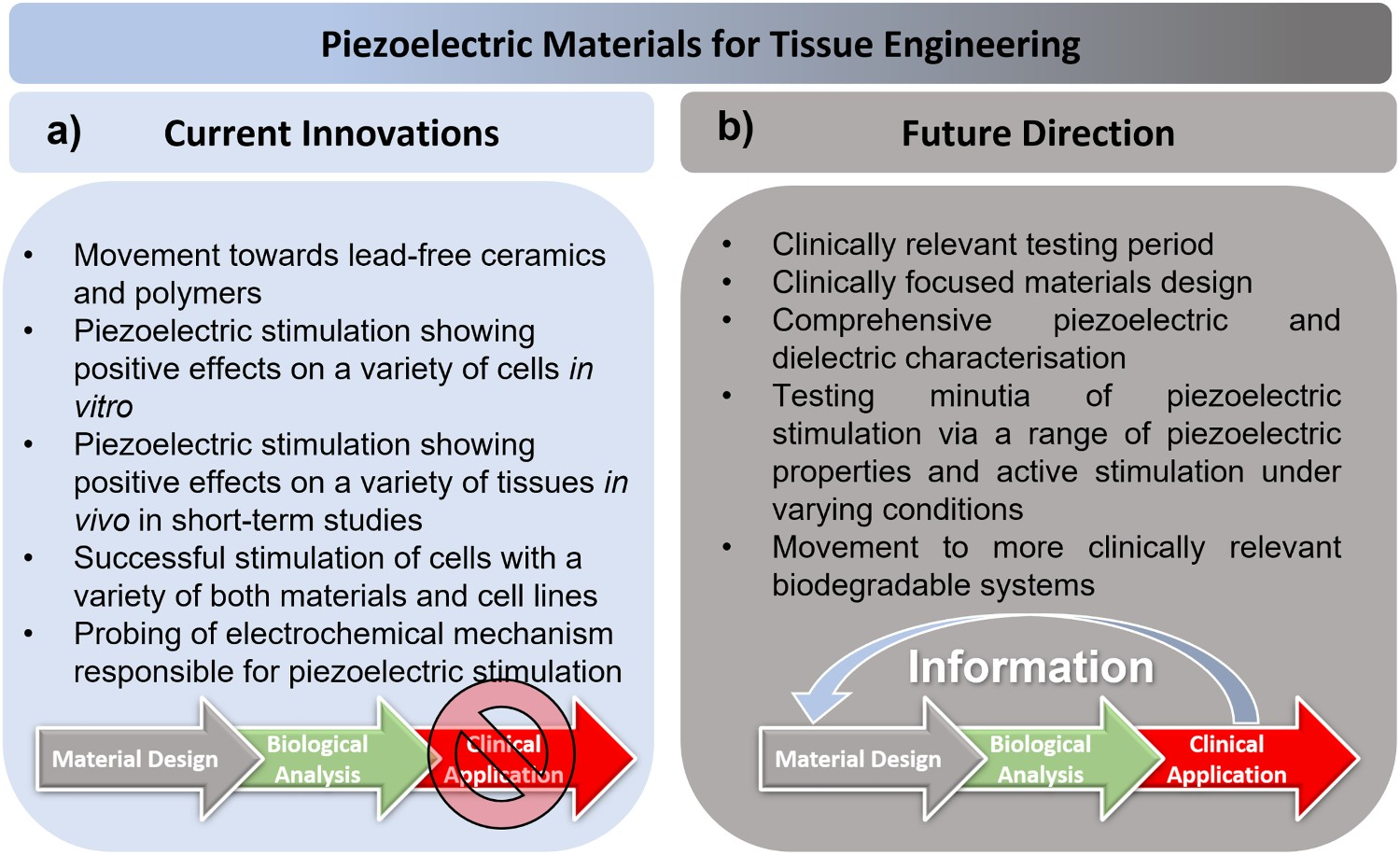

Materials manufacture and characterisation

The multidisciplinary nature of piezoelectric tissue engineering has the distinct advantage of allowing many different approaches to the manufacture and characterisation of piezoelectric scaffolds and their effects on cells, with each publication building towards the bigger picture. Despite the wide range of developed materials there has been no direct correlation between piezoelectric material type and properties with how the material is used in tissue engineering (see Figure 5).

This leaves a myriad of questions for future research: What are the upper and lower limits of this stimulation? How does piezoelectric stimulation affect protein and growth factor attachment to the scaffold surface? And consequently, how does this affect protein and growth factor uptake? Are the same mechanisms seen in all cell-lines? As differentiation between different cell-lines is characterised by different cellular phenotypes, it is therefore logical to assume their stimulatory pathways vary in a similar manner.

The mechanism by which piezoelectric stimulation occurs is not fully understood. While electrophysiological potentials and Ca²⁺ ion flux has been studied and hypothesised as the initial trigger for which regenerative effects occur [109,138,151,157], all of these studies have been conducted on neuronal cell-lines. Despite being carefully studied, this phenomenon requires further elucidation into the specifics of the mechanism as both stimulatory methods and methods used to monitor ion influx have varied significantly in different studies. Further investigations will help consolidate this larger picture and provide new avenues for the development of suitable piezoelectric scaffold materials.

The interfacial chemistry between cells and polarised surfaces is another aspect which naturally plays an important role in piezoelectric stimulation. While an in-depth analysis of this phenomenon reaches outside the realm of piezoelectric materials, for a detailed understanding of this phenomenon the reader is referred to ‘Biological Interactions with Surface Charge in Biomaterials’ published by the RSC in 2011 and edited by Tofail [347] and the pioneering work of Tofail et al. on electrically polarised biomaterials [348], which covers interfacial phenomena in detail. Importantly, studies performed on poled PVDF which showed enhanced nerve fibre outgrowth in mouse neuroblastoma (Nb2a) in vitro was subjected to electron spectroscopy for chemical analysis and wettability studies [349]. The study showed that the poled and unpoled scaffolds were indistinguishable chemically and with respect to wettability and surface adhesion; this indicates that bulk electrical properties are key parameter in enhanced cell properties. Furthermore, like any other scaffold in tissue engineering, studies have been undertaken to modify the surface properties of piezoelectric materials in order to mitigate unfavoured material surface properties [350,351].

Piezoelectrics in tissue engineering

A wide variety of materials have been evaluated, ranging from ferroelectric to non-ferroelectric piezoelectric materials, in bulk ceramic, polymer, composite and nanoparticle form; however, ultimately each material has its strengths and weaknesses which require independent assessment.

PVDF, arguably the most comprehensively researched material to date, is highly processable [352], biocompatible and beneficial to the growth of a variety of cell types; bone in vitro [209] and in vivo [148], muscle [155] and skeletal muscle [154], neuronal [157] and stem cells [156]. However, PVDF suffers from the disadvantage of not being biodegradable due to its high chemical stability [353]. An ideal system would degrade, acting as a template for cells and slowly being replaced by the ECM of cells over time.

The ferroelectric ceramic family of PZT, BT, BST, BCZT and KNN all show promising results due to high d ₃₃ piezoelectric coefficients but suffer from high stiffness, making them inappropriate for softer varieties of tissues such as those found in muscles and the nervous system without being combined with a polymer matrix. For BT [97,150], BST [71] and BCZT [78,189], these materials are primarily proposed for use in the regeneration of bone tissues, but they tend to be incorporated into more biocompatible matrices (β- TCP, HA and PCL) to produce a more effective bio-interface with cells. Although these matrices provide an additional advantage of being bioabsorbable, β-TCP and HA [354], and PCL [355] allow for better infiltration and integration of cells. PZT and KNN are exceptions to this hard tissue rule but provide their own challenges since PZT contains toxic Pb, and KNN has only proven to be non-cytotoxic, and therefore requires further testing.

Finally, the nanomaterials BTNP, BNNT and ZnO show promise with excellent evidence of electrostatic manipulation of Ca²⁺ in the former two and cytocompatibility in the latter. Ion imagining (Ca²⁺ and Na⁺) and inhibitory studies verified the stimulatory effects these nanomaterials have had on cells, primarily of neurons and MSCs. Although this shows the direct biological effect of the nanomaterials, these effects are part of a highly complex biological system that is not yet fully understood and is difficult to compare to other systems with quantifiable piezoelectric coefficients, such as PVDF and ceramics. Moreover, precise studies in which the d ₃₃ is varied (by changing poling time, field or temperature [356–358]) are necessary to study the impact of piezoelectric stimulation for a more rigorous understanding of the mechanism, as well as facilitating the design of optimum cell/tissue-specific systems for regeneration. This is best highlighted when discussing bone tissues, where the bone matrix is inherently piezoelectric [359] and piezoelectric stimulation is the mechanism that allows bone cells to adapt to changes in their environment [360]. While this phenomenon is well studied, its specifics with respect to the effect of different amounts of charge is less well understood, and piezoelectric materials provide a viable system to understand this phenomenon better. In this regard, rather than simply assessing the performance of poled and unpoled materials, it would be of interest to evaluate materials at a range of poling levels (and corresponding d ₃₃ levels); for example, Berlincourt [361] produced a range of d ₃₃ values for the same material by varying the degree of poling from 0% to 100%.

The majority of the literature is focused upon biological analysis. While this provides insight into the effects of piezoelectric stimulation both in vitro and in vivo and develops an understanding of the electrochemical consequences of the stimulation of cells (Figure 24(a)) it constricts the field into myopia, leaving the path to clinical application unclear. There is a fundamental need for a larger focus on clinical application-based material design and testing of materials for clinically relevant time periods (Figure 24(b)). This is an issue which Jeong et al. [323] clearly highlights in their work on KNN-based biomedical devices. This include a full dielectric and piezoelectric analysis of the scaffold under study, as highlighted in Piezoelectricity ; these properties are fundamental for quantifying the surface charge or potential difference. This will allow researchers elucidate the degree of piezoelectric stimulation and allow a shift away for a case-by-case assessment and design of materials (see Piezoelectric Scaffolds ). Finally, while materials, such as HA, are inherently biodegradable there is a lack of biodegradable composites in the literature. Clinically, the scaffold must act as a temporary matrix which will eventually be replaced by the tissue of the host body. All these factors fall into this notion of clinically relevant material design and needs to be discussed in the field is to see further success in the future.OPEN IN VIEWER

Devices/implants

Biomedical devices and implants reported in the literature are often lead-based, although they have the distinct advantage of a high electrical output due to their large d ₃₃ coefficients, despite the challenge of possible Pb leakage and the related toxicity. Lead toxicity can affect almost all organs of the human body [362] and therefore devices based on lead are being restricted.

Biocompatible systems, such as those based on PVDF, PVDF-TrFE and ZnO, overcome this issue but at the cost of lower piezoelectric coefficients and reduced electrical output. These thin films (PVDF and PVDF-TrFE) and NWs (ZnO) tend to provide lower power and therefore low sensitivity, though they are highly useful for systems which require ultra-low power stimulation, such as the cochlea. Another technical aspect to consider is impedance matching, whereby any transmittance of electrical energy from the piezoelectric energy harvesters requires all proceeding interconnected systems to match the devices impedance to maximise energy harvesting output. In the literature encompassing piezoelectric biomedical devices, the main parameters focused upon are voltage and current output, but these values are ultimately determined by the level of impedance matching when integrated into a larger system for sensing or energy harvesting. A simple approach to electrical impedance matching is to ensure the electrical load (R_L ) matches the impedance of the piezoelectric harvesting device so that (1/R_L ) = 2 π f C_p ; where f is the frequency and C_p is the device capacitance. However, are a variety of methods to approach this issue which are outlined comprehensively by Rathod [363]. In addition to electrical impedance matching, there is also a need for mechanical impedance matching to ensure transfer of mechanical strains from the body into the devices, and vice versa [364]. Recent work on ultrasound powered implantable devices [282] that uses ferroelectric ceramics for power generation provided an intriguing route to create autonomous systems.

Utilising a similar effect to piezoelectric materials, ferroelectrets are porous piezo-active polymer foams which gain their piezoelectric properties not from the inherent properties of the material but form the change in polarisation as a result of the deformation of their charged ellipsoidal pores [365]. Ferroelectrets have shown high piezoelectric properties using many biocompatible materials such as PVDF (d ₃₃ ∼ 264 pC/N) [366], PDMS (d ₃₃ ∼ 520 pC/N) [367] and polypropylene (d ₃₃ ∼ 650 pC/N) [368]. Furthermore, a range of ferroelectret nanogenerators have been observed in the literature, frequently for loudspeaker/microphone applications [369–371], but also for sensing and biomedical applications [372]. Despite their seemly high mechano-transductive properties, we can speculate that the infiltration of porosity with fluids in the body over time can affect their performance. However, this effect has not been studied directly in literature and is worthy of study. This can be mitigated by encapsulation of the ferroelectret material in a polymer but could negatively impact the mechano-transductive properties of the overall system. To investigate this in future, impedance spectroscopy would be useful to monitor the change in ferroelectret properties following soaking with fluid or implantation in vivo.

Triboelectric nanogenerators utilise a combination of triboelectric electrification and electrostatic induction between layers of electrostatically dissimilar materials as a means of generating energy [373]. A range of triboelectric devices have been reported in the literature which utilise classically biocompatible materials and have achieved notable voltage outputs; these include PET-Kapton films (3.3 V) [374], PTFE-eggshell membranes (79–160 V) [375], degradable paper-based systems (20–200 V) [376] and carboxymethyl cellulose aerogel-PDMS systems (150 V). However, for implantable biomedical applications, there are challenges, such as the need to overcome the need for a mechanically unfavourable air-gap in classical triboelectric systems [377]. While these are not studied to the extent of implantable energy harvesting (IEH) materials, for a more comprehensive review of the variety of IEH materials, the reader is referred to the works of Dagdviren et al. [378], Shi et al. [379], Jiang et al. [380] and electrically active materials for medical devices published by the RSC and edited by Tofail [381], Hansen et al. [382] and Li et al. [383] for an insight into hybrid biomechanical and biochemical IEH devices.

Importantly there has been a large shift away from lead-based materials despite their impressive piezoelectric properties. Devices have been shown to produce a range of currents and voltage for a variety of biomedical applications, see Figure 25(a). However, as with the scaffolds for tissue engineering, reports of devices/implants currently lack biocompatbility studies for clinically relavent time periods and comprehensive piezoelectric and dielectric properties to understand how their properties change overtime in vivo under strain. Furthermore, reports tend to observe the direct output of the devices which have not been impedance matched to provide specific power or act as part of a sensing array for a larger biomedical device, Figure 25(b). While much progress has been made we believe a focus on clinical applications based material design will elevate the field closer to its final clinical goal.OPEN IN VIEWER

Clinical perspective

The World Health Organisation (WHO) comprehensively details the life span and clinical application of biomedical devices [384]. Two critical criteria which are highly emphasised are clinical effectiveness and device performance. Clinical effectiveness asks whether or not the system has fulfilled its intended purpose relative to the medical condition. In addition, device performance asks how well the device operates and performs in service. These criteria are difficult to implement to the scaffolds and devices mentioned in the literature as most encompassed the Phase 1 – Conception and development stages of clinical development, as outlined in Figure 26. Therefore, a longer-term view of these scaffolds and devices is critical if they to achieve clinical use. Jeong et al. [323] highlight the need for a longer-term approach with respect to Phase 6 – Use and the ultimate compatibility of these devices in the body, but these are not the only criteria to consider. Phase 2 – Manufacture, refers to larger scale manufacture outside the laboratory and Phase 3 – Disposal refers to the devices at end of life, which needs to be considered if we have to consider the ultimate clinical application of a devices. Ultimately such scaffolds and devices which achieve clinical application will be those with the appropriate combination of effectiveness, performance, risk, price, reproducibility and other important factors that need to be balanced to be considered viable for use on patients.OPEN IN VIEWER

The continued demand for smart piezoelectric scaffolds for tissue engineering applications and high-performance piezoelectric-based biomedical devices with high sensitivity or self-powered functionality will ensure there will be further developments in this fascinating research area [385–390].
