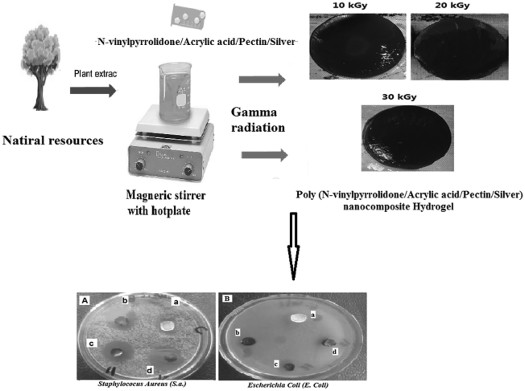

Recently, the need for effective antibacterial materials is growing day after day. Hydrogels with antimicrobial activities are strongly recommended in many biomedical applications. This work aims to prepare natural based nanocomposite hydrogel composed of N-vinyl pyrrolidone (NVP), acrylic acid (AAc) and pectin (PEC) embedded with silver nanoparticles (AgNPs). The prepared Poly(NVP/AAc/PEC/Ag) pH-sensitive nanocomposite hydrogel was characterized by gel (%), equilibrium swelling, FTIR, SEM, and XRD. Additionally, in order to confirm the incorporation of AgNPs within the nanocomposite hydrogel matrix during irradiation, TEM analysis was carried out. The AgNPs have average particles size 5.9 ± 1 nm for 10 kGy, 6.7 nm ± 2 for 20 kGy, and 8.9 ± 3 nm for 30 kGy, respectively. The XRD data are in good agreement with TEM analysis. The antibacterial activities of the selected Poly(NVP/AAc/PEC/Ag) nanocomposite hydrogel prepared at 30 kGy irradiation dose towards S. aureus, and E. coli has a higher antibacterial activity than other irradiation doses.
KodothAK, BadalamooleV.Silver nanoparticle-embedded pectin-based hydrogel for adsorptive removal of dyes and metal ions. Polym Bull. 2020; 77: 541–564.
2.
MaziadNA, Abou El FadlFI, El-KeleshNA, Radiation synthesis and characterization of super absorbent hydrogels for controlled release of some agrochemicals. J Radioanal Nucl Chem.2016; 307: 513–521.
3.
UllahF, OthmanM, Javed BisyrulF, Classification, processing and application of hydrogels : a review. Mater Sci Eng C. 2015; 57: 414–433.
4.
LeeSK, HwangG, WooJ, Characterization of responsive hydrogel nanoparticles upon polyelectrolyte complexation. Polymers (Basel). 2017; 9: 66.
5.
TangY, YangR, MaD, Removal of methyl orange from aqueous solution by adsorption onto a hydrogel composite. Polym Polym Compos. 2018; 26: 161–168.
6.
MandalB, RaySK, BhattacharyyaR.Synthesis of full and semi interpenetrating hydrogel from polyvinyl alcohol and poly (acrylic acid-co-hydroxyethylmethacrylate) copolymer: study of swelling behavior, network parameters, and dye uptake properties. J Appl Polym Sci. 2012; 124: 2250–2268.
7.
KorpeS, ErdoǧanB, BayramG, Crosslinked DADMAC polymers as cationic super absorbents. React Funct Polym. 2009; 69: 660–665.
8.
RazaZA, RiazS, BanatIM.Polyhydroxyalkanoates: properties and chemical modification approaches for their functionalization. Biotechnol Prog. 2018; 34: 29–41.
9.
RiazS, RheeKY, ParkSJ.Polyhydroxyalkanoates (PHAs): biopolymers for biofuel and biorefineries. Polymers (Basel). 2021; 13: 253.
10.
AhmedEM.Hydrogel : preparation, characterization, and applications : a review. J Adv Res. 2015; 6: 105–121.
11.
AhmadB, BashirS, NisaSU, Chemically crosslinked N-vinyl-2-pyrrolidone/2-hydroxyethyl methacrylate (VP/HEMA) copolymer for the controlled release of cyclic oligopeptide. Turkish J Chem. 2004; 28: 279–285.
12.
GanjiF, Vasheghani-FarahaniS, Vasheghani-FarahaniE.Theoretical description of hydrogel swelling: a review. Iran Polym J (English Ed). 2010; 19: 375–398.
13.
SadeghiM.Pectin-based biodegradable hydrogels with potential biomedical applications as drug delivery systems. J Biomater Nanobiotechnol. 2011; 02: 36–40.
14.
González-HenríquezCM, Sarabia-VallejosMA, Rodriguez-HernandezJ.Polymers for additive manufacturing and 4D-printing: materials, methodologies, and biomedical applications. Prog Polym Sci. 2019; 94: 57–116.
15.
ThürmerMB, DiehlCE, BrumFJB, Preparation and characterization of hydrogels with potential for use as biomaterials. Mater Res.2014; 17: 109–113.
16.
SadeghiM, HeidariB, MontazeriK.Design a biodegradable hydrogel for drug delivery system. World Acad Sci Eng Technol. 2011; 76: 421–423.
17.
YuH, XuX, ChenX, Preparation and antibacterial effects of PVA-PVP hydrogels containing silver nanoparticles. J Appl Polym Sci. 2007; 103: 125–133.
18.
KenawyER, Abdel-HayFI, El-MagdAA, Biologically active polymers: modification and anti-microbial activity of chitosan derivatives. J Bioact Compat Polym. 2005; 20: 95–111.
19.
Abou El FadlFI, MaziadNA, El-HamoulySH, Synthesis and characterizations of various polyvinyl pyrrolidon/hydroxyl ethyl methacrylate nanocomposite hydrogels as drug delivery systems. J Macromol Sci Part A Pure Appl Chem.2018; 55: 107–115.
20.
Abd El-MohdyHL, HegazyESA.Preparation of polyvinyl pyrrolidone-based hydrogels by radiation-induced crosslinking with potential application as wound dressing. J Macromol Sci Part A Pure Appl Chem.2008; 45: 995–1002.
21.
RiazS, ParkS-J.A comparative study on nanoinclusion effect of MoS2 nanosheets and MoS2 quantum dots on fracture toughness and interfacial properties of epoxy composites. Composites Part A. 2021; 146: 106419.
22.
PalzaH.Antimicrobial polymers with metal nanoparticles. Int J Mol Sci. 2015; 16: 2099–2116.
23.
SinghR, SinghD.Radiation synthesis of PVP/alginate hydrogel containing nanosilver as wound dressing. J Mater Sci Mater Med. 2012; 23: 2649–2658.
24.
VimalaK, VaraprasadK, SadikuR, Development of novel protein-Ag nanocomposite for drug delivery and inactivation of bacterial applications. Int J Biol Macromol. 2014; 63: 75–82.
25.
MonerrisM, BrogliaM, YslasI, Antibacterial polymeric nanocomposites synthesized by in-situ photoreduction of silver ions without additives inside biocompatible hydrogel matrices based on N-isopropylacrylamide and derivatives. eXPRESS Polym Lett. 2017; 11: 946–962.
26.
LuoYL, XuF, ChenYS, Assembly, characterization of Ag nanoparticles in P(AAm-co-NVP)/CS semi-IPN, and swelling of the resulting composite hydrogels. Polym Bull. 2010; 65: 181–199.
27.
Flores-RojasGG, López-SaucedoF, BucioE.Gamma-irradiation applied in the synthesis of metallic and organic nanoparticles: A short review. Radiat Phys Chem. 2020; 169: 107962.
28.
Abdel MaksoudMIA, El–SayyadGS, FayadE, Gamma irradiation assisted the sol–gel method for silver modified–nickel molybdate nanoparticles synthesis: unveiling the antimicrobial, and antibiofilm activities against some pathogenic microbes. J Inorg Organomet Polym Mater.2021, In press.
29.
Abou El-FadlFI, Abd El-MohdyHL.Removal of heavy metal ions from aqueous solutions by radiation-induced chitosan/(acrylamidoglycolic acid-co-acrylic acid) magnetic nanopolymer. Polym Eng Sci.2015; 55: 1441–1449.
30.
AjazN, KhalidI, MinhasMU, Pectin–based hydrogels with adjustable properties for controlled delivery of nifedipine: development and optimization. Polym Bull. 2020; 77: 6063–6083.
31.
SohailK, KhanIU, ShahzadY, pH-sensitive polyvinylpyrrolidone-acrylic acid hydrogels: impact of material parameters on swelling and drug release. Brazilian J Pharm Sci. 2014; 50: 173–184.
32.
JinS, GuJ, ShiY, Preparation and electrical sensitive behavior of poly (N-vinylpyrrolidone- co-acrylic acid) hydrogel with flexible chain nature. Eur Polym J. 2013; 49: 1871–1880.
33.
YoshimuraT, SengokuK, FujiokaR.Pectin-based surperabsorbent hydrogels crosslinked by some chemicals: synthesis and characterization. Polym Bull. 2005; 55: 123–129.
34.
Abou El FadlFI, MaziadNA.Radiation syntheses of pectin/acrylamide (PEC/PAM) and pectin/diethylaminoethylmethacrylate (PEC/DEAMA) hydrogels as drug delivery systems. J Radioanal Nucl Chem.2015; 303: 623–630.
35.
AbdullahH, KadhimKJ, HilalIH.Study the radiation time effect of synthesis silver nanoparticles by photo reduction method. World Sci News. 2016; 37: 220–231.
36.
AliI, AklMR, MeligiGA, Silver nanoparticles embedded in polystyrene-polyvinyl pyrrolidone nanocomposites using γ-ray irradiation: physico-chemical properties. Results Phys. 2017; 7: 1319–1328.
37.
AbediniA, DaudAR, HamidMAA, Radiolytic formation of Fe3O4 nanoparticles: influence of radiation dose on structure and magnetic properties. PLOS One; 9:e90055, 1–8. doi: 10.1371/journal.pone.0090055.
38.
NaghaviK, SaionE, RezaeeK, Influence of dose on particle size of colloidal silver nanoparticles synthesized by gamma radiation. Radiat Phys Chem.2010; 79: 1203–1208.
39.
AlcântaraMTS, LincopanN, SantosPM, Simultaneous hydrogel crosslinking and silver nanoparticle formation by using ionizing radiation to obtain antimicrobial hydrogels. Radiat Phys Chem. 2020; 169: 108777.
RashmiMM, KiranP, AnuradarV.Synthesis and characterization of oxazolidones with improved thermal stability. Adv Appl Sci Res. 2012; 3: 2553–2560.
42.
MorganAB, GilmanJW.Characterization of polymer-layered silicate (clay) nanocomposites by transmission electron microscopy and X-ray diffraction: a comparative study. J Appl Polym Sci. 2002; 87: 1329–1338.
43.
MakwanaD, CastañoJ, SomaniRS, Characterization of Agar-CMC/Ag-MMT nanocomposite and evaluation of antibacterial and mechanical properties for packaging applications, Arab J Chem. 2020; 13: 3092–3099.
44.
GhaffarAMA, AliHE, NasefSM, Effect of gamma radiation on the properties of crosslinked Chitosan nano composite film. J Polym Environ. 2018; 26: 3226–3236.
45.
GutierrezFM, OlivePL, BanuelosA, Synthesis, characterization and evaluation of antimicrobial and cytotoxic effect of silver and titanium nano particles. Nanomedicine. 2010; 6: 681–688.
46.
SeilJT, WebsterTJ.Antimicrobial applications of nanotechnology: methods and literature. Int J Nanomedical. 2012; 7: 2767–2781.
47.
AzizMA, CabralJD, BrooksHJL, Antimicrobial properties of a chitosan dextran-based hydrogel for surgical Use. Antimicrob Agents Chemother. 2012; 56: 280–287.
