Role of Vascular Endothelial Growth Factor Signaling in Schistosoma -Induced Experimental Pulmonary Hypertension

INTRODUCTION

Despite significant evidence suggesting a role for inflammation in the development of pulmonary hypertension (PH), documentation of a causal role for inflammation in the disease is largely lacking.^1–4 Potentially suppressed interleukin (IL)-13 signaling has been reported in the lungs of humans with idiopathic pulmonary arterial hypertension (PAH), mice with hypoxia-induced PH, and rats with monocrotaline-induced PH. ⁵ Alternatively, induction of an adaptive T helper 2 (Th2) immune response in the lungs of mice suffices to cause pulmonary arterial muscularization, while depletion of the Th2 inflammatory cytokine IL-13 significantly attenuates such remodeling. ⁶ A key immune regulator candidate is vascular endothelial growth factor (VEGF), which can enhance Th2-mediated inflammation and has also been shown to play a critical role in the development of Th2-induced bronchial vascular remodeling.^7,8 IL-13 can, in turn, increase VEGF production, ⁹ potentially forming a proinflammatory feed-forward loop.

In contrast to the concept of VEGF inducing inflammation and pulmonary vascular disease in mouse models, pharmacological VEGF receptor (VEGFR) blockade (typically with SU5416 treatment), coupled with chronic hypoxia, results in severe angio-obliterative experimental PH in the rat. ¹⁰ Recent evidence indicates that exogenous Th2 inflammation (caused by ovalbumin inhalation) also synergizes with VEGFR blockade to result in severe PH in the rat. ¹¹ However, mice comparably immunized with ova and treated with SU5416 do not develop PH, ¹² suggesting differential roles for VEGFR-mediated signaling, in the context of a Th2 inflammatory response, in the mouse compared to the rat.

We have established a mouse model of schistosomiasis-induced PH in which intraperitoneal sensitization with Schistosoma mansoni ova followed by intravenous augmentation with ova results in significant intrapulmonary Th2 inflammation coupled with pulmonary vascular remodeling and elevated right ventricular pressures.^13–15 The role of inflammation in the development of PH in this model is demonstrated by the absence of PH after intravenous eggs alone are administered, without allowing an augmented adaptive immune response following intraperitoneal sensitization. ¹³ In contrast to other experimental models of pulmonary Th2 vascular responses, this model is highly relevant to the human disease of schistosomiasis-associated PAH caused by chronic infection with the trematode S. mansoni, the third-most-prevalent parasitic infection worldwide, which affects more than 200 million people and is one of the most common causes of WHO Group 1 PAH worldwide.^16–20 In addition, this model provides an ideal setting in which to further investigate potentially differential roles of VEGF signaling in the context of pulmonary Th2-mediated inflammation in the mouse. VEGF may also regulate vascular disease through Rho kinase signaling ²¹ and could interact with Schistosoma exposure in this regard, as we have previously observed a significant component of Rho kinase–mediated vasoconstriction in Schistosoma-induced PH. ¹⁴

We thus hypothesized that VEGF signaling contributes to the Th2-mediated inflammatory response associated with Schistosoma-induced PH. We tested this hypothesis by concurrent pharmacologic blockade of the VEGFR, using the VEGFR/tyrosine kinase inhibitor SU5416, in mice also exposed to S. mansoni ova. We found that VEGFR blockade partially suppressed the Th2 inflammation in both the lung and the liver as well as the severity of pulmonary vascular remodeling, suggesting that VEGF signaling plays a pro-remodeling role in this model of the human disease.

METHODS

Histology and immunostaining

Lung and liver tissue was formalin fixed, paraffin embedded, and then sectioned and H&E (hematoxylin and eosin) stained. Immunostaining for α–smooth muscle actin (media), thrombomodulin (intima), TUNEL (terminal deoxynucleotidyl transferase biotin-dUTP nick end labeling; apoptosis), proliferating cell nuclear antigen (PCNA; proliferation), IL-4, and IL-13 was performed with the reagents listed in Table 1.

OPEN IN VIEWER

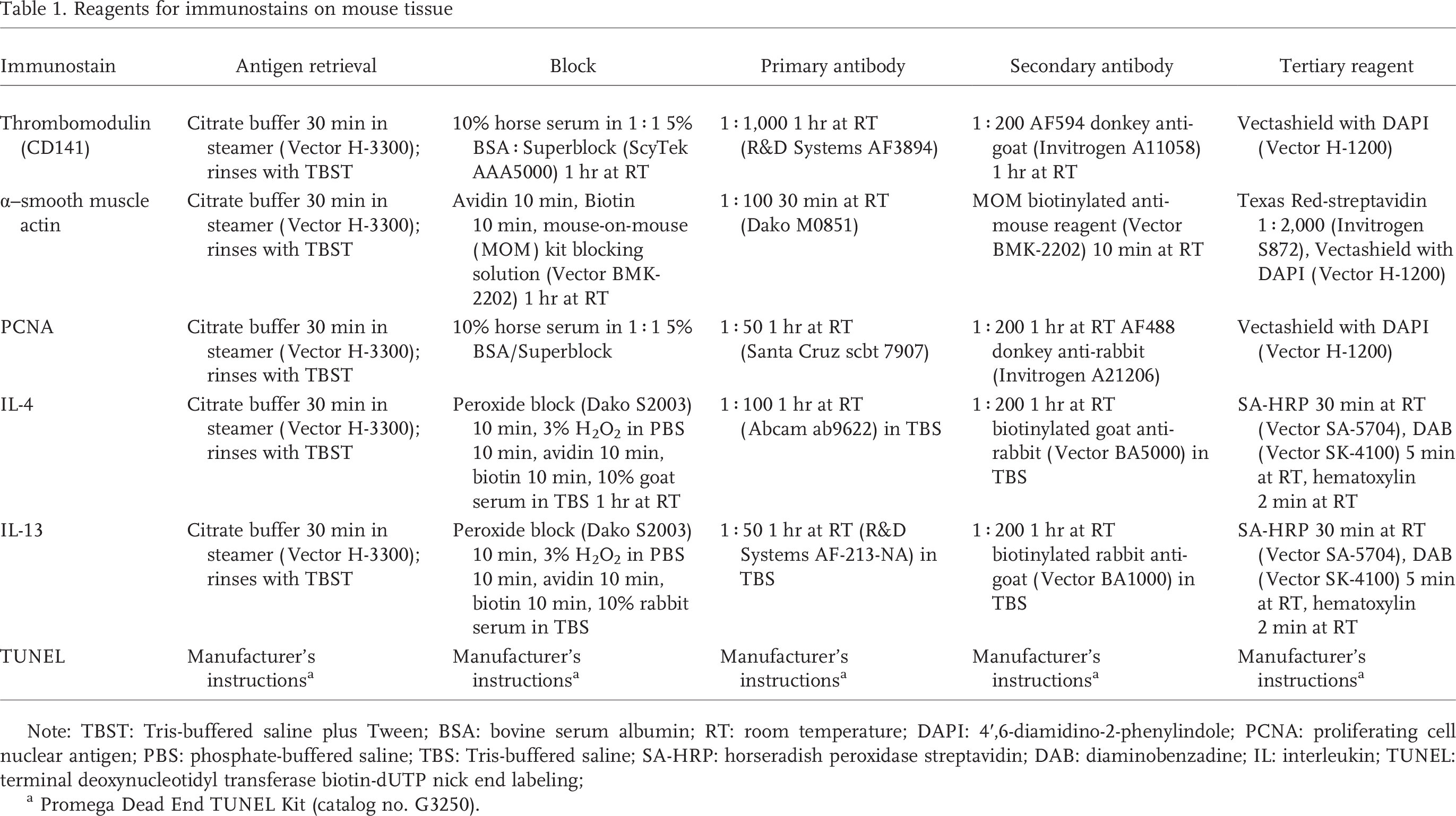

Table 1.

Reagents for immunostains on mouse tissue

Immunostain	Antigen retrieval	Block	Primary antibody	Secondary antibody	Tertiary reagent
Thrombomodulin (CD141)	Citrate buffer 30 min in steamer (Vector H-3300); rinses with TBST	10% horse serum in 1 : 1 5% BSA : Superblock (ScyTek AAA5000) 1 hr at RT	1 : 1,000 1 hr at RT (R&D Systems AF3894)	1 : 200 AF594 donkey anti-goat (Invitrogen A11058) 1 hr at RT	Vectashield with DAPI (Vector H-1200)
α–smooth muscle actin	Citrate buffer 30 min in steamer (Vector H-3300); rinses with TBST	Avidin 10 min, Biotin 10 min, mouse-on-mouse (MOM) kit blocking solution (Vector BMK-2202) 1 hr at RT	1 : 100 30 min at RT (Dako M0851)	MOM biotinylated anti-mouse reagent (Vector BMK-2202) 10 min at RT	Texas Red-streptavidin 1 : 2,000 (Invitrogen S872), Vectashield with DAPI (Vector H-1200)
PCNA	Citrate buffer 30 min in steamer (Vector H-3300); rinses with TBST	10% horse serum in 1 : 1 5% BSA/Superblock	1 : 50 1 hr at RT (Santa Cruz scbt 7907)	1 : 200 1 hr at RT AF488 donkey anti-rabbit (Invitrogen A21206)	Vectashield with DAPI (Vector H-1200)
IL-4	Citrate buffer 30 min in steamer (Vector H-3300); rinses with TBST	Peroxide block (Dako S2003) 10 min, 3% H2O2 in PBS 10 min, avidin 10 min, biotin 10 min, 10% goat serum in TBS 1 hr at RT	1 : 100 1 hr at RT (Abcam ab9622) in TBS	1 : 200 1 hr at RT biotinylated goat anti-rabbit (Vector BA5000) in TBS	SA-HRP 30 min at RT (Vector SA-5704), DAB (Vector SK-4100) 5 min at RT, hematoxylin 2 min at RT
IL-13	Citrate buffer 30 min in steamer (Vector H-3300); rinses with TBST	Peroxide block (Dako S2003) 10 min, 3% H2O2 in PBS 10 min, avidin 10 min, biotin 10 min, 10% rabbit serum in TBS	1 : 50 1 hr at RT (R&D Systems AF-213-NA) in TBS	1 : 200 1 hr at RT biotinylated rabbit anti-goat (Vector BA1000) in TBS	SA-HRP 30 min at RT (Vector SA-5704), DAB (Vector SK-4100) 5 min at RT, hematoxylin 2 min at RT
TUNEL	Manufacturer's instructions a	Manufacturer's instructions a	Manufacturer's instructions a	Manufacturer's instructions a	Manufacturer's instructions a

Note: TBST: Tris-buffered saline plus Tween; BSA: bovine serum albumin; RT: room temperature; DAPI: 4′,6-diamidino-2-phenylindole; PCNA: proliferating cell nuclear antigen; PBS: phosphate-buffered saline; TBS: Tris-buffered saline; SA-HRP: horseradish peroxidase streptavidin; DAB: diaminobenzadine; IL: interleukin; TUNEL: terminal deoxynucleotidyl transferase biotin-dUTP nick end labeling;

a

Promega Dead End TUNEL Kit (catalog no. G3250).

RESULTS

PH and pulmonary vascular remodeling were induced in mice with sequential challenge by intraperitoneal and intravenous Schistosoma eggs, which recapitulate the pulmonary effects of the natural infection.^13–15 Mice were exposed to four treatment strategies; we opted to precede Schistosoma egg challenge with VEGFR blockade to block a potential role for VEGF in triggering or contributing to the induced Th2 response (Fig. 1). The two groups intraperitoneally/intravenously exposed to Schistosoma eggs developed a significant increase in right ventricle systolic pressure (RVSP) when compared to control mice (Fig. 2A). Concurrent treatment with the VEGFR/tyrosine kinase inhibitor SU5416 (SU) did not significantly alter the RVSP, compared to Schistosoma exposure with CMC treatment. Mice treated with SU alone did not have a significant increase in RVSP but did develop significant right ventricle hypertrophy (Fig. 2B). Schistosoma exposure alone did not cause significant right ventricle hypertrophy, likely because of the relatively short experimental protocol (1 week after intravenous egg augmentation).

OPEN IN VIEWER

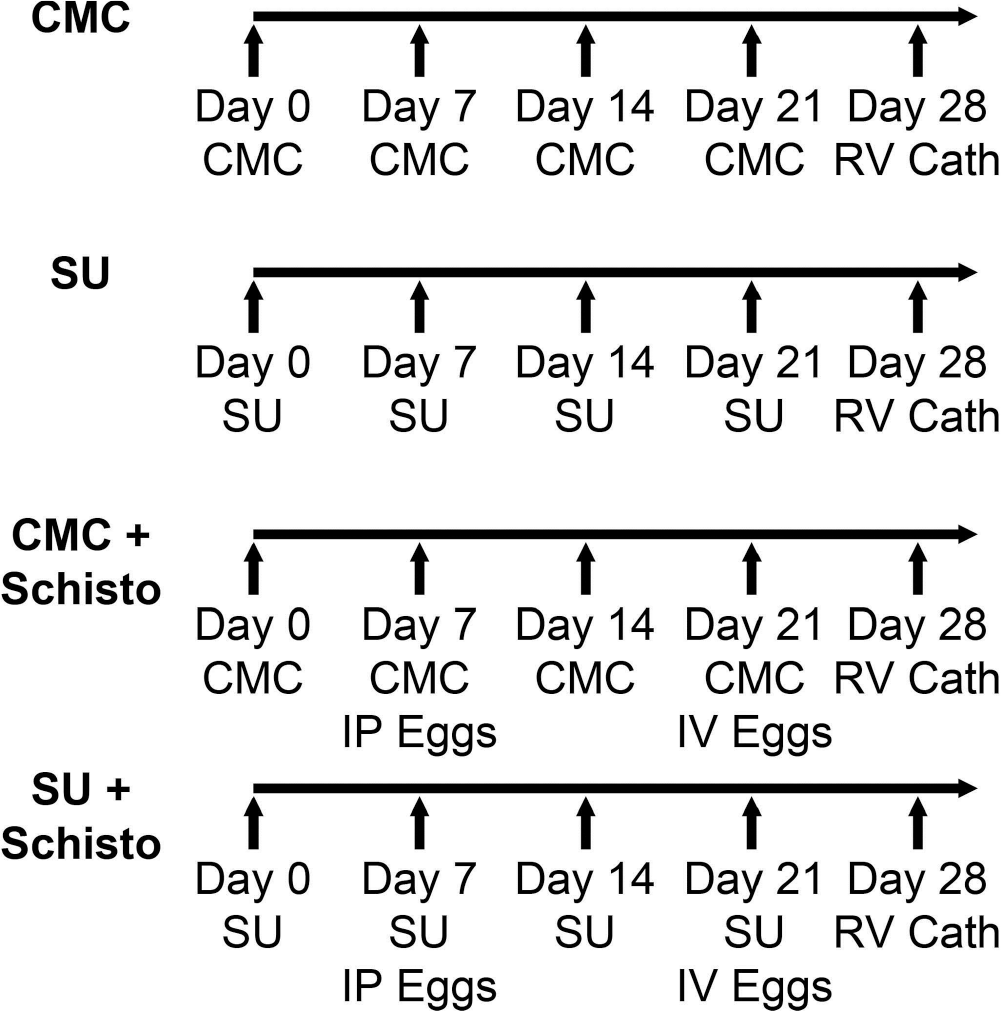

Figure 1.

Schematic representation of the animal protocols used for Schistosoma ova (Schisto), SU5416 (SU), and carboxymethylcellulose (CMC) administration. SU5416 (20 mg/kg body weight) or CMC was administered subcutaneously weekly at the time points indicated. Schistosoma-exposed mice were intraperitoneally (IP) injected with eggs at a dose of 240 eggs/g body weight, followed 2 weeks later by intravenous (IV) injection of Schistosoma mansoni eggs at a dose of 240 eggs/g body weight. Hemodynamic measurements and tissue collection were performed on day 28. RV Cath: right ventricular catheterization.

OPEN IN VIEWER

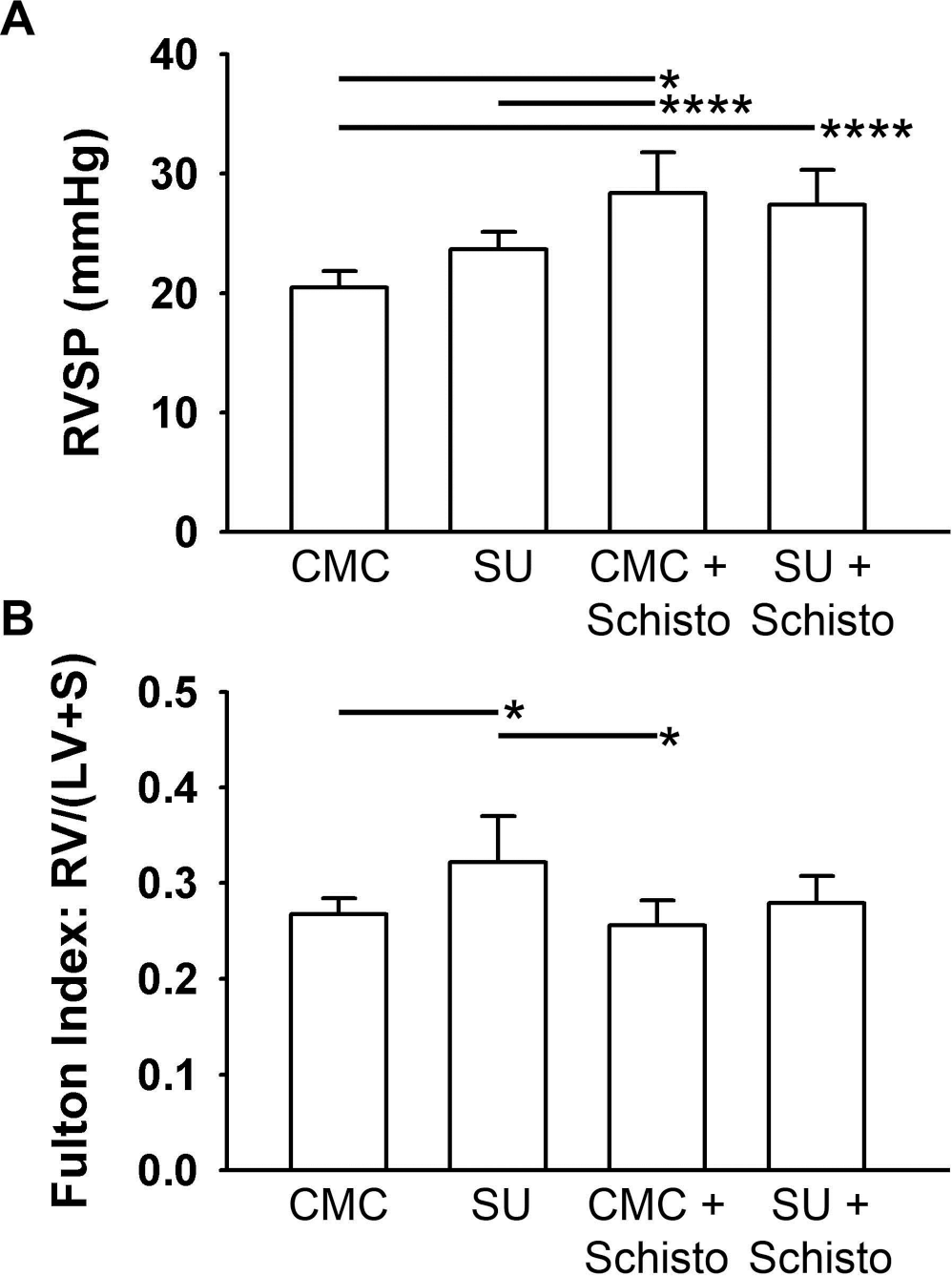

Figure 2.

Effect of Schistosoma exposure (Schisto) and SU5416 (SU) treatment on right ventricular systolic blood pressure and right ventricular hypertrophy. A, Right ventricular systolic pressure (RVSP). B, Right ventricular hypertrophy (measured by Fulton index [ratio of right ventricle (RV) weight to the combined weight of the left ventricle (LV) and septum (S)]). n = 5–6 animals/group; ANOVA: P < 0.001 for RVSP, P = 0.014 for Fulton index. A single asterisk indicates P < 0.05 and 4 asterisks P < 0.001 by post hoc Tukey test. CMC: carboxymethylcellulose.

Histologic examination of the pulmonary vasculature by H&E staining revealed pulmonary arterial remodeling, characterized by medial thickening and adventitial inflammatory cell infiltrates, in the lungs of Schistosoma-exposed mice (Fig. 3A). The degree of medial thickening and the number of perivascular inflammatory cells were attenuated in Schistosoma-exposed mice that were concurrently treated with SU. To further characterize the vascular remodeling, immunostaining for α–smooth muscle actin (to localize the media) and thrombomodulin (to localize the intima) was performed (Fig. 3B). Quantification of the media and intima thickness revealed that both Schistosoma-exposed groups developed significant medial thickening, compared to mice not exposed to Schistosoma (Fig. 3C), and that concurrent treatment with SU significantly suppressed the medial thickening provoked by Schistosoma exposure. There were no significant differences in intimal thickness between any of the groups, although there was a trend toward increased intimal thickness with Schistosoma exposure (P = 0.062; Fig. 3D).

OPEN IN VIEWER

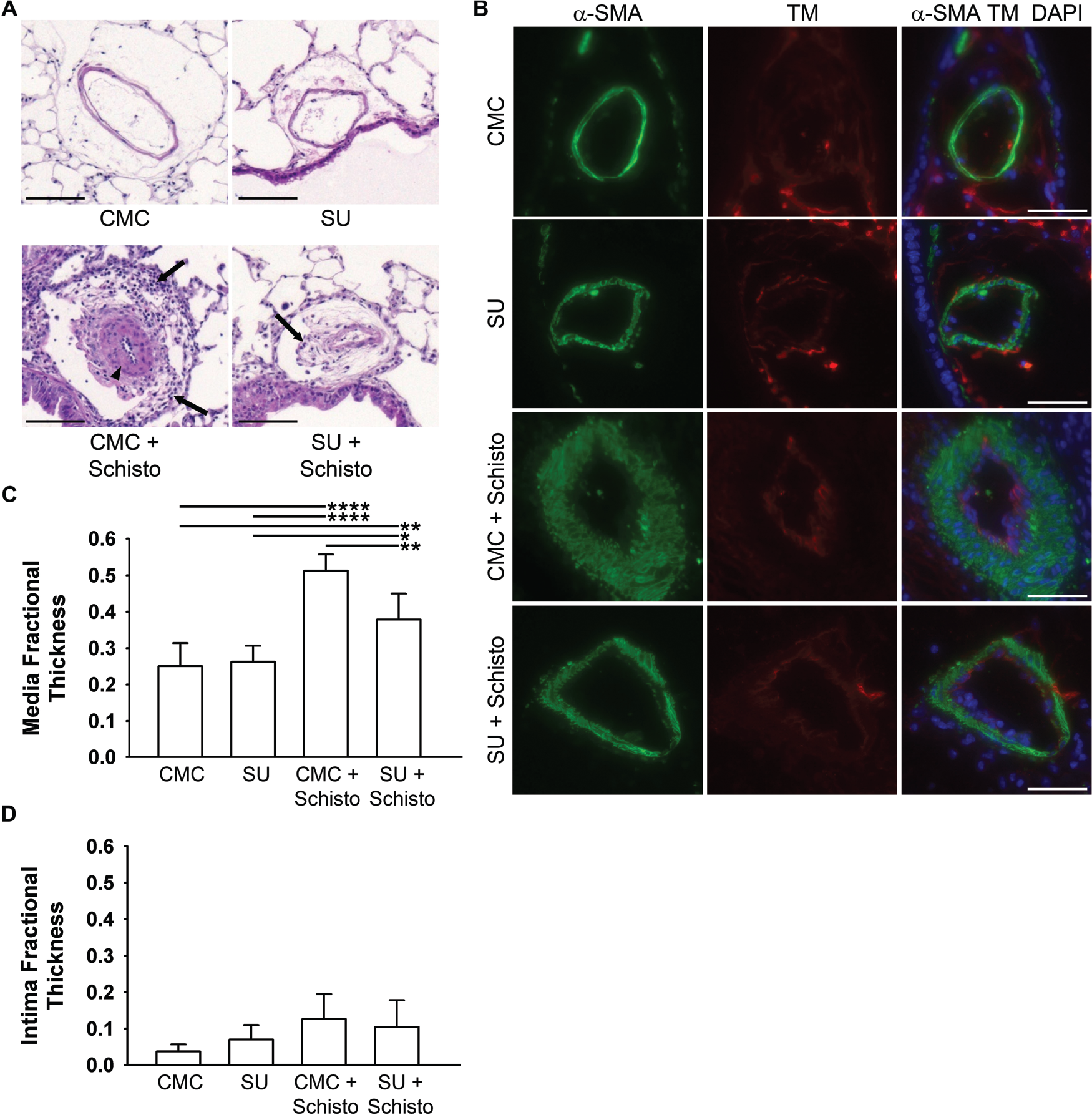

Figure 3.

SU5416 attenuates vascular remodeling from Schistosoma exposure. A. Hematoxylin and eosin staining of representative samples (arrowhead: medial thickening; arrows: adventitial inflammatory cell infiltrates; scale bar: 100 μm). B, Immunofluorescence staining for α–smooth muscle actin (α-SMA; green: media) and thrombomodulin (TM; red: intima; blue: DAPI [4′,6-diamidino-2-phenylindole]; scale bars: 50 μm). C, D, Quantification of the media and intima layers. n = 5–6 animals/group; ANOVA: P < 0.001 for media, P = 0.062 for intima. A single asterisk indicates P < 0.05, a double asterisk P < 0.01, and 4 asterisks P < 0.001 by post hoc Tukey test. CMC: carboxymethylcellulose; SU: SU5416; Schisto: Schistosoma.

We next assessed the levels of the Th2 inflammatory cytokines IL-4 and IL-13 in whole-lung protein lysates (Fig. 4). The levels of both IL-4 and IL-13 were significantly increased by Schistosoma exposure, and there were trends toward decreases in these cytokines with concurrent SU treatment, consistent with a contributing role of VEGF in the Th2 cytokine profiles in this model (post hoc Tukey tests: P = 0.13 for IL-4, P = 0.06 for IL-13). The use of whole-lung lysate cytokine levels likely decreased the sensitivity of our analyses. Immunostaining for IL-4 and IL-13 demonstrated an increase in adventitial cells positively staining for both cytokines after Schistosoma exposure.

OPEN IN VIEWER

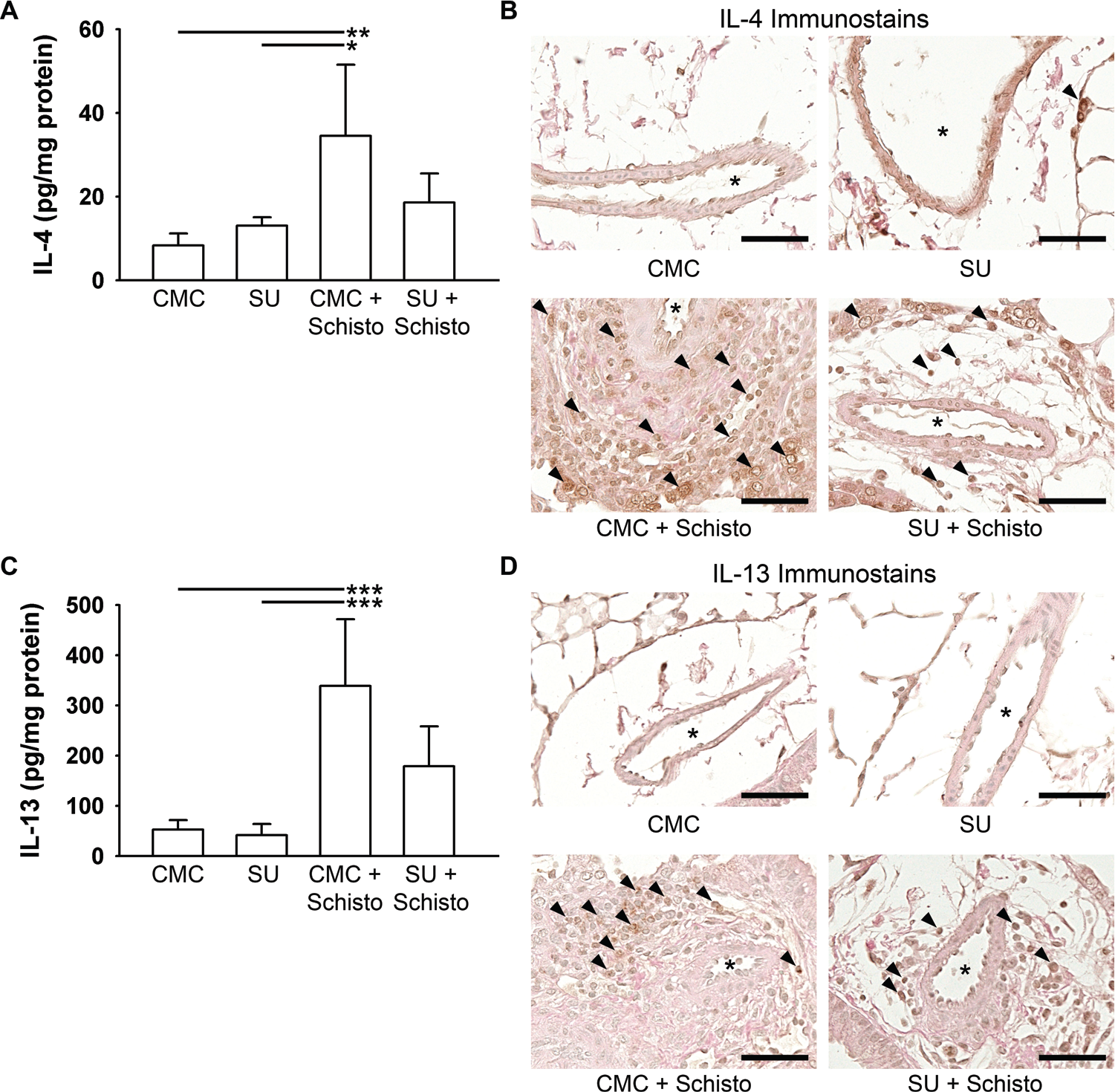

Figure 4.

Interleukin (IL)-4 and IL-13 protein levels are increased in the lungs of Schistosoma (Schisto)-exposed mice and partially attenuated by concurrent SU5416 (SU) administration. A, Quantification of IL-4 protein levels, as measured by enzyme-linked immunosorbent assay (ELISA). n = 4 animals/group; ANOVA: P = 0.014; a single asterisk indicates P < 0.05 and a double asterisk P < 0.01 by post hoc Tukey test. B, Immunostain for IL-4 on representative lung sections from mice exposed to carboxymethylcellulose (CMC) or SU, with or without concurrent Schistosoma exposure (arrowheads: positively stained cells; asterisk: vessel lumen; scale bars: 50 μm). C, IL-13 protein levels, as measured by ELISA. n = 4 animals/group; ANOVA P < 0.001; 3 asterisks indicate P < 0.005 by post hoc Tukey test. D, Immunostain for IL-13 on representative lung sections from mice exposed to CMC or SU, with or without concurrent Schistosoma exposure (arrowheads: positively stained cells; asterisk: vessel lumen; scale bars: 100 μm).

With concurrent SU treatment, the density of the cells that stained positive for either IL-4 or IL-13 decreased. The inflammatory granuloma volumes in Schistosoma egg–exposed mice were not significantly different between the groups receiving CMC or SU in addition to Schistosoma exposure (data not shown).

We also sought to characterize cellular proliferation and apoptosis in the vasculature by immunostaining for PCNA and TUNEL. Vascular cell proliferation was largely absent in the media or intima of pulmonary arteries in all of the groups (Fig. 5). However, mice exposed to S. mansoni eggs had an increase in the number of adventitial PCNA-positive cells, which was suppressed by concurrent SU treatment. Significant apoptosis, as indicated by TUNEL staining, was not observed in the pulmonary arteries or perivascular regions in any of the groups (data not shown).

OPEN IN VIEWER

Figure 5.

Adventitial cellular proliferation is increased in the lungs of Schistosoma (Schisto)-exposed mice and attenuated by concurrent SU5416 (SU) administration. Immunofluorescence staining for proliferating cell nuclear antigen (PCNA; green; arrowheads: PCNA-positive cells in the adventitia) and DAPI (4′,6-diamidino-2-phenylindole; blue; asterisk: vessel lumen). Scale bars: 100 μm. CMC: carboxymethylcellulose.

There is evidence that human schistosomiasis-associated PAH involves both pulmonary vasoconstriction and vascular remodeling. ²⁴ We sought to determine the degree of vasoconstriction after SU treatment with or without concurrent Schistosoma egg exposure. We specifically interrogated the activity of the Rho kinase pathway, which we previously found to be a significant contributor in experimental PH induced by Schistosoma exposure ¹⁴ and has been implicated in pathologic vasoconstriction in other models of experimental PH.^25–27 We found a 2.6-fold increase (P = 0.02) in the concentration of activated (GTP-bound) RhoA in whole-lung lysates of concurrently SU-treated and Schistosoma-exposed mice, compared to mice treated with SU alone (Fig. 6A). Acute intravenous administration of fasudil, a Rho-associated coiled-coil containing protein kinase (ROCK) inhibitor, resulted in a minimal average decrease of 1.8 mmHg in the RVSP of mice treated with SU alone. However, fasudil administration in concurrently SU-treated and Schistosoma-exposed mice resulted in a significantly greater decrease in the RVSP, 4.0 mmHg (P < 0.05; Fig. 6B–6D).

OPEN IN VIEWER

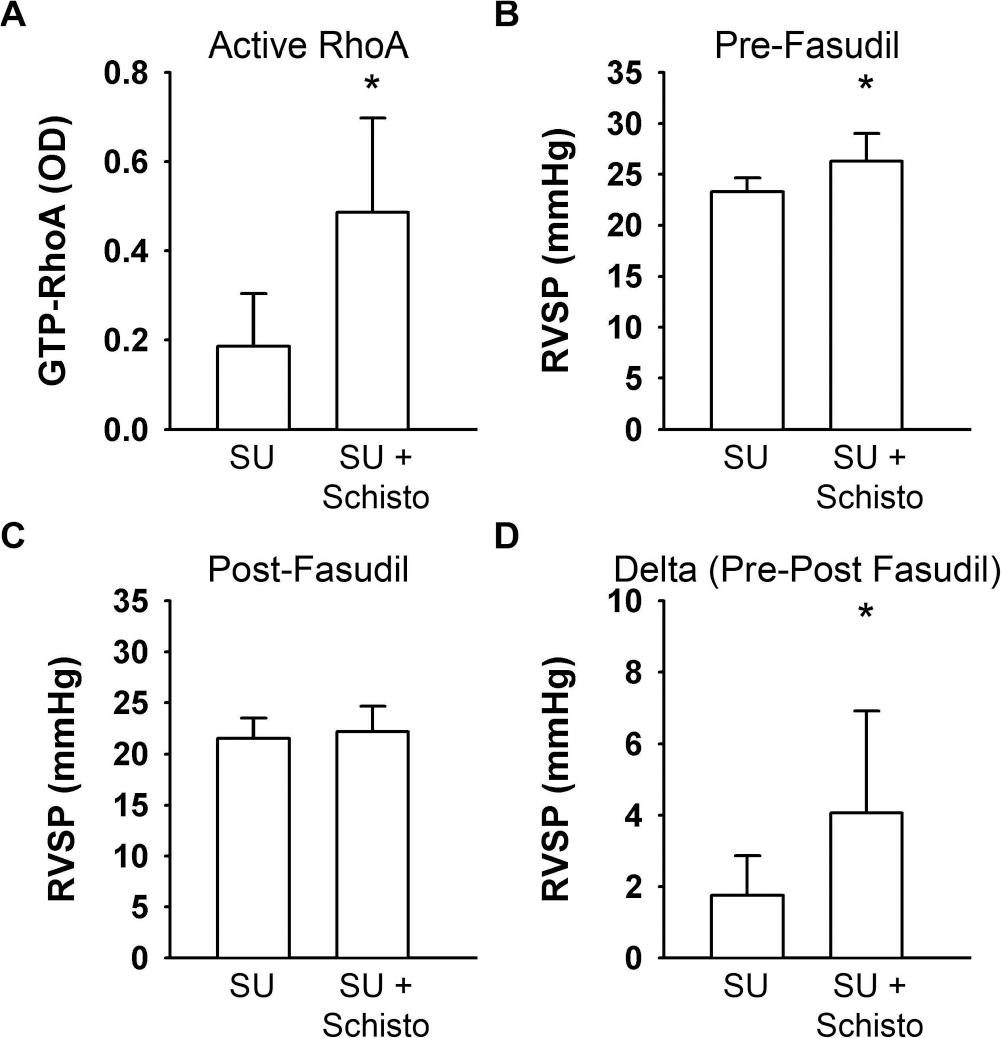

Figure 6.

Rho kinase–mediated vasoconstriction is increased by Schistosoma (Schisto) exposure. A, Optical density (OD) of guanosine triphosphate (GTP)-bound (active) RhoA in whole-lung protein lysates; n = 5–6 animals/group; t test: P = 0.02. B–D, Right ventricular systolic pressure (RVSP) in SU5416 (SU)-treated mice with or without concurrent Schistosoma exposure recorded before (B) and 5 minutes after (C) fasduil administration and the decrease in pressure for each animal (D); n = 8–9 animals/group. In all panels, an asterisk indicates P < 0.05 by t test.

We also sought to assess the VEGF-dependent cytokine response in another organ (the liver) that is affected by Schistosoma infection. We infected mice with S. mansoni cercariae and concurrently treated with CMC or SU (Fig. 7A), followed by quantification of IL-4 and IL-13 levels in whole-liver protein lysates. As in the lung, the levels of hepatic IL-4 and IL-13 were significantly increased by Schistosoma exposure (Fig. 7B, 7C). There was a trend toward a decrease in hepatic IL-4 with concurrent SU treatment (post hoc Tukey test: P = 0.07) but less so for IL-13 (nonparametric post hoc Dunn's test: P = 0.20). The inflammatory liver granuloma volumes in Schistosoma cercariae–infected mice were not significantly different between the groups receiving CMC or SU in addition to Schistosoma exposure (data not shown).

OPEN IN VIEWER

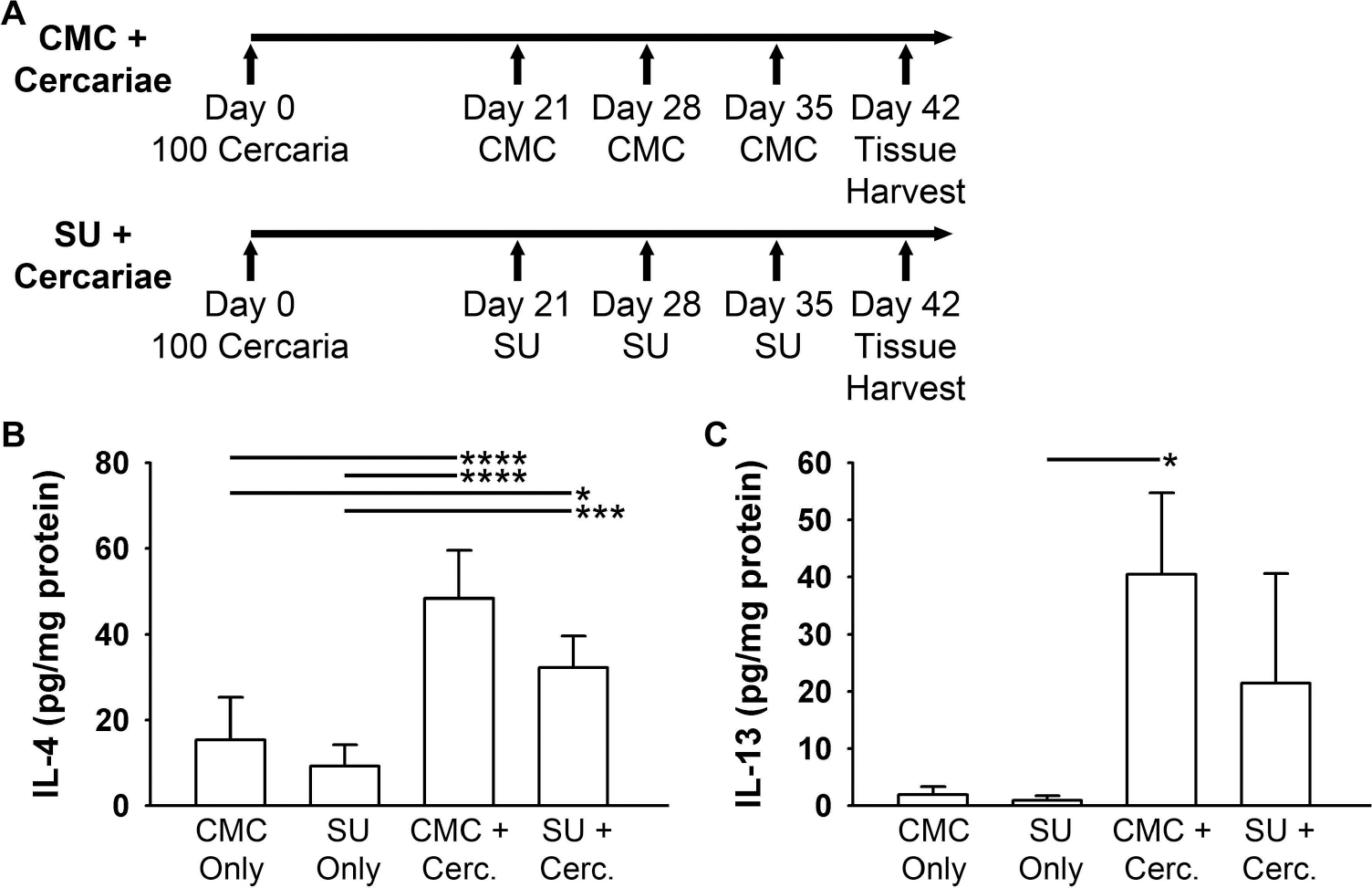

Figure 7.

Interleukin (IL)-4 and IL-13 protein levels are increased in the livers of Schistosoma-infected mice and attenuated by concurrent SU5416 administration. A, Schematic representation of the animal protocols used for SU5416 (SU; 0 mg/kg) or carboxymethylcellulose (CMC) administration and Schistosoma cercariae (Cerc.) infection. B, Quantification of IL-4 protein levels, as measured by enzyme-linked immunosorbent assay (ELISA). C, IL-13 protein levels, as measured by ELISA. n = 4–6 animals/group; ANOVA: P < 0.001 for IL-4; ANOVA on ranks: P = 0.006 for IL-13. A single asterisk indicates P < 0.05, 3 asterisks P < 0.005, and 4 asterisks P < 0.001 by post hoc Tukey test (B) or post hoc Dunn's test (C).

DISCUSSION

In this study, we present evidence that VEGF signaling is involved in the development of Th2 inflammation and vascular remodeling in the lungs of mice provoked by sensitization and intravenous exposure to Schistosoma ova, as evidenced by a decrease in Th2 inflammatory cytokines, perivascular inflammation, and pulmonary arterial medial thickening with concurrent pharmacological blockade of the VEGFRs VEGFR1 and VEGFR2. Our findings are consistent with previous studies suggesting that VEGF is a positive regulator of inflammation in the lung.^7–9 We have previously shown that there are both bone marrow–derived and locally proliferating cells in the vasculature of Schistosoma-exposed mice. ¹⁴ The mechanism by which VEGF upregulates pulmonary inflammation, and thereby promotes PH, in the mouse may be due to increasing inflammatory cell recruitment or localized proliferation, because SU treatment decreases adventitial inflammatory cell density after either Schistosoma or inhaled ovalbumin exposures. ⁷ We furthermore extended these studies by finding that VEGF is also a partial regulator of Th2 inflammation in the liver.

There have been conflicting reports regarding the role of VEGF signaling in experimental animal models of inflammation-driven pulmonary vascular disease. In the mouse, VEGF overexpression has been shown to promote Th2 inflammation, ⁷ which in turn can result in pulmonary vascular disease.^6,16–20 Conversely, in the rat, VEGFR blockade has been shown to exacerbate pulmonary vascular disease due to antigen-induced Th2 inflammation, resulting in PH. ¹¹ In the mouse, however, although antigen-induced Th2 inflammation in the lung suffices to cause pulmonary arterial muscularization, ⁶ VEGFR blockade does not exacerbate this phenotype, although when combined with hypoxia it may contribute to the development of PH, as it does in the rat.^12,28

Numerous studies have documented additional differences between the pulmonary vascular responses of mice and rats (many of which are discussed in a recent review of mouse models of PAH ²⁹ ), and it is far from clear whether any one model is more relevant to the human disease than any other model. For example, the severity of hypoxia-induced PH and vascular remodeling is significantly less in mice than in rats, ³⁰ and hypoxia induces different gene expression patterns in the lungs of mice and in the lungs of rats. ³¹ The difference between our finding of protection from Th2-induced inflammation and vascular remodeling in mice with Schistosoma exposure and SU treatment, as compared to worsened disease with ovalbumin exposure and SU in the rat, ¹¹ provides another example of species-specific differences in experimental models of PH. While the model phenotypes could also be explained by differences in the specific inflammatory stimuli (ovalbumin vs. Schistosoma ova), the fact that ovalbumin exposure also does not synergize with SU in the mouse ¹² suggests that there are key differences between Th2-stimulated vascular disease in rats and that in mice. One potential factor may be the more extensive bronchiolar blood supply in rats compared to that in mice, providing a route of entry for immune cell populations.^32,33

PH results from a combination of fixed vascular remodeling and vasoconstriction. We tested the role of Rho-mediated vasoconstriction in Schistosoma-induced PH with concurrent SU treatment; Rho-mediated vasoconstriction has been shown to be implicated in pathologic vasoconstriction in Schistosoma-induced and other models of experimental PH and is an area of active clinical investigation.^{14,25–27,34,35} VEGFR blockade alone did not result in significant ROCK-mediated vasoconstriction, while the levels of activated RhoA and ROCK-mediated vasoconstriction were increased with concurrent Schistosoma exposure. The decrease in RVSP induced by fasudil in the SU-Schistosoma group is comparable to the decrease in RVSP induced by fasudil we previously observed in Schistosoma-alone mice (6.9 ± 3.4 mmHg). ¹⁴ Of note, some patients with Schistosoma-induced pulmonary vascular disease have a significant component of vasoconstriction. ²⁴

In summary, we found that VEGF signaling is necessary for the immune-stimulated vascular remodeling induced by Schistosoma egg exposure in the mouse. Further studies are needed to clarify the role of VEGF and the potential therapeutic opportunity of blocking or augmenting VEGF signaling in patients with PAH in general and Schistosoma-induced PAH specifically.
