BK Channels in Rat and Human Pulmonary Smooth Muscle Cells are BK α-β 1 Functional Complexes Lacking the Oxygen-Sensitive Stress Axis Regulated Exon Insert

Animals

Procedures using animals were performed at the University of Arkansas for Medical Sciences, as approved by the Institutional Animal Care and Use Committee and in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals. Male Sprague-Dawley rats 9–13 weeks of age anesthetized with isoflurane were euthanized by decapitation. Then the brain or lungs were removed and submerged in cold physiological saline solution (PSS) consisting of 119 mmol/L NaCl, 24 mmol/L NaHCO₃, 5.5 mmol/L glucose, 4.7 mmol/L KCl, 1.6 mmol/L CaCl₂, 1.2 mmol/L NaH₂PO₄, 1.2 mmol/L MgSO₄, and 0.03 mmol/L ethylenediaminetetraacetic acid. Arteries were gently removed from adjacent tissue. Second- to fourth-order intralobar PAs with external diameters between 200 and 600 μm were used for patch-clamp, quantitative realtime polymerase chain reaction (qPCR), and Western blot experiments. Middle and posterior cerebral arteries, the circle of Willis, and the basilar artery were used to obtain cerebral arterial smooth muscle cells (CASMCs) for patch-clamp studies.

PH was induced by exposing 9-week-old male Sprague-Dawley rats to 3 weeks of normobaric CH in BioSpherix (Lacona, NY) environmental chambers. The chambers used a computer-regulated release of nitrogen into the chamber to maintain an inspired O₂ level of 10%–11%. Immediately following the CH exposure, right ventricular systolic pressure (RVSP) was measured via catheter through the right external jugular vein under isoflurane anesthesia. Hearts were dissected to determine the ratio of the mass of the outer wall of the right ventricle (RV) to the mass of the left ventricle plus septum (RV/(LV + S)), a standard index of RV hypertrophy. The CH rats developed PH as indicated by an increase of RVSP and the presence of RV hypertrophy after 3 weeks of CH, without a rise in systemic mean arterial pressure or heart rate (Fig. S1; Figs. S1, S2 available online). Age-matched normoxic (N) control rats were kept in normal room air (21% O₂) for the same duration of time.

Human lung tissue

Transplant-quality human cadaver lungs were obtained from the National Disease Research Interchange or the Arkansas Regional Organ Recovery Agency. Lungs were removed by 30 minutes after cardiac death, placed in University of Wisconsin organ preservation solution, and then shipped to our laboratory on ice. The tissues were used for experiments within 3 days (or snap frozen in liquid nitrogen for later use in molecular analyses). The use of tissue from deceased organ donors was reviewed by the University of Arkansas for Medical Sciences Institutional Review Board and determined not to be human subjects research, as defined by 45 CFR 46.102(f). The lungs were not from donors with known PH. The following criteria were used in selecting samples: age 15–55 years; serologies suitable for transplant; no acute disease, bacterial infection, or cancer; <10 pack-years smoking history; and arterial oxygen tension (PaO₂) > 100 mmHg on inhaled 100% O₂. Asthma, diabetes, hypercholesterolemia, and systemic hypertension were not excluded.

After receipt of donor lungs in the laboratory, the airways were washed with phosphate-buffered saline (pH 7.4) and subsequently inflated with warm low-melting-point agarose to identify small airway versus vascular structures. After the agarose had cooled and solidified, small cubes (∼1 cm³) of lung tissue were cut and dissected in cold PSS to obtain small PAs (≤1-mm diameter). These arteries were used in Western blot, qPCR, and patch-clamp analyses.

Preparation of smooth muscle cells for patch-clamp experiments

All arterial smooth muscle cell (ASMC) isolations used enzymes from Worthington Biochemical (Lakewood, NJ) and protocols optimized for different preparations. To obtain ASMCs for patch-clamp experiments, dissected arteries were cut into 1-mm segments, incubated, and gently shaken in a 1.5-mL microcentrifuge tube filled with Ca²⁺-free Tyrode's solution (CFT) at 37°C, which contained 143 mmol/L NaCl, 5.4 mmol/L KCl, 1.8 mmol/L CaCl₂, 0.5 mmol/L MgCl₂, 0.33 mmol/L NaH₂PO₄, 16.6 mmol/L glucose, and 5 mmol/L HEPES (pH adjusted to 7.4 with NaOH). The digestion sequence used to isolate PASMCs from control or N rats included 20 minutes in 1.8 mg/mL collagenase, 15 minutes in 0.5 mg/mL elastase, and another 10 minutes in 1.8 mg/mL collagenase. Isolation of PASMCs from CH rats required 20 minutes in 2 mg/mL collagenase, 20 minutes in 0.5 mg/mL collagenase, 15 minutes in 2 mg/mL elastase, and 10 minutes in 0.5 mg/mL collagenase. Finally, in enzyme-free CFT, the arterial segments were gently triturated with a fire-polished Pasteur pipette for 1–2 minutes to release PASMCs.

To obtain human PASMCs for patch-clamp experiments, human PAs (≤1-mm diameter) were cut into 1-mm segments and placed in warm (37°C) enzyme-containing CFT as follows: 20 minutes in 2 mg/mL collagenase, 20 minutes in 0.5 mg/mL elastase, 20 minutes in 2 mg/mL collagenase, and 15 minutes in 0.5 mg/mL collagenase. Then, in enzyme-free CFT, the arterial segments were gently triturated with a fire-polished Pasteur pipette for 1–2 minutes to release human PASMCs.

A subset of studies compared BK channel properties between rat PASMCs and CASMCs. To isolate CASMCs, rat cerebral arteries were cut into 1-mm segments and placed in warm (37°C) enzyme-containing CFT as follows: 20 minutes in 1 mg/mL papain and then 20 minutes in 0.9 mg/mL collagenase and 0.25 mg/mL elastase. Finally, in enzyme-free CFT, the arterial segments were gently triturated with a fire-polished Pasteur pipette for 1–2 minutes to release CASMCs. All ASMC suspensions were kept on ice and used in patch-clamp studies the same day.

Patch-clamp experiments

Patch-clamp experiments were performed on ASMCs obtained via enzymatic digestion of freshly dissected pulmonary or cerebral arteries as described above. The inside-out (I-O) patch-clamp configuration was used to record BK channel currents in I-O membrane patches at room temperature. These I-O membrane patches were obtained by sealing cells with a 10–20-MΩ pipette and then rapidly interfacing the pipette through the bath surface to remove the cell, followed by reintroducing the pipette into the bath. Cells were bathed in a solution that consisted of 145 mmol/L KCl, 10 mmol/L PIPES, 1 mmol/L EGTA, 1 mmol/L MgCl₂, and variable CaCl₂ (range: 10⁻⁸–10⁻⁴ mol/L) and was titrated to pH 7.4 using KOH. The amounts of Ca²⁺ required to achieve desired free Ca²⁺ concentrations were calculated using Maxchelator Ca-Mg-ATP-EGTA Calculator v1.0 with constants from National Institute of Standards and Technology database 46 v8 (http://www.stanford.edu/∼cpatton/CaMgATPEGTA-NIST.htm). The pipette solution contained 145 mmol/L KCl, 5 mmol/L HEPES, 1.8 mmol/L CaCl₂, and 1 mmol/L MgCl₂ and was titrated to pH 7.4 using KOH. Different patch potentials are indicated in the figure legends. The cell-attached patch-clamp configuration also was used in one series of experiments. For this study, the composition of both the bath and pipette solutions was the same as the pipette solution used for I-O patches.

To achieve a hypoxic environment for patch-clamp studies, the bath solution was bubbled with nitrogen gas in a reservoir to remove dissolved O₂. Then the hypoxic solution was drawn from the reservoir into a glass syringe before immediate, direct infusion into the patch-clamp chamber to superfuse the cells under study. An MI-730 O₂ probe (Microelectrodes, Bedford, NH) was placed near the outflow port of the patch-clamp chamber to monitor the O₂ concentration in the bath. The bath was reperfused with hypoxic solution as often as necessary to maintain a hypoxic environment (PaO₂ = 26 ± 11 mm Hg; O₂ = 3.4% ± 1.5%), which was shown earlier to inhibit K_V channels. ^7,1

Patch-clamp studies were performed on an Olympus IMT-2 inverted microscope (Tokyo), using an L/M-EPC7 amplifier (List Medical, Darmstadt) and a TL-1 DMA interface (Axon Instruments/Molecular Devices, Sunnyvale, CA). Data were filtered at 1 kHz using a Frequency Devices 902 low-pass filter (Ottawa, IL) before digitization. Traces were recorded using Fetchex (ver. 6). Analysis of single-channel data was performed using Clampfit 10.3.1.5 (Molecular Devices).

Western blotting

Protein lysates were prepared by homogenizing tissues in Thermo Scientific radioimmunoprecipitation assay buffer (Waltham, MA), using stainless steel beads in a Next Advance BBX24B-CE bullet blender (Averill Park, NY). Protein lysates were size separated on an Invitrogen (Grand Island, NY) 3%–8% gradient bis-tris polyacrylamide minigel and transferred to a polyvinylidene fluoride membrane for blotting for 2 hours on ice. The membrane was blocked using 10% dry milk in Tris-buffered saline containing 0.1% Tween-20. A monoclonal anti-BKα antibody (75–022; Neuromab, Davis, CA) was used at a dilution of 1:400, and a polyclonal anti-BKβ₁ antibody (APC-036; Alomone Labs, Cambridge) was used at a dilution of 1:400. Beta-actin was detected with a monoclonal antibody from Sigma-Aldrich (A5441; St. Louis, MO) at a dilution of 1:5,000. Horseradish peroxidase–conjugated secondary antibodies provided chemiluminescent signals, which were detected using X-ray film. After the blots were scanned, densitometry was performed on the images, using ImageJ (http://imagej.nih.gov/ij/).

Expression of hBK channels in HEK293 cells

A plasmid bicistronically expressing a Flag tag (DYKDDDDK) fused to an isoform of human BKα subunit (GenBank U11058.2) and mCherry was a generous gift from S. England (Washington University). A plasmid expressing human BKβ₁ subunit (GenBank NM_004137.3; University of Texas Health Science Center, San Antonio) was provided by J. Denton (Vanderbilt University). Human embryonic kidney (HEK) 293 cells (ATCC, Manassas, VA) were transfected using the Ca phosphate method with 0.2 μg of hBKα plasmid and 0.8 μg of hBKβ₁ plasmid (α + β) or with 0.8 μg of negative control plasmid without the hBKβ₁ gene (BKα only). Briefly, HEK293 cells were plated on 35-mm culture dishes in 10% fetal bovine serum/Dulbecco's modified Eagle medium 1 day before transfection. A total of 1 μg of DNA plasmid was incubated for 1 min with 100 μL of CaCl₂ and 100 μL of 2× HEPES-buffered solution before the solution was applied to ∼50% confluent dishes. Patch-clamp experiments were carried out 24–48 hours after transfection. We routinely obtained >80% positive transfection confirmed by red fluorescence.

Quantitative polymerase chain reaction (qPCR)

Rat or human PAs were snap frozen in liquid nitrogen and pulverized for RNA isolation. Total RNA was isolated using the Qiagen RNeasy Mini Kit (Venlo) according to the manufacturer's instructions. Total RNA was treated with RNase-Free DNase (Qiagen) to remove contaminating DNA. To generate complementary DNA (cDNA), 500 ng of total RNA was reverse transcribed using the Bio-Rad iScript cDNA synthesis kit (Hercules, CA). Separate primer sets for rat (forward: GAGTCAACATTCCCATCATC; reverse: TGTGTCAGGGTCATCATCAT) and human (forward: GTACGCCATTAAGTCGGGCT; reverse: TGCAAGACTCCGATGCTGTC) samples were designed against cDNA sequences corresponding to regions common to all recognized rat or human BKα splice variants, respectively, to detect total BKα transcript. Two additional primer sets—again separate for rat (forward: TCCATCTACAAGAGAATGAGCCGAGC; reverse: CACGGAAACTGGTGGAGCAATCAT) and human (forward: ACGTGGACACCCTTGAGAGA; reverse: TAACAAGGGGTCATGCCTCATC) samples—were designed against a region of the cDNA sequence of the rat or human STREX, respectively, to detect the STREX-containing BKα splice variant. Amplification was accomplished using qPCR with iQ SYBR Green Supermix (Bio-Rad) using a CFX96 Touch qPCR detection system (Bio-Rad). Primer sets for rat β-actin (forward: ATCCTGTGGCATTCCATGAAACTAC; reverse: AGGAGCCAGGGCAGTAATCTC) and human glyceraldehyde 3-phosphate dehydrogenase (GAPDH; forward: AGGGCTGCTTTTAACTCTGGT; reverse: CCCCACTTGATTTTGGAGGGA) were used as amplification controls for rat and human samples, respectively. Amplification reactions containing all components except cDNA template were used as negative controls. The relative abundances of human total BKα and human STREX-containing BKα transcripts were estimated by the ΔΔCt method and reported as percentage of total BKα expression. For rat samples, commercially synthesized DNA fragments (GenScript, Piscataway, NJ) containing either rat STREX-containing BKα or rat STREX-lacking BKα were amplified in parallel to quantify absolute transcript copy numbers.

Statistical analysis

Results are presented as means ± SE. Comparisons between 2 groups were made using unpaired Student t tests unless noted otherwise. Experiments with more than 2 groups were analyzed using ANOVA followed by a post hoc Tukey test; P < 0.05 was regarded as significant. Two levels of statistical significance were used. In the figures, one asterisk indicates that P ≤ 0.05, and 2 asterisks indicate that P ≤ 0.01. Data from patch-clamp studies in which the open-state probability (NP_O) of BK channels is plotted as a function of LC concentration exhibited a log-normal distribution; therefore, statistics were performed on the base 10 logarithms of the values, and data are presented on a logarithmic scale. Data generated from patch-clamp studies in which the NP_O of BK channels was plotted as a function of Ca²⁺ concentration were fitted with variable slope and 4-parameter sigmoids, using GraphPad Prism (GraphPad, La Jolla, CA).

High Ca²⁺ sensitivity of BK channels in rat PASMCs infers functional BKα-β₁ complexes

The ability of BK channels to generate a strong hyperpolarizing current depends on their abundance and the degree of functional coupling between BKα and BKβ₁ subunits, since BKβ₁ increases the apparent voltage and Ca²⁺ sensitivity of the channel. In protein lysates from third- and fourth-order rat PAs, immunoreactive bands corresponding to the BKα and β₁ subunits were detected using monoclonal anti-BKα and polyclonal anti-BKβ₁ antibodies, respectively (Fig. 1A, right lane). The antibodies were verified for target fidelity using protein lysates from HEK293 cells expressing either the human BKα or the BKβ₁ subunit (Fig. 1A, left lanes). Notably, rat and human BK channels share the anti-BKα and anti-BKβ₁ epitopes. The apparent size of the BKβ₁ subunit in HEK293 cells is slightly smaller (24 kD) than that in rat PA (≥27 kD), which may reflect differences in posttranslational modification of BKβ₁. Meera et al. ²⁰ have reported N-glycosylation of the BKβ₁ subunit in Xenopus laevis oocytes, which results in an apparent 4-kD increase in molecular mass on polyacrylamide gel electrophoresis. Notably, in I-O patches of rat PASMCs, BK channels exhibited a single-channel conductance of 225 ± 4 pS, in agreement with earlier reports.^21,22 This value was determined by fitting a linear trend line to unitary BK current amplitudes obtained at patch potentials between −80 and +80 mV (Fig. 1B; n = 4–13).

OPEN IN VIEWER

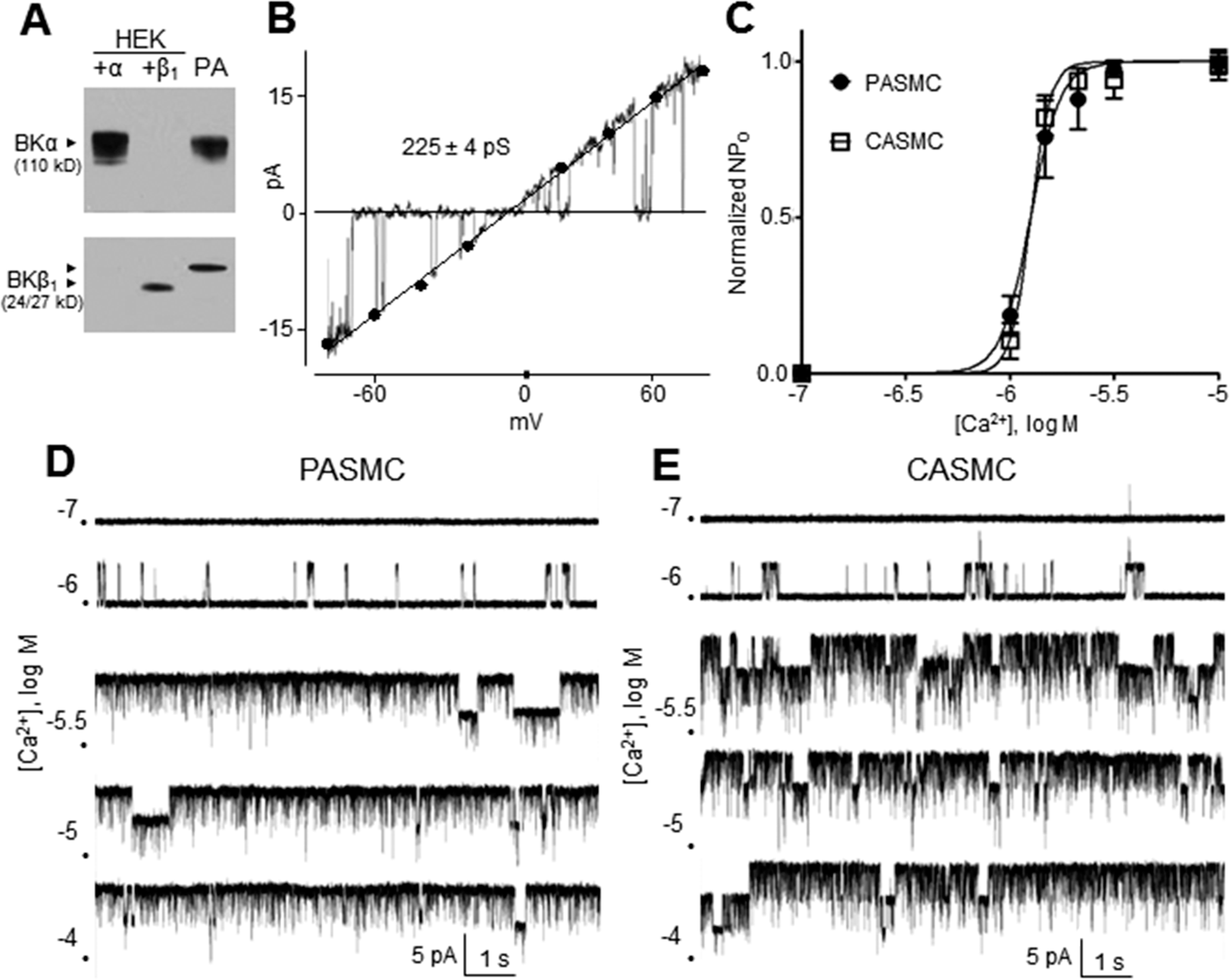

Figure 1.

A, Western blot of pulmonary artery (PA) lysate (third lane) from a normoxic rat reveals BKα and BKβ₁ subunits. To confirm the specificity of antibodies, the first and second lanes contain lysates from human embryonic kidney (HEK) cells expressing either the BKα or BKβ₁ subunit, respectively. B, BK channel current in an inside-out (I-O) patch of a PA smooth muscle cell (PASMC) from a normoxic rat during an 800-ms voltage ramp from −80 to +80 mV reveals a unitary conductance of 225 ± 4 pS (n = 5–11 per point). C, Exposure to a range of Ca²⁺ concentrations reveals similar Ca²⁺ sensitivities between BK channels in I-O patches from PASMCs and cerebral arterial smooth muscle cells (CASMCs) clamped at +20 mV (n = 4–7 per point). D, E, Representative K⁺ current recordings reveal increasing BK channel opening in an I-O patches of rat PASMCs (D) or CASMCs (E) exposed to elevations of [Ca²⁺]_i at a patch potential of +20 mV. BK channel: high-conductance Ca²⁺-activated channel; NP_O: open-state probability.

The Ca²⁺ sensitivity of BK channels in different vascular beds is highly variable and positively correlates to the ratio of BKβ₁ to BKα subunits. ²¹ Importantly, BK channels in rat PASMCs were reported to exhibit low Ca²⁺ sensitivity possibly related to deficient BKβ₁. ¹⁶ However, we observed BK channels highly sensitive to [Ca²⁺]_i only in I-O patches of rat PASMCs. BK channel NP_O sharply increased when [Ca²⁺]_i was elevated from 10⁻⁶ to 10^−5.5 mol/L (Fig. 1D), resulting in a steep Ca²⁺ activation curve (Fig. 1C, circles). This curve is nearly identical to that reported for cloned BKα-β₁ channels. ²³ In contrast, the Ca²⁺ activation curve for BK channels devoid of BKβ₁ exhibits a markedly diminished slope and rightward shift. ²³ Furthermore, we also compared Ca²⁺ activation curves between BK channels from rat PASMCs and rat CASMCs. The latter BK channels of rat cerebral arteries are known to exhibit high Ca²⁺ sensitivity, ²¹ a finding we verified in CASMCs by observing their marked activation by stepwise [Ca²⁺]_i elevations from 10⁻⁶ to 10^−5.5 mol/L (Fig. 1E). The resulting steep Ca²⁺ activation curve of CASMC BK channels was nearly identical to that of BK channels in PASMCs (Fig. 1C; n = 4–8). Half-maximal Ca²⁺ activation values were −5.90 ± 0.02 log mol/L (PASMCs) and −5.90 ± 0.01 log mol/L (CASMCs), suggesting similarly high Ca²⁺ sensitivities of BKα-β₁ channel complexes in both vascular beds.

Rat PASMCs primarily express oxygen-insensitive STREX⁻ BKα variants

It is unclear whether BK channels in PASMCs are inactivated by hypoxia, which potentially would render them unavailable to BKCO therapy in some forms of PH characterized by hypoxemia. BKα splice variants that include a 59–amino acid STREX insert in the intracellular carboxy terminus (Fig. 2A) are inhibited by hypoxia, as originally described in mouse anterior pituitary cells. ⁸ We evaluated the relative percent of BKα variants containing (STREX⁺) or lacking (STREX⁻) the STREX insert in cDNA prepared from rat third- to fifth-order PAs. Using primers designed to amplify the STREX insert, real-time PCR revealed that only 5.7% ± 0.1% of BKα transcripts are STREX⁺ in rat PAs, whereas 94.3% ± 0.1% are the STREX⁻ hypoxia-insensitive variant (Fig. 2B; n = 7). The functional correlate of this observation was confirmed directly in patch-clamp studies by recording BK channel currents in I-O patches of PASMC in room air (21% O₂) and then during hypoxia (3.4% ± 1.5% O₂), which was achieved by perfusing the patch-clamp chamber with recording solution heavily bubbled with nitrogen gas. The NP_O of BK channels was not significantly different between normoxia and hypoxia, confirming the predominance of a STREX⁻ BK channel variant insensitive to acute hypoxia in rat PASMCs (Fig. 2C, 2D; n = 7). We also exposed BK channels in cell-attached patches of rat PASMCs to acute hypoxia in a context in which the cytosolic milieu is preserved. Hypoxia still had no effect on BK channel NP_O (n = 3; Fig. S2).

OPEN IN VIEWER

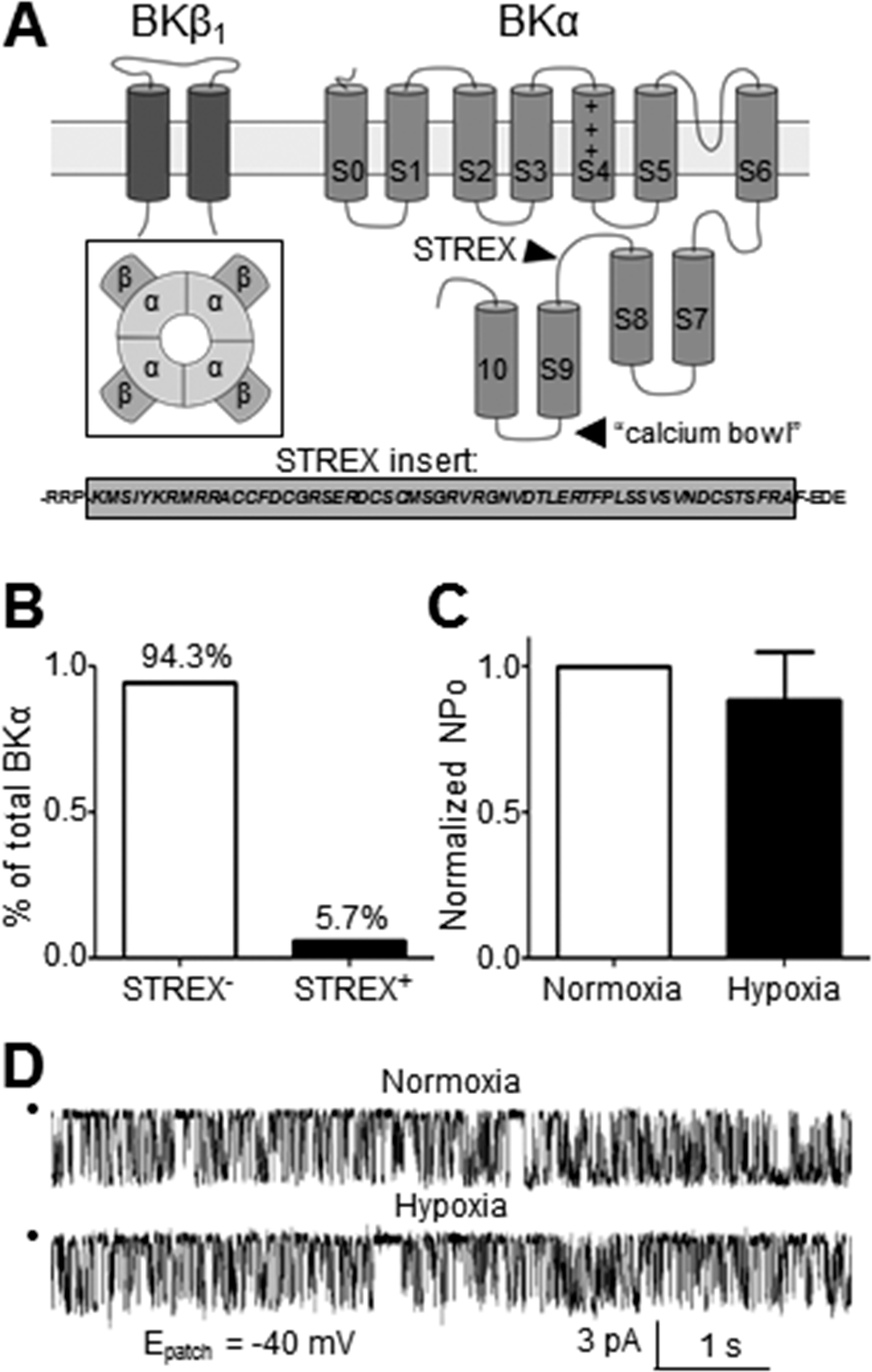

Figure 2.

The alternatively spliced stress axis regulated exon (STREX) sequence located between the S8 and S9 regions of the BKα subunit confers intrinsic oxygen sensitivity. A, Inset depicts the assembled high-conductance Ca²⁺-activated (BK) channel complex. B, Relative abundance of BKα transcript containing the STREX sequence in rat pulmonary artery was 5.7% ± 0.1%, as determined by quantitative real-time polymerase chain reaction (n = 7). C, Open-state probability (NP_O) of BK channels in inside-out patches of pulmonary arterial smooth muscle cells from normoxic rats failed to respond to hypoxic bath solution (n = 7). D, Sample recording demonstrates the lack of effect of hypoxic bath solution on BK channel current (patch potential [E_patch] = −40 mV; [Ca²⁺]_i = 10⁻⁶ mol/L).

BK channels in rat PASMCs are activated by LC

The high Ca²⁺ sensitivity of BK channels in rat PASMCs (Fig. 1C) suggests a functionally coupled BKα-β₁ complex. Importantly, this functional coupling is required for channel activation by several classes of BKCOs, including LC, an activator of BK channels that elicits activation via a known binding site on the second transmembrane domain of the BKβ₁ subunit. ¹⁵ LC has been shown to selectively activate β₁-coupled BK channels at concentrations of 15–300 μmol/L. ²⁴ Here, we used HEK293 cells to express a STREX⁻ BKα variant alone or with BKβ₁ in order to verify that LC activation of BK channels requires both subunits. HEK293 cells coexpressing cloned human BKα and β₁ subunits exhibited a 20.7-fold increase in NP_O in response to 45 μmol/L LC, whereas cells lacking BKβ₁ subunits showed no change in NP_O (Fig. 3A, 3B, 3E). This finding confirmed earlier reports that cloned BKβ₁ subunits are required for LC-induced activation of the BK channel.^15,25 Notably, our patch-clamp studies in HEK293 cells used a lower Ca²⁺ concentration in the bath (10^−6.17 mol/L) to reduce the high number of cloned BK channels in I-O membrane patches. Thus, the NP_O response to LC cannot be compared quantitatively between BK channels in HEK293 cells and PASMCs.

OPEN IN VIEWER

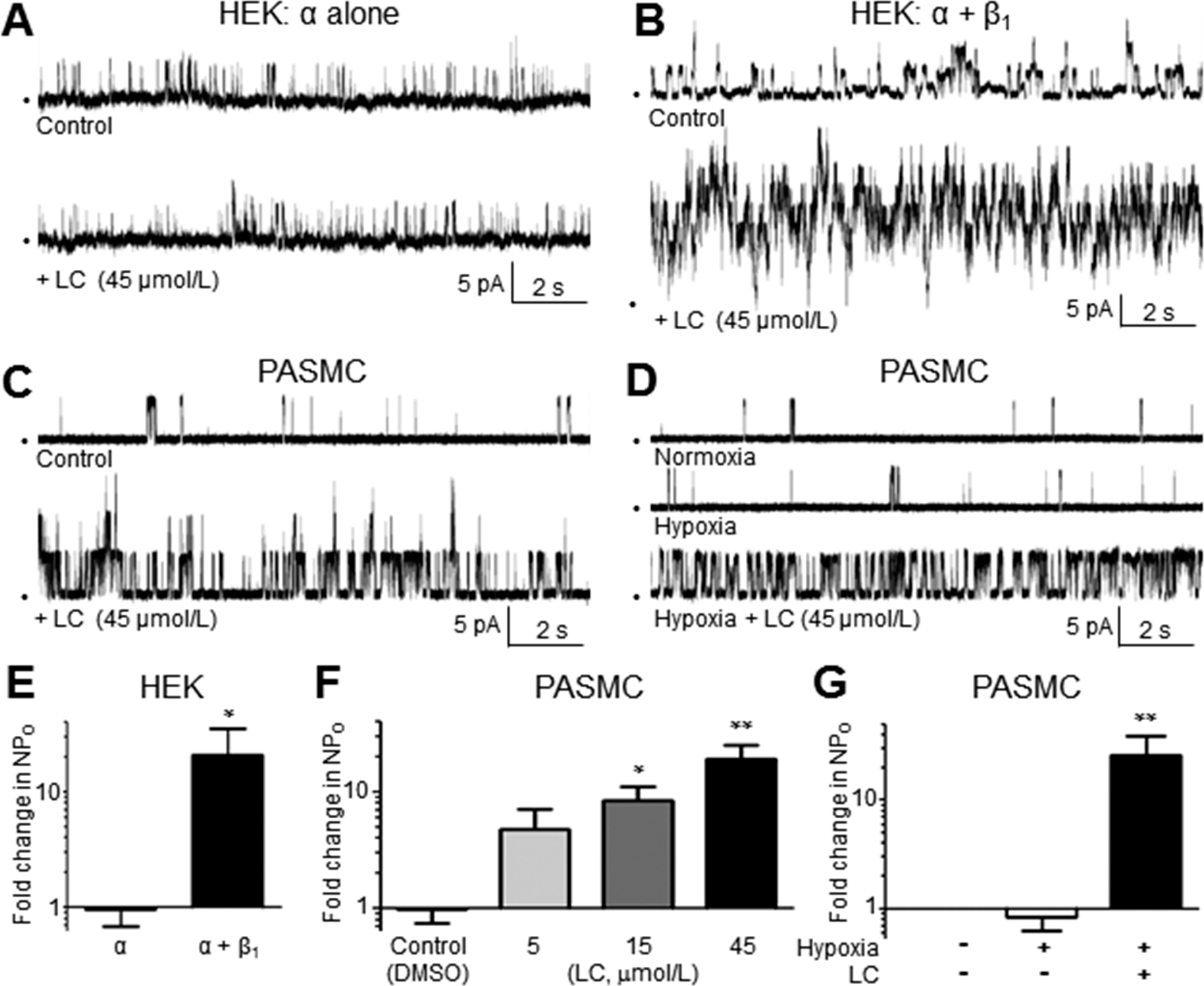

Figure 3.

A, B, Exposure to lithocholate (LC) fails to increase high-conductance Ca²⁺-activated (BK) channel opening in inside-out (I-O) patches of human embryonic kidney (HEK) 293 cells expressing cloned BKα subunits only (A), but LC activates BK channels in HEK293 cells coexpressing cloned BKα and BKβ₁ subunits (B). C, D, LC (45 μmol/L) activates BK channels in I-O patches of rat pulmonary arterial smooth muscle cells (PASMCs) exposed to normoxic (C) or hypoxic (D) bath solutions, confirming the presence of a functionally coupled BKβ₁ subunit (n = 9–12; patch potential = +20 mV; [Ca²⁺]_i = 10⁻⁶ mol/L). E, Average change in open-state probability (NP_O) of cloned BKα or BKα-β channels exposed to LC in I-O patches of HEK293 cells. F, Average increase in NP_O of BK channels in I-O patches of PASMCs in response to 3 concentrations of LC (n = 4–5; patch potential = +20 mV; [Ca²⁺]_i = 10^−6.17 mol/L). G, LC activates BK channels in I-O patches of rat PASMCs in the presence of hypoxia. DMSO: dimethyl sulfoxide.

To confirm the sensitivity of pulmonary BK channels to LC, I-O patches from rat PASMCs were exposed to LC in bath solution containing 10⁻⁶ mol/L bath Ca²⁺. Addition of 45 μmol/L LC elicited a 19 ± 6-fold increase in NP_O (Fig. 3C, 3F; n = 11), confirming a functionally coupled BKβ₁ subunit. Lower LC concentrations of 5 and 15 μmol/L resulted in smaller 5 ± 2- and 8 ± 3-fold increases in NP_O, respectively (Fig. 3F; n = 7, 9). The use of higher concentrations (>45 μmol/L) of LC was limited by low drug solubility. The solvent for LC (0.1% dimethyl sulfoxide [control]) did not significantly change the NP_O of BK channels in PASMCs (Fig. 3F; n = 9), and LC did not alter the pH of the bath solution (data not shown).

We also verified that hypoxia does not prevent LC-induced activation of BK channels in rat PASMCs. Although the vast majority of BK channels in rat PASMCs appear to be STREX⁻ oxygen-insensitive splice variants (Fig. 2), we considered the possibility that hypoxia could disrupt the binding of LC to the BKβ₁ subunit or, alternatively, disrupt distal signaling pathways required for BK channel activation. However, the addition of LC (45 μmol/L) to the bath solution caused a pronounced 25 ± 13-fold increase in NP_O, despite the presence of low PaO₂ (Fig. 3D, 3G; n = 9), showing persistent sensitivity of BK channels to LC under hypoxic conditions. Collectively, these data suggest that BKβ₁-specific pharmacological activators offer the potential to activate the BK channel variant in PASMCs, regardless of the presence of hypoxia.

PASMCs of CH rats express high numbers of BK channels exhibiting normal properties

The ability of BKCOs to restore K⁺ efflux to PASMCs during PH will rely on the persistent expression of BK channels as the therapeutic target. Thus, our next series of studies evaluated whether BK channels in PASMCs retain normal expression and properties during the development of PH in rats exposed to CH for 3 weeks. Age-matched rats exposed to a similar duration of normoxia (N) were used as control (separate from the untreated rats used in Figs. 1–3). After introduction to N or CH for 3 weeks, RVSPs were 22 ± 1 mmHg (n = 7) and 51 ± 7 mmHg (n = 4), respectively, similar to findings of other studies (Fig. S1A). ²⁶ RV hypertrophy assessed as the ratio RV/(LV + S) was evident in CH rats (0.400 ± 0.071, n = 21) compared with N rats (0.252 ± 0.005, n = 18; Fig. S1B). Systemic mean arterial pressure and heart rate were similar between rat groups (Fig. S1C, S1D).

After animals were maintained in N or CH for 3 weeks, intralobular PAs (second to fourth order, 200–600-μm diameter) were dissected from isolated lungs, and the expression level of the BKα subunit was analyzed by Western blot (Fig. 4A). Each lane was loaded with protein lysate from PAs of a single N or CH rat. This analysis revealed that the abundance of BKα subunits was profoundly increased in PAs of CH compared with N rats, corresponding to a 3.2 ± 0.5-fold increase in immunoreactivity (Fig. 4B; n = 5). Real-time PCR using cDNA prepared from rat intralobar PAs—and using primers recognizing rat cDNA sequence shared by BKα splice variants—disclosed a corresponding 1.8 ± 0.2-fold increase in total BKα transcript in PAs of CH compared with N rats (Fig. 4C; n = 6–7). Interestingly, only PAs of CH rats showed an increased expression of BKα protein; mesenteric and femoral arteries from the same animals failed to show this abnormality in protein lysates pooled from 3 N or CH rats (Fig. 4D). Western blots were also performed to compare expression of the BKβ₁ subunit using the same pooled PA lysate. Immunoreactivity corresponding to anti-BKβ₁ was not significantly different between PAs of N and CH rats (Fig. 4E; n = 6), despite a marked increase in anti-BKα immunosignal (Fig. 4A), suggesting an increased abundance of BKα pore proteins in PAs of CH rats compared with accessory BKβ₁ proteins.

OPEN IN VIEWER

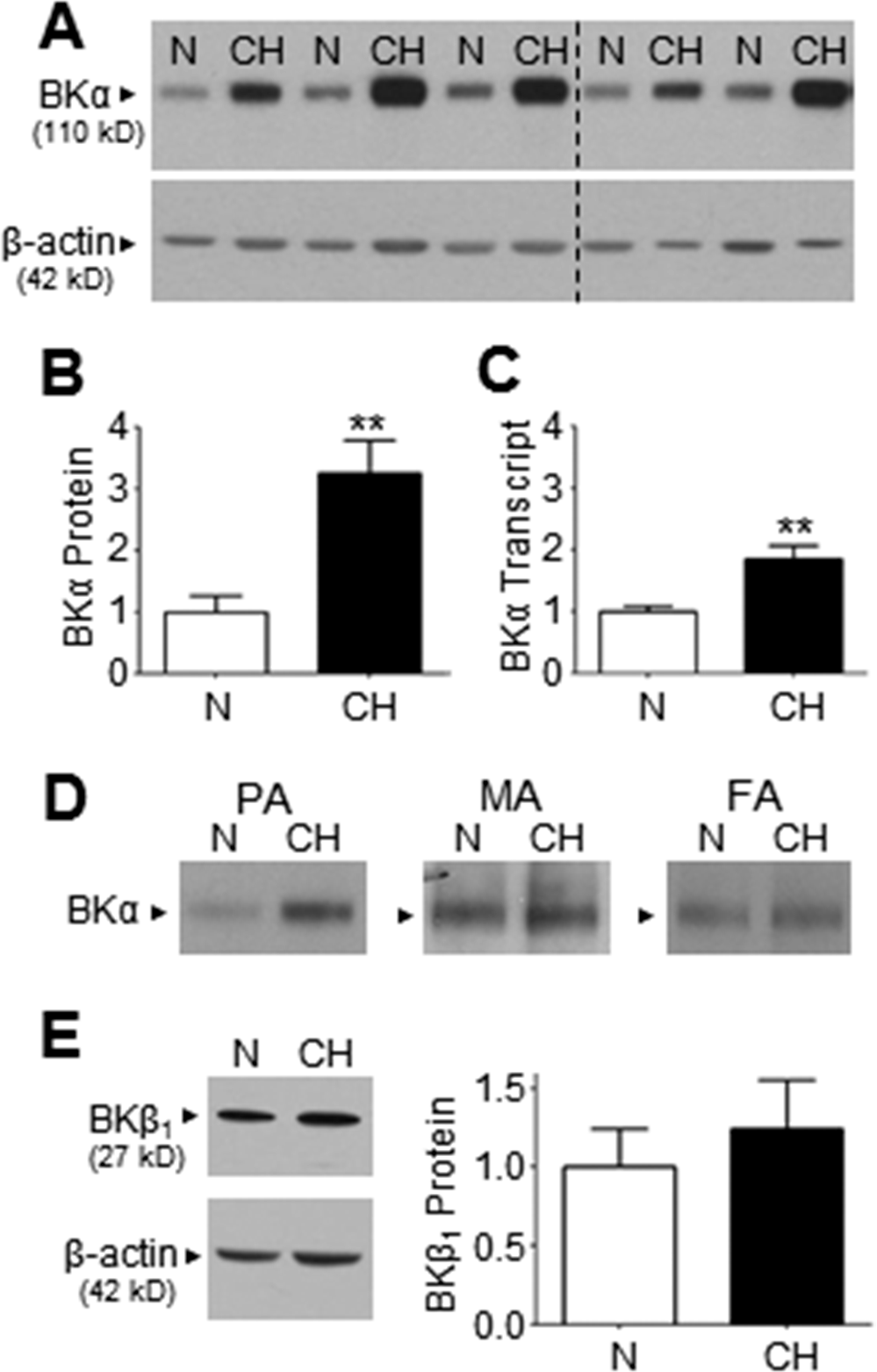

Figure 4.

A, Western blot reveals accentuated immunoreactive bands corresponding to the BKα pore protein in pulmonary artery (PA) lysate from chronic hypoxic (CH) compared with normoxic (N) rats (n = 5 each). Dashed line indicates the location of 2 deleted lanes that were determined to be statistical outliers by the Grubbs outlier test (P < 0.05). B, Bar graph derived from data in A depicts the average 3.2 ± 0.5-fold increase in BKα protein expression in PA lysate of CH compared with N rats. C, Real-time reverse transcription polymerase chain reaction reveals a 1.8 ± 0.2-fold increase in BKα transcript expression in PA from CH compared with N rats (n = 6–7). D, Western blots using protein lysate from pulmonary, mesenteric (MA), or femoral (FA) arteries of N and CH rats indicate that only PAs respond to chronic hypoxia by increasing BKα abundance (each lane was loaded with lysate pooled from 3 rats). E, Western blot suggests a similar expression level of BKβ₁ subunit protein between PA lysate from CH and N rats, as confirmed by averaged values from 6 experiments using different lysate preparations. **P ≤ 0.01.

To resolve the question of whether BK channels in CH rats retain normal properties after the development of PH, we compared unitary conductance, hypoxia, Ca²⁺, and LC sensitivity of BK channels between I-O patches from PASMCs of N and CH rats. Briefly, we detected BK channels of apparently similar phenotype in PAs of N and CH rats, and the properties of high Ca²⁺ sensitivity, insensitivity to hypoxia, and activation by LC were indistinguishable (Fig. 5). For example, the unitary conductance of BK channels in PASMCs of CH rats was determined to be 246 ± 4 pS, which was not significantly different from the value of 225 ± 4 pS in N rats (Fig. 5A; n = 6–12; data for N rats plotted from Fig. 1B). Although BKα subunits were more abundant in PAs of CH rats (Fig. 4A, 4B), the hypoxia-insensitive STREX⁻ variant persisted as the predominant isoform, representing 93.7% ± 0.4% (n = 6) of total BKα transcripts in PAs of CH rats compared with 94.3% ± 0.1% in N rats (Fig. 5C; n = 6; data for N rats plotted from Fig. 2B). Accordingly, BK channels in I-O patches from PASMCs of CH rats were insensitive to acute hypoxia and failed to alter NP_O in response to depletion of bath PaO₂ (Fig. 5D; n = 11). Surprisingly, considering that expression of BKα proteins increased in PAs of CH rats independently of the BKβ₁ protein that confers channel sensitivity to [Ca²⁺]_i, Ca²⁺ activation curves revealed a Ca²⁺ half-maximal effective concentration (EC₅₀) value of −5.93 ± 0.01 log mol/L for BK channels in PASMCs from CH rats, which was nearly identical to the value of −5.90 ± 0.02 log mol/L obtained in PASMCs of N rats (Fig. 5B; n = 5–12 per group; N rat data plotted from Fig. 1C). Similarly, the NP_O of BK channels in PASMCs of CH rats markedly increased by 26 ± 16-fold in response to 45 μmol/L LC, the BKβ₁-dependent BKCO (Fig. 5E, 5F; n = 9). Collectively, these data imply that BK channels are highly upregulated in PASMCs from a CH rat model of PH and that these channels retain normal properties, including sensitivity to BKβ₁-dependent BKCOs.

OPEN IN VIEWER

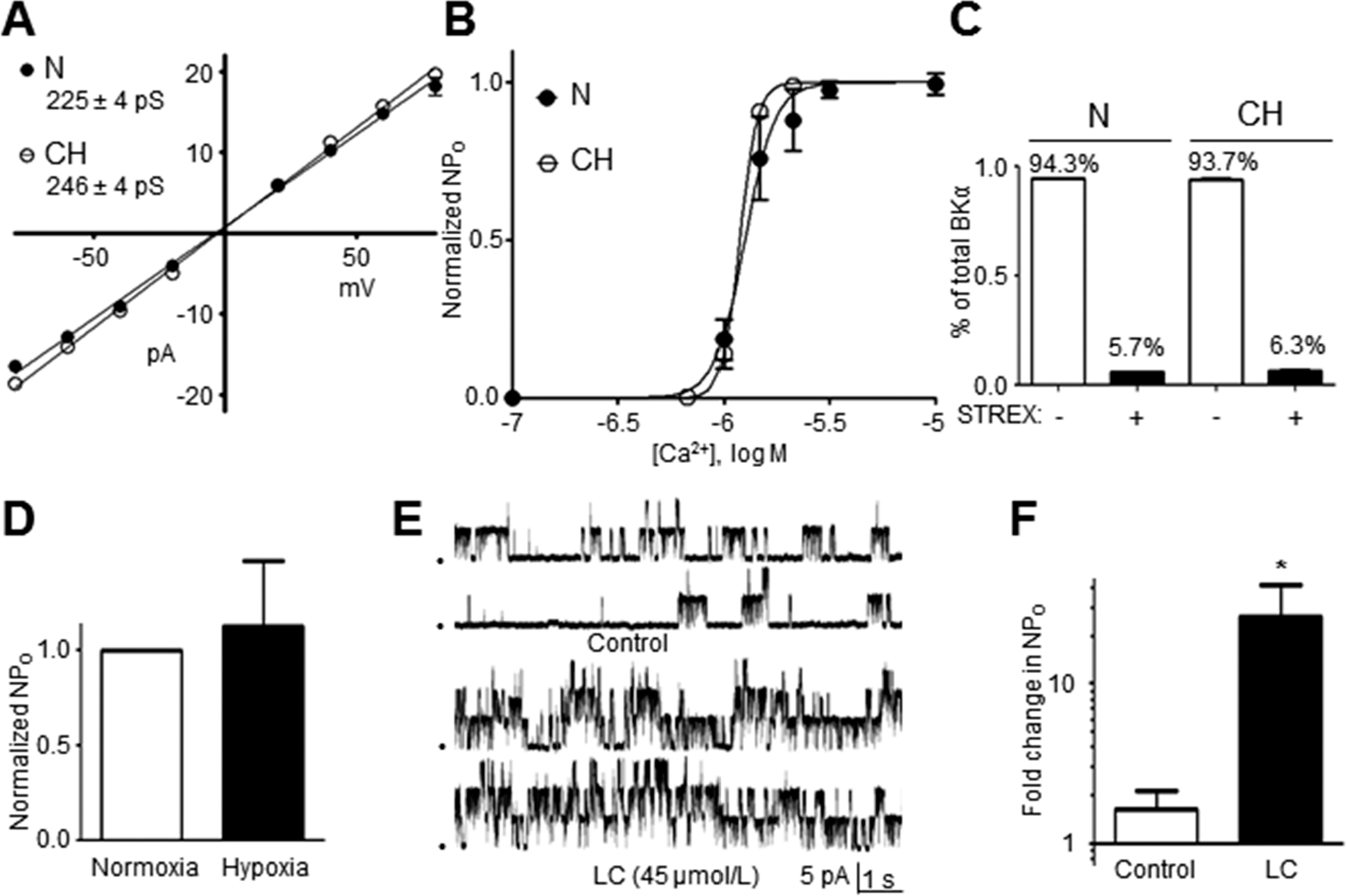

Figure 5.

A, Summarized data from inside-out (I-O) patch recordings of pulmonary arterial (PA) smooth muscle cells (PASMCs) reveal a unitary high-conductance Ca²⁺-activated (BK) channel conductance of 246 ± 4 pS in PASMCs of chronic hypoxic (CH) rats (n = 5–12 per point), which was nearly identical to the conductance of 225 ± 4 pS measured in PASMCs of normal (N) rats. B, BK channels in I-O patches of PASMCs exhibit similar Ca²⁺ sensitivity between CH and N rats (n = 4–7 per point). C, Quantitative real-time polymerase chain reaction reveals that the abundance of stress axis regulated exon (STREX)-containing BKα transcript remains low (6.3% ± 0.4%) in PAs of CH rats (n = 6). D, Exposure to acute hypoxia (3.4% ± 1.5% O₂) of BK channels in I-O patches of PASMCs from CH rats does not significantly alter open-state probability (NP_O; n = 11). E, F, BK channels in I-O patches of PASMCs from CH rats are activated by lithocholate (LC; 45 μmol/L), as confirmed by bar graph depicting averaged values (n = 9; F).

hBK channels in human PASMCs show higher Ca²⁺ sensitivity and are activated by BKCOs

In a final series of studies designed to ensure the relevance of our findings in rat PASMCs to hBK channels in human PASMCs, we performed key experiments using 500–1000-μm-diameter PAs from 12 human lung samples. Western blots detected the BKα and BKβ₁ subunits in protein lysates from human PAs (Fig. 6A). The multiple bands in the anti-BKβ₁ blot may represent multiple posttranslational modifications of the BKβ₁ subunit or nonspecific immunoreactivity, although these bands were not observed in Western blots of cloned human BKα subunits or rat BKα subunits (Figs. 1A, 4E, respectively). Patch-clamp analysis of hBK channel currents in I-O patches from human PASMCs revealed a standard unitary conductance of 222 ± 5 pS (Fig. 6B; n = 3–4). PCR analysis revealed that the hypoxia-insensitive STREX⁻ variant accounted for 99.5% ± 0.1% of BKα transcripts expressed in human PAs (Fig. 6D; n = 3), implying a homogenous population of STREX⁻ BK channels resistant to hypoxia. This finding concurred with our next observation that BK channel NP_O recorded in I-O patches from freshly isolated human PASMCs was not significantly altered when patches were exposed to hypoxic bath solutions (Fig. 6E, 6G; n = 5). However, the Ca²⁺ activation curve for hBK channels exhibited a consistent leftward shift compared with that of BK channels from rat PASMCs, resulting in an EC₅₀ value of −6.06 ± 0.01 log mol/L (n = 2–5 per point) compared with BK channels in PASMCs from N rats, which exhibited an EC₅₀ value of −5.90 ± 0.02 log mol/L (Fig. 6C; N rat data plotted from Fig. 1C). Finally, hBK channels also exhibited high sensitivity to LC, showing a 141 ± 31-fold increase in NP_O in response to 45 μmol/L LC (Fig. 6F, 6H; n = 4, 8). Because of the elevated Ca²⁺ sensitivity of hBK channels, this experiment was performed under conditions designed to reduce basal channel activity in order to accurately quantitate LC-induced increases in NP_O and identify multiple stacked openings. Accordingly, patch potential was held at +40 mV to increase single-channel amplitude, but bath [Ca²⁺] was reduced 100-fold to 10⁻⁸ mol/L (instead of 10⁻⁶ mol/L used for rat PASMCs). Thus, the magnitude of NP_O increase in response to LC cannot be directly compared with that of N or CH rats.

OPEN IN VIEWER

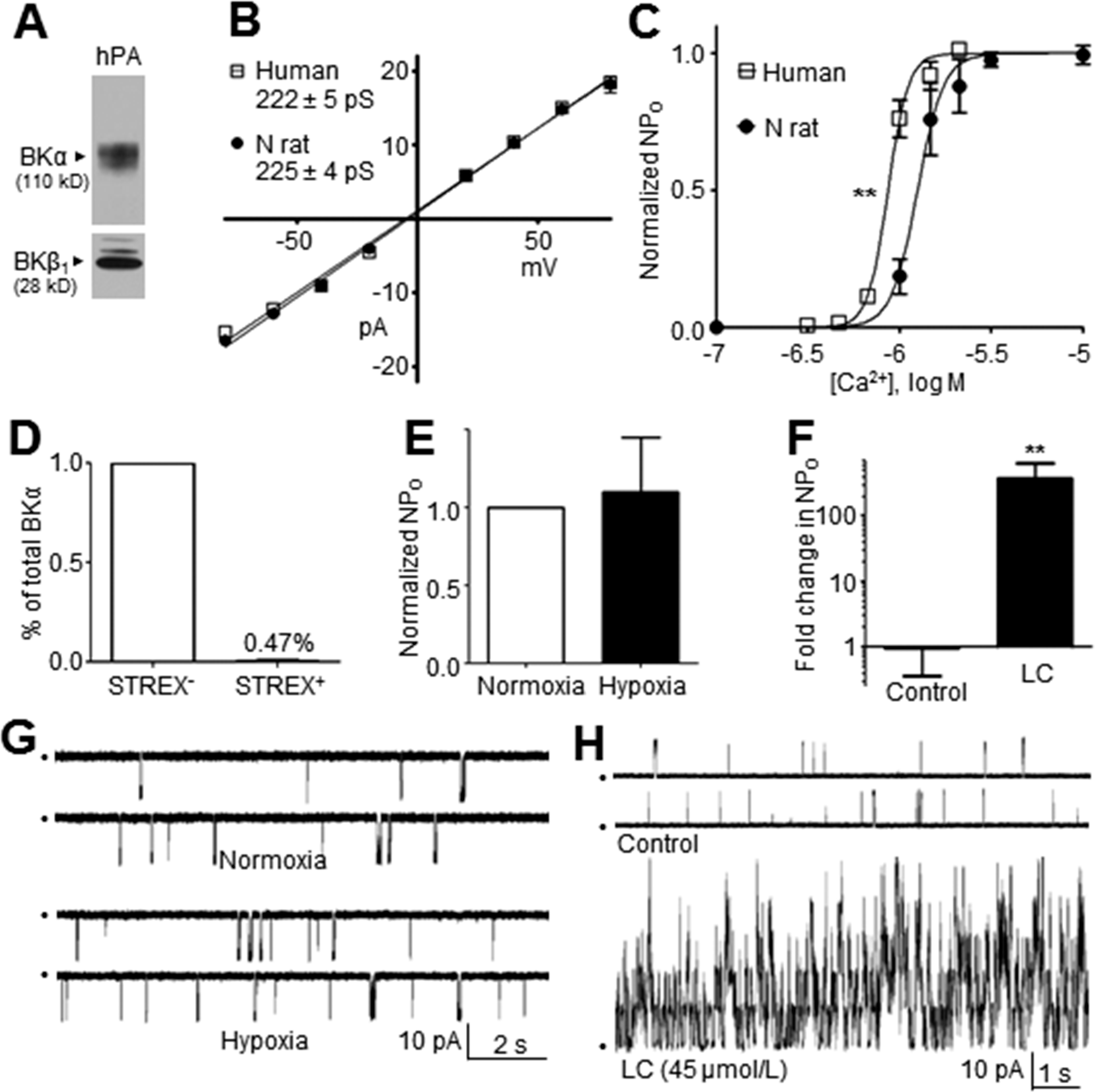

Figure 6.

A, Western blot reveals BKα and BKβ₁ subunits in protein lysates from human pulmonary arteries (PAs). B, Unitary human high-conductance Ca²⁺-activated (hBK) channel conductance in human PA smooth muscle cells (PASMCs) was 222 ± 5 pS, a value nearly identical to that in PASMCs of normal (N) rats. C, Ca²⁺ sensitivity of hBK channels in PASMCs is higher than that of BK channels in PASMCs of N rats (n = 2–5 per point). Asterisks indicate a statistical difference between half-maximal effective concentration values, using a nonlinear fit comparison (P ≤ 0.01). D, Quantitative real-time polymerase chain reaction using human PA reveals that only rare (0.47% ± 0.08%) BKα transcripts contain the stress axis regulated exon (STREX) insert that confers oxygen sensitivity (n = 3). E, Averaged values confirm that acute hypoxia does not significantly affect the open-state probability (NP_O) of hBK channels in PASMCs freshly isolated from lungs (n = 4). F, Summarized data from hBK channels in inside-out (I-O) patches of PASMCs verify that LC (45 μmol/L) profoundly increases NP_O (n = 4, 8). G, Exposure of an I-O patch from a human PASMC to hypoxic bath solution fails to affect hBK current (patch potential = −40 mV; [Ca²⁺]_i = 10^−6.17 mol/L). H, Representative recording of hBK channel current in an I-O patch from human PASMCs reveals that LC (45 μmol/L) profoundly activates the channel (patch potential = +40 mV; [Ca²⁺]_i = 10⁻⁸ mol/L. LC: lithocholate.
