Analysis of Multifrequency Impedance of Biologic Active Points Using a Dry Electrode System

Abstract

Objectives:

A system is being developed for measurement of biologic active points (BAPs) in humans using a modified dry electrode. The BAPs measuring system analyzed the electrical characteristics and searched for the position of BAPs using modified dry electrodes.

Subjects:

Skin electrical resistance at BAPs and non-BAPs was examined with a modified electrode system for healthy male subjects (ages 21–40). Four (4) acupuncture points of PC-4, PC-5, PC-6, and PC-7 on the left arms were chosen for BAPs. Bio-impedance was then conducted for BAPs and non-BAPS using a lock-in amplifier with a frequency range of 1 Hz–1 kHz.

Results:

Resistances of four BAPs were found to decrease to about 29%–59% of non-BAPs and reactance of BAPs was found to decrease to about 23%–41% of non-BAPs. The difference in electrical impedance between BAPs and non-BAPs was easily recognized since the average value of BAPs was measured at lower values than that of non-BAPs. Through these experiments, BAPs could be distinguished from non-BAPs based on electrical impedance. In addition, the electrical impedance model used—the electrical BAPs model—appears to be better suited for skin.

Conclusions:

The proposed BAPs electrical model of skin can be adapted for interpretation of changes in the impedance characterization of skin. This system would be used for various skin diagnoses due to the simplicity and reliability of bio-impedance analysis.

Introduction

A cupuncture points or biologic active points (BAPs) have been used for thousands of years for treatment of a variety of ailments, including cardiovascular diseases. According to Traditional Chinese Medicine, there exists a relationship between organs and BAPs in the human body.^1,2 BAPs are anatomically and topographically defined as functional entities, often subjectively identified as tender points, and are frequently described as having characteristic electrical properties.³ BAPs may be characterized by increased conductance, reduced impedance/resistance, increased capacitance, and elevated electrical potential.⁴ Many commercial electrodiagnostic devices employ these properties for precise location of acupuncture points and for various clinical applications.

Bioelectrical impedance analysis has been widely used for measurement of electrical impedance of biologic tissue.^5,6 Numerous in-depth studies into the electrical difference between BAPs and non-BAPs have been reported by researchers.^7
–9 Some studies have demonstrated the existence of physiologic differences between BAPs and non-BAPs. For example, BAPs have been reported to generate greater capacitance than non-BAPs.^10

–13 However, skin impedance measurement may cause some errors in generating characteristics of BAPs.¹⁴ Such errors may include the frequency of applied current, skin/electrode interface, contact pressure exerted by the probe,¹⁵ duration of probe application, electrode geometry, and skin condition.¹⁶

The purpose of this study is to investigate the skin measurement for modified dry electrodes on resistance and reactance at BAPs and non-BAPs with healthy volunteers. A skin electrical model was designed for fitting of BAPs impedance values using an electrical equivalent circuit.

Materials and Methods

The modified electrodes of this research locate BAPs by moving differently compared to the conventional wet electrode (Ag-AgCl), are measurable, have good conductivity on the electrode surface, and used gold, which is a biocompatible metal. The shape of the electrode is of coaxial type, and the electrode is composed of the measuring electrode and reference electrode. The electrode is also designed to prevent leakage of current during measurement. Additionally, a pressure gauge is attached to the electrode to investigate the effect of various pressure conditions on measurements.

Ten (10) healthy male volunteers were recruited for this study, with an age range of 21–40 years. None of the subjects had a history of physical or mental illnesses; all subjects were restricted from medication and alcohol intake for 1 week before the experiment. All participants were briefly introduced to the experiment and the concept of basic electrical principles. During testing, subjects lay supine on a standard hospital bed at constant temperature (23–25°C) with the head elevated at about 40° above horizontal.

Four BAPs (PC4, PC5, PC6, and PC7) located on the antecubital region were selected (Fig. 1). These BAPs were chosen because they were straight, located on flat skin surfaces, and easily accessible for electrical measurements. The locations of BAPs were identified by a qualified acupuncturist. Non-BAPs were located at 5 mm in the medial and parallel direction to each BAP. Only the left forearm of the subjects was used for testing. In certain cases, where scarring, cysts, or skin inflammation precluded testing on the left side, the right arm was used instead.

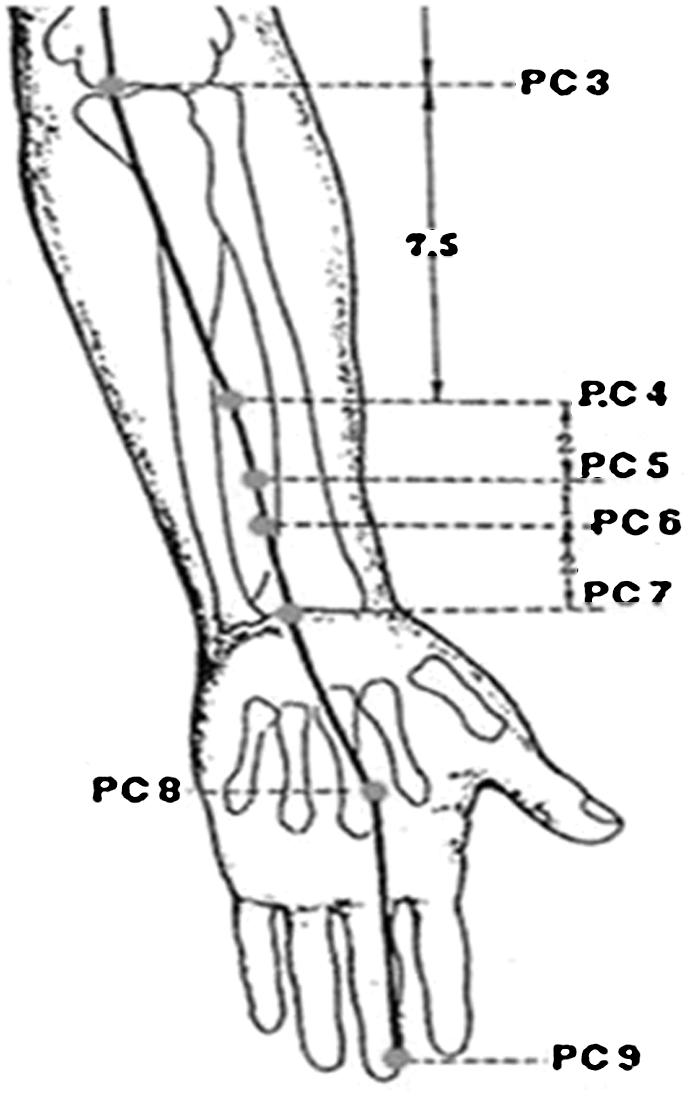

FIG. 1.

The location of acupuncture points as biologic active points along the pericardium channel.

Most traditional methods for measurement of skin impedance were applied with amplitude of 1–25 μA. However, it should be noted that the Committee on Electrocardiology recommends amplitude of 10 μA or less for patient-connected leads.¹⁷ Electrical impedance of the biologic tissue was calculated from the phase difference between the electric current and the applied voltage. The skin impedances were measured in the frequency range of 1 Hz–1 kHz. This skin impedance measurement system consists of a digital lock-in amplifier (SR830, Standard Research Systems), DC voltage source (Hioki, 7016), and a Labview control system (National Instrument PXI), and is controlled by a personal computer through general purpose interface bus, as shown in Figure 2. True monopolar measurements were obtained by addition of a three-electrode system to the amplifier. The inner part of the concentric electrode was used as a measuring electrode, and the outer part as a reference electrode. The cable to the inner electrode was a coaxial type with a grounded shield. The space between these two electrodes was filled with epoxy adhesive resin. Impedance measurements with the modified dry electrode system were carried out using a lock-in amplifier and voltage source connected to a concentric electrode similar to the one previously described,¹⁸ with gold as electrode material (Fig. 3). Pressure applied to the electrode was adjusted to 0.98–5.88 N with a coiled spring. All bio-impedance measurements and data processing were conducted automatically using a PC. The ground electrode is attached at least about 10 cm away from the measurement electrode. For the grounding, the return path for the current and band-type bio-impedance strip electrode (BIOPAC EL 506) was used. Pressure of the electrode on the skin was sustained as constant (5.88 N) during the recordings, as the electrodes were not touched during the course of the experiment. If the pressure on the skin was too large, the electrode would retract before damage occurred.

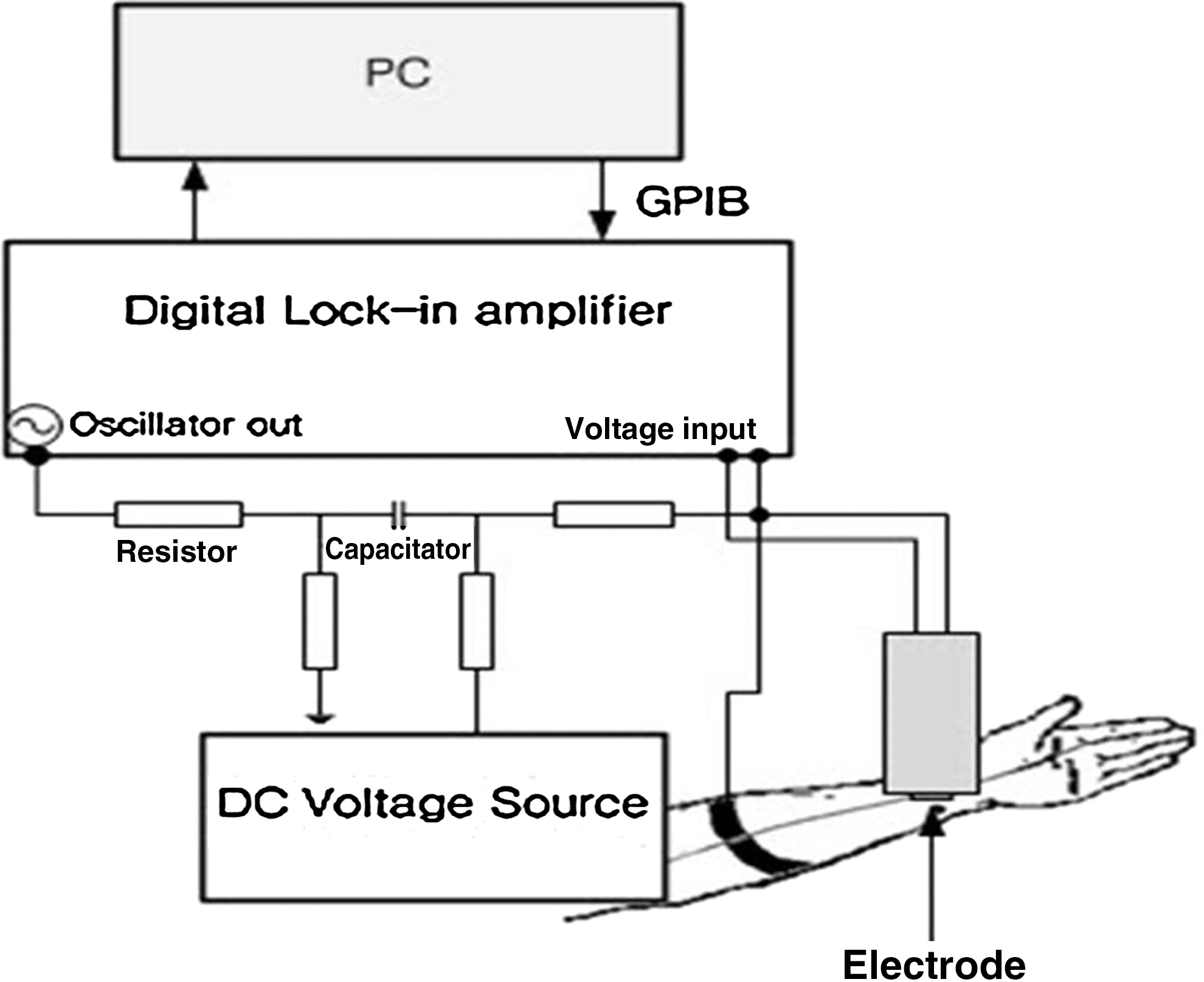

FIG. 2.

Block diagram of the biologic active points measurement system. GPIB, general purpose interface bus.

FIG. 3.

Concentric electrode as constructed.

The resistance and reactance of BAPs were measured for the electrical impedance characteristics of low frequency range (1 Hz–1 kHz). Reactance often implies polarization of stationary molecules, such as membranes and proteins, within an electrical field similar to a dielectric material embedded between capacitor plates. Inductance appears not to play a significant role in biologic systems. The relative contributions of resistance and capacitance toward the total impedance are frequency dependent.

Results

BAP measurement was conducted at 2 pm daily for 1 week in order to minimize the effect of time and environment and obtain reproducible results. Measurements were taken 10 times per person and the measurement values shown are the average values. A pressure-checking test was performed in order to achieve the proper pressure of the proposed dry measuring system before it was applied for measurement of BAPs. The relationship between pressure and skin resistance are shown in Figure 4A and B. Using a dry electrode system, various contact pressures ranging from 0.98N to 5.88N were applied to BAPs and non-BAPs for assessment of electrical resistance. Experimentation regarding the resistance change from the pressure of pressing down, which is proposed in this study, was conducted and the results shown in Figure 4A and B indicate that the pressure condition of 5.88N could be most reliably measured. Furthermore, the measurement value did not vary at this condition, which is expected to contribute to the reproducibility of the measured value at this condition. Dry electrode was used with no conductive gel. Impedance is decreased according to pressure due to the permeation effect of skin. Through the pressure test, the proper pressure was determined. The results of pressure tests are shown in Figure 4A and B. For dry electrodes, artifacts arise from the disturbance of the double layer region at the electrode surface. Therefore, in order to overcome the inherent problems of dry electrodes, the most reliable pressure condition of 5.88N was obtained through the experimentation of this study, and so this condition was applied to subjects.

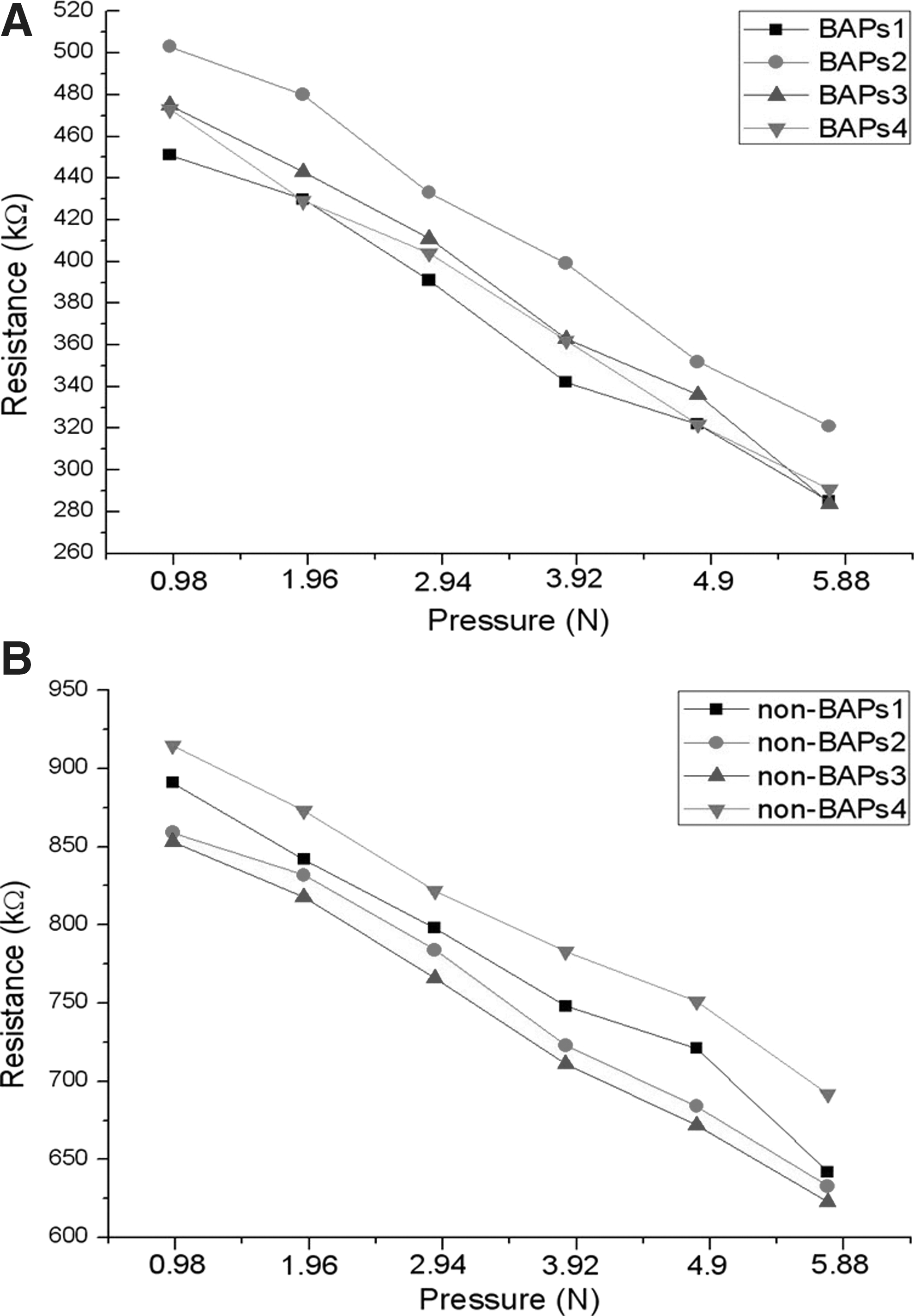

FIG. 4.

Electrical resistance of biologic active points (BAPs) and non-BAPs with different contact pressures.

The pericardium meridian (PC) and the bladder meridian (BL) were studied in each subject. The locations of the acupuncture points and meridians were identified by an acupuncture point/meridian map of the human body in shown in Figure 1. Resistance and reactance measurements were taken at PC-4, PC-5, PC-6, and PC-7 BAPs on the left forearm. Figure 5A–D shows skin complex impedance value generated by the dry electrode system with the frequency range of 1 Hz–1 kHz. All four BAPs and non-BAPs were used. The resistances of four BAPs were found to decrease to about 29%–59% of non-BAPs and reactance of BAPs was found to decrease to about 23%–41% of non-BAPs. Skin impedances at BAPs were lower than those at non-BAPs. Figure 5A–D shows the frequency-dependent curves of skin resistance and reactance, respectively, for BAPs measurement. In addition, the resistance and reactance of BAPs skin were decreased compared with non-BAPs, and the decrease was especially marked at low frequencies (<25 Hz). According to this hypothesis, this study generates a backward electromotive force by polarizing a cell-wall electric potential or a defense mechanism by the body in response to an external stimulus. It also identifies electrical conduction points having greater differences than other points. When BAPs and non-BAPs are compared, current is not equal over the entire skin region, and both the electrical conduction point and the BAPs respond with lower resistance and higher capacitance. These observed differences can be used to distinguish between BAPs and non-BAPs.

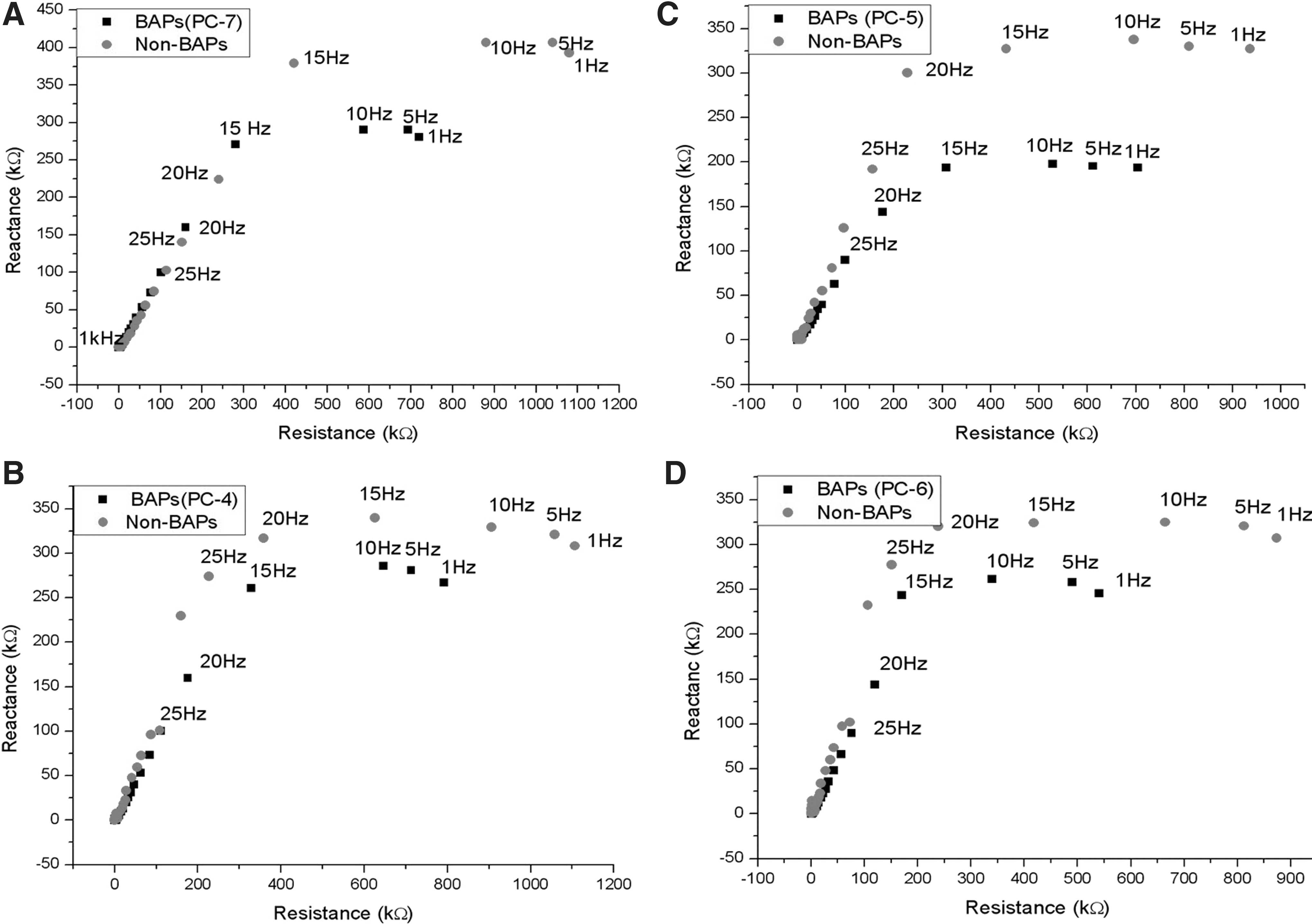

FIG. 5.

Electrical impedance at PC5 and its corresponding non–biologic active points (BAPs). BAPs showed lower resistance and reactance values, particularly around the lower frequency range.

Table 1 shows the result of the resistance and reactance measurements for each BAPs. In this result, the resistance and reactance of BAPs were decreased compared with non-BAPs, and the decrease was especially marked at low frequencies (<25 Hz). Thus, it could be possible to detect BAPs skin based on change in resistance and reactance. As shown in Figure 6, the electrical skin model originally proposed by Martinsen et al.¹⁹ was further modified and used for measurement of impedance. In this electrical model, R₁ represents the resistance of internal tissue, R₂ the resistance, and CPE1 (constant phase element) of BAPs tissues. R3 represents the resistance of epidermis tissue, the CPE model, and C the electrode/tissue interface. This proposed electrical circuit model demonstrated the dependence of impedance on frequency with linear regression of impedance. Table 2 shows the results of components of equivalent electrical circuits that were used for skin and BAPs. From the electric circuit model, epidermis tissue has a high resistance characteristic, and R2, which represents BAPs, has low resistance. A 0.5–1 range of value was used for the parameter to represent the characteristic of the medium. The graph in Figure 7 shows results similar to the experimental results in Figure 5A–D and Table 1. Resistance and reactance of BAPs and non-BAPs were compared according to frequency. When the frequency was 15 Hz, the ranges of resistance and reactance of BAPs were 170(kΩ)–310(kΩ) and 193(kΩ)–270(kΩ), respectively. In the case of non-BAPs, the ranges were 417(kΩ)–626 (kΩ) and 324(kΩ)–378(kΩ). From comparison of results, similar characteristics were observed between the value based on the proposed electric circuit model and the value based on simulations.

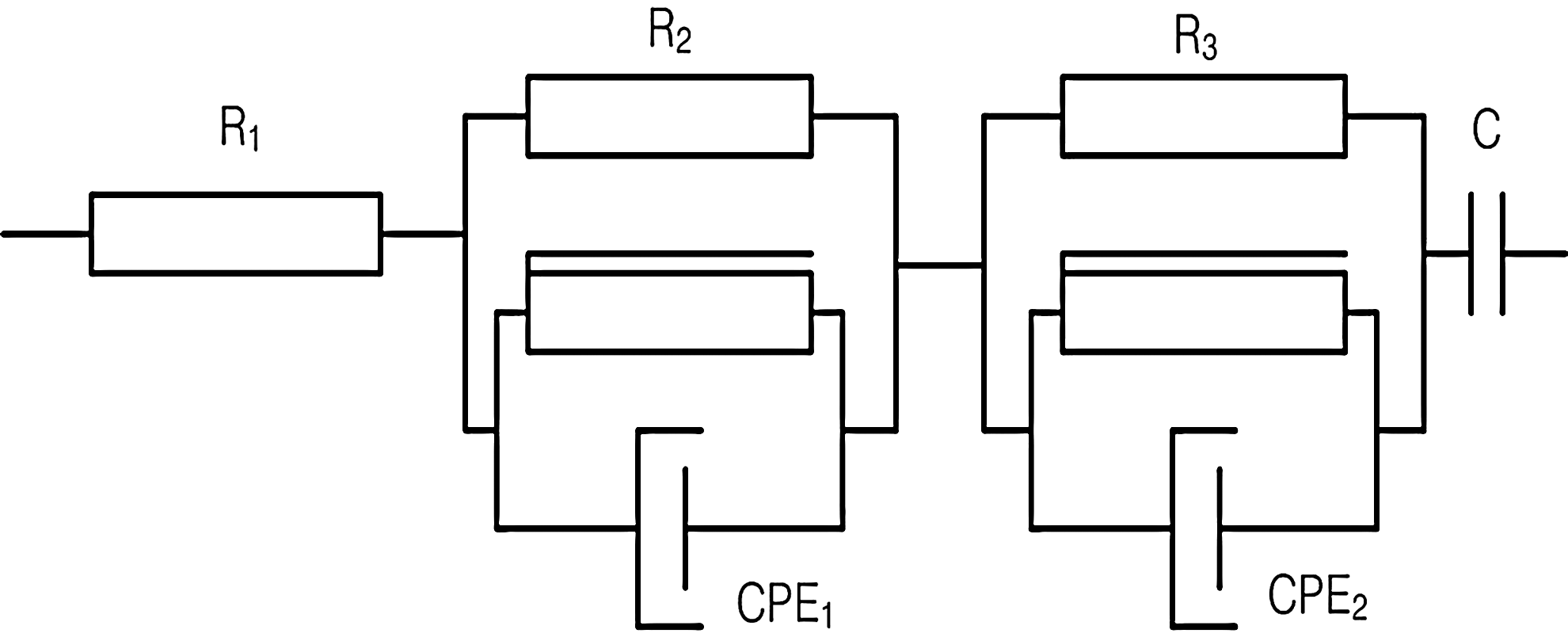

FIG. 6.

The electrical equivalent circuit model of biologic active points. CPE, constant phase element; R₁, resistance of internal tissue, R₂ the resistance; R₃, resistance of epidermis tissue; C, electrode/tissue interface.

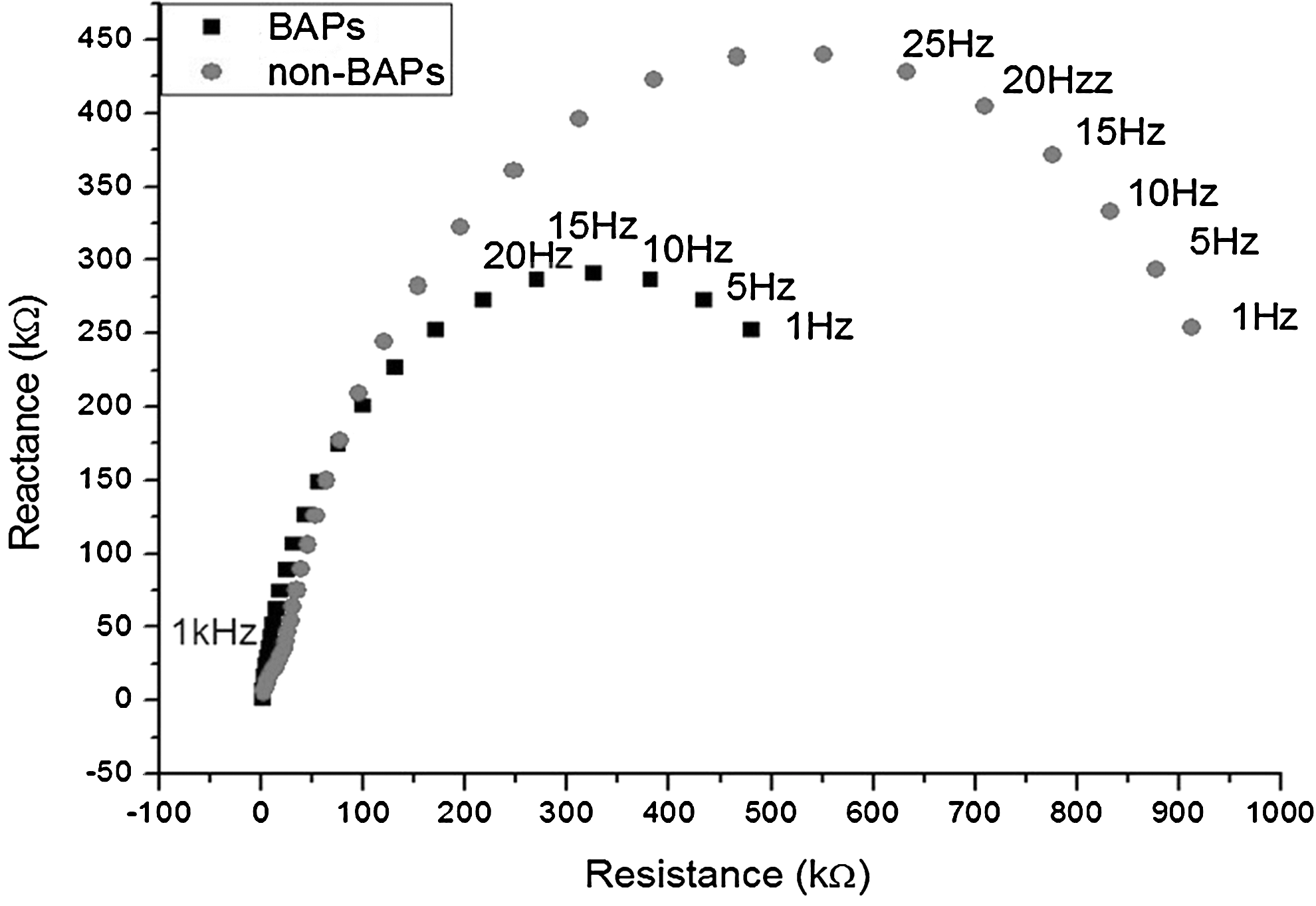

FIG. 7.

Result of biologic active points (BAPs) and non-BAPs using an electrical equivalent model.

Table 1.

Result of Resistance and Reactance Measurements for Each Biologic Active Points (BAPs)

	Resistance (kΩ)			Reactance (kΩ)
Subject	BAPs	Non-BAPs	Difference (%)	BAPs	Non-BAPs	Difference (%)
1	280	420	33	270	378	29
2	328	626	48	260	339	23
3	308	432	29	193	327	41
4	170	417	59	244	324	25

Table 2.

Results of Components of Equivalent Electrical Circuits Used for Skin and Biologic Active Points (BAPs)

Components	R (kΩ)	CPE1 (μF)	CPE2 (μF)	C (F)
BAPs skin	R1=1	CPE=0.02	CPE=1.1	C=0.001
	R2=20	α=0.93	α=0.92
	R3=1100

R, resistance; CPE, constant phase element; C, electrode/tissue interface.

Discussion

Conventional wet electrodes systems require a long application time, and stabilization is needed for achievement of sufficient diffusion of the electrolytic gel into the skin. Furthermore, gel will dry after a few hours and can cause skin irritation. Performance with respect to power-line interference of the wet type is limited by electrode/skin contact impedance. Artifact from modified electrode also reduces over time because the electrodes and their housing will tend to adhere to the skin as perspiration accumulates, reducing the relative movement between skin and electrode surfaces in the local area. To take readings, pressure has to be applied to the modified electrode in order to get a good contact between the electrodes and the skin. The new measurement method using modified dry electrodes may mitigate the disadvantages of wet electrodes, including long preparation time before measurement and difficulty of measurement, making simple and efficient measurement possible.

Without knowledge of the exact sizes of the BAPs tested in this study, it can only be said that the 4-mm-diameter area centered over what was defined by the acupuncturist as a BAPs had lower, higher, or the same resistance as a 4-mm-diameter area a few centimeters away from that of presumed BAPs. The authors believe that a better way to test the hypothesis that BAPs have lower resistance than non-BAPs would be to measure the skin immediately surrounding the approximately 4-mm area defined as the BAPs and then determine whether a given BAPs has relatively lower resistance than that of the immediately adjacent skin. According to this system at four BAPs and their corresponding non-BAPs sites, it is suggested that differences in skin impedance between BAPs and non-BAPs sites exist, where this system will be capable of distinguishing them.

In the present measurement system, it was possible to distinguish the characteristics between BAPs and non-BAPs. Thus, it is predicted that objective and scientific analyses using electrical methods would be possible.

In the bio-impedance electrical model, the CPE together with a circular arc complex impedance analysis were introduced by Cole as early as 1923.²⁰ The impedance model was developed gradually in the 1930s until its completion with the mathematical equation. In 1941, Cole introduced a similar model for dielectric permittivity, the Cole-Cole model.²¹ The electrical impedance model used in this study includes a CPE. This model is in general better suited for tissue and cell suspensions, and has often been used implicitly.

Conclusions

The modified electrode measurement system is clarified for the electrical impedance characteristics of low frequency range (1 Hz–1 kHz). The measurement impedance values are found to be alike from our proposed electrical circuit model. This will be helpful in scientific analysis and verification of the electric characteristics of BAPs. In general, BAP measurement systems have been problematic due to a deficiency of reproducible measurements. However, the present measurement system is stable and is capable of automatic data measurement. With this study, it was possible to distinguish BAPs from surrounding skin by the skin impedance measurement technique with a searching electrode.

Future studies should be conducted for development of electrode systems that can accurately locate BAPs in order to unveil unknown attributes.
