Identification and Characterization of Pharmacological Chaperones to Correct Enzyme Deficiencies in Lysosomal Storage Disorders

Identification of PCs for Lysosomal Enzymes

Rational drug design is a valuable strategy that has been instrumental in the identification of PCs for mutant lysosomal enzymes. Initially, Fan et al. rationalized that a small molecule mimic of the natural substrate might bind to and thereby stabilize the target enzyme, potentially acting as a PC (Fig. 2). ^40,56 More recently, crystallographic studies have indeed demonstrated that binding of some of these designed PCs to their target enzyme's active site is analogous to binding of the natural substrate. ⁵⁷ To date, all PCs that have been identified for LSDs (Table 1) have been shown, or are inferred based on structural similarity to key regions of the natural substrate, to interact with the active site of the target protein. Importantly, this rational design approach has led to the identification of three PC clinical candidates for Fabry, Gaucher, and Pompe disease (Fig. 2; Table 1), ⁴¹ as well as providing starting points for further medicinal chemistry efforts, which may lead to second-generation compounds for these and other LSDs.

OPEN IN VIEWER

Fig. 2.

Rational drug design of PCs for lysosomal enzymes. (A) Structural homology of DGJ and GL-3. The iminosugar DGJ has a high level of structural homology with the terminal galactose of GL-3, the natural substrate of α-galactosidase (α-Gal A) that is deficient in Fabry disease. Based upon this homology, it was hypothesized that DGJ could bind to the active site of α-Gal A and act as a PC.⁴⁰ For DGJ and related iminosugars, the nitrogen atom of the piperdine is analogous to the oxygen atom of galactose. The β-4-epi-valienamine carbasugars have also shown activity against α-galactosidases; however, this activity, as well as selectivity over other lysosomal enzymes, is generally poor, with higher activity toward β-galactosidases and β-glucosidases seen with increasing chain length (i.e., R>C₈). ¹⁵⁹ (B) Structural homology of isofagomine (IFG) and glucosylceramide (GlcCer). The azasugar IFG is a mimic of GlcCer, the natural substrate of acid β-glucosidase (GCase) that is deficient in Gaucher disease. It has been proposed that the azasugar core of IFG (with the nitrogen atom replacing the anomeric carbon rather the oxygen) is responsible for the β selectivity of this compound, based on the geometries of transition states for the two possible glycosidic bond cleavages. ¹⁶⁰ Similarly, the carbasugar N-octyl valienamine (R=C₈H₁₇) acts as a PC for GCase. ¹⁶¹ (C) Structural homology of 1-deoxynojirimycin (DNJ) and glycogen. Acid α-glucosidase (GAA), the enzyme that is deficient in Pompe disease, cleaves the α1–4, and to a lesser extent α1–6, glycosidic bonds of lysosomal glycogen to release glucose. The iminosugar DNJ contains a piperdine ring with an array of hydroxyl groups that closely resembles the terminal glucose unit of glycogen. This high level of structural similarity allows DNJ to bind and stabilize GAA. As with other iminosugars, the α- versus β-glucosidase activity of DNJ is based on a transition state mimetic in which the nitrogen atom is analogous to the oxygen atom of glucose.

As with any therapeutic target, high-throughput screening (HTS) of chemical libraries is also an important way to identify new lead compounds for medicinal chemistry development. This approach is particularly valuable because very often novel and unexpected structures are identified which can lead to both a better understanding of binding interactions in the active site and to the identification of structures that may have improved properties over those obtained from a rational design approach. Recently, HTS assays have been successfully utilized to identify novel PCs for a number of lysosomal enzymes. ^{58 –61} These assays have typically measured PC binding to the recombinant enzyme of interest using enzymatic inhibition assays or changes in physical stability.

Enzyme Inhibition Assays

For LSDs, the preferred intracellular location for interaction between target hydrolases and small molecule PCs is in the ER rather than the lysosome. This distinction is important because all PCs identified to date are reversible, competitive inhibitors of their target enzymes. Ideally, a small molecule would bind with highest affinity in the neutral pH environment of the ER to promote PC activity (i.e., binding and stabilization), and would then bind with lower affinity in the acidic environment of the lysosome, thereby favoring dissociation and minimizing inhibition of the target enzyme. To this end, the effect of pH on target lysosomal enzyme binding affinity has now been described for a number of different PCs. For example, isofagomine (IFG), a PC that targets acid β-glucosidase (GCase), the enzyme that is deficient in Gaucher disease, binds with approximately sixfold higher affinity at pH 7.0 (concentration that yields 50% of maximal inhibition [IC₅₀] value ∼7 nM) compared with pH 5.2 (IC₅₀ value ∼44 nM) (Fig. 3A). Similarly, other PCs that target GCase, as well as PCs that target other lysosomal hydrolases (e.g., acid α-glucosidase, β-hexosaminidase, and α-galactosidase A) have been identified that demonstrate higher binding affinities at neutral pH compared with acidic pH. ^58,62,63 These enzyme inhibition assays can be configured using a variety of fluorogenic or chromogenic substrates that are now commercially available. When feasible, these assays should be conducted using purified recombinant enzymes, or lysates from cells that highly overexpress the enzyme of interest to minimize interference from related endogenous hydrolases that may be present in crude lysed-cell preparations and that have activity toward the artificial substrates. The selectivity of a PC can also be interrogated via the development of assays for hydrolases that have activities similar to the lysosomal enzyme of interest. While these approaches optimally would use mutant enzymes, the ability to express and purify large quantities of these proteins has proven difficult; hence, wild-type enzymes have traditionally been used for these purposes.

OPEN IN VIEWER

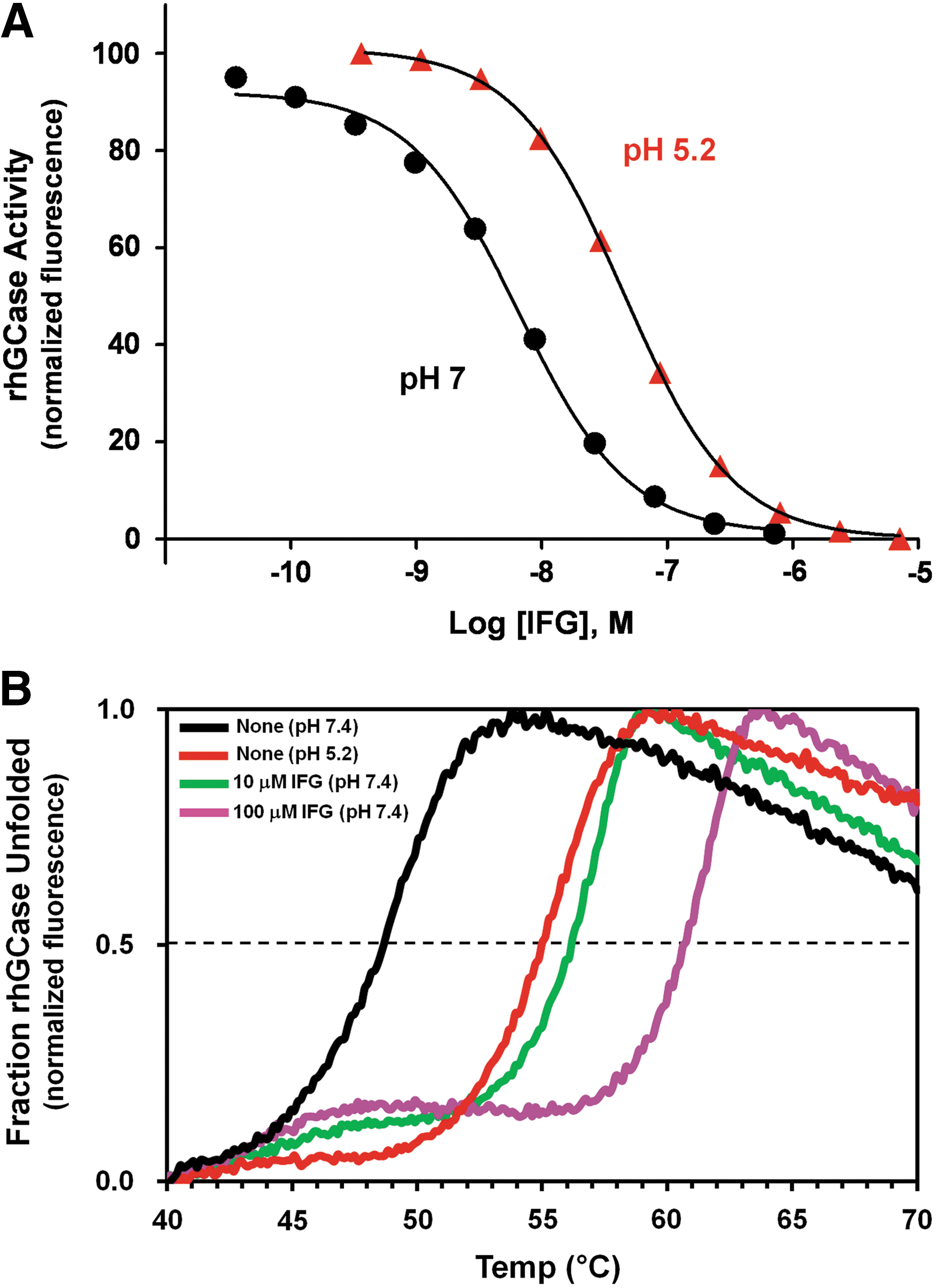

Fig. 3.

Enzyme inhibition and thermal stability assays can be used to characterize PCs for lysosomal enzymes. (A) Inhibition of recombinant human acid β-glucosidase (rhGCase) activity at pH 7 (endoplasmic reticulum pH) and pH 5.2 (lysosomal pH) as a function of IFG concentration. Inhibition of rhGCase activity by IFG was measured with the fluorogenic substrate 4-methylumbelliferyl-β-D-glucopyranoside (Sigma-Aldrich, St. Louis, MO). As seen in the enzyme inhibition curves, IFG binds with approximately sixfold higher affinity to rhGCase at neutral pH (circles) compared with acidic pH (triangles). (B) Thermal stability scans of rhGCase in the absence and presence of increasing concentrations of IFG. The unfolding of rhGCase was monitored using SYPRO Orange (Sigma-Aldrich). Binding of SYPRO Orange to exposed hydrophobic regions of a denatured protein results in increased fluorescence. rhGCase is physically more stable at acidic pH 5.2 (purple line) compared with neutral pH 7.4 (black line) as evident by a higher melting temperature at the lower pH. Likewise, as the concentration of IFG is increased at pH 7.4, rhGCase becomes more resistant to thermal denaturation (10 μM IFG, red line; 100 μM IFG, green line).

Assays to Measure Physical Stability

Various methodologies have been developed to monitor changes in the physical stability of lysosomal enzymes as a function of pH, temperature, and/or small molecule binding. For example, circular dichroism and activity assays were used by Kelly and colleagues to demonstrate the binding and stabilizing effects of small molecule inhibitors on GCase as a function of temperature. ⁶⁴ Similarly, Petsko and colleagues demonstrated small molecule-mediated stabilization of GCase and α-galactosidase A (α-Gal A), the enzyme that is deficient in Fabry disease, using differential scanning calorimetry. ⁵⁷ In addition, reporter dyes that fluoresce when bound to exposed hydrophobic amino acids have been used to monitor the degree of protein unfolding during thermal denaturation. ^62,65 In this assay, the fluorescence signal is proportional to the quantity of probe bound. ^{66 –68} Shifts toward higher melting temperatures (T_m) are seen with compounds that bind and stabilize the target proteins, as shown for GCase in the absence and presence to IFG (Fig. 3B). Any potential small molecule PCs that are identified in these thermal stability assays (i.e., via increases in the T_m) can subsequently be tested for enzyme inhibition, assuming that an in vitro activity assay is available.

While thermal stability assays report on global protein stability, hydrogen/deuterium exchange-mass spectrometery (H/D-MS), a technique that examines local protein structure, stability, and dynamics by monitoring the average rates of deuteration, has become a notable addition to drug discovery as improvements in the technique's throughput capability have been achieved. ⁶⁹ Recently, Mahuran and colleagues used H/D-MS to probe binding and stabilizing interactions of small molecule inhibitors of GCase. ⁶¹ Although traditional enzyme inhibition-based methods were used to screen a 50,000 compound library for GCase inhibitors, H/D-MS was used as an orthogonal approach to gain insight into the binding regions that become stabilized upon ligand binding.

Assays to Measure Total Cellular Enzyme Levels

In addition to the properties described above, it is important to assess the effect of the PC at the cellular level. It is imperative that the PC readily penetrates both the plasma and ER membranes to allow interaction with the newly synthesized mutant enzymes during biosynthesis. The principle of the cell-based assay that has been widely used to show that incubation with a PC can increase the total cellular levels of the mutant enzyme (as measured by activity or quantification of the enzyme's protein levels in cell lysates) is outlined in Figure 4A. Cell-based assays that show increased total cellular levels of the enzyme after incubation with a PC indicate that at least the first steps in this process have been satisfied; that is, the PC has penetrated the plasma and ER membranes, and has bound and stabilized the mutant enzyme in the ER. These assays do not necessarily indicate that the mutant enzyme has trafficked to the lysosome and/or is able to metabolize endogenous substrate; for this, other assays are necessary (see below).

OPEN IN VIEWER

Fig. 4.

Assays to measure total cellular levels of lysosomal enzymes. (A) Principle of the cell-based assay. (B) DGJ increases α-galactosidase A (α-Gal A) levels in lymphoblastoid cell lines that were derived from normal human volunteers and Fabry patients. Representative α-Gal A activity in lysates from lymphoblasts (measured using 4-methylumbelliferyl-α-D-galactopyranoside [Sigma-Aldrich]) that were incubated with increasing concentrations of DGJ are shown. DGJ increased the levels of normal (inverted triangles), R301Q (triangles), and N215S (circles) α-Gal A, but had no effect on R227Q (squares) α-Gal A. These data demonstrate the varying degrees of correction that can be obtained for different mutant forms of a lysosomal enzyme, as well as the varying concentrations of PC that may be required. Color images available online at www.liebertonline.com/adt

Typically, primary fibroblasts or immortalized lymphoblastoid cell lines (LCLs) that were derived from individuals diagnosed with an LSD, such as Fabry, Gaucher, Pompe, Tay-Sachs, and Sandhoff disease, have been used to develop cell-based assays for PCs. ^{40,62,65,70 –76} While patient-derived dermal fibroblasts or LCLs often require a relatively long period to permanently establish (approximately 4–6 weeks for either cell type), ^77,78 they have been successfully used to identify new PCs via HTS, and to support lead optimization, as they are straightforward to maintain and manipulate in culture. ^74,79 Further, in patient-derived cells that are homo- or hemizygous for the disease-causing mutation, the effect of the PC on the endogenous mutant form of the deficient enzyme can be readily determined ^62,75 (Fig. 4B). Importantly, however, it is more challenging to identify PC-responsive mutant forms when using cells derived from patients that are heterozygous for two different mutant alleles, as it is difficult to interpret which mutant forms are expressed and responsive to the PC (see Pharmacogenetics section below). ⁸⁰

Two analytical methods have been extensively used to assess enzyme levels in the lysates from cells that were incubated with a PC, namely, western blotting and enzyme activity assays. Western blotting allows direct detection of the target enzyme protein levels based on molecular weight. ^81,82 The amount of total cell lysate, choice and concentration of antibodies, and choice of detection method (basic chemiluminescence, enhanced chemiluminescence, fluorescence, etc.) require optimization for sensitivity and for linearity of the concentration range of the target protein and the internal control protein. Importantly, the optimized conditions for measuring enzyme protein levels may be different for different mutant forms of an enzyme, or for the same form of the enzyme at baseline and after incubation with the PC. Western blotting has been used to clearly show increased total cellular levels of mutant forms of α-Gal A, GCase, acid α-glucosidase, β-hexosaminidase, and other enzymes after incubation with PCs in a variety of different cell types. ^{59,62,71,75,76,83,84} More recently, different mutant forms of β-galactosidase were conjugated to dinoflagellate luciferase. Heterologous expression was then used to show PC-mediated increases in mutant enzyme levels via measurement of the associated luciferase activity in cell lysates. This approach has the potential to serve as an alternative to western blotting. ⁸⁵ These approaches do provide information on total cellular enzyme levels, but they do not provide any information as to whether these increased levels translate to increased activity.

The potential for a PC to have therapeutic efficacy in an LSD is minimally dictated by its ability to increase the total cellular activity of the mutant enzyme. For this purpose, the enzyme activity in lysates from cells incubated with the PC has commonly been measured using artificial, fluorogenic substrates (Fig. 4B). ^{40,62,71,74 –76} The enzyme activity is measured by mixing the cell lysate with exogenous substrate in a buffer that has been optimized for pH and other components necessary for the catalytic function of the target enzyme (as lysosomal hydrolases tend to have highest activity at acidic pH, these assays typically utilize low pH buffers to minimize metabolism of these artificial substrates by related cellular hydrolases that have higher pH optima). Importantly, lysate concentration and reaction time should be sufficiently sensitive to detect the often small quantities of product that are formed, and should be linear for product formation with respect to time and enzyme concentration. Again, the optimized conditions for measuring enzyme activity may be different for different mutant forms of an enzyme, or for the same form of the enzyme at baseline and after incubation with the PC. As such, studies that survey large numbers of mutant forms of a lysosomal enzyme and/or that investigate the concentration-dependence of the PC response may require the activity measurements to be conducted under several different conditions. ⁸⁶

It should also be noted that these cell-based assays alone cannot distinguish whether the elevated cellular enzyme levels are caused by a PC-mediated mechanism of action or via an alternate pathway or mechanism, thus necessitating the use of parallel assays such as thermostability or enzyme inhibition as discussed above. ⁷⁴ These complementary assays often utilize recombinant wild-type enzymes, as opposed to the cell-based assays that typically assess the effect of a PC on the endogenous mutant form of the enzyme. Hence, differences in compound affinity for wild-type versus mutant forms of a lysosomal enzyme can contribute to differences in the rank order of potency or efficacy between these assays. To circumvent these potential differences, the effects of PC incubation on fibroblasts or LCLs that were derived from normal individuals have been assessed in some cases. While the folding and trafficking of some wild-type lysosomal enzymes, like other proteins, can be inefficient, ⁸⁷ the relative increase in wild-type enzyme activity that can be typically achieved with a PC is often substantially lower than that achieved for the mutant enzymes (Fig. 4B), ^70,74,75 thereby limiting the sensitivity and signal-to-noise of this approach.

As all currently described PCs are reversible, competitive inhibitors of their target lysosomal enzymes, washout of a PC from cells may be necessary before cell lysis and assay to ensure that enzymatic activity is accurately measured. Carryover of residual PC into the enzymatic assay may interfere with the activity measurement, thereby masking the detection of increased enzyme levels. This phenomenon has been seen with wild-type and some mutant forms of α-Gal A, the enzyme deficient in Fabry disease, as well as with wild-type acid α-glucosidase (GAA), the enzyme deficient in Pompe disease, after incubation with high concentrations of the PCs 1-deoxygalactonojirimycin (DGJ) and 1-deoxynojirimycin (DNJ), respectively. ^62,83,84 Residual PC also was found to be a significant technical barrier to showing increased activity for mutant L444P GCase in Gaucher patient fibroblasts incubated with IFG. ⁷⁶ In the latter case, this hurdle was overcome with procedures designed to reduce IFG carryover into the enzymatic assay, including glycoprotein-enrichment, GCase-immunocapture, and overnight incubation of cells in IFG-free media before assay. ⁷⁶ Although the technically simplest approach is to provide an extended incubation time in the absence of PC to achieve a more complete washout, this timeframe can be limited by the half-life of the enzyme that has been chaperoned by the PC. As such, the PC washout time must be sufficiently shorter than the time required for the increased enzyme level to return to baseline. In many cases, the half-life of the mutant enzyme is shorter than the half-life of the wild-type enzyme. ^75,88 In addition, the half-life of the wild-type enzyme may vary somewhat from reported values due to differences in specific experimental conditions, such as cell type or cell growth conditions. ^88,89 Thus, to determine the PC responses of many different mutant forms of a lysosomal enzyme, evaluation of a range of PC concentrations and washout times was necessary to show a response to the PC. ⁷⁵ Even if the final assay to measure the cellular levels of the enzyme is not an activity assay, or the PC is designed to bind to an allosteric site to minimize inhibition of enzymatic activity (see section Considerations for the Therapeutics Use of Pharmacological Chaperones), ^90,91 excessive concentrations of PC should, nonetheless, be avoided. As with any small molecule that has pharmacological activity, exceedingly high concentrations may lead to nonspecific effects on other enzymes or cellular components, potentially affecting growth and viability of the cells, and thereby affecting the results of the experiment.

Assays to Measure Lysosomal Enzyme Trafficking

Subsequent to determining if a PC is able to elevate total cellular levels of its target enzyme, the ability of the PC to promote lysosomal trafficking requires evaluation. Screens for effective PCs should include assays for monitoring improvements in trafficking of target proteins, such as subcellular fractionation, proteolytic processing, glycan processing, and/or imaging-based subcellular localization.

Subcellular fractionation is the classical cell biological method for monitoring protein trafficking. The method involves homogenization of cells, isolation of organelle and membrane fractions (by ultracentrifugation, magnetic beads, etc.), and analysis of protein content by western blotting and/or enzyme activity coincident with established organelle-specific markers. Studies of mutant proteins in LSDs have used this approach to examine defects in trafficking, as well as PC-mediated improvements. ^40,49,70,76 However, the subcellular fractionation method can present technical challenges, such as the requirement for large amounts of cells (>10 ⁶ ) and the high potential for incomplete separation of subcellular components. These challenges make adaptation into higher throughput formats difficult and often infeasible.

As an alternative, proteolytic processing of precursor target proteins into mature forms can be used as an indirect marker for protein trafficking, provided that the processing is coupled to trafficking. For example, GAA is synthesized in the ER as a 110-kDa glycoprotein precursor and is proteolytically processed into 70- and 76-kDa mature forms upon transport through the Golgi to lysosomes. ^{92 –94} Thus, this maturation process has been used to monitor (via western blotting) improvements in trafficking of GAA after incubation with PCs. ^62,72,73 Proteolytic processing has also been seen for a number of other lysosomal enzymes, including α-mannosidase, ⁹⁵ GCase, ⁹⁵ β-glucuronidase, ⁹⁶ α-fucosidase, ⁹⁷ β-hexosaminidase, ⁹⁸ and others, ^{99 –101} and thus could be used to monitor their trafficking as well. Monitoring proteolytic processing may also be adaptable to high-throughput methodologies. For example, antibodies specific to the mature forms of GAA ¹⁰² could be used to develop high-throughput enzyme-linked immunosorbent assays that detect PC-mediated increases in the mature forms.

Similarly, glycan processing of lysosomal enzymes has been used as a marker for protein trafficking. As glycosylated proteins traffic through the secretory pathway, their glycan chains are modified and remodeled by resident glycosyltransferases and glycosidases. ¹⁰³ In principle, such changes can be detected by protein glycosylation analysis. ¹⁰⁴ For example, the glycan chains of GAA undergo extensive processing as the enzyme traffics through the secretory pathway; however, the glycan processing of GAA can be quite hetereogenous, ⁹³ making it difficult to unambiguously detect trafficked GAA. Nevertheless, this type of approach may also be adapted into high-throughput methods in theory, provided glycan processing of the target is relatively homogeneous. In that case, antibodies or lectins that recognize the processed glycan of interest could be used to develop plate-based methods to monitor enzyme trafficking in the absence or presence of potential PCs.

Perhaps the most robust method for monitoring protein trafficking is imaging-based subcellular localization. This method utilizes fluorescence-based microscopy to simultaneously monitor the target enzyme within the cell (via target-specific antibodies or genetically encoded tags) and organelle-specific markers. Studies of lysosomal enzyme trafficking typically monitor lysosome-associated membrane protein-1, a lysosomal-resident transmembrane protein, ¹⁰⁵ as a marker for colocalization. Moreover, many investigators have used this approach to examine aberrant trafficking of mutant enzymes and the subsequent restoration of normal trafficking after incubation of cells with candidate PCs. ^{49,58,62,72,73,76,106 –108} Recent technological and analytical advances, such as the development of several high-content imaging platforms capable of monitoring cells in 96- and 384-well formats, have made fluorescence-based microscopy amenable to screening large compound libraries for candidate PCs. ^109,110

Assays to Measure In Situ Lysosomal Enzyme Activity Using Artificial Substrates

The cell-based assays highlighted above indicate the cellular location of mutant enzymes before and after incubation with a PC. However, an important concern in the successful development of a PC is target inhibition by candidate compounds. In an ideal situation, PCs would act purely as agonists or activators, stabilizing mutant enzymes, correcting folding defects, and stimulating activity. However, all PCs identified to date bind to the active sites of their target enzymes and act as reversible, competitive inhibitors (described above). Selecting for compounds that are effective chaperones but weak inhibitors in vitro would greatly aid in the development of good development candidates.

As discussed above, one approach to reduce chaperone inhibition in the lysosome is to select for compounds that have higher affinity for their target enzyme in the ER, compared with the affinity in the lysosome. An alternate and complementary approach is to select for compounds that rapidly leave the lysosome (and the cell) after the mutant enzyme has trafficked to the lysosome. An enzyme assay that measures activity in the lysosomes of intact, living cells (i.e., in situ) can be employed for both of these approaches. With an in situ enzyme activity assay, the potency of inhibition can be measured for potential PCs in the lysosome, with candidates that show lower potency for inhibition receiving a higher priority during the selection process. An in situ enzyme assay can also measure inhibition as a function of time after compound removal. This application of the assay can provide a surrogate measure of compound efflux from the lysosome, with candidates that show faster efflux rates also receiving a higher priority during screening.

To date, in situ enzyme activity assays have been developed for a number of lysosomal enzymes, including GCase, ^{111 –117} α-Gal A, ^118,119 β-hexosaminidase, ^120,121 and β-galactosidase. ¹²² For GCase, in situ assays have been developed using a number of different substrates. ^{111 –117} Most of these assays use fluorogenic substrates that enter the cell, presumably through fluid phase endocytosis, and are hydrolyzed by GCase within the endosomal/lysosomal system. These substrates were developed as tools for measuring enzyme activity in cells isolated from Gaucher patients, and have also been used to determine postinfusion uptake levels of recombinant human GCase during ERT. ¹²³ An in situ activity assay was also recently developed to measure the rate of lysosomal efflux of the Gaucher PC IFG utilizing the substrate 5-(pentafluorobenzoylamino)fluorescein-di-β-D-glucopyranoside (PFBF-β-glucose). ⁷⁰ The advantage of this substrate is that the enzymatically liberated PFBF fluorophore is rapidly conjugated to thiol groups ¹²⁴ and remains trapped inside the cell during the assay period. ¹¹³ This trapping permits detection of activity within lysosomes by fluorescence microscopy (Fig. 5A), as well as within cells by conventional fluorescence plate readers and flow cytometry.

OPEN IN VIEWER

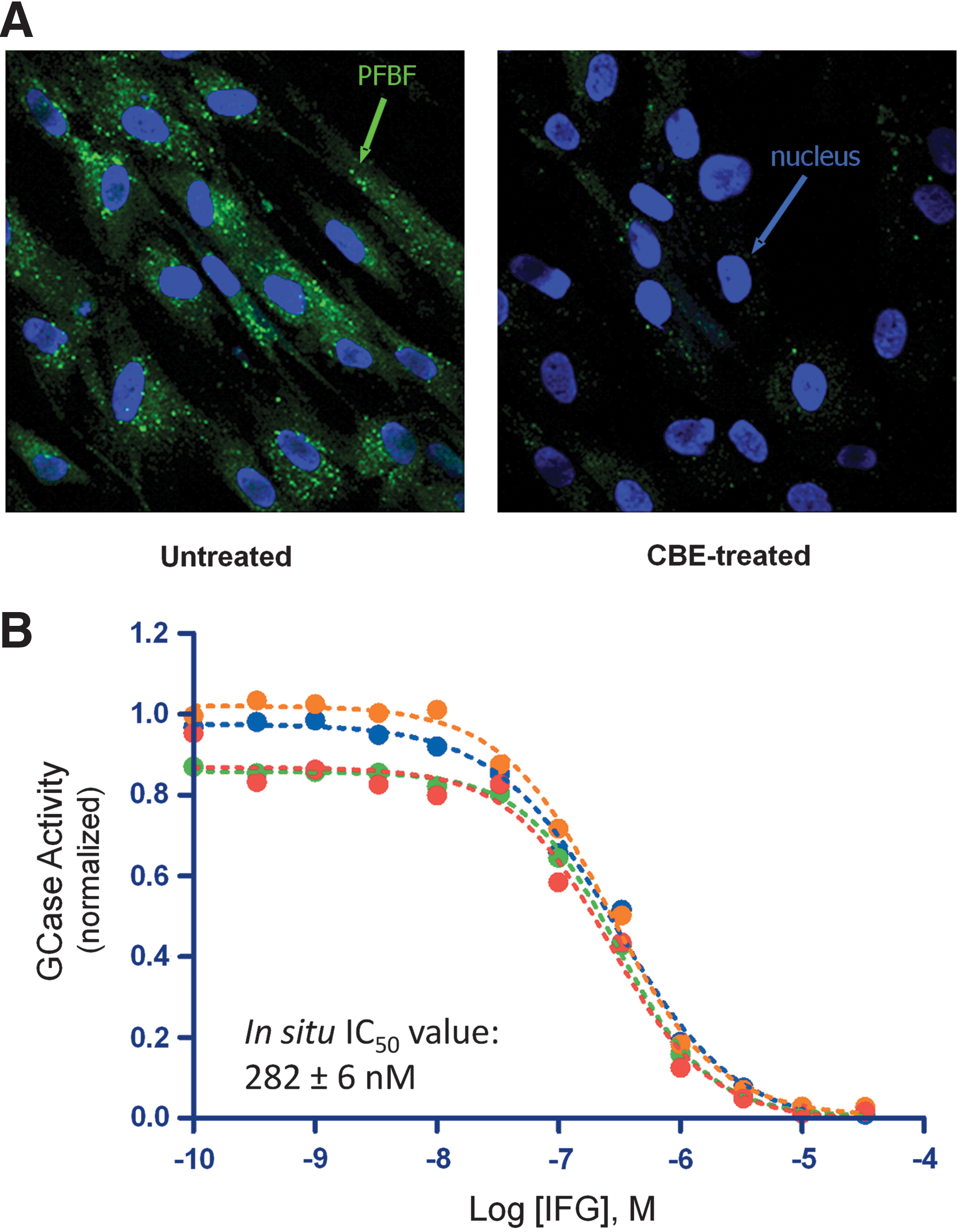

Fig. 5.

In situ assay for GCase activity reveals inhibition of lysosomal GCase by IFG. (A) The in situ substrate 5-(pentafluorobenzoylamino)fluorescein-di-β-D-glucopyranoside (PFBF-β-glucose; Invitrogen, Carlsbad, CA) is specifically hydrolyzed by lysosomal GCase within the intact cell. Human skin fibroblasts with wild-type levels of GCase were incubated with PFBF-β-glucose (500 μg/mL for 1 h at 37°C) in the absence or presence of conduritol-B-epoxide (0.25 μg/mL; Sigma-Aldrich), a selective, irreversible GCase inhibitor. Liberated PFBF fluorophore is evident as puncta throughout the cell (green) in untreated cells and is almost completely absent in cells incubated with conduritol-B-epoxide; nuclei are stained with Hoescht 33342 (Invitrogen) (blue). (B) IFG acts as a potent inhibitor of GCase. Lysosomal GCase activity was measured in situ in normal human skin fibroblasts incubated for 18–24 h with increasing concentrations of IFG, followed by PFBF-β-glucose (500 μg/mL for 1 h at 37°C). Four independent concentration–inhibition experiments are shown; the mean in situ concentration that yields 50% of maximal inhibition±SEM value for all experiments is indicated.

In addition to measuring efflux rates, the in situ GCase assay has also been used to characterize the potency of lysosomal GCase inhibition by IFG. IFG inhibits lysosomal GCase activity with an IC₅₀ value of ∼280 nM (Fig. 5B). This is substantially lower affinity than discussed above using purified enzyme in a cell-free GCase inhibition assay (∼44 nM at pH 5.2), suggesting the potential for even less IFG-mediated inhibiton in an intact cell. As mentioned earlier, screens for future PC candidates for Gaucher disease can use in situ assays to select for compounds with reduced potency of lysosomal GCase inhibition. Compounds with lower potency would be preferred for further development.

Several studies have used an alternative method to measure GCase activity in intact cells. ^{125 –127} Unlike the in situ methods described above that use physiological culture media as vehicle for the fluorogenic substrate, this method calls for the incubation of cells with a 1:1 (v/v) mixture of PBS (pH 7.2) and 0.2 M acetate (pH 4.0) followed by addition of 4-methylumbelliferyl-β-glucopyranoside. ¹²⁷ This method most likely reflects enzyme activity that has been liberated by cell lysis rather than activity within intact cells, since the original description of the method showed that acetate buffer treatment of fibroblasts gave similar levels of enzyme activity as the use of freeze/thaw or detergent lysis methods. ¹²⁸ Similarly, low pH can reduce viability and membrane integrity of dermal fibroblasts. ¹²⁹

In addition, investigators have developed in situ assays for measuring the lysosomal activity of α-Gal A, ^118,119 β-hexosaminidase, ¹²¹ and β-galactosidase, ^120,122 the enzymes deficient in Fabry disease, GM2 gangliosidosis, and GM1 gangliosidosis, respectively. For β-galactosidase in particular, a number of substrates that are suitable for the development of in situ assays are commercially available (www.invitrogen.com/site/us/en/home.html). Such assays could also be useful for disease diagnostics and as screening tools for candidate PCs for each of these targets.

As a cell-based fluorescence method, an in situ enzyme activity assay would be highly amenable to adaptation for HTS, depending on the enzyme levels in the cell type used and on whether inhibition or efflux is the desired endpoint. For cell types with high enzyme levels, in situ assays can be performed with most conventional fluorescence plate readers. For cell types with lower enzyme levels, high-content imaging platforms would be more appropriate for measuring correspondingly low activity levels. Moreover, high-content platforms can also assess the subcellular location of activity if organelle markers (such as Lysotracker Red; Molecular Probes, Eugene, OR) are also present. Inhibition assays would be readily adaptable as well, since they can be configured as homogeneous assays. Efflux assays present more of a challenge for high-throughput adaptation, since PC-containing medium needs to be removed and the cells incubated for some length of time post-removal. ⁷⁰

Assays to Measure Endogenous Substrate Levels

As an alternative to the development of an in situ assay that utilizes an exogenous artificial substrate, the ability of a PC to reduce endogenous substrate that has accumulated in patient-derived cells has also been investigated. Due to the complexities involved with this type of in situ cell-based assay, decreased levels of endogenous substrate in cultured cells in response to a PC have been shown only for the deficient enzymes associated with two LSDs, namely, Fabry and Gaucher disease.

In fibroblasts isolated from Fabry patients that express different mutant forms of α-Gal A, lysosomal levels of the substrate globotriaosylceramide (GL-3) were measured by double-labeling immunofluorescence confocal microscopy and quantification using monoclonal antibodies specific for GL-3 and mouse lysosome-associated membrane protein-1. ^49,130 Continuous incubation with DGJ (20 μM) decreased lysosomal GL-3 staining over time, with ∼50% maximum reductions seen after 6 days that were maintained for up to 100 days. Surprisingly, DGJ washout was not required to show this effect. Importantly, two of the cell lines that showed reduced GL-3 levels in response to DGJ expressed the R301Q and T194I missense mutant forms of α-Gal A, both of which have also shown increased cellular activity after incubation with DGJ. ^40,75,130 Curiously, the same effect was also seen in Fabry fibroblasts with nonsense mutations (V390fsX8 and Q357X) that do not show increased cellular α-Gal A activity after incubation with DGJ. ^49,130 Additionally, transient transfection of HEK-293 cells with cDNAs for these same two nonsense mutations showed no measureable baseline α-Gal A activity and no α-Gal A response (unpublished results). While encouraging for DGJ as a potential treatment for Fabry disease, these results, particularly those in the nonsense mutant cell lines, are difficult to interpret as a genuine PC effect that leads to restored lysosomal α-Gal A activity in these cells. In separate studies, total cellular GL-3 levels in Fabry fibroblasts seeded in 96-well microtiter plates were semiquantified using dual-immunolabel infrared fluorescence imaging and were normalized to actin levels. ⁷⁵ In fibroblasts with the DGJ-responsive mutant forms R301Q and L300P, 7-day incubation with DGJ followed by 3-day washout resulted in concentration-dependent maximal reductions in GL-3 levels of 45% and 38%, respectively. In contrast, continuous 10-day incubation with DGJ did not significantly reduce GL-3 levels in these cells. As expected, Fabry fibroblasts with a nonresponsive mutant form, C52S, also showed no reduction in GL-3 levels after DGJ incubation with or without washout. Thus, although the requirements for achieving decreased GL-3 levels in cells from the two studies differed, particularly with respect to the need for PC washout and the expression of a DGJ-responsive mutant form of α-Gal A, the combined results do indicate that incubation of some Fabry patient cell lines with DGJ can restore lysosomal α-Gal A function.

Similarly, levels of the endogenous substrate GlcCer were measured from cell pellets after solid phase extraction and liquid chromatography mass spectrometry in four different Gaucher patient cell lines that were homozygous for L444P GCase. ⁷⁶ All four cell lines showed elevated baseline levels of GlcCer as compared with normal control cells as well as increased cellular GCase activity after incubation with IFG. Glucosylceramide levels were reduced 23% to 50% after 7-day incubation with IFG (30 μM) and 3-day washout. Incubation with IFG for 10 days did not reduce GlcCer levels, whereas the positive control SRT, Zavesca, significantly decreased GlcCer levels up to 75%. Importantly, this study provided the first proof of concept for a PC-mediated restoration of lysosomal GCase function on endogenous substrate in cells derived from a Gaucher patient. Hopefully, these cell-based results for GCase, as well as for α-Gal A, will be extended to other mutant forms of these enzymes in the future and may serve as basic starting points for the design of new cell-based assays to assess the effects of PCs on endogenous substrate levels in cell lines derived from patients with other LSDs.

Assays that show decreased levels of the endogenous substrate in enzyme-deficient cells after incubation with a PC indicate that the function of the enzyme in the lysosome has been successfully restored. In combination with supportive results from the assays described above, restoration of in situ lysosomal enzyme function adds further support that the molecule acts as a PC for its intended enzyme target. Such results would thus warrant further evaluation of the bonafide PC in preclinical animal models, and ultimately in patients with the LSD.

Pharmacokinetics, Tissue Distribution, and Effects on Wild-Type Enzymes

In contrast to ERT, PCs have the potential for oral bioavailability and broad tissue distribution, including the CNS. Subsequent to the in vitro mechanistic and pharmacological studies described above, the pharmacokinetic properties and importantly the tissue distribution profile should be assessed to determine if the PC is orally available, and to ensure that it distributes to and achieves sufficient levels in tissues relevant to the LSD being treated. Importantly, administration of the PC at doses that achieve clinically relevant exposures in animals should result in cellular and tissue concentrations that allow binding to the mutant form of the hydrolase. In addition, the PC should be cleared from these cells and tissues in a relatively short period (preferably hours). Sensitive analytical techniques, such as mass spectrometry, have been used to measure the tissue concentrations of two PCs, IFG and DGJ, in wild-type mice. ^76,131 Both molecules showed high oral bioavailability and broad tissue distribution including the CNS. In addition, high tissue concentrations were achieved for both molecules after oral administration, indicating the potential for interaction with their intended targets in vivo. Lastly, both molecules were cleared from tissues with half-lives of less than 6 h, an important parameter to ensure that the PC quickly attains low tissue levels and dissociates from the enzyme, thereby allowing the enzyme to interact with and turn over accumulated substrate (see below).

In some circumstances, wild-type mice can be used to investigate whether a PC interacts with its intended target in vivo. The synthesis and folding of some wild-type lysosomal enzymes in the ER and subsequent trafficking through the secretory pathway are not 100% efficient (i.e., only a fraction of the total synthesized enzyme is ultimately delivered to lysosomes). ⁸⁷ In these cases, a PC may stabilize the wild-type enzyme, thereby increasing tissue levels in vivo, a situation that is analogous to that described above for normal cells (Fig. 4B). This approach can also be used to indirectly monitor the tissue distribution of a PC, as elevated wild-type enzyme levels can provide a surrogate readout for biodistribution of the small molecule. As an example, the effects of IFG were investigated on wild-type GCase levels using C57BL/6 mice (Fig. 6A). Administration of IFG for 4 weeks resulted in dose-dependent and significant increases in GCase activity in tissues relevant to Gaucher disease, including liver, spleen, lung, and brain. Importantly, IFG administration did not affect the tissue levels of two other lysosomal hydrolases, α-Gal A and GAA (data not shown). Taken together, these data clearly indicate that IFG is orally available, has broad tissue distribution, including the brain, and interacts specifically with wild-type GCase in vivo. Similar results with DGJ and DNJ on α-Gal A ⁶³ and GAA, ¹³² respectively, have been seen in wild-type mice. In cases where animal models for particular LSDs are unavailable, inappropriate, or are limited in number (lack of fertility, longevity, inability to thrive, etc.), the use of wild-type mice may provide a quick, reliable, and cost-effective way to evaluate the pharmacodynamic effects of a PC.

OPEN IN VIEWER

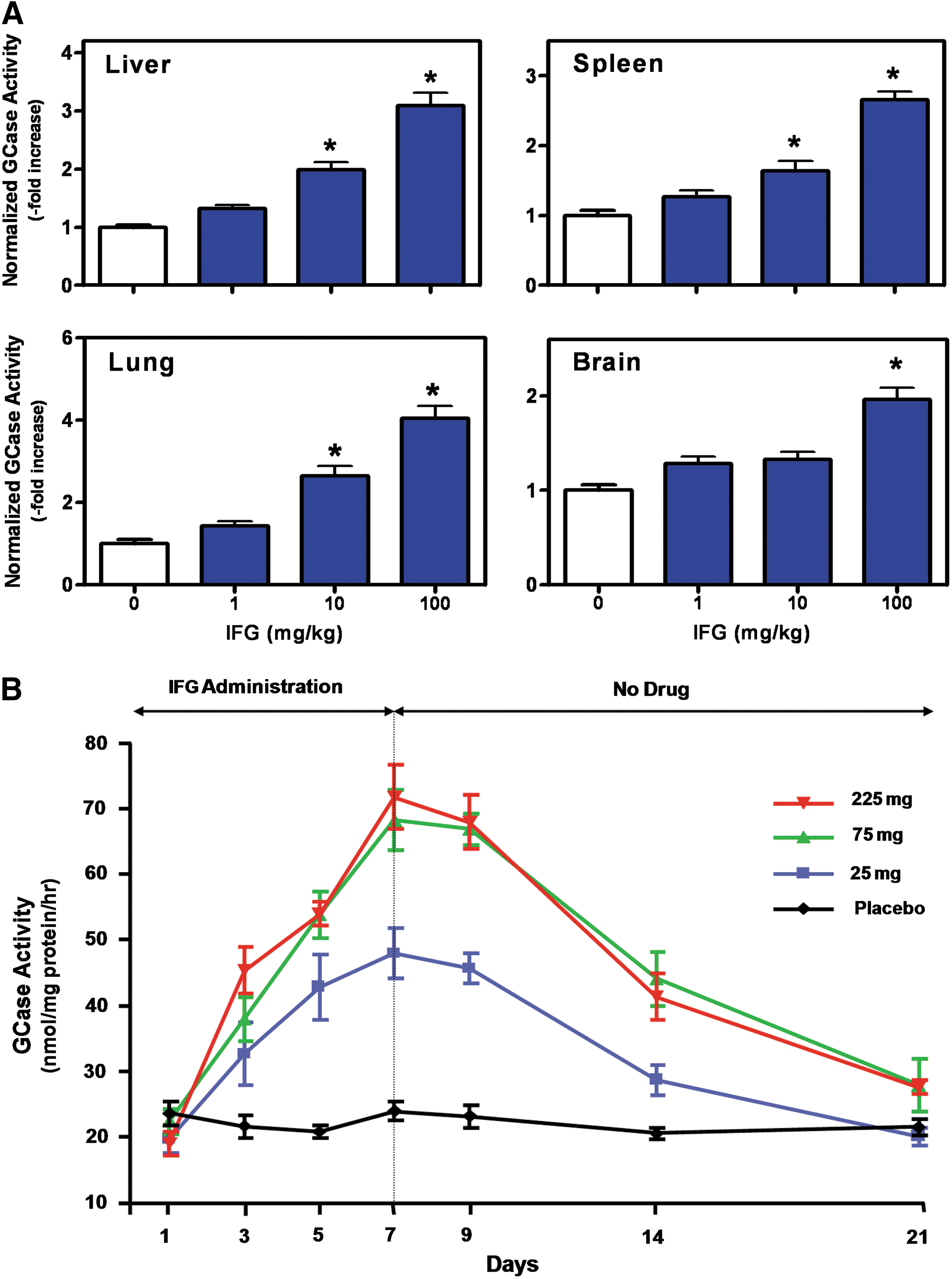

Fig. 6.

IFG increases wild-type GCase levels in animals and in humans. (A) Effect of IFG on wild-type mouse GCase. Eight-week-old male C57BL/6 mice were administered IFG ad libitum in drinking water for 4 weeks at the indicated doses. Animals were sacrificed and GCase activity was measured in tissue lysates as previously described using 4-methylumbelliferyl-β-D-glucopyranoside (Sigma-Aldrich). ⁷⁶ Dose-dependent and significant increases in GCase activity (*P<0.05 vs. untreated, t-test) were seen in all four disease-relevant tissues. The data presented have been normalized to untreated levels and represent the mean±SEM of 7 mice per group. Baseline tissue GCase activities were 70±4, 80±5, 37±2, and 40±42 nmol 4-methylumbelliferone/mg protein/h, in liver, spleen, lung, and brain, respectively. Animal husbandry and all in vivo experiments in mice were conducted under Institutional Animal Care and Use Committee–approved protocols. (B) Effect of IFG on normal human GCase. IFG was orally administered to healthy human volunteers once daily for 7 days at 25 mg (squares), 75 mg (triangles), or 225 mg (inverted triangles) as indicated. Blood was drawn on days 1 (predose), 3, 5, 7, 9, 14, and 21 for preparation of mononuclear cells. Cell lysates were used to measure GCase activity via 4-methylumbelliferyl-β-D-glucopyranoside hydrolysis. A time- and concentration-dependent increase in cellular GCase levels was observed, which persisted for up to 1 week after IFG withdrawal. Each point on the graph represents the mean±SD from 6 subjects administered IFG, or 2 subjects administered placebo (circles). Institutional review board approval was obtained for all centers involved in the human studies and all subjects gave written informed consent to participate. Color images available online at www.liebertonline.com/adt

Similarly, the ability to monitor the cellular levels of wild-type lysosomal enzymes has been instrumental in demonstrating a pharmacodynamic effect for PCs in the clinical setting. In Phase 1 studies, administration of IFG to healthy volunteers once daily for 7 days resulted in a time- and dose-dependent increase in GCase levels in peripheral blood mononuclear cells that were collected via routine blood draws periodically during the treatment period (Fig. 6B). ¹³³ GCase levels were elevated up to 3.5-fold compared with baseline levels, and remained elevated for up to 7 days after withdrawal of IFG. These data clearly indicate that IFG can interact with its intended target in humans, and that this interaction results in stabilization and increased GCase levels in vivo. Similar results have been demonstrated in Phase 1 studies with DGJ. ¹³⁴

Animal Models and Dose Optimization

In addition to the properties described above, the ability of a PC to restore enzymatic activity in the lysosomes of disease-relevant tissues also needs to be evaluated. Several mouse models for LSDs have been generated that can be used for testing and optimizing administration regimens for PCs. Importantly, these models express missense mutant forms of particular lysosomal enzymes that have been previously shown to respond to PC incubation in vitro. Further, these models express the mutant proteins on genetic backgrounds that lack endogenous, wild-type murine enzymes. Preferably, the expressed enzyme is a mutant form associated with human disease, and most preferably the model shows disease pathology similar to that seen in patients. ⁴ Unfortunately, however, some of the mouse models for LSDs that are useful for evaluating PCs (i.e., express a missense mutant form of the enzyme) do not recapitulate the hallmarks associated with human disease. However, these can still serve as excellent biochemical models for monitoring the effects of the PC on enzyme and/or substrate levels in disease-relevant tissues. ^{76,131,135,136} Mouse models that are currently available and relevant to the study of PCs for LSDs are presented in Table 2.

Given that the current set of PCs compete with endogenous substrates for binding to the active sites of lysosomal enzymes, it is necessary to optimize the administration regimen to provide periods of binding and stabilization for chaperoning, followed by “off” periods for dissociation and clearance of the PC to maximize lysosomal enzyme in situ activity and substrate turnover. This is partially achieved by the reduced binding affinity between the PC and lysosomal enzyme as it traffics from the ER to the acidified lysosome (discussed above). In addition, high lysosomal concentrations of stored substrate help prevent reassociation of the PC to the enzyme once it has dissociated. Also important, however, is the difference in the tissue half-lives of the PC and the rescued mutant lysosomal enzyme. While PCs typically have relatively short tissue half-lives (on the order of hours), many mutant lysosomal enzymes are stable once delivered to the lysosome, often having lysosomal half-lives that can be similar to wild-type enzymes (typically days). ^75,88 Hence, detailed tissue distribution studies as described above are necessary to determine the quantity of PC delivered to disease-relevant tissues and the kinetics for distribution and clearance. Further, determination of the tissue half-life of the rescued lysosomal enzyme can be conducted in patient-derived cells, or ideally in relevant animal models. Taken together, this information can be used to design administration regimens that maximize lysosomal enzyme activity and substrate reduction.

To this end, we recently generated a mouse model that expresses low levels of a PC-responsive mutant form of human GAA, P545L ^62,72,73 on a GAA knock-out background (hP545L GAA transgenic [Tg]/knockout [KO] mice). ¹³² Importantly, these mice show progressive accumulation of glycogen in tissues that are relevant to Pompe disease, including the heart and skeletal muscles. ¹³⁷ Daily administration of the small molecule PC DNJ for 4 weeks to these mice significantly increased mutant GAA levels in skeletal muscle, which remained elevated above baseline levels for up to 7 days after DNJ withdrawal (Fig. 7A). The measured half-life of elevated hP545L GAA in these mice was significantly longer than that of DNJ, indicating that elevated hP545L GAA is stable in the absence of the PC. This difference was used to devise administration regimens that could produce large net gains in lysosomal GAA activity, as measured by the reduction in tissue glycogen levels. In this case, daily administration of DNJ for four consecutive days provided an “ON” period during which time enhanced protein stabilization and trafficking to lysosomes occurs, followed by a 3-day “OFF” period during which time DNJ dissociates from the enzyme and is cleared from the tissue to provide maximal in situ enzyme activity. Four cycles of this “4 ON/3 OFF” regimen yielded a twofold greater reduction in tissue glycogen levels as compared with daily administration (Fig. 7B), and importantly, utilized ∼40% less drug. In previous studies, similar strategies were used to maximize the in situ activity of mutant α-Gal A by DGJ in Fabry patient-derived cells ⁷⁵ and in a mouse model of Fabry mouse, ¹³¹ as well as mutant GCase by IFG in Gaucher patient-derived cells. ⁷⁶

OPEN IN VIEWER

Fig. 7.

Optimization of PC administration to mice to maximize in situ enzyme activity and substrate reduction. (A) The half-life of elevated mutant GAA is significantly longer than the PC DNJ. Eight-week-old male hP545L GAA Tg/KO mice were administered drinking water (open rectangle) or DNJ (300 mg/kg per day (solid rectangle)) ad libitum in drinking water for 4 weeks, followed by a washout period (drinking water only) of up to 7 days. Groups of mice were then euthanized on day 1, 2, 5, or 7 after DNJ withdrawal. Gastrocnemius muscle was isolated at each time point and GAA activity was measured using 4-methylumbelliferyl-α-D-glucopyranoside (Sigma-Aldrich) as described previously. ¹⁶² In addition, DNJ levels (dotted line) were measured in tissue lysates by liquid chromatography mass spectrometry. Mutant GAA activity was significantly increased (*P<0.05 vs. untreated, t-test) after 4-week DNJ administration, and was sustained above baseline for up to 7 days after DNJ withdrawal. The half-lives of elevated mutant GAA and DNJ in muscle were estimated to be 2.0 and 0.6 days, respectively. For the GAA activity and DNJ levels, each data point represents the mean±SEM of 7–8 mice/time point. The limit of quantitation for DNJ was 10 ng/g. (B) Less-frequent DNJ administration results in greater glycogen reduction. Eight-week-old male hP545L GAA Tg/KO mice were administered DNJ (100 mg/kg per day) ad libitum in drinking water for 4 weeks either daily or less-frequently using four cycles of a “4 ON/3 OFF” regimen. Glycogen levels were subsequently measured in lysates prepared from gastrocnemius as described previously. ¹⁶³ Significant reductions in glycogen levels were seen both with daily and “4 ON/3 OFF” regimens (*P<0.05 and ***P<0.001 vs. untreated, t-test), though reduction was significantly greater with the less-frequent regimen (approximately 30% reduction versus 60% reduction; ^# P<0.05 daily vs. “4 ON/3 OFF,” t-test). The data presented represent two independent experiments with the mean±SEM of 14–15 mice/group. Gycogen levels in gastocnemisus isolated from wild-type littermate mice were 20±2 μg/mg protein. Animal husbandry and all in vivo experiments in mice were conducted under Institutional Animal Care and Use Committee–approved protocols. Color images available online at www.liebertonline.com/adt

In the models described above, phenotypic similarity to human clinical presentation is lacking. However, in the case of GM1 gangliosidosis, a mouse model that expresses a hR201C missense mutation on a β-galactosidase-deficient background does show some neurological and behavioral deficits that are similar to those seen in patients. ¹³⁸ Administration of increasing doses of the β-galactosidase-selective PC N-octyl-4-epi-β-valienamine (NOEV) for 7 days to these mice increased β-galactosidase activity and decreased GM1 ganglioside levels in brain. Most importantly, 3- to 5-month administration of NOEV to 2-month-old mice prevented neurological deterioration as measured by a series of assays, including gait, posture (forelimb, hindlimb, trunk, and tail), avoidance response, rolling over, parachute reflex, and horizontal/vertical wire netting. ¹³⁹

In addition to mouse models, a number of other small and large animal models of LSDs have arisen from spontaneous mutations (Table 2). While the large animal models may be advantageous for the study of PCs due to their heterogeneous genetic backgrounds and phenotypes that often more closely mimic human disease, as well as their size and longevity that allow multiple and frequent samples to be drawn from the same animals over long periods, they generally are not practical for the types of preclinical dose optimization studies described above, as these studies typically require large numbers of animals and broad dose ranges (that necessitate significant quantities of drug). However, we believe that the knowledge gained through the dose optimization studies using mouse models of Pompe and Fabry disease could be applied to mouse models of other LSDs, and could be extended to larger species in more focused studies designed to evaluate the long-term effects of PCs on clinically-relevant endpoints.

Pharmacogenetics

Mutational heterogeneity represents a significant barrier to the development of therapies for inherited diseases. In many instances, the outcome of the genetic mutation on the transcribed protein is fairly easy to predict. For example, the presence of a premature stop codon early in the transcript could lead to a truncated enzyme that, even if delivered to the lysosome, would be unlikely to bind and metabolize substrate. In contrast, missense mutations that result in the substitution of a single amino acid in the encoded protein theoretically could have a number of effects: (1) loss of stability or misfolding, thus preventing folding into the native state and/or interfering with normal trafficking to the lysosome; (2) compromised formation or structure of the active site, thus substantially lowering affinity for, or completely abolishing the ability to bind, substrate; (3) compromised activity, thus preventing or substantially reducing the ability to metabolize substrate; (4) altered protein structure outside the active site, thus affecting domains that interact with other subunits and/or cofactors necessary for function. Mutant lysosomal enzymes that have compromised stability, but that retain catalytic competency, are most likely to be responsive to a PC. Mutant forms that are catalytically inactive, unable to bind substrate, cannot be effectively stabilized by a small molecule due to severe folding deficiencies, or that have gross alterations in structure, are unlikely to respond to a PC. Before testing a PC in a clinical setting, it is important to first clearly understand the nature of the molecular defect and its functional consequences in vitro. Efforts should then be focused on those mutant forms that are trafficking-defective and functionally rescuable, and hence define the potentially responsive patient population. In recent years, this has been accomplished using several approaches.

Patient-derived cells that are either homo- or hemizygous for a disease-causing mutation have been utilized to monitor the effects of PCs on the single mutant form that is expressed. For instance, a cell line that was derived from a Pompe patient homozygous for P545L GAA was responsive to the PC DNJ. ⁶² Similarly, in cell lines derived from male Fabry patients, the measured α-Gal A responses to a PC are straightforward to interpret because Fabry disease is X-linked and males are hemizygous for the disease-causing mutation (i.e., only one mutant form is expressed) (Fig. 4B). ⁷⁵ Technically, however, patient-derived cell lines often require a relatively long period of time to establish (approximately 4–6 weeks), ^77,78 making this an inefficient ex vivo screening tool to quickly select patients for treatment with a PC. In contrast, differentiated T-cell cultures derived from a patient's peripheral blood mononuclear cells require only 4–10 days to establish and 3 days to test; thus, this approach has been successfully used to support Fabry patient selection for treatment with DGJ in Phase 2 clinical trials. ^83,84

While cell lines derived from patients that are heterozygous for two different mutant alleles have proven useful to investigate the effects of PCs, it is not possible to determine which of the two expressed mutant forms is responsive. This is problematic because many of the patients with diseases that are autosomal recessive, such as Gaucher, have complex genotypes with two different mutant alleles. ⁸⁰ In cell lines derived from these patients it is difficult to interpret which mutant form is responsive to the PC without additional information from other patient cell lines that are homozygous for one of the mutations. Similarly, this can be problematic in female patients with X-linked diseases. For instance, cell lines derived from most female Fabry patients cannot be used to investigate the effects of a PC due to random X-chromosome inactivation, which results in a mixture of cells that express either the wild-type or the mutant form of α-Gal. A. In these cell lines, the wild-type enzyme often dominates the α-Gal A activity that is measured. Further, wild-type α-Gal A is responsive to PCs (Fig. 4B), which tends to mask any PC activity on the coexpressed mutant form of α-Gal A.

To overcome the complexity of using patient-derived cells to investigate the effect of PCs on the cellular levels of mutant lysosomal enzymes, heterologous expression systems that use cell lines such as COS-7 or HEK-293 have been developed. In this case, mutant forms of a lysosomal enzyme are individually introduced via transient transfection and incubated in the absence or presence of a PC. The response of the mutant form is then monitored. Importantly, this approach requires that the mutant enzyme expression level after transfection or PC incubation exceeds that of the endogenous wild-type enzyme level in the host cell line. ^71,140 The endogenous mutant enzyme level at baseline or after PC incubation can then be subtracted, allowing the PC response of the heterologously expressed mutant form to be determined. ¹⁴⁰ Using this approach, at least 16 mutant forms of GAA were shown be responsive to DNJ in vitro. ^62,72,73 Similarly, 19 missense mutant forms of α-Gal A were shown to have increased protein levels and total cellular activity after expression in COS-7 cells and incubation with DGJ. ⁷¹ Importantly, the responses to DGJ were consistent with those seen in cell lines derived from male Fabry patients that expressed the same mutant forms. Similar results were shown for many of these as well as other mutant forms of α-Gal A in additional heterologous expression studies. ^141,142 Most recently, a more comprehensive survey of the response to DGJ of more than 400 known Fabry disease-associated α-Gal A mutant forms heterologously expressed in HEK-293 cells was completed. ¹⁴³ The effects of DGJ on missense mutant forms (>90% of those tested) and several small in-frame insertion or deletion mutations were investigated. More than 60% of these mutant forms were responsive. Importantly, the HEK-293 cell responses of a small subset of missense mutant forms were generally consistent with the α-Gal A responses observed after oral administration of DGJ to male Fabry patients in Phase 2 clinical trials that expressed the same subset of mutant forms. ⁸⁶ Taken together, these results suggest that the in vitro α-Gal A response in HEK-293 cells may aid in the identification of Fabry patients who express mutant forms of α-Gal A that can respond to DGJ in vivo. Phase 3 clinical studies with DGJ are currently ongoing to further assess its safety and efficacy in Fabry patients that express mutant forms of α-Gal A that respond to DGJ in vitro.

Restoring Lysosmal Enzyme Function: How Much Activity Is Required for Clinical Response?

The age of onset, progression, and severity of an LSD is dependent to some extent on the rate at which the substrate accumulates, which in turn is partially dictated by the amount of enzymatic activity in lysosomes (determined by total enzyme level and catalytic competency). ¹⁴⁴ Complete lack of residual activity may lead to the rapid accumulation of substrate, and a more severe form of the disease (often early onset with rapid progression). In contrast, small quantities of residual activity may be sufficient to degrade a large proportion of the substrate, and would thus substantially slow the storage process, leading to a more mild form of the disease (later onset and slower progression). Further, the rate at which a substrate is delivered to the lysosome may influence the rate at which it accumlates, and may be different for different cell types, tissues, and organs. ¹⁴⁴ Considering these factors, it is anticipated that even modest increases in enzymatic activity may be sufficient to attenuate a severe clinical phenotype. In most LSDs, 1% to 6% of normal activity has been estimated to be sufficient to delay or prevent disease onset or to yield a more mild form of the disease. For instance, 1%–2% of normal α-iduronidase activity has been reported in mild cases of MPS I ¹⁴⁵ ; <1% of normal GCase activity has been reported in mild Gaucher disease ¹⁴⁶ ; 6% of normal β-galactosidase activity has been reported in late-onset GM1 gangliosidosis ¹⁴⁷ ; 2–4% of normal β-hexosaminidase activity has been reported in the adult form of GM2 gangliosidosis ¹⁴⁸ ; and 10% of normal enzyme activity seems to prevent GM1 and GM2 gangliosidoses altogether. ^147,149,150 Further, healthy individuals who are carriers of arylsulfatase A ^{151 –153} or β-hexosaminidase deficiency ^154,155 have been identified with extremely low residual enzyme activities that are typically seen in severely affected patients. These data suggest that small increases in activity could have a significant impact on substrate levels, and hence disease severity and the rate of disease progression.

It is important also to consider the relationship of the in vitro and in vivo responses of a mutant lysosomal enzyme to a PC with respect to clinical outcome. It is expected that a mutant lysosomal enzyme that shows no response in vitro would also not respond in vivo. However, predicting the in vivo response of a mutant lysosomal enzyme that does respond in vitro is more difficult, as cultured cells and/or animals are not perfect representatives of what occurs in the body of an LSD patient. For example, age, sex, treatment history, and disease status at the time of therapy initiation may affect the clinical outcome, with patients that have been severely affected for a prolonged period of time expected to have the lowest likelihood of therapeutic benefit. As discussed above, the pharmacokinetic profile of a PC, including its tissue distribution and clearance rate, may also influence the net response, especially if the elimination half-life is long or tissue penetration is poor. Further, given that mutant enzymes are often less stable than their wild-type counterparts, faster turnover rates could limit the time that a rescued enzyme is available to metabolize substrate.

The Next Generation of Pharmacological Chaperones?

The success of a PC depends critically on biophysical properties that dictate affinity, specificity, and reversibility of target binding, as well as cell permeability. For LSDs, the preferred intracellular location for interaction between target hydrolases and small molecule PCs is within the neutral environment of the ER rather than the acidic milieu of the lysosome, an important consideration given that all PCs identified to date are reversible, competitive inhibitors of their target enzymes. The pH differences of these compartments together with the pK_a values of relevant PCs may provide a better understanding of the physical properties that are important for the binding interactions. For instance, whether a PC interacts with its target enzyme as a protonated amine or a neutral species, or whether a protonated species promotes dissociation of the enzyme/PC complex, may be important parameters to consider. In turn, this information would be expected to be of vital importance in guiding medicinal chemistry programs aimed at optimizing PC activity for new therapeutic candidates. While there are numerous approaches available for calculating pK_a values, these do not accurately predict these values for some of the most common chemical classes of lysosomal enzyme PCs identified to date, such as iminosugars and azasugars. However, Bols and colleagues have developed an empirical formula that has proven useful in calculating pK_a values for these compound classes. ¹⁵⁶ Hence, knowledge of the small molecule pK_a values together with measurements of the affinity for the target enzyme at various relevant pH values may allow the identification of PCs that have much lower affinities for their target hydrolases in acidified lysosomes.

Similarly, another important area of current PC research involves the identification of allosteric sites that may be available for binding and stabilization of target proteins. Importantly, an allosteric ligand could stabilize the enzyme in the ER and lysosome while not inhibiting enzyme activity, in contrast to ligands that bind to the active site. To this end, it has been suggested that α-Gal A contains a second site that selectively binds the β-anomer over the α-anomer of D-galactose when a mixture of the two is soaked into the crystals. ¹⁵⁷ Further, using multiple solvent crystal structures, Ringe and coworkers identified a number of regions on the protein surface of GCase that colocalize with multiple solvent molecules such as methanol, glycerol, and phenol. ¹⁵⁸ A complementary computational fragment-based method (FTmap) was also employed by this group to detect hot spots on the protein surface of GCase. Results from both methods were then used to form a consensus for the existence of potential new binding regions that could be screened in silico to identify nonactive site PCs. ¹⁵⁸ It should be noted that in silico screening has been conducted on models of fully folded wild-type enzymes, which may be different than the mutant enzyme forms associated with the LSDs. Hence, it is unclear if these potential allosteric sites exist in an unfolded or partially folded mutant enzyme. It is also unknown if the occupation of these sites would preserve catalytic activity, as well as provide significant stability to the enzyme as seen with active site-binding PCs. Lastly, it is unclear if PCs can be identified that bind to these sites with sufficient affinity and specificity to prevent unwanted off-target effects. While identification of such compounds could lead to a significant advancement for the treatment of these genetic diseases, there are several important outstanding questions that remain unanswered.
