Assays for the Identification and Prioritization of Drug Candidates for Spinal Muscular Atrophy

Disease Pathophysiology

Spinal muscular atrophy (SMA) is a genetic condition with autosomal recessive inheritance that presents with proximal muscle weakness, caused by the dysfunction and loss of α-motor neurons of the anterior horn. ¹ The pan-ethnic disease incidence is ∼1 in 11,000 live births. ^2,3 In its most severe form, SMA is the leading cause of infant genetic death. However, the clinical presentation of the disease is quite variable. SMA patients are typically classified into four subgroups based on the age of onset and highest achieved motor milestones. ^{4 –6} SMA type I (Werdnig–Hoffman disease) is the most common form of the disease, with an incidence of about 60% of newly diagnosed patients. It is characterized by the appearance of disease symptoms before 6 months of age, with these patients never gaining the ability to sit. Infants with type I SMA characteristically die before the age of 2 years if not assisted with respiratory and nutritional support. SMA type II manifests between 6 and 18 months of age, with patients achieving the ability to sit but not walk. The incidence is about 30% of newly diagnosed patients. SMA type III (Kugelberg–Welander disease) patients first display symptoms in childhood. These patients achieve the ability to walk independently and typically have normal life expectancies. SMA type IV has the lowest incidence and is characterized by adult-onset of symptoms.

Genetics of SMA

SMA is caused by low levels of survival of motor neuron (SMN) protein, resulting from mutation of the survival of motor neuron 1 (SMN1) gene. ⁷ In fact, 95% of SMA patients have homozygous deletions of the SMN1 gene. ^7,8 Moreover, all patients possess at least one copy of a nearly identical gene called SMN2. The SMN2 gene predominately produces a messenger ribonucleic acid (mRNA) that is alternatively spliced with skipping of exon 7, due to a single point mutation within the exon. ^9,10 This single nucleotide change prevents the binding of the SR protein and splicing activator ASF/SF2, in addition to creating an inhibitory binding element for proteins such as hnRNPA1 and Sam68 that regulate SMN2 pre-mRNA splicing patterns. ^{11 –16} The resulting SMN transcript lacking exon 7 (called SMNΔ7) produces a truncated protein, which is unstable and cannot functionally compensate for the loss of the SMN1 gene (Fig. 1). ^{17 –19} Nevertheless, a small amount of the full-length mRNA and functional SMN protein are still produced by the SMN2 gene, and the observed clinical spectrum of disease severity is known to correlate with the SMN2 copy number. ^20,21 In fact, several nonsymptomatic adults with homozygous SMN1 mutations and four or five copies of the SMN2 gene have been identified. ^22,23 Therefore, enhancing the expression from the SMN2 gene has become an obvious therapeutic strategy for SMA.

OPEN IN VIEWER

Fig. 1.

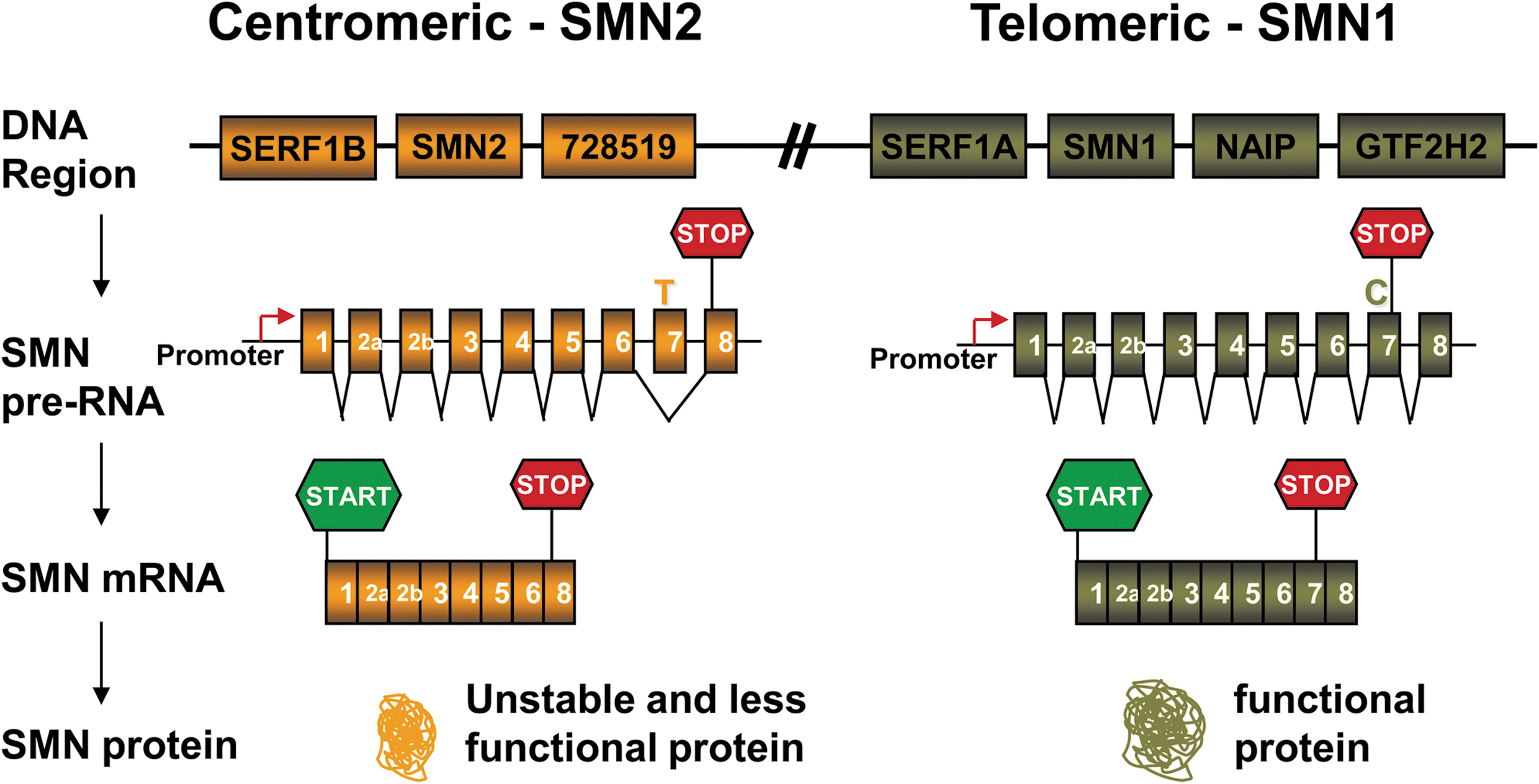

Splicing of SMN1 and SMN2. The genomic regions of the SMN1 and SMN2 genes are drawn, as shown at www.ncbi.nlm.nih.gov/gene/. The major difference between the two SMN gene copies is the C (SMN1) or T (SMN2) nucleotide change at position 6 in exon 7 of the two genes. This single-nucleotide change prevents the binding of the SR protein and splicing activator ASF/SF2, in addition to creating an inhibitory binding element for proteins such as hnRNPA1 and Sam68. Because of this, SMN2 primarily produces messenger ribonucleic acid (mRNA) that excludes exon 7 and results in truncated and unstable SMN protein. However, SMN1 mostly produces mRNA that includes exon 7 and results in stable full-length SMN protein. Adapted with permission from the Families of SMA publication “The Genetics of Spinal Muscular Atrophy.” ASF/SF2, alternative splicing factor 1/pre-mRNA-splicing factor 2; SMN, survival of motor neuron.

Studies in SMA mouse models have also indicated that increased SMN2 copy number correlates with milder disease course. Mice have a single Smn gene. ²⁴ Homozygous loss of Smn results in preimplantation death of the embryo. ²⁵ This can be rescued by expressing two copies of a transgene containing the human SMN2 locus. These rescued transgenic mice display severe symptoms. ^26,27 The expression of eight copies of SMN2 fully rescues the animals. ²⁷ Disease severity can also be modified by transgenic expression of mutated versions of the SMN gene. For instance, two copies of SMN2 and an intronless SMN allele lacking exon 7 (Smn^−/− ; SMN2/SMN2; SMNΔ7/SMNΔ7) result in a mouse strain commonly referred to as SMNΔ7. ²⁸ SMNΔ7 mice display symptoms days after birth with a median survival time of about 14 days. ²⁸ It has been utilized as the primary mouse model for testing SMA drug candidates. ^{29 –37} Several other models, including those with milder phenotypes, are also currently in use for drug testing. ^{38 –42}

SMN Protein Function

SMN is a ubiquitously expressed 38 kDa protein found in both the nucleus and the cytoplasm. It has a well-documented role in small nuclear ribonucleic particle (snRNP) assembly. ^43,44 As extensively reviewed, during snRNP formation, SMN functions as part of a protein complex containing Gemin proteins 2–8 and Unrip in all cell types and tissues. This protein complex promotes the assembly of Sm proteins with U small nuclear RNAs (snRNAs) into snRNPs, which function in the process of pre-mRNA splicing. ^45,46 Several studies have shown that snRNP assembly is reduced in tissues with lowered SMN levels. ^47,48 Moreover, the expression of SMN transgenes possessing missense mutations that restore snRNP assembly also prolong survival in mice with severe SMA. ^49,50

The mechanisms underlying selective vulnerability of motor neurons in SMA remain debated. Theories invoke either impaired splicing mechanisms resulting from defective snRNP assembly or specific novel functions for SMN protein in motor neurons. ⁵¹ Currently, studies differ on how widespread mis-splicing is in SMA tissues. ^52,53 One theory proposes that only a limited number of genes are affected until the end stages of the disease. In addition, some findings have suggested that SMN deficiency results in a selective reduction of the U11 and U12 snRNPs of the minor spliceosome. ^54,55 The minor spliceosome is involved in processing the pre-mRNA of a small number of genes, some of which are known to be involved in motor neuronal function. ^56,57 The mis-splicing of these genes due to reduced levels of minor snRNPs may lead to motor neuron vulnerability in SMA. Recently, several genes, both with and without minor introns, have been shown to be specifically mis-spliced in SMN-deficient tissues, including Chondrolectin, Stasimon, and Neurexin2a. ^53,58,59 In addition, several researchers are using laser capture microdissection of motor neurons from SMA mice followed by next generation RNA sequencing analysis to search for additional gene expression changes. In Drosophila models of SMA, this technique did not identify significant alterations in genes processed by the minor spliceosome. ⁶⁰ In a recent study using mouse models of SMA, RNA sequencing results showed aberrant mRNA splicing in 348 genes in motor neurons at pre- and early symptomatic states of the disease. ⁶¹ There was no evidence that the minor splicing pathway was selectively perturbed at early stages of SMA. Importantly, only about 3% of genes expressed in motor neurons were affected, indicating that SMN deficiency did not cause widespread transcriptome changes at early disease stages. Gene expression misregulation included complete skipping of the Z exons of Agrin (a gene critical for neuromuscular junction [NMJ] maintenance), upregulation of synapse pruning–promoting complement factor C1q, and downregulation of Etv1/ER81 (a transcription factor required for establishing sensory-motor circuitry). The importance of mis-spliced genes identified from SMN-deficient tissues to SMA pathology should be thoughtfully investigated in established mouse models of SMA before they can be considered as viable drug targets or as downstream biomarkers of disease state.

In contrast to the mis-splicing hypothesis, several lines of evidence also support a neuronal-specific function of SMN. For instance, SMN protein has been detected in granules moving along motor axons ⁶² and shown to colocalize with actin mRNA and other mRNAs within axons. ^{63 –65} In neurons, SMN has also been shown to interact with multiple mRNA-binding proteins, such as hnRNP R, ⁶⁶ KSRP, ⁶⁷ HuD, ^{68 –70} FMRP, ⁷¹ and IMP1, ⁷² and proteins known to interact with mRNA-binding proteins, such as COPI. ^73,74 Therefore, SMN could potentially regulate the assembly of mRNA-binding proteins and mRNAs into ribonucleoprotein particles in motor axons and nerve terminals, affecting local mRNA transport, processing, and translation. However, the definitive function of SMN protein in motor neurons remains to be determined.

Therapeutic Approaches

The goal of many SMA drug discovery programs has been to identify small molecules or antisense oligonucleotides (ASOs) that increase the level of SMN protein produced from the SMN2 gene, which is present in all patients. Multiple mechanisms have been targeted to drive higher expression of the full-length SMN protein from the SMN2 gene and have been reviewed extensively elsewhere. ^{75 –80} Briefly, these include increasing exon 7 inclusion in the SMN2 mRNA, increasing transcription from the SMN2 promoter, and stabilizing SMN protein. A number of high-throughput drug screens looking for small molecule or ASO modulators of SMN expression or function have been completed. ^{33,81 –93} Several of the efforts by industry groups remain unpublished to date. Other non-SMN2 modulating approaches have been or are currently being assessed for SMA, including stem cell therapy for neurotrophic support of remaining motor neurons, ^{94 –96} neuroprotection, ⁹⁷ muscle-enhancing molecules, ^{98 –104} and most notably, gene transfer therapy to replace the missing SMN1 gene, which dramatically increases the survival in severe mouse models of SMA. ^{105 –108}

The identification of additional molecular drug targets for SMA beyond SMN2 is being investigated. The existence of other genetic modifiers for SMA is well accepted. Examples of siblings with identical genotypes but with different phenotypes strongly suggest that non-SMN2 gene modifiers for SMA exist. Several candidate genes and pathways have been suggested. ¹⁰⁹ For example, Plastin 3, an actin bundling protein, ¹¹⁰ is reported to be a protective modifier in human SMA. ¹¹¹ The expression of Plastin 3 has been shown to be protective in zebrafish models of SMA ¹¹² and to improve NMJ function but not survival in SMA mice. ¹¹³ In addition, modulation of pathways regulating actin dynamics, such as RhoA/ROCK, have been shown to provide survival benefit in mouse models of SMA ^38,114 and could potentially represent possible disease modifiers. Genetic modifiers of the phenotypes arising from SMN deficiency in Drosophila and Caenorhabditis elegans have also been identified. ^115,116 The identification of genetic modifiers and downstream targets of SMN, once validated and shown to improve phenotypes in established mouse models of SMA, will uncover a wide array of potential new drug targets for SMA to be directly assayed and screened. To date, however, most cell-based assays to identify novel SMA drugs have been designed to assess SMN2 expression. Therefore, this review focuses on approaches that have been utilized to identify modulators of SMN2 production.

SMA Drug Pipeline

Currently, there are 16 known SMA therapeutic programs in various stages of preclinical and clinical development, a large increase from just a decade ago (Fig. 2). The specifics of each of these programs have been reviewed extensively. ^{75,77,79,80,117} Briefly, there are five novel SMA drug candidates actively being testing in clinical trials for SMA, including (i) olesoxime (Trophos), a neuroprotectant compound that has just completed testing in a pivotal trial from Trophos, ⁹⁷ (ii) RG3039 (Pfizer), a small molecule that has recently completed Phase Ia and Phase Ib safety trials, ^32,37,39,118 (iii) ISIS-SMN_Rx (Isis Pharmaceuticals and Biogen Idec), an ASO that is currently being tested in Phase III trials in SMA patients, ^{35,40,83,119,120} (iv) RG7800 (a joint research program between Roche, PTC Therapeutics, and the SMA Foundation), an oral small molecule that corrects the splicing of SMN2 that entered clinical development in early 2014, and (v) chariSMA (AveXis and Nationwide Children's Hospital in Columbus, OH), an intravenously delivered AAV9/SMN1 gene transfer therapy, that is being tested in a Phase I safety in nine infants with type I SMA. ^{105 –108} Several more programs are actively working toward Investigational New Drug (IND) applications to the FDA to begin Phase I trials over the next year. These programs illustrate the diversity of approaches being pursued for SMA, including (i) small molecules, (ii) neuroprotectants, (iii) ASOs, (iv) stem cell therapies, (v) gene transfer therapies, and (vi) regulators of muscle function. Today, there is a high level of industry interest in SMA drug development, with about a dozen known companies actively investing in novel SMA drug development and research, including Trophos, Isis Pharmaceuticals, Biogen Idec, Pfizer, PTC Therapeutics, F. Hoffmann-La Roche, AveXis, California Stem Cell Incorporated, Paratek Pharmaceuticals, Genzyme Corporation, Novartis, RaNA Therapeutics, and Cytokinetics (Fig. 2).

OPEN IN VIEWER

Fig. 2.

SMA drug pipeline. The status of known candidate therapies being assessed for the treatment of SMA. Status of the compounds is estimated. The academic laboratories working on novel ASOs include those of Dr. Ravindra Singh at Iowa State University, Dr. Christian Lorson at University of Missouri, and Dr. Arthur Burghes at Ohio State University. lncRNAs, long noncoding RNAs; IND, Investigational New Drug; ASO, antisense oligonucleotide; SMAF, Spinal Muscular Atrophy Foundation; U, University; SMA, spinal muscular atrophy.

Drug discovery programs involving cross-disciplinary partnerships are essential for effective drug development in orphan diseases such as SMA, where it has been traditionally difficult to attract the interest of large pharmaceutical companies. SMA, in particular, has benefited from collaborative industry, advocacy, and government partnerships in both basic research and drug development, and the advances that have occurred in SMA drug development over the past decade directly reflect this collaborative activity. In fact, such collaborations have provided funding for many of the drug development programs, as well as helped build a collection of drug discovery assets and tools.

Conventional Semiquantitative RT-PCR

The more classical approach for mRNA quantification is based on endpoint RT-PCR and post-PCR analysis of the amplification products. This approach was most commonly used during the pre-real-time PCR era but still continues to be used today alongside other methodologies. ^121,132 For the quantification of SMN transcripts, densitometric analysis of PCR products is used, followed by normalization to the levels of a reference gene, often a house keeping gene (such as glyceraldehyde-3-phosphate dehydrogenase and hypoxanthine-guanine-phosphorybosil-transferase). Subsequently, SMN levels in cells treated with test compound are compared with those in control/untreated sample(s). SMN and the reference transcript of choice can be coamplified in a multiplex PCR assay or can be amplified separately, but ideally in the same amplification reaction. SMN-FL and SMNΔ7 isoforms can be coamplified using the same primer pair, and the two resulting amplification products can be discriminated based on their size. This approach has also been used for the evaluation of the ratio between SMN-FL and SMNΔ7 transcripts. ^121,132,133

Conventional RT-PCR has the advantage of low costs and the use of equipment standard to most molecular biology laboratories. However, its use has been limited by several considerations: (i) it is not readily scalable for high-throughput applications; (ii) it is generally recognized that amplicons when measured together cannot exceed a 10% difference in size to avoid preferential amplification of the smaller product; and (iii) it is influenced by abundance, which can be of particular importance when selecting reference genes. For instance, housekeeping genes are often used as references, and they can be expressed at higher levels compared to SMN and in this case be preferentially amplified.

The use of conventional agarose gel electrophoresis and ethidium bromide staining in some studies could potentially introduce some biases. ¹³² Due to the low sensitivity of this dye (1–5 ng), ¹³⁴ two possible solutions are available to obtain analyzable bands: increasing the number of cycles of PCR amplification and/or increasing the amount of starting materials. ¹³⁰ In both cases, there is a substantial risk that one or more amplicons fall outside the log-linear phase of the amplification curve, and thus, the amount of deoxyribonucleic acid (DNA) obtained is not proportional to that of the starting material. To overcome this issue and to reduce the number of amplification cycles and/or starting amount of complementary DNA (cDNA), different DNA staining tools can be used, such as radioactive isotopes/silver staining coupled with polyacrylamide electrophoresis ¹³³ or fluorescent PCR and capillary gel electrophoresis. ¹²¹ In addition, the analysis of different dilutions of the same cDNA sample may lead to more robust results. Finally, in the case of all semiquantitative approaches, the assumption that reference gene transcript levels do not vary in response to the treatment or are comparable in all samples analyzed can confound the interpretation of results.

Relative Real-Time RT-PCR

Due to the current availability of real-time PCR instruments in most molecular biology laboratories, this approach is most commonly used for transcript quantification. The majority of studies published so far have been performed using this technique. Real-time PCR assays, in general, have several advantages compared with the conventional PCR approach, including sensitivity (down to single molecules) and high reproducibility. The main limitation is the semiquantitative nature of this approach, similar to that of conventional PCR. SMN transcript levels are determined using different techniques, which include the ΔΔCt method ¹³⁵ that uses a housekeeping transcript as an endogenous control and one or more untreated/control samples used as calibrators, and the Liu and Saint methods that simulates PCR reaction efficiency from kinetic curves. ¹³⁶

The two main approaches most commonly used for the visualization of the PCR products are as follows: SYBR^® green or similar intercalating dyes that emit fluorescence on excitation when bound to double-strand DNA ¹³⁷ and the TaqMan^® probe system, based on the use of unlabeled primers and fluorescent probes. While the two techniques do not differ in terms of sensitivity and efficiency, there are some advantages to each. SYBR green has no additional cost for probe synthesis and can be more easily adapted to different amplicons. The main limitation is that it can be biased by primer dimers and the formation of nonspecific amplification products that cannot be differentiated from the target. Without careful primer design and optimization, this technique may not distinguish SMN1 and SMN2 mRNAs in the same reaction when multiplexed. For both SYBR green and the TaqMan probe system, SMN-FL and SMNΔ7 PCR products should be amplified with caution in the same assay due to the potential formation of hybrid amplicons from the cross-binding of partners. Some of the possible biases of relative real-time PCR are related to the wide variations in SMN gene expression in samples from different control individuals, as well as to differences in the endogenous transcript expression in both patients and controls. ^126,138 Similarly, a given treatment may alter the reference gene expression, and this could lead to incorrect interpretations of the effect of the treatment on SMN levels.

Absolute Real-Time RT-PCR

In this approach, transcript levels of the target gene are determined by extrapolation from a standard curve, constructed using serial dilutions of an external standard with known quantities of the target amplicon. At least three different kinds of external standards can be used: (i) a control sample (or a pool of different controls), (ii) RNA, or (iii) DNA external standards. For the SMN transcript analysis, the first ¹²⁷ and third ¹²⁶ approaches have been used, whereas to our knowledge, the second has not.

The use of serial dilution of a control sample is more properly indicated for relative standard curves since results are expressed as folds of variation compared to control. In this method, two main approaches are more commonly used for the preparation of serial dilutions to construct standard curves: (i) a single control sample (unaffected, untreated, or mock) and (ii) a mix of equimolar amounts of different control samples. Because the main bias of relative standard curves is caused by variations in SMN levels in the samples used for the construction of the standard curves, the mix of a pool of control samples may be useful to balance possible sample-to-sample differences. Indeed, it has been shown that in control individuals, SMN-FL levels vary widely and do not show the Gaussian distribution. ¹²⁶

The other two approaches exploit techniques that are widely used to determine the plasma load of some viruses, such as HIV or HCV, or for prion genes. ^{139 –141} Transcript levels are expressed as number of mRNA molecules per nanogram of total RNA and are determined independently of the use of endogenous controls. Both approaches provide comparable results, with some differences. RNA external standards can serve as good controls for RT-PCR since they undergo reverse transcription together with RNA samples. However, they are less stable compared to DNA standards (especially in the case of the lower concentrations), while not offering consistent advantages in sample quantification. ¹⁴² Absolute real-time PCR can be biased by different issues. First, the efficiency of amplification of the external standards may vary between preparations and/or can be affected by repeated cycles of freezing and thawing. To circumvent this issue, new preparations of external standards should be compared with the previous, and single-use aliquots should be prepared. Second, PCR efficiency needs to be calculated and evaluated using the various available methodologies. One method is to determine the slope of the standard curves, which ideally should be as close as possible to −3.33, corresponding to a dilution factor of 10-fold. A second technique calculates PCR efficiency without a standard curve using reaction kinetics. ¹³⁶ Large differences in the slope of the standard curve and/or low PCR reaction efficiency often indicates nonoptimized reaction conditions, such as improper preparation of serial dilutions, poorly designed primers, and/or degradation of one or more dilutions. Conversely, the extrapolation of SMN levels from inappropriate standard curves yields inaccurate quantification of mRNA levels and poor reproducibility from one experiment to another. Third, while reference genes can be used as loading controls, it is difficult to assess the quality/quantity of RNA samples with this technique.

In our opinion, certain steps may mitigate (but not remove) these issues. First, RNA extraction should be standardized. In our experience, in-column extraction/purification is preferable to phenolic extraction and should be coupled with DNase I treatment (or other tools for the removal of contaminating genomic DNA). Second, quality and quantity of RNA should be accurately evaluated: the ratios of absorbance at 260/280 nm and at 230/260 nm provide essential information. Spectrometer or fluorescent dye-based techniques evaluation should be coupled with techniques that disclose the presence of contaminating genomic DNA and/or RNA degradation products, such as agarose gel electrophoresis or fluorescent dye-based approaches (using the Agilent Bio-analyzer instrument or similar tools that allow simultaneous quantification of RNA samples). Third, the use of a particular RT-PCR kit should be validated. Indeed, it should not be assumed that different reverse transcriptase or RT-PCR kits will yield comparable results, and thus, the efficiency of different commercially available kits should be initially evaluated.

Digital PCR

Digital PCR is a recent technology that allows the quantification/detection of target nucleic acids by fractioning a single sample into multiple PCR reactions occurring in the same tube. Some of these reactions produce efficient amplification while others do not based on the abundance of the target nucleic acid. The DNA of interest is quantified by comparing the number of effective and noneffective reactions. This approach has the advantage of the ability to quantify samples independently of both endogenous and external controls, and very high sensitivity, down to variations of single molecules of the target, and it has been used successfully to measure DNA copy number and to detect rare mutant alleles in a 100,000-fold excess of wild-type background. ¹⁴³ The main limitations are costs, which are much higher compared to those of traditional real-time PCR. Digital PCR allows for highly sensitive SMN transcript measurements, and its use may ultimately help to illuminate the biological import of single molecule changes in expression levels. This approach has been recently utilized for the quantification of SMN levels in mouse model of SMA, including studies for the quantification of SMN1 and SMN2 mRNA levels ³⁶ and of SMN1/2 gene copy number. ¹⁴⁴

SMN Primer Design

This review does not cover general considerations for PCR primer design since (i) this matter is extensively covered by PCR handbooks, (ii) is generally performed by software tools, and (iii) the SMN cDNA does not have particular concerns (i.e., long stretches of repeated nucleotides, prominent GC-rich domains, and repeated sequences). On the other hand, certain characteristics of the SMN1 and SMN2 genes, as well as the alternative splicing of exon 7, require specific consideration during PCR assay development. There are two areas of key relevance. The first is that SMN1 and SMN2 transcripts can be differentiated only by a single SNP in the coding sequence of exon 7 and one additional SNP in the 3′-UTR. Second, exon 7 is only 54 base pairs long. Thus, both SMN-FL and SMNΔ7 isoforms can be easily coamplified. Being able to distinguish between SMN1 and SMN2 transcripts is relevant in a few circumstances, such as in the case of control samples or in the case of patients bearing point mutations of the SMN1 gene (about 2%–3% of the total since most patients lack both SMN1 alleles). In such cases, the two genes may be differentiated on the basis of the C–T transition in exon 7, either by means of specific oligos (allele-specific oligonucleotide PCR) or by different probes. To our knowledge, the first approach has been followed by Feldkotter et al. for the determination of SMN1/SMN2 gene copy number but may theoretically be applied also for transcript analysis as well. ²⁰ In this approach, SMN1 and SMN2 transcripts must be quantified in separate reactions. An alternative approach is to label SMN1 or SMN2 allele-specific probes with different fluorophores (in the context of TaqMan probe-based assays). ¹²⁶ In this case, both transcripts are amplified by the same primer pair. The primary issue with both approaches is the possible cross-hybridization of SMN1 primer or probe with SMN2 transcripts and vice versa.

The SMN-FL and SMNΔ7 transcripts are readily distinguished on the basis of their size difference. Different approaches can be utilized to do this, such as a single primer pair amplifying both isoforms (e.g., the forward primer located in exon 6 and the reverse in exon 8), a commonly used approach in conventional PCR. However, this approach might be biased by the preferential amplification of the SMNΔ7 transcripts (due to both relative abundance and smaller size of this isoform, compared to the full-length form) and consequently lead to an overestimation of this isoform.

Considerations

Independent of which of the above-described techniques is used, SMN transcript analysis is a necessary step in the identification and evaluation of effectiveness of candidate therapies for SMA aimed at modulating SMN levels. It should be coupled with SMN protein analysis, which is described in the following section. The advantages and disadvantages of each approach for SMA transcript analysis are listed in Table 1. SMN transcript analysis also provides information on the molecular mode of action of candidate compounds. The quantification of the two main SMN2 isoforms can help to differentiate the mechanism of therapeutic agents, for instance whether they act at the SMN2 gene promoter level, and/or influence the alternative splicing of exon 7, based on the variation of the total SMN transcript levels and/or the SMN-FL/Δ7 ratio. Some researchers have utilized evaluation of the SMN-FL/Δ7 ratio only, with the tradeoff that putative effects on promoter activation/transcript stabilization cannot be evaluated. ¹³²

SMN transcript analysis is not without limitations, particularly when utilized in clinical trials on patient samples. First, it is not feasible to sample neuronal cells and tissues from human patients. Therefore, peripheral blood mononucleated cells (PBMCs) and whole blood are most widely sampled during clinical trials due to their accessibility. In this case, it must be understood that SMN levels are not being assessed in the primary target tissues of the disease, that is, spinal cord and skeletal muscle. Thus, an important preclinical step is to assess drug efficacy in disease-relevant tissues in animal models of SMA to relate SMN levels in the central nervous system (CNS) and muscle to levels in blood, recognizing that drug effects in mice and men may differ for multiple reasons. Second, baseline SMN transcript and protein from patient PBMC samples have not always shown high correlation. ^122,125 Despite this, the hope is that drugs designed for SMN2 modulation will induce an increase in transcript expression with resultant SMN protein increases, prerequisite for therapeutic effectiveness in SMA. Third, SMN protein and transcript analysis is not indicated for the evaluation of therapeutic compounds that are not intended to modify SMN levels, such as neuroprotecting compounds.

In the context of clinical trials, some technical advantages support the use of SMN transcript analysis as the primary biomarker/surrogate measure for SMA. These include the availability of several stabilization buffers that allow preserving samples from RNA degradation and gene expression variations, as well as the small amount of patient blood necessary for the assay. These technical aspects become very relevant in selecting a biomarker readout in the context of multicenter trials when dealing with severely hypotonic patients and young children, for whom sampling and obtaining adequate amounts of blood can be very challenging. The most appropriate techniques in the context of a clinical trial are absolute real-time RT-PCR or digital RT-PCR. These assays have the advantage that they are not biased by the use of endogenous transcripts, which may be subject to longitudinal variations, in response to treatment itself.

To our knowledge, real-time PCR in general (relative, absolute, or digital) has not yet been described in the literature for primary high-throughput screens on hundreds of thousands of compounds. These tools may prove to be suitable for such applications in the near future because (i) nanogram amounts of RNA are sufficient for transcript analysis, and thus, it is possible to use a limited number of cells or of small amounts of biological samples; (ii) the availability of robotized liquid handling systems found in many laboratories allows for standardization and the manipulation of a high number of samples per unit time; and (iii) the availability of instruments that allow for miniaturization has enabled marked reductions in the reaction volume required for real-time PCR, resulting in a significant decrease in the consumption of reagents.

SMN Protein

As previously discussed, SMN protein is ubiquitously expressed across tissues, cells, and cellular compartments (including as punctate accumulations in the nucleus called gems) and exists in a complex that includes multiple SMN molecules and Gemins 2–8. ⁴⁵ There is also a large and growing interactome of additional SMN binding partner proteins, which corroborates the array of functions ascribed to SMN, and also speaks to the effector structure of the protein itself, which recognizes an array of binding motifs. ^73,146,147 Given these factors, the discussion of SMN protein quantification necessitates consideration of which form of SMN is evaluated, as well as the extraction, denaturation, and stabilization of the protein for each assay platform.

SMN Antibodies, Epitopes, and Extraction

Most SMN protein measurements employ some form of immunoassay. Although several dozens of SMN monoclonal antibodies have been developed, a few selected antibodies are regularly used: 2B1, 8, MANSMA1, H195, and more recently 11708 (Table 2). Most antibodies recognize human and mouse SMN ¹⁴⁸ ; however, the 4F11 and 60154 clones are reported to be human specific (ProteinTech, pers. comm.). Notably, SMN is expressed in full-length or truncated forms, by the SMN1 and SMN2 genes, and there is no available antibody against the shorter protein generated by skipping of exon 7 (SMNΔ7). The full-length SMN has also been described as being a substrate for proteolysis by calpain, and depending on epitope and assay, some antibodies capture information on total versus truncated forms of SMN. ^149,150 While SMN has been described to be post-translationally modified via phosphorylation and ubiquitination, no antibodies for these specific forms have been described. ^17,151

Epitope sequence and epitope accessibility are major considerations in the use and development of quantitative SMN immunoassays. Recently, Lam et al. described the overlap for epitope from the widely used MANSMA1 antibody and the SMN Gemin 2 binding site. ¹⁵² This also supports the need for extraction and stabilization of SMN proteins before quantification in immunoassays. There is also evidence that some antibodies (e.g., MANSMA1 and 11708) preferentially bind human SMN protein sequences. ^153,154 Their use in some assays influence the results—especially in assessing SMN protein in transgenic mouse tissues, which may have both human and mouse proteins present.

The extensive network of SMN binding partners as well as oligomerization forms also impacts the selection of new SMN immunogens and use of SMN standards for assay quantification. Generation of new SMN antibodies has generally been achieved through immunization with recombinant SMN, which may have different available epitopes than endogenous SMN. ^{148,153 –155} Ideally, assays using these antibodies should test the immunogens as quantification standards—although this is not always possible. In developing new SMN immunoassays, care must be taken to ascertain the relationship between antibody binding to native SMN in cell lysates versus purified or recombinant standards. Although there may be discrepancies between antibody binding of recombinant protein used for standards and endogenous SMN protein, as long as there is a linear relationship between them, a quantitative assay can be developed from those reagents.

Finally, reagents for the lysis of cells and homogenization of tissues for subsequent SMN protein measurements must be adequate to extract and dissociate SMN from its many binding partners. Beyond the multitude of SMN binding partners, SMN forms oligomers of various sizes, which are stabilized by Gemin 2. ^19,156,157 Although it is unclear whether any antibodies bind preferentially to any oligomers of SMN, or whether stabilized conformations of the protein may be more accessible to epitopes, the use of extraction buffers with higher concentrations of salts has been reported to improve signal in some immunoassays. ¹⁵⁴ Detergents, such as sodium dodecyl sulfate and Tween-20, perform well in buffers for western blot analysis to make SMN accessible for antibody binding. However, high concentrations may interfere with plate-based assays, such as sandwich enzyme-linked immunosorbent assays (ELISAs). ¹⁵⁴ Tissue homogenization buffers, such as RIPA, M-PER, T-PER, and ER4, have all been reported to work effectively in western blot, ELISA, FRET, and ECL.

Western Blots

Since the mid-1990s, western blotting has been the most widely used method of SMN protein analysis reported across species, sample type, and laboratories in the SMA literature. ^{27,28,33,133,155,158} Since western blots only require one antibody, they can more reliably give signals of total SMN protein and also provide information on truncated species. Earlier western blotting methods necessitated the use of darkroom and densitometry. However, new devices improving gel to blot transfer and increasingly sophisticated fluorescence and chemiluminescence imaging systems now allow semiquantitative or quantitative determination of SMN levels. While the dynamic range of this assay format has been improved up to 1,000-fold with more sensitive imagers and Z′-factors of >0.5 are achievable (indicating an assay that can exquisitely differentiate between negative and positive values and may be suitable for screening), western blotting is still 4- to 400-fold less sensitive than other comparable quantitative immunoassays for SMN, depending on the manufacturer. Throughput also remains a challenge as western blots are limited to ∼12–16 samples in traditional gel formats or 48–96 samples per microwestern arrays, capillary, or in-cell westerns, whereas other assay types allow for miniaturization to several hundred well formats. In addition, western blots have relatively narrow dynamic signal ranges and are susceptible to positional bias depending on the placement of samples in lanes close to the edge of gels. Although western blots are not optimal for analysis of samples from large screening campaigns, they remain as a workhorse platform for academic research and are useful in the cross-platform validation of new SMN immunoassays and/or spot-check confirmation of drug hits.

Enzyme-Linked Immunosorbent Assay

ELISAs are attractive for use in drug screening because they are simple assays, require minimal instrumentation to perform, can be scaled to 384 and 1,536 well formats, and can yield Z′-factors of >0.80. Multiple research-grade SMN ELISAs, ranging from simple sandwich ELISAs to unique in-cell immunoassays that can serve as models for screening-grade assays, have been published. ^{124,154,159,160} Sensitivity and dynamic ranges are greater than that of western blots: 25–3,200 pg/mL. Many of the SMN ELISAs reported have been developed for measuring the protein in blood cells (typically peripheral blood mononuclear cells and lymphocytes) and can effectively and sensitively quantitate signals in an array of human and mouse cells and tissues. ^{124,159 –161} While the goal of creating an ELISA has been achieved for all the reported assays, subsequent studies have not demonstrated a clear relationship between disease severity and SMN protein levels in blood cells. ^122,125

There are notable limitations to sandwich ELISAs as drug screening assays that relate to the format as well as their reliance on multiple SMN antibodies, and these should be considered when designing any screening ELISAs. Additionally, ELISAs are subject to greater matrix effects than other quantitative protein assay formats and can require substantial validation and optimization. In contrast to western blots, SMN ELISAs reflect total protein without an ability to differentiate between SMN isoforms. Also, ELISAs utilizing antibody pairs with different preferences for human or mouse epitopes (e.g., 11708) can yield results that bias the measurement toward detection of one species over another. ^41,154 Overall, the careful selection of antibodies and buffer conditions would enable the creation of ELISAs suitable for initial to downstream screens for SMN in cells, depending on the therapeutic concept for a given drug program.

Fluorescence Resonance Energy Transfer

FRET assays are immunoassays in which two fluorescently labeled antibodies produce a signal when they are brought to close proximity by complexing with their antigen. For example, one SMN antibody is conjugated to a donor dye (e.g., europium chelate or cryptate), whereas the other antibody is covalently linked to an acceptor fluorophore. When both donor and acceptor-labeled antibodies bind to SMN, the FRET process is enabled and the excitation of the donor results in acceptor emission, which is proportional to donor–acceptor complex formation or SMN abundance. Another key element of some FRET-based assays is gating to remove noise from short-lived background fluorescence (time-resolved or TR_FRET). A FRET-based assay has all the positive attributes of ELISAs as well as the benefits of matrix effects and being homogenous, with no need for removal of solutions from previous steps. The assay can be particularly useful in reliably measuring changes in cells treated with compounds in a typical drug screening campaign, with the possibility of Z′-factors of >0.8. Although there are no publications currently describing research with SMN FRET-based assays, there is a commercial assay available (Cisbio). However, the same issues concerning species bias of the antibody pair chosen in ELISAs are applicable for FRET-based assays. In addition, the steric requirements of the donor and acceptor-labeled antibodies impose limitations on which SMN antibody pairs can be utilized in this assay format as overlapping epitopes may not be suitable for FRET. While the assay is sensitive, the relatively narrow dynamic range (3–100 pg/mL, as reported by Cisbio) necessitates some validation to ensure the sample is in range at testing dilutions. Using a permissive antibody set, a FRET SMN assay can be a useful primary to tertiary screen for drug-induced SMN changes in cells or in treated tissues from animal studies.

Electrochemiluminescence

ECL assays, such as those provided by Meso Scale Discovery, are a modification of the classical plate-based sandwich immunoassay, with the distinction that their detection signal is based on reading a light signal produced by an electrical current. In this format, the capture antibody immobilized to the surface of an electrode binds the antigen, which in turn binds a detection antibody conjugated to a Ruthenium tag. Upon exposure of the plate to an electric current, the Ruthenium tag undergo a chemical process that emits light. The commercially available PharmOptima SMN ECL assay has a very broad dynamic range and is less subject to matrix effects; sensitivity of the assay can be 3–100,000 pg/mL, exceeding the range for ELISAs (manuscript in preparation). Studies with the assay show that it is capable of measuring SMN in a variety of tissues, including whole blood samples (manuscript in preparation). This 96-well format ECL assay is amenable for use as a secondary or tertiary screen as well as for testing in a range of animal model and human biological samples.

Other SMN Assays

While immunoassays dominate SMA research, other approaches have been reported and have utility in some aspects of assay development or other research. Masson et al. reported an effort to develop an SPR method for quantifying SMN. ¹⁶² SPR relies on the shifting of a refraction signal when light is beamed across a gold film layer that can be coated, for example, with antibodies that can be exposed to antigen flowing in a solution across the coated surface. Generally SPR has a wide dynamic range and requires only about 15 min per sample to perform. Using SPR to characterize the binding of a MANSMA2 antibody and recombinant SMN, Masson et al. reported a limit of detection of 0.99 ng/mL. However, up to a third of the signal was potentially due to nonspecific interactions. At a minimum SPR, approaches are of immediate usefulness in quantifying the binding properties of SMN reference materials and antibodies.

Mass spectrometry-based techniques have been used for decades in drug discovery to quantitate the levels of small-molecule drugs in samples. More recently, several quantitative mass spectrometry techniques have been developed and used for proteomics. ¹⁶³ Techniques such as isobaric tagging for relative and absolute quantification (iTRAQ) allow a peptide-based approach for evaluating concentrations of proteins in samples and have been tried in SMA research for finding new binding partners to SMN protein and for a proteomics biomarker discovery campaign. ^164,165 While these techniques can be costly and are generally of low-throughput, they also can provide details on truncation species, oligomerization, and post-translational modifications in the same sample reaction without reliance on expensive antibodies.

Finally, bead-based immunoassays, such as the Luminex^® platform, are another possibility for screening SMN assays. The assay format has many of the same sensitivity features as an ELISA with the additional benefits of having reduced false-positive rates and being amenable to extensive multiplexing for reducing sample requirements and long-term cost. ¹⁶⁶ No bead-based SMN assays have been published. In addition, validation for any multiplexed bead-based assays can be extensive as all antibody pairs must perform well in the presence of several other antibody pairs against other analytes.

Table 3 outlines the details of the assays discussed, as well as their potential for use in drug discovery. Most of the assays profiled in the table have been validated to varying degrees for use in a variety of human primary cells and cell lines, and a multitude of mouse tissues, including the brain, spinal cord, liver, skeletal muscle, heart, pancreas, skin, PBMCs, and in the case of the ECL, whole blood.

Considerations

While the focus thus far has been on the numerous assays available for quantitating SMN protein in screens or other experiments, it is vital to consider the primary cell, cell line, or tissue type that will be evaluated. Overall, there is modest correspondence between SMA type or severity and SMN protein levels. ²¹ The modest correlation is thought to reflect the impact of SMA modifiers and/or the inability to test disease-relevant tissues, such as muscle and spinal cord. ^{109,122,125,133} SMN is expressed ubiquitously, but its levels vary greatly across tissues, with the lowest reported levels being in the muscle, nerve, and spinal cord and with the skin and blood at up to 50-fold higher levels. ¹⁵⁴ The broad range of SMN protein levels by tissue is further complicated by data on differences in cellular subpopulations such as motor neurons, which have been reported to be inherently deficient in the full-length protein due to inefficient splicing of SMN exon 7. ^154,167

Another factor that can impact SMN protein levels in screening from cell lines or testing clinical specimens is age. Lines of evidence using quantitative assays suggest that SMN expression across species and tissue type usually decline with age. ^154,161,168 Whether this decline is potentiated by disease stage and severity in patients remains unclear, without larger quantitative studies.

In summary, factors influencing the measurement of SMN protein in samples and specimens include tissue and cell type, buffer conditions, and age of the specimen or cell line donor should also be weighed when designing any new screening assays. The choice of which assay and sample a drug development program employs will depend greatly on the mechanism of action (e.g., putting a protein assay later in the screening process if screening for a transcript modulator or putting it first if screening for and SMN protein stabilizer). Regardless of approach and scope of program, there are many protein quantification assays available for SMN drug development, and also, many reagents are available for the generation of new assays in other platforms.

SMN2 Promoter-Based Assays

One of the first methods explored to identify compounds that can increase SMN protein levels is based on the regulation of SMN transcription. The promoters for SMN1 and SMN2 are nearly identical and have been shown to have similar levels of expression. ^170,171 As discussed previously, the SMN2 gene primarily produces a truncated mRNA isoform that lacks exon 7 and just 10%–20% of SMN2 mRNA includes exon 7 and encodes for the stable full-length SMN protein. Even so, enhancing transcription of SMN2 should increase the overall amount of full-length SMN mRNA, without changing the ratio of exon 7 splicing in these transcripts.

The first SMA reporter assay to take advantage of this method used the SMN2 promoter to identify compound that could increase SMN2 transcription. ⁸⁴ In this assay, beta-lactamase (BLA) was used as the surrogate for SMN2 expression. The reporter was cloned downstream of 3.4 kb of the SMN2 promoter. The reporter was transfected into the NSC-34 cell line hybrid of mouse spinal cord cells and a mouse neuroblastoma. ¹⁷² Treatment with either trichostatin A (TSA) or sodium butyrate, two histone deacetylase inhibitors (HDACi) known to increase SMN expression, ^30,173 increased BLA expression twofold.

This assay was used to identify the C5-substituted 2,4-diaminoquinazoline series of compounds. ⁸⁴ These compounds increase full-length SMN mRNA, exon 7 inclusion, and SMN protein levels. The quinazoline compounds bind to and inhibit the scavenger decapping enzyme, DcpS ¹⁷⁴ , which is involved in release and recovery of the 7 mG cap following mRNA turnover, and DcpS inhibition could impact mRNA stability, mRNA processing, and protein translation. Newer and more potent analogs of this series were orally bioavailable, had excellent CNS penetration, and promoted improvements to motor function in an SMA mouse. ^32,118 RG3039, the lead in this series, promotes a significant increase in survival in two mouse models of SMA, increases NMJ maturation, and improves motor function. ^37,39

A similar assay was developed by the pharmaceutical company, Trophos. ⁷⁸ In this version of the promoter assay, the 3.4 kb SMN1 promoter was used to drive the expression of the secreted alkaline phosphatase (SEAP) reporter, which was transiently transfected into cells (a fusion of mouse neuronal N18TG2 cells and rat primary motor neurons) and levels of SEAP were then assayed from the cell culture medium. This reporter system was validated using the HDACis valproic acid (VPA), sodium butyrate, and TSA and was used to screen a library of 45,000 compounds. Of the ∼100 hit compounds identified, the most potent was taxol, which increases SEAP levels more than 3.5-fold and had a 50% effective concentration (EC₅₀) in the high nanomolar range. The hits were tested in the reporter cells using quantitative RT-PCR but could only reproduce a slight increase in full-length SMN2 mRNA levels in SMA patient fibroblasts and SMN2 transgenic mouse cortical neurons. VPA and sodium butyrate were similarly ineffective in this secondary assay. The authors expressed concerns about specificity and toxicity with these compounds and suggested that the results could vary widely based on choice of cell types for screening and validation assays. None of the compounds identified in this screen was selected for development.

SMN2 Exon 7 Splicing Reporters

Increasing the amount of the full-length SMN protein produced from the SMN2 gene by enhancing the efficiency of exon 7 inclusion is a viable therapeutic approach for SMA. In fact, both the ASO therapeutic ISIS-SMN_Rx and splicing modifier from the Roche/PTC Therapeutics/SMA Foundation program work in this manner and are currently being tested in clinical trials. Therefore, multiple screens have been developed to identify candidate therapeutics that modulate SMN2 splicing. While the RT-PCR-based approaches discussed earlier have been critical in validating drug candidates, they have not been routinely used to perform primary high-throughput screens on hundreds of thousands of drug compounds, due to time and cost constraints. To address this need, an in vivo reporter system was constructed that simplified identification and quantification of exon 7 inclusion in the context of either the SMN1 or the SMN2 gene. ⁹³ Splicing cassettes from either SMN1 or SMN2 were fused to a reporter gene. In this reporter, the endogenous stop codon in exon 7 was disrupted by a single-nucleotide insertion, creating a frame shift in the reporter transcript so that it would be in frame only when exon 7 was included. This entire construct was expressed under the control of the CMV promoter and was tested by transient transfection into C33a cells. ⁹³ As expected, the SMN1 constructs expressed higher levels of the reporters and displayed nearly 100% inclusion of exon 7. SMN2 reporter expression was threefold lower than that observed with the SMN1 reporter, had <30% inclusion of exon 7, and was increased threefold with hTra2-β overexpression. C33a cells were stably transfected using the SMN1-luciferase or SMN2-luciferase constructs and were used to screen a small panel of known drugs. The phosphatase inhibitor, sodium vanadate, was shown to selectively increase luciferase fivefold in the SMN2-luciferase cells. These stable cell lines were then used to screen a library of about 47,000 compounds. ⁹² Indoprofen was identified as a hit and shown to increase SMN2-luciferase expression by nearly threefold. In 2005, the internal National Institute of Neurological Disorders and Stroke (NINDS) SMA Project embarked on medicinal chemistry to make more potent and safer analogs of indoprofen, but the project is no longer being actively pursued within NINDS.

A modified version of this reporter was used to confirm that aclarubicin increases exon 7 inclusion in the SMN2 transcript. ¹⁶⁹ In this format, the SMN1 and SMN2 constructs were fused with BLA and introduced into the NSC-34 cell line. Aclarubicin was able to increase BLA levels by fourfold in the SMN2-BLA reporter cells. The activity of aclarubicin was confirmed with endogenous SMN protein and mRNA in SMA-derived patient fibroblasts. Although aclarubicin was an effective modulator of SMN2 splicing and SMN protein expression, it is a chemotherapeutic drug and expected to be too toxic for the treatment of infants and children.

Assays for SMN2 Protein Stability

Another strategy to increase the amount of functional SMN protein in a cell is to salvage the truncated SMN protein already expressed from the SMN2 gene. The exclusion of exon 7 from the SMN2 transcript results in the loss of the C-terminal 16 amino acids and the addition of four amino acids (EMLA) encoded by exon 8. ⁷ This produces an unstable truncated SMNΔ7 protein. The SMNΔ7 protein has a shorter half-life and impaired ability to oligomerize and bind other proteins. ^19,175 Expression of the truncated SMNΔ7 protein may retain some functional ability. ^28,51,176

Further addition of amino acids to the N-terminus of SMNΔ7 appeared to stabilize the protein and corrected its cellular distribution. ¹⁷⁷ It was hypothesized that compounds that enabled the translational read-through of the stop codon in the SMNΔ7 transcript would stabilize the resulting SMN protein. Anti-terminator compounds have been shown to change the localization, stability, and function of the protein. ^{178 –181} The Δ7Stop reporter screen was created to identify novel compounds that promote read-through. ¹⁸¹ In this reporter, the stop codon of the SMN transcript was placed upstream of Renilla luciferase. Renilla luciferase would only be expressed if termination was suppressed. Firefly luciferase was included as an internal control for normalization. For validation studies, the Δ7Stop reporter was transfected transiently into the AD293, a derivative of the HEK293 human embryonic kidney cell line that may have some neuronal characteristics. ¹⁸² The aminoglycosides gentamicin, amikacin, tobramycin, and G418 and the HDACi VPA were tested in this assay. G418 and, to a lesser extent, amikacin were able to induce read-through. G418 increased read-through of the “UAG A” stop codon of the SMN gene by more than fivefold. This activity was also observed in transiently transfected C2C12 mouse muscle cells, Neuro-2a mouse neuroblastoma, and GM09677 SMA patient fibroblasts. Although G418 treatment in SMNΔ7 mice resulted in increases in SMN protein in the kidney, spinal cord, and brain and showed improved gross motor function, it did not elicit an increase in survival. ¹⁸¹ The ideal small-molecule therapeutics would display specificity to the molecular target with minimal off-target activity or toxicity. Many antiterminators are known to be toxic, have poor bioavailability, and can affect multiple stop codons, including multiple stop codons within the same transcripts. This assay provides a means to identify new compounds that could safely target the stop codon in SMNΔ7 to stabilize this truncated form of the SMN protein.

An alternative explanation for the lack of stability and diminished function of the truncated SMN2 protein is the formation of a protein degradation signal, or degron, in the SMNΔ7 transcript. ¹⁸³ The juxtaposition of the final 10 amino acids (YG-box) in exon 6 with the EMLA in exon 8 may form a degradation signal for the SMNΔ7 protein. ¹⁸³ To detect changes in the stability of SMN and SMNΔ7, a degron reporter assay was constructed. A reporter gene was fused to the N-terminus of the cDNA encoding for SMN and SMNΔ7 proteins and transfected into HEK293 cells. C-terminal elongation of the SMNΔ7 protein, either through the addition of five amino acids or through the activity of antitermination compounds, increased the half-life of the protein, suggesting that the degron must be exposed at the end of the SMNΔ7 protein to be active. The half-lives of the SMNΔ7 and SMN reporters were increased in the presence of MG132 and lactacystin, but not NH4Cl, 3-methyladenine, or calpeptin. This is consistent with the observation that SMN is degraded by the proteasome. ^17,184 This assay can be expanded to identify compounds that promote SMN protein stability as a new strategy for treating SMA.

Multifunctional SMN Reporter

The reporters described above are designed to quantify specific steps in SMN2 gene expression separately. The next generation reporter was designed to detect simultaneous changes in SMN2 expression through multiple mechanisms. To achieve this, a new reporter was designed using the corresponding SMN promoter to drive the expression of either an SMN1 or an SMN2 construct that includes the cDNA for exons 1–5 fused in frame to the 6-7-8-luciferase splicing cassette. ⁸¹ Expression from this reporter results in the production of the full-length SMN protein fused to luciferase. As with the splicing construct described above, luciferase is only in frame and expressed if exon 7 is included. The 3.4 kb promoter will respond to the treatment that modulates transcription. The splicing cassette will respond to the treatment that increases exon 7 inclusion. Inclusion of the entire SMN protein sequence allows for the detection of compounds that stabilize SMN mRNA or protein. This construct was cloned into an EBNA-based episomal expression vector and transfected into HEK293 cells. The selected reporter cell lines were responsive to overexpression of hTra2-β and treatment with a variety of compounds previously reported to increase SMN2 expression. ⁸¹

These cells have been used to screen over one million compounds at four separate screening centers. The results of two of these screens have been reported, whereas hits from the others are still at the validation and development stages. ^33,81,89 This reporter assay was used to identify a series of 4-arylthiazolyl piperidines in a screen at the NIH Chemical Genomics Center. ⁸⁹ The lead compounds in this series have a half maximal response or EC₅₀ values in the nanomolar range and increase the SMN protein expression up to twofold in SMA patient fibroblasts. These compounds also have favorable ADME profiles, oral bioavailability, and display CNS penetrance. RT-PCR analysis revealed only a slight increase in total SMN2-luciferase mRNA with no change in exon 7 inclusion, leading the authors to propose that the compounds are acting through a post-translational mechanism.

This assay was also used in a screen at the Laboratory for Drug Discovery in Neurodegeneration at the Harvard NeuroDiscovery Center. ⁸¹ Two compounds were identified that increase SMN2 expression, the heterocyclic carboxamide LDN-75654 and the dihydroquinolone LDN-76070. These compounds had EC₅₀s in the low micromolar range and increased SMN protein levels in SMA patient fibroblasts. RT-PCR analysis confirmed that LDN-76070 increased transcription of SMN2, but LDN-75654 did not change the amount of either transcription or exon 7 inclusion. Pulse chase studies with LDN-75654 demonstrated a threefold increase in the half-life of SMN protein (B. Burnett, the Uniformed Services University, pers. comm.). Preclinical pharmacokinetic analysis showed that both these compounds had good cell permeability and CNS exposure, but only LDN-76070 had favorable metabolic stability in mouse liver microsomes (K. Hodgetts, Harvard NeuroDiscovery Center, Laboratory for Drug Discovery in Neurodegeneration, pers. comm.). LDN-76070 was active in SMNΔ7 mice, increasing median survival over twofold and increasing SMN protein levels in the brain and spinal cord to 75% of that found in asymptomatic heterozygous littermates. ³³ Of note, the correlation between overall SMN expression and survival might not always be obvious. Survival in each specific mouse model of SMA is likely not driven just by overall expression levels of SMN, but by expression levels in specific cells types, which could differ from model to model.

The value of this screen is illustrated by the identification of novel SMN2-inducing compounds that function through multiple mechanisms: transcription, translation, and protein stabilization. This value is enhanced by the ability to use this screen to examine the efficacy of multiple compounds simultaneously and in combination. Compounds that increase SMN2 expression through distinct mechanisms could act synergistically to increase the activity with this reporter, whereas compounds that function through similar mechanisms would not. This quality might be used to identify compounds that could be used in combination to improve their therapeutic effects. It could also be used as a preliminary mechanistic screen by combining unknown compounds with compounds that have known molecular targets to determine if they act through similar or independent pathways.

Cellular Viability and Proliferation

The expression of SMN protein is required for cell proliferation. ¹⁸⁵ The Smn null mutation is embryonic lethal in mice. ²⁵ This is presumably due to the loss of the essential function of the SMN complex in snRNP biosynthesis. ^43,44 Despite this requirement for the SMN protein, decreased expression of the full-length functional SMN has little effect on the cell viability of most cells in the culture. However, inducible Smn knockdown in NIH3T3 mouse fibroblasts by RNAi has been shown to cause growth arrest and induce senescence. ⁵⁸ This cell line was used to develop a novel phenotypic screen for compounds that increase cell proliferation by increasing SMN expression or by inducing a change that compensates for the reduction of functional SMN protein. ⁹⁰

NIH3T3 cells were stably transfected with a cosmid containing the SMN2 gene and two clonal cell lines were selected, one with a high SMN2 copy number and a second expressing a lower copy number. Knockdown of Smn in the low copy number clone resulted in a growth arrest similar to that seen in the parental cell line. This growth arrest was partially corrected in the high copy number SMN2 cell line, confirming a correlation between SMN2 expression and proliferation in these cell lines.

The low copy number cell line was used to develop a high-throughput assay. This assay was scaled for use in 96-well plates, and an automated imaging technique was used to determine the cell number per well. These cells responded to lentiviral overexpression of SMN with nearly a threefold increase in the number of viable cells. Treatment with VPA, a small molecule previously shown to increase SMN expression from the SMN2 gene, ^186,187 also increased the number of cells 2.5-fold relative to the untreated Smn-depleted cells. The authors proposed that this assay is fit for high-throughput screening, but the results from such efforts have not been reported.

Considerations

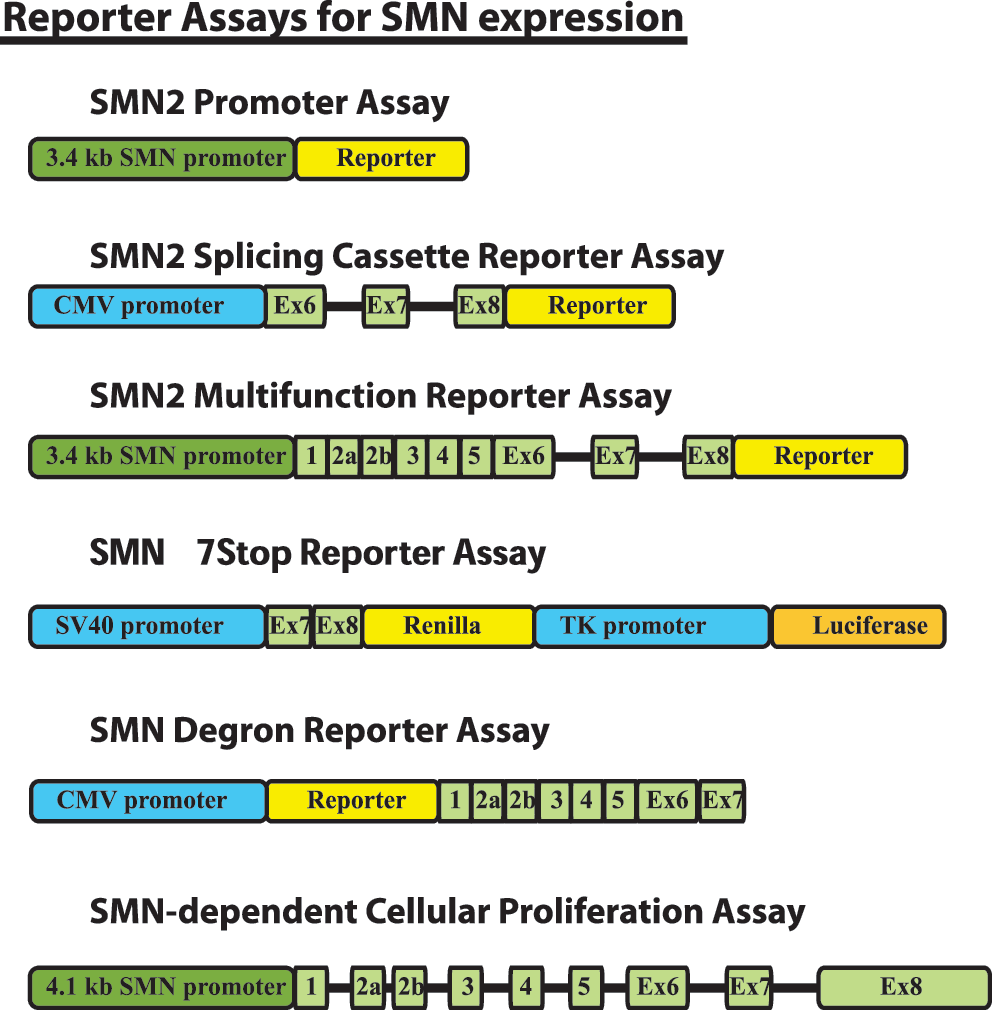

Assays have been developed in immortalized cell lines that use surrogates to measure changes in endogenous SMN2 expression levels to identify small molecules that can enhance SMN protein expression (Fig. 3 and Table 4). A number of different approaches have been discussed, including reporter systems to quantify the effects on the SMN2 promoter, to determine the extent of exon 7 inclusion in the SMN2 transcript, and to measure SMN2 mRNA translation and/or protein stability, as well as reporters that determine multiple readouts simultaneously.

The value of any reporter system is dependent on the dynamic range, reproducibility, ability to capture relevant aspects of target biology, and stability of its response to treatment. With the exception of the NIH3T3 proliferation assay, each of the reporter assays described above were designed to be quantified independent of the level of SMN1 expression in the cells. As a result, the assays are not limited to cells that have homozygous inactivation of the SMN1 gene, allowing for the use of immortalized cell lines. These qualities have allowed the SMN2 reporter assays discussed in this review to be suitable for use in high-throughput screening.

Despite the advantages that accompany reporter assays, it is important to remember that these assays measure surrogates for SMN expression, not endogenous SMN expression itself. In the case of all reporter systems, changes in readout can result from reporter-specific artifacts. This should be tested for during secondary screening to confirm the activity of the primary screening hits arising from the use of reporter assays. ^188,189 Finally, it is critical to remember that while the use of immortalized cell lines may be more suitable to high-throughput screening, these are not the cells that are affected in SMA, which are primarily motor neurons and possibly skeletal muscle. Thus, reporters may not be able to fully recapitulate the proper regulation of SMN expression and function either in central motor neuron synapses or at the NMJ. It is therefore necessary to confirm the activity of molecules identified with these reporters using disease-relevant secondary assays, including those directly measuring SMN expression in appropriate cell types, such as the high-content motor neuron assays described in the following section.

Screening in Primary Motor Neurons

Despite the challenges of screening in primary motor neurons from rodent models, this is an approach that has led to the identification of a small molecule currently in the clinic for SMA. Bordet et al. screened 40,000 compounds using spinal cord motor neurons purified from embryonic rats. ⁹⁷ Although the throughput of a primary motor neuron screen is limited by cell yield, the authors were able to use high-content imaging to offset this disadvantage. Imaging of calcein dye-stained motor neurons enabled the concurrent measurement of several parameters, including neurite outgrowth, the number of neurite branches, and motor neuron survival. In this case, high-content imaging both increased the data obtained from the primary screen and decreased the cell numbers needed per compound. It also allowed the prioritization of compounds that both kept motor neurons alive and maintained a healthy morphology. This screening approach led to the identification of olesoxime, which increases motor neuron survival in vitro, and extends lifespan in amyotrophic lateral sclerosis (ALS) mice. ^97,190 Although olesoxime treatment did not meet primary endpoints in a clinical trial for ALS, ¹⁹¹ its efficacy in SMA patients is currently being evaluated. The pivotal trial has been completed, and publication of results is pending.

Screening in Murine Embryonic Stem Cell-Derived Motor Neurons

Although primary culture of motor neurons is challenging, advances in stem cell and developmental biology have led to the development of protocols for differentiating motor neurons from murine and human pluripotent stem cells. ^{192 –195} Because pluripotent stem cells readily expand in vitro, they can provide a continuous source of motor neuron cultures to be used in drug screening and phenotypic assays. Wichterle et al. first demonstrated that murine embryonic stem (ES) cells can be differentiated into motor neurons using the morphogens sonic hedgehog and retinoic acid (RA), which are known to be involved in motor neuron differentiation during development. ¹⁹² These motor neurons are electrophysiologically active and can integrate into the chick spinal cord. ^192,196 The protocol is relatively short and scalable and thus provides an alternative to primary motor neuron culture for drug screening. Additionally, the starting population of ES cells can be derived from genetically modified mice, enabling the use of reporter genes and/or disease models.

This approach has been undertaken by Yang et al. in a murine ES cell-derived motor neuron survival screen. ¹⁹⁵ ES cells generated from both wild-type and ALS (SODG93A) mice were differentiated into motor neurons. The cells contained an HB9-GFP reporter, which allows for the rapid identification of the motor neurons. Generation of motor neurons from murine ES cells yields cultures that are 20%–30% GFP positive, so using a reporter and high-content imaging allowed the authors to count the number of motor neurons per well after 3 days of trophic factor withdrawal. The authors identified a small molecule, kenpaullone, which dramatically increases the number of motor neurons in vitro. Kenpaullone-treated motor neurons maintained a healthy morphology, have increased synapses compared with untreated motor neurons, and are electrophysiologically active. When compared to olesoxime and dexpramipexole, two compounds that have not been successful in ALS clinical trials, kenpaullone was more effective in promoting human motor neuron survival in the culture. It remains to be seen whether kenpaullone is effective in SMA or ALS animal models and/or patients, but if this proves to be the case, then it would support the use of in vitro motor neuron testing as a prerequisite for clinical trials in motor neuron diseases.

Another advantage of the stem cell-derived motor neuron model is the ability to test hit compounds across multiple disease models. Interestingly, kenpaullone promotes the survival of human pluripotent stem cell-derived motor neurons from wild-type, ALS, and SMA patients. ¹⁹⁵ Early information that a lead compound is effective in multiple diseases, which can be obtained by this kind of in vitro testing, can inform the preclinical approach and may lead to more rapid development of drugs that are effective in multiple diseases.

Screening in Human Induced Pluripotent Stem-Derived Motor Neurons

Another major technical advance with implications for SMA drug screening is the production of induced pluripotent stem (iPS) cells from human fibroblasts or other cell types isolated from SMA patients. ¹⁹⁷ iPS cells, like ES cells, are pluripotent and can be differentiated into multiple cell types, including motor neurons. ^{193 –195} A combination of dual SMAD inhibition to promote neuralization and RA/sonic hedgehog treatment will, over the course of 3–4 weeks, induce motor neuron differentiation of human iPS cells. ¹⁹⁴ As with murine ES-derived motor neurons, this is a continuous source of stem cell-derived motor neurons that can be used for drug discovery and phenotypic assays and has enabled the testing of lead compounds in motor neurons derived from patient cells for the first time.

While the protocol for producing motor neurons from human iPS cells is longer and more technically challenging than producing motor neurons from murine cells, it has two major advantages. First, it is most efficient way to study motor neurons derived from human cells and thus should provide new insights about human motor neuron biology. Second, iPS cells can be efficiently produced from relatively accessible patient cells, such as fibroblasts. This allows for the production of iPS cells from SMA patients ^{95,198 –202} and also facilitates the building of iPS cell collections that represent a range of patient genotypes and disease severities (L. Rubin, Harvard University, pers. comm.). This makes it possible to test drug candidates on motor neurons representing different patients. It is the hope of the field that in vitro testing of lead compounds across many patient genetic backgrounds will be predictive of efficacy in subsequent clinical trials and will perhaps even provide insight into which patient populations might benefit from a particular therapy.

Importantly, the ability to produce patient-specific neurons from iPS cells makes it feasible to conduct therapeutic screens in motor neurons. This approach has been undertaken in the laboratory of Dr. Lee Rubin at the Harvard University for neurodegenerative diseases, such as ALS, and is currently being explored for SMA. Proof of principle for small-molecule testing on human iPS-derived motor neurons has been established in both SMA and ALS. Egawa et al. differentiated iPS cells from familial ALS patients carrying TDP-43 mutations into motor neurons and found several disease-related phenotypes, such as shorter neurites and aggregated TDP-43. ²⁰³ The authors tested four small molecules on TDP-43 mutant motor neurons and found that anacardic acid reverses the pathology of the TDP-43 motor neurons. It is easy to imagine how this assay could be used in an unbiased, high-throughput, and high-content screening approach.

In SMA, Garbes et al. investigated whether a link might exist between the response of an initial patient in a clinical trial and the in vitro response of iPS-derived neurons from the same patient. ¹⁹⁹ In this case, VPA was tested both on patient fibroblasts and on GABAergic neurons differentiated from SMA iPS cells. VPA, which has failed in SMA clinical trials, has been shown to increase SMN2 transcription in a subset of patients. When fibroblasts and iPS-derived neurons were tested from both responders and nonresponders from the clinical trial, there was a 66% concordance between the patients who responded to VPA in the clinic and the ability of VPA to increase SMN in cells derived from that patient. While it remains unclear why cells from some nonresponders did exhibit elevated SMN in vitro, it is possible that the concordance would have been higher if motor neuron cultures were used. The ability to compare clinical trial results with in vitro results, while in its infancy may yield insights into why some clinical trials are more successful than others. The goal is that eventually in vitro testing on iPS-derived motor neurons can predict patient response in a clinical trial.

Currently, in iPS-derived motor neuron, high-content screening approach is being used to identify small molecules that modulate SMN levels in the culture (Rubin, unpublished data) (Fig. 4). iPS cells from a type II SMA patient are differentiated into motor neurons over 28 days, treated with small molecules, and immunostained for SMN and the motor neuron marker Islet1. Quantitative image analysis is used to count the number of Islet1-positive motor neurons per well and to measure the SMN intensity in the nucleus and cytoplasm of motor neurons. In this case, high-content imaging is particularly advantageous since it allows SMN levels to be measured in Islet1-positive motor neurons, which are a subset of the total culture. Furthermore, the approach has led to the identification of compounds that increase SMN in the cytoplasm, nucleus, and throughout the cell. High-content imaging enables the prioritization of compounds that increase both total SMN levels and the number of motor neurons in the culture. It can also be used to prioritize lead compounds based on their ability to preserve a healthy neuronal morphology, thereby allowing for the exclusion of toxic compounds. Thus far, several promising compounds have been identified, and several of these are effective in motor neurons differentiated from multiple patient iPS lines (L. Rubin, Harvard University, pers. comm.).

OPEN IN VIEWER

Fig. 4.

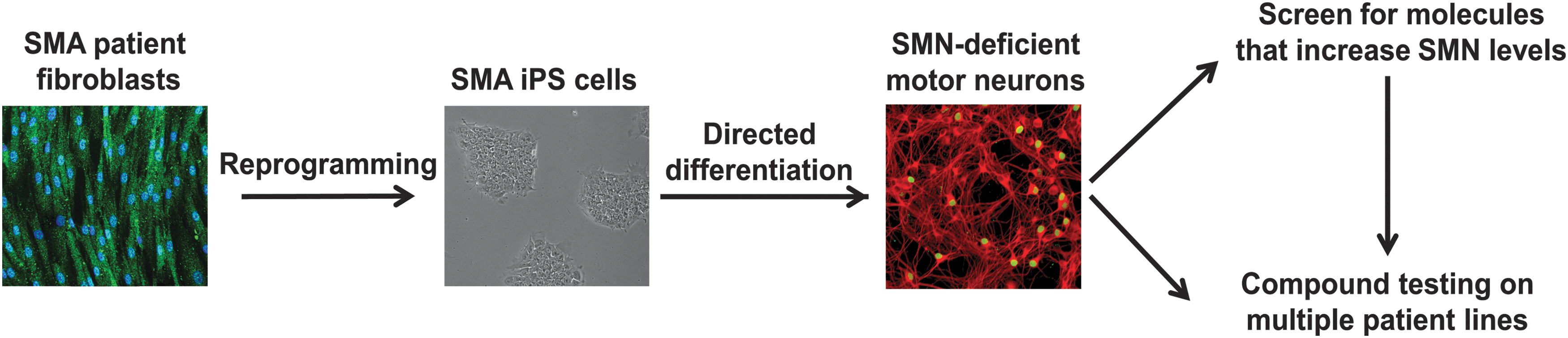

Schematic outline of the use of iPS cells in drug screening for SMA. SMA patient fibroblasts (green, SMN; blue, DAPI) can be reprogrammed to iPS cells (shown in brightfield). These pluripotent cells can be differentiated into motor neurons (red, neuronal marker Tuj1; green, motor neuron marker Islet1). These SMA patient-derived motor neurons can then be used for drug screening as well as for testing therapeutic candidates across multiple patient lines. iPS, induced pluripotent stem.

Considerations

It is widely believed that a primary manifestation of SMA is motor neuron loss. ⁵¹ Ideally, drug discovery screens would be performed in primary motor neurons from patients or animal models. Traditionally, this has been technically challenging. However, advances in screening technology and in the ability to differentiate motor neurons in vitro has made this more feasible.

To date, motor neuron screens have yielded several novel drug candidates for SMA and other motor neuron diseases, although the field is still in its infancy and the numbers will only increase with time. In particular, the use of human SMA iPS-derived motor neurons in both drug screening and candidate drug testing is particularly promising. It is not, however, without its drawbacks: motor neuron assays are long, expensive, and labor intensive, and differentiation protocols yield cultures with variable quality and number of motor neurons. Fortunately, some of the technical challenges of working with primary or stem cell-derived motor neurons can now be overcome with the use of high-content imaging, and these techniques will be further refined in the years to come. Moreover, the ability to compare clinical trial results with in vitro results could provide important insights into why drugs are successfully in clinical trials or not. New screening technologies and greater ability to generate motor neurons in culture will provide greater insight to SMN biology and to identify therapeutics with the best chance of being efficacious in the treatment of SMA.

snRNP Assembly

Of the several described or proposed functions of SMN protein, its role in snRNP biogenesis is the best characterized. ^43,44,204 SMN nucleates the assembly of all snRNPs and provides a specificity determinant for the assembly of the Sm protein core on U snRNAs. Formation of a splicing-competent spliceosome is dependent on SMN. When SMN levels drop below a certain threshold snRNP assembly is diminished. ^47,48,50 Increasing levels of SMN using genetic ⁵⁰ or pharmacologic approaches ^30,37 results in the restoration of snRNP assembly, with the degree of restoration correlating with the extent of SMN protein rescue. Therefore, quantification of snRNPs abundance provides a functional readout of SMN activity in the cell.

The snRNP assembly assay has been described for both cell extracts, ^44,47,48 as well as tissue homogenates. ^{30 –35,37,54,55,205} In addition, a version of the protocol compatible with high-throughput screening has been developed. ²⁰⁶ The method includes the following main steps: (i) preparation of a cell extract or tissue homogenate and incubation with a synthetic radiolabeled U snRNA (typically at 10,000 cpm or between 100 pM and 1 nM RNA in a 20 μL reaction) in the presence of a test compound, (ii) immunoprecipitation against a protein component of the snRNP (typically using the anti-Sm antibody Y12), (iii) denaturation to release the RNA, and (iv) gel electrophoretic separation followed by autoradiography. The assay has been miniaturized down to 384-well microtiter plates to increase throughput. In this assay, a synthetic tagged RNA is captured by a tag–antitag interaction (e.g., biotin–streptavidin pair), and the amount of assembled snRNP is quantified using an anti-Sm antibody bound to a secondary antibody conjugated to a signal-generating moiety, such as horseradish peroxidase. ²⁰⁶ Challenges in measuring snRNP assembly in a robust and reproducible manner include the multistep preparation of whole cell or nuclear extract, the temperature sensitivity of the extracts during storage, and variability in snRNP assembly capacity between different preparations of the extract.

Gems Count Assay

Once functional snRNPs have been assembled, they are imported, with SMN still bound, from the cytoplasm into the nucleus first appearing in Cajal bodies. Here, SMN is thought to disengage from the snRNPs and localize in adjacent separate structures termed gems (Gemini of coiled bodies), thus completing the snRNP maturation pathway. ^155,207,208 The formation of gems is nearly completely abolished in type I SMA fibroblasts in which the level of SMN protein is ∼30% of that in unaffected SMA carrier cells. ¹⁵³ Therefore, the number of gems may serve as a metric of the amount of SMN in the cell and perhaps also of SMN's functional state. The assay typically involves staining compound-treated cells with an SMN-specific antibody, co-staining the nucleus with a DNA dye, such as Hoechst 33258, followed by immunofluorescence microscopy. ^155,209 Results are expressed as the number of gems per 1 nucleus or the number of gems per 100 nuclei. Several drug discovery programs have incorporated the gems count assay in cultured cells or mouse tissues. ^{39,84,180,210} The main challenge in the gems count assay is the appearance of SMN-immunoreactive gem-like granules in the nucleus of cells elicited as a result of stress, ²¹¹ which can be induced by compound treatment (N. Naryshkin, unpublished results). Another possible confounding factor with the assay is the masking of weakly immunoreactive gems in the presence of high levels of SMN protein (S. Paushkin, SMA Foundation, pers. comm.). In most cases, an increase in the number of gems correlates with improved SMN function, but to be prudent, this assumption should also be confirmed with assays directly showing an increase in SMN protein function and/or SMN protein levels.

In Vitro Splicing

For expression of modulators that influence the alternative splicing of SMN2 exon 7, an in vitro splicing assay can be used to demonstrate the direct effect of a test compound on the generation of full-length and SMNΔ7 mRNAs. Typically, a radiolabeled pre-mRNA is prepared using in vitro runoff transcription, incubated with a nuclear extract from HeLa or another cell line of choice in the presence of the compound, and then the spliced RNA products are resolved and visualized by denaturing gel electrophoresis followed by autoradiography. ^{12,212 –214} This methodology has been applied to the evaluation of ASO-based and small molecule SMN2 expression modulators. ^12,82,83 Several challenges exist for this in vitro splicing assay, including the need to prepare a whole-cell or nuclear extract, the temperature sensitivity of the extracts during storage, and the possibility that not all mechanisms controlling the splicing of SMN2 exon 7 would be fully operational in the extract, outside the intact cell.

Cell Viability Assays

Another type of assay for evaluating SMN function is the cell viability assay, described in the Reporter Assays and High-Throughput Screens section. This assay relies on the use of mouse fibroblasts that carry the human SMN2 gene in which the mouse Smn gene is under the control of an inducible shRNA. ⁵⁸ Upon the knockdown of mouse Smn, these cells become proliferation impaired. Compounds that increase the expression of the full-length protein arising from the SMN2 gene rescue cell replication, an outcome that can be easily quantified.

Considerations

A number of different assays exist to measure the biological function of SMN protein. By their nature, functional assays provide information linking SMN gene expression to a biochemical process, providing a functional readout for the SMN activity. Assays such as snRNP assembly, gems count, and cell proliferation are best used in conjunction with the methods to quantify SMN mRNAs and protein directly. SMN functional assays provide an orthogonal validation of compound activity, helping to demonstrate not only that the level of SMN expression has been increased but also that the SMN protein produced is biologically active. For earlier stage compounds undergoing lead optimization, the ability to assess the biological activity of nascent SMN is critical. For more advanced drug programs assessing molecules that have already been optimized for both activity and biodistribution, the use of in vitro functional assays may be of lower importance. At later stages in the drug optimization process, the focus often shifts to testing compounds directly in animal models of SMA for survival and pharmacokinetics–pharmacodynamics (PK-PD) correlations. Such considerations play an important role in designing an integrated screening cascade used in drug optimization, as described in the next section.

Considerations

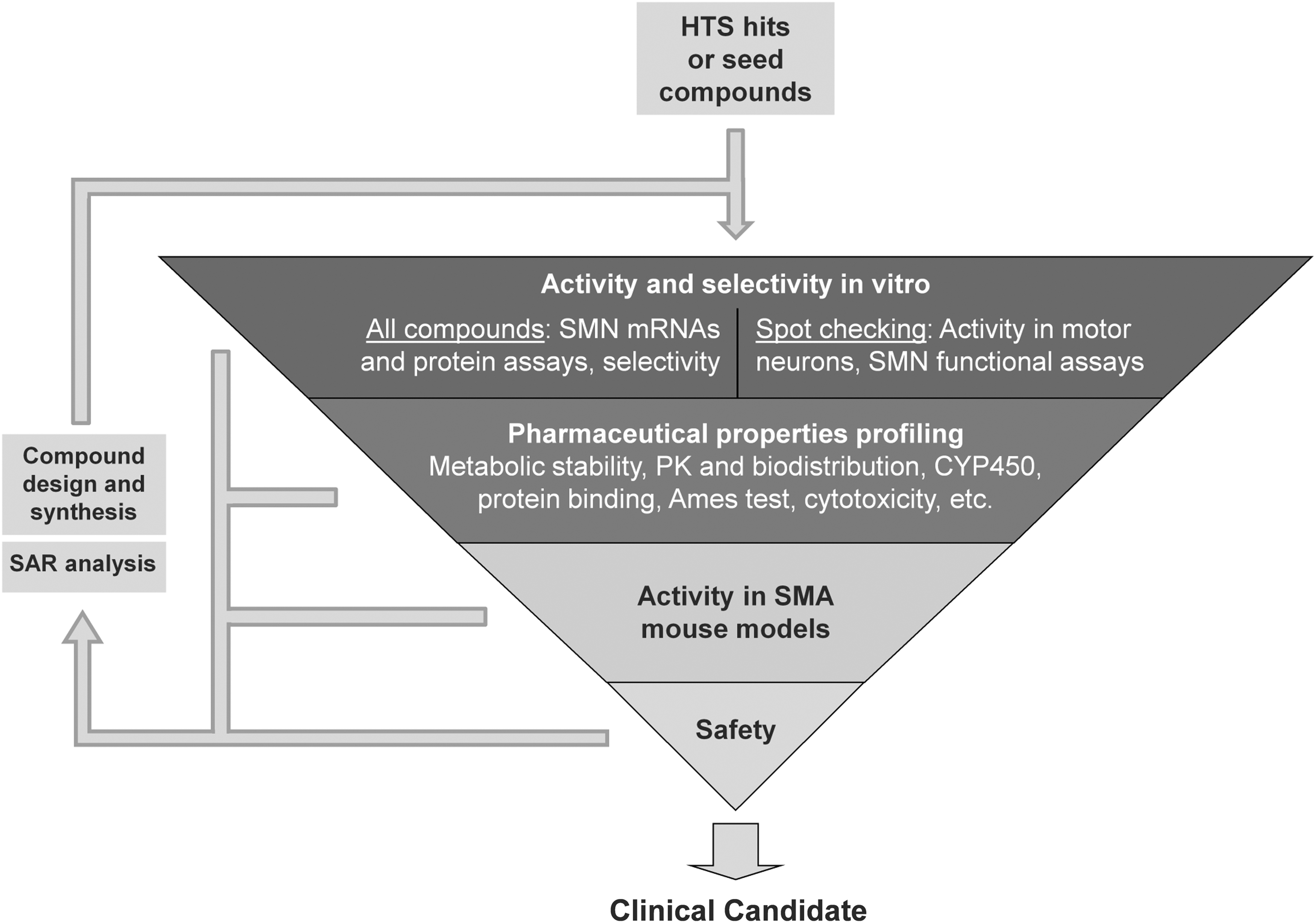

The SMA screening cascade integrates all relevant assays for potency, activity, selectivity, and pharmaceutical properties with the goal of identifying a clinical candidate via the iterative lead optimization process, which involves traditional medicinal chemistry, computational modeling, and empirical testing. ²¹⁸ Lead optimization is pursued until a suitable molecule with the best possible balance of characteristics and closest to that described in the original product target profile is identified.

The cascade described here is aimed to present a generalized case that would be applicable to most drug discovery and preclinical development programs with the goal of identifying modulators of SMN2 gene expression. Since the specific aims of a particular program may differ, the actual assays that populate the cascade for that program and the weight given to each assay in prioritizing compounds should be tailored to the goals of the specific program.
