High-Content High-Throughput Assays for Characterizing the Viability and Morphology of Human iPSC-Derived Neuronal Cultures

Abstract

Development of quantitative high-throughput in vitro assays that enable assessment of viability and morphological changes in neuronal cells is an active area of investigation in drug discovery and environmental chemical safety assessment. High-content imaging is an emerging and efficient tool for generating multidimensional quantitative cellular readouts; in addition, human induced pluripotent stem cell (iPSC)-derived neurons are a promising in vitro model system that emulates both the functionality and behavior of mature neurons, and they are available in quantities sufficient for screening workflows. The goal of this study was to develop high-content imaging and analysis methods to assess multiple phenotypes in human iPSC-derived neuronal cells. Specifically, we optimized cell culture, staining, and imaging protocols in a 384-well assay format and improved laboratory workflow by designing a one-step procedure to reduce assay time and minimize cell disturbance. Phenotypic readouts include quantitative characterization of neurite outgrowth and branching, cell number and viability, as well as measures of adverse effects on mitochondrial integrity and membrane potential. To verify the robustness of the workflow, we tested a series of compounds that are established toxicants. We report concentration–response effects of selected test compounds on human iPSC-derived neuronal cells and illustrate how the proposed methods may be used for high-content high-throughput compound toxicity screening and safety evaluation of drugs and environmental chemicals.

Introduction

The nervous system can be subject to the toxic effects of environmental chemicals and pharmaceutical drugs. Exposure to neurotoxic compounds in prenatal and postnatal stages of mammalian development can result in alterations in the function of the nervous system later in life. A number of human neurological disorders have been associated with early-life exposure to chemicals.^1,2 In addition, neurotoxicity is an adverse drug reaction of concern to the pharmaceutical industry.³ Accordingly, there is a high demand for the development of predictive and disease-relevant cell-based assays that can be used for the efficient assessment of chemicals and drug candidates in a high-throughput quantitative screening format.^4,5

The development of in vitro models of the human central nervous system or peripheral nervous system has been challenging.⁶ The complexity, in terms of the number and interconnectivity of multiple cell types, maturity, and highly differentiated state of most cells of the mammalian nervous system is difficult to replicate in cell-based models. Specifically, it is crucial that in vitro assay readouts not only evaluate cell viability, but also enable assessment of cell morphology and neuron-specific cell functional activity. High-content imaging is a powerful tool that can provide information on multiple morphological parameters for such assays.^7
–9

A number of in vitro models have been proposed for neurotoxicity testing.^10
–12 Immortalized cell lines, such as PC12 and human neuroblastoma cells are widely employed.¹¹ However, these models have yielded low predictivity for toxicity assessment, likely due to their lack of complete neuronal functionality and poor differentiation.^11,13 Cultures of primary neurons (e.g., freshly isolated or cryopreserved) from rats, mice, or humans have also been used for in vitro testing.^14,15 Advances in liquid handling and culture techniques have improved the usability of primary rat neurons in high-content screening for testing small molecule protein kinase inhibitors.^8,9 Techniques for generating embryonic stem cell-derived neurons have also been developed, and these cells have been used in automated high-content imaging-based assays monitoring cell viability and neurite outgrowth.⁷

Recently, induced pluripotent stem cell (iPSC)-derived neurons were established and used in functional screening assays for neurite formation and mitochondrial activity.¹⁶ Human neuronal cells derived from iPSCs are attractive models for toxicity screening because they exhibit the function and behavior of mature neurons and are also available in large quantities sufficient for screening.^17,18 Importantly, human iPSC-derived cells can be established from different individuals to enable disease- and genotype-specific studies.¹⁹ In vitro studies with iPSC-derived neurons demonstrated in vivo-like electrophysiology, Tau protein secretion, and sensitivity to the potent neurotoxin botulinum.^20
–22 In addition, a number of other iPSC-derived cell types have been used successfully for high-content and high-throughput toxicity testing.^23
–25

Taking advantage of both iPSC-derived neurons as a cell model, and high-content imaging as a technique that provides data-rich phenotypic readouts, we developed and optimized fast, accurate, and reproducible methods to investigate the viability and morphology of human iPSC-derived neuronal cultures. Specifically, the optimized cell culture protocols allow for maintaining neurons and obtaining reproducible data in a 384-well format. In addition, the improved assay workflow optimizes cell processing through one-step staining, thereby minimizing the disruption of neuronal cultures. We applied these new methods to test select compounds that are known toxicants and report that our assays provide results consistent with the known adverse effects of chemicals on neuronal cells. Finally, by taking advantage of high-content image acquisition through a large field of view camera using single-site acquisition coupled with an improved image analysis software, the analysis results can be reported in real time creating a streamlined protocol for screening environments.

Methods

Cell Model

We used iCell Neurons (Cellular Dynamics International, Madison, WI), human iPSC-derived neurons, for all studies detailed in this report. Characterization of the cells included morphological and immunostaining analyses.²⁶ Human iPSC can be developed from adult tissue and blood cells through noninvasive methods, expanded indefinitely, and differentiated into multiple cell types.^17,27 iCell Neurons used in these studies were provided by the manufacturer as a fully differentiated and highly pure population of cells that formed neurite networks positive for the neuronal markers β-III tubulin and MAP2. Purity was assessed by counterstaining for iPSC markers; typically less than 1% of cells were found positive for iPSC markers (data not shown). A similar process for creating such cells has been described previously.¹⁸

Cryopreserved cells were thawed and plated according to the protocol provided by the Cellular Dynamics International. Briefly, cells were plated on poly-d-lysine precoated 384-well BD Biocoat plates (BD Biosciences, San Jose, CA) that were additionally treated with laminin (3.3 μg/mL; Sigma-Aldrich, St. Louis, MO). Cells were plated at densities of 2,000–7,000 cells/well in 384-well plates in the iCell Neurons Maintenance Medium (Cellular Dynamics International) at 37°C and 5% CO₂. Media were changed every 48 h until the day of the assay.

Chemicals and Treatments

For compound screening, stock concentrations of the test agents were prepared as 100 mM stock solutions in tissue culture-grade dimethyl sulfoxide (DMSO). The following test chemical agents (with the highest of the concentration range tested indicated in parentheses) were used in these studies: mitomycin C (100 μM), rotenone (100 μM), methylmercury (100 μM), retinoic acid (500 μM), rapamycin (100 μM), and carbonyl cyanide m-chlorophenyl hydrazine (CCCP, 130 μM). For chemical test wells with final compound concentrations of ≤100 μM, DMSO was present at 0.1% (vol/vol). For higher compound concentrations, the final DMSO concentration was ≤0.3%. Compounds were tested in quadruplicate in an eight-point dilution series. All chemicals were purchased from Sigma-Aldrich. For neurite outgrowth assays, iPSC-derived neurons were cultured for 48 h before the initiation of the experiment to ensure formation of uniform networks of neurites. Cells were then exposed to the indicated concentrations of compounds for 72 h. For the mitochondrial toxicity assay, cells were cultured for 6–8 days and then exposed to compounds for 30 min.

Multiparametric Live-Cell Toxicity Assay

Following incubation of the cells with test compounds, media was removed and cells were incubated with a mixture of 1 μM Calcein AM and 2 μg/mL Hoechst 33342 in sterile phosphate buffered saline (PBS; all from Life Technologies, Grand Island, NY). The Calcein AM signal was used to measure neurite outgrowth, cell viability, and a variety of morphology parameters. Hoechst 33342 was utilized to measure total cell count and nuclear shape. After a 30 min incubation, the staining solution was replaced with PBS containing 0.1% of Fetal Bovine Serum (FBS; Life Technologies) and images were acquired using the ImageXpress^® Micro XLS (Molecular Devices, Sunnyvale, CA).

Immunostaining iCell Neurons for Neuronal Markers

Cell culture medium was removed and cells were fixed in 4% methanol-free dimethyl formaldehyde (Sigma-Aldrich) in PBS for 1 h at room temperature. Fixed cells were then washed once with PBS, and once with a permeabilization solution (0.02% saponin [Sigma-Aldrich] and 2% FBS in PBS). After the last wash, cells were incubated in permeabilization solution for 1 h at room temperature. After permeabilization, the cells were stained with AlexaFluor-488-conjugated anti-β-III tubulin (BD Biosciences) 1:20 dilution, or AlexaFluor-633-conjugated anti-MAP2 (BD Biosciences) 1:20 dilution, and 2 μM Hoechst 33342, overnight at room temperature. Cells were washed once with PBS before images were acquired. It should be noted that fixing the cells and β-III tubulin or MAP2 staining can be performed following live cell imaging with Calcein AM (detailed above). This allows for sequential evaluation of several additional neuronal markers. Fixed cells may be also stored for subsequent analyses.

Mitochondrial Membrane Potential Assay

The mitochondrial membrane potential assay kit (Cell Meter JC-10 Mitochondrion Membrane Potential Assay Kit Optimized for Flow Cytometry Assays; AAT Bioquest, Sunnyvale, CA) specifically evaluates a compound's ability to rapidly disrupt the polarity of the mitochondrial membrane. Cells were treated with compounds for 30 min and the mitochondria dye JC-10 reagent was added. The JC-10 reagent in the kit buffer may be added directly to cells after the media with chemical test compounds have been removed. Alternatively, 2× concentration of the JC-10 reagent in the kit buffer may be added directly to the media. After 30 min of the JC-10 staining at 37°C and 5% CO₂, images were acquired using the ImageXpress Micro XLS system.

Image Acquisition and Analysis

Images were acquired using the ImageXpress Micro XLS system using 20× Plan Fluor ELWD (NA=0.45) or 10× Plan Fluor (NA=0.3) objective. The light source was a solid state white light engine with emission from 380 nm to 680 nm. A FITC filter cube [Ex 482/35, Em 536/40; center wavelength (nm)/bandpass width (nm)] was used for Calcein AM. A DAPI filter cube (Ex 377/50, Em 447/60) was used for Hoechst 33342.

Images for the mitochondrial permeability assay were acquired using the TRITC and FITC channels for the JC-10 staining along with a DAPI channel if the Hoechst 33342 staining was included. For higher throughput with the multiparametric toxicity assays, one image per well was taken for 384-well plates using a 10× objective. Images acquired with a 20× objective allowed higher resolution, better visualization, and improved analysis of the mitochondria.

Images were analyzed using the MetaXpress^® 5 software (Molecular Devices) Granularity and Neurite Outgrowth modules with or without single cell segmentation based on the optional nuclear staining. Statistical analysis of the data included calculation of a Z′-factor coefficient. As used in this study, it represents the separation of positive or high concentration and negative control wells on a given plate. Typically, eight control wells each for positive and negative controls were included on each plate and Z′-factor was calculated using the following formula: Z′=1–[(3*σ_pos+3*σ_neg)/|(M_pos–M_neg)|], where σ=standard deviation and M=average value. EC₅₀ values were determined using the 4-parameter curve fit from the SoftMax^® Pro software (Molecular Devices).

Results

Development and Optimization of the Live-Cell High-Content Assay with iPSC-Derived Neurons

The primary goal of this study was to develop and evaluate fast, accurate, and reproducible high-content and high-throughput methods to investigate effects of test compounds on the morphology and viability of iPSC-derived neurons using live and fixed cells. During development, neurons become assembled into functional networks by extending the outward growth of axons and dendrites (collectively called neurites) that connect synaptically to other neurons. Traditional markers that are widely used in in vitro studies of neuronal cell viability and neurite outgrowth are β-III tubulin and microtubule-associated protein 2 (MAP2). Class III β-tubulin, or β-III tubulin, is a microtubule element of the tubulin family found almost exclusively in neurons.^28,29 Monoclonal antibodies against β-III tubulin are traditionally used to identify neurons in samples of brain tissue or primary preps of neurons, separating neurons from glial cells. MAP2 belongs to the microtubule-associated protein family and is thought to be involved in microtubule assembly, which is an essential step in neurogenesis. MAP2 serves to stabilize microtubule growth by crosslinking of microtubules with each other and other intermediate filaments.^28,29 While β-III tubulin and MAP2 provide neuronal cell specificity to the in vitro assay readouts, these assays are time consuming, lower-throughput, and involve multiple steps, including cell fixation, permeabilization, blocking, antibody incubations, and washing. Each of these steps has the potential to disrupt the neuronal cells and introduce variability. Therefore, we tested whether Calcein AM, a homogeneous cell-permeant dye that can be used to determine cell viability in most eukaryotic cells, alone, or in combination with a nuclear stain (e.g., Hoechst 33342), would streamline data acquisition and analysis (Fig. 1).

Fig. 1.

iCell Neurons were cultured in 384-well plates for 5 days at a density of 7,000 cells/well and visualized live with Calcein AM. Left panel shows representative fluorescence microscopy images using either 10× (top row), or 20× (bottom row) objectives. Right panel shows the outcome of the automated identification of the neuronal bodies (red dots) and outgrowth (thin red lines) using the Neurite Outgrowth module in the MetaXpress 5 software.

The assay was optimized for iPSC-derived neuronal cells (iCell Neurons) that represent a highly homogeneous population of neuronal cells. Calcein AM was used as a marker for both cell viability (percent of live cells) and neurite outgrowth. A key benefit of using this dye in the assay is that neuronal bodies and processes can be visualized simultaneously in live cells as indicated by the 10× and 20× images presented in Figure 1. In experiments with Calcein AM dye, images of the individual wells were acquired with the ImageXpress Micro XLS system using 10× or 20× objectives (Fig. 1). Typically, one 10× or four 20× images are captured per well in a 384-well plate. A 10× objective provides sufficient resolution to distinguish neurite networks and sub-cellular structures in a relatively large number of cells (500–1,000) per image, which represents about ¼ of the total well area. Use of a 20× objective decreases the number of cells (120–200) captured in a single image, but may improve detection of finer neurite branches and processes. Neuronal bodies typically exhibited fluorescence intensities >10 times brighter than neurite outgrowths (Table 1), thus allowing for efficient distinction between those cellular components during image processing and indicated by the red masks shown in Figure 1. As expected, we observed efficient formation of neurite outgrowth networks in iCell Neurons cultured in 384-well plates, and images were easy to acquire and process through an automated image analysis procedure that provided quantitative data, including the average fluorescent intensities and the total outgrowth/length (μm) of the detected neurites (Fig. 1 and Table 1). An initial 1 μM concentration of Calcein AM was selected based on recommendations from the manufacturer and proved to give good signal-to-background discrimination during imaging with a short 10–20 ms exposure. In addition, a dilution series of Calcein AM was performed and an acceptable concentration range was found between 0.3 μM and 3 μM (Table 1). A time course of Calcein AM staining from 15 min to 3 h was also performed to optimize experimental conditions. Neuronal fluorescence intensity reached about 80% of the maximal value by 30 min and stabilized after 1 h incubation with Calcein AM (Table 1). The extent of neurite outgrowth was found to diminish after 3 h incubation with the dye (Table 1). Based on these data a 1 μM concentration of Calcein AM with a staining time of 30 min was selected for all further assays. To test the effect of cell plating density on assay variability in 384-well plates, we plated iCell Neurons at three different densities (2,000–7,000 per well), cultured them for 48 h, and then exposed the cells to 0.1% DMSO for 72 h. On day 5, cells were stained with Calcein AM and analyzed. It was found that 7,000 cells per well plating density resulted in the lowest variability in the measured parameters between wells (Table 2).

Table 1.

Optimization of Calcein AM Staining for iCell Neurons Assays

	Neurite outgrowth intensity		Total neurite outgrowth, μm
	Average±SD	CV (%)	Average±SD	CV (%)
Time of incubation, min (with 1 μM Calcein AM)
5	596±83	14	96,400±10,300	11
15	1,002±36	3.6	189,800±8,700	4.6
30	1,810±110	6.1	216,100±5,300	2.5
60	2,350±110	4.6	226,300±8,600	3.9
120	2,543±74	2.9	204,200±7,400	3.6
180	2,650±120	4.5	124,800±9,100	7.3
Calcein AM concentration, μM (at 30 min incubation)
3	3,130±280	8.9	212,500±3,400	1.6
2	2,560±150	5.9	222,600±2,300	1.0
1	1,640±140	8.5	200,100±1,700	0.8
0.3	870±270	31	154,900±1,600	1.0
0.1	360±120	33	1,790±410	23

Results were calculated using one image per well in a 384-well plate using a 10× objective. Cells were stained as described in the text. Averages were derived from three wells on the same plate.

Table 2.

Comparison of Plating Density on iCell Neurons Viability and Neurite Outgrowth

Plating density (cells/well)	Viable cell number		Total neurite outgrowth, μm
	Average±SD	CV (%)	Average±SD	CV (%)
7,000	698±19	2.7	144,400±5,800	4.0
4,000	326±52	16	72,500±6,200	8.6
2,000	169±35	21	51,500±9,300	18

Results were calculated using one image per well in a 384-well plate using a 10× objective. Cells were cultured for 48 h without treatment and then for 72 h in the presence of 0.1% DMSO. Averages were derived from 16 wells on the same plate.

Quantitative analysis of the images captured in these experiments included the derivation of multiple parameters that allow for the assessment of both the morphological features of cultured neurons, and the extent and degree of complexity of the neuronal networks (Table 3). Specifically, neurite outgrowth was characterized by the extent of the outgrowth (e.g., the number and percent of cells with significant outgrowth, length of total outgrowth, and mean outgrowth per cell), the number of neurite processes (e.g., total number of processes and mean number of processes per cell), and the extent of branching (e.g., total number of branches and mean number of branches per cell). Neurite outgrowth was determined by the length of the skeletonized outgrowth in each image, corrected for the diagonal length. Processes were classified as primary neurites originating from the cell body. Branches were determined as neurites originating from a primary neuron. Other parameters that may be captured include: process fluorescent intensity, neuronal body area, and significant growth (neurites that have outgrowth greater than a selected length, e.g., 25 μm).

Table 3.

Comparison of Imaging Resolution with 10× and 20× Objectives on the Reproducibility of Retinoic Acid-Induced Changes in the Phenotypic Parameters in iCell Neurons

	20× Objective 1 Site/well		20× Objective 4 Sites/well
Parameter	Vehicle	Retinoic acid	Vehicle	Retinoic acid
Number of cells per image	500±27	13±12	130±5	6.8±4.1
Cells with significant outgrowth	478±27	0.5±0.6	127±5	0.4±0.5
% Cells with significant outgrowth	95.5±1.5	2.4±3.0	97.3±1.0	3.9±3.0
Total outgrowth, μm	93,800±2,900	36±50	35,800±500	43±26
Mean outgrowth per cell, μm	188±10	2±2	276±12	5.4±2.6
Total number of processes	1,949±91	6±8	684±40	5.3±3.1
Mean number of processes per cell	3.90±0.07	0.3±0.2	5.2±0.1	0.7±0.1
Total number of branches	2,640±140	0±0	1,780±46	0.3±0.5
Mean number of branches per cell	5.3±0.4	0±0	13.7±0.7	0.3±0.7
Acquisition Time for 384-well plate	17 min		68 min

Results (average±SD) were calculated using one image per well using a 10× objective or four images per well using a 20× objective in a 384-well plate. Cells were cultured at 7,000/well for 48 h without treatment and then for 72 h in the presence of vehicle (0.1% DMSO) or 200 μM retinoic acid. Averages and SD's were derived from 16 wells on the same plate. Values are given on a per site basis.

Because 10× imaging considerably reduces the amount of time needed to acquire the entire 384-well plate, we performed a comparison of the variability in the parameters captured with different objectives. iCell Neurons were cultured in the presence of vehicle (0.1% DMSO) or retinoic acid (200 μM) for 72 h, and live cell imaging was performed with different objectives. Retinoic acid is associated with developmental neuronal toxicity and produced representative phenotypic changes in neurite outgrowth.^12,30 We found that both 10× and 20× imaging modes yield highly reproducible data and similar results (Table 3); however, the acquisition time was only 17 min for the entire 384-well plate when a 10× objective and one image per well settings were used, as compared with 68 min when a 20× objective was used to acquire four images per well. During image acquisition plates were kept at 37°C. Cells may be imaged directly without washing steps, or staining solution may be removed and substituted with PBS or another physiological buffer. In addition, 0.1% FBS can be added to PBS to support cell viability if multiple plates are to be processed simultaneously. Plates may be fixed and stored, but must be restained with an antibody-based stain (for example anti-β-III-tubulin or MAP2 antibodies) to be fluorescently imaged because Calcein AM is fluorescent only in live cells.

These results indicate that the assay is suitable for multiparametric analysis and provides the ability to quantify different biological outputs. To determine whether live cell imaging of Calcein AM stained iCell Neurons is amenable to high-content imaging-based concentration–response profiling of the effects of chemicals on neuronal cell cultures, we treated cells with selected compounds. Those include methylmercury (MeHg), a ubiquitous environmental toxicant that leads to long-lasting neurological and developmental deficits in animals and humans;³¹ rotenone, a pesticide known to induce neurotoxicity;^32,33 mitomycin C, an anticancer drug (alkylating agent), known to cause neuropathies;³⁴ and retinoic acid, at high doses is a known developmental neurotoxicant.³⁰ Representative images of Calcein AM stained iCell Neurons treated with increasing concentrations of these compounds are shown in Figure 2. A concentration-dependent disintegration of the neuronal networks and a loss of cell viability were observed with all four compounds (Tables 4 and 5). Even though a clear concentration–response was observed in all parameters with each test compound, we found that the parameters that represent total outgrowth or branching of neurons in culture were most sensitive indicators of toxicity as compared to cytotoxicity parameters (e.g., number of viable cells). For example, methylmercury induced disintegration of networks at lower concentrations than it affected cell viability: EC₅₀ values for neurite outgrowth were <1 μM, whereas values for cell viability were >6 μM. In contrast, for mitomycin C the EC₅₀ values for different parameters were comparable. Thus, one use of multiparametric high-throughput assay-derived information may be for separating chemicals into either those that cause toxicity primarily through nonselective interactions with cells and cellular macromolecules or those that act through more selective interactions (e.g., disruption of neuronal branching).

Fig. 2.

Concentration–response effects of select toxicants on iCell Neurons using Calcein AM live-cell assay. iCell Neurons were incubated with indicated compounds for 72 h and stained with Calcein AM. Cells were imaged on the ImageXpress Micro XL system using 10× objective. Concentrations are shown on each image.

Table 4.

Multiparametric EC₅₀s of the Concentration-Dependent Effects of Compounds on iCell Neurons Using the Calcein AM Live-Cell Assay

	Methylmercury (0–100 μM)	Mitomycin C (0–100 μM)	Rotenone (0–100 μM)	Retinoic acid (0–500 μM)
Parameter	EC₅₀±SD (μM)
Number of cells with significant outgrowth	0.99±0.05	9.7±1.6	3.8±0.2	N.A.
% Of cells with significant outgrowth	1.3±0.2	30±1	N.A.	N.A.
Total outgrowth, μm	0.61±0.02	9.1±0.8	2.7±0.2	39±2
Mean outgrowth per cell, μm	0.57±0.07	15±3	2.8±0.6	34±5
Total number of processes	0.87±0.01	8±2	3.2±0.1	54±1
Mean number of processes per cell	0.94±0.41	11.9±0.9	3.5±0.3	48±5
Total number of branches	0.42±0.03	7.4±1.3	2.0±0.3	27±3
Mean number of branches per cell	0.41±0.05	8.9±1.3	2.0±0.3	24±4
Number of viable cells	6.2±1.2	11±2	4.9±0.4	N.A.

Results were calculated using one image per well in a 384-well plate using a 10× objective. Cells were cultured at 7,000/well for 48 h without treatment and then for 72 h in the presence of increasing concentrations of the compounds in DMSO vehicle. EC₅₀ values were derived using the 4-parametric curve fit. N.A. means no fit was obtained to the data. Four replicates were taken at each concentration and compounds were run over three representative experiments.

Table 5.

Multiparametric Assessment of the Effects of Compounds on iCell Neurons Using Calcein AM Live-Cell Assay

	Control	Methylmercury (3 μM)	Mitomycin C (10 μM)	Rotenone (20 μM)	Retinoic acid (120 μM)
Number of viable cells	498±18	72.7±23.2	118±24	143±94	210±62
Number of cells with significant outgrowth	468±17	0.25±0.53	0.88±1.19	0.25±0.46	0.50±0.89
% Cells with significant outgrowth	93.9±1.4	1.40±3.29	2.59±3.86	0.11±5.20	1.9±3.0
Total outgrowth, μm	89,800±5,200	19±31	83±87	203±185	47±75
Mean outgrowth per cell, μm	184±12	1.48±2.08	2.11±2.91	1.4±3.0	1.7±2.4
Total number of processes	1,970±72	2.69±3.39	10.5±8.0	1.6±3.8	6.1±9.7
Mean processes per cell	3.96±0.15	0.22±0.22	0.25±0.39	0.11±0.63	0.23±0.33
Total number of branches	2,530±280	59.8±26.8	4.50±3.11	11±2.4	38±19
Mean number of branches per cell	5.08±0.60	0.82±0.01	0.04±0.001	0.08±0.67	0.18±0.01

Results were calculated using one image per well in a 384-well plate using a 10× objective. Cells were cultured at 7,000/well for 48 h without treatment and then for 72 h in the presence of indicated concentrations of the compounds in DMSO vehicle. Averages for positive and negative controls were derived from eight wells on the same plate.

Comparison of the Calcein AM Assay to β-III Tubulin and MAP2 Assays for Cultured iCell Neurons

In addition to live cell imaging with Calcein AM as detailed above, we also performed a direct comparison of Calcein AM, β-III tubulin, and MAP2 staining in iCell Neurons. First, iCell Neurons were plated, cultured in the presence or absence of the chemical compounds, and imaged as live cells using Calcein AM. Immediately thereafter, cells were fixed, washed, and permeabilized to enable antibody-enabled staining. Cells were stained with conjugated antibodies for β-III tubulin and MAP2 with or without additional nuclear counter stain. Comparing the two techniques, Calcein AM involves a one-step staining process with 30 min incubation whereas antibody staining requires multiple steps to fix, permeabilize, and wash the cells followed by an overnight incubation. The antibody concentrations were set to those recommended in the manufacturer's protocol for staining of primary neurons; thus, the impact of different antibody concentrations or timing on image quality was not evaluated in studies detailed herein. We note that excellent image quality was obtained using the manufacturer's recommended conditions (Fig. 3). Cells were visualized using the FITC channel for β-III tubulin (∼100 ms exposure), the Cy5 channel for MAP2 (∼200 ms exposure), and the DAPI channel for the nuclear stain (∼100 ms exposure). Image analysis was performed using the Neurite Outgrowth module in the MetaXpress 5 software to identify the neuronal bodies using the nuclear stain, and then characterize β-III tubulin- or MAP2-labeled neurite outgrowth (Supplementary Table S1; Supplementary Data are available online at www.liebertpub.com/adt). Optimization of the image analysis module and the parameter sets that provided good performance were similar to those described for the Calcein AM live-cell assay.

Fig. 3.

Comparative analysis of Calcein AM, β-III tubulin, and MAP2 staining patterns in iCell Neurons. iCell Neurons were cultured in 384-well plates for 5 days at a density of 7,000 cells/well and visualized with Calcein AM (top), β-III tubulin (middle), and MAP2 (bottom) using 10×objective. Hoechst nuclear stain (blue) was also used in all wells.

We evaluated different output parameters using selected compounds described previously and quantified their effects on the extent and morphology of neurite networks (Fig. 4 and Tables 5 and 6). The concentration-dependent effects of test compounds on the images and data obtained with all three staining methods were found to be both visually (Fig. 4) and quantitatively (Fig. 5) very similar. While the concentration-dependent toxicity phenotypes collected in this study (reported for the total outgrowth phenotype in Table 6) were comparable between Calcein AM and β-III tubulin assays, the values for neurite outgrowth phenotypes were 20%–40% smaller in the MAP2 assay and statistically different from the other two methods for most compounds (Supplementary Table S1). A possible reason for this result is that the neurites do not equally coexpress both β-III tubulin and MAP2 markers. Similar to the compound EC₅₀ values, the assay performance metrics (coefficient of variation) for the selected compounds were also very close and had a similar rank order for both Calcein AM and β-III tubulin assays; however, the MAP2 assay exhibited higher variability (Supplementary Table S1).

Fig. 4.

Comparative analysis of the toxic effects of select chemicals on iCell Neurons using Calcein AM, β-III tubulin, and MAP2 staining. iCell Neurons were subject to the following treatments: (A) methylmercury (3 μM), (B) rotenone (10 μM), (C) mitomycin C (3 μM), and (D) retinoic acid (55 μM). Cells were imaged on the ImageXpress Micro XLS system using a 10× objective. Images for each dye series were scaled to the same intensity range.

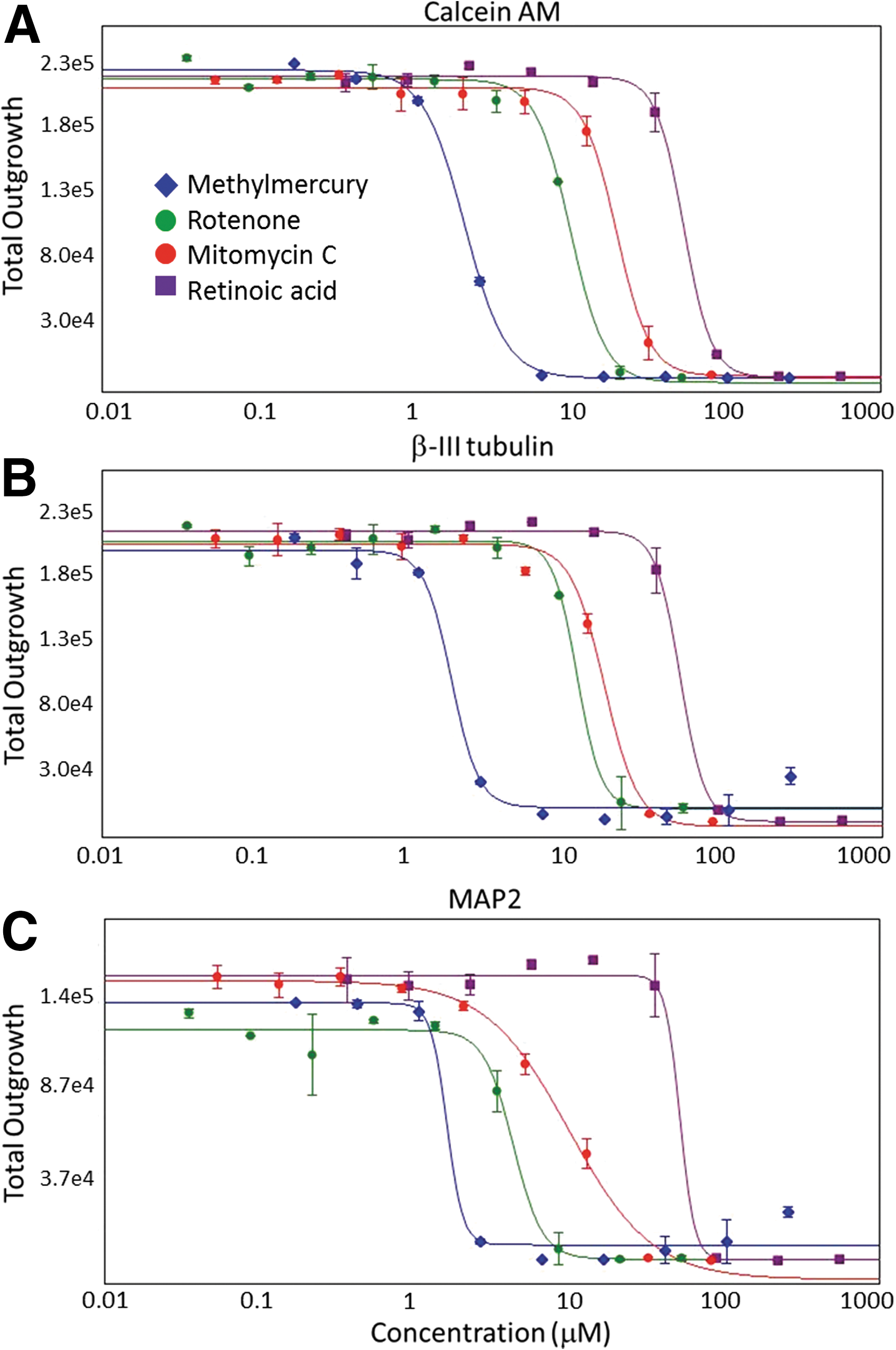

Fig. 5.

Comparison of live-cell assay using Calcein AM (A) to fixed-cell assays using β-III tubulin (B) and MAP2 (C). Concentration–response curves with the 4-parameter fits are shown with resulting EC₅₀ values given in Table 6. Four replicates were acquired for each data point. Error bars represent ±1 SD. Methylmercury (blue diamond), rotenone (green circle), mitomycin C (red circle), retinoic acid (purple square).

Table 6.

Comparison of the Concentration-Dependent Effects of Selected Compounds on the Total Neurite Outgrowth Phenotypes of iCell Neurons Stained by Three Distinct Methods

	Calcein AM	β-III tubulin	MAP2
Compound (Concentration range, μM)	EC₅₀±SD (μM)
Methylmercury (0–100)	0.60±0.02	0.48±0.08	0.44±0.20
Rotenone (0–100)	4.1±0.3	3.9±0.8	1.7±0.9
Mitomycin C (0–100)	9.1±0.8	7.2±0.8	3.9±0.5
Retinoic acid (0–300)	30±1.5	27±1.8	28±12

Three replicates of each concentration were used to determine EC₅₀ values. Error values were determined from the error of the 4-parameter curve fit at the 50% effect level.

Development and Optimization of the Mitochondrial Potential Assay for Cultured iCell Neurons

For additional in-depth investigation into the potential cytotoxic mechanisms elicited by different test compounds on iCell Neurons, we also evaluated the mitochondrial depolarization phenotype. We monitored the mitochondrial membrane potential using short-time compound treatment (30 min) protocols with the mitochondria active dye JC-10, a derivative of JC-1.³⁵ In viable cells, JC-10 selectively accumulates in the mitochondria and can be detected as orange J-aggregates. If the inner membrane potential is lost, the monomeric form of JC-10 is released into the cytoplasm and the cells fluoresce green. Typical JC-10 staining patterns for control cells, and those treated with the mitochondrial toxicant rotenone, are shown in Figure 6A. JC-10 staining may be also combined with Hoechst nuclear dye to allow efficient segmentation of individual cells. Typical exposure times were 10–15 ms for JC-10 (TRITC channel) and 50–100 ms for Hoechst (DAPI channel). The dye concentration used was that recommended by the manufacturer (1:200 dilution) and the dye was diluted using a JC-10 assay buffer. A dye dilution series was tested and variation of fluorescence intensity with dye concentration was found to be linear (Table 7). The fluorescent signal was found to reach maximum intensity less than 30 min poststaining. Cytotoxic effects of JC-10 dye were apparent at dilutions above 1:200 after 2 h in culture (data not shown).

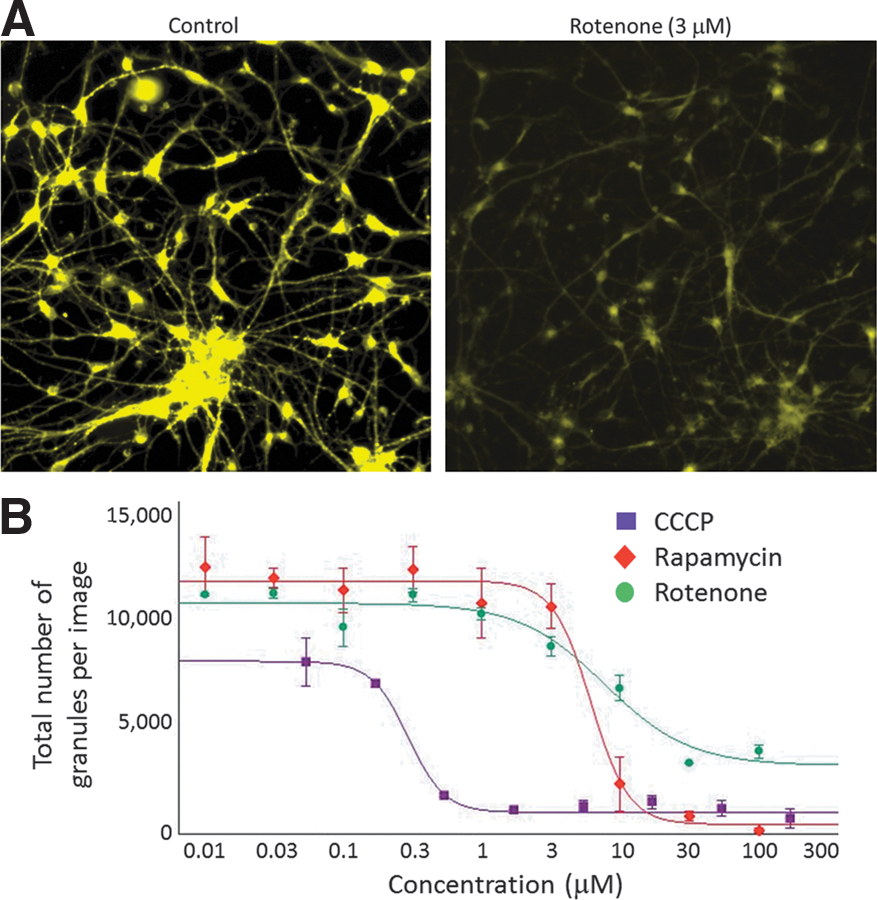

Fig. 6.

Analysis of mitochondrial integrity in iCell Neurons using JC-10 staining. (A) Images of control (0.1% DMSO) and treated (rotenone, 7 μM, 30 min) iCell Neurons stained with the JC-10 dye. (B) Concentration–response analysis of the effects (30 min of treatment) of select chemicals [carbonyl cyanide m-chlorophenyl hydrazine (CCCP, purple square), rapamycin (red diamond), and rotenone (green circle)] on the total number of granules per image using the JC-10 dye. Three replicate wells were evaluated for each data point; means (dots) and SD (vertical bars) are shown.

Table 7.

Optimization of the JC-10 Staining for iCell Neurons Assays

	Granule intensity		Total number of granules
	Average±SD	CV (%)	Average±SD	CV (%)
Time of incubation, min (with 1:200 dilution)
15	37,300±2,600	7.0	18,700±1,900	10
30	32,900±1,200	3.6	34,500±2,200	6.4
60	24,600±2,400	9.8	36,900±1,900	5.1
120	19,000±2,100	11	16,100±3,500	22
JC-10 reagent dilutions (at 30 min incubation)
1:200	28,100±1,700	6.0	34,500±2,200	6.4
1:400	19,700±2,200	11	21,900±5,600	26
1:800	9,300±1,300	14	19,300±9,300	48
1:1,600	420±120	29	1,160±1,080	93

Results were calculated using one image per well in a 384-well plate using a 10× objective. Cells were stained as described in the text. Averages were derived from three wells on the same plate.

After the JC-10 staining protocol was optimized as described above, iCell Neurons were exposed to several test compounds for 30 min and treated with JC-10 for additional 30 min. Furthermore, to avoid any increase in resistance of the cells to the mitochondria damaging agents caused by glucose in the media, glucose-free media (RPMI glucose-free) was used for 30 min before treatments. Test compounds were diluted in the same glucose-free media. Mitochondria positive for JC-10 accumulation were localized within cell bodies and neurites, and exhibited a granular appearance; therefore, images were analyzed using the Granularity analysis module in the MetaXpress 5 software. The best results were obtained using a 10× objective (one image per well) or a 20× objective (one to two images per well). Typical granules were 0.5–4 μM diameter. The background threshold was adjusted to allow maximum separation of the positive and negative samples (∼700–1,500 gray levels).

Treatment with compounds damaging to mitochondria resulted in a concentration-dependent decline in the JC-10 staining intensity and the number of granules (Fig. 6B). The analysis identifies JC-10 positive granules, and, therefore, reports the number of mitochondria with uncompromised membrane potential. Specifically, we used rotenone, a compound that causes interruption of oxidative respiration and Ca²⁺ overload, and inhibitors of oxidative phosphorylation, carbonyl cyanide m-chlorophenyl hydrazone (CCCP), and rapamycin.³⁶ This assay also enables derivation of multiple parameters from the imaging output. Specifically, the Granularity analysis module enables measurements of chemically induced changes in the granule area in the entire image and individual cells, the number of granules, and the granule intensity (Table 8). In contrast, cell number was not affected during the short-time (30 min) compound exposure.

Table 8.

Multiparametric Assessment of the Effects of Compounds on the Mitochondrial Potential in iCell Neurons Using the JC-10 Assay

	Control	Rotenone (7 μM)	Z′-Factor
Parameter	Average±SD
Total granule area per image	81,600±12,600	4,900±1,600	0.44
Mean granule area per cell	49±5.1	2.6±0.8	0.61
Number of granules per image	20,800±4,900	2,300±150	0.17
Number of granules per cell	19±2.4	2.1±0.5	0.51
Average granule intensity	25,900±1,000	15,600±620	0.52
Total cell Number	1,094±67	1,085±91

	CCCP	Rapamycin	Rotenone
	EC₅₀±SD (μM)
Total granule area per image	0.35±0.08	5.4±1.2	11.0±10.8
Mean granule area per cell	0.35±0.08	5.7±0.8	N.A.
Number of granules per image	0.38±0.06	6.9±0.8	8.6±2.9
Number of granules per cell	0.40±0.07	7.5±0.4	8.7±2.6
Average granule intensity	0.44±0.23	8.5±3.5	N.A.

Results were calculated using one image per well in a 384-well plate using a 10× objective. Cells were cultured at 7,000/well for 6 days without treatment and then for 30 min in the presence of increasing concentrations of the compounds in DMSO vehicle. Averages and standard deviations were derived from eight wells on the same plate. Z′-factor values were derived by comparing the results for control (0.1% DMSO) and 7 μM of rotenone from a single plate (n=8). EC₅₀ values were derived using the 4-parametric curve fit. N.A. means no fit was obtained to the data.

Discussion

There is a great need for improved high-throughput methods to measure neuronal toxicity in vitro to evaluate the potential effects of drugs and chemicals, industrial and environmental, on neurons. Recent developments in cell biology have generated novel in vitro models for the evaluation and prioritization of compounds for subsequent in vivo testing, including human iPSC-derived neuronal cells.¹⁹ We present, in this study, examples of how iCell Neurons can be used to evaluate morphological changes and the extent of neurite outgrowth in high-content imaging assays that are suited for medium-throughput quantitative screening of compounds. The morphology, marker expression, and many functional characteristics of the neurons used in this study are consistent with those identified in primary cells.²² In contrast to rat hippocampal neurons and other available primary cell models, iPSC-derived neurons represent human biology, are available in large quantities, stable in culture, and display consistent reproducible phenotypes.^17,18

High-content imaging of neuronal cells has been demonstrated to be particularly useful for toxicity screening as it can assess subtle phenotypic changes and provide multiparametric readouts.^12,37 The main outcome from this study is a new straightforward high-content analysis method based on the commonly used cell viability dye Calcein AM. While it is widely used in other cell-based imaging assays, its application to the iPSC-derived neuronal cells has the potential to both reduce cost and increase throughput of experiments. The homogeneous single-step staining protocol saves time because it is significantly shorter than traditional antibody staining protocols, minimizes the potential disruption to neuronal cultures, and by eliminating multiple automation steps reduces the opportunities to introduce assay variability. The automated multiparametric screening method and optimized protocol for cell treatment, imaging, and image analysis can greatly increase the productivity of chemical safety screening studies. We have demonstrated that the ImageXpress Micro XLS system provides excellent performance and has the ability to capture a large number of cells with sufficient neurite outgrowth definition in a single image per well. Single site and single wavelength channel per well acquisition of high-resolution images in a 384-well format can considerably increase throughput.

Importantly, the image analysis step delivers a number of very informative phenotypic read-outs and output parameters that can be used to screen for deleterious effects of test compounds on cell morphology and viability from a simple workflow assay protocol. Using specific examples and a set of known toxic compounds, we demonstrated how different read-outs can be used in combination to characterize adverse effects on neurite outgrowth, branching, mitochondrial potential, and other parameters to assess different types of toxicity. For viability and morphological changes, cells were typically exposed to compounds for 72 h, which is consistent with previous in vitro studies in different cell models.^25,38

The analysis step generates information that is reflective of the effects in either the total image area or individual cells. If cell plating is not uniform across a well or within an image area, mean per cell values normalized by the total cell number in the image may yield more useful data. Additional phenotypic readouts that can be obtained from the same Calcein AM assay include cell viability and cell area. The number of live and dead neurons can be determined by counting viable neuronal bodies using the Cell Scoring analysis module. Images are first segmented into individual cells by nuclear staining and then live (positive) or dead (negative) cells are determined by the intensity of the Calcein AM signal in the neuronal bodies.

Importantly, the performance of the live-cell imaging assay with Calcein AM is highly comparable to traditional fixed-cell assays with neuronal markers β-III tubulin and MAP2. While it is not surprising that in highly homogenous and pure cell cultures, such as iCell Neurons, any marker that is able to visualize neuronal bodies and outgrowth would perform well, the Calcein AM assay offers unique advantages in terms of ease-of-use and information output, which enables phenotype characterization according to cell viability under experimental conditions. In addition, cells may be fixed and stored for follow up analysis with any number of additional markers.

It should be acknowledged that even with the proposed improvements and optimizations, this in vitro model system has limitations with respect to neuronal toxicity hazard detection and identification of potential mechanisms. Since only a very limited set of compounds was tested, it was not possible to determine assay predictivity, sensitivity, and specificity. Testing an extended set of compounds needs to be performed to determine these parameters. We also note that the proposed assays may not distinguish well between neurotoxic effects and general cytotoxicity. It was found that the EC₅₀ values for some compounds determined by the assays were higher than those reported in other studies that used primary neuronal cultures in vitro. For example, the EC₅₀ value for rotenone was about 100-fold greater in iCell Neurons in the live-cell imaging assay than those reported in primary rat neurons.³⁹ However, the EC₅₀ values for methylmercury was similar to that reported for a rat neuronal cell model.⁴⁰ Interaction of neuronal cells with astrocytes and other cells may increase the sensitivity of the assay, so future improvement of the assay may include a coculture system of neurons and astrocytes.

It is also likely that additional assays and read-outs would be beneficial to the overall utility of the system. For example, the mitochondrial potential assay using JC-10 demonstrated that it can be a potentially useful follow-up mechanistic evaluation step. Information from this assay is complementary to neurite outgrowth phenotype characterizations. Clear concentration-dependent responses were observed with this assay; however, further improvements are needed to increase assay precision and robustness. In addition, nonhigh-content screening assays measuring, for example, neuronal activation, calcium ion flux, or ion channel activity could enable functional screening for neurotoxicity.⁴¹ Such assays will be even more useful for addressing neuronal signaling or disease phenotypes in more advanced iPSC-derived models such as dopaminergic neurons, or specific patient-derived cells.

In summary, the iPSC-derived neuronal cell model combined with high-content imaging-based assays presented in this study shows promise as a sensitive and reproducible tool for assessing changes in neuronal viability and morphology. While there are a number of limitations, further development of the methods and models will increase the utility of this in vitro tool for screening of potential neurotoxic hazards of chemicals.
