Susceptibility to Repeated,Low-Dose,Rectal SHIV SF162P3 Challenge Is Independent of TRIM5 Genotype in Rhesus Macaques

T he repeated-low dose (RLD) model of SIV or SHIV infection in nonhuman primates (NHPs), particularly macaques, has become a powerful tool to inform HIV biomedical intervention studies. There are many advantages to this approach as a model for HIV transmission, namely the similarity in inoculum and multiplicity in virus exposure before systemic infection to humans. ¹ The use of higher physiological doses has been thought to dilute the effects of microbicide or vaccine-induced immunity, thereby underestimating the potential of candidate biomedical preventions. In the RLD model, it is possible to measure susceptibility as the number of challenges required to infect with the assumption that each animal is vulnerable to infection with each challenge. ^2,3

One concern as it relates to NHP models is the variability in susceptibility to infection. In humans, major histocompatibility complex alleles play a role in susceptibility to HIV infection ⁴ and they also impact the outcome of SIV infection in nonhuman primates. ^5,6 Another aspect of variability is the control of retroviral infection by antiviral restriction factors that are a part of innate immunity. The tripartite motif protein, TRIM5α, belongs to the tripartite motif-containing (TRIM) superfamily of proteins and has been identified as an important post-entry host restriction factor ⁷ that inhibits retrovirus infection in a species-specific manner. ^{8 –10} The exact mechanism of TRIM5α restriction is not clear but it is known that TRIM5α proteins aggregate on the incoming retroviral capsid and decrease the stability of the capsid. ^9,11,12 In rhesus macaques, TRIM5 gene variants can be grouped into three allelic classes, TRIM5^Q , TRIM5^CypA , and TRIM5^TFP , which yield six possible genotypes: TRIM5^TFP/TFP , TRIM5^TFP/Q , TRIM5^TFP/CypA , TRIM5^Q/Q , TRIM5^Q/CypA , and TRIM5^CypA/CypA . Cell culture assays and animal infections have been used to elucidate the role that allelic variation in the rhesus macaque TRIM5 gene has in susceptibility to SIV infection and viral replication, ^{13 –16} while other species such as cynomolgus macaques are also under investigation. ¹⁷ The goal of this study was to define the influence of the TRIM5 genotype on susceptibility to SHIV_SF162P3 infection in a RLD model.

We analyzed 43 male Indian rhesus macaques from control arms of studies completed at the CDC. ^{18 –21} They were purchased from diverse U.S. vendors, they were housed at the CDC according to the standards established in the Guide for the Care and Use of Laboratory Animals, ²² and their use was approved by the Animal Care and Use Committee (IACUC) of the CDC. All were rectally challenged with 10 TCID₅₀ of the same SHIV_SF162P3 stock [obtained in 2001, National Institutes of Health (NIH) AIDS Research and Reference Reagent Program (ARRRP)] for up to 14 or 16 exposures, once or twice a week. The virus stocks were not further propagated, which eliminated the potential variable of enriching a virus stock with capsid adaptations due to TRIM5 selective pressure during propagation in peripheral blood mononuclear cells (PBMCs) from individual macaques, another potential confounder in NHP challenge models. Plasma viremia was assessed by polymerase chain reaction (PCR) with a detection limit of 50 copies/ml as described previously. ²³ We determined the TRIM5 genotype by isolation of genomic DNA from PBMCs using the QIAamp DNA Blood Mini kit (QIAGEN, Valencia, CA) and direct bulk sequencing of a PCR fragment as previously described. ¹³

TRIM5 allelic frequencies in our cohort were as follows: 7% of the macaques were TRIM5^Q/Q (n=4), 16% TRIM5^Q/CypA (n=7), 35% TRIM5^TFP/Q (n=15), 35% TRIM5^TFP/TFP (n=15), and 5% TRIM5^TFP/CypA (n=2); no macaque was TRIM5^CypA/CypA . These percentages were similar to distributions recently reported from another major U.S. facility for nonhuman primate research. ^13,14 The median number of exposures required for infection was three (TRIM5^{Q/ Q}), four (TRIM5^Q/CypA ), three (TRIM5^TFP/Q ), three (TRIM5^TFP/TFP ), and two (TRIM5^TFP/CypA ) (Fig. 1). For statistical analysis, the three macaques that remained uninfected were assessed at the maximum number of challenges received. Differences in the number of exposures required to infect were tested using global log rank statistics. There was no statistically significant difference in the number of exposures needed for infection between the genotype groups (4 degrees of freedom, p=0.37). This suggests that the TRIM5 genotype has no marked effect on rhesus macaque susceptibility to SHIV_SF162P3 or the number of challenges it takes to infect using SHIV_SF162P3 in an RLD exposure model. Of note, the three uninfected animals in this study had Q/CYPA (n=1) and TFP/Q (n=2) alleles, and not TFP/CypA as reported for animals resistant to SIV_smE660 infection. ¹⁴ Rather, the two macaques of the TFP/CypA phenotype were infected quickly, at exposures one and two, respectively. Moreover, animals requiring six or more exposures were found in each allele type except for TFP/CYPA (n=2).

OPEN IN VIEWER

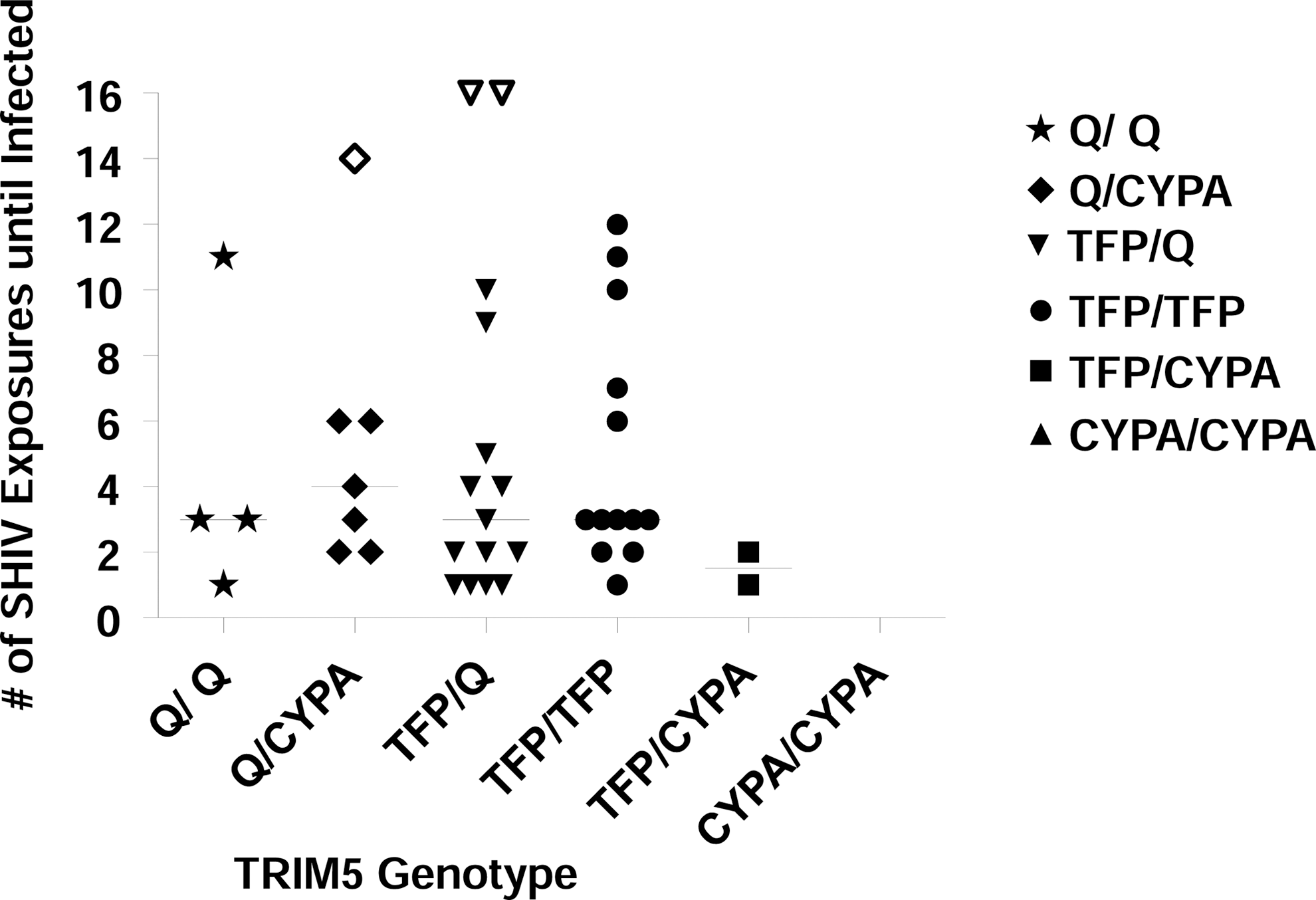

FIG. 1.

TRIM5 genotypes versus susceptibility (number of SHIV_SF162P3 challenges until Infection). The number of exposures until infection was compared in 43 rhesus macaques of indicated Trim5 genotypes. There was no correlation between the genotype and the number of exposures with SHIV_SF162P3 that it took to infect (p=0.37, global log rank test). One week was subtracted for the eclipse phase when determining date of infection. The solid lines indicate the median number of SHIV exposures until infected. The open symbols represent the three uninfected animals in this study that had Q/CYPA (censored at 14 exposures) and TFP/Q (both were censored at 16 exposures) alleles.

The three uninfected macaques had Q/CYPA (n=1) and TFP/Q (n=2) alleles. The underlying resistance mechanisms remain unknown. MHC class I analysis for common Mamu alleles A*01, A*02, A*08, A*11, B*01, B*03, B*04, and B*17 revealed the presence of Mamu-A*08 in one resistant macaque, Mamu-B*01 in another, and none of these in the third macaque. Mamu-A*08 and Mamu-B*01 have not previously been associated with increased viral control. ^5,6 It is possible that uncharacterized Mamu alleles contributed to resistance. Many other host factors can also contribute to resistance to infection; e.g., we have previously shown that high systemic RANTES levels can render macaques resistant to SHIV_SF162P3 infection in the RLD model, ¹⁸ although the RANTES status of the three resistant macaques in this study was not available.

Previous work has provided evidence that TRIM5 alleles affect SIV_smE660 RLD rectal acquisition ¹⁴ and penile acquisition. ¹⁵ The alleles did not impact SIV_mac239 ¹⁴ or SIV_mac251 ²⁴ RLD rectal acquisition, although an effect on SIV_mac251 replication after intravenous acquisition was found. ^16,25 Contrary to SIV_smE660 challenges, we found no evidence that Q alleles conferred increased susceptibility or that TFP and CypA alleles conferred resistance to SHIV_SF162P3 infection. In conclusion, SHIV_SF162P3 is an addition to the list of viable strains for rhesus macaque RLD infections not affected by TRIM5 alleles. Finding a similarly suited virus strain may be the key to the development of RLD models in other species that have not been studied yet with regard to TRIM5 or other genetic restriction.

For SHIV_SF162P3, peak viremia levels were also similar for macaques of different TRIM5 genotypes (Fig. 2). The Kruskal–Wallis rank sum statistic was used to test for genotype group differences in peak viral load. Following peak viremia, there were no significant differences in viral load or in viral load decay between host TRIM5 genotypes (4 degrees of freedom, p=0.45; these analyses were done using all data within 10 weeks of or after the peak viral load). A mixed-effects regression model was used to assess group differences in rate of decay after peak viral load and identified no differences (p>0.05). Last, to compare total viral burden by group, area under the curve (AUC) was determined and group comparisons were tested using Kruskal–Wallis tests, which again found no significant differences (p=0.20).

OPEN IN VIEWER

FIG. 2.

TRIM5 genotype versus peak plasma viremia with SHIV_SF162P3. There was no association between the genotype and the amount of plasma viral RNA after infection with SHIV_SF162P3 (p=0.45; Kruskal–Wallis test). The solid lines indicate median RNA copies/ml.

A recent study by Yeh et al. reports that susceptibility to repeated penile SIV_smE660 infection in rhesus macaques is highly dependent on the TRIM5 genotype. ¹⁵ It is possible that penile or other transmission routes are more susceptible to the impact of TRIM5-mediated effects than during rectal transmission. Kirmaier et al. found that two restrictive alleles (TRIM5^TFP/TFP and TRIM5^TFP/CypA ) led to lower SIV_smE543-3 replication than in homozygous TRIM5^Q/Q macaques. ¹³ Here, SHIV_SF162P3 replication peaked at medians of 7.1, 6.5, and 7.4 log₁₀ viral copies/ml for TFP/TFP, TFP/CypA, and Q/Q alleles, respectively, but these differences were not statistically significant. It is possible that a subtle TRIM5α impact on SHIV_SF162P3 replication nevertheless exists, but could not be measured in our small sample macaque groups. Utilizing cell culture lines to measure infectivity and replication of SIV_mac239 and SHIV_SF162P3 for each expressed common allele would shed further light on what role TRIM5 may have in influencing susceptibility to infection.

In conclusion, our results demonstrate that rhesus macaques' susceptibility to RLD SHIV_SF162P3 is independent of TRIM5 TFP, CypA, or Q alleles, with the caveat that the power to detect any impact of rare TRIM5^CypA/CypA and TRIM5^TFP/CypA genotypes was nonexistent or low, due to absence or infrequency, respectively. That TRIM5 alleles do not restrict mucosal infection or ensuing replication rates is perhaps not surprising because SHIV_SF162P3 is a derivative of SIV_mac239, which has previously been shown to infect cells and rhesus macaques irrespective of TRIM5 genotype. ^13,14 Our retrospective study served to provide an in vivo experimental demonstration that rhesus macaques can be reliably infected with rectal SHIV_SF162P3 exposure irrespective of TRIM5 genotype. Although the result was expected due to similar studies with parent strain SIV_mac239 ¹⁴ and due to in vitro infectivity experiments with SIV_mac239, ¹³ our findings further document in more animals that TRIM5 alleles do not confound macaque studies when SHIV_SF162P3 is used at the reported dose, and using the reported stock preparation with all potential virus adaptations that can happen during virus propagation. This further documents the usefulness of this unique RLD model for preclinical HIV prevention trials.
