Short Communication: Molecular Epidemiology,Phylogeny,and Phylodynamics of CRF63_02A1,a Recently Originated HIV-1 Circulating Recombinant Form Spreading in Siberia

Abstract

The HIV-1 epidemic in Russia is dominated by the former Soviet Union subtype A (A_FSU) variant, but other genetic forms are circulating in the country. One is the recently described CRF63_02A1, derived from recombination between a CRF02_AG variant circulating in Central Asia and A_FSU, which has spread in the Novosibirsk region, Siberia. Here we phylogenetically analyze pol and env segments from 24 HIV-1 samples from the Novosibirsk region collected in 2013, with characterization of three new near full-length genome CRF63_02A1 sequences, and estimate the time of the most recent common ancestor (tMRCA) and the demographic growth of CRF63_02A1 using a Bayesian method. The analyses revealed that CRF63_02A1 is highly predominant in the Novosibirsk region (81.2% in pol sequences) and is transmitted both among injecting drug users and by heterosexual contact. Similarity searches with database sequences combined with phylogenetic analyses show that CRF63_02A1 is circulating in East Kazakhstan and the Eastern area of Russia bordering China. The analyses of near full-length genome sequences show that its mosaic structure is more complex than reported, with 18 breakpoints. The tMRCA of CRF63_02A1 was estimated around 2006, with exponential growth in 2008–2009 and subsequent stabilization. These results provide new insights into the molecular epidemiology, phylogeny, and phylodynamics of CRF63_02A1.

Russia is one of the non-African countries with the greatest number of HIV-1-infected persons, only surpassed by India and the United States.¹ Before 1996 there were approximately 1,000 HIV-1-infected people in Russia (www.hivrussia.org/). In that period, subtype B was predominant, although other HIV-1 clades, of diverse geographic origins, were also detected.^2
–4

In 1995–1996 HIV-1 infections began to increase dramatically concomitantly with the expansion of a subtype A variant of Central African ancestry⁵ that originated in Southern Ukraine^6,7 and spread to all countries of the former Soviet Union (FSU), in most of which it is the predominant HIV-1 genetic form^8,9; for this reason it is frequently designated A_FSU variant. In addition to A_FSU, other HIV-1 genetic forms circulating in FSU countries at lower prevalences include subtype B, predominant in men who have sex with men,^8
–10 CRF03_AB, predominant in the Russian cities of Kaliningrad¹¹ and Cherepovets,¹² subtype F, circulating as a minor variant in St. Petersburg, Russia,¹³ and a CRF02_AG variant (CRF02_AG_FSU),^14,15 which was first detected among injecting drug users (IDUs) in Tashkent, Uzbekistan, in 1999–2000,¹⁴ and has subsequently been reported in Kazakhstan,¹⁵ Kyrgyzstan,¹⁶ and in the Novosibirsk region, Siberia, Russia.¹⁷ This variant has generated, through secondary recombination with A_FSU, a new circulating recombinant form, CRF63_02A1, recently identified in Novosibirsk.^17,18 Here we examine the prevalence of CRF63_02A1 in the Novosibirsk region in samples collected in 2013, we obtain three new near full-length genome sequences of CRF63_02A1, reanalyzing its mosaic structure, and we estimate its epidemic history.

For this study, 26 serum samples from HIV-1-infected individuals were collected in May and June 2013 at the Center for Prevention and Control of AIDS and Infectious Diseases, Koltsovo, Novosibirsk region, which is located 5 km from the city of Novosibirsk and attends all HIV-infected people of the Novosibirsk region. This study was approved by the Ethics Committee of the Center for Prevention and Control of AIDS and Infectious Diseases at Koltsovo, Novosibirsk region, Russia.

RNA was extracted from 1 ml plasma using Nuclisens EasyMAG kit (bioMérieux, Marcy l'Etoile, France) following the manufacturer's instructions. The HIV-1 protease-reverse transcriptase (PR-RT) segment of pol and the C2-V3-C3 segment of env were amplified by reverse transcriptase polymerase chain reaction (RT-PCR) followed by nested PCR. Primers used for PR-RT amplification were RP1-S and RP-1-A in RT-PCR and PR-O-S2b and RT-O-A in nested PCR (Table 1) and those used for amplification of the V3 region were described previously.¹⁹ Near full-length genome (∼9 kb) amplification in overlapping segments by RT-PCR and nested PCR and sequencing was done using a protocol similar to that described by us,^20,21 although some amplified fragments and their corresponding primers, all of which are listed in Table 1, were different. For amplification of the 3′ semigenome, primers SG3-up and SG3-lo were used for RT-PCR. This would allow for amplification of the full-length envelope sequence in nested PCR using primers Env-S and Env-A, which could be used for subsequent construction of functional envelope clones.²²

Table 1.

Primers Used for Polymerase Chain Reaction Amplification of HIV-1 Near Full-Length Genomes

Name	Sequence	HXB2 positions	Orientation^a
SC-A-O-S-R	AGATCTGAGCCTGGGAGCTCTCTGG	473–497	S
SC-A-O-A	TTTATGGCAAATACTGGAGTATTGTATGGA	2711–2740	A
SC-A-N-S-R	GCTTCAAGTAGTGTGTGCCCGTCTG	546–570	S
SC-A-N-A	CTTTTGGGCCATCCATTCCTG	2590–2610	A
RP1-S	GAAAAAGGGCTGTTGGAAATGTGGAA	2016–2041	S
RP1-A	AAATTTAGGAGTCTT TCCCCATATTACTATGC	3685–3716	A
PR-O-S2b	GCTAATTTT TTAGGGAARATYTGGCCT T	2080–2107	S
RT-O-A	TGCCTCTGTTAATTGTTTTACATCATTAGTGTG	3630–3662	A
RTDS-O-S	ATCTATCAATACATGGATGATTTGTATGTAG	3087–3117	S
SC-B-N-A	CCCTAGTGGGATGTGTACTTCTGAACTTA	5192–5220	A
RTDS-N-S	ATAGGGCAGCATAGARCAAAAATAGA	3132–3157	S
B2-N-A	AATCATCACCTGCCATCTGTTTTCC	5043–5067	A
SG3-up	TACAGTGCAGGGGAAAGAATAATAGACATAATA	4809–4841	S
SG3-lo	AGACCCAGTACAGGCRARAAGC	9523–9544	A
Env-S	AGGCATCTCCTATGGCAGGAAGAAG	5957–5983	S
Env-A	CCAGTCCCCCCTTTTCTTTTAAAAAG	9063–9088	A
SG3-N-S	CAAAATTTTCGGGTTTATTACAGGGACAG	4890–4918	S
SSD2b	TCTYTCCACACAGGTACCCCATA	6342–6364	A
NEF-S4	AGTATTGGAGTCAGGAACTAAAGAATAGTG	8626–8655	S
3′ nef-3c	GTACAGGCRARAAGCAGCTGCTTATATG	9510–9537	A

S, sense; A, antisense.

Both fragments flanking env, from vif through vpu, and nef plus a segment of the 3′ LTR, respectively, were amplified by nested PCR from the RT-PCR product amplified with SG3-up and SG3-lo, using primers SG3-N-S and SSD2b, and NEF-S4 and 3′ nef-3c, respectively. Gag and a fragment of the 5′ LTR were amplified with SC-A-O-S-R and SC-A-O-A in RT-PCR and SC-A-N-S-R and SC-A-N-A in nested PCR; the 3′ segment of pol was amplified with RTDS-O-S and SC-B-N-A in RT-PCR and RTDS-N-S and B2-N-A in nested PCR. Sequence electropherograms were assembled with Seqman (DNASTAR, Madison, WI).

Sequences were aligned with MAFFT v.7.²³ Phylogenetic trees were constructed via maximum likelihood with RAxML v.7.2.7,²⁴ applying the general time reversible (GTR) substitution model with CAT approximation for among-site rate heterogeneity (GTR+CAT), with assessment of node support by bootstrapping. Recombination was analyzed by bootscanning with SimPlot v3.5,²⁵ using a 200 nucleotide (nt) window with tree construction by the neighbor-joining method applying Kimura's two-parameter substitution model (the shorter than usual window size employed in the analysis was intended for a more precise definition of recombinant structures, with detection of fragments delimited by relatively close breakpoints).

Short putatively recombinant segments (≤200 nt) identified with SimPlot were phylogenetically analyzed further via maximum likelihood (ML) using RAxML, applying the GTR+CAT model, and with PhyML v3.0,²⁶ applying the GTR with gamma-distributed rate heterogeneity among sites and a proportion of invariable sites (GTR+G+I) substitution model, with assessment of node support by the approximate likelihood ratio test (aLRT) using a Shimodaira–Hasegawa (SH)-like procedure. In this analysis, trees were constructed with reference sequences of CRF02_AG_FSU and A_FSU and were rooted with an inferred group M ancestral sequence downloaded from the HIV Sequence Database.²⁷ Segments were assigned to either variant based on clustering with a bootstrap value ≥70% with RAxML or an aLRT-SH-like support ≥0.8 with PhyML.

To identify CRF63_02A1 viruses from other geographic areas, we downloaded all HIV-1 sequences from FSU countries deposited in the HIV Sequence Database.²⁷ The similarity of these sequences to all available CRF63_02A1 and CRF02_AG near full-length genome sequences was examined with local BLAST searches using BioEdit v.7.1.3.0 (Tom Hall, www.mbio.ncsu.edu/BioEdit/bioedit.html). Sequences most similar to two or more CRF63_02A1 viruses were selected for phylogenetic analysis with RAxML.

Antiretroviral (ARV) drug resistance in PR-RT sequences was analyzed with the online Stanford University HIV Drug Resistance Database's HIVdb Program.²⁸

To estimate the time of the most recent common ancestor (tMRCA) and to analyze the demographic growth of CRF63_02A1, we used a Bayesian Markov chain Monte Carlo (MCMC) coalescent method as implemented in BEAST v1.7.4.²⁹ For these analyses, we used 105 CRF63_02A1 PR-RT sequences lacking drug resistance mutations, including 16 obtained by us and 89 downloaded from the HIV Sequence Database, collected between 2009 and 2013, as well as three CRF02_AG_FSU sequences used as outgroups. Since the evolutionary rate could not be inferred directly from CRF63_02A1 sequences, due to the narrow time span of sample collection, it was estimated using 100 A1 subsubtype PR-RT sequences (considering that most of the analyzed sequence is of A1 subsubtype) sampled along a time span of 23 years and lacking drug resistance-associated mutations, retrieved from the HIV Sequence Database. In the subsequent analysis, the estimated posterior distribution of the substitution rate was incorporated as a prior distribution in the analysis of CRF63_02A1 sequences. The substitution model used for these analyses was HKY with gamma-distributed rate heterogeneity among sites and two partitions in the codon positions (first+second, third); other priors were an uncorrelated lognormal relaxed clock model and a Bayesian skyline plot demographic model. Each MCMC chain was run for 50 million generations, sampling every 1,000 generations, with the first 10% discarded as burn-in. MCMC convergence and effective samples sizes were checked using the program Tracer v.1.5.

At least one genome fragment could be sequenced in 24 HIV-1 samples from Novosibirsk: 16 in both PR-RT and the V3 region, six only in PR-RT, and two only in V3. Demographic and clinical data of these samples are shown in Table 2. Phylogenetic trees of PR-RT and V3 segments are shown in Fig. 1a and b, respectively. Phylogenetic classification according to these analyses was incorporated in Table 2. In PR-RT, where CRF63_02A1 viruses grouped in a monophyletic clade closely related to CRF02_AG_FSU viruses, 18 (81.8%) samples were CRF63_02A1 and four (18.2%) were A_FSU (Fig. 1a). In the V3 region, where CRF63_02A1 viruses did not group in a separate clade, but branched in a clade together with CRF02_AG_FSU viruses, 17 (94.4%) samples branched in the CRF02_AG_FSU/CRF63_02A1 clade and one (5.6%) was A_FSU (Fig. 1b). In the 16 samples in which both segments could be sequenced, 14 (87.5%) were CRF63_02A1 in both segments, one, RU_8508, was A_FSU in both segments, and one, RU_8506, had incongruent topologies, being A_FSU in PR-RT and CRF63_02A1 in V3, suggesting the presence of recombination between both variants.

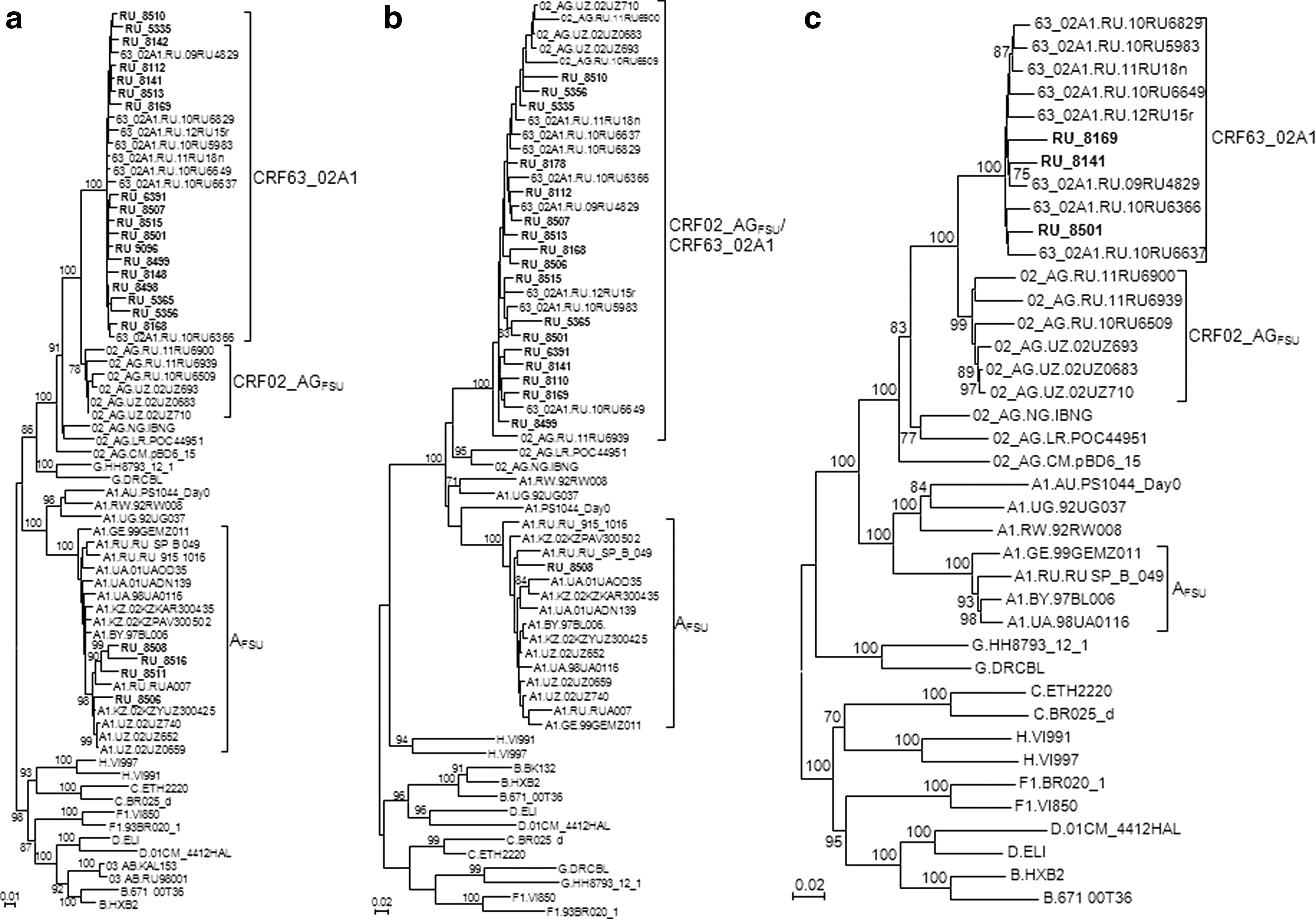

FIG. 1.

Phylogenetic trees of HIV-1 sequences from samples from Novosibirsk. (a) Tree of the protease-reverse transcriptase (PR-RT) sequences. (b) Tree of env V3 region sequences. (c) Tree of CRF63_02A1 near full-length genome sequences. Samples from the current study are in bold type. Only bootstrap values ≥70% are shown. In references of subtype A, CRF02_AG, and CRF63_02A1, the country of sample collection is indicated by the ISO two-letter code.

Table 2.

Data of Samples Whose Sequences Were Analyzed in This Study, with Subtype/Circulating Recombinant Form Classification in Protease Reverse Transcriptase and V3 Fragments

Sample ID	Gender	Transmission route ^a	Year of HIV diagnosis	ARV treatment	Subtype/CRF PR-RT	Subtype/CRF V3
RU_5335	M	Het	2013	No	63_02A1	63_02A1/02_AG
RU_5356	n.a.	n.a.	n.a.	n.a.	63_02A1	63_02A1/02_AG
RU_5365	F	Het	2013	No	63_02A1	63_02A1/02_AG
RU_6391	F	Het	2013	No	63_02A1	63_02A1/02_AG
RU_8110	F	Het	2011	No		63_02A1/02_AG
RU_8112	M	Het	2012	No	63_02A1	63_02A1/02_AG
RU_8141	M	IDU	2007	Yes	63_02A1	63_02A1/02_AG
RU_8142	F	IDU	2011	Yes	63_02A1
RU_8148	M	IDU	2011	Yes	63_02A1
RU_8168	M	IDU	2010	No	63_02A1	63_02A1/02_AG
RU_8169	M	IDU	2009	n.a.	63_02A1	63_02A1/02_AG
RU_8178	M	IDU	2009	Yes		63_02A1/02_AG
RU_8498	M	IDU	2009	No	63_02A1
RU_8499	M	IDU	n.a.	n.a.	63_02A1	63_02A1/02_AG
RU_8501	F	Het	2012	No	63_02A1	63_02A1/02_AG
RU_8506	M	IDU	2012	No	A1	63_02A1/02_AG
RU_8507	M	IDU	2012	No	63_02A1	63_02A1/02_AG
RU_8508	F	Het	2013	No	A1	A1
RU_8510	F	IDU	2011	No	63_02A1	63_02A1/02_AG
RU_8511	M	Sex	2012	No	A1
RU_8513	F	IDU	2012	No	63_02A1	63_02A1/02_AG
RU_8515	F	IDU	2011	No	63_02A1	63_02A1/02_AG
RU_8516	M	IDU	2012	Yes	A1
RU_9096	F	Het	2006	No	63_02A1

IDU, injecting drug user; Het, heterosexual; Sex, sexual.

n.a., datum not available; ARV, antiretroviral; CRF, circulating recombinant form; PR-RT, protease reverse transcriptase.

Of the 20 samples in which at least one segment was of CRF63_02A1 and data on transmission route were available, 13 (65%) corresponded to IDUs and seven (35%) to heterosexual transmissions. The identification of CRF63_02A1 both among IDUs and heterosexually infected individuals is similar to what has been reported with regard to A_FSU in Russia.^8,9 Epidemiological data indicate that heterosexual transmission of HIV-1 in FSU countries is closely linked to the epidemic among IDUs,^1,30 which is consistent with our studies in St. Petersburg showing that infections among IDUs and heterosexually infected individuals were not associated with different A_FSU clusters.¹⁰ With regard to CRF63_02A1, analyses of a greater number of samples with epidemiological data would be required to examine the existence of transmission networks and their possible associations with different transmission routes.

Antiretroviral (ARV) drug resistance-associated mutations were found in three samples, RU_8148, RU_8499, and RU_8516. The first had low degree resistance to nucleoside RT inhibitors (M41L), the second had high or intermediate resistance to nonnucleoside RT inhibitors (K103N), and the third had resistance to both drug classes (D67N, K70R, M184V; K101E, G190S). RU_8148 and RU_8516 were on ARV drug treatment and no information on drug treatment was available for RU_8499.

Near full-length genome sequences were obtained in three samples. The phylogenetic tree (Fig. 1c) shows that the newly derived sequences branch within the CRF63_02A1 clade, which is closely related to the CRF02_AG_FSU clade. To analyze the mosaic structure of CRF63_02A1, a consensus sequence was obtained using all 11 available CRF63_02A1 near full-length genome sequences, including the three newly derived ones and the eight obtained previously,^17,18 which was used for bootscan analysis. Since there is prior knowledge on the parental strains of CRF63_02A1¹⁷ we used as references only consensus sequences of A_FSU and CRF02_AG_FSU, with consensuses of subtypes C and H being used as outgroups. The plot derived from this analysis (Fig. 2a) suggests a complex recombinant structure with most of the genome derived from CRF02_AG_FSU. Short segments (<200 nt) in which clustering with either A_FSU or CRF02_AG_FSU consensuses was supported by ≥50% bootstrap values were further analyzed via ML with RAxML and PhyML (Fig. 2b). These analyses made it possible to assign eight short segments to either variant clustering with the respective reference sequences with ≥70% bootstrap and/or ≥0.8 aLRT-SH-like support values.

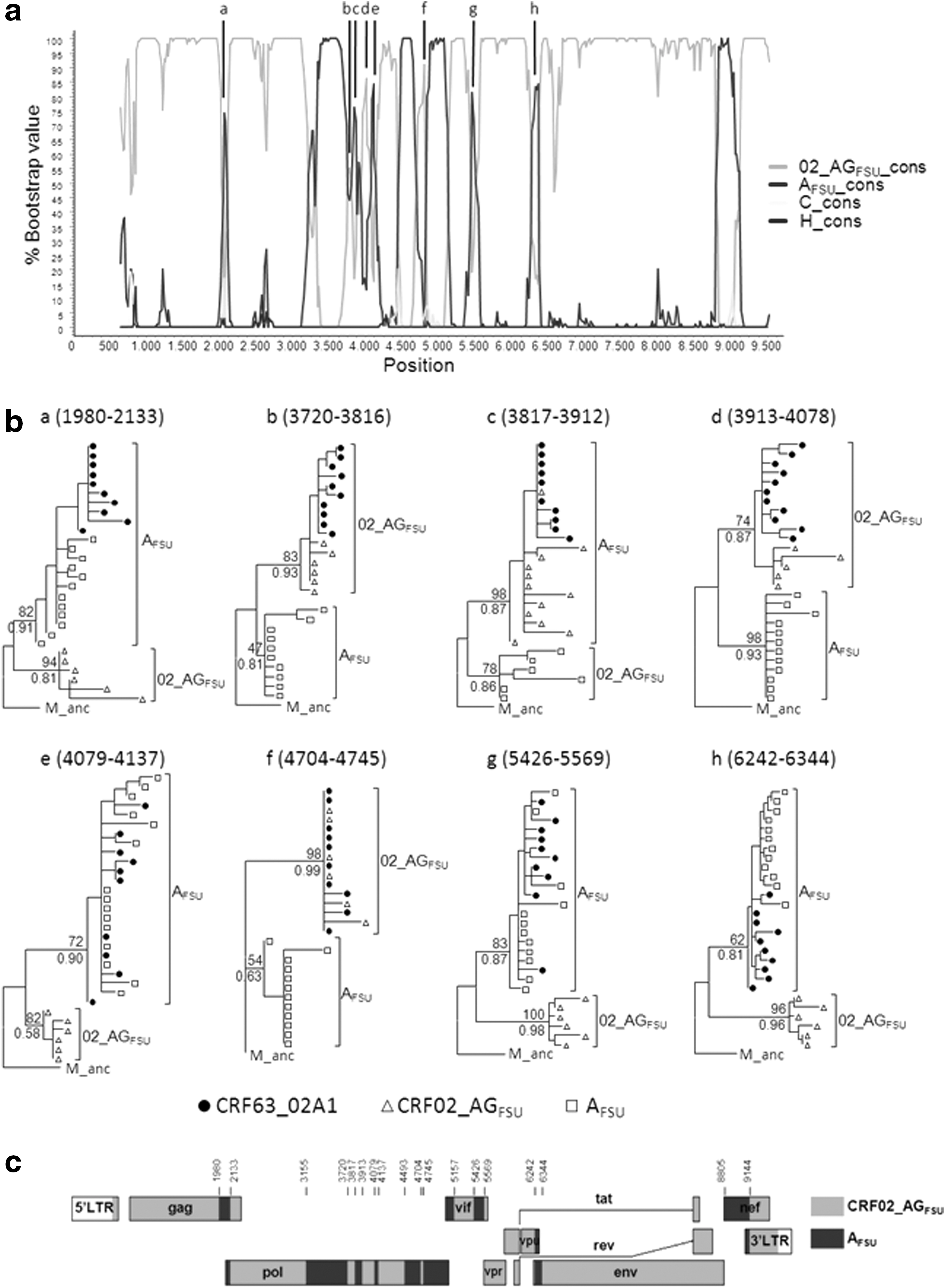

FIG. 2.

Analysis of the mosaic structure of CRF63_02A1. (a) Bootscan analysis of the consensus CRF63_02A1 near full-length genome sequence. Consensus A_FSU and CRF02_AG_FSU sequences were used as references and subtypes C and H as outgroups. The horizontal axis corresponds to positions in the HXB2 proviral genome sequence. (b) Phylogenetic trees of eight short (<200 nt) putatively recombinant segments of CRF63_02A1, as identified in the SimPlot bootscan analysis [signaled in (a)]; nucleotide positions in the HXB2 genome are indicated on top of each tree in parentheses; trees are rooted with the inferred group M ancestral sequence; branches corresponding to CRF63_02A1 viruses are marked with filled circles, those of CRF02_AG_FSU viruses with triangles, and those of A_FSU viruses with squares; bootstrap support, as determined with RAxML, and aLRT-SH-like support, as determined with PhyML, of A_FSU and CRF02_AG_FSU clades are shown on the left of the corresponding nodes, above and below, respectively, of the subtending branch. (c) Mosaic structure of CRF63_02AG inferred from SimPlot analysis and ML trees of partial segments. The HXB2 positions of breakpoints delimiting CRF02_AG_FSU-derived and A_FSU-derived segments are indicated on the top.

The mosaic structure of CRF63_02A1 derived from the bootscan analysis with SimPlot combined with the ML trees of partial segments (Fig. 2c) shows the existence of 18 breakpoints delimiting 10 CRF02_AG_FSU-derived segments and nine A_FSU-derived segments. The inferred structure is much more complex than what was previously described,¹⁷ in which only five A_FSU-derived segments were identified. The difference may derive from the different methods of analysis and from the use as references in our study of the parental strains of CRF63_02A1 (A_FSU and CRF02_AG_FSU), which may allow for a more precise definition of the recombinant structure than when using more distantly related references.

To identify CRF63_02A1 sequences deposited in the Los Alamos HIV Sequence Database, CRF63_02A1 PR-RT sequences were used for BLAST searches with subsequent phylogenetic analyses, as described in the Materials and Methods section. This analysis revealed that in addition to being found in Novosibirsk, where they represented 59.9% of database sequences from this region collected in 2009–2013 (results not shown), CRF63_02A1 viruses were found in the Eastern area of Russia, near the border with China, in the cities of Khabarovsk (13 of 88 sequences, 14.8%) and Blagoveshchensk (2 of 40 sequences, 5%), and in the Ust-Kamenogorsk region in East Kazakhstan (3 of 14 sequences, 21.4%) (Fig. 3). This is in agreement with recent studies reporting the identification of CRF63_02A1 in the Russian Far East³¹ and Kazakhstan.³² However, we could not find CRF63_02A1 among database viruses from Kyrgysztan, as suggested by others.¹⁷

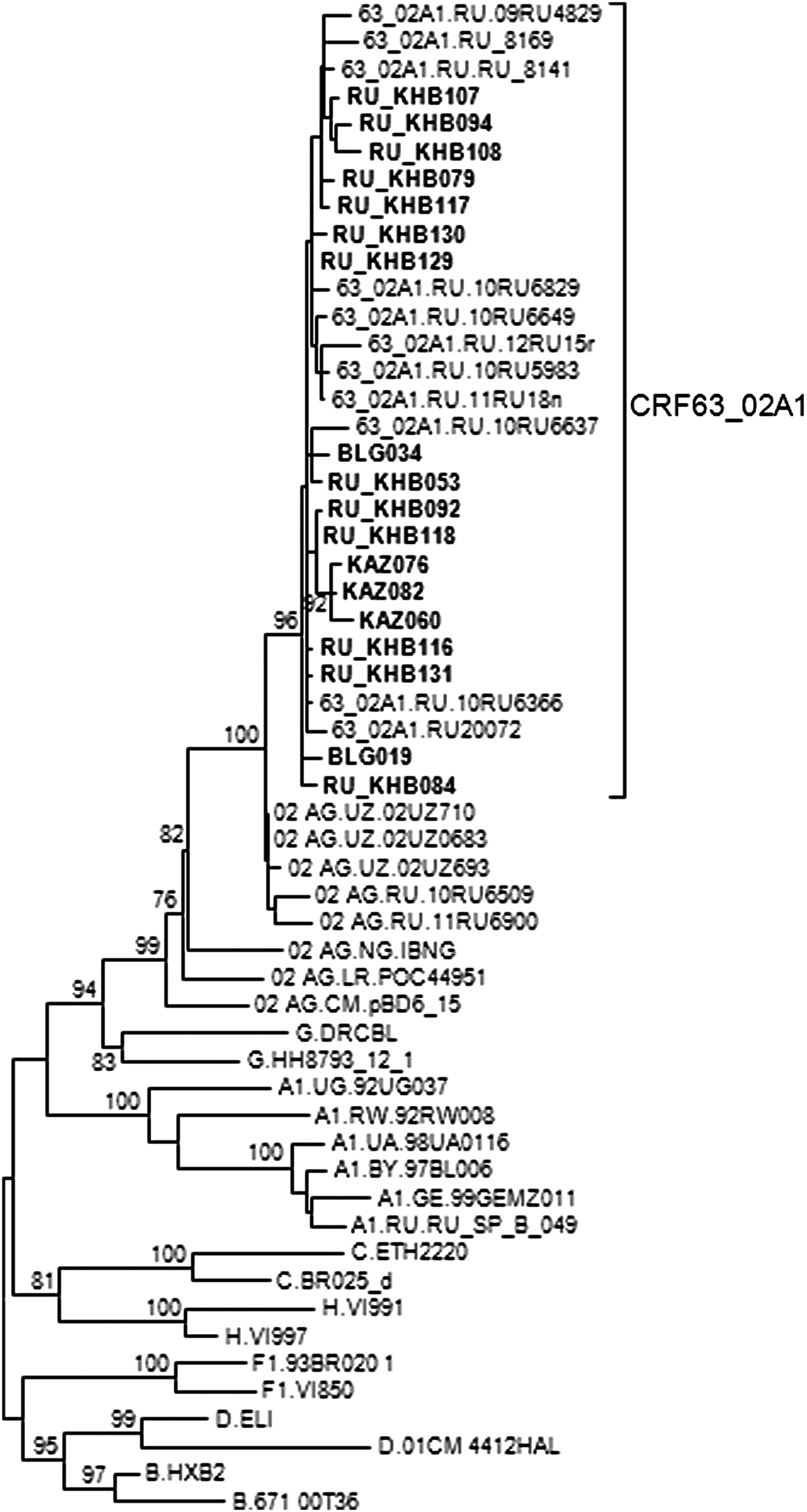

FIG. 3.

Phylogenetic tree of PR-RT sequences showing viruses from East Kazakhstan and the Eastern Russian cities of Khabarovsk and Blagoveshchensk branching within the CRF63_02A1 clade. The names of the mentioned viruses, which include the KAZ, KHA, and BLG abbreviations of the sampling locations, are in bold type. Only bootstrap values ≥70% are shown.

Through Bayesian MCMC analyses using PR-RT sequences obtained by us and deposited in databases, the tMRCA of CRF63_02A1 was estimated in 2006.8 [95% highest posterior density (HPD) interval 2005.8–2007.7]. Demographic growth estimated through the Bayesian Skyline Plot shows an exponential increase in the effective number of infections during a period comprising most of 2008 and the first half of 2009, with subsequent stabilization (Fig. 4). These results are consistent with the earliest known date of HIV diagnosis of a CRF63_02A1 infection in 2007 (Table 1) and of the collection of the first sample harboring a CRF63_02A1 virus in 2009.²⁷ They are also in accord with the largest annual increase in new HIV-1 diagnoses recorded in the Novosibirsk region, which occurred in 2008 (Fig. 5).

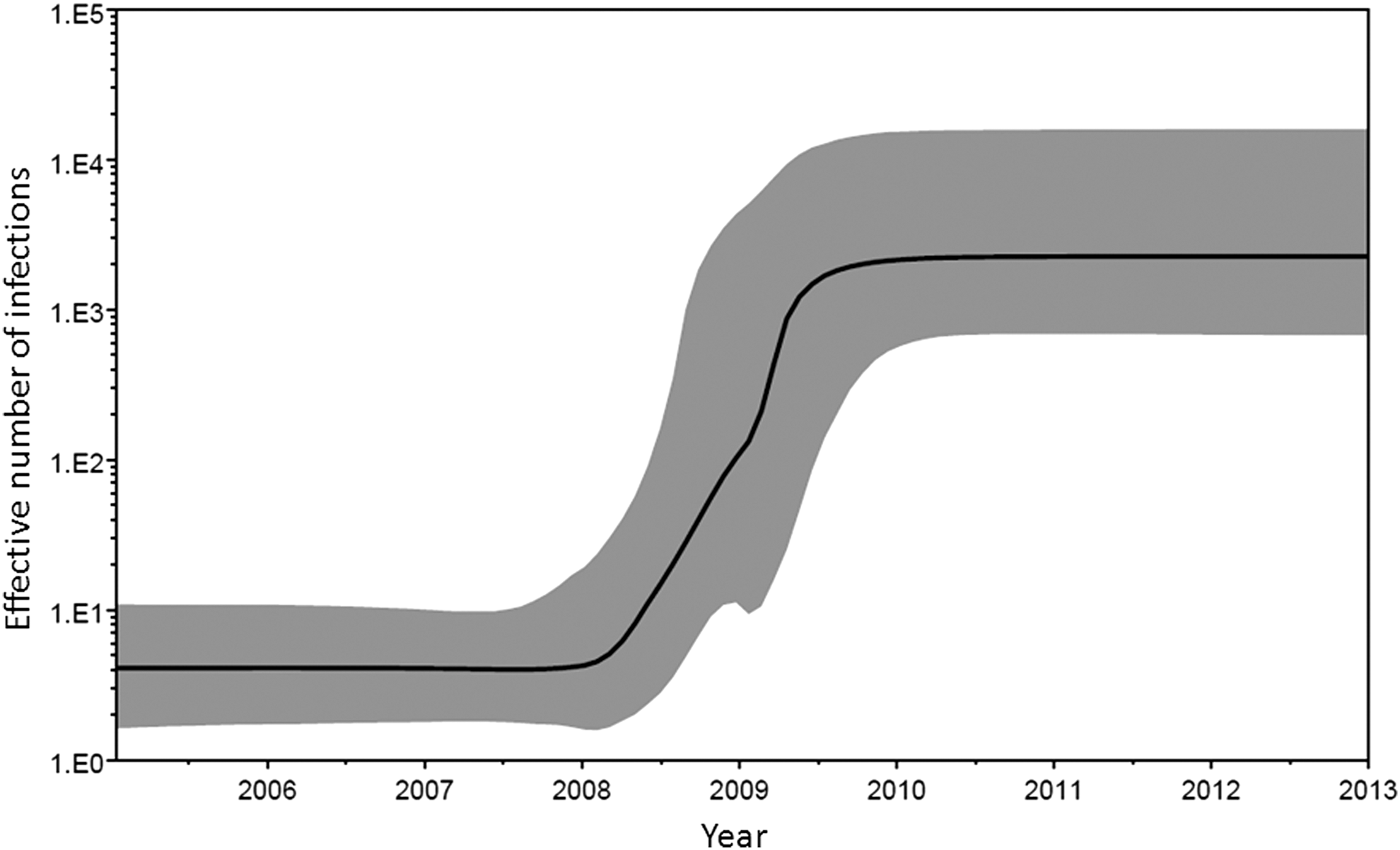

FIG. 4.

Bayesian skyline plot of the population growth of CRF63_02A1. The plot was obtained using PR-RT sequences. The black line represents the median estimate of the effective number of infections through time, plotted on a logarithmic scale, and the shaded area represents the 95% HPD confidence interval for this estimate.

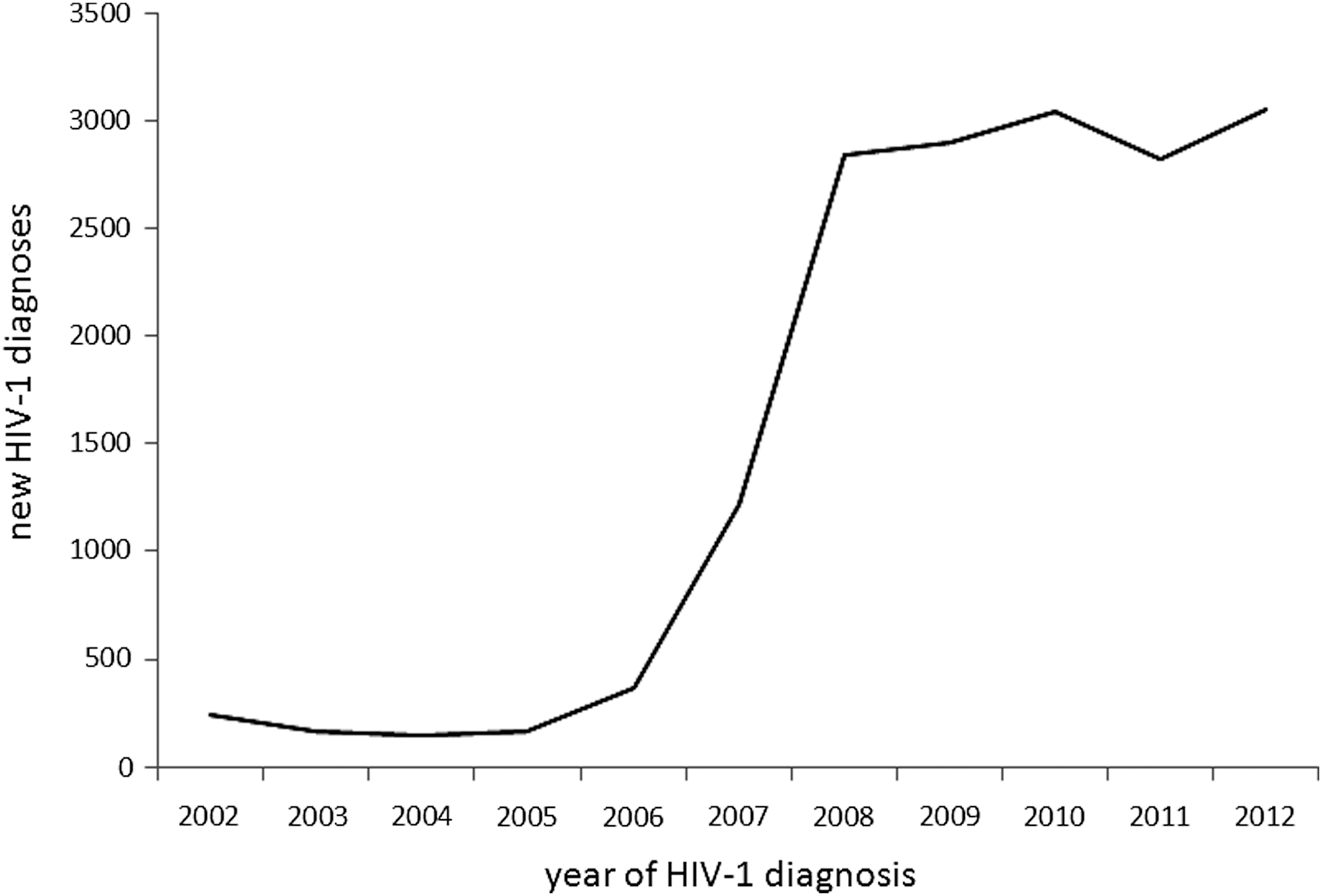

FIG. 5.

Time trend in new HIV-1 diagnoses in the Novosibirsk region (2002–2012). Data are from the Center for Prevention and Control of AIDS and Infectious Diseases, Koltsovo, Novosibirsk region, Russia (http://spidmso.ru).

In summary, this study shows that CRF63_02A1 is highly predominant in recently collected samples in Novosibirsk, where it is transmitted both among IDUs and via heterosexual contact and that its mosaic structure is much more complex than previously reported. CRF63_02A1 originated recently and expanded rapidly, with most of its expansion taking place along an approximate period of only one and a half years (Fig. 4). The rapid expansion of CRF63_02A1 is reminiscent of that reported for other HIV-1 genetic forms in established epidemics,^33,34 supporting the need for continued molecular epidemiological surveillance of HIV-1. Its propagation to distant areas of Russia and to Kazakhstan indicates that CRF63_02A1 should be taken into consideration in the design of vaccines adapted to HIV-1 strains circulating in Russia and other FSU countries, whose HIV-1 epidemics are becoming increasingly complex by the introduction of new genetic forms, phylogenetic diversification within the established strains,^10,35
–37 and recombination between cocirculating variants, with the generation of new circulating recombinant forms (CRFs).¹⁷

Sequences were deposited in GenBank under accession numbers KJ197185–KJ197224.

Footnotes

Acknowledgments

We thank the personnel at the Genomic Unit of Instituto de Salud Carlos III, Majadahonda, Madrid, Spain, for technical assistance in sequencing, and Bonnie Mathieson, from the Office of AIDS Research, National Institutes of Health, Bethesda, Maryland for her support of this study. This work was funded by Office of AIDS Research, National Institutes of Health, through the training program “Molecular Epidemiology of HIV-1 in Eastern Europe and Its Significance for Vaccine Development.”

Author Disclosure Statement

No competing financial interests exist.
