A Systematic Review of Mobile Phone Interventions (SMS/IVR/Calls) to Improve Adherence and Retention to Antiretroviral Treatment in Low-and Middle-Income Countries

Search strategy

The study used a systematic web search to review primary studies on mobile phone-assisted mHealth interventions and ART in LMICs. The inclusion criteria are based on the Population Intervention Comparison Outcome (PICO) model. As shown in Table 1, we formulated the search strategy using five terms/categories. Terms within sets are connected via OR, and terms between sets are connected using AND. All sets search the title, abstract, and keywords of articles. Further details are found in Supplementary Appendix SA2 (available online) that displays the general search used.

We screened four web-based sources and included a manual-based approach to identify studies published until June 2018. We searched for primary studies in the following databases: PubMed, Web of Science, ProQuest Dissertations and Theses, and the WHO Global Health Library. To yield database specific results, the general query was adjusted for ProQuest Dissertations and Theses and the WHO Global Health Library. In the additional manual search, we used the reference lists of the articles included in the most recent primary empirical studies.

Study selection

A two-stage selection process was chosen to determine eligibility. The first stage selected articles using title screening. Additional screening was applied using similarity of keywords in cases where articles had unclear titles. During the second-stage screening process, we reviewed abstracts and full texts (when necessary). More specifically, in the second-stage, we screened for articles that satisfied the following criteria:

Target outcome: adherence or retention to ART among PLHIV.

Data extraction

Two reviewers (B.A.D. and L.A.-M.) independently conducted the search, the examination of eligibility, and the extraction of data. We used a standardized Microsoft Excel data template. Individually and separately, the two reviewers collected the following information about each study: publication features (year of publication, outlet/publisher, study country, web source), characteristics of the design [length of intervention, sample size, study type such as randomized controlled trial (RCT)], targeted participants, intervention (text/image/voice, language and frequency), outcome characteristics (adherence and/or retention), and intervention results (sign, magnitude, and significance of the estimates).

Assessment of risk of bias

We evaluated the methodological risk of bias (ROB) of compiled studies in accordance with the Cochrane Handbook for Systematic Reviews of Interventions. ²⁷ The process included that one reviewer (B.A.D.) evaluated the ROB and a second reviewer (L.A.-M.) independently reviewed it as well. All discrepancies were resolved with discussion and consensus. For the ROB, we report random sequence generation, allocation concealment, blinding, incomplete outcome data, selective outcome reporting, and other sources of bias for RCTs. In addition, we included intention to treat analysis (ITT) for the incomplete outcome data of the ROB domain: defined as participants being assessed based on their initial treatment assignment (regardless of treated arm). ²⁸ We develop the ROB only for RCT studies. We do not conduct the ROB assessment for other types of interventions as there is no consensus on the quality assessment for non-RCT studies. ²⁷ RCTs were categorized at highest ROB when rated high for the random sequence generation and allocation concealment domains.

Analysis of data

Our analytical approach uses a descriptive summary of the articles included in the systematic review. To develop the analysis of the data, we performed a frequency analysis of the following characteristics: general characteristics, intervention characteristics, as well as the results/conclusions of the intervention. Although interesting, we decided not to conduct a meta-analysis given the eminent heterogeneities in the study characteristics, missing data on designs, intervention durations, and missing p values in the reported outcomes.

Selection of studies and data extraction

The selection and extraction of data were developed by two independent and separate reviewers (B.A.D. and L.A.-M.). Following the two-stage selection process, the first stage identified a total of 195 studies using title screening. Most first-stage studies were irrelevant as we used an inclusive search query that resulted in a large set of false hits. Thus, we conducted the second-stage screening process by reviewing abstracts and full texts (when necessary). Figure 1 shows the flowchart and number of studies identified and selected across the two-stage selection process.

OPEN IN VIEWER

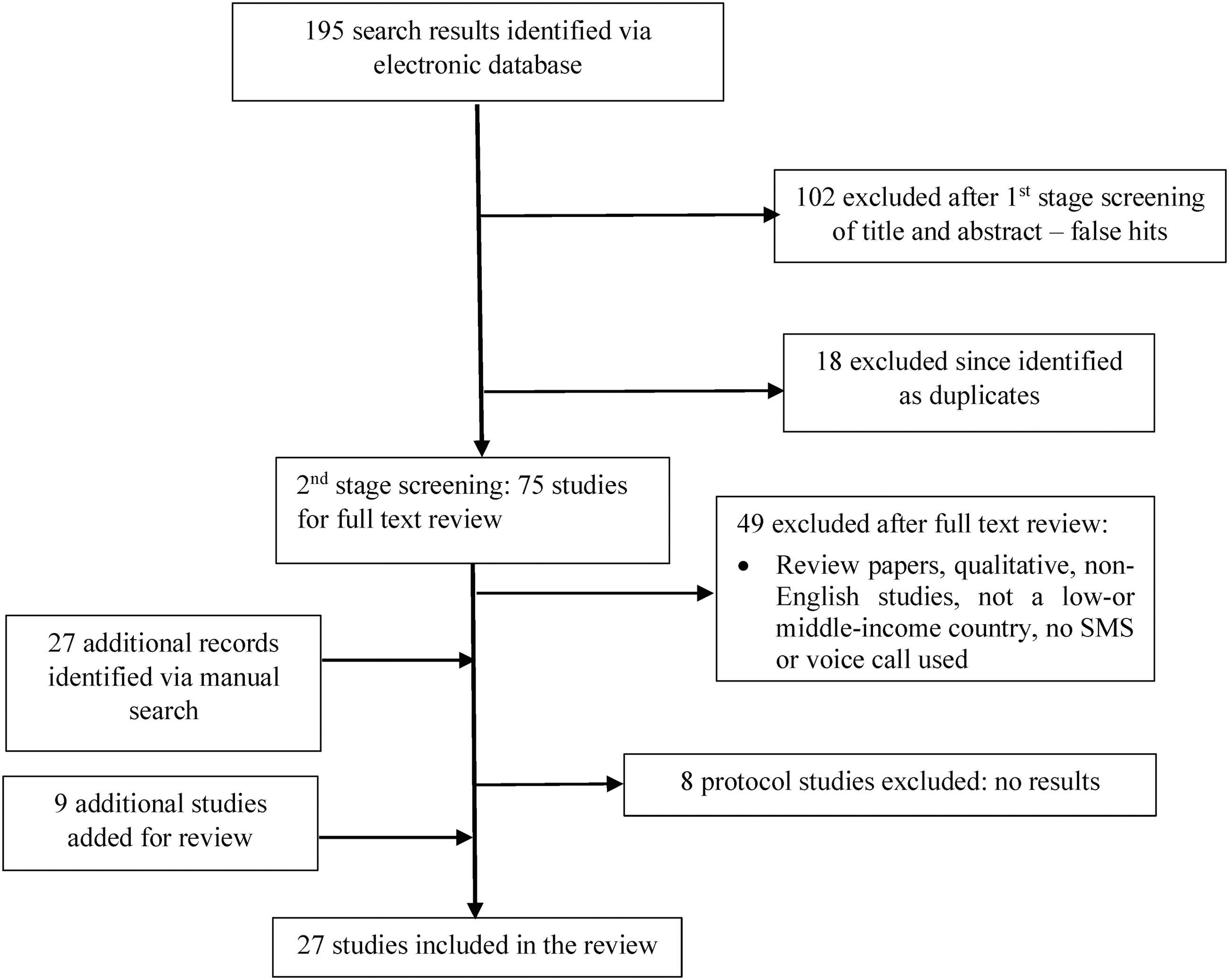

FIG. 1.

Flowchart of literature selection process.

The screening of titles and abstracts in the second stage excluded 102 articles that were selected in the first stage. The duplication of studies was also common across electronic databases, so only 75 peer-reviewed articles remained in our systematic review after removing duplicates. In addition, we dropped another 49 studies after the careful assessment of full texts. Supplementary Appendix SA3 (available online) provides a complete record of excluded studies with a justification for their exclusion. The subsequent manual search identified 27 additional studies through citation tracking. After review of the abstracts and full texts, only nine more articles were added as they matched the inclusion criteria. Table 2 presents the number of studies retrieved and selected per database. At the end of the process, we identified and selected a final sample of 27 completed studies and 8 protocols. Table 3 presents detailed information of the included articles. Note that the eight protocols are excluded from our analysis as we focus on after-intervention estimates.

Characteristics of the studies

In terms of scope, the 27 completed studies were carried out in Africa, Asia, and Latin America. Articles on Africa have the highest share reaching about 63%. Twelve studies were performed in Cameroon, Kenya, South Africa, and Uganda (three in each country), while Mozambique and Swaziland account for four articles (two each), and one was done in Nigeria. This strong focus on Africa is consistent with the high prevalence of HIV on the continent; more than 3.9 million children and adults in SSA undergo ART and the management of the HIV epidemic is a priority on the international health agenda. ^29,30 Meanwhile, Asian countries accounted for 33% of the 27 articles: 8 articles tested interventions in China and India (4 in each country) and a single article shows results for Pakistan. Only one study was conducted in Latin America (Brazil).

The two most common interventions investigate the impact of: (1) standardized SMS messages (text, image, or both), or (2) IVR reminders. Nearly 90% (n = 24) of the studies investigate standardized SMS messages, of which four are combined with IVR, calling or counseling. One study in China combined calls with bimonthly nurse home visits. ³¹ Ownership of a mobile phone was not an eligibility criterion in two RCTs that provided mobile phones (Rural Kenya and South India). ^13,14 Only two of the RCTs assessed IVR alone with one of them finding no statistically significant impact. Moreover, we find high variation in terms of the time period, during which patients received the intervention. The minimum time that patients received messages was 1 month (implemented in three studies in North Western Cameroon, Southern India, and Indian West Bengal). ^{32 –34} A maximum period of 24 months was used for a study on health care delivery in South India. ¹⁴ The average evaluation period was 9 months. Assessing the RCT studies separately, we find a similar picture of short-term interventions except for one study. ¹⁴ In terms of evaluation designs, 74% are RCTs (n = 20), 7.4% are cohort studies (n = 2), and 7.4% use a quasiexperimental design (n = 2). The remaining 11.2% include controlled studies (n = 3) that use before–after, cross sectional, or pilot designs.

The messages were formulated to remind patients of medication, appointments, education, and/or counseling offers. The content was often generic (10 of 27 studies). This approach is supported with evidence from Peru examining the perceptions of PLHIV about message content and suggesting that concise, general messages are the preferred choice. ³⁵ In contrast, in three reviewed studies, message content was personalized, including the name of the recipient. In 14 of the 27 studies, the authors did not explicitly specify the content of the messages. Several examples of message content are presented in Fig. 2. Regarding the language of the messages, in 17 studies the message reminders were sent in the local or preferred language of the participant. This finding builds on earlier research showing that illiteracy is negatively associated with impacts of message reminders. ³⁶

OPEN IN VIEWER

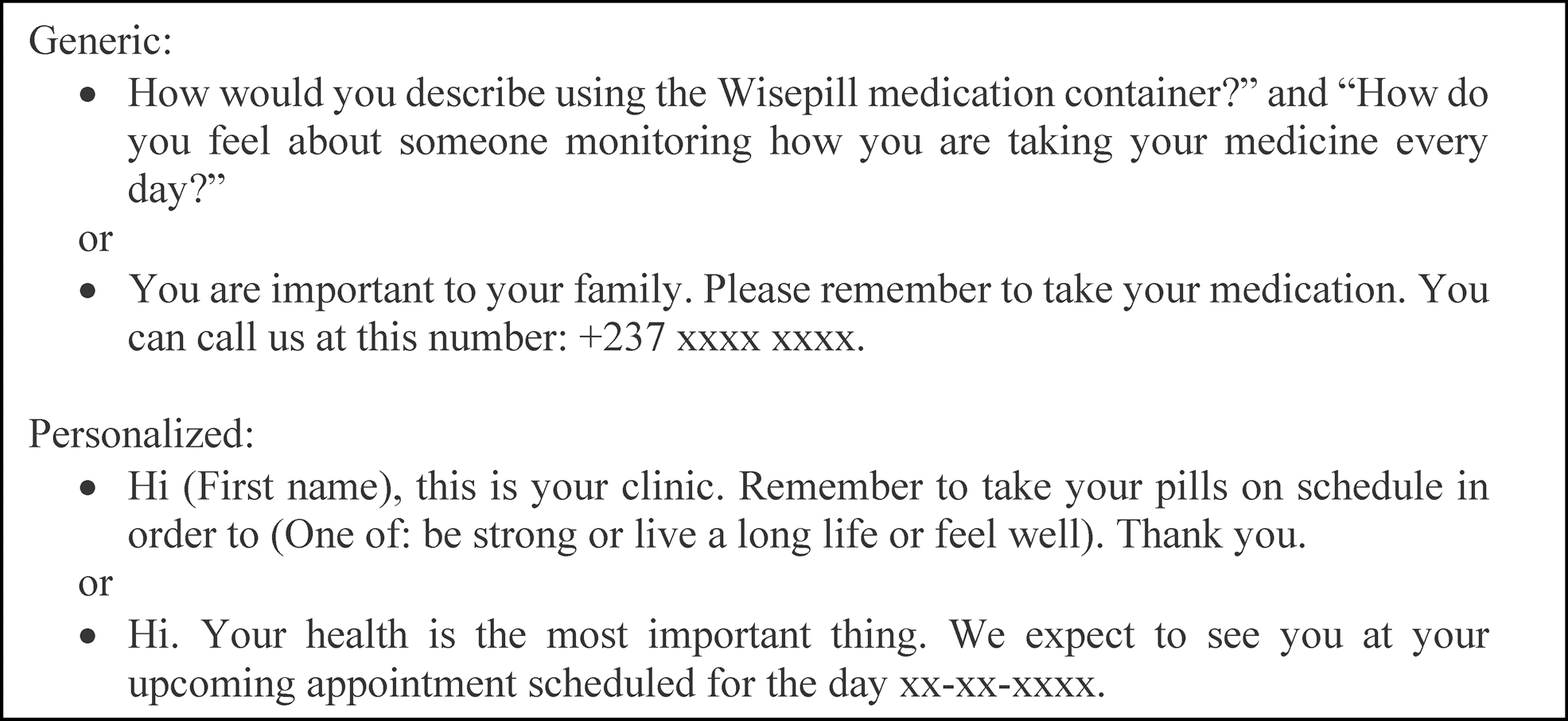

FIG. 2.

Examples of message reminders sent to patients.

The geographical coverage of the interventions is not uniform across studies but tends to be restricted. Nearly one in three studies focuses on urban areas. It was only in Africa that also interventions in rural areas were studied (7 of the 17 studies). The 10 studies from Asia and Latin America focus merely on urban areas. No study uses a nationally representative sampling strategy in the evaluation design. But as complementary results, we identify two published protocols that aim at addressing this weakness. First, L'Engle et al. ³⁷ published a protocol to conduct a 3-year intervention with 1600 patients in 5-regions of Ghana. But this study was suspended before launching the intervention due to uncertainties about the success of implementation. Second, there is one published protocol implementing a nationwide study with a representative sample in Burkina Faso. ³⁸ This study rests on a sample of more than 3800 patients in a five-arm RCT over a 2-year period.

Our findings show high variability in the number of participants and evaluation methods but similarities in the age of the target group. The largest study included 2255 participants, but about 74% of the studies had less than 500 participants with a median of 196. Recent studies argue that research about adherence and retention to ART require large sample sizes as well as sustained periods of the mHealth intervention. ^6,38 However, more than half of the studies included in the review only assesses short-run impacts in small samples. There are three exceptions (studies in Mozambique, South Africa, and Swaziland) that on average assess 2152 patients over a 12 months period. ^{39 –41} Across the 20 RCTs, only 2 use a large sample and 9 have less than the median sample size of the 27 studies selected in the present review. In contrast, the review finds similarities across studies in the minimum age of the participants. Most interventions targeted participants older than 18 years, who were relatively ART-naive (no more than 3 months), and in possession of a mobile phone. Two studies included participants from the age of 15 years (South Africa and Uganda). ^42,43 In five articles, the age of the participants was not specified.

Regarding publication dates, we find studies from developed countries since the early 2000s. ⁹ For LMICs, the first two studies for China and Kenya were published in 2010. ^31,44 Both studies were performed in three different HIV clinics with different economic conditions. In Kenya, a total of 538 patients were randomly assigned to a control and treatment group, while the intervention in China only included 116 patients. Over the years, the number of interventions has been increasing (review details in Table 3). The median article appeared in 2014 and most articles were published in 2017.

ROB in the identified studies

Figure 3 presents a summary of the ROB items for the RCTs. Exactly 85% of the 20 articles that use RCTs were rated having low risk of random sequence generation bias. Most studies applied computer-assisted randomization or minimization. The remaining three studies (15%) had unclear risk of random sequence generation. For allocation concealment, we find a similar pattern: 80% of the studies were at low risk, while the rest at an unclear level. Importantly, none of the studies was rated at high risk in these two domains. However, blinding of participants, medical staff, and assessors was not done across studies. Performance bias was rated at high risk for most studies (85%). Similar results are observed for detection bias; yet, four studies had a low bias in this domain. The other domains of ROB were rated at low risk for 70–95% of the studies.

OPEN IN VIEWER

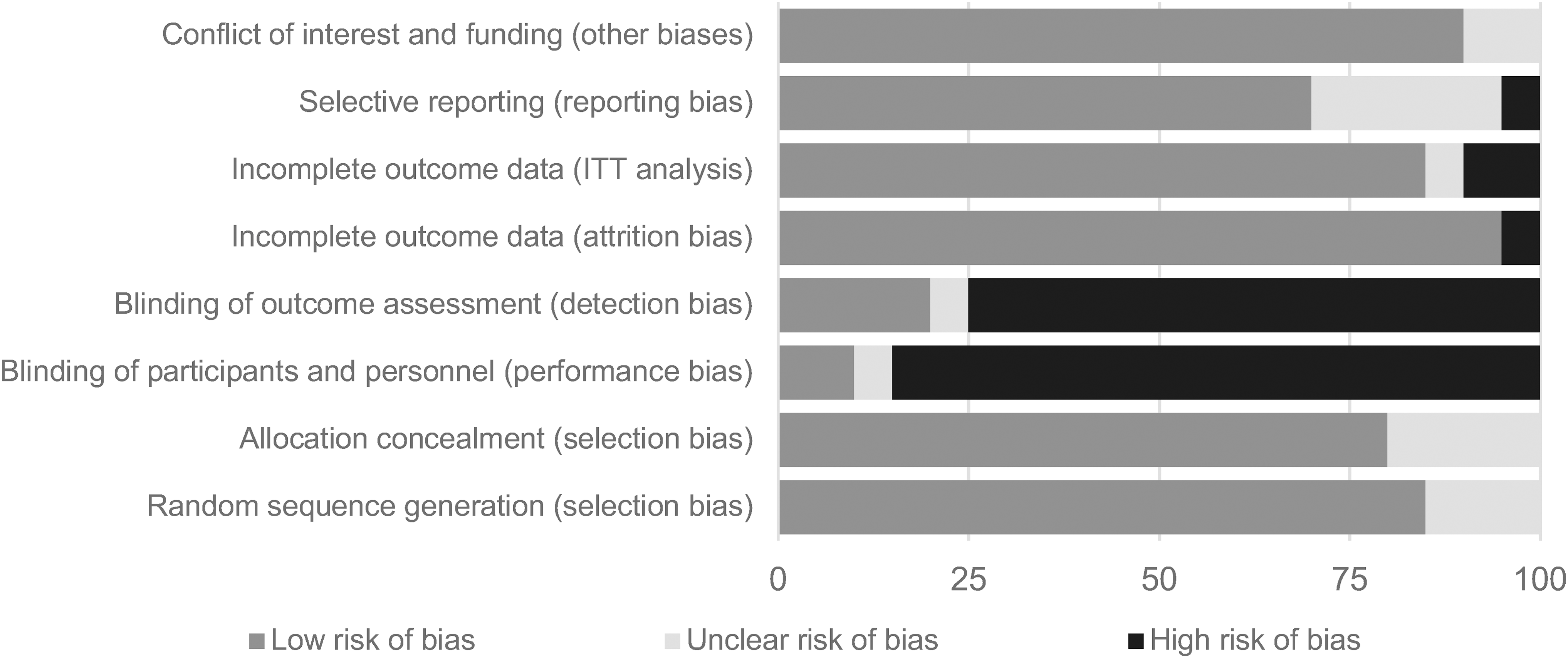

FIG. 3.

Summary of risk of bias items across included studies (%).

Detailed ROB assessments for each reviewed study are provided in Supplementary Appendix SA4 (available online); 13 studies were rated with low risk in all domains except for blinding, which was rated at high risk. For the remaining seven RCTs, at least one item of selection bias was unclear. ^{31,32,45 –47} Two studies did not show ITT estimates ^12,47 and the estimation method was unclear in one other study. ⁴⁶ This latter study was also rated with high attrition bias. No other study obtained a high-risk score in attrition bias. Moreover, one study scored high in risk of selective reporting bias ⁴⁸ whereas five studies showed an unclear bias. ^{12,32,45,49,50} Other dimensions of bias, such as conflict of interest or funding, were unclear in two studies, ^32,42 while all the remaining studies had low ROB results.

Did SMS or IVR promote adherence and retention?

Of the 27 published studies included in our systematic review, 17 (63%) examined the utilization of mobile technology (SMS, voice or both) on adherence while only 5 (18.5%) assessed retention. Another 5 (18.5%) of the studies evaluate both adherence and retention to ART. Adherence was typically defined using self-reports, pill counts, an electronic medication event monitoring system, and/or suppression of viral load. In turn, retention was measured as loss to follow-up (with and without identifiable cause) or the rate of scheduled visits missed.

In total, 56% of the studies found that mobile technology had positive and statistically significant impacts on adherence and retention (n = 15). In contrast, 44% report that using mobile phones was not effective to ameliorate any of these two outcomes in PLHIV (n = 12). If we examine each outcome separately, for adherence, 41% find positive and significant results and 28% insignificant impacts, while 12% of the studies reported positive retention effects and 19% insignificant effects. Note that we have 5 studies that reported both adherence and retention resulting in 10 outcomes plus the 22 studies that reported either retention or adherence. This results in a total of 32 possible outcomes: 22 adherence and 10 retention outcomes, of which 13 and 4 found positive and statistically significant effects, respectively. Overall, the systematic review shows that only about one in two studies has achieved the objective of measurable improvements in ART revealing high variability across studies and outcomes. The findings further suggest that mobile phone-assisted mHealth has higher impacts on measures of adherence than retention. Table 4 presents the results for the main outcomes of the systematic review. Since across studies, a host of different outcome indicators has been chosen, we can only speculate that identifiable impacts might depend, at least to some extent, on the choice of outcome.

Furthermore, the previous literature argues that the lack of positive and statistically significant impacts is linked to the small number of completed RCTs. ⁵¹ Notice, however, that RCT designs represent the dominant evaluation method in our review (74%, 20 of 27 studies). Thus, after restricting our sample to RCT studies as a qualitative robustness test, we find that 60% (12 of 20) show a positive and statistically significant increase of adherence and/or retention to ART. This result is consistent with the findings obtained using the whole sample. There is only a 4-percentage point difference in favor of the randomized studies.

Does our systematic review agrees or disagrees with the wider evidence?

Comparing the results from the present systematic review with previous work confirms both, namely that (1) the impact of SMS and IVR interventions is overall ambiguous, and that (2) there is only scarce evidence of systematic reviews for LMICs. First, a Cochrane review pooling two studies for Kenya finds that SMS messages did not reduce the risk for nonadherence. ¹⁹ These two studies are also included in our systematic review. ^13,44 Second, Govindasamy et al. ²¹ provide a review of 24 studies published between 2004 and 2013 about retention in pre-ART care and initiation of ART from various interventions (not only mHealth) in LMICs. Although that review shows that several interventions produced favorable outcomes in observational cohort studies, it has two caveats compared to our systematic review: (1) it suffers from unclear ROB, and (2) an incomprehensive selection of studies published until 2013. We have included 12 studies published until 2013, however, none of these studies was included in the review by Govindasamy et al. ²¹

Kanters et al. ⁵² show in a meta-analytical research that multiple interventions are significantly better than single interventions to improve adherence. Compared to standard care alone, SMS interventions had positive impacts globally and when only considering LMICs. Overall, the consolidated evidence suggests that while (multiple) interventions can improve adherence and viral suppression, their impact is modest, fades over time, and differs across countries. In similar vein, recent qualitative evidence from India suggests that mobile phone-based counseling for HIV-positive women is well perceived. ⁵³ It is argued that calls might be more acceptable in accompanying ART than SMS.

In sum, our review combines evidence from existing reviews with new studies that were not considered in previous systematic reviews on LMICs. We close an evidence gap as there is scarce evidence rigorously compiling the existing primary studies on mobile phone-assisted mHealth interventions for PLHIV outside developed countries.

In addition, our results can be more readily compared to current findings for developed countries. A recent review of 35 studies carried out in developed countries, including 13 RCTs from the United States, found unclear results for interventions evaluating a wider scope of sexually transmitted diseases and health management (prevention, detection, treatment, and knowledge). ²⁸ Another systematic review of 34 studies (mainly United States, n = 15) indicates that text message interventions improve adherence rates, but this review includes different methods of evaluation and diseases (i.e., asthma, diabetes, heart problems, and schizophrenia). ⁵⁴ It evaluated only six studies involving patients in ART. Similarly, Chaiyachati et al., ⁹ in a review composed of 20 studies mainly from North America, found high variability in the effectiveness of a combination of interventions that include (1) adherence reminders, (2) cognitive-behavioral interventions, (3) education, (4) treatment supporters, and (5) directly observed therapy. Although these five interventions can improve adherence to ART, impacts are not coherent across settings. ⁹ Similarly, Guy et al. ²⁰ find that SMS reminders reduce nonattendance rates and improve medical attendance in a review of 18 studies (mostly) in European countries that were published between 2006 and 2010.

Our systematic review differs in three fundamental points from another systematic review of 28 interventions showing that mHealth provides positive impacts on HIV-outcomes. ⁵⁵ First, our research focuses exclusively on LMICs. In contrast, Cooper et al. ⁵⁵ jointly assess evidence from high- and low-income settings. Most of our primary studies originate from interventions in Africa (63%), while the majority of their studies are from North America (56%). Second and contrary to the earlier review, our review assesses not only adherence but also retention. Third, we extend the timeframe to June 2018 and thus expand it from the earlier end date of October 2016.

After a careful analysis of the existing literature we found that available reviews are restricted to specific types of program implementation, ^28,54 or include only one of the two primary outcomes. ^9,20 Moreover, as outlined above, existing studies about LMICs tend to be limited in scope. ^19,21 Our review differs from previous work as we include all quantitative study designs and the two most commonly assessed outcomes (retention and adherence) of ART interventions.

Limitations

Our review has three main limitations. First, we only compile studies written in English due to challenges reviewing studies in other languages. Including articles in other languages may provide a more holistic representation of mHealth activities. Notably, countries speaking other languages may show different responses to mobile phone interventions. Yet, since English is the main scientific language, we expect that we covered all major studies. Second, we exclusively included studies from LMICs. We took that decision because the health care system and situation of PLHIV are very different in LMICs compared to high-income countries, and we included a short comparison between our study and related systematic reviews for developed countries. We are aware that recently three innovative mHealth interventions for PLHIV have been implemented in the United States using (1) a smartphone app to connect patients to clinic staff and educational resources, ⁵⁶ (2) social media, ⁵⁷ and (3) daily messages plus counseling. ⁵⁸

Finally, we did not conduct a meta-analysis because of the large heterogeneity across studies. We identified many different study designs, intervention types, durations, various measures for similar outcomes, and, in particular, we found that numerous p-values for the reported outcomes were missing.
