SIRT3 Deacetylates ATP Synthase F 1 Complex Proteins in Response to Nutrient- and Exercise-Induced Stress

Abstract

Aims: Adenosine triphosphate (ATP) synthase uses chemiosmotic energy across the inner mitochondrial membrane to convert adenosine diphosphate and orthophosphate into ATP, whereas genetic deletion of Sirt3 decreases mitochondrial ATP levels. Here, we investigate the mechanistic connection between SIRT3 and energy homeostasis. Results: By using both in vitro and in vivo experiments, we demonstrate that ATP synthase F₁ proteins alpha, beta, gamma, and Oligomycin sensitivity-conferring protein (OSCP) contain SIRT3-specific reversible acetyl-lysines that are evolutionarily conserved and bind to SIRT3. OSCP was further investigated and lysine 139 is a nutrient-sensitive SIRT3-dependent deacetylation target. Site directed mutants demonstrate that OSCP^K139 directs, at least in part, mitochondrial ATP production and mice lacking Sirt3 exhibit decreased ATP muscle levels, increased ATP synthase protein acetylation, and an exercise-induced stress-deficient phenotype. Innovation: This work connects the aging and nutrient response, via SIRT3 direction of the mitochondrial acetylome, to the regulation of mitochondrial energy homeostasis under nutrient-stress conditions by deacetylating ATP synthase proteins. Conclusion: Our data suggest that acetylome signaling contributes to mitochondrial energy homeostasis by SIRT3-mediated deacetylation of ATP synthase proteins. Antioxid. Redox Signal. 21, 551–564.

Introduction

An intriguing finding from our previous work (11) and that of others (1) demonstrated that cells lacking Sirt3 exhibited altered mitochondrial metabolism, including a significant decrease in mitochondrial adenosine triphosphate (ATP) levels. Mitochondria are central to aging and age-related diseases such as insulin resistance, neurodegeneration, and carcinogenesis by tightly regulating the reactive oxygen species that are generated as a byproduct of normal respiration activities (25). Chemical reactions in a cell that are critical for the maintenance of cellular viability are thermodynamically dependent on the mitochondria to maintain a mass action ratio of ATP and adenosine diphosphate (ADP) for approximately ten orders of magnitude away from equilibrium. The ATP synthase (F₁F_o ATPase), an evolutionarily conserved protein complex, uses chemiosmotic energy that is stored in a gradient across the mitochondrial inner membrane to convert ADP and orthophosphate to ATP (29). There is a membrane-bound portion (F_o) and a central stalk (F₁) containing a catalytic domain, held by a peripheral stalk stator that extends into the matrix.

Innovation

This work connects the aging and nutrient response, via SIRT3 direction of the mitochondrial acetylome, to the regulation of mitochondrial energy homeostasis under nutrient-stress conditions by deacetylating adenosine triphosphate (ATP) synthase proteins. In this study, using proteomic analysis of both in vitro and in vivo samples, multiple reversible acetyl-lysines were identified in the alpha, beta, gamma, and oligomycin sensitivity-conferring protein subunits of the ATP synthase complex proteins that are evolutionarily conserved. The results presented here suggest that in addition to its role in reactive oxygen species signaling by directing MnSOD activity, SIRT3 can regulate ATP levels by deacetylating the ATP synthase complex.

Rotational energy is generated by protons entering the F_o portion of the ATP synthase complex via a channel or channels between stationary subunit a and a rotary ring consisting of eight c subunits (29). The rotational movement is transmitted through a central stalk consisting of subunits γ, δ, and ɛ. The γ subunit of this asymmetrical stalk interacts with the nonrotating catalytic subunits consisting of 3 each of alternating α and β subunits. The spinning central stalk of the ATP synthase is held in place by an external stalk consisting of oligomycin sensitivity-conferring protein (OSCP), b, F6, and d subunits; OSCP sits at the top of the ATP synthase complex and appears to hold the α and β proteins in specific three-dimensional complexes (20). This stator is flexible, a trait that may have a role in maintaining contact with the rotating portion of the F₁ complex during ATP synthesis as well as in regulating enzymatic function (20).

Lysine acetylation is a reversible and highly regulated post-translational modification that is found in multiple nonhistone proteins (7). Acetylation takes place on lysine residues, neutralizing the positive charges on proteins, subsequently altering the three-dimensional structure as well as changing enzymatic function (14, 19). This process regulates diverse protein properties, including DNA–protein interactions, subcellular localization, transcriptional activity, protein stability, protein–protein interactions, and last, but not least, enzymatic activity (14, 19). Previously, a proteomic survey in mouse liver mitochondria revealed that a large number of mitochondrial proteins are subject to reversible lysine acetylation (13), establishing lysine acetylation as an abundant post-translational modification in the mitochondrion (3, 13). More recent proteomic analyses of lysine-acetylated mitochondrial proteins confirmed this and showed that acetylated proteins are involved in the tricarboxylic acid cycle, oxidative phosphorylation, β-oxidation of lipids, amino-acid metabolism, carbohydrate metabolism, nucleotide metabolism, and the urea cycle (3, 22, 24).

Based on these results, it seems reasonable to suggest that acetylation of mitochondrial proteins may play a role in maintaining and regulating mitochondrial metabolism and function. SIRT3 is the primary mitochondrial deacetylase (16), and genetic knockout of Sirt3 results in decreased cellular ATP levels in vitro and in vivo (1). Thus, we believe it is a logical extension to hypothesize that SIRT3 functions as a mitochondrial regulatory protein, maintaining mitochondrial energy homeostasis via changes in the acetylation status of mitochondrial metabolic proteins, including perhaps those which comprise the ATP synthase complex. This idea would mechanistically connect a metabolic sensing/signaling protein, such as SIRT3, to the direct regulation of ATP synthase. Thus, it seems reasonable to propose that the ATP synthase complex would be a downstream target of SIRT3 in the regulation of energy generation.

Results

SIRT3 deacetylates multiple proteins in the ATP synthase complex

We (12) and others (1) demonstrated that cells lacking Sirt3 exhibit a significant decrease in mitochondrial ATP levels and ATP synthase is a critical enzymatic complex which generates ATP in the mitochondria (28). Thus, it seemed reasonable to propose that SIRT3 may target proteins in the ATP synthase complex as a means of direct regulation of ATP synthase activity. To address this hypothesis, affinity-purified bovine mitochondrial ATP synthase was obtained using a Glutathione S-transferase-tagged inhibitor protein (I_1-60), and two 50 μg samples were resolved by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) followed by either immunoblotting with a pan anti-acetyl-lysine antibody (Fig. 1a, lane 1) or staining with Coomassie (lane 2). These results demonstrate that multiple ATP synthase proteins are acetylated in vivo. These samples were subsequently treated with PCAF, which is an acetyl transferase previously shown to acetylate lysine residues, separated, and immunoblotted with an anti-acetyl antibody (Cell Signaling, Inc.) (lane 3 vs. 4). The PCAF-treated ATP synthase samples from lane 4 were subsequently mixed with recombinant SIRT3 without (lane 5) and with nicotinamide adenine dinucleotide (NAD) (lane 6) for a cell-free deacetylation assay (lane 5 vs. 6). Finally, the samples in Figure 1a, lanes 5 and 6 were isolated and analyzed by mass spectrometry, and these results identified 11 alpha, 6 beta, 3 gamma, and 1 OSCP in vitro reversible acetyl-lysines (Table 1).

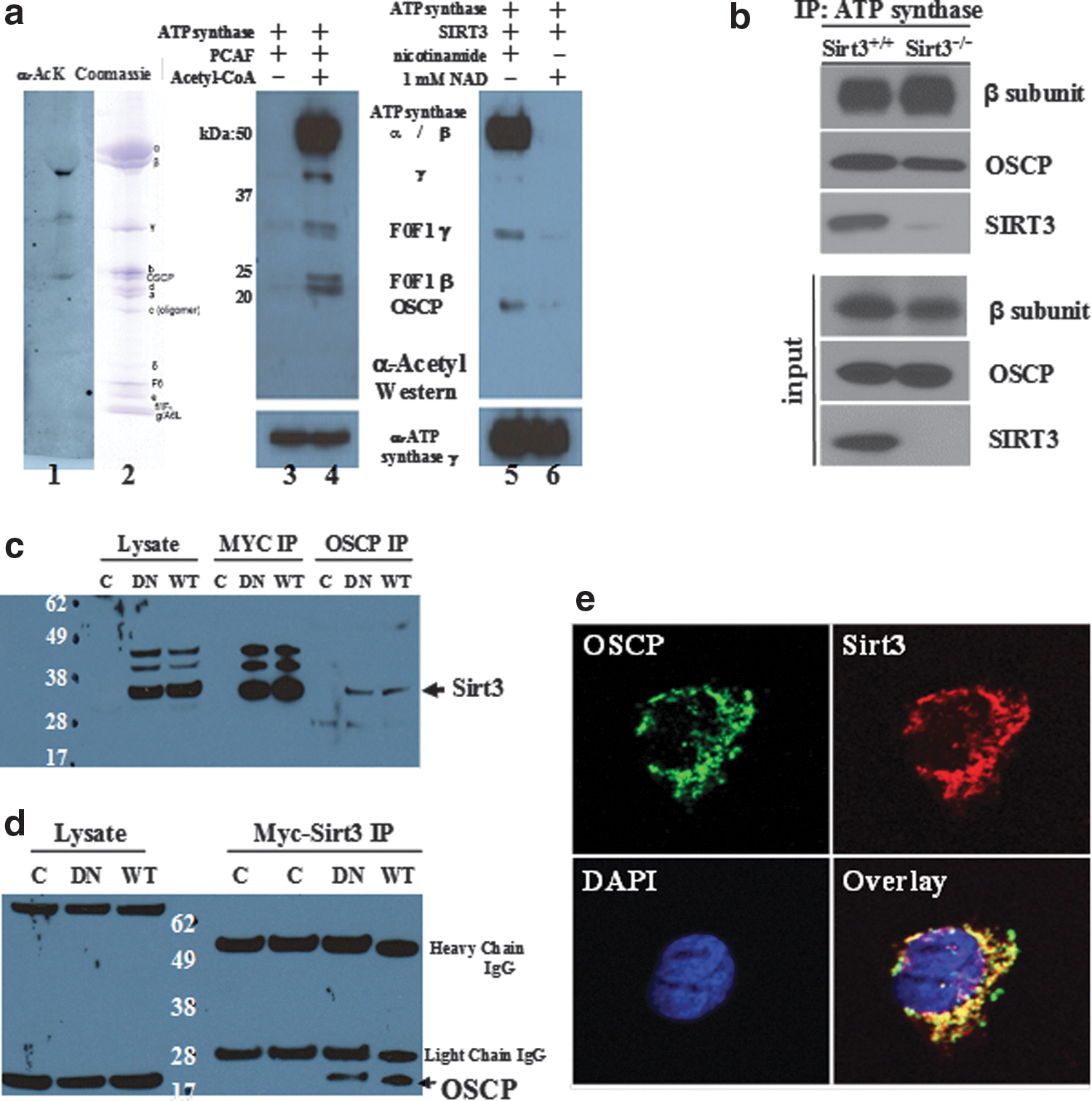

FIG. 1.

The adenosine diphosphate (ATP) synthase complex contains multiple proteins with reversible acetyl-lysines and interacts with SIRT3. (a) Left panel, two 50 μg samples of highly purified bovine F1Fo ATP synthase were separated, transferred, and blotted with an acetyl-lysine antibody (Cell Signaling, Inc.) or stained with Coomassie. Middle panel, purified bovine F1Fo ATP synthase was treated with PCAF and blotted. Right panel, purified bovine F1Fo ATP synthase treated with PCAF was purified, treated with recombinant human SIRT3, and blotted with an acetyl-lysine antibody. (b) Skeletal muscle mitochondrial lysates from Sirt3^+/+ and Sirt3^−/− mice were harvested, IPed with an anti-ATP synthase antibody (Abcam, Inc.), and subsequently immunoblotted with an anti-OSCP antibody (Santa Cruz Biotechnology, Inc.), anti-ATP synthase β subunit (Abcam, Inc.), or anti-SIRT3 antibody (Cell Signaling, Inc.). (c-d) SIRT3 physically interacts with oligomycin sensitivity-conferring protein (OSCP). HCT116 cells were constructed to constitutively express a Myc-tagged SIRT3 gene, and cell extracts were (c) IPed with either an anti-Myc or an OCSP antibody and immunoblotted with an anti-SIRT3 antibody, or (d) IPed with an anti-Myc antibody and immunoblotted with an OCSP antibody. (e) IHC staining with an anti-SIRT3 and anti-OSCP antibody, with the images merged in the lower right section. Representative micrographs are shown.

Table 1.

In Vitro SIRT3 Deacetylation Targets

		Spectral	Count
Amino acid	Sequence	Pre	Post
ATP synthase subunit alpha
132	LIKEGDVVKR	4	1
161	VVDALGNAIDGKGPI	5	0
167	LGNAIDGKGPIGSKT	3	1
230	TSIAIDTIINQKR	5	1
239	FNDGTDEKK	2	0
240	FNDGTDEKKK	3	1
261	RSTVAQLVKR	6	2
427	AMKQVAGTMK	12	4
434	VAGTMKLELAQYR	4	1
531	SDGKISEQSDAKLK	7	2
539	ISEQSDAKLK	4	1
ATP synthase subunit beta
55	AAQASPSPKAGATT	2	0
124	GQKVLDSGAPIRIPV	5	1
197	VVDLLAPYAKGGK	2	0
259	MIESGVINLKDATSK	2	0
426	GVQKILQDYK	4	0
522	KADKLAEEHS	3	1
ATP synthase subunit gamma
89	ADIKAPEDKKK	6	0
138	IKGILYR	4	0
154	THSDQFLVSFKDVGR	3	1
ATP synthase subunit OSCP
139	TVLKSFLSPNQILK	6	1
ATP synthase subunit MnSOD
68	NVTEEKYQEALAK	5	0
122	GELLEAKRDFGS	4	1

In vitro deacetylation assays from cell extracts treated with SIRT3 and sent for mass spectrometry.

Pre, before SIRT3 addition; Post, after SIRT3 addition.

In addition, to identify the presence of in vivo acetylation sites, liver mitochondria were isolated from both Sirt3 wild-type (WT) and knockout mice that were initially tested for protein acetylation levels using a pan anti-acetyl antibody (Supplementary Fig. S1A; Supplementary Data are available online at www.liebertpub.com/ars). After detecting increased acetylation in the Sirt3^−/− mice, samples were in-solution tryptic digested followed by purification of acetylated peptides with immunoprecipitation using an agarose bead-conjugated anti-acetyl lysine antibody. Finally, the enriched acetylated peptides were analyzed by mass spectrometry. Consistent with the in vitro results, multiple peptides corresponding to different ATP synthase subunits were found to be acetylated in vivo in liver mitochondria from Sirt3-deficient mice compared with WT mice (Table 2). These results suggest that the ATP synthase complex, which is critical to the generation of mitochondrial ATP, contains multiple SIRT3 deacetylation targets.

Table 2.

SIRT3 Targets in Wild-Type Versus Sirt 3 ^−/− Liver

	Ac-peptides count
Subunits	Sirt3^−/−	Sirt3^+/+
ATP synthase alpha	132	162
ATP synthase beta	87	75
ATP synthase gamma	67	61
ATP synthase delta	21	22
ATP synthase b	189	161
ATP synthase d	368	298
ATP synthase e	10	10
ATP synthase f	4	4
ATP synthase g	14	8
ATP synthase O (OSCP)	232	152

Acetylated peptides found in wild-type and knockout liver extracts after mass spectrometry.

ATP synthase complex proteins physically interact with SIRT3

In order to connect SIRT3 to the ATP synthase complex, experiments were performed to identify a direct enzyme-substrate interaction. As such, mitochondrial lysates from both Sirt3^+/+ and Sirt3^−/− mice were harvested, immunoprecipitated (IPed) with an anti-ATP synthase antibody (Abcam, Inc.), separated into two equal fractions, and, subsequently, immunoblotted with an anti-ATP synthase β subunit, anti-OSCP (Abcam, Inc.), or anti-SIRT3 antibody (Cell Signaling, Inc.). These results clearly show that SIRT3 interacts with the ATP synthase complex, implying that one or more ATP synthase proteins may be legitimate SIRT3 deacetylation targets (Fig. 1b). It has been previously shown that SIRT1 can regulate transcription of MnSOD, a SIRT3-specific deacetylase substrate (18), suggesting that it is possible that there are redundant pathways between SIRT1 and SIRT3 for regulating mitochondrial proteins. However, after subcellular fractionation, we could not detect any SIRT1 in the mitochondria (Supplementary Fig. S1B), indicating that SIRT1 cannot co-localize with OSCP and ATP synthase in vivo. Moreover, in contrast to the observed interaction of ATP synthase with SIRT3, we could not detect an interaction with SIRT1 (Supplementary Fig. S1C), which excludes the possibility that SIRT1 can regulate ATP synthase by directly affecting post-translational acetylation. To address the idea that SIRT3 deacetylates one or more proteins within the ATP synthase complex, additional experiments focusing on the OSCP ATP synthase complex protein were performed, as OSCP appeared to have only one reversible acetyl-lysine based on our mass spectrometry data and it has been previously considered to play a role in the regulation of ATP synthase activity (21, 28).

Therefore, OSCP was IPed from HCT116 cells genetically altered to overexpress the WT Myc-SIRT3 gene (HCT116-Sirt3-wt) as previously described (9) and a control cell line that lacked overexpression. These samples were subsequently resolved by PAGE, immunoblotted with an anti-SIRT3 antibody, and showed an OSCP interaction with the SIRT3 WT and deacetylation null (DN) mutant (Fig. 1c). A myc-IPed SIRT3 immunoblot was also done as an internal control. In addition, a MYC-IP and anti-OSCP immunoblot confirmed the interaction between these two proteins (Fig. 1d). Finally, HCT116 cells constitutively expressing WT SIRT3 were stained by immunohistochemistry with antibodies to OSCP and SIRT3 (Fig. 1e) or OSCP, SIRT3, and mitotracker (Supplementary Fig. S1B), and these results confirmed that OSCP and SIRT3 co-localize to the mitochondria.

OSCP contains a reversible acetyl-lysine that is deacetylated by SIRT3 and restores ATP levels

To determine whether SIRT3 was capable of deacetylating specific subunits of the ATP synthase, an in vitro deacetylation assay using human recombinant SIRT3 (BioMol, Inc.) and purified bovine OSCP was performed (Fig. 2a). Reaction products were separated by SDS-PAGE and detected with an anti-acetyl antibody showing that the OSCP subunit of the ATP synthase is significantly deacetylated by SIRT3 (lane 1 vs. 2) compared with other subunits. Consistent with this result, the decrease in lysine acetylation was inhibited by either addition of nicotinamide (lane 3), an inhibitor of sirtuin reactions, or removal of NAD+ (lane 4), suggesting that deacetylation is directly due to SIRT3 activity.

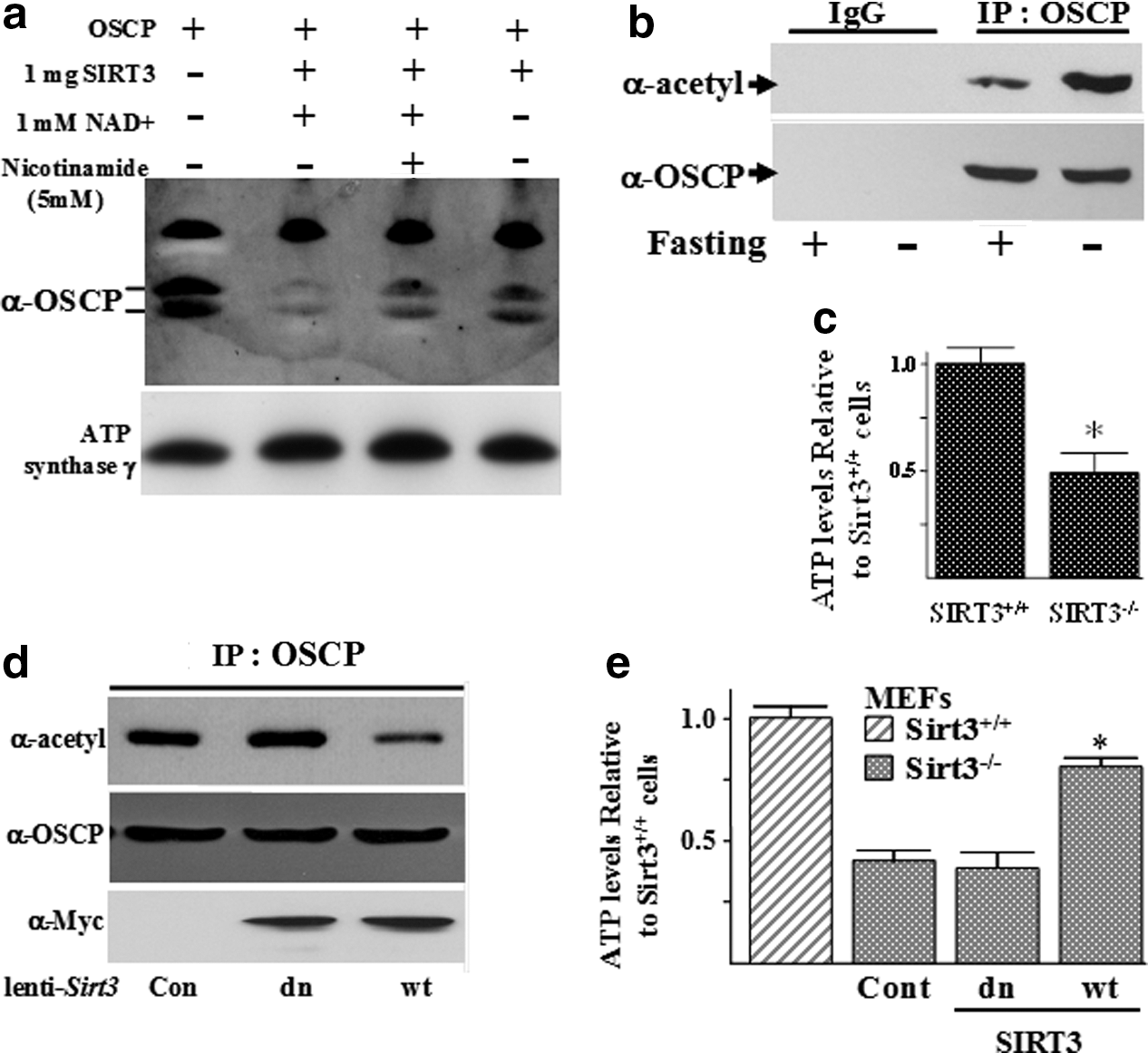

FIG. 2.

Sirt3 knockout cells have increased mitochondrial acetylated protein and decreased ATP levels, and OSCP contains a reversible acetyl-lysine. (a) Bovine purified OSCP was mixed with or without recombinant SIRT3 in the presence or absence of nicotinamide and/or NAD+. After 1 h, samples were separated by PAGE, followed by immunoblotting with an anti-acetyl antibody (Cell Signaling, Inc.). Antibody against ATP synthase subunit γ was used as a loading control. (b) OSCP contains a reversible acetyl-lysine. Livers from isogenic, 3-month-old Sirt3^+/+ mice on an AL diet (−) or fasted for 36 h (+) were harvested, IPed with an anti-OSCP antibody, and immunoblotted with an anti-acetyl antibody or anti-OSCP antibody. (c) Mitochondrial ATP levels in Sirt3 wild-type and knockout cells. Sirt3^+/+ and Sirt3^−/− MEFs were lysed, and ATP levels were measured using a chemiluminescence assay. Data are presented as arbitrary luminescence units for ATP levels as a ratio (or compared with) of the level in Sirt3^+/+ MEFs. (d, e) Re-expression of wild-type, but not a deacetylation null mutant of Sirt3, (d) deacetylates OSCP and (e) restores ATP levels in Sirt3^−/− MEFs. Fifth-passage Sirt3^−/− MEFs were transfected with a control lentivirus (Cont), virus expressing a wild-type Sirt3 (wt), or one expressing the deacetylation null gene (dn) in which amino acid 248 has been changed from a histidine to tyrosine (1). Forty hours after infection, Sirt3^−/− MEFs were harvested and mitochondrial extracts were IPed with an anti-OSCP antibody followed by immunoblotting with an anti-acetyl or anti-OSCP antibody. These extracts were also used to measure ATP levels as described earlier in (b). ATP levels are presented as a ratio compared with the levels observed in Sirt3^+/+ MEFs. The results of all the experiments in this figure were obtained from at least three independent replicates. Representative gels are shown. Error bars represent one standard deviation. *Indicates p<0.05 by t-test.

Further evidence that OSCP contains reversible acetyl-lysine residues was obtained when WT mice were fasted for 36 h, and their livers were harvested and solubilized. These samples were subsequently divided into equal fractions, resolved by SDS-PAGE, and immunoblotted with either a pan anti-acetyl (Fig. 2b, upper panel) or an anti-OSCP antibody (Fig. 2b, lower panel), showing that OSCP acetylation was decreased in the livers from fasting mice. In addition, total mitochondrial protein lysine acetylation was also shown to be increased in the Sirt3 ^−/− mice under normal conditions as well as after fasting (Supplementary Fig. S2B). Finally, ATP levels in the Sirt3 ^−/− mouse embryonic fibroblasts (MEFs) were significantly less than observed in the Sirt3 ^+/+ MEFs (Fig. 2c), as has been shown by others (1, 11).

To determine whether SIRT3 directly deacetylates OSCP, two lentiviruses that express either the WT (lenti-Sirt3-wt) or a DN mutant (lenti-Sirt3-dn) Sirt3 gene (a gift from Dr. Toren Finkel, NHLBI, NIH) in which amino acid 248 was changed from a histidine to tyrosine (1) were used. Sirt3 ^−/− MEFs were infected with these two viruses and a control lentivirus, IPed with an anti-OSCP antibody, divided into equal fractions, resolved by SDS-PAGE, and immunoblotted with either an anti-acetyl (Fig. 2d, upper panel) or an anti-OSCP antibody (Fig. 2d, middle panel). Equal levels of exogenously expressed Sirt3 were confirmed by immunoblotting with an anti-myc antibody (lower panel), as both the WT and the DN Sirt3 genes contained a myc tag sequence. These experiments demonstrated that WT, but not DN Sirt3, decreases OSCP acetylation (Fig. 2d, upper panel, lane 3 vs. 2). Finally, the observed decreased acetylation was associated with increased mitochondrial ATP levels in Sirt3 ^−/− MEFs (Fig. 2e), though not quite to the levels observed in Sirt3 ^+/+ MEFs (hatched bar). These results support the hypothesis that SIRT3 directly deacetylates OSCP and that a change in the acetylation status of at least one ATP synthase complex protein results in an increase in ATP levels.

SIRT3 deacetylates lysine 139 of OSCP

To detect specific lysines that might be direct deacetylation targets for SIRT3, total mouse liver mitochondrial proteins from Sirt3^+/+ and Sirt3^−/− mice were resolved by SDS-PAGE. Bands were excised and individually digested with trypsin before analysis by mass spectrometry in an OrbiTrap mass spectrometer. OSCP was identified in both samples, as expected, but peptides modified by acetylation of lysine 139 were only detected in the Sirt3^−/− samples. Of the 13 most intense peaks in this tandem mass spectrum, 8 are attributable to OSCP fragments. Six peaks correspond to a series of y+ type fragment ions defining a partial amino-acid sequence of K(Ac)SFLS. One peak is a b+ type ion, b2, and an additional peak of high intensity corresponds to the 126.0913 m/z immonium ion produced by the fragmentation of peptides containing ɛ-acetylated lysine and is diagnostic of this modification. The lysine in the K(Ac)SFLS sequence is located at OSCP amino acid position 139 of the mitochondrial cleaved protein (163 for the full-length protein). A representation of the tandem mass spectrum demonstrating the acetylation of lysine 139 in a tryptic peptide is shown (Fig. 3a). In addition, livers from Sirt3^+/+ and Sirt3^−/− mice were harvested, and tandem mass spectrometry showed a significant increase in the acetylation of OSCP lysine 139 in the Sirt3^−/− as compared with the Sirt3^+/+ mice (Fig. 3b).

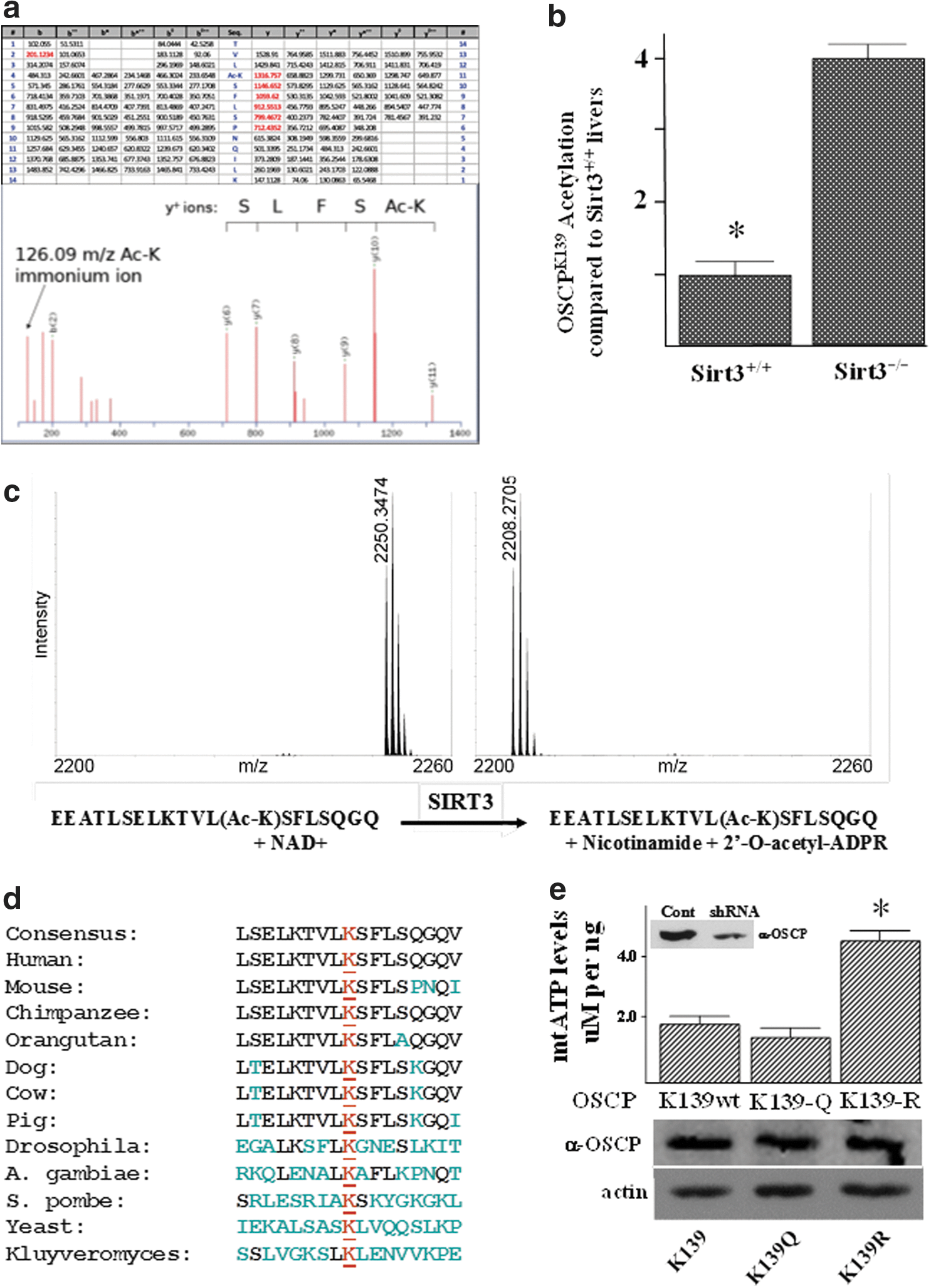

FIG. 3.

SIRT3 deacetylates lysine 139. (a) Tandem mass spectrum from OSCP demonstrates acetylated lysine 139 in vivo. Liver mitochondria from wild-type and Sirt3^−/− mice were resolved by SDS-PAGE followed by in-gel trypsin digestion, separation by nano-scale reverse-phase chromatography on reverse-phase columns, and analysis by OrbiTrap analyzer via an electro-spray interface. The spectrum represents the fragmentation of the peptide with a mass of 1628.9501 corresponding to the sequence TVL(AcK)SFLSPNQILK. (b) OSCP acetylation in Sirt3 wild-type and knockout mice. Livers from Sirt3^+/+ and Sirt3^−/− mice were used to isolate mitochondrial extracts that were used to determine the acetylation levels of OSCP amino acid 139. Data are presented as OSCP^K139 acetylation as compared with Sirt3^+/+ livers. (c) In vitro deacetylation of synthetic peptides. Synthetic peptide, including acetylated lysine, corresponding to the sequence of ATP synthase subunit OSCP (sequence EEATLSELKTVL(AcK)SFLSQGQ), was measured by MALDI-TOF (left). The predicted m/z for acetylated peptide is 2250.57 and for deacetylated peptide, it is 2208.56 m/z. (d) Multiple species contain a potentially reversible acetyl-lysine. The OSCP protein sequence from multiple species was BLASTed based on the reversible acetyl-lysine located at amino acid 139 in humans and mice. A 17-amino-acid motif (LSELKTVLK*SFL-SQGQV) was identified, and this motif is present in multiple species. (e) Deacetylated OSCP increases mitochondrial ATP levels. HCT116 cells expressing an OSCP shRNA (Santa Cruz Biotechnology, Inc.; see inset) were infected with lenti-OSCP^K139, lenti-OSCP^K139-N, or lenti-OSCP^K139-R, and ATP levels were determined as described earlier (Fig. 2c legend). Equal expression of these proteins was determined (lower panel) using an anti-OSCP antibody (Santa Cruz Biotechnology, Inc.). Experiments were done in triplicate, and error bars represent one standard deviation. *Indicates p<0.05 by t-test.

The specificity of this lysine deacetylation was determined using recombinant human SIRT3 and a synthetic peptide (JPT Peptide Technologies) corresponding to a 20-amino-acid OSCP sequence containing lysine 139. This peptide (sequence EEATLSELKTVL(AcK)SFLSQGQ) was incubated with recombinant SIRT3 (BioMol, Inc.) and NAD+, and the reaction was monitored by MALDI-TOF measurement of the peptide mass (Fig. 3c). After incubation of the acetylated synthetic peptide with recombinant SIRT3, all of the peptide was reduced in mass by 42 m/z. A control reaction with nicotinamide (an inhibitor of sirtuins) caused no shift in the signal, nor did a control with NAD+ and no SIRT3 (data not shown). Similar experiments were performed on a related peptide with acetylated threonine instead of a lysine (sequence EEATLSELK(AcT)VLKSFL SQGQ), with no evidence of deacetylation (Supplementary Fig. S3A).

Acetylation status of lysine 139 of OSCP directs ATP levels

OSCP is an old, evolutionarily conserved protein which is present in most species and, as such, if a specific OSCP lysine is an acetylation target in the regulation of enzymatic activity, it seems reasonable that this lysine would be conserved in multiple mammalian and nonmammalian species. A BLAST search demonstrated a conserved 17-amino-acid motif (LSELKTVLK*SFLSQGQV) around the lysine of interest at amino acid position 139 that is present in human, murine, bovine, and yeast species (Fig. 3d). Thus, it seems reasonable to propose that this conserved motif, which has remained roughly intact in multiple species, may be of biological and physiological importance.

It has previously been shown that substitution of a lysine with an asparagine mimics the acetylated lysine state, while substitution with an arginine mimics deacetylation (15, 22, 27). Thus, mutating lysine 139 to arginine would be predicted to mimic a deacetylated lysine, while substitution with an asparagine would be expected to mimic an acetylated lysine (Supplementary Fig. S3B). To determine whether the acetylation status of OSCP may direct, at least in part, some aspect of ATP synthase activity, HCT116 cells were generated that stably express lenti-OSCP^K139 (HCT116-OSCP^K139), lenti-OSCPK^139-R (HCT116-OSCP^K139-R), or lenti-OSCPK^139-N (HCT116-OSCP^K139-N). Silencing of endogenous OSCP expression was accomplished by using shRNA targeting the 3′ untranslated region. These experiments demonstrated that the OSCP^K139-R mutant increased ATP levels (Fig. 3e, upper panel). The levels of exogenously expressed OSCP in these permanent cell lines were roughly equal (Fig. 3e, lower panel). These results suggest that acetylation of OSCP plays a role, at least in part, in regulating ATP synthase activity.

Finally, an examination of the published three-dimensional OSCP structure from the top and the side (Supplementary Fig. S3C, D) shows that lysine 139 is on the matrix-accessible portion of the OSCP protein as well as of the ATP synthase complex. This location is an ideal position in which to interact with other proteins, such as SIRT3. The results of these experiments confirm that OSCP is a SIRT3 deacetylation target in vitro and in vivo, that OSCP lysine 139 is a direct SIRT3 target, and indirectly suggest that at least one ATP synthase protein targeted by SIRT3 can direct energy production by changes in acetylation.

OSCP lysine 139 acetylation changes physiological conditions thought to activate SIRT3

To begin to determine the physiological significance of OSCP acetylation, as well as to confirm lysine 139 as a legitimate deacetylation target, an anti-acetyl-lysine 139 OSCP antibody was made (Epitomics, Inc.). To validate whether this antibody was specific for acetylated OSCP at lysine 139, HEK 293T cells were transfected with a cytomegalovirus (CMV)-based plasmid expressing a Flag-tagged WT OSCP protein. These cells were maintained in 1 μM trichostatin A and after 48 h, the exogenous OSCP was IPed with an anti-Flag antibody. Equal amounts of IPed OSCP were incubated with purified SIRT3 protein (BioMol, Inc.) with or without NAD+, which is required to induce SIRT3 deacetylation activity. These samples were subsequently separated and incubated with the anti-acetyl-lysine 139 OSCP antibody. These experiments demonstrated that OSCP immunoreactive protein is decreased in the sample containing SIRT3 and NAD+ as compared with the samples incubated without NAD+ (Fig. 4a, lane 2 vs. 1). These in vitro experiments were repeated with 2 h of preincubation with the 13-amino-acid lysine 139 acetylated peptide (Ac-peptide) that was initially used to make the antibody (Fig. 4a, lanes 5 and 6) or an identical control 13-amino-acid peptide which lacks an acetyl molecule at position 139 (lanes 3 and 4). Incubation with the acetylated peptide, but not with the control, nonacetylated peptide, prevented immunostaining with the anti-OSCP^Ac-K139 antibody. These results indicate that this antibody is specific for acetylated lysine 139 and that SIRT3 deacetylates OSCP in an in vitro/cell-free experimental model system.

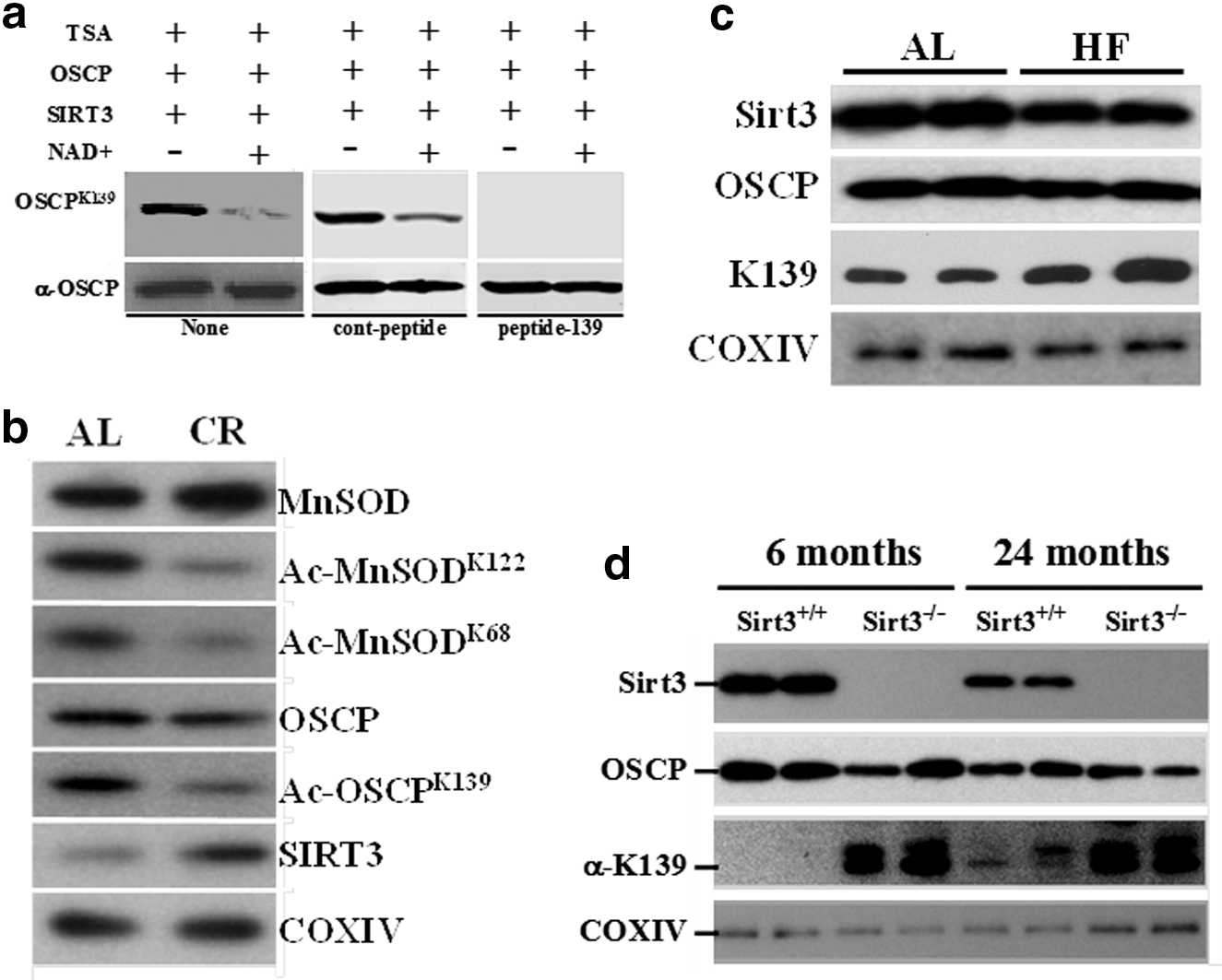

FIG. 4.

OSCP contains a physiologically relevant reversible acetyl-lysine under cell stress. (a) Validation of an OSCP lysine 139 anti-acetyl antibody. A Flag-tagged OSCP expression vector was transfected into HEK 293T cells that contained Trichostatin A (TSA) (1 μM) and after 48 h, Flag-OSCP was IPed with an anti-Flag antibody (Sigma, Inc.). The samples were subsequently washed and incubated with purified SIRT3 protein without (lane 1) or with (lane 2) NAD. After 2 h, mixtures were immunoblotted with an anti-Ac-OSCP^K139 antibody (Epitomics, Inc., - The Rabbit Monoclonal Antibody Company). Identical experiments were done with the 13-amino-acid lysine 139 acetylated peptide (peptide-139) or the control nonacetylated peptide (cont-peptide). (b) OSCP contains a CR-dependent, reversible acetyl-lysine. Livers from isogenic, 2-month-old age-matched Sirt3^+/+ and Sirt3^−/− mice that were placed on a CR diet for 12 weeks were harvested and mitochondrial extracts were isolated, separated, and subsequently blotted with antibodies to MnSOD, Ac-MnSOD^K122, Ac-MnSOD^K68, OSCP, Ac-OSCP^K139, SIRT3, and COXIV. (c) Wild-type mice were placed on a high-fat “Western diet” (TD.88137; Harlan Teklad) as previously shown (30); livers were processed as described earlier, and samples were stained with antibodies to SIRT3, OSCP, Ac-OSCP^K139, and COXIV. (d) Skeletal muscle from isogenic, 6- and 24-month-old age-matched Sirt3^+/+ and Sirt3^−/− mice were harvested, and mitochondrial extracts were isolated, separated, and blotted with antibodies to SIRT3, OSCP, Ac-OSCP^K139, and COXIV.

To determine whether OSCP lysine 139 is deacetylated by SIRT3 in vivo, OSCP acetylation status was checked under conditions of nutrient stress. Since SIRT3 activity is induced by calorie restriction (CR), it seemed reasonable to determine the acetylation status of OSCP by using the OSCP^Ac-K139 antibody. Two additional anti-acetyl-lysine antibodies to MnSOD lysines 68 and 122, which are also SIRT3-dependent reversible acetyl-lysines (2, 27), were used as controls. A decrease in OSCP acetylation was observed using the anti-OSCP^Ac-K139 antibody in WT mice on CR as compared with control mice that were fed an ad libitum diet (Fig. 4b). Similar results were observed using the anti-MnSOD^Ac-K68 and -MnSOD^Ac-K122 antibodies, demonstrating that OSCP and MnSOD are physiological SIRT3 deacetylation targets. Similar results were also obtained when comparing the WT and Sirt3 knockout mice that were fasted for 36 h (Supplementary Fig. S4).

It has previously been shown that SIRT3 activity is reduced in mice fed a high-fat diet (HFD), and consistent with this idea, WT mice fed an HFD for 2 months exhibited an increase in OSCP acetylation (Fig. 4c), strongly suggesting a decrease in SIRT3 enzymatic activity. Moreover, higher acetylation of OSCP was detected in the skeletal muscle of Sirt3^−/− mice, as compared with Sirt3^+/+ mice (3rd panel, lanes 3,4 vs. 1,2 and lanes 7,8 vs. 5,6), by using an anti-K139 OSCP antibody, implying that there is a strong correlation between SIRT3 levels and acetylated levels of OSCP. With regard to total levels of OSCP, we could detect some variation in the total protein levels between different mice, but still the difference in the levels of acetylated OSCP between the Sirt3^−/− and Sirt3^+/+ mice was significant regardless of the total levels of OSCP. This seems reasonable, as we could not find any role of SIRT3 in regulating protein levels of OSCP. Finally, it has also been proposed that sirtuin protein activity decreases with increasing age (22, 24). To address this idea, skeletal muscle samples were taken from WT mice of different ages, and immunoreactive anti-OSCP^Ac-K139 protein levels were determined. These experiments demonstrated an increase in OSCP acetylation in WT mice at 24 months (Fig. 4d, lanes 5–6) versus those at 6 months of age (lanes 1–2), suggesting that SIRT3 deacetylation of OSCP in vivo decreases with increasing age.

Sirt3^−/− mice exhibit decreased muscle endurance

The results cited earlier suggest that OSCP acetylation affects, at least in part, the ability of the ATP synthase enzyme to provide energy for the cell through the synthesis of ATP. Since OSCP was strongly detected in skeletal muscle of Sirt3^−/− mice, we wanted to determine the role of this phenomenon under energetically demanding conditions. For this purpose, we challenged both WT and Sirt3-deficient mice with involuntary physical exercise, testing muscle endurance by running on a treadmill to exhaustion. After acclimatization, mice were run with a protocol using increasing slope and speed until they were unable to run on the treadmill despite electric shocks. Six- and 12-month-old control animals ran an average of 7.1 and 5.3 min longer than the knockout mice: an average of 20.8 min for the controls versus 13.7 min for the knockout 6-month-old mice and 17.3 min for the control versus 12.0 min for the 12-month-old knockout mice (Fig. 5a).

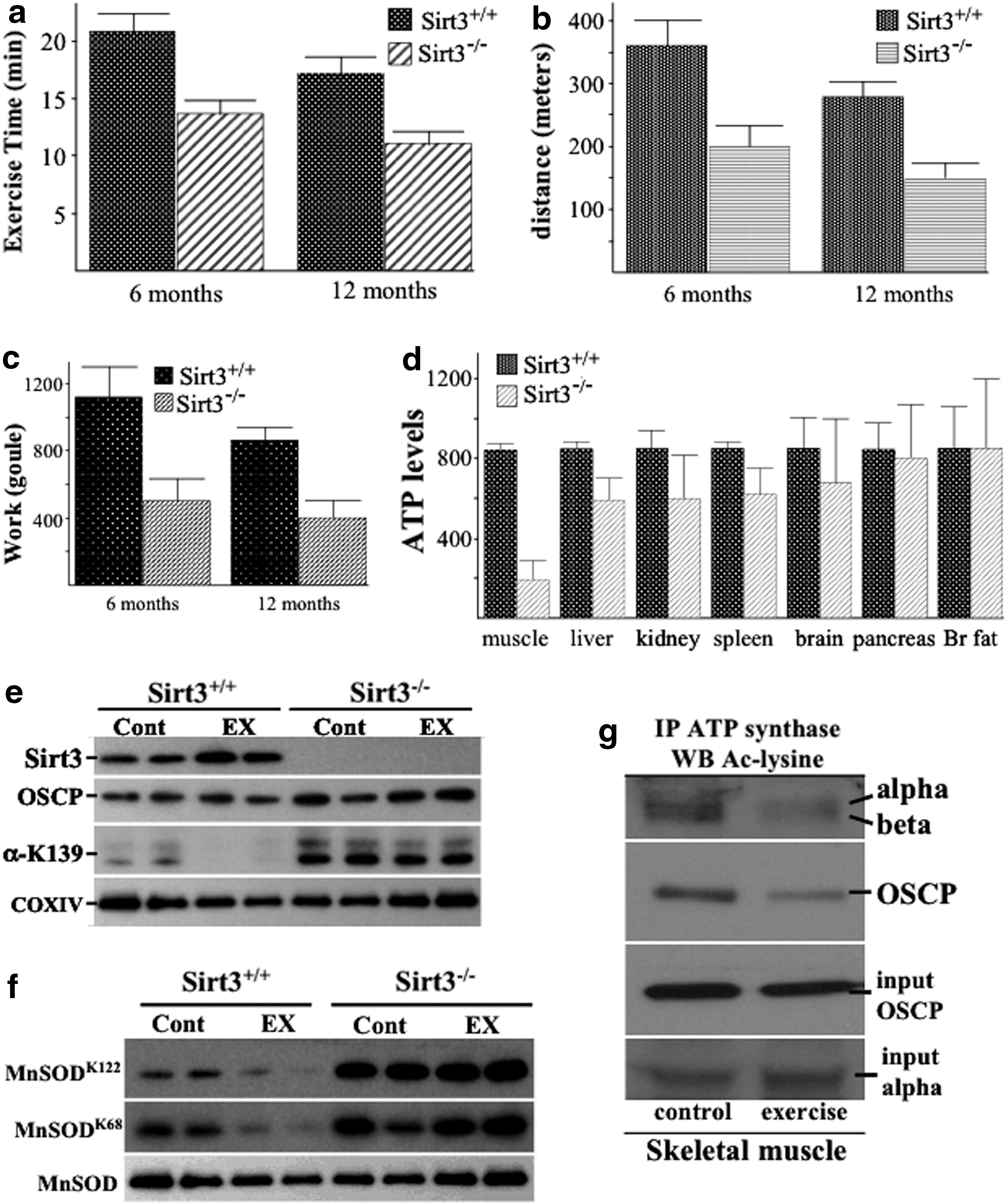

FIG. 5.

Sirt3^−/− mice exhibit decreased muscle endurance and OSCP is deacetylated in wild-type exercised mice. (a–c) After acclimatization, mice were run on a treadmill with increasing speed and slope to exhaustion. Time (a), distance (b), and work (c) were calculated from the individual performances. Bars represent mean values, and error bars represent standard error. (d) Several tissues were harvested from Sirt3^+/+ and Sirt3^−/− mice, and ATP was measured using the ATP determination kit from Molecular Probes. Data are presented as ATP levels measured in Sirt3^−/− tissue as compared with the Sirt3^+/+ tissue controls. (e, f) Skeletal muscle from isogenic Sirt3^+/+ and Sirt3^−/− mice both before exercise (Cont) and immediately after exercise (EX) were harvested and mitochondrial extracts were isolated, separated, and subsequently blotted with antibodies to (e) SIRT3, OSCP, Ac-OSCP^K139, and COXIV or (f) with antibodies to Ac-MnSOD^K122, Ac-MnSOD^K68, and MnSOD. (g) The same samples used earlier were also used to immunoprecipitate the ATP synthase complex (see Fig. 1b), and these samples were immunoblotted with a pan-anti-acetyl antibody (Cell Signaling, Inc.). Representative blots are shown, and experiments were done in triplicate.

The difference in running distance was even greater, as the running protocol increased speed with increasing time (Fig. 5b). Sirt3^−/− mice covered an average distance of 200.6 and 166.2 meters at 6 and 12 months of age, respectively, whereas control mice ran averages of 358.9 and 277.1 meters (a difference of 44% and 40%, respectively). Finally, the total work performed by control animals was also higher than that of knockouts (Fig. 5c). Control mice used energy equivalent to 1109 J (6 months old) and 847 J (12 months old), whereas the average work of Sirt3-deficient mice of the same age was 499 J and 427 J (a difference of 55% and 49%, respectively). In summary, all the parameters obtained from the treadmill running experiment describing muscle endurance were significantly lower for Sirt3^−/− mice compared with control mice. Since the Sirt3 mutant mice used in these experiments were whole body knockout mice, we wanted to exclude the fact that the observed phenotypic differences could reflect additional defects in heart function. Under both basal and stressful conditions, such as beta-adrenergic stimulation where rapid increase in energy demand is needed, no difference in heart or cardiovascular function was found between Sirt3 WT and mutant mice (Supplementary Fig. S5A, B).

Interestingly, in accordance with the decreased muscle endurance in the Sirt3^−/− mice, a significant decrease in ATP levels was observed in skeletal muscle compared with other tissues (Fig. 5d), as well as increased acetylated levels of OSCP, detected by using our anti-OSCP^Ac-K139 antibody. More specifically, OSCP was deacetylated in the WT mice upon exercise (Fig. 5e, lanes 3–4 vs. 1–2), implying that SIRT3-mediated deacetylation of OSCP enhances ATP synthase enzymatic activity in order to help mice meet the energy demands of the muscle. In contrast, no difference was observed in the mice lacking Sirt3 (lanes 5–6 vs. 7–8), which, as expected, were found to contain hyper-acetylated OSCP. The same pattern was observed when acetylated levels of MnSOD were checked (Fig. 5f), indicating that acetylation of OSCP follows changes in SIRT3 activity and that OSCP is a specific SIRT3 target in the mitochondrion. In this context, this is a proxy for SIRT3 enzymatic activity and acetylation of the ATP synthase proteins, when skeletal muscle was isolated immediately after the treadmill experiment.

In addition, we assessed the respiratory profile in both C2C12-differentiated myotubes and C2C12-differentiated cells with stable knockdown of Sirt3 (Supplementary Fig. S6A) using a Seahorse Flux Analyzer. These experiments demonstrated a decrease in basal respiration, coupled respiration, and maximum respiration (Supplementary Fig. S6B, C) in shSirt3 cells, as compared with controls. Interestingly, we could not see any difference in the levels of uncoupled respiration between control and shSirt3 myotubes. These results are consistent with our data showing that acetylation of ATP synthase, including OSCP, decreases the function of the complex, resulting in decreased mitochondrial respiration and ATP production.

To exclude the fact that the difference in ATP levels in skeletal muscle was due to the different number of mitochondria in the Sirt3^+/+ and Sirt3^−/− mice, we determined the total number of mitochondria in skeletal muscle, as estimated by real-time quantitative polymerase chain reaction (qPCR) of mitochondrial-encoded genes (NADH dehydrogenase 2, ATP synthase 6, and cytochrome oxidase subunit II) versus nuclear-encoded 18S rRNA. These results indicate that the decrease in skeletal muscle ATP levels in the Sirt3^−/− mice cannot be attributed to the different number of total mitochondria (Supplementary Fig. S7A). Furthermore, when we compared the shctr-differentiated C2C12 myotubes with the shSirt3-differentiated C2C12, no difference in the total number of mitochondria was observed, despite the difference in mitochondrial respiration (Supplementary Fig. S7B), which is in accordance with previously published data (10), thus confirming that SIRT3-mediated deacetylation of ATP synthase regulates its function.

Though these results showed changes in OSCP, we thought it would be informative to perform a more complete in vivo investigation of the ATP synthase complex in the skeletal muscle of mice undergoing exercise, as compared with control mice. As such, skeletal muscle from control and exercised mice was harvested, and mitochondrial extracts were prepared, IPed with an anti-ATP synthase antibody, separated, and immunoblotted with a pan-anti-acetyl antibody. These results showed that exercise stress-induced reversible acetyl-lysine(s) are present in ATP synthase α and β complex proteins (Fig. 5g). These results, along with the Western blotting with lysine-specific antibodies to OSCP and MnSOD, suggest that exercise activates SIRT3 to deacetylate ATP synthase complex proteins.

Finally, one outstanding critical question is: Are these lysines also altered or deacetylated in humans undergoing a decrease in nutrient consumption? To address this, samples were compared from patients before and after bariatric surgery, representing an indirect method to investigate changes in human nutritional status. Specifically, percutaneous muscle biopsies of the vastus lateralis muscle from bariatric surgery patients both preoperative and 6 months postoperative were obtained by conchotome with IRB approval. Proteomic results identified several reversible acetyl-lysines in ATP synthase α (two lysines, 167 and 434), β (one lysine, 197), and γ (one lysine, 138), as well as changes in OSCP (lysine 139) and MnSOD (lysines 68 and 122) (Table 3). Finally, to determine a commonality between the different lysines that were altered, as shown earlier (Tables 1 –3), a bioinformatic analysis was done to identify potential evolutionarily conserved lysines in the ATP synthase complex F₁-protein. ATP synthase α lysines K132, K161, K167, K427, K434, and K539; ATP synthase β lysines K197 and K259; and ATP synthase γ lysines K136, K138, and K154 were found to be conserved in multiple species, including rodent, primate, fish, and Caenorhabditis elegans (Supplementary Fig. S8). Thus, the results presented earlier clearly show that the ATP synthase complex contains multiple SIRT3-dependent reversible acetyl-lysines that are deacetylated under conditions of exercise stress as well as potentially other forms of cellular or nutrient stress.

Table 3.

Acetylation Changes in Human Muscle

		Spectral	Count
Amino acid	Sequence	Pre	Post
ATP synthase subunit alpha
167	LGNAIDGKGPIGSKT	3	0
434	VAGTMKLELAQYR	4	0
ATP synthase subunit beta
197	VVDLLAPYAKGGK	4	0
ATP synthase subunit gamma
138	IKGILYR	4	1
ATP synthase subunit OSCP
139	TVLKSFLSPNQILK	3	0
ATP synthase subunit MnSOD
68	NVTEEKYQEALAK	7	2
122	GELLEAKRDFGS	3	0

Samples from human patients before and after bariatric surgery.

Pre, preoperative; Post, six months postoperative.

Discussion

One intriguing finding from our and others' previous work was that cells lacking Sirt3 exhibited altered mitochondrial metabolism, including a significant decrease in mitochondrial ATP levels (1, 11, 26). These results suggest a potential connection between the regulation of ATP production and SIRT3. In this regard, SIRT3 is the primary mitochondrial deacetylase (16), and lysine acetylation has recently emerged as an important, and perhaps critical, post-translational modification that is employed to regulate mitochondrial proteins (3, 22). In addition, large-scale mass spectrometry screening pre- and postcaloric restriction identified reversible acetyl-lysines in 72 mitochondrial proteins from a wide variety of metabolic pathways (23). Based on these results, it seems reasonable to suggest that deacetylation of mitochondrial proteins by SIRT3 may play a role in maintaining and regulating mitochondrial metabolism and function.

A fundamental paradigm in biology is the presence of intracellular sensing proteins that recognize specific cellular conditions and initiate post-translational signaling cascades (6), and these pathways activate the cellular machinery which maintains cellular homeostasis. The most common example of this is the cytoplasmic activation of kinases that phosphorylate a series of downstream targets in response to different environmental conditions, thereby minimizing any potentially permanent cellular detrimental effects (5). The results presented earlier support this hypothesis, and along with recent findings (11), suggest that mitochondrial sirtuins, including SIRT3, may function as energy requirement sensing proteins whose loss of function may result in a damage-permissive phenotype which leads to aberrant mitochondrial function. These results also suggest, but do not definitively prove, that the mitochondria may contain processes which sense cellular energy states and engage signaling processes to match energy requirements to energy demands, including, but not limited to, regulation of the F₁ portion of the ATP synthase complex.

The active site in the ATP synthase complex is formed by subunits α and β, which are in close proximity to subunits γ and OSCP. These proteins project out of the inner mitochondrial membrane, are matrix accessible, and would seem to be ideal as targets of SIRT3 as well as for directing the enzymatic activity of the ATP synthase complex. Functional experiments were limited to OSCP, which is the location of contact between the peripheral stator stalk and the enzymatically active α and β subunits, but they may serve as a window into the overall function of the ATP synthase complex. Indeed, small alterations in or removal of OSCP can decouple the ATP synthetic activity of the complex from the proton motive force (20). However, it should be mentioned that mitochondrial production of ATP is dictated by several flux control pathways, including adenine-nucleotide translocase, phosphate transporter, and substrate transporters, to name a few. As such, it seems likely that these and other pathways and factors may also be SIRT3 targets or whose function may be indirectly altered by changes in mitochondrial acetylation.

Since OSCP lysine 139 is a part of a beta-helix that interacts with neighboring subunit b, modification of this residue could reasonably alter activity of the ATP synthase complex. Given that x-ray crystallography and intact mass spectrometric measurement of the molecular mass of this subunit have failed to detect ɛ-acetylation of any lysine in OSCP, either lysine 139 is acetylated in a small proportion of intact ATP synthase molecules at any given time, or else, this lysine is acetylated at times other than when this protein is assembled into a fully formed and functional ATP synthase complex. For example, a modification present in only a small percent of protein complexes could be associated with a secondary function such as uncoupling from the proton motive force or for assembly or disassembly of the complex.

Interestingly, the role of SIRT3 in regulating energy homeostasis by deacetylating ATP synthase is apparent when high energy demand is needed for the cells. In this regard, the Sirt3 knockout mice do not show an energy-related phenotype under normal conditions; however, these mice exhibit decreased muscle endurance under energetically demanding conditions such as running on a treadmill till exhaustion. This phenomenon is associated with the detection of elevated levels of acetylated OSCP, highlighting the contribution of acetylation-mediated dysfunction of ATP synthase to this phenotype. Interestingly, in a recent study, it was shown that muscle-specific Sirt3-deficient mice did not exhibit any difference in the endurance exercise (4). While comparing studies is complex, the experiments presented by these authors differed in several critical ways. For example, the mice used for their exercise experiments were 8-week-old mice whereas the mice used in our experiments were at least 6 months of age, and using younger mice may explain the lack of a measurable phenotype. Moreover, their exercise data were acquired using a 5-degree incline with increasing speed, while our exercise experiments used an initial conditioning step followed by exercise that increased both incline and speed, producing a more intense skeletal muscle cell stress. While our work confirms the marked global hyperacetylation found in both the muscle and liver-specific Sirt3-deficient mice, this new SIRT3 exercise-deficient phenotype that is now added to other results showing altered oxidative stress, carcinogenesis, HFD-induced obesity, and insulin resistance (2, 8, 11, 22, 24, 27). Finally, in the last few years, it has been proposed that changes in the acetylome (18) as well as altered Sirtuin biology (17) may alter the physiology of the inflammasome and this raises an intriguing idea: Are the phenotypes observed in mice lacking Sirt3, or other Sirtuin knockout mice, at least in some part, due to the aberrant regulation of the inflammasome?

In conclusion, the results presented here clearly demonstrate that the F1 portion of the ATP synthase complex contains multiple SIRT3-dependent reversible acetyl-lysines that are altered in several conditions of metabolic stress, including exercise, CR, fasting, and HFD, in both mice and human samples. While more mechanistic experiments to determine that these other reversible acetyl-lysines in ATP synthase α, β, and γ will have to be confirmed, we would suggest that it seems reasonable to propose that acetylation plays a significant role, at least in part, in directing ATPase activity and that SIRT3 is at least one upstream sensing factor directing the acetylation status of these proteins.

Materials and Methods

Cell lines and purification of protein extracts

MEFs were isolated from E14.5 isogenic Sirt3^+/+ and Sirt3^−/− mice and maintained in a 37°C incubator with 5% CO₂ and 6% oxygen. Sirt3 ^+/+ or Sirt3 ^−/− MEFs (11) were infected at passage 3 with lentiviral vectors expressing either the WT or a DN Sirt3 gene (1), made by Applied Biological Materials, Inc. Levels of exogenous SIRT3 and OSCP were confirmed by Western blot analysis and PCR analysis (data not shown). The HCT116-OSCP^K139, HCT116-OSCP^K139-R, and HCT116-OSCP^K139-N cells were constructed by co-infecting cells with a lentiviral system expressing WT OSCP or-site directed mutants where OSCP amino acid 139 was changed to an arginine, which mimics a deacetylated lysine (HCT116-OSCP^K139-R) or changed to an asparagine, which mimics an acetylated lysine (HCT116-OSCP^K139-N). C2C12 cells were maintained in high-glucose DMEM (Invitrogen) containing 10% fetal bovine serum. For differentiation into myotubes, after confluency, cells were cultured in DMEM with 2% horse serum. Sirt3 shRNA lentiviral constructs were purchased from Thermo Scientific (TRCN0000039329, TRCN0000039331, and TRCN0000039332), and empty pLKO.1 vector was used as a control. Stable Sirt3 knockdown and shRNA control cell lines were generated by viral transduction of C2C12 myoblasts and selection with puromycin.

Mitochondria were solubilized with 1% w/v DDM and diluted to a protein concentration of 5.5 mg/ml. IP was performed using either an antibody already cross-linked to beads or a free antibody. IPed samples were divided into equal samples, separated by SDS-PAGE, and immunoblotted with anti-acetyl (Cell Signaling, Inc.) and anti-OSCP antibodies.

Statistical analysis

All experiments were done at least in triplicate. Data were analyzed by Student's t-test, and results were considered significant at p<0.05. Results are presented as mean±SD.

Mouse tissues

All work with mice was performed at the National Cancer Institute, National Institutes of Health, Bethesda, Maryland, USA, and was approved by the NCI's Animal Care and Use Committee as described in protocol NCI ROB-118 (NCI Radiation Oncology Branch Protocol 118).

Immunoprecipitation, transfections, and immunoblot analysis

IP with anti-OSCP and anti-SIRT3 antibodies and the subsequent western analyses were done as previously described (11). The control for these IP experiments is normalized to rabbit IgG as well as immunoblotting with the control, IPed antibody. Transfections of pCMV-OSCP^K139 (WT), pCMV-OSCP^K139-R, or pCMV-OSCP^K139-N were done as previously described (11). Blots were incubated with horseradish peroxidase-conjugated secondary antibody, analyzed using an ECL protocol (Amersham Biosciences), and visualized in a Fuji Las-3000 dark box (FujiFilm Systems).

Measurement of mitochondrial ATP levels

ATP levels were monitored using a CellTiter-Glo Luminescent Cell Viability Assay as per the manufacturer's instructions (Promega). CellTiter-Glo was added to 10⁶ cells and placed on an orbital shaker to induce cell lysis, and samples were read on a chemiluminescence plate reader (Tecam Safire; integration time of 1 s). Data are presented as mean±SE of luminescence readings from three separate experiments.

Mass spectrometry-based proteomics and analysis

Anti-MnSOD immune complexes from Sirt3^+/+ and Sirt3^−/− mouse liver were separated by SDS-PAGE (4%–20% acrylamide) and stained with colloidal Coomassie Blue G-250 (Invitrogen). Samples were de-stained with 100 μl of 50% acetonitrile and 50 mM ammonium bicarbonate. A prominent 22 kDa band present in each gel lane was excised, finely diced, reduced with 45 mM DTT for 20 min at 55°C, alkylated with 100 mM iodoacetamide for 30 min at room temperature, and digested overnight at 37°C with trypsin. Peptides were extracted with two rounds of 60% acetonitrile and 0.1% trifluoroacetic acid and were then lyophilized to dryness. Digests were resolubilized in 15 μl of 0.1% formic acid and analyzed by liquid chromatography-tandem mass spectrometry (LC-MS/MS). For LC-MS/MS analysis and co-IP methods, see the “Supplementary Methods” section.

Immunohistochemical staining

HCT116 cells were grown on cover slips to a confluency of ∼50%. Mitotracker (Invitrogen) was prepared in McCoy media at a concentration of 250 nM and applied to the cover slips for 30 min. Cells were washed once with McCoy media and once with phosphate-buffered saline (PBS). Cells were fixed with 3.7% formaldehyde for 5 min, permeabilized with 0.1% Triton X-100 for 10 min, and blocked with 10% goat serum for 30 min, all of which were prepared in PBS. Primary antibodies were applied at a dilution of 1:100 in 10% goat serum for 1 h. Secondary antibodies conjugated to either 568 or 488 fluorophore (Invitrogen) were applied at a dilution of 1:1000 for 1 h, and Hoechst 33342 was applied at a concentration of 2 ng/μl for 10 min. Three washes with PBS were performed between each new application. Cells were imaged utilizing a Zeiss laser scanning microscope (510 META) and the Zeiss software package.

Footnotes

Acknowledgments

DG is supported by NCI-1R01CA152601-01, 1R01CA152799-01A1, 1R01CA168292-01A1, and BC093803 from the Department of Defense and a Hirshberg Foundation for Pancreatic Cancer Research Seed Grant Award. C-XD was supported (in part) by the Intramural Research Program of the NIDDK/NIH. TA is supported (in part) by the Intramural Research Program of the NCI and CCR/NIH. JDP is supported by NIA F30AG030839. The authors thank Mike Runswick, MBE, for providing bovine heart ATP synthase. They also thank Kamburapola Jayawardena and Mike Harbour for technical assistance with mass spectrometry. They are grateful to Melissa Stauffer, PhD, of Scientific Editing Solutions, for editorial assistance.

Author Disclosure Statement

No competing financial interests exist.
