CD36 Upregulation Mediated by Intranasal LV-NRF2 Treatment Mitigates Hypoxia-Induced Progression of Alzheimer's-Like Pathogenesis

Hypoxia treatment aggravates learning deficits in aging APP/PS1 mice

Two-, six-, and 12-month-old male, APPswe/PSEN1dE9 (APP/PS1) double-transgenic (Tg) mice and age-matched, male, WT C57BL/6 mice received hypoxia treatment (Hypo) once daily for 2 months, after which behavioral testing was performed. Morris water maze (MWM) and Y-maze tests were used to assess the effects of hypoxia treatment on learning and memory. As illustrated in Figure 1, mice were tested for 8 consecutive days using the MWM trial and three-arm radial Y-maze.

OPEN IN VIEWER

FIG. 1.

Hypoxia treatment impairs the spatial learning and memory in the aging APP/PS1 mice. Two-, six-, and 12-month-old double APP/PS1 transgenic (Tg) and age-matched wild-type (WT) C57BL/6 mice were treated with hypoxia intervention (Tg+Hypo, WT+Hypo) or control conditions (Tg, WT) for 2 months. (A, B) The Morris water maze (MWM) was performed at varying ages after hypoxia intervention. The procedure consisted of 2 days of visible platform tests, 5 days of hidden platform tests, and 1 day of probe trials. (C, D) Y-maze test for spatial learning and memory showed the novel arm entries and percentage of time spent in the novel arm during the trial of the mice. **p<0.01 versus WT group, ^## p<0.01 versus Tg group, ^$$ p<0.01 versus WT+Hypo group by repeated-measures analyses of variance (ANOVA) (n=8 in each group). Data are represented as mean±standard error of the mean values (SEM).

In the MWM trial, the mean swimming velocity, escape latency to the platform, the path length of each trial, and the passing times that the mouse crossed the invisible platform were recorded. All mice of different genotypes were able to swim in a coordinated way. During the first 2 days of MWM testing, WT and Tg mice exhibited comparable performance in the escape latency in visible platform tests (p>0.05; Fig. 1A). Some motivational or motor defects were observed in both WT and Tg mice under hypoxia treatment with a trend toward a decrease in swimming speed at the age of 14 months (data not shown). In the next 5 days of hidden platform tests, Tg+Hypo mice showed a longer escape latency compared with age-matched WT, Tg, and WT+Hypo mice (p<0.01; Fig. 1A) at 8 and 14 months of age. In the probe trial on the last day, the passing times that Tg+Hypo mice crossed the center of the northwest quadrant were significantly less compared with age-matched 8- and 14-month-old WT and Tg mice (p<0.01; Fig. 1B). Furthermore, at 14 months of age, hypoxia treatment induced a deficit in the probe trial of WT+Hypo mice compared with age-matched WT mice (p<0.01; Fig. 1B). The results indicate that genotypes associated with familial AD lead a learning deficit in aging APP/PS1 mice. Hypoxia treatment aggravates the effects. The impairment of spatial memory induced by hypoxia is prominent in the aged WT mice

Compared with age-matched WT and Tg mice, hypoxia-treated Tg mice exhibited worse recognition in the Y-maze novel arm at 8 and 14 months of age (p<0.01; Fig. 1C, D). In contrast, at 14 months old, the new arm entries (Fig. 1C) and percentage of time spent in the novel arm (Fig. 1D) of the WT+Hypo mice was less compared with control WT mice (p<0.01).

The loss of synaptic markers is related with the disease progression and cognitive decline in AD (61). Accordingly, we examined hypoxia-induced protein expression changes of synaptic markers in the mouse brain by Western blot using anti-synaptophysin (SYP), anti-synapsin I, and anti-synaptosomal-associated protein 25-kDa (SNAP-25) antibodies. As shown in Figure 2, under hypoxia treatment, the expression of SYP (Fig. 2A, B), synapsin I (Fig. 2A, C), and SNAP-25 (Fig. 2A, D) was significantly reduced in hypoxia-treated Tg mice compared with age-matched WT and Tg control mice at 8 and 14 months of age (p<0.01). WT mice subjected to hypoxic conditions also displayed a decrease in the protein levels of SYP (Fig. 2A, B) and synapsin I (Fig. 2A, C) in the 14-month-old mouse brain (p<0.01).

OPEN IN VIEWER

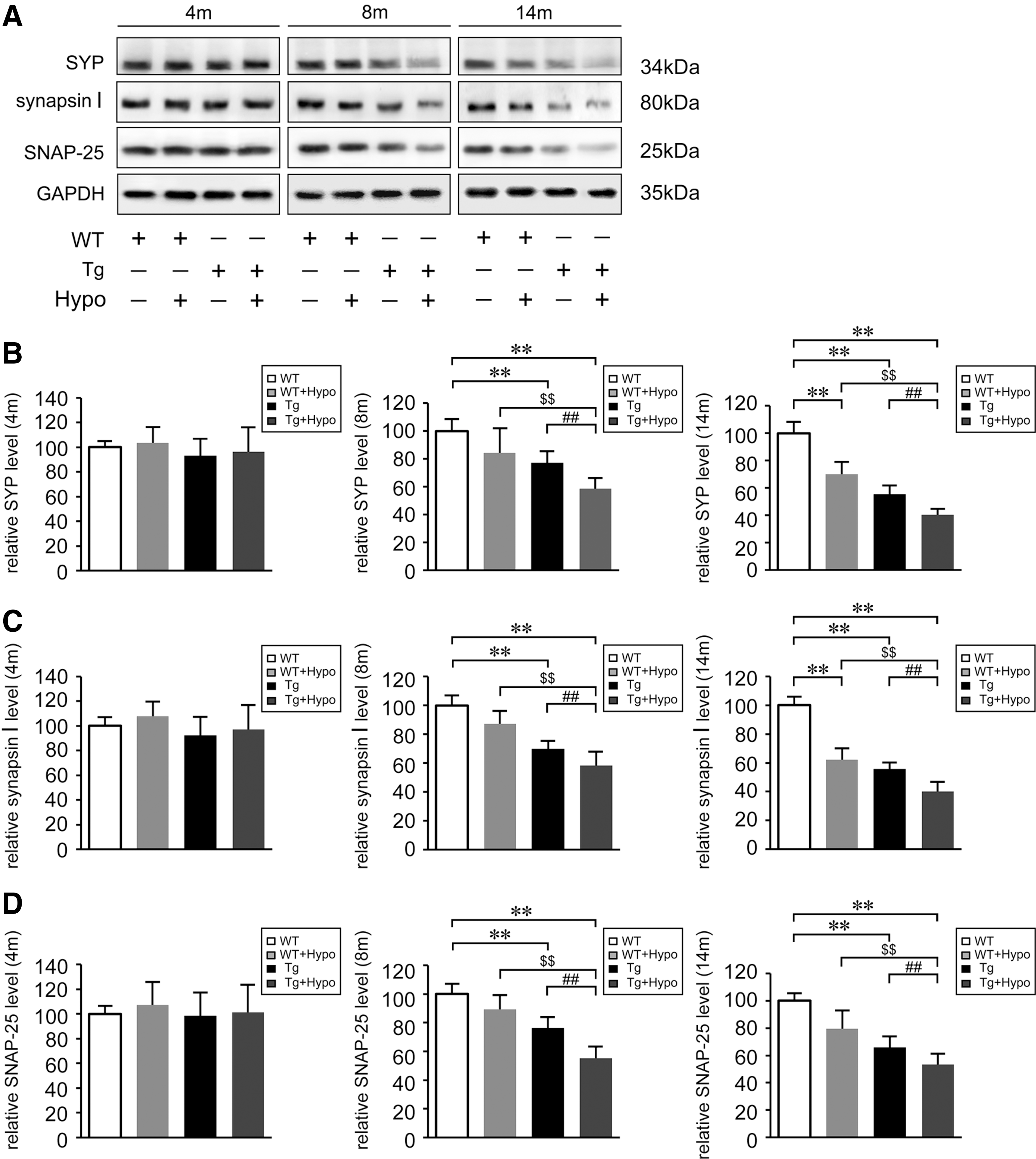

FIG. 2.

Hypoxia reduces synaptic markers protein levels in the aging APP/PS1 mice. (A) Representative Western blot images of synaptic markers, detected with anti-synaptophysin (SYP), anti-synapsin I, and anti-synaptosomal-associated protein 25-kDa (SNAP-25), and normalized to GAPDH in the brains of APP/PS1 transgenic (APP/PS1) mice and age-matched WT C57BL/6 mice. (B–D) Quantification indicates the levels of SYP, synapsin I, and SNAP-25 in the mice brain. **p<0.01 versus WT group, ^## p<0.01 versus Tg group, and ^$$ p<0.01 versus WT+Hypo group by two-way ANOVA, n=6–8 in each group. Values represent the mean±SEM.

Hypoxia treatment increases oxidative stress and exacerbates inflammation in the APP/PS1 and WT aging mouse brain

Considering the critical role of oxidative stress in AD-related pathogenesis, we assayed ROS levels in the mouse brain using the CM-H₂DCFDA assay. As illustrated in Figure 3, chronic hypoxia treatment induced higher ROS levels in the APP/PS1 mouse brain compared with age-matched WT and Tg control brains at 8 and 14 months age (p<0.01; Fig. 3A). A similar effect of hypoxia was observed with ROS production in WT mice at 14 months of age as well (p<0.01; Fig. 3A).

OPEN IN VIEWER

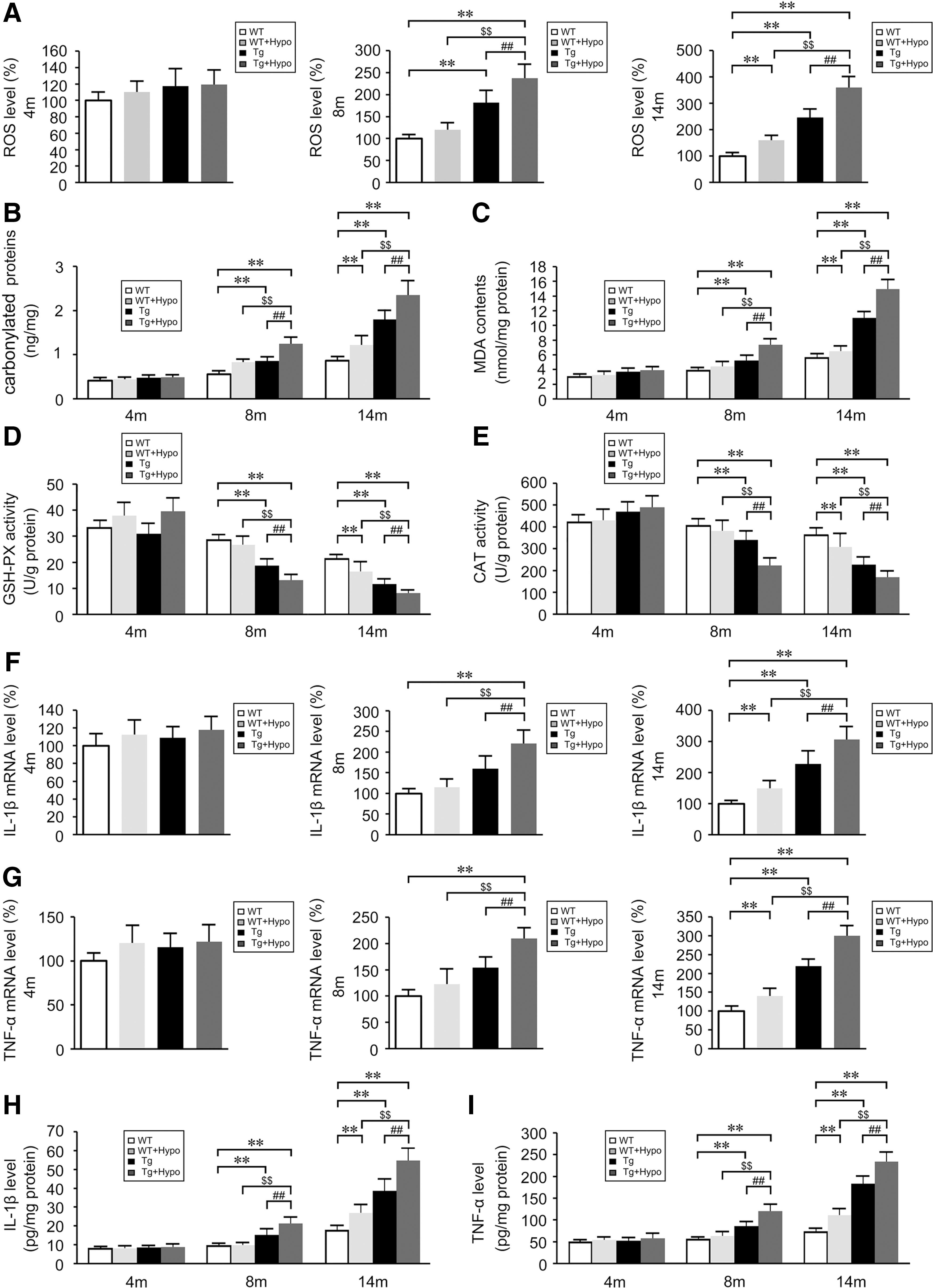

FIG. 3.

Hypoxia increases oxidative stress and inflammatory events in the brain of APP/PS1 and aging WT mice. Reactive oxygen species (ROS) levels (A), carbonyl proteins (B), and malondialdehyde (MDA) contents (C) in the brains of APP/PS1 transgenic (Tg) and aging WT mice. (D, E) Activities of antioxidant enzymes, glutathione peroxidase (GSH-PX), and catalase (CAT). Relative mRNA expression of interleukin (IL)-1β (F) and tumor necrosis factor-α (TNFα) (G) normalized to β-actin in CD11b⁺ cells from Tg and age-matched WT brains. ELISA analyses show the levels of IL-1β (H) and TNFα (I). **p<0.01 versus WT group, ^## p<0.01 versus Tg group, ^$$ p<0.01 versus WT+Hypo group by repeated-measures ANOVA, n=6–8 in each group. Values represent the mean±SEM.

We then assessed the carbonylated proteins and the contents of the lipid peroxidation product, malondialdehyde (MDA). Hypoxia treatment increased the accumulation of carbonylated proteins and MDA production in the 8- and 14-month-old Tg mouse brain (p<0.01; Fig. 3B, C). The significant differences in the levels of carbonylated proteins and MDA between WT and WT+Hypo group were shown at 14 months age (p<0.01; Fig. 3B, C). We then asked whether the accumulation was associated with alterations of antioxidant enzyme activity. As shown in Figure 3D and E, the activities of glutathione peroxidase (GSH-PX) and catalase (CAT) in the Tg mice brain were reduced compared with age-matched WT mice at 8 and 14 months of age (p<0.01). Hypoxia exacerbated the down-regulation of GSH-PX and CAT activities in the Tg mouse brain at 8- and 14 months of age (Tg+Hypo) compared with age-matched WT and Tg control groups (p<0.01). In contrast, the significant decrease of GSH-PX and CAT activities in the WT mouse brain triggered by hypoxia treatment was observed by 14-month-old mice (p<0.01; Fig. 3D, E).

To evaluate the inflammatory response induced by hypoxia in the mouse brain, the expression of the pro-inflammatory cytokines interleukin-1β (IL-1β) and tumor necrosis factor-α (TNFα) were assayed by real-time PCR and ELISA. Compared with age-matched control WT and Tg brains, hypoxia stimulation resulted in a marked increase of IL-1β and TNFα mRNA levels in CD11b⁺ cells isolated from Tg brains (Tg+Hypo) at 8 and 14 months of age (p<0.01; Fig. 3F, G). The levels of IL-1β and TNFα mRNA were increased in the hypoxia-treated WT mice brain at 14 months of age (p<0.01; Fig. 3F, G). Likewise, ELISA analysis showed that hypoxia treatment significantly enhanced the production of IL-1β (p<0.01; Fig. 3H) and TNFα (p<0.01; Fig. 3I) in the cortices of Tg mouse brains (Tg+Hypo) compared with age-matched WT and Tg control brains. Similar effects of hypoxia on IL-1β and TNFα levels in the WT mice brain were observed at 14 months of age (p<0.01; Fig. 3H, I). Hypoxia-inducible factor 1α (HIF1α), a master regulator of the cellular response to hypoxia, is stabilized and activated by hypoxia (62). Under hypoxia stimulus, HIF-mediated gene expression can affect ROS generation (26). Low levels of free radicals increase HIF1α expression and induce neuroprotection (12). In our present study, an instant transient increase of HIF1α protein expression accompanied by an increase in its mRNA expression were observed in the mice brain in initial hypoxia treatment in the mice brain of both genotypes (Supplementary Fig. S1; Supplementary Data are available online at www.liebertpub.com/ars); whereas the levels of HIF1α protein and mRNA expressions were reduced in hypoxia-treated Tg mice brain with 2 months of hypoxia intervention (Supplementary Fig. S1). The alterations in HIF1α levels after long-term hypoxia administration might be a chronic response (54). It has been shown that the HIF levels are reduced in AD patients (43). Schubert et al. reported that Aβ-dependent glial activation results in a decrease in HIF1α expression (60). It is likely that the hypoxia treatment might increase Aβ accumulation, which conversely inhibits HIF1α in the AD mice brain.

Hypoxia increases soluble Aβ levels and worsens Aβ deposition in the APP/PS1 mouse brain

Cortical levels of mouse Aβ1-40 and Aβ1-42, and human Aβ1-40 and Aβ1-42 in mouse brains were determined by sandwich ELISA. As shown in Figure 4, there was no significant difference in the levels of soluble mouse Aβ1-40 and Aβ1-42 among groups although there was a trend toward an increase in the hypoxia-treated group compared with the control group (p>0.05; Fig. 4A, B). The levels of human soluble Aβ1-40 (Fig. 4C) and Aβ1-42 (Fig. 4D) in hypoxia-treated Tg mouse brains were significantly increased compared with control Tg mice at 8 and 14 months of age (p<0.01), and all the effects of hypoxia on human insoluble Aβ1-40 (Fig. 4E) and insoluble Aβ1-42 (Fig. 4F) contents were increased as well. The ratio of human soluble Aβ42 to Aβ40 in the brain of hypoxia-treated Tg mice was higher than the Tg group without hypoxia treatment by 8 months of age (p<0.01, Fig. 4G). Typically, the elevation of human insoluble Aβ42/40 ratios was significantly prominent in the hypoxia-treated Tg group compared with untreated Tg mice at 8- and 14 months of age (p<0.01, Fig. 4H). To further characterize Aβ deposition, immunostaining with anti-Aβ antibody was used to detect Aβ plaques. As shown in Figure 5, at 4 months of age, Aβ plaques were not observed in Tg mouse brain sections; while Tg+Hypo mouse brain tissues had sparse, but detectable Aβ deposits. Increasing Aβ plaque formation from Tg mouse brain tissues was prominent at 8 and 14 months of age. Hypoxia treatment enhanced the Aβ plaque deposition in Tg mice brain. Quantification indicated that the Aβ plaque number and immunoreactive areas in Tg mouse brain of hypoxia-treated groups (Tg+Hypo) were significantly increased in the cortex and hippocampus compared with the age-matched Tg group at 8- (p<0.01; Figs. 4I and 5) and 14 months of age (p<0.01; Figs. 4J and 5).

OPEN IN VIEWER

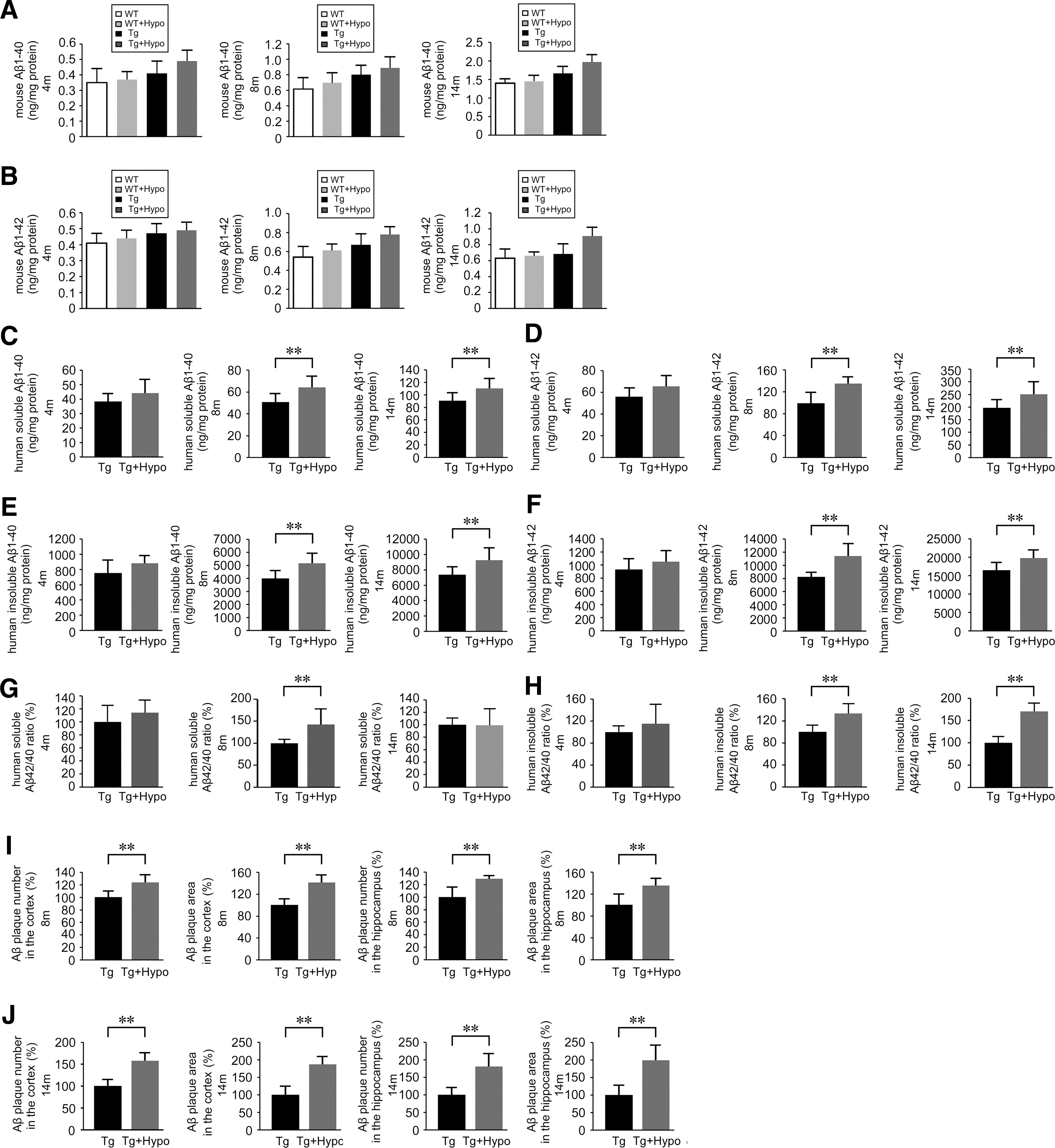

FIG. 4.

Hypoxia treatment markedly increases β-amyloid burden in the aging APP/PS1 mouse brain. Levels of mouse soluble Aβ1-40 (A) and Aβ1-42 (B) were determined by ELISA in the APP/PS1 transgenic (Tg) and age-matched WT C57BL/6 mouse brain. Two-way ANOVA were performed, n=6–8 in each group. Data are represented as mean±SEM. (C–F) Quantification shows human soluble Aβ1-40, Aβ1-42, insoluble Aβ1-40, and Aβ1-42 contents in the Tg mouse brain. (G) The ratio of human soluble Aβ42 to Aβ40 in the Tg mice brain. (H) Human insoluble Aβ42/40 peptide ratios in the brain of Tg mice. (I, J) Quantification shows the Aβ plaque number and area in the cortex and hippocampus of the Tg mouse brain. Five brain sections per mouse were examined. **p<0.01 versus Tg group by Student's t-test, n=6–8 in each group. Data are represented as mean±SEM.

OPEN IN VIEWER

FIG. 5.

Representative images of Aβ plaques in APP/PS1 and age-matched C57BL/6 mice brain. Aβ plaques were examined with anti-Aβ antibody. Aβ-positive plaques were significantly detectable in the cortex and hippocampus of APP/PS1 transgenic (Tg) mice brain at 8- and 14 months of age, especially in the group that underwent hypoxia treatment. There was no Aβ-positive plaque in the age-matched WT C57BL/6 mice brain. Scale Bar=200 μm.

Microglia exhibit marked reduction in the expression of CD36 and Aβ-degrading enzymes with hypoxia treatment in the aging mouse brain

Microglia, the major phagocytic cell of the brain, may mediate clearance of Aβ. Microglia express receptors such as CD36 (21), a class B scavenger receptor, and secrete Aβ-degrading enzymes to promote the clearance and phagocytosis of Aβ (39). To investigate whether hypoxia-induced Aβ deposition in the APP/PS1 mouse brain was associated with deficient phagocytosis and degradation of Aβ, the level of the messengers RNA for Aβ-binding receptor, CD36, and Aβ-degrading enzymes of microglia in the mouse brain were assessed. We isolated the microglia with cell markers for microglia, mouse anti-CD11b-coated microbeads. Real-time PCR analysis of CD36 from CD11b⁺ cells isolated from mouse brains indicated that there was an increase in the mRNA levels of CD36 in both the WT and Tg groups under hypoxic conditions at 4 months of age (p<0.01; Fig. 6A). However, the expression of CD36 was significantly reduced in CD11b⁺ cells from hypoxia-treated Tg mice compared with age-matched WT and Tg controls by 8 and 14 months of age (p<0.01; Fig. 6A). In addition, hypoxia-induced reduction of CD36 expression was observed in 14-month-old WT+Hypo group compared with the age-matched WT controls (p<0.01; Fig. 6A).

OPEN IN VIEWER

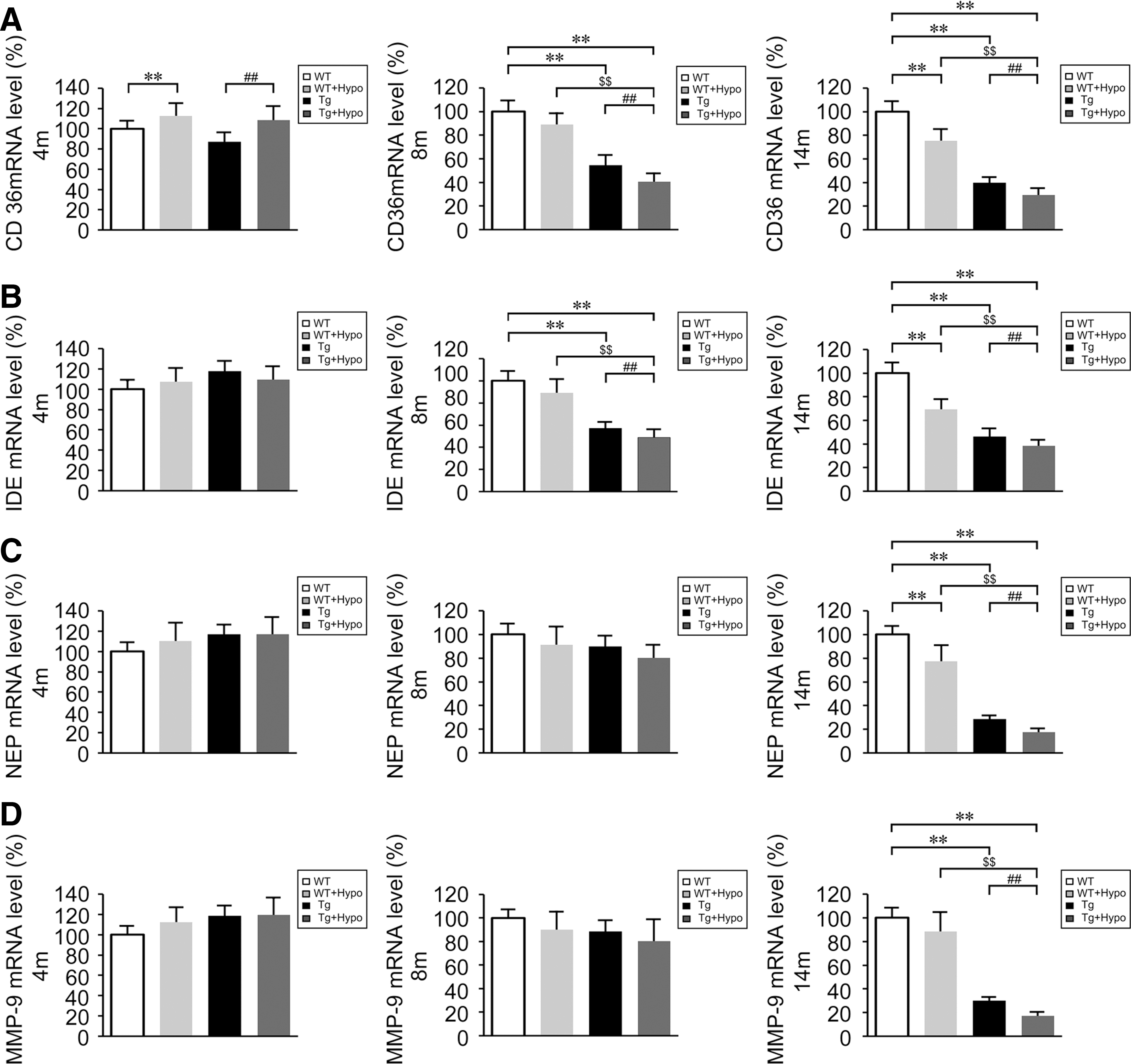

FIG. 6.

Hypoxia significantly reduces the expression of CD36 and Aβ-degrading enzymes in the aged mouse brain. (A) Relative expression of CD36 mRNA was normalized to β-actin in CD11b⁺ cells from the brains of APP/PS1 transgenic (Tg) and age-matched WT C57BL/6 mice. (B–D) The mRNA expression of Aβ-degrading enzymes, insulin degradation enzyme (IDE), neprilysin (NEP), and matrix metalloproteinase-9 (MMP-9) in CD11b⁺ cells from Tg and WT brains was assessed by real-time PCR. **p<0.01 versus WT group, ^## p<0.01 versus Tg group, and ^$$ p<0.01 versus WT+Hypo group by two-way ANOVA, n=6–8 in each group. Values represent the mean±SEM.

To determine the expression levels of Aβ-degrading enzymes under hypoxic conditions, real-time PCR was carried out to measure the mRNA levels of insulin degradation enzyme (IDE), neprilysin (NEP), and matrix metalloproteinase-9 (MMP-9) in CD11b⁺ cells isolated from APP/PS1 mice and age-matched WT mouse brains. As shown in Figure 6B, hypoxia treatment significantly reduced the IDE mRNA levels in the brains of Tg mice (Tg+Hypo) compared with age-matched WT and Tg controls (p<0.01; Fig. 6B) at 8- and 14 months in the Tg mouse brain (p<0.01; Fig. 6B). Hypoxia treatment caused a decrease in NEP and MMP-9 (p<0.01; Fig. 6C, D) mRNA expression levels of the Tg mouse brain (Tg+Hypo) compared with the age-matched WT (p<0.01; Fig. 6C, D) and Tg control group (p<0.01; Fig. 6C, D) at 14 months of age. Furthermore, the expression of IDE and NEP mRNA levels in WT+Hypo mice was markedly reduced compared with the WT control groups (p<0.01; Fig. 6B, C) in CD11b⁺ cells in the 14-month-old mouse brain.

Hypoxia results in a pronounced attenuation of the NRF2-ARE pathway in the brain of aged APP/PS1 and WT mice

Binding of NRF2 to the ARE switches on an endogenous defense system against oxidative stress (33, 74). The lack of NRF2 renders astrocytes and cortical neurons increasingly susceptible to oxidative stress in vitro (37, 38). In the present study, we examined whether chronic hypoxia induced oxidative stress and neuroinflammation in the AD mouse brain through the NRF2-ARE pathway. Western blot assays showed that the levels of nuclear NRF2 were increased in hypoxia-treated Tg mouse brain tissues compared with the age-matched Tg group without hypoxia administration at 4 months of age (p<0.01; Fig. 7A, C). The nuclear NRF2 levels in the hypoxia-treated WT mouse brain were also higher than WT controls at 4 months of age (p<0.01; Fig. 7A, C). However, by 8 and 14 months of age, the nuclear NRF2 levels in the Tg+Hypo mouse brain were reduced compared with age-matched WT (p<0.01; Fig. 7A, C) and Tg controls (p<0.01; Fig. 7A, C), and the alterations of cytosolic NRF2 levels were in the hypoxia-treated Tg group compared with WT (p<0.01; Fig. 7A, B) and Tg controls (p<0.01; Fig. 7A, B). Meanwhile, hypoxia treatment caused a significant attenuation of NRF2 signal in WT mice at 8 and 14 months of age (p<0.01; Fig. 7A–C). Assessment of NRF2 DNA-binding activity (Fig. 7D) using an ELISA kit and analysis of NRF2 mRNA levels by real-time PCR (Fig. 7E) confirmed earlier results. These data indicate that the NRF2 signal might be activated under hypoxia stimulation in the 4-month-old WT and Tg mice brain; while NRF2 levels are reduced with hypoxia treatment in the aged mice brain, especially in the APP/PS1 transgenic mice.

OPEN IN VIEWER

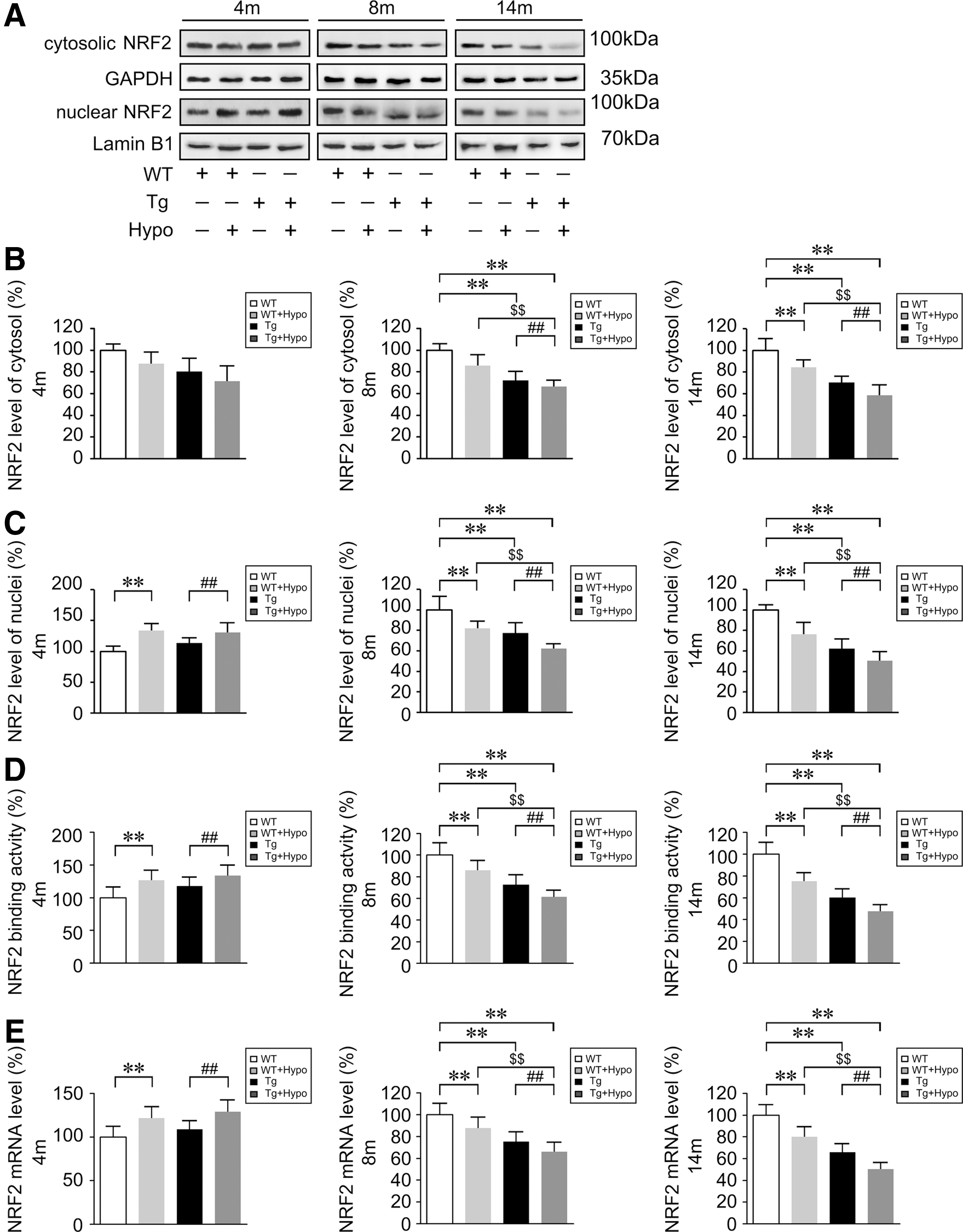

FIG. 7.

Nrf2 levels are altered and significantly reduced under hypoxic conditions in the aging mouse brain. (A–C) Nuclear factor erythroid 2-related factor 2 (NRF2) in the cytosolic and nuclear fractions from APP/PS1 transgenic (Tg) and age-matched WT C57BL/6 mice brain tissues were analyzed with anti-NRF2 antibody (Abcam). As loading controls, the levels of GAPDH and Lamin B1 were determined to ensure equal amounts of total and nuclear protein, respectively. (D) NRF2 DNA-binding activity examined by ELISA. (E) Relative expression NRF2 nuclear mRNA levels normalized to the levels of β-actin. **p<0.01 versus WT group, ^## p<0.01 versus Tg group, and ^$$ p<0.01 versus WT+Hypo group by two-way ANOVA, n=8–10 in each group. Values represent the mean±SEM.

We then examined the protein expression levels of the NRF2-ARE-driven antioxidants heme oxygenase-1 (HO-1), nicotinamide adenine dinucleotide phosphate quinone oxidorreductase-1 (NQO1), catalytic subunits of γ-glutamyl cysteine ligase (γGCL-C), and modulatory subunits of γ-glutamyl cysteine ligase (γGCL-M) by Western blot. As shown in Figure 8, at 4 months of age, there was no difference in the expression of NQO1, γGCL-C, and γGCL-M (p>0.05; Fig. 8A, C–E) in the WT and Tg mice brain except that HO-1 protein levels were slightly increase in the hypoxia-treated mice compared with the control groups (p<0.01; Fig. 8A, B). However, HO-1, NQO1, γGCL-C, and γGCL-M levels were reduced in the Tg group in the 8- and 14-month-old mice brain compared with the WT group (p<0.01; Fig. 8A–E). Importantly, by 8 and 14 months of age, the expression of HO-1, NQO1, γGCL-C, and γGCL-M in the hypoxia-treated WT and Tg mice brain was progressively reduced compared with their control groups without hypoxia treatment (p<0.01; Fig. 8A–E). mRNA determination of these NRF2 target genes by RT-PCR confirmed the results (Supplementary Fig. S2).

OPEN IN VIEWER

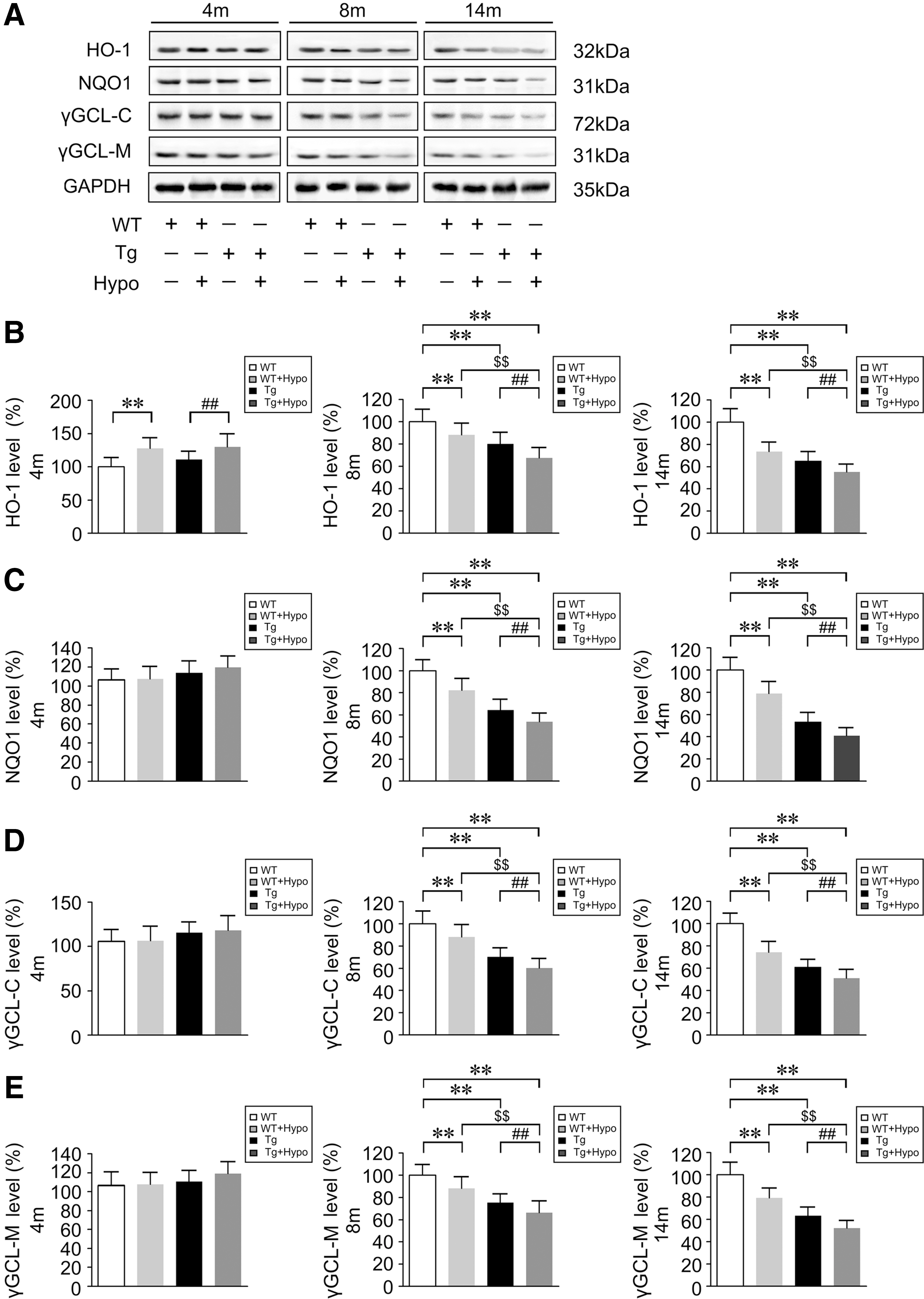

FIG. 8.

Chronic hypoxia treatment attenuates NRF2-ARE signals in the aging mouse brain. (A) Representative Western blot images of the NRF2-ARE-driven antioxidants protein, heme oxygenase-1 (HO-1), nicotinamide adenine dinucleotide phosphate quinone oxidoreductase-1 (NQO1), catalytic subunits of γ-glutamyl cysteine ligase (γGCL-C) and modulatory subunits of γ-glutamyl cysteine ligase (γGCL-M) compared with GAPDH in the brains of APP/PS1 transgenic (Tg) and age-matched WT C57BL/6 mice. (B–E) Quantification shows the levels of HO-1, NQO1, γGCL-C, and γGCL-M in the mice brain. **p<0.01 versus WT group, ^## p<0.01 versus Tg group, and ^$$ p<0.01 versus WT+Hypo group by two-way ANOVA, n=8–10 in each group. Values represent the mean±SEM.

Intranasal gene delivery of human NRF2 alleviates hypoxia-triggered spatial learning impairment in APP/PS1 mice

To further examine the underlying mechanism of the NRF2-ARE interaction in hypoxia-induced AD-like pathogenesis and investigate the efficacy of NRF2-ARE therapy, we delivered NRF2 intranasally to the AD mouse with a lentiviral vector encoding human NRF2 (LV-NRF2). Lentivirus vectors encoding GFP (LV-GFP) or LV-NRF2 were intranasally administered at weeks 0 and 4 in 2-month-old male APP/PS1 and age-matched WT mice. Six months later, the mice were treated with chronic hypoxia for 2 months. After behavioral tests, the mice were sacrificed, and brains were removed for morphological and biochemical analysis.

First, we evaluated GFP fluorescence localization. As shown in Figure 9A, the viral vector primarily targeted the cell bodies of neurons. Compared with untreated control animals, no obvious histological evidence of side effects or toxicity related to lentiviral transduction was observed (data not shown). Western blot analysis with anti-NRF2 antibody (1: 1000; Abcam, Cambridge, United Kingdom) (Fig. 9B) and ELISA analysis (Fig. 9C) of NRF2 DNA-binding activity demonstrated that the levels of cytosolic and nuclear NRF2 levels were increased with LV-NRF2 treatment in WT and Tg groups relative to LV-GFP-treated WT and Tg controls, respectively (p<0.01). LV-NRF2 pretreatment diminished hypoxia-triggered down-regulation of NRF2 signaling in the Tg mice brain (p<0.01, Fig. 9B, C).

OPEN IN VIEWER

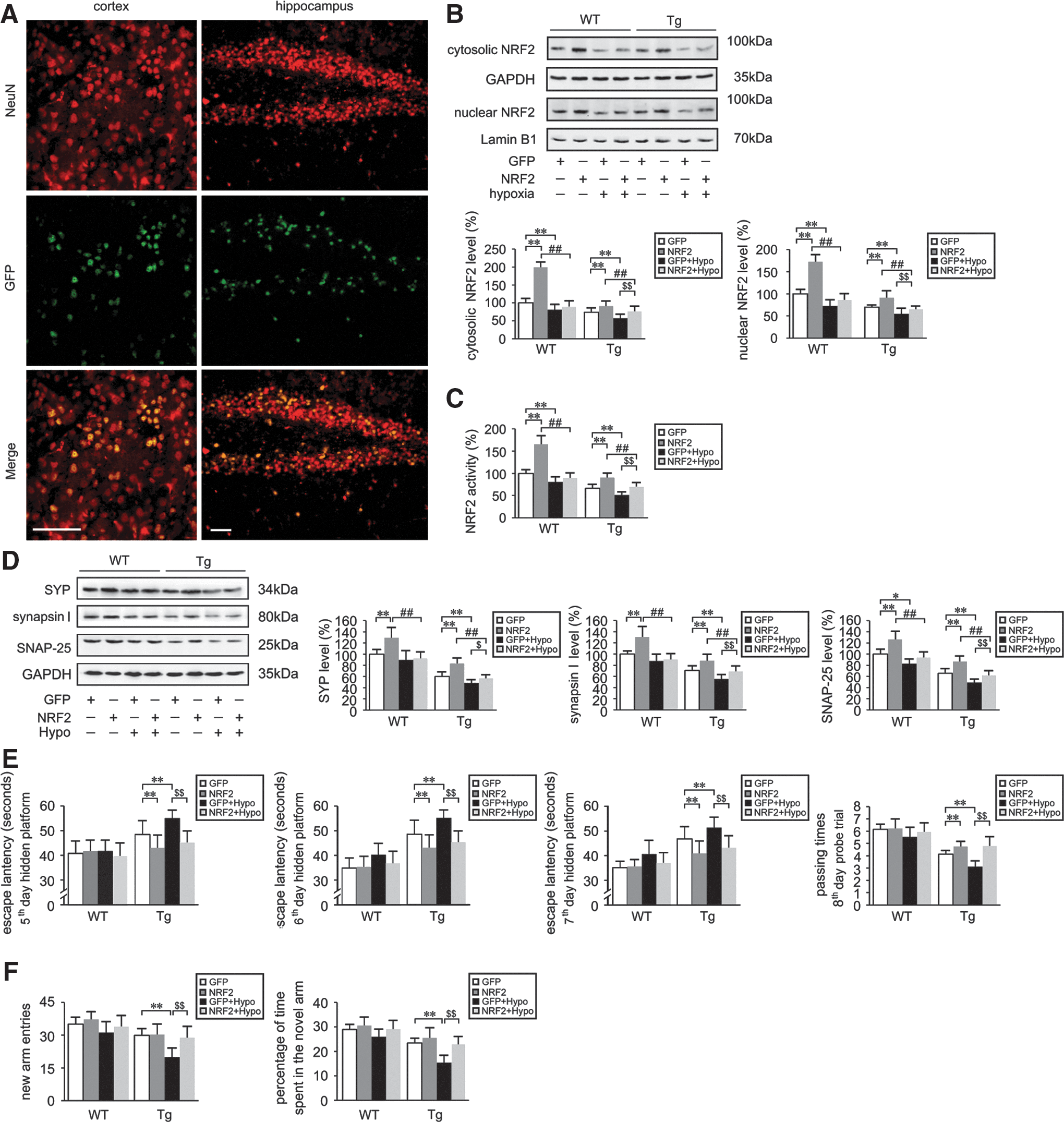

FIG. 9.

NRF2 gene transfer lessens spatial learning and memory defects induced by hypoxia treatment in the APP/PS1 mouse. Lentiviral vectors (LV) encoding GFP or human NRF2 were intranasally administered to 2-month-old APP/PS1 transgenic (Tg) and age-matched WT C57BL/6 mice at 0 and 4 weeks. Intranasal treatment with lentivirus vector encoding GFP was used as the control. After 6 months, the mice were treated with hypoxic conditions (Hypo) for 2 months. (A) Representative images from brain sections of mice that received intranasal treatment with lentiviral vector encoding GFP. Anti-Neuron-specific nuclear protein (NeuN) antibody was used to identify neurons. GFP fluorescence is colocalized with NeuN. Scale Bar=50 μm. (B) Representative Western blot images of NRF2 in the cytosolic and nuclear fractions in the brains of Tg and WT mice, and compared with GAPDH and Lamin B1, respectively. (C) Levels of nuclear NRF2 measured by ELISA. (D) Western blots were performed to measure the protein expression of synaptophysin (SYP), synapsin I, and synaptosomal-associated protein 25-kDa (SNAP-25). **p<0.01 versus LV-GFP group, ^## p<0.01 versus LV-NRF2 group, and ^$$ p<0.01 versus GFP+Hypo group by repeated-measures ANOVA, n=8–10 in each group. Values represent the mean±SEM. (E) Spatial learning and memory performance of mice in the MWM test. (F) Cognitive behavior of mice subjected to the Y-maze testing. **p<0.01, ^$$ p<0.01 by repeated measures ANOVA, n=8–10 in each group. Data are represented as mean±SEM.

We then examined the protein expression of synaptic markers. As shown in Figure 9D, the levels of SYN, synapsin I, and SNAP-25 were higher in the LV-NRF2 treated group compared with the LV-GFP group in the WT and Tg mice brain (p<0.01). Furthermore, under LV-NRF2 intranasal pretreatment, SYN, synapsin I, and SNAP-25 protein expression were higher in hypoxia-treated Tg group (NRF2+Hypo) relative to Tg mice with GFP+Hypo treatment (p<0.01, Fig. 9D). NRF2 gene delivery attenuated the decrease in hypoxia-induced synaptic marker protein expression in the Tg mice brain, suggesting that expression of NRF2 can rescue the hypoxic phenotype associated with AD progression.

The results of the learning and memory assays by MWM and Y-maze tests were consistent with the changes in synaptic marker protein expression. In MWM testing, the escape latency in the 2 days of visible platform trials did not differ among groups, and the third day and fourth day hidden platform tests did not differ as well (data not shown). During the subsequent hidden platform testing, WT mice exhibited comparable performance (p>0.05, Fig. 9E). However, the mice of the Tg+GFP+Hypo group showed an increase in escape latency compared with the Tg+GFP group from the fifth day to seventh day testing (p<0.01; Fig. 9E). In the Tg mice, NRF2 intranasal pretreatment (Tg+NRF2+Hypo) alleviated hypoxia-induced increase of escape latency relative to the Tg+GFP+Hypo group (p<0.01; Fig. 9E). In the probe trial on the eighth day, no significant differences were found among the WT groups, whereas NRF2 lentiviral gene transfer significantly lessened the hypoxia-induced poor performance in Tg mice (p<0.01; Fig. 9E). The passing times of mice in the Tg+NRF2+Hypo treatment group were significantly increased compared with the mice in the Tg+GFP+Hypo group (p<0.01; Fig. 9E). In the Y-maze trial, the new arm entries and percentage of time spent in the novel arm in Tg+NRF2+Hypo mice were increased compared with Tg+GFP+Hypo mice (p<0.01; Fig. 9F). Taken together, these results indicate that exogenous delivery of NRF2 was able to improve spatial learning in an AD model, and alleviated hypoxia-triggered spatial learning impairment.

Activation of NRF2-ARE upregulates CD36 and lessens hypoxia-induced Aβ clearance and phagocytosis deficiency in the APP/PS1 mouse brain

We first examined the expression levels of the NRF2 targets HO-1, NQO1, γGCL-C, and γGCL-M by Western blot. As shown in Figure 10, after lentivirus-mediated gene delivery of NRF2, the expression of these four potentially protective enzymes was upregulated in both WT and Tg mouse brain tissues (p<0.01; Fig. 10A). Interestingly, in the WT mice, the HO-1, NQO1, and γGCL-C levels of the NRF2+Hypo group were higher compared with the GFP+Hypo group (p<0.01, Fig. 10A). Most importantly, intranasal treatment with LV-NRF2 lessened the hypoxia-induced protein reduction of HO-1, NQO1, γGCL-C, and γGCL-M in the Tg mice (Tg+NRF2+Hypo) compared with the hypoxia-treated Tg mice without NRF2 transduction (Tg+GFP+Hypo; p<0.01, Fig. 10A).

OPEN IN VIEWER

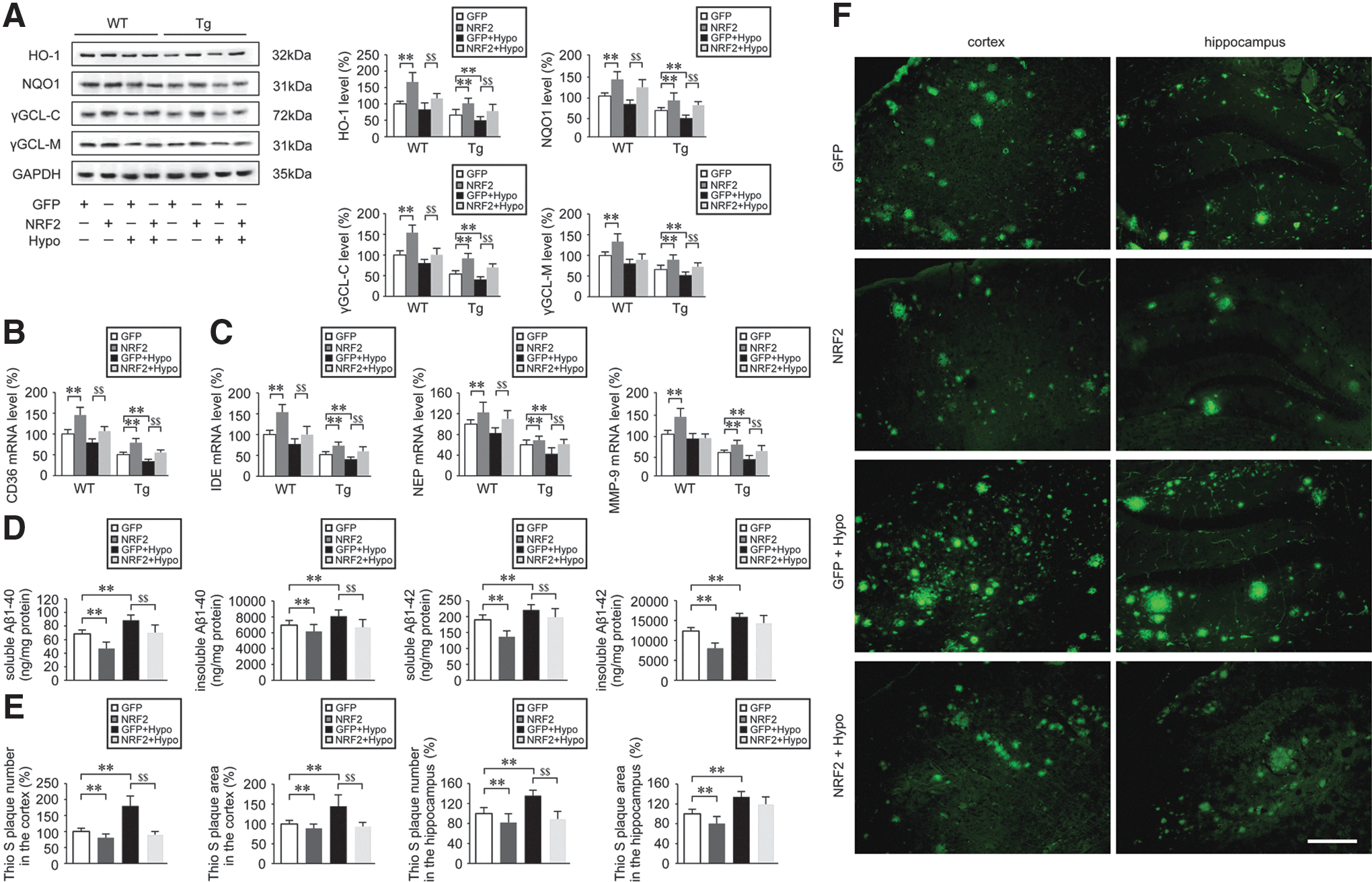

FIG. 10.

NRF2-ARE-mediated increase in CD36 alleviates the hypoxia-exacerbated decrease of Aβ clearance and phagocytosis in the brain of APP/PS1 mice. (A) Representative Western blot images of heme oxygenase-1 (HO-1), nicotinamide adenine dinucleotide phosphate quinone oxidoreductase-1 (NQO1), catalytic subunits of γ-glutamyl cysteine ligase (γGCL-C), and modulatory subunits of γ-glutamyl cysteine ligase (γGCL-M) compared with GAPDH in the APP/PS1 transgenic (Tg) and age-matched WT C57BL/6 mouse brain after intranasal treatment using a lentiviral vector (LV) encoding human NRF2 or GFP, and then under control or hypoxic conditions. (B) Real-time PCR assays show the relative mRNA expression of CD36 normalized to the level of β-actin in CD11b⁺ cells of the mouse brain. (C) mRNA expression levels of insulin degradation enzyme (IDE), neprilysin (NEP), and matrix metalloproteinase-9 (MMP-9). (D) ELISA analyses showing the human Aβ1-40 and Aβ1-42 levels in the mice brain. (E) Representative images of Aβ-containing neuritic plaque with Thioflavin S (Thio S) staining in the cerebral cortex and hippocampus. Scale Bar=50 μm. (F) Percentage of Thio S positive staining in the Tg mice brain. **p<0.01 versus LV-GFP group, ^## p<0.01 versus LV-NRF2 group, and ^$$ p<0.01 versus GFP+Hypo group by repeated-measures ANOVA, n=8–10 in each group. Results are expressed as mean±SEM.

To investigate whether increased NRF2 affected the expression of the Aβ-binding receptor, CD36, we examined CD36 levels in CD11b⁺ cells isolated from mouse brain tissues by real-time PCR. As illustrated in Figure 10B, NRF2 gene delivery resulted in a significant increase in CD36 mRNA levels in CD11b⁺ cells isolated from LV-NRF2-treated WT and Tg mouse brain. Gene delivery of NRF2 (Tg+NRF2+Hypo) alleviated the hypoxia-induced decrease in CD36 expression observed in the WT and Tg mouse brain (Tg+GFP+Hypo; p<0.01, Fig. 10B). Interestingly, CD36 mRNA expression was also increased in the WT+NRF2 mouse brain (p<0.01; Fig. 10B).

To assess the capacity of CD11b⁺ cells to degrade Aβ after intranasal treatment with NRF2, the expression of three major Aβ-degrading enzymes, IDE, NEP, and MMP-9, was analyzed by real-time PCR. As illustrated in Figure 10C, LV-NRF2 administration increased the mRNA levels of IDE and NEP in WT (WT+NRF2) and Tg mice (Tg+NRF2) compared with WT+GFP and Tg+GFP mice, respectively (p<0.01, Fig. 10C). MMP-9 expression was also significantly increased with NRF2 transduction in WT and Tg mice compared with the control mice (LV-GFP, p<0.01; Fig. 10C). Importantly, NRF2 gene delivery reversed the hypoxia-induced decrease of IDE and NEP mRNA expression and enhanced the expression of these Aβ-degrading enzymes in the WT (Tg+NRF2+Hypo) and Tg (Tg+NRF2+Hypo) mice compared with the hypoxia-treated WT (WT+GFP+Hypo) and Tg group (Tg+GFP+Hypo) without NRF2 administration (p<0.01; Fig. 10C). There was no significant difference in the MMP-9 level between WT+NRF2+Hypo and WT+GFP+Hypo group (p>0.05, Fig. 10C).

We then explored whether NRF2 transduction could alter Aβ burden and affect hypoxia-induced Aβ deposition in the APP/PS1 mouse brain. ELISA showed that LV-NRF2 treatment reduced human soluble and insoluble Aβ1-40 levels (p<0.01), and human soluble Aβ1-42 levels (p<0.01) in the Tg mouse brain (Fig. 10D). The increase in soluble Aβ1-40 and Aβ1-42 triggered by hypoxia was diminished with NRF2 gene delivery (p<0.01, Fig. 10D), and insoluble Aβ1-40 contents were as well. However, there were no statistical differences in the levels of insoluble Aβ1-42 between the Tg+NRF2+Hypo and Tg+GFP+Hypo group (p>0.05; Fig. 10D). Thioflavin S (Thio S) staining indicated that intranasal administration of LV-NRF2 reduced the Aβ-containing neuritic plaque number and area in the Tg mouse brain (p<0.01; Fig. 10E, F). LV-NRF2 pretreatment reduced the upregulation of neuritic plaque number and area triggered by hypoxia in the cortex (Tg+NRF2+Hypo) compared with the Tg+GFP+Hypo group (p<0.01; Fig. 10E, F). The number and area of Thio S neuritic plaque in the hippocampus were less in the Tg+NRF2 group relative to Tg+GFP mice (p<0.01, Fig. 10E, F). There was no statistical difference in the plaque area of hippocampus between Tg+NRF2+Hypo and Tg+GFP+Hypo mice, although the plaque number in Tg+NRF2+Hypo was less than Tg+GFP+Hypo group. Individual plaques in Tg+GFP+Hypo mouse brains appeared to exhibit a “dense core” surrounded by a halo of diffuse amyloid, while the plaques in Tg+NRF2+Hypo mouse brains had an overall diffuse appearance (Fig. 10F).

Intranasal treatment with NRF2 diminishes ROS and neuroinflammation, and attenuates hypoxia-induced oxidative stress of APP/PS1 mouse brain

To determine the effects of LV-NRF2 administration on hypoxia-induced oxidative stress in the Tg mouse brain, ROS levels were assayed using the CM-H₂DCFDA assay. As illustrated in Figure 11A, ROS levels triggered by hypoxia in the NRF2 pretreated group (Tg+NRF2+Hypo) were significantly reduced compared with hypoxia-treated Tg mice without NRF2 transduction (Tg+GFP+Hypo; p<0.01, Fig. 11A). LV-NRF2 pretreated WT mice (WT+NRF2+Hypo) exhibited a resistance to the hypoxia-induced increase in ROS levels compared with WT+GFP+Hypo mice (p<0.01; Fig. 11A).

OPEN IN VIEWER

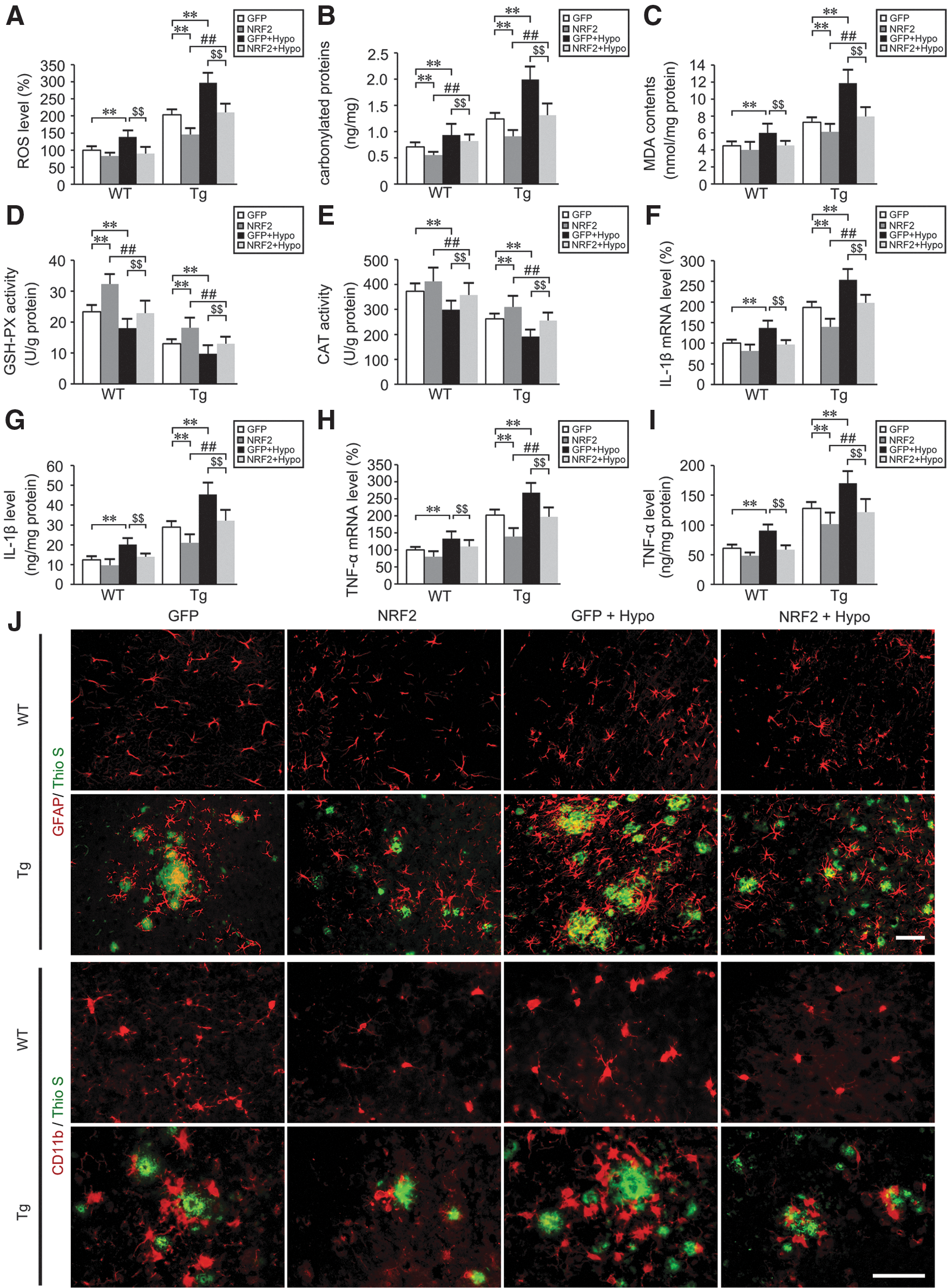

FIG. 11.

NRF2 transduction reduces oxidative stress and neuroinflammatory pathological markers in the hypoxia-treated APP/PS1 mouse brain. (A) The effects of lentiviral vector (LV) encoding human NRF2 intranasal administration on the reactive oxygen species (ROS) production triggered by hypoxia in the APP/PS1 transgenic (Tg) and age-matched WT C57BL/6 mice brain. (B) Alterations in carbonylated proteins in the mice brain. (C) Levels of the lipid peroxidation product, malondialdehyde (MDA) in the mice brain. (D, E) Activities of antioxidant enzymes, glutathione peroxidase (GSH-PX), and catalase (CAT) were assayed by colorimetry. mRNA and protein expression levels of interleukin-1β (IL-1β) in CD11b⁺ cells from Tg and age-matched WT mice brain were determined by real-time PCR (F) and ELISA (G), respectively. (H) Relative mRNA expression levels of TNFα were normalized to the levels of β-actin. (I) TNFα protein levels were measured by ELISA. (J) Frozen sections were stained with anti-CD11b or anti-glial fibrillary acidic protein (GFAP) and Thioflavin-S (Thio S). Scale Bar=50 μm. **p<0.01 versus LV-GFP group, ^## p<0.01 versus LV-NRF2 group, ^$$ p<0.01 versus GFP+Hypo group, by repeated-measures ANOVA, n=8–10 in each group. Data are represented as mean±SEM.

We then assessed alterations of carbonylated protein and MDA contents in the mouse brain. LV-NRF2 treatment significantly reduced carbonylated protein (p<0.01; Fig. 11B) and MDA generation (p<0.01; Fig. 11C) in the Tg mouse brain. Interestingly, the carbonylated protein and MDA contents from Tg+NRF2+Hypo mice were markedly reduced compared with the levels from Tg+GFP+Hypo mice brain (p<0.01; Fig. 11B, C). Accordingly, the antioxidant enzyme activities of GSH-PX (Fig. 11D) and CAT (Fig. 11E) were increased with LV-NRF2 intranasal treatment in WT and Tg mice compared with their LV-GFP groups, respectively (p<0.01). In addition, NRF2 gene delivery alleviated hypoxia-induced decrease of GSH-PX activity in Tg+NRF2+Hypo mice brain compared with Tg+GFP+Hypo group (p<0.01; Fig. 11D), as were the effects on the CAT activity (p<0.01; Fig. 11E).

Inflammation was assessed by analyzing the pro-inflammatory cytokines, IL-1β and TNFα. Real-time PCR assays showed that with NRF2 gene delivery, CD11b⁺ cells isolated from Tg mouse brain tissues expressed less IL-1β (p<0.01; Fig. 11F) and TNFα mRNA level (p<0.01; Fig. 11H) than the Tg group with LV-GFP treatment. The increase of hypoxia-induced IL-1β levels in Tg+GFP+Hypo mice was diminished with intranasal LV-NRF2 pretreatment (Tg+NRF2+Hypo) (p<0.01; Fig. 11F), as were the regulations to TNFα levels (p<0.01; Fig. 11H). Effects of NRF2 gene delivery on the resistance to hypoxia-induced IL-1β and TNFα increases were as well in WT mice (p<0.01; Fig. 11F, H). Detection of IL-1β and TNFα levels using ELISA analyses confirmed these results (p<0.01; Fig. 11G, I). We then visualized the distribution of microglia and astrocytes by immunostaining to evaluate the inflammatory response in the WT and Tg mouse brain. As shown in Figure 11J, microglia and astrocytes, detected by anti-CD11b and anti-glial fibrillary acidic protein (GFAP), respectively, formed inflammatory foci and appeared as clusters around florid plaques in the brain of Tg+GFP+Hypo mice. Conversely, microglia and astrocytes expressed less GFAP and CD11b in the brains of Tg+NRF2+Hypo mice compared with Tg+GFP+Hypo mice.

Exposure to chronic hypoxia increases oxidative stress and inflammatory events in the aged APP/PS1 mouse brain, worsening the learning and memory deficit

Oxidative stress increases with age through ROS alterations (5). It has been proposed that intracellular ROS is increased under hypoxia, although the directions in which the changes occur are still debated. ROS increases induced by hypoxia are via the electron transfer from ubisemiquinone to molecular oxygen (9). ROS excessive accumulation contributes to the expansion of cellular inflammatory responses. Hypoxia-modulated, pathologic gene induction is significantly affected by ROS feedback (8, 77). Meanwhile, free radicals are generated early in the Aβ aggregation stages (70). Conversely, ROS accumulations are sufficient to trigger increasing Aβ production, thereby initiating a vicious cycle (40). It has been shown that hypoxia results in increases of APP levels; the substrate for Aβ and Aβ levels increases in vivo (65). Therefore, the Aβ deposition and ROS accumulation under hypoxia conditions might play a key role in the cellular dysfunction. In the present study, the effects of hypoxia on varying ages APP/PS1 and age-matched C57BL/6 mouse brains were examined. Hypoxia induced increasing ROS production and facilitated oxidative stress-induced injury, which were significantly prominent in 8- and 14-month-old APP/PS1 and the 14-month-old WT mice brain. The mRNA levels of IL-1β and TNFα in CD11b⁺ cells from APP/PS1 mouse brains were markedly increased in hypoxia-treated mice compared with control WT or Tg mice. These pathological injuries were consistent with the deterioration of learning and memory capacity. Using MWM testing, there was no significant difference during the initial 2 days of the learning phase between WT and Tg mice with or without hypoxia treatment, indicating that hypoxia did not alter motivational or motor abilities. Conversely, hypoxia-treated, aging APP/PS1 mice exhibited a significantly slower phase in the later escape latency and probe trials. Aging APP/PS1 mice showed poor cognitive performance in the Y-maze test, especially with hypoxia treatment. The results were consistent with other studies that have been previously reported (72, 78). Further, the hypoxia-induced decrease in the expression of the synaptic markers, SYP, synapsin I, and SNAP-25, confirmed the cognitive deterioration in mice. These data suggest a relationship between the decreased synaptic protein induced by hypoxia treatment and the oxidative stress and inflammatory events. The increase of Aβ levels in the APP/PS1 mouse brain with age might provide the resources for the cellular or molecular changes in the specific neurotransmitter systems.

Progressive down-regulation of CD36 induced by hypoxia is involved in the defective phagocytosis and degradation of microglia to Aβ in the APP/PS1 mouse brain

One of the key roles of microglia in the brain is to serve as specialized sensors for brain pathological alterations. Microglia becomes activated, migrates to and surrounds damaged or dead cells, and then clears cellular debris under pathological stimulation. However, as AD progresses, microglia displays a compromised clearance function (27, 28). It has been proposed that impaired cerebral Aβ clearance is the leading cause of AD (46). CD36, a receptor of microglial expression, appears to be involved in AD pathogenesis (13). Paradoxically, microglia and macrophages isolated from CD36 null mice had a significant reduction of Aβ fibrillar-induced secretion of cytokines and ROS (22). The receptor complex composed of CD36, Aβ, and Toll-like receptors is necessary for the microglia activation to produce ROS and neurotoxicity. The activation requires all three members to be present (66). On the other hand, CD36-deficient macrophages exhibited a significant phagocytic defect (51). Coraci et al. observed that CD36 levels were reduced in the microglia of patients with AD, multiple sclerosis, and Parkinson's disease (13). The level of CD36 mRNA in CD11b⁺ cells from aging AD mice was much less than in age-matched WT littermates (28). In addition, upregulation of CD36 increases Aβ phagocytosis and results in cognitive improvement in the AD mouse model (76). It has been reported that microglia shows age-associated decreases in the CD36 expression, and impairment in Aβ phagocytosis ability is observed at an according age in vitro (24). In the present study, microglial cells were isolated with cell markers for microglia, mouse anti-CD11b-coated microbeads. CD36 mRNA levels in CD11b⁺ cells from APP/PS1 mouse brains were markedly altered. At 4 months of age, CD36 mRNA levels were slightly increased in Tg mice compared with age-matched WT mice, and hypoxia enhanced the increase in the Tg group. It is possible that CD36 activation in the microglia of mouse brain tissues during early AD progression is an attempt to perform Aβ clearance and phagocytosis. However, the levels of CD36 expression were significantly reduced in aging APP/PS1 mouse brain tissues during the time of Aβ generation and deposition. Our results are similar to the work from another group that utilized various age of AD mice and their WT littermates for analyzing microglia function and their expressing receptor (28). Soluble and insoluble Aβ levels were significantly increased in the Tg group compared with the WT group, and hypoxia treatment enhanced CD36 down-regulation in the aging Tg mouse brain. Hypoxia treatment triggered significant reduction of the Aβ-degrading enzymes, NEP, IDE, and MMP-9, and the increases of IL-1β and TNFα levels. Given that microglia exhibited these dysfunctional characteristics, namely the marked reduction in CD36 and Aβ-degrading enzymes and the increase in inflammatory cytokines, it is possible to speculate that hypoxia might contribute to the additional increase of Aβ deposition and oxidative stress, resulting in further AD progression. Our results suggested that the decrease of CD36 expression on microglia with age, especially under hypoxic stimulation, contributed to the loss of their Aβ phagocytosis and clearing capabilities; while microglia continued to produce pro-inflammatory cytokines, resulting in Aβ increasing accumulation. The generation and accumulation of Aβ, in turn, further exaggerate the hypoxia-induced disorders. The defects of the microglia to fulfil the Aβ-clearing functions might be a result of the Aβ-triggered inflammatory response. Thus, targeting the impaired Aβ clearance function of microglia such as upregulating CD36, reducing ROS excessive production induced by Aβ accumulation and subsequently the decrease of pro-inflammatory cytokines might be considered a potential therapeutic strategy for AD.

Increase of CD36 mediated by NRF2-ARE activation with LV-NRF2 intranasal treatment alleviates neurodegeneration in the APP/PS1 mouse brain, and improves learning and memory capacity of the mouse

The NRF2-ARE pathway appears to contribute to cellular defense against oxidative stress. The lack of NRF2 renders cells increasingly susceptible to oxidative stress in vitro (37, 38). It has also been proposed that NRF2 plays a protective role in AD. Activation of NRF2 protects neural cells against Aβ-induced neurotoxicity (35), and NRF2 gene delivery to 9-month-old AD mice improves spatial learning (34). Interestingly, a known antioxidant, acetyl-l-carnitine, prevents hypobaric hypoxia-triggered spatial memory impairment via NRF2-mediated cellular defense against oxidative stress (4). A recent study has reported that the activation of NRF2 attenuated chronic hypoxia-induced cardiopulmonary alterations in mice (19). Most importantly, NRF2 directly regulates alternative first exons of CD36 via regulation at the ARE (44). Treatment with an NRF2 activator significantly upregulates CD36 and promotes the activation of CD36 macrophage gene expression (32, 49).

In the present study, at 4 months of age, nuclear NRF2 levels in the APP/PS1 mouse brain were increased compared with age-matched WT mice, and hypoxia treatment cause a slight increase compared with controls. Accordingly, expression of the NRF2 target gene, HO-1, was increased in Tg animals relative to WT animals, especially with hypoxia treatment. Low levels of ROS induce the expression of antioxidant defense genes (18). The activation of the NRF2-ARE is likely due to an increase in the antioxidant response. However, the NRF2-ARE pathway was significantly attenuated in aging Tg and age-matched WT mouse brains. Our findings are in agreement with a previous study (35). Furthermore, hypoxia treatment exacerbated the decrease in protein expression of HO-1, NQO1, γGCL-C, and γGCL-M in the aging mouse brain, suggesting an increasing loss of free radical scavenging ability in the aging mouse brain under hypoxic conditions. The high energy demand in the brain is generally accepted. Hypoxia-induced drop in tissue oxygen levels to the point where oxygen demand exceeds supply results in metabolic crisis. The crisis results in tricarboxylic acid cycle inhibition and puts the ongoing physiological functions in danger, and subsequently a severe energy drop (11, 71). The metabolic crisis might be involved in the proposed mechanism of hypoxia-triggered reductions of antioxidant response gene expression in our study.

To test whether the decrease of scavenger receptor, CD36, was involved in the increasing attenuation of the NRF2-ARE signal with hypoxia in the aging APP/PS1 mouse brain, we return to the mouse experiment. LV-NRF2 was delivered intranasally to 2-month-old APP/PS1 and age-matched WT mice. After 6 months, the mice were treated with either hypoxia or control oxygen conditions for 2 months. We observed that NRF2 gene delivery upregulated NRF2-ARE-dependent genes encoding antioxidant proteins and increased CD36 mRNA levels in the microglia from Tg and WT mouse brains. Further, exogenous delivery of NRF2 attenuated the soluble and insoluble Aβ levels, ROS production, carbonyl protein accumulation, and MDA production triggered by hypoxia. Most importantly, upregulation of the NRF2-ARE signal ameliorated the learning and memory defect induced by hypoxia in aging APP/PS1 mice. Current data suggest that restoring decreased NRF2 function can activate antioxidant signaling pathways and affect the clearance of misfolded protein aggregates. NRF2-induced CD36 increase enhances microglial phagocytosis. Further efforts should be made to elucidating the maintenance and efficiency of intranasal LV-NRF2 intervention, the ideal time for effective administration, and the safety so that it might lead to the discovery of new agency for the treatment of AD.

In summary, our data indicate that CD36 upregulation mediated by intranasal LV-NRF2 treatment increases Aβ clearance and phagocytosis associated with oxidative stress and Aβ neurotoxicity. Modulating NRF2 levels in the brain ameliorates the weak antioxidant defense triggered by hypoxia in aged APP/PS1 and WT mice. The NRF2-mediated increase of CD36 protects against hypoxia-induced deterioration of microglia in AD-like pathogenesis.

Animals

Male APP/PS1 double-transgenic mice expressing a chimeric mouse/human Swedish mutation amyloid precursor protein (Mo/HuAPP695swe) and a mutant human presenilin 1 (PSEN1dE9) directed to CNS neurons, and WT C57BL/6 mice were obtained from the Jackson Laboratory (West Grove, PA). APP/PS1 mouse secrete a human Aβ peptide because of the “humanized” Mo/HuAPP695swe. The mutant of human PSEN1dE9 carrying the exon-9-deleted variant is associated with familial AD. Mice were kept in a controlled environment of 22°C–25°C, 40%–60% relative humidity, and a 12-h light/dark cycle with standard diet and distilled water available ad libitum. The study was proved by the ethics committee for laboratory animals of the China Medical University.

Exposure to hypoxia

Experiments were conducted in two phases. In Phase I, hypoxia treatment was performed as previously described (42, 63, 72). Briefly, 2-, 6-, and 12-month-old APP/PS1 transgenic (Tg) mice and age-matched WT mice were randomly divided into either hypoxia or control treatment groups. Mice receiving hypoxia treatment were placed into a 125 ml jar containing normal oxygen conditions. The jar was tightly sealed using a rubber plug and once the first gasping breath was observed, the mouse was immediately removed from the jar. In each experiment, the time at which the first gasp was observed for each mouse was regarded as the tolerance limit. Alteration of hypoxia marker triggered by the hypoxic intervention, HIF1α, was tested (Supplementary Fig. S1 and Supplementary Table S1). Exposure to hypoxic conditions was once daily for 2 months. Body weight and general health of the mouse were monitored daily.

Lentivirus creation and administration

In Phase II, NRF2 was delivered intranasally to APP/PS1 mice using a lentiviral vector encoding human NRF2 (LV-NRF2) to determine the effect of NRF2 against hypoxia. Enhanced GFP- and NRF2-expressing lentiviruses under the control of a human phosphoglycerate kinase promoter were used for lentiviral gene transfer (36, 75). NRF2 was cloned by excising NRF2 from pCI-NRF2 (41, 75) with 5–10 units of NheI (New England Biolabs, Beverly, MA) and SalI (New England Biolabs), and then was half-blunt ligated into the BamHI-SalI site of the LV-GFP vector, displacing the GFP. The lentiviruses were produced and titrated as previously described (31). The lentiviral vector coding for GFP was used as the control. Two-month-old male APP/PS1 mice and age-matched WT mice were divided into four groups: control (LV-GFP), LV-NRF2, LV-GFP+Hypoxia, and LV-NRF2+Hypoxia. For intranasal administration, mice were lightly anesthetized with pentobarbital sodium (4 μg/kg body weight). After 15 min, virus particles in 10 μl of sterile PBS (pH 7.4) at a titer of 4×10⁸ (34) were delivered intranasally into the right nostril of the mice using a micropipettor with a gel-loading tip (Finnpipette) at week 0. Mice were given the same intranasal treatment at the fourth week. After 6 months, APP/PS1 mice and WT mice were exposed to hypoxia as mentioned earlier for 2 months. At 10 months of age, the mice were assessed for behavioral testing and biochemical assays.

Behavioral testing

Twenty-four hours after the last hypoxia treatment, mice were tested using the MWM and Y-maze. The MWM (55) was used to test spatial memory. The apparatus (ZH0065, Zhenghua Bioequipments; Zhejiang, Jiangsu, China) was a circular tank that was equipped with a digital pick-up camera and a computer program to semi-automatically monitor the animal behavior and analyze data. Briefly, mice had 2 days of pretraining to remember the visible platform placed in the center of the northwest quadrant in the tank, after which they underwent a 5-day navigation test to find a hidden platform submerged 1 cm below the water surface. Each mouse was subjected to three trials with a 1 min inter-trial interval per day. The escape latency to the platform and the path length of each trial was recorded. On the eighth day, the platform was removed for the probe trial. The passing times that the mouse crossed the center where the platform was placed previously were recorded.

The Y-Maze Test (14) was used for testing spatial memory and learning. Briefly, three identical arms of the maze (Muromachi Kikai, Tokyo, Japan) were randomly designated as the start arm, novel arm, or other arm. All mice were subjected to two trials separated by a 1-h, inter-trial interval. In the first training trial, the mice were allowed to explore the starting arm and the other arm for 10 min. Then, for the second retention trial, mice were placed back in the maze in the same starting arm and allowed to explore for 5 min with free access to all three arms. The number of entries and percentage of time spent in the novel arm that mice examined were analyzed.

Preparation of brain samples

After behavioral testing, mice were deeply anesthetized with sodium pentobarbital (50 mg/kg, intraperitoneally). Animals were then transcardially perfused with ice-cold 0.9% saline and sacrificed by decapitation. The brains were immediately removed and dissected in half on an ice-cold board. One half was prepared for morphological assessment, and the other half was prepared for biochemical assays.

Isolation of microglia

The isolation of microglia from adult mouse brains was performed as previously described (28). Briefly, mouse brain tissue was placed into Roswell Park Memorial Institute (RPMI) 1640 medium (Gibco, Grand Island, NY) containing 2 mM L-glutamine (no phenol red), 2.0 U/ml Dispase (Gibco), and 0.2% Collagenase Type 3 (Worthington Biochemicals, Lakewood, NJ). After mincing with sterile razor blades, tissues were digested for 45 min at 37°C, followed by addition of DNase I, grade II (Roche Applied Science, Indianapolis, IN) at a concentration of 40 U/ml for another 15 min. The digestion was terminated by adding 20-ml Hanks Balanced Salt Solution containing 2 mM EDTA and 2% fetal bovine serum. The samples were then sequentially triturated and passed through a filter. The cells were collected and resuspended in RPMI 1640 with L-glutamine. After adding Physiologic Percoll (Sigma-Aldrich, St. Louis, MO), the samples were centrifuged at 850 g for 45 min. The cell pellet was resuspended in RPMI and sequentially passed through a 70-μm filter and a 40-μm filter (Fisher Scientific, Waltham, MA). The cells were then incubated with cell markers for microglia, mouse anti-CD11b-coated microbeads (Miltenyi Biotech, Auburn, CA) for 20 min at 12°C. After washing, the bead-cell pellet was resuspended in PBS containing 0.5% BSA, 2 mM EDTA and then passed over a magnetic MACS Cell Separation column (Miltenyi Biotec, Bergisch Gladbach, Germany) so that CD11b-positive (CD11b⁺) cells were separated from CD11b-negative cells. Flow-through was collected, and the column was rinsed with PBS. CD11b⁺ cells were eluted, and the resulting cells were collected by centrifugation.

Real-time PCR

Total RNA from mouse brain or CD11b⁺ cells of each sample was extracted using Trizol (Invitrogen, Grand Island, NY) according to the manufacturer's instructions. The integrity of the RNA was analyzed by agarose gel electrophoresis. The yield of total RNA was determined by assessing the absorbance (260 nm: 280 nm ratio). A total of 3 μg RNA was reverse transcribed using the Prime Script RT Reagent Kit (Takara, Otsu, Japan). The reverse-transcription conditions were 37°C for 15 min followed by 85°C for 5 s. For real-time RT-PCR, each specific gene product was amplified with SYBR Green PCR Master mix (Applied Biosystems, Inc. (ABI), Foster City, CA) using an ABI 7300 Sequence Detection System. Each reaction mixture contained 50 ng of cDNA. Cycling conditions included a preincubation of 50°C for 2 min, DNA polymerase activation at 95°C for 5 min, followed by 30 cycles of denaturing at 95°C for 30 s, and annealing and extension at 58°C for 30 s. Each cDNA sample was assayed in triplicate. Primer sequences used for PCR quantification were as follows: NRF2: forward, 5′-TGG ACG GGA CTA TTG AAG GCT G-3′, reverse, 5′-GCC GCC TTT TCA GTA GAT GGA GG-3′; CD36: forward, 5′-TTT CCT CTG ACA TTT GCA GGT CTA-3′; reverse, 5′-AAA GGC ATT GGC TGG AAG AA-3′; IL-1β: forward, 5′-ACC TGT CCT GTG TAA TGA AAG ACG-3′; reverse, 5′-TGG GTA TTG CTT GGG ATC CA-3′; TNFα: forward, 5′-GCA CAG AAA GCA TGA CCC G-3′; reverse, 5′-GCC CCC CAT CTT TTG GG-3′; IDE: forward, 5′-GAA GAC AAA CGG GAA TAC CGT G-3′; reverse, 5′-CCG CTG AGG ACT TGT CTG TG; NEP: forward, 5′-GCA GCC TCA GCC GAA ACT AC-3′; reverse, 5′-CAC CGT CTC CAT GTT GCA GT-3′; MMP-9: forward, 5′-GCC ATG CAC TGG GCT TAG AT-3′; reverse, 5′-TCT TTA TTC AGA GGG AAG CCC TC-3′; β-actin: forward, 5′-GTA TGA CTC CAC TCA CGG CAA A-3′, reverse, 5′-GGT CTC GCT CCT GGA AGA TG-3′. Primer sequences used for NRF2 target genes and HIF1α determination were displayed in Supplementary Table S1. Expression was calculated using threshold cycle (Ct) values normalized to β-actin, and relative differences between control and treatment groups were expressed as a percentage relative to control.

Measurement of ROS production

Determination of ROS levels in the cortex of the mouse brain was performed as previously described with minor modifications (25). Briefly, cortices of mice brain were homogenized in ice-cold 10 mM Tris-HCl buffer (pH 7.4) (1: 10, w/v) containing 100 mM sucrose, 10 mM EDTA, and then centrifuged at 800 g for 5 min. The supernatant was collected and centrifuged at 1000 g for 10 min. The cell pellets were suspended in cold PBS and counted using trypan blue. Cells (2×10⁶/ml) were incubated in a HEPES-Tris medium (HT) containing l μM 5-(and-6)-chloromethyl-2′,7′-dichlorodihydrofluorescein diacetate ([CM-H₂DCFDA]; Molecular Probes, Invitrogen, Carlsbad, CA), 132 mM NaCl, 4.2 mM KCl, 1 mM CaCl₂, 1 mM MgCl₂, and 10 mM HEPES (pH 7.4) for 30 min at 25°C with protection from light. Negative controls were incubated with PBS. After removing the supernatant by centrifugation at 1000 g for 10 min, samples were then returned to HT medium at 25°C for 10 min. After lysis with lysis buffer containing 1% Nonidet P-40, 150 mM NaCl, and 50 mM Tris (pH 8.0), the supernatants were collected by centrifugation at 19,000 g for 10 min (4°C). The samples were diluted with a fourfold volume of deionized water and measured with a VersaFluor Fluorometer System (Bio-Rad Laboratories, Hercules, CA) using an excitation filter of 490 nm.

Assays of antioxidant enzyme activity

Mouse brain cortices were weighed, and a ninefold volume of phosphate-buffered saline was added. Samples were then ground gently at 4°C. Total protein levels were measured using a UV 1700 PharmaSpec ultraviolet spectrophotometer (SHIMADZU, Tokyo, Japan). GSH-PX and CAT activity in tissue homogenates was determined by colorimetry using suitable kits (Nanjing Jiancheng Bioengineering Institute, Nanjing, Jiangsu, China). The absorbance was recorded at 412 and 240 nm for GSH-PX and CAT, respectively.

Measurement of protein carbonyl groups and lipid peroxidation products

Carbonyl proteins were analyzed as previously described 29. Briefly, protein samples were incubated with an equal volume of 0.1% 2, 4-dinitrophenylhydrazine in 2 M HCl for 1 h at room temperature. Then, 20% trichloroacetic acid (TCA) was added to precipitate proteins. After extraction with ethanol/ethyl acetate (1:1) thrice, the precipitate was placed in the lysates containing 8 M guanidine hydrochloride, 13 mM EDTA, and 133 mM Tris (pH 7.4). The absorbance was read at 365 nm. Data were expressed as the quantity of carbonyl protein formed (nmol) per mg of total protein.

The quantity of lipid peroxidation product, MDA, was determined using the MDA Detection Kit (Nanjing Jiancheng Bioengineering Institute, Nanjing, Jiangsu, China). Precipitation of MDA with thiobarbituric acid produces a red product with a maximum absorption peak at 532 nm.

Western blot

Mouse brain tissues were homogenized, lysed in RIPA buffer (150 mM NaCl, 1% Nonidet P-40, 0.5% deoxycholic acid, 0.1% SDS, and 50 mM Tris, pH 8.0) containing a protease inhibitor cocktail (Sigma-Aldrich), and centrifuged at 15,000 g for 30 min at 4°C. The resulting supernatants were collected. Total protein concentrations were determined using the UV 1700 PharmaSpec ultraviolet spectrophotometer. A total of 30 μg of protein was then separated by 10% SDS polyacrylamide gels. The separated proteins were transferred to PVDF membranes (Millipore, Billerica, MA). After blocking in 5% nonfat milk in Tris-buffered saline (TBS) containing 0.05% Tween-20 for 1 h, transferred PVDF membranes were incubated with primary antibodies at 4°C overnight as follows: mouse anti-HIF1α (1: 800; Abcam), rabbit anti-synapsin I (1: 1000; Millipore), rabbit anti-synaptophysin (SYP; 1: 2000; Abcam), rabbit anti-synaptosomal-associated protein 25-kDa (SNAP-25; 1: 1000; Abcam), rabbit anti-NRF2 (1: 1000; Abcam), goat anti-HO-1 (1: 1000; Santa Cruz Biotechnology, Santa Cruz, CA), goat anti-NQO1 (1: 1000; Santa Cruz Biotechnology), rabbit-anti-γGCL-M (1: 800; Santa Cruz Biotechnology), rabbit-anti-γGCL-C (1: 500; Santa Cruz Biotechnology), mouse anti-GAPDH (1:10,000; Kangchen Biotech, Shanghai, China), and rabbit anti-lamin B1 antibody (1: 1000; Abcam). Immunoblots were washed and incubated with the appropriate species-specific horseradish peroxidase-conjugated secondary antibody (1: 5000; Santa Cruz Biotechnology) at room temperature for 1 h. The immunological complexes were visualized with enhanced chemiluminescence substrate (ECL, Amersham Biosciences) using the ChemiDoc XRS system and the accompanying Quantity One software (Bio-Rad Laboratories). Signal intensities data were quantified using Image-pro Plus 6.0 analysis software. Data are expressed as the relative differences between samples after normalization to GAPDH expression.

Immunostaining

Frozen sections (6 μm) of the mouse brain were treated with 5% bovine serum albumin for 1 h, and then incubated with either rabbit anti-glial fibrillary acidic protein (GFAP, 1: 100; Santa Cruz Biotechnology) or mouse anti-CD11b (1: 100; Serotec, Kidlington, Oxford, United Kimgdom) overnight at 4°C. After washes, sections were incubated with Alexa Fluor 568-cojugated secondary antibody (1: 100; Invitrogen) at room temperature for 2 h. After rinsing, sections were treated with fresh, 1% filtered, aqueous Thioflavin-S (Sigma-Aldrich) for 5 min. The slides were then mounted, cover-slipped, and examined with a confocal laser scanning microscope (Model SP2; Leica, Wetzlar, Germany). Images were analyzed using Nikon EclipseNet and Image J software (National Institutes of Health, Bethesda, MD). For Aβ immunostaining, brain sections were incubated with mouse anti-Aβ antibody (1: 500; Sigma-Aldrich) and then with biotinylated IgG (1: 200) for 1 h, followed by incubation with streptavidin peroxidase for 30 min. After thorough rinses, the sections were treated with 0.025% 3,3-diaminobenzidine plus 0.0033% H₂O₂ in TBS for 5 min. The stained sections were dehydrated, cleared, and mounted with neutral balsam. Sections were examined, and images were obtained with an Olympus microscope (Model DP71).

NRF2 extract preparation

Cytosolic and nuclear extracts of NRF2 were prepared (58) using a nuclear extract kit (Active Motif, Inc., Carlsbad, CA). Briefly, the frontal cortex of mouse brains was homogenized in 1 ml of ice-cold hypotonic buffer A (10 mM HEPES [pH 7.9], 10 mM KCl, 2 mM MgCl₂, 1 mM dithiothreitol, 0.1 mM EDTA, and 0.1 mM phenylmethylsulfonyl-fluoride [PMSF]). The samples were centrifuged at 14,000 g for 2 min. The supernatant was collected as a cytosolic fraction. The precipitates were washed with Buffer A plus 40 μl of 10% Nonidet (NP-40). Pellets were resuspended in an ice-cold, hypertonic, nuclear extract Buffer B (50 mM HEPES (pH 7.9), 50 mM KCl, 300 mM NaCl, 0.1 mM EDTA, 0.5 mM Dithiothreitol, 0.1 mM PMSF, and 20% glycerol) and centrifuged at 14,000 g for 5 min. The supernatant containing nuclear proteins was collected.

Sandwich ELISA

For Aβ detection, ELISA-based assays were performed as previously described 73. Briefly, the cortex of mice brain was homogenized in either ice-cold 20 mM Tris pH 8.5 (soluble) or 5 M guanidine HCl/50 mM Tris-HCl, pH 8.0 (insoluble). The homogenates were diluted with dilution buffer plus protease inhibitor cocktail (Sigma-Aldrich) and thoroughly ground with a hand-held motor. After centrifugation at 15,000 g for 30 min at 4°C, the supernatants were collected. Aβ1-40 and Aβ1-42 levels were determined using mouse or human Aβ1-40 ELISA kits (Invitrogen) and Aβ1-42 ELISA kits (Invitrogen), respectively, according to the manufacturer's instructions. The absorbance was recorded at 450 nm using a 96-well plate reader.

NRF2 nuclear proteins isolated from mouse brain tissues were obtained by the method described earlier. NRF2 DNA-binding activity was determined using the TransAM ELISA-kit (Active Motif, Inc.). The absorbance was read at 450 nm. IL-1β and TNFα levels were measured by ELISA using the mouse IL-1β V-PLEX Plus Kit (Meso Scale Discovery, Rockville, MD) and mouse TNFα V-PLEX Plus Kit (Meso Scale Discovery), respectively, according to the manufacturer's instructions. Briefly, mouse brain cortices were homogenized using RIPA buffer containing a protease inhibitor cocktail (Sigma-Aldrich). The supernatants were collected by centrifugation at 15,000 g for 30 min at 4°C. The protein concentrations were measured, and 50 μl of each PBS soluble fraction was loaded per well on the plate. The samples were incubated at 22°C with shaking (1000 rpm) for 2 h. Cytokine levels were normalized to total protein content.

Statistical analysis

All values were represented as mean±standard error of the mean (SEM). Statistical significance between groups was determined by using t test or analyses of variance with post hoc Fisher's protected least-significant difference. p<0.05 was considered significant.
