Redox Regulation of NLRP3 Inflammasomes: ROS as Trigger or Effector?

NLRP3 inflammasomes

The most characterized member of the NLR family is the NLRP3 inflammasome. Before being recognized as a caspase-activating molecular platform, mutations in NLRP3 were first identified in patients with familial cold urticaria (FCU) and Muckle–Wells syndrome (MWS) (5). Agostini et al. later demonstrated that the spontaneous secretion of IL-1β in patients with MWS derived from oligomeric complexes comprised NLRP3, ASC, and caspase-1, which was termed the inflammasome (6). Since then, the NLRP3 inflammasome has been shown to respond to a very diverse range of activators, including those of microbial origin, endogenous danger signals, and exogenous nonmicrobial stimuli; of particular interest is the fact that the NLRP3 inflammasome is considered a general sensor of DAMPs, which may be important in sterile inflammation observed in many human diseases. This led to great interest in the scientific community to identify activators of the NLRP3 inflammasomes and an attempt to understand how such a broad range of stimuli can activate the same molecular platform (24).

With regard to exogenous NLRP3 inflammasome activators, many studies have provided evidence of NLRP3 inflammasome activation in response to a whole host of foreign danger signals and microbes, including the influenza virus, adenoviruses, Staphylococcus aureus, Escherichia coli, Neisseria gonorrhoe, and Candida albicans (36, 55, 59, 76, 95, 125). Although the ability of these microbial toxins to form membrane pores is linked to their ability to activate NLRP3, it still remains unknown whether a single or a combination of PAMPs is directly responsible for its activation. Another group of NLRP3 stimulators are the nonmicrobial phagocytosed materials, where monosodium urate (MSU) crystal accumulation associated with gout was one of the first inflammatory diseases linked to the activation of NLRP3 (80). In a similar manner, silica, asbestos, and aluminum salts have also been shown to trigger caspase-1 cleavage and IL-1β production via NLRP3 activation (33, 53).

However, the activation of NLRP3 inflammasomes to a very wide range of endogenous danger signals or DAMPs is what sets NLRP3 apart from other inflammasomes. It is proposed that the formation and activation of this inflammasome may be a critical pathogenic mechanism mediating many degenerative diseases such as atherosclerosis, Alzheimer's disease, glomerular sclerosis, lung fibrosis, and liver cirrhosis (30, 50, 69, 150). For example, excessive levels of ATP were described as one of the first endogenous DAMPs to induce NLRP3 inflammasome formation and activation, a mechanism involving high concentrations of extracellular ATP binding to the purinergic P2X7 receptor (104). The aggregation of endogenous peptides such as amyloid-β are also sensed by NLRP3 (44), leading to the production of pro-inflammatory cytokines, which explains the elevation of IL-1β detected in the brains of patients with Alzheimer's disease (43). Cholesterol crystals are known to cause phagolysosomal damage, and have been shown to lead to the early activation of NLRP3 and the promotion of a pro-atherosclerotic phenotype (35); while an endogenous danger signal of trauma, hyaluronan, also triggers chemokine release in affected tissues through NLRP3 (146). Damage to pancreatic islet cells by hyperglycemia caused NLRP3 inflammasome activation, glucose intolerance, and insulin resistance in a murine model of diabetes (154). Our recent studies demonstrated that elevated levels of homocysteine (Hcys), a thiol-containing amino acid derived from methionine, stimulate NLRP3 inflammasome formation and activation, leading to podocyte cell injury and, eventually, glomerular sclerosis in the kidney (150). Inhibition of the inflammasome via ASC short hairpin RNA (shRNA) or the caspase-1 inhibitor, WEHD (peptide sequence Ac-Tyr-Val-Ala-Asp-CHO), prevented Hcys-induced detrimental effects on glomerular structure and function, signifying a critical role for NLRP3 in the pathogenesis of end-stage renal disease (ESRD) related to hHcys (150). In the coronary arterial wall, we also showed that endothelial NLRP3 inflammasomes were activated on stimulation with the adipokine visfatin, which may be an initiating factor resulting in vascular inflammation and injury leading to atherosclerosis (143). Taken together, NLRP3 inflammasomes have contributed to a paradigm shift in how we understand the pathogenesis of different human degenerative diseases and develop new therapeutic strategies for its treatment.

ATP and K⁺ efflux

ATP, an endogenous DAMP, was one of the first described NLRP3 inflammasome activators, where high extracellular concentrations resulted in the depletion of cytosolic K⁺, leading to NLRP3- and ASC-dependent caspase-1 activation and IL-1β secretion (76). K⁺ efflux was the first model described that linked all known NLRP3 activators at the time, including ATP, nigericin, MSU crystals, and pore-forming toxins (93, 107). K⁺ efflux and low intracellular K⁺ concentration caused by activation of the P2X7 purinergic receptor in response to ATP is now considered an important signaling pathway to activate NLRP3 inflammasomes (76, 121). ATP has also been demonstrated to cause transient pore formation through pannexin-1, enabling NLRP3 stimulators to cross the plasma membrane and directly promote inflammasome assembly and activation (104).

Lysosome destabilization and frustrated phagocytosis

Another activating mechanism of NLRP3 inflammasomes is related to the actions of lysosomal enzymes in response to phagosomal stimulations that are too large to cross the membrane and instead are taken up into the cell via phagocytosis. Martinon et al. were the first to demonstrate that insoluble uric acid, which accumulates at the joints of patients with hyperuricemia to form MSU crystals, activated NLRP3 inflammasomes, causing IL-1β maturation, producing the inflammatory phenotype typically seen in patients suffering from gout (80). Dostert et al. furthered this study, finding that incomplete phagocytosis of crystals leads to lysosome swelling and destabilization, causing lysosomal rupture and the release of cathepsin B, a lysosomal enzyme shown to activate NLRP3 inflammasomes (33). Much evidence supports a crucial role for lysosome stability in downstream caspase-1 activation and IL-1β release in response to MSU crystals, as inhibition of cathepsin B greatly abrogated these effects (53). These mechanisms extended not only to other endogenous crystalline structures such as cholesterol crystals (35) but also to environmentally derived crystals such as asbestos, silica, and aluminum salts typically used in vaccine adjuvants (33, 53). However, the mechanism of how cathepsin release results in NLRP3 activation still remains unknown.

Reactive oxygen species

Although NLRP3 was originally hypothesized to be a cytosolic receptor, with such a broad range of stimuli demonstrated to cause its activation, it seems highly improbable that NLRP3 acts as a receptor to directly bind to all of these diverse stimuli. ROS, produced by many known activators of NLRP3 inflammasomes, are shown to be a critical mechanism triggering NLRP3 inflammasome formation and activation in response to many exogenous stimuli as well as endogenously produced or secreted molecules from damaged cells such as DAMPs (127). The hypothesis of ROS as an NLRP3-activating trigger arose when inhibition of NADPH oxidase-derived ROS prevented ATP-induced caspase-1 activation and IL-1β production in alveolar macrophages (28). Further substantiating this hypothesis, knockdown of the p22 ^phox subunit of NADPH oxidase significantly suppressed IL-1β release in THP1 cells in response to asbestos and MSU challenge (33). Interestingly, incomplete phagocytosis of crystalline particulates by phagocytic cells such as macrophages is a source of ROS as well as reactive nitrogen species (41). The crystal structure of NLRP3 contains a highly conserved disulfide bond connecting the PYD domain and the nucleotide-binding site domain, which is highly sensitive to altered redox states (9). The presence of this unexpected disulfide bond between Cys-8 and Cys-108 spans across six species, including humans, monkeys, and mice, and the strict conservation of this bond is indicative of a crucial redox role for NLRP3. The production of ROS offers a link as to how many different stimuli, including frustrated phagocytosis, can activate the same molecular platform.

Endoplasmic reticulum stress and unfolded protein response

With the NLRP3 inflammasome being more widely accepted as a general sensor for alterations in cellular homeostasis, it is logical that endoplasmic reticulum (ER) stress, generated in response to the accumulation of misfolded proteins and an indicator of metabolic disturbances, could also be a trigger to activate NLRP3 inflammasomes. Induction of ER stress promoted IL-1β secretion in human macrophages, suggesting that the generation of ER stress alone was sufficient to activate NLRP3 inflammasomes (87). Interestingly, this activation occurred independently of the unfolded protein response (UPR), but required the production of ROS as well as K⁺ efflux (87). Contradictorily, the UPR and the IRE1α and PERK pathways are necessary for IL-1β secretion in pancreatic β cells, where thioredoxin-interacting protein (TXNIP) acts as the link between ER stress, NLRP3 inflammasome activation, and inflammation related to diabetes (66, 101). Genetic deletion of TXNIP suppressed IL-1β release from islet cells and prevented ER stress-induced β cell death, verifying its role as a key mediator in NLRP3 activation and the detrimental effects associated with uncontrolled ER stress. Currently, the effect of ER stress and the role of UPR appear to be cell type specific, and require further studies to clearly understand its role in inflammasome activation.

Ca²⁺ signaling

The first implication of intracellular Ca²⁺ ([Ca²⁺]_i) signaling in NLRP3 inflammasome activation came from a study by Brough et al. that demonstrated reduced IL-1β production by Ca²⁺ chelator BAPTA-AM in ATP-treated murine macrophages (20). More recently, it was discovered that ATP induced Ca²⁺ mobilization from both intracellular and extracellular stores, and that both inhibition of intracellular ER Ca²⁺ stores by thapsigargin and incubation with Ca²⁺-free media to inhibit extracellular Ca²⁺ entry were able to prevent ATP-induced caspase-1 activation and IL-1β secretion (94). The same was required of nigericin, MSU, and alum-induced NLRP3 inflammasome activation in macrophages. Excessive Ca²⁺ can lead to an increase in mitochondrial ROS (mtROS) production, collapse of the mitochondrial membrane potential, and eventual mitochondria rupture (34). Thus, Murakami et al. further hypothesized that mitochondrial damage and dysfunction caused by sustained levels of high [Ca²⁺]_i may be the link to NLRP3 inflammasome activation (94). Further substantiated by Triantafilou et al., the complement membrane attack complex instigates NLRP3 activation via increased [Ca²⁺]_i, which accumulates in the mitochondrial matrix, leading to loss of membrane potential (126). Importantly, blocking mitochondrial Ca²⁺ uniporter prevented not only accrual of mitochondrial Ca²⁺ but also IL-1β production.

Deubiquitination

In some cells such as neutrophils or macrophages, there is evidence that NLRP3 inflammasome activation is a two-step mechanism requiring a primary TLR-mediated signal which activates NF-kappaB (NF-κB) to drive transcription of NLRP3 and pro-IL-1β; while a second triggering signal results in pro-IL-1β caspase-1-dependent cleavage (13). Priming, typically by lipopolysaccharide (LPS), has been shown to take approximately 2 h to upregulate NLRP3 expression (16). However, recent reports have suggested a rapid, nontranscriptional priming mechanism that occurs within minutes. Through coimmunoprecipitation studies in mouse and human macrophages, it was demonstrated that there exists a basal level of ubiquitinated NLRP3 which on LPS or ATP treatment is rapidly deubiquitinated (60). This process was found to be essential for NLRP3 inflammasome activation, as inhibition of deubiquitinases by small-molecule inhibitors completely blocked IL-1β production (73). Breast cancer 1 or 2 protein (BRCA1/BRCA2)-containing complex subunit 3, BRCC3 is an NLRP3-specific deubiquitinase enzyme that has recently been identified as the critical regulator of NLRP3 ubiquitination and its subsequent activation (110).

MicroRNAs

Specific to myeloid cells, a genome-wide microRNA (miRNA) screen identified miRNA-223 as a strong candidate specifically binding to the 3′ untranslated region of NLRP3 and negatively regulating NLRP3 expression (15). During differentiation of monocytes to macrophages, miR-233 inversely correlated with NLRP3 expression where miR-233 mRNA expression was higher in monocytes and NLRP3 protein expression was higher in macrophages (45). Coinciding with a clear involvement in NLRP3 inflammasome regulation, it is interesting that mice deficient in miR-233 have previously been shown to exhibit serious sterile inflammation similar to that of NLR-derived autoimmune diseases (58). In addition, in a less direct fashion, activation of IRE1α through ER stress pathways caused rapid reduction of another miRNA, miR-17. miR-17 negatively regulates TXNIP mRNA stability; therefore, the lack of miR-17 increased stability of TXNIP mRNA and promoted NLRP3 inflammasome activation (66).

ROS as a requirement for NLRP3 “priming”

Particularly in phagocytes such as macrophages, it has been shown that NLRP3 inflammasome activation requires two signals—a “priming” transcriptional step that involves TLR/NF-κB signaling, followed by post-translational regulation responsible for the oligomerization of the inflammasome components and the secretion of IL-1β (16, 75). This TLR-dependent signal is necessary for the activation of the transcription factor NF-κB and the downstream induction of pro-IL-1β expression, while NLRP3 inflammasomes control its proteolytic maturation. Specific activation of TLR2, TLR3, TLR4, and TLR7 induced NLRP3 priming, which occurred in an adaptor protein MyD88-dependent manner (16). Furthermore, specific blockade of NF-κB activity by inhibitor Bay11-7082 revealed its necessity for NLRP3 priming and enhancement of expression. This TLR and NF-κB-dependent priming was required for NLRP3 inflammasome activation in response to pore-forming toxin nigericin, ATP, as well as crystalline stimuli such as MSU. This two-step mechanism that first requires activation of PRRs in response to danger signals followed by an activating stimulus may be an evolutionarily conserved process to help prevent uncontrolled NLRP3 activation and excessive IL-1β release. However, in other cell types such as endothelial cells and podocytes, a two-step signal may not be needed, where constitutive or basal expression of pro-IL-1 and other associated molecules may be adequate to form and activate NLRP3 inflammasomes, albeit to a lesser extent than those in phagocytes, but sufficient enough to produce pathological changes in chronic degenerative diseases (98). In this regard, NLRP3 inflammasome activation may hinge on the strict requirement of NLRP3 priming by a proinflammatory signal, a step that is blocked by ROS inhibitors. Studies in mouse macrophages demonstrated that TLR4 with Myd88 can rapidly and nontranscriptionally prime NLRP3 through its deubiquitination. This process is dependent on mtROS production and can be inhibited by antioxidants. Pharmacological inhibition of NLRP3 deubiquitination completely blocked NLRP3 activation in both mouse and human cells, indicating that deubiquitination of NLRP3 is required for its activation. It has been suggested that NLRP3 is activated by a two-step deubiquitination mechanism initiated by TLR signaling and mtROS (60).

NADPH oxidase-derived ROS

Due to the role of ROS being limited specifically to the priming step, there are studies supporting the dispensability of ROS in the activation of NLRP3 inflammasomes. Macrophages isolated from gp91 ^phox−/− mice or patients with chronic granulomatous disease (CGD) and deficient NADPH oxidase displayed normal inflammasome function when challenged with NLRP3 agonists (53, 128). Caspase-1 activation and IL-1β secretion in response to cyclic stretch was undisturbed in murine alveolar macrophages, even in those isolated from gp91 ^phox−/− mice, demonstrating the dispensability of NADPH oxidase to NLRP3 activation in this particular mechanism (142). This leads to arguments of whether ROS are truly involved in the activation of NLRP3 inflammasomes, but instead are derived from TLRs and contribute to the priming mechanism (14). Wu et al. demonstrated that mechanical ventilation causes IL-1β release in the lung; however, there was no inhibitory effect on released IL-1β in cyclic-stretched mouse alveolar macrophages isolated from gp91 ^phox−/− mice (142). Instead, it was concluded that ROS derived from mitochondria were necessary for NLRP3 inflammasome activation induced by cyclic stretch. Furthermore, some studies showed that peripheral blood mononuclear cells (PBMCs) isolated from patients with CGD exhibited normal secretion of IL-1β and even exacerbated caspase-1 activation when compared with healthy controls (86, 128, 129). Interestingly, human neutrophils with mutations in the gp91 ^phox subunit of NADPH oxidase, also isolated from patients with CGD, displayed impaired IL-1β release but displayed no difference in the ability to activate caspase-1 when compared with neutrophils from control patients (42). This suggested that NADPH oxidase, specifically gp91 ^phox , and the production of ROS are dispensable for NLRP3 inflammasome activation, but crucial for IL-1β secretion, specifically in neutrophils but perhaps not in PBMCs. In addition, an emerging role for antioxidants as opposed to ROS has been implicated in mediating NLRP3 activation. It has been shown that superoxide dismutase 1 (SOD1) regulates caspase-1 activation, as macrophages isolated from SOD1-deficient mice displayed constitutively higher O₂ ^•− levels but inhibited caspase-1 activation (85). Similarly, the oxidant stress-responsive transcription factor Nrf2, which is responsible for induction of major antioxidant enzymes, is necessary for cholesterol crystal-induced NLRP3 activation (39).

Despite the evidence of ROS being dispensable and limited to the priming of NLRP3 inflammasomes, there are considerable reports supporting the contrary, showing the elevation of ROS, and in particular NADPH oxidase-derived ROS, to be critical for NLRP3 inflammasome activation. Some of the very early inflammasome studies reported the importance of NADPH oxidase-derived ROS in activating NLRP3 in response to ATP, asbestos, and silica (28, 33, 51). The first study of this kind demonstrated inhibited caspase-1 activation and IL-1β release in monocyte THP-1 cells in response to asbestos, MSU, and silica on specific knockdown of NADPH oxidase subunit p22 ^phox or use of general ROS scavengers such as N-acetylcysteine and antioxidant ammonium pyrrolidine dithiocarbamate (33). Furthermore, ATP induced NADPH oxidase complex aggregation in these same cells, and diphenylene iodonium (DPI) treatment inhibited both ATP- and nigerin-induced IL-1β and caspase-1 processing (51). Through the use of either NADPH oxidase inhibitors or general ROS scavengers, additional studies have demonstrated that IL-1β production in response to even more diverse stimuli could be prevented (23, 72, 105). This has ever since been extended to more recent reports, where NADPH oxidase inhibition via DPI or more specifically through gp91 ^phox subunit blockade can prevent free fatty acid, TNFα, and atheroprone oscillatory flow-induced NLRP3 inflammasome activation (7, 140, 145). A central role for NADPH oxidase and gp91 ^phox was further established in ATP-induced NLRP3 inflammasome activation in LPS-primed murine macrophages, where general NADPH oxidase inhibitors DPI and apocynin as well as specific gp91 ^phox siRNA inhibited caspase-1 activation and IL-1β secretion (70).

Studies from our laboratory have demonstrated a major contribution of NADPH oxidase-derived ROS, specifically gp91 ^phox , in the development of hHcys-induced glomerular damage (151). As mentioned earlier, we have established the important involvement of NLRP3 inflammasome activation in the pathogenesis of hHcys-induced glomerular sclerosis, where locally silencing the ASC gene in the kidney significantly reduced NLRP3 inflammasome formation and IL-1β production in glomeruli of mice with hHcys. Pathologically, hHcys-associated albuminuria, foot process effacement of podocytes, loss of podocyte slit diaphragm molecules, and late-stage glomerulosclerosis were significantly improved by local ASC gene silencing or by caspase-1 inhibition (150). In agreement with the aforementioned studies revealing the important contribution of ROS, we too have attributed this activation of NLRP3 inflammasomes to NADPH oxidase and the production of O₂ ^•− (4). Substantiating the importance of NADPH oxidase redox signaling, we found that overexpression of the guanine nucleotide exchange factor Vav2 and consequent activation of NADPH oxidase, independent of elevated Hcys, were also able to produce NLRP3 inflammasome-activating effects, suggesting that NADPH oxidase activation alone was sufficient to initiate the cascade, leading to NLRP3 inflammasome activation and downstream glomerular injury (1). In addition, we found that ATP can activate NLRP3 inflammasomes in renal tubular cells, resulting in the production of inflammasome-derived IL-1β, which acts directly on tubular cells to enhance sodium reabsorption and reduce medullary blood flow. All of these effects were inhibited by SOD mimetic 4-Hydroxy-2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPOL), suggesting an important contribution of ROS to ATP-induced NLRP3 inflammasome activation (4). In vascular endothelial cells, the formation and activation of NLRP3 inflammasomes by the adipokine visfatin served as an important initiating mechanism to turn on the endothelial inflammatory response, leading to arterial inflammation and endothelial dysfunction in mice during early-stage obesity (143); this action of visfatin may also be associated with the activation of NADPH oxidase (144). In our laboratory, we have defined a novel mechanism mediating NADPH oxidase activation in response to many different stimuli, termed lipid raft (LR) redox signalosomes. These LR signalosomes use membrane rafts as a platform to conduct redox signaling, and are centered on the enzymatic NADPH oxidase subunits clustering and activating to produce O₂ ^•− (57). NADPH oxidase-derived ROS can act downstream to conduct transmembrane or intracellular signaling, leading to the redox regulation of cell and organ function (67). As shown in Figure 3, we have reported that stimuli such as Hcys, visfatin, or ATP act on the cell membrane, stimulate acid sphingomyelase to produce and form ceramide-enriched LR platforms, and increase NADPH oxidase-dependent O₂ ^•− production from cells (4, 18, 57, 143, 150). As mentioned earlier, we have reported these stimuli to also activate the NLRP3 inflammasome and in this regard, this redox signaling platform may provide the O₂ ^•− necessary to trigger NLRP3 inflammasome activation.

OPEN IN VIEWER

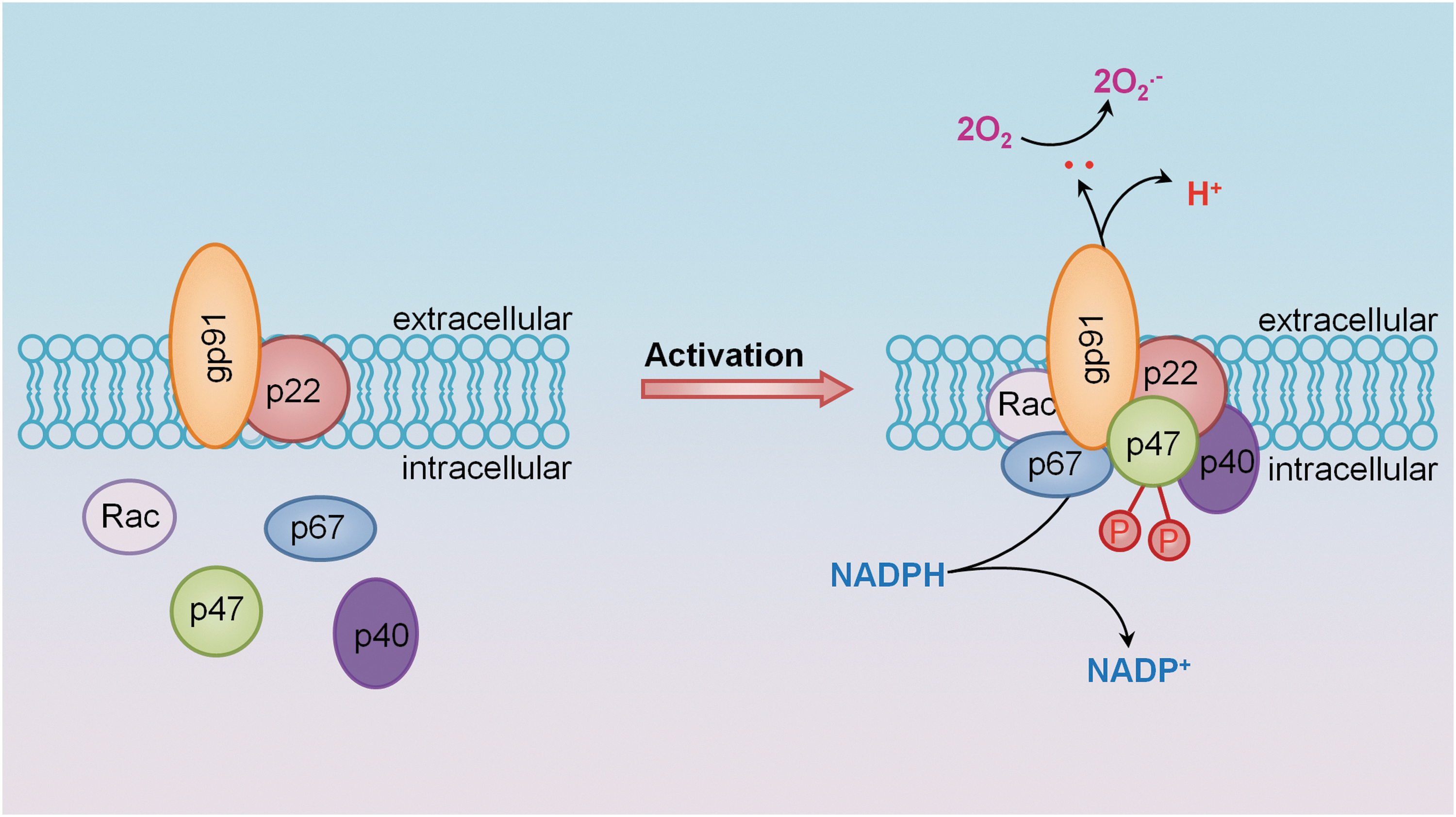

FIG. 3.

Membrane NADPH oxidase assembly and activation through lipid raft (LR)-mediated clustering to form redox signaling platforms. Under rest condition, all subunits of NADPH oxidase are separated and the enzyme may not be active. When vascular or kidney cells are stimulated by inflammatory stimuli such as Hcys or visfatin, the formation of LR platforms occurs. In such platforms, NADPH oxidase subunits such as gp91 ^phox and p47 ^phox and other proteins become aggregated, clustered, or recruited, resulting in a rapid assembling of NADPH oxidase into an enzyme complex, producing O₂ ^•− and ROS that conduct transmembrane or intracellular signaling. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

This controversy regarding the precise role of ROS may be explained through the biphasic redox response and the homeostatic balance between pro- and antioxidant systems. First described by Tassi et al., an initial increase in oxidant stress followed by a delayed antioxidant response are two necessary steps required for IL-1β processing and secretion in human monocytes stimulated by PAMPs such as LPS, MDP, S. aureus, and zymosan (124). The basal redox state of different myeloid cells also contributes greatly to potential IL-1β production (22). Primary human monocytes displayed low levels of ROS and antioxidants that resulted in efficient IL-1β secretion on TLR stimulation. However, THP-1 cells or cultured macrophages exhibited an upregulation of antioxidant systems that buffered and suppressed TLR-triggered IL-1β processing, suggesting the importance of the redox state in understanding the specific effects of ROS on NLRP3 inflammasome activation.

Mitochondrial ROS

Alternatively, there is an emerging role for mtROS in the mechanism of NLRP3 inflammasome activation (21, 155). Mitochondrial complex I inhibitor rotenone or complex III inhibitor antimycin robustly increased mtROS production and, as a result, increased NLRP3 activation (21, 155). Additional evidence suggested that NLRP3 localized to the cytosol and ER during rest, but relocalized to the mitochondria on stimulation. This recruitment of NLRP3 to the mitochondria was mediated by mitochondrial anti-viral signaling protein (MAVS) and was required for IL-1β production in response to nigericin stimulation (120). In addition to mtROS, mitochondrial DNA (mtDNA) has also been reported to directly cause NLRP3 inflammasome activation (116). In an NF-κB-dependent manner, a second inflammasome-activating signal resulted in mitochondrial dysfunction, apoptosis, and release of mtDNA into the cytosol, which bound to and caused activation of NLRP3. As previously mentioned, Wu et al. revealed that specific inhibition of mtROS by mitochondrial antioxidant SS-13, and not inhibition of NADPH oxidase, prevented cyclic stretch-induced IL-1β in alveolar macrophages (142). The roles of ROS from membrane NADPH oxidase and mitochondria in activation of NLRP3 inflammasomes are summarized in Figure 4.

OPEN IN VIEWER

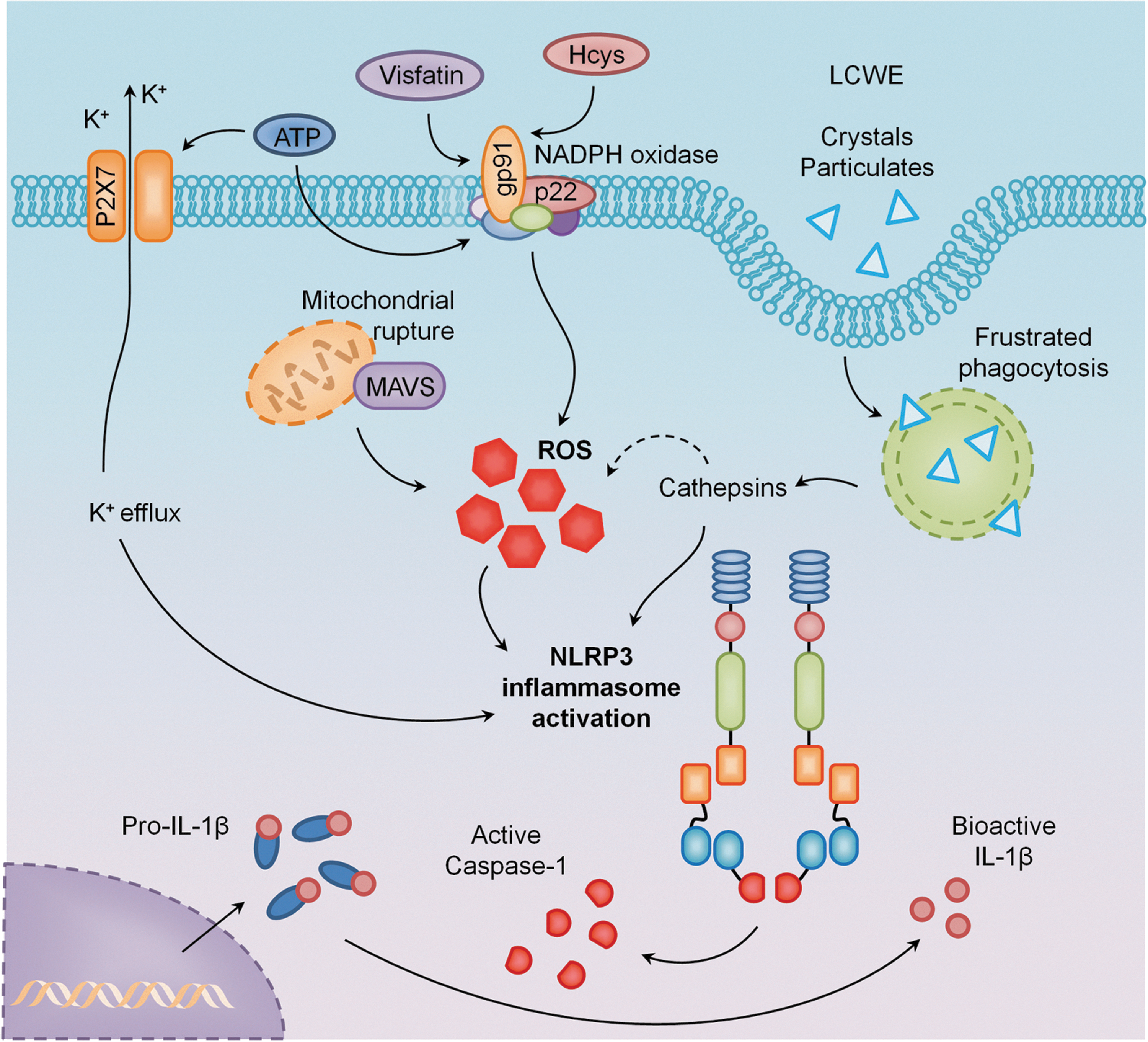

FIG. 4.

Primary activating pathways of NLRP3 inflammasomes. It was demonstrated that in the kidney and vasculature, NLRP3 inflammasomes are activated by NADPH oxidase-derived ROS through LR clustering. Some stimuli such as ATP also alter K⁺ efflux or lysosome stability to activate NLRP3 inflammasomes. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Other sources and species of ROS

Apart from NADPH oxidase and mitochondria, there are many enzymatic systems that contribute to the production of ROS, including xanthine/xanthine oxidase (X/XO), lipoxygenases (LOXs), cyclooxygenases (COXs), and cytochrome P450s, and, thus, we cannot discount the role of these other sources. Although many of these systems remain to be explored in NLRP3 inflammasome activation, there exists some evidence suggesting the involvement of COXs, X/XO, and LOXs, as well as more specific species of reactive oxygen such as peroxynitrite (ONOO⁻) and hydrogen peroxide (H₂O₂). In response to P2X7 receptor stimulation by ATP, which is known to increase the generation of ROS, COX-2-derived prostaglandin E2 (PGE2) release was necessary for IL-1β release (12). In response to bacteria, PGE2 is a central component in an inflammasome-mediated “eicosanoid storm” that contributes to the pathogenesis associated with bacterial infection (132). Moreover, leukotriene B₄ derived from 5-lipoxygenase (5-LOX) is involved in NLRP3 inflammasome activation and tissue inflammation related to gout (8). 5-LOX, although not necessary for the recruitment of neutrophils in response to MSU, is required for IL-1β production. In addition, uric acid as another well-established activator of NLRP3 is usually generated via xanthine oxidase accompanying the generation of O₂ ^•−. In human THP-1 cells, activation of TLR7/8 by ligand R848 resulted in increased ROS production, caspase-1, and IL-1β processing, all of which were abrogated by xanthine oxidase inhibitor allopurinol (97). This source of O₂ ^•− may also be involved in NLRP3 inflammasome activation.

In addition to O₂ ^•−, an important role for ONOO⁻ and H₂O₂ in NLRP3 activation has also been reported. ONOO⁻ scavenger 5,10,15,20-Tetrakis(4-sulfonatophenyl)porphyrinato iron (III) chloride (FeTPPS) reduced nigericin-induced caspase-1 activation and IL-1β secretion in human monocytes (51). Jurg Tschopp's group demonstrated that direct treatment of THP-1 cells with H₂O₂ resulted in mature IL-1β release (154). Studies from our laboratory have also attempted to dissect the specific contribution of various species of ROS to the activation of NLRP3 inflammasomes. Through specific scavenging studies using SOD mimetic TEMPOL and H₂O₂ decomposer catalase, we further demonstrated the importance not only of O₂ ^•− but H₂O₂ as well (3). TEMPOL and catalase administration attenuated in vitro Hcys-induced NLRP3 inflammasome formation, caspase-1 activity, and IL-1β production, as well as protected from proteinuria and damaged glomerular morphology related to hHcys in vivo. These greatly varying effects between the involvement of certain species and sources of ROS demonstrate the profound complexity of the redox system and suggest that the mechanisms contributing to NLRP3 activation may perhaps be a cell-selective and stimuli-specific phenomenon (4).

Mediators of ROS action to activate NLRP3 inflammasomes

While there is a plethora of evidence supporting ROS activation of NLRP3 inflammasomes, the exact mechanisms by which NLRP3 senses these changes in oxidative stress are still largely unknown. In this regard, two distinct proteins have been demonstrated to associate with NLRP3–TXNIP and MAVS. The canonical work done by Zhou et al. provided strong evidence of TXNIP as a binding partner to NLRP3, where association between these two proteins was necessary for downstream inflammasome activation in pancreatic islet cells in response to high glucose (154). TXNIP, the negative regulator of the antioxidant thioredoxin (TRX), may time dependently dissociate from TRX to bind with NLRP3, leading to inflammasome formation and activation. Since then, multiple studies have confirmed the requirement of TXNIP to NLRP3 inflammasome activation (37, 89, 136). We have also demonstrated the involvement of TXNIP in Hcys-induced NLRP3 activation, where Hcys treatment was able to stimulate TXNIP association with NLRP3 in podocytes (2). Inhibition of TXNIP by local kidney shRNA transfection or through calcium channel blocker verapamil, demonstrated to be a potent TXNIP inhibitor (25), prevented TXNIP-NLRP3 binding in hyperhomocysteinemic mice and subsequent inflammasome activation and hHcys-induced glomerular injury. However, TXNIP involvement may also be specific to these nonphagocytic cells, as the converse has been shown in bone marrow-derived macrophages isolated from TXNIP-deficient mice where there was no difference in IL-1β secretion compared with wild-type macrophages (83). This evidence suggests that in a cell-type specific manner, TXNIP may act as a sensor to the changing levels of these ROS signaling molecules.

As previously mentioned, MAVS is a mitochondrial adaptor protein shown by Subramanian et al. to mediate the relocalization and association of NLRP3 to mitochondria (120). However, shown in the same study, this effect appeared to be specific to ATP and nigericin stimulation, as NLRP3 inflammasome activation appeared normal in MAVS-deficient macrophages on crystalline stimulations such as alum and silica. More recently, through coimmunoprecipitation studies, MAVS also associates with NLRP3 to facilitate its oligomerization with ASC and caspase-1 in response to Sendai virus challenge (103). Interestingly, the mitophagic process may help scavenge ROS, thereby blocking activation of inflammasomes (74). The actions of TXNIP and MAVS as possible mediators of ROS derived from NADPH oxidase or mitochondria to activate NLRP3 inflammasomes are summarized in Figure 5.

OPEN IN VIEWER

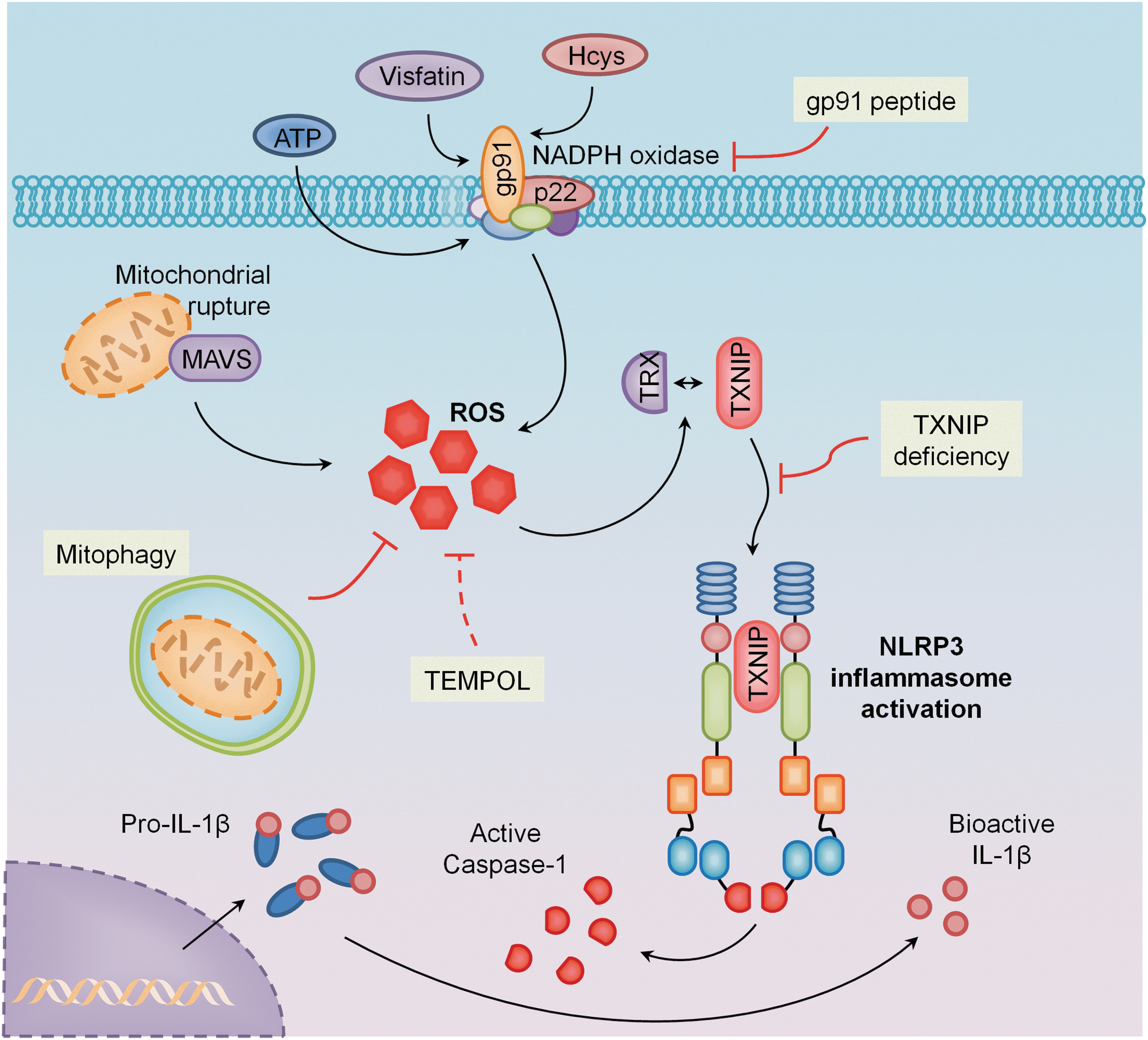

FIG. 5.

Mediators of ROS action to activate NLRP3 inflammasomes. Two distinct proteins have been demonstrated to be associated with NLRP3–thioredoxin-interacting protein (TXNIP) and mitochondrial anti-viral signaling protein (MAVS). TXNIP as a binding partner to NLRP3 time dependently dissociates from thioredoxin (TRX) and then binds with NLRP3, leading to inflammasome formation and activation. MAVS also associates with NLRP3 to facilitate its oligomerization with ASC and caspase-1. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

“Kindling” and “Bonfire” ROS

As discussed earlier, ROS can serve as a redox signaling molecule to activate or regulate NLRP3 inflammasome activation. This action is similar to the findings in many other cellular processes that use ROS as a messenger to mediate or regulate cell–cell communication and intracellular signal transduction (11, 117, 135). It is well known that under physiological or pathological conditions, ROS can be produced as a signaling messenger to maintain cell and organ function or can be increasingly generated and released in response to various stimuli. Meanwhile, these active molecules are also constantly scavenged by endogenous antioxidant systems mainly composed of enzyme-mediated pathways such as SOD, catalase, glutathione peroxidase, glutathione-S-transferase, TRX/TRX reductase, and other peroxidases. In addition, the direct reactions between ROS and different molecules such as nitric oxide, thiols, vitamin E, β-carotene, ceruloplasmin, ferritin, transferin, hemoglobin, and ascorbate may also have antioxidant action (11, 117, 135). Being tightly regulated under normal conditions, intracellular and extracellular ROS are maintained at very low levels, which play physiological signaling roles (less than 1% of produced ROS) (41, 61, 77, 108, 138). With regard to NLRP3 inflammasomes, early ROS production may be a signaling mechanism to activate the formation and activation of this intracellular machinery. We have demonstrated that increased O₂ ^•− derived from NADPH oxidase precedes the assembly of NLRP3 inflammasomes due to its action on TXNIP binding (2). This NADPH oxidase-produced O₂ ^•− or ROS may serve mainly as “kindling” signaling molecules, but may not yet have large injurious effects on cell function or activities.

When NLRP3 inflammasomes are activated on different stimuli such as hHcys, hypercholesterolemia, or DAMPs, the local inflammatory response occurs, and on recruitment and activation of inflammatory cells such as macrophages and T-cells, “bonfire” O₂ ^•− and cytokines are produced, resulting in chronic sterile inflammation and leading to tissue injury and sclerosis (4, 69, 150). If the generation of ROS is largely in excess of its scavenging during the local inflammatory response, intracellular and extracellular oxidative stress occurs; damage of DNAs, proteins, lipids, and glycols is inevitable, and, eventually, leads to the progression of various pathophysiological processes and respective diseases (11, 41, 61). Therefore, ROS derived from inflammasome activation and downstream immune cell recruitment may be important pathogenic factors in many chronic degenerative diseases. However, IL-1β or other inflammasome products may also directly act on cells such as podocytes or endothelial cells to decrease functional protein expression and NO availability, further contributing to local tissue fibrosis (4, 69, 143, 150).

NLRP3 inflammasome activation in chronic degenerative diseases

It has been reported that mutations in NLRP3 are associated with autoinflammatory disorders such as MWS, FCU, Familial Mediterranean fever, and neonatal-onset multisystem inflammatory disease (5, 96). Typical symptoms include fever after exposure to cold, skin lesions and rashes, neutrophilia, painful arthritis, sensorineural deafness, conjunctivitis, and Amyloid A amyloidosis (91). Those with mutations in the NACHT domain of NLRP3 have constitutively activated NLRP3 complexes and display exaggerated IL-1β secretion, especially in response to LPS when compared with healthy controls (6). MWS patients respond remarkably well to IL-1β antagonist, anakinra, implicating a crucial role of IL-1β in the pathogenic phenotype observed in these patients (46). In addition to IL-1β, NLRP3 inflammasome activation releases IL-18 and DAMP high mobility group box-1 (HMGB1). Release of HMGB1 is dependent on NLRP3 inflammasome processing, with its release attenuated in NLRP3^−/− as well as ASC^−/− macrophages during bacterial infection (141). However, although HMGB1 alone was not sufficient to activate NLRP3 inflammasomes or caspase-1 cleavage, HMGB1 treatment of THP-1 macrophages led to an upregulation in the synthesis of pro-IL-1β and pro-IL-18 (47), thus creating a vicious cycle of inflammasome activation potentiating both the synthesis and secretion of these powerful cytokines. Aberrant IL-1β secretion, HMGB1 release, and NLRP3 inflammasome activation has extended to many traditionally considered noninflammatory disorders, including diabetes, obesity, silicosis, liver toxicity, and kidney diseases (33, 80, 99, 133, 137, 139). Here, we will briefly focus on the role of NLRP3 in disorders associated with metabolic abnormality, including hHcys, hypercholesterolemia, and obesity.

Redox activation of NLRP3 inflammasomes in chronic kidney disease

It has been reported that NLRP3 mRNA levels inversely correlate with renal function in patients with chronic kidney disease (CKD), and IL-1β and IL-18 levels are increased in both animal models and patients with CKD (84, 131). In mice, NLRP3 gene knockout has been shown to protect from both renal ischemic acute tubular necrosis and the progression of CKD in the unilateral ureteral obstruction model (56, 131). In addition, glomerular IL-1β mRNA is enhanced after the first day of the mouse model of streptozotocin-induced diabetic glomerulosclerosis (114). These studies strongly support a crucial role for NLRP3 inflammasome involvement in the progression of ischemic kidney injury and CKD.

Efforts in our laboratory have focused on understanding the molecular pathogenesis of glomerular injury related to elevated Hcys, which, if left unattended, has the potential to progress to CKD and, eventually, ESRD (148). These damaging and sclerotic effects of hHcys have been associated with an inflammatory response mediated by the upregulation of proinflammatory molecules such as MCP-1, NF-κB, and IL-8, and adhesion molecules VCAM-1 and E-selectin (29, 134) and in the recruitment of lymphocytes (109). With podocytes being a major site of IL-1β synthesis (98), hHcys-induced activation of NLRP3 inflammasomes may explain how hHcys initiates the innate immune system in glomeruli (150). As summarized in Figure 6, when plasma Hcys levels increase, NADPH oxidase in podocytes or glomerular endothelial cells is activated via LR clustering to produce O₂ ^•−, which results in the formation of NLRP3 inflammasomes, activation of caspase-1, and the proteolytic cleavage of IL-1β and IL-18 into their biologically active form, which produce other DAMPs. These factors may recruit inflammatory cells such as macrophages and T-cells in glomeruli, contributing to the “bonfire” O₂ ^•− and cytokine production associated with chronic sterile glomerular inflammation and leading to tissue injury and sclerosis. IL-1β or other inflammasome products may also directly act on podocytes to decrease expression of podocyte-specific proteins such as nephrin and podocin, resulting in slit diaphragm derangement and proteinuria. In addition, excessive production of active caspase-1 may directly damage podocytes through pyroptosis, leading to foot process effacement and developing into glomerular sclerosis and ESRD.

OPEN IN VIEWER

FIG. 6.

Implications of NLRP3 inflammasomes in podocyte injury and ultimate glomerular sclerosis. In response to pathological stimuli, NADPH oxidase in podocytes or glomerular endothelial cells is activated via LR clustering to produce O₂ ^•−, which results in the formation of NLRP3 inflammasomes to produce IL-1β, IL-18, and other molecules such as damage-associated molecular patterns (DAMPs). These factors may recruit and activate inflammatory cells such as macrophages (MΦ) and T-cells in glomeruli, where “bonfire” O₂ ^•− and cytokines are produced to initiate typical chronic sterile glomerular inflammation, leading to tissue injury and sclerosis. Coinciding with other direct actions of IL-1β or other inflammasome products, this sterile inflammatory response leads to podocyte loss and foot process effacement, progressing into glomerular sclerosis and end-stage renal disease (ESRD). To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Interplay of NLRP3 inflammasomes and ROS in cardiovascular diseases

Recent studies have demonstrated that the activation of NLRP3 inflammasome pathways is linked to the pathogenesis of cardiovascular diseases such as atherosclerosis, ischemic injury, cardiomyopathy, myocardial infarction, and Kawasaki disease. While the primary roles for NLRP3 inflammasomes are mostly related to the inflammatory responses due to the production of IL-1β and IL-18 or DAMPs such as HMGB1 (68, 123), emerging evidence has also revealed that inflammasome activation may also exert noncanonical effects, which are distinct from inflammasome-secreted cytokines that induce the activation and recruitment of inflammatory cells. As mentioned earlier, these mechanisms may potentially include other downstream targets of caspase-1 independent of IL-1β or IL-18, such as pyroptosis, inhibition of glycolysis, noninflammatory cell death, and activation of lipid biogenesis pathways (49, 65, 90, 115). In addition, recently elucidated pathways involving IL-1α and the innate immunity complement system during inflammasome activation may also contribute to such noncanonical actions (40, 113). These noninflammatory pathways may be importantly implicated in the development of atherosclerosis, glomerular disease, and other chronic degenerative diseases, and solely targeting inflammatory pathways may not eliminate the root of these inflammasome-related diseases. This is exemplified by the recent failure of clinical trials that only targeted inflammatory pathways such as phospholipase A2 and COX-2 to treat cardiovascular diseases (27, 92, 112).

In a recent study, we demonstrated that activation of NLRP3 inflammasomes impaired the ability of macrophages to properly handle lipid metabolism or transport and enhanced their migration capacity (69). The formation and activation of NLRP3 inflammasomes by nonatherogenic danger factors, ATP or MSU crystals resulted in abnormal lysosomal cholesterol deposition, impaired postlysosomal trafficking of glycosphingolipids, and increased macrophage migration ability (69). These novel actions of inflammasomes in regulating macrophage functions may occur even before vascular inflammation contributes to atherosclerosis. Since endothelial dysfunction develops at the very early stages of vascular disease in response to risk factors such as hypertension, dyslipidemia, obesity, diabetes mellitus, or hHcys, we tested the redox activation of NLRP3 inflammasomes and its implication in endothelial injury. In particular, we revealed that the adipokine visfatin induced the formation and activation of NLRP3 inflammasomes in endothelial cells in vitro, which was dependent on membrane raft redox signaling platform-derived ROS and consequent TXNIP-NLRP3 interaction (143). As shown in Figure 7, activation of endothelial NLRP3 inflammasomes was markedly observed in the intima of partially ligated carotid arteries, which locally induced vascular injury and inflammation. IL-1β production in the intima was almost completely blocked by caspase-1 inhibitor and ASC gene knockout or silencing. Visfatin markedly decreased the expression of tight and adhesion junction proteins and increased vascular permeability in the coronary arterial endothelium of mice fed a 6 week high-fat diet (HFD) (26). These visfatin-induced changes in endothelial cells depend on HMGB1/RAGE signaling, which contributes to the vascular permeability leading to the onset of metabolic vasculopathy that, ultimately, results in atherosclerosis.

OPEN IN VIEWER

FIG. 7.

The formation and activation of NLRP3 inflammasome in the endothelium of carotid arteries during ligation injury. The formation and activation of endothelial NLRP3 inflammasomes were observed in the intima of carotid arteries during ligation that induces vascular injury or inflammation locally. IL-1β production in the intima could almost be completely blocked by caspase-1 inhibitor and ASC gene silencing or knocking out. Scale bar=10 μm. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

In addition, some in vivo studies in our laboratory demonstrated that increased plasma cholesterol (hypercholesterolemia) impaired endothelial dysfunction as assayed by endothelium-dependent vasodilator response in mouse coronary arteries, which were also associated with endothelial NLRP3 inflammasome activation and HMGB1 signaling (152). It is plausible that in addition to the classical inflammatory injury linked to the activation and recruitment of inflammatory cells such as macrophages and T-cells in the arterial wall leading to atherogenesis, the initial injurious response of coronary arteries due to the activation of endothelial inflammasomes by endogenous danger signals may be related to very early endothelial dysfunction. These data imply that endothelial inflammasome activation may represent a novel early event that leads to endothelial dysfunction and injury, and, if targeted, may prevent initiation or exacerbation of atherosclerosis during obesity or hypercholesterolemia.

ROS activation of NLRP3 inflammasomes in obesity

Accumulating evidence demonstrated that NLRP3 inflammasomes are implicated in the development of obesity and associated pathologies. Knockout of the NLRP3 inflammasome (NLRP3^−/−, ASC^−/−, and caspase-1^−/−) significantly protected mice from HFD-induced obesity, increased adiposity, insulin resistance, glucose intolerance, and inflammation (52, 119, 130). The expression of the NLRP3 inflammasome subunits in adipose tissue correlates directly with body weight in mouse models and obese individuals with type 2 diabetes mellitus (130). In our recent studies, mice lacking the ASC gene demonstrated significant attenuation of HFD-induced obesity compared with ASC^+/+ mice, and were also protected from obesity-associated glomerular and podocyte injury (18). The mechanism of HFD-induced inflammasome activation may be due to the high production of the fatty acid metabolites ceramide and palmitate, as saturated fatty acids have been shown to induce inflammasome activation through a mechanism that involves defective autophagy and the accumulation of mtROS (140). Vandanmagsar et al. showed that adding ceramide to adipose tissue explants led to NLRP3-dependent IL-1β production, suggesting that ceramide acts a danger signal to stimulate the NLRP3 inflammasome (130). In general, obesity is associated with perturbations of major cellular homeostatic pathways, such as ER stress, mitochondrial dysfunction, and autophagy deficiency, that are linked to ROS accumulation and oxidative stress (54). Thus, multiple mechanisms may contribute to oxidative stress pathways to activate the NLRP3 inflammasome in obese animals. Further studies are required to explore whether abnormal activation of NLRP3 inflammasomes occurs in adipose tissue of obese individuals to reveal new therapeutic targets for interventions in the prevention or treatment of obesity and related pathologies.
