Nerves Control Redox Levels in Mature Tissues Through Schwann Cells and Hedgehog Signaling

Abstract

Aims: Recent advances in redox biology have emphasized the role of hydrogen peroxide (H₂O₂) in the modulation of signaling pathways and revealed that H₂O₂ plays a role in cellular remodeling in adults. Thus, an understanding of the mechanisms that control H₂O₂ levels in mature tissue would be of great interest. Results: We used a denervation strategy to demonstrate that sensory neurons are responsible for controlling H₂O₂ levels under normal conditions and after being lesioned. Moreover, we demonstrate that severed nerves respond to appendage amputation via the induction of Hedgehog signaling and that this signaling is responsible for H₂O₂ production in the wounded epidermis. Finally, we show that H₂O₂ and nerve growth are regulated via reciprocal action in adults. Innovation and Conclusion: These data support a new paradigm for the regulation of tissue homeostasis: H₂O₂ attracts nerves and nerves control H₂O₂ levels in a positive feedback loop. This finding suggests that the peripheral nerve redox environment could be a target for manipulating cell plasticity in adults. Antioxid. Redox Signal. 24, 299–311.

Introduction

Reactive oxygen species (ROS) have long been considered deleterious compounds that induce pathological situations by damaging biological molecules (DNA, proteins, and lipids). It is becoming increasingly clear that ROS, which are constantly produced at various levels by virtually all cells, also contribute to physiological processes (11, 43, 47, 54), mainly by causing cysteine modifications in signaling proteins (14, 41). The redox state of a tissue results from a complex balance between the production and degradation of oxidative molecules (58). Unchecked ROS levels have been identified in many pathological conditions, including neurodegenerative disorders, aging, and cancer, as illustrated by the development of pro- and antioxidant therapeutic strategies to treat cancer (2, 18).

Innovation

The present study demonstrates that redox levels in mature tissue are controlled by sensory nerves via Hedgehog signaling. In a positive feedback loop, hydrogen peroxide (H₂O₂) stimulates nerve growth and the Shh pathway. This finding not only identifies cooperation between nerves, H₂O₂, and Hedgehog signaling to ensure tissue homeostasis and repair in adults but also provides a tractable mechanism for the wound healing deficiency associated with neuropathies.

Of the ROS, hydrogen peroxide (H₂O₂) has a long life span and participates in redox signaling, and it has recently been demonstrated that a transient increase in H₂O₂ is necessary for inducing a regenerative program in Xenopus larvae (29), adult zebrafish (15, 20), and mice (1), as well as for enhancing cell plasticity (4, 53). Reciprocal interactions between H₂O₂ and nerves are suggested by two observations: H₂O₂ enhances peripheral sensory axon growth in wounded caudal fins of zebrafish larvae (44), and efficient epidermal wound healing requires the presence of sensory neurons (21, 52). In addition, innervation has been demonstrated to be essential for launching a regenerative program in adults (16, 25, 50). Caudal fin regeneration in adult zebrafish therefore appears to be a suitable model in which to study the relationship between nerves and tissue redox status. Indeed, H₂O₂ production starts soon after fin amputation, and it is necessarily maintained while cells of various lineages in the stump respond to the injury by dedifferentiating and acquiring progenitor identities (15, 20).

We previously showed that in this context, ROS induce apoptosis, which in turn stimulates progenitor recruitment and proliferation through a purinergic signaling pathway (40). Progenitor cells subsequently accumulate at the damaged surface underneath the wound epithelium from 15 to 36 hours postamputation (hpa) and form a mass of proliferating cells, the blastema that is clearly visible at 48 hpa (38). The missing fin is then replaced through blastema growth, differentiation, and morphogenesis.

The present article addresses the control of H₂O₂ levels by nerves and the reciprocal action of H₂O₂ on nerve growth in adults in normal conditions and after lesioning. To determine the relationship between H₂O₂ and nerves, we first developed a model in which we measure levels of ROS (specifically H₂O₂) after denervation of the adult caudal fin, and we then coupled this assay with manipulation of H₂O₂ levels and signaling pathway analysis. In this study, we demonstrate that in adult zebrafish, sensory nerves are involved in the control of redox levels both in normal mature tissue and following injury. Moreover, we show that Schwann cells (SCs), through Shh signaling, mediate this control of redox status by nerves. Finally, we also demonstrate that H₂O₂ stimulates nerve growth in adults. Our results suggest that nerves control tissue redox levels and H₂O₂ attracts nerves in a positive feedback loop and that this feedback loop is involved in tissue homeostasis.

Results

Nerve remodeling after injury

Adult zebrafish caudal fins primarily contain sensory neurons as the fin does not contain muscle. Axons, which are fasciculated inside the rays in the uninjured fin, defasciculate as early as 6 hpa when Wallerian degeneration begins (Fig. 1). This tip degeneration of the sectioned nerves, which is accompanied by axonal skeleton disintegration and the disappearance of acetylated tubulin staining, is much faster than in mammals; in zebrafish, axon regrowth is clearly visible at 15 hpa. Before 18 hpa, cell proliferation occurs mostly in the epidermis/dermis of the stump and mainly involves epidermal cells and SCs (40). We therefore used an antiphosphorylated histone H3 antibody to count proliferating Schwann and epidermal cells during nerve remodeling (Fig. 1D–I). Proliferation is strongly enhanced during axon regrowth (Fig. 1F–H). Nerve remodeling involves systemic activation of Sox10 in SCs shortly after amputation (Fig. 2) and local activation after lesion (Supplementary Fig. S1; Supplementary Data are available online at www.liebertpub.com/ars). It is worth noting that in uncut fins, only some of the most distal SCs are positive for Sox10 (Fig. 2B). By 18–24 hpa, the axons (Fig. 1G, H) and the first blastemal cells (40) have reached the wound epidermis, and ROS levels in the wound epidermis have decreased (15). These data reveal dynamic degeneration and regrowth of sensory axons, as well as activation of SCs, within the first 24 h of amputation.

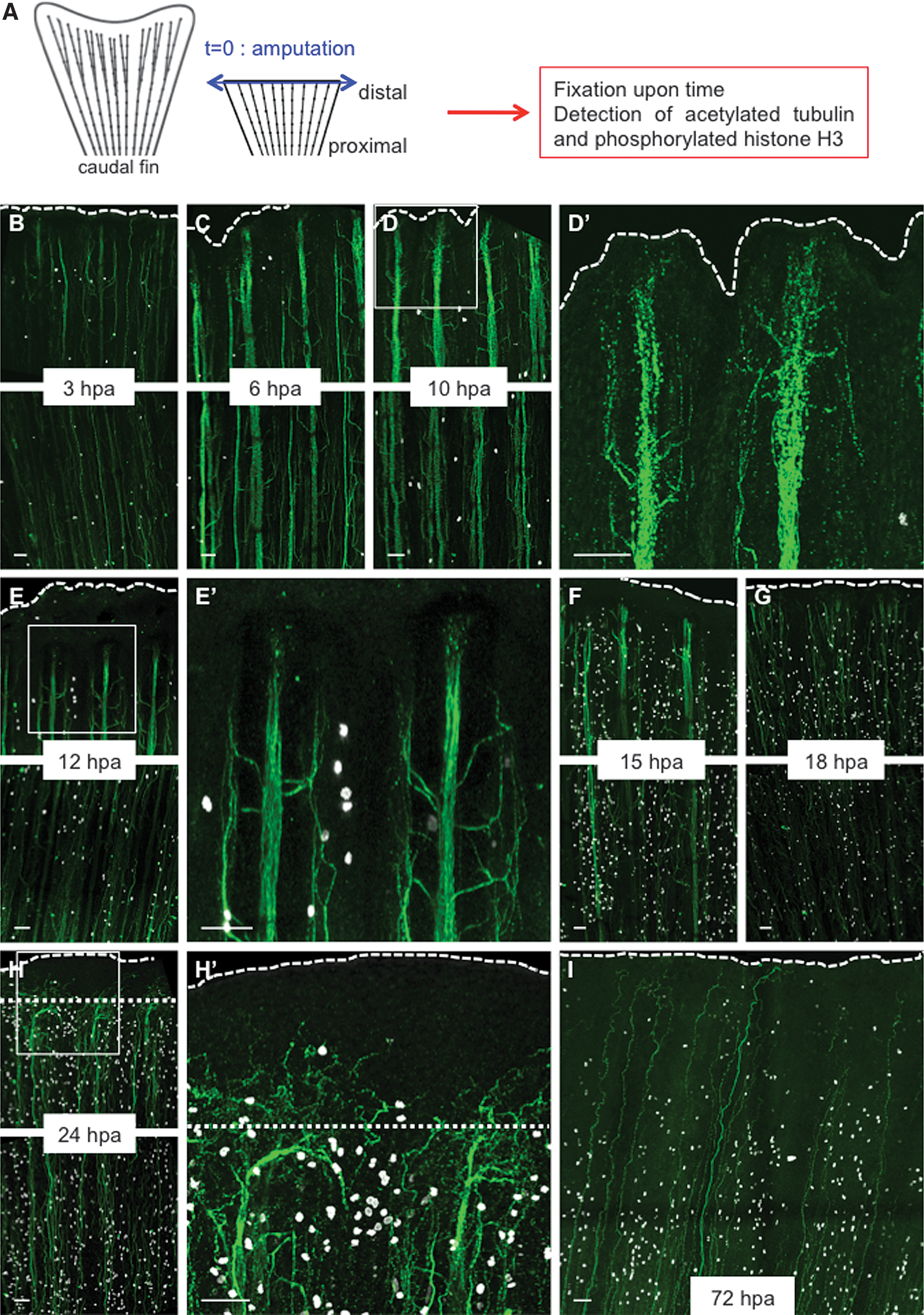

FIG. 1.

Wallerian degeneration and axon growth after amputation are very rapid in adult fish. (A) Scheme of the experiment. (B–I) Caudal fins of adult fish were amputated (t = 0, blue arrow), and the axon cytoskeleton (green) and mitosis (white) were visualized over time through immunofluorescence staining for the axonal marker, acetylated tubulin (green), and phosphorylated histone H3 (white), respectively. (D′, E′, H′) Show higher magnifications of the distal parts of (D, E, H), respectively. At 6 hpa, the extremities of the axons begin to be fragmented, and the nerves begin to defasciculate; at 10 hpa, defasciculation is more pronounced. During Wallerian degeneration (10–12 hpa), epidermal and SCs start to proliferate. At 15 hpa, axons have regrown, and some axons cross the amputation plane at 18 hpa. Dotted line: amputation plane. Dashed line: distal part of the fin. Before 24 hpa, the amputation plane corresponds to the distal part of the fin. For each time point, the most distal part of the fin (upper panel) and a proximal part (lower panel) are shown. Scale bars = 50 μM. hpa, hours postamputation; SCs, Schwann cells. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

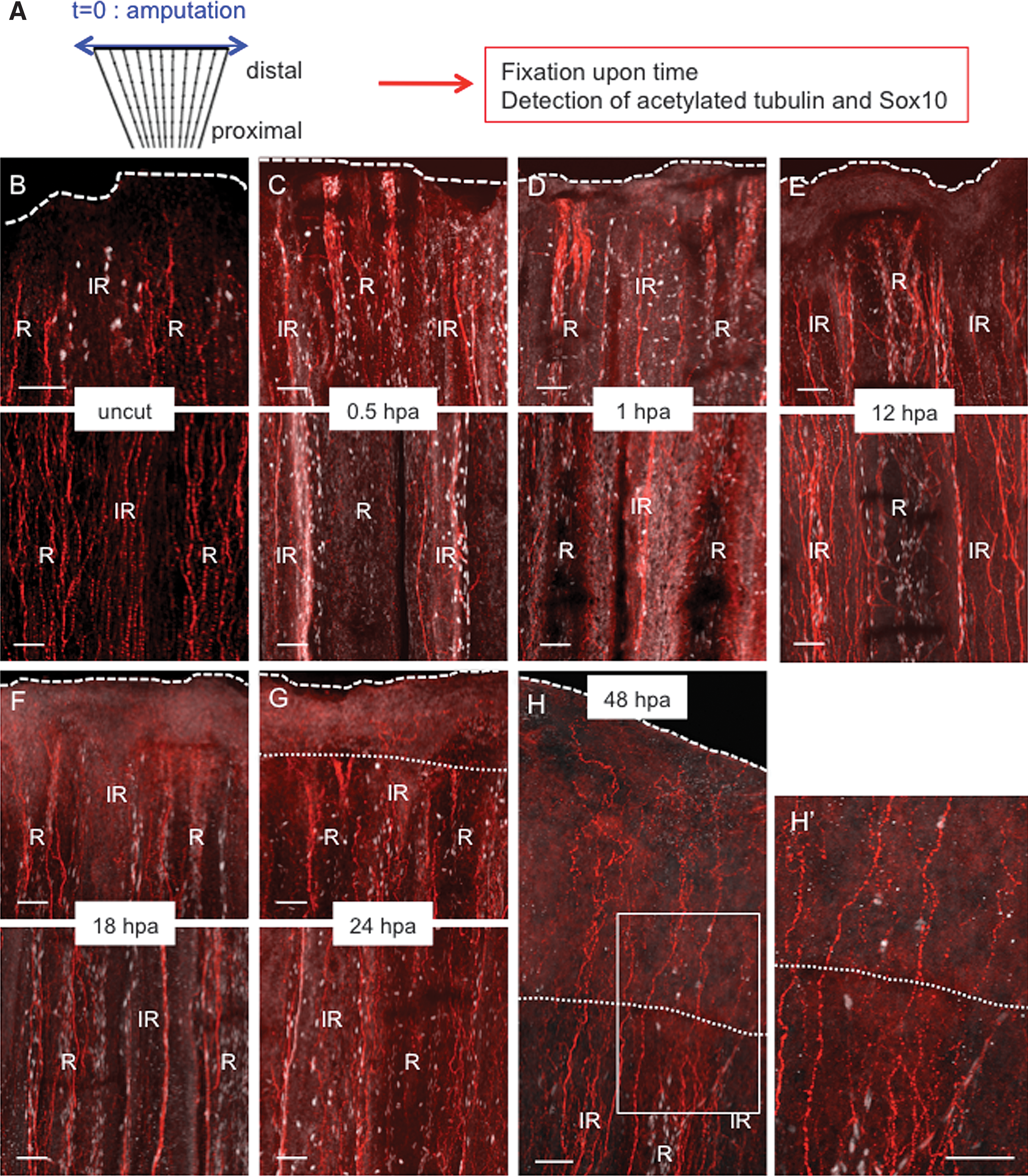

FIG. 2.

Systemic Sox10 activation in SCs following amputation. (A) Scheme of the experiment. (B–H) Caudal fin of adult fish was amputated (t = 0, blue arrow), and the axon cytoskeleton (red) and immature SCs (white) were visualized over time through immunofluorescence staining for the axonal marker, acetylated tubulin (red), and the immature SC marker, Sox10 (white), respectively. Immunostaining in uncut fin (B) or after amputation (C–H). (B–G) The upper panel shows the distal part of the amputated fin, and the lower panel shows a more proximal part. (H′) Shows a higher magnification of (H). Dotted line: amputation plane. Dashed line: distal part of the fin. Scale bars = 50 μM. R, ray; IR, inter-ray. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Nerves control redox levels in mature tissue

To dissect the involvement of nerve tracks in H₂O₂ regulation and the establishment of a regenerative field, we developed a denervation assay (Fig. 3A–C). At the base of the caudal fin, sensory neurons are fasciculated and split into two branches, with one branch innervating the dorsal part and one innervating the ventral part of the fin. We performed a resection of the dorsal branch at the time of amputation (Fig. 3A) and verified the efficiency of the surgery by testing for the presence of axons with acetylated tubulin staining 3 days postamputation (dpa) (Fig. 3B) and quantifying the effect of denervation on the size of the regenerated fin (Fig. 3C). Denervation abolished the regenerative capacity of the amputated caudal fin. We then used this assay to determine whether peripheral nerves influence the tissue redox status in mature tissue. ROS detection was performed 16 h postdenervation in nonamputated fins. The nondenervated part of the adult caudal fin is mainly in a reduced state (Fig. 3E, G), but denervation induced a twofold increase in the ROS levels in the tissue (Fig. 3F, G). Thus, peripheral nerves control redox status in this mature tissue.

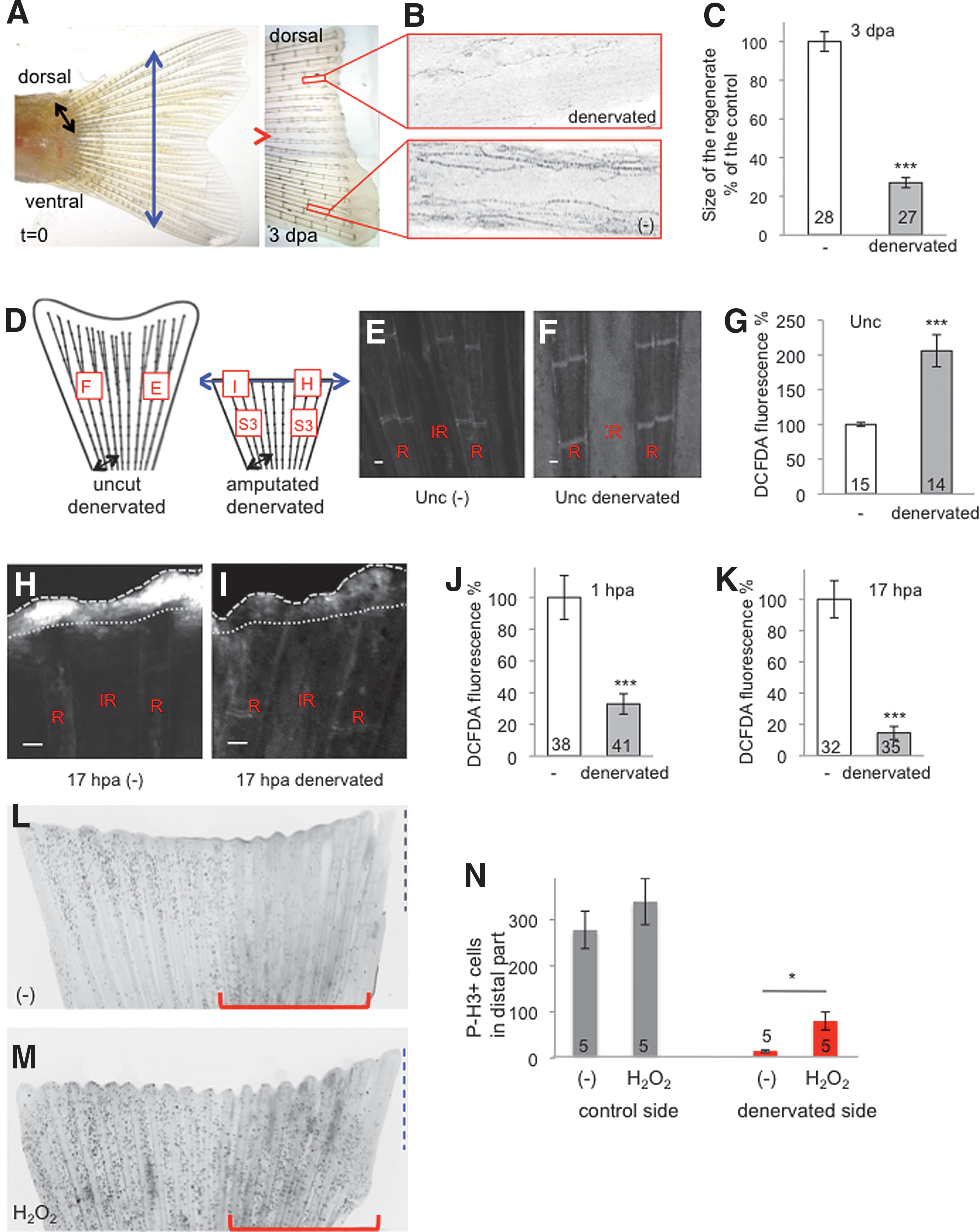

FIG. 3.

Sensory neurons control ROS levels in the adult caudal fin. (A) The dorsal part of the caudal fin was denervated (black arrow) at the time of amputation (blue arrow). At 3 dpa, the dorsal part (denervated) had not regenerated compared with the ventral part (-) (representative image). (B) At 3 dpa, antiacetylated tubulin staining indicates the absence of axons in the denervated part. (C) Quantification of the size of the regenerated tissue at 3 dpa in the control (-) and denervated parts. The efficiency of regeneration is expressed as a percentage of the control. (D) Schematic representation of ROS detection in fin denervated in the dorsal part, with and without amputation. The squares indicate the position of ROS measurement, and the letters refer to panels in this figure or Supplementary Figure S3. (E–G) ROS detection at the level of the first ray bifurcation in an uncut fin. (H–K) ROS detection at the level of the amputation plane at 1 and 17 hpa. (H, I) Representative images at 17 hpa. (L–N) Mitotic cells were stained with antiphosphorylated histone H3 at 24 hpa in fins denervated at the time of amputation on the dorsal part (red line) and incubated in water (L) or 1 mM (H₂O₂) (M). Quantification of proliferation was performed on the distal part of the fin (blue dashed line) in the control part or the denervated part (red line) (N). The red line indicates the denervated part. (H, I) Dotted line: amputation plane. Dashed line: distal part of the fin. Error bars represent the SEM (*p < 0.05; ***p < 0.001). n Values are indicated at the bottom of each column of the graphs. Scale bars = 50 μM. A scheme of the different conditions in which ROS were measured is given in Supplementary Figure 2. dpa, days post amputation; H₂O₂, hydrogen peroxide; ROS, reactive oxygen species; SEM, standard error of the mean. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Nerves control redox levels after amputation

When the caudal fin was amputated, a substantial and sustained production of H₂O₂ was observed (15) (Fig. 3H). To test the involvement of nerves in this lesion-induced ROS production, we combined the denervation assay with amputation and measured ROS production over time (experimental scheme presented in Supplementary Fig. S2). We subsequently denervated the dorsal part of the caudal fin and examined the ROS induced by amputation at 1 hpa (fin amputated 16 h postdenervation; Supplementary Fig. S2C and Fig. 3J) and 17 hpa (fin amputated at the time of denervation; Supplementary Fig. S2B and Fig. 3H, I, K). Denervation reduced the redox levels at the tip of the fin, the major site of ROS production after amputation, during both the immediate response (1 hpa) and the sustained production of ROS (17 hpa) (Fig. 3H–K). However, far from the amputation plane, that is, in the stump, denervation had the same effect as in the uncut fins; it induced a mild increase in the redox levels at all stages (Supplementary Fig. S3). Cell proliferation in the epidermal compartment is a prerequisite to regeneration (40). At 24 hpa, proliferation concerned dermal and epidermal cells of the distal part of the fin (six segments from the amputation plane). Cell proliferation in the stump at 24 hpa was strongly inhibited by denervation (Fig. 3L, N). Addition of H₂O₂ in water enhanced proliferation in the control part of the fin (nondenervated) and extended the domain of proliferation to the more proximal part of the fin, suggesting that the entire epidermis is able to answer to H₂O₂ (Fig. 3M). Moreover, addition of H₂O₂ was sufficient to partially reverse the inhibition of proliferation induced by denervation (Fig. 3M, N). In conclusion, denervation of the appendage induced a twofold increase in oxidative levels on a global scale, while it strongly inhibited the large and sustained injury-induced increase in ROS in the wound epidermis. As expected, denervation in zebrafish also inhibited further steps of regeneration (i.e., proliferation in the stump), and this inhibition could be reversed by addition of H₂O₂ (Fig. 3N). Thus, peripheral nerves constrain the tissue redox level in mature tissue and they are also involved in the modification of ROS levels induced by wounding and amputation.

Hedgehog signaling and SCs participate in redox control

The vertebrate peripheral nervous system is able to regenerate (10). This remarkable property is mainly dependent on SCs, which have a high degree of plasticity and dedifferentiate to progenitor or stem cells after nerve damage (46). During dedifferentiation, SCs provide signals that transform the environment to one that supports axon growth and guides axons to the distal stump (35). Several signals are likely to be involved in the rapid reprogramming and proregenerative properties of glial cells after neuronal injury. For instance, Hedgehog signaling appears to be a good candidate because it has been proven to be a key element in the definition of a niche that favors activation of glial cells or, more generally, stem cells in both central and peripheral axon regeneration (7, 42, 51). Furthermore, Hedgehog is regulated by Sox10, the expression of which is induced shortly after nerve lesions (Fig. 2 and Supplementary Fig. S1). Moreover, Hedgehog signaling is directly involved in osteoblast proliferation during late stages of caudal fin regeneration (from 2 to 7 dpa) (39, 60) and in heart regeneration (55), and it has recently been proposed that peripheral nerve-derived Hedgehog might be involved in non-neuronal tissue regeneration (7, 36, 61).

We took advantage of a transgenic line that recapitulates sonic hedgehog expression in adult fish (shh:green fluorescent protein [GFP]) (13, 60) to follow shh expression after amputation. To enable the very early detection of shh locus activity, we resorted to anti-GFP staining rather than imaging direct reporter fluorescence. In agreement with previous observations (60), a group of Shh-positive cells was localized at the end of each ray in the mature uncut fin (Fig. 4B). Axon staining with an antiacetylated tubulin antibody indicated that the Shh-positive cells crown the axons of peripheral sensory neurons (Fig. 4B). This group of cells disappeared after denervation (Fig. 4C, D), which suggests that they are nerve dependent or part of the nerve. It is unclear whether these cells originate from the mesoderm or the neural crest (19). To test whether they could be derived from SCs, we performed coimmunostaining for GFP and Sox10 shortly after amputation of the adult caudal fin (at 0.5 hpa [Fig. 4E–G] or at 12 hpa [Fig. 4H, I]). The adult caudal fin contains few types of neural crest-derived cells, including SCs and melanophores (Supplementary Fig. S4). To avoid confusion, the coimmunostaining was performed in the nacre strain of fish, which lack neural crest-derived melanophores. Confocal images of the whole fin (Fig. 4E–G) or cryosections (Fig. 4H, I) indicated that the Shh-positive cells were also Sox10 positive and therefore were derived from the neural crest. We subsequently analyzed the behavior of these cells during regeneration (Fig. 5). GFP was detected in a subpopulation of activated SCs shortly after amputation (Fig. 5B). This shh expression was also observed in SCs activated by skin lesions as soon as 15 min after lesion (Supplementary Fig. S1). After amputation, Shh-expressing cells changed shape and position during Wallerian degeneration, and some cells in the inter-rays migrated to the tip of the amputated fin while the axons regrew (Fig. 5E, F). By 72 hpa, most of the Shh-expressing cells were localized at the tip of the hemirays and reformed the pools of cells (Fig. 5H) that were later responsible for osteoblast proliferation (39). Thus, shortly after amputation or lesioning, activated SCs begin to express Sox10 and some cells induce Shh expression. Shh-positive cells migrate to the tip of the fin while axons regrow and they form groups of cells that crown the axons.

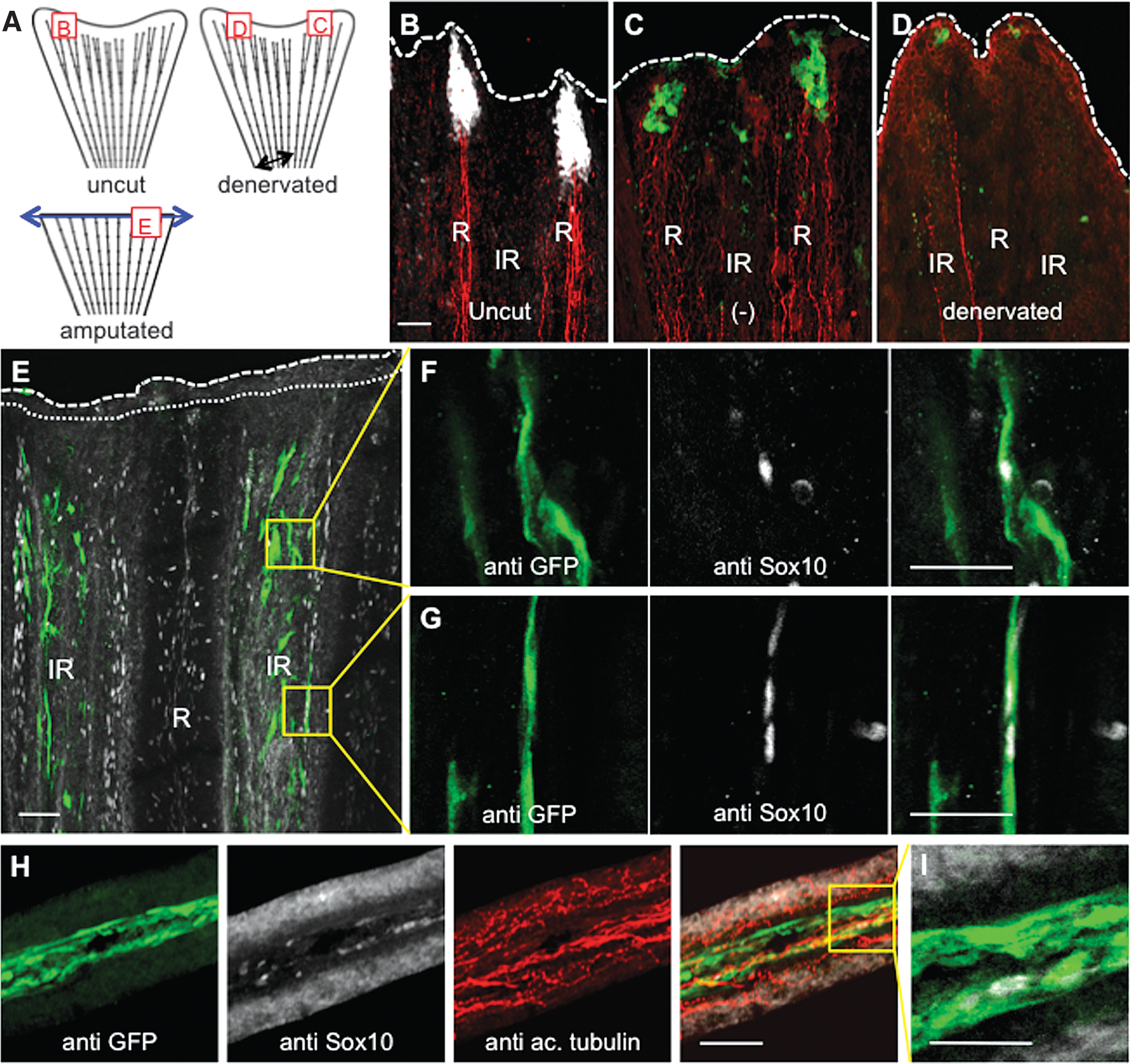

FIG. 4.

Activated SCs express Shh and form a specific structure at the tip of the axon. (A) Schematic representation of the intact fin or the fin after amputation. The squares indicate the position of the acquisitions, and the letters refer to the figure panels of this figure. The dorsal part of the caudal fin was denervated (black arrow) or the fin was amputated (blue arrow). (B) Immunofluorescence staining for GFP in shh:GFP fish (white) and axon cytoskeleton (red) in uncut fin. (C, D) Immunofluorescence staining for GFP in shh:GFP fish (green) and for the axon cytoskeleton (red) in control side (-) and denervated part of a nonamputated fin 2 days postdenervation. (E–G) Immunofluorescence staining for GFP in shh:GFP fish (green) and Sox10 (white) in the whole fin at 0.5 hpa. (F, G) Magnification of (E). (H, I) Immunofluorescence staining for GFP in shh:GFP fish (green), axon cytoskeleton (red), and Sox10 (white) in a cryosection of a regenerating fin at 12 hpa. (I) Magnification of (H). Confocal images, 1–3 μM. Dotted line: amputation plane. Dashed line: distal part of the fin. Scale bars = 50 μM in (B–H) and 25 μM in (I). GFP, green fluorescent protein. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

FIG. 5.

Behavior of Shh-expressing cells during regeneration. (A) Cells expressing Shh were visualized during the time course of regeneration by immunodetection of the GFP in shh:GFP transgenic fish. Until 12 hpa, Shh-positive cells were detected in the inter-ray of the stump (B–D). At 18 hpa, some Shh-positive cells were present at the tip of the regenerating ray (arrow) (E) and their numbers increased over time to reform the structure present in the uncut fin by 48–72 hpa (F–H). Scale bars = 50 μM. Dotted line: amputation plane. Dashed line: distal part of the fin. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

To test the role of Shh in the very first events following amputation (before 24 hpa), we disrupted Hedgehog signaling with cyclopamine (HH-i) (Fig. 6). HH-i treatment during the first 24 hpa impaired blastema formation, which could be rescued by a Smoothened agonist (Smo-A) (Fig. 6A–C and Supplementary Fig. S5). It is worth noting that Shh likely has distinct and opposite effects during healing (0–8 hpa) and during the subsequent steps of regeneration (8–24 hpa) because the inhibition of regeneration is stronger when Shh is inhibited only after 8 hpa (Fig. 6C). To more precisely examine the output of Hedgehog signaling, we analyzed the first signs of regenerative tissue, that is, (i) ROS production at 16 hpa, (ii) cell proliferation, and (iii) axon growth in the regenerating fin in the presence of HH-i. At 16 hpa, HH-i strongly reduced ROS production (Fig. 6D–F) and cell proliferation (Fig. 6G, H), mimicking the effects of denervation (Fig. 3K–N). We detected far fewer Shh-positive cells in denervated regenerating fins than in nondenervated regenerating fins (Supplementary Fig. S6). This result, which corresponds to an inhibition of Shh expression or an inhibition of the migration of Shh-expressing cells, was expected for SCs.

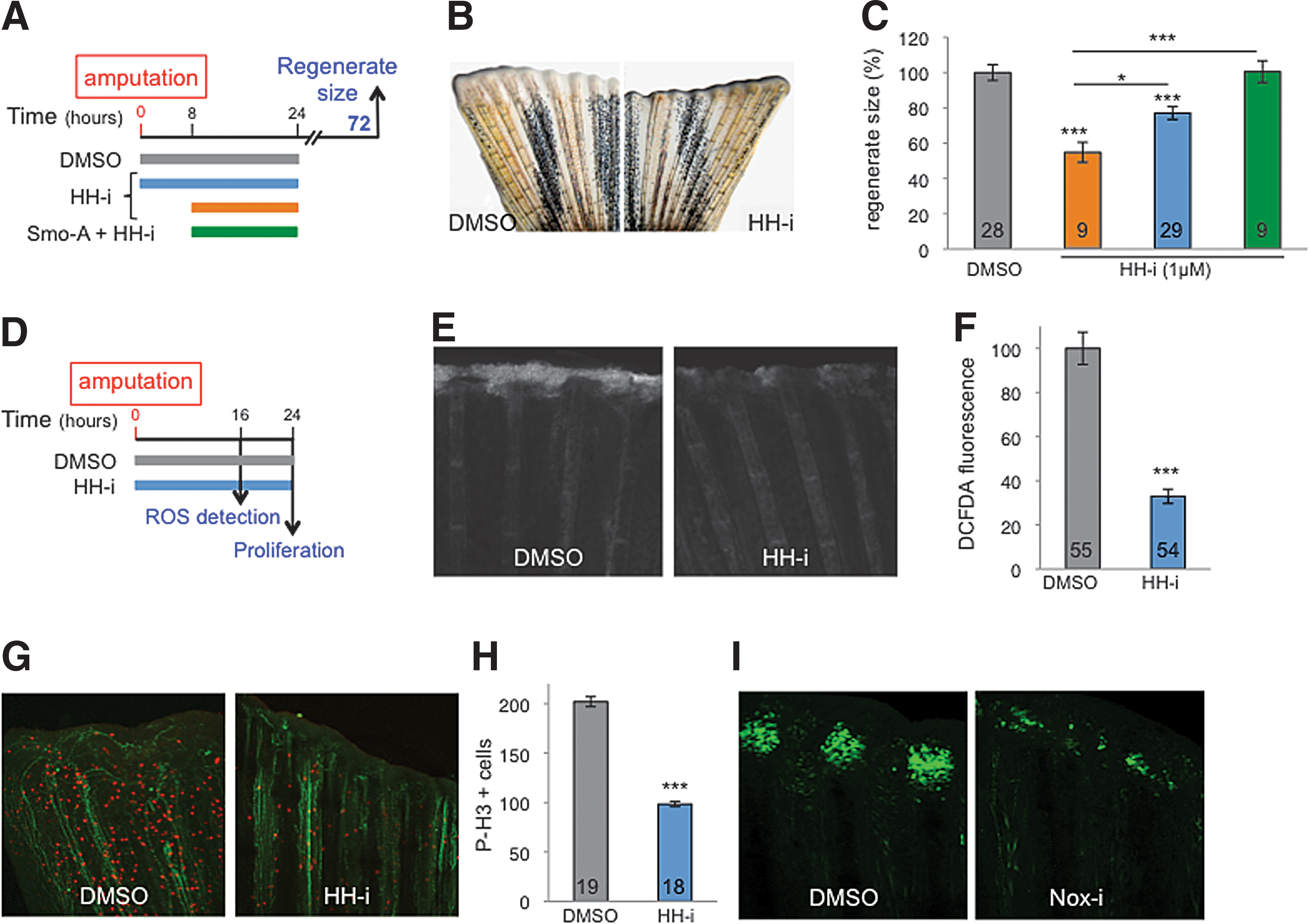

FIG. 6.

Early HH signaling is necessary for ROS production. (A–C) HH-i added to the water bath from 0 to 24 hpa (blue) or from 8 to 24 hpa (orange) inhibits regeneration, which can be rescued by Smo-A (green). (D–H) Hedgehog inhibition with HH-i (cyclopamine) (D) reduced ROS levels at the amputation plane at 16 hpa (E, F) and stump proliferation at 24 hpa (G, H). (G, H) Immunofluorescence staining for the axonal marker, acetylated tubulin (green), and for the mitotic cell marker, phosphorylated histone H3 (red). (I) Nox-i added to the water bath from 0 to 24 hpa reduced the number of Shh-positive cells detected at 48 hpa. Shh-positive cells were visualized by immunodetection of the GFP in shh:GFP transgenic fish. Error bars represent the SEM (*p < 0.05; ***p < 0.001). n Values are indicated at the bottom of each column of the graphs. HH-i, hedgehog inhibitor, cyclopamine; Smo-A, smoothened agonist. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Next, to test whether a reduction in ROS levels could modify Shh expression, we inspected Shh-positive cells in fish incubated with a pan-NADPH oxidase inhibitor (VAS-2870, Nox-i). We previously showed that Nox-i treatment significantly reduces ROS production at 6 hpa, the size of the regenerated tissue at 72 hpa, and cell proliferation at 24 hpa (15). We therefore visualized the Shh-positive cells at 48 hpa, when they reform a specific structure at the tip of each ray, in fish challenged to regenerate in the presence of Nox-i. Under these conditions, the expression of Shh was strongly inhibited (Fig. 6I). This result suggests that ROS partially control Shh signaling via activation of Shh transcription. Together, our results strongly suggest that nerve control of redox levels operates through activated SCs that express Shh and that redox levels also influence the Shh pathway (Fig. 7H).

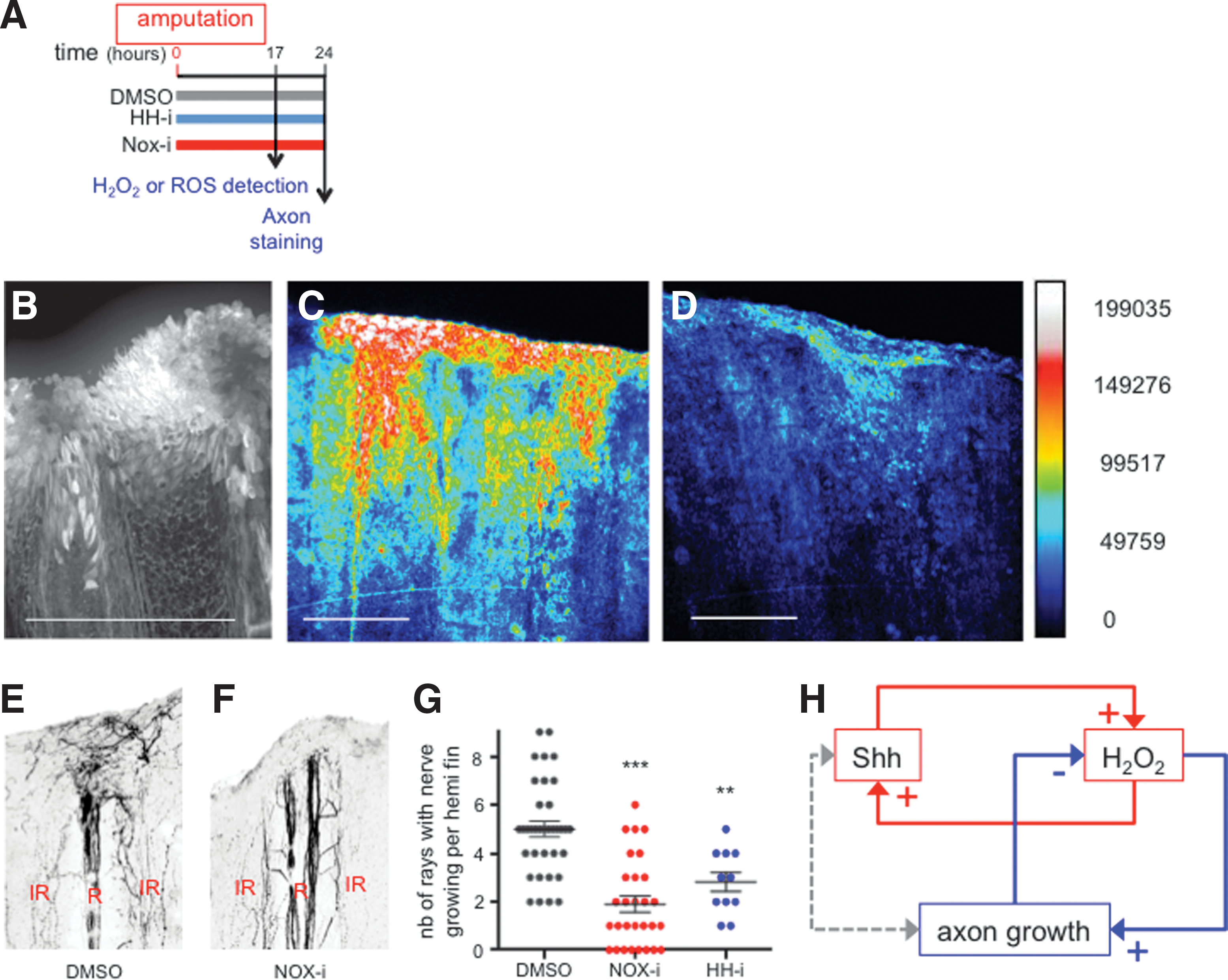

FIG. 7.

H₂O₂ stimulates axon growth in a positive feedback loop. (A) Scheme of the experiments. (B) ROS detection with DCFDA fluorescent probe. (C, D) Detection of H₂O₂ in ubi:HyPer fish. Fish were incubated in water (C) or Nox-i (D) and fluorescence of HyPer analyzed on adult anesthetized fish. [H₂O₂] is inferred from the YFP₅₀₀/YFP₄₂₀ excitation ratio of HyPer. Pseudocolor calibration bars: HyPer ratio (YFP₅₀₀/YFP₄₂₀). (E, F) Growing nerves were detected in the regenerating fin at 24 hpa by immunodetection of acetylated tubulin in fish incubated in vehicle (E), Nox-i (F), or HH-i (not shown). The quantification presented in (G) corresponds to the number of rays with growing nerves per half fin (maximum 9). n Values: dimethyl sulfoxide = 36; NOX-i = 29; HH-i = 11. (H) This article reveals the interaction between two feedback loops in the regulation of axon growth. Error bars represent the SEM (**p < 0.01; ***p < 0.001). Scale bars = 200 μM. YFP, yellow fluorescent protein. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Shh controls nerve growth through H₂O₂

It has been demonstrated in zebrafish larvae that H₂O₂ stimulates axon growth after lesion (44). We therefore examined the nature of the ROS involved in adult appendage regeneration. We already knew that NADPH oxidase inhibition impairs the process of regeneration and reduces DCFDA staining (15), which is in favor of H₂O₂. We then designed a transgenic fish expressing the HyPer biosensor for H₂O₂ (3) under a ubiquitous promoter (ubi:HyPer). The detection of H₂O₂ in regenerating fins mimicked the DCFDA staining (Fig. 7B, C), and Nox-i reduced H₂O₂ levels to the same extent as ROS levels detected with DCFDA fluorescent probe (Fig. 7D). On the contrary, Nox-i had a mild effect if any on the mitochondrial ROS level (Supplementary Fig. S7). These experiments suggest that the ROS detected with DCFDA and involved in adult appendage regeneration is H₂O₂. We then investigated the potential role of Hedgehog signaling and H₂O₂ in nerve growth during appendage regeneration in adults. We assessed nerve growth in fish exposed to NADPH oxidase inhibition (Nox-i) or Hedgehog signaling inhibition (HH-i) during adult caudal fin regeneration (Fig. 7E–G). First, adult fish were incubated with Nox-i or HH-i at the time of amputation, and then axon growth was scored at 24 hpa (Fig. 7E, F). Nox-i significantly reduced axon regrowth in adults (Fig. 7F, G), which suggests a positive feedback loop by which H₂O₂ stimulates nerve growth in adults, similar to what was found in larvae. Furthermore, HH-i inhibited axon growth to approximately the same extent as Nox-i (Fig. 7G). This last result suggests that Shh partially contributes to H₂O₂ signaling. These data identify a positive feedback loop in which H₂O₂ attracts nerves and nerves control H₂O₂ homeostasis during regeneration (Fig. 8).

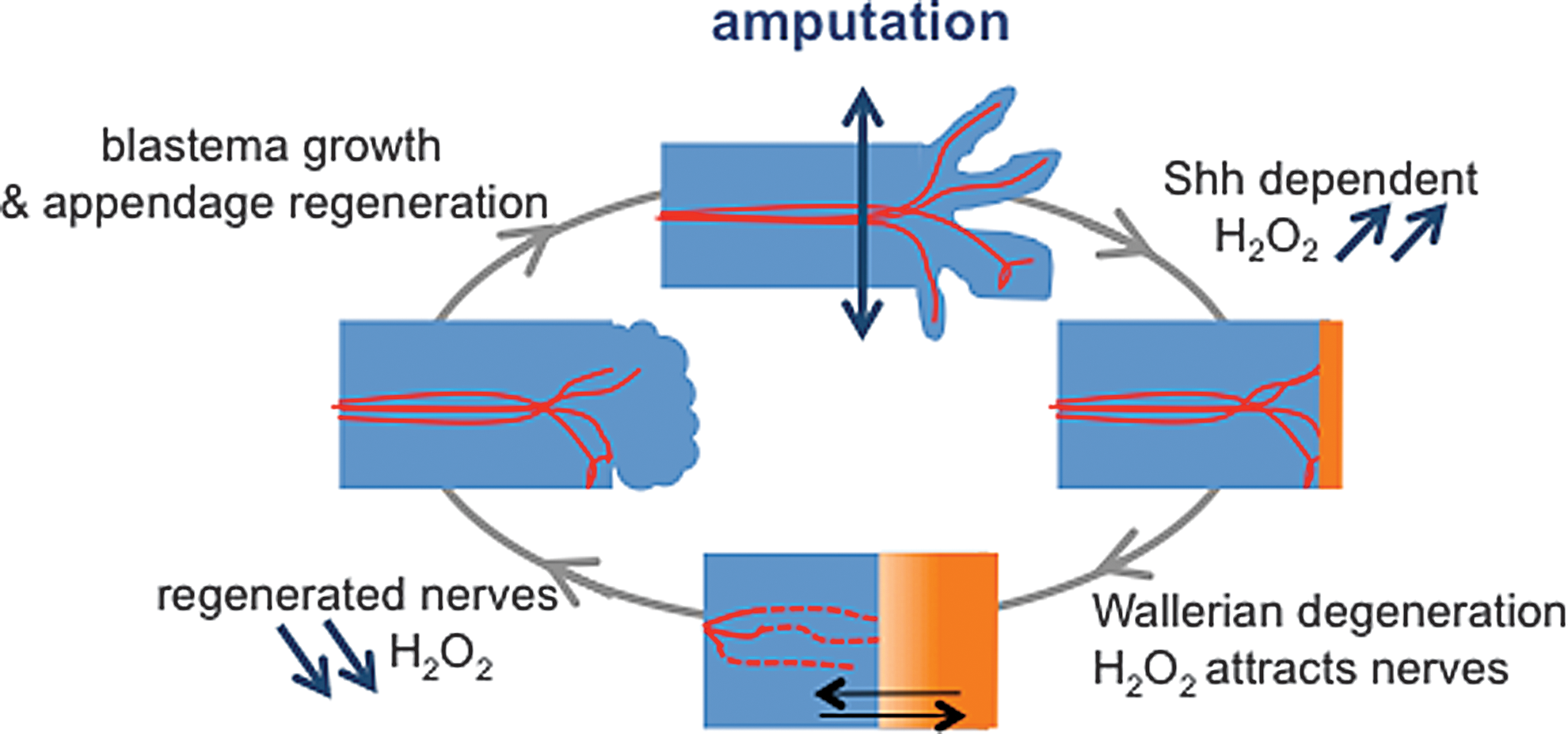

FIG. 8.

Synthetic model for H₂O₂/nerve interaction during appendage regeneration. In adults, tissues are mainly in a reduced state (top, blue). Amputation induces an increase in H₂O₂ levels (orange) that is nerve dependent and involves Shh signaling (right). Following Wallerian degeneration (dashed lines), regions of high H₂O₂ levels attract axons (red) and are essential for progenitor cell recruitment and blastema formation (bottom). H₂O₂ levels decrease upon reinnervation (left). To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Discussion

We first established that denervation abolishes the regenerative capacities of the amputated caudal fin, consistent with previous experiments performed on the pectoral fins of other teleost fish (16) and on newt appendages (50). We were led to examine a possible link between nerves and redox status by the demonstration that regeneration of a denervated appendage in newts can be rescued by overexpression of newt anterior gradient (nAG, AGR2 in mammals) (27), a protein disulfide isomerase that is expressed successively in SCs and in the wound epidermis. Additional results underlined the central role of this disulfide isomerase in the nerve dependence of fin regeneration: during development, nAG is first expressed in the epidermis, then switched off by nerve arrival, and later reinduced by the nerves themselves after lesioning (26). By contrast, prevention of appendage innervation during development leads to continuous nAG expression and regeneration becomes nerve independent (26). Although the relationship between ROS levels and nAG expression was not addressed at that time, those results pointed to the relevance of redox balance in the control of appendage regeneration by nerves.

We then proved that nerves control the dynamic redox levels in the adult fin and after amputation and that implementing this control involves SCs and Hedgehog signaling. These results support a new paradigm for the regulation of tissue homeostasis. We have identified two unexpected feedback loops (Fig. 7H) between H₂O₂ and Hedgehog signaling in injured growing nerves, which cooperate to ensure tissue growth and coordination for the regeneration of a properly innervated appendage (Fig. 8). The findings that peripheral nerves control redox levels and that in turn H₂O₂ regulates nerve growth support the idea that organ size and regeneration are intimately dependent on this positive interaction.

The crowning of axons by Schwann-derived cells expressing Shh has not previously been described in vertebrates, although the importance of Hedgehog signaling in SC behavior was demonstrated a long time ago (31). In mammals, Dhh is expressed in glial cells and is a key element in maintaining peripheral nerve integrity (49). It will be interesting to determine whether Dhh is also involved in redox homeostasis and whether Dhh and Shh are commutable in SCs for ensuring nerve maintenance and regeneration. The involvement of Shh in the control of nerve growth has been known for a decade (reviewed in Bovolenta and Sanchez-Arrones⁵ and Yam and Charron⁵⁷) and its role in neuroprotection via its secretion by SCs has also been documented (22). The importance of SCs for nerve regeneration is also well known (reviewed in Glenn and Talbot¹⁷ and Jessen et al.²³), as is the fact that SCs are sensitive to the redox environment (30, 45, 48). However, our results demonstrate for the first time that these different pathways are mechanistically linked by reciprocal interactions during appendage regeneration.

Our findings demonstrate the translational potential of the extracellular application of H₂O₂ in diseases involving axonal degeneration. Neuropathies are often associated with chronic wounds or tumor irradiation, and in both cases, nerve degeneration is due to miscommunication between axons and glia (12, 59). Manipulation of Hedgehog signaling can reverse diabetic neuropathy (8), and a few reports have addressed the involvement of H₂O₂ in this kind of neurological complication (34, 37). However, these studies did not consider a possible interaction of the Hedgehog pathway with H₂O₂, and our results lead for the first time to the idea that cross talk between neurons and glia operating in vertebrate regeneration involves the regulation of H₂O₂ homeostasis.

Cellular redox homeostasis mediates a plethora of cellular pathways, as indicated by the roles of ROS in cell plasticity, tissue regeneration, and wound healing, as well as the imbalance of ROS homeostasis in pathogenesis (e.g., tumorigenesis, autoimmunity, degenerative diseases, and diabetes) (4, 28, 47, 54, 56). Our observations put Shh on the list of redox targets. Taking into account that Shh signaling has a central role in various human pathologies such as degenerative diseases, cancer, and autoimmunity (reviewed in Briscoe and Therond,⁶ Carney and Ingham,⁹ and Petrova and Joyner³⁶), in which the balance between oxidants and antioxidants is often perturbed (54, 58), our results provide a new mechanism that may be of crucial importance in controlling these biological processes. Consequently, targeting the Hedgehog pathway with topical application of H₂O₂ may be a novel therapeutic strategy outside the field of peripheral neuropathy.

Materials and Methods

Fish care, surgery, and quantification of regeneration

Zebrafish colonies (AB-Tu and nacre fish) and transgenic fish [sox10(7.2):mrfp (24) and 2.4shh:GFP:ABC#15 (13)] were maintained using standard methods. The animal facility obtained approval from the French agreement from the Ministère de l'agriculture (No. C75-05-12), and the protocols were approved by the Ministère de l'éducation nationale de l'enseignement supérieur et de la recherche (00477.02). To maintain a healthy colony, a cycle of 14-h light–10-h dark was used, and a water temperature of 28°C was maintained, with a maximal density of five fish per liter. Water filtration depended on Aquatic Habitat stand-alone fish housing and operated automatically (Aquatic Habitat, Inc., Apopka, FL). Fish were fed twice per day with live 2-day-old artemia. For manipulation and amputation, the adult zebrafish (5–10 months of age) were anesthetized in 0.1% tricaine (ethyl-m-aminobenzoate), the caudal fins were amputated at the level of the first ray bifurcation and the fins were allowed to regenerate for various lengths of time. Denervation was performed on the dorsal part of the caudal fin using a trapezoidal microknife (Bausch & Lomb, Rochester, NY). The efficiency of regeneration was quantified at 3 dpa. The surface of the blastema was measured and subsequently divided by the square length of the amputation plane for each fish. The efficiency of regeneration is expressed as a percentage of the control.

Transgenic line

The sequence coding for HyPer (3) was introduced into a vector suitable for transgenesis under a ubiquitous promoter (ubi) (33). The details of the cloning procedures are available upon request. Stable transgenic lines with ubiquitous expression of the fluorescent proteins were selected.

ROS detection

The compound, 2′,7′-dichlorodihydrofluorescein diacetate (H2DCFDA; Calbiochem, San Diego, CA), was used to monitor the accumulation of ROS in adult zebrafish fins. Fluorescent DCF was formed through ROS oxidation. Zebrafish were incubated with H2DCFDA (50 μM) 2 h before confocal imaging. Spinning-disk images were acquired using a 4×/0.15 N.A. objective on a Nikon Eclipse Ti microscope equipped with a CoolSnap HQ2/CCD camera (Princeton Instruments, Trenton, NJ) and a CSUX1-A1 (Yokogawa, Tokyo, Japan) confocal scanner. MetaMorph software (Molecular Devices, Sunnyvale, CA) was used to collect the data. Fluorescence was excited with a 491 nm laser and detected with a 525/39 nm filter. Quantification of fluorescence intensity was performed using ImageJ software. Oxidation of MitoSOX^™ Red (Molecular Probes, Eugene, OR) reagent by superoxide produces red fluorescence specifically targeted to mitochondria in live cells. For double detection of mitochondrial superoxide and cellular ROS, adult zebrafish were incubated with MitoSOX Red (0.5 μM) and H2CDFDA (50 μM) 2 h before confocal imaging. Leica SP5-MP images were acquired using a Leica PL APO 25× objective (Leica Microsystems GmbH, Wetzlar, Germany). Acquisitions were made in 1024 × 1024 pixels with a line average of 4 and a scanning speed of 400 Hz. H2CDFDA acquisitions used a spectral band from 495 to 535 nm and MitoSOX from 610 to 750 nm.

H₂O₂ detection with the HyPer probe

HyPer fluorescence was excited with 501/16 and 420/40 bandpass excitation filters, and the corresponding yellow fluorescent protein (YFP) emission was acquired using a 530/35 bandpass emission filter. Spinning-disk images were acquired using a 4× ± −1.5× objective on a Nikon Eclipse Ti microscope (Nikon Instruments, Melville, NY) equipped with an Evolve^™ 512 EMCCD camera (Photometrics, Tucson, AZ). To calculate the HyPer ratio, images were treated as previously described (32).

Immunofluorescence and imaging

The fins were fixed in 4% paraformaldehyde overnight at 4°C and used for whole-mount immunohistochemistry with antiphospho-histone H3 (No. SC-8656-R; Santa Cruz Biotechnology, Inc., Dallas, TX) to detect proliferative cells, antiacetylated tubulin (No. T7451; Sigma-Aldrich, Saint Louis, MO) to detect axons, anti-GFP to detect GFP in Shh:GFP fish (No. ab13970; Abcam, Cambridge, MA), anti-mCherry (No. 6332543; Clontech Laboratories, Inc., Mountain View, CA) to detect mRFP in sox10:RFP fish, and anti-Sox10 (No. GTX128374; GeneTex, Inc., Irvine, CA). The P-H3-positive cells were counted in ray and inter-ray two in all segments. Immunofluorescence images were acquired using an inverted Leica SP5 with a Leica PL APO 20×/N.A. = 0.7 oil immersion objective. For coimmunolabeling of Sox10 and HH-positive cells, the fins were snap-frozen in optimal cutting temperature compound and sectioned at 20 μM with a cryomicrotome (No. HM560; Thermo Fisher Scientific, Waltham, MA).

Pharmacological treatments

A maximum of five adult fish were incubated in 200 ml of water for all pharmaceutical treatments. VAS-2870 (Nox-i) was purchased from Enzo Life Sciences (No. BML-El395-0010; Enzo Life Sciences, Inc., Farmingdale, NY), and cyclopamine V (HH-i) (No. 239803) and Smo-A (No. 566660) were obtained from Calbiochem and H₂O₂ from Merck Millipore (Darmstadt, Germany). Fish incubated in dimethyl sulfoxide comprised the control group. The fish were maintained in the dark and returned to the light for 1 h per day for feeding and water change.

Statistical analysis

Continuous variables are expressed as the mean ± standard error of the mean. Comparisons between multiple groups were performed using one-way analysis of variance, followed by Tukey's post-tests. Comparisons between the two groups were performed using Student's t-tests. p Values <0.05 were considered significant.

Footnotes

Acknowledgments

This work was performed in the Collège de France and benefited from Alain Prochiantz's constant support. The authors thank Matthieu Boukaissi and Tiphaine Vallée for technical assistance and Bruce Appel and Uwe Strähle for sharing the transgenic lines used in this work. The authors benefited from fruitful discussions with Alain Joliot and Piotr Topilko. This work was supported by the program “Investissements d'Avenir” launched by the French Government and implemented by the ANR, with the references ANR-10-LABX-54 MEMO LIFE—ANR-11-IDEX-0001-02 Paris sciences et Lettres (PSL) Research University.

Author Disclosure Statement

No competing financial interests exist.
