Lysyl Oxidase Induces Vascular Oxidative Stress and Contributes to Arterial Stiffness and Abnormal Elastin Structure in Hypertension: Role of p38MAPK

Role of LOX in vascular remodeling, stiffness, and elastin structure

Because LOX plays a critical role in ECM maturation, we assessed whether this enzyme could impact vascular remodeling and stiffness in an animal model that over-expresses LOX in VSMC (44). VSMC from TgLOX mice display higher levels of LOX activity (44) and accordingly, these cells deposit more insoluble elastin, which corresponds with higher elastin assembly, than those isolated from wild-type (WT) mice (Fig. 1A, B). Transgenic mice showed similar blood pressure (WT: 101 ± 3, n = 9; TgLOX: 102 ± 2 mmHg, n = 10) and wall/lumen (Fig. 1C) values than their non-transgenic littermates. However, mesenteric resistance arteries (MRA) and aortas from TgLOX mice exhibited an enhanced vascular stiffness (demonstrated by the leftward shift of the stress-strain relationship and the increased β value) compared with WT mice (Fig. 1D and Supplementary Fig. S1; Supplementary Data are available online at www.liebertpub.com/ars). The increased vascular stiffness in TgLOX mice was associated with a decrease in fenestrae size and number in the internal elastic lamina (IEL) that was determined in mesenteric arteries (Fig. 1E).

OPEN IN VIEWER

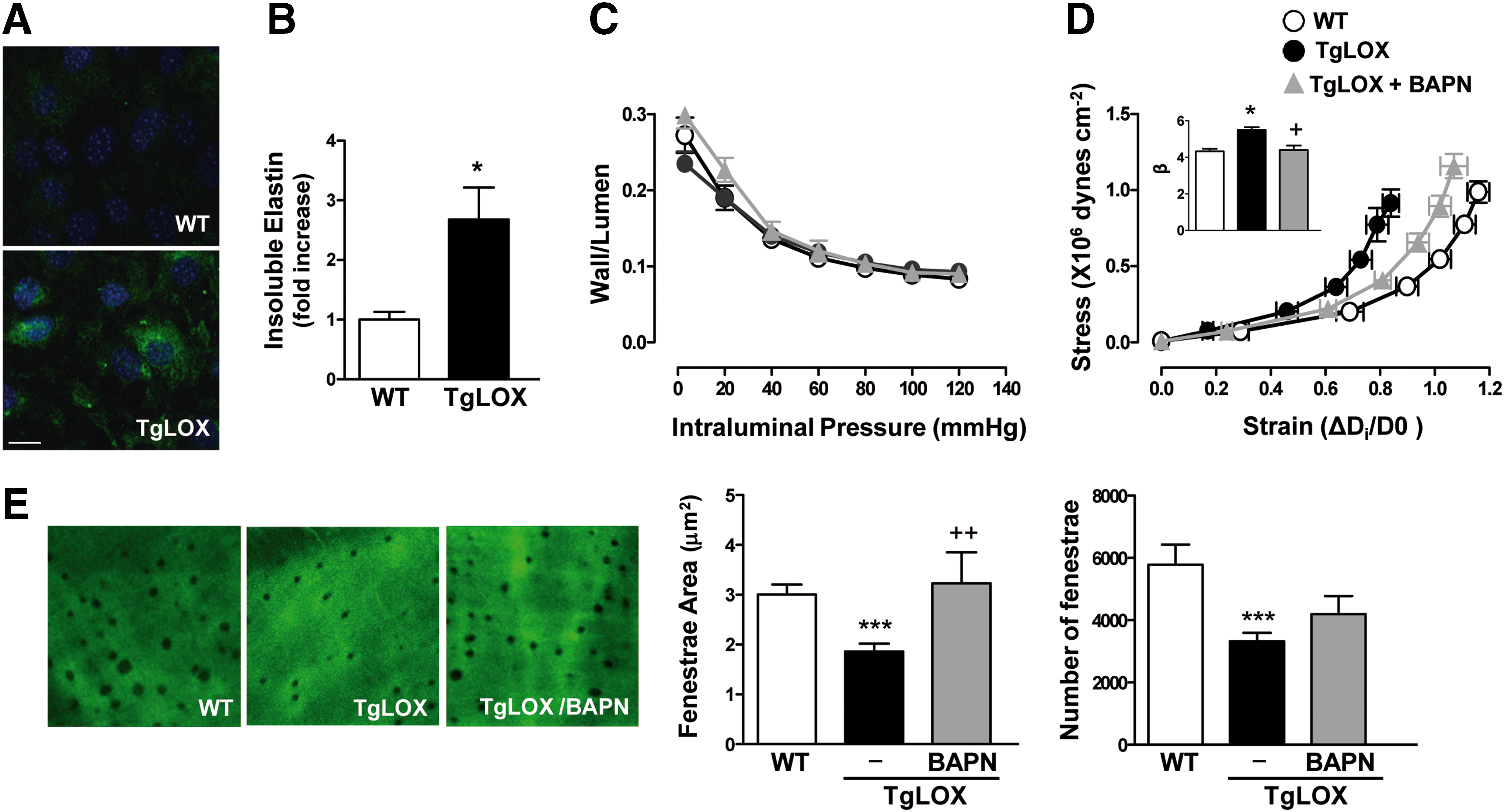

FIG. 1.

TgLOX mice exhibit higher vascular stiffness and structural elastin abnormalities. (A) Elastin staining (green) in non-permeabilized vascular smooth muscle cells (VSMC) isolated from wild-type (WT) and TgLOX mice. Nuclei were stained with Hoechst 33342 (blue). Bar size: 20 μm. (B) Levels of insoluble elastin in VSMC from WT and TgLOX mice after [³H]-valine supplementation. Data were normalized per DNA content in each individual well. (C) Wall/lumen-pressure curves and (D) stress-strain curves in mesenteric resistance arteries (MRAs) from WT, TgLOX, or TgLOX mice receiving BAPN. β-values (slopes of the stress-strain relationships) are also shown. (E) Maximal projections of the internal elastic lamina (IEL) and fenestrae area and number of MRAs from WT, TgLOX, or TgLOX mice receiving BAPN. Projections were obtained from serial optical sections that were captured with a fluorescence confocal microscope ( × 63 oil immersion objective). Image size: 59.5 × 59.5 μm. Results are represented as mean ± SEM (n = 4–10; *p < 0.05, ***p < 0.001 vs. WT; +p < 0.05, ++p < 0.01 vs. untreated TgLOX mice). BAPN, β-aminopropionitrile; SEM, standard error of the mean. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Inhibition of LOX activity with β-aminopropionitrile (BAPN) did not modify vessel structure but normalized the increased vessel stiffness and the smaller fenestrae size in TgLOX mice, without affecting fenestrae number (Fig. 1C–E). Together, these findings suggest that the increase in VSMC LOX activity is a key determinant of the higher vascular stiffness and the disturbance in elastin structure exhibited by TgLOX mice.

We next aimed at determining the role of LOX in vascular remodeling and stiffness in pathological situations potentially associated with an up-regulation of LOX such as hypertension. LOX expression was higher in arteries from both SHR (Fig. 2A and Supplementary Fig. S2A) and Angiotensin II (Ang II)-infused mice (Fig. 2B and Supplementary Fig. S2B). Treatment of SHR with BAPN did not modify blood pressure levels (Table 1). However, BAPN treatment partially reduced the increase in wall/lumen (Fig. 2C) and in vascular stiffness (Fig. 2D) and ameliorated the changes in elastin structure (Fig. 2E) observed in the SHR group. Interestingly, BAPN partially limited the increase in blood pressure (Table 1) and prevented the enhanced wall/lumen, vascular stiffness, and the structural elastin abnormalities induced by Ang II in mice (Fig. 2F–H).

OPEN IN VIEWER

FIG. 2.

LOX inhibition prevents vascular stiffness and structural elastin abnormalities in hypertension models. LOX protein levels in vascular lysates from WKY and SHR (A) or control and Ang II-infused mice (B). Results were normalized by GADPH expression. Wall/lumen-pressure curves (C, F) and stress-strain curves (D, G) in MRAs from WKY, SHR, or SHR treated with BAPN (C, D) and in control or Ang II-infused mice pretreated or not with BAPN (F, G). Maximal projections of the IEL and fenestrae area and number of MRAs from WKY, SHR, or SHR plus BAPN (image size: 119 × 119 μm) (E) and control, Ang II, and Ang II plus BAPN mice (image size: 59.5 × 59.5 μm) (H). Data are represented as mean ± SEM (n = 4–12; *p < 0.05, **p < 0.01, ***p < 0.001 vs. WKY or control animals; +p < 0.05, ++p < 0.01, +++p < 0.001 vs. untreated SHR or Ang II-infused animals). Ang II, angiotensin II; LOX, lysyl oxidase; SHR, spontaneously hypertensive rats; WKY, Wistar Kyoto. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

We next questioned whether Ang II might affect blood pressure and vascular stiffness in TgLOX mice. As shown in Supplementary Figure S3, blood pressure was similarly enhanced by Ang II in both transgenic and WT mice. Moreover, WT mice showed the expected Ang II-dependent increase in vascular stiffness. However, in the already stiff TgLox arteries, Ang II-infusion was unable to further build up this parameter, likely suggesting that LOX transgenesis triggers such a degree of long-lasting vascular rigidity that Ang II cannot increase it further.

Next, we aimed at characterizing the mechanisms that are responsible for the increased LOX expression in hypertension. Arteries from prehypertensive SHR exhibited similar LOX expression levels to age-matched Wistar Kyoto (WKY) (Supplementary Fig. S4A, D). Further, treatment of Ang II-infused mice with a combination of hydralazine and hydrochlorothiazide, which successfully decreased blood pressure, reduced the increased LOX expression observed in this hypertension model (Supplementary Fig. S4B, C and E). Together, these results suggest that LOX expression is modulated, at least in part, by the hemodynamic effect induced by high blood pressure.

Role of LOX in vascular oxidative stress and its effect on vascular stiffness and elastin alterations

Recent evidence suggests that H₂O₂ is a key driver of the crosstalk between mitochondrial ROS and NADPH oxidases in the vascular wall in the setting of hypertension (16, 17, 21). Because H₂O₂ is generated as a by-product of LOX activity, we questioned whether LOX might be a potential source of vascular ROS. As shown in Figure 3, arteries from TgLOX mice showed increased levels of H₂O₂ and O₂ ^.−, enhanced NADPH oxidase activity, and diminished mitochondrial membrane potential (a marker of mitochondrial dysfunction). Accordingly, NADPH oxidase activity was also enhanced in VSMC isolated from TgLOX mice compared with those from WT animals (Supplementary Fig. S5).

OPEN IN VIEWER

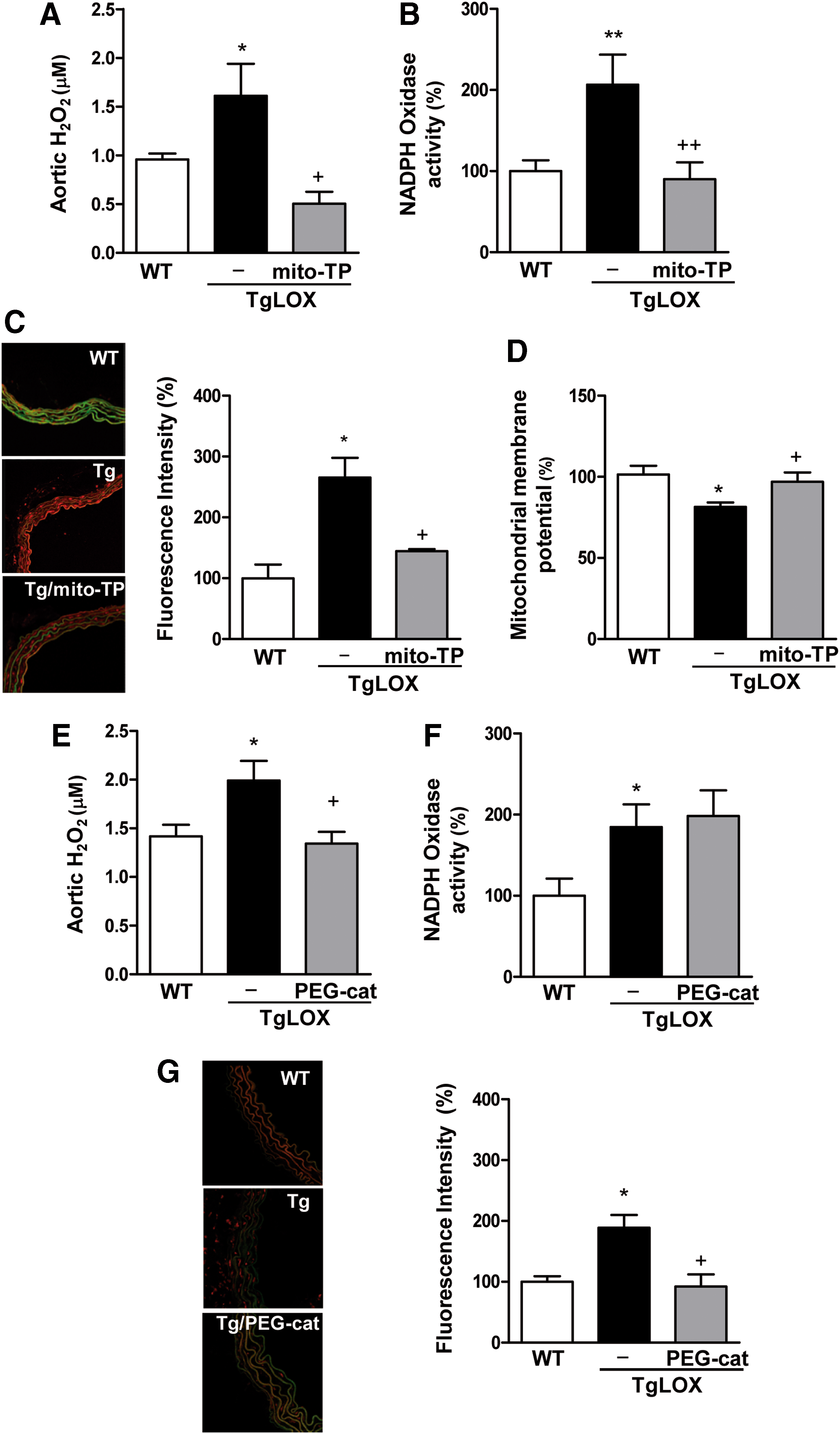

FIG. 3.

LOX is a source of vascular oxidative stress. Aortic H₂O₂ production (A, E), vascular NADPH oxidase activity (B, F), vascular superoxide anion production (C, G), and mitochondrial membrane potential (D) evaluated in wild-type (WT) and TgLOX mice treated or not with mito-TEMPO (mito-TP) or PEG-catalase (PEG-cat). Representative images of dihydroethidium staining are shown. Image size 238 × 238 μm. Data are represented as mean ± SEM (n = 4–10; *p < 0.05, **p < 0.01, vs. WT; +p < 0.05, ++p < 0.01 vs. untreated TgLOX mice). polyethylene glycol-conjugated catalase (PEG-catalase). To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

We next questioned whether LOX transgenesis could also evoke changes in the expression of superoxide dismutases (SOD) and NADPH oxidase isoforms (NOX) that might account for the increased vascular H₂O₂ production in TgLOX mice. Vascular mRNA levels of the three SOD isoforms were similar in both WT and transgenic animals (Supplementary Fig. S6A). The expression of H₂O₂-producing NOX-4 and that of NOX-2 was not altered in arteries from TgLOX mice (Supplementary Fig. S6B). However, higher vascular NOX-1 expression was detected in TgLOX compared with WT mice (Supplementary Fig. 6B).

Interestingly, treatment with the mitochondria-targeted antioxidant mito-TEMPO, which did not modify blood pressure (data not shown), limited the rise in vascular oxidative stress detected in TgLOX mice (Fig. 3A–D). Similarly, the H₂O₂ scavenger polyethylene glycol-conjugated catalase (PEG-catalase) attenuated the higher vascular production of H₂O₂ and O₂ ^.− exhibited by transgenic mice, although this treatment did not modify the increase in NADPH oxidase activity detected in these animals (Fig. 3E–F). Together, these findings suggest that both H₂O₂-dependent and -independent mechanisms would be responsible for the increased oxidative stress status in the vascular wall from TgLOX mice.

We then evaluated whether the higher expression of LOX in hypertension could also be a potential source of oxidative stress. As shown in Figure 4A and B, we detected an increase in the levels of H₂O₂ and in NADPH oxidase activity in arteries from SHR, effects that were decreased by BAPN. Similarly, vessels from Ang II-infused mice exhibited an enhanced production of both H₂O₂ and O₂ ^.−, an increased NADPH oxidase activity, and a reduction in mitochondrial membrane potential effects that were attenuated by LOX inhibition with BAPN (Fig. 4C–G). In agreement, in Ang II-stimulated VSMCs, increased mitochondrial ROS production and NADPH oxidase activity were abolished by BAPN, as well as by the H₂O₂ scavenger catalase and/or mito-TEMPO (Supplementary Fig. S7A, B). Furthermore, Ang II failed to significantly increase NADPH oxidase activity in LOX-silenced cells (Supplementary Fig. S7C). Similarly, mesenteric arteries stimulated with Ang II showed increased NADPH oxidase activity and decreased mitochondrial membrane potential, all of which were abolished by BAPN, catalase, mito-TEMPO, and/or ML171 (NOX-1/2 inhibitor) (Supplementary Fig. S7D, E). Together, these findings suggest that LOX up-regulation in hypertension is responsible, at least in part, for the enhanced production of ROS from different sources, including mitochondria and NADPH oxidase.

OPEN IN VIEWER

FIG. 4.

LOX inhibition reduces vascular oxidative stress in hypertension animal models. Aortic H₂O₂ production (A) and vascular NADPH oxidase activity (B) in WKY, SHR, and SHR treated with BAPN. Aortic H₂O₂ production (C), vascular superoxide anion production evaluated by dihydroetidium fluorescence (D) and by 2-OH-E+ fluorescence HPLC (E), vascular NADPH oxidase activity (F), and mitochondrial membrane potential (G) were analyzed in control or Ang II-infused mice pretreated or not with BAPN. Representative images of dihydroethidium staining (image size 238 × 238 μm) and HPLC representative traces are shown. Data are represented as mean ± SEM (n = 4–10; *p < 0.05, **p < 0.01, ***p < 0.001 vs. WKY or control animals; +p < 0.05, ++p < 0.01 vs. untreated SHR or Ang II-infused animals). To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

We then evaluated the role of LOX-derived oxidative stress in vascular stiffness in TgLOX mice. As shown in Figure 5, mito-TEMPO normalized the increased vascular stiffness and the altered elastin structure observed in mesenteric arteries from TgLOX mice. Likewise, PEG-catalase normalized the increased vascular stiffness in mesenteric arteries (Fig. 6A) and aorta (Supplementary Fig. S1) and the diminished fenestrae number (Fig. 6B). In addition, catalase ameliorated the enhanced elastin maturation exhibited by VSMC from TgLOX mice (Fig. 6C).

OPEN IN VIEWER

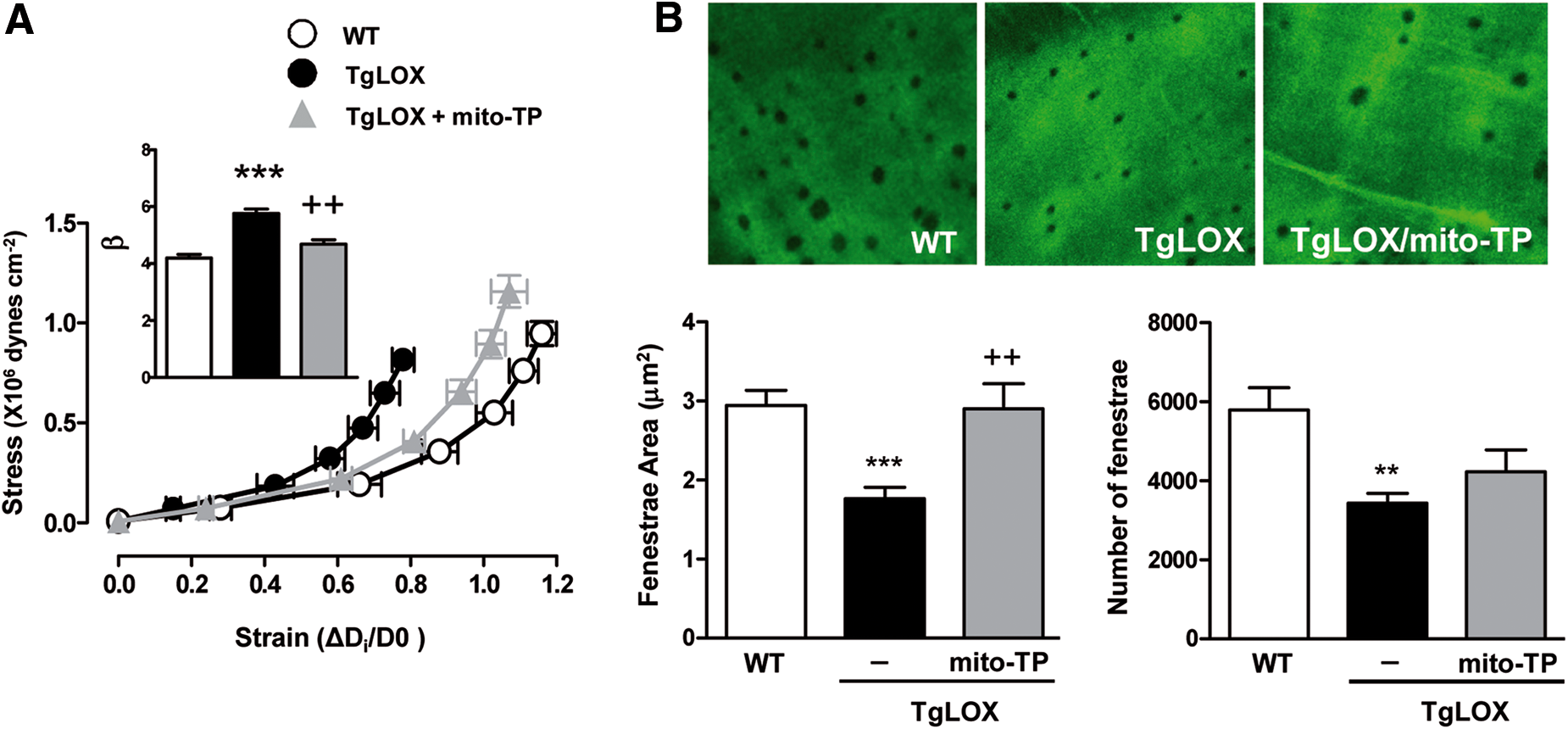

FIG. 5.

Oxidative stress underlies the higher vascular stiffness and structural elastin abnormalities detected in TgLOX mice. Stress-strain curves (A) and fenestrae area and number (B) in MRAs from wild-type (WT) and TgLOX mice treated or not with mito-TEMPO (mito-TP). Maximal projections of the IEL of MRAs are shown. Projections were obtained from serial optical sections that were captured with a fluorescence confocal microscope ( × 63 oil immersion objective). Image size: 59.5 × 59.5 μm. Data are represented as mean ± SEM (n = 6–10; **p < 0.01, ***p < 0.001 vs. WT; ++p < 0.01 vs. untreated TgLOX mice). To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

OPEN IN VIEWER

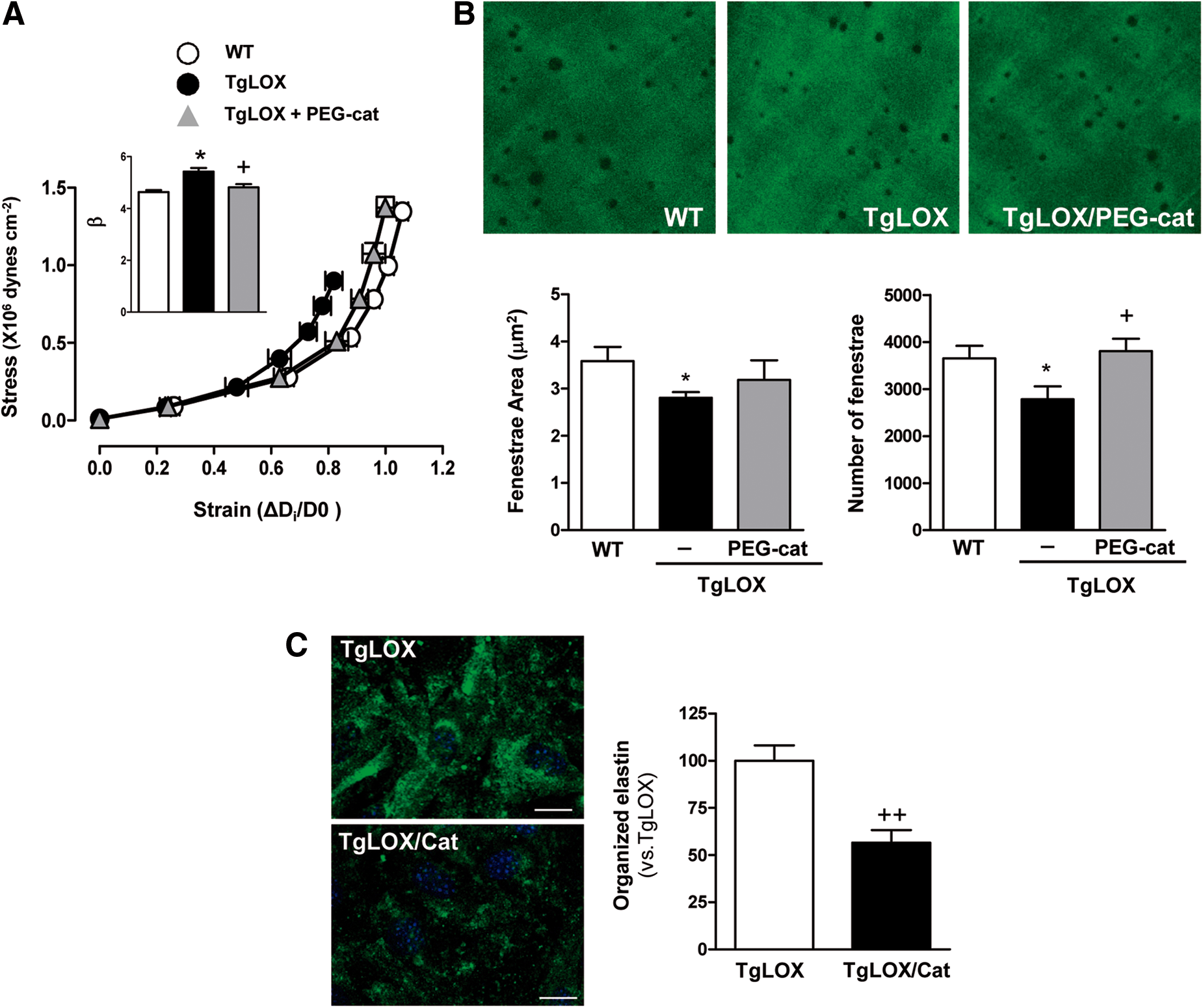

FIG. 6.

H₂O₂ production underlies the higher vascular stiffness and structural elastin abnormalities detected in TgLOX mice. Stress-strain curves (A) and fenestrae area and number (B) in MRAs from wild-type (WT) and TgLOX mice treated or not with PEG-catalase (PEG-cat). Maximal projections of the IEL of MRAs are shown. Projections were obtained from serial optical sections that were captured with a fluorescence confocal microscope ( × 63 oil immersion objective). Image size: 59.5 × 59.5 μm. (C) Elastin staining (green) in non-permeabilized VSMC isolated from TgLOX mice that were incubated or not with catalase (TgLOX/Cat). Nuclei were stained with Hoechst 33342 (blue). Bar size: 20 μm. Data are represented as mean ± SEM (n = 6–10; *p < 0.05 vs. WT; +p < 0.05 ++p < 0.01 vs. untreated TgLOX mice or cells). To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Role of p38MAPK in vascular stiffness and elastin alterations

p38MAPK is a well-known redox-sensitive kinase that is involved in the enhanced vascular stiffness induced by Ang II (59). Therefore, we examined whether this kinase plays a role in LOX-dependent regulation of vascular stiffness. Ang II increased the activation of vascular p38MAPK, an effect that was prevented by BAPN (Fig. 7A and Supplementary Fig. S8A). TgLOX mice showed increased vascular p38MAPK activation compared with WT mice, which was normalized by mito-TEMPO (Fig. 7B, and Supplementary Fig. S8B) and PEG-catalase (Fig. 7C, and Supplementary Fig. S8C). Treatment of TgLOX mice with the p38MAPK inhibitor SB203580 did not affect vascular structure but limited the increased vascular stiffness and the altered elastin structure observed in the mesenteric arteries of these mice (Fig. 7D–F).

OPEN IN VIEWER

FIG. 7.

p38MAPK contributes to the LOX-dependent disturbances in vascular stiffness and elastin alterations. Activation of p38MAPK (p-p38) in vessels from control or Ang II-infused mice treated or not with BAPN (A) and in wild-type (WT) and TgLOX mice treated or not with mito-TEMPO (mito-TP) (B) or PEG-catalase (PEG-cat) (C). Results were normalized by total p38 levels. (D) Wall/lumen-pressure curves, (E) stress-strain curves, and (F) fenestrae area and number in MRAs from WT, TgLOX, or TgLOX mice receiving SB 203580 (SB). Maximal projections of the IEL of MRAs are shown. Projections were obtained from serial optical sections that were captured with a fluorescence confocal microscope ( × 63 oil immersion objective). Image size: 59.5 × 59.5 μm. Data are represented as mean ± SEM (n = 3–8; *p < 0.05, **p < 0.01, ***p < 0.001 vs. WT; +p < 0.05, ++p < 0.01 vs. untreated TgLOX mice). p38MAPK, p38 mitogen-activated protein kinase. To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Role of oxidative stress in vascular remodeling, stiffness, and elastin alterations in hypertension

To unambiguously demonstrate the role of oxidative stress in vascular remodeling, stiffness, and altered 3D elastin structure in hypertension, we treated SHR and Ang II-infused mice with apocynin or mito-TEMPO. Both antioxidants decreased the augmented oxidative stress observed in arteries from both hypertensive models (Supplementary Fig. S9). However, neither the antioxidant apocynin nor mito-TEMPO affected the high blood pressure or the augmented wall/lumen in SHR (Fig. 8A, and Table 2). Both treatments partially prevented the high blood pressure induced by Ang II (40), but only apocynin prevented the increase in mesenteric wall/lumen induced by Ang II (Fig. 8B). Interestingly, apocynin and mito-TEMPO ameliorated the higher stiffness of mesenteric arteries and partially restored the abnormalities in elastin structure observed in arteries from both hypertensive models (Fig. 8C–F). Together, these findings demonstrate that oxidative stress, presumably from NADPH oxidase and mitochondria, underlies the increase in vascular stiffness and the anomalous elastin structure characteristic of Ang II-dependent models of hypertension.

OPEN IN VIEWER

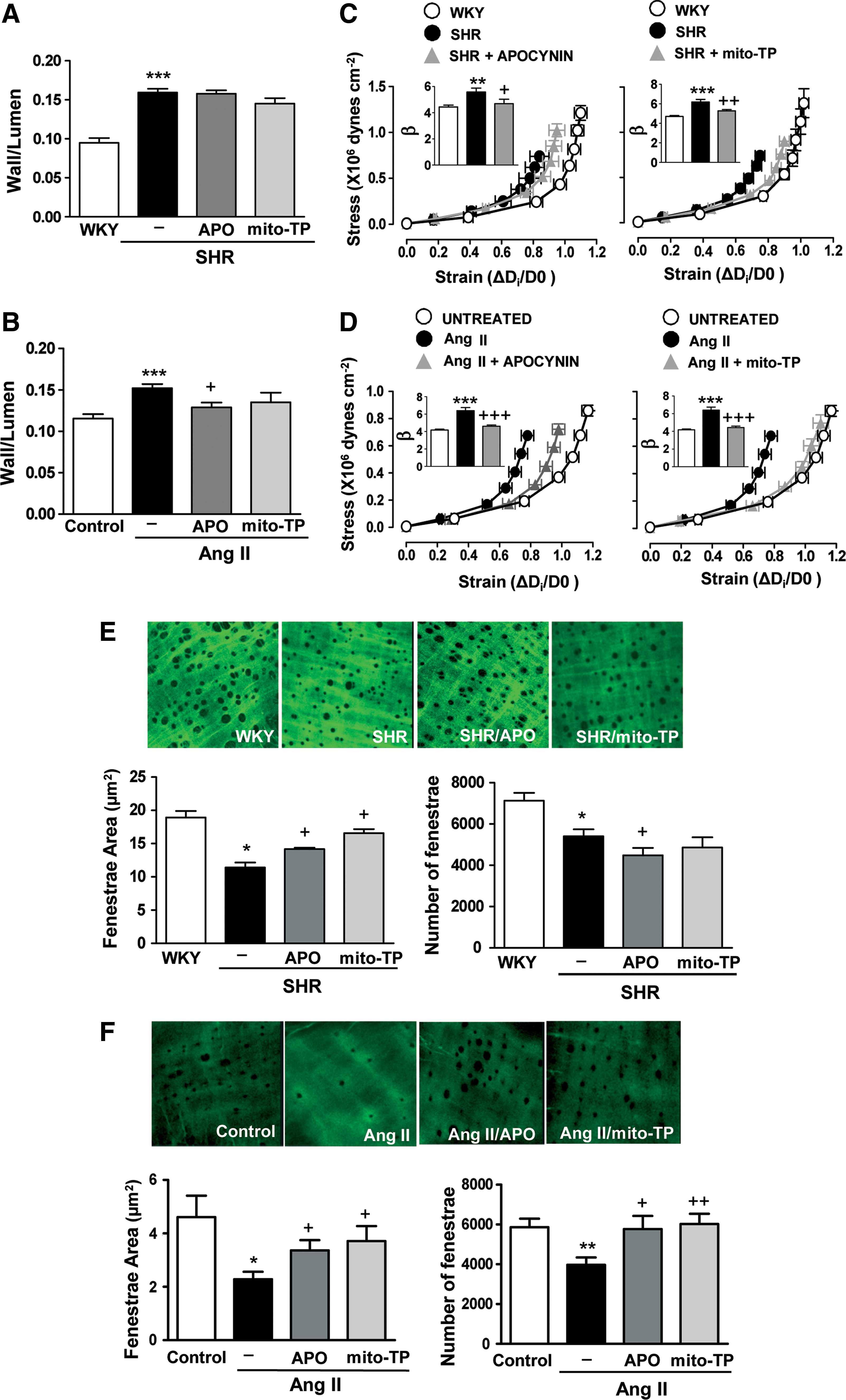

FIG. 8.

Oxidative stress underlies vascular remodeling, stiffness, and elastin alterations in hypertensive animal models. Wall/lumen (A,B) stress-strain curves (C, D) and fenestrae area and number (E, F) in MRAs from WKY, SHR, and SHR treated with apocynin (APO) or mito-TEMPO (mito-TP) (A, C) and (E) or from control, Ang II-infused, and Ang II-infused mice treated with apocynin or mitoTEMPO (B, D) and (F). Maximal projections of the IEL of MRAs from WKY, SHR, or SHR plus antioxidants (image size: 119 × 119 μm) (E) and control, Ang II, and Ang II plus antioxidant-treated mice (image size: 59.5 × 59.5 μm) (F). Data are represented as mean ± SEM (n = 6–15; *p < 0.05, **p < 0.01, ***p < 0.001 vs. WKY or control animals; +p < 0.05, ++p < 0.01, +++p < 0.001 vs. untreated WKY or Ang II-infused animals). To see this illustration in color, the reader is referred to the web version of this article at www.liebertpub.com/ars

Future perspectives

Our data further build on the concept of the critical role of elastin in vascular stiffness and remodeling in hypertension suggested by Faury et al. (20) and strengthened by studies in human patients with elastin deficiencies, showing that increased vascular stiffness precedes systolic blood pressure elevation (37) and predisposes to hypertension (54). In animal models, several pharmacological strategies that improve vessel stiffness have been described (6, 58). However, at the clinical level, there is less clear evidence of appropriate pharmacological tools to improve vessel stiffness, except for inhibitors of the renin-angiotensin-aldosterone system and calcium channel blockers (4, 18, 35, 53). Therefore, identification of novel pharmacological targets to prevent and/or ameliorate vessel stiffness in different cardiovascular diseases is awaited. Our study suggests that targeting LOX may be an interesting strategy. However, because long-term inhibition of LOX might interfere with normal crosslinking of collagen fibers and, therefore, compromise arterial strength (58), chronic studies to assess long-term effects of LOX inhibitors are warranted. Alternatively, attenuation of oxidative stress might represent an attractive perspective in pathological situations that are associated with increased LOX activity or altered elastin organization and increased vascular stiffness.

Animal models

Six-month- and 4-week-old male WKY and SHR rats were used. Adult SHR rats were divided into untreated groups and groups treated with BAPN (100 mg/kg/day; Sigma-Aldrich Co., St Louis, MO; 5 weeks, v.o), apocynin (1.5 mM −17 days, v.o; Sigma-Aldrich Co.), or mito-TEMPO (0.7 mg/Kg/day −17 days, i.p; Santa Cruz Biotechnology, Inc., Dallas, TX).

Three-month-old male C57BL/6J mice were infused with Ang II (1.44 mg/Kg/day, 2 weeks; Sigma-Aldrich Co.) with subcutaneously implanted Alzet osmotic minipumps (Durect Corp., Cupertino, CA) and pretreated or not with BAPN (100 mg/kg/day, i.p), apocynin (1.5 mM, v.o), mito-TEMPO (0.7 mg/Kg/day, i.p), or the combination of hydralazine plus hydrochlorothiazide (Hyd: 20 mg/Kg/day; HCTZ: 6 mg/Kg/day i.p; Sigma-Aldrich Co. both compounds). Untreated mice were used as controls. All treatments started 24 h before Ang II infusion.

Studies were also performed in a transgenic mouse model that over-expresses LOX in VSMC (TgLOX) in a C57BL/6J genetic background (44). TgLOX male mice (10 weeks) were divided into untreated groups and groups treated with BAPN (100 mg/kg/day, i.p, 15 days), mito-TEMPO (0.7 mg/Kg/day - i.p, 15 days), the H₂O₂ detoxifying enzyme PEG-catalase (40,000 U/Kg every 4 days, iv, 15 days; Sigma-Aldrich Co.), or the p38MAPK inhibitor SB203580 (10 mg/Kg/day, i.p, 15 days; SelleckChemicals, Houston, TX). A group of wild-type and Ang II-infused mice was also included as described earlier.

Blood pressure was measured by tail-cuff pletysmography. Animals were first habituated to the measurement device for 1 week before starting treatments.

All animal handling procedures were performed in compliance with the principles and guidelines established by the American Physiological Society for animal research. All procedures were reviewed and approved by the Ethical Committees at the Universidad Autónoma de Madrid and the Centro de Investigación Cardiovascular. Animals were taken care of and used according to the Spanish Policy for Animal Protection RD53/2013, which meets the European Union Directive 2010/63/UE on the protection of animals used for experimental and other scientific purposes.

Tissue preparation

Animals were euthanized by CO₂ inhalation and aorta, and first- and third-order branches of the mesenteric artery were dissected free of fat and connective tissue and maintained in cold (4°C) Krebs-Henseleit solution (KHS) (115 mM NaCl, 25 mM NaHCO₃, 4.7 mM KCl, 1.2 mM MgSO₄.7H₂O, 2.5 mM CaCl₂, 1.2 mM KH₂PO₄, 11.1 mM glucose, and 0.01 mM Na₂EDTA) that was bubbled with a 95% O₂–5% CO₂ mixture. Analysis of vascular structure and mechanics was done on the same day. For fluorescence studies, arterial segments were placed in phosphate-buffered saline (PBS) containing 30% sucrose for 20–50 min, transferred to a cryomold-containing Tissue Tek OCT embedding medium (Sakura Finetek Europe B.V., Alphen aan Den Rijn, The Netherlands), and frozen in liquid nitrogen. Tissues were kept at −70°C until O₂ ^.− determination studies. Other vascular segments were immediately frozen in liquid nitrogen and kept at −70°C until further processing for gene expression, NADPH oxidase activity, H₂O₂ production, mitochondrial membrane potential measurements or HPLC, and Western blot studies.

In some experiments, mesenteric arteries were stabilized in Krebs-Ringer HEPES solution (130 mM NaCl, 5.6 mM KCl, 2 mM CaCl₂, 0.24 mM MgCl₂, 8.3 mM HEPES, 11 mM glucose, pH 7.4) at 37°C for 30 min. Thereafter, segments were treated (30 min, 37°C) with mito-TEMPO (0.5 μM), BAPN (0.5 mM), the NOX-1/2 inhibitor, ML171 (0.5 μM; Sigma-Aldrich Co), and the H₂O₂-detoxifying enzyme, catalase (1000 U/ml; Sigma-Aldrich Co.). Then, Ang II (0.1 μM) was added to the arteries for 2 h at 37°C. Afterward, arteries were frozen (−80°C) for further determination of NADPH oxidase activity and mitochondrial membrane potential.

Pressure myography

The structural and mechanical properties of third-order (for rats) and first-order (for mice) MRA were studied with a pressure myograph (Danish Myo Tech., Model P100, J.P. Trading I/S, Aarhus, Denmark) as previously described (7). Briefly, vessels were placed on two glass microcannulae. The segment was set to a pressure of 45 mmHg in mice and 70 mmHg in rats, and allowed to equilibrate for 30 min at 37°C in calcium-free KHS (0Ca^2+; omitting calcium and adding 1 mM EGTA) gassed with a mixture of 95% O₂ and 5% CO₂. A pressure-diameter curve was then obtained by increasing intraluminal pressure in 20 mmHg steps from 3 to 120 mmHg in mice and from 3 to 140 mmHg in rats. Internal and external diameters were continuously measured under passive conditions (D_i0Ca, D_e0Ca). Finally, the artery was set to 45 mmHg in mice and to 70 mmHg in rats in 0Ca²⁺-KHS, then pressure-fixed with 4% paraformaldehyde in 0.2 M phosphate buffer, pH 7.2–7.4 at 37°C for 60 min, and kept in 4% paraformaldehyde at 4°C for confocal microscopy studies.

Calculation of passive structural and mechanical parameters

From internal and external diameter measurements, the following structural and mechanical parameters were calculated: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm{Wall }} \ { \rm{thickness}} \ \left( {{ \rm{W}}} \right) \ = \ \left( {{{ \rm{D}}_{{ \rm{e0Ca}}}}{ \rm{ - }}{{ \rm{D}}_{{ \rm{i0Ca}}}}} \right) / 2 \end{align*} \end{document} \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm{Wall / lumen}} = \left( {{{ \rm{D}}_{{ \rm{e0Ca}}}}{ \rm{ - }}{{ \rm{D}}_{{ \rm{i0Ca}}}}} \right) / 2{{ \rm{D}}_{{ \rm{i0Ca}}}} \end{align*} \end{document}

Circumferential wall strain (ɛ) = (D_i0Ca−D_00Ca)/D_00Ca, where D_00Ca is the internal diameter at 3 mmHg and D_i0Ca is the observed internal diameter for a given intravascular pressure, both of which are measured in 0Ca²⁺ medium.

Circumferential wall stress (σ) = (P × D_i0Ca)/(2W), where P is the intraluminal pressure (1 mmHg = 1.334 × 10³ dynes·cm⁻²) and W is the wall thickness at each intraluminal pressure in 0Ca²⁺-KHS.

Arterial stiffness independent of geometry is determined by the Young's elastic modulus (E = stress/strain). The stress-strain relationship is non-linear; therefore, it is more appropriate to obtain a tangential or incremental elastic modulus (E_inc) by determining the slope of the stress-strain curve (E_inc = δσ/δɛ). E_inc was obtained by fitting the stress-strain data from each animal to an exponential curve by using the equation: σ = σ_orige^βɛ, where σ_orig is the stress at the original diameter (diameter at 3 mmHg). Taking derivatives in the equation, we determine that E_inc = βσ. For a given σ-value, E_inc is directly proportional to β. An increase in β implies an increase in E_inc, which means an increase in stiffness.

Aortic stiffness determination

Mice aortic stiffness was determined by using a wire myograph (Danish Myo Tech) as previously described (31) with some modifications. After a 30-min equilibration period in oxygenated 0Ca²⁺-KHS, passive vascular properties were assessed by exposure to stepwise increases in stretching while recording the developed force.

The vessels were assumed to be cylinders, the length of which did not vary with changes in radius. Since the vessels were found to be flat between the wires, the internal circumference (L) and hence the diameter of each vessel segment at each corresponding pressure were calculated by using the following equation, where d is the diameter of the mounting wires and s is the separation of the wires from each other's inner surface. \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm{L}} = \left( { \pi + 2} \right) \times { \rm{d}} + 2 \times { \rm{s}}. \end{align*} \end{document}

The circumferential wall force per unit length is the passive wall tension and was calculated from the following equation, which took into account the fact that the forces produced by a ring are equal to twice the force that would have been produced by an equivalent aortic strip, where F is the force exerted by the vessel on the tension transducer and g is the vessel length: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm{T}} = { \rm{F}} / 2 \times { \rm{g}} \end{align*} \end{document}

Effective transmural pressure P was calculated from Laplace's equation, where L is the internal circumference corresponding to the wall tension: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm{P}} = 2 \times \pi \times { \rm{T}} / { \rm{L}} \end{align*} \end{document}

Assuming that the wall cross-sectional area remains practically constant through a range of intraluminal pressures, this parameter was calculated from individual histological transverse sections once the stretching curve was performed. External diameter was then extrapolated from the formula: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm{CSA}} = \pi / 4 \times \left( {{ \rm{D}}{{ \rm{e}}^2} - { \rm{D}}{{ \rm{i}}^2}} \right) \end{align*} \end{document}

where Di is the internal diameter calculated from the internal circumference at each pressure: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm{Di}} = { \rm{L}} / \pi \end{align*} \end{document}

Wall thickness, circumferential wall stress and strain, and individual Young's elastic modulus were then calculated as stated earlier.

Organization of IEL

The elastin organization within the IEL was studied in segments of MRA, using fluorescence confocal microscopy based on the autofluorescent properties of elastin (excitation wavelength at 488 nm and emission wavelength at 500–560 nm), as previously described (7). Briefly, the experiments were performed in intact pressure-fixed segments with a Leica TCS SP2 confocal system (Leica Microsistemas S.L.U., Barcelona, Spain). Serial optical sections from the adventitia to the lumen (z step = 0.5 μm) were captured with a X63 oil objective, by using the 488 nm line of the confocal microscope. A minimum of two stacks of images of different regions were captured in each arterial segment. Quantitative analysis of the IEL was performed with Metamorph Image Analysis Software (Molecular Devices, Sunnyvale, CA), as previously described (6). From each stack of serial images, individual projections of the IEL were reconstructed, and total fenestrae number and mean fenestrae area were measured.

Western blot analysis

To obtain protein lysates, arteries were harvested and mixed gently in RIPA buffer containing: 50 mM Tris pH 7.5, 150 mM NaCl, 1 mM MgCl₂, 1 mM EDTA, 1% Nonidet-P40 (NP-40), 0.5% deoxicolate Na, 1% sodium dodecyl sulfate (SDS), a protease inhibitor cocktail (Roche Applied Science, Barcelona, Spain), and a mix of phosphatase inhibitors (1 mM orthovanadate, 20 mM β-glycerophosphate, 10 mM NaF from Sigma-Aldrich Co.). Samples were centrifuged for 10 min at 13,000 rpm, and protein content in the supernatants was determined with Lowry (Bio-Rad Laboratories, Hercules, CA).

Total protein equivalents of each sample (30 μg) were separated on a 7.5% SDS-polyacrylamide gel and electrophoretically transferred to polyvinylidene difluoride membranes (Amersham, GE Healthcare, Buckinghamshire, United Kingdom) After blocking, membranes were incubated with antibodies for LOX (1:1000; Novus Biologicals LLC, Littleton, CO), p-p38 (1:1000) and p38 (1:1000) MAPK (Cell Signalling Technology, Inc., Danvers, MA), or glyceraldehyde-3-phosphate dehydrogenase (GAPDH, 1:50,000; EMD Millipore, Billerica, MA) overnight at 4°C. Membranes were thoroughly washed and incubated with horseradish peroxidase-coupled secondary antibodies (1:2000; Bio-Rad) for 1 h at room temperature. Bands were detected by using the Luminata Forte (Millipore) detection system. GAPDH expression was used as a loading control.

Real-time polymerase chain reaction

Total RNA was isolated by using the Trisure Isolation Reagent (Roche Diagnostics, Indianapolis, IN) following the manufacturer's instructions. Total RNA (500 ng) was reverse transcribed into cDNA by using the High-Capacity cDNA Archive Kit (Applied Biosystems, Foster City, CA) with random hexamers. Quantification of mRNA levels was performed by real-time polymerase chain reaction (PCR) using an ABI PRISM 7900HT sequence detection system (Applied Biosystems, Foster City, CA), and specific primers and probes provided by Applied Biosystems (Assay-on-Demand system) or Integrated DNA technologies (Coralville, IA) as follows: NADPH oxidase 1 (NOX-1; Mm00549170_m1), NOX-2-(Mm01287743_m1), NOX-4 (Mm00479246_m1), SOD1 (Mm.PT.58.12368303), SOD2 (Mm.PT.58.14276358), and SOD3 (Mm.PT.58.12048855). GAPDH (Mm99999915_g1) was used as an endogenous control. Relative mRNA levels were determined by using the 2^−ΔΔCt method.

Cell culture

Primary cultures of aortic VSMC were obtained from cleaned rat aortas and grown in DMEM-F12 medium that was supplemented with 10% fetal bovine serum containing 100 U/ml of penicillin, 100 μg/ml of streptomycin (all from Sigma-Aldrich Co.), as previously reported (1). Cell cultures were used between passages 2 and 4. VSMC were grown on glass coverslips and starved in serum-free media for 24 h. Then, VSMCs were stimulated or not with Ang II (0.1 μM, 4 h, or 24 h) in the absence and in the presence of BAPN (0.5 mM), catalase (1000 U/ml), or mito-TEMPO (0.5 μM).

Aortic VSMC from wild-type and TgLOX mice were obtained by the explant technique as previously described (44). Mouse VSMC were routinely subcultured in DMEM (ThermoFisher Scientific, Grand Island, NY) that was supplemented with 10% FCS, antibiotics, and 2 mM L-glutamine (ThermoFisher Scientific).

Quantitative assessment of insoluble elastin

VSMC from wild-type and TgLOX mice were seeded on 35 mm dishes in quadruplicate and grown to confluence for 3 days. Then, fresh media supplemented with [³H]-valine (10 μCi) were added to each well. VSMC were incubated for 7 days, and the cell layer was extensively washed with PBS. Cell remnants and deposited insoluble ECM were scraped and boiled in 500 μl of 0.1 N NaOH for 30 min to solubilize all matrix components except elastin. Pellets containing insoluble elastin were collected, solubilized by boiling in 200 μl of 5.7 N HCl for 1 h, and subjected to scintillation counting as previously described (27). Data were normalized per DNA content in each individual culture.

Immunocytochemistry

VSMC from wild-type and TgLOX mice were plated onto 35 mm μ-Dishes (Ibidi, Planegg/Martinsried, Germany) and allowed to grow for 10 days in the presence or in the absence of catalase (500 U/ml). Media were changed every 2 days. Afterward, cells were fixed with 4% paraformaldehyde and non-permeabilized VSMC were incubated with a rabbit polyclonal antibody against Elastin (ab21607; Abcam, Cambridge, United Kingdom) overnight. Then, dishes were washed and incubated for 1 h with a fluorescence-conjugated secondary antibody (goat anti-rabbit Alexa Fluor 488; ThermoFisher Scientific). Nuclei were stained with Hoechst 33342 (ThermoFisher Scientific) (25). Fluorescence images were acquired with a Leica DMIRE2 confocal microscope by using Leica Confocal Software (Leica Microsistemas S.L.U.). Quantitative analysis was performed by using Image J software.

siRNA transfection

The ON-TARGET plus SMART pool siRNA system (Dharmacon; GE Healthcare United Kingdom Buckinghamshire, United Kingdom) was used in knockdown experiments. Cells were transfected with 25 nM of an siRNA against LOX (E-091115–01) or with the ON TARGET plus non-targeting Control pool (siRandom; D-001810-10-05), using 7.5 μl of Lipofectamine RNAiMax Reagent (Thermo Fisher Scientific, Inc., Waltham, MA). After transfection (8 h), cells were stimulated with Ang II and finally processed for NADPH oxidase activity. Gene knockdown was verified by real-time PCR (not shown).

NADPH oxidase activity

The lucigenin-enhanced chemiluminescence assay was used to determine the NAD(P)H oxidase activity in total protein vascular homogenates. Tissues were homogenized in a lysis buffer (in mM: KH₂PO₄ 50, ethylene glycol tetraacetic acid 1, sucrose 150, pH 7.4). The reaction was started by the addition of NAD(P)H (0.1 mM) to the suspension containing sample, lucigenin (5 μM), and assay phosphate buffer. The luminescence was measured in a plate luminometer (Auto-Lumat LB 953, Berthold Technologies GmbH, Bad Wildbad, Germany). Buffer blank was subtracted from each reading. Activity was expressed as relative light units/mg protein. Samples from nontreated animals were used as controls, and variations of NAD(P)H oxidase activity were calculated as the amount relative to controls.

In situ detection of vascular O₂ ^.− production

The oxidative fluorescent dye dihydroethidium (DHE, Sigma-Aldrich Co.) was used to evaluate O₂ ^.− production in situ. Arterial sections were equilibrated for 30 min at 37°C in Krebs-HEPES buffer (in mM: 130 NaCl, 5.6 KCl, 2 CaCl₂, 0.24 MgCl₂, 8.3 HEPES, 11 glucose, pH = 7.4). Fresh buffer containing DHE (2 μM) was topically applied onto each tissue section, cover-slipped, incubated for 30 min in a light-protected humidified chamber at 37°C, and viewed with a fluorescent laser scanning confocal microscope (Leica TCS SP2 equipped with a krypton/argon laser, × 40 objective; Leica Microsistemas S.L.U.). Fluorescence was detected with a 568 nm long-pass filter by using the same imaging settings for all experimental conditions. For quantification, two-three rings per animal were sampled for each experimental condition and averaged. The mean fluorescence densities in the target region were calculated. To minimize laser fluctuations from one day to another, data were expressed as% of signal in control arteries.

Measurement of O₂ ^.− production by high-performance liquid chromatography

O₂ ^.− production was determined by HPLC as previously described (36). Aortic samples were homogenized in acetonitrile (500 μl), sonicated, and centrifuged and the supernatant was collected and dried. Pellets were resuspended in Krebs-HEPES-DPTA 25 μM. For HPLC analysis, equal amounts of protein were resuspended in 70 μl Krebs-HEPES-DPTA, and a volume of 50 μl was injected. Samples were analyzed by HPLC (Varian 920 LC series, Agilent Technologies, Santa Clara, CA), by using a 4 μm C-18 reverse-phase column (Synergi 150 × 4.6 mm, Phenomenex, Torrance, CA) and a gradient of solutions A (pure acetonitrile) and B (water/10% acetonitrile/0.1% trifluoroacetic acid, v/v/v) at a flow rate of 1 ml/min, and run as described (34). Ethidium and 2-hydroxyethidium (2-OH-E+) were monitored by fluorescence detection with excitation at 510 nm and emission at 595 nm. The 2-OH-E+ peak reflects the amount of O₂ ^.− formed in the tissues. A positive control of 2-OH-Etidium+ was also used (Noxygen Science Transfer and Diagnostics GmbH, Elzach, Germany).

Measurement of H₂O₂

H₂O₂ measurements in aortic segments were made by using the horseradish peroxidase-linked Amplex Red fluorescence assay. Briefly, Amplex Red (ThermoFisher Scientific; 100 μM) and horseradish peroxidase type II (0.2 U/ml) were added to the aortic homogenates. Fluorescence readings were made in triplicate in a 96-well plate at Ex/Em = 530/580 nm by using 50-μl samples of media. H₂O₂ concentration was calculated by using a standard curve and normalized to cellular protein.

Mitochondrial ROS determination

Intact cells cultured on coverslips were incubated with fluorescent probes in Krebs-HEPES buffer for 20 min at 37°C in a CO₂ incubator. Production of mitochondrial O₂ ^·− was visualized by using the fluorescent probe MitoSOX (2 μM; ThermoFisher Scientific; excitation (Ex)/emission (Em), 510/480 nm). Mitochondrial localization was ensured by mitoTracker Green (0.1 μM; ThermoFisher Scientific; Ex/Em 488/520 nm). Nuclei were stained with Hoescht 33342 (0.01 mg/ml; Sigma-Aldrich Co; Ex/Em, 364/461 nm).

Mitochondrial membrane potential (ΔΨ)

Mitochondrial membrane potential was monitored with the fluorescent probe tetramethylrhodamine methyl ester (TMRE, Ex/Em, 543/573 nm; ThermoFisher Scientific) by using a modification of the method previously described (30) and as previously performed (21). Vessels were incubated in oxygenated Krebs-HEPES buffer (37°C). After 30 min of stabilization, arteries were incubated with Krebs-HEPES buffer containing TMRE (0.1 μM) for 20 min at 37°C. After washing, fluorescence intensity was measured with a spectrofluorimeter (FLUOstar OPTIMA BMG Labtech, Cary, NC). Fluorescence intensity values were normalized by the amount of proteins, and values were expressed relative to controls.

Drugs and solutions

Unless specifically stated, reagent-grade general chemicals were obtained from different suppliers. All drugs were dissolved in distilled water, except ML171, which was dissolved in 75% ethanol, and SB203580, which was dissolved in 50% DMSO. Further dilutions were in distilled water.

Data analysis and statistics

All data are expressed as mean ± standard error of the mean of the number of animals used in each experiment or independent cell culture-based experiments. Results were analyzed by using paired or unpaired Student's t-test or one-way or two-way ANOVA followed by Bonferroni's post hoc test using the GraphPad Prism 5 software (San Diego, CA). A p < 0.05 was considered significant.
