The Science of Exoplanets and Their Systems

2.1. Detection methods

The main methods that have been used so far in the discovery of exoplanets are as follows:

• the Doppler method,

Most exoplanets have been discovered by the Doppler method, which monitors the change in Doppler shift of the spectral absorption lines of the exoplanet's host star. From the Doppler shift, the minimum mass of the observed target planet can be determined, as well as the body's semimajor axis and orbital eccentricity. Radial velocity measurements on stars related to the search and confirmation of exoplanets are at present mainly performed with the 3.6 m ESO High Accuracy Radial Velocity Planet Searcher (HARPS); the Very Large Telescope spectrographs UVES, FLAMES, and CORALIE; the 1.93 m SOPHIE spectrograph in the Observatoire de Haute Provence; the Coudé echelle spectrograph from the 2 m telescope in Tautenburg (TLS), Germany; and spectrographs at the McDonald and Keck observatories. The current limiting precision reached by the HARPS project is ∼0.5 m s⁻¹, while the signal for super-Earths to Earth-mass planets orbiting a Sun-like star at 1 AU would be ∼0.1 m s⁻¹ to 0.06 m s⁻¹. However, it should be noted that the first Earth-mass exoplanet within a close-in orbit of α Centauri B has been discovered recently (Dumusque et al., 2012). The amplitude of this signal is 0.5 m s⁻¹, which is significantly below that of many other astrophysical signals, including binaries, stellar rotation, and long-term magnetic activity.

The second powerful method in exoplanet detection is the transit method, which monitors the change in brightness of the planet's host star. With this method, the radius of an exoplanet and its semimajor axis can be determined. It should be noted that not all exoplanets discovered by the Doppler method are in an orbit around their stars such that they can also be seen by transit observations (e.g., <10% transit probability for close-in planets). But exoplanets that are discovered by transits can be re-observed by the Doppler method; thus their mass can also be determined if the precision is above the current signal threshold. The discovery of CoRoT-7b, the first small rocky exoplanet with measured radius and mass (Léger et al., 2009) and therefore with a known density, has opened up a new research era. While the European Convection, Rotation and planetary Transits (CoRoT) space observatory has demonstrated that exoplanets can be observed via transits from space, the CoRoT satellite, due to its mission design, cannot discover Earth-sized exoplanets within the habitable zones of their host stars. This important task has been taken over by NASA's Kepler satellite, which has been in space since March 2009 (e.g., Borucki et al., 2011). The current limiting precision for the transit method is given by Kepler with ∼20 ppm. The Earth-Sun transit signal is ∼80 ppm. Compared to the Doppler method, which cannot measure Earth-mass bodies at 1 AU at present, Earth-sized exoplanets at a distance of about 1 AU can be discovered by the Kepler space observatory. From the discoveries of exoplanetary systems such as Kepler-20, it is known that Earth-sized planets are interspersed among larger Neptune-sized bodies. The Kepler mission has discovered about 2300 exoplanet candidates so far, most of them smaller than Neptune, that could potentially be used for the determination of the occurrence rate of Earth analogues. It should also be noted that the hunt for exoplanets below the jovian class and neptunian class by Kepler is supported by ground-based transit projects such as the MEarth Project in the USA. The MEarth Project is a photometric ground-based survey that monitors about 2000 nearest M dwarfs for transiting super-Earths with orbits inside close-in habitable zones. The most interesting discovery of this project so far is a sub-Neptune/super-Earth–class exoplanet with the size of ∼2.7 Earth radii with an orbital period of 1.6 days around the small, faint star GJ 1214 (Charbonneau et al., 2009).

Direct imaging is the third method for the detection of exoplanets by the determination of the band-integrated luminosity and the projected planet-star separation. From the few directly detected exoplanetary systems, it can be expected that these systems are very young and widely separated. This method does not permit a direct measurement of the mass or size of the imaged planets.

The fourth method in the detection of exoplanets is gravitational lensing, which monitors the change in brightness of a distant star because its light is bent and focused by gravity when a star with an orbiting exoplanet passes between the distant star and Earth. From this method, the mass of the exoplanet and its semimajor axis can be determined. So far 14 exoplanets have been discovered with the gravitational microlensing method. The disadvantage of this method is that, in general, follow-up observations are not possible. It should be noted that microlensing is the only practical method that allows for discovery of the population of gas and ice giants significantly beyond the ice line (see Fig. 6 in Gaudi, 2012). The science programs of ESA's Euclid and NASA's planned WFIRST fundamental physics space missions contain microlensing searches of exoplanets within their science cases.

Astrometry can be seen as the fifth method for exoplanet detection. This method consists of precisely measuring a star's location in the sky and its related position changes over time. In the near future, ESA's Gaia all-sky survey astrometry space mission will also contribute to the statistics of exoplanets via astrometry (Sozzetti, 2010). For example, the Gaia data, over the next decade, will allow us to significantly refine the understanding of the statistical properties of extrasolar gas giants and will enhance our knowledge of potential exoplanet host star parameters. Also, asteroseismic studies will yield the age of exoplanet host stars.

2.2. Observables and science

With this brief survey of the present-day exoplanet detection methods, it should be understood that the Doppler and transit methods will dominate exoplanet detection in the near future in comparison to detection by direct imaging, gravitational microlensing, and space astrometry. Table 1 compares the current limiting precision of the Doppler and transit methods and the corresponding necessary values for an Earth-Sun signal at 1 AU orbit location. Therefore, a short summary of the science that can be obtained by the combination of the transit and Doppler methods is addressed below.

Exoplanet mean density

By knowing the radius and mass of an exoplanet, the mean density can be calculated. The present data base already shows that planet densities span a wide range for any given planet mass. This indicates the existence of very different types of planets with similar masses. A big surprise from the available observations of this kind is that there are many close-in hot Jupiters that have inflated radii compared to their expected radii from radius-mass models that are used for Solar System gas giants. Furthermore, a detailed investigation of the first discovered super-Earths with known size and mass indicates that many of them are most likely surrounded by hydrogen envelopes or dense hydrogen-rich volatiles that comprise a few percent of their masses (e.g., Lissauer et al., 2011; Ikoma and Hori, 2012; Lammer et al., 2013). The existence of such envelopes indicates that these planets' nebula-based or outgassed protoatmospheres were not dispelled (Kuchner, 2003; Lammer, 2013; Lammer et al., 2013). These discoveries are very important and are closely linked to the formation of the whole system; the host stars' early radiation; and the plasma environment that is linked to the nebula lifetime, the inner structure, related physics of the exoplanets, and, with regard to super-Earths and Earth-sized exoplanets, habitability. Although the available data suggest that more massive and slightly larger planets compared to Earth with orbital distances >0.02 AU (around G stars) are more likely mini-Neptunes than pure rocky planets with tiny Earth-like atmospheres, the present error bars in the radius-mass relation are too large and must be reduced. As can be seen in Fig. 1, a good example is the low-density super-Earth GJ 1214b whose radius-mass related structure can be fitted by a dense core model that is surrounded by a dense primordial based H/He envelope or outgassed H₂ as well as by a low-density core surrounded by a deep H₂O ocean and a thin hydrogen envelope at the top (Adams et al., 2008; Rogers and Seager, 2010; Nettelmann et al., 2011; Berta et al., 2012).

OPEN IN VIEWER

FIG. 1.

Illustration of two possible scenarios for the structure of the low-density super-Earth GJ 1214, which can be derived from the radius-mass relation within the present uncertainties. Left scenario (a) would correspond to a mini-Neptune with a dense core that is surrounded by a primordial or outgassed dense hydrogen envelope. Right scenario (b) corresponds to a low-density core that is surrounded by a huge amount of H₂O and a thin hydrogen envelope (courtesy of D. Charbonneau). Color images available online at www.liebertonline.com/ast

Exoplanetary atmospheres

Planetary transits offer the opportunity not only to discern the size of an exoplanet but to study its atmosphere as well, which to date has not been possible for non-transiting planets. As illustrated in Fig. 2, the radiation from the exoplanet host star is transmitted through its atmosphere during the transit, while the thermal radiation and the reflected light from the planet disappear and reappear during the secondary eclipse. By measuring the planet-to-star flux ratio as a function of wavelength, spectra of the planetary atmosphere are obtained (Charbonneau et al., 2008; Grillmair et al., 2008).

OPEN IN VIEWER

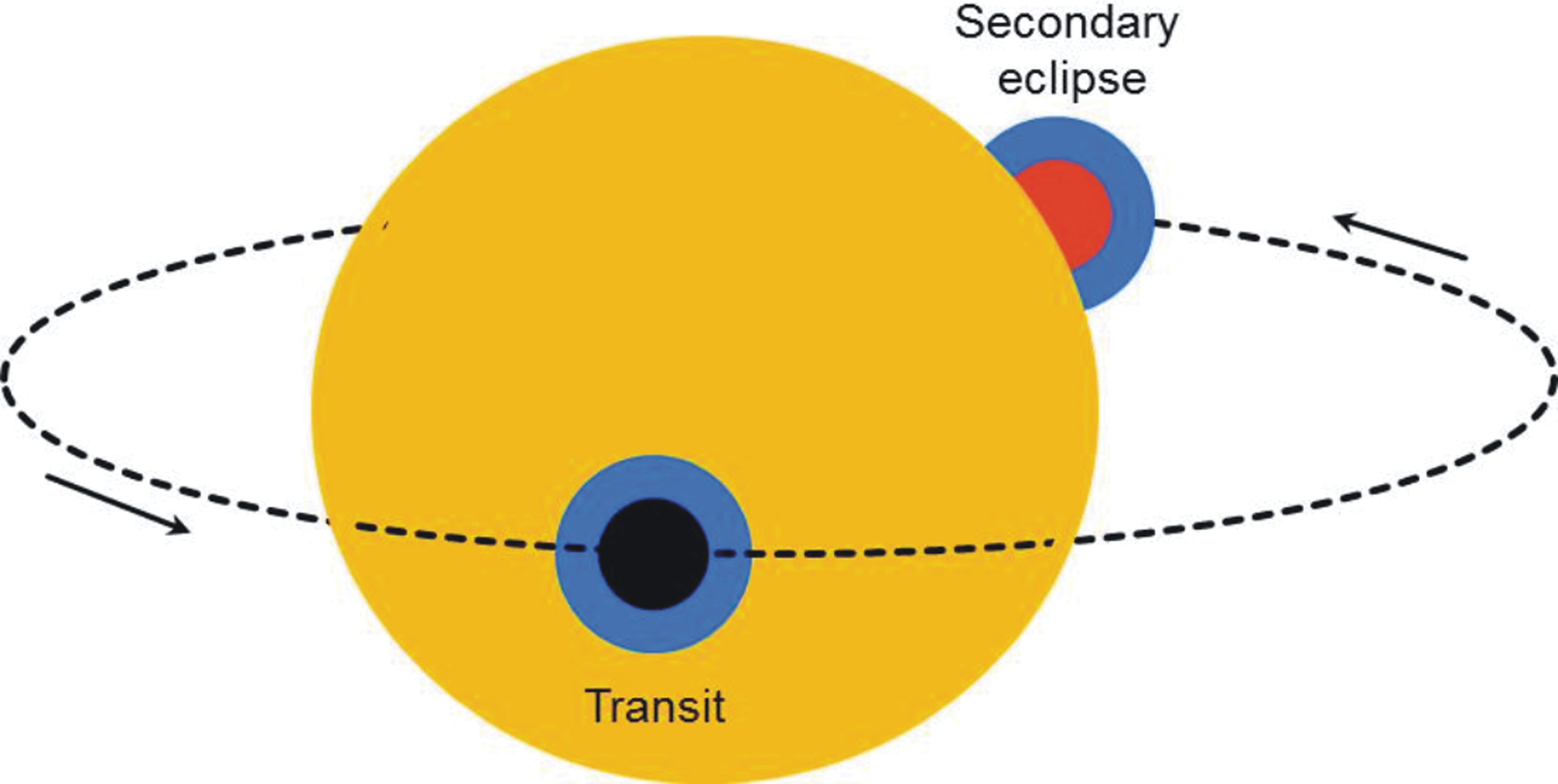

FIG. 2.

Illustration of exoplanetary atmosphere effects during the transit and secondary eclipse of an exoplanet. During the transit, the radiation from the star is transmitted through the planet's atmosphere, while during the secondary eclipse the thermal radiation and reflected light from the planet disappear and reappear. Color images available online at www.liebertonline.com/ast

Vidal-Madjar et al. (2003) observed the transiting exoplanet HD 209458b with the Hubble Space Telescope (HST) Space Telescope Imaging Spectrograph (STIS) and discovered an intensity drop in the stellar Lyman-α line, which was surprisingly large, considering that the atmosphere of a planet occulted only 1.5% of the star. Subsequent observations at low spectral resolution with the HST STIS/Advanced Camera for Surveys (ACS) have also confirmed that the transit depth in Lyman-α is significantly greater than the transit depth due to the planetary disk alone (Ben-Jaffel, 2007; Ben-Jaffel and Sona Hosseini, 2010). Recently, another observation of an extended upper atmosphere due to Lyman-α absorption during the transits of a second short periodic Jupiter-type gas giant, HD 189733b, was reported (Lecavelier des Etangs et al., 2010, 2012). From these observations, it can be concluded that hydrogen atmospheres of hot Jupiters expand up to their Roche lobes and that close-in gas giants are surrounded by cometary-type hydrogen clouds as predicted by Schneider et al. (1998). Applied hydrodynamic models by Yelle (2004), García Muñoz (2007), Penz et al. (2008), and Koskinen et al. (2013a, 2013b) support this hypothesis as well as independent HST/STIS and Cosmic Origins Spectrograph (COS) observations where carbon, oxygen, and silicon were observed beyond the Roche lobe of HD 209458b (Vidal-Madjar et al., 2004; Linsky et al., 2010) and various metals around the Roche lobe of WASP-12b (Fossati et al., 2010).

The detection and investigation of extended upper atmospheres around exoplanets of all types provide very promising insights into the interaction of the host star's plasma environment with the planet itself. Lammer et al. (2011) and Lammer (2012) showed that it should be possible to detect extended upper atmospheres and their related hydrogen coronae even around small, Earth-sized exoplanets orbiting cool M-type stars with space observatories such as the World Space Observatory-UV (WSO-UV) (Shustov et al., 2009), which are currently under development.

From transit spectroscopy by follow-up observations with the Spitzer Space Telescope, even molecules (i.e., H₂O, CH₄, etc.) in hot Jupiter atmospheres have been inferred (e.g., Tinetti et al., 2007; Swain et al., 2009; Beaulieu et al., 2010). By measuring the combined star-planet flux for determining a longitudinally resolved emission map as a function of wavelength, the day-night circulation of an exoplanetary atmosphere can be discerned (Knutson et al., 2007, 2009). Transmission spectra modeling on the above-discussed transiting super-Earth GJ 1214b can also be used for clarifying the uncertainties in the planet's structure. Model simulations of the GJ 1214b WFC4 transmission spectrum by Miller-Ricci and Fortney (2010) ruled out the dense core primordial hydrogen envelope scenario of Fig. 3a at 8.3 σ, while their result agrees well with H₂O fractions >20% as illustrated in Fig. 3b. This example shows that the structure of this exoplanet can be characterized to a certain point if the radius, the mass, and the transmission spectrum are known. Although the observations contain uncertainties, the results clearly suggest that this particular planet may be a water world that is surrounded by a H₂O atmosphere and a hydrogen corona. Unfortunately, due to the brightness properties of the host stars of the known exoplanets, only a tiny fraction, which includes GJ 1214b, of transmission spectra can be observed. Perhaps the James Webb Space Telescope (JWST) and the ground-based ESO Extreme Large Telescope (ELT), the Giant Magellan Telescope, and the Thirty Meter Telescope projects can observe atmospheric species for cooler super-Earths in a similar way as the HST, Spitzer, and ground-based projects have for some hot Jupiters and Neptunes.

OPEN IN VIEWER

FIG. 3.

Illustration of the recently selected TESS (top left) and planned PLATO (top right) future transit search missions for planets in orbits around nearby bright host stars. Below, illustration of the Swiss-led CHaracterizing ExOPlanets Satellite (CHEOPS) recently selected by ESA within their small mission program. CHEOPS main science aims will be the determination of the radius-mass relation of exoplanets, the identification of significant gaseous envelopes around the planet's core, and the probing of known hot Jupiter atmospheres with the intent to study the physical mechanisms and efficiency for energy transport from the dayside to the nightside of the planet (NASA/ESA). Color images available online at www.liebertonline.com/ast

2.3. Improvements for the future and open questions to be solved

Although there are more than 850 exoplanets known, and we know the size and mass of about 290, the atmosphere of these planets can only be studied for a smaller fraction of the total number due to the faintness of their host stars (e.g., Seager and Deming, 2010). With the ever-increasing number of detected transiting planets, our knowledge of the physical parameters for characterizing planets has increased significantly, which shows that planets are much more diverse than we expected from what we know of the Solar System. This increasing understanding of planet populations has been triggered by transiting planets for which we can directly measure their bulk parameters (radius, mass, mean density) with the Rossiter-McLaughlin effect to determine orbit alignment, measure effective temperatures and albedos, and finally even detect atmospheric molecular absorptions. Exoplanetary atmosphere observations are evolving as a separate research field that is now firmly established, with more than two dozen atmospheres of hot Jupiters observed. Highlights include

• the detection of molecular spectral features,

and

• the constraints on vertical atmospheric structure.

The success of ground-based surveys and, in particular, the CoRoT and Kepler space missions has also shown that transits are an efficient method to detect large numbers of planets with well-known parameters. It is true that efficient transit detections are biased to short orbital periods due to the low geometrical transit probability. This disadvantage over the radial velocity method is, however, not true when one considers searches for small terrestrial planets at intermediate to large orbital distances for which also radial velocity detections require a huge investment of observing time per planet. When it becomes possible to determine the entire parameter range for each detected exoplanet, including terrestrial planets, we will enter a new era of planetary science. To date, this is possible only for planets orbiting the brightest host stars among the almost thousand detected exoplanets. To date, the results of the CoRoT and Kepler space observatories as well as the ground-based surveys have mainly contributed to exoplanet statistics, but their discoveries are not ideal for spectroscopic follow-up observations because the targets are too distant. The overlap between planets that have been discovered by the Doppler method and transiting planets of bright stars is very small. There are many radial velocity planets with known mass around brighter nearby stars, while transiting exoplanets so far are discovered mainly around fainter stars. This fact results in a target problem for future exoplanetary atmosphere characterization projects.

All the participants of the ISSI forum agreed that more detections of exoplanets around bright and nearby stars are necessary in order to characterize large numbers of exoplanetary atmospheres more accurately than at present. When investigating habitable planets that may have evolved to be comparable to Earth, such detection surveys must include intermediate orbital distances, where we expect temperate planets. Two space missions are currently under study for the detection of exoplanets around nearby bright stars: the NASA Transiting Exoplanet Survey Satellite (TESS) mission in the USA and ESA's PLAnetary Transits and Oscillations of stars (PLATO) mission in Europe.

The TESS space observatory has been selected recently by NASA for an all-sky survey of bright, nearby stars; the mission should launch in 2017. Its prime target range is transiting Earths and super-Earths. TESS will survey bright host stars at 4.5–12 mag. It will survey F, G, and K stars and will also scan bright M stars within 50 pc. In total, about 500,000 stars will be observed during 2 years' mission lifetime. Altogether, it is expected that TESS will discover more than 1000 new exoplanets, and several hundreds of them will be Neptune-sized or smaller. TESS will operate in a step-and-stare mode to cover the whole sky. The observational coverage of each field (hence of the orbital planet periods scanned for) will depend on its position in the sky. Most of the detections will be made for short-period planets, but for M dwarf stars planet detections up to their habitable zones will also be possible. Such bright planetary systems will also be prime targets for, for example, spectroscopic follow-up characterization of their atmospheres by the JWST and planned future projects such as ESA's Exoplanet Characterisation Observatory (EChO).

The JWST will also probe exoplanetary atmospheres as Spitzer did (e.g., Seager et al., 2009) but will most likely focus on potential habitable planets around bright M stars. Favorable transiting planetary systems will most likely be discovered by TESS and PLATO. However, the atmosphere observations will require tens to hundreds of hours of JWST time per planet. Long follow-up observation time may be a problem because the JWST is not an exoplanet mission per se.

The next-generation planet finder mission PLATO has been proposed to ESA for the M3 mission launch opportunity in 2022/24. It is planned as a large-scale detection survey that will provide statistically relevant numbers of well-characterized exoplanets with highly accurate bulk parameters and ages, in particular in the Earth to super-Earth domain around bright host stars. PLATO would be the first mission to make systematic use of both the transit planet search technique and asteroseismology of the planet hosts. This will not only provide highly accurate parameters for planets and their host stars but also allow for determination of the age of planetary systems on a large scale. The PLATO prime target range is 4–11 mag. This bright target range allows surveying Sun-like F, G, and K stars as well as the brightest and nearest M dwarfs for terrestrial planets. PLATO will have the capacity to detect thousands of Neptune-sized and smaller planets, and hundreds of these planets will be in the super-Earth regime, including planets in the habitable zone of bright Sun-like stars. The telescope combines a step-and-stare observing strategy with two long-term (up to 3 years) field observations. With a total mission lifetime of ∼6 years, ∼50 % of the sky will be scanned for new exoplanets. Its detection range therefore targets

• at intermediate orbital distances, up to the habitable zone of Sun-like stars, to significantly expand the number of well-characterized cool and potentially habitable exoplanets;

and

• large numbers of terrestrial planets in this intermediate orbital distance range with well-known bulk parameters and ages as the prime goal for a detection survey operating in the next decade.

Due to technological differences and hence observational capabilities between TESS and PLATO, the selection of these missions has an impact on the accuracy of the observations related to the target planet's orbit location. In the case of expected discoveries by TESS, the first accurate characterization of exoplanetary atmospheres by a future characterization project will focus on exoplanets that have their orbits inside M star habitable zones. In the case of PLATO, future characterization missions would probe planetary atmospheres in orbital distances within habitable zones around Sun-like stars.

Smaller numbers of presently known or soon-to-be discovered exoplanets around brighter stars will also be studied with ESA's recently selected first small mission, the CHaractizing ExOPlanets Satellite (CHEOPS). A Swiss-led, ESA-supported, European endeavor, CHEOPS is a small space telescope that is designed for the follow-up observation of exoplanets discovered within the overlap of transits and Doppler observations. Ground-based high-precision Doppler spectroscopic surveys have been carried out during recent years, and hundreds of stars with exoplanets in the super-Earth to Neptune mass range (1<M _pl/M _⊕<20) have been identified. These surveys will continue into the foreseeable future. The characteristics of these stars (brightness, low activity levels, etc.) and the knowledge of the planet ephemerides make them ideal targets for ultrahigh-precision photometric measurements from space with CHEOPS. This mission, which will be launched in 2017, is the only space observatory with the capacity to follow up all these targets for precise radius measurements in the near future.

The new generation of ground-based transit surveys (e.g., NGTS) should be capable of reaching 1 mmag precision on V<13 mag stars, so that new targets for CHEOPS can be expected. By the end of 2017, NGTS will provide of order 50 targets with a radius less than 6 Earth radii for which CHEOPS will be able to measure radii to a precision of 10%. The studied planets can be selected for further investigations with the JWST, ELTs, and so on. The most interesting targets for CHEOPS will be hot Neptunes and super-Earths. From the discussions above, it is clear that the main challenge is that, if smaller planets are discovered, the related error bars become more and more relevant. With the space observatories briefly mentioned above and the currently developed instruments that will be installed on available or planned ground-based telescopes, the error bars in size and mass determinations will be minimized.

Launched and future Solar System missions, such as Cassini, Juno, or JUICE, will certainly contribute to our understanding of gas giants but will not deliver the whole answer. Cassini obtains gravity data of high accuracy around Saturn, which are currently studied and analyzed for a better understanding of the core-atmosphere structure of the planet.

Although we had a spacecraft near Jupiter, it is not known so far whether the closest gas giant has a core, mantle, and envelope (three-layer structure) or only a core and an envelope (two-layer structure) (Nettelmann, 2011). However, the uncertainties due to the unknowns in the applied equation of state are becoming less important due to advances in ab initio modeling techniques and computer power (e.g., French et al., 2012; Nettelmann et al., 2012). Juno will set tighter constraints on Jupiter's core mass and internal structure, including the planet's water abundance.

Therefore, the expected results from the Juno mission will contribute to our understanding of Jupiter's origin and, via the H₂O-aboundance, possibly the physical/chemical conditions in the nebula and the history of volatiles. The obtained data and their properties can then be related to giant planet–formation theories. From the exoplanet surveys, we know that Uranus- and Neptune-type planets seem to be a very common planetary category in the Galaxy. Future Solar System missions to one of these planets would indeed help to understand what exoplanets of this kind are made of.

There are still many open questions regarding Uranus and Neptune. Their internal structure and compositions are still poorly understood, and in addition they differ in other physical parameters such as the inferred atmospheric composition, obliquity, and thermal emission. It is therefore clear that further investigation of the origin, evolution, and internal structure of intermediate-mass planets is desirable. All these open questions are directly related to the real boundary between gas-rich planets and so-called terrestrial planets (see Fig. 4), where life-forms may evolve on the planet's ocean/surface as they did ∼3.5–3.8 Gyr ago on Earth. A detailed observation and study of this boundary bears directly on fundamental open questions related to planet formation such asOPEN IN VIEWER

and

• constraints on possible planet migration paths followed during formation and evolution for planets where the clear presence of a massive gaseous envelope cannot be discerned.

These are key habitability questions that have a direct link to a possible architecture of habitable planets and the evolution of Earth-like class I habitats (Lammer et al., 2009; Lammer, 2013), where life as we know it can evolve. To solve these questions, the theoretical efforts combined with the above-mentioned enhancements in observables related to the following points have to be addressed:

• combining planet-formation theories with the formation environments;

and

• obtaining the dimensionless Love number parameters that determine the rigidity of a planetary body and the susceptibility of its shape to change in response to a tidal potential, which would result in a better understanding of the planet's interior (Kramm et al., 2012).

For technological reasons, there is at present a bias in the characterization of exoplanets within close orbit locations around their host stars. These close-in planets, however, certainly do not represent the main populations, and additional complex processes such as heating and interaction processes with the host star will influence the evolution of such planets.

Therefore, it is important to obtain data from planets on orbital locations that are farther out. Theoreticians who model planetary composition and structure should investigate whether first-order uncertainties in their models can be separated out, for instance, to obtain information if a planet has a three-layer or two-layer structure. It is important to point out that it makes little sense to apply a very complex theoretical model if the input parameter space is so uncertain that every result can be hypothetically possible—including unrealistic ones. It is very important to understand how to quantify the theories within the available constraints and parameter space. For instance, to understand in an interdisciplinary way how planets such as those discovered in the densely packed Kepler-11 system originated and evolved would involve incredible theoretical efforts. Thus, the forum participants agreed that, with regard to theory, it is important to know to what extent first-order uncertainties in theoretical models can be solved with high-precision radius and mass measurements.

3.1. Protoplanetary disk evolution

Most protoplanets are formed within the accretion disk during the nebula lifetime, which lasts between ∼10⁶ and 10⁷ years (e.g., Montmerle et al., 2006). After 10 Myr, most nebular gas is evaporated from the system. Because the accretion disk contains about 99% gas and 1% dust, planets can accumulate nebular gas (e.g., Ikoma and Genda, 2006), which results in a nebula-captured hydrogen-rich protoatmosphere of the newborn planet. The amount of captured nebula gas depends mainly on

• nebular dissipation time and properties such as grain depletion factors,

Disks are hydrodynamically stable, and magnetohydrodynamic turbulence, which is linearly unstable, plays a major role in disk physics. The nebula dissipation time is also related to the activity of the host star and the presence of massive stars and supernovae in the neighborhood of the particular system. The removal of the disk is related to efficient angular momentum transport processes, the X-ray and extreme ultraviolet (EUV) radiation field, and the stellar plasma flow during the T-Tauri, post-T-Tauri, and activity saturation stage of the host star. Normal and transition disks show a wide gap of missing warm dust near the central star.

Dust in the disks is produced as a by-product of collisions between planetesimals and planetary embryos related to the planet-formation process. Planetary debris disks represent the near-final stage of the circumstellar disk evolution process; that is, they are the evolutionary products of ongoing or completed planet formation.

The general disk evolution scenarios are illustrated in Fig. 5. In protoplanetary disks, the inner radial boundary between magnetorotational instability turbulent (active) and magnetorotational instability quiescent (dead) zones plays an important role in some planet-formation scenarios and in disk evolution models. The extreme X-rays, EUV, far ultraviolet (FUV), flux, and winds of the young active star clear the nebular gas in time. Inside the evolving disk are dust particles, a magnetically inactive dead zone, and the growing protoplanets. It should also be pointed out that many assumptions must be made mainly due to unknown dust properties and related opacities. These unknowns influence the results of each theoretical simulation. The discovered exoplanets move around in the disk and are not formed at the location where we observe them later. Further, as shown in Fig. 6, planets within a disk create torques and momentum exchange so that the semimajor axis also changes (Kley and Nelson, 2012). Tidal forces can also push the planets out of resonance. The disk acts as a damping process on eccentricity and inclination. If a planet becomes massive it opens up a gap in the disk, and if there are several planets they act on the disk and against each other. For example, numerical simulations of two massive gas giants in the system HD 73526, which adjoin a large gap in the disk, show that the outer planet can be pushed inward by the outer disk, while the inner planet is pushed outward by the inner disk (Sándor et al., 2007).

OPEN IN VIEWER

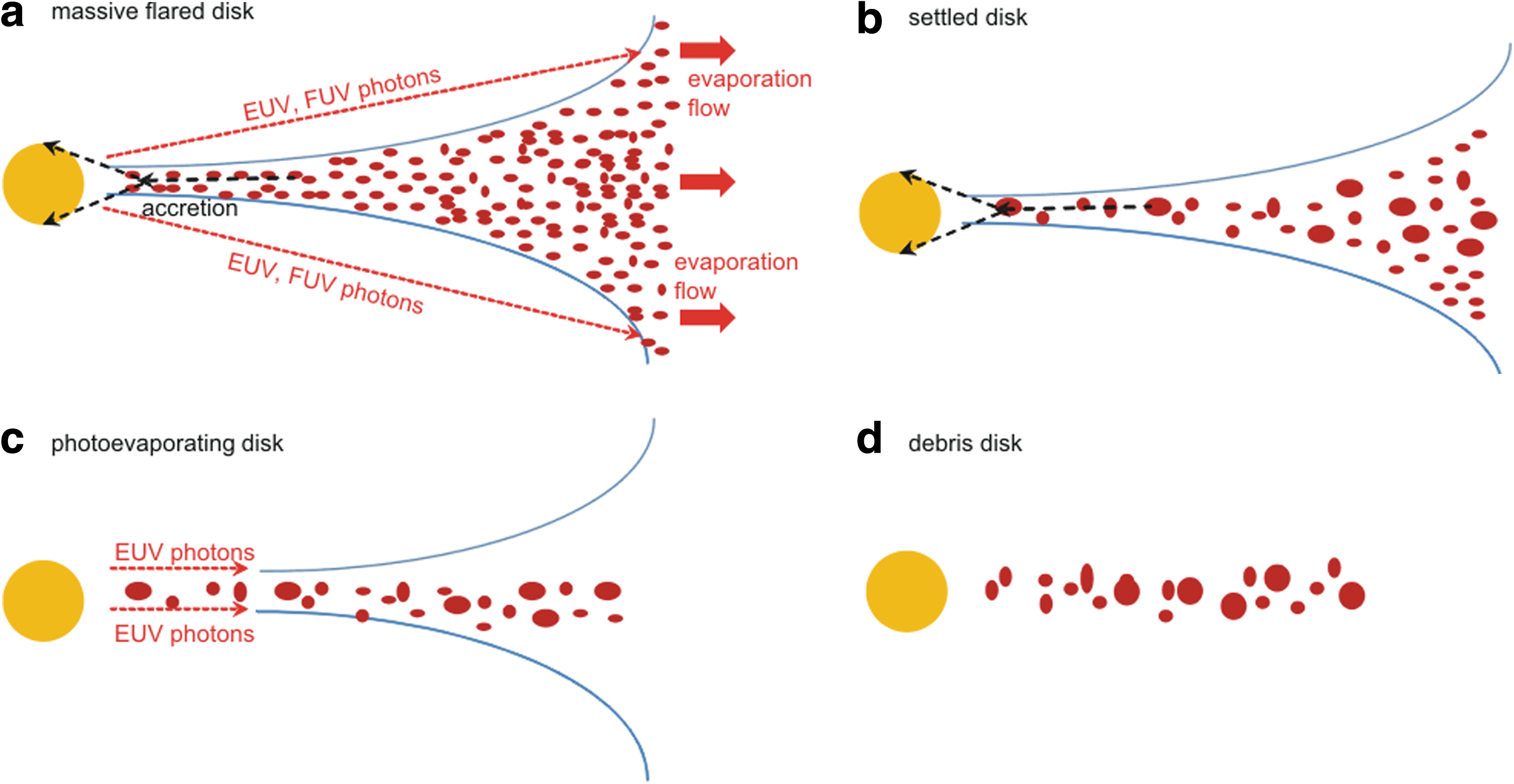

FIG. 5.

Illustration of disk evolution and planet formation. (a) Strong X-rays, EUV, and FUV as well as winds interact with the gas/dust disk in its earliest stage. (b) Planetesimals and planetary embryos form due to collisions, the disk settles, and evaporation continues. Depending on the gravity potential of the embedded planetary embryos and protoplanets, nebula gas is attracted. (c) Photoevaporation continues, and planetary embryos and protoplanets that orbit near their host stars become decoupled from the evaporating nebula gas first. (d) After a few million years, but at the latest about 10 Myr, the debris disk remains, and planets may continue to form (after Williams and Cieza, 2011). Color images available online at www.liebertonline.com/ast

OPEN IN VIEWER

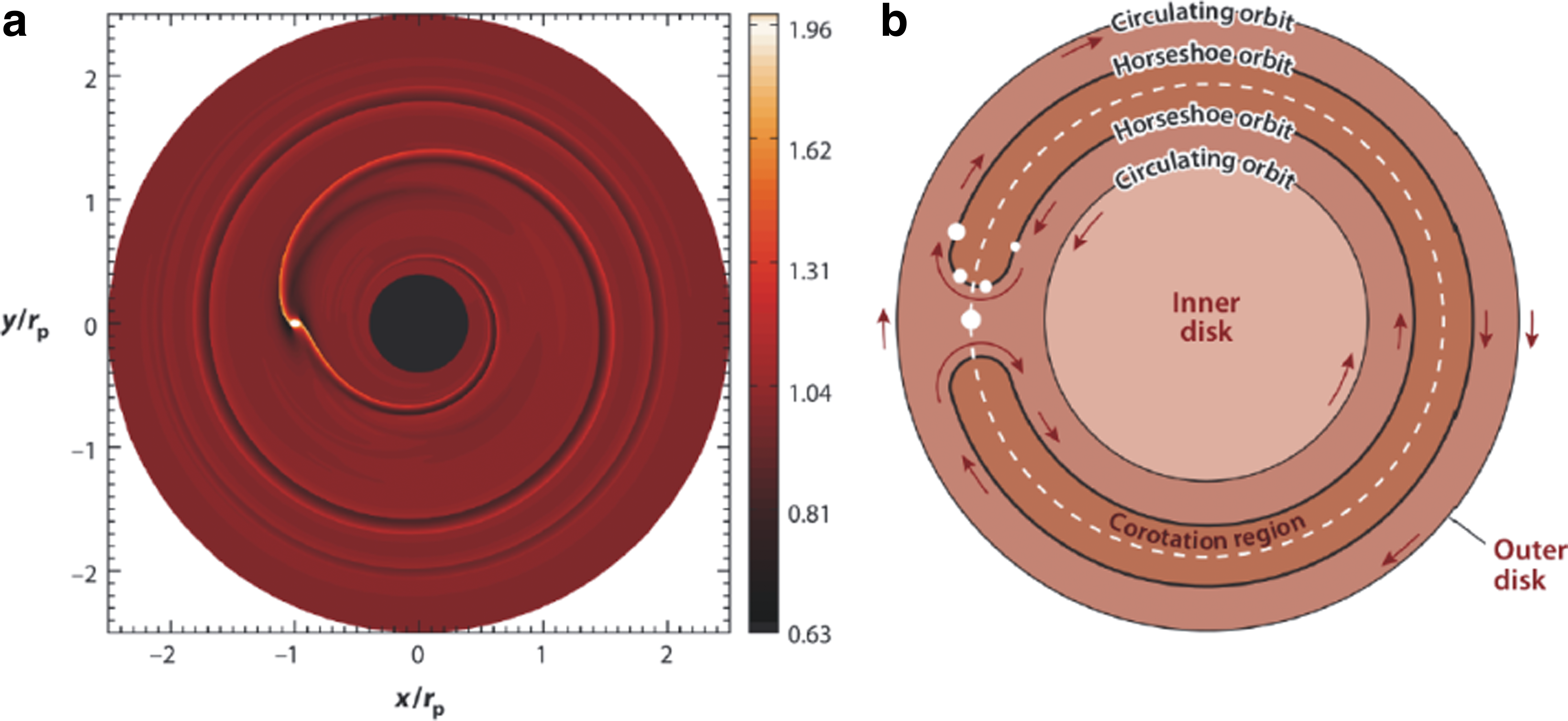

FIG. 6.

Planet-disk interaction results in the following: (a) spiral arm formation that creates Lindblad torques on the planet, resulting in inward-moving planets; and (b) horseshoe regions that create corotation torques that can result in outward-moving planets (from Kley and Nelson, 2012). Color images available online at www.liebertonline.com/ast

Many planets may also fall to the star. Migration may be too fast, but due to corotating torques the fast migration may slow down. Planets are captured into resonant systems that can be seen in observations so that it can be concluded that migration should occur. The data from exoplanets discovered by the Kepler satellite indicate that many systems are in (near) resonance, which indicates a resonant capture through a convergent migration process that is related to dissipation forces due to planet-disk interaction. Thus, the evidence for planet migration is confirmed due to the existence of

• resonant systems and flat Kepler systems

and

• hot Jupiters and Neptunes.

To overcome the related uncertainties in disk physics, such as migration in turbulent disks, self-gravitating disks, tidally driven migration, type-III migration, and stellar irradiation, it is very important and timely that theoreticians cooperate more with observers so that a powerful strategy for missing observables related to theoretical disk models can be established. For instance, the accretion luminosity could be high so that one should search for a protoplanet inside a disk (Kraus and Ireland, 2012). One main task for the future should therefore be

• to observe protoplanets in evolving disks.

3.2. Protoatmospheres and early water formation

Another challenge related to the discovery and characterization of exoplanets and their structure, particularly in the rocky planet domain, is our capacity to study protoatmospheres and initial water inventories, and their formation and evolution. As illustrated in Fig. 7, the initial atmospheres and water content of terrestrial planets are related to a complex interplay between the nebula dissipation time, the growth rate/time of a protoplanet from planetesimals and planetary embryos, the orbit location and water content of the initial building blocks (i.e., planetesimals and planetary embryos), outgassing processes from the interior, the impact history, and finally the host star's radiation and plasma environment.

OPEN IN VIEWER

FIG. 7.

Illustration of the evolution from protoplanets to various end products, which can be Venus- or Mars-like dry or frozen CO₂-rich one-plate planets; geophysically active, water-rich Earth-like planets with continents and nitrogen atmospheres (CO₂ in carbonates); or a mini-Neptune or water world with a surrounding hydrogen corona (as seen in Figs. 2 and 5) in the event that the early planet accumulated too much nebula gas or originated with too much volatiles, which were not expelled by host star–powered atmospheric escape processes. Color images available online at www.liebertonline.com/ast

The first atmosphere is created by the capture and accumulation of hydrogen, He, and other gases from the surrounding disk in which the growing protoplanet resides (rocky core). Depending on the nebula properties, its lifetime, and the gravity potential of the growing and embedded protoplanet, an extensive amount of gas could be attracted so that optically thick, dense hydrogen envelopes accumulate around rocky cores (e.g., Hayashi et al., 1979; Mizuno, 1980; Wuchterl, 1993; Ikoma et al., 2000; Ikoma and Genda, 2006; Rafikov, 2006; Ikoma and Hori, 2012).

The recent discovery of low-density super-Earths with short orbital periods such as those in the Kepler-11 system indicates that nebula-captured gaseous envelopes may not so readily separate from fast-growing planets that are more massive than Earth or Venus (Ikoma and Hori, 2012; Lammer, 2013; Lammer et al., 2013). Preliminary results indicate that the atmospheres of massive rocky bodies undergo runaway disk gas accretion, while the atmospheres of light rocky bodies undergo significant erosion during disk dispersal. In atmospheric erosion, the heat content of the rocky body plays an important role (Ikoma and Genda, 2006; Ikoma and Hori, 2012).

As one can see, the formation of dense nebula-based hydrogen envelopes around super-Earths is closely linked to the open questions and future challenges discussed briefly in previous sections and shows that the structural characterization of low-density super-Earths with future space missions like CHEOPS, TESS, and PLATO provide important clues for understanding planetary accretion and disk evolution. The second atmosphere formation occurs by catastrophic outgassing of dense hot H₂O, CO₂, CH₄, NH₃ atmospheres during the magma ocean solidification process when the planet's accretion ended. Earth- or super-Earth-type planets with silicate mantles and metallic cores will accumulate a major amount of their initial water and carbon compounds during the second atmosphere-formation process.

As illustrated in Fig. 8, modern terrestrial planet-formation model simulations indicate that terrestrial planets originate from differentiated planetesimals to large planetary embryos with sizes of several hundred to a few thousand kilometers (Kokubo and Ida, 2000; Raymond et al., 2004; Alibert et al., 2007; Raymond et al., 2009; Lunine et al., 2011; Walsh et al., 2011; Morbidelli et al., 2012). After the evaporation of the nebula gas due to the extreme EUV phase of the young Sun/star, the protoplanets continue to grow through the capture and collisions of remaining large planetesimals and planetary embryos. Impact studies related to Mercury and the Moon indicate that giant impacts between planetary embryos do not completely devolatilize a planet.

OPEN IN VIEWER

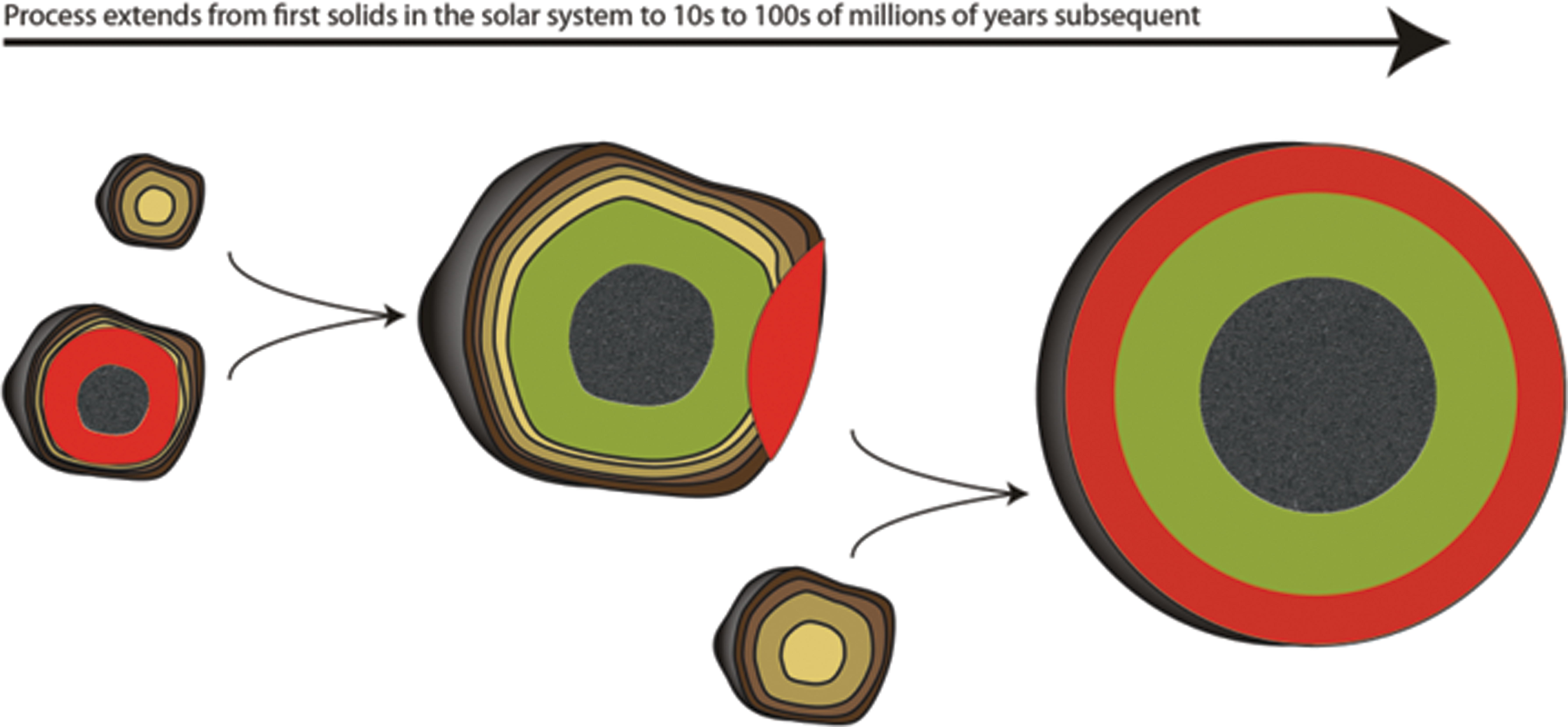

FIG. 8.

Illustration of protoplanet growth and formation due to collisions between differentiated planetesimals and planetary embryos. The red areas correspond to magma, the other layers to mantle and core materials (courtesy of L. Elkins-Tanton). Color images available online at www.liebertonline.com/ast

During huge impacts, a fraction of the volatiles remain inside the growing planetary body, while some volatiles are pushed outward and may escape into space.

Geochemical studies have revealed that a fraction of Earth's water originated from comets, while the majority came from chondritic rocky materials (Mumma and Charnley, 2011). Recent studies indicate that most of the water likely originates from rocky planetesimals (Alexander et al., 2012). Meteorites are therefore candidate building block materials for planetary embryos and protoplanets that have a wide range of carbon and water contents. Various degassing and formation scenarios during accretion for a wide range of atmospheric masses and composition of exoplanets within 1–30 M _⊕ have been modeled (Elkins-Tanton and Seager, 2008; Elkins-Tanton, 2011).

By using primitive and differentiated meteorite compositions, these studies have revealed that degassing alone can produce a wide range of planetary atmospheres that range from ≤1% of a planet's mass up to ∼6% by mass of hydrogen, ∼20% by mass of H₂O, and ∼5% by mass of carbon compounds (Elkins-Tanton and Seager, 2008). Depending on the initial volatile contents and planetary building blocks, magma ocean outgassing models, as shown in Fig. 10, can produce early steam atmospheres with surface pressures up to several 10⁴ bar (Elkins-Tanton, 2011). It should be noted that hydrogen-rich atmospheres can also be formed by outgassing due to oxidation of metallic Fe with H₂O and that atmospheric escape processes that are powered by the high radiation and plasma environment of the young host star are not included in the results shown in Fig. 9. Catastrophically outgassed steam atmospheres during the magma ocean solidification are expected to be related to the formation of the earliest oceans on Earth (e.g., Elkins-Tanton, 2008; Lammer et al., 2012; Hamano et al., 2013) or exoplanets within the habitable zone in general (e.g., Elkins-Tanton, 2011).

OPEN IN VIEWER

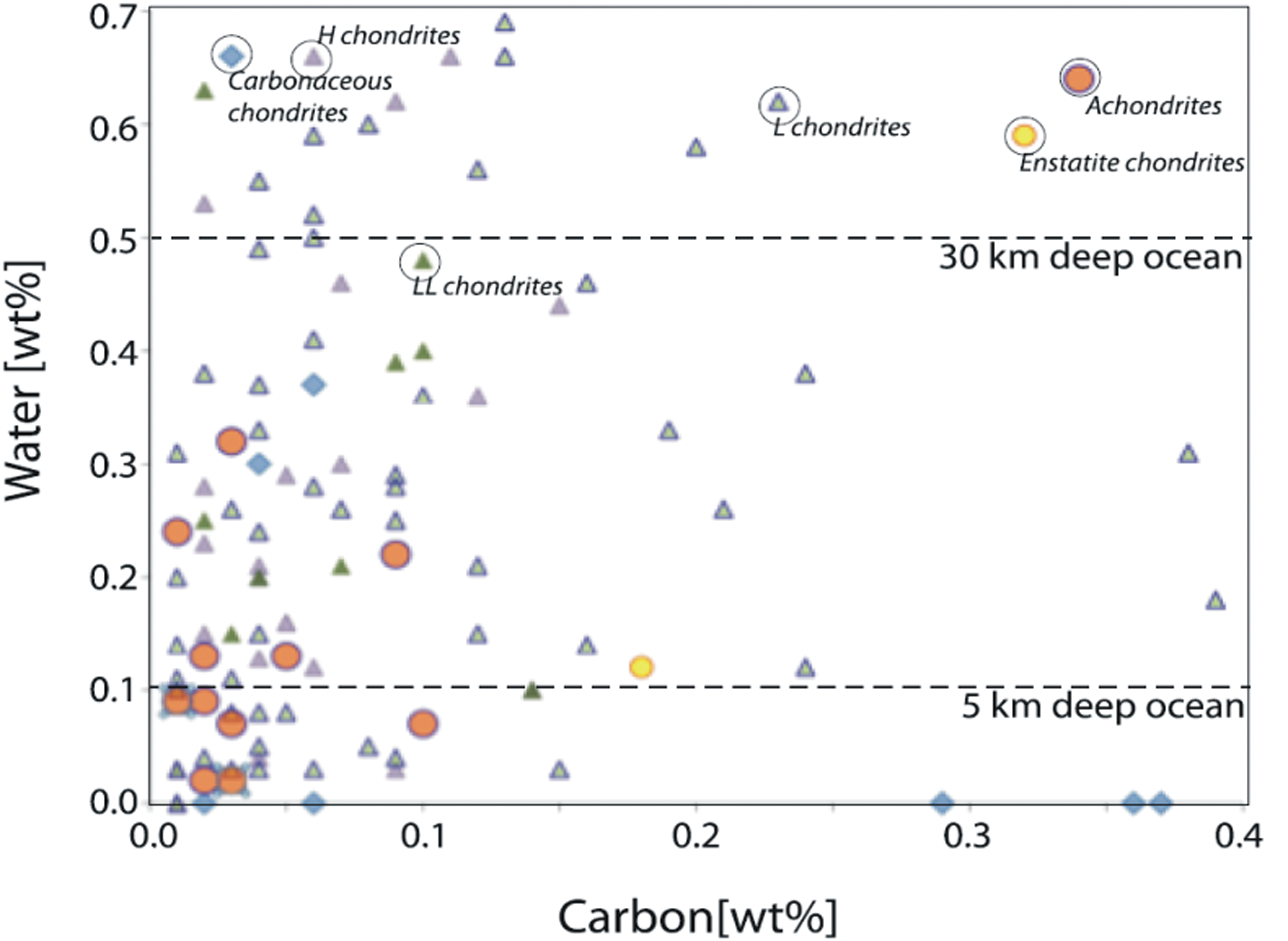

FIG. 9.

Initial water and carbon contents in weight percent and resulting water ocean depths after condensation of an outgassed steam atmosphere. The range of water used in the figure includes meteorites that are likely building blocks for terrestrial planets (Jarosewich, 1990). The dashed lines show the resulting water ocean depth in kilometers produced by a collapsed degassed steam atmosphere of a planet related to the initial bulk mantle water content (courtesy of L. Elkins-Tanton). Color images available online at www.liebertonline.com/ast

OPEN IN VIEWER

FIG. 10.

Illustration of a late growth scenario that could be expected for Venus and Earth. Mars-sized planetary embryos will lose outgassed volatiles and their initial water inventories during collisions and growth to larger protoplanets. Finally, not much H₂O would remain in the final planet, and oceans would have to be produced by later impacts of water-rich material. Color images available online at www.liebertonline.com/ast

However, it should be noted that differentiated large planetary embryos as shown in Fig. 8 will also form magma oceans such that H₂O and other volatiles may be stepwise outgassed and potentially lost to a great extent, as illustrated in Fig. 10, before the final magma ocean solidifies when the final planet's accretion ends. If wet planetary embryos lose much of their water inventories during their growth to the final planetary body, the volatile content that is outgassed in the final stage would be lower than expected. Such a scenario would agree with the hypothesis of Albarède and Blichert-Toft (2007), which is that the terrestrial planets in the Solar System accreted dry and obtained most of their water during the late veneer via impacts. On the other hand, the discoveries of H₂O/volatile-rich super-Earths like GJ 1214b support the outgassing hypothesis as briefly discussed before. From the first discovery of lower mass and size exoplanets, it is clear that we cannot take the Solar System planets as a base for extrapolations, because they may only represent a particular outcome of a huge possibility of final planetary scenarios, though they may fit within the three overall categories illustrated in Fig. 7.

It is important not to forget atmosphere-producing processes that are related to secondary outgassed atmospheres of H₂O, CO₂, N₂, and other trace gases via tectonic activities, volcanoes, and impact events such as the Late Heavy Bombardment in the Solar System. Most likely, terrestrial planets may obtain their initial atmospheres by a mixture of all the above-discussed scenarios in one or more ways.

The participants of the ISSI forum were convinced that detailed research related to the latest and near-future discoveries of Earth- and super-Earth-like exoplanets and their characterization in structure and atmosphere, together with the expertise and knowledge obtained within the Solar System and geochemistry communities, are highly timely and necessary to understand how terrestrial planets obtain and lose their initial water inventories and volatiles. These are crucial questions related to habitability aspects in general, and from the discussion within the ISSI forum panelists, it can be understood that several linked and interacting processes related to disk properties, nebula dissipation time, planetary growth rate, host star powered atmospheric escape processes, and the general impact history of a particular system play important roles.

4.1. The relevance of the stellar Lyman-α emission line observation and reconstruction methods

For the characterization of exoplanetary atmospheres as well as the observation/detection of stellar mass loss, it is important to measure the Lyman-α emission line of the particular star. Accurate investigations of the chemical composition of exoplanetary atmospheres can only be carried out if the near-UV (λ=170–320 nm), FUV (λ=117–170 nm), EUV (λ=30–91.1 nm), XUV (λ=10–30 nm), and X-ray (λ<10 nm) radiation from the host star, all of which control important molecular photodissociation and photoionization processes, are known. The Lyman-α emission line dominates the FUV spectra of late-type stars and is a major source for the photodissociation of important atmospheric molecules such H₂O, CH₄, NH₃, CO₂. For the Sun, the Lyman-α emission is ∼20% of the total flux between 1 and 170 nm. For example, the solar Lyman-α line is responsible for ∼50% of the photodissociation rate of H₂O molecules between 114.8 and 194 nm and ∼70% of the total photodissociation rate of CH₄ between 5.6 and 152 nm. The Lyman-α line emission is even more important for cooler low-mass stars, such as M dwarfs, because the photospheric emission at λ>170 nm decreases rapidly with decreasing effective temperature. A comparison between the quiet spectrum of the Sun and that of GJ 876, which has an exoplanet within its habitable zone, indicates that, as would be discerned from an exoplanet in the habitable zone, the near UV is weaker by 4 orders of magnitude but the FUV is much stronger compared to that of the Sun. For GJ 876, the Lyman-α flux is about 2 times as high as seen from the star's habitable zone compared to the Sun as seen from the Earth. M stars seem to be brighter in Lyman-α compared to more massive Sun-like stars, and the age of the stars, which is related to their activity in general, also plays a major role (France et al., 2013; Linsky et al., 2013).

Exoplanetary atmospheres absorb the Lyman-α flux from their host stars without attenuation; neutral hydrogen in the interstellar medium (ISM) scatters most of the Lyman-α flux out of the line of sight between the star-exoplanet system and Earth. Because of this, the Lyman-α emission line cannot be directly measured because neutral hydrogen in the ISM attenuates the majority of the flux before it reaches Earth (Linsky et al., 2013). Therefore, it is important to reconstruct the stellar Lyman-α profiles and flux by correcting the ISM absorption.

To date, a reconstruction of the intrinsic Lyman-α line has only been carried out for a limited number of nearby stars that are bright enough, but this is not feasible for distant or faint host stars. Recently, Linsky et al. (2013) identified five methods for the reconstruction of the intrinsic Lyman-α flux from main-sequence stars between spectral types F5 and M5. From this study, it is shown that the quality of the data determines which reconstruction method yields the most accurate result.

The most accurate method for the reconstruction of stellar Lyman-α emission was developed by Wood et al. (2005) and requires high-resolution spectra of the Lyman-α line and knowledge of the interstellar velocity structure based on high-resolution spectra of the deuterium Lyman-α and metal lines. The errors from such reconstructed profiles are at ∼20%. At present, only the STIS instrument on HST can provide such data for nearby stars. Another method developed by France et al. (2012) also requires high-resolution spectra of the hydrogen Lyman-α emission line but does not require spectra of the deuterium Lyman-α line or any other interstellar absorption line. It should be noted that this particular reconstruction method fails when the interstellar velocity structure has many components, which is unknown in the absence of high-resolution interstellar absorption lines. A third method described by Linsky et al. (2013) requires flux measurements of the stellar C IV, C II, O I, Mg II, or Ca II lines and the best-fit correlations of these lines with fluxes of the reconstructed Lyman-α lines in existing data sets. The accuracy of Lyman-α flux estimates for F5–K5 dwarf stars by this method is about ∼18–25%. To obtain these accuracy values, high-resolution spectra of the Mg II lines for interstellar absorption must be corrected. This particular method is based on the hypothesis that the ratios of the Lyman-α line flux to C IV, C II, O I, Mg II, and Ca II line fluxes for stars of similar spectral type depend only gradually on line flux. The method does not work well for M0–MV dwarf stars. For these stars, the dispersions are larger because of the stellar variability between the observing times of Lyman-α and the other lines (Linsky et al., 2013). The largest uncertainty here is the stellar metal abundance; therefore more observations of M-type stars will be needed to better understand the uncertainties associated with low metal abundances.

If there are no UV or Ca II line flux observations available, but X-ray measurements with an energy range similar to ROSAT observations have been made, a method can provide estimates of the intrinsic Lyman-α flux from least-squares fits to the intrinsic Lyman-α/X-ray flux ratio versus the X-ray flux. The average dispersions about the fit lines for F5–G9 and K0–K5 stars are of the order of ∼20–30%. However, this method should not be applied to M stars, which show a much larger dispersion because of the large time variability of X-rays and the comparison of X-ray and Lyman-α data obtained at different times. When no Lyman-α, UV emission lines, or X-ray data are available from observations, the Lyman-α flux for F5–M5 stars can be reconstructed based only on the stellar effective temperature and stellar activity measurements, and stellar parameters within an accuracy of 30–40% (Linsky et al., 2013).

4.2. Radiation and plasma impact on planetary atmospheres and habitability

Activity in late-type stars (i.e., spectral types G, K, M) has been intensively studied in the past decades with satellites such as ASCA, ROSAT, Chandra, XMM-Newton, EUVE, FUSE, and IUE. In particular, the radiation environment of Sun-like G stars has been studied for several so-called solar proxies with ages from ∼100 Myr to ∼8.5 Gyr with high accuracy within the “Sun in Time” project (Dorren and Guinan, 1994; Dorren et al., 1995; Güdel et al., 1997; Ribas et al., 2005; Claire et al., 2012). From these data, it can be concluded that the integrated flux between 0.1 and 120 nm was ∼100 times more intense than that of today's Sun during the first 100 Myr after its arrival at the zero-age main sequence (ZAMS) (Ribas et al., 2005; Claire et al., 2012), before it decreased according to a power law to a factor of 6, ∼3.5 Gyr ago. This activity-age relation indicates that lower-mass M-type stars spend more time in this highly active, but saturated, phase before their activity begins to decrease. It has been found that low-mass M dwarfs have saturated emission periods up to 0.5–1 Gyr and possibly longer for late-type M stars (Scalo et al., 2007).

Figure 11 shows the X-ray to bolometric luminosity for all stars with masses <0.9 M _⊙, which are given in the ROSAT catalogue with distances that have been measured by Hipparcos (Scalo et al., 2007). Because the X-ray luminosities are given in relation to the total stellar luminosity, they correspond also to the X-ray flux that exposes a planetary upper atmosphere within the habitable zone of the particular star. The X-ray/bolometric luminosity value for the present Sun is given by the tiny black dot on the bottom of the right y axis. From these observations, it can be concluded that for an average dMe star, the steady coronal X-ray flux above the atmosphere of a habitable planet could be about a thousand times larger than that of present-day Earth, while during the largest flares this flux could be a million times larger.

OPEN IN VIEWER

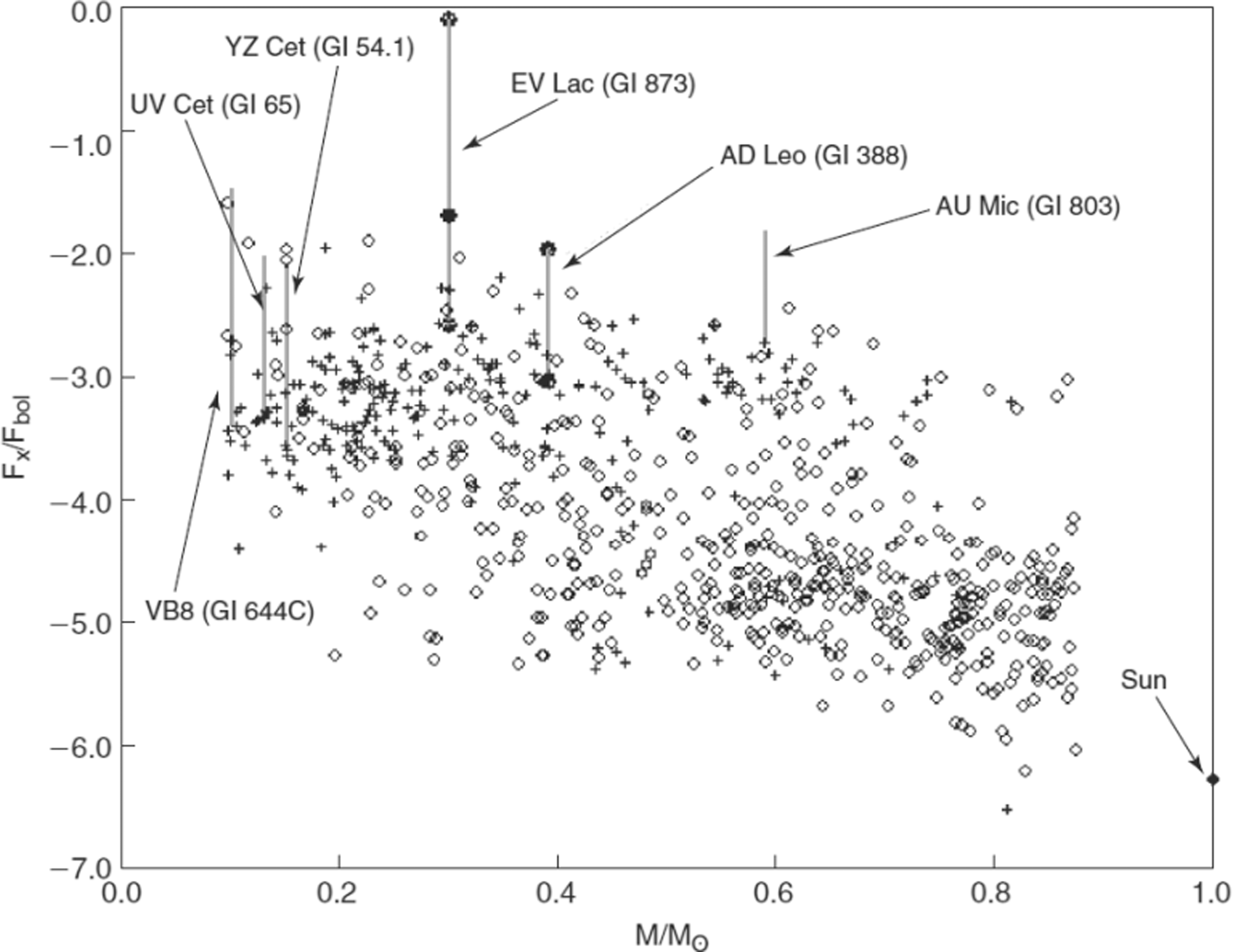

FIG. 11.

Scatterplot of the ratio of soft X-ray to bolometric luminosity as a function of stellar mass, for every star with mass <0.9 M _⊙ in the ROSAT catalogue within Hipparcos distances, compared to the present Sun. The vertical gray lines show the amplitude variations of very large X-ray flares of well-studied M stars. The X-ray luminosities are given relative to the star's total luminosity so that they also represent the fraction of flux above the atmosphere of any planet in a particular habitable zone (after Scalo et al., 2007).

The response of the upper atmosphere of an Earth-like exoplanet to such high short-wavelength radiation levels would be tremendous. As shown by Tian et al. (2008a, 2008b) and Lichtenegger et al. (2010), an Earth-like N₂-dominated thermosphere, like hydrogen-rich atmospheres, would experience a rapid transition to a hydrodynamic expansion regime if it is exposed to XUV flux values ≥7 times that of today's Sun.

Because nitrogen is not a strong IR cooler, the upper atmosphere will move above expected magnetopause standoff distances so that the neutral constituents beyond the magnetopause could be ionized and picked up by the stellar wind. The stellar plasma can lead to efficient nonthermal atmospheric loss processes especially at close-in exoplanets (i.e., terrestrial planets within low-mass M star habitable zones), which are exposed to dense plasma flows close to their host stars. During the past decade, several indirect methods for the study of stellar winds of solar-type stars have been developed. The method that, to date, has been most successful is the search for astrosphere absorption in the region where the stellar wind plasma collides with the local ISM and energetic neutral hydrogen atoms are produced via charge exchange. From the rise in absorption on the blue side of the stellar Lyman-α line, the mass loss rate (Wood et al., 2002, 2005) can be estimated. Mass loss rates of about a dozen Sun-like stars and cooler stars have been derived by this method from observations with the HST/STIS spectrograph. Depending on the age of the observed star, the mass loss rates are in the order of<0.2–100 times the present solar rate. From these mass loss rates, the stellar wind density and velocity at orbital distance of a planet can be estimated (Grießmeier et al., 2004). The corresponding estimates for the stellar wind of a 500 Myr old Sun-like star yield a factor 30–200 denser wind at 1 AU, which is about twice as fast as that of the Sun at present (Lichtenegger et al., 2010). Unfortunately, there are currently no accurate stellar mass loss observations for main-sequence stars that are younger than 0.7 Gyr. However, there is evidence of a possibly preferred appearance of CMEs in polar regions of rapidly rotating young stars/Sun (Strassmeier, 2009), which can lead to the propagation of shocks and magnetic ropes off the ecliptic plane during this early period (Zaqarashvili et al., 2011). These are crucial questions that need to be answered in order to understand the influence of winds and plasma outflows of very young stars after their arrival at the ZAMS. Upper limits to mass loss rates of young Sun-like stars may also be detected directly during the near future with ALMA by measuring the millimeter-wave bremsstrahlung flux emitted by the ionized stellar wind. This method becomes possible for the first time at millimeter wavelengths, given ALMA's unprecedented sensitivity.

A stellar/solar wind that is 30 times denser and 2 times faster than the present proton outflow of our Sun is able to erode a 1 bar N₂ atmosphere that is exposed to a 20 times higher XUV flux compared to that of the present Sun from a planet of Earth size and mass at 1 AU during ∼10 Myr (Lichtenegger et al., 2010). Because the XUV flux within M star habitable zones remains at high levels for much longer times than for G stars (see Fig. 11), it is unlikely that Earth-like habitats with nitrogen-dominated atmospheres can evolve under such extreme environments (Lammer et al., 2009, 2012; Lichtenegger et al., 2010), while mini-Neptunes, extreme water worlds with hydrogen envelopes, and super-Earths with massive CO₂-rich atmospheres will be more resistant against the high XUV radiation.

Lower-mass planets that are exposed to such high radiation values may lose their atmospheres and most likely become Mercury- or Mars-type bodies. Thus, from the stellar radiation point of view, Earth-like planets with stable nitrogen-rich atmospheres may be much more numerous within habitable zones of G stars compared to lower-mass dwarf stars. Furthermore, the detection of stellar winds and related mass loss from young stars would also enhance our understanding of the evolution of stellar mass and its related luminosity. A better understanding of the mass and luminosity evolution of young stars is directly linked to the so-called Faint Young Sun Paradox, which touches on the fundamental question on paleoclimate and the origin of life on Earth and is therefore in the focus of present-day astrobiology research.

Another important point related to stellar forcing of upper atmospheres is the production of abiotic oxygen, which could have important consequences for future spectroscopic biosignature searches in exoplanetary atmospheres. For example, a super-Earth near the inner boundary of the system's habitable zone will outgas a dense steam atmosphere, the result of which would be surface pressures of 10⁴ bar (Elkins-Tanton, 2008, 2011); thus, for such dense steam atmospheres, preliminary atmospheric escape studies indicate that a huge fraction of a few Earth ocean equivalent amounts of oxygen would result from the dissociation of H₂O molecules by the host star's XUV radiation and likely remain in the upper atmosphere.

Because it is very unlikely that several Earth ocean equivalent amounts of oxygen would be lost by nonthermal atmospheric escape processes or oxidized at the planet's surface, it can be expected that there are exoplanets where this remaining oxygen forms an ozone layer of abiotic origin in the atmosphere. Such results agree with previous suggestions of Kasting (1995) and Chassefière (1996) that there may be planets, depending on their size, mass, orbital distance, as well as their host star's XUV flux evolution, that could accumulate huge amounts of abiotic oxygen. In the worst case related to the search for biosignatures in exoplanetary atmospheres, a planet could be observed that has H₂O and a dense abiotic O₃ layer in its atmosphere. Thus, the probability that such planets and atmospheres may exist raises the possibility of future false-positive detections of atmospheric biosignatures.

From the intense discussions related to the various issues briefly summarized before the ISSI forum, participants pointed out that the characterization of exoplanetary atmospheres can only be done accurately if the host star's chemical and physical parameters and evolutionary stage are also known to a great extent. Moreover, for understanding the evolution of exoplanets and their structure, the host star parameters over their age should also be known. To understand how planetary atmospheres and their water inventories can survive the extreme X-ray and EUV activity of their host stars after they arrive at the ZAMS (Fig. 12), thermal and nonthermal upper atmospheric processes must be examined by the development of self-consistent, multi-species ionospheric-thermospheric-exospheric models for the study of hydrostatic and nonhydrostatic dynamically expanding thermosphere-exosphere regions, which would include investigation of the photochemical production of exothermal “hot” atoms, their collisional interaction and transport within highly XUV-exposed thermospheres, and the formation of energetic neutral atoms (or ENAs).

OPEN IN VIEWER

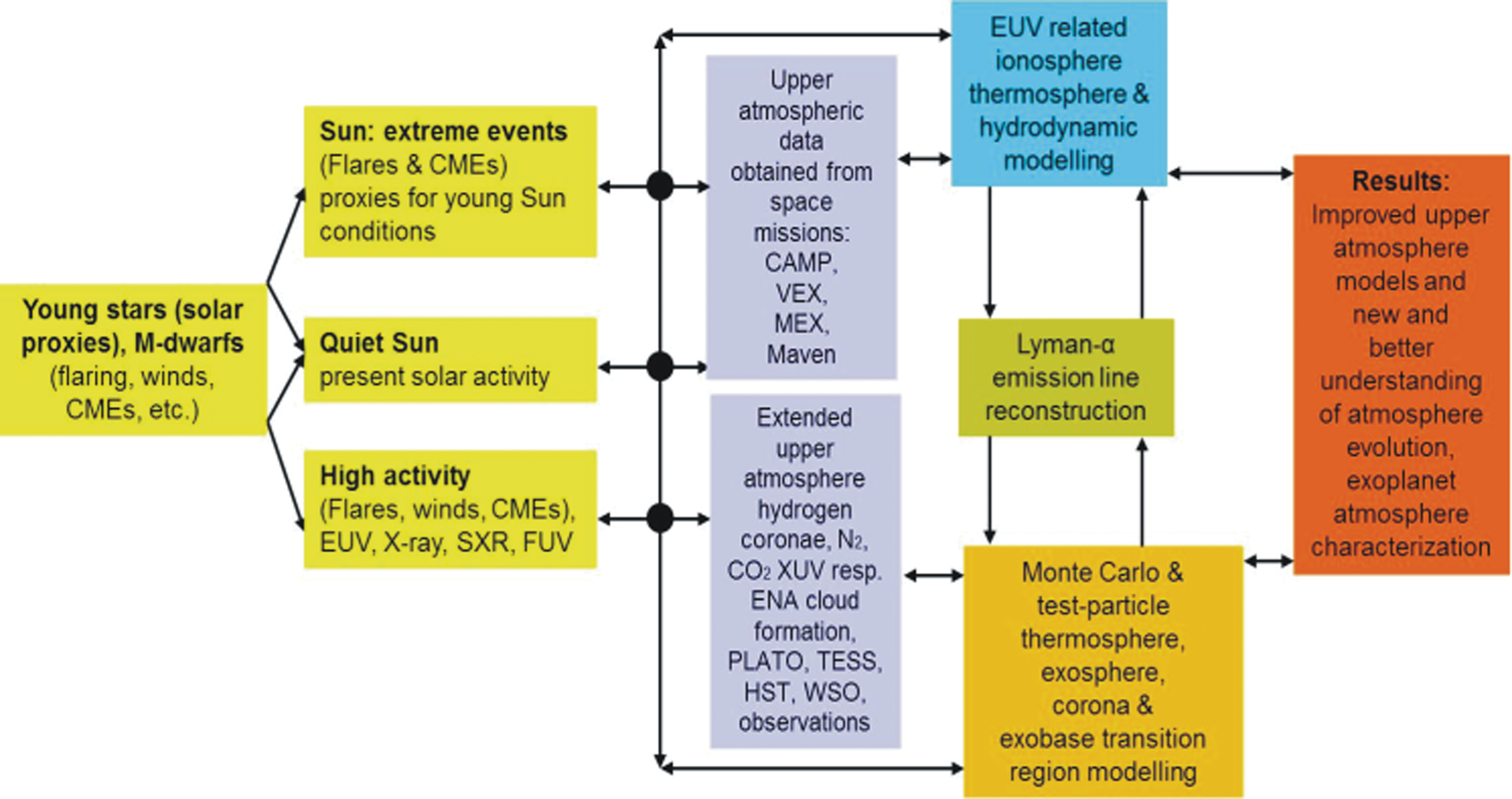

FIG. 12.

Illustration chart about the general approach and connections between stellar/solar environment observations and modeling efforts within Solar System and exoplanetary research, which should lead to the development of state-of-the-art exoplanetary atmosphere-thermosphere-exosphere models and a better understanding of aeronomically related atmospheric evolution and habitability aspects for terrestrial exoplanets in general. Color images available online at www.liebertonline.com/ast
