A Conspicuous Clay Ovoid in Nakhla: Evidence for Subsurface Hydrothermal Alteration on Mars with Implications for Astrobiology

2.1. Sample description

The clay ovoid structure investigated here was identified in a polished petrographic thin section of Nakhla that was prepared by the Natural History Museum of London from a rock chip sample with the identification number BM1911, 369, p.7963. During fabrication, the thin section was polished with Al₂O₃ powder from both sides and carefully prepared by using nonpolar solvents in an effort to reduce contamination or dissolution of any soluble material of the meteorite; this is similar to the preparation procedure described by Bridges and Grady (1999). Prior to electron microscopy, the surface of the thin section was carbon-coated. This thin section of Nakhla is optically transparent but significantly thicker than the standard optimum thickness of 30 μm that is typically used in petrographic studies of rock samples. The ovoid structure was first discovered by optical microscopy and initially identified on account of its conspicuous oval shape and distinct reddish hue when compared to the surrounding igneous material. Inside an associated clinopyroxene grain, a number of peculiar microchannel features were identified, often exceeding 5 μm in length, which are also partly stained with orange-colored material (Fig. 1b). The ovoid structure is juxtaposed with igneous material that includes hydrous mesostasis glass of rhyolitic composition, which is locally stained with the same reddish hue along a few cracks (Fig. 1c). Both the ovoid structure and the mesostasis glass are located between two large clinopyroxene crystals (Figs. 1 and 2) that are distinguished from one another by going extinct at different angles when viewed under petrographic microscope with crossed polarizers.

OPEN IN VIEWER

FIG. 2.

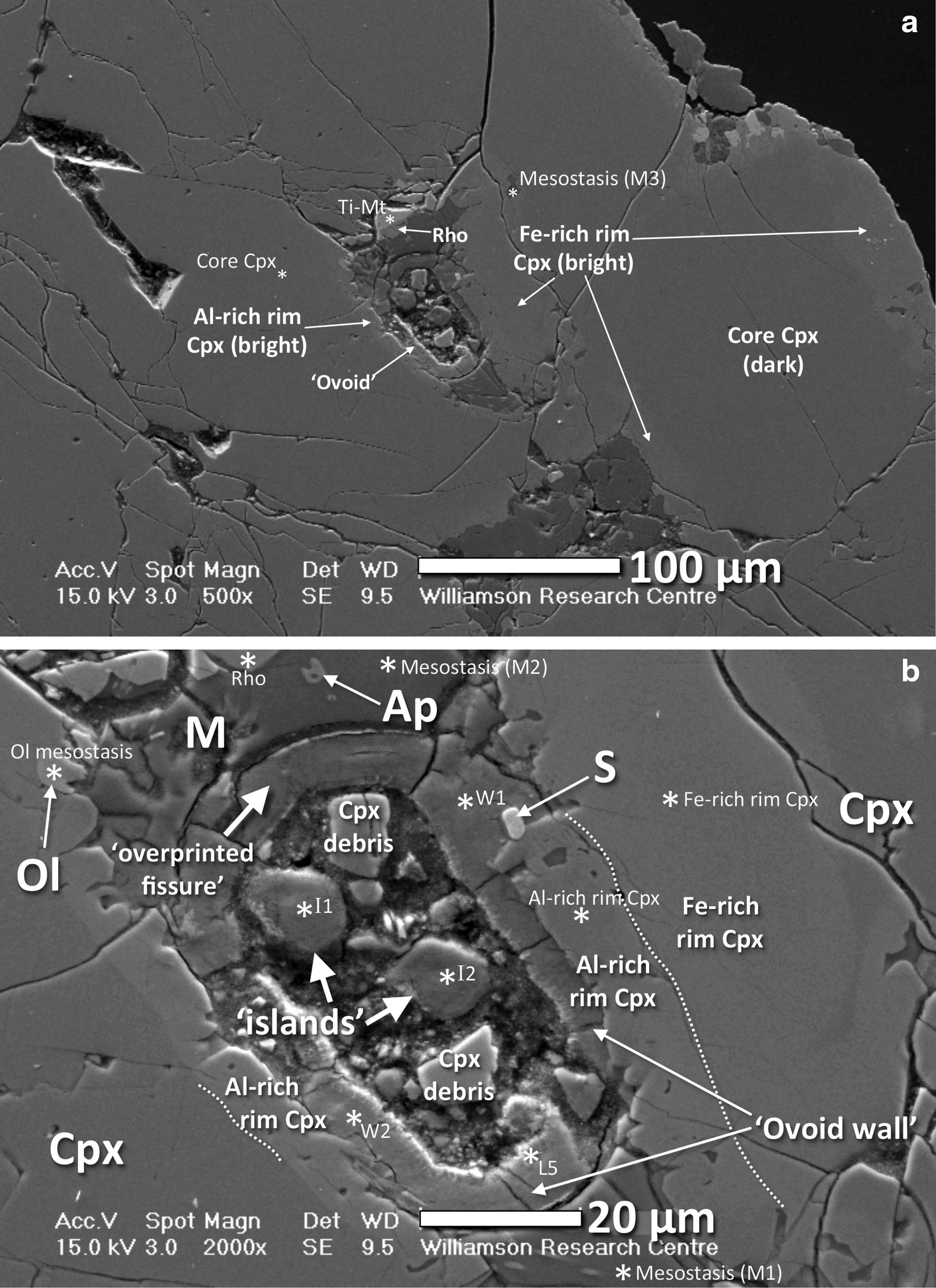

BSE SEM images of the surface of a polished thin section of Nakhla, highlighting the petrographic context of the ovoid structure, which is juxtaposed with two large clinopyroxene crystals and is also in contact with an amorphous mesostasis phase of a rhyolitic composition. (a) Overview BSE image. (b) Close-up image from (a), highlighting the ovoid structure and some of the surrounding phases. Abbreviations: Ap, apatite; Cpx, clinopyroxene, separated from the Al-rich Cpx with a dotted line; M, amorphous mesostasis phase (rhyolitic glass); Ol, olivine; Rho, rhoenite; S, sulfide. The two fragments of clinopyroxene in the interior of the ovoid are interpreted as fragments of surrounding minerals incorporated into the ovoid during sample preparation. Points marked with stars indicate where electron microprobe WDX chemical analyses were made, and the corresponding data for these spot analyses are presented in Tables 1 and 2.

The studied petrographic thin section of Nakhla is rich in clay alteration materials, hematite, and Fe-Mn carbonates. These minerals occur both in the mesostasis regions and along the distinctive orange-red–colored margins of olivine. A few sulfate crystals are also present, as well as a significantly larger number of halite crystals. Three large olivine crystals in this sample were found to contain several rounded melt inclusions, along with a variety of mineral inclusions and a network of cracks filled with serpentines, sulfates, halite, and carbonates. The main cores of the clinopyroxene crystals observed in this study are typical of Nakhla pyroxene grains with respect to their chemistry and texture, showing extensive internal chemical zonation and containing a large number of small glass melt inclusions. Several acicular apatite crystals were also identified in the mesostasis glass surrounding the ovoid structure and occur as highly elongate needles or with equant shapes often exhibiting a hollow skeletal form (marked as Ap in Fig. 2b).

2.2. Electron imaging and electron probe wavelength-dispersive X-ray analysis

Backscattered electron (BSE) images were acquired with a Philips XL30 environmental field emission gun scanning electron microscope (SEM) equipped with an energy-dispersive X-ray (EDX) spectroscopy system that was used for preliminary (qualitative) chemical analysis. Quantitative chemical analysis and elemental mapping carried out in this study were performed with a Cameca SX100 electron microprobe equipped with five wavelength-dispersive X-ray (WDX) detectors, calibrated for silicates. Both of these instruments are part of the Williamson Research Centre at the University of Manchester. When analyzing silicate minerals, the beam size of the electron microprobe in typical operating conditions was 1 μm, with an accelerating voltage of 15 kV and probe current of 20 nA. For the analysis of clay minerals and the amorphous mesostasis, this was deliberately defocused to 8 μm, and the probe current was reduced to 10 nA to prevent beam damage of these materials. Some additional quantitative and qualitative investigations were conducted with a JEOL JSM-6380 LV SEM, equipped with an EDX system from Oxford Instruments, at the National Technical University of Athens. Prior to quantitative analyses, both instruments were calibrated with mineral reference standards.

2.3. Transmission electron microscopy analysis

To produce an electron-transparent specimen suitable for transmission electron microscopy analysis, a thin slice was extracted from the polished petrographic thin section of Nakhla by using a FEI Nova 200 dual focused ion beam (FIB) SEM system with a Ga⁺ beam, at Glasgow University. Before ion milling, platinum (Pt) was deposited onto the surface of the thin section to protect the area of interest. The slice was chosen to obtain a cross section passing through the wall of the ovoid structure. The slice had a length of about 10 μm, a depth of about 5 μm, and a thickness before final thinning of about 1 μm. After attaching this slice to an Omniprobe copper TEM grid by using Pt deposition, a further Pt layer was deposited on the bottom surface of the slice to enhance stability, and the sample was thinned further with low energy and reduced currents to achieve a polished surface with minimal detectable ion damage. The final sample thickness was estimated to be a relatively uniform ∼100 nm by energy-filtered transmission electron microscopy.

Preliminary transmission electron microscope (TEM) and high-resolution transmission electron microscope (HRTEM) images were taken at the Kelvin Nanocharacterization Centre, Glasgow University, with a FEI Tecnai F20 instrument, equipped with a field emission gun electron source and an acceleration voltage of 200 kV. Additional images were acquired in the School of Materials, University of Manchester, on a FEI Tecnai F30 with an accelerating voltage of 300 kV. Final TEM characterization and energy-filtered transmission electron microscope (EFTEM) imaging was performed at Liverpool University with a JEOL 2100FS at 200 kV with a Gatan Quantum Imaging filter. A slit width of 15 eV was used for zero-loss filtered imaging, and elemental mapping was performed by using the three-window technique and a slit width of between 15 and 60 eV. Complementary selected area electron diffraction (SAED) imaging was performed both at Liverpool University with the JEOL 2100FS and at Manchester with the FEI Tecnai F30 and the use of selected area apertures with diameters of between 100 nm and 1 μm. To analyze the repeat distances present within our HRTEM data, the images were Fourier transformed in a standard manner (James, 2011). Regular lattice spacings in the images then appear as discrete spots or rings in the Fourier transforms produced.

2.4. Time-of-flight secondary ion mass spectrometry analysis

The time-of-flight secondary ion mass spectrometer (TOF-SIMS) instrument used in this study is called IDLE, which was described by Henkel et al. (2006). The ion map manipulation and handling software used was the “spaceTOF” program (Chatzitheodoridis et al., 2005). During analysis, mass-resolved spectra were acquired from the sample by sputtering with a pulsed ⁶⁹Ga⁺ primary ion beam of 25 kV accelerating voltage. The beam size was smaller than 1 μm, defining the spatial resolution of the acquired ion maps. Prior to data collection, the surface of the sample was thoroughly cleaned by sputtering with a direct current primary ion beam in scanning mode. Subsequent positive and negative secondary ion spectra were acquired by using both low mass and high mass resolution (about 500 and 2500, respectively).

2.5. Atomic force microscopy analysis

A large set of atomic force microscope (AFM) images was acquired by a VECO instrument that was equipped with a scanning stage with three piezo-elements. Imaging was performed in tapping mode. The instrument is housed at the Williamson Research Centre, University of Manchester. New tips were used during AFM imaging of Nakhla in this study to ensure that the produced maps were free from analytical artifacts, minimizing the possibility that the edges of small nanocrystals or nanoparticles become smeared out during imaging.

2.6. Raman spectroscopy

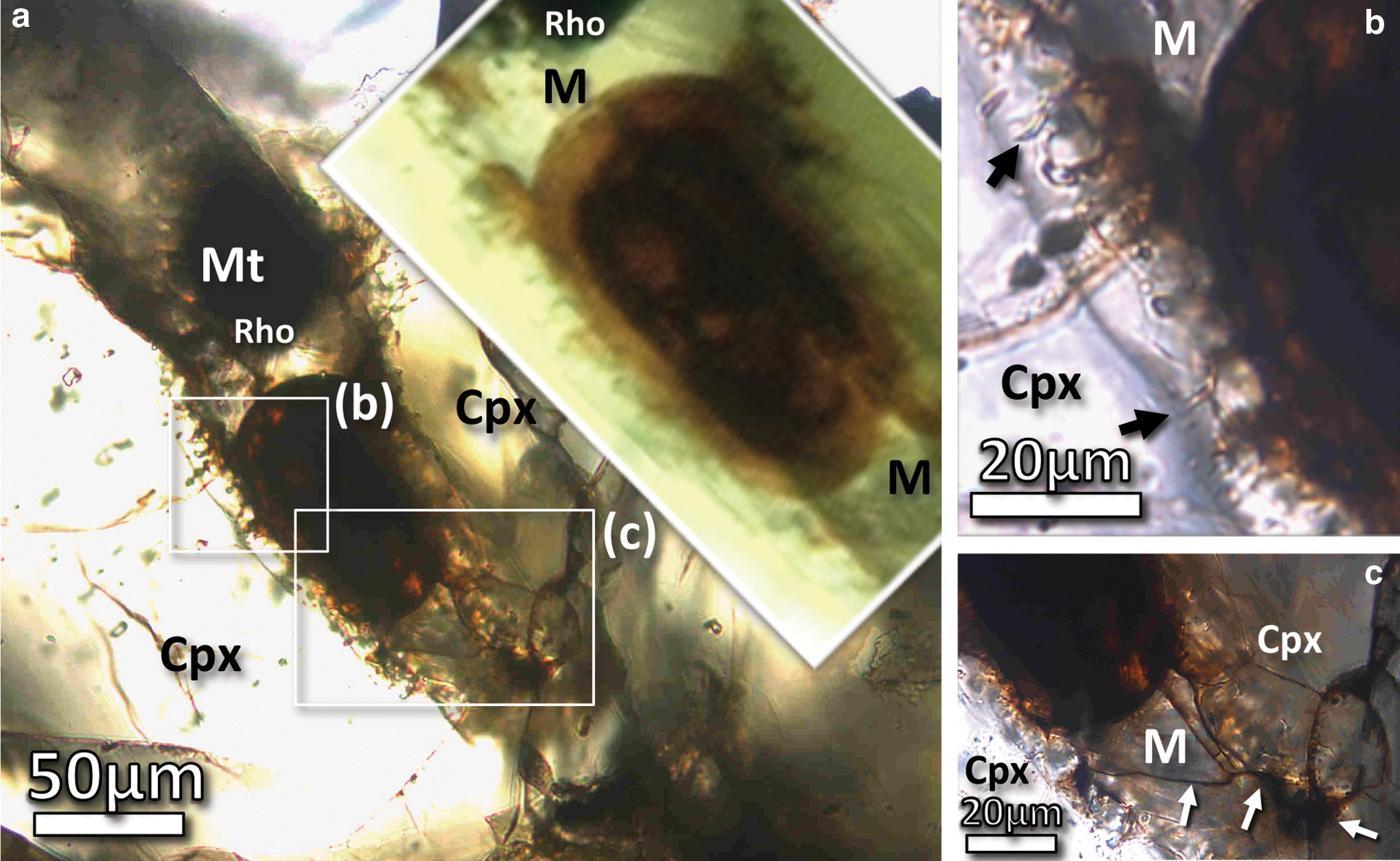

The clay ovoid structure under investigation was originally discovered while examining the polished petrographic thin section of Nakhla with a high-magnification (×100 objective lens) optical microscope (Leica DMLM) attached to a Raman spectrometer (Renishaw Ramascope RM1000). Spectra were initially acquired from the ovoid with this Raman instrument (National Technical University of Athens) with a 632.8 nm He-Ne laser, but these preliminary spectra did not exhibit any characteristic peaks. The ovoid was then analyzed once again with a newer-generation inVia Raman instrument with a 457 nm green laser (installed on the premises of the manufacturing company of these instruments, called Renishaw) but once again yielded similar results. The lack of any characteristic Raman peaks from the area of the ovoid is probably due to the nanoscopic size of the crystals that make up the ovoid and/or its amorphous matrix. Nevertheless, we still present Raman spectra from some of the other mineral phases in the vicinity of the ovoid, which were taken with the aforementioned first instrument. The RM1000 is a confocal instrument. With the ×100 objective lens of the optical microscope, a spot size smaller than 1.5 μm can be achieved on the sample surface during Raman spectroscopic analysis. The beam intensity was set to <5 mW of energy, attenuated with the use of neutral density optical filters. Furthermore, the entrance slit to the spectrometer was set to 50 μm, and a grating of 1800 lines/mm analyzed the input signal into a spectrum that was then acquired by a Peltier-cooled CCD camera in continuous scanning mode. The spectra provided are the accumulated scans of a few (5–10) individual measurements, each acquired from 10 s of integration time.

3.1. Morphological description of the ovoid structure

The ovoid is a somewhat elliptically shaped hollow structure (now partly filled with polishing material and mineral polishing debris), with an overall size of about 80 μm long by about 60 μm wide, that is characterized by very smooth and well-defined inner and outer surfaces (Figs. 1 and 2), defining a so-called wall or concentric shell composed of solid material that is distinctly orange-red in color when viewed in transmitted light (Fig. 1). It is situated within a narrow mesostasis area, composed of amorphous material (rhyolitic glass) that occurs at both ends of the ovoid (i.e., in contact with it), and also between the surfaces of two large clinopyroxene crystals (Fig. 2a) that directly border each side of the ovoid. The relatively large size of the ovoid, coupled with these observed textural relationships with surrounding material of igneous origin, ensure that this enigmatic structure originated on Mars.

The continuity of the ovoid concentric shell or wall is interrupted (i.e., crosscut) once by a symmetrical (hourglass-shaped), now overprinted fissure (see overprinted fissure in Fig. 3b), while other more angular discontinuities are secondary fractures that might have been formed during sample preparation. The concentric wall that defines the main structure of the ovoid maintains a uniform thickness of about 8 μm along the majority of its periphery (Fig. 2b). It is actually composed of multiple, texturally distinct layers observable by SEM (Figs. 3 and 4) and TEM (Fig. 5), which are partly amorphous and partly crystalline. One layer is characteristically distinct, both texturally and chemically. It is iron-rich and composed of fibrous crystallites grown perpendicularly to the inner surface of the concentric shell.

OPEN IN VIEWER

FIG. 3.

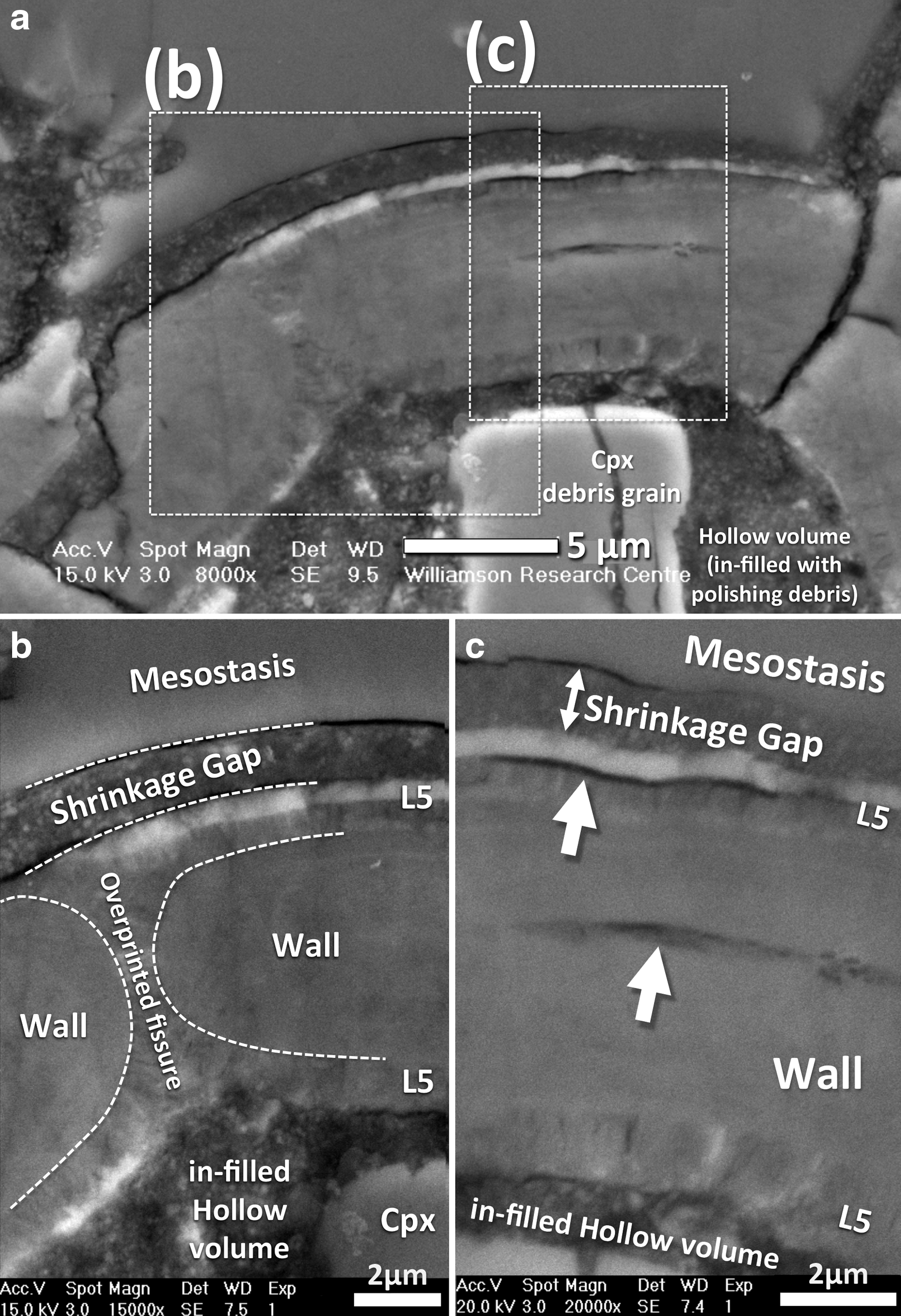

BSE SEM images of a part of the ovoid wall structure that is transected by a now infilled/overprinted fissure exhibiting a distinctive symmetrical hourglass shape. (a) Overview BSE image. (b) Close-up from (a), highlighting the ovoid wall and the now overprinted fissure that crosscuts it, which is now infilled with the fibrous layer L5. Also shown is the shrinkage gap that occurs between the amorphous mesostasis (rhyolitic glass) and the wall of the ovoid, the infilled hollow volume of the ovoid structure, and a clinopyroxene (Cpx) fragment. (c) Close-up from (a), highlighting some additional fractures/gaps (white arrows) present within the ovoid wall (and parallel to it) that seem to have formed due to mechanical stress, possibly due to the polishing process.

OPEN IN VIEWER

FIG. 4.

High-resolution BSE SEM images of the interior of the ovoid structure, highlighting various structures that are coated in a thin layer of mottled fibrous material (corresponding to layer L5 discussed in the text). (a) Overview BSE image. The white squares labeled AFM highlight the areas where AFM topographic maps were acquired (see Fig. 15). (b) Close-up from (a), highlighting one of the islands, which is fully coated by a thin layer of fibrous material (L5) around its entire perimeter. The large white arrow points to an electron beam damage mark. (c) Close-up from (a), highlighting a round structure that has an internal microtexture similar to the mottled fibrous layer L5 shown in (d). (d) Close-up from (a), highlighting the distinctive internal microtexture present within a representative region of the mottled fibrous layer L5 where it coats the interior surface of the ovoid wall.

OPEN IN VIEWER

FIG. 5.

SEM images highlighting the overall microstructure, textural features, and internal layering within the studied TEM slice, as well as its petrographic context in the ovoid structure from which it was extracted. (a) Overview BSE SEM image of the TEM slice removed from the wall of the ovoid structure using FIB milling. The granular textured region to the right is composed of material (labeled polishing debris) that was incorporated into the sample during sample preparation (i.e., fabrication of the petrographic thin section). (b) SEM secondary electron image of the FIB pit [section (1)–(2)], highlighting the petrographic context of the TEM slice extracted from within the ovoid wall (and its perpendicular cross-sectional angle to the wall) from which it was extracted. (c–e) Close-up images from (a) highlighting the boundaries between the different phases and layers, starting with clinopyroxene (Cpx) on the left and progressing through layers L1, L2, L3, L4, and L5. The bright region on the right-hand side of (a) is the platinum metal capping layer (Pt1). Further Pt layers on either edge of the slice (Pt2 and Pt3) were deposited to provide stability to the thin sample slice and were added during FIB sample preparation. Black or very dark parts of these images, that is, in (a) and (c–e), represent vacuum or regions of low atomic mass, such as the araldite epoxy glue used in the preparation of the petrographic thin section.

In the originally hollow, internal area of the ovoid structure there are two circular masses (hereafter referred to as islands; see Fig. 2b), which are chemically and structurally similar to the material of the main concentric wall and thus interpreted to be part of the same overall structure. However, it is clear that several fragments of minerals in the hollow volume are debris that was introduced during polishing, the largest being two fragments of clinopyroxene that are easily recognized in the BSE images from their angular shape and higher brightness compared to the ovoid (Figs. 2b and 3a). Alumina polishing powder (Al₂O₃) infills most of the remaining interstices of the hollow volume, as it is stuck in the resin that was used to glue the Nakhla sample onto the glass slide (Fig. 3a). This is better demonstrated in the TEM images (Figs. 5a and 11a) where the polishing debris (Fig. 5a) is observed as granular material over a volume of araldite (Fig. 5a). This clearly indicates that the polishing debris material is material introduced during the preparation of the thin section.

To describe this unusual ovoid structure in detail and investigate its significance, we employed a wide variety of scientific instruments ideally suited for in situ chemical and structural analysis and mapping at the submicron scale. Apart from the well-defined elliptical shape of the main structure of the ovoid, perhaps the most striking geometrical feature present is the symmetrical (i.e., hourglass-shaped) overprinted fissure that crosscuts the ovoid wall (Figs. 2b and 3a, 3b). This fissure is clearly visible in BSE images and transects the main wall structure orthogonally. At its narrowest point, the fissure tapers to about 1 μm wide and is now entirely infilled by the fibrous layer (see overprinted fissure in Fig. 3b). This thin fibrous layer blankets the entire inner surface of the ovoid wall structure and also forms a thin layer that coats the periphery of the islands and continues outside the fissure covering part of the outer surface of the wall of the ovoid—with the internal fibrous fabric maintaining perpendicularity to all these various surfaces that it coats (Figs. 3 and 4b, 4d). Some of the fine internal details of these fibrous materials can be seen in high-resolution BSE images (Figs. 3 and 4), including close-ups of where this fibrous layer coats the inner wall of the ovoid (Figs. 3 and 4d), where it coats one of the round islands (Fig. 4b), and also where it coats a different type of rounded structure (Fig. 4c) that—in contrast—has an interior composed of fibrous crystalline material that exhibits more randomly oriented fabrics. Collectively, these high-resolution BSE images clearly demonstrate the presence of a chemically heterogeneous, fibrous layer that contains patches of an atomically heavy material (observed as relatively bright colors in the close-up BSE images). It is possible that this fibrous layer and the aforementioned round structure that shows internal fibrous fabrics (Fig. 4c) formed concomitantly, in one case as a thin veneer that blankets the ovoid wall (Figs. 3 and 4d) and islands (Fig. 4b), and in the other case as a colloform segregate (Fig. 4c).

The internal microstructure of the ovoid wall was investigated by HRTEM imaging of an electron-transparent cross section (Fig. 5a) that was extracted from the wall of the ovoid by FIB milling (Fig. 5b). From these images, a set of visually (i.e., texturally) distinct micron-scale layers has been defined (L1 to L5), which are highlighted in Fig. 5c–5e for clarity of discussion.

3.2. Chemical analysis and Raman spectroscopy of nearby mineral phases

The results of quantitative chemical analysis (by electron microprobe WDX) of the various mineral phases identified in the mesostasis area of the ovoid structure are reported in Table 1, and the petrographic context (spot locations) of each of these analyses is shown in Fig. 2. As highlighted above (in Section 3.1), the surrounding materials of igneous origin that host the ovoid structure include clinopyroxene (identified here as augite: i.e., Al-rich rim Cpx, Fe-rich rim Cpx, and core Cpx in Table 1, Fig. 2), as well as amorphous material (i.e., mesostasis glass) of rhyolitic composition (M1, M2, and M3 in Table 1, Fig. 2). Some additional minor phases include several acicular apatites (Ap; Fig. 2b), a few small olivine crystals (Ol; Table 1, Fig. 2b), a single small sulfide crystal (S; Fig. 2b), and Ti magnetite (Ti-Mt; Table 1, Fig. 2a) to which a rhoenite crystal is attached (Rho; Table 1, Fig. 2).

In addition, a set of color-coded chemical maps produced by electron microprobe X-ray mapping (WDX mode) gives a general geochemical overview of the ovoid itself and the phases around it (Fig. 6). High silica values (red in the Si map of Fig. 6) indicate areas of the amorphous mesostasis (analyses M1 and M2 in Table 1). The M3 analysis is acquired from a separate (but nearby) inclusion of amorphous mesostasis that occurs within clinopyroxene rims (M3 analysis in Fig. 2a). Intermediate silica values (yellow-orange in the Si map of Fig. 6) indicate clinopyroxene, while lower values (in green) largely correlate with the ovoid wall structure (Fig. 6). The blue and black areas demarcate the interior hollow region of the ovoid, as well as some additional cracks and the magnetite crystal (at the top of the Si map of Fig. 6). On the iron map (Fe map in Fig. 6), the highest values (in red) correlate with the magnetite (Mt) and sulfide (S) crystals, whereas the intermediate values (yellow to orange hues) match up with the olivine crystals. Finally, the green-yellow-orange hues match up with the Fe-rich fibrous layer that occurs around the interior of the ovoid wall, while even lower values (blue and black) indicate the large clinopyroxene crystals and the mesostasis regions, respectively. The calcium map (Ca map in Fig. 6) mainly reveals the presence of clinopyroxene, but in combination with the phosphorus map (P map in Fig. 6), the additional presence of numerous apatite microcrystals is also apparent. Magnesium is clearly depleted in the Cpx rims (Mg map in Fig. 6; Al-rich rim and Fe-rich rim Cpx in Table 1), which distinguishes the Al-rich rim having a Mg# of 0.38 and the intercumulus overgrowths having a Mg# of 0.49 from the cumulus pyroxene cores having a Mg# of 0.62 (Mg map in Fig. 6; core Cpx in Table 1; also see Fig. 2b for these Cpx Al-rich and Fe-rich rim versus core relationships). In contrast, manganese shows a weak zonation in clinopyroxene (Mn map in Fig. 6), but higher values of Mn clearly highlight a few small olivine crystals (Ol). The ovoid wall and the islands also contain small amounts of manganese (Fig. 6). The potassium map (K map in Fig. 6) clearly distinguishes the amorphous mesostasis of rhyolitic composition (M; bright orange colors) from all other surrounding materials. Lower potassium values (blue in K map of Fig. 6) correlate with the ovoid structure, and it is evenly distributed both in the matrix of the ovoid wall and in the islands. The chlorine map (Cl map in Fig. 6) demonstrates that the mesostasis (M) and the ovoid structure both contain chlorine, possibly indicating a fluid infiltration event of a common source. Several EDX spot analyses indicated that chlorine is concentrated mainly in the fibrous iron-rich layer of the ovoid (layer L5), whereas sulfur seems to be spatially associated with the matrix of all other layers. However, it is not entirely clear as to the exact chemical state of this chlorine or sulfur in and around the ovoid.

OPEN IN VIEWER

FIG. 6.

Chemical maps of the ovoid structure, obtained with the Cameca SX100 electron microprobe in WDX mode. The scale bar shown for the silicon chemical map is the same for all images. Concentration is shown with pseudocolors, and the color scales (at upper right in each image) indicate relative elemental abundances between maps (arbitrary units). The dotted white lines in the Ca, P, and Cl maps indicate the approximate margins of area occupied by the ovoid structure. Abbreviations: Ap, apatite; Cpx, clinopyroxene; M, mesostasis (rhyolitic glass); Mt, Ti-rich magnetite; Ol, olivine; Rho, rhoenite; S, sulfide.

3.2.1. Clinopyroxene core, Al-rich rim, and Fe-rich rim compositions

The aluminum oxide (Al₂O₃) content of clinopyroxene in Nakhla is generally low (i.e., below 1 wt %; see core and Fe-rich rim clinopyroxene analyses in Table 1); however, we have located some relatively narrow (∼5–10 μm thick) clinopyroxene rims that are quite rich in Al₂O₃ (i.e., exceeding 5 wt %; see Al-rich rim clinopyroxene analysis in Table 1; also see bright clinopyroxene domains visible in BSE images in Fig. 2 labeled Al-rich rim Cpx). This is coupled with some enrichment in TiO₂, when compared with the clinopyroxene cores (Table 1). The excess alumina content in this clinopyroxene rim material is compensated by lower silica. Also note that this excess alumina does not represent contamination from the Al₂O₃ polishing powder, as evidenced by replicable geochemical analyses of these rims and from the analyses of nearby minerals that do not contain any Al₂O₃. Generally, this type of Al-rich rim composition is uncommon for mesostasis clinopyroxenes in Nakhla, except in the case of clinopyroxene crystals that crystallized from melt inclusions inside olivine (Treiman, 1993). In fact, similar high concentrations of Al₂O₃ (i.e., exceeding 5 wt %) in augite rims have only been reported for martian meteorite MIL03346 (Treiman, 2005), which in this case are explained as a result of the failure of plagioclase to form in the mesostasis, which would normally incorporate most of the available alumina. Concentrations of 4–12 wt % Al₂O₃ in pyroxenes have also been reported in lunar rocks (Bence et al., 1970; Engelhardt et al., 1989) and experimentally confirmed by Engelhardt et al. (1989), whereby the Al-rich clinopyroxenes tend to be skeletal in form, indicating rapid growth in supercooled melts. Such rapid nucleation of clinopyroxene would have inhibited plagioclase crystallization in its vicinity by consuming the alumina, which is locally available, from the melt. The absence of plagioclase (i.e., its anorthite component) or other Al-rich minerals in the mesostasis where the ovoid is located might be taken as evidence of alumina partitioning into the clinopyroxene rims due to phase disequilibrium caused by supercooling, chemical disequilibrium, or a combination of the two. A geothermometer based on the strong dependence of Al₂O₃ content (wt %) in clinopyroxenes has been proposed (France et al., 2010), in which the alumina content behaves linearly for concentrations up to about 3 wt % Al₂O₃, but when extrapolating to higher concentrations results in temperatures above 1300°C, that is, higher than the liquidus of clinopyroxene.

Collectively, the observed Al₂O₃-rich composition of the clinopyroxene, and its correspondingly lower SiO₂ contents, coupled with the very high temperatures estimated with the aforementioned geothermometer, suggest an exotic process for the origin of the Al-rich rim clinopyroxene in Nakhla. Such a process might include the partial melting of the rims of the original clinopyroxene crystals due to a localized heating and high-pressure event, such as a shock event induced from a nearby bolide impact. Rapid cooling of melted clinopyroxene rims, however, did allow recrystallization of Al-rich clinopyroxene to take place, as evidenced by the Raman spectrum for this material, which shows the characteristic pyroxene peaks (Fig. 7). This shock event might also coincide with the age of resetting of radiogenic ⁴⁰Ar distribution in Nakhla clinopyroxenes at 913±9 Ma observed by Cassata et al. (2010), which records a geological event that caused extensive fracturing of clinopyroxene grains and highly localized heating. Most probably, it occurred at pressures between 20 and 40 GPa, a range that is suggested by other textural evidence such as shock melt veins in pyroxene fractures in Nakhla (Lambert, 1987).

OPEN IN VIEWER

FIG. 7.

Raman spectra of the main minerals in the mesostasis area of the ovoid structure (Fig. 2b), exclusive of the hematite-carbonate spectrum, which is from another mesostasis area. The olivine spectrum also contains two peaks from a neighboring clinopyroxene crystal. In the top spectrum, Hem indicates characteristic hematite peaks and Carb indicates the main characteristic peak of the carbonate (Fe-Mn siderite). The numbers beside each peak denote their individual wavenumbers, which are taken from the de-convoluted spectra peaks.

Alternatively, the Al^VI+Al^IV for R^VI(2+)+Si^IV substitution might also account for the formation of the Al-rich clinopyroxene rims in Nakhla at lower pressures or shallow depths in a melt with low SiO₂ activity; however, this substitution is mainly observed in phenocryst clinopyroxenes rather than clinopyroxene rims in lunar rocks (Bence et al., 1970).

3.2.2. Olivine

A few olivine crystals were observed within the studied mesostasis region in Nakhla, and one of these grains is just barely discernible (slightly brighter in BSE images) from the rim clinopyroxene that is adjacent to it (Fig. 2b). Another such olivine grain is juxtaposed with a rhoenite grain that we describe here (see Fig. 8, which shows both of these olivine grains; rhoenite is introduced in a later section below). These mesostasis olivine crystals are relatively iron-rich (with end members Fo₂₂Fa₇₈) when compared to the large rock-forming olivine crystals present elsewhere within the thin section (Fo₄₀Fa₆₀), but they are quite similar in composition to these larger olivine phenocrysts with respect to some of the other oxides, having 1.15 wt % MnO, 0.24 wt % CaO, and traces of TiO₂ and Cr₂O₃ (see Ol in Table 1). Raman spectra of these olivines show peaks at 816 and 842 cm⁻¹ (Fig. 7), although in the larger olivine phenocrysts the latter peak is slightly displaced at 844 cm⁻¹. Peak shifts in olivine were interpreted by Kuebler et al. (2006) to have been caused by chemical variations expressed in end-member compositions, and the small peak difference measured between the cumulus and the mesostasis Nakhla olivines is predicted by their calibration curves. Similar peak values were also reported by Rull et al. (2004) for other olivine grains in Nakhla. The small mesostasis olivine crystals of Nakhla do not show any signs of alteration, in contrast with the cumulus olivine crystals of the same petrographic thin section, which are extensively altered.

OPEN IN VIEWER

FIG. 8.

BSE SEM images and TOF-SIMS ion maps of a mesostasis region near the ovoid in Nakhla and some mineral phases contained within it. (a) Overview BSE image of the mesostasis area, in which the inset shows a close-up of the area mapped by TOF-SIMS (b–g). Abbreviations: Ap, apatite; B, location of boron enrichment [see TOF-SIMS image (b) of this figure]; Cpx, clinopyroxene; M, amorphous mesostasis (rhyolitic glass); Ol, olivine; Rho, rhoenite; Ti-Mt, titanium magnetite. (b, c) TOF-SIMS ion maps of lithium (Li; green), boron (B; red), and beryllium (Be; magenta), shown as overlays onto the iron (blue) map, which is used (for reference) to demarcate the Ti-rich magnetite crystal [bright phase labeled Ti-Mt on the inset BSE image in (a)]. Some lithium and boron are distributed sparsely throughout the amorphous mesostasis phase (rhyolitic glass), whereas beryllium occurs for the most part only within the rhoenite (Rho) in (a). (d–g) TOF-SIMS ion maps of Ca, Na, Al, and K, with red to magenta colors shown as overlays onto the iron (blue) map, which is used to demarcate the Ti-rich magnetite crystal. Only in (f) does the magnetite crystal appear with a magenta color; this is because it contains both of the elements Al and Fe.

3.2.4. Mesostasis

In magmatic systems, the mesostasis represents the last interstitial material to solidify during the final stages of formation of an igneous rock, and in martian meteorites it is generally accepted that this term encompasses all the interstitial material that is present in between the large cumulate augite and olivine phenocryst assemblages (e.g., Treiman, 2005). The mesostasis volumes in Nakhla are generally infilled with radiating laths of plagioclase, along with crystals of K feldspar, titanomagnetite, apatite, as well as some secondary alteration minerals. Interstitial spaces that are infilled primarily with noncrystalline amorphous mesostasis materials (i.e., glass) are rare in Nakhla, although this is actually the case here for the mesostasis material juxtaposed with the ovoid structure (Figs. 1 –3). Melt pockets composed of glass with conspicuous textures have been observed in martian meteorites before, such as the round concentric features associated with an apparent vesicle in a melt pocket of ALH 77005 (see Fig. 6d in Fritz et al., 2005). Vesicular structures in melt glasses that have been subjected to shock pressures can be produced when the melt contains water (i.e., up to 15 wt % H₂O; Allen et al., 1982).

In terms of chemical composition, the amorphous mesostasis described here is alkaline and somewhat feldspathic (analyses M1–M3 in Table 1). However, in terms of bulk composition, SiO₂ is too high with respect to the collective abundances of Al₂O₃, alkali oxides, and CaO for this material to represent any kind of late-crystallizing feldspar. It is therefore reasonable to presume that this amorphous mesostasis material is a late-forming interstitial glass, which according to the total alkalis versus silica diagram of Le Maitre et al. (2002)—and after recalculating to account for the low chemical totals—is classified as rhyolitic in composition. Electron microprobe X-ray mapping of this mesostasis glass shows that Cl is homogeneously distributed (Cl map in Fig. 6). A TOF-SIMS map of the distribution of ¹⁶O¹H⁻ (Fig. 9) in this material, coupled with the low chemical totals of the electron microprobe WDX chemical analyses (M1, M2, and M3 in Table 1), indicates that this amorphous mesostasis is also somewhat hydrous. In addition, the distributions of light elements, such as Li, B, and Be, indicate that these elements are more heterogeneously disseminated throughout the mesostasis glass (TOF-SIMS images in Figs. 8 and 9). Additional TOF-SIMS ion maps of small areas within the mesostasis glass (not shown here) indicate that Rb, Sr, and Ba are also present.

OPEN IN VIEWER

FIG. 9.

TOF-SIMS ion maps of selected major elements (Si, Al, Fe, Mg, and Ca), light elements (Li and B), as well as hydroxyl ions (OH⁻), obtained for a mesostasis region juxtaposed with the ovoid and some surrounding mineral phases. For reference, a BSE SEM image of the area mapped by TOF-SIMS is also shown at top left, allowing for direct comparison of the chemical maps to specific phases including acicular apatite needles (Ap), clinopyroxene (Cpx), and the amorphous mesostasis (M) phase (rhyolitic glass). Grayscale maps of Li, B, and OH^- are contrast-enhanced to facilitate the separation of different phase regions. Data for beryllium is not shown, but it was found to exist in the mesostasis rhyolitic glass only.

In the literature, it has been suggested that the formation of the Nakhla mesostasis took place in association with the mixing of multiple different solutions rather than from a single parental igneous source (Gooding et al., 1990, 1991), one being magmatic fluid (or alternatively hydrothermal fluids associated with a nearby bolide impact), the other dilute brine waters, which upon mixing resulted in the formation of a hydrous silicate amorphous gel (Bridges and Hicks, 2011; Schwenzer and Bridges, 2011). To complicate matters, there is still no clear distinction between the various types of amorphous phases found within Nakhla, and overall their composition seems to be quite variable (e.g., when comparing our analyses with the analyses of amorphous mesostasis reported in other studies, such as that of Bridges and Hicks, 2011). This probably indicates that, in each case, the localized nature of each fluid infiltration event, combined with variable amounts of mixing of different types of fluids during mesostasis formation, has resulted in a diversity of hydrous and amorphous mesostasis compositions overall throughout Nakhla and its parent rock. Also important to reemphasize here is that the mesostasis glass surrounding the ovoid structure in Nakhla is indeed hydrous, as highlighted above.

3.2.7. Rhoenite

A single grain of a mineral belonging to the rhoenite (or rhönite) group was identified during the course of the present study (Rho in Fig. 8a). It measures 10×6 μm and is situated between the amorphous mesostasis of rhyolitic composition and a Ti-rich magnetite crystal. It is also juxtaposed with a small olivine grain. In transmitted light (i.e., under petrographic microscope), the rhoenite grain looks opaque (in agreement with the observations of Kunzmann, 1999) and is indistinguishable from the attached magnetite crystal (Fig. 1a). During electron microprobe WDX analysis of this rhoenite crystal, we used a ∼1 μm beam diameter and were able to successfully determine its chemical composition. Quantitative chemical analysis of rhoenite is presented in Table 1 (analysis Rho).

In addition to the elements identified by WDX analysis, our qualitative EDX analyses revealed traces of vanadium in the rhoenite grain, and TOF-SIMS ion imaging has clearly resolved the presence of beryllium (Be). Beryllium is preferentially enriched in rhoenite compared to other Nakhla phases (Fig. 8c). Additional TOF-SIMS ion maps for other elements in the mesostasis area surrounding the rhoenite crystal reveal overall heterogeneous elemental distributions; this includes the trace light elements Li and B (Fig. 8b, 8c), as well as some of the major elements, including Ca, Na, Al, and K (Fig. 8d–8g).

The laser micro-Raman spectrum of the rhoenite shows a major diagnostic peak at 681 cm⁻¹, with additional peaks at 538, 837, and 635 cm⁻¹. This spectrum matches that obtained on rhoenite from the Mare Crisium lunar regolith that was returned to Earth by the Russian Luna 24 spacecraft (Treiman, 2008). Small variations in the exact position of the peaks are attributed to differences in chemistry.

In terms of chemical composition (Table 1), the analysis of this mineral phase conforms to a new member of the rhoenite group with the general formula X ₂ Y ₆ Z ₆O₂₀, with X, Y, and Z indicating eightfold, sixfold, and fourfold coordination sites, respectively (Kunzmann, 1999). A stoichiometric formula was obtained by using 20 oxygen atoms as shown below:

OPEN IN VIEWER

Calculations were made following those of Kunzmann (1999), where the Fe₂O₃ content is determined by charge balance on the basis of 14 cations. Part of the ferric iron occupies the tetrahedral Z-site in order to bring the total of this site to 6.0. Beryllium is a common element in some varieties of rhoenite, occupying tetrahedral sites (Johnston and Stout, 1985; Kunzmann, 1999). Since Be was not measured, we estimated its content arithmetically at about 2.7 wt % BeO (see Table 1). This amount of BeO satisfies charge balance and complies with the coupled substitution 2Si^IV+2Be^IV ⇆ 4Al^IV. The presence of BeO has been reported for the høgtuavite rhoenite variety (Grauch et al., 1994), which, however, is different from the Nakhla rhoenite with respect to its abundances in some of the other major element oxides and in terms of its geological setting, as on Earth this variety of rhoenite is known to occur in certain types of metamorphosed igneous rocks, including granitic gneisses and metamorphosed mafic pegmatites. The rhoenite-group mineral identified in Nakhla in the present study is considered to be a new member of the rhoenite group. Compositionally, it falls into the specific category of the rhoenite classification scheme defined by 0.5≤Ti<1.5 and 2≤(Si–Na)<3 (Kunzmann, 1999), of which no members have been identified to date.

Rhoenite is a rare accessory mineral that occurs in a variety of different rock types. It mainly occurs in silica-undersaturated igneous rocks, such as in the groundmass of alkali basalts (Johnston and Stout, 1985; Kunzmann, 1999; Grapes and Keller, 2010), and in silicate melt microinclusions in olivine and clinopyroxene phenocrysts of most alkali and subalkali basalts (i.e., basanite), where it is often associated with clinopyroxenes that have Al₂O₃-rich and SiO₂-poor rims, spinels (i.e., Ti magnetite), K-rich glass, sulfides, and bubbles of a gas phase (i.e., CO₂) (Timina et al., 2006; Anan'ev and Selyangin, 2011; Sharygin et al., 2011). In alkali-basaltic rocks, the stability field of rhoenites ranges from 840°C to 1200°C at pressures lower than 600 bar, without any limits in oxygen fugacity (Kunzmann, 1999, and reference therein). Rhoenite is also found to occur as the breakdown product of Ti-rich Ca amphibole (Grapes et al., 2003, and references therein). In addition, rhoenite can crystallize under pneumatolytic conditions (Kunzmann, 1999) when magma goes through the 500°C temperature regime during its crystallization. Finally, rhoenite is also found as a primary magmatic mineral in “ocelli” (i.e., texturally globular structures or amygdules, which are the products of immiscible leucocratic material or the infillings of vesicles, respectively) that occur in some basaltic dykes where it likely crystallized at high temperatures within late-stage volatile-rich parts of the magma (Nédli and Tóth, 2003).

Rhoenite, in meteorites, was first reported from the Allende carbonaceous chondrite, where it displays a large compositional range probably reflecting rapid cooling (Fuchs, 1971). In the Efremovka (CV3) chondrite, rhoenite is found to exist in Ca,Al-rich inclusions mainly with fassaite and melilite, possibly as a metastable phase in melts formed from preexisting solid rocks, again indicating rapid cooling of a parent material with high Ti/Si ratio (Nazarov et al., 2000). A mineral phase similar to rhoenite has also been documented from the Elephant Moraine (EET) 96001 ureilite achondrite (Warren et al., 2006), a meteorite that is presumably formed from extremely depleted peridotites of asteroid mantles. Finally, an iron-bearing rhoenite was found to occur as a primary mineral in the Angrite NWA 4590, an olivine gabbro with cumulate Al-Ti-rich clinopyroxene, ulvöspinel, and other mineral phases, including glass (Kuehner and Irving, 2007).

Especially interesting is the occurrence of rhoenite in the lunar samples studied by Treiman (2008). Here, rhoenite was found in some multiphase inclusions situated at the rims of Al- and Ti-rich augitic pyroxenes, associated with ulvöspinel and Si-rich glass, suggesting that the Luna 24 basalts originate from magmas with a low volatile content. The occurrence of kaersutite amphibole instead of rhoenite in basaltic magmas would suggest volatile-rich melts, a case that could also apply to martian meteorites such as Nakhla, since the latter contains kaersutite in multiphase inclusions in olivines (Treiman, 1993). However, this kaersutite is oxy-kaersutite that contains nearly no OH; and its origin, that is, dehydrogenation or oxidation of hydrous kaersutite versus formation of rhoenite, could provide clues to the volatile content of martian magmas (Treiman, 2008).

3.3. TOF-SIMS chemical maps of light lithophile elements

Time-of-flight secondary ion mass spectrometer ion mapping was extensively used in this study; however, with the current mass resolution of the instrument, it was not able to reveal any significant trace element patterns or other signatures directly from the ovoid structure itself. This is largely because the returned signal was generally very low (especially when analyzing the matrix of the ovoid structure). However, high-quality data were obtained for the region where the rhoenite crystal is located (Fig. 8) and for the region centered on the amorphous mesostasis (Fig. 9). Overall, the ion maps for seven major elements (i.e., Al, Fe, Ca, Na, and K in Fig. 8 and Si, Al, Fe, Mg, and Ca in Fig. 9) yield similar distributions as the electron microprobe maps (Fig. 6). However, we were able to map a number of light elements—both from the amorphous mesostasis and from the ovoid structure. To provide a comparison of the mesostasis region on either side of the ovoid structure in terms of the areal distributions of light and major elements, the TOF-SIMS ion maps of lithium (⁶Li+⁷Li), boron (¹⁰B+¹¹B), and beryllium (⁹Be) are also shown (Figs. 8 and 9), together with the molecular ion (¹⁶OH^-) map produced from the lower mesostasis area (Fig. 9). It is important to highlight here that the relative intensities of these trace elements are not calibrated for concentration between these images (i.e., ion maps in Figs. 8 and 9); therefore, they only allow for qualitative comparisons. In addition, the ion maps produced for the light elements, and that of hydroxyl, are contrast-enhanced to improve visibility of the specific elemental/molecular distributions (i.e., the three bottom images shown in Fig. 9). In other instances, elemental maps were enhanced by using a combination of contrast and color overlays (Fig. 8). For clarity, the BSE images of the same areas mapped for element abundance with time-of-flight secondary ion mass spectrometry are also included in Figs. 8 and 9 and labeled according to the different mineral phases that are present. The electron microprobe (BSE) and TOF-SIMS ion images do not perfectly match one another because the ion maps appear slightly deformed due to the obliqueness of the ion beam with respect to the surface of the sample during analysis. Because there were no mass interferences present during measurement of each of these light element distribution maps, the final maps are considered to be accurate qualitative representations of their actual distributions. Also worth highlighting here is that the hydroxyl molecular ion map shows considerably high values in the amorphous mesostasis volume, supporting the case for a hydrous mesostasis glass.

3.4. Chemistry and mineralogy of the ovoid structure

All electron microprobe chemical analyses reported in Table 2 were acquired by using WDX mode, and the analyses were performed with the aim of determining the chemical composition of the ovoid walls (analyses W1 and W2, represented by layers L1 to L4), the islands that occur within the central part of the ovoid structure (analyses I1 and I2), as well as the composition of the mottled fibrous layer of the ovoid (L5). The petrographic context (spot locations) of each of these analyses is shown in Fig. 2.

The WDX analysis of the mottled fibrous layer (Table 2) yielded a distinctive composition and indicated the presence of an iron-rich phase. This fibrous layer is also defined by substantially lower Si and Mg contents relative to the other two domains (ovoid wall and ovoid islands in Table 2). The alkalis are present in very low concentrations in this fibrous layer (Table 2) compared with their concentrations in the amorphous mesostasis (Table 1). The distribution of chlorine is noticeably different when comparing the amorphous mesostasis and the ovoid matrix in the Cl map of Fig. 6. For instance, chlorine distribution in the amorphous mesostasis is relatively homogeneous (even blue color in the Cl map of Fig. 6), whereas more irregular Cl distributions are observed within the wall and central volume of the ovoid structure. Higher Cl concentrations inside the hollow structure of the ovoid could be due to contamination from the redistribution of halite salts during the preparation of this halite-rich Nakhla sample. Sulfur is also present in trace, but variable, amounts within the ovoid matrix (i.e., wall and islands). We did not acquire a WDX chemical map for sulfur; however, many electron probe EDX analyses indicated a preferential distribution within the iron-rich fibrous layer L5 (e.g., that occurs around the periphery of the islands; Fig. 4).

The investigations of nanoscale microtextures present in the ovoid wall in which energy-filtered transmission electron microscopy and high-resolution transmission electron microscopy (following section) were used revealed a chemically and mineralogically inhomogeneous material. Nanocrystalline sheet silicates are mixed with amorphous material in layers L1 to L4, which all have the same chemical composition, and layer L5 contains iron-rich phases (possibly oxides or hydroxides). Careful Raman spectral analysis of the iron-rich parts of layer L5 did not yield any kind of characteristic spectrum. This suggests that these Fe-rich parts of the ovoid wall do not contain mineral phases that easily give Raman spectra (i.e., hematite), or that the Fe-rich phase of L5 is nanocrystalline or amorphous.

The internal textural heterogeneity of the ovoid structure, which is defined by variable mixtures of clay crystallites and an amorphous phase at the submicron scale, is intuitively expected to impart a non-stoichiometric chemical composition to the material analyzed. Surprisingly, the mineral formula calculated from the WDX chemical analyses of the ovoid wall and islands (W1, W2, I1, and I2 in Table 2) strongly indicates the presence of a single, stoichiometric clay mineral. Based on O₂₀(OH)₄ (full cell, 22 oxygen atoms), stoichiometry reveals a ratio of tetrahedral over octahedral cations of 4:3, suggesting a trioctahedral clay, and is tentatively interpreted as an iron-rich saponite according to the following approximate formula (average of the three most stoichiometric analyses of Table 2):

OPEN IN VIEWER

A perfect 4:3 tetrahedral to octahedral ratio is actually achieved when converting ∼2 wt % of the analyzed ferrous iron (Fe²⁺) into ferric iron (Fe³⁺). Ferric iron is known to be present in Nakhla gels that include clays, which exhibit increasing ratios of Fe³⁺/ΣFe from the edge to the center of the veins in which they occur (Hicks et al., 2011). A small proportion of Fe³⁺ over Fe²⁺ was suggested by Gooding (1985) with respect to the chemical analysis of the clay phase proposed by Bunch and Reid (1975) and indicated as “unknown.” A small amount of ferric iron (1.6 wt % Fe³⁺) has also been measured in chip samples of Nakhla (Solberg and Burns, 1989), which indicates an excess of ferric iron that equates to more than would be expected from bulk minerals and is most likely a pre-terrestrial geochemical signature (Burns and Martinez, 1991).

The presence of a minor amount of potassium in the ovoid structure (∼1 wt % K₂O; Table 2) might indicate the presence of a small component of celadonite or illite in the ovoid matrix. Celadonite is a dioctahedral mica mineral that occurs mostly within vesicles of basaltic rocks and tends to form during their hydrothermal alteration (Deer et al., 1992; Meunier, 2005). Celadonite has been found to precipitate with Fe-rich smectites in the Lonal Lake impact structure, a classic Mars analog hydrothermal system activated by a bolide impact (Hagerty and Newsom, 2003). Geochemical modeling of Lonal Lake alteration carried out by these same authors indicates that this hydrothermal assemblage was deposited at temperatures of 130–200°C under non-ambient conditions. Illite, on the other hand, is a clay mineral, usually of dioctahedral structure, which can form within sediments, in hydrothermal environments, or as a result of the illitization of smectite in diagenetic environments at elevated temperatures (Deer et al., 1992; Meunier, 2005). Illitization requires a precursor dioctahedral smectite that contains some ferric Fe that is reduced and involves the substitution of Si by Al, with the resulting charge imbalance compensated by the incorporation of K originating from the altering fluids (Nadeau and Bain, 1986). The illitization of smectite has also been performed in the laboratory at very low temperatures and high pH and may take place in nature under these conditions (Eberl et al., 1993). In addition, the illitization of smectite may also be facilitated by microbial activity (Kim et al., 2004; Zhang et al., 2007). Finally, the illitization of smectite is also known to assist boron uptake from the hydrothermal fluid causing the alteration (Bottomley and Clark, 2004).

To calculate the mineral formula from the main clay phase that makes up the ovoid matrix, we followed the procedure suggested by Gooding (1985), and our resulting formula (above) fully satisfies the charge and elemental ranges observed between the tetrahedral and octahedral sites in natural saponites (Weaver and Pollard, 1973), especially in the case of saponites considered to be iron- and alumina-rich. In this saponite, the tetrahedral charge is high, whereas the charge of the 2:1 layer is −0.29, which is almost compensated by the interlayer ions (M⁺ in the general formula). Smectites in general tend to show a variable charge (Velde, 1985), and very low–charge smectites have been reported to exist in terrestrial samples (April, 1981). The formula we have calculated here, coupled with the relatively high silica content of the ovoid matrix, indicates a saponite, one that is probably slightly oxidized (Deer et al., 1992). This geochemical transformation takes place due to the high instability of iron-rich saponites when the geochemical environment undergoes a substantial change from the originally reducing conditions (Güven, 1988). Similarly, one cannot exclude the possibility that oxidation can also occur during sample storage, preparation, or analysis. Another possibility is that some of this putative ferric iron may have been released by iron-rich trioctahedral smectites (Badaut et al., 1985), which might then concentrate at the periphery of the clay particles in the ovoid matrix. Eventually, dioctahedral clays and Fe oxides (or hydroxides) are thought to have formed within this Nakhla sample, which could account for the observed orange-brown color exhibited by the ovoid matrix in transmitted light (Fig. 1).

The saponitic composition of the ovoid matrix in Nakhla is clearly evident on the Fe-Mg-(Si+Al) ternary diagram shown in Fig. 10, onto which the atomic concentrations of the elements are plotted. In this plot, the dashed lines indicate the stoichiometric composition of a number of phyllosilicate minerals based on their chemical formula, such as serpentine, saponite, and nontronite. All the individual data points plotted (from this and previous studies) in Fig. 10 indicate stoichiometric concentrations. The number of analyses shown on the ternary plot is larger than the number of data listed in Tables 1 and 2 because, in addition to these WDX analyses, we also performed some additional quantitative elemental analyses using the EDX system of the JEOL SEM. From this figure (Fig. 10), it is clear that all chemical analyses of the ovoid matrix, including data for the ovoid wall (black circles) and the ovoid islands (black triangles), plot close to the saponite composition. In contrast, the chemical analyses determined for the fibrous layer L5 (black boxes) extend toward more iron-rich compositions, which may indicate the presence of noncrystalline Fe-Si-Al-oxyhydroxides, such as the ferrihydrite reported by Eggleton (1987), which is also plotted on Fig. 10 as a black star symbol.

OPEN IN VIEWER

FIG. 10.

Ternary diagram showing stoichiometric compositional data for the ovoid structure wall, islands, and the fibrous layer (L5), as well as the host amorphous mesostasis phase (rhyolite glass). Also shown for comparison are previously published geochemical results determined on other Nakhla mesostasis alteration phases including the unknown phase of Bunch and Reid (1975) and Reid and Bunch (1975) labeled here as “Unknown (B & R)”; the gel material of Changela and Bridges (2011), representing the average of 13 analyses and labeled here as “Gel (C & B)”; the rust material of Wentworth and Gooding (1990), representing an average of 78 analyses and labeled here as “Rust (W & G)”; and finally, the brownies of Papanastassiou and Wasserberg (1974), labeled here as “Brownies (P & W).” The dashed lines represent stoichiometric compositions of the minerals nontronite, saponite, and serpentine (cf. Changela and Bridges, 2011). Ferrihydrite composition is marked with the black star symbol and is plotted from ferrihydrite compositions given in Eggleton (1987). Fe in this diagram represents total iron as Fe²⁺.

The identification of smectite within this conspicuous ovoid structure in Nakhla is clearly very significant for understanding aqueous alteration processes on Mars, especially in light of the recent discovery of trioctahedral smectites in mudstones at Yellowknife Bay in Gale Crater on Mars by the MSL Curiosity rover (Vaniman et al., 2014). This is discussed further in a later section.

3.5. HRTEM and EFTEM imaging of the ovoid wall

The high-resolution transmission electron microscopy carried out in this study revealed the presence of several distinctive nanotextural features within the ovoid structure and assisted in identifying mineral phases present within the ovoid based on their inherent structural information (i.e., determined from SAED patterns). An electron transparent section was prepared by FIB milling (Fig. 5) in such a way that it provided a representative cross section through the entire thickness of the ovoid wall (the SEM image in Fig. 5b shows what remains of the ovoid after extracting this cross-sectional slice). The BSE image of the full FIB cross section prepared for transmission electron microscopy analysis in Fig. 5a was obtained by using backscattered electrons, so the brighter areas of highest intensity indicate greater scattering (due to higher average atomic number in that region), with darker areas indicating the presence of lighter elements. The bright, smooth-textured mineral phase present on the far left in Fig. 5a is clinopyroxene (Cpx), and the granular material on the far right in this image is a mixture of polishing powder debris. Immediately below the polishing debris material, the dark gray, smooth-textured material is araldite glue. Presumably, the volume that is now filled with araldite glue and polishing debris at the center of the ovoid structure was empty and hollow before sample preparation. Platinum (Pt) was deposited on the surface of the sample at the FIB milling stage to provide greater stability to the extracted cross section, and this Pt is visible on the right side of Fig. 5a (Pt1), as well as on the top and bottom edges of the slice (Pt2, Pt3). The ovoid wall region of interest therefore occurs between the pyroxene crystal on the left and the araldite/polishing debris/Pt1 on the right (Fig. 5a). The material in this cross section through the ovoid wall can be texturally separated into five distinct layers, labeled L1 through L5 (Fig. 5a). Zero-loss filtered energy-filtered transmission electron microscopy analysis (Fig. 14) revealed the thickness of the cross-sectional slice to be approximately constant and ∼100 nm for layers L1–L4; based on the uniform intensity observed in BSE SEM images for these four layers (e.g., Fig. 5a), we conclude that they are composed of material with constant average atomic weight.

Figures 11, 12, and 13 show a series of conventional bright-field TEM, HRTEM images, and SAED patterns obtained from the electron transparent slice through the ovoid wall (i.e., that shown previously in the BSE SEM images of Fig. 5), including one overview TEM image of the entire slice (Fig. 11a). This overview image (Fig. 11a) is actually a mosaic composed of 26 higher-resolution images. The squares marked on Fig. 11a with white dashed lines highlight the areas where the close-up images shown in Fig. 11b–11e were obtained. Similarly, the white dashed squares in Fig. 11b–11e demarcate the areas from which SAED patterns were acquired (L1/L2, L3, L4, and L5 in Fig. 11f–11i), as well as the close-up TEM image and its Fourier transform shown in Fig. 12. As shown in Figs. 11b and 12a, layer L1 contains large (∼200 nm) crystallites with large interplanar spacings in which the visible lattice planes are oriented almost perpendicular to the interface with clinopyroxene (see upper left in Fig. 11b). In contrast, HRTEM images of layer L2 show a highly disordered morphology (Figs. 11b and 12a), in which the visible crystalline regions are much smaller (≤10 nm), often appear curved and spherical in form, and are limited to only a few planes of crystalline material. Similar small domains with curved lattice structures have been documented previously in some terrestrial glasses and interpreted as evidence of the incipient formation of primitive clays (Tazaki et al., 1989) that might be nucleating around structural water present within the glass (Tazaki et al., 1992)—potentially analogous to the hydrous mesostasis glass described here. The SAED image of Fig. 11f includes information from a larger area at the interface between layers L1 and L2 and shows complete rings on a diffuse background. Higher spatial resolution analysis of the lattice fringe spacings from this region is possible by analyzing the Fourier transform (Fig. 12b) of the HRTEM image in Fig. 12a, which shows a region in layer L2 (area highlighted in Fig. 11b). The lattice spacings measured from the spots and small arc features in Fig. 12b are characteristic of phyllosilicate mineral phases and are superimposed on a diffuse background, suggesting that this region also contains a significant amount of amorphous material. The SAED pattern from region L3 (Fig. 11g) is similar to that from region L1–L2 (Fig. 11f), except that in the L3 pattern the diffraction rings are brighter in comparison to the amorphous background, suggesting that layer L3 contains a greater proportion of variably oriented crystalline material. This interpretation is also supported by the greater contrast and textural variability observed within the close-up bright field TEM image of that layer (Fig. 11c). The change in crystalline morphology and overall microtexture from region L2 to L3 is quite gradual, whereas the textural transition from L3 to L4 is considerably more abrupt (Figs. 11d and 13c, 13d). The SAED pattern determined from layer L4 (Fig. 11h) contains only very diffuse diffraction rings, which indicates that the L4 region is highly disordered and has a lower degree of crystallinity than layers L1–L3. The textural transition from L4 to L5 shown in Figs. 11e and 13d is also quite abrupt, with the L5 region exhibiting larger contrast and textural variations within the layer, which suggests the presence of larger crystallites. This interpretation is supported by the increased level of crystalline diffraction information shown in the inset SAED pattern (Fig. 11i) for layer L5, which attests to the higher degree of crystallinity exhibited by this layer.

OPEN IN VIEWER

FIG. 11.

Bright field TEM images of the FIB slice extracted from a perpendicular section through the ovoid wall. (a) Overview TEM image of the entire FIB slice. This image is a mosaic composed of several high-resolution images. Abbreviation: Cpx, clinopyroxene. (b–e) Close-up HRTEM images from (a), showing the four regions demarcated by the white squares in (a), corresponding to layers L1–L2, L3, L4, and L5. (f–i) SAED patterns obtained from within these same four regions, of which the corresponding selected area locations are demarcated as white squares within (b–e), and the corresponding lattice spacings are given in Table 3. Together, these data reveal the occurrence of several micron-scale texturally distinct layers within the ovoid wall cross section.

OPEN IN VIEWER

FIG. 12.

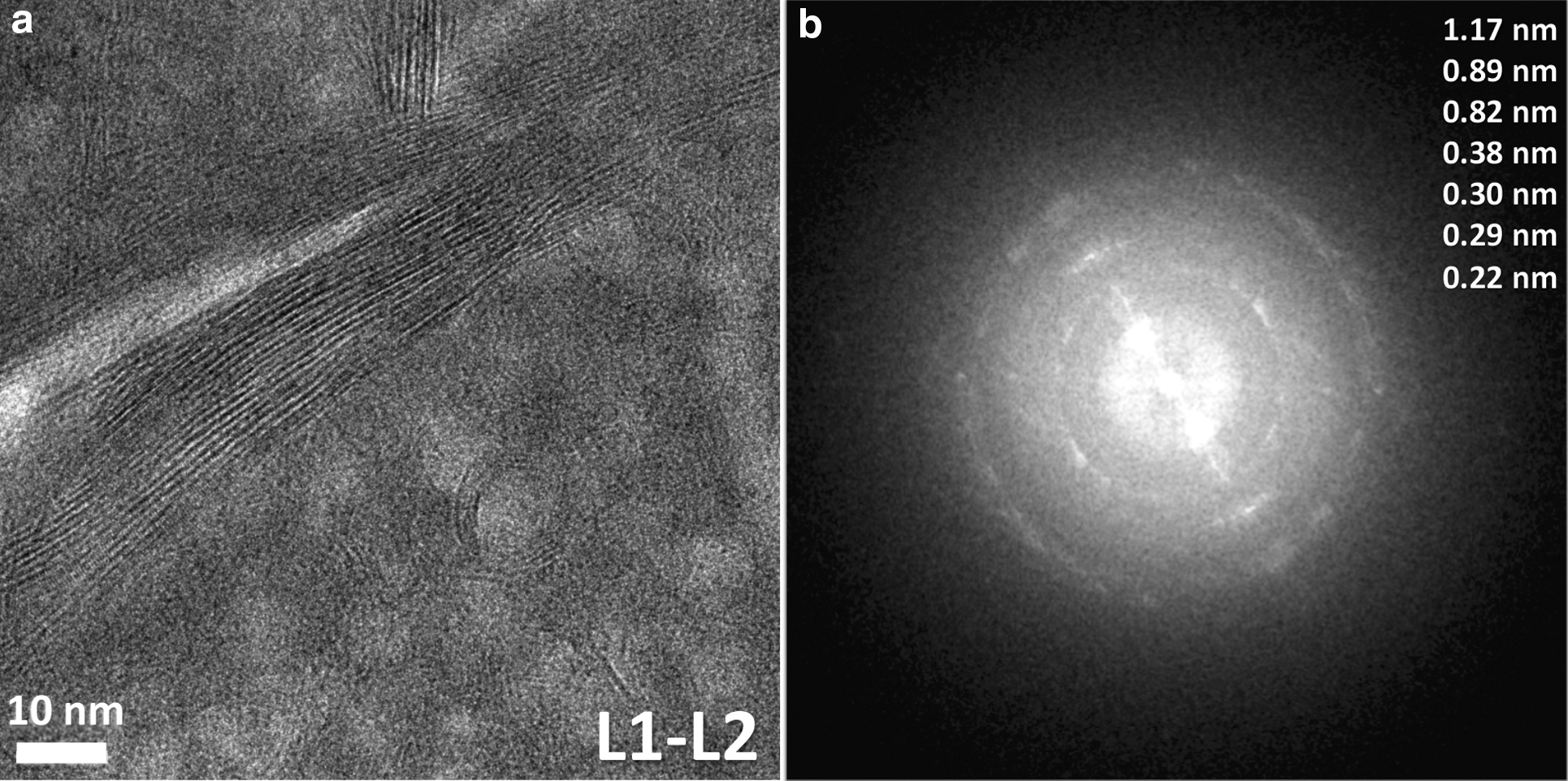

HRTEM image and Fourier transform pattern of an area at the interface between layers L1 and L2. (a) HRTEM image (taken from approximately the location indicated in Fig. 11b and demarcated as Fig. 12). Lattice planes are visible both in large crystallites and in the less ordered region where they are observed in highly curved nanocrystallites grown around spherical features of amorphous material ≤10 nm in diameter. (b) The corresponding Fourier transform pattern obtained for the area shown in (a), which indicates that the planes visible in the HRTEM image in (a) correspond to lattice planes with spacings of 1.17, 0.89, 0.82, 0.38, 0.30, 0.29, and 0.22 nm.

OPEN IN VIEWER

FIG. 13.

Close-up bright field TEM images from the TEM slice shown in Figs. 5 and 11, highlighting selected microtextural features at higher magnification. (a) TEM image of a representative region of layer L5. The arrows highlight the presence of low-contrast elongate fibrous material oriented perpendicular to the L4–L5 interface. (b) TEM image of a region of an infilled fracture (microveinlet) that contains spheroidal to amoeboid bubble-like voids (arrows). (c) TEM image of a representative region of layer L4 and of its interfaces with layers L3 and L5 (inset image shows a larger overview). The arrows indicate places where the crystallites of L3 appear to be rooted inside the material of layer L4. (d) TEM image of the interface between layers L4 and L5 close to the infilled fracture of (b).

A large fracture passes through the center of layers L1–L4 (Figs. 5a, 11a, and 13b, 13d), which has a width of ∼0.1 μm in the vicinity of the clinopyroxene grain against which the fracture is terminated but then broadens to a thickness of ∼1 μm as it passes through layers L2 and L3 (Figs. 5a and 13b). Close to layer L4, the fracture appears brighter in BSE SEM images (Fig. 5) and darker in the bright field TEM images (Fig. 11). This indicates that the whole length of the fracture may have been infilled with denser material, the appearance of which is similar to that of layer L5 (e.g., compare the fracture-fill and layer L5 material in Fig. 5e and in Fig. 11d). This suggests that the material in layer L5 may have formed later in time, after the fracture was formed, and consequently partially infilled the fracture during its formation. The presence of distinctly rounded, amoeboid-shaped void spaces within the fracture (Figs. 11c and 13b) suggests that possible gaseous material may also have partially infilled the fracture at some stage after the fracture was formed. A microveinlet of higher brightness is also visible at the top of the cross section, where it transects a portion of layer L3 (Fig. 5a). It seems likely that this is a second smaller fracture that is genetically associated with the larger fracture.

The lattice spacings measured from each of the SAED patterns determined for the four main layers (L1/L2, L3, L4, and L5) of the ovoid structure (Fig. 11f–11i) are summarized in Table 3. Layers L1/L2, L3, L4, and L5 all include some information from the same set of crystalline diffraction rings, which correspond to lattice spacings of 0.33, 0.25, 0.15, 0.13, and 0.10 nm, suggesting that all these layers are composed of the same crystalline phase. The fact that region L4 shows only the strongest of diffraction rings, which correspond to lattice spacings of 0.25 and 0.15 nm, suggests that this particular layer contains a more disordered variety of the same crystalline phase. At the interface between layers L1 and L2, larger crystal flakes of phyllosilicates are observed, and the Fourier transform pattern from an HRTEM image at this interface (Fig. 12a) reveals some even larger lattice spacings, measured at 0.82, 0.89, and 1.17 nm (Fig. 12b). The value of 1.17 nm corresponds to the basal lattice plane spacing for the larger phyllosilicate flake shown in Fig. 12a and is considered to be a representative analysis of a well-formed crystallite in the ovoid matrix. This spacing is consistent with layers L1–L4 being composed of a mineral having 2:1 phyllosilicate structure and is similar to the spacings measured from Lafayette smectites by Changela and Bridges (2011). For Nakhla, Gooding et al. (1991) reported lattice spacings that range between 1.1 and 1.3 nm, which they interpret as evidence of a smectite being present—an idea that was later advanced even further to specify the presence of an iron-rich smectite (Treiman and Gooding, 1991). However, it is also important to note at this point that other detailed investigations of Nakhla were not able to find any evidence of clay minerals being present (Changela and Bridges, 2011). Nevertheless, one recent Nakhla study identified Fe-Mg silicates that crystallized within cracks in olivine and show 1.10–1.25 nm basal layer spacing, which were interpreted as collapsed smectite (Lee et al., 2013).

Fringe spacings slightly larger or equal to 1 nm are diagnostic of smectite, which inside the vacuum chamber of the TEM can collapse down to 1 nm due to dehydration (Eggleton, 1984; Alt and Mata, 2000; Zhang et al., 2007; Changela and Bridges, 2011), making it difficult to distinguish this clay from other possible clay minerals such as illite (Eggleton, 1984; Ahn and Peacor, 1986). Oxidation reactions can consume interlayer water as well (Kohyama et al., 1973), which tends to cause the clay mineral to acquire a red-brown color—similar in nature to the reddish-orange to brownish color of the ovoid material (Fig. 1). Consequently, the variability observed in our measurements of lattice spacings at around 1 nm also suggests the presence of mixed-clay layers. Smectites with lattice spacings of about 1 nm have also been detected by the MSL Curiosity rover on Mars, indicating that little interlayer hydration is present (Vaniman et al., 2014), an observation that is relevant to the present study in that, by comparison, the smectite in Nakhla may also have been already partially dehydrated on Mars, such that it is not necessarily a collapse effect due to the high vacuum of the TEM instrument. Nevertheless, clays with larger basal spacings of ∼1.32 nm were also detected in that study and interpreted as evidence of mixed clays being present, such as smectites with partially chloritized interlayers (Vaniman et al., 2014).

The fibrous layer L5 also shows some additional lattice spacings, implying the presence of a second crystalline phase, which we suggest is most likely to be the aforementioned Fe-rich phase indicated by WDX chemical analyses of this layer (Table 2). These additional lattice spacings observed for layer L5 are 0.44, 0.21, 0.16, 0.14, 0.09, and 0.083 nm (Table 3); however, questions remain as to exactly what mineral or minerals they are attributed to. The lattice spacings of 0.16 and 0.14 nm overlap with those of the nontronite standard given by Changela and Bridges (2011), and these authors have also resolved in Lafayette an iron-rich phase of hexagonal symmetry with spacings of about 0.156 nm that is identified as ferrihydrite. Although this value coincides closely with one of the values measured by us in layer L5 (0.16 nm), it is difficult to state with much confidence that our iron-rich phase is unequivocally made up of ferrihydrite.

The results of EFTEM chemical mapping of the FIB slice are presented in Fig. 14. These elemental maps span an area that includes layers L3, L4, and L5, as well as a large portion of the infilled fracture where it passes through layers L3 and L4 (TEM image in Fig. 14). The thickness map of Fig. 14 shows that the FIB slice has a uniform thickness in this region except for in small areas where some material is vacant, such as within the fracture and in some areas between the fibrous materials in layer L5. Consequently, the majority of the nanoscale intensity variations in the elemental images are attributed to compositional changes. From the elemental maps shown in Fig. 14, it is evident that layers L3 and L4 are chemically indistinguishable from one another and that both layers contain similar and evenly distributed amounts of oxygen, magnesium, and silicon. These chemical traits are consistent with the idea that the entire zone comprising layers L1–L4 is composed of the same clay mineral phase and/or its disordered precursor material. Layer L5 seems to contain regions that are of similar composition to layers L3 and L4; however, this layer (L5) also exhibits localized regions where the material is substantially more iron- and manganese-rich, which might indicate the presence of a mixed iron-manganese hydroxide phase. Another feature that is readily apparent in the EFTEM data shown in Fig. 14 is the occurrence of carbonaceous regions within layer L5 and within the fracture passing through layers L3 and L4, although we cannot rule out the possibility that these carbonaceous areas represent carbon contamination, which is incorporated into porous regions during sample preparation. The large differences in energy losses of the mapped elements in Fig. 14 prevented quantitative chemical analysis by energy-filtered transmission electron microscopy; therefore, these chemical maps are only considered to depict qualitative differences in chemical composition.

OPEN IN VIEWER

FIG. 14.

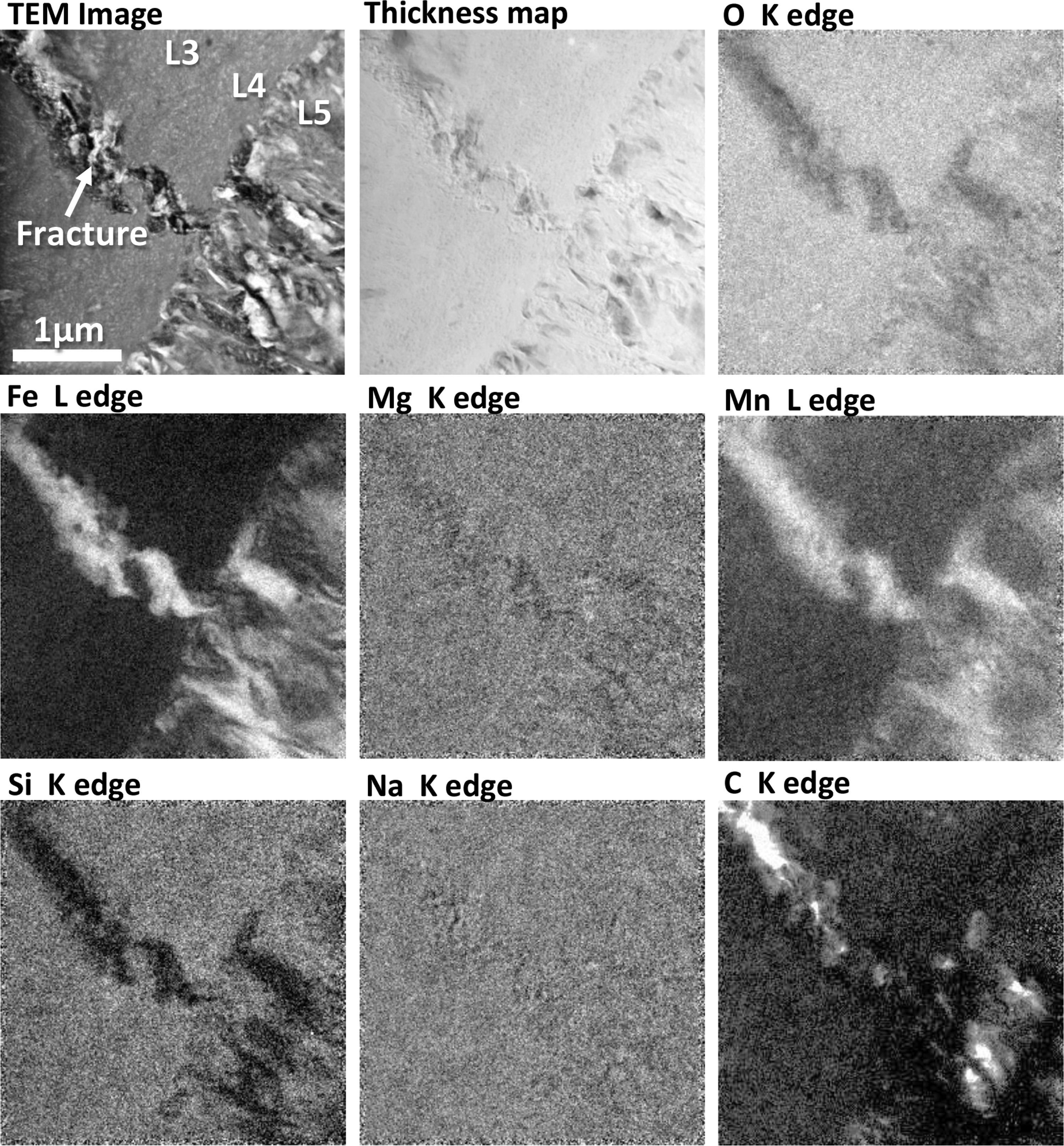

EFTEM elemental maps obtained for a region of the TEM slice shown in Figs. 5 and 11, at the interface between layers L3, L4, and L5 (fibrous layer). For reference, a close-up bright field TEM image (from Fig. 11) is also shown (top left), and the scale bar in that image applies to all other images in this figure (which represent different chemical maps of the same region). As shown by the Fe map, a fracture that passes through layers L1–L4 is infilled with iron-rich material. This material also appears to be Mn-rich and Mg-poor. In addition, both the infilled fracture and layer L5 appear, in places, to be rich in carbon. In the bright field TEM image, bright colors indicate areas where the average atomic number of the material being imaged is relatively low (or places where the sample is thinner), that is, allowing more electrons to pass through, while the darker shades indicate places where the average atomic number is relatively high. In the thickness map, regions with the same color intensity indicate areas where the FIB slice has the same specimen thickness. All the other images are element maps in which the brighter colors correlate with higher elemental concentrations.

In summary, the results of our TEM imaging and EFTEM chemical mapping study are consistent with layers L1–L4 comprising a uniform mixture of a crystalline clay mineral phase and amorphous material, which has an overall constant chemical composition but exhibits varied nanotextural domains between layers. Layer L5 appears to contain both a clay phase and a second nanocrystalline to amorphous phase enriched in iron and magnesium. The main fracture passing through layers L1–L4 is partially infilled with a material of similar microtexture and composition to L5, suggesting that the formation of this fracture occurred after the formation of layers L1–L4 of the ovoid wall but before the formation of layer L5.

3.6. AFM imaging of the ovoid structure

Atomic force microscope topographic imaging of the exposed surface of both the wall and the islands of the ovoid matrix revealed a nanograined structure that exhibits strong preferred orientation (Fig. 15). For comparison, we also performed an AFM scan of a nearby clinopyroxene surface (Fig. 15d), and in contrast with the ovoid wall (Fig. 15a, 15b) and island (Fig. 15c) regions, the clinopyroxene surface shows no evidence of an oriented fabric, although some polishing scratches are evident. The nanograins present on the exposed surface of the ovoid wall are approximately one order of magnitude larger than those present in the island regions. In both cases, however, it seems that the nanograins are composite clusters of several smaller particles. The nanograin clusters from within the wall area range in size from about 100 nm (Fig. 15a) to over 500 nm in their longest dimension (Fig. 15b), whereas those of the islands range from about 20 to 100 nm long. In contrast, such composite clusters of nanoparticles are not visible on the topographic map of the clinopyroxene surface.

OPEN IN VIEWER

FIG. 15.

Representative AFM topographic maps of the ovoid structure. (a, b) AFM topographic maps of the wall of the ovoid structure, (c) of one of the two islands inside the ovoid, and (d) of a clinopyroxene crystal, for comparison. The areas from which these images are taken are shown in Fig. 4a. The color scales at upper right in each of the four images indicate the absolute height dimensions (in nanometers) for that image.

4.1. Mineralogy and chemistry of the ovoid structure

Despite the textural heterogeneity of the ovoid structure (i.e., the occurrence of five distinct layers), the wall has an overall homogeneous chemical composition (e.g., appears even-toned in the BSE SEM map in Fig. 5a and the EFTEM elemental maps in Fig. 14), with the exception of layer L5, which is composed of more than one mineral phase, one of which is Fe- and Mn-rich (Fig. 14) and of higher average atomic number (appears brighter in the BSE SEM image in Fig. 5e). In comparison to some other previously documented secondary materials within Nakhla, the composition of the ovoid wall is quite similar, including for example the amorphous gel identified as the material infilling olivine fractures (diamond symbol 2 in Fig. 10) documented by Changela and Bridges (2011) or Lee et al. (2013) and the “rust” of Wentworth and Gooding (1990) and Gooding et al. (1991) (diamond symbol 3 in Fig. 10), and it is perhaps the most similar in composition to the phase described as “unknown” by Bunch and Reid (1975) and Reid and Bunch (1975) (diamond symbol 1 in Fig. 10) but notably quite different from their iddingsite. In contrast, the ovoid matrix is chemically very different from the so-called “brownies” (diamond symbol 4 in Fig. 10) of Papanastassiou and Wasserberg (1974), which, however, are very similar in composition to our unaltered amorphous mesostasis phase (rhyolitic glass; plus symbols in Fig. 10) that hosts the ovoid structure.

Nanoscale imaging revealed that layers L1 through L4 are texturally distinct from one another. They are composed of varying combinations of amorphous material, proto-crystalline material, and crystalline clay, but collectively (along with the ovoid islands) they seem to be stoichiometrically balanced to trioctahedral iron-rich saponitic clay (Table 2). This clay was most likely formed in situ (but possibly from chemical components sourced from the dissolution/hydrothermal alteration of more distal primary mineral phases), although it did not form as a result of shock-related processes because clay minerals are not known to form in this way (Allen et al., 1982). Finally, it is clear that the fibrous layer L5 is both texturally and chemically very distinct from the main ovoid matrix (L1–L4), and based on crosscutting relationships between these layers (and an infilled fracture), layer L5 was deposited chronologically last. Texturally (and at a larger scale), layer L5 is distinct in that it covers (or blankets) all the inner surfaces of the ovoid wall (Figs. 3b and 4d) as well as the periphery of the islands (Fig. 4b) and also passes through a fissure that crosscuts the ovoid wall (Fig. 3a, 3b) where it locally forms a thin veneer on the outer surface of the ovoid wall.

Time-of-flight secondary ion mass spectrometer ion imaging revealed heterogeneities in the distribution of light elements within the mesostasis region and the ovoid (Figs. 8 and 9). Clinopyroxene phenocrysts within Nakhla are known to contain a number of light lithophile elements (namely, Li, Be, and B), and as expected, they appear to have behaved incompatibly, increasing in concentration toward the rims of these crystals (Lentz et al., 2001). The TOF-SIMS ion maps produced in the present study of a mesostasis region within Nakhla (see images in Fig. 9) reveal the presence of Li in that region, and that this element is enriched within the clinopyroxene rims and in the matrix (i.e., clay) of the ovoid structure, relative to its concentration in the adjacent mesostasis glass. In contrast, the equivalent map for boron (Fig. 9) shows that, although this element is also preferentially enriched within the ovoid matrix relative to the mesostasis glass, it is almost entirely absent in the adjacent clinopyroxene rims. This observation is in accordance with quantitative measurements made by Spivak-Birndorf et al. (2008) that distinguished primary from secondary phases with respect to their B content, that is, the B-rich mesostasis iddingsite (∼4–7 ppm B) from the B-poor pyroxenes (<4 ppm B). Beryllium is not present within the ovoid structure, but it is present in very low concentrations within the mesostasis glass (data not shown) and in much higher concentrations within rhoenite (Fig. 8c). On Earth, B and Li concentrate preferentially within the low-temperature products of hydrothermal alteration (e.g., within the oceanic crust; Seyfried et al., 1984); therefore, by analogy, the presence of these elements in the Nakhla mesostasis region might imply the involvement of low-temperature hydrothermal fluids of a magmatic origin. In Nakhla, this is most likely true for B in particular, because its isotopic signature—both in secondary phases and in primary igneous minerals such as pyroxenes—is identical (Spivak-Birndorf et al., 2008). Beryllium is insoluble in water-rich fluids (Lentz et al., 2001, and references therein) and concentrates primarily within feldspars, micas, and clays, where it replaces Si⁴⁺ due to its similar ionic radius. The presence of Be in rhoenite, however, provides strong evidence that this element has a magmatic origin; therefore, the presence of Be in the amorphous mesostasis of Nakhla also suggests that at least a certain component of the mesostasis has a magmatic origin. This evidence is made more concrete by the additional detection of Rb, Sr, and Ba within the mesostasis (also determined here based on some new preliminary data obtained with high-mass resolution time-of-flight secondary ion mass spectrometry analyses: not shown). On the other hand, however, all these three elements are also known to have a strong affinity to seawater, as well as evaporitic saline waters (Vengosh et al., 1991).

From the evidence provided in this section, it is clear that the ovoid matrix material is quite different from its host amorphous mesostasis material. The amorphous, hydrous mesostasis, in which the ovoid structure is hosted, has a rhyolitic composition and therefore might be the vitrified fraction of a highly fractionated basaltic magma that may also have intermixed with surface fluids. This composition is very different from the composition of the matrix of the ovoid structure itself, and the chemical, mineralogical, and textural evidence presented in this study is thus interpreted to reflect multiple stages of formation for these contrasting materials in the mesostasis region within Nakhla.

4.2. Layered microstructures within the ovoid wall, islands, fissure, and the hollow volume

The ovoid structure is both visibly (Fig. 1) and chemically (e.g., Figs. 6 and 9) distinct from surrounding host phases and exhibits sharp boundaries with the adjacent clinopyroxene crystals, as well as sharp contacts with the amorphous mesostasis. At the submicron scale, HRTEM imaging revealed a distinctly multilayered internal structure to the ovoid wall that is defined by five subparallel layers (L1–L5) that exhibit significantly different nanotextures (Figs. 5a and 11a). These layers vary with respect to the shapes, sizes, and textures of the crystallites they contain, as well as the varying amounts of amorphous matrix present. Despite these microtextural differences, layers L1 to L4 are chemically homogeneous. Subsequent to the formation of all five layers of the ovoid structure, mechanical stress incurred during preparation of the thin section seems to have opened up small fractures in, and around, the ovoid structure, including some layer-parallel fractures resulting from differential movement along the weak interfaces present within or between layers (see white arrows in Fig. 3c), as well as crosscutting fractures that transect the ovoid wall (and its internal layering) at high angles (see fractures at right and at lower left in Fig. 3a). In addition, along the outer perimeter of the ovoid structure, a shrinkage gap seems to have formed at some point after the formation of the ovoid wall and occurs between it and the amorphous mesostasis glass. The gap is now infilled with granular material that appears to be polishing debris (see this infilled shrinkage gap in Fig. 3b, 3c).

Layer L4 seems to have a uniform thickness of about 0.8 μm and is texturally distinct from the other layers (Fig. 11a, 11d). Like layer L2, it seems to be composed primarily of disordered material; however, bright field TEM images and the SAED pattern for L4 indicate the presence of randomly oriented nanocrystallites (Figs. 11d, 11h, and 13c, 13d). Layer L4 is clearly more amorphous at the interface with layer L5, although it does exhibit more of an internal fabric (preferred orientation) that is parallel to the L4/L5 interface (Fig. 13c, 13d). Collectively, layers L1, L2, and L3 could be described as a single unit, based on the observation that the crystallites present in both layers L1 and L3 seem to extend at orthogonal angles into the middle layer L2 (i.e., are partially enveloped by L2 and/or progressively grade into it; Fig. 11b). Layer L1 is in direct contact with clinopyroxene and clearly contains several individual, large (∼100–300 nm long) crystallites that are oriented at a high angle to this contact (Figs. 5c, 11a, 11b, and 12a). Layer L3 is significantly more crystalline than the adjacent layers L2 and L4, and contains crystallites that at the contact with layer L4 often appear to be rooted inside it (arrows in Fig. 13c) but toward the L3 interior grade into a zone of more randomly oriented flaky crystallites, which toward layer L2 gradually become orthogonal to layering and partially extend outward into this more amorphous layer (L2). However, despite the more spotty and amorphous internal microtexture of layer L2, it also contains exceptionally small (≤10 nm), curved crystallites of phyllosilicates that appear to be bent (i.e., curved) around amorphous centers (Fig. 12a). These tiny crystallites are interpreted as proto-crystalline material, which may be hydrous. Collectively, these various microtextural observations between layers L1, L2, L3, and L4 are taken to indicate that they formed contemporaneously. It is not exactly clear, however, as to whether or not the growth of these layers was a space-filling phenomenon or an alteration process that may have modified or replaced a preexisting phase. Relevant here is that two round internal masses present within the hollow of the ovoid are also of the same composition as layers L1–L4 (namely, the islands in Figs. 2b and 4a; Table 2).

Layer L5 is chemically and texturally distinct from all other layers that define the ovoid wall. It exhibits a highly heterogeneous texture in BSE and HRTEM images (Figs. 5a, 5e, 11e, and 13a, 13d), which can be described as a mottled fibrous texture, containing patches of material that are very rich in iron (i.e., bright areas in the BSE image of Fig. 5a and the EFTEM Fe map of Fig. 14, and the dark areas in the bright field TEM images of Fig. 13a, 13d). Many of those iron-rich grains (which appear dark in Fig. 13a) are directly attached to layer L4 (e.g., see L4/L5 contact in Fig. 13a) and often exhibit a distinctive fibrous microtexture (see arrows in Fig. 13a) defined by oriented crystallites (Fe-rich clay?) of variable length that appear to have nucleated on the L4 contact in an orthogonal fashion, all of which indicates that L4 had already formed prior to the growth of layer L5.

In addition to diffraction circles, the SAED images for layer L5 also exhibit diffraction spots, indicating the presence of oriented crystallites. Iron-rich material similar in composition to the material of layer L5 now infills the fracture that cuts across layers L1 to L4 (Fig. 11a). This is demonstrated clearly by the distribution of iron in the EFTEM Fe map shown in Fig. 14, patterns that are also reflected in the Mn map of the same area. Similarly, and to add further support to the idea that the material of layer L5 is the last to have formed, is the observation that it also now occupies the opening of the symmetrical (hourglass-shaped) overprinted fissure that cuts across the ovoid wall (Fig. 3). Collectively, all the observations of layer L5 show that this ∼1–2 μm thick layer exhibits great continuity, forms a thin veneer that blankets virtually the entire inner surface of the ovoid wall (Figs. 2b and 3), passes through the overprinted fissure where it also coats a significant portion of the outer surface of the ovoid wall (Fig. 3), and has developed as a coating around the periphery of the islands in the interior of the ovoid (Figs. 2b and 4b) and possibly as an isolated rounded granule that measures ∼5 μm in diameter (Fig. 4c). From the available data, it is clear that layer L5 may have formed not only chronologically last but also through a distinctly different process or event than layers L1–L4. Although it is not definitely clear, layer L5 may have been precipitated directly from saturated fluids (e.g., during a drop in temperature or through evaporation), or alternatively, this layer may have formed due to the alteration of the previously existing ovoid matrix (layers L1–L4) during the late-stage influx of fluids with a different composition.

The interiors of the two rounded internal masses present within the hollow of the ovoid (namely, the islands in Figs. 2b and 4b) have the same chemical composition as layers L1–L4 of the ovoid wall (Table 2). This geochemical correlation, taken together with the observation that both the islands and the wall are covered with a thin veneer of layer L5, suggests that these two domains were formed concomitantly as a single structure during the same geological event. Further support for this idea comes from the results of AFM imaging, which revealed that both the ovoid wall and the islands exhibit similar nanograined surfaces that show a distinct oriented fabric (Fig. 15), although the grains of the islands are about one order of magnitude smaller than those of the wall.

To explain the intriguing features summarized above—the textural variability between the layers L1–L4 (despite their similar chemistry), the origin of the infilled fracture passing through these layers, the origin of layer L5, and the origin of the symmetrical (hourglass-shaped) overprinted fissure—a variety of scenarios can be invoked. Consequently, in the following section we evaluate several hypotheses surrounding the origin of this conspicuous ovoid structure within Nakhla.

4.3. Abiotic formation scenarios for the origin of the ovoid structure in Nakhla

Compelling evidence that the parent rock of Nakhla underwent a high-pressure and high-temperature event that caused highly localized and brief melting of some of its pyroxene rims is provided by their Al-rich composition. This is also supported by the discovery of the rhoenite crystal in Nakhla, which most likely represents a metastable phase that formed as a result of rapid cooling, similar to other known rhoenite occurrences in meteorites (Fuchs, 1971; Nazarov et al., 2000), as opposed to being a product of the breakdown of Kaersutite amphibole in Nakhla (Treiman, 1993). This geological event most likely occurred during a shock event associated with a bolide impact on Mars, which may have happened at 913±9 Ma, based on the timing of resetting of the ⁴⁰Ar/³⁹Ar isotopic system in Nakhla clinopyroxenes, as observed by Cassata et al. (2010). This shock event could have brecciated the parent rock of Nakhla, fractured its crystalline matrix, and possibly even resulted in the formation of the ovoid structure in Nakhla (i.e., as a vesicle during the quenching of its host mesostasis glass; see further discussion in Section 3.2.4.). A secondary effect of this bolide impact event might also have been to locally trigger a late hydrothermal system that would ultimately cause the first stage of alteration and/or mineral precipitation to take place. The fluids in this hydrothermal system may have migrated upward through the network of fractures in the Nakhla parent rock, where they could have become intermixed with the saline fluids present within the melted permafrost layer of the overlying sediments. This mixing of high-temperature magmatic fluids with comparatively cold saline permafrost waters would have resulted in a very rapid cooling of the hydrothermal system and may also be the reason for the low-temperature alteration of the nakhlites. The release of dissolved CO₂ during this process would also act to change the overall conditions of the hydrothermal system to increasingly oxidizing. This is evident from the extensive presence of secondary minerals (i.e., serpentine, hematite, and siderite) derived from the alteration of the primary igneous minerals in Nakhla, observed within fractures in olivine phenocrysts and within the mesostasis. Variable degrees of drainage of the system would reduce the water/rock ratio in certain places and locally initiate evaporation processes and the associated deposition of late-stage evaporitic minerals such as sulfates and halides.

One recently proposed model scenario that also invokes mixing of fluid reservoirs resulting in the immediate deposition of carbonates was presented by Changela and Bridges (2011). Based on the precise sequence of alteration and mineral-formation events recorded within the nakhlites, these authors suggested that Nakhla was positioned at very shallow depths in the martian crust (i.e., about 10 m below the surface), where hydrothermal fluids were significantly less abundant (i.e., a low water/rock ratio prevailed) but nevertheless resulted in the deposition of a Fe-Mg-Al-rich hydrous silicate gel and siderite, accompanied by a very small amount of smectite/serpentine formation. Modeling studies of the nakhlites carried out by Bridges and Schwenzer (2012) also agree with the above scenario and go so far as to specify a temperature of about 100°C and an alkaline environment for this ancient hydrothermal system. The results of the present study of Nakhla, however, suggest that a larger range of temperatures could have been responsible for this hydrothermal alteration, albeit with temperature varying widely between different localities within the parent rock—and with different mixing ratios between the magmatic and saline (permafrost) fluid components. Numerical modeling results of impact-generated hydrothermal systems show that they can actually span a wide range of temperatures, may last a very long time, and can also produce a wide variety of secondary minerals (Abramov and Kring, 2005). Here, we propose a new model scenario that will serve as a basis for further discussion, which is characterized by the following sequence of geological events:

(i) An intense shock event took place in association with a bolide impact on Mars, which induced high pressures and temperatures causing partial melting of some of the rims of pyroxene grains in the Nakhla parent rock, potentially along with some of the other interstitial matter (i.e., the original felsic mesostasis). Immediately upon melting, the clinopyroxene rims recrystallized, absorbing additional Al from the mesostasis, and rhoenite formed, absorbing most of the Be. During the shock event, the parent rock of Nakhla became brecciated to variable degrees, and a hydrothermal system of magmatic origin was initiated, which eventually is mixed with permafrost fluids, and circulated throughout the newly formed system of fractures in the rock. This shock event might have locally remobilized the rhyolitic mesostasis into a glass and led to the formation of the ovoid by one of the following mechanisms: (a) trapping of a gas-filled vesicle within the glass and/or (b) at some point subsequent to the quenching of this glass, a system of perlitic concentric fractures (Giorgetti et al., 2006; Monecke et al., 2007) formed within it. Mixing of the mesostasis with permafrost fluids was due to the likely presence of H₂O in the melt (constrained by the mapping of OH^- ions in the mesostasis glass; see Fig. 9 and discussion in Section 3.3), which can drastically lower the glass transition temperatures (i.e., by a few hundred degrees Celsius, with only a few weight percent H₂O; see Table 2 in Giordano et al., 2005).

Based on the above model scenario, three possible abiotic scenarios arise that explain in more detail the formation of the ovoid structure in Nakhla. These three scenarios are (1) the complete replacement of a preexisting mineral through fluid alteration (with or without dissolution) or the precipitation (i.e., space filling) of the void left behind by a previously dissolved mineral; (2) the infilling of a preexisting vesicle with secondary clay minerals (to form an amygdule); and (3) the concentric (i.e., outward) hydrothermal alteration of glass surrounding a preexisting vesicle (i.e., in a process similar to palagonitization of basaltic glass) that would have been linked to the hydrothermal system through connecting fractures. Schematic diagrams outlining these three proposed model scenarios for the formation of the conspicuous ovoid structure in Nakhla are presented in Fig. 16.

OPEN IN VIEWER

FIG. 16.

Schematic diagrams illustrating three possible abiotic scenarios for the origin of the ovoid structure in Nakhla. (a) Formation of the ovoid structure by the complete alteration (replacement) of a preexisting phase (such as olivine or siderite, or alternatively, a set of perlitic fractures in the glass), followed by partial corrosion of the ovoid (forming hollows) and fracturing. (b) Formation of the ovoid structure by precipitation directly from solution, leading to the complete infilling of a preexisting vesicular or tubular hollow structure. (c) Formation of the ovoid structure through the progressive outward alteration of the glass surrounding a preexisting vesicle, by mechanisms similar to the palagonitization of basaltic glass.

4.4. Could biological processes have formed the ovoid structure in Nakhla?

One reason why we carried out this investigation into the origin of the ovoid structure in Nakhla is because the conspicuous rounded shape of the structure is somewhat reminiscent of a terrestrial cellular microorganism (Figs. 1 and 2). Despite the conspicuous shape and structure, the ovoid is very large, and martian microorganisms are expected to be chemotrophic and therefore probably very small (<1 μm) in size (Westall et al., 2011). In the previous sections, we proposed three plausible abiotic scenarios for the origin of the ovoid structure. However, similar to Earth, early Mars would also have received all the required prebiotic molecules (i.e., the building blocks of life), from which, in the presence of the right minerals, water, energy from chemical reactions, environmental conditions, and time, life could have emerged (Westall et al., 2013). Nakhla has already yielded abundant evidence that some of these key conditions exist (or have existed) on Mars and therefore provides evidence for a protected subsurface environment on Mars that could potentially preserve evidence of microbial life. Consequently, in this section we consider the possibility that fractures and cavities in the Nakhla parent rock might once have hosted microbial life, especially given that, on Earth, a variety of redox reactions that take place in such environments are often mediated by microorganisms (Fisk and Giovannoni, 1999; Varnes et al., 2003). The potential that a microbial ecosystem may have developed in the martian subsurface seems increasingly plausible, and recent studies have identified some localities on Mars (e.g., McLaughlin Crater) that might preserve evidence of a deep biosphere associated with subsurface aquifers (Michalski et al., 2013). This potential is even higher after the recent discovery by the MSL Curiosity rover of an ancient lacustrine environment on Mars (at Yellowknife Bay, Gale Crater) that could represent an ancient habitable environment for chemolithoautotrophic microorganisms (Grotzinger et al., 2013). Parallel studies on past habitability and the search for traces of ancient life on Mars performed on analog martian (Noachian) environments (i.e., shallow water settings) show that volcanic sediments from the Early Archean Earth host, on the surfaces of mineral particles or in pore waters, very small (<1 μm) silicified chemotrophic microorganisms, both in the form of colonies and biofilms (Westall et al., 2011).

From the evidence presented earlier, it is clear that at some point in the history of Nakhla an impact event brecciated the parent rock and initiated active hydrothermal fluids that operated along fractures created in the rock. These fractures may have provided suitable environments for supporting microbial life, as they represent an ecological niche that is situated away from the relatively harsh surface conditions on Mars, and this has been documented for several terrestrial analogs of potentially habitable martian subsurface environments (Hofmann and Farmer, 2000; Boston et al., 2001; Hofmann, 2008, and references therein). Similarly, examples of gas cavities or fractures that host microorganisms have also been documented in modern-day environments where hydrothermal fluids are active, such as in altered basaltic glass–bearing hyaloclastites in Iceland (Geptner et al., 2005). Relevant to our study is the case of fossilized microorganisms—most likely interpreted to be colonies of fungi—that have been found in association with minerals that are grown in deep fractures in the rock that precipitated from hydrothermal systems associated with impact structures, such as the 458 Ma Lockne impact structure, Sweden (Ivarsson et al., 2013). In this case, the bacteria act as substrates onto which clay minerals and iron oxyhydroxides form, some of which resemble the ovoid structure described here, both in terms of morphology and mineralogical makeup, demonstrating that hydrothermal fossilization of microorganisms is possible in these environments (Geptner et al., 2005). Moreover, redox reactions often take place inside such tiny volumes (Geptner et al., 2005), which, along with the occurrence of certain types of mineral surfaces, might provide the organisms with the required energy for their metabolism (Fisk and Giovannoni, 1999; Varnes et al., 2003).

All the required chemicals necessary for autotrophic or chemolithotrophic microorganisms are available on Mars (Fisk and Giovannoni, 1999), such as H₂, CO, CO₂, CH₄, Fe²⁺, Mn²⁺, H₂S, and S—chemicals likely to have also been available in the vicinity of the ovoid. It is also possible that the biologically mediated reduction of FeS by H₂ that could potentially occur in this type of subsurface environment (i.e., FeS+H₂S→FeS₂+H₂; Fisk and Giovannoni, 1999) seems to parallel the geochemical conversion of pyrrhotite to marcasite that we observed here. Inorganic compounds such as H₂O, SO₂, CO₂, and O₂, as well as several simple organic compounds, have now been detected in the Rocknest eolian deposits (upon heating) by instruments on the MSL Curiosity rover (Leshin et al., 2013), increasing the likelihood that some other biologically important chemicals may also exist and be available for transport in hydrothermal fluids in the martian subsurface. Potassium is a common element in minerals, and it cannot be considered a biosignature; however, if other strong evidence for biological activity exists, a slight increase in potassium concentration at the glass-alteration interface in volcanic glasses (apparently affected by microbial alteration) can indicate the breakdown of microbial cells (Torsvik et al., 1998). In a similar fashion, K enrichment can also be a geochemical signature of biologically mediated illitization processes, which can occur at very low temperatures in comparison with abiotic illitization (Kim et al., 2004). Likewise, the detection of carbon in the ovoid structure (i.e., EFTEM map for C in Fig. 14) cannot be used to confirm the presence of indigenous carbon or identify any organic material. However, other studies of Nakhla have confirmed the presence of pre-terrestrial organic matter (Sephton et al., 2002) and determined that only a small part of it is attributed to terrestrial contamination (Glavin et al., 1999; Jull et al., 2000). In addition, reduced carbon has also been found in association with secondary phases within Nakhla (Gibson et al., 2006), including a possible kerogen-like material inside iddingsite (McKay et al., 2011).

Finally, because a process similar to palagonitization may have resulted in the formation of the ovoid in Nakhla (i.e., abiotic scenario 3; Fig. 16c), it is important to highlight that, in submarine glasses on Earth, there is increasing evidence that bacterial communities may actually cause the alteration of basaltic glasses (Thorseth et al., 1995; Torsvik et al., 1998; Cockell et al., 2009; Cavalazzi et al., 2011). Therefore, if subsurface palagonitization of volcanic glass is taking place on Mars, it will be important to fully understand this process, given that on Earth it is a process commonly associated with microbial activity (Thorseth et al., 1995; Torsvik et al., 1998; Cockell et al., 2009). Similarly, microbial activity is also considered to play an important role in the alteration of Si-rich minerals and glasses (Brehm et al., 2005; Herrera et al., 2008).
