Atmospheric Constraints on the Surface UV Environment of Mars at 3.9 Ga Relevant to Prebiotic Chemistry

Abstract

Recent findings suggest that Mars may have been a clement environment for the emergence of life and may even have compared favorably to Earth in this regard. These findings have revived interest in the hypothesis that prebiotically important molecules or even nascent life may have formed on Mars and been transferred to Earth. UV light plays a key role in prebiotic chemistry. Characterizing the early martian surface UV environment is key to understanding how Mars compares to Earth as a venue for prebiotic chemistry.

Here, we present two-stream, multilayer calculations of the UV surface radiance on Mars at 3.9 Ga to constrain the surface UV environment as a function of atmospheric state. We explore a wide range of atmospheric pressures, temperatures, and compositions that correspond to the diversity of martian atmospheric states consistent with available constraints. We include the effects of clouds and dust. We calculate dose rates to quantify the effect of different atmospheric states on UV-sensitive prebiotic chemistry.

We find that, for normative clear-sky CO₂-H₂O atmospheres, the UV environment on young Mars is comparable to young Earth. This similarity is robust to moderate cloud cover; thick clouds (τ _cloud ≥ 100) are required to significantly affect the martian UV environment, because cloud absorption is degenerate with atmospheric CO₂. On the other hand, absorption from SO₂, H₂S, and dust is nondegenerate with CO₂, meaning that, if these constituents build up to significant levels, surface UV fluence can be suppressed. These absorbers have spectrally variable absorption, meaning that their presence affects prebiotic pathways in different ways. In particular, high SO₂ environments may admit UV fluence that favors pathways conducive to abiogenesis over pathways unfavorable to it. However, better measurements of the spectral quantum yields of these pathways are required to evaluate this hypothesis definitively. Key Words: Radiative transfer—Origin of life—Mars—UV radiation—Prebiotic chemistry. Astrobiology 17, 687–708.

1. Introduction

Recent findings suggest that young Mars may have been a clement environment for the emergence of life. Analysis of Curiosity imaging of sedimentary rock strata deposited 3.2–3.6 Ga (Grotzinger et al., 2015) suggests individual lakes were stable on ancient Mars for 100 to 10,000 years, with fluvial features laid down over 10,000 to 10 million years assuming formation rates that correspond to modern Earth. Similarly, Curiosity measurements of olivine and magnetite at Yellowknife Crater are consistent with aqueous conditions at near-neutral pH for thousands to hundreds of thousands of years in the Noachian, with an oxidant supply that could be an energy source (Bristow et al., 2015). In general, the geological evidence is compelling that liquid water, a requirement for life as we know it, was present on Mars at least transiently in the Noachian (Wordsworth, 2016).

Young Mars may also have been a favorable environment for prebiotic chemistry (chemistry relevant to the origin of life). Meteorite analysis has detected boron in martian clays, which is important for abiogenesis since borate minerals can stabilize ribose and catalyze other prebiotic chemistry reactions (see Stephenson et al., 2013, and sources therein). Mars may also have had a greater availability of prebiotically important phosphate than was the case for Earth (Adcock et al., 2013). Climate models suggest that liquid water was transient on Mars (Wordsworth et al., 2013), which suggests the existence of wet/dry cycles. Such cycles are useful for prebiotic chemistry; aqueous eras are beneficial for the formation of biotic monomers, while dry eras tend to concentrate feedstock molecules and aid monomer polymerization (Benner and Kim, 2015), all of which is relevant to the formation of nucleotides and amino acids (Patel et al., 2015). Finally, the putative dryness of Mars and the potential acidity of its early aqueous environment owing to dissolved carbonic acid from a CO₂-dominated atmosphere suggest that molybdate, which is suggested to catalyze formation of prebiotically important sugars such as ribose, may have been stable on Mars (Benner et al., 2010; Benner and Kim, 2015). Hence, there is growing interest in the possibility that prebiotically important molecules may have been produced on Mars (Benner, 2013), and in the hypothesis that life may have originated on Mars and been seeded to Earth (Kirschvink and Weiss, 2002; Gollihar et al., 2014; Benner and Kim, 2015).

Ultraviolet light plays a key role in prebiotic chemistry. UV photons can dissociate molecular bonds, produce ionic species, and excite molecules. These properties mean that UV light can stress prebiotic molecules (Sagan, 1973) but can also power synthetic prebiotic photochemistry. UV light has been invoked in prebiotic chemistry as diverse as the origin of chirality (Rosenberg et al., 2008), the synthesis of amino acid precursors (Sarker et al., 2013), and the polymerization of RNA (Mulkidjanian et al., 2003).

The last decade has seen breakthroughs in long-standing problems in prebiotic chemistry such as the discovery of plausible mechanisms for the abiotic formation of activated pyrimidine ribonucleotides (Powner et al., 2009), the synthesis of short (2- and 3-carbon) sugars (Ritson and Sutherland, 2012), and a reaction network generating precursors for a range of prebiotically important molecules including lipids, amino acids, and ribonucleotides (Patel et al., 2015). These pathways all require UV light to function. In experiments, line sources such as low-pressure mercury lamps with monochromatic 254 nm emission are often used to simulate the incident UV radiation. However, prebiotic UV radiance in CO₂-dominated terrestrial-type atmospheres should instead be characterized by access to broadband fluence (Ranjan and Sasselov, 2017). The difference can have a significant impact on prebiotic chemistry (Ranjan and Sasselov, 2016), and there is a growing awareness in the prebiotic community of the importance of characterizing the wavelength dependence of proposed prebiotic pathways and/or using broadband sources in simulations (Rapf and Vaida, 2016). Consequently, it is important to constrain the UV environment on the surface of Mars at epochs relevant to potential prebiotic chemistry on a spectral (wavelength-dependent) basis.

In this work, we used a two-stream multilayer radiative transfer model to constrain the surface UV environment on young Mars (3.9 Ga). We calculated the surface radiance as a function of solar zenith angle (SZA), surface albedo (A), and atmospheric composition. Our model can calculate absorption and scattering due to eight gaseous species (CO₂, H₂O, CH₄, SO₂, H₂S, O₂, and O₃) and three particulate species (H₂O ice, CO₂ ice, and martian dust). Earlier analyses have focused on clear-sky “case studies” for the atmospheric composition; we instead explore the full range of martian atmospheric states consistent with available geological data and climate/photochemical modeling for the martian atmosphere. We convolve the calculated surface radiance spectra against action spectra that correspond to two different simple photochemical reactions (one useful to prebiotic chemistry and one detrimental) that may have been important during the era of abiogenesis, and integrate the result to compute the biologically effective dose rate and estimate the impact of these parameters on prebiotic chemistry.

In Section 2, we discuss previous work on this topic. In Section 3, we describe our radiative transfer model and its inputs and assumptions. Section 4 presents the surface radiances calculated from our model as a function of martian atmospheric state, and in Section 5 we discusses the implications for prebiotic chemistry. Section 6 summarizes our findings.

2. Background

Recognizing the importance of UV light to life (though mostly in the context of a stressor), previous workers have placed constraints on the primitive martian surface UV environment. In this section, we present a review of previous work on this topic and discuss how our work differs from theirs.

Cockell (2000) calculated the martian surface flux at 3.5 Ga assuming solar input of 0.75× modern and an atmosphere composed of 1 bar CO₂ and 0.1 bar N₂. He computed his radiative transfer in a cloud-free atmosphere using a monolayer two-stream approximation with Delta-Eddington closure. He ignored water absorption, but a dust optical depth of 0.1 was assumed, as is a Lambertian surface with surface albedo A = 0.1. Cockell (2000) reported the total irradiance as a function of solar time (equator at equinox) as well as the biologically weighted¹ irradiance for DNA inactivation and photosystem damage, but not the spectral irradiance (for the early Mars case). He found the DNA inactivation-weighted irradiance to be comparable for his models of Early Mars and Early Earth, leading him to suggest that, from a UV perspective, the two worlds were comparably habitable.

Rontó et al. (2003) calculated the martian surface flux at 3.5 Ga from 200 to 400 nm. They assumed a 1 bar CO₂ atmosphere overlying volatilizable surface H₂O and ran it through the PHOEBE photochemical model to generate atmospheric profiles for the other molecules that would be generated. They found that a significant population of spectrally absorbing O₂, O₃, and NO₂ would be generated, including an ozone shield comparable to that of modern Earth. They evaluated radiative transfer for both a pure CO₂ atmosphere and an atmosphere with the trace species calculated in their photochemical model. Their UV radiative transfer models assume pure absorption and ignore scattering. In this formulation, Rontó et al. (2003) calculated Rayleigh scattering cross sections but treated them as absorption cross sections. This approach strongly overestimates attenuation at scattering wavelengths. It is consequently unsurprising that Rontó et al. (2003) reported strong attenuation of surface UV fluence for both model atmosphere cases. In the full photochemical model case, fluence shortward of 290 nm is completely removed, due to the buildup of an ozone layer from CO₂ photolysis. However, Segura et al. (2007) noted that this photochemical model neglects a supply of reducing gases to the atmosphere due to volcanism and sinks of oxic gases related to processes that involve rainout; including either of these effects prevents the formation of an ozone layer. Geological evidence (e.g., the Tharsis plateau) indicates that young Mars had significant volcanism, which would have prevented the formation of an ozone layer of the type calculated by Rontó et al. (2003).

Cnossen et al. (2007) calculated the martian surface flux from ∼3.5 to 4 Ga assuming a 5 bar CO₂, 0.8 bar N₂ clear-sky atmosphere. They used shortwave observations of the solar analog κ¹ ceti combined with a scaled solar spectrum at longer wavelengths as their top-of-atmosphere (TOA) solar input. To calculate radiative transfer, they partitioned the atmosphere into 40 layers. They computed absorption using the Beer-Lambert law. To account for scattering, they computed the flux scattered in each layer, assumed half of it proceeds downward and half of it proceeds upward, and iterated this process to the surface. This approach implicitly neglects multiple scattering and assumes a surface albedo of 0 and, hence, tends to overestimate atmospheric attenuation of incoming radiation. Hence, Cnossen et al. (2007) reported broadband suppression of the TOA flux by multiple orders of magnitude.

Our work builds on these previous efforts. Like Cockell (2000), Rontó et al. (2003), and Cnossen et al. (2007), we consider the effects of a denser CO₂ atmosphere; however, we consider a broader range of surface atmospheric pressures permitted by available constraints, ranging from 2 × 10⁻⁵ to 2 bar. We build on the Cockell (2000) monolayer two-stream approach to radiative transfer by using a multiple-layer two-stream model, which consequently accounts for the effects of multiple scattering. Such a treatment is essential because of the unique radiative transfer regime unveiled in thick anoxic atmospheres (e.g., multibar CO₂ atmospheres) at UV wavelengths, characterized by the atmosphere being simultaneously optically thick and scattering-dominated. In this regime, multiple-scattering dominates, and it is critical to account for its effects in order to compute surface radiation environments. As a corollary, the radiative transfer treatments of Rontó et al. (2003) and Cnossen et al. (2007) are not valid in this regime².

In addition to varying levels of CO₂, our work also explores the impact of other potential atmospheric constituents on the surface UV environment. In particular, we focus on the effect of enhanced concentrations of volcanogenic gases (e.g., SO₂, H₂S), which may have been present at elevated levels on early Mars (Halevy et al., 2007; Halevy and Head, 2014) and, if present, could have had a dramatic effect on the surface fluence (Ranjan and Sasselov, 2017). We also explore the radiative impact of varying levels of dust and CO₂ and H₂O clouds in the martian atmosphere, which may have been abundant (Wordsworth et al., 2013; Halevy and Head, 2014). Finally, previous workers reported the surface flux. However, as pointed out by other workers, while the flux is the relevant quantity when computing energy deposition, when computing molecular reaction rates the spherically integrated intensity, or actinic flux, is the more relevant quantity (Madronich, 1987; Kylling et al., 1995). For a particle lying at the planetary surface, fluence below the horizon is blocked by the surface. Therefore, we report instead the integral of the intensity field at the planetary surface over the hemisphere defined by elevations > 0 (i.e., that part of the sky not blocked by the planetary surface). We term this quantity the surface radiance. For more details, see Ranjan and Sasselov (2017).

3. Methods

In this section, we describe the methods used to calculate the surface UV environment of early Mars. All software associated with this project is available for validation and extension at https://github.com/sukritranjan/ranjanwordsworthsasselov2016.

3.1. Radiative transfer model

We use a multilayer, two-stream approximation to compute the 1-D radiative transfer of UV light through the early martian atmosphere. Our code is based on the radiative transfer model of Ranjan and Sasselov (2017). In brief, we follow the two-stream treatment of Toon et al. (1989), and we use Gaussian (single) quadrature to connect the diffuse intensity to the diffuse flux, since Toon et al. (1989) found Gaussian quadrature closure to be more reliable than Eddington or hemispheric mean closure at short (solar) wavelengths. We include absorption and scattering due to N₂, CO₂, H₂O, CH₄, O₂, O₃, SO₂, and H₂S. For reasons of numerical stability, we assign a ceiling on the per-layer single-scattering albedo ω ₀ of 1–10⁻¹². Ranjan and Sasselov (2017) included thermal emission from the atmosphere and surface to enable application of our code to situations where planetary UV emission might be important. Early Mars is not such a case, so here we omit these features.

Our model requires the user to specify the partition of the atmosphere into homogeneous layers and provide the temperature, pressure, and composition (gaseous molar concentrations) as a function of altitude. Section 3.2 describes our calculation of these quantities. Our model also requires the user to specify the wavelength bins over which the radiative transfer is to be computed; all spectral parameters are integrated over these wavelength bins by using linear interpolation in conjunction with numerical quadrature. The user also must specify the SZA and albedo. The albedo may be specified as either a fixed value (e.g., Rugheimer et al., 2015) or as a wavelength- and SZA-dependent user-determined mix of the albedos corresponding to different terrestrial physical surface media (new snow, old snow, desert, tundra, ocean).

We take the TOA flux to be the solar flux at 3.9 Ga, computed at 0.1 nm resolution from the model of Claire et al. (2012) and scaled to the martian semimajor axis of 1.524 AU. We choose 3.9 Ga for the prebiotically relevant era due to the following: (1) evidence for at least transient liquid water on Mars around this time (Bristow et al., 2015; Grotzinger et al., 2015; Wordsworth, 2016); (2) this postdates the potentially sterilizing Late Heavy Bombardment (Maher and Stevenson, 1988; Sleep et al., 1989); and (3) this predates the bulk of the evidence for the earliest terrestrial life (see Ranjan and Sasselov, 2016, and sources therein). If hypothesizing that terrestrial abiogenesis was aided by transfer of prebiotically relevant compounds from Mars (Benner, 2013; Gollihar et al., 2014; Benner and Kim, 2015), it would follow that the synthesis of these molecules and their transfer would have occurred concomitantly with the origin of life on Earth. We note that, unlike the XUV, solar output varies only modestly (within a factor of 2) from 3.5–4.1 Ga in the >180 nm wavelength range unshielded by atmospheric CO₂ or H₂O. Therefore, our results are insensitive to the precise choice of epoch for abiogenesis.

Ranjan and Sasselov (2017) did not include scattering and absorption due to atmospheric particulates. However, clouds were suggested to play a major role in the martian paleoclimate (Forget and Pierrehumbert, 1997; Colaprete and Toon, 2003; Wordsworth et al., 2013). Therefore, we have updated our model to allow the user to emplace CO₂ and H₂O cloud decks of user-specified optical depth (at 500 nm) in the atmosphere. The cloud decks are assumed to uniformly span the atmospheric layers into which they are emplaced. In Section 3.3, we discuss the calculation of the particulate optical parameters (per-particle cross section σ, asymmetry parameter g, and ω ₀). We use delta-scaling with Henyey-Greenstein closure (Joseph et al., 1976) to correct for the effects of highly forward-peaked particulate scattering phase functions.

The fundamental output of our code is the surface radiance as a function of wavelength. The surface radiance is the integral of the intensity field at the planetary surface over the unit hemisphere defined by elevations greater than zero, that is, the intensity field integrated over all parts of the sky that are not blocked by the planetary surface. As Ranjan and Sasselov (2017) purported, this is the relevant quantity for calculating reaction rates of molecules at planetary surfaces (as compared to the actinic fluxes for molecules suspended in the atmosphere, see Madronich, 1987). In the two-stream formalism, this quantity is \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{I_{{ \rm{surf}}}} = {{F_N^ \downarrow } \mathord{ \left/ { \vphantom {{F_N^ \downarrow } {{ \mu _1} + {{F_N^{{ \rm{dir}}}} \mathord{ \left/ { \vphantom {{F_N^{{ \rm{dir}}}} {{ \mu _0}}}} \right. \kern - \nulldelimiterspace} {{ \mu _0}}}}}} \right. \kern \nulldelimiterspace} {{ \mu _1} + {{F_N^{{ \rm{dir}}}} \mathord{ \left/ { \vphantom {{F_N^{{ \rm{dir}}}} {{ \mu _0}}}} \right. \kern \nulldelimiterspace} {{ \mu _0}}}}} \end{align*} \end{document}

where \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$F_N^ \downarrow$$ \end{document} is the downward diffuse flux at the planetary surface, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$F_N^{{ \rm{dir}}}$$ \end{document} is the direct flux at the planetary surface, and μ ₀ = cos(SZA) is the cosine of the solar zenith angle. In Gaussian quadrature for the n = 1 (two-stream) case, μ ₁ = \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${1 \mathord{ \left/ { \vphantom {1 { \sqrt 3 }}} \right. \kern \nulldelimiterspace} { \sqrt 3 }}$$ \end{document} (Toon et al., 1989); it can be interpreted as the effective zenith angle for the diffuse flux.

3.2. Atmospheric profile

We assume a CO₂-dominated martian atmosphere at 3.9 Ga. We take the atmosphere to be fully saturated with H₂O. Typical calculations of Noachian climate call for steady- state local surface temperatures of T ₀ ≲ 273 K across the planetary surface, and more typically T ₀ ∼ 210–250 K (Forget et al., 2013; Wordsworth et al., 2013). Both 1-D and 3-D calculations of Noachian climate produce global mean surface temperatures of 240 K or less (Forget et al., 2013; Wordsworth et al., 2013; Ramirez et al., 2014). At such cold temperatures, the H₂O saturation pressure is very low, and H₂O is a trace gas in the atmosphere. Therefore, we approximate the thermodynamic properties of the martian atmosphere by the thermodynamic properties of CO₂. We take c _p = \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${c_{{ \rm{p , C}}{{ \rm{O}}_2}}}$$ \end{document} and R = \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${R_{{ \rm{C}}{{ \rm{O}}_2}}}$$ \end{document} , where c _p and R are the heat capacity at constant pressure and the specific gas constant, respectively. We assume the heat capacity to be constant, with c _p = c _p(T ₀), where T ₀ is the surface temperature. We calculate c _p = \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${c_{{ \rm{p , C}}{{ \rm{O}}_2}}}$$ \end{document} from the Shomate relation, taking the coefficients from the work of Pierrehumbert (2010, p 115). We tested the effects of permitting the heat capacity to vary with temperature and found minimal impact on our results.

Martian paleoclimate models have been proposed that invoke effects like enhanced volcanism (Halevy and Head, 2014) and high H₂ abundance (Ramirez et al., 2014) to argue for global mean temperatures in excess of 273 K. However, these models also require pCO₂ in excess of 1 bar, meaning that H₂O remains a trace atmospheric constituent. Regardless, our results are insensitive to the precise thermal properties of the atmosphere because of the modest variation of the absorption cross sections of the gases in our model with temperature at UV wavelengths.

For a given surface pressure and surface temperature (P ₀, T ₀), we let the temperature decrease as a dry adiabat until it reaches the CO₂ saturation temperature, at which point it follows the CO₂ saturation curve. We use the empirical saturation curve of Fanale et al. (1982), as in the work of Wordsworth et al. (2013). To avoid the need for a full radiative-convective climate model, which is tangential to our objectives in this paper, we assume a stratosphere starting at 0.1 bar, following the observation of Robinson and Catling (2014) that atmospheres dominated by triatomic gases tend to become optically thin and hence radiatively dominated around that pressure. We follow other workers (e.g. Kasting, 1991; Hu et al., 2012; Halevy and Head, 2014) assuming the stratosphere to be isothermal; we conduct sensitivity studies that demonstrate our results are not sensitive to this assumption.

To calculate the H₂O saturation pressure, we use the empirical formulation of Wagner et al. (1994) via the work of Wagner and Pruß (2002) for the vapor pressure of water overlying a solid reservoir (as would be the case for T ₀ < 273 K). We assume the atmosphere to be fully saturated in H₂O until the tropopause, and we assume the molar concentration of water in the stratosphere to be equal to its concentration at the tropopause throughout.

Our model requires temperature, pressure, and molar concentrations as functions of altitude. To obtain a mapping between pressure and altitude, we approximate the atmosphere as a series of 1000 layers, each individually isothermal, evenly spanning P ₀ − P ₀ × exp(−10). We then use the equation for an isothermal atmosphere in hydrostatic equilibrium, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{{P \left( z \right) } \mathord{ \left/ { \vphantom {{P \left( z \right) } {P \left( {{z_0}} \right) = \exp \left( { - {{ \left( {z - {z_0}} \right) } \mathord{ \left/ { \vphantom {{ \left( {z - {z_0}} \right) } H}} \right. \kern - \nulldelimiterspace} H}} \right) }}} \right. \kern \nulldelimiterspace} {P \left( {{z_0}} \right) = \exp \left( { - {{ \left( {z - {z_0}} \right) } \mathord{ \left/ { \vphantom {{ \left( {z - {z_0}} \right) } H}} \right. \kern \nulldelimiterspace} H}} \right) }} \end{align*} \end{document}

to calculate the change in altitude across each pressure layer, and sum to obtain a mapping between z and P. Here, P is pressure, z is the altitude of the layer top, z ₀ is the altitude of the layer bottom, and H = kT/(μg) is the scale height of the layer, with T being the layer temperature, μ the mean molecular weight of the atmospheric layer, and g the acceleration due to martian gravity. We also considered numerically integrating the hydrostatic equilibrium equation, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{{dP} \mathord{ \left/ { \vphantom {{dP} {dz = - \rho g}}} \right. \kern \nulldelimiterspace} {dz = - \rho g}} \end{align*} \end{document}

where the density ρ = μP/(kT) for an ideal gas, directly to obtain z(P). We found this approach to agree within 1%; we consequently elected to use the simpler isothermal partition approach for our calculation. Appendix A presents sample atmospheric profiles derived by using our methods.

3.3. Particulate optical parameters

In this section, we discuss our calculation of the optical parameters (σ, ω ₀, and g) associated with interaction of radiation with the CO₂ and H₂O ice particles that constitute clouds.

We approximate the particles as spherical and compute their optical parameters using Mie theory at 0.1 nm resolution, following the treatment outlined by Hansen and Travis (1974). At each wavelength, we compute ω ₀, g, and the scattering efficiency Q _s. We numerically integrate these parameters over a log-normal size distribution with effective radius r _eff and effective variance v _eff, weighted by πr ² n(r), where r is the particle radius and n(r) is the size distribution, and demand a precision of 1% in the distribution-averaged mean values. We obtain the per-particle total extinction cross section by \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} \sigma = \left( {{{ \overline {{Q_{ \rm{s}}}} } \mathord{ \left/ { \vphantom {{ \overline {{Q_{ \rm{s}}}} } { \overline {{ \omega _0}} }}} \right. \kern \nulldelimiterspace} { \overline {{ \omega _0}} }}} \right) G \end{align*} \end{document}

where \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{Q_{ \rm{s}}}}$$ \end{document} is the distribution-averaged mean value of Q _s, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{ \omega _{ \rm{0}}}}$$ \end{document} is the distribution-averaged mean value of ω ₀, and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} G = \int_{{r_1}}^{{r_2}} { \pi {r^2}n \left( r \right) } dr \end{align*} \end{document}

is the “geometric cross-sectional area of particles per unit volume” (Hansen and Travis, 1974) computed at 1 ppm precision. For our numerical integral, we integrated from \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_1} = {r_{{ \rm{eff}}}}{10^{ - 10{v_{{ \rm{eff}}}}}}$$ \end{document} to \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_2} = {r_{{ \rm{eff}}}}{10^{4{v_{{ \rm{eff}}}}}}$$ \end{document} ; we found n(r) < 10⁻⁴ beyond these limits.

We take the index of refraction for H₂O ice from the compendium of Warren and Brandt (2008)³. We take the index of refraction for CO₂ ice from the compendium given in Pierrehumbert (2010)⁴. This compendium was formed by G. Hansen by subjecting the absorption spectra of Hansen (1997) and Hansen (2005) to Kramers-Kronig analysis to obtain self-consistent spectra of real and imaginary indices of refraction (S. Warren, private communication). We take the index of refraction for martian dust from the work of Wolff et al. (2009)⁵. The data of Wolff et al. (2009) truncate at 263 nm. Measurements of the imaginary index of refraction down to 194 nm are available from the work of Pang and Ajello (1977). We adopt the values of Pang and Ajello (1977) for wavelengths < 263 nm. Zurek (1978) presented a compendia of the real index of refraction of martian dust. His study indicates that the index of refraction changes by only ∼0.1 from ∼200 to 263 nm. His values at 263 nm are 0.4 higher than those of Wolff et al. (2009); to avoid a discontinuity, we subtract 0.4 from the real indices of refraction of Zurek (1978).

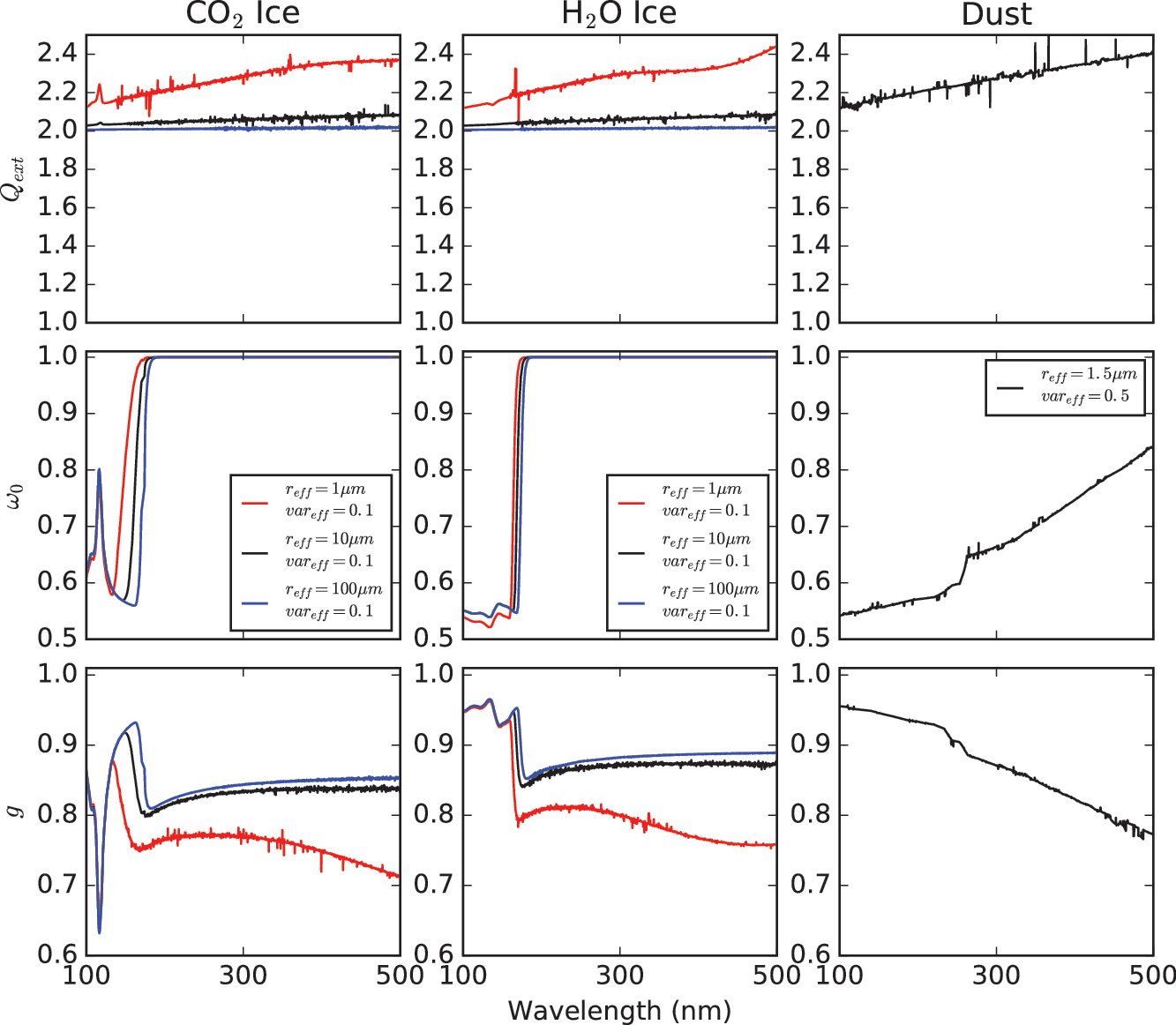

Figure 1 presents the CO₂ and H₂O ice optical parameters as a function of wavelength for size distributions with v _eff = 0.1 and r _eff = 1, 10, 100 microns. Previous work has assumed CO₂ cloud particle sizes to be in the 1–100 μm range (e.g., Forget and Pierrehumbert, 1997). Microphysical modeling by Colaprete and Toon (2003) suggests that primitive martian CO₂ clouds may have been characterized by large particle sizes, as high as r _eff = 100 μm. The optical properties of CO₂ and H₂O ice particles for r _eff ≥ 10 μm are insensitive to r _eff; we attribute this to size parameter x = 2πr _eff/λ being large in this regime, meaning such particles approach the large-particle limit (x > 12 for r _eff ≥ 10 μm and λ ≤ 500 nm). For wavelengths satisfying 195 < λ < 500 nm, CO₂ and H₂O ice are characterized by ω ₀ ≈ 1. This means that CO₂ and H₂O clouds do not significantly absorb at wavelengths unshielded by H₂O (<198 nm) or CO₂ (<204 nm). By contrast, dust absorbs across 100–500 nm, meaning dust particles can supply absorption at wavelengths not shielded by CO₂ or H₂O.

FIG. 1.

Scattering efficiency Q _ext, single-scattering albedo ω ₀, and asymmetry parameter g as a function of wavelength for CO₂ ice, H₂O ice, and modern martian dust, integrated over the specified log-normal size distributions.

3.4. Action spectra and calculation of dose rates

To quantify the impact of different surface UV radiation environments on prebiotic chemistry, we follow the approach of Cockell (1999), Rontó et al. (2003), and Rugheimer et al. (2015) in computing biologically effective dose rates. Specifically, we compute \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} D = \left( \int_{{\lambda _0}}^{{ \lambda _1}} {d \lambda }{{\mathcal{A}}} \left( \lambda \right) {I_{{ \rm{surf}}}} \left( \lambda \right) \right) \end{align*} \end{document}

where \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\mathcal{A}$$ \end{document} (λ) is an action spectrum, λ₀ and λ₁ are the limits over which \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\mathcal{A}$$ \end{document} (λ) is defined, and I _surf(λ) is the UV surface radiance. An action spectrum parametrizes the relative impact of radiation on a given photoprocess as a function of wavelength, with a higher value of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\mathcal{A}$$ \end{document} meaning that a higher fraction of the incident photons are being used in the photoprocess. Hence, D is proportional to the reaction rate of a given photoprocess for a single molecule at the surface of a planet.

As D is a relative measure of reaction rate, a normalization is required to assign a physical interpretation to its value. In this paper, we report \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} \overline D = {D \mathord{ \left/ { \vphantom {D {{D_ \oplus }}}} \right. \kern \nulldelimiterspace} {{D_ \oplus }}} \end{align*} \end{document}

where D _⊕ is the dose rate on 3.9 Ga Earth. The atmospheric model for 3.9 Ga Earth is taken from the work of Rugheimer et al. (2015), who used a 1-D coupled climate-photochemistry model to compute the atmospheric profile (T, P, composition) for Earth at 3.9 Ga, assuming modern abiotic outgassing rates and a background atmosphere of 0.9 bar N₂, 0.1 bar CO₂, with SZA = 60° and A = 0.2. Consequently, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${ \overline D}$$ \end{document} > 1 means that the photoprocess is proceeding faster on the martian surface under the specified atmosphere than it would on the surface of the Rugheimer et al. (2015) fiducial Earth. Note that this normalization is different from what Ranjan and Sasselov (2017) chose, because here we are trying to assess how Mars compares to Earth as a venue for prebiotic chemistry.

Previous workers have used action spectra of UV stress on modern biology (e.g., the DNA inactivation action spectrum) (Cockell, 2000, 2002; Cnossen et al., 2007; Rugheimer et al., 2015) as a gauge of the level of stress imposed by UV fluence on the prebiotic environment. However, these action spectra are based on modern life. Modern organisms have evolved sophisticated methods with which to tolerate environmental stresses, including UV exposure, that would not have been available to the first life. Further, this approach presupposes that UV light is solely a stressor and ignores its potential role as a eustressor for abiogenesis. In this work, we follow the reasoning of Ranjan and Sasselov (2017) in formulating action spectra that correspond to simple photoreactions that are expected to have played major roles in prebiotic chemistry. We consider two reactions: a stressor process, to capture the stress UV light places on nascent biology, and an eustressor process, to capture the role of UV light in promoting prebiotic chemistry. A detailed description of these processes and their corresponding action spectra was given by Ranjan and Sasselov (2017); a brief outline is presented below.

3.4.1. Stressor process: cleavage of N-glycosidic bond of UMP

For our stressor process, we chose the cleavage of the N-glycosidic bond in the RNA monomer uridine monophosphate (UMP). UV radiation can cleave the N-glycosidic bond that joins the sugar to the nucleobase (Gurzadyan and Görner, 1994), irreversibly destroying this molecule. Hence, this process represents a stressor to abiogenesis.

The action spectrum is equal to the product of the absorption spectrum (fraction of incident photons absorbed) and the quantum yield (QY, fraction of absorbed photons that lead to the photoreaction) curve. We take our UMP absorption spectrum from the work of Voet et al. (1963) (pH = 7.6). Detailed spectral measurements of the QY of glycosidic bond cleavage, to date, have not been obtained. However, Gurzadyan and Görner (1994) found the QY of N-glycosidic bond cleavage in UMP in neutral aqueous solution saturated with Ar (i.e., anoxic) to be 4.3 × 10⁻³ at 193 nm and (2–3) × 10⁻⁵ for 254 nm. We therefore represent the QY curve as a step function with value 4.3 × 10⁻³ for λ ≤ λ₀ and 2.5 × 10⁻⁵ for λ > λ₀. We consider λ₀ values of 193 and 254 nm, corresponding to the empirical limits from the work of Gurzadyan and Görner (1994). We also consider λ₀ = 230 nm, which corresponds to the end of the broad absorption feature centered near 260 nm, corresponding to the π–π* transition and also to the transition to irreversible decomposition suggested by Sinsheimer and Hastings (1949). As shorthand, we refer to this photoprocess under the assumption that λ₀ = X nm by UMP-X. Figure 2 presents these action spectra.

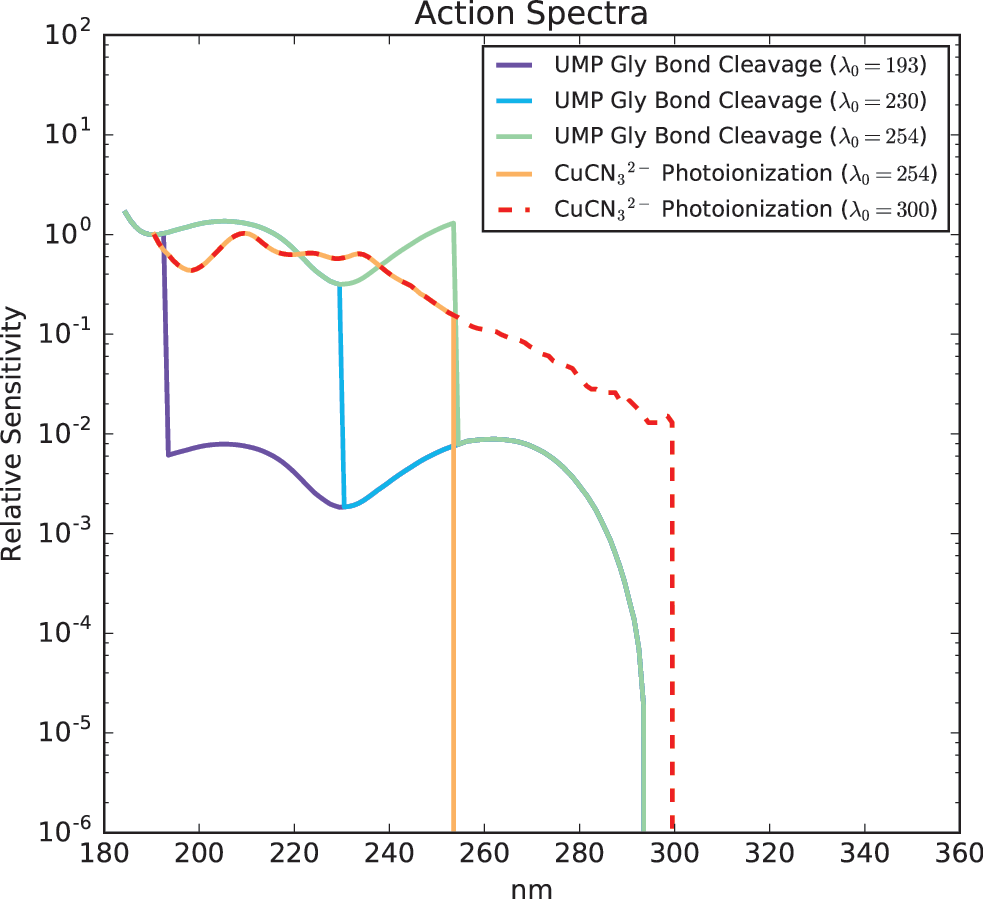

FIG. 2.

Action spectra for photolysis of UMP-λ₀ and photoionization of CuCN3-λ₀, assuming a step-function form to the QY for both processes with step at λ₀. The spectra are arbitrarily normalized to 1 at 190 nm.

The absorption spectra of the other RNA monomers are structurally similar to UMP (Voet et al., 1963), and the QY of N-glycosidic bond cleavage in adenosine monophosphate (AMP) increases at short wavelengths as does UMP's (Gurzadyan and Görner, 1994), which leads us to argue that action spectra for N-glycosidic bond cleavage of the other RNA monomers should be broadly similar to that for UMP. Therefore, results derived by using the action spectrum for UMP N-glycosidic bond cleavage should be broadly applicable to the other RNA monomers; if a UV environment is destructive for UMP, it should be bad for the other RNA monomers and, hence, for abiogenesis in the RNA world hypothesis as well.

3.4.2. Eustressor process: production of aquated electrons from photoionization of cyanocuprate

For our eustressor process, we choose the production of aquated electrons from the irradiation of a tricyanocuprate (CuCN₃ ²⁻) complex. We chose this process because it underlies the selective 2- and 3-carbon sugar (glycolaldehyde and glyceraldehyde) synthesis pathway of Ritson and Sutherland (2012), which is the best candidate proposed so far for a selective prebiotic synthesis of these sugars. These sugars are required for the synthesis of RNA and, hence, abiogenesis in the RNA world hypothesis. This process is also important to the prebiotic reaction network of Patel et al. (2015). More generally, aquated electrons are useful for a broad range of reductive prebiotic chemistry, for example, the reduction of nitriles to amines, aldehydes to hydroxyls, and hydroxyls to alkyls⁶. Therefore, this process represents a eustressor to abiogenesis. While other UV-sensitive processes conducive to abiogenesis doubtless exist, we argue this process is of particular interest because of its unique role in the most promising plausibly prebiotic pathways to the RNA monomers.

We again form the action spectrum by multiplying the absorption spectrum and the QY curve. We take the cyanocuprate absorption spectrum from the work of Magnani (2015), via Ranjan and Sasselov (2016). The spectral QY of aquated electron production from cyanocuprate irradiation is not known. However, Horváth et al. (1984) measured a QY of 0.06 for this process at 254 nm. Following the hypothesis of Ritson and Sutherland (2012), which asserts that photoionization of the complex drives aquated electron production, we assume the QY to be characterized by a step function with value 0.06 for λ ≤ λ₀ and 0 otherwise. We empirically know λ₀ ≥ 254 nm. To explore a range of λ₀, we consider λ₀ = 254 nm and λ₀ = 300 nm. As shorthand, we refer to this photoprocess under the assumption that λ₀ = Y nm by CuCN3-Y. Figure 2 presents these action spectra.

Action spectra typically encode information about relative, not absolute, reaction rates. Consequently, they are generally arbitrarily normalized to 1 at some wavelength (see, e.g., Cockell, 1999, and Rugheimer et al., 2015). We normalize these spectra to 1 at 190 nm.

4. Results

4.1. Clear-sky H₂O-CO₂ atmospheres

We evaluated the UV surface radiance for a range of (pCO₂, T ₀) for pure H₂O-CO₂ atmospheres in the clear-sky case (no clouds, dust, or other particulates). We considered pCO₂ = 0.02–2 bar, corresponding to the range of surface pressure for which Wordsworth et al. (2013) reported at least transient local temperatures above 273 K, and T ₀ = 210–300 K. We took an SZA of 0, corresponding to noon at equatorial latitudes. We took the surface albedo to correspond to desert (diffuse albedo of 0.22); we adopted this albedo because young Mars is thought to have been dry and desertlike in conventional climate models. Modern Mars has a UV albedo an order of magnitude lower (Fox et al., 1997), likely due to the formation of UV-absorbing metal oxides on the planet's basaltic surface over geological time; sensitivity tests indicate our results are robust to choices of surface albedo down to A ∼ 0.02. Taken together, variations in surface albedo and SZA can drive variations in the spectral surface radiance of up to a factor of ∼20 and overall variations in prebiotically relevant reaction rates of a factor of ≳10 (Ranjan and Sasselov, 2017). These surface radiances are shown in Fig. 3.

FIG. 3.

Surface radiance as a function of wavelength for varying pCO₂ and T ₀, for SZA = 0 and albedo corresponding to desert. Also plotted for scale is the TOA solar flux. The surface radiance is insensitive to atmospheric and surface temperature. Color images available online at www.liebertpub.com/ast

In the scattering regime (λ > 204 nm), our surface radiances fall off only slowly with pCO₂. This is a consequence of random walk statistics in the context of multiple scattering: transmission through purely scattering media go as 1/τ (see, e.g., Bohren, 1987, for a discussion with application to clouds). This result stands in contrast to the calculations of Cnossen et al. (2007) and Rontó et al. (2003), who ignore multiple scattering in their radiative transfer treatments, and illustrates the importance of self-consistently including this phenomenon when considering dense, highly scattering atmospheres.

We find our surface radiance calculations to be insensitive to T ₀. This is because (1) the total atmospheric column is set by P ₀ and independent of T ₀; (2) the rapid increase of CO₂ cross sections for λ < 204 nm, which means that the atmosphere rapidly becomes optically thick in the UV; and (3) increased water-vapor abundance with increasing T ₀ does not drive an increase in opacity, because water-vapor absorption is degenerate with CO₂ absorption in the UV (Ranjan and Sasselov, 2017).

We considered the hypothesis that including the effect of variations in CO₂ cross section with temperature might impact our results. We followed the approach of Hu et al. (2012) in interpolating between cold (∼195 K) and room-temperature data sets for CO₂ absorption to estimate the effects of temperature dependence on CO₂ cross section. We used the data set of Stark et al. (2007) from 106.5 to 118.7 nm, Yoshino et al. (1996) from 118.7 to 163 nm, and Parkinson et al. (2003) from 163 to 192.5 nm. We did not find cold-temperature cross sections for CO₂ at longer wavelengths. We found our results were not altered by including temperature dependence of CO₂ cross sections for pCO₂ = 0.02–2 bar, because the CO₂ UV absorption is already saturated by 192.5 nm, where our temperature dependence kicks in. We considered lower values of pCO₂ = 2 × 10⁻³ to 2 × 10⁻⁵ bar (below present atmospheric level), where the CO₂ absorption does not saturate until wavelengths shorter than 192.5 nm. Even in the low pCO₂ case, including temperature dependence only changed the onset of CO₂ absorption saturation by 1–2 nm. We attribute this to the rapidity of the rise in CO₂ absorption cross section with decreasing wavelength for λ ≲ 204 nm. We conclude that even including the effects of temperature on CO₂ UV cross section, the UV surface fluence is insensitive to T ₀. We consequently elected to ignore the temperature dependence of CO₂ cross sections in the remainder of this study.

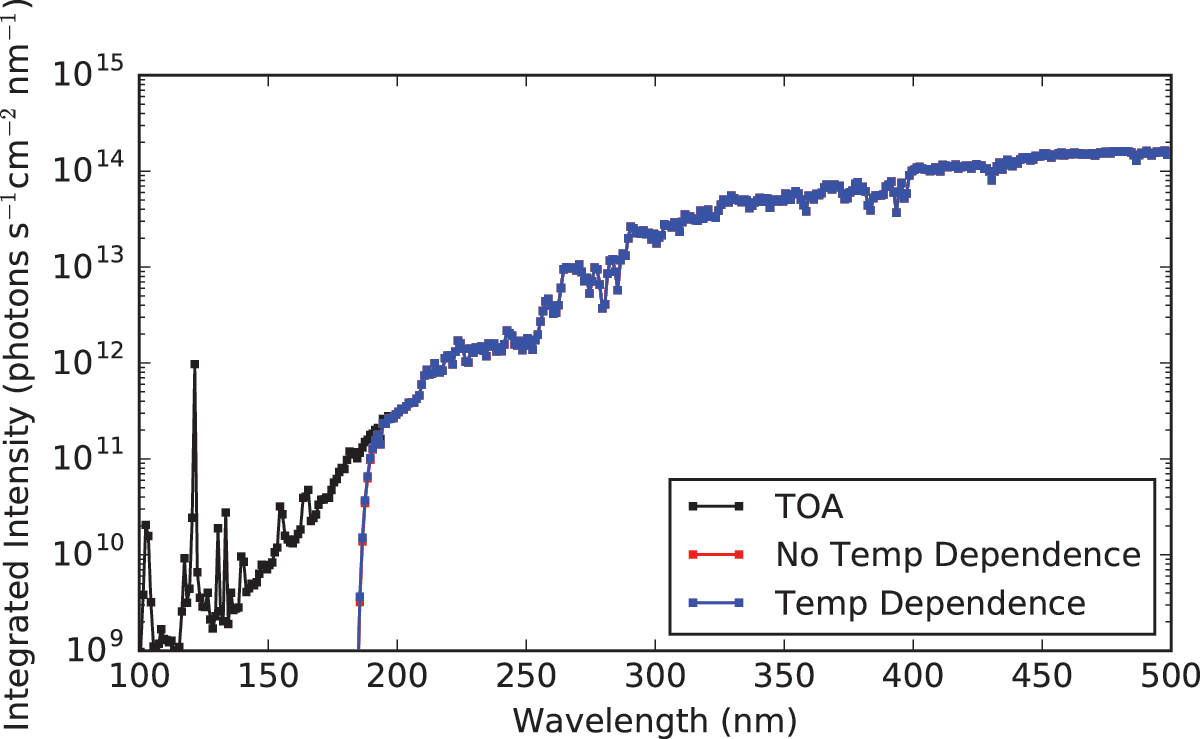

Figure 4 presents the surface radiances in the pCO₂ = 2 × 10⁻⁵ bar cases, calculated for SZA = 0, A corresponding to desert, and T ₀ = T _eq ≈ 200 K, with and without CO₂ cross sections included. Such low atmospheric pressures have been suggested based on atmospheric escape arguments (Tian et al., 2009), followed by a buildup of the atmosphere after escape rates subsided with shortwave solar output. In such a case, aqueous prebiotic chemistry could only have proceeded in environments kept warm by nonclimatological means, for example, geothermal reservoirs. Even for such low pCO₂, EUV fluence shortward of 185 nm is shielded out by atmospheric CO₂.

FIG. 4.

Surface radiance as a function of wavelength for pCO₂ = 2 × 10⁻⁵ bar, T ₀ = 200 K, SZA = 0, A corresponding to desert, with and without temperature dependence of the CO₂ cross sections included. Also plotted for scale is the TOA solar flux. The surface radiance is insensitive to inclusion of temperature dependence of the CO₂ cross sections, even for very low pCO₂.

4.2. Effect of CO₂ and H₂O clouds

We considered the effect of CO₂ and H₂O clouds in a CO₂-H₂O atmosphere. Such clouds have been detected on modern Mars (see, e.g., Vincendon et al., 2011), and GCM (General Circulation Model) results suggest they should have been present on early Mars as well (Wordsworth et al., 2013). Figure 5 presents the UV surface fluence for a 0.02 bar CO₂-H₂O atmosphere with H₂O and CO₂ cloud decks of varying optical depths emplaced in the atmosphere. This low surface pressure is chosen in order to isolate the effects of the clouds as opposed to atmospheric CO₂. The surface albedo corresponds to desert, and SZA = 0. The optical depths are specified at 500 nm. The H₂O and CO₂ cloud decks are emplaced from 3 to 4 km and 20 to 21 km of altitude, respectively, corresponding approximately to the altitudes of peak cloud formation identified by Wordsworth et al. (2013). For both types of clouds, we varied the cloud deck altitudes between 0.5 and 60.5 km and found the surface fluence to be insensitive to the cloud deck altitude. We also experimented with partitioning the clouds into two decks and found the surface fluence to be insensitive to the partition.

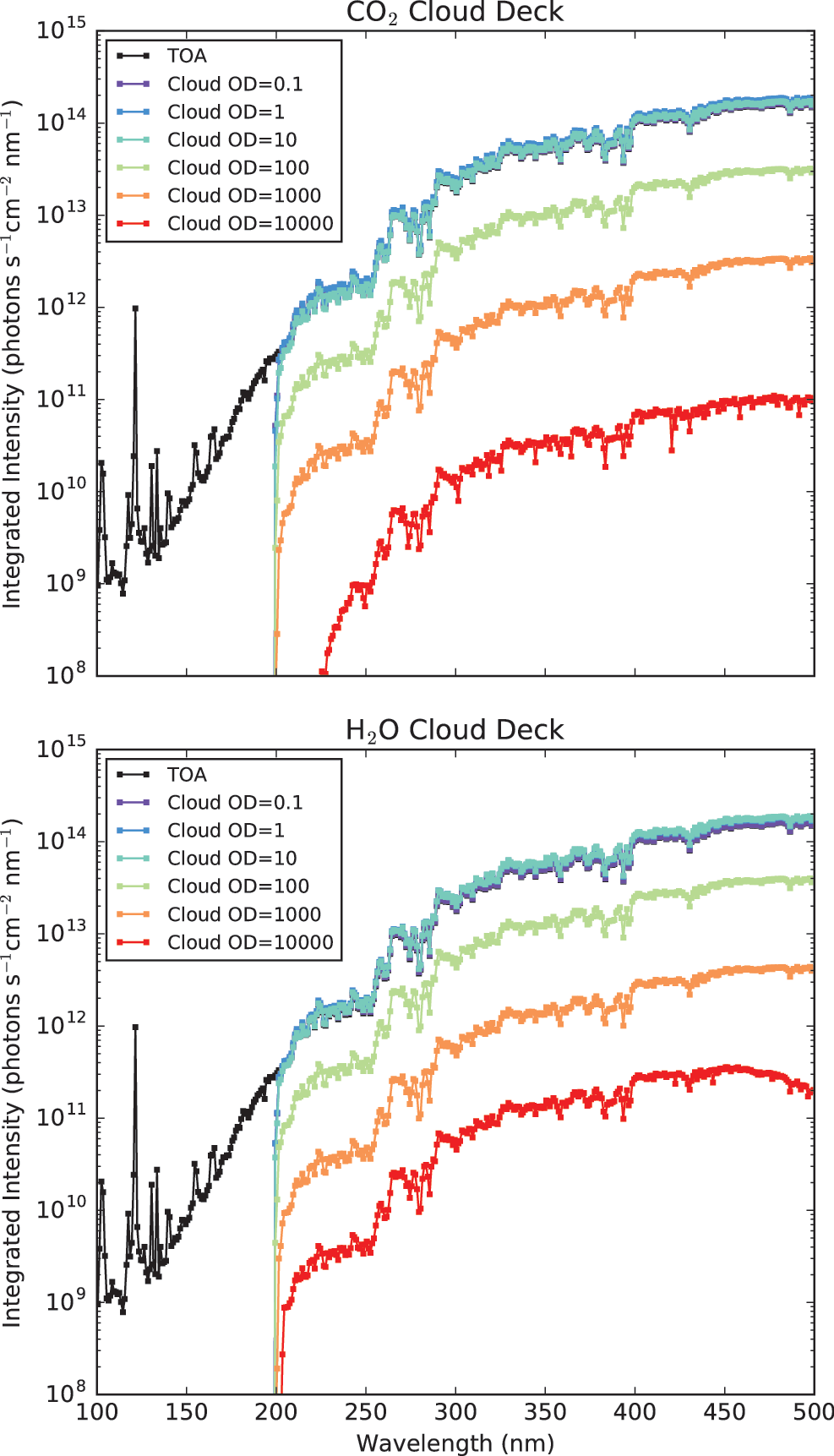

FIG. 5.

Surface radiance as a function of wavelength for pCO₂ = 0.02 bar, T ₀ = 250 K, SZA = 0, A corresponding to desert, and CO₂ and H₂O cloud decks of varying thicknesses inserted from 20 to 21 and 3 to 4 km, respectively. Also plotted for scale is the TOA solar flux.

CO₂ and H₂O ice clouds have similar impact on the surface fluence. This is because both types of ice have similar optical parameters for 195 < λ < 500 nm and r _eff ≥ 1 μm. The λ < 195 nm regime, where they have different optical parameters, is shielded out by gaseous CO₂ absorption.

CO₂ and H₂O ice particles are pure scatterers for 195 < λ < 500 nm and r _eff ≥ 1 μm. Consequently, it is unsurprising that surface fluence falls off only slowly with increasing optical depth. In fact, the transmission of a purely scattering cloud layer varies as ∼1/τ*, where τ* is the delta-scaled optical depth of the cloud layer (Bohren, 1987). This is a consequence of the random-walk nature of radiative transfer in the optically thick, purely scattering limit.

The particle size r _eff can have an impact on surface radiance. For r _eff = 1 μm, the surface fluence at 500 nm is ∼40% lower compared to r _eff = 100 μm (A corresponding to desert, SZA = 0). This is because as r _eff decreases in this regime, so does g, meaning that the rescaled optical depth in the delta-scaling formalism τ* = τ × (1 − g ²) is higher for small particles than large particles.

Suppressing surface radiance to 10% or less of TOA flux requires cloud optical depths of ≳100. This is comparable to the optical depth of a terrestrial thunderstorm (Mayer et al., 1998). We can compute the mass column of ice particles required to achieve this optical depth by \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} u = \left( { \frac { \tau } { { \pi { r^2 } { Q_ { { \rm { ext } } } } } } } \right) \left( { \frac { { 4 \pi } } { 3 } { r^3 } \rho } \right) \end{align*} \end{document}

where ρ is the mass density of the ice, r is the ice particle radius, τ is the cloud optical depth, and Q _ext is the extinction efficiency. For CO₂ ice, ρ = 1.5 g/cm^3[7], r = 10 μm, and approximating Q _ext = 2, we find τ = 100 corresponds to u = 1 kg/m². Wordsworth et al. (2013) found in their 3-D simulation CO₂ ice columns of up to 0.6 kg/m² in patches, suggesting CO₂ clouds may have significantly affected the surface UV environment. For water ice, taking ρ = 0.92 g/cm³ (Miller, 2009), r = 10 μm, and approximating Q _ext ≈ 2, we find that τ = 100 corresponds to u = 6 × 10⁻¹ kg/m². By contrast, Wordsworth et al. (2013) found expected ice columns of ≲ 2 × 10⁻³ kg/m². Consequently, barring a mechanism that can increase the H₂O cloud levels above that considered by Wordsworth et al. (2013), H₂O ice clouds by themselves are unlikely to significantly alter the surface radiance environment on early Mars.

4.3. Effect of elevated levels of volcanogenic gases

So far, we have considered pure CO₂-H₂O atmospheres. However, other gases may have been present in the early martian atmosphere. In particular, Mars at ∼3.9 Ga was characterized by volcanic activity, which emplaced features like the Tharsis igneous province (Halevy and Head, 2014). Such volcanism could have injected elevated levels of volcanogenic gases like SO₂ and H₂S into the atmosphere. SO₂ and H₂S are also strong and broad UV absorbers, and at elevated levels they can completely reshape the surface UV environment (Ranjan and Sasselov, 2017). Consequently, we consider the impact of elevated levels of SO₂ and H₂S on the surface UV environment.

We consider SO₂ levels up to 2 × 10⁻⁵ bar. For scale, Halevy and Head (2014) computed that an SO₂ level of 1 × 10⁻⁵ bar in a 1 bar CO₂-dominated atmosphere requires volcanic outgassing at 100× the current terrestrial outgassing. Figure 6 presents the surface radiance for varying pSO₂ and pCO₂ = 0.02–2 bar (SZA = 0, A corresponding to desert, and T ₀ = 250 K).

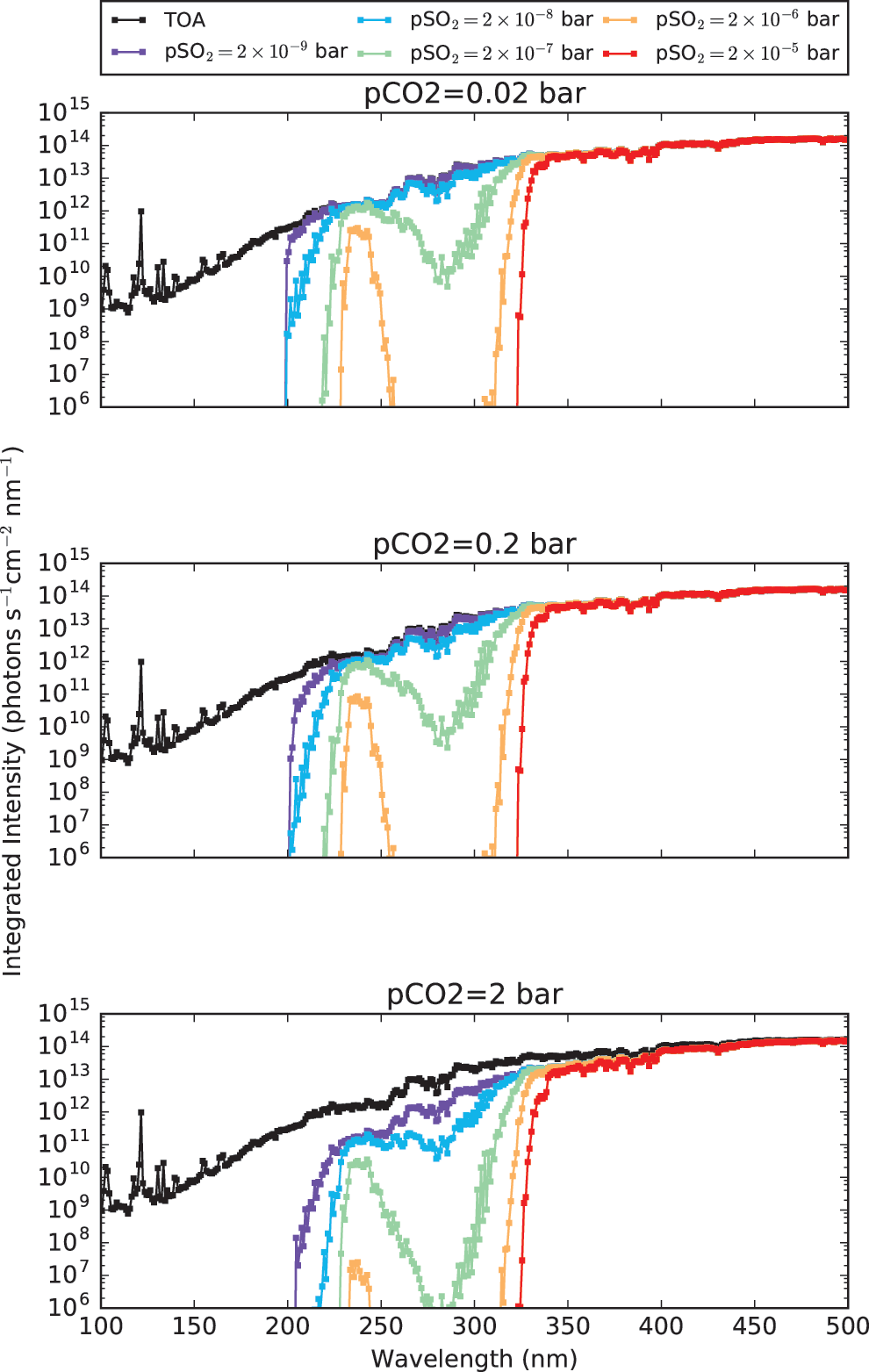

FIG. 6.

Surface radiance as a function of wavelength for T ₀ = 250 K, SZA = 0, A corresponding to desert, pCO₂ = 0.02–2 bar, and pSO₂ = 2 × 10⁻⁹ to 2 × 10⁻⁵ bar. Also plotted for scale is the TOA solar flux.

Note that for the same pSO₂, the surface radiance varies as a function of pCO₂. This is because at high pCO₂, the scattering optical depth of the atmosphere exceeds unity. In such a regime, the impact of trace absorbers is amplified due to higher effective path length caused by multiple scattering events (Bohren, 1987). This effect has been seen in studies of UV transmittance through thick clouds on Earth as well (Mayer et al., 1998). Consequently, the surface UV environment is a feature of both pCO₂ and pSO₂. For pSO₂ ≥ × 10⁻⁵ bar, UV fluence < 330 nm is strongly suppressed.

H₂S is also a major volcanogenic gas that may have been emitted at rates greater than or equal to SO₂ on young Mars, based on studies of the oxidation state of martian basalts (Herd et al., 2002; Halevy et al., 2007). While Halevy and Head (2014) did not calculate the H₂S abundance as a function of volcanic outgassing, the calculations of Hu et al. (2013) (T ₀ = 288 K, modern solar irradiance) suggest that pH₂S > pSO₂ in a CO₂-dominated atmosphere. Consequently, we also consider the impact of elevated levels of H₂S, up to pH₂S = 2 × 10⁻⁴ bar in atmospheres with pCO₂ = 0.02–2 bar. Figure 7 presents the surface radiance calculated over this range of atmospheres (SZA = 0, A corresponding to desert, and T ₀ = 250 K). For pH₂S ≥ × 10⁻⁴ bar, UV fluence < 370 nm is strongly suppressed.

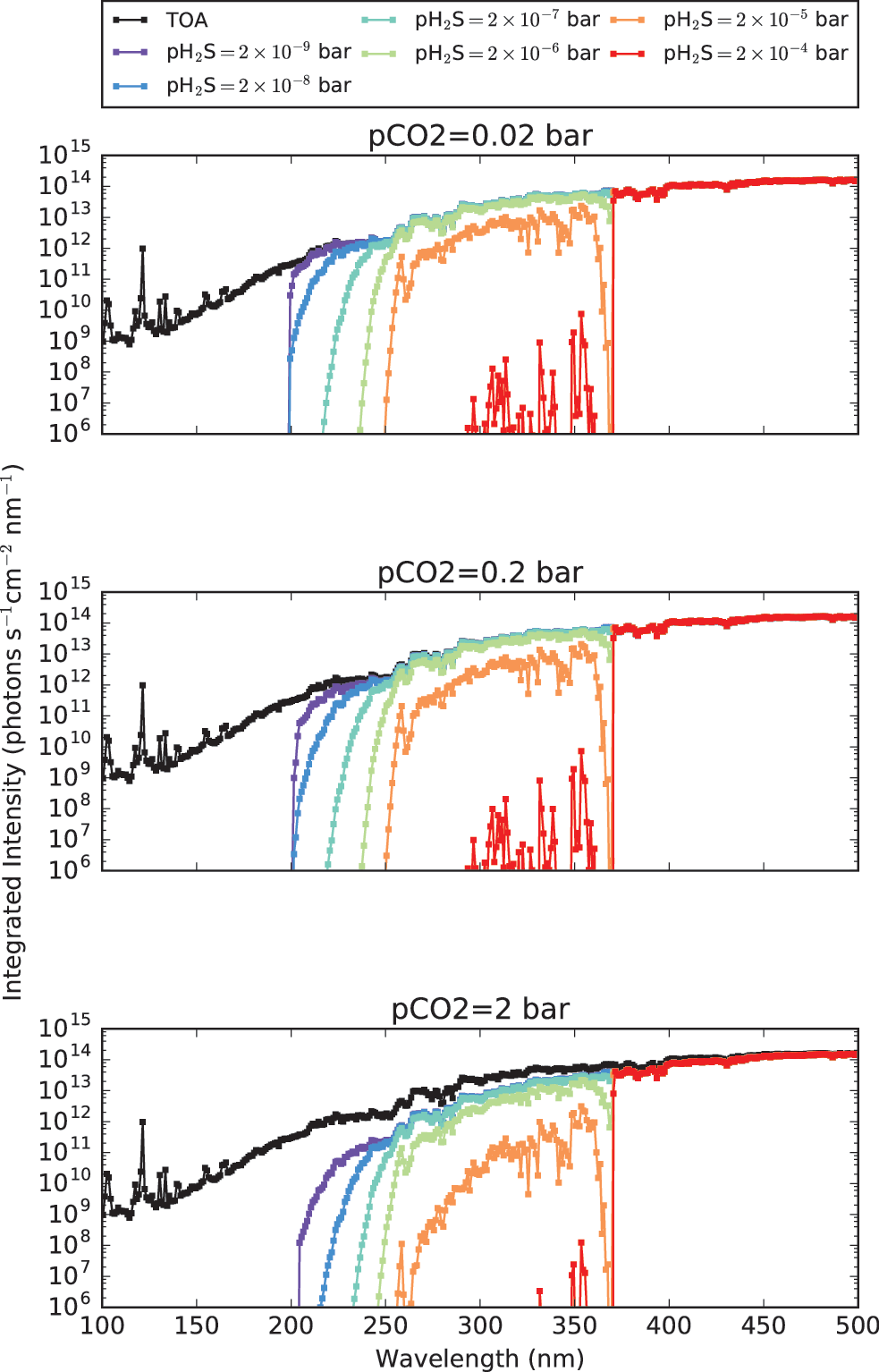

FIG. 7.

Surface radiance as a function of wavelength for T ₀ = 250 K, SZA = 0, A corresponding to desert, pCO₂ = 0.02–2 bar, and pH₂S = 2 × 10⁻⁹ to 2 × 10⁻⁴ bar. Also plotted for scale is the TOA solar flux.

Scattering due to thick cloud decks can also enhance absorption by trace pSO₂ and pH₂S. For pSO₂ = 2 × 10⁻⁷ bar and pCO₂ = 0.02 bar⁸ [SZA = 0, A corresponding to new snow (near 1), T ₀ = 250 K, r _eff = 10 μm], inclusion of CO₂ clouds with optical depth of 1000 amplifies attenuation by a factor of 10 at 236.5 nm (optically thin in SO₂ absorption) and by a factor of 10⁵ at 281.5 nm (optically thick in SO₂ absorption) compared to what one would calculate by multiplying the transmission from the SO₂ and cloud deck individually. This effect is weaker for low-albedo cases, because there are fewer passes of radiation through the atmosphere due to bouncing between the surface and cloud deck. This nonlinear variance in transmission due to multiple scattering effects illustrates the need to specify surface albedo, cloud thickness, and absorber level when calculating surface radiances. Figures 8 and 9 present the surface radiance at the base of a pCO₂ = 0.02 bar atmosphere with varying levels of SO₂ and H₂S, respectively, with CO₂ cloud decks of optical depths 1–1000 emplaced from 20 to 21 km (SZA = 0, A corresponding to desert, T ₀ = 250 K, r _eff = 10 μm).

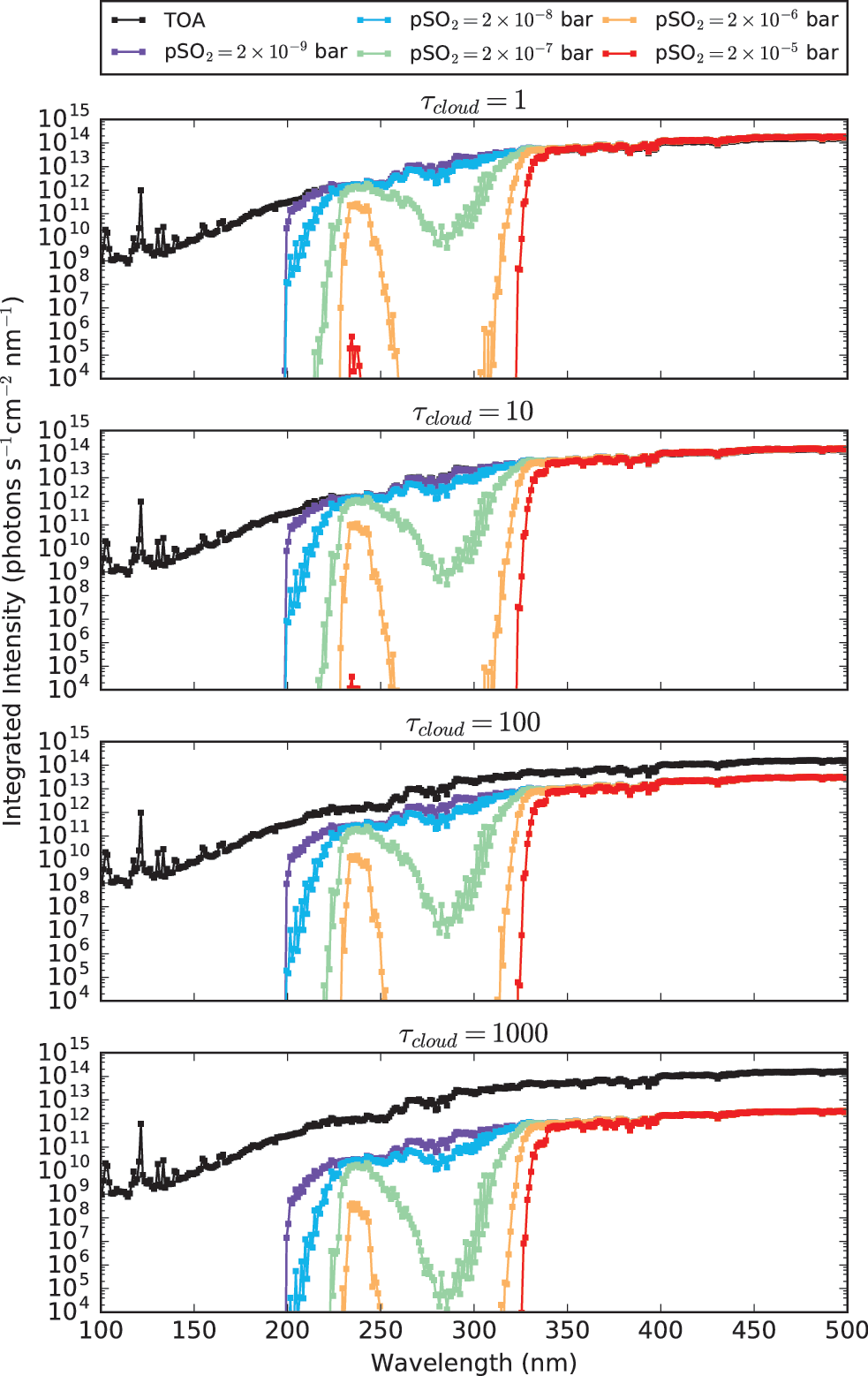

FIG. 8.

Surface radiance as a function of wavelength for T ₀ = 250 K, SZA = 0, A corresponding to desert, pCO₂ = 0.02 bar, pSO₂ = 2 × 10⁻⁹ to 2 × 10⁻⁵ bar, and CO₂ cloud decks of varying optical thickness emplaced from 20 to 21 km altitude. Also plotted for scale is the TOA solar flux.

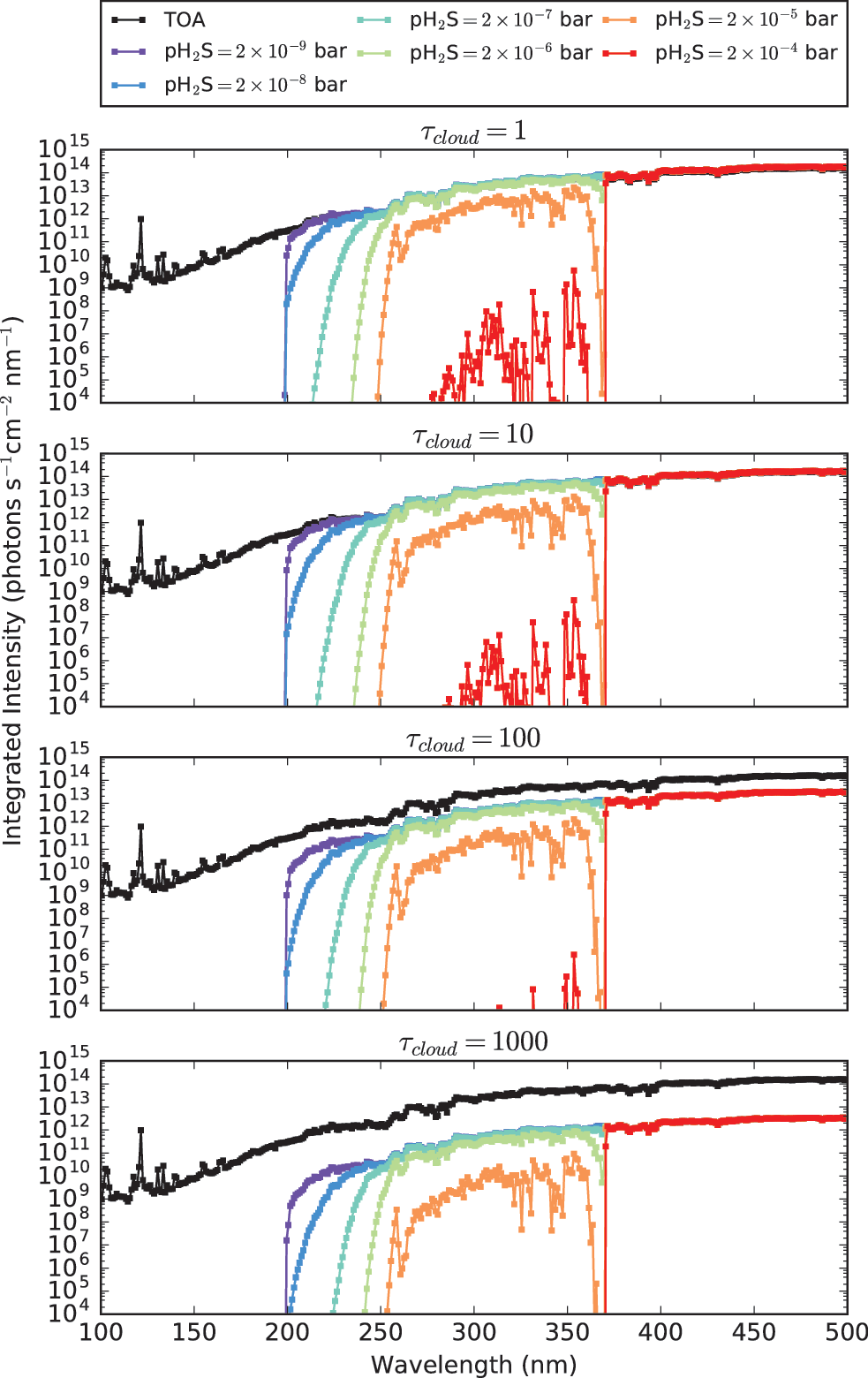

FIG. 9.

Surface radiance as a function of wavelength for T ₀ = 250 K, SZA = 0, A corresponding to desert, pCO₂ = 0.02 bar, pH₂S = 2 × 10⁻⁹ to 2 × 10⁻⁴ bar, and CO₂ cloud decks of varying optical thickness emplaced from 20 to 21 km altitude. Also plotted for scale is the TOA solar flux.

4.4. Effect of dust

The atmosphere of modern Mars is dusty, with typical dust optical depths varying from τ _d ∼ 0.2 to 2 at solar wavelengths (Smith et al., 2002; Lemmon et al., 2015), with the higher values achieved during global dust storms. Mars' dryness contributes to its dustiness, through the availability of desiccated surface to supply dust and the lack of a hydrologic cycle to quickly scrub it from the atmosphere. If one assumes that Mars was similarly dry in the past, dust levels in the martian atmosphere may have been significant. We may speculate that, if the atmosphere were thicker, it could have hosted even more dust than the modern martian atmosphere due to slower sedimentation times. However, detailed study of atmospheric dust dynamics, including analysis of how dust lofting scales with pCO₂, is required to constrain this possibility. Dust absorbs at UV wavelengths (see Fig. 1), so dust could play a role similar to volcanogenic gases in scrubbing UV radiation from the UV surface environment.

We explored the impact of including dust in our calculation of surface UV fluence. We assumed that, similar to modern Mars, the dust followed an exponential profile with scale height H _d = 11 km, similar to the atmospheric pressure scale height (Hoekzema et al., 2010; Mishra et al., 2016). For surface temperatures (and hence scale heights) comparable to modern Mars, this corresponds to the assumption by previous workers that the dust mixing ratio is constant in the lower atmosphere (Forget et al., 1999). Then, the dust optical depth across each atmospheric layer of width Δz is \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} C \ { \rm{exp}} \left[ { - z / {H_{ \rm{d}}}} \right] \end{align*} \end{document}

where z is the altitude of the layer center. The parameter \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} C = { \tau _{ \rm{d}}} \left( {{ \rm{exp}} \left[ { \Delta z / \left( {2{H_{ \rm{d}}}} \right) } \right] } \right) \left( {1{ \rm{ }} - { \rm{ exp}} \left[ { - \Delta z / {H_{ \rm{d}}}} \right] } \right) \end{align*} \end{document}

is chosen such that the column-integrated dust optical depth is τ _d.

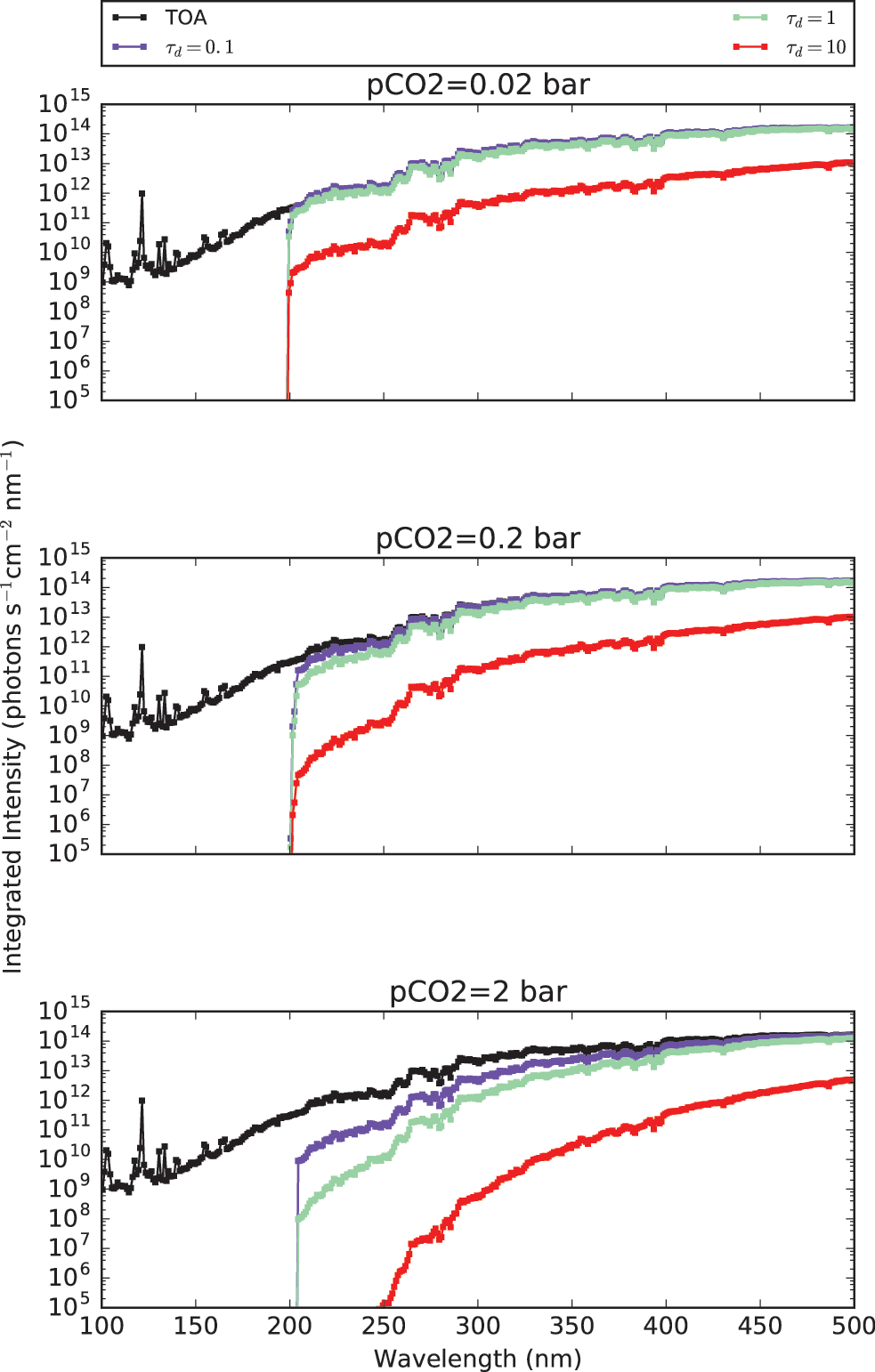

Figure 10 presents the surface radiance for varying τ _d and pCO₂ = 0.02–2 bar (SZA = 0, A corresponding to desert, and T ₀ = 250 K). As for SO₂ and H₂S, highly scattering atmospheres amplify the impact of trace absorbers. τ _d = 1 only marginally suppresses UV fluence for pCO₂ = 0.02 bar, but for pCO₂ = 2 bar shortwave fluence is suppressed due to enhanced Rayleigh scattering. In the absence of scattering amplification, τ _d ≳ 10 is required to strongly suppress UV fluence.

FIG. 10.

Surface radiance as a function of wavelength for T ₀ = 250 K, SZA = 0, A corresponding to desert, pCO₂ = 0.02–2 bar, and τ _d = 0.1–10. Also plotted for scale is the TOA solar flux.

Figure 11 presents the surface radiance at the base of a pCO₂ = 0.02 bar atmosphere with varying τ _d, with CO₂ cloud decks of optical depths 1–1000 emplaced from 20 to 21 km (SZA = 0, A corresponding to desert, T ₀ = 250 K, r _eff = 10 μm). The impact of a cloud deck is less than the impact of increasing overall atmospheric pressure, because of the limited column of absorber contained within the cloud itself. If the cloud deck is extended, then the surface fluence is reduced (for the same total cloud and dust optical depth).

FIG. 11.

Surface radiance as a function of wavelength for T ₀ = 250 K, SZA = 0, A corresponding to desert, pCO₂ = 0.02 bar, τ _d = 0.1–10, and CO₂ cloud decks of varying optical thickness emplaced from 20 to 21 km altitude. Also plotted for scale is the TOA solar flux.

5. Discussion

5.1. CO₂-H₂O atmosphere

Normative CO₂-H₂O climate models predict the steady-state early martian climate to have been cold, with global mean temperatures below freezing (Forget et al., 2013; Wordsworth et al., 2013, 2015). In this scenario, aqueous prebiotic chemistry would proceed in meltwater pools, which could have occurred transiently during midday due to the diurnal cycle, during summer throughout a seasonal cycle, or a combination of both. Aqueous prebiotic chemistry could also have proceeded in geothermally heated pools, which may have been abundant during the more volcanically active Noachian.

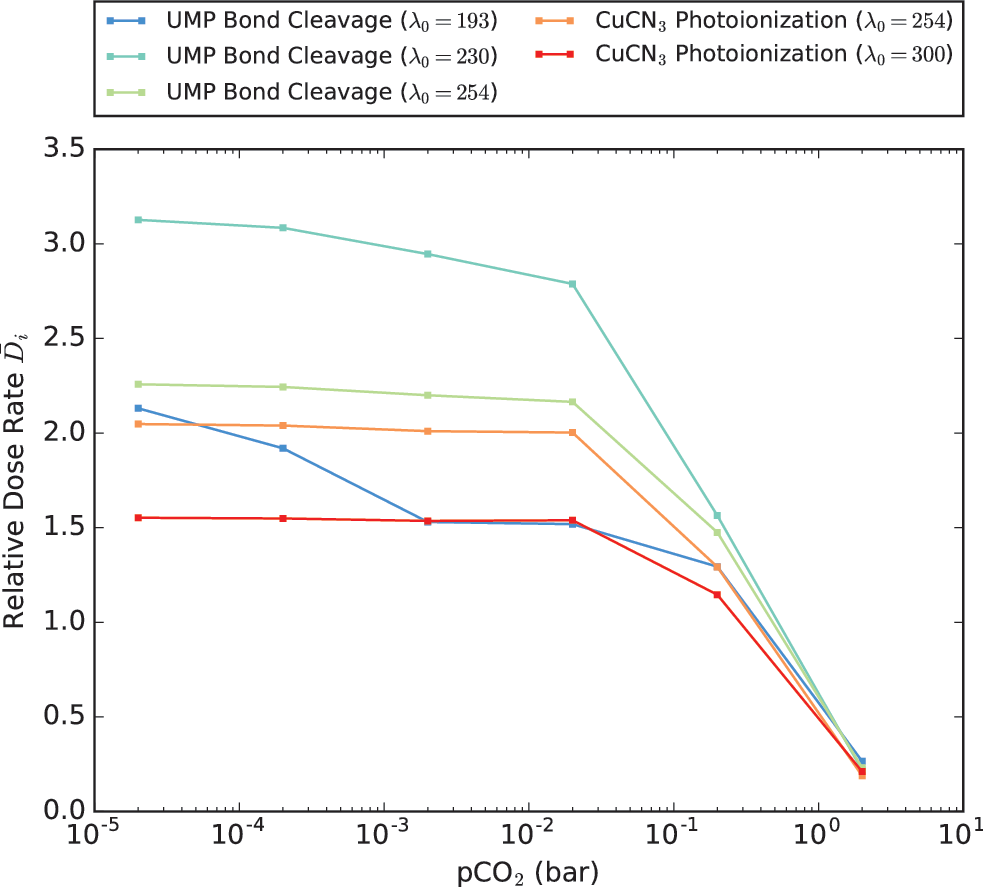

Figure 12 presents the dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} corresponding to irradiation of prebiotically relevant molecules through a clear-sky CO₂-H₂O atmosphere with SZA = 0 and A corresponding to desert. The dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} decline by only an order of magnitude across 5 orders of magnitude of pCO₂ ≤ 2 bar, meaning that the prebiotic photochemistry dose rates are only weakly sensitive to pCO₂ across this range. \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} is within an order of magnitude of unity across this range, meaning that the martian dose rates are comparable to the terrestrial rates. This is consistent with the results of Cockell (2000), who found that UV stress as measured by DNA damage was comparable for 3.5 Ga Earth and Mars.

FIG. 12.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for clear-sky CO₂-H₂O atmospheres as a function of pCO₂ (T ₀ = 250 K, SZA = 0, A corresponding to desert).

However, the sky was not necessarily clear during this epoch. In fact, formation of H₂O and CO₂ clouds is expected based on GCM studies (Wordsworth et al., 2013). Thick (though patchy) CO₂ cloud decks in particular are expected for thick CO₂ atmospheres. Figure 13 presents the dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} as a function of CO₂ cloud optical depth for pCO₂ = 0.02 bar, SZA = 0, and A corresponding to desert. As we might expect from Fig. 5, the dose rate drops off only modestly with τ _cloud. τ _cloud ≳ 1000 is required to suppress dose rates by more than an order of magnitude. For r _eff = 10 μm, this corresponds to 20× the maximum cloud column calculated by Wordsworth et al. (2013). Overall, the impact of clouds on their own on UV-sensitive photochemistry is expected to be modest.

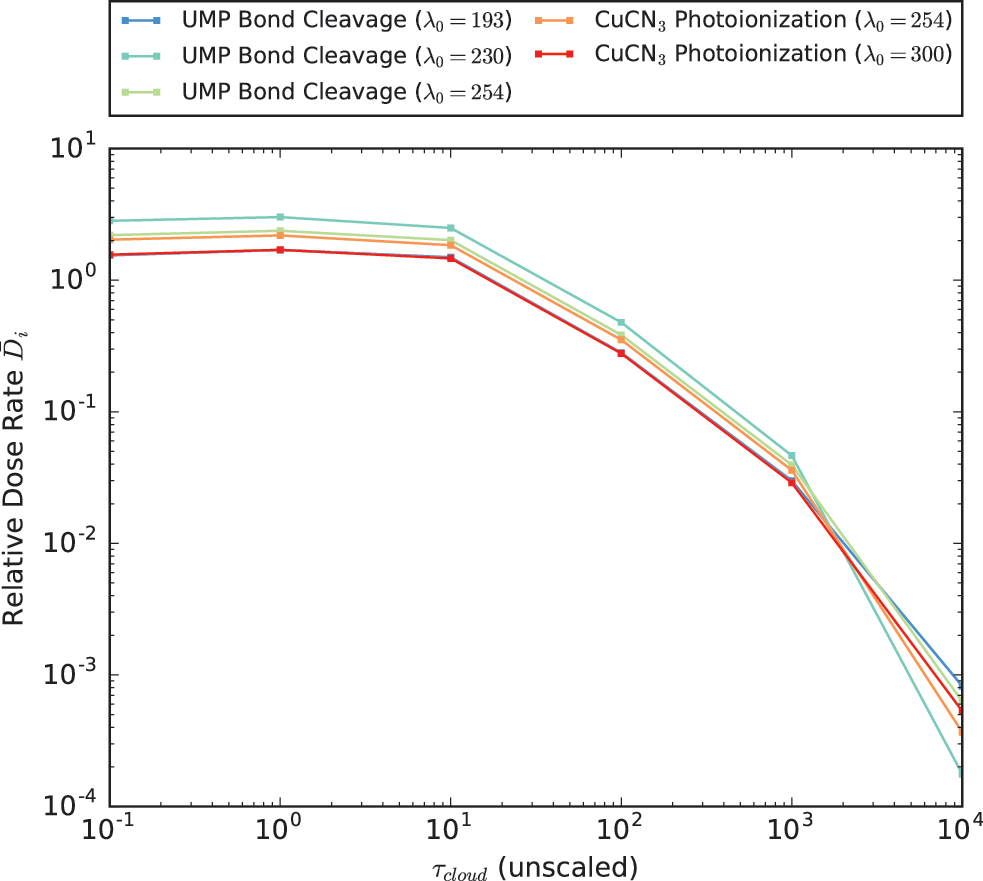

FIG. 13.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for CO₂-H₂O atmospheres with a CO₂ cloud deck emplaced from 20 to 21 km altitude, as a function of cloud deck optical depth (T ₀ = 250 K, pCO₂ = 0.02 bar, SZA = 0, A corresponding to desert).

If young Mars were indeed cold and dry, then one might expect it to have been dusty, as it is today. The modern martian dust optical depth ranges from τ _d ∼ 0.2 to 2, with higher values achieved during dust storms (Smith et al., 2002; Lemmon et al., 2015). Higher dust loadings may have been possible when the atmosphere was thicker. Figure 14 presents the dose rates as a function of τ _d and pCO₂, for SZA = 0 and A corresponding to desert. Figure 15 presents the dose rates as a function of τ _d and CO₂ cloud optical depth, for SZA = 0 and A corresponding to desert.

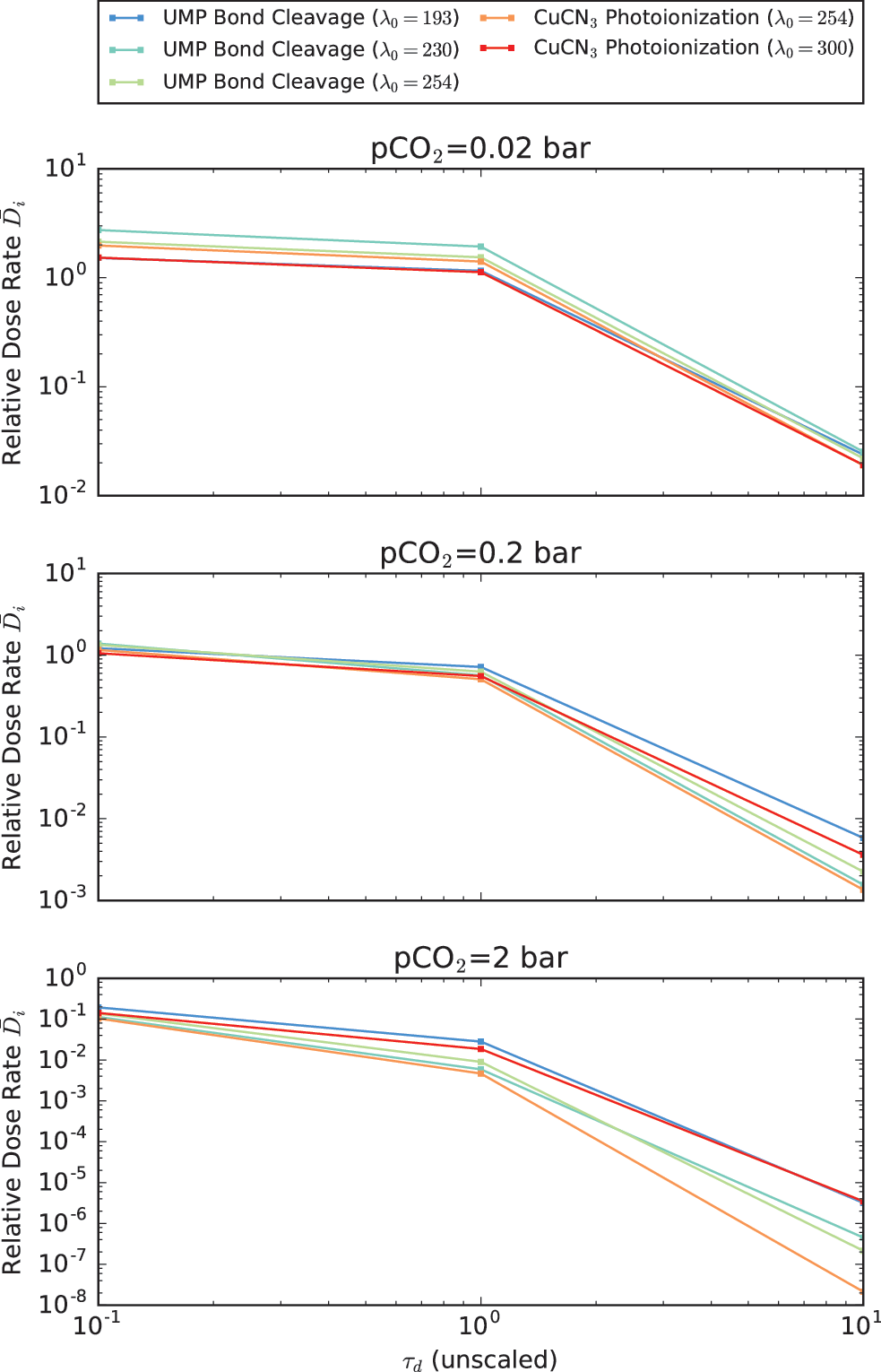

FIG. 14.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for dusty CO₂-H₂O atmospheres as a function of pCO₂ and τ _d (T ₀ = 250 K, SZA = 0, A corresponding to desert).

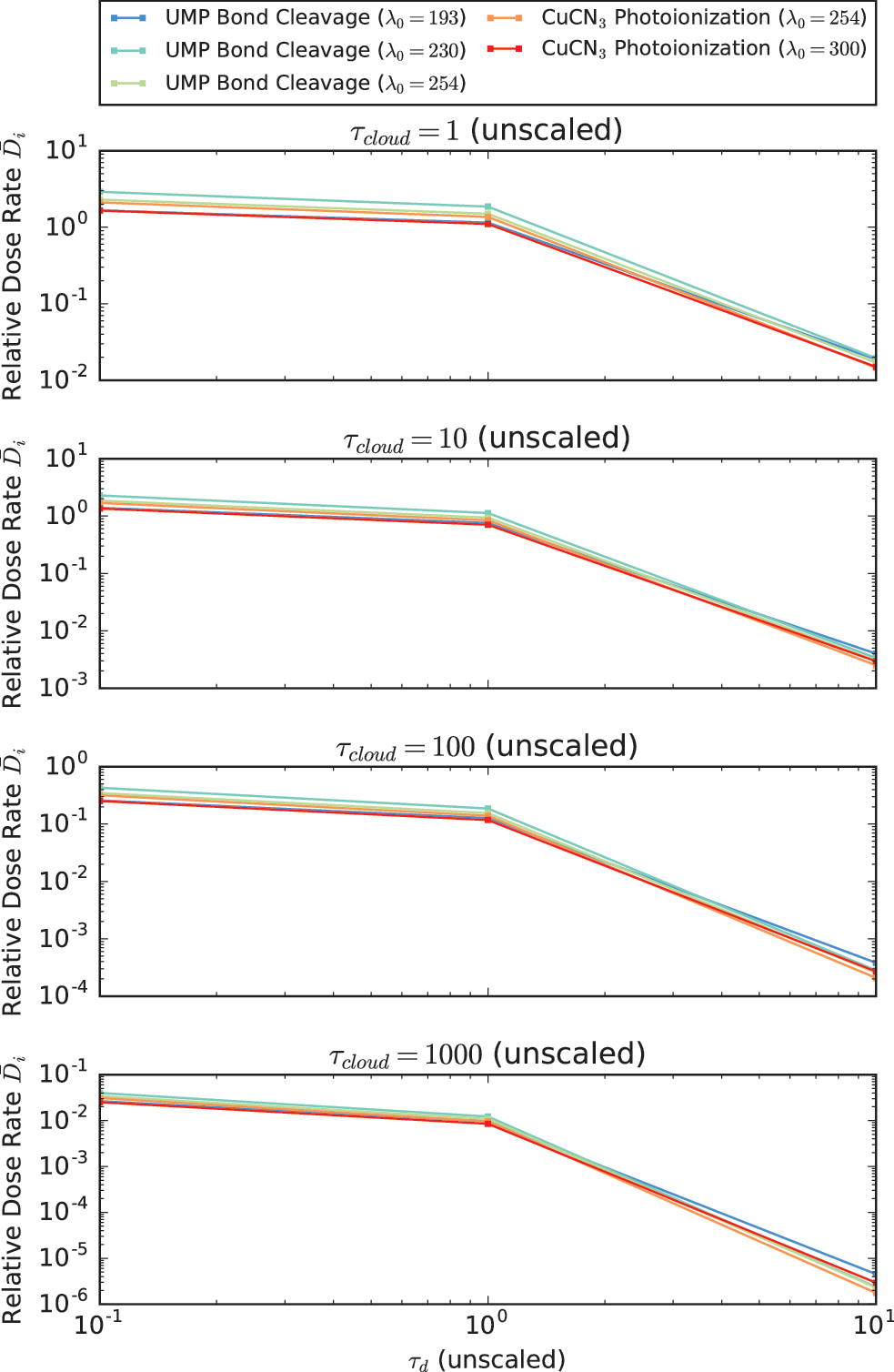

FIG. 15.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for dusty CO₂-H₂O atmospheres with a CO₂ cloud deck emplaced, as a function of τ _d and τ _cloud (T ₀ = 250 K, pCO₂ = 0.02, SZA = 0, A corresponding to desert).

Unlike CO₂ and H₂O ice and gas, dust absorbs across the UV waveband. Further, this absorption can be dramatically increased in highly scattering atmospheres due to enhanced effective path length due to multiple scattering effects. Consequently, dust can dramatically suppress UV fluence and hence photochemistry, especially for thick and/or cloudy atmospheres. For τ _d ≥ 10, dose rates are suppressed by 2–8 orders of magnitude, depending on atmospheric pressure and cloud thickness. Dust of thickness τ _d = 1 provides minimal suppression for pCO₂ ≤ 0.2 bar or τ _cloud < 100, but for pCO₂ ≥ 2 bar or τ _cloud ≥ 1000 it can suppress dose rates by orders of magnitude. Dust of thickness τ _d ≤ 0.1 does not significantly alter dose rates across the explored parameter space. Overall, dust can significantly alter dose rates if it is present at high levels (greater than that seen for modern martian dust storms) or if it is present at levels comparable to the modern average but embedded in a thick atmosphere or underlying thick clouds.

We considered the hypothesis that attenuation due to dust might differentially affect the stressor and eustressor pathways. That is, we considered the possibility that the eustressor reaction rates might fall off faster (or slower) than the stressor reaction rates with attenuation due to dust. Since the stressor pathway measures destruction of RNA monomers and the eustressor pathway measures a process important to the synthesis of key RNA precursors, this means that environments that favor the eustressor pathway over the stressor pathway are a more favorable venue for abiogenesis than the reverse, in the RNA world hypothesis. This argument assumes that these particular stressor and eustressor processes were important in the prebiotic world. They might not have been. However, we expect other photochemical stressor and eustressor processes to behave in generally similar ways to these processes. For example, we generally expect the QY of prebiotic molecular destruction to decrease with increasing wavelength because of decreased photon energy compared to bond strength. Similarly, regardless of the solvated electron source (e.g., HS^- as opposed to tricyanocuprate), we expect the QY to go approximately as a step function in wavelength. We therefore suggest that results derived from these pathways may generalize to other processes, though a detailed comparison is required to rule on this hypothesis.

To assess the hypothesis that a dusty Mars might be less (or more) clement for abiogenesis than a nondusty Mars as measured by our stressor (UMP-X) and eustressor (CuCN3-Y) pathways, we calculated \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}${{{\overline{D}}_{{{\rm{UMP}} - {\rm{X}}}}}} /{{{\overline{D}}_{{ \rm{CuCN3 - Y}}}}}$ \end{document} . We calculated this quantity for pCO₂ = 2 bar (no clouds) and τ _cloud = 1000 (pCO₂ = 0.02 bar) for τ _d = 0.1–10. If these ratios rise with τ _d, it means that the stressor pathway is relatively favored by dusty atmospheres; if they fall, it means that the stressor pathway is relatively disfavored by dusty atmospheres.

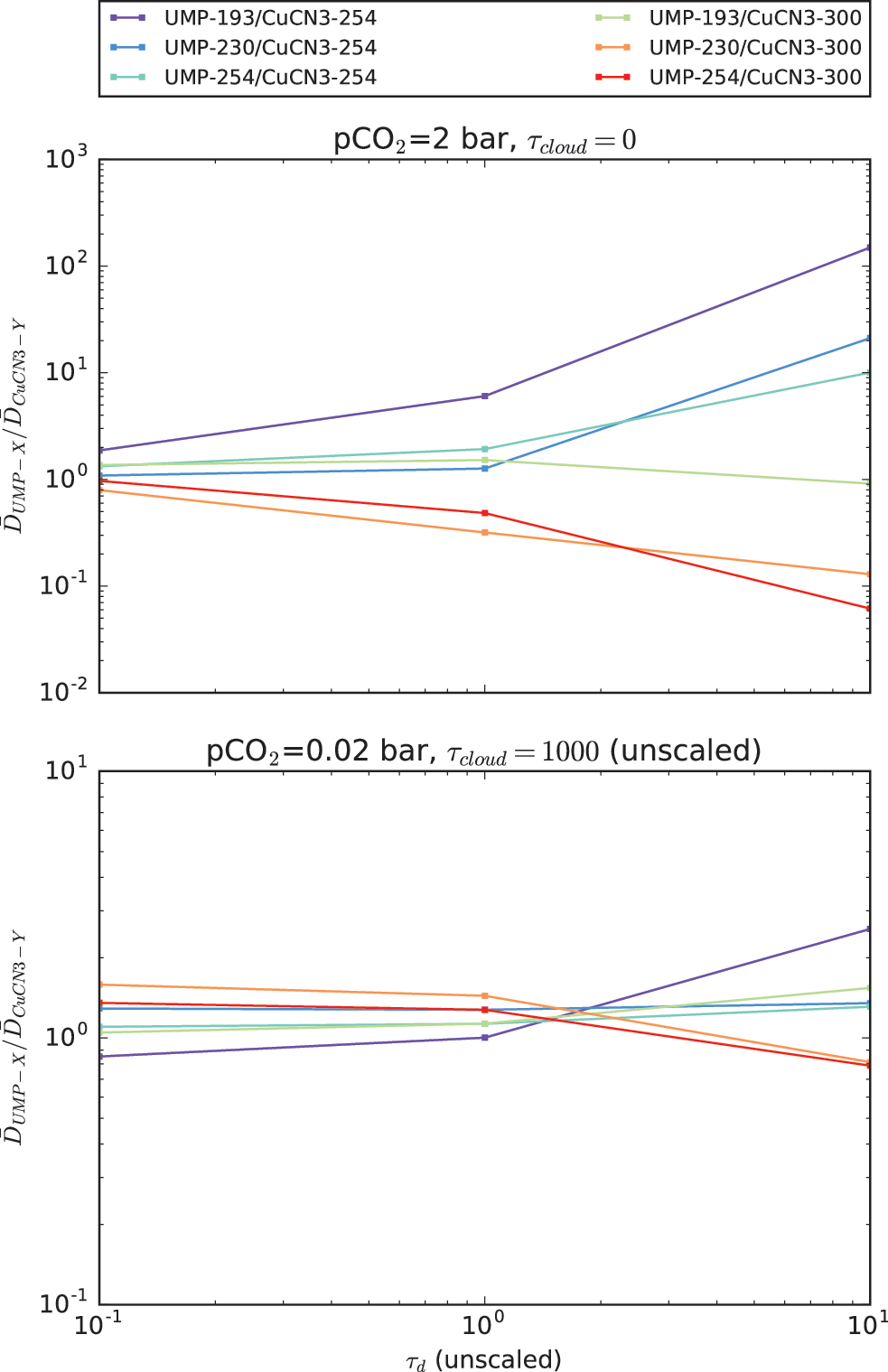

Figure 16 presents these calculations. Dust attenuation on its own is relatively flat at CO₂-scattering wavelengths, as is cloud attenuation. Consequently, dusty/cloudy atmospheres tend to reduce UV fluence in a spectrally flat manner and favor neither the stressor nor the eustressor pathway. On the other hand, in a thick CO₂ atmosphere, the scattering optical depth and, hence, amplification of dust absorption increase as wavelength decreases. Consequently, the dose rate ratio does change with increasing τ _d. However, the direction of the change is sensitive to the value of λ₀, the ionization threshold for the tricyanocuprate ionization process, and the magnitude is further sensitive to the value of λ₀ for the UMP cleavage process. We consequently conclude it is possible that thick, dusty atmospheres might be more or less clement for abiogenesis than nondusty atmospheres, but determining which requires wavelength-dependent measurements of the QYs of these chemical processes in the laboratory.

FIG. 16.

Ratio of stressor dose rates UMP-X divided by eustressor dose rates UMP-Y for dusty CO₂-H₂O atmospheres, as a function of τ _d (T ₀ = 250 K, SZA = 0, A corresponding to desert). The atmospheres are highly scattering, either because of high pCO₂ or thick CO₂ clouds. Lower ratios imply a more favorable environment for abiogenesis as measured by these two photoprocesses.

5.2. Highly reducing atmospheres

Recent work suggests that, if the reduced gases H₂ and/or CH₄ were present at elevated levels in a thick (∼1 bar) atmosphere, collision-induced absorption (CIA) due to the interaction of these gases with CO₂ might provide enough greenhouse warming to elevate mean Noachian temperatures above freezing (Ramirez et al., 2014; Wordsworth et al., 2017). Ramirez et al. (2014) found that global mean surface temperatures exceeded 273 K for P ₀ ≥ 3 bar and [H₂] ≥ 0.05, with higher concentrations of H₂ required for lower P ₀. More recently, Wordsworth et al. (2017) used new ab initio calculations of H₂-CO₂ and CH₄-CO₂ CIA to show that earlier estimates of the CIA were underestimated and that 2–10% levels of CH₄ or H₂ in a >1.25 bar atmosphere could elevate planetary mean temperatures over freezing. While it is unclear whether such high reducing conditions can be sustained in the steady state, this scenario remains an intriguing avenue to a Noachian Mars with conditions at least transiently globally clement for liquid water and prebiotic chemistry (Batalha et al., 2015; Wordsworth et al., 2017).

H₂ is spectrally inert at UV wavelengths compared to CO₂. Based on the constraints on H₂ absorption we found (Victor and Dalgarno, 1969; Backx et al., 1976), the contribution of H₂ to atmospheric absorption and scattering is negligible for H₂ mixing ratios of 0–0.1. Similarly, CH₄ does not absorb at wavelengths longer than 165 nm (Au et al., 1993; Chen and Wu, 2004). Hence, its absorption is highly degenerate with CO₂, and its presence at the levels suggested by Wordsworth et al. (2017) does not impact the UV surface environment. Photochemically generated hydrocarbon hazes require CH₄/CO₂ ratios of >0.1 and are consequently expected to be thin or nonexistent in this scenario (DeWitt et al., 2009). Consequently, the UV surface environment in an H₂- or CH₄-rich atmosphere should be similar to the pCO₂ = 2 bar case discussed in Section 5.1.

5.3. Highly volcanic Mars (CO₂-H₂O-SO₂/H₂S atmosphere)

We have so far considered atmospheres with CO₂ and H₂O as their dominant photoactive gaseous species. However, other gases have been proposed as significant constituents of the martian atmosphere. In particular, Halevy et al. (2007) suggested that the lack of massive carbonate deposits on Mars could have been explained if, during epochs of high volcanism on young Mars, SO₂ built up to the ∼1–100 ppm level. At such levels, Halevy et al. (2007) found that SO₂ would supplant CO₂ as the agent regulating global chemistry and climate, inhibiting massive carbonate precipitation in the process. Halevy and Head (2014) further argued that enhanced radiative forcing from high SO₂ levels could transiently raise mean surface temperatures at the subsolar point (assuming no horizontal heat transport) above the freezing point of water, explaining the observed fluvial features. Halevy and Head (2014) calculated that SO₂ mixing ratios ≳10 ppm (1 bar atmosphere) could have been possible during, for example, the emplacement of the martian volcanic plains. While the impact of SO₂ on martian carbonates and climate remains debated (e.g., Niles et al., 2013; Kerber et al., 2015), it is plausible that Noachian Mars may have been characterized by at least transiently high SO₂ levels due to higher volcanic outgassing rates.

We consequently sought to explore the impact of elevated levels of SO₂ on the UV surface environment and hence prebiotic chemistry. Figure 17 presents the dose rates calculated for a clear-sky atmosphere with varying pSO₂ and pCO₂. Figure 18 presents the dose rates calculated for an atmosphere with pCO₂ = 0.02 bar (optically thin at scattering wavelengths) but varying levels of CO₂ clouds. In both cases, SZA = 0, and A corresponds to desert.

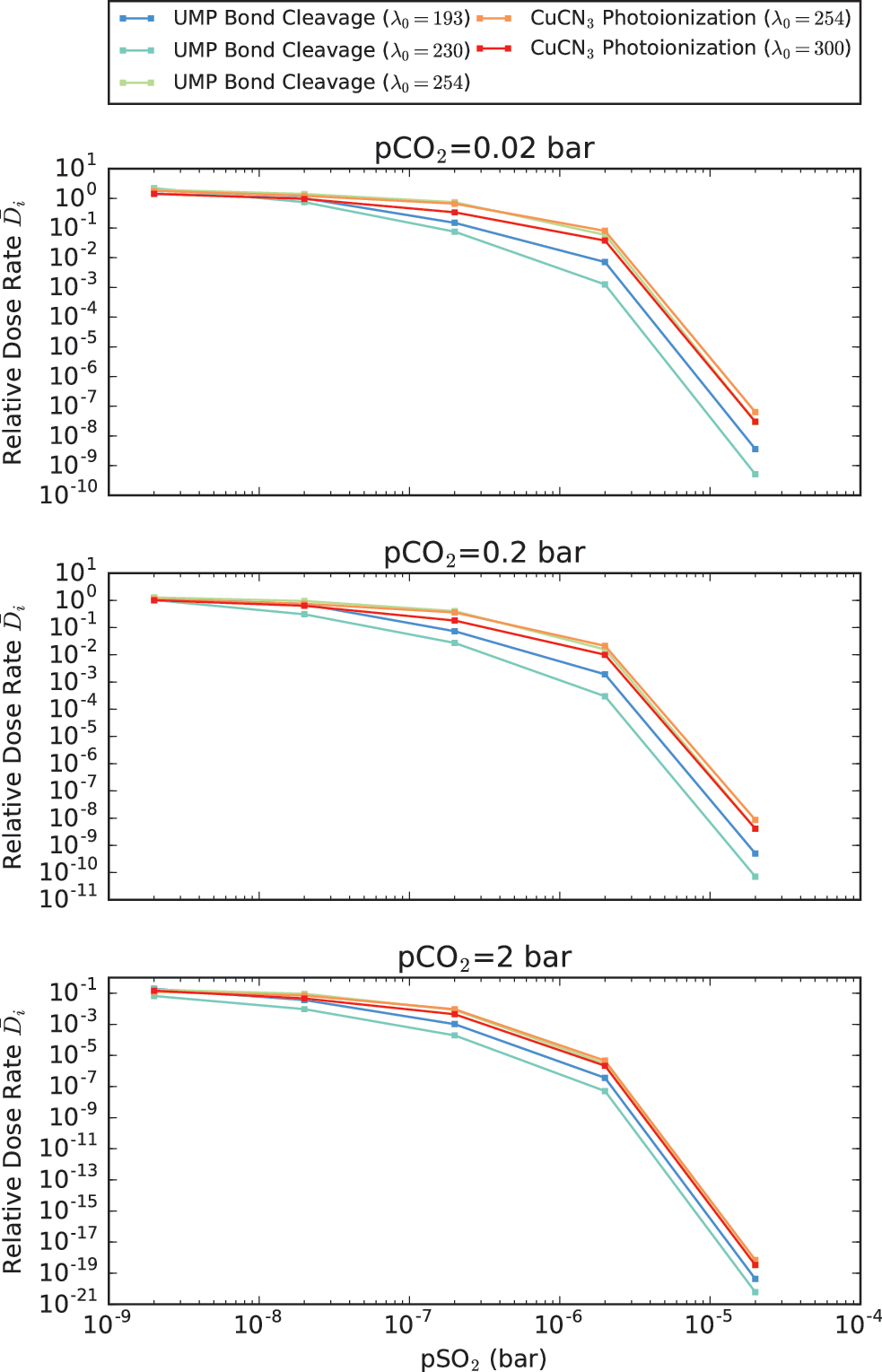

FIG. 17.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for CO₂-H₂O-SO₂ atmospheres as a function of pCO₂ and pSO₂ (T ₀ = 250 K, SZA = 0, A corresponding to desert).

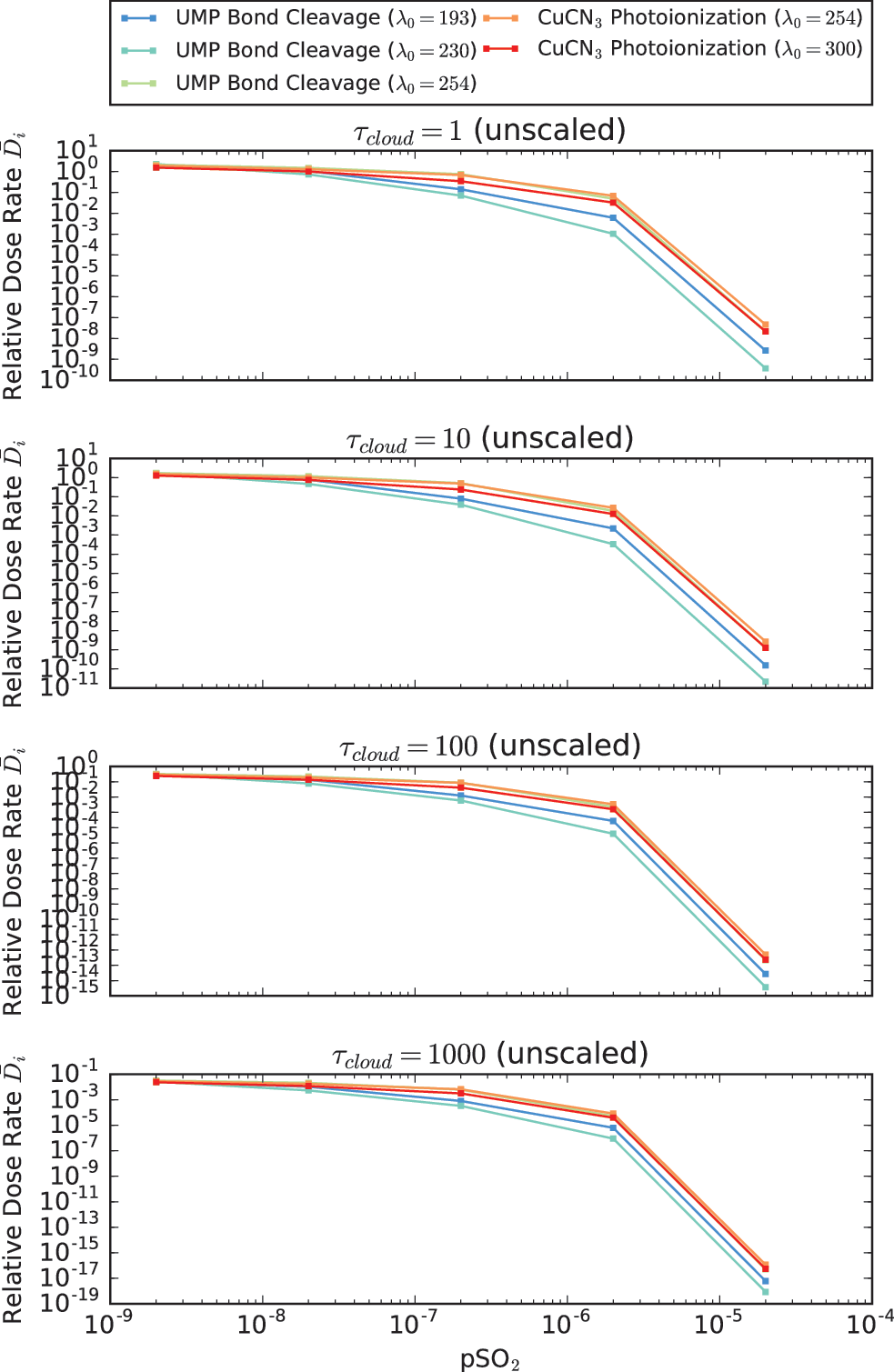

FIG. 18.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for CO₂-H₂O-SO₂ atmospheres with a CO₂ cloud deck emplaced, as a function of pSO₂ and τ _cloud (T ₀ = 250 K, pCO₂ = 0.02, SZA = 0, A corresponding to desert).

SO₂ is a far broader, stronger UV absorber than either CO₂ or H₂O; consequently, its presence can exert a dramatic impact on UV surface radiance and photochemistry rates. As with dust, multiple scattering from other atmospheric constituents can amplify SO₂ absorption. For pCO₂ ≤ 0.2 bar, pSO₂ ≥ 2 × 10⁻⁶ bar is required to suppress dose rates to \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} < 0.1, whereas for pCO₂ ≥ 2 bar, pSO₂ ≥ 2 × 10⁻⁷ bar is sufficient. Similarly, for τ _cloud ≤ 10, pSO₂ ≥ 2 × 10⁻⁶ bar is required to suppress dose rates to \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} < 0.1, whereas for τ _cloud ≥ 100, pSO₂ ≥ 2 × 10⁻⁷ bar is sufficient. For pSO₂ ≥ 2 × 10⁻⁵ bar, UV-sensitive prebiotic photochemistry is strongly quenched.

As with dust, we considered the hypothesis that attenuation from SO₂ might have a differential impact on the eustressor and stressor pathways. We calculated \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${{{{\overline{D}}_{{ \rm{UMP}} - { \rm{X}}}}} /{{{\overline{D}}_{{ \rm{CuCN3 - Y}}}}}}$$ \end{document} for pCO₂ = 2 bar (no clouds) and τ _cloud = 1000 (pCO₂ = 0.02 bar) for a broad range of pSO₂. This calculation is presented in Fig. 19. We note that, regardless of assumption on λ₀, as pSO₂ increases from 2 × 10⁻⁷ to 2 × 10⁻⁵ bar, the eustressor pathway is favored over the stressor pathways by as much as 2 orders of magnitude (dependent on λ₀). We conclude that it seems plausible that high-SO₂ planetary atmospheres have a UV throughput more clement for abiogenesis compared to low-SO₂ atmospheres under the assumption that the stressor and eustressor pathways we have identified were important. However, better measurements of the spectral QY of these photoprocesses are required to confirm and quantify the magnitude of this effect.

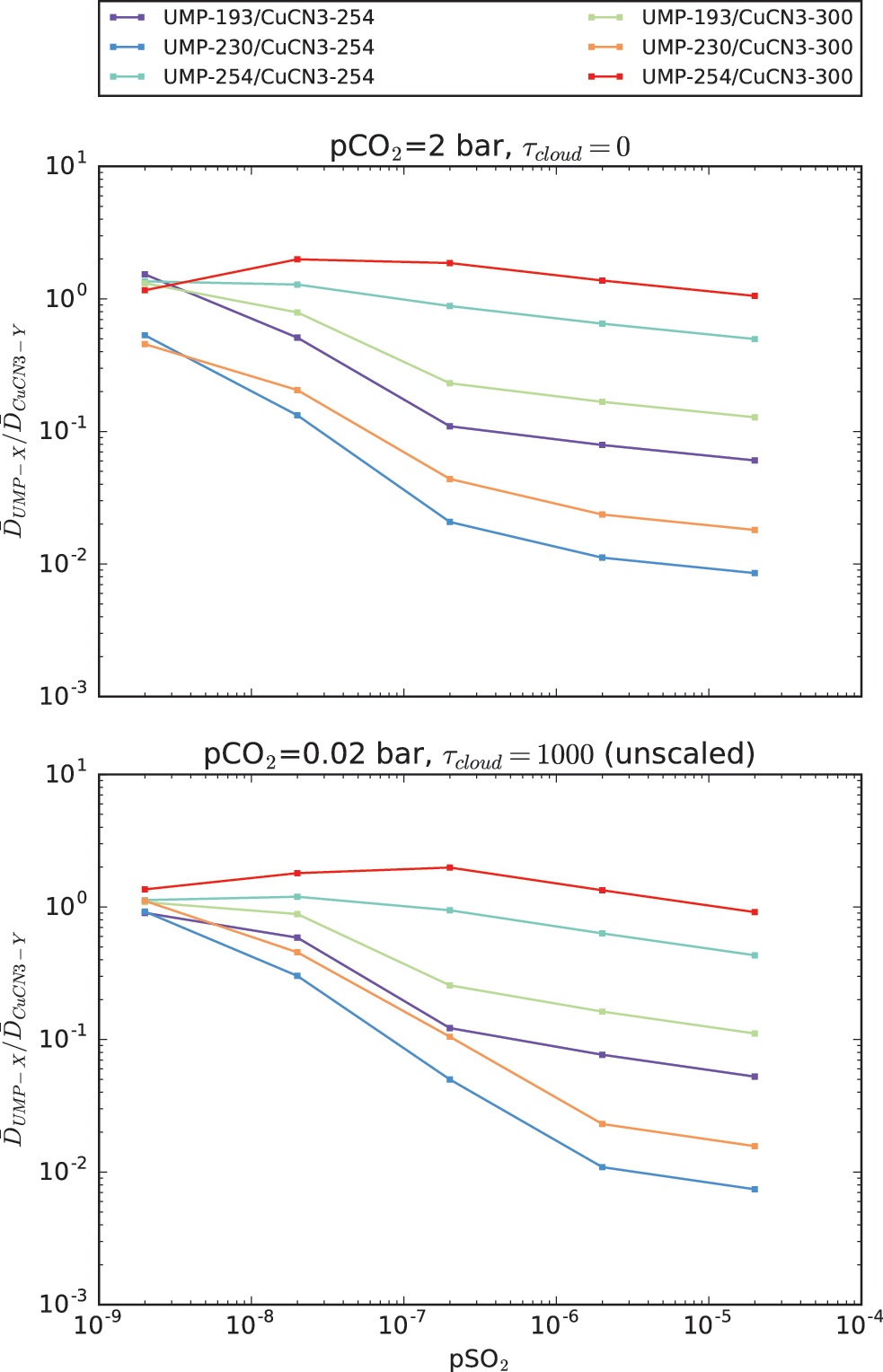

FIG. 19.

Ratio of stressor dose rates UMP-X divided by eustressor dose rates UMP-Y for CO₂-H₂O-SO₂ atmospheres, as a function of pSO₂ (T ₀ = 250 K, SZA = 0, A corresponding to desert). The atmospheres are highly scattering, either because of high pCO₂ or thick CO₂ clouds. Lower ratios imply a more favorable environment for abiogenesis as measured by these two photoprocesses.

While Halevy and Head (2014) focused on the abundance of SO₂ in the martian atmosphere, H₂S is emitted in equal proportion by the more reduced martian mantle in the work of Halevy et al. (2007). Hu et al. (2013) modeled the atmospheric composition as a function of sulfur emission rate for a 1 bar CO₂ atmosphere assuming equipartition of the outgassed sulfur between SO₂ and H₂S, irradiated by a G2V star at a distance of 1.3 AU. They found H₂S concentrations to be even higher than SO₂ concentrations, by over an order of magnitude at high S emission rates. H₂S is also a stronger, broader UV absorber than CO₂ or H₂O. Consequently, we sought to explore the impact of elevated levels of H₂S on the UV surface environment and prebiotic photochemistry.

Figure 20 presents the dose rates calculated for a clear-sky atmosphere with varying pH₂S and pCO₂. Figure 21 presents the dose rates calculated for an atmosphere with pCO₂ = 0.02 bar (optically thin at scattering wavelengths) but varying levels of CO₂ clouds. In both cases, SZA = 0, and A corresponds to desert. As with SO₂ and dust, highly scattering atmospheres can amplify H₂S absorption. For pCO₂ ≤ 0.2 bar, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} < 0.1 for pH₂S ≥ 2 × 10⁻⁵ bar; but for pCO₂ ≥ 2 bar, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} < 0.1 for pH₂S ≥ 2 × 10⁻⁶ bar. Similarly, for τ _cloud ≤ 10, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} < 0.1 for pH₂S ≥ 2 × 10⁻⁵ bar; but for τ _cloud ≥ 100, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} ≲ 0.1 for pH₂S ≥ 2 × 10⁻⁶ bar. For pH₂S ≥ 2 × 10⁻⁴ bar, surface photochemistry is strongly quenched regardless of atmospheric state.

FIG. 20.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for CO₂-H₂O-H₂S atmospheres as a function of pCO₂ and pH₂S (T ₀ = 250 K, SZA = 0, A corresponding to desert).

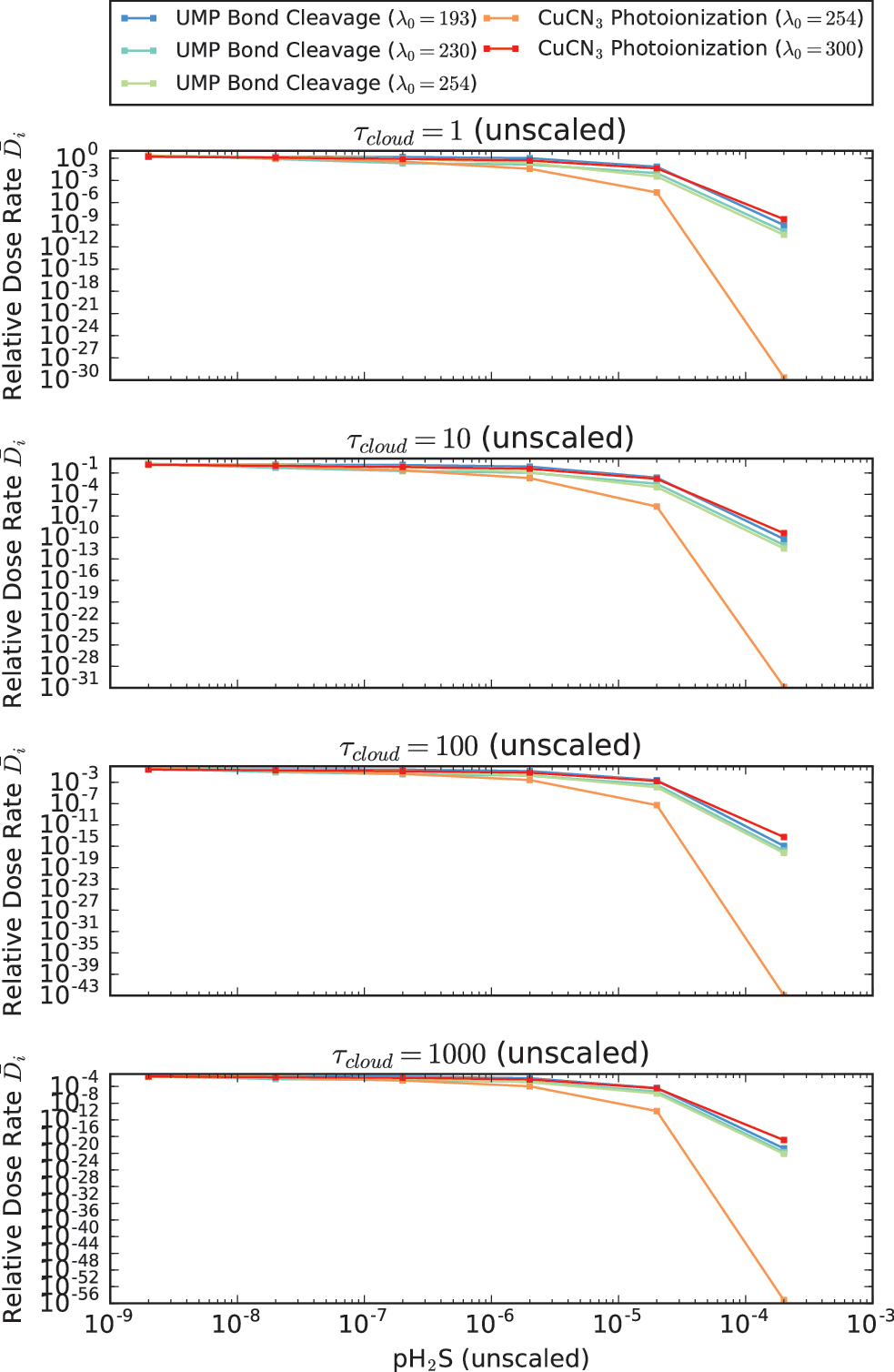

FIG. 21.

UV dose rates \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\overline {{D_i}}$$ \end{document} for CO₂-H₂O-H₂S atmospheres with a CO₂ cloud deck emplaced, as a function of pH₂S and τ _cloud (T ₀ = 250 K, pCO₂ = 0.02 bar, SZA = 0, A corresponding to desert).

We again considered the hypothesis that H₂S attenuation might have a differential impact on the stressor and eustressor dose rates. We calculated \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${{{{\overline{D}}_{{ \rm{UMP}} - { \rm{X}}}}} /{{{\overline{D}}_{{ \rm{CuCN3 - Y}}}}}}$$ \end{document} for pCO₂ = 2 bar (no clouds) and τ _cloud = 1000 (pCO₂ = 0.02 bar) for a broad range of pH₂S. This calculation is presented in Fig. 22. As in the case of dust in a dense CO₂ atmosphere, the ratios diverge from 1, but in opposite directions depending on the value assumed for λ₀ for photoionization of tricyanocuprate. We conclude that attenuation from H₂S may well have a differential impact on the stressor and eustressor dose rates but that assessing which it favors requires better constraints on the QYs of the photoprocesses, especially the photoionization of tricyanocuprate.

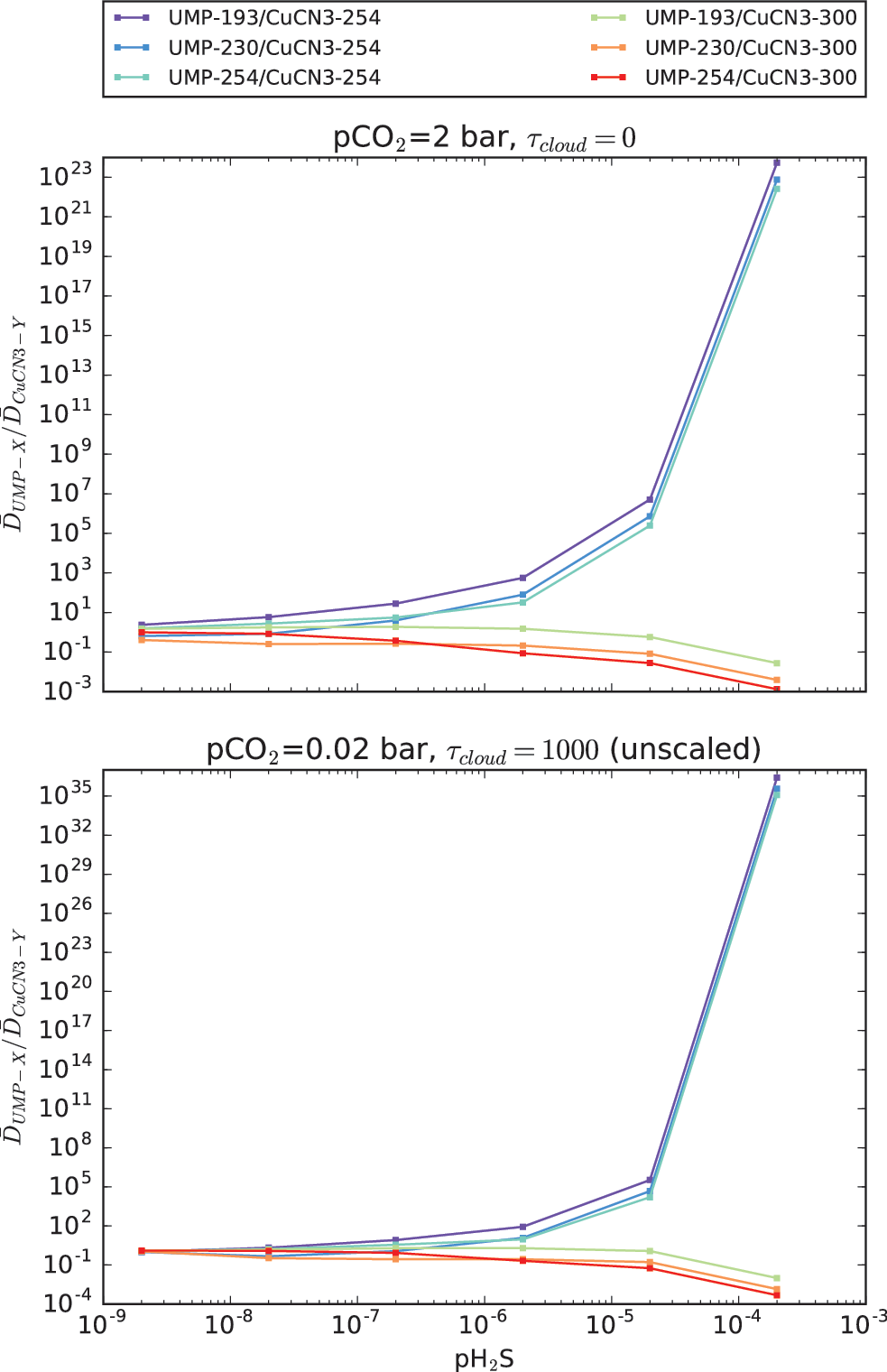

FIG. 22.

Ratio of stressor dose rates UMP-X divided by eustressor dose rates UMP-Y for CO₂-H₂O-H₂S atmospheres, as a function of pH₂S (T ₀ = 250 K, SZA = 0, A corresponding to desert). The atmospheres are highly scattering, either because of high pCO₂ or thick CO₂ clouds. Lower ratios imply a more favorable environment for abiogenesis as measured by these two photoprocesses.

6. Conclusion

We used a two-stream, multilayer radiative transfer model to estimate the UV environment on the surface of 3.9 Ga Mars as a function of atmospheric composition, and explored the implications for prebiotic chemistry. Prebiotic photoreaction rates are within an order of magnitude of the terrestrial values for normative clear-sky CO₂-H₂O atmospheres, which is in agreement with past work (e.g., Cockell, 2000) and suggests that early martian and terrestrial atmospheres featured comparable UV environments. In agreement with prior work, we find shortwave radiation to be effectively attenuated by CO₂ absorption, with fluence ≲185 nm removed for pCO₂ ≥ 2 × 10⁻⁵ bar and fluence <204 nm removed for pCO₂ ≥ 0.2 bar. Fluence drops off more slowly in the >204 nm regime, where neither CO₂ nor H₂O absorb. This is a consequence of random walk statistics in highly scattering regimes and stands in contrast to prior studies (Rontó et al., 2003; Cnossen et al., 2007) that did not account for multiple scattering. The impact of CO₂ and H₂O clouds on their own is similarly muted because they too are pure scatterers in the >204 nm regime; τ _cloud ≥ 100 is required to significantly affect surficial reaction rates, comparable to but in excess of the highest patchy cloud optical depths predicted by some 3-D GCM studies (e.g., Wordsworth et al., 2013).

While dense atmospheres and cloud decks only modestly reduce surface fluence on their own, in concert with other absorbers (dust, SO₂, H₂S) they can have a dramatic effect on surface fluence and reaction rates through amplification of the effects of these absorbers. Dust levels of τ _d = 1, only a factor of a few higher than that sustained in the modern atmosphere, could suppress prebiotic reaction rates by orders of magnitude for pCO₂ ≥ 2 bar or τ _cloud ≥ 1000, and dust levels of τ _d = 10 would sharply reduce reaction rates independent of the atmospheric state. Similarly, pSO₂ ≥ 10⁻⁷ bar or pH₂S ≥ 2 × 10⁻⁶ bar is required to significantly reduce reaction rates for pCO₂ ≥ 2 bar or τ _cloud ≥ 100, but for less scattering atmospheres, pSO₂ ≥ 10⁻⁶ bar or pH₂S ≥ 2 × 10⁻⁵ bar is required. pSO₂ ≥ 10⁻⁵ bar or pH₂S ≥ 2 × 10⁻⁴ bar quenches UV-sensitive photochemistry by many orders of magnitude regardless of other atmospheric conditions.

The absorbers described above have spectrally variable absorption, and prebiotic photochemistry is wavelength-dependent, leading us to speculate whether high abundances of these absorbers, despite suppressing UV-sensitive chemistry generally, might not favor or disfavor eustressor photoprocesses conducive to the origin of life compared to stressor processes that impede life's formation. We compare the relative impact of absorption from dust, SO₂, and H₂S attenuation on two such stressor (cleavage of the N-glycosidic bond of UMP) and eustressor (production of aquated electrons from CuCN₃ ^2-) photoprocesses. We find that it is possible for high levels of these absorbers to disproportionately favor one or the other of these photoprocesses. In particular, high SO₂ levels may create an especially favorable environment for abiogenesis, under the assumption that these photoprocesses were important to abiogenesis (so long as enough fluence reaches the ground to power these reactions). However, the magnitude and direction of this effect are sensitive to assumptions about the QY of these processes. Better characterization of the spectral QYs of these processes are required to rule definitively on this question.

Footnotes

Acknowledgments

We thank C. Magnani and S. Rugheimer for sharing their data with us and for many insightful conversations. We thank J. Sutherland and J. Szostak for sharing their insights into prebiotic chemistry. We thank two anonymous referees, whose comments improved this manuscript.

This research has made use of NASA's Astrophysics Data System Bibliographic Services and the MPI-Mainz UV-VIS Spectral Atlas of Gaseous Molecules.

S.R. and D.D.S. gratefully acknowledge support from the Simons Foundation, grant no. 290360.

Author Disclosure Statement

The authors declare no competing financial interests.
