Tire Changes,Fresh Air,and Yellow Flags: Challenges in Predictive Analytics for Professional Racing

Introduction

Currently in the United States, professional car racing has the second-largest viewing audience among all sports. ¹ Within a professional stock car race, some of the most critical decisions by the teams are made during pit stops, where teams can choose to change either zero tires, two tires, or all four tires of their car. Changing four tires is more time consuming, and teams can risk losing their advantage over the other players because of extra time spent changing tires in the pit; on the other hand, changing two tires or zero tires may be risky, since providing the car with fewer fresh tires could decrease its maximum potential speed. Predicting in advance which decision would most benefit a team can depend on many complex variables, a relationship that is difficult for racing teams to predict. Currently the choice needs to be made by the team captain instantaneously, without computational tools, yet somehow considering all possible data about each team in the race. These are key decisions, viewed by millions of fans, that are made almost purely from experience and judgment rather than with the help of analytical tools.

There are many other sports in which key strategic decisions are made without the help of in-game analytical tools. Even in sports like baseball and basketball, where there has been a lot of work on analytics, analyses are typically done at the season level, prior to the start of the game. This is very different than our work because, in racing, the actual conditions of the race are potentially very useful for predicting the outcomes, beyond what one can obtain using season-level statistics.

This work started with the hypothesis that a data-driven prediction engine operating in real time may be able to assist team captains in making these critical tire-change decisions. As no such prediction software or methodology previously existed, it was unclear how the data could be leveraged to produce an accurate prediction model; there was no previous knowledge discovery system for working with data from professional stock car races or from any similar enough sport. Further, the predictions need to be made at the finest granularity available for racing data—at the level of individual laps—which is the most detailed race-level data made available to teams by (at least through 2012). While constructing a knowledge discovery system for these data, we faced considerable challenges in how to process and define the prediction model. In handling racing data, it is easy for a bad mathematical definition to lead to a conclusion that a particular feature is not important for prediction, and it is easy for Simpson's paradox to appear, indicating (for instance) that tire-change decisions do not impact race position. In the end, we were able to obtain high-quality results only when domain expert knowledge about racing was carefully infused into all of the mathematically defined features and evaluation metrics used in the prediction engine.

We consider the entire cycle of the knowledge discovery process: exploratory analysis, feature generation, building a model, data mining, and decision making for within-race strategies. Mining the raw data requires many domain-specific considerations in order to construct meaningful statistics. Model building requires careful assumptions about the observed data and molding the problem into a tractable learning formulation. Based on the model outputs, decision making requires an understanding of the horizon and time scale where it is most meaningful to make a decision and characterize its risk–reward tradeoff. In the sports-prediction and decision-making studies of the past, these components have been examined mainly in isolation. Our study can be abstracted to a framework that is both unified and tractable, allowing the possibility of system-optimal solutions in a practical amount of time (instantaneously) for professional racing and other sports.

The statistical hypotheses we address will be derived from the following questions:

Q1. Can we predict the change in rank position of a racer over the next portion of the race, based on the racers' recent histories?

Considering question Q1, the design of in-race data-driven strategies critically relies on our ability to forecast the performance of the racer based on his and his neighbors' recent race history, the state of the race up to that point, and any decisions he can potentially make (zero tires, two tires, or four tires). The racer's recent history can include the number of other racers he overtook, the racer's speed, rank position, and the age of each of his tires. Another valuable outcome of answering Q1 is being able to forecast the finishing rank as early as possible within the race. This is conventionally forecasted using season-level data before the race even starts.

To determine strategy, we need to know beforehand what the impact of a racer's tire change will be on his rank position and deceleration. It is possible for a racer to rapidly gain rank position by changing zero or two tires during a pit stop, but this action can penalize his ability to maintain this rank position throughout the next portion of the race. This effect can be highly complex and dependent not just on the racer but on the tire-change decisions of other racers, the track itself, the track temperature and weather, and the type of tires used for the race. Yet, being able to forecast the impact of a tire-change decision can assist with critical elements of racing strategies; in other words, answering Q1 can lead to an answer to Q2. For instance, a reasonable myopic strategy is as follows: If we predict that a two-tire change is likely to lead to a loss in track position compared to a four-tire change, the team captain could make a decision to change four tires. Answering Q2 is important because strategies may have a large impact on the racer's success when all his peers are almost equally skilled and the cars have very comparable speeds.

Besides the goals of real-time prediction and decision making, a knowledge discovery framework for racing can help provide specific insights into racing strategy (Q3). It can be a valuable tool for reasoning about how different actions in the past have impacted the subsequent rank positions of the racers. For instance, does the value of the prediction depend on the forecast horizon? Does the variability of laps raced between tire changes have an effect on ranks? We would like to know answers to such questions because they can lead to better predictions and insights for future races.

The following section provides related work. In the third section, we describe some of the complexities we encountered in the knowledge discovery process in our setting. We also describe some experimental shortcomings that restrict the predictions and inferences we can make. In the fourth section, we define the prediction problem and describe the key hypotheses about our data that guide our construction of features for predicting change in rank position. A straightforward myopic decision-making step is proposed to address Q2. Prediction results are provided in the fifth section, answering Q1. Some insights from the knowledge discovery process are mentioned in the last section in an attempt to answer Q3.

Related Works

Work on knowledge discovery systems in different domains have highlighted some of the important challenges that we also face in this work (see, for instance, Refs.^2–9 ) In particular, these works have highlighted the importance of designing knowledge discovery systems around the unique aspects of a domain. These works also emphasize the key choice of proper evaluation metrics and being able to provide insight that goes beyond prediction accuracy and back to the important aspects of the domain. The choice of machine learning algorithm itself is not always a critical choice within a knowledge discovery system; in our data mining step, we found that several different algorithms have essentially similar performance.

There have been few recent attempts to use prediction models for in-game decision making in sports such as baseball,^10,11 basketball, ¹² and cricket.^13,14 This is contrasted with season-level statistical modeling, which is well researched in the literature because of their applicability, in particular, to sports betting and fantasy sports in addition to helping the teams improve their competencies (see Ref. ¹⁵ for a brief overview). Note that for professional racing, season-level research has been sparse (see, for instance, Refs.^16–19 ) and our work is the first to explore in-race predictive modeling.

For baseball, Ganeshapillai and Guttag ¹⁰ developed a prediction model to decide when to change the starting pitcher as the game progresses. Similar to our workflow, they proposed several features from historical data and the current game's history to predict a pitcher's performance. At a given point in the game, they forecast the future performance of the pitcher, compare it to a predefined threshold, and make a binary myopic decision whether the pitcher should continue or not. A related work ¹¹ looks at predicting the type of pitch that will be thrown by a pitcher given the current state of the game and historical data about the teams playing.

In basketball, Bhandari et al. ¹² developed a knowledge discovery and data mining framework for the National Basketball Association (NBA) with the aim of discovering interesting patterns in basketball games. This and related (often proprietary) systems have been in operation with many basketball teams over the past decade. Such solutions are tailored for offline use and do not address in-game prediction and decision making as we do. There has also been some recent work ²⁰ exploring in-game decision making as a function of time remaining in the game without building any prediction models.

A key difference between predictive modeling for professional racing compared to that in basketball (and baseball) is the nature of the evolution of the game. In racing, the race history cannot be easily segmented into “plays.” At each point in time of a race, the entire history of the race determines the racer's current rank position. On the other hand, in basketball, the game is restarted at the beginning of each play and the team's current state does not heavily depend on their state before the restart. One can reasonably approximate a basketball game to be a sequence of independent plays and even model them as independent observations drawn from a distribution. These long-standing correlations of decisions within the race makes racing inherently much more difficult to model.

In cricket, Bailey and Clarke ¹³ and Sankaranarayanan et al. ¹⁴ explored machine learning methods to predict the future states of the game given features related to the current state of the game and the features of the two teams competing. They consider both season-level data and the data collected within the game to predict future scores. Although both these works are closer to what we do, there are a couple of key differences: (a) these works involve a much lower dimensional prediction problem (about 15 features in Sankaranarayanan et al. ¹⁴ ) compared to ours (>100, see the Prediction Framework section), and (b) professional racing involves many more strategic agents (for , about 40 racers race) compared to cricket (two teams, which is is also the case for basketball and baseball). We believe having a high number of strategic agents can have significant impact on predictability and makes the knowledge discovery process more critical compared to two-team games.

Another key feature of our work is that we explore the knowledge discovery pipeline extensively compared to the previous works. This is partially because for basketball, baseball, and even cricket, there has been significant prior academic research output compared to professional racing. In this work, we critically examine many details and characteristics of in the section Data and Observations. For instance, we observe Simpson's paradox-like phenomena between two explanatory variables (slope of lap times and number of tires changed). Our exploration of data can help future work on racing focus more on statistical modeling and prediction as in baseball and basketball.

The need for predictions at the finest granularity of racing is two-fold: 1) Previous studies on racing, like those using only race-level and season-level statistics, may be too coarse to be beneficial within the middle of a race. For example, we believe that statistics computed during the race, for instance, the state of the race after 100 laps, often reveal more about the outcomes of the current race than the predictions made by the previous studies. Season-level and multi-year studies are also susceptible to changes in the rules or other changes to the sporting event. For example, for , rules have changed multiple times, the latest ones being in 2008 and 2011. This further reduces the effectiveness of race-level statistics for aiding racing strategy. 2) By calculating within-race predictions dynamically as the race evolves, we can better quantify the contribution of real-time observations toward predicting outcomes in each portion of the race.

Finally, we note that the approach we take to building a knowledge discovery framework and decision-making system for professional racing can be applied to other racing sports with similar structural characteristics, including MotoGP (see also Ref. ²¹ ), Formula 1, IndyCAR, various other types of races within , and also bicycle races and marathons.*

Data and Observations

We define some of the race-specific terms used in the article:

• Lap: One full trip around the race track.

In our study, we use race data constituting 119,178 lap times and 119,178 rank position observations from 2,932 total outings, including each racer's lap times and rank positions for each one of the 5,352 laps within our data set. We also have caution lap and pit stop information (time and number of tires changed) for each racer. (Some races had unusual race characteristics, for instance, some were road courses and some had insufficient or missing tire change information; thus, these were not used in our study.) Races comprising this data set are listed in Table 1. The numbers of laps in the 17 races we examine range between 160 and 500 laps. The total number of pit stops per race varies between 170 and 373, and the average number of pit stops per racer varies from 4 to 8.9. The number of cautions varies between 3 and 14.

OPEN IN VIEWER

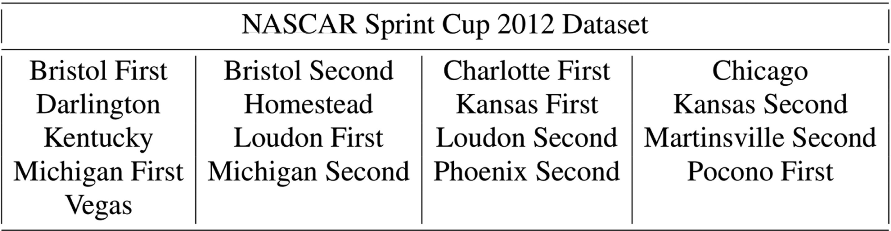

Table 1.

List of Races Used for Our Experiments

Complexities of racing

To give a sense of the difficulty in modeling with racing data, we next discuss general characteristics of racing and how nonlinear interactions between measurements and other issues pose difficulties in modeling and decision making. Several of these observations have not (as far as we know) been previously quantified, in particular, the “fresh air” effect and the Simpson's paradox effect from tire-change decisions discussed below.

Tire-change decisions

As we discussed, this is a major strategic decision for each team. In isolation, a car with four fresh tires is generally faster than a car with only two fresh tires; however, it is not that simple during a race. The speed of racers is heavily dependent on more than just tire freshness; as we will discuss, rank position and the ability to overtake other racers play important roles in determining speed. A two-tire change may or may not be an overall advantage depending on whether the racer is also able to maintain their rank position.

Choosing a two-tire change saves a racing team about 6 seconds on average over a four-tire change, though there is a high variance in pit times. Pit lanes have speed limits that dictate the minimum pit road time, and the racer has to slow down while stopping at his designated stop, make turns into and out of his stop, and avoid other racers executing pit stops around him. These elements and the actual performance of the pit crew in servicing the car determine the pit stop times. Figure 1 shows the histogram of pit times. One can see three peaks (around 4 seconds, 7 seconds, and 14 seconds) and a peak at 0 seconds. The 0-second pit times are due to penalties among other causes (including missing data defaulting to 0). The other three peaks are due to the decision to replace zero, two, and four tires respectively. A zero-tire pit stop is for refueling only.

OPEN IN VIEWER

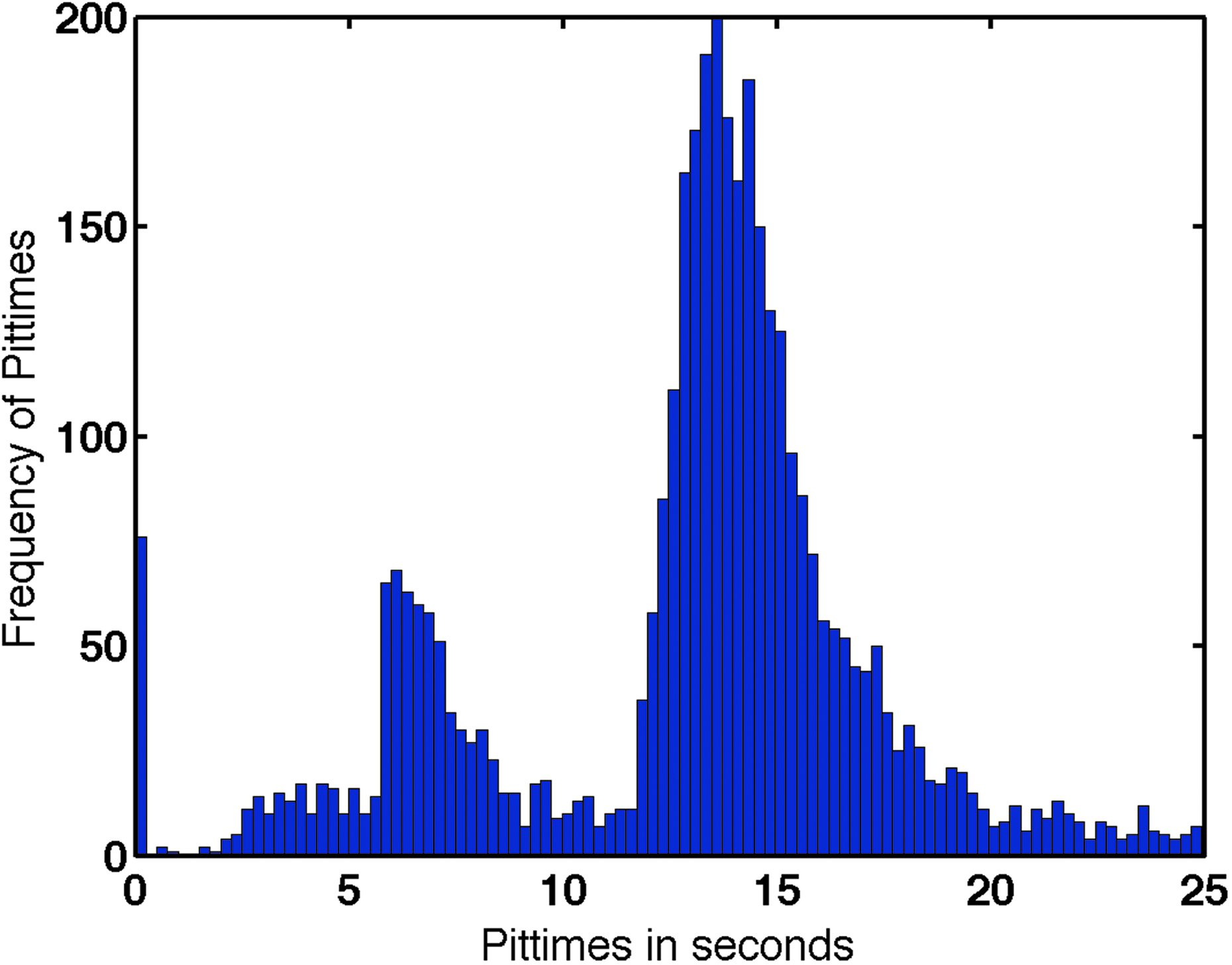

FIG. 1.

Histogram of pit times taken by various racers in our data set.

Saw tooth profile of lap times

Examples of the lap-time time series for typical racers in our dataset is shown in Figure 2. Lap times increase (the car gets slower) as the tires wear down over the course of an outing. Toward the end of an outing, one can also see that the lap times sometimes flatten out; the lap times deteriorate at a slower pace later in the outing. We use the slope (estimated rate of change in seconds per lap) of these lap times over the course of an outing to measure tire wear. See Figure 3 for an example of how slopes are computed.

OPEN IN VIEWER

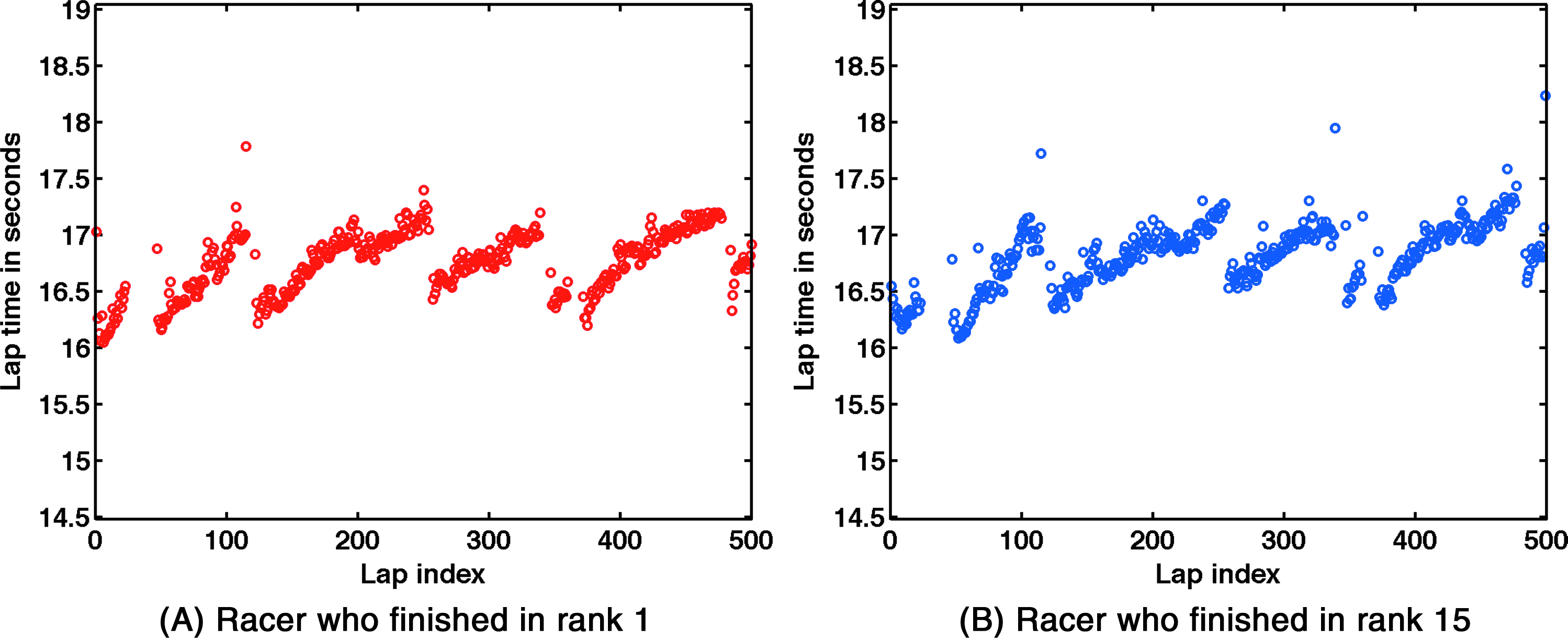

FIG. 2.

Sawtooth profile of typical racers in a race.

OPEN IN VIEWER

FIG. 3.

Plot of lap times and linear fits for a 15th ranked racer in a race. Slopes are computed by fitting a line through the lap times in an outing using simple linear regression.

The “fresh air” effect, which is a nonlinear interaction between lap time and rank position

In general, lap times are lower (better) for racers near the front of the pack. This is illustrated in Figure 4 for three typical laps in three different races. Remarkably, a linearly increasing trend is plainly visible between lap time and rank position in each figure. That is, the lap speeds of racers at the front of the pack can be substantially faster than those in the middle of the pack, which can be substantially faster than racers at the back of the pack.

OPEN IN VIEWER

FIG. 4.

Fresh air effect: ordered lap times of the racers at lap 50, sorted by rank position, for two separate races. Each dot represents a racer's lap time. There are about 40 racers in each plot.

Because racers near the front of the pack tend to go faster, their tires wear out more quickly. In fact, we observe that the slope of lap times over an outing increases more quickly for cars at the front of the pack. This is shown in Figure 5. Actually this effect is highly nonlinear: The cars in the front of the pack and the back of the pack tend to have higher slopes, and the cars in the middle tend to have lower slopes. The effect is fit nicely by a degree-2 polynomial, as shown in Figure 5.

OPEN IN VIEWER

FIG. 5.

Slopes of lap times within an outing versus initial rank in the outing, for two separate races. Each dot represents a racer's outing within a race. In a typical race, each racer has multiple outings; thus, there are multiple dots for each of the ∼40 racers in each race.

Simpson's paradox ^‡ for the number of tires changed and the slope

Consider the leftmost subplot of Figure 6, which shows the distribution of slopes for two tire changes and the distribution of slopes for four tire changes during a race. It is clear that in this race, cars that took two tires had much faster wear (higher slopes) than cars that took four tires. This seems to indicate that older tires tend to wear faster for this race, and thus if the epochs are sufficiently long, it would generally be strategic to take four tires. However, this is a severely incomplete picture. In fact, rank position is a lurking variable, in the sense of Simpson's paradox, and has the following effects:

OPEN IN VIEWER

FIG. 6.

On the left, we include slopes for all ranks on a single boxplot. The right three boxplots again show the distribution of slopes, but separated by rank position. Rank position can be considered the lurking variable for Simpson's paradox, as the right three boxplots refute the hypothesis from the left boxplot—namely, that the slopes for two-tire changes are substantially larger than the slopes for four-tire changes. In these boxplots, there were 26 two-tire changes and 176 four-tire changes. These data are from a track in the midwest of the United States.

(a) Because only cars that have generally better rank positions take two tires, their slopes are also higher (as we showed in Fig. 5). In fact, for racers in ranks 26–43, there are no instances of two tire changes compared to 49 instances of four tire changes. This results in a lower median slope for four tire changes, as shown in the leftmost subplot in Figure 6.

(b) If we break down our data according to rank positions 1–5, 6–15, and 16–25 as shown in the three subplots to the right in Figure 6, we see that the median slope values across ranks are actually very similar for two tire changes and for four tire changes, in seeming contradiction with the leftmost boxplot.

Thus, conclusions drawn from simply looking at slopes for two tire changes and slopes for four tire changes, as in the left of Figure 6, would be misleading. Note that the impact of the two- or four-tire decision depends on many factors besides rank position. When the distribution of slopes are similar as in the box plots for rank positions 1–5, two-tire changes would be strategic since the racer could gain rank position without any predictable change in the rate of tire wear.

Race dynamics around a green lap pit stop are different from those after a caution lap pit stop

Racers may choose to pit during a green lap to refresh tires and/or refuel. Not all cars take green lap pit stops around the same time, which causes a high variance in rank positions around the laps when these pit stops occur. For instance, a 20th-rank position racer, who has been in the same position through the outing, can become a first-rank position racer temporarily if the 19 racers in front of him pit while he does not. Usually, he will then pit in the succeeding laps. While the other cars are in the pit and he is not, his first-rank position is artificial. Also, in this case, his pit entry rank position would be recorded as 1. Thus, the green lap pit stops can be very problematic for our analysis, as rank position is not completely meaningful when other racers are in the pits. Caution lap pit stops, on the other hand, are less susceptible to high variability. In the case of outings preceded by green lap pit stops, the racers are more spread out on the track than in the outings preceded by caution lap pit stops (which are similar to a race restart).

Game theoretic aspects (neighborhood interaction)

Neighboring racers impact each other because of shared track space. This is a key difference from other racing sports like athletic short distance track events or indoor swimming where there is minimal neighborhood influence since each player has his own assigned lane.

Data issues

Besides the inherent complexities of racing discussed above, there are some natural challenges that arise when making decisions based on historical data. In , the decision to replace two tires versus four tires is one such case, particularly due to the data problems of control, imbalance, and noise described below.

No controlled experiments

Recall that our objective was to make informed decisions (two tire or four tire) based on race history. Unfortunately, we cannot perform randomized controlled trials in order to measure the effect of a decision; we are limited by what we can do with the historical data. One way to partially handle this shortcoming is to pick “similar” racers who differ only in their tire decisions and verify whether there is any difference in the causal effect of the decision. Again this is unsatisfactory, as controlling for all other variables in the system is very difficult.

“Unfortunately, we cannot perform randomized controlled trials in order to measure the effect of a decision; we are limited by what we can do with the historical data.”

Imbalance

There are far more four-tire pit stops than two-tire pit stops. This makes it difficult to quantify the effect of the number of tires on the performance of the racer. Figure 7a shows the number of two-and four-tire pit stops in each race of our data set. In addition, almost all practice before a race is based on four-tire changes with the intention of tuning the settings of the car. During practice runs, the total number of tires and total laps that can be run are budgeted as well.

OPEN IN VIEWER

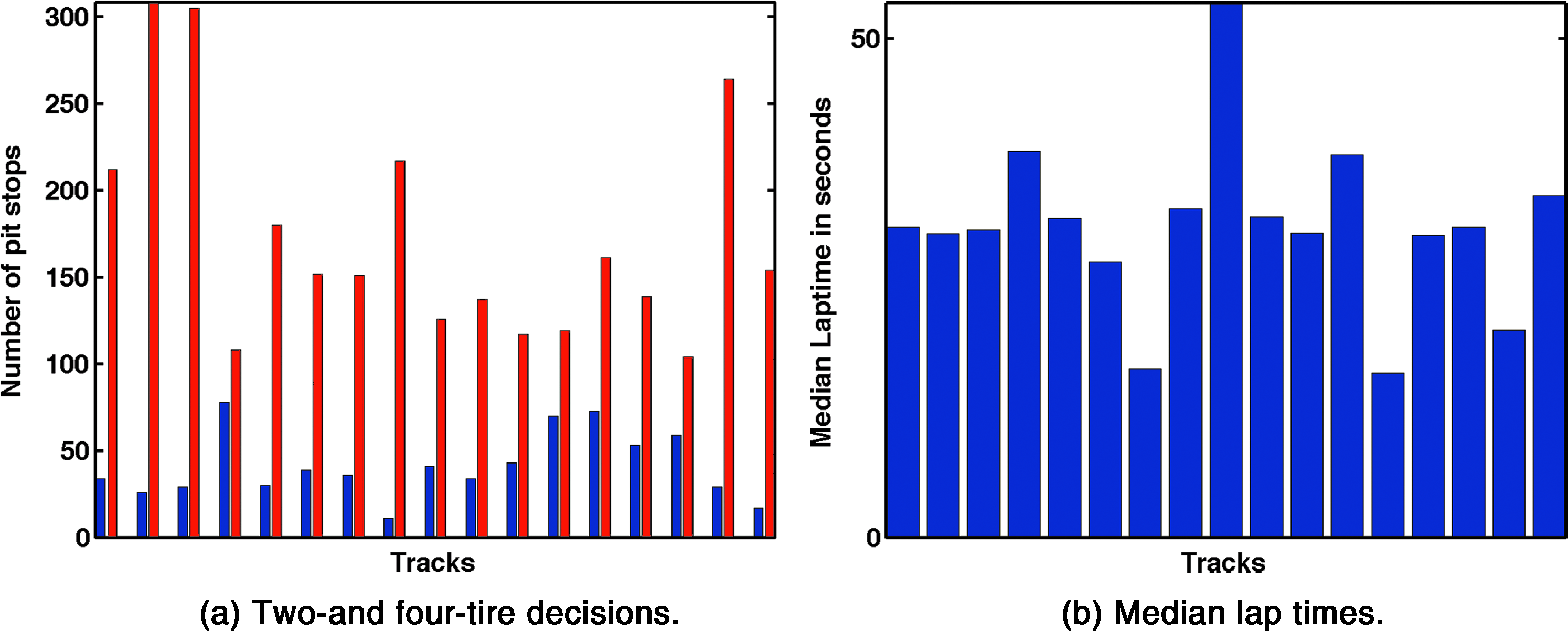

FIG. 7.

Bar plot of two-and four-tire decisions per race for our data set is plotted in (a). Left (blue) bars are the total number of two-tire decisions in the race, and right (red) bars are the total number of four-tire decisions. In (b) is a bar plot of median lap times observed per race for our data set.

Races are different

We would like to be able to generalize knowledge (or borrow strength) across races. However, races can be fundamentally different, prohibiting a straightforward merging of observations across races. The number of laps in the race, the length of the tracks, and their physical characteristics (e.g., banking characteristics) can be very different, which all heavily affect lap times. For instance, Figure 7b shows the median lap times of races we analyze, where the median is taken over all racers and all laps; these heavily vary from race to race. In general, statistics of pit information and lap time information are not race invariant and cannot be directly compared across races.

Noise

“Irregularities” in racing occur very regularly, such as having accidents (hitting the wall, spinning out of control), running completely out of gas, experiencing mechanical failures, and incurring race penalties. These irregularities can affect the quality of our predictions if they are not carefully filtered out. Another aspect that adds to the noise is out-of-sequence pit stops, where a racer takes a pit stop at a different time than the majority, altering the rank positions of others temporarily. Race rules such as “free pass” ^§ and strategies such as staying out to lead a lap to earn a point also make our observations noisy.

Prediction Framework

Keeping in mind the complexities of racing and the data issues discussed above, we now discuss our framework for real-time prediction and strategy in racing.

Key hypotheses

Based on exploratory analysis of lap time and rank position measurements, we believe the following key hypotheses impact our ability to predict change in rank. To our knowledge, these have not been published before.

“Rank momentum” leads to useful predictive factors

We compute a racer's “rank momentum” based on whether he is generally gaining or losing ranks. Simply, a racer that started at the back of the pack and continues to obtain better rank positions has a different trajectory than a racer that started out at the front of the pack and gradually moves toward the back. Rank momentum may help alleviate issues with the “fresh air” effect described in the Complexities of Racing section. Rank momentum terms rely on discrete derivatives of rank position time series. They capture information about racers relative to each other. This is different than the slope of lap times (“lap time momentum”), which considers the racers in absolute terms rather than relative to each other.

“Protection” and other neighborhood effects can lead to useful predictive factors

As we discussed, when a racer takes two tires instead of four tires, this can potentially put the racer in a better rank position initially, but he must maintain his position in the outing afterward to gain ranks. Our evidence suggests that it is sometimes easier for a racer to maintain rank position if several cars behind him also take two tires. This way he is “protected” by the cars behind him—a faster car (for instance, one that had taken a four-tire change) coming from behind would need to pass several other cars before passing him. Figure 8 illustrates this phenomena using race data. Here, in a certain block of the race, the rank profiles for racers who took two tires beforehand are plotted. We see that racers with ranks 13–19 took two tires before the outing. About half of these racers maintained their rank position through the outing (see the horizontal lines between ranks 8–11). The remaining half were overtaken by four-tire racers behind them (see the upward drifting curves ending between ranks 17–27). We hypothesize that the first group of racers were protected from the four-tire cars whereas the latter group of cars were not.

OPEN IN VIEWER

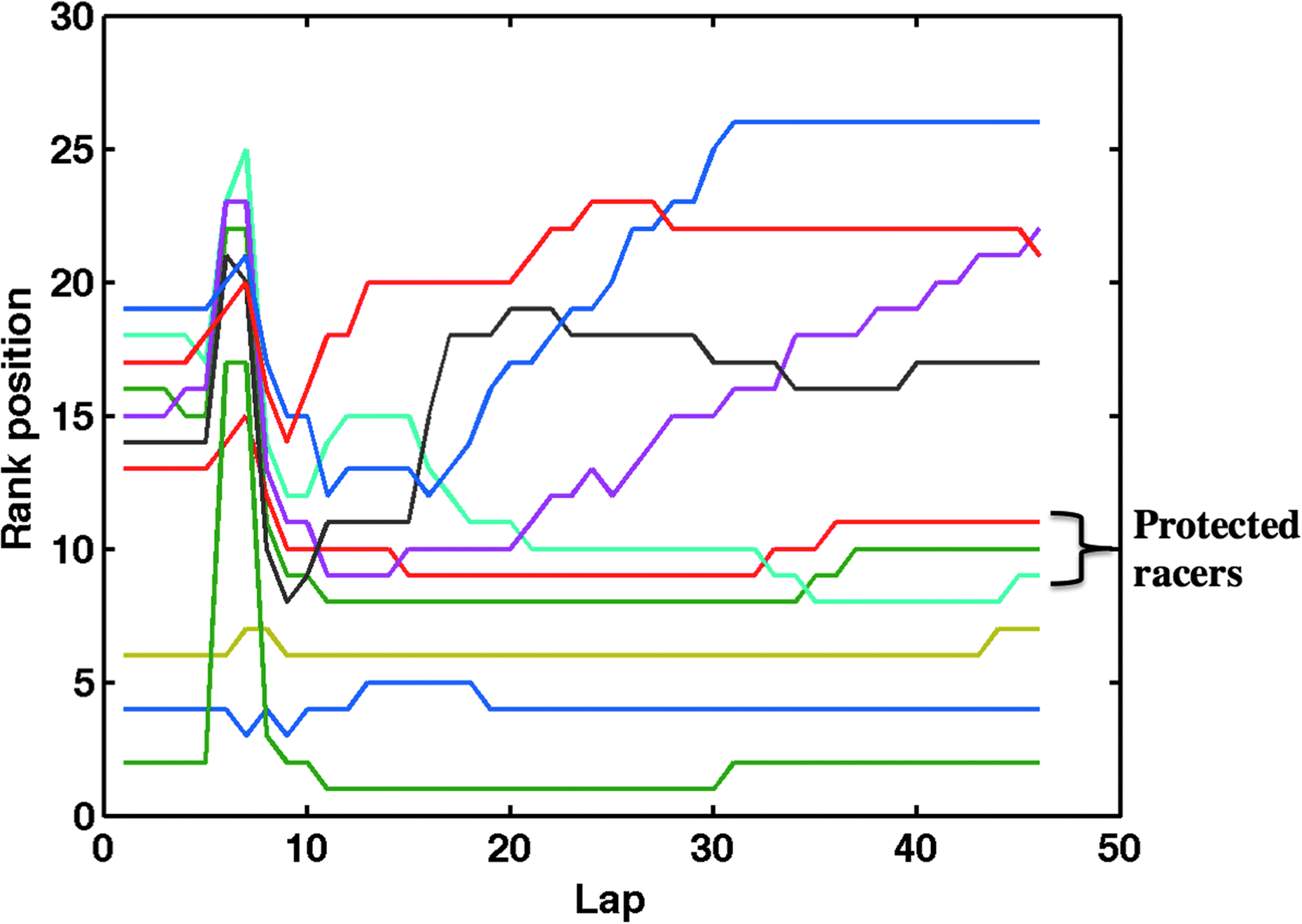

FIG. 8.

An instance of protection: We plot rank position versus relative lap index for a race. Cars in ranks 2, 4, 6, and 13–19 took two tires and the remaining cars took four tires. For clarity, we show only the rank positions of the cars that took two tires during the sixth/seventh lap. The four-tire cars overtook some of the two-tire cars as seen by the upward moving rank profiles in the upper half of the graph. There were also some two-tire cars that did not change rank position, as seen by horizontal lines in the lower half of the graph. They were thus protected because many of the cars behind them also took two tires.

There are other possible neighborhood effects besides protection. For instance, we hypothesize that the historical performance of a racer's immediate neighbors can help to predict both change in rank and slope of lap times over the course of an epoch. We considered two types of neighbors: neighbors who hold similar rank positions at the beginning of the current outing's pit exit lap**, and neighbors who have held similar rank positions and lap times historically within the race (even if they do not hold similar rank positions in the current outing's pit exit lap). These neighborhood effects help to capture correlations across racers, whereas rank momentum captures temporal correlations.

Aggregation across races can be done, and there are two fundamentally different types of races

Our evidence suggests that it is possible to generalize across races; that is, we can borrow strength from the data of similar races to make improved predictions. This type of across-race regularization helps make the predictive modeling more robust to noise and and helps with the imbalance problem. It is also particularly useful at the start of the race: Using another race's data is better than the alternative, which is no data at all.

“Our evidence suggests that it is possible to generalize across races; that is, we can borrow strength from the data of similar races to make improved predictions.”

Through descriptive statistics, we made the hypothesis that there are fundamentally different types of races, namely, those for which cars typically lose position after a two-tire change (Group A), and those for which cars typically maintain their rank position after a two-tire change (Group B). Thus, in Group B, there is more incentive to take two tires instead of four tires to gain rank positions. In reality, the determination of which group the race belongs to can be done using data from practice and qualifying stages that occur on the same track prior to the race. The fact that our observations are race-specific rather than racer-specific indicates that properties of the track, tires, and weather matter more than racer-specific details in determining how tire-change decisions should be made within a race. In our experiments, we did not explicitly use track-specific information for this clustering and instead used the given lap position and lap time information to come up with the two groups: Group A (with loss in rank pattern) included 6 races and Group B (without loss in rank pattern) included the remaining 11.

Experiments

We experimented with several state-of-the art machine learning techniques that permit different combinations of the features we created. In particular, we used ridge regression,^††,23 support vector regression (SVR)^‡‡,24 with a linear kernel, LASSO (least absolute shrinkage and selection operator),^§§,25 as well as random forests for regression ²⁶ and two baselines. Ridge regression and LASSO are very similar techniques in that both use the same least squares loss function, but LASSO uses ℓ₁ regularization to determine the coefficients, whereas ridge regression uses ℓ₂ regularization. Support vector regression also uses ℓ₂ regularization but uses the ε-insensitive loss function. Random forests is an ensemble method that averages predictions from many different decision trees. The two baselines are as follows:

• Baseline initial rank: We always predict that the change in rank over the course of the prediction period is zero.

Because we do not have control over data generation as discussed in the Data Issues section, the linear model coefficients (e.g., of support vector regression, ridge regression, and LASSO) cannot be reliably interpreted in the ceteris paribus structural form. This means that if we are to quantify the effect of the tire-decision feature on the subsequent change in rank position, we need the other features to be as orthogonal to the tire-decision feature as possible. Nonetheless, our approach is reasonable as prediction performance is also primarily desired.

Prediction performance

We performed two sets of experiments using data from all outings that were sufficiently long. The first involves predictive accuracy of the different models. In the second experiment, we observe how the weight of the two-tire indicator feature changes with outing length.

• Predictive accuracy: We built prediction models for each group. This allows us to investigate the change in prediction performance due to grouping. We adopted the following data-splitting strategy for evaluating predictive accuracy: we used the outings at the beginning part of the race in our training and validation sets and reserved the ending part of the race for testing. In this way, we avoid data leakage by training only on the earlier parts of the race to evaluate predictions for the later parts. We could have also chosen to use all outings of some races in the training and all outings of the rest of the races for final testing. In our experiments, we did not find a noticeable difference using this type of data splitting.

• Variation of the weight of the two-tire decision feature with outing length: We built prediction models to forecast the change in rank over the current outing at prespecified laps, namely, 1 lap after pit exit, 2 laps after pit exit, and so on up to 25 laps after pit exit. Through this experiment, we expect to gain insight on the effect of outing length on feature weights in a linear model like LASSO.

For both of these experiments, we used five-fold cross validation to set the appropriate regularization coefficient (or parameter values in the case of random forests). We repeated splitting the data into five folds 10 times to make the cross-validation procedure more stable ^‡‡‡ and used the same set of folds for all the models used (to control for split variance).

The results of the first experiment characterizing performance of the methods on test data using different metrics are plotted in Figure 9. Figure 10 shows the values of the regularization parameters chosen for each group. The results for the second experiment characterizing the effect of outing length on the model weight of the two-tire change feature are plotted in Figure 11. We summarize some of the findings from these experiments below.

“We can see that the machine learning methods are significantly better than the baseline methods.”

OPEN IN VIEWER

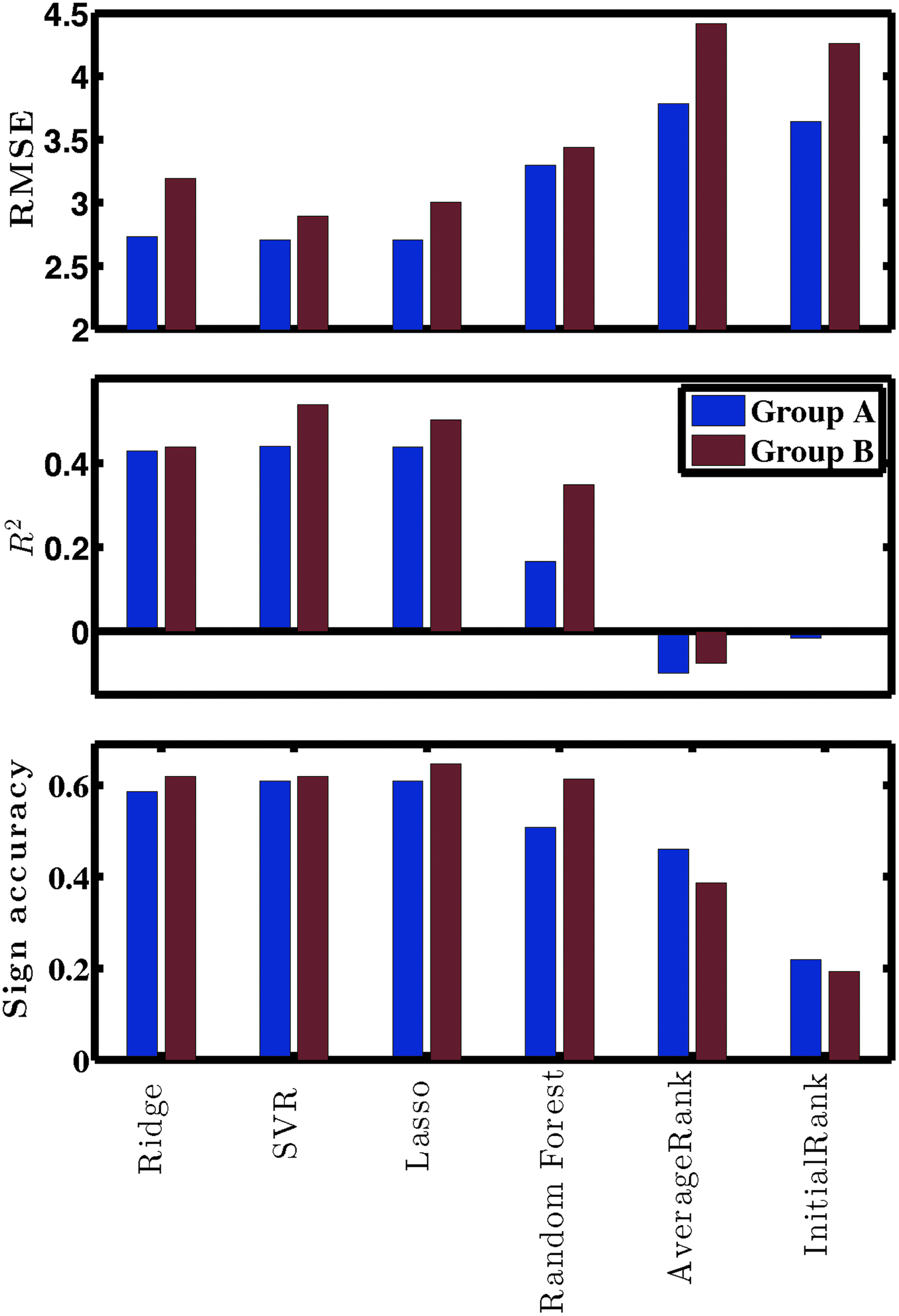

FIG. 9.

Predictive performance of various models over a held-out test set are shown for races in Group A and Group B. The y-axis plots the RMSE (lower is better) for the top subplot, R² (higher is better) for the middle subplot, and the sign accuracy (higher is better) for the bottom subplot.

OPEN IN VIEWER

FIG. 10.

For both groups of races, we plot the mean (over 10 repeated choices of 5 validation sets) of the mean squared error along with error bands corresponding to one standard deviation above and below while building a LASSO model. The vertical line represents the regularization constant for which the mean cross-validation error is the minimum.

OPEN IN VIEWER

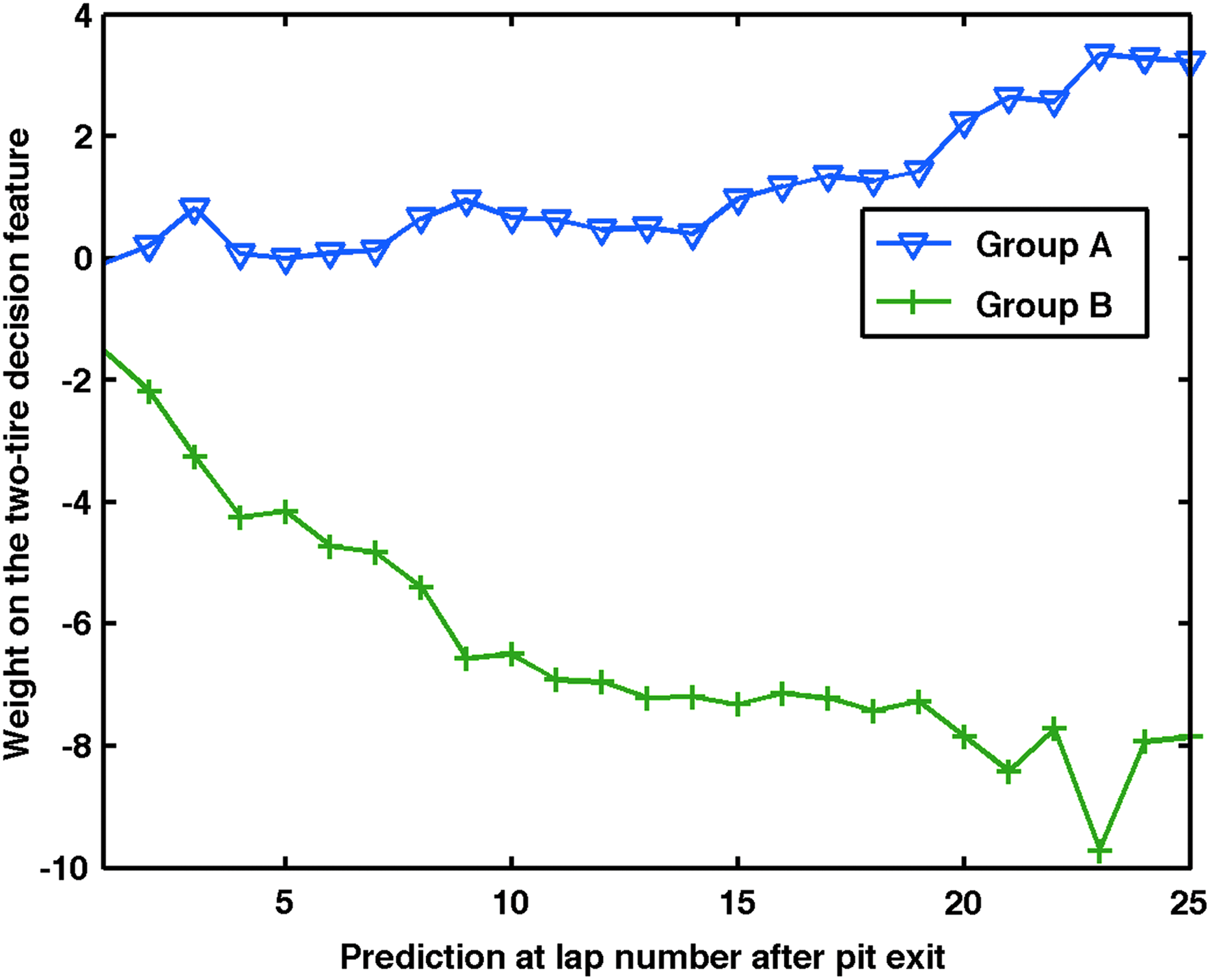

FIG. 11.

Variation in the weight of the two-tire decision feature in LASSO as a function of the outing length. For Group A, the weight is positive and increasing, indicating that making a two-tire decision increases the change in rank (loss in rank). This effect increases as the outing length increases. An opposite effect is observed in Group B.

Predictive accuracy

• From the prediction performance plots in Figure 9, we can see that the ridge regression, SVR, LASSO, and random forests are significantly better than the baseline methods. The machine-learning methods give very similar held out test set performance. Further reduction in RMSE, increase in R², and increase in sign accuracy may not be possible because of the highly strategic and dynamic nature of racing.

• Predictions on the test set are somewhat worse than performance on the training set. This is not because of overfitting, it is because the training distribution differs from the test distribution because of the following:

(1) Later outings of a race have different dynamics than the beginning part of the race. For instance, the racers are closer to the finish line in the later outings, so their risk profiles change, leading to more aggressive driving, and typically there are a higher number of cautions.

(2) Two-tire decisions acquire relatively more significance during later outings and are typically observed more during that period of the race. If there are fewer two-tire changes in the earlier part of the race than in the later part, we may not be able to accurately characterize the later part of the race from the earlier part.

Variation of the weight of the two-tire decision feature with outing length

In Figure 11, we see that in Group A (with loss in rank pattern) there is a positive weight on the two-tire change indicator. In Group B (without loss in rank pattern), there is a negative weight on the two-tire change indicator. This effect becomes more extreme as the outing length increases. This really shows the difference between the two groups; the effect of a two-tire change can be quite different.

Some Insights

In this section, we highlight some insights and some cases in which predictive modeling is able to forecast large changes in ranks using historical features.

Conclusions

We describe challenges in formulating a prediction problem that leads into the design of decision-making tools for strategic use within a professional sporting event. Careful use of domain knowledge and transformation of time series data into a supervised learning framework were the key aspects in our ability to do this. We demonstrated the validity of our prediction models using data from a professional racing season in 2012.
