Estimating Large-Scale Network Convergence in the Human Functional Connectome

Overview

The overarching goal of this experiment was to characterize the topographic architecture supporting large-scale network convergence in the human brain. To achieve this aim, we utilized a combination of spatial independent component analysis (ICA) and a graph theoretical connectivity measure to explore patterns of large-scale network convergence.

Image acquisition and preprocessing

Data from 100 healthy adults (mean age=21.4 years; 63% female) were obtained from the Cambridge dataset in the 1000 Functional Connectomes data repository (Biswal et al., 2010). Imaging was conducted on a General Electric 3T MRI (General Electric). T2*-weighted echo planar functional images were acquired in sequential order with repetition time=3000 msec, echo time=32 msec, flip angle=900, 47 axial slices covering the whole brain, field of view=220 mm, and raw voxel size=3×3×3 mm thick, 119 TRs (scan time=420 sec). High-resolution 3D T1-weighted, anatomical images (voxel size 1.2 mm isotropic) were obtained for co-registration with functional data. Resting-state functional images were collected on participants with their eyes closed.

Statistical parametric mapping software (SPM8) was used for image preprocessing, according to a standard pipeline: (1) scans were slice-time corrected to the median (21st) slice in each repetition time; (2) scans were then realigned to create a mean realigned image while estimates of six degrees of head movement were calculated for later use; (3) a 7th-degree B-spline was used for interpolation; (4) images were normalized to the echo planar image template; and (5) scans were then smoothed using an 8-mm full-width at half maximum isotropic Gaussian kernel.

Spatial ICA

Preprocessed images were subjected to two separate group-level spatial ICA using the GIFT toolbox (Calhoun et al., 2001) in SPM8, one for the Discovery sample (n=50), and one for the Replication sample (n=50). Briefly, spatial ICA is a data-driven approach that searches for maximally independent clusters of voxels within the brain that co-vary together in reliable temporal relationships (Calhoun et al., 2001). Using the GIFT toolbox, this process involves data reduction using principle component analysis, followed by spatial ICA and finally, a back projection step to re-create individual subject maps for each component (Calhoun et al., 2001).

The Discovery cohort and the Replication cohort were analyzed separately using the InfoMax algorithm in the GIFT toolbox (Calhoun et al., 2001). In both the Discovery cohort and the Replication cohort, the minimum description length criterion was used to estimate the number of independent components, and it was found to be 16 in both groups. For both the Discovery and Replication cohort datasets, the 16 components were then examined for the presence of artifactual noise (i.e., spatial patterns associated with the ventricular system, white matter, or the edges of the brain). In both the Discovery cohort and the Replication cohort, a total of three artifactual components were identified and thus discarded from further analysis. Therefore, 13 nonartifactual independent components were identified in both the Discovery cohort (Fig. 1) and the Replication cohort, the number of which is consistent with findings from fully exploratory ICA in 1000 individuals (Kalcher et al., 2012).

OPEN IN VIEWER

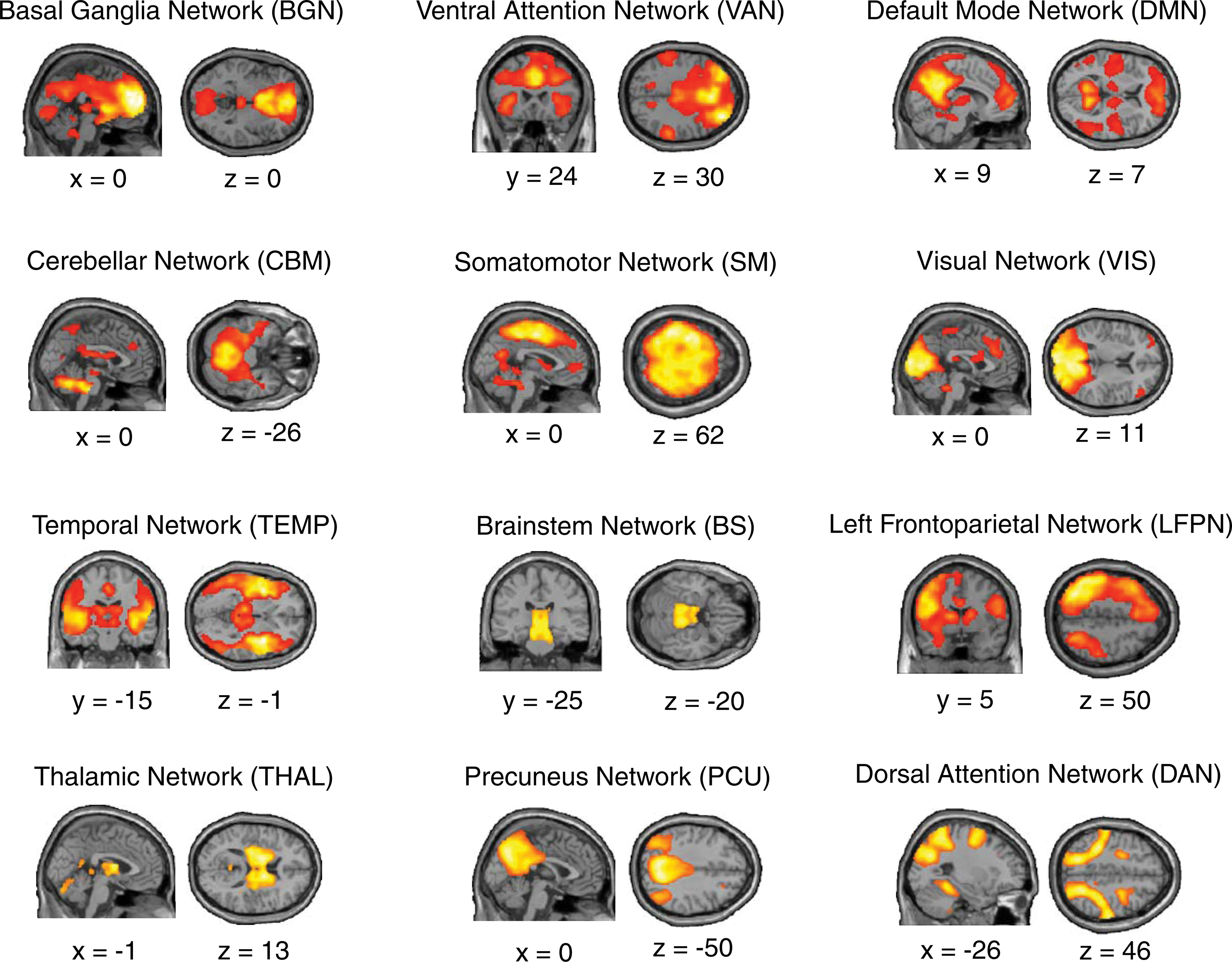

FIG. 1.

Spatial independent components. Group-level network maps of 12 independent components extracted using spatial independent component analysis. Each component was labeled according to either its known nomenclature (e.g., DMN) or to its most prominent neuroanatomical feature (e.g., thalamus or temporal lobe). Data shown for the Discovery cohort when spatial components were thresholded at p<0.001; FDR p=0.01. Note that, for ease of visualization the Right Frontoparietal Network is not shown here. DMN, Default Mode Network; FDR, false detection rate. Color images available online at www.liebertpub.com/brain

The components identified in this study were the Sensorimotor component (SM), Visual component (VIS), Temporal lobe component (TEMP), Thalamic component (THAL), Brainstem component (BS), Basal Ganglia component (BGN), Cerebellar component (CBM), Left (LFPN) and Right (RFPN) Lateralized Frontoparietal Network components, Ventral Attention Network component (VAN), Dorsal Attention Network component (DAN), Precuneus component (PCU), and Default Mode Network component (DMN). See Fig. 1 for visualization of the group-level network components extracted in the Discovery cohort. Importantly, the spatial components extracted from the Discovery cohort and the Replication cohort showed strong spatial overlap (Pearson's r>0.500, p<0.001 for each component comparison). In addition, for each component, spatial sorting using the component defined in the Discovery group reliably identified the corresponding spatial component in the Replication group.

Estimation of resting-state network convergence

The subsequent analyses were applied to both the Discovery cohort and the Replication cohort separately (see Supplementary Methods: Reproducibility of estimates of network convergence in an independent Replication cohort; Supplementary Data are available online at www.liebertpub.com/brain). Spatial maps representing each of the 13 nonartifactual components for each individual subject were entered into separate random effects analyses (one for each component) at the group-level using SPM8 software. These group-level spatial maps were then thresholded statistically at p<0.001 (corrected for multiple comparisons using a false detection rate [FDR] of p=0.01), leading to the extraction of a binary mask for each of the 13 network components, respectively. After extracting only voxels that existed with a standard gray matter mask from the WFU Pick Atlas toolbox (Maldjian et al., 2003), we created a novel spatial convergence map by amalgamating each of these 13 binary component maps together in the same topographic space, allowing the calculation of a network convergence metric (NCM) at each voxel of the brain (Eq. 1). As such, the NCM calculated at each individual voxel in the group-level convergence map represents the number of maximally independent resting-state networks that converge at the specific brain voxel. Importantly, given that spatial ICA maximizes the spatial independence between independent components, patterns of spatial overlap between resting-state networks may actually be more extensive than described here (see Discussion: The role of whole-brain network convergence in global brain communication, for further discussion addressing this topic). \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*}{ \rm NCM}_x = { \Sigma} ( { \rm IC}_x )\quad\quad \rm Eq. \ 1\end{align*} \end{document}

The NCM was defined as the sum of independent components at a given voxel (x) that were present above chance after spatial ICA (p<0.001; FDR p=0.01).

Relationship between network convergence and global connectivity

In this analysis, we sought to examine whether network convergence was related global brain connectivity (as calculated using an independent graph-theoretical metric, see below). A relationship between the NCM and global brain connectivity would support the hypothesis that large-scale network convergence facilitates efficient global brain communication. To explore this hypothesis we extracted a previously described graph theoretic connectivity measure, the Intrinsic Connectivity Contrast (ICC) (Martuzzi et al., 2011), from every voxel in the brain. Briefly, the ICC reflects the sum of the correlation of each source voxel to every other voxel in the brain, which is then weighted by the R ² value associated with the voxel-to-voxel connection (Martuzzi et al., 2011). Note that the ICC analysis was conducted on the same resting-state fMRI dataset, however, before spatial smoothing (Martuzzi et al., 2011). We then correlated the voxel-wise ICC score with the NCM using Spearman's rank-order correlation coefficient.

Convergence within individual resting-state networks

In addition to providing spatial descriptions of resting-state network convergence across the entire brain (Figs. 2 and 3), we also estimated patterns of network convergence within individual networks (Fig. 4). To achieve this, we created 13 separate spatial convergence maps, in which each of the network masks identified in the original spatial ICA (see Methods: Spatial ICA) were individually defined as a host network mask (thresholded at p<0.001, FDR p=0.01). The extent of network convergence at every voxel within the host network was estimated by calculating the NCM (as per Methods: Estimation of resting-state network convergence) exclusively for voxels that were within the topography of the host network mask, creating estimates of network convergence within the topography of large-scale networks of the brain.

OPEN IN VIEWER

FIG. 2.

Topography of network convergence across the cerebral cortex. Spatial convergence map depicting the number of maximally independent resting-state networks that converge at each cortical voxel (NCM). Color spectrum denotes the voxel-wise NCM: gray—regions that were not covered by any of the 13 large-scale networks; blue—voxels associated with only one large-scale network; yellow—voxels associated with convergence of two networks; orange—voxels associated with convergence of three networks; red—voxels associated with convergence of four networks; white—voxels associated with convergence of five or more networks. Data shown for the Discovery cohort when spatial components were thresholded at p<0.001, FDR p=0.01. NCM, network convergence metric. Color images available online at www.liebertpub.com/brain

OPEN IN VIEWER

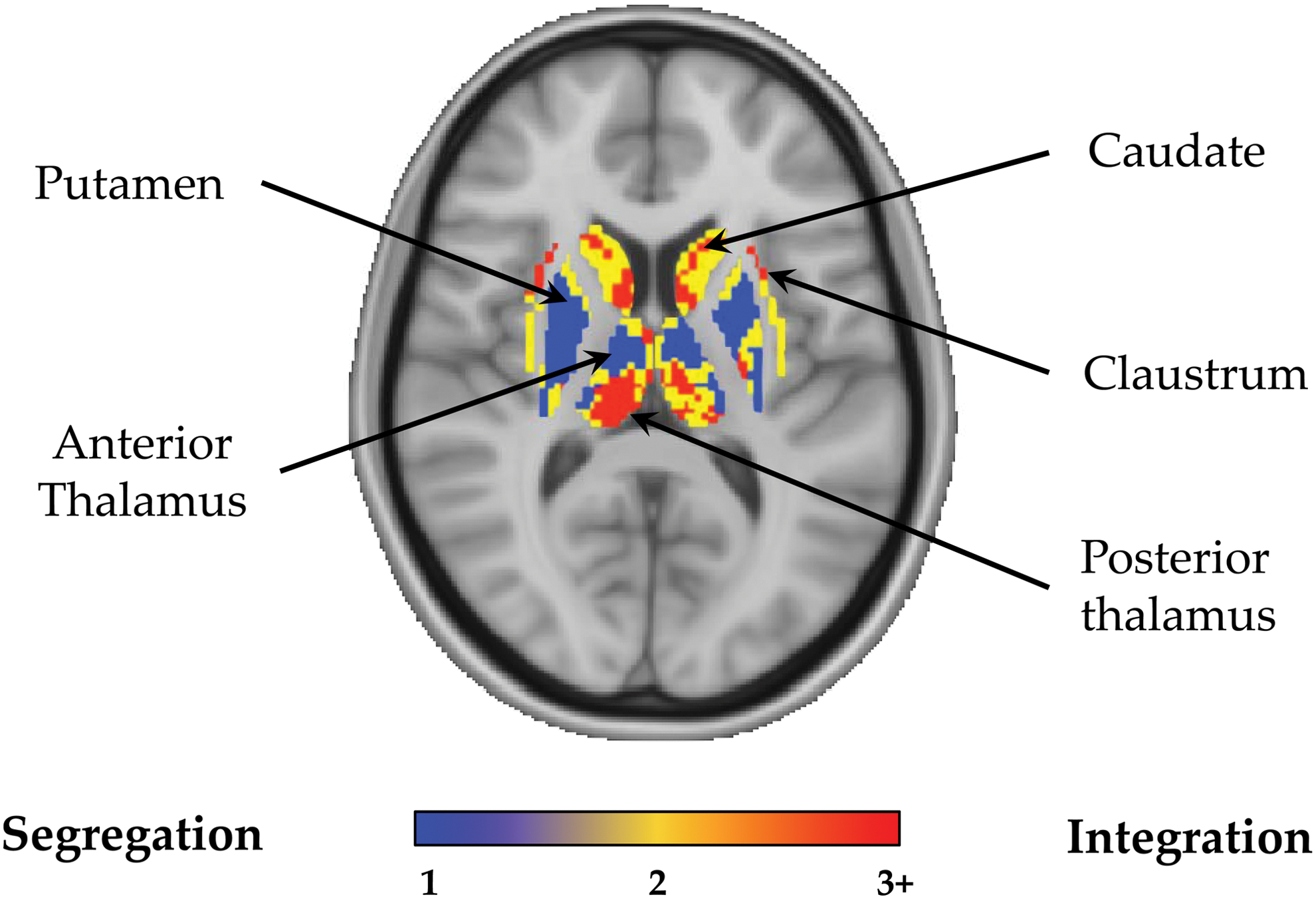

FIG. 3.

Topography of network convergence across the basal ganglia and thalamus. Subcortical slice through the basal ganglia and thalamus (x=− 4, y=−20) depicting the number of maximally independent resting-state networks that converge at each subcortical voxel (NCM). Color spectrum denotes the voxel-wise NCM; blue—voxels associated within only one network; yellow—voxels associated with convergence of two networks; red—voxels associated with convergence between three or greater networks; gray—regions that were not covered by any of the 13 large-scale networks. Data shown for the Discovery cohort when spatial components were thresholded at p<0.001, FDR p=0.01. Color images available online at www.liebertpub.com/brain

OPEN IN VIEWER

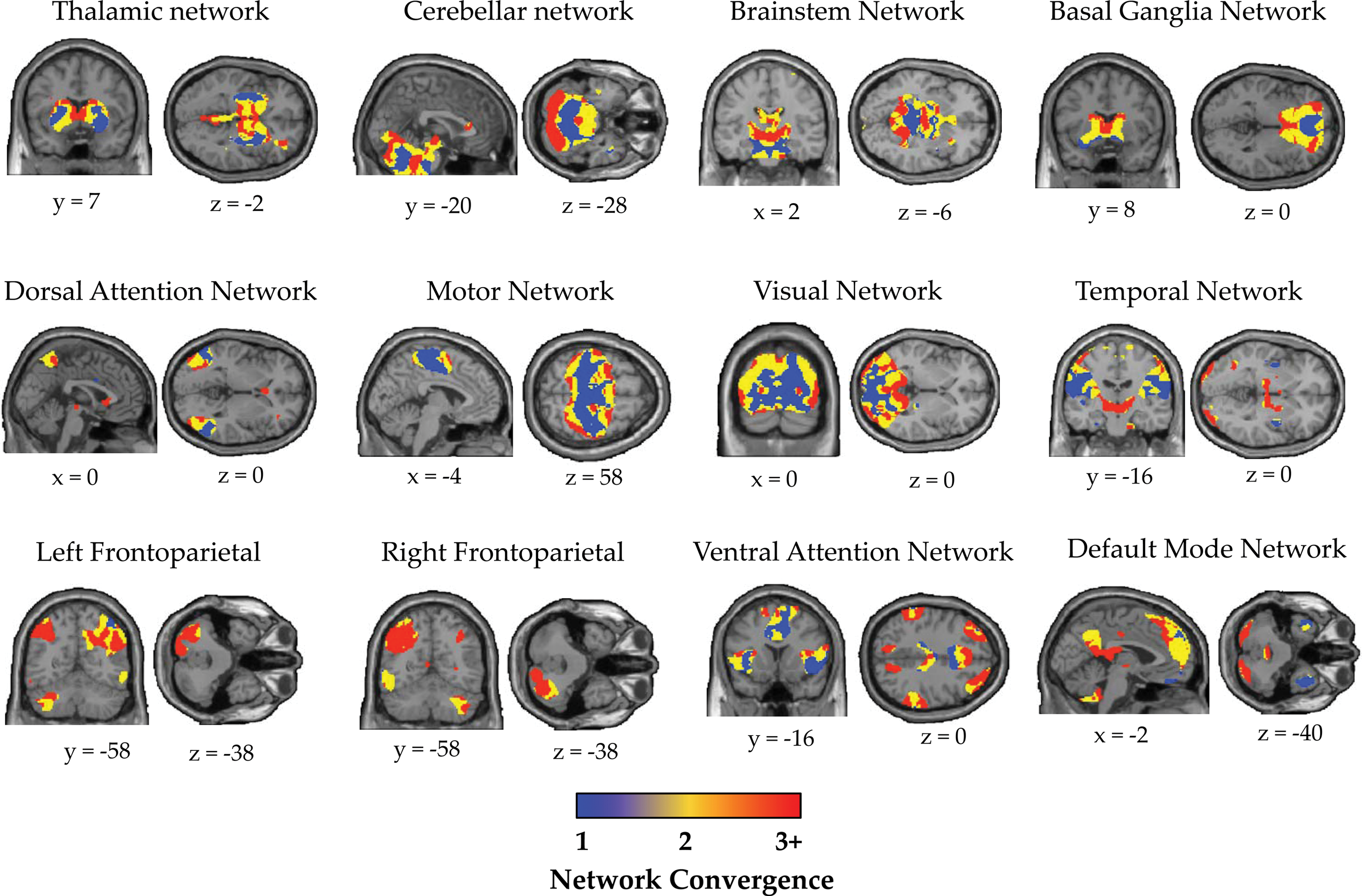

FIG. 4.

Convergence within individual network components. Brain slices depicting the number of neuronal networks that are shared at each voxel (NCM) within each of the individual large-scale networks of the brain. For each network component, the color spectrum denotes the extent that a given voxel was shared with the other networks of the brain: blue—voxels that participate only in the host network; yellow—voxels associated with convergence of two networks; red—voxels associated with convergence between three or greater networks; gray—voxels that were outside of the network component mask. Data shown for the Discovery cohort when spatial components were thresholded at p<0.001, FDR p=0.01. For clarity, PCU component not shown. PCU, Precuneus component; NCM, Network Convergence Metric. Color images available online at www.liebertpub.com/brain

To calculate the relative balance of each network toward integrative or segregative processing, we calculated the proportion of the total host network voxels that were significantly involved in network convergence (Network Convergence Ratio [NCR]). Importantly, the spatial extent of network component maps derived from spatial ICA is somewhat contingent on the particular statistical threshold applied to the data, with more stringent thresholds associated with less expansive spatial components and vice versa [see Supplementary Results: Reproducibility over multiple statistical thresholds and Calhoun et al. (2001)]. To circumvent this potential issue, we calculated a threshold-adjusted Z-score at each brain voxel (see Supplementary Methods: Reproducibility over multiple statistical thresholds, for further methodological detail), which accounted for variability in voxel-wise network convergence patterns across a wide range of component thresholds (thresholds ranging from p=1×10⁻¹ to 1×10⁻¹⁰).

The NCR was subsequently characterized for each component by calculating the proportion of the total host voxels that were significantly involved in network convergence, controlling for variability across different component thresholds (mean threshold-adjusted Z-score: Z>1.65, p<0.05). The NCR for each host network was then plotted onto a radar plot (Fig. 5), enabling a qualitative description of the heterogeneity by which different individual networks differentially balance the competing demands of specialized processing against integration of information across networks. This analysis was also repeated with a more stringent threshold-adjusted Z-score threshold (Z>2.33, p<0.01) to ensure these results were robust to the significance threshold applied.

OPEN IN VIEWER

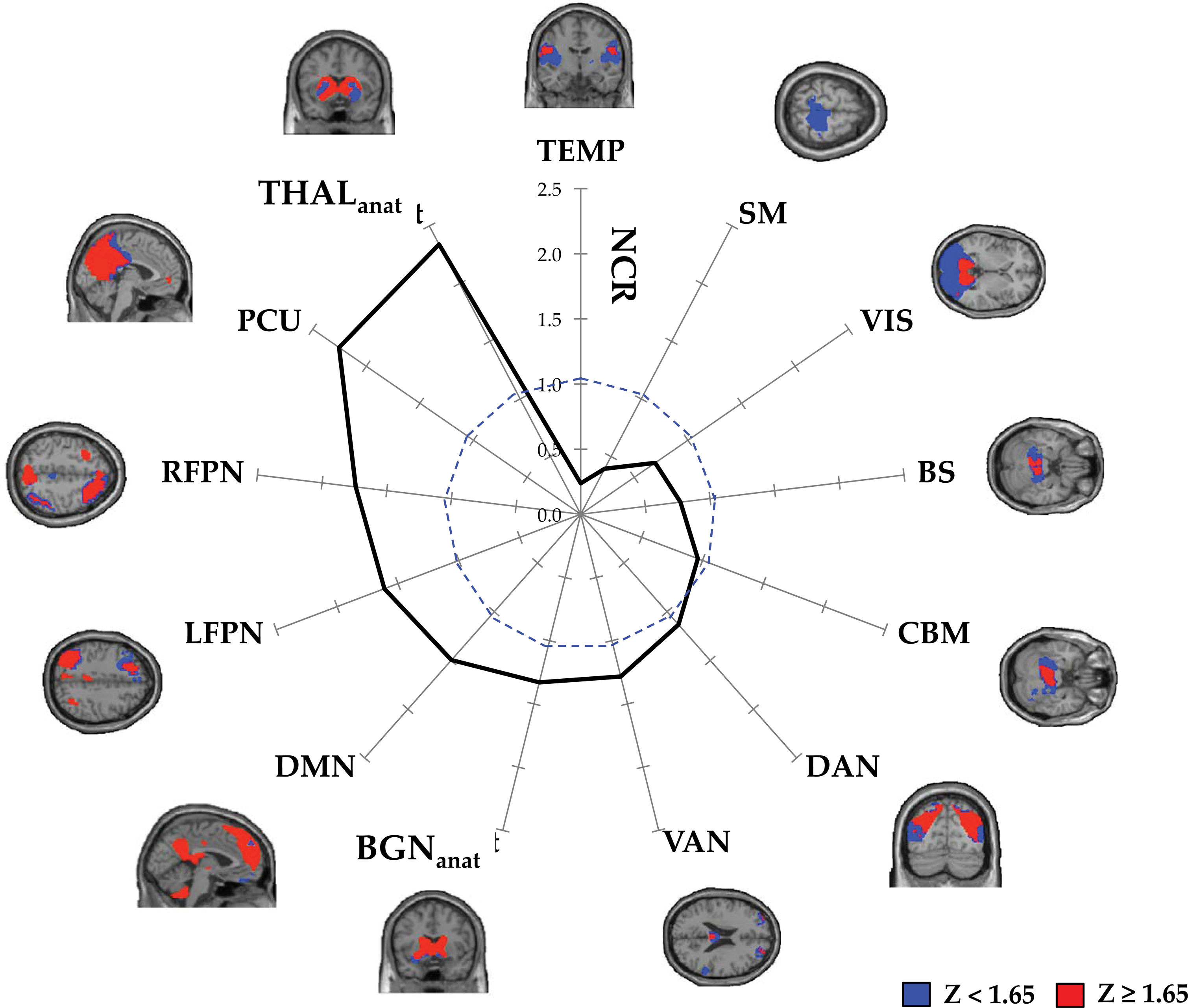

FIG. 5.

Heterogeneity of network convergence across individual large-scale networks. Radar plot revealing the NCR for each individual large-scale network, calculated as the proportion of voxels in each individual network mask that were consistently associated with high-order convergence across a range of statistical thresholds NCR=1.0 is denoted by a dashed blue line. Spatial maps represent binarized threshold-adjusted convergence maps within each of the individual large-scale networks, revealing regions consistently involved in high-order network convergence across a range of statistical thresholds (red) relative to all other brain voxels (blue). BGN_anat, Basal Ganglia Nuclei (anatomical mask); BS, Brainstem component; CBM, Cerebellar component; DAN, Dorsal Attention Network component; DMN, Default Mode Network component; LFPN, Left Frontoparietal Network component; NCR, Network Convergence Ratio: RFPN, Right Frontopartietal Network component; SM, Sensorimotor Network component; TEMP, Temporal Lobe component; THAL_anat, Thalamic nuclei (anatomical mask); VAN, Ventral Attention Network component; VIS, Visual component. Color images available online at www.liebertpub.com/brain

Of note, both the BGN and THAL components derived from the group-level spatial ICA were also associated with a number of cortical voxels (Fig. 1). Therefore, convergence patterns within the BGN and THAL host networks may have been influenced by the connectional properties of their respective cortical associations. In this analysis, we were interested in describing the integrative properties—not only within the broader THAL and BGN networks in the context of their cortical associations (Fig. 1) but also within the distinct anatomical boundaries of these subcortical structures. Therefore, we also calculated the NCR within anatomically defined gray matter masks exclusively encompassing voxels within the basal ganglia (BGN_anat) and thalamus (THAL_anat), respectively (Fig. 5).

Validation analyses

Finally, we conducted an extensive series of validation analyses to ensure the robustness of our methodology. The methods for these validation analyses are described in detail in the Supplementary Methods section. Specifically, we conducted validation analyses to demonstrate that our estimates of network convergence were (1) reproducible in an independent Replication cohort (Supplementary Methods: Reproducibility of estimates of network convergence in an independent Replication cohort); (2) robust to the methodology used to define the topography of spatial networks (Supplementary Methods: Reproducibility using seed-based connectivity to define large-scale networks); (3) robust to the number of independent components defined (Supplementary Methods: Reproducibility of whole-brain network convergence with variable number of network components); (4) robust to variable statistical thresholding (Supplementary Methods: Reproducibility over multiple statistical thresholds); and (5) reproducible at the individual subject level (Supplementary Methods: Reproducibility of whole-brain network convergence at the individual subject level).

Data visualization

For group-level interpretation, data were displayed on the lateral and medial surfaces of a partially inflated surface map using CARET software (Van Essen et al., 2001), allowing the projection of a series of qualitative topographic descriptions of network convergence in the brain. These spatial convergence maps enable the graphical interrogation of the voxel-wise NCM at a statistical threshold commonly reported in the literature (p<0.001, FDR p=0.01; Fig. 2). Note that, for ease of visualization and data interpretation we opted to parcellate the network convergence maps into three “levels” when displaying data for the subcortical convergence map (Fig. 3) and within-network convergence maps (Fig. 4). Importantly, parcellation into levels (Figs. 3 and 4) was purely for the purposes of visualization, and all statistical analyses were conducted on the unparcellated NCM (as displayed in Fig. 1). The rationale for parcellating data into three levels was based on the observation that, at a statistical threshold of p<0.001, FDR p=0.01, approximately one-third of voxels revealed convergence of one (36.8%), two (39.3%), or ≥three (23.9%) networks respectively, enabling a clear and easily interpretable schema for data visualization.

Estimation of network convergence at the level of the whole-brain

The 13 resting-state networks of interest covered 94.6% of the total brain gray matter volume—encompassing almost the entire brain, except for clusters within the orbitofrontal cortex, mid-cingulate, and lateral temporal cortex (Fig. 2; statistical threshold; p<0.001, FDR p=0.01). We observed marked heterogeneity in the propensity for resting-state network convergence across the brain. 31.8% of voxels within the gray matter mask were associated with only one resting-state network (Figs. 2 and 3—blue and Table 1), which predominantly occurred in the bilateral primary motor cortex, bilateral primary visual cortex, pons, putamen, anterior thalamus, lateral orbitofrontal cortex, temporal poles, and lobule IV/V of the cerebellum (Table 1). 30.1% of voxels were shared between two resting-state networks (Figs. 2 and 3—yellow and Table 1), including predominant regions within the middle cingulate, cuneus, bilateral premotor areas, medial orbitofrontal cortex, posterior claustrum, and lobule VI of the cerebellar cortex. The remaining 38.1% of voxels supported the convergence of three or greater resting-state networks. Regions supporting convergence across three resting-state networks included midline frontal pole, bilateral inferior frontal gyri, midbrain, and Crus I of the cerebellum (Fig. 2—orange and Table 1). Regions demonstrating convergence across four networks included the pre-supplementary motor areas, posterior cingulate cortex, medial prefrontal cortex, and superior parietal lobule, along with the head of the caudate nucleus, anterior claustrum, posterior thalamus, and bilateral Crus II of the cerebellum (Fig. 2—red and Table 1). Finally, neural regions supporting convergence across five networks included the midline rostral anterior cingulate and precuneus, bilateral posterior parietal cortex and the bilateral superior, and middle frontal gyri (Fig. 2—white and Table 1).

Relationship between network convergence and global connectivity

To examine whether network convergence was related to an independent graph-theoretic measure of global brain connectivity we correlated the NCM with ICC. We found a significant positive correlation between the NCM and ICC (rho=0.543, p<0.001), suggesting that the number of resting-state networks that converge on a given voxel was related to the global connectedness of the voxel within the context of the whole-brain.

Convergence within individual networks

We have provided novel spatial maps describing the topography of network convergence within each of the 13 components extracted from the spatial ICA (Fig. 4). We observed substantial heterogeneity in the convergence patterns within individual resting-state networks (Figs. 4 and 5). This heterogeneity was further illustrated by plotting the NCR for each individual resting-state network (Fig. 5). The NCR radar plot (Fig. 5) demonstrates that associative networks, along with the thalamus and basal ganglia are qualitatively balanced toward integrative processing, whereas sensorimotor, visual, brainstem, and temporal networks are balanced toward segregated processing.

Validation analyses

In a series of validation analyses we have shown that our estimates of network convergence are (1) reproducible in an independent Replication cohort (Supplementary Results: Reproducible estimates of network convergence in an independent Replication cohort; Supplementary Fig. S1A); (2) robust to the methodology used to define the topography of spatial networks (Supplementary Results: Reproducibility using seed-based connectivity to define resting-state networks); (3) robust to the number of independent components defined (Supplementary Results: Reproducibility of whole-brain network convergence with variable number of network components); (4) robust to variable statistical thresholding (Supplementary Results: Reproducibility over multiple statistical thresholds; Supplementary Fig. S1B); and (5) reproducible at the individual subject level (Supplementary Results: Reproducibility of network convergence at the individual subject level).

The role of whole-brain network convergence in global brain communication

The results of our analyses revealed an ensemble of neural regions involved in the convergence of multiple resting-state networks, consisting of neural regions including the rostral anterior cingulate, precuneus, posterior cingulate cortex, posterior parietal cortex, dorsal prefrontal cortex, superior parietal lobule, along with the head of the caudate nucleus, anterior claustrum, and posterior thalamus. The cortical regions implicated in high-level network convergence in this study are broadly consistent with findings from initial studies that have begun to characterize regions that are likely to support inter-modular communication in the brain. Together, converging evidence from this (Figs. 2 and 3) and other work (Braga et al., 2013; Power et al., 2013; van den Heuvel and Sporns, 2013; Yeo et al., 2011), suggests that a core backbone of cortical hubs including the posterior cingulate/precuneus (Braga et al., 2013; van den Heuvel and Sporns, 2013; Yeo et al., 2013), anterior cingulate (Braga et al., 2013) along with posterior parietal (van den Heuvel and Sporns, 2013; Yeo et al., 2013) and prefrontal regions (Power et al., 2013; van den Heuvel and Sporns, 2013; Yeo et al., 2013), are important for the integration of information across specialized brain networks. Therefore, our findings provide complementary evidence—utilizing a novel methodology—to support the functional importance of a core backbone of neural regions in inter-network integration in the brain (Sporns, 2013). Furthermore, in this study we have characterized patterns of network convergence in the human subcortex (Fig. 3), which have not been described in previous work. Specifically, we demonstrate the involvement of the caudate head, anterior claustrum, and posterior thalamus (Fig. 3) in systems-level integration in the brain.

Broadly, our findings suggest that at the macroscale, areas of network convergence contain an amalgamation of neural signals that can be decomposed into a series of overlapping constituent network components using both multivariate (Figs. 2 and 3) [also see Braga et al. (2013), Geranmayeh et al. (2014), Yeo et al., (2013)] and univariate (see Supplementary Results: Reproducibility using seed-based connectivity to define resting-state networks) approaches. These findings are consistent with the prediction that transmodal regions will contain amalgamated neural signals that partially correlate with signals arising from their input networks (Mesulam, 1998). Despite these insights, local circuit mechanisms that coordinate the dynamic integration of incoming neural signals remain unclear (Braga and Leech, 2015).

In this work we have also demonstrated a direct relationship between network convergence and an independent graph theoretical measure of global brain connectivity, further emphasizing the importance of large-scale network convergence in efficient global brain communication (van den Heuvel and Sporns, 2013). A recent study comparing various graph analytic metrics that describe aspects of network centrality, revealed the non-redundancy of different centrality measures in resting-state brain networks (Zuo et al., 2012). Therefore, although we demonstrate a significant positive correlation between network convergence and global brain connectivity as defined by ICC [a weighted measure of degree centrality at the level of the individual voxel Martuzzi et al. (2011)], it is likely that these metrics are measuring subtly different, although inter-related, properties of the brain graph. For example, the graph-analytic literature has identified two broad categories of brain hubs: “connector” and “provincial” hubs (Sporns et al., 2007). Connector hubs are high-degree nodes with connectivity profiles that expedite communication across different network communities, whereas provincial hubs are high-degree nodes with dense connections to other nodes within their own community. Degree-based methods are unable to effectively distinguish between provincial and connector nodes (Sporns et al., 2007), which may explain one way in which the inter-related measures of network convergence and ICC differ. Although not the focus on this study, future work will help to further clarify the precise inter-relationships between various graph analytic measures of centrality and network convergence.

Insights into the extent of network convergence in the brain

The methodological use of spatial ICA to define large-scale resting-state networks in this study provides insights into the extent and heterogeneity of resting-state network convergence in the brain. Importantly, despite the definition of network components using spatial ICA, which is designed to maximize spatial independence between individual network components (Calhoun et al., 2001), we still found substantial network convergence across both the cortex and subcortex across a range of statistical thresholds used to define the network components (Supplementary Results: Reproducibility over multiple statistical thresholds). Such extensive spatial overlap across network components, despite the use of a method designed to maximize spatial independence, has implications for the interpretation of neuroimaging data and the way in which brain parcellation is conceptualized. In particular, these findings emphasize the importance of recognizing the limitations of many existing parcellation strategies that unrealistically assume that any given neural region cannot simultaneously belong to two or more different modules [see Papo et al. (2014) for further discussion].

Heterogeneity of convergence within individual large-scale networks

In addition to whole-brain descriptions of network convergence, we also characterize the spatial patterns of network convergence within individual large-scale networks (Figs. 4 and 5), which to our knowledge, have not been previously described. We utilized estimates of network convergence to show that, although each large-scale network demonstrates the dual organizational properties of integration and segregation, there is marked heterogeneity in the way in which individual networks balance these competing organizational properties (Figs. 4 and 5). Specifically, we have shown that putative association networks, including the DMN, bilateral FPNs, DAN, and VAN, along with the basal ganglia and thalamus are differentially balanced toward integrative information processing (Fig. 5). In stark contrast, unimodal networks including the visual and sensorimotor networks, along with the temporal and brainstem networks are balanced toward segregative processing (Fig. 5). These results are aligned with the notion that association networks participate in long-distance (Sepulcre et al., 2010), flexible (Cole et al., 2013), dynamic (Zalesky et al., 2014), and globally connected (Buckner et al., 2009; Cole et al., 2010; van den Heuvel and Sporns, 2013) information processing in the brain, and suggest that association networks may play a central role in facilitating the integration of information across distributed cortical regions (Yeo et al., 2013).

Furthermore, our data provide novel evidence to suggest that subcortical structures such as the basal ganglia and the thalamus also support integration across large-scale networks of the brain (Figs. 3 –5). Although these subcortical structures have classically been viewed as mere relay stations for parallel processing within functionally segregated cortical-subcortical loops (Alexander et al., 1986), an emerging body of neuroanatomical data has identified pathways for communication across functional subdivisions of the basal ganglia (Averbeck et al., 2014; Haber, 2008) and the thalamus (Draganski et al., 2008), suggesting that the subcortex may provide an important and relatively unexplored nexus for the integration of neural signals across modular neural systems. Future work exploring the integrative capacities of the often-neglected subcortical nuclei (Parvizi, 2009) presents an exciting avenue for future discovery.

In this study we examined the topography of time-averaged resting-state networks. However, emerging work has begun to suggest that functional connectivity may be variable over time (Hutchison et al., 2013). Although there are a number of technical challenges facing the study of time-resolved connectivity analyses (Zalesky and Breakspear, 2015), future work examining how functional networks transiently coalesce at finer temporal scales will further clarify how information is dynamically integrated across large-scale neural systems.
