Genetic Manipulation of sn-1-Diacylglycerol Lipase and CB 1 Cannabinoid Receptor Gain-of-Function Uncover Neuronal 2-Linoleoyl Glycerol Signaling in Drosophila melanogaster

Drosophila lines and husbandry

Wild-type D. melanogaster (Oregon-RS, w¹¹¹⁸ and yw), as well as the cha-Gal4, UAS-GFP, elav-Gal4, and inaE^KG08585 lines were obtained from the Bloomington Drosophila Stock Center (BDSC, University of Indiana), whereas inaE^RNAi flies were purchased from the Vienna Drosophila RNAi Center (VDRC). Daughterless-Gal4 (da-Gal4) flies were a kind gift from Dr. A. Wredenberg (Karolinska Institutet). Flies were raised at 25°C with a 12-h light/12-h dark cycle, and reared on standard medium (Nutrifly Bloomington formulation; Genesee Scientific) unless specified otherwise. ¹⁴

Cloning of dDAGL and characterization of transcripts

Two vertebrate DAGLs exist with a canonical structure that consists of a four transmembrane domain, followed by a catalytic domain and a long (DAGLα) or short (DAGLβ) tail. ¹⁰ Drosophila has a single DAGL (dDAGL) located on the X chromosome at position 13677782 (version FB2010_07) and denoted as CG33174. Based on intron/exon boundary analysis, CG33174 can be classified as the DAGLα homolog, with DAGLβ arising from a gene duplication event (G.W., unpublished).

Based on homology with murine DAGL, we designed primers (5′/3′ GCGATCAATGCGCGAAACAGA/CAACAGCAGCCAAAGCAT) to generate a 500 base pair genomic fragment of the Drosophila DAGL by PCR and used this to probe a Drosophila embryonic cDNA library (Stratagene) according to the manufacturer's instructions. We isolated a splice form of dDAGL consisting of 3951 bp that utilizes exons 3–14 of the gene and encodes a protein of 708 amino acid residues with an intact catalytic domain. We denoted this splice variant CG33174-RC, with exons 1 and 2 encoding the 5′ UTR. Two other splice variants have been reported, ¹¹ corresponding to CG33174-RA and CG33174-RD. RA shares exons 3–13 with RC and encodes a truncated 644 residue protein, which is catalytically dead as it terminates before a critical histidine, which constitutes the third member of the lipase catalytic triad (G.W., unpublished). RD shares exons 3–13 and part of exon 14 with RC, but differs in being spliced into an additional exon (exon 15). This encodes a 739 reside protein with a longer tail than RC, but importantly shares a full catalytic domain with the protein encoded by RC.

Generation of dDAGL mutant strains

We obtained the inaE^KG08585 line from BDSC and confirmed that a P-element was inserted 21,746 bp downstream of the gene origin (start at×13677782, CG33174, http://flybase.org/cgi-bin/gbrowse/dmel), in the 13th intron of the dDAGL gene, within the exons encoding the catalytic domain (exons 8–14). We generated 500 excision lines using standard genetic techniques ²³ and characterized these using primers designed to recognize sequences in the catalytic domain. Genomic DNA of adult flies was PCR amplified according to http://engels.genetics.wisc.edu/flyDNA.html. Primers 5′-TTGGCCGTAACGCGGATTA-3′ and 5′-CTCATCGAAGTCCGTGGAAT-3′, which bind 557 bp upstream (f) and 1661 bp downstream (r) of the P-element insertion site, were used to examine the excision lines. Only those excision lines lacked the dDAGL fragment, confirmed with the above primers, were processed further.

PCR was performed further with primers designed to bind sequences 5′ and 3′ into the dDAGL gene. We selected three overlapping excisions that totally or partially delete the catalytic domain of the enzyme. We amplified and sequenced their limits using primers GACACGCACATCAATCAG (5′f) and GCAAGATGTGGCATTTGG (5′f), located 1294 bp and 2258 bp upstream of the P-element insertion site, respectively, and GGACAAAGCCACATAAACAAA (3′r), 1970 bp downstream of the insertion site. The three mutant lines were homozygous viable, although with a delayed development with respect to wild type and, thus, better maintained as a stock over a balancer chromosome. Phenotypes were assessed on homozygous lines. For rescue experiments, we used the inaE^Exc.90.1 containing two copies of UAS-dDAGL on the second chromosome. UAS-dDAGL flies were generated by PCR amplification from CG33174-RC from the start (ATG) to the end of exon 14 (TGA) with a proofreading polymerase. We sequenced the blunt-end product and cloned it into a pENTR/D-TOPO vector (Invitrogen) according to the manufacturer's instructions. We used Gateway technology to insert the product into a UASt destination vector with 3 FLAG tags (The Drosophila Gateway™ Vector Collection, Department of Embryology, Carnegie Institution of Washington). Positive clones were sequenced and sent for generation of transgenic flies (www.thebestgene.com). The phenotype was analyzed in male embryos, which contained the 90.1 excision on the X chromosome, and were homozygous for UAS-DAGL (second X chromosome) and heterozygous for elav-Gal4 (third X chromosome).

Generation of anti-dDAGL antibodies

Antibodies were made by Eurogentec under its double XP program using the peptide antigens EP041911 (H₂N-CRHHPKPDEQKYDSGW-CONH₂) and EP041912 (H₂N-NYKRSNSMNRNWRQRC-CONH₂). Two rabbits were immunized with each peptide and the antibodies were affinity purified against separate antigens. Both antibodies were tested and titrated in whole-mount embryos, cryosectioned, and stained (see section Commercial antibodies, immunohistochemistry, and confocal microscopy). EP041912 gave the best signal-to-noise ratio and was used for all further experiments.

In situ hybridization

Embryos (third instar larval) and adult brains were collected and processed according to published protocols. ²⁴ Tissues were immersion fixed in 4% paraformaldehyde (PFA) in phosphate-buffered saline (PBS) (0.1 M, pH7.4), embedded in paraffin, and sectioned at 6 μm. RNA probes were generated using our full-length CG33,174-PC product, inserted in Bluescript SK(−), and linearized with EcoRI for T7 polymerase (antisense probes) and XhoI for T3 polymerase (sense control probes; not shown). Probes for the dDAGL catalytic domain region were generated with PCR of CG33,174-PC (primer pairs (5′/3′): CCGGAACAGCGGCCATACTCGCCATTCTCC/CGGGCTTGGGATGATGTCGCAC), which recognized all three cloned dDAGL transcripts. Probes were tagged using the Roche Digoxigenin Labeling Kit and hybridization and signal detection were performed following published protocols. ²⁴

Commercial antibodies, immunohistochemistry, and confocal microscopy

Collection of stage 17 embryos, larval dissection, immunohistochemical staining, and confocal microscopy were performed according to published protocols. ²⁵ Tissues were immersion fixed as above, stained as whole mounts with cocktails of select primary antibodies at 4°C overnight: mouse anti-Fasciclin II (FasII, 1D4 IgG), mouse anti-MHC (DSHB, Iowa), goat anti-CB₁R antibodies (1:200; provided by Dr. M. Watanabe), and rabbit anti-dDAGL (see section Generation of anti-dDAGL antibodies). Subsequently, tissues were exposed to Alexa Fluor 488 or 594-conjugated or DyLight 549-tagged secondary antibodies (1: 200; Jackson ImmunoResearch) in phosphate buffer (0.1 M, pH 7.4) containing 0.3% Triton X-100 and 1% bovine serum albumin (Sigma-Aldrich). Tyramine signal amplification (TSA) protocol (PerkinElmer) was used to enhance anti-dDAGL immunosignal when necessary. Larval abdominal muscles were labeled with Alexa Fluor 546-conjugated phalloidin (1:50, 30 min at 22–24°C; Invitrogen). Embryos were mounted in ProLongGold Antifade Reagent (Invitrogen). Larval preparations were mounted in vectashield (Vector Laboratories), and imaged on either a Zeiss LSM700 laser-scanning microscope or a Zeiss Axioplan 2 HXP120C microscope equipped with a ProgRes C14 camera (Jenoptik). All images were minimally and linearly processed with Adobe Photoshop for contrast enhancement.

UAS-human CB₁R expression

We generated a Drosophila strain for the conditional expression (“inducible gain-of-function”) of the human CB₁R (hCB₁R). Using the Gal4 binary system, we subcloned the entire open reading frame of the hCB₁R into a pUAST vector. ²⁶ Transgenic lines were generated by standard P-element-mediated transgenesis (GenetiVision, Houston), followed by selection of transgenic flies and balancing transgene insertion.

Lipid extraction and LC-MS/MS analysis

For mass spectrometry (MS), third instar larvae (n≥300/sample) were collected, rinsed twice in PBS (50 mM), flash frozen in liquid N₂, and stored at −80°C for lipid extraction. Measurements were performed as published^14,27 Tissue samples and AEA-d₄ standards were homogenized in acetonitrile, centrifuged, and lipids extracted using a solid-phase extraction procedure on a Cerex SPE positive-pressure (N₂) manifold (Crawford Scientific) with Strata-X 33 μm polymeric reversed-phase cartridges (flow rate: 1 mL/min; Phenomenex). Analytes were eluted by methanol, dried under N₂, and residues resuspended in 50 μL of mobile phase before injection (10 μL) onto the chromatograph. AEA, 2-AG (Tocris) and 2-LG (Cayman Chemicals) standards were dissolved in dimethylsulfoxide. A Surveyor LC system coupled to a TSQ Quantum, triple quadrupole mass spectrometer (Thermo Scientific) was used for the analysis. The LC column was a 150×2.1 mm ACE 5 μm C8 with precolumn (Hichrom), maintained at 30°C with a mobile-phase flow rate of 200 μL/min. Isocratic elution was achieved with a mobile phase consisting of 15% water/85% methanol (both containing 0.5% formic acid). MS analysis was performed using electrospray ionization in positive ion mode using source conditions optimized for the transmission of the relevant parent ions by flow injection analysis. The spray voltage was 3500 V, sheath gas 40 (N₂, arbitrary units), auxiliary gas 10 (N₂, arbitrary units), and capillary temperature 375°C. Quantification was undertaken using single reaction monitoring on the dominant product ion determined for each compound using collision energy 16 V and a collision gas pressure of 1.3 mTorr (argon). The parent ion—product ion transitions monitored were AEA m/z 348.2–m/z 62.2, AEA-d₄ m/z 352.2–m/z 66.2, 2-AG m/z 352.2–m/z 287.2, and 2-LG m/z 355.2–m/z 263.2. Under these conditions the retention time for AEA and AEA-d4 was 7.3 min. Two peaks were present in the chromatogram for 2-AG and 2-LG, at retention times 7.66/8.10 and 7.72/8.24 min, respectively (Supplementary Fig. S1A, A₁). This is explained by the presence of biologically inactive 1(3)-isomers, which exist in equilibrium with 2-AG and 2-LG. The areas of both peaks were combined to determine 2-AG and 2-LG concentrations. System control, data collection, and all subsequent quantitative analyses were carried out using Xcalibur 2.0.6 software (Thermo Scientific). Weighted linear regression analysis curves were constructed using the ratio of analyte/internal standard to concentration of analyte in the calibration standard, and tissue extract concentration was determined from this curve. The assayed concentration was then divided by the tissue weight and the results expressed as nmol/g tissue.

AA feeding assay

Female flies (3–10 days) of appropriate genotypes were allowed to lay eggs in vials containing standard food (Nutrifly formulation) with or without AA supplement (40 mg/mL; Cayman Chemicals) at 25°C for 24 h. ¹⁴ Three days later, third instar larvae (n≥300/sample) were collected and processed to determine tissue AEA and 2-AG contents.

RNA analysis

Total RNA was isolated by organic extraction with phenolic Tri Reagent (Sigma-Aldrich) and further processed by solid-phase purification using RNeasy Plus columns (Qiagen). RNase-free DNase I (Qiagen) treatment was optionally performed to eliminate genomic DNA from the purified total RNA. For each sample, 1 μg of RNA was reverse transcribed using the High-Capacity cDNA Reverse Transcription Kit (Applied Biosystems). Quantitative real-time PCRs and data analysis were performed using an iCycler iQ real-time detection system (Bio-Rad). Each sample was run in triplicate, including appropriate controls. Ribosomal protein rp49 mRNA was used as internal control. The primer pairs: (rp49; 5′/3′ f) CCAAGGACTTCATCCGCCACC, (rp49, 5′/3′ r) GCGGGTGCGCTTGTTCGATCC, (hCB₁R, 5′/3′ f) AAGGTGACATGGCATCCAAAT, and (hCB₁R, 5′/3′ r) AGGACGAGAGAGACTTGTTGTAA were designed using Primer 3 (http://frodo.wi.mit.edu) and custom synthesized (DNA Technology A/S).

CB₁R internalization

Fat bodies of da-Gal4;UAS-hCB₁R larvae at the third instar stage were acutely dissected in PBS (50 mM) and intact tissues exposed to WIN 55,212-2 (1 μM; Tocris) or 2-LG (2 μM; Cayman Chemicals) for 5 or 15 min. Subsequently, fat bodies were immersion fixed in 4% PFA, and stained using a goat anti-CB₁R antibody to visualize subcellular receptor localization. Hoechst 33,342 was used as nuclear counterstain. Images were acquired on a Zeiss LSM780 laser-scanning microscope.

Signal transduction

Tissues from n=25 adult elav-Gal4;+ or elav-Gal4;UAS-CB₁R males (3–6 days old) were homogenized with a microtissue grinder in lysis buffer (50 mM Tris-HCl [pH 7.5], 150 mM NaCl, 5 mM ethylenediaminetetraacetic acid [EDTA], 1% NP40, 1 mM phenylmethanesulfonyl fluoride and a protease inhibitor cocktail [Complete; Roche]). Aliquots were exposed to 2-LG (2 μM; Cayman Chemicals) or AM251 (500 nM, CB₁R antagonist; Tocris) alone or in combination for 1, 3, or 10 min at 37°C. Next, samples were centrifuged at 14,000 rpm at 4°C for 30 min, with supernatant denaturated in Laemmli buffer (5×) and boiled at 95°C for 5 min. Fifteen micrograms of each sample was separated by SDS-PAGE (10%) and transferred onto PVDF membranes. Protein samples were exposed to primary antibodies (phospho-Erk1/2, total Erk1/2, phospho-Drosophila Akt, total Akt; 1:100; Cell Signaling) at 4°C overnight, and detected using horseradish peroxidase-conjugated secondary antibodies (Jackson ImmunoResearch) and chemiluminescent detection (ECL Prime, Amersham). E7 anti-β-tubulin monoclonal antibody (1:1000; Developmental Studies Hybridoma Bank) served as loading control. Experiments at 1 and 3 min were performed in duplicate, while 10-min treatments were performed in triplicate.

Locomotor activity assay

Locomotion activity was measured according to Feany and Bender. ²⁸ Briefly, groups of 10 males (6-day-old) were transferred into 140×20 mm vials. After a 10-min resting period, the flies were tapped to the bottom of the vials and the number of flies able to climb a vertical distance of 8 cm within 10 s were recorded (Supplementary Video S1).^29,30 Results from n≥60 flies/group were expressed as percentages from n=3 independent experiments.

Ethics approval of rodent studies

Experiments on live animals conformed to the 2010/63/EU European Communities Council Directive and were approved by the Austrian Ministry of Science and Research (66.009/0145-WF/II/3b/2014, and 66.009/0277-WF/V/3b/2017). Particular effort was directed toward minimizing the number of animals used and their suffering during experiments.

Radioligand binding in mouse cortical membranes

Adult C57Bl6/J mouse cortices were dissected and homogenized with a glass/teflon Potter-type homogenizer in ice-cold 50 mM Tris-HCl buffer (pH 7.4) containing 3 mM EDTA. Total membranes were fractionated at 35,000 g for 10 min followed by a washing step, repeated centrifugation, and pellet resuspension in 50 mM Tris-HCl buffer. Intracellular constituents were removed from resuspended membrane preparations by incubation at 23°C for 2 h before suspensions were centrifuged, resuspended, aliquoted, and stored at −80°C. BSA at a concentration of 0.1% was used throughout the experiments to retain [ ³ H]CP 55,940 (American Radiolabeled Chemicals) in solution and protect it from being precipitated on glass surfaces. MgCl₂ (3 mM) was used to increase binding specificity. Binding experiments followed a displacement design with 0.5 nM [ ³ H]CP 55,940 challenged by increasing concentrations of unlabeled 2-LG (0, 1, 5, 12.5, 25, 50 and 100 μM; Cayman Chemicals). Additionally, JZL 195 (100 nM; Sigma-Aldrich) was present to inhibit both monoacylglycerol lipase (MAGL) and fatty acid amide hydrolase activity. Nonspecific binding was determined for immoderately high-ligand concentrations. In a separate study, O-2050 was additionally used as CB₁R antagonist. The composite was incubated at 23°C for 2 h before being rinsed over glass microfiber filters (Whatman GF/C, presoaked in 0.3% polyethylene) in a vacuum-driven Höfer filtration box. Filters were washed (4×) with 50 mM Tris-HCl (containing 0.1% BSA) buffer before being exposed to a scintillation cocktail (Rotiszint 11; Roth) for 20 min and measured in a Packard TRI-CARB 2100TR scintillation counter. Raw scintillation counts were expressed as the percentage of specifically bound radioligand. Protein concentrations of the samples were determined by the Bradford method (Bio-Rad). Experiments were performed in quadruplicate using n=3 biological replicates each.

Cultures of mouse neurons and IncuCyte imaging

Neurons were isolated from E14.5 C57Bl6/J mouse cortices and grown in Neurobasal A medium (GIBCO, Life Technologies) supplemented with l-glutamine (2 mM), B27 supplement (2%), and penicillin/streptomycin (1%). Cells were plated in either 96-well plates (25,000 cells/well for automated imaging) or in 24-well plates (25,000 cells/well for immunocytochemistry) pretreated with poly-d-lysine in 0.1 M borate buffer overnight. Drug challenges were initiated on the first day in vitro (DIV) with 2-LG replenished every 24 h. An IncuCyte live-cell imaging system (Essen Bioscience), placed in an incubator with stable 5% CO₂ intake and temperature control at 37°C, was used for live cell (including neurite) imaging. Phase-contrast images were taken at hourly intervals (or every other hour). “The area of cell viability,” that is the surface area occupied by cell bodies (mm²/mm²), was taken as a measure of cell viability. The growth rate of neurites was obtained by using a “neurite length” mask (mm/mm²). All measures were optimized in preliminary experiments, including drug doses and treatment paradigms. Dose/response curves were constructed from duplicate experiments with n≥12 wells/condition in each experiment.

Neurons at low density on coverslips were fixed with 4% PFA in PBS on ice for 15 min before being processed for immunohistochemistry. Multiple immunofluorescence labeling was performed by applying cocktail of affinity-purified antibodies ²⁷ : Alexa Fluor 555 phalloidin (1:500; Invitrogen) and mouse anti-β-III-tubulin (1:300; Millipore). Images were acquired on a Zeiss 880LSM confocal laser-scanning microscope. High-resolution images were acquired with optical zoom ranging from 1.5×to 3.0×at 40×primary magnification to limit signal detection. Emission spectra for each dye were limited as follows: Cy2 (505–530 nm), Cy3 (560–610 nm), and Cy5 (650–720 nm). Morphometric analysis of cultured neurons was aided by the ZEN2012 software, as well as ImageJ with Fiji applications and included: (1) filopodia number (n), (2) neurite branching (n), (3) length of the primary neurite (μm), (4) the surface area and number of growth cones, and (5) fluorescence intensity distribution of phalloidin/F-actin in growth cones and along neurite shafts. The longest process emanating from neuronal somata was considered as the prospective axon. The number of neurons analyzed (per cover-slip) was n=56 (control) and n=29 (2-LG, 1 μM). The number of growth cones analyzed was n=26 (control) and n=17 (2-LG, 1 μM).

Statistical analysis

Data were expressed as mean±s.e.m. Individual data points for mammalian neurons were shown as scatter plots. The comparison of independent groups was statistically performed using Student's t-test. Behavioral data were analyzed using multivariate ANOVA followed by Bonferroni's post hoc test. A p-value of <0.05 was considered statistically significant.

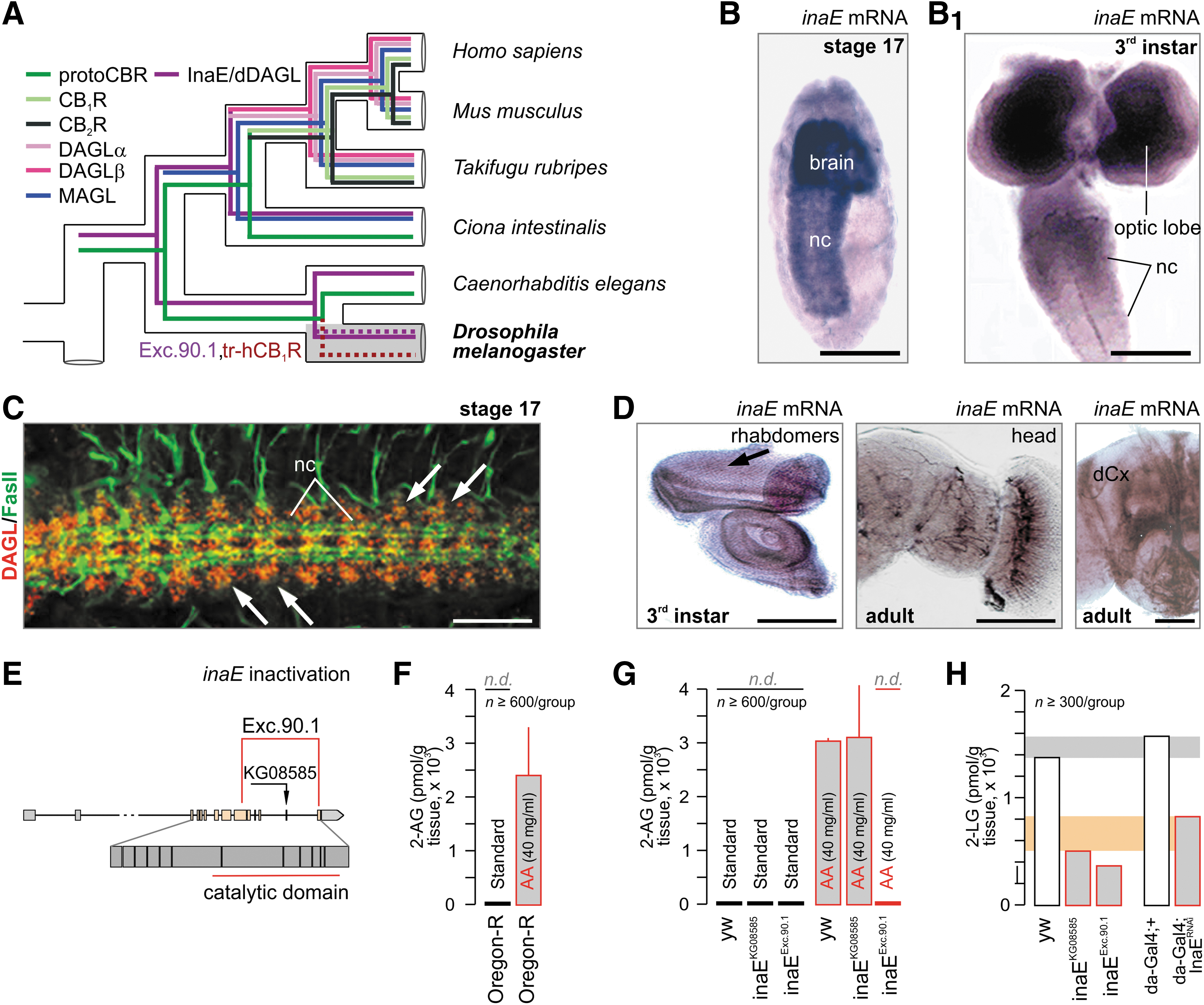

dDAGL expression during Drosophila development

InaE, the DAGLα homolog (dDAGL) based on the evolutionary conservation of intron/exon boundaries, was previously implicated in phototransduction in D. melanogaster. ¹¹ By PCR probing a Drosophila cDNA library, we isolated a dDAGL splice form that spans exons 3–14 of the inaE gene (3951 bp), and encodes an INAE protein of 708 residues (CG33174-RC). Recently, two other C-terminally truncated inaE splice variants (CG33174-RA/RD) were reported ¹¹ that contain a lipase-3 domain and exhibit sn-1 selectivity and DAGL-like activity in vitro. However, available knowledge is fragmented on the developmentally regulated and adult body-wide localization of dDAGL/INAE proteins in Drosophila. In this study, we used a hybridization probe recognizing all dDAGL mRNA transcripts to show that InaE mRNA is expressed in the developing Drosophila brain and ventral nerve cord by stage 17 (Fig. 1B), which persists throughout larval development (third instar, Fig. 1B₁). By means of a dDAGL-specific antibody that we have generated (see Materials and Methods section), we then localized dDAGL/INAE protein to intersegmental neuroblast/neuron clusters along the ventral nerve cord (Fig. 1C), consistent with mRNA distribution. As in vertebrates, expression is dynamic during development and colocalizes with neuronal markers. Postembryonically, the protein is found in the larval brain and eye discs, and was particularly localized to photoreceptor rhabdomeres (Fig. 1D) and the dendritic field of the calyx region of the mushroom bodies (Fig. 1D). These data link dDAGL to neuronal differentiation and suggest evolutionarily conserved functions for dDAGL in for example, axonal growth and guidance. ³¹

Dietary precursors drive 2-LG versus 2-AG production by dDAGL

Next, we used the Drosophila inaE^KG08585 line to excise a P-element inserted at nucleotide (nt) 21,746 from the transcription start in intron 13, within the dDAGL/INAE catalytic domain. We characterized 500 excisions and recovered one that deletes most of the catalytic domain with only the terminal histidine of the catalytic triad remaining (Exc.90.1; nt 20004/exon 9–nt 22869/exon 14 henceforth the line termed as inaE^Exc.90.1; Fig. 1E), rendering dDAGL inactive. We then combined metabolomics and genetic tools to identify dDAGL products.

Drosophila do not express Δ5 and Δ6 desaturases, ³² precluding the synthesis of C20/C22 PUFAs (including AA), suggesting the production of diunsaturated 2-acylglycerols instead. Indeed, targeted lipidomics revealed 2-linoleoylglycerol (2-LG) but not 2-AG in wild-type ¹⁴ and mutant Drosophila (Fig. 1F, G, and Supplementary Fig. S1A, A₁). Moreover, dDAGL hypomorphism or catalytic inactivation significantly reduced 2-LG content in third instar Drosophila larvae (Fig. 1H). Similarly, ubiquitous inaE RNAi knockdown by daughterless-Gal4 (da-Gal4, Supplementary Fig. S1B) reduced bodily 2-LG content in larvae (Fig. 1H). Since any 2-LG present in standard feeding formulations will be metabolized to triglycerides before delivery to tissues, where triglycerides act as precursors for monoacylglycerols, we interpret the presence of residual 2-LG in inaE^KG08585, inaE^Exc.90.1, and inaE^RNAi as experimental confounds derived from undigested food. Thereby, 2-LG represents an evolutionary alternative to 2-AG in Drosophila.

We then fed third instar Drosophila larvae an AA-supplemented diet to show that both Oregon-R (Fig. 1F) wild-type and yellow-white (yw) control flies (Fig. 1G) can generate 2-AG, reaching concentrations found in mammalian brain. AEA was not detected (not shown). A similar dependence on exogenous AA was reported for the biosynthesis of 2-AG, but not AEA, in the lone star tick (Amblyomma americanum). ³³ The ability to utilize dietary AA in a pathway that leads to the generation of 2-AG was not obviously affected in inaE^KG08585 flies, most probably because this is a hypomorphic line rather than a knockout. However, this pathway was completely lost in the inaE^Exc.90.1 line demonstrating an enzymatic requirement for dDAGL activity for this function (Fig. 1G). Targeted lipidomics has revealed 2-LG in the fruit fly on a standard diet. ¹⁴ In this study, we found substantial (∼50–60%) reductions in 2-LG levels in the inaE^Exc.90.1 third instar Drosophila larvae. Similarly, ubiquitous InaE^RNAi knockdown by daughterless-Gal4 (Supplementary Fig. S1B) reduced bodily 2-LG content in larvae by a similar amount. Cumulatively, these data suggest that 2-LG is the primary dDAGL product in Drosophila with the substrate specificity of dDAGL tightly controlled by dietary choices and restrictions.

dDAGL loss of function inhibits skeletal muscle innervation

Mammalian endocannabinoids are developmentally significant since they participate in the establishment of correct axonal connectivity in the nervous system.^31,34,35 Muscle innervation by motor axons in the developing Drosophila embryo is a well-characterized pathway (Fig. 2A, B), where a number of adhesion molecules, in particular Drosophila L1 (neuroglian, nrg), are known to function. ³⁶ Since dDAGL is localized to the ventral nerve cord that in adult Drosophila orchestrates motor output and its activity is required for L1 responses, ³⁷ we reasoned that dDAGL loss of function in Drosophila could adversely impact the development of muscle innervation. Axonal growth and guidance were impaired in Drosophila mutants with examples from the InaE^Exc.90.1 line shown (Fig. 2C–F). Three types of defects manifested in InaE^Exc.90.1 mutants: (1) stalling, whereby axons stop at variable points toward their targets in the muscle field or are delayed in their advance when compared with a wild-type embryo of the same age; (2) misrouting, which includes entering the muscle field at a wrong choice point or entering at the right point but extending in the wrong direction, and (3) defasciculation, which means that axons that should extend apposed to each other are running separate (Fig. 2G).

OPEN IN VIEWER

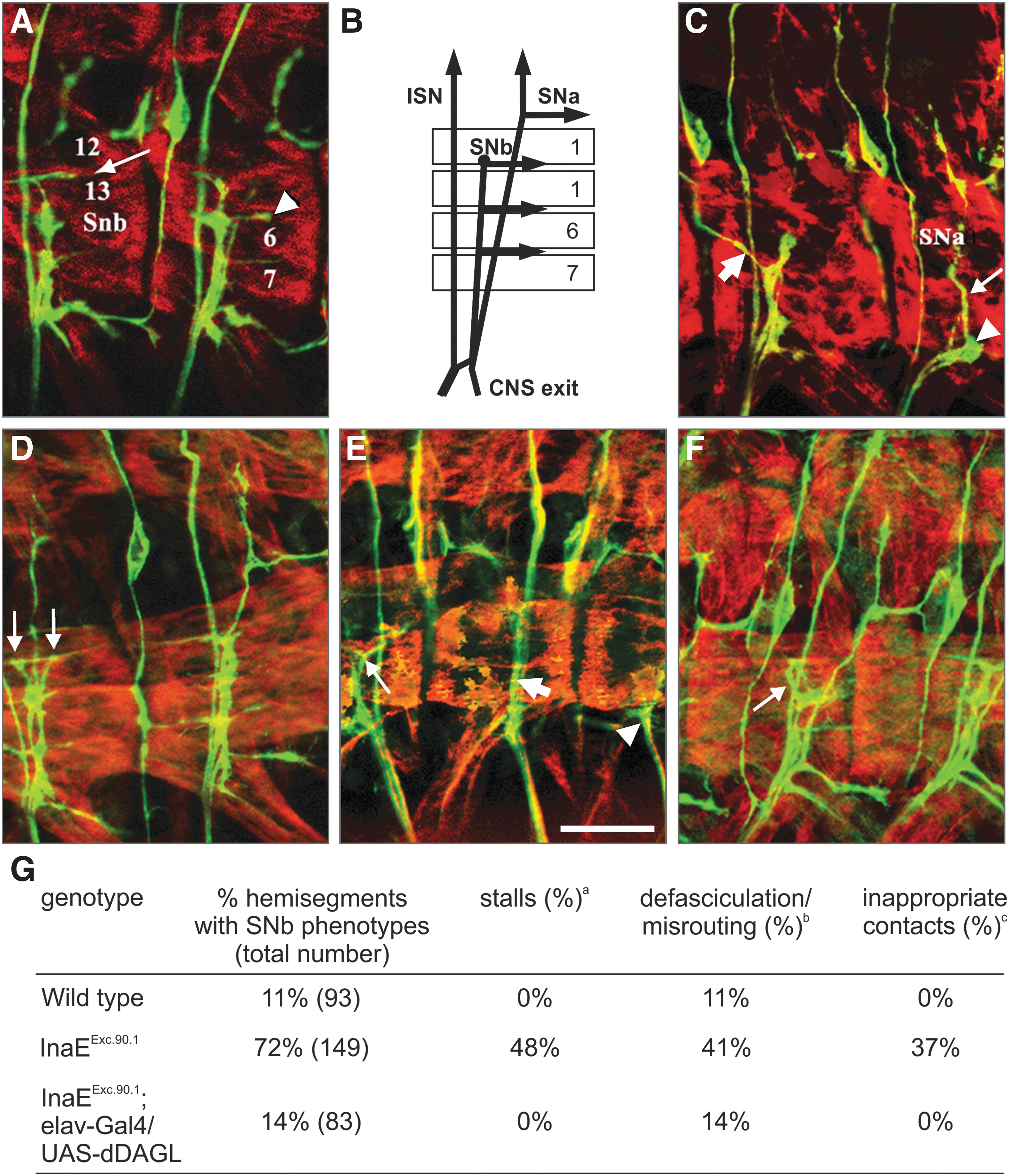

FIG. 2.

Mutations in dDAGL impair axonal outgrowth and pathfinding for muscle innervation by motor neurons in the SNb pathway, which are corrected by the targeted expression of CG33174-PC. (A, C–F) Apotome optical sections of three abdominal hemisegments in late-stage 16 filleted embryos stained for myosin heavy chain (MHC; red) and Fasciclin II (FasII, axonal marker; green). Anterior is left and dorsal up in all panels. (A) An overlay of five 500-μm optical sections showing the trajectory of the SNb as it grows toward and innervates the ventral muscle field. In the left hemisegment, arrow points to axonal extension in the 12–13 cleft. Arrowhead in the right hemisegment points to axons innervating the 6–7 cleft. (B) Schema depicting the three main motor axon pathways. ISN denotes the intersegmental nerve, with SNa and SNb denoting the segmental nerve A and B, respectively. (C, D, E) Abdominal hemisegments of inaE^Exc.90.1 embryos. In (C), focus is at the level of SNb entry into the muscle field (lateral transverse muscle 21 and 22). In the right hemisegment, SNb stalled at the entry point (arrowhead) but some fascicles proceeded to join SNa fascicles (thin arrow). In the left hemisegment, SNb stalls at the 6–13 cleft. There are some axons that misroute in the left hemisegment (thick arrow). In (D), axons can be seen to grow in two opposite directions past the 6–13 cleft (thin arrows) in the left hemisegment. (E) Another example points to SNb fascicles (thin arrow) following the top border of muscle 26. In the next hemisegment to the right, the thick arrow points to SNb fasciculating with the ISN instead running separately. In the right hemisegment, the SNb stalls before entering the ventral muscle field (arrowhead). (F) Hemisections from an inaE^Exc.90.1; elav-GAL4/UAS-dDAGL embryo are shown and axonal stalling is corrected with SNb fascicles reaching the 12–13 cleft. However, some misrouting can still be observed (thin arrow). (G) SNb projections in inaE^Exc.90.1 mutants as compared with wild-type control and the rescue by using UAS-DAGL. The three types of defects observed can be present alone or in combination in a given hemisegment. The percentage of hemisegments with phenotype refers to the total number irrespective of the severity of the defects. ^aSNb growth cones stop at any point on or after entering the ventral muscle field or are delayed in their advance at least one muscle width with respect to SNb growth cones of a similar age in control embryos. ^bSNb growth cones fail to defasciculate from ISN at the choice point (on entering the ventral muscle field) or they defasciculate from the main SNb branch at the wrong point and show abnormal trajectories. ^cSNb growth cones that enter the muscle field at the right point fail to make contact with their target muscle or show abnormal trajectories. Scale bar = 20 μm (E).

We then went on to address the capacity of the CG33174-RC isoform of dDAGL to rescue the axonal defects. We used the UAS-Gal4 system to construct transgenic flies containing this isoform cloned into a UAS vector and used elav-Gal4 to drive dDAGL-RC in neurons during embryonic stages in the InaE^Exc.90.1 line. We observed an almost complete rescue of the stalling defects (Fig. 2F, G), but only a mild rescue of the defasciculation and misrouting defects. The remaining percentage of stalling, only slightly higher than the observed in wild-type embryos, and the poor rescue of the misrouting and defasciculation defects could reflect a diminished or absent modulation of UAS-dDAGL since dDAGL is probably not provided in the dynamic pattern observed for the endogenous protein. Nonetheless, the rescue experiment suggests that the phenotype in the dDAGL flies does indeed reflect a loss of function as opposed to toxic gain of function due to aberrant transcripts. These data suggest that, alike in mammalian organisms,^10,12,15,37 dDAGL is involved in the control of axonal growth and guidance.

Transgenic expression of the mammalian CB₁R reveals signaling potential of 2-LG

The above results show that DAGL activity can regulate 2-AG and 2-LG levels in Drosophila, but in the case of 2-AG this is likely to be a diet-related epiphenomenon. The possibility of 2-LG being a signaling lipid is difficult to test in the absence of precise knowledge on the nature of putative responsive receptor(s) or its signal-competent metabolites. Instead, we reasoned that 2-LG's signaling potential might be detected by using a CB₁R as surrogate based on the coevolution of the DAGLs and cannabinoid receptors ¹ (Fig. 1A).

To test this hypothesis, we generated transgenic flies containing the full-length hCB₁R and drove expression using a cha-Gal4 vector. This was chosen because it efficiently targets intersegmental cholinergic neurons, including upstream excitatory neurons for motor neurons that orchestrate axial movement, and even a subset of motor neurons. ³⁸ Alternatively, the transgene was more broadly expressed in the CNS by means of an elav-Gal4 vector. Reverse transcription PCR confirmed the expression of the hCB₁R in transgenic flies (Fig. 3A and Supplementary Fig. S1C). Ectopically expressed hCB₁Rs retained their axonal targeting in cha-Gal4/GFP⁺ neurons, ³⁹ as shown by high-resolution laser-scanning reconstruction with coexpressed GFP used as localization signal. In contrast, histochemistry for hCB₁R failed to reveal a specific pattern of immunoreactivity in flies where binary Gal4::UAS expression of the hCB₁R was not active (Fig. 3B–B₃).

OPEN IN VIEWER

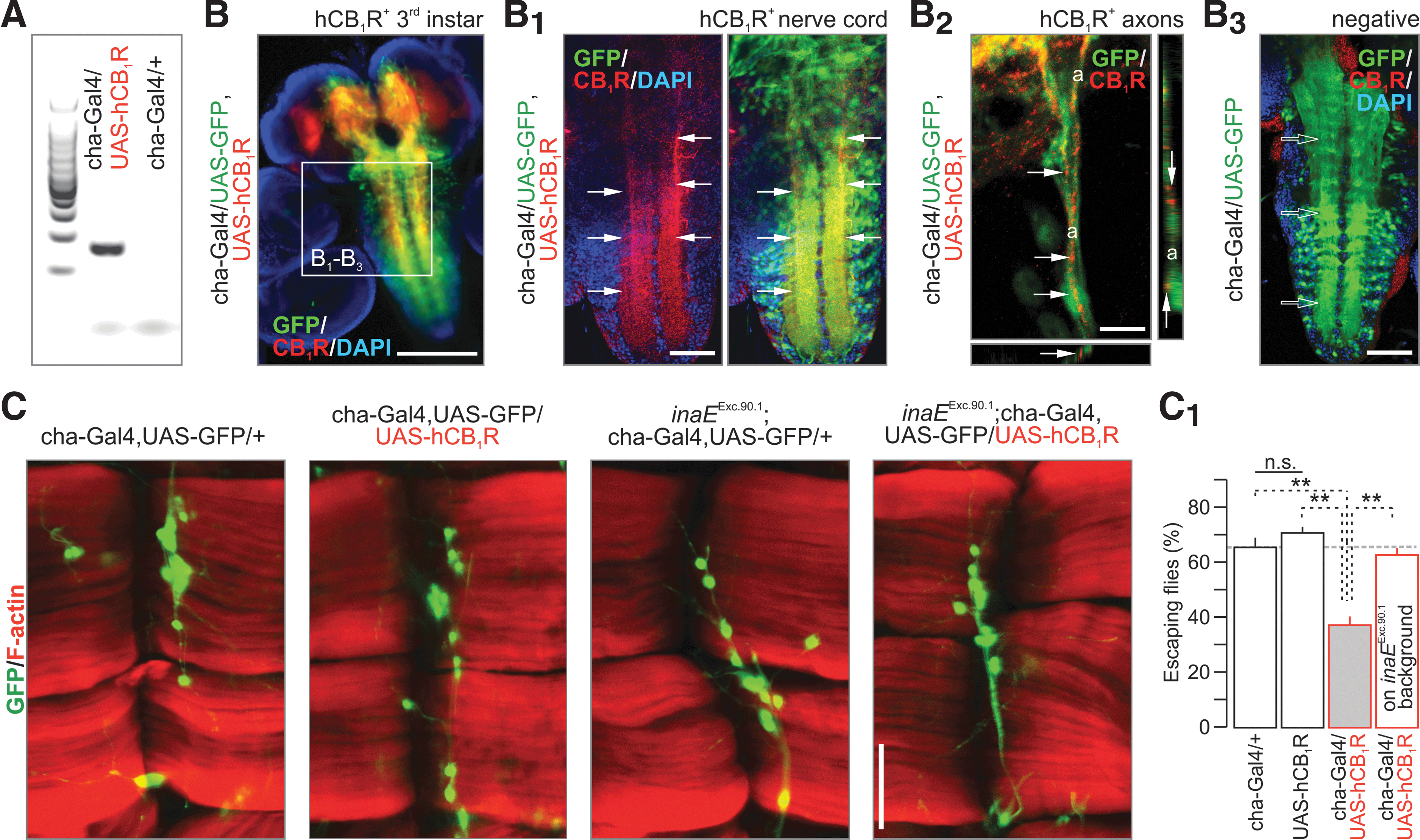

FIG. 3.

hCB₁R expression disrupts locomotion in Drosophila. (A) Expression of hCB₁R in fruit fly (mRNA). (B–B₂) hCB₁R immunolocalization upon expression by using a cha-Gal4 vector (primarily for excitatory intersegmental interneurons; GFP). Arrows point to hCB₁R-dense cellular or subcellular compartments, including axons (a; B₂). (B₃) Histochemical control in nonoverexpressing flies. Open arrows show the lack of hCB₁R labeling in GFP⁺ territories. DAPI was used as nuclear counterstain. (C) hCB₁R expression affected neither the position nor the population size of intersegmental cholinergic neurons. Similarly, catalytic inactivation of inaE/dDAGL left cholinergic interneurons unaffected. (C₁) hCB₁R expression induced hypolocomotion [F_{(3, 187)}=48.17, p<0.001]. See also Supplementary Video S1. In contrast, ectopic hCB₁R expression on inaE^Exc.90.1 background rescued this phenotype. **p<0.01 (Bonferroni's post hoc test); n>60 animals/group; n.s., nonsignificant. Scale bar=50 μm (C).

This transgenic and cell type-specific model of hCB₁R expression offers an opportunity to test if a tissue-endogeneous dDAGL product, likely 2-LG, activates hCB₁Rs. Expressing hCB₁R in cha-Gal4⁺ neurons is advantageous since optogenetic interrogation of these neurons was shown to affect locomotion. ³⁸ We find that hCB₁R gain of function did not affect cha-Gal4/GFP⁺ neuron localization or numbers, suggesting that innervation of ventral longitudinal abdominal muscles (muscles 6,7) in third instar transgenic larvae remained normal (Fig. 3C). Subsequently, we exploited a locomotion (climbing) assay widely used to assess Drosophila behaviors upon transgene expression. The expression of hCB₁R impaired motor control and locomotor activity (Fig. 3C₁ and Supplementary Video S1). This inhibition was not seen when hCB₁Rs were expressed in inaE^Exc.90.1 mutants (Fig. 3C₁), neither when inaE was knocked down by RNAi (Supplementary Fig. S1E), suggesting that dDAGL produces an endogenous ligand that activates ectopically expressed hCB₁Rs. These observations are also compatible with an inhibitory 2-LG action at ectopic CB₁Rs. Moreover, they suggest that the loss of cannabinoid receptors in insects ¹ may be an evolutionary response to otherwise impaired neural functions limiting survival, rather than to the lack of endogenous ligands.

2-LG signaling at hCB₁Rs in Drosophila adipocytes

Besides their native dDAGL expression, adipocytes of the fat body also expressed hCB₁R levels and targeted the receptor correctly to their membrane surfaces (Fig. 4A). While 2-LG is considered as a participant in the “entourage effect” ¹⁶ of endocannabinoid-like compounds (i.e., increased affinity of 2-AG at CB₁Rs in the presence of 2-LG) with more recent data ¹⁵ identifying 2-LG as a low-affinity partial CB₁R agonist, we hypothesized that hCB₁R in Drosophila might have increased ligand sensitivity and signal transduction efficacy in the absence of an endogenous “endocannabinoid tone,” thus being amenable to dissect 2-LG signal competence.

OPEN IN VIEWER

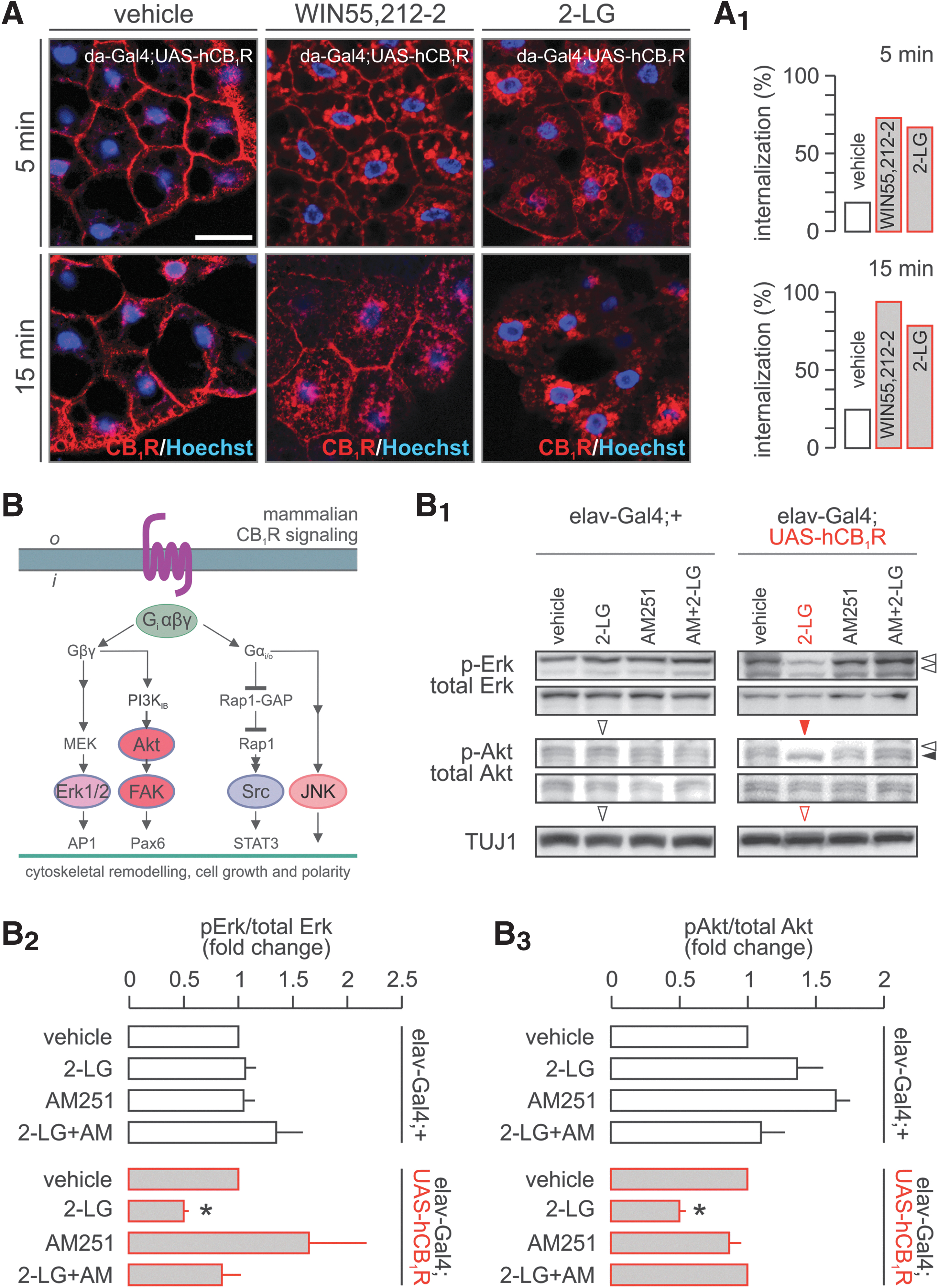

FIG. 4.

Paradoxical signaling by hCB₁Rs in Drosophila. (A) WIN 55,212-2 and 2-LG induced rapid hCB₁R internalization in Drosophila adipocytes. The percentage of cells with internalized hCB₁Rs is shown in (A₁). (B) Canonical signal transduction pathways activated by the CB₁R in mammals. In Drosophila, 2-LG induced the inhibition of both extracellular signal-regulated protein kinase 1/2 (Erk1/2) and protein kinase B (Akt) pathways in an AM 251-dependent fashion. (B₁) Representative experiment. (B₂, B₃) Data from triplicate experiments expressed as mean±s.e.m.; *p<0.05 (Student's t-test). Scale bar = 15 μm (A).

Hence, we first expressed hCB₁R ubiquitously, using the da-Gal4 driver, and tested hCB₁R internalization as a functional read-out of G protein-coupled receptor activation. By superfusing WIN 55,212-2 (1 μM, cannabinoid receptor agonist) or 2-LG (2 μM) over the fat body, we find rapid hCB₁R translocation. Both ligands induced hCB₁R internalization, affecting >80% of adipocytes by 15 min after acute stimulation (Fig. 4A, A₁). This response prompted us to test whether ectopic hCB₁R activation could initiate kinase signaling triggering cytoskeletal reorganization (for mammalian candidates see Fig. 4B, B₁) in tissues of 3–6-day-old flies (∼300/sample with tissues lysed, cleared, and proteins extracted). Neither 2-LG nor AM251, a CB₁R antagonist, induced kinase activation in tissue homogenates of elav-Gal4;+ (control) flies, suggesting that there is little if any basal activation of the receptors in the absence of a stimulus. In contrast, 2-LG (2 μM, 10 min) inhibited (p<0.05) the phosphorylation of both extracellular signal-regulated kinases 1/2 (Erk1/2) and Akt upon hCB₁R expression in postmitotic neurons of 3–6-day-old fruit flies (elav-Gal4;UAS-hCB₁R; Fig. 4B₁), while being ineffective at phosphorylating c-Jun N-terminal kinases or Src (not shown). Inhibition of Erk1/2 and Akt phosphorylation was rapid (Supplementary Fig. S1D), and commenced without transient activation. This, together with AM 251 antagonism of these responses (Fig. 4B–B₃), supports the supposition that 2-LG is a bona fide partial agonist ¹⁵ inducing paradoxical signaling, rather than desensitization, at hCB₁R expressed ectopically in Drosophila.

2-LG binds to CB₁Rs in mouse cortical homogenates

Recently, a recombinant CB₁R-transcription factor interaction assay showed that, in mammalian cells, 2-LG also acts as a partial agonist of the CB₁R. ¹⁵ However, data from native mammalian systems on 2-LG binding to the cannabinoid receptor is still lacking. Therefore, we performed a classical radioligand-binding assay to test if 2-LG can replace [ ³ H]CP 55,940, a high-affinity CB₁R agonist, ⁴⁰ from its binding site in membrane fractions prepared from cerebral cortices of adult mice. We used JZL 195 (100 nM), a dual MAGL and fatty-acid amide hydrolase inhibitor, ⁴¹ to inhibit potential 2-LG degradation in situ. JZL195 alone did not influence [ ³ H]CP 55,940 binding (data not shown). Under these conditions, 2-LG replaced [ ³ H]CP 55,940 in a dose-dependent fashion with a calculated IC50 of 22.82 μM (Fig. 5A). Notably, O-2050 (100 nM, used as a CB₁R antagonist) coapplication completely eliminated both [ ³ H]CP 55,940 binding and 2-LG modulation at all concentrations used (Fig. 5A). These results suggest that 2-LG has the ability to modulate mammalian CB₁Rs, even if at concentrations a magnitude higher than those for 2-AG and AEA.

OPEN IN VIEWER

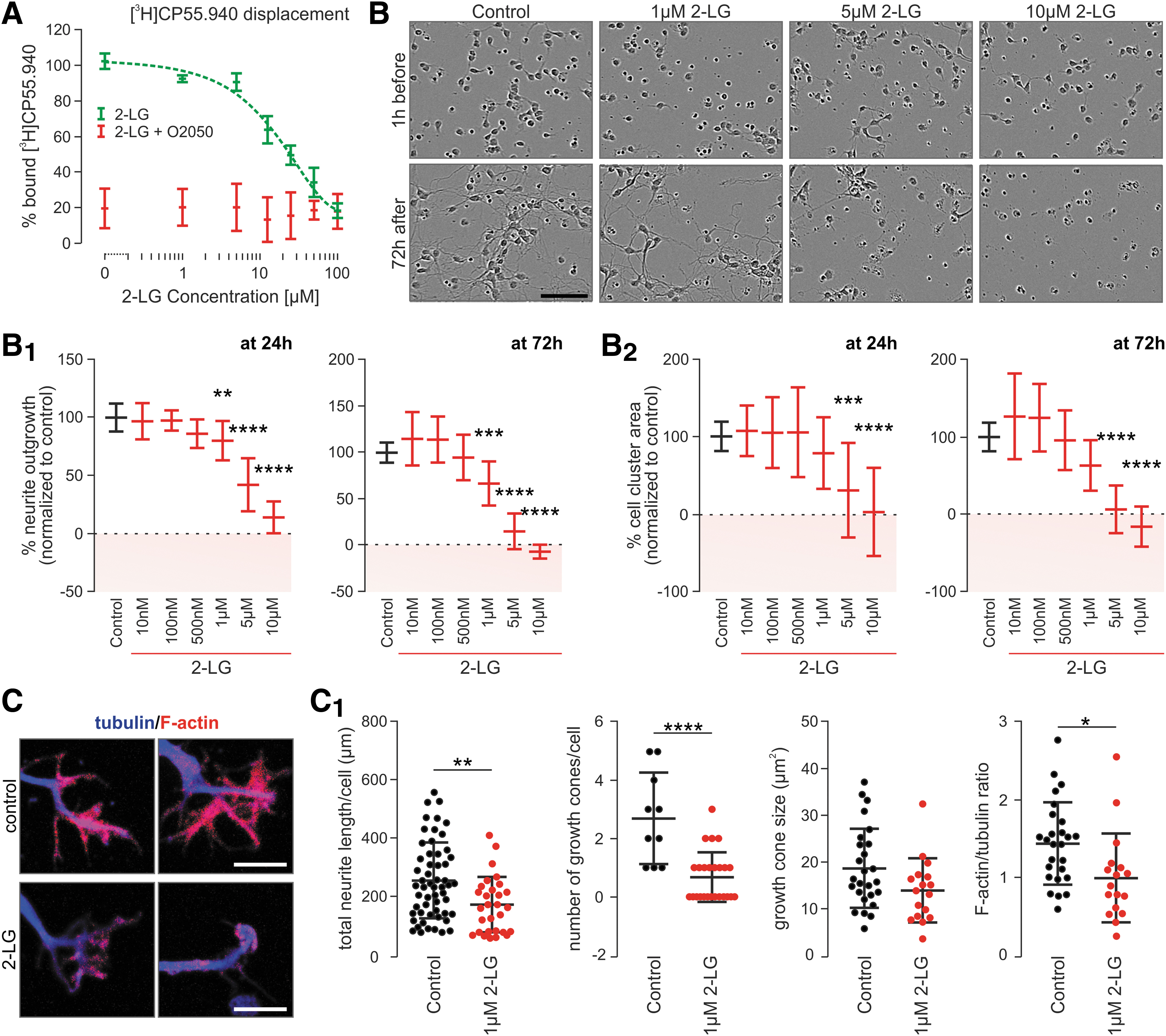

FIG. 5.

2-LG-induced growth phenotypes in mammalian neurons. (A) Displacement of [ ³ H]CP 55,940 binding by increasing 2-LG concentrations in mouse cortical membranes. O-2050, a silent CB₁R antagonist, was used as control. (B) Phase-contrast images of cultured mouse neurons before and after exposure to increasing 2-LG concentrations. Images are from an IncuCyte Zoom automated imaging platform. Quantitative analysis of the rate of neurite outgrowth (B₁) and cell area coverage (a surrogate of cell survival, B₂) 1 h before and 72 h after 2-LG treatment in vitro. Boxes in pink demonstrate neurite retraction (B₁) and cell death (B₂). (C, C₁) 2-LG induces growth cone collapse and reduces the F-actin/β-III-tubulin ratio. Solid circles correspond to individual data points. *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001 from quadruplicate (A) and duplicate (B) experiments. Scale bars=10 μm (C), 100 μm (B).

2-LG reduces neurite outgrowth and induces growth cone collapse in mouse neurons

Next, we asked if 2-LG exposure of fetal mouse neurons affects their morphological differentiation, recapitulating developmental phenotypes imposed by endocannabinoids and synthetic CB₁R agonists.^27,34,42 First, we have measured if 2-LG affects neurite outgrowth using an automated IncuCyte imaging system with 2-LG replenished every 24 h during a period of 3 days in vitro (Fig. 5B). Indeed, when used in concentrations >500 nM, 2-LG significantly reduced neurite outgrowth (Fig. 5B₁,) with 10 μM 2-LG inducing near-complete inhibition. As such, 2-LG at concentrations ≥5 μM significantly reduced the surface area occupied by neurons (Fig. 5B₂) demonstrating that reduced cell survival was a significant confound in measuring decreased neurite occupancy. These data cumulatively show that 2-LG reduces neurite outgrowth in a pharmacological window of 500 nM–5 μM without significant cytotoxicity.

Finally, we used single-cell morphometry to test if 2-LG affects neurite growth cone morphology, an efficient means to reduce the rate of neurite growth among others by endocannabinoids.^27,43,44 2-LG (1 μM) significantly reduced the length and branching of neurites per cell (Fig. 5C, C₁). Moreover, 2-LG significantly reduced the number of growth cones, as well as the F-actin/β-III-tubulin ratio in individual growth cones (Fig. 5C, C₁), defining subcellular sites and morphological correlates for its action. In sum, these data demonstrate that 2-LG is efficacious in modulating neuronal differentiation, at least in vitro, in a manner similar to classical endocannabinoids.^42,43,45
