Production of [ 211 At]-Astatinated Radiopharmaceuticals and Applications in Targeted α-Particle Therapy

Abstract

²¹¹At is a promising radionuclide for α-particle therapy of cancers. Its physical characteristics make this radionuclide particularly interesting to consider when bound to cancer-targeting biomolecules for the treatment of microscopic tumors. ²¹¹At is produced by cyclotron irradiation of ²⁰⁹Bi with α-particles accelerated at ∼28 MeV and can be obtained in high radionuclidic purity after isolation from the target. Its chemistry resembles iodine, but there is also a tendency to behave as a metalloid. However, the chemical behavior of astatine has not yet been clearly established, primarily due to the lack of any stable isotopes of this element, which precludes the use of conventional analytical techniques for its characterization. There are also only a limited number of research centers that have been able to produce this element in sufficient amounts to carry out extensive investigations. Despite these difficulties, chemical reactions typically used with iodine can be performed, and a number of biomolecules of interest have been labeled with ²¹¹At. However, most of these compounds exhibit unacceptable instability in vivo due to the weakness of the astatine–biomolecule bond. Nonetheless, several compounds have shown high potential for the treatment of cancers in vitro and in several animal models, thus providing a promising basis that has allowed initiation of the first two clinical studies.

Introduction

W hile β⁻-emitters have proven their usefulness in the therapy of localized macroscopic cancerous tumors, limited successes have been obtained in the case of microscopic and disseminated cancers. The disappointing results are explained by the relatively long path length of the β⁻-particles in tissue (several millimeters), leading to the loss of most of the deposited energy in healthy tissues when the tumor being treated is too small. In contrast, α-particle emitters are promising radionuclides for the treatment of such small tumors. When such a radionuclide is conjugated to a suitable targeting agent, the short path length of the α-particles (∼25–100 μm), in association with their high energy (∼4–8.5 MeV), makes them highly efficient at eradicating small clusters or isolated cancerous cells with a reduced dose deposited to the surrounding healthy tissues. Such radiopharmaceuticals are of high interest for the treatment of disseminated micrometastasis, diseases consisting of monocellular cancer cells such as lymphoma and leukemia, or in the case of residual disease after surgical debulking. Among the hundred α-particle emitters known, a limited number of radionuclides exhibit characteristics that have been considered as potentially suitable for therapeutic applications (²²⁵Ac, ²¹¹At, ²¹²Bi, ²¹³Bi, ²²³Ra, ¹⁴⁹Tb, ²²⁷Th, and ²¹²Pb as an in vivo generator of ²¹²Bi, see Table 1). All have been the object of increasing attention in recent years, and several have reached different stages of clinical evaluation while production and availability of the radionuclides and their labeling chemistry issues are being overcome with varying levels of success.¹

Table 1.

Characteristics of α-Emitting Radionuclides of Potential Interest for the Therapy of Cancers

Nuclide	Half-life	Decays	Energy α (MeV)	Production	Clinical trial status
²²⁵Ac	10 days	4 α, 2 β⁻	5.1–8.4	²³³U decay/cyclotron	First phase I ongoing
²¹¹At	7.2 hours	1 α, 1 EC	5.9 or 7.4	Cyclotron	Two phase I published
²¹²Bi	61 minutes	1 α, 1 β⁻	6.1/7.8	²²⁸Th decay/²²⁴Ra generator	Preclinical
²¹³Bi	46 minutes	1 α, 2 β⁻	6.0/8.4	²²⁵Ac generator	Phase I/II
²²³Ra	11.4 days	4 α, 2 β⁻	5.7–7.5	²²⁷Ac generator	Phase I/II/III
¹⁴⁹Tb	4.1 hours	1 α, EC	4.0	Accelerator	Preclinical
²²⁷Th	18.7 days	5 α, 2 β⁻	5.7–7.5	²²⁷Ac generator	Preclinical
²¹²Pb/²¹²Bi^a	10.6 hours	1 α, 2 β⁻	6.1/7.8	²²⁴Ra generator	First phase I ongoing

Although ²¹²Pb is not an α-particle emitter, it is included in this table for its considerations in several studies as an in vivo generator of the α-particle emitter ²¹²Bi. See Yong and Brechbiel² for a definition of the concept.

Among these radionuclides, ²¹¹At exhibits particularly favorable characteristics, with a 7.2-hour half-life suitable to the kinetics of full antibodies or other biomolecules that require several hours to reach an optimal tumor-to-blood dose ratio. Furthermore, with 100% of its decay leading to the production of an α-particle, high efficiency of the treatments and limited toxicity are expected at relatively low doses. However, the introduction of ²¹¹At-based radiopharmaceuticals into clinics has been slowed by difficulties related to the production and availability of the radionuclide, the limited knowledge of the chemistry of elemental astatine, the lack of stability of the astatine–biomolecule bond, and concerns about the potential toxicity of α-radiation on humans.

In this review, the characteristics of ²¹¹At and its methods of production and purification for radiolabeling purposes are presented. The different aspects of its chemistry as well as the strategies for the radiolabeling of biomolecules are also described. Finally, the latest advances in the use of ²¹¹At-based radiopharmaceuticals in radiotherapy of cancers from the in vitro studies to the very first clinical trials that have been published recently are presented.

²¹¹At: Characteristics and Production

The 85th element in the periodic table classification was first produced in 1940 when Corson irradiated ²⁰⁹Bi with a beam of α-particles accelerated to 32 MeV.³ Expected by Mendeleïev to be below the element iodine (and named eka-iodine at that time), it is the only halogen without a stable isotope, which is why its discoverers named it astatine, from the Greek word άστατοζ (astatos=unstable).

Astatine exists on the Earth in very small quantities (estimated to be a few milligrams in the whole Earth's crust) by some decay branches of ²³⁵U, ²³⁸U, and ²³²Th, which actually makes it the rarest natural element.⁴ There are 32 astatine isotopes known: ¹⁹¹At and all the rest from ¹⁹³At to ²²³At. Their half-lives range from 125 nanoseconds for ²¹³At up to 8.1 hours for ²¹⁰At, and most of them are α-particle emitters. Among these isotopes, only ²¹¹At exhibits physical characteristics that are reasonably adapted for targeted radiotherapy.

The most relevant characteristics of the radionuclide are summarized below, and the reader is referred to the Gmelin Handbook of Inorganic Chemistry on Astatine for an exhaustive review of the topic.⁵

Physical properties

The disintegration of ²¹¹At follows a branched decay scheme with a 7.21 hours half-life (Fig. 1). One branch leads to ²⁰⁷Bi by emission of an α-particle. ²⁰⁷Bi, with a 33.9 year half-life, decays to ²⁰⁷Pb via electron capture. The other decay branch occurs via electron capture and leads to the 516 milliseconds half-life radionuclide ²¹¹Po, which in turn decays to stable ²⁰⁷Pb by emission of an α-particle. The result of these decay pathways is 100% α-particle emission during the decay of ²¹¹At (5.87 and 7.45 MeV in 42% and 58% of the decays, respectively). Concerns have been raised regarding the fate of the ²¹¹Po decay during targeted radiotherapy. Palm et al. investigated the influence of the diffusion of ²¹¹Po on the dose absorbed by isolated cells in suspension.⁶ They estimated that the diffusion distance from the initial ²¹¹At nucleus bound to the cell reduces the absorbed dose by a factor of 2 in this model. Part of the deposited dose may indeed be lost from the target in case of dispersed cells, but this phenomenon might be reduced in cell cluster environments, where the dose could be deposited toward a neighboring malignant cell. Also, as noted by the authors of the study, cellular localization may reduce the diffusion of ²¹¹Po depending upon the viscosity of the tissue. Another concern is the fate of ²⁰⁷Bi with its long half-life (32.9 years), and the potential issues due to its uptake in the bone, liver, and kidneys. However, 347 MBq of ²¹¹At, which is the highest dose that has been administered to a human, leads to only 310 kBq of ²⁰⁷Bi, making its potential toxicity negligible.

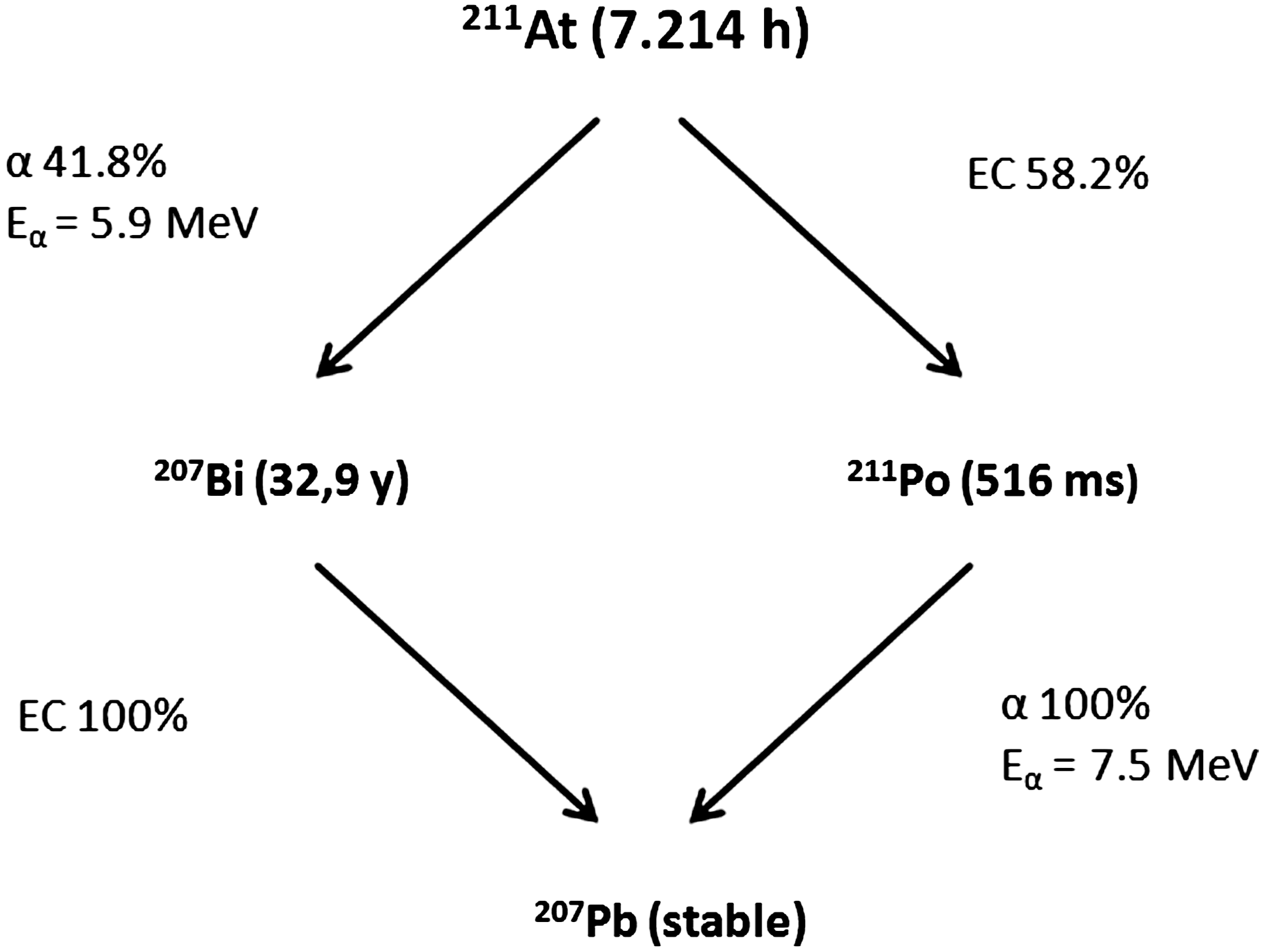

FIG. 1.

Simplified decay scheme of ²¹¹At.

Also, another interesting characteristic is the emission of X-rays during the decay to ²¹¹Po. With energies between 77 and 92 keV, these X-rays can be easily monitored by γ-detectors classically used in laboratory or clinical centers. This combination of emission and instrumentation makes detection relatively easy and useful for in vivo monitoring by SPECT imaging.⁷

Production

²¹¹At is produced by irradiation of natural bismuth (²⁰⁹Bi) following the nuclear reaction: ²⁰⁹Bi(α, 2n)²¹¹At. Other production methods have been investigated, such as the production of a ²¹¹Rn/²¹¹At generator by irradiation of ²⁰⁹Bi with ⁷Li,⁸ or by fusion of ⁹Li with ²⁰⁸Pb.⁹ However, these alternative methods remain anecdotal with respect to the production of medical research quantities of the radionuclide.

²¹¹At production is possible for α-beam energies ranging from 21 to more than 40 MeV, with a maximum cross-section observed for 31 MeV (Fig. 2). However, at this level of energy, ²¹⁰At is also produced. This 8.1-hour half-life isotope exhibits characteristics that are not compatible with pharmaceutical applications because of its decay into the long half-life ²¹⁰Po (138.2 days), which is highly toxic, especially to the bone marrow.¹⁰ Production of ²¹⁰Po is also observed from 26.7 MeV beam energies. Nonetheless, the presence of this isotope after irradiation is generally irrelevant due to an efficient isolation of ²¹¹At from the target and impurities during the purification process. For these reasons, the beam energy is generally controlled to 28–29 MeV to limit formation of ²¹⁰At while maintaining acceptable yields of ²¹¹At. However, only a limited number of cyclotrons in the world are able to generate α-beam energies beyond 25 MeV, which strongly limits the availability of this radionuclide.¹¹

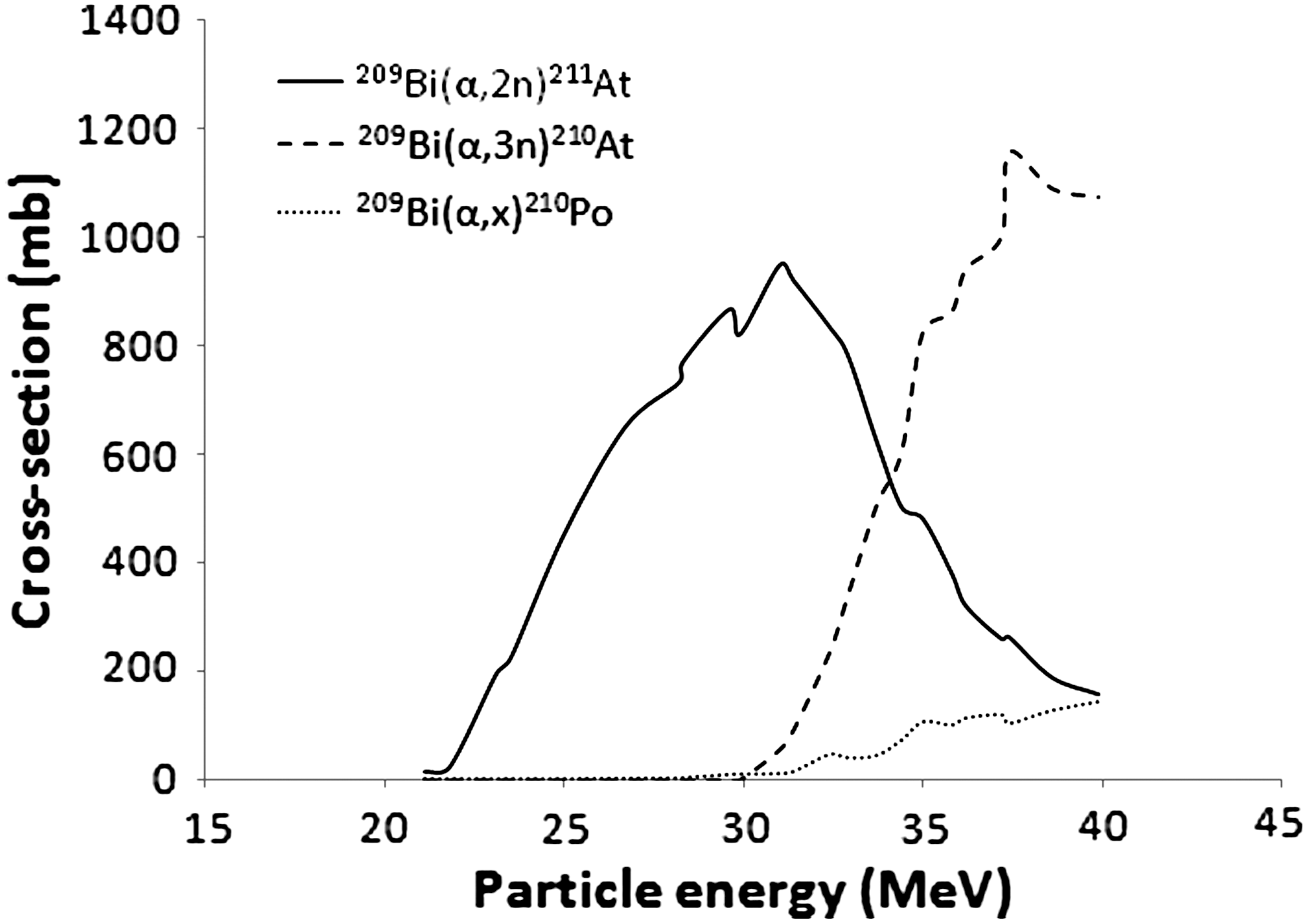

FIG. 2.

Cross-section of the irradiation of ²⁰⁹Bi as a function of the alpha particles energy. Plotted from the experimental data from Hermanne et al.¹²

Another limitation to consider is the low melting point of the irradiated material (Bismuth mp=272°C) and its low thermal conductivity (k=7.9 W m⁻¹ K⁻¹). Together, with the relatively high volatility of astatine (337°C), this potentially leads to vaporization of the produced activity due to overheating of the target during the irradiation. Solutions have been developed to limit this overheating issue, such as cooling systems using cold gas and water during irradiation, or the use of an irradiation angle that spreads the beam over a larger impact surface on the bismuth. Furthermore, the bismuth is deposited as a thin layer on a material with a better thermal conductivity to enhance cooling. Aluminum has frequently been used as backing material (k=250 W m⁻¹ K⁻¹), although some reports make reference to the use of copper (k=390 W m⁻¹ K⁻¹).

Purification

After irradiation, the target contains the initial ²⁰⁹Bi, traces of ²¹⁰Po, and the desired ²¹¹At activity, which must be obtained in solution with the highest purity. Two methods are described to harvest ²¹¹At: dry distillation that is probably the most widely used or liquid extraction that requires dissolution of the target in an acidic solution.

Dry distillation

In this method, the target is placed in a furnace and heated above the boiling point of astatine. The boiling points of bismuth and polonium being 1564°C and 962°C, respectively, the furnace temperature is generally set to 650°C–900°C. During the distillation, while the bismuth and the polonium melt and stay on the support, the volatile astatine is carried away by a stream of gas (generally nitrogen or argon) and trapped at the outlet. The astatine activity can be obtained by bubbling that stream of gas directly into the solvent of choice, or it can be captured in capillary tubing cooled in dry ice/ethanol placed at the outlet.¹³ In the latter case, the activity is subsequently dissolved in the solvent of choice (Fig. 3). With this kind of system, the astatine activity is collected in the trap in 20–30 minutes with recovery yields up to 80%.

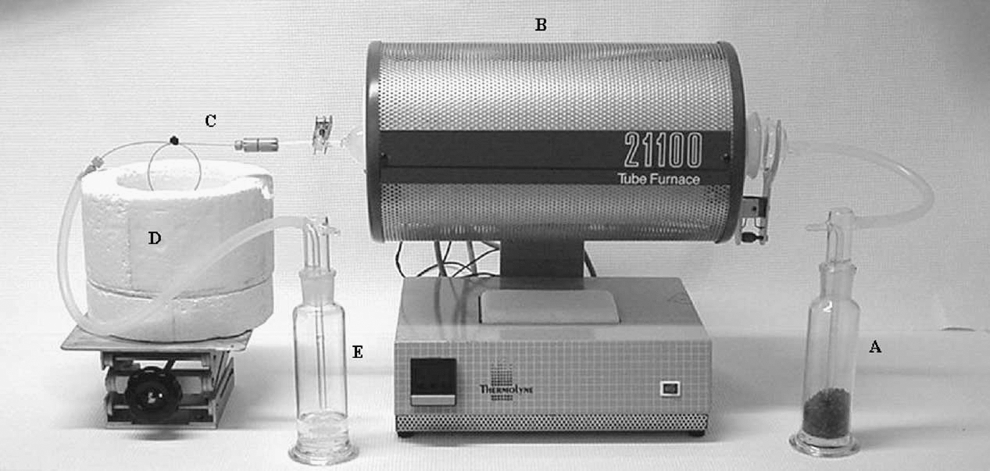

FIG. 3.

Example of a typical furnace used for the distillation of ²¹¹At. (A) Gas inlet with desiccant. (B) Furnace heated to 650°C–900°C. (C) Capillary trap cooled in (D) a dry ice/ethanol bath. It can be replaced by a cooled bubbler containing the solvent of interest. (E) Gas-wash bottle containing a reducing agent such as Na₂S₂O₅ to trap traces of astatine that would escape from the capillary. Reprinted by permission from Lindegren et al¹³.

Wet extraction

This alternative procedure consists of dissolution of the target in concentrated nitric acid. After evaporation of the nitric acid, the residue containing the bismuth and the astatine is dissolved in dilute nitric acid and extracted with di-isopropyl ether, which is the most efficient and practical solvent for this purpose.^14,15 With this method, the astatine activity is obtained in high yields (∼90%) in ∼1 hour with high radionuclidic purity. The advantage of this technique over dry distillation is that it makes use of simple and cheap materials. Moreover, harvesting yields are obtained with an excellent reproducibility. However, the choice of extraction solvent is reduced to di-isopropyl ether or analogous solvents that can limit radiochemistry work. Furthermore, some nitric acid is extracted into the organic phase in concentrations that are not negligible, and that can cause side reactions during the radiolabeling chemistry. Nonetheless, it has been demonstrated that biomolecules can be radiolabeled efficiently using standard procedures with ²¹¹At recovered with this method.¹⁶

Chemical Properties of Astatine

Despite more than 70 years of research on astatine, its chemistry is still not clearly established. The main reason is the fact that no stable isotope exists, the most stable isotope being ²¹⁰At with a half-life of only 8.1 hours. The highest reported activity produced is 6.59 GBq (which corresponds to 0.087 μg of ²¹¹At).¹⁷ These amounts preclude the use of standard analysis techniques such as nuclear magnetic resonance, mass spectrometry (although some experiments have been reported¹⁸), UV, IR, or X-rays. Furthermore, with the astatine being obtained in highly dilute solutions, traces of unavoidable contaminants in solution can become competitive species and cause side reactions. Another impediment to the understanding of astatine chemistry is the lack of cyclotrons to produce this element leading to a reduced number of research laboratories able to run experiments.¹¹ Despite these obstacles, a relatively clear idea of some of the chemical properties of astatine has been established by analogy with its closest element in the periodic table of the elements, iodine. However, in its positive oxidation states, astatine exhibits many properties specific to metal ions. While almost identical to iodine in the At(−I) state, it is, in some respects, also comparable to silver in the At(+I) state, and close to polonium in its higher oxidation states.

In this section, the inorganic and organic chemistry of astatine is covered. Radiolabeling approaches for biomolecules of interest are also discussed as well as the issue of the limited in vivo stability of some ²¹¹At-radiolabeled compounds.

Inorganic chemistry of astatine

Six oxidation states have been identified or hypothesized with varying degrees of certainty: −I, 0, +I, +III, +V, and +VII. These forms of astatine were determined at low concentration with chemistry techniques that can be used at a tracer level such as co-precipitation, liquid extraction, or electromigration experiments, with the knowledge of iodine chemistry as a guide. Most of the descriptions of the oxidation states presented below rely on works by Johnson et al.,¹⁹ Appelman,²⁰ Visser and Diemer,^21,22 and Dreyer et al.^23
–25 Also, more exhaustive information can be found in the DOE-Sponsored Nuclear Science Series monogram by Ruth et al.²⁶

At(−I)

The (−I) oxidation state is probably the most clearly established form of astatine with a strong similarity with iodide. It is obtained in the presence of reducing agents such as SO₃ ²⁻, Zn⁰, or cysteine, which form the astatide species (At⁻). It is characterized by electromigration at the anode or by co-precipitation with AgI, TlI, or PbI₂, and is stable over a wide pH range. The astatide anion exhibits soft base characteristics, similar to iodide. It forms stable complexes with soft cations such as Hg²⁺, Rh³⁺, or Ir³⁺. Pruszyński et al.²⁷ investigated the complexation of astatide in the presence of mercury nitrate in aqueous solution. Interestingly, the complex formed, assumed to be Hg(OH)At, exhibited a higher stability than the iodinated analog.²⁷ Similarly, complexes have been prepared with rhodium (III) and iridium (III), and chelated in a macrocyclic agent bearing soft donors sulfur atoms (Fig. 4).²⁸ These compounds could lead to an interesting approach for the radiolabeling of biomolecules if they exhibit acceptable in vivo stability.

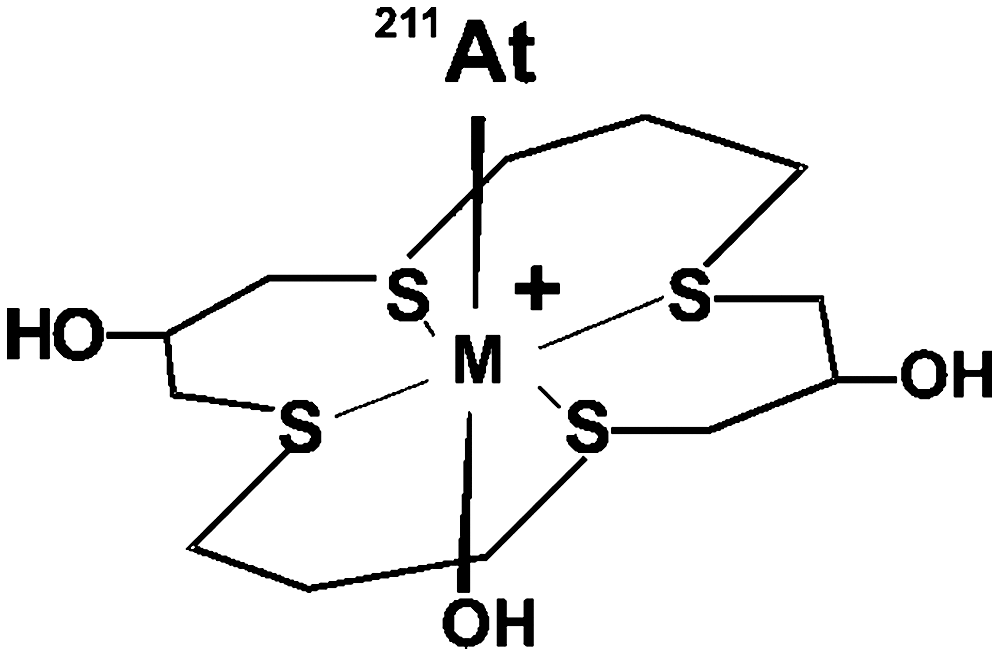

FIG. 4.

²¹¹At-M(16-S4-diol) complex, with M=Rh(III) or Ir(III).

At(0)

This oxidation state of astatine, also denoted At⁰, remains unresolved, mainly because of its highly irreproducible behavior. It is hypothesized that astatine is obtained as At₂ in the gas phase (such as during the distillation process), but in solution, At₂ or the radical At• is highly unlikely at this level of dilution. Recombination with impurities or other species of the solvent is supposed to occur very rapidly. At⁰ has often been referred to as the species that does not exhibit mobility in an electric field. It is supposed to be in the AtX form (with X=HSO₄, NO₃, OAc, etc.) and extracted from an aqueous medium by organic solvents as AtXL_n (n depending on the solvent L used). Also, At⁰ was observed to co-precipitate with elemental Ag or Tl.

At(+I)

This oxidation state can be obtained under moderately oxidizing conditions (i.e., dilute HClO₄ or H₂Cr₂O₇) in the At⁺ form in acidic medium, or AtO⁻ in alkaline medium. In the cationic form, it exhibits a relatively weak electrophilic behavior similarly to I⁺. Characteristics similar to metals are also observed, with a cationic form stable toward hydrolysis in acidic medium, unlike the other halogens. Denoted At(θ)⁺, this cationic form of astatine exhibits the characteristics of a soft acid with an affinity for soft-base ligands (I⁻, CN⁻, and SCN⁻) similar to Ag⁺, as demonstrated by the stability of the interhalogen complexes according to the following sequence²⁹: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}\begin{align*}{\rm AtCl}_2^- < {\rm AtBr}_2^- < {\rm AtI}_2^-\end{align*}\end{document}

Several pseudohalogen ligands such as SCN⁻, N₃ ⁻ or C(CN₃)⁻, with lower stability than AtI₂ ⁻, have also been investigated.³⁰ Better results were obtained with selenoureas and thioureas with complexes assumed to be in the At(L₂) form (Fig. 5).^31,32 Soft-donor ligands containing phosphorus have also been considered. However, their use seems unlikely for medical applications because of the reductive properties of these ligands at pH>2, leading to the reduction of At⁺ to At⁻ (Fig. 5).³³

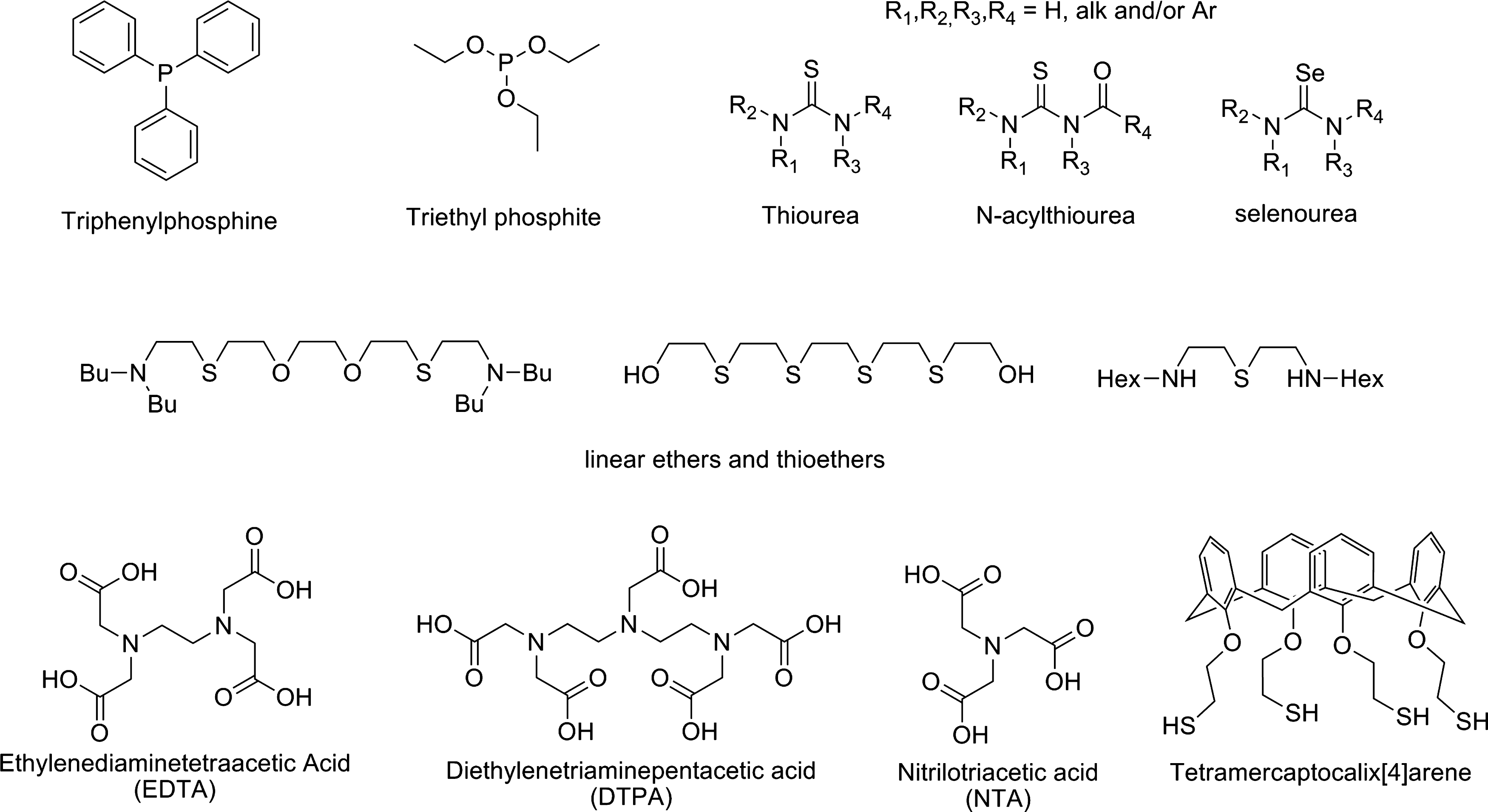

FIG. 5.

Organic ligands investigated for the complexation of ²¹¹At discussed in the text.

The metalloid-like behavior of astatine led Milesz et al. to study well-known chelating agents for the sequestration of metals such as EDTA,³⁴ DTPA,³⁵ or NTA³⁶ (Fig. 5). The feasibility of radiolabeling an antibody with ²¹¹At complexed to DTPA has been demonstrated, but the in vivo stability was too low for biomedical applications.³⁷ While the proof of concept of astatine as a metal for radiolabeling an antibody has been demonstrated, polyaminocarboxylates do not appear to be appropriate for the soft-cation At⁺ due to the presence of only hard-donor atoms in their structure (nitrogen and negatively changed oxygen). According to the cited studies, soft donors should be more appropriate for complexation of At⁺. This was confirmed by a comparative study of linear nitrogen-, oxygen-, and sulfur-containing ligands, with better results being obtained with the sulfur-containing compounds (Fig. 5).³⁸ However, no chelating agents stable enough for biomedical applications have been reported yet, the most recent example of the use of ²¹¹At in the At⁺ form being a sulfur-containing calixarene, which exhibited a weak in vivo stability (Fig. 5).³⁹

At(III)

This oxidation state is obtained in the presence of stronger oxidizing agents such as S₂O₈ ²⁻ or H₂O₂. However, it is difficult to obtain in a pure form, and is often associated with At⁺ in proportions dependent upon experimental conditions. It has been described as a component in anionic (AtOX₂ ⁻ and AtX₄ ⁻), neutral [XAtO, At(OH)₃, At(OH)X₂, or AtX₃], and cationic forms (AtSO₄ ⁺ and AtCrO₄ ⁺). This form of astatine behaves similarly to At⁺, however, as a harder acid with higher affinity for harder bases such as Cl⁻, NO₃ ⁻, or SO₄ ²⁻. Recent examples of the investigation of this species are limited to a comparative study of the complexation of the At(I) and the At(III) species with thiocyanate and calixarene ligands.⁴⁰

At(V)

Obtained as AtO₃ ⁻ in strong oxidizing conditions (Ce^IV, NaBiO₃, hot S₂O₈ ²⁻, or IO₄ ⁻), it is characterized by co-precipitation with AgIO₃, Ba(IO₃)₂, or Pb(IO₃)₂. No complexation chemistry has been reported yet, but a relatively hard acid behavior can be expected.

At(VII)

Many studies have reported the inability to demonstrate the formation of this high oxidation state of astatine, even under the strongest oxidizing conditions. Although preparation of AtO₄ ⁻ by use of xenon fluoride in hot NaOH has been reported,⁴¹ its existence remains highly hypothetical.

In conclusion for this section, it must be kept in mind that none of the forms of astatine presented above have actually been definitely established, but rather that some of them seem to be in good agreement with the observed reactivity. Furthermore, extreme caution must be used in the experiments to obtain reproducible results. The purity of the solutions used is a primary factor influencing the results, but clearly, elapsed time also plays an important role in the behavior of astatine as demonstrated by studies by Pozzi and Zalutsky.⁴² Indeed, evolution of the oxidation state of astatine in solution has been observed over time. This evolution has been attributed to the high ionizing energy emitted by the α-particles in the medium. As a consequence, oxidizing species such as peroxides can be generated, leading to evolution of astatine to higher oxidation states. On the other hand, it was also hypothesized that solvents such has methanol could be radiolyzed into reducing species (such as hydrogen or formaldehyde) that can reduce At⁺ into At⁻. These phenomena can highly influence the results of the complexation chemistry of astatine as well as the organic chemistry discussed that follows below.

The organic chemistry of astatine

While the inorganic chemistry of astatine is difficult to comprehend, in part because of its dual behavior between halogen and metalloid, its organic chemistry appears to be closer to halogens, and reactions typically used with iodine are generally applicable to the formation of C–At bonds.⁴³ However, given the tendency of the carbon–halogen bond energy to decrease from the lighter to the heavier halogens, the bonding of At has been mostly limited to sp2 carbons (preferentially aromatic carbons) rather than sp3 carbons, whose resulting bond energies are too weak to provide sufficient stability for biomedical applications (see Table 2).

Table 2.

Phenyl- and Alkyl-Halogen Bond Energies (kJ/mol)

X	Phenyl-X	Alkyl-X
F	523	444
Cl	398	339
Br	335	285
I	268	222±12
At	197±20	163±12

Data from Coenen et al.⁴⁴

The reactions employed are similar to the ones used for labeling with radioiodine. They are generally optimized to accelerated procedures required by the relatively short half-life of ²¹¹At. Synthetic approaches have been considered with nucleophilic At⁻ in halogen exchange or dediazoniation processes, but also with electrophilic At⁺ in direct aromatic electrophilic substitution (EAS) or in demetallation reactions (Fig. 6). Alternatively, boron–astatine bonds in boron cages with improved stability have been the subject of several investigations recently.

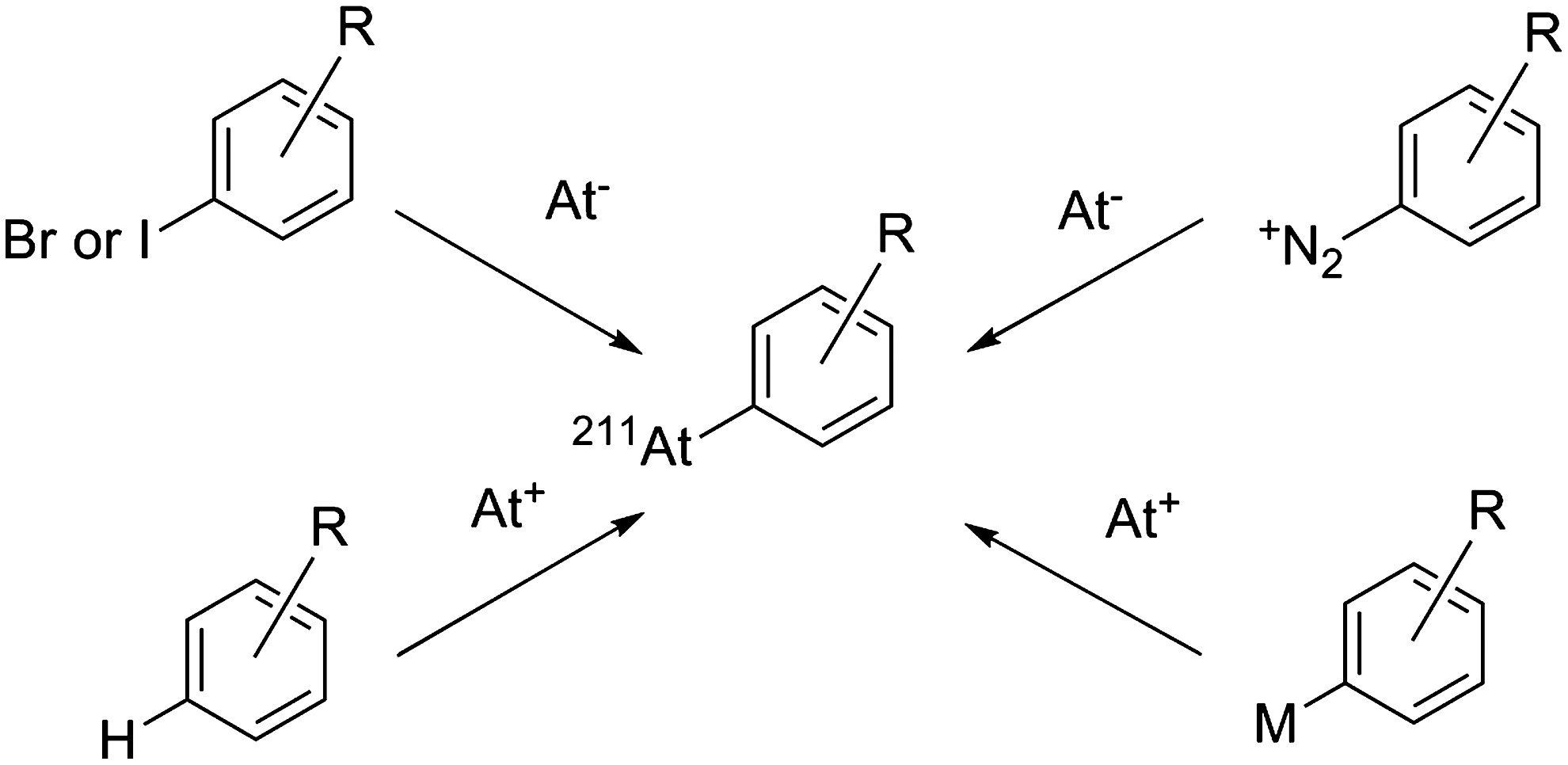

FIG. 6.

Main reaction pathways used for the formation of a C–At bond.

In most cases, At⁻ is formed in the presence of sodium sulfite, while At⁺ is often obtained with hydrogen peroxide, peracetic acid, or N-chlorosuccinimide, the latter being the most commonly employed. Advantages and drawbacks of each synthetic approach are discussed in the following sections.

Halogen exchange

Because of the higher nucleofugal character of iodine over the lighter halogens, this reaction is generally performed on iodinated derivatives. Examples are described for substitution on alkyl carbons, but they are unusual because of the weakness of the C_alkyl–At bond and the resulting low interest in these compounds for biomedical applications. Aromatic nucleophilic substitution is generally preferred, and while iodinated compounds with which the reaction is facilitated are often the starting material, bromoaryls can be advantageously used to facilitate the chromatographic purification; thanks to the higher difference in polarity between them and the astatinated compounds.

The advantages of this approach are the rapidity of the reaction and good radiochemical yields that can be obtained. However, because of the high temperatures required, its use is restrained to substrates tolerant of relatively harsh conditions. Catalysts such as crown ethers or Cu(I) can be used to promote the reaction (see examples in Table 3). However, the effective specific activity that may be achieved through this route remains low.

Table 3.

Examples of Astatinated Compounds Obtained Via a Halogen Exchange Reaction

Reaction conditions	Yield	Ref.
Prepared from the iodinated derivative in 10 minutes at 70°C in the presence of a crown ether.	80%	⁴⁵
Prepared from the iodinated derivative in 5 minutes at 80°C in the presence of a crown ether.	71%±16%	⁴⁶
Prepared from the iodinated derivative in 60 minutes at 120°C in the presence of Cu(I)	67%–80%	⁴⁷

Dediazoniation

Diazonium salts are widely used in organic synthesis for the derivatization of aromatic rings, including halogenations. In standard organic synthesis, this reaction is performed with an excess of halogen to limit the competing reaction of water with the diazonium leading to the phenol derivative. Because of the high dilution of astatine involved, it seems unlikely to obtain a good radiochemical yield by this method. Indeed, reactions with radioiodine have been shown to work, but with low yields (max 15%). However, much better results have been obtained on identical compounds with ²¹¹At (up to 90%).⁴⁸ This difference in reactivity can be explained by looking at the dediazoniation mechanisms. Indeed, two modes of cleavage of the C–N bond can occur: heterolytic cleavage leading to the formation of an aryl cation, or homolytic cleavage leading to an aryl radical (Fig. 7). As suggested by Meyer et al.,⁴⁹ the homolytic pathway seems more likely. Because of its higher polarizability, astatine has a higher propensity to form a stable complex with the diazonium than iodine. For the same reason, astatine also has a higher propensity to cede an electron to form a radical that is able to recombine with the aryl radical according to the following sequence: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}\begin{align*}{{\rm ArN}_2^+} + {\rm At}^- \rightarrow ( {\rm ArN}_2^+ {\rm At}^- ) \rightarrow {\rm Ar} \bullet + {\rm N}_2{\rm At}\bullet \rightarrow {\rm ArAt} + {\rm N}_2\end{align*}\end{document}

FIG. 7.

Two possible dediazoniation pathways: (a) homolytic cleavage and (b) heterolytic cleavage.

The use of this approach is marginal due to the harsh conditions required (oxidative and acidic media) for the preparation of the diazonium, thus limiting the method to less-sensitive substrates. Furthermore, a high proportion of side-products, often precipitated in the medium, makes purification and isolation of the product difficult. Examples of astatinated compounds obtained by this approach are uncommon (see Table 4).

Table 4.

Examples of Astatinated Compounds Obtained Via Dediazoniation

Compound	Reaction conditions	Yield	Ref.
	Obtained by heating at 50°C until end of nitrogen evolution	70%–85%	⁴⁸
	²¹¹At reacted with the bisdiazonium in the presence of a protein for 1 hour at 20°C. The second diazonium reacts with tyrosines on the protein.	50%–55% of activity on the protein	⁵⁰

Direct EAS

Hydrogen substitution on aromatic rings has been investigated by several research groups to understand the mechanisms of introduction of astatine on protein (which differ from iodine, see next section). Thus, it was demonstrated that the astatination of tyrosine requires conditions that are denaturing for proteins (T=160°C in the presence of an oxidizing agent),⁵¹ highlighting the fact that direct radiolabeling of antibodies on tyrosine residues as it is performed with radioiodine is unlikely with astatine.

Only a limited number of biomolecules were obtained using direct EAS because of the harsh conditions required for this chemistry. One of the most interesting examples of such procedure is the preparation of methylene blue astatide (which was shown to accumulate in melanoma). It was obtained in 15 minutes at 100°C in the presence of sodium persulfate as oxidizing agent, with a 68% radiolabeling yield.⁵² However, because of the high amounts of starting material required, the specific activity is very low, and purification is necessary.

Demetallation

Electrophilic substitution of At⁺ on an organometallic precursor is currently the most widely used reaction. It exhibits many advantages over direct EAS because of the high reactivity of the carbon–metal bond leading to high yields in mild conditions, thereby allowing its use on a wide variety of substrates. Furthermore, high specific activities can be obtained.

Organomercuric compounds were the first precursors to be studied that allowed the introduction of ²¹¹At with high yields on various compounds.^53,54 However, the presence of highly toxic traces of mercury in the final compound, even after purification, hampered their use for pharmaceutical purposes. Metals from group IV of the periodic table have been preferred, especially Boron, Silicon, and Tin. Organotin compounds are the most interesting because of the weakness of the carbon–metal bond, making the tin group an excellent leaving group (see Table 5). Furthermore, tin precursors are easily introduced on a large variety of compounds by well-established synthetic approaches.

Table 5.

Carbon–Metal Bond Characteristics (Hydrogen Included for Comparison)

Element M	Electronegativity	Covalent radius (Å)	Energy of the C–M bond (kJ/mol)	% Ionicity of the C–M bond
H	2.20	0.37	418.8	2
B	2.01	0.79	372.7	6
Si	1.74	1.18	301.5	16
Sn	1.72	1.40	226.1	16
Hg	2.00	1.50	113.1	6

Data from Coenen et al.⁴⁴

Even with toxicity, several orders of magnitude lower than mercury compounds, organotin compounds remain highly toxic molecules that must be separated efficiently from the desired astatinated compound. While high-performance liquid chromatography can be used to remove the tin precursor with a relatively high efficiency, other methods have been developed that achieve a very low level of tin in the final compounds, such as the use of a precursor grafted on a polymer support. This method simplifies the purification process and highly limits the amount of liberated tin. For example, meta-[²¹¹At]astatobenzylguanidine (MABG), a molecule with potential clinical applications in the treatment of neuroblastoma, was synthesized via a solid-supported tin precursor with good yields and low levels of tin in the final product ([Sn]<1 ppm) (Fig. 8).⁵⁵

FIG. 8.

Synthesis of meta-[²¹¹At]astatobenzylguanidine (MABG) via a supported tin precursor.⁵⁵

Organotin precursors have become the most widely used method for the introduction of ²¹¹At on biomolecules. Many examples describe the radiolabeling of proteins with N-succinimidyl astatobenzoate (SAB), a prosthetic group prepared from the tin precursor, as well as a variety of small molecules (see Table 6). Because of its lower toxicity, the tributyltin derivatives seem more appropriate for pharmaceutical applications than the trimethyltin, especially since no significant differences in the reactivity are detectable.⁵⁶

Table 6.

Examples of Tin Precursors Used for the Radiolabeling with ²¹¹ At

Radiolabeling conditions	Yield	Ref.
25 minutes at rt in the presence of chloramine T in EtOH/CHCl₃/AcOH	74%	⁵⁷
Ultrasounds 15–20 seconds in the presence of H₂O₂ in CHCl₃/AcOH	85%–90%	⁵⁸
Radiolabeling in chloroform or methanol in the presence of a variety of oxidizers. Most of the astatinated proteins were labeled via this prosthetic group.	Up to 90% depending on the conditions used	⁵⁹

The B–At bond in boron clusters

Because of the higher dissociation energy of the B–I bond compared to C–I (381±21 kJ/mol and 222±12 kJ/mol, respectively), the use of boron clusters such as decaborate, dodecaborate and carborane has been considered recently to improve the stability of antibodies labeled with ²¹¹At. Carboranes, containing both boron and carbon atoms, are particularly interesting for the functionalization of biomolecules because of their orthogonal reactivity. While the CHs are weak acids (pKa ranging from 22 to 27, depending on position) that can be deprotonated to generate a nucleophile, the borons are reactants toward electrophiles, and many reactions characteristic to aromatic carbons can be considered.⁶⁰ These characteristics were used to prepare various structures radiolabeled with ²¹¹At with excellent radiolabeling efficiency (yields up to 90% in<10 minutes, see Fig. 9).⁶¹ Their advantages and drawbacks for the radiolabeling of proteins are discussed in the next section.

FIG. 9.

Preparation of a nido-carborane precursor and its radiolabeling with ²¹¹At⁺.⁶¹

Astatination and stability of biomolecules of interest

Since the first studies of astatinated biomolecules, concerns about the lack of in vivo stability of the At–biomolecule bond have been raised.⁶² Release of free astatine in vivo (assumed to be in the form of At⁻) leading to irradiation of nontargeted tissues can occur dramatically depending on the nature of the molecules considered and on the radiolabeling method employed. As defined in several animal studies, astatide has a similar behavior to iodide with a high uptake in the thyroid and stomach. However, unlike iodide, significant uptake is also observed in the spleen and lungs (Fig. 10). This phenomenon could be attributed to the in vivo oxidation of At⁻ into At⁺, as it was observed that preinjection of thiocyanide (known to form complexes with At⁺) decreased astatine uptake in these organs, and that preinjection of periodate, known to oxidize At⁻ to At⁺, increased the uptake in the lung and spleen.⁶³

FIG. 10.

Uptake of ²¹¹At and ¹³¹I in normal mice 1 hour postdual injection of [²¹¹At]astatide and [¹³¹I]iodide. Chart plotted with data from Larsen et al.⁶³

Several animal studies have highlighted the toxicity of free ²¹¹At⁻, with damage observed to various organs, especially the thyroid and the ovaries, and development of cancerous tumors due to the ionizing radiation, and to the disturbance of the endocrine system.^64,65 In a long-term study by McLendon et al.,⁶⁶ the LD₁₀ of [²¹¹At]-astatide was found to be 0.56 MBq (15.1 μCi) in B6C3F₁ mice with 37.8% weight difference versus saline control and 0.28 MBq (7.7 μCi) in BALB/c (nu/nu) mice with 9.44% weight difference versus controls at the 0.37 MBq (10 μCi) dose 1 year after injection. Histological analyses revealed that damage to the bone marrow, testes, heart, spleen, and stomach increased with the injected dose.⁶⁶

To avoid toxicity issues, a highly stable radiolabeled compound must be achieved. Studies with promising astatinated compounds have been hampered because of their insufficient stability in vivo. Depending on the class of biomolecule considered, different levels of stability are observed. There is a tendency for the smaller molecules, which are more rapidly metabolized, to release free astatine more extensively.

Protein-based carriers

Thanks to the increasing number of successful applications of radioimmunotherapy (RIT) in the treatment of cancers over the last 30 years; antibodies and their derivatives have quickly become the vectors of choice for ²¹¹At.⁶⁷ The half-life of ²¹¹At seems reasonably long enough to fit the kinetics of antibodies or their fragments. The first astatination studies using well-known methods for radioiodination of proteins were disappointing. In 1975, Aaij et al. demonstrated that it was possible to directly astatinate by using electrophilic ²¹¹At (using chloramine-T or H₂O₂ as oxidizing agent), without denaturation of the protein.⁶⁸ The products of this direct labeling procedure were later demonstrated to be unstable in vivo, as free ²¹¹At was released.⁶⁹ This instability was first attributed to the weakness of the At–C bond, with astatination assumed to occur on the same sites as for the radioiodination, that is, tyrosine and histidine residues (this kind of bonding having shown to be unstable in previous studies⁷⁰), but later, Visser et al. demonstrated in a series of reports that the conditions employed did not allow the introduction of ²¹¹At on tyrosine and histidine.^53,71 Based on their observations, they hypothesized that astatine reacted with the cysteine residues of the proteins when using the direct radiolabeling approach.⁷² Consequently, the weak At–S bond formed is easily hydrolyzed in vivo, resulting in release of free astatide. These early investigations led to the conclusion that unlike iodine, astatine could not be used in direct radiolabeling procedures of proteins, and that development of prosthetic groups for indirect radiolabeling analogous to those developed for radioiodination would be necessary.

The first stably astatinated proteins were obtained via three-step procedures by production of astatobenzoic acid in a first step, followed by activation of the carboxyl moiety to a mixed anhydride. This activated astatinated compound was then conjugated to the protein in the last step. Animal studies of bovine serum albumin labeled with this method indicated a low uptake of ²¹¹At in the stomach, thyroid, spleen, and intestine compared to free ²¹¹At in mice.⁷³ This methodology was improved and simplified by Zalutsky and Narula⁷⁴ with the development of an aromatic organotin precursor bearing an activated ester as the conjugation moiety. With a precursor activated for conjugation, this time-saving and more efficient procedure became a standard for radiolabeling proteins with radiolabeling of various antibodies in ∼2 hours in sufficient yields to support production of clinical trial doses (Fig. 11).

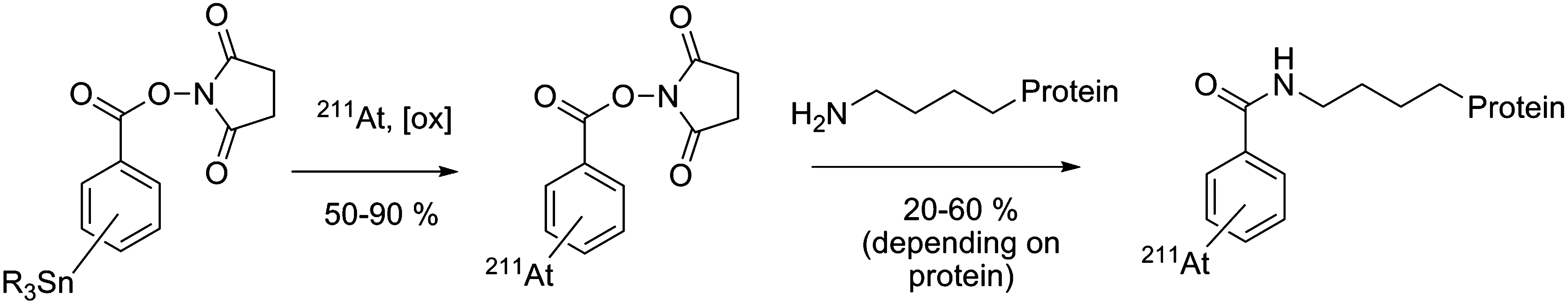

FIG. 11.

Standard indirect labeling procedure for the astatination of proteins via the preparation of succinimidyl astatobenzoate (SAB).

While initially performed in chloroform in the presence of N-chlorosuccinimide with good radiochemical yields (up to 90%), radiolabeling the organotin precursor exhibited decreasing yields at higher activities. In a study by Pozzi and Zalutsky,⁷⁵ this phenomenon was attributed to radiolysis of the chloroform when exposed to high radiation doses of ²¹¹At, leading to free-radical chlorination reaction capable of competing with astatine during the electrophilic substitution. A comparison study of different solvents determined methanol as the optimal solvent among chloroform, benzene, and methanol for the production of SAB at high levels of activity.⁷⁵

With the improved stability provided by SAB, clinical translation became feasible as demonstrated by the first clinical study with astatinated ch81C6 antitenascin antibody for the treatment of glioma published recently by Zalutsky et al.⁷⁶ Despite the notable in vivo stability using of SAB for most of the full antibodies studied, several reports have highlighted the lack of stability for more rapidly metabolized proteins. This phenomenon is observed with rapidly internalized antibodies that are exposed to accelerated metabolization due to additional catabolic processes occurring in the cells, such as the lysosomal proteolysis. To resolve this issue, positively charged prosthetic groups such as pyridine carboxylate or guanidinomethylbenzoate derivatives were developed with the purpose of retaining the positively charged astatinated catabolites inside the tumor cell.^77,78 The conjugation of N-succinimidyl 3-[²¹¹At]-4-astato-guanidinomethyl benzoate to monoclonal antibody L8A4 known to be internalized in cells expressing the anti-epidermal growth factor (EGF) receptor variant III interestingly resulted with uptake in the spleen, lungs, and thyroid similar to the radioiodinated counterpart.

The main concerns have been for antibody fragments such as Fab or F(ab′)₂, which are extensively deastatinated in vivo when radiolabeled with SAB, as demonstrated by the significant uptake of activity in the thyroid, stomach, spleen, and lung compared to their radioiodinated counterparts (Fig. 12).^79,80 Several approaches, mostly based on structural modifications of the SAB, have been considered to improve the stability. They have consisted either of increasing the electronic density of the aromatic ring of the prosthetic group to strengthen the C–At bond (e.g., addition of electron donor groups and suppression of electron withdrawing group^56,81,82), or by the addition of hindering groups such as a methyl in the vicinity of the ²¹¹At atom, which was proposed to sterically hinder dehalogenation mechanisms⁸³ (see examples in Fig. 13). However, limited successes were obtained, except in the case of methyl-SAPS, which appears to improve the in vivo characteristics of the antibodies investigated. However, none of these compounds seems to be a real final solution to the stability issue with antibody fragments.

FIG. 12.

Comparative biodistribution of [²¹¹At]-astatinated and [¹³¹I]-iodinated full antibody C110 IgG (A) with its F(ab′)₂ fragment (B) in mice. Charts plotted from data by Garg et al.⁸⁰

FIG. 13.

Modified prosthetic groups based on the SAB structure.^56,81
–83

Alternatives to astatoaryl derivatives, boron cages, were proposed more recently by Wilbur et al.⁶¹ with promising results (see structure in Fig. 9—previous section). In a series of reports, it was first demonstrated with small molecules that nido-carboranyls are much more stable than aryls toward deastatination.⁶¹ These interesting results led the authors to investigate the radiolabeling of a Fab′ antibody fragment with selected nido-carboranes and closo-decaborate derivatives and to compare them to the classic radiolabeling results obtained from using SAB.⁸⁴ It was demonstrated that the first advantage of the boron derivatives over the SAB was the possibility of direct astatination of the antibody fragment. With a modification of the Fab′ by conjugation to the boron clusters before radiolabeling, it was possible to reach astatination yields up to 75% in only one step, in 10 minutes. Then, biodistribution studies in mice indicated the superiority of the radiolabeling via the boron cages with a significantly lower uptake of ²¹¹At in the thyroid, stomach, spleen, and lungs. The best results were obtained with the closo-decaborate derivatives, but significant uptake in the liver and kidneys were observed, suggesting that modifications to the boron cage or to the linkers are necessary. Studies by this research group are ongoing to solve this issue, such as the investigation of cleavable linkers to increase the clearance rate from these organs.^85,86

Peptide/biotin carriers

Because of the relatively short half-life of ²¹¹At, smaller biomolecules have been considered as better carriers for targets that are not quickly accessible to full antibodies. This includes peptides that exhibit fast kinetics, or biotin derivatives for pretargeting strategies. Octreotide has been a peptide of interest investigated by Vaidyanathan et al.⁸⁷ for targeting somatostatin receptors. In an initial article, they demonstrated that it was possible to radiolabel octreotide via a two-step procedure by conjugation to SAB. Further studies were performed with an octreotide premodified with guadininomethyl trimethylstannylbenzoate for direct radiohalogenation of the peptide. Assays indicated an excellent binding to the somatostatin receptor in vitro. No biodistribution study was performed with the astatinated octreotide, but the results obtained with the radioiodinated counterpart, although good in tumor-binding properties, unfortunately demonstrated an elevated uptake of the peptide in the liver and in the kidneys. These results precluded the use of this compound for i.v. administration, although its use in locoregional administration for targeting of medulloblastoma was suggested.⁸⁸ Later improvements were attempted by glycosylation of the octreotide that met with limited success on improving binding properties and pharmacokinetics.⁸⁹ Nevertheless, while astatination of the octreotide derivatives cited above was demonstrated, no data on the in vivo stability are available, and instability of the SAB-like compound would be expected for this kind of rapidly internalized compound.

Several reports relate the use of astatinated biotin for pretargeting (for general details on pretargeting, see Lesch et al.⁹⁰). Initial studies by Foulon et al.⁹¹ described direct astatination of biotin preconjugated to a trialkylstannylaniline moiety. However, the resulting astatinated compound was unstable when incubated in murine serum.⁹¹ The same instability was observed with the radioiodinated counterpart, and analysis of the catabolites led the authors to conclude that cleavage of the amide bond occurred in vitro due to a biotinidase enzyme. This issue was resolved by reversing the position of the nitrogen and the carbonyl of the amide bond to avoid the action of the biotinidase (see Fig. 14), and provided high stability of the astatinated compound in murine serum.⁹² Unfortunately, biodistribution studies indicated release of the astatine with significant uptake in the lungs, stomach, and thyroid. Thereafter, modifications using the promising boron cages developed by Wilbur et al.⁹³ provided a higher in vivo stability with a nido-carborane compared to the aryl compounds. While biodistribution studies indicated that deastatination was still occurring (but at a lower level than with aryl derivatives), latest results suggest that closo-decaborate(2−) is the most promising group for a strong stabilization of the astatination of biotin derivatives (see Fig. 14).⁹⁴

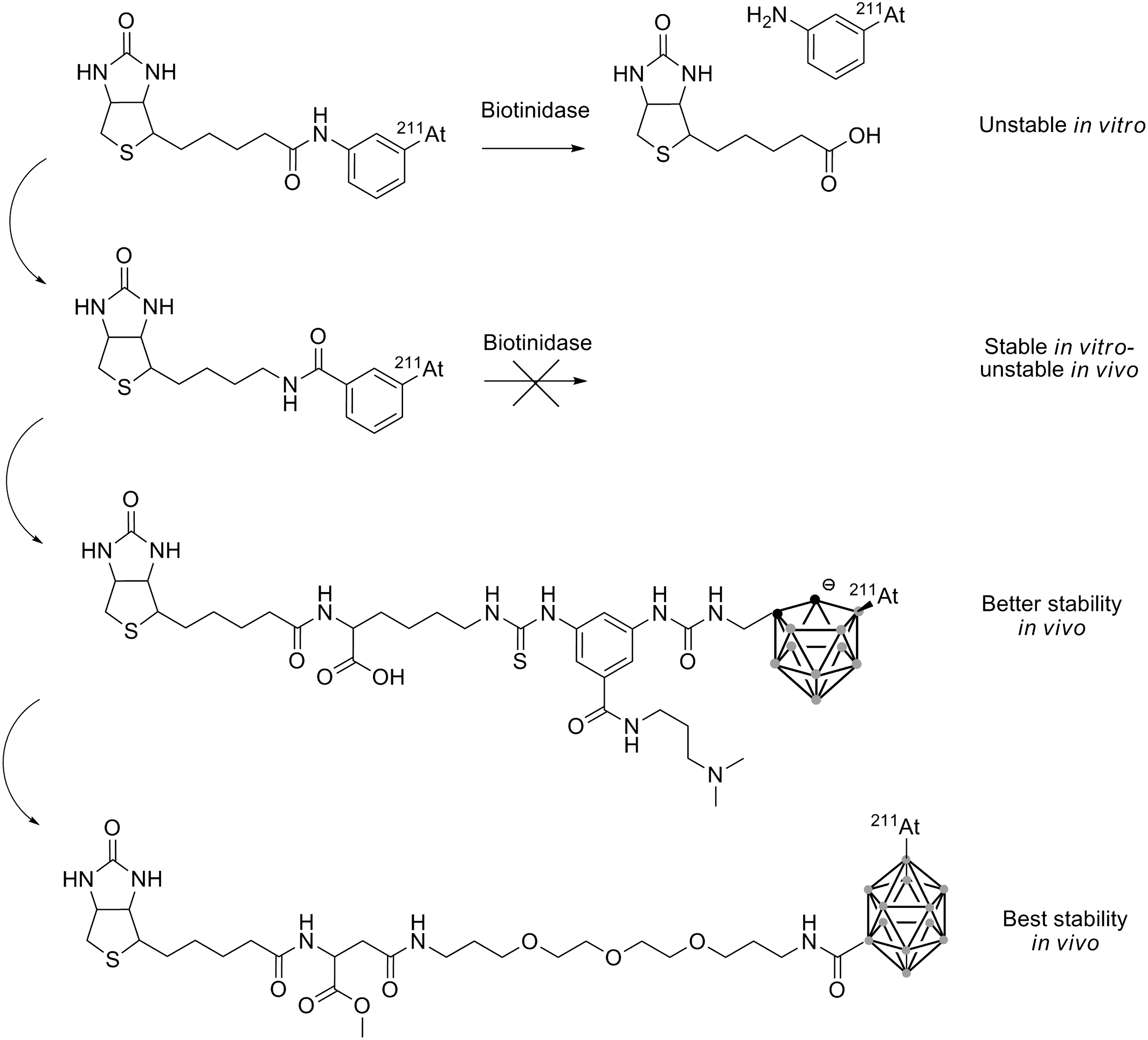

FIG. 14.

Successive improvements to the biotin to increase the astatination stability.^91

–94

Alternatively, Lindegren's group investigated biotinylated polylysines conjugated to SAB in a pretargeting strategy. In the first study, the poly-l-lysines had molecular weights of 13, 38, and 363 kDa with excellent avidin binding in vitro. As expected, biodistribution studies indicated that the smaller compound was rapidly excreted through the kidneys while the larger compounds had an increased liver excretion pathway. Uptake in the thyroid, stomach, lungs, and spleen indicated that release of astatine also increased with the size of the polymer.⁹⁵ In a second study, both l- and d-isomers of the polylysine were compared for their biodistribution properties. Interestingly, the poly-d-lysine, probably more resistant to metabolism, exhibited a significantly lower release of astatine as indicated by a decreased uptake in the lungs, spleen, stomach, and thyroid. However, because of an elevated uptake in kidneys for this isomer, the poly-l-lysine was preferred.⁹⁶ Recently, this astatinated biotinylated poly-l-lysine was investigated for use with mAb MX35 conjugated to avidin and administered intraperitonealy to tumor-free mice. High uptake of astatine was observed in the lungs, spleen, stomach, and throat, which could be reduced in a second experiment by preadministration of sodium perchlorate as a blocking agent.⁹⁷ However, while more studies are necessary to assess the efficiency of this poly-l-lysine derivative for the treatment of tumors, it remains equally clear that improvement of the astatine stability is required.

Other small molecules

Several other small astatinated molecules have been investigated for their propensity to be incorporated quickly to some tumor cells. However, because of their small size, many of these compounds have a natural tendency to be rapidly metabolized, resulting in marked deastatination being observed in vivo. This is the case of the majority of such investigated compounds, for example, 6-[²¹¹At]-astatomethyl-19-norcholest-5(10)-en-3β-ol, which targets the adrenal gland,⁴⁵ 4-[²¹¹At]-astato-N-piperidinoethyl benzamide considered for the treatment of melanoma and glioma,⁵⁷ or 5-[²¹¹At]-astato-2′-deoxyuridine for DNA-targeting strategy⁵⁸ (structures in Fig. 15).

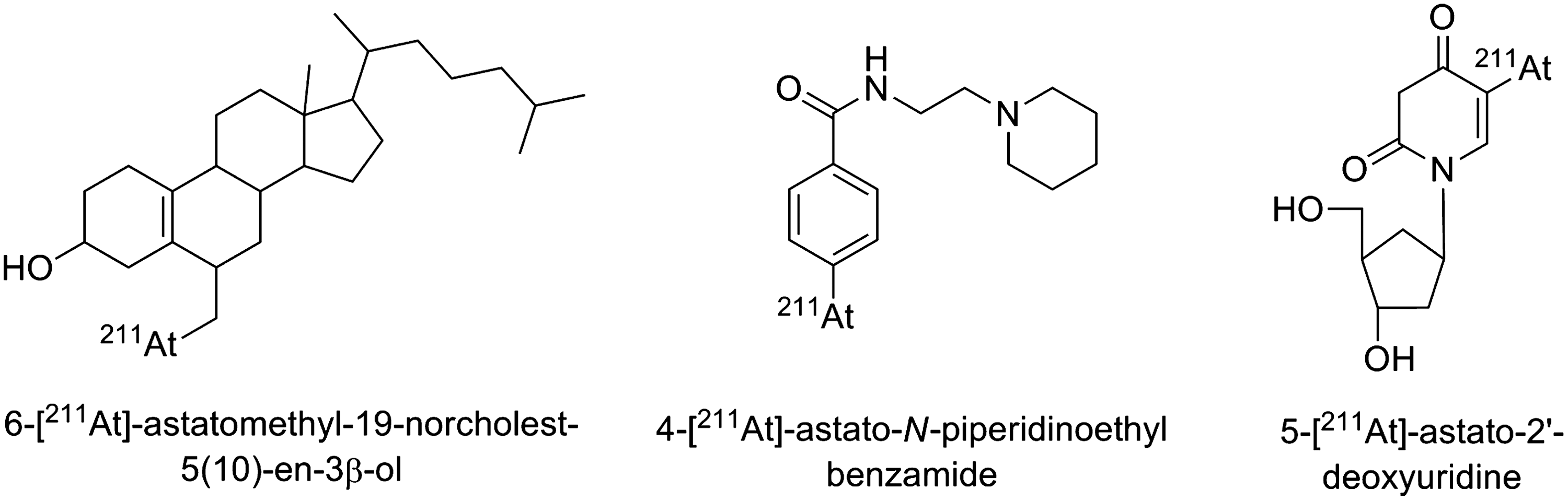

FIG. 15.

Examples of small astatinated molecules unstable in vivo. ^45,57,58

Other examples, however, show that small molecules can be very stable with minimal release of ²¹¹At. This is the case of two ²¹¹At-arylbisphosphonates studied for applications in bone metastasis pain palliation⁹⁸ and 1-(3-[²¹¹At]-astatobenzyl)guanidine ([²¹¹At]MABG) with potential applications in the treatment of glioma⁹⁹ (see structures in Fig. 16). These compounds could be interesting to consider as prosthetic groups for radiolabeling substrates that have demonstrated instabilities cited above, although it is not clear if the stability comes from the molecular structures themselves or from biodistribution pathways circumventing deastatination mechanisms.

FIG. 16.

Small molecules stable in vivo. ^98,99

Nanoparticles and microspheres

Although devoid of active targeting properties, nanoparticles and larger particles have been investigated with potential applications for locoregional administration. Larsen et al.¹⁰⁰ prepared ²¹¹At-microspheres by conjugation of aminated polymer particles to SAB. The resulting particles with a size of 1.8 μm were stable in various media in vitro. ¹⁰⁰ They were compared to free ²¹¹At⁻ and astatinated antibodies by i.p. administration to mice inoculated with the K13 hybridoma cell line.¹⁰¹ Biodistribution studies indicated that free ²¹¹At⁻ spread rapidly in the whole body, whereas the microsphere and the antibodies were mostly retained in the peritoneal cavity, highlighting a good stability. However, the authors concluded that the efficiency of the astatinated antibodies was superior to the microspheres due to a better diffusion in the peritoneal area.

Another approach developed by Kucka et al.¹⁰² is the preparation of astatinated silver nanoparticles coated with poly(ethylene oxide) (PEO). The authors suggested that the high affinity of silver for astatine could result in a stable radiolabeling. They incubated ²¹¹At with nanoparticles made of a silver proteinate core coated with PEO (size of 2000 and 5000 g/mol) in the presence of a reducing agent (NaBH₄). Quantitative yields were obtained, and in vitro measurements indicated a good stability, even in the presence of high concentration of chloride ions as a competitive agent. However, no data on in vivo behavior are available.

More recently, use of carbon nanotubes was proposed by Hartman et al.¹⁰³ The free carbon nanotubes, with a length in the 20–50 nm range, were incubated with [²¹¹At]-astatide. The astatine trapped inside the nanotubes was then oxidized into the AtCl form in the presence of chloramine-T or N-chlorosuccinimide. The stability of the labeling was assessed by successive washing with water or with human serum. Even though moderate, a loss of activity was observed in both cases. This phenomenon was attributed to either a release of the AtCl portion close to the ends of the nanotubes, or by leakage through damage in the walls of the nanotubes caused by the high-energy α-particles from ²¹¹At decay.

Alpha-Therapy of Cancers with ²¹¹At-Labeled Targeting Agents

In vitro studies

A number of in vitro studies on astatinated bioconjugates have focused on the determination of the cytotoxicity and microdosimetric data with various carriers (mostly antibodies) and cell lines. Cell conditions have varied from suspended isolated cells to monolayers to spheroid cell clusters, thereby modeling different possible configurations occurring in vivo, but then also making difficult any actual direct comparison between the studies. While it is not intended to make an exhaustive description of all in vitro studies, a selection of reports covering different aspects of ²¹¹At effects on in vitro cells is described below.

Larsen et al. investigated the cytotoxicity of astatinated mAb 81C6 (targeting tenascin in the extracellular matrix of the cell), mAb Me1-14 (targeting proteoglycan chondroitin sulfate on the cell membrane), and TPS3.2 (nonspecific) on microcolonies of D-247 MG glioma cells and SK-MEL-28 melanoma cells.¹⁰⁴ After 1-hour incubation with 18 kBq/mL activity concentration, results indicated two-to-five times more activity bound to the cells of the specific antibodies compared to the nonspecific mAb. A survival fraction of 0.37 (D ₀) was obtained with one to two α-decays hitting the cell nucleus with only little differences between both specific mAbs and both cell lines. In another study, the cytotoxicity of ²¹¹At-trastuzumab was investigated against three breast carcinoma cell lines expressing the HER2 receptor (SKBr-3, BT-474, and MCF7/HER2-18).¹⁰⁵ Cell survival studies indicated a relative biological effectiveness (RBE) of ²¹¹At-trastuzumab 10-fold higher than external irradiation. At the low amount of antibody used, the toxicity was attributed exclusively to the α-decay of ²¹¹At, with no contribution from trastuzumab. To estimate absorbed dose and toxicity in vivo on nonspecific tissues, the anti-CD20 mAb, rituximab, labeled with ²¹¹At was investigated on cultured RAEL lymphoma cells and bone marrow cells.¹⁰⁶ The absorbed dose when using a 10 kBq/mL activity concentration was 0.645 and 0.021 Gy for lymphoma cells and bone marrow cells, respectively, after 1-hour exposure. However, a higher radiosensitivity to α-particles was observed for bone marrow (D ₀=0.34 Gy) compared to lymphoma cells (D ₀=0.55 Gy), whereas reversed sensitivity was observed from exposure to ⁶⁰Co γ-irradiation (D ₀=1.21 and 0.72 Gy for bone marrow and lymphoma, respectively). Despite these observations, the high specificity of RAEL cell binding of ²¹¹At-rituximab over bone marrow cells made these results interesting in the perspective of the treatment of non-Hodgkin's lymphoma. Recently, Petrich et al. investigated ²¹¹At-anti-CD33 antibodies to overcome the cellular resistance observed in a number of patients to gemtuzumab ozogamicin (GO), the recently withdrawn toxin–mAb conjugate Mylotarg, used in the treatment of acute myeloid lymphoma.¹⁰⁷ The better results observed for ²¹¹At-anti-CD33 over GO were promising in the perspective of treatment of GO-resistant cases of acute myeloid lymphoma.

Within the realm of preclinical studies, cetuximab was investigated in combination with astatinated cMab U36 on cultured squamous cell carcinomas. The results indicated a higher growth inhibition for the combination therapy compared to RIT alone or cetuximab alone. However, a radioprotective effect was observed in the presence of cetuximab, as well as a decrease of the internalization of cMab U36.¹⁰⁸ Although these phenomena have not been explained yet, the results suggest that RIT after treatment with cetuximab would be more efficient than combination of both treatments at the same time to avoid this radioprotective effect.

Alternatively, a limited number of nonantibody carriers have also been studied in vitro, including ²¹¹At-EGF, a small protein (MW≈6 kDa) targeting the EGF receptor, which is overexpressed in a number of cancerous tumors. Internalization of ²¹¹At-EGF in A-431 carcinoma cells was compared to the [¹²⁵I]iodinated counterpart. Interestingly, a longer retention for the astatinated compound was observed, resulting in an increased biological half-life from 1.5 hours for ¹²⁵I-EGF to 3.5 hours for ²¹¹At-EGF.¹⁰⁹ These results suggested that ²¹¹At conjugated to EGF would be a radionuclide of choice due to its favorable biological and physical characteristics. In another study, 5-[²¹¹At]-astato-2′-deoxyuridine (²¹¹AtdU) was investigated for its DNA incorporation properties in Chinese hamster V79 lung fibroblasts. It was shown that<1% of free ²¹¹At⁻ was incorporated compared to ²¹¹AtdU. The survival study indicated a D ₀ of 1.3 decays/cell, and that unlabeled cells were killed by neighboring labeled cells. Furthermore, DNA double-strand break (DSB) levels were 10-fold higher with ²¹¹AtdU compared to the [¹²⁵I]iodinated counterpart.⁵⁸

A limited number of studies have specifically focused on the radiobiology of ²¹¹At and the biological consequences of the α-decay to the cell material. The most recent reports were published by Claesson et al.,¹¹⁰ who investigated the RBE for induction of DSB for ²¹¹At on human fibroblasts compared to ⁶⁰Co γ-irradiation and X-rays. In a first article, it was observed that two to three times more DSB occurred with ²¹¹At compared to ⁶⁰Co γ-rays and X-rays. Furthermore, the study of the size of the DNA fragments induced by ²¹¹At revealed a nonrandom distribution compared to γ-rays and X-rays, which resulted in a random distribution.¹¹⁰ In a second study, the RBE of DSB for ²¹¹At and X-rays was investigated at different cell cycle phases (V79-379A fibroblasts synchronized with mimosine in G1, early, mid-, and late S phase). As expected, ²¹¹At exhibited a higher efficiency in generating DSB, with DSB varying in the cell cycle phases according to the following sequence: G1<S early<S late<S mid<mitosis. It was however observed that X-rays were more efficient in inducing clustered damage than ²¹¹At.¹¹¹

Preclinical therapy studies

A number of preclinical therapy animal studies have been performed to assess the targeting properties of the astatinated biomolecules and their efficacy and toxicity, sometimes in comparison with other radionuclides of interest. Therapy studies were conducted mostly with antibodies or their fragments as delivery vectors as described below. Interestingly, models involving locoregional administration of the radiopharmaceutical have been more frequently investigated over systemic injection. Indeed, the biological and physical half-lives of the astatinated proteins seem particularly appropriate to localized compartmental tumors such as in i.p. implanted ovarian tumor models. Furthermore, concerns on the deastatination of the proteins as a result of accelerated metabolism when administered intravenously may have been a limiting factor with some carriers.

Nonetheless, the feasibility of therapy using i.v. injected astatinated antibodies has been demonstrated in several studies, and promising results have been obtained for the treatment of disseminated cancers. The astatinated anti-CD25 antibody 7G7/B6 was evaluated in a murine model of leukemia. Therapy with i.v. injection of 0.55 MBq (15 μCi) ²¹¹At-7G7/B6 in karpas299 leukemia-bearing mice resulted in 70% survival at 46 days and 33% survival after 5 months, whereas untreated mice and mice treated with nonspecific antibody (²¹¹At-11F11) all died after 46 days.¹¹² These promising results led the authors to investigate ²¹¹At-7G7/B6 in combination with mAb daclizumab for therapy in mice inoculated with MET-1 human T-cell leukemia. Excellent results were obtained with improved survival for combination therapy (91% survival at 94 days) compared to RIT with 0.44 MBq (12 μCi) ²¹¹At-7G7/B6 (32% survival at 94 days) or daclizumab treatment alone (47% at 94 days) while all mice died after 70 days when treated with nonspecific ²¹¹At-11F11.¹¹³ The same authors also investigated the anti-CD30 antibody ²¹¹At-HeFi-1 in a model of karpas299 leukemia-bearing mice. Again, the combination of RIT with cold HeFi-1 significantly prolonged the survival of the animals (33% and 84% survival at 120 days for RIT alone and combination therapy, respectively).¹¹⁴ In another study, Cheng et al.¹¹⁵ evaluated the astatinated mAb U36 for the treatment of head and neck squamous cell carcinoma (HNSCC). Intravenous injection of 200 kBq radiolabeled antibody in mice inoculated with HNSCC resulted in the reduction or the stabilization of the tumor volume, while control group (treated with nonlabeled U36) had its tumor volume steadily increasing after treatment.¹¹⁵ Alternatively to full antibodies, Robinson et al.¹¹⁶ investigated the smaller C6.5 diabody (targeting HER2 receptors) that exhibits faster targeting properties compared to antibodies. Mice bearing HER2/neu-positive MDA-MB-361/DYT2 tumors were treated by i.v. injection of 0.74 MBq (20 μCi) to 1.67 MBq (45 μCi) ²¹¹At-C6.5. Compared to the control group, the tumor volume doubling time was delayed by 30 days for the 20 μCi group and by 57 days with 60% of the mice being tumor free after 1 year for the 45 μCi group.¹¹⁶ Unfortunately, no biodistribution data were reported for the ²¹¹At-C6.5 diabody. The in vivo stability of the ²¹¹At-diabody bond of this engineered antibody fragment, which can be expected to be rapidly metabolized, would be interesting to study.

In the case of locoregional injections, the most documented astatinated compound is probably MX35 in its F(ab′)₂ form. MX35 targets an antigen (Le^y) expressed in 90% of human epithelial ovarian cancers. It has been extensively studied for α-RIT in a murine model of ovarian NIH:OVCAR-3 cancer cells inoculated intraperitoneally at the Sahlgrenska academy at Göteborg University. Early investigations on ²¹¹At-MX35 F(ab′)₂ allowed for the determination of the minimum required dose by i.p. administration of doses ranging from 25 to 200 kBq 4 weeks after inoculation of NIH:OVCAR-3 cells in mice. With an increase from 22% to 50% of animals presenting no sign of tumor with doses of 50 and 100 kBq, respectively, it was concluded that 100 kBq of ²¹¹At-MX35 F(ab′)₂ was the minimal required dose to give clear evidence of the therapeutic efficacy of this treatment.¹¹⁷ The authors also investigated the efficacy of the treatment against different tumor sizes. In this study, groups of mice were treated with 400 kBq ²¹¹At-MX35 F(ab′)₂ at different times (1, 3, 4, 5, or 7 weeks) after inoculation of the NIH:OVCAR-3 cells. Eight weeks after treatment, the mice were sacrificed, and the proportions of tumor- free mice were found to be 95%, 68%, 58%, 47%, and 26% for 1–7 weeks post-treatment, respectively, thus confirming the suitability of α-radiation for the treatment of smaller tumors.¹¹⁸ Fractionated administration of the treatment was also compared to single injection. Four weeks after inoculation of the NIH:OVCAR-3 cells, groups of mice received a total of 800, 400, or 50 kBq ²¹¹At-MX35 F(ab′)₂ in a single injection or in three equal injections separated by 4 days. However, no advantages were found in fractionated treatment with the best results being obtained for the 800 kBq single-injection group (56% tumor-free animals 8 weeks post-treatment compared to 41% for the corresponding fractionated-injection group).¹¹⁹ However, a subsequent investigation showed that weekly repeated injections of a 400 kBq dose of ²¹¹At-MX35 F(ab′)₂ (from one to six injections) led to a significantly higher therapeutic efficacy after three or more injection with 17% free tumor animals after one injection, 39% after three injection, and up to 67% after six injections. Furthermore, no ascites were detected in the group receiving five or six injections, while 15 out of 18 animals exhibited ascites when receiving one injection.¹²⁰ Recently, the ²¹¹At-MX35 F(ab′)₂ efficacy was compared to its ²¹³Bi counterpart. Groups of mice were treated with either 2.7 MBq of ²¹³Bi-MX35 F(ab′)₂ or 440 kBq of ²¹¹At-MX35 F(ab′)₂ 2 or 4 weeks after inoculation of NIH:OVCAR-3 cells. No significant superiority of either radionuclide was observed.¹²¹ Finally, with the promising results obtained for ²¹¹At-MX35 F(ab′)₂ in preclinical studies and the absence of significant toxicity of these treatments at the doses employed, one of the first clinical trial with a ²¹¹At radiopharmaceutical was recently initiated with this antibody (see next section).

Another antibody that deserves attention is ch81C6, as it was used in the first phase I ²¹¹At-mAb clinical trial (see next section). It was initially used in the murine form for the treatment of neoplastic meningitis in preclinical studies. In a rat model, animals were inoculated with TE-671 human rhabdomyosarcoma cells by intrathecal injection into the subarachnoid space. In a series of experiments, dose escalation was first performed by intrathecal administration of 0.15–0.48 MBq (4–13 μCi) of ²¹¹At-81C6 mAb to determine the dose inducing a therapeutic effect. Increases in median survival of 30%, 29%, and 51% were observed with 4, 7, and 13 μCi, respectively, compared to control (saline) with 20% of the animals still alive after 190 days in the 13 μCi group. In a second experiment, animals were treated with 0.44 MBq (12 μCi) or 0.67 MBq (18 μCi) of ²¹¹At-81C6 and compared with nonspecific ²¹¹At-45.6 mAb and saline. No significant increase in the median survival was observed for the nonspecific mAb compared to saline while 113% and 357% survival prolongation was observed for the 12 μCi and the 18 μCi ²¹¹At-81C6 groups, respectively.¹²² To reduce the potential immunogenicity of the treatment from the perspective of the clinical use of the 81C6 mAb, the human/mouse chimeric version of the antibody (ch81C6) was assessed. Biodistribution, dosimetry, and toxicity studies were performed and confirmed the superior characteristics of the ch81C6 mAb over its murine form.¹²³

Trastuzumab, an anti-HER2, labeled with ²¹¹At is another antibody that has shown promising results in recent studies. In a radioresistant SKOV-3 ovarian tumor model implanted in mice intraperitoneally, ²¹¹At-trastuzumab was investigated in a series of experiments. First, a dose–escalation study from 0 to 800 kBq of the radiolabeled antibody injected i.p. was performed. A dose-dependent reduction of the tumor size was observed from 0 to 400 kBq without better results at 800 kBq compared to the 400 kBq dose. In a second experiment, the mice were treated with 400 kBq ²¹¹At-trastuzumab in combination with increasing doses of cold trastuzumab (5–500 μg). Increased efficacy was observed while increasing the dose of cold trastuzumab with the best result obtained at 500 μg cold trastuzumab with a total eradication of the tumors. Finally, fractionated administration at various doses of ²¹¹At-trastuzumab combined with various doses of cold trastuzumab did not exhibit any advantages.¹²⁴ In another study, ²¹¹At-trastuzumab was also investigated for the treatment of breast carcinomatous meningitis by intrathecal injection with significantly improved survival compared to the control groups (saline or nonspecific astatinated mAb).¹²⁵

Clinical studies

To date, only two phase-I clinical trials have been reported. The first one was published in 2008 by the Zalutsky group at the Duke University. Astatinated ch81C6 was used for the treatment of residual disease after surgical removal of the glioma tumor in the brain. The classical treatment for this pathology is surgery followed by external radiotherapy and chemotherapy. In this study, 18 patients with glioblastoma multiforme or anaplastic oligodendroglioma were enrolled and received an injection of ²¹¹At-ch81C6 (71–347 MBq) in the cavity resulting from the surgery. The biodistribution was monitored directly by a γ-camera and demonstrated that 96.7%±3.6% of the ²¹¹At decays occurred within the cavity. Blood counts indicated minimal leakage from the cavity with<0.05% of injected dose measured. These data highlighted the low catabolism of the antibody when injected into the cavity. Final results were promising with a median survival time that increased from 31 weeks with the classical treatment of GMB to 54 weeks with additional ²¹¹At-RIT without dose-limiting toxicity being observed.⁷⁶

The second clinical trial was reported in 2009 for the treatment of ovarian cancer with ²¹¹At-MX35 F(ab′)₂. The classical treatment for ovarian carcinoma is surgery in combination with chemotherapy, but in many cases, relapse occurs with a low chance of survival. The purpose of this study was to demonstrate the potential of α-RIT after a clinical trial has failed as a phase-III study with a β⁻-emitter (HMFG1 mAb radiolabeled with ⁹⁰Y). The disappointing results obtained with ⁹⁰Y-HMFG1 were attributed to the nature of the radionuclide and its associated β⁻-particles being unsuitable for the treatment of microscopic tumors. Nine female patients in total remission after chemotherapy were enrolled in the study. After laparoscopy to check the absence of macroscopic tumor, the patients received 20–100 MBq ²¹¹At-MX35 via a catheter. The biodistribution was monitored with a γ-camera and indicated that most of the radioactivity was retained in the abdomen. A noticeable uptake in the thyroid was observed for the patients who did not receive a blocking agent before the treatment. No significant uptake was observed in the other organs. Analyses of the dosimetric data indicated that this treatment allowed for the deposition of the necessary dose for the destruction of micrometastases without noticeable toxicity to the bone marrow and to the other healthy organs.¹²⁶ No conclusions on the therapeutic efficacy of this treatment are available as yet, but further investigations and reports can be expected in the near future.

Conclusions

Shortly after the discovery of ²¹¹At in 1940, the therapeutic potential of this radionuclide was investigated, with applications considered for the treatment of thyroid disorders.¹²⁷ However, because of the high toxicity of α-radiation to healthy tissue, it appeared obvious that ²¹¹At could not be used alone, and needed to be conjugated to an appropriate targeting carrier, especially for potential applications in the treatment of cancers.

With the exploration of the chemical properties of astatine, methodologies for the radiolabeling of various molecules of interest have been proposed. However, it is still difficult today to work with this radionuclide because of the unpredictable aspects of its reactivity and its halogen/metalloid duality. Fortunately, simple, fast, and reproducible radiolabeling methods applicable to a number of molecules of interest have been developed. Particularly, antibodies and their engineered fragments promising for RIT of cancers can now be astatinated efficiently using astatobenzoyl-based prosthetic groups. The high potential of ²¹¹At for the treatment of residual disease has been recently highlighted by the first clinical trials realized with a chimeric antibody (ch81C6) and a F(ab′)₂ fragment (MX35) using such radiolabeling methods. Promising results were obtained with a real therapeutic gain and/or limited toxicity observed.

However, many compounds of interest labeled with ²¹¹At have been eliminated from the process of development of new radiopharmaceuticals because of the lack of stability on radiolabeling with astatine. From the review of the recent literature, it is clear that an effort in the understanding of the chemistry of astatine for the development of new radiolabeling approaches is required to provide new astatinated radiopharmaceuticals. Recent reports show that several research groups are working on alternative chemistries to reach that goal.^40,128,129 Furthermore, implementation of new high-energy cyclotrons capable of producing ²¹¹At should improve the availability of this radionuclide in the near future and accelerate the development of new astatinated radiopharmaceuticals.^11,130

Footnotes

Acknowledgment

This work was supported by the Intramural Research Program of the NIH, National Cancer Institute, Center for Cancer Research.

Disclosure Statement

No competing financial interests exist.
