In Vitro and In Vivo Comparison of 3,2-HOPO Versus Deferoxamine-Based Chelation of Zirconium-89 to the Antimesothelin Antibody Anetumab

Abstract

Introduction:

[²²⁷Th]Th-3,2-HOPO-MSLN-mAb, a mesothelin (MSLN)-targeted thorium-227 therapeutic conjugate, is currently in phase I clinical trial; however, direct PET imaging using this conjugate is technically challenging. Thus, using the same MSLN antibody, we synthesized 3,2-HOPO and deferoxamine (DFO)-based zirconium-89 antibody conjugates, [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb, respectively, and compared them in vitro and in vivo.

Methods:

[⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb were evaluated in vitro to determine binding affinity and immunoreactivity in HT29-MSLN and PDX (NCI-Meso16, NCI-Meso21) cells. For both the zirconium-89 conjugates, in vivo studies (biodistribution/imaging) were performed at days 1, 3, and 6, from which tissue uptake was determined.

Results:

Both the conjugates demonstrated a low nanomolar binding affinity for MSLN and >95% immunoreactivity. In all the three tumor types, biodistribution of [⁸⁹Zr]Zr-DFO-MSLN-mAb resulted in higher tumor uptake(15.88-28-33%ID/g) at all time points compared with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb(7–13.07%ID/g). [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb femur uptake was always higher than [⁸⁹Zr]Zr-DFO-MSLN-mAb, and imaging results concurred with the biodistribution studies.

Conclusions:

Even though the conjugates exhibited a high binding affinity for MSLN, [⁸⁹Zr]Zr-DFO-MSLN-mAb showed a higher tumor and lower femur uptake than [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. Nevertheless, [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb could be used to study organ distribution and lesion uptake with the caveat of detecting MSLN-positive bone lesions. Clinical trial (NCT03507452).

Introduction

Targeted alpha therapy (TAT) is a promising new cancer therapy, which induces DNA double-stranded breaks in cancer cells, by specific delivery of alpha particle emitting radionuclide-labeled tracers to tumors.^1

–6 At present, several α-particle emitting radionuclides with suitable half-lives are under evaluation for TATs.^5,7
–9 Thorium-227 has been evaluated to develop TAT for treating various cancers.^9

–15 Targeted thorium-227 conjugates (TTCs) have demonstrated promising preclinical therapeutic results in acute myeloid leukemia, ovarian, breast, pancreatic, lung, and renal cell carcinoma xenografts.^10

–13,15

Mesothelin (MSLN) antibody-targeted thorium-227 conjugate (MSLN-TTC; ²²⁷Th-anetumab corixetan) has been developed for treating MSLN-positive cancers. MSLN is a GPI-anchored glycoprotein known to be overexpressed in malignant mesothelioma, lung, ovarian, pancreatic, breast, gastric, head and neck cancers with restricted expression in healthy tissues.^16

–19 MSLN-TTC was developed by covalently conjugating a fully humanized MSLN-mAb (anetumab, BAY861903) to 3-hydroxypyridin-2-one (3,2-HOPO) chelator and radiolabeling it with thorium-227 to produce [²²⁷Th]Th-3,2-HOPO-MSLN-mAb (BAY 2287411).^11,20

In vivo [²²⁷Th]Th-3,2-HOPO-MSLN-mAb has demonstrated therapeutic efficacy in various cancers.^9

–14 In a study, BAY2287411 in combination with ATR (BAY1895344) and PARP (Olaparib/AZD2281) inhibitors demonstrated synergistic antitumor effects in ovarian cancer xenografts.¹⁰ Currently, [²²⁷Th]Th-3,2-HOPO-MSLN-mAb is under evaluation for safety and tolerability in a multicenter phase I clinical trial (NCT03507452).

Due to the low γ-emission and low abundance of measurable photons in the decay chain of thorium-227, direct imaging using [²²⁷Th]Th-3,2-HOPO-MSLN-mAb is technically challenging. However, 3,2-HOPO chelator has been shown to form thermodynamically stable complexes with thorium-227 and zirconium-89.^14,21
–23 Thus, the same 3,2-HOPO-MSLN-mAb can be radiolabeled with thorium-227 for therapeutic or zirconium-89 for PET imaging agents. Zirconium-89 based conjugate may enable identification of MSLN-positive tumor lesions as well as study biodistribution of the MSLN antibody conjugate.

Even though there are several other chelators that can be used with zirconium-89, deferoxamine (DFO) is one of the most widely used chelators of zirconium-89 that is currently used for PET imaging in both preclinical and clinical settings.^{24

–32} Therefore, in the present work, we synthesized [⁸⁹Zr]Zr-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb, and evaluated both the conjugates in vitro and in vivo in three different tumor xenografts. In vitro serum stability of these conjugates was also determined. The results of this study may help evaluate [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb as PET imaging agents.

Methods

All studies were done on protocols approved by the NIH Animal Care and Use Committee.

Synthesis of ([⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb)

A mixture of zirconium-89 (IV) (∼37 MBq, ∼1 mCi) and 3,2-HOPO-MSLN-mAb (65 μg) was incubated for 1 h at room temperature and purified by PD-10 column to obtain [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. A detailed description of the radiolabeling procedure and in vitro serum stabilities is provided in the Supplementary Data.

Synthesis of ([⁸⁹Zr]Zr-DFO-MSLN-mAb)

The DFO-MSLN-mAb conjugate was prepared following a published literature method using a threefold molar excess of chelator (DFO-Bz-NCS)³³ with respect to MSLN-mAb. The chelators per antibody ratio (CAR, 0.8) was determined by radiometric isotope dilution assay.³⁴ [⁸⁹Zr]Zr-DFO-MSLN-mAb was prepared according to the literature method using ∼74 MBq (∼2mCi) zirconium-89 (IV) and 300 μg DFO-MSLN-mAb.^26,33

In vitro saturation and competition assays

For saturation studies, NCI-Meso16, NCI-Meso21, and HT29-MSLN cells were aliquoted at a constant concentration (250,000–500,000 cells/tube) into tubes containing six concentrations of radiolabeled antibody [⁸⁹Zr]Zr-DFO-MSLN-mAb (0.4–16 nM) or [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (1–35 nM); nonspecific binding was determined in the presence of 1 μM concentration of unlabeled MSLN-mAb by adding the cells to the same concentrations ([⁸⁹Zr]Zr-DFO-MSLN-mAb:0.4–16 nM; [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb:1–35 nM) of radiolabeled MSLN-mAb conjugates.

For the competition assay, the same number of cells was added to each tube and incubated with a constant concentration of [⁸⁹Zr]Zr-DFO-MSLN-mAb or [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb in the presence of various concentrations of the unlabeled MSLN-mAb (10⁻⁶–10⁻¹² M). After 2 h incubation on ice, the cells from both saturation and competition assays were centrifuged and washed twice with cold PBS to separate bound radiolabeled MSLN-Ab conjugate from unbound. Cell bound radioactivity in the cell pellet was determined by γ-counting (PerkinElmer 2480 Wizard3).

The K_d and B_max were determined from nonlinear regression curve fit (one-site binding hyperbola, GraphPad Prism 7) from six different concentrations of [⁸⁹Zr]Zr-DFO-MSLN-mAb or [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. The immunoreactive fraction of the radiolabeled antibodies [⁸⁹Zr]Zr-DFO-MSLN-mAb or [⁸⁹Zr]-3,2-HOPO-MSLN-mAb were determined by the Morris method as previously described.³⁵ In brief, the immunoreactivity was derived from saturation and self-displacement assay data.³³

Mouse tumor models

Athymic female nude mice (NCr-nu/nu, 4- to 6-week old, Charles River) were inoculated in the right shoulder by subcutaneous injection of NCI-Meso16 (8 × 10⁶ cells), NCI-Meso21 (10 × 10⁶ cells), or HT29-MSLN (2 × 10⁶ cells) cancer cells in RPMI:Matrigel (50:50).³⁶ Mice were housed under 12:12 light/day cycles, and given standard rodent chow and water ad libitum. All the studies and experiments were performed following approved protocols by NIH ACUC.

Biodistribution studies

Tumor-bearing mice (NCI-Meso16, NCI-Meso21, or HT29-MSLN; 200–400 mm³) were injected 1 d before radiolabeled MSLN-mAb conjugate injections with irrelevant IgG2a antibody (200 μg; Sigma) to block the unspecific accumulation of the MSLN-mAb in the spleen.³⁷ Mice were intravenously injected with 1.85 MBq (50 μCi) of either [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb or [⁸⁹Zr]Zr-DFO-MSLN-mAb and euthanized (CO₂ asphyxiation) at days 1, 3, and 6. Blood and tissue samples were collected and weighed, and associated radioactivity (counts per minute, CPM) was determined using a γ-counter (Perkin Elmer 2480 Wizard3). The data were calculated as % injected dose per gram (%ID/g) of the tissue normalized to 20 g mice, tissue:blood ratios, tissue:muscle ratios using the following formula: $\begin{matrix} % I D ∕ g n o r m a l i z e d t o 20 g m i c e = \\ \frac{C P M_{t i s s u e} x b o d y w e i g h t (g) \times 100}{t i s s u e w e i g h t (g) x C P M_{i n j e c t e d d o s e} \times 20 (g)} \end{matrix} .$ $T i s s u e : B l o o d R a t i o s = \frac{{(% I n j e c t e d d o s e p e r g r a m)}_{t i s s u e}}{{(% I n j e c t e d d o s e p e r g r a m)}_{b l o o d}} .$

T i s s u e : M u s c l e R a t i o s = \frac{{(% I n j e c t e d d o s e p e r g r a m)}_{t i s s u e}}{{(% I n j e c t e d d o s e p e r g r a m)}_{m u s c l e}} .

For the blocking study, a separate group of HT29-MSLN tumor-bearing mice were injected with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (1.85 MBq, 50 μCi, 4.5 μg) in the presence or absence of an excess of the unlabeled 3,2-HOPO-MSLN-mAb (180 μg). Mice were euthanized and biodistribution was performed 3 d postinjections, and radioactivity associated with organs/tissues was counted using a gamma counter (Perkin Elmer 2480 Wizard3).

MicroPET/CT imaging studies

Tumor-bearing mice were injected with 1.85 MBq (50 μCi, i.v) of either [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb or [⁸⁹Zr]Zr-DFO-MSLN-mAb. HT29-MSLN tumor-bearing mice were anesthetized using isoflurane/O₂ (1.5–3%v/v) and imaged at 1, 3, or 6 d. NCI-Meso16 and NCI-Meso21 mouse xenografts were only imaged 3 d postinjection of the radioactive conjugates. Whole-body static images were obtained using the BioPET scanner, following these parameters: 2 bed positions, FOV = 2.0 cm, image time = 10. CT scans of the mice were obtained by using the parameters: X-ray = 180, voltage (kV) = 50, # projection = 360. The PET/CT images were reconstructed and coregistered to present the data.

Data analysis

Data analysis for the in vitro assay was performed using GraphPad Prism7 and TableCurve2D v5.01. In vivo PET/CT images were reconstructed using MIM software. A significance test was performed using the Student t-test.

Results

Conjugation, radiochemistry, and serum stability

The initial radiolabeling of the 3,2-HOPO-MSLN-mAb conjugate (Fig. 1A) was conducted according to the literature method reported for the zirconium-89 labeling of DFO using ∼1 mCi of zirconium-89 and 130 μg of 3,2-HOPO-MSLN-mAb in a total volume of 0.25 mL.³³ A high radiochemical yield (80%–85%) was observed; however, the amount of aggregate (30%) was also high. To minimize the amount of aggregate variable ratio of zirconium-89 to 3,2-HOPO-MSLN-mAb was tested. The results indicated that optimum radiochemical yield was obtained when ∼1 mCi of zirconium-89 was incubated with 65 μg of 3,2-HOPO-MSLN-mAb in a total volume of 1 mL.

FIG. 1.

Structure of antibody conjugate and HPLC result. Structure of mesothelin antibody–chelator conjugate, 3,2-HOPO-MSLN-mAb (A) and DFO-MSLN-mAb. (B) Representative HPLC of zirconium-89 labeled conjugates, [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (C), and [⁸⁹Zr]Zr-DFO-MSLN-mAb. (D) HPLC condition: eluent, 0.1 M sodium phosphate, 0.1 M sodium sulfate, 0.05% sodium azide, 10% isopropyl alcohol (pH 6.8), flow rate 0.3 mL/min; black line UV detector, red line radiodetector.

DFO-MSLN-mAb conjugate (Fig. 1B) was radiolabeled with zirconium-89 to prepare [⁸⁹Zr]Zr-DFO-MSLN-mAb.³³ The isolated radiochemical yields were in the range of 52%–76% (n = 20) for [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and 90%–92% (n = 8) for [⁸⁹Zr]Zr-DFO-MSLN-mAb. The molar activities of the conjugates were 22,200–77,700 MBq/μmol (600–2100 mCi/μmol) with 82%–95% radiochemical purity (Fig. 1C, D). HPLC chromatogram (size exclusion) at 280 nm indicated the presence of 5%–18% aggregation.

In vitro serum stability of the conjugates was tested in a whole human serum over 4 d (Supplementary Table S1) at 37°C. The SE-HPLC chromatogram revealed the gradual decomposition of both the radiolabeled conjugates. No significant differences in the amount of intact conjugates were observed between the two conjugates on days 1 and 2 (Supplementary Figure S1 and S2). However, by day 4, the amount of intact [⁸⁹Zr]Zr-DFO-MSLN-mAb (46%) was twice the amount of intact [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (23%). The in vitro serum stability study indicated slower decomposition of [⁸⁹Zr]Zr-DFO-MSLN-mAb after 2 d of incubation at 37°C. HPLC chromatogram indicated that the major decomposition product (∼12 min) of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb is different from the major decomposition product (∼15 min) of [⁸⁹Zr]Zr-DFO-MSLN-mAb. However, no attempts were made to characterize those decomposition products.

In vitro binding studies

Compared with NCI-Meso21 (341 × 10³ MSLN per cell) and HT29-MSLN cells (249 × 10³ MSLN per cell), NCI-Meso16 cells (178.41 × 10³ MSLN per cell) expressed relatively low levels of MSLN (Fig. 3A). In NCI-Meso16, NCI-Meso21, and HT29-MSLN cells, [⁸⁹Zr]Zr-DFO-MSLN-mAb exhibited K_d of 0.16 ± 0.02 nM, 0.29 ± 0.02 nM, and 0.59 ± 0.06 nM, respectively, for MSLN (Figs. 2 and 3B). In the same cancer cell lines, the binding affinity of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb conjugate for MSLN was found to be 2.1 ± 0.09 nM (NCI-Meso16), 2.3 ± 0.46 nM (NCI-Meso21), and 1.9 ± 0.39 nM (HT29-MSLN; Figs. 2 and 3B).

FIG. 2.

In vitro saturation assay graphs. Representative in vitro saturation graphs of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb in HT29-MSLN, NCI-Meso16, and NCI-Meso21. For each plot Bt, bound total; Bnsp, bound nonspecific; Bsp, bound specific (Bt = Bnsp-Bsp).

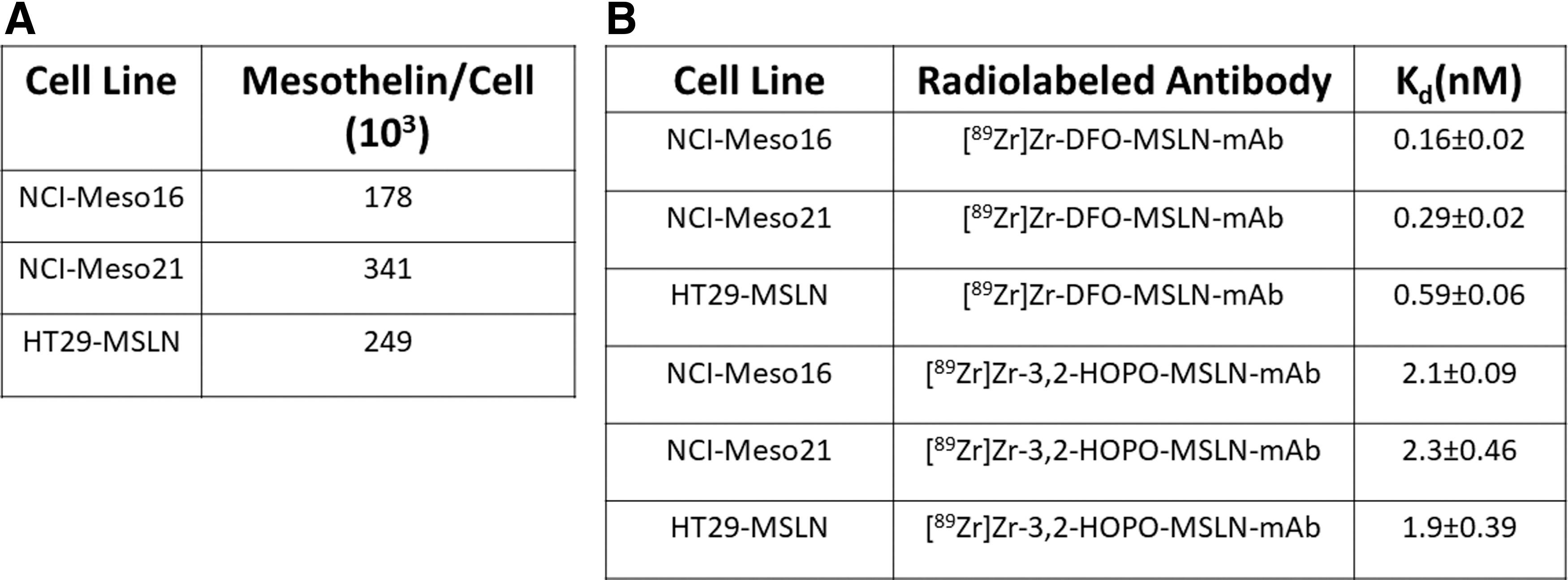

FIG. 3.

Mesothelin density per cell and binding affinity. Number of mesothelin per cell (A) and binding affinities (B; K_d ) of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb for mesothelin were derived from the in vitro saturation assays in HT29-MSLN, NCI-Meso16, and NCI-Meso21 cells. The assay was performed on an average two to three times for each cell type.

Even though both the conjugates exhibited high binding affinity, the affinity of [⁸⁹Zr]Zr-DFO-MSLN-mAb for MSLN was significantly higher (p < 0.05) than [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. In all the three cell lines, uptake of both the radiolabeled MSLN-mAb conjugates could be blocked in the presence of unlabeled MSLN-mAb, indicating MSLN-mediated uptake of the conjugates (Fig. 2). The immunoreactivity for [⁸⁹Zr]Zr-DFO-MSLN-mAb and [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb was determined to be 95% and 96%, respectively (Fig. 4).

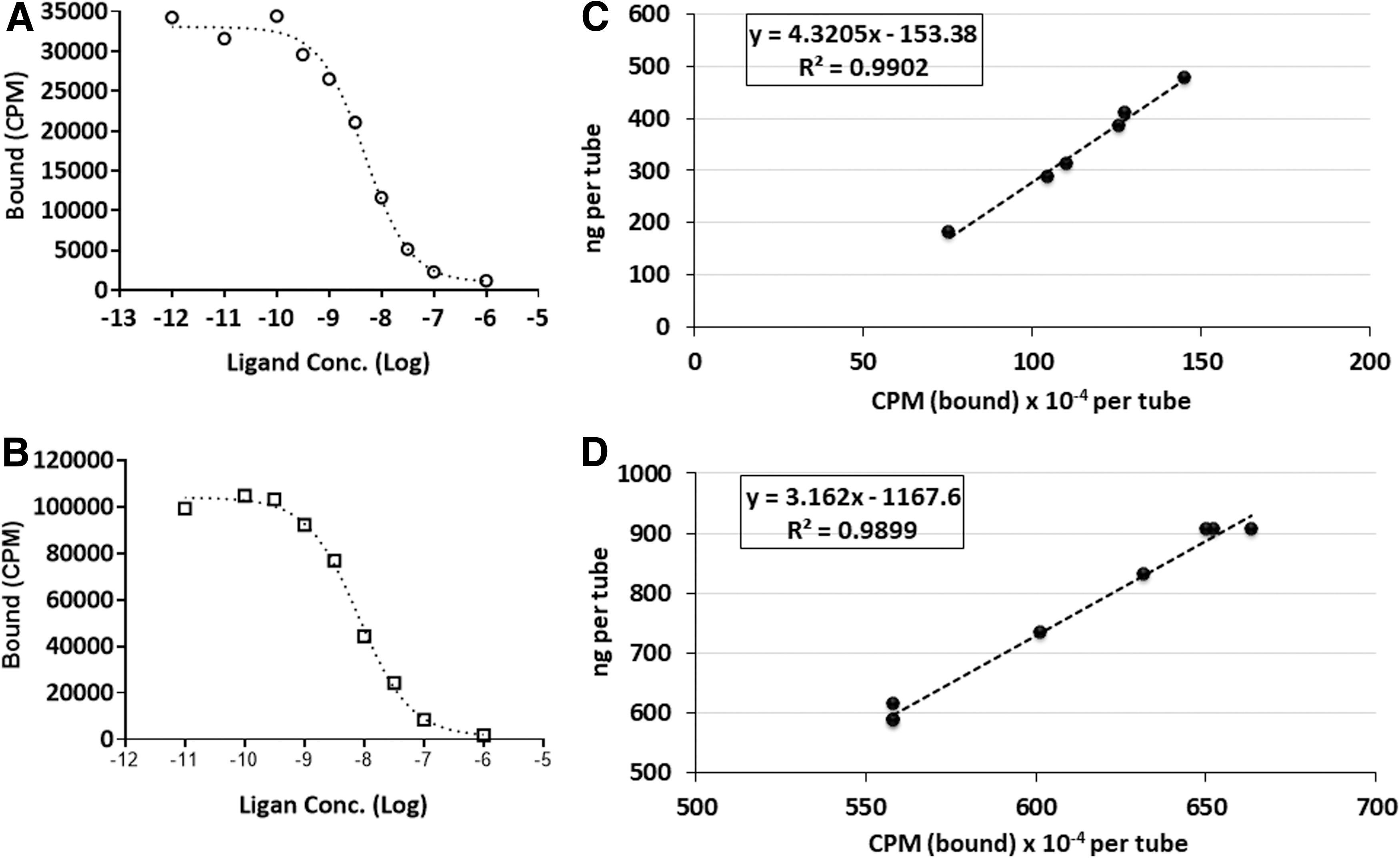

FIG. 4.

Competition binding assay and immunoreactivity plots. Representative plots from an in vitro [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (A) and [⁸⁹Zr]Zr-DFO-MSLN-mAb, (B) competition-binding assays using unlabeled MSLN targeted monoclonal antibody (self-displacement, Morris method) with HT29-MSLN cells. Each point (average of duplicates) represents cell-bound CPM. Representative plots for determination of the % immunoreactivity (immunoreactive fraction) of ⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (C) and [⁸⁹Zr]Zr-DFO-MSLN-mAb (D) from the same batch by the Morris method: representative plot (linear regression curve fit), immunoreactivity for ⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb = 96% and [⁸⁹Zr]Zr-DFO-MSLN-mAb = 95%. CPM, count per minute.

In vivo biodistribution and imaging studies

Pharmacokinetics of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb were determined in HT29-MSLN xenografts for 6 d (Fig. 5A). The uptake of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb in nontarget tissues either declined or remained the same over the study period except for the femur. Among the nontarget tissues, the highest uptake was observed in the femur, which significantly increased (day 1: 6.74%ID/g; day 3: 16.52%ID/g; day 6: 15.40%ID/g) over the 6 d (Fig. 5A). Radioactive accumulation in the femur may likely indicate loss of free zirconium-89 from the conjugate, which can be scavenged by the bone.^38,39

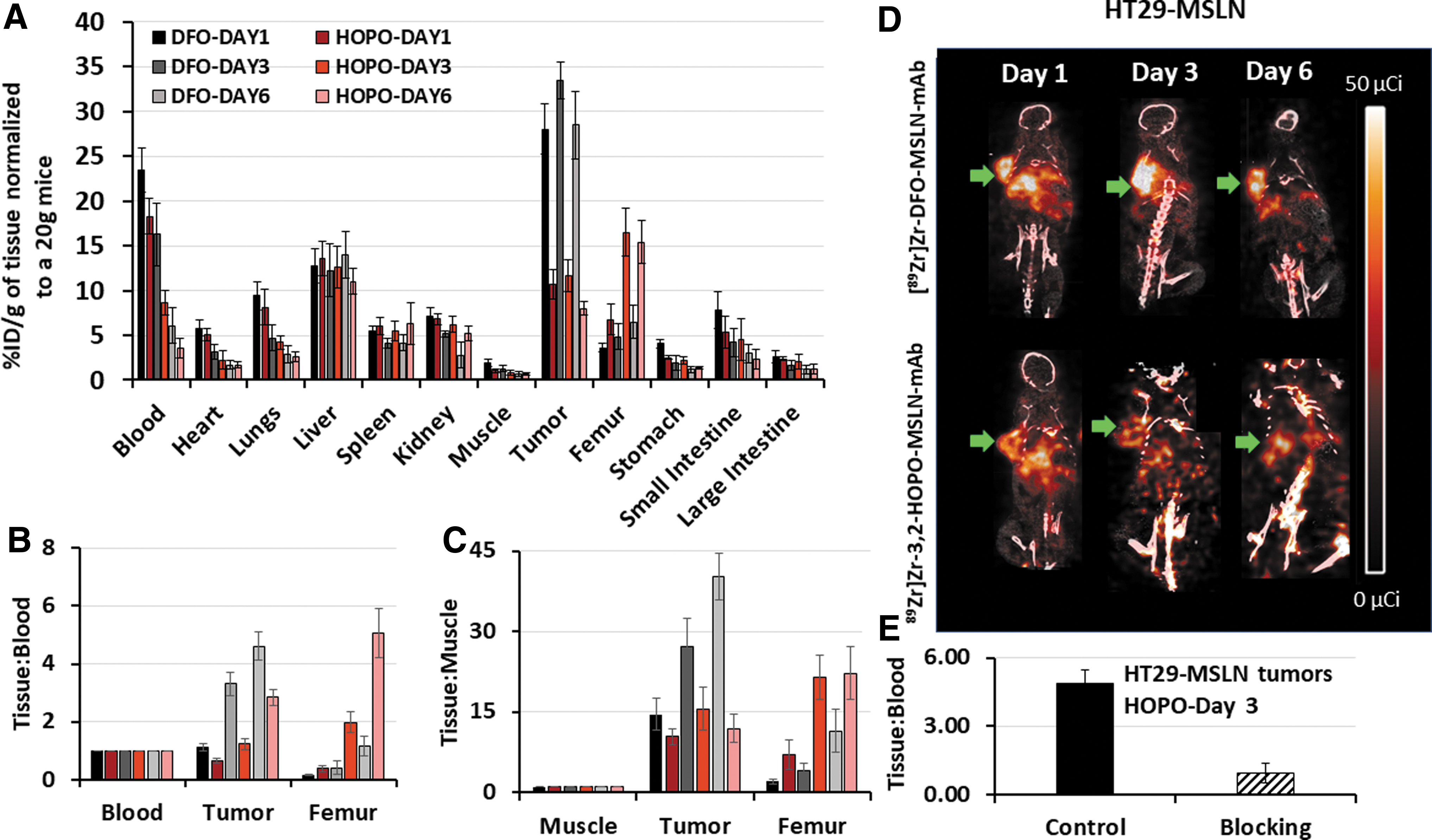

FIG. 5.

Biodistribution and PET imaging. Biodistribution (A) of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (HOPO) and [⁸⁹Zr]Zr-DFO-MSLN-mAb (DFO) in HT29-MSLN xenografts from 1 to 6 d. Each point represents the mean %ID/g of tissue normalized to 20 g mice ± SE (n = 9, 10 for each point). Tissue:Blood ratios (B) and Tissue:Muscle ratios (C) of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (HOPO) and [⁸⁹Zr]Zr-DFO-MSLN-mAb (DFO) in tumor and femur over a period of 6 d. Each point represents the mean ratio ± SE (n = 9, 10 for each point). Representative coronal PET/CT images (D) of HT29-MSLN mouse xenografts at days 1, 3, and 6 postinjection of (50 μCi, 1.85 MBq) of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb. Green arrow indicates tumors. Tissue:Blood of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (HOPO, 4.5 μg, control) in HT29-MSLN xenografts 3 d after receiving coinjections of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (180 μg, blocking); (E) each bar represents the mean Tissue:Blood ratios ± SD (n = 5–6 for each group).

[⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb was retained in the HT29-MSLN tumors from day 1 (10.67%ID/g) through day 3 (11.67%ID/g). Compared with days 1 and 3, tumor uptake of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb declined to 7.97%ID/g on day 6 (Fig. 5A). Since radioactivity in the blood (%ID/g) decreased over the study period, Tissue:Blood ratios were calculated to normalize the difference in the input function. Tissue:Blood ratios (T:B; Fig. 5B) for tumor (day 1: 0.63; day 3: 1.22; day 6: 2.83) and femur (day 1: 0.37; day 3: 1.97; day 6: 5.06) increased over the study period with the highest ratios observed on day 6.

Since MSLN is not expressed in muscle, radioactivity associated with muscle was considered as background, thus Tissue:Muscle ratio was calculated to account for any interference due to background tissue radioactivity. Tissue:Muscle (T:M) ratios for tumor and femur increased over 6 d (Fig. 5C); however, this increasing T:M ratio is likely more indicative of the increased clearance of the radioactive conjugate from the muscle rather than an increased uptake in the tissue since the %ID/g in muscle decreased over the 6 d period. Approximately 80% (Fig. 5E) of the tumor uptake of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb could be blocked by the administration of excess of 3,2-HOPO-MSLN-mAb, indicating MSLN mediated accumulation of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb in the tumor.

Biodistribution of the [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb in HT29-MSLN xenograft was further compared with the biodistribution of [⁸⁹Zr]Zr-DFO-MSLN-mAb in the same tumor model (see Supplementary Table 2 for full biodistribution data). Over 6 d [⁸⁹Zr]Zr-DFO-MSLN-mAb either remained fairly constant (liver) or cleared rapidly from the nontarget tissue except for the femurs (Fig. 5A). Compared with day 1 (day 1: 3.57%ID/g), femur uptake of [⁸⁹Zr]Zr-DFO-MSLN-mAb increased at day 3 (day 3: 4.85%ID/g) and day 6 (day 6: 6.51%ID/g). However, when compared with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb, femur uptake of [⁸⁹Zr]Zr-DFO-MSLN-mAb was significantly (∼2- to 3.5-fold, p < 0.05) lower over the study period (Fig. 5A). Moreover, femur T:B ratios (2.5- to 5-fold; Fig. 5B) and femur T:M ratios (2.3- to 5.5-fold; Fig. 5C) were higher for [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (T:B: 0.37–5.06; T:M: 6.98–22.21) than [⁸⁹Zr]Zr-DFO-MSLN-mAb (T:B: 0.15–1.14; T:M: 1.98–11.39) at all times.

Collectively, the data demonstrate decreased tumor accumulation of radiolabeled 3,2-HOPO conjugate in vivo in comparison with radiolabeled DFO conjugate. Tumor uptake of [⁸⁹Zr]Zr-DFO-MSLN-mAb (day 1: 28.04%ID/g; day 3: 33.42%ID/g; day 6: 28.49%ID/g) was found to be ∼2.5- to 3.5-fold higher than tumor uptake of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. Similarly, T:B (1.11–4.59) and T:M (14.46–40.23) tumor ratios of [⁸⁹Zr]Zr-DFO-MSLN-mAb were higher compared with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. The biodistribution patterns of both the conjugates in HT29-MSLN xenografts were further confirmed by PET/CT imaging results (Fig. 5D).

Images obtained with [⁸⁹Zr]Zr-DFO-MSLN-mAb at days 1, 3, and 6 showed higher radioactivity in tumors compared with the images obtained with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. Similar to the biodistribution studies, PET/CT images also displayed an increased uptake in the bone (joints and along the spinal cord; Fig. 5D) with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb vs [⁸⁹Zr]Zr-DFO-MSLN-mAb.

In a separate in vivo study, biodistribution of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb was performed in NCI-Meso16 and NCI-Meso21 xenografts, and compared with biodistribution of the conjugates in HT29-MSLN tumor models (Fig. 6A). Less radioactivity was measured in the blood of mice administered with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb compared with [⁸⁹Zr]Zr-DFO-MSLN-mAb (see Supplementary Table 3 for full biodistribution data).

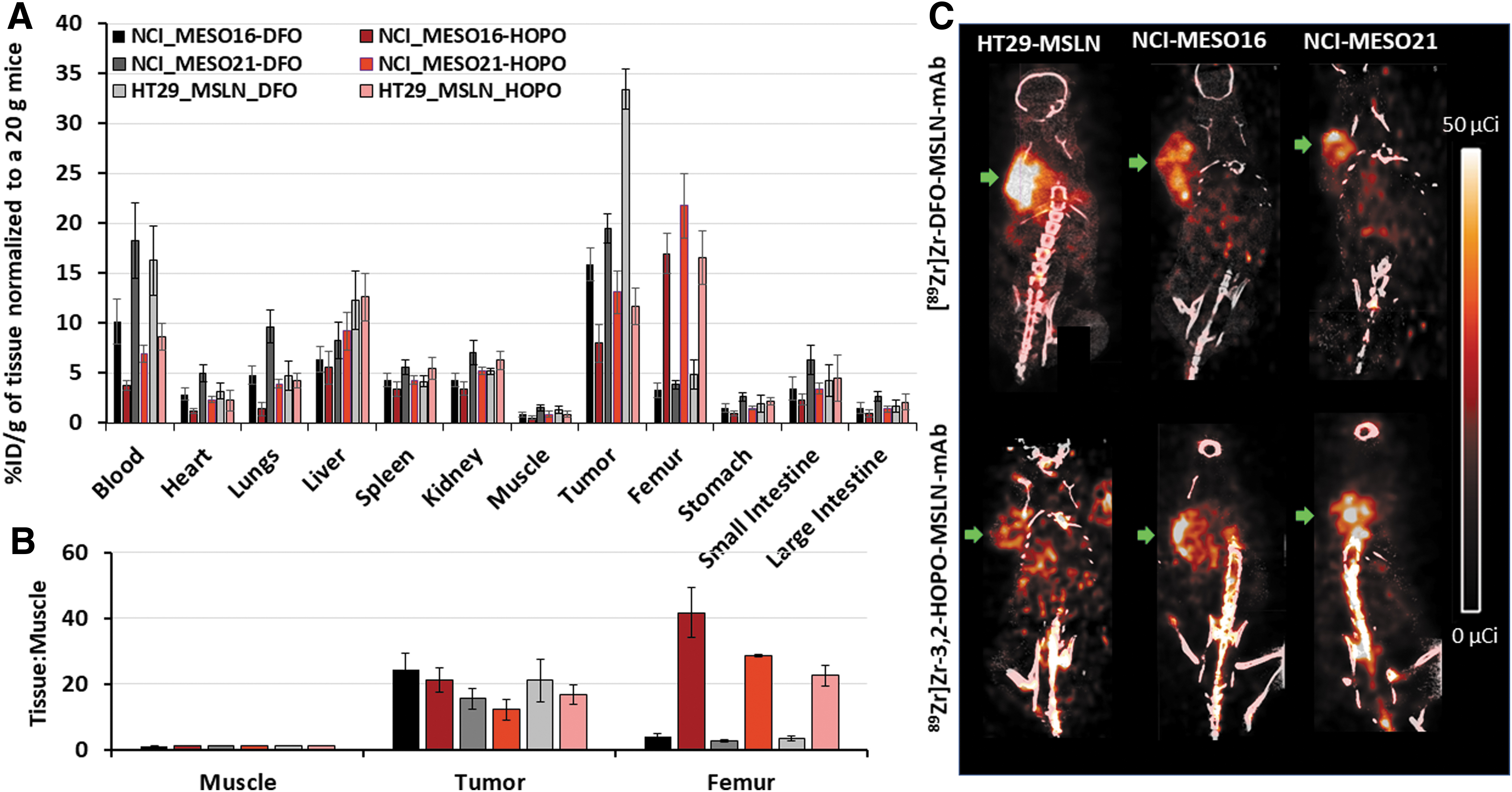

FIG. 6.

Biodistribution and PET imaging. Biodistribution (A), Tissue:Muscle ratios (B), and imaging (C); representative coronal PET/CT images of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb (HOPO) and [⁸⁹Zr]Zr-DFO-MSLN-mAb (DFO) in HT29-MSLN, NCI-Meso16, and NCI-Meso21 mouse xenografts at day 3 postinjection of (50 μCi, 1.85 MBq; i.v) of either of the tracers. Each bar represents mean %ID/g of tissue normalized to 20 g mice ± SE (n = 9–10 for each point). Green arrow indicates tumors.

For both conjugates, there was a difference in the amount of radioactivity measured in blood for different tumor types. This difference may result from the disparity in the amount of MSLN shed from each tumor in the blood. If the shed MSLN in the blood binds to the radioactive conjugate, it can interfere with the measure of the free radioactive conjugate in the blood.⁴⁰ Compared with [⁸⁹Zr]Zr-DFO-MSLN-mAb, [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb showed 3- to 6-fold higher radioactivity in the femur in all the xenograft models (Fig. 6A).

Throughout the study, tumor T:M ratios (Fig. 6B) were slightly higher (∼1.3-fold) for [⁸⁹Zr]Zr-DFO-MSLN-mAb compared with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb in all tumor types. Contrary to tumor T:M, femur T:M ratios (Fig. 6B) of radioactive 3,2-HOPO conjugate were 6- to 10-fold higher than the radioactive DFO conjugate in all the three tumor models, suggesting the lower stability of the 3,2-HOPO chelate. Compared with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb, [⁸⁹Zr]Zr-DFO-MSLN-mAb consistently exhibited higher tumor uptake in all the three cancer models. Uptake (%ID/g) of [⁸⁹Zr]Zr-DFO-MSLN-mAb in NCI-Meso16, NCI-Meso21, and HT29-MSLN tumors was 15.88, 19.49, and 33.41, respectively. Uptake of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb in the three different tumors was found to be 7.95%ID/g (NCI-Meso16), 13.07%ID/g (NCI-Meso21), and 11.67%ID/g (HT29-MSLN).

Furthermore, imaging results in all three tumor xenografts (Fig. 6C) parallel the findings of day 3 biodistribution studies (Fig. 6A, B). The [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb PET/CT images demonstrated considerably higher uptake in bones (joints and spinal cord) than that observed in [⁸⁹Zr]Zr-DFO-MSLN-mAb PET/CT images.

Discussion

In the present work, we synthesized and evaluated zirconium-89 labeled 3,2-HOPO-MSLN-mAb and DFO-MSLN-mAb both in vitro and in vivo. The radiochemical yield for [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb was slightly lower (80%–85%) than that for [⁸⁹Zr]Zr-DFO-MSLN-mAb (90%–95%) under the same conditions. However, the amount of higher molecular weighted radiochemical aggregate was higher (30%) for [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb compared with [⁸⁹Zr]Zr-DFO-MSLN-mAb (5%–18%). To obtain comparable radiochemical aggregates as [⁸⁹Zr]Zr-DFO-MSLN-mAb, a lower concentration of 3,2-HOPO-MSLN-mAb per radiolabeling reaction was used. The lower radiochemical yield and purity of HOPO complexes have also been reported by Marik et al. for 3-hydroxypyridin-2-one (3,2-HOPO)-based dimacrocyclic ligand.²²

Both radiolabeled conjugates exhibited a high binding affinity for MSLN in all three cancer cell lines. Pharmacokinetics over the time course was similar for both the zirconium-89 labeled conjugates except for tumor and femur. As such, the in vivo biodistribution and PET/CT imaging studies demonstrated that [⁸⁹Zr]Zr-DFO-MSLN-mAb exhibited 2.5- to 3.5-fold higher tumor uptake compared with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb over 6 d.

Higher bone uptake with [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb conjugate is suggestive of the release of free zirconium-89(IV).^38,39 In addition, the difference in the overall change and hydrophobicity of both the radioactive conjugates may contribute toward their diverse femur distribution.⁴¹ In vitro, human serum stability studies indicated that [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb was less stable compared with [⁸⁹Zr]Zr-DFO-MSLN-mAb, with the caveat that the degradation products of the conjugates were not specifically identified.

It is important to mention that the biodistribution pattern of 3,2-HOPO-MSLN-mAb complexed to thorium-227 in HT29-MSLN tumor and femur was more similar to [⁸⁹Zr]Zr-DFO-MSLN-mAb than [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb.¹¹ It is also necessary to acknowledge that 3,2-HOPO forms a stable complex with thorium-227, the α-radionuclide used to develop [²²⁷Th]Th-3,2-HOPO-MSLN-mAb therapeutic antibody conjugate.^11,21

Nonspecific accumulation of radioactivity in the bone is highly undesirable.⁴² For instance, it can lead to (I) increased radiation dose to the bone marrow if this pattern is also seen in the thorium-227 antibody conjugate, and (II) possible interference with diagnosis and interpretation of cancer lesions metastasized to bones.^42,43 Thus, it is important that the zirconium-89(IV) forms a stable complex with the chelate in vivo, and the conjugate exhibits biological stability in blood serum.

3,2-HOPO-based ligands belong to a class of octadentate chelators known as hydroxypyridinones, and various hydroxypyridinones or its modified version have been evaluated for their efficiency to chelate zirconium-89(IV).^{20,42,44

–47} In a study, dimacrocyclic 3,2-HOPO chelate was conjugated to trastuzumab and compared with trastuzumab-DFO conjugate.²² In vitro serum stability indicated the percentage of intact 3,2-HOPO-based trastuzumab conjugate dropped to ∼50% within the first 24 h. In vivo dimacrocyclic 3,2-HOPO labeled with zirconium-89 showed more radioactivity retained in the bone than DFO-based zirconium-89 complex.

The findings of this study align with the results of our studies. In addition to HOPO- and DFO-based chelators, other compounds such as hydroxyisophthalimide- and tetraazamacrocycle-based ligands have been evaluated as zirconium-89 chelators to develop PET agents.^48
–50

When plausible it is preferred that the same antibody conjugate is used to analyze the biodistribution in normal organs and lesion uptake as the one used to develop the therapeutic conjugate.⁵¹ Therefore, this study intended to compare the biodistribution of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb. Findings of this study comparing [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb and [⁸⁹Zr]Zr-DFO-MSLN-mAb suggest that even though [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb can accumulate in tumors expressing high levels of MSLN, its utility in detecting low-density MSLN tumor lesions might be limited. Moreover, the higher bone uptake of [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb may interfere with the identification of any bone metastasis.

Conclusion

[⁸⁹Zr]Zr-DFO-MSLN-mAb showed a higher tumor and lower femur uptake than [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb. However, because [⁸⁹Zr]Zr-3,2-HOPO-MSLN-mAb uses the same chelator as [²²⁷Th]Th-3,2-HOPO-MSLN-mAb, the same zirconium-89 labeled 3,2-HOPO-MSLN-mAb conjugate could be better at studying organ distribution and lesion uptake of the MSLN-TTC, with the caveat that detection of MSLN-positive tumors in the lower extremity might be more difficult if high femur uptake is also seen in humans.
