1. Background
AXL receptor has been implicated in a number of oncogenic processes (Wu et al., 2014), AXL signaling activates many essential biological pathways for angiogenesis and metastasis, including invasion, migration, survival, cell transformation, and proliferation (Korshunov, 2012). To this date, no potent inhibitor was clearly intended for AXL, except BGB324, a small AXL inhibitor that is in clinical development sponsored by the BergenBio Company (Oien et al., 2017). It has been shown that BGB324 AXL inhibitor enhances sensitivity to chemotherapy in mesothelioma and allows tumor reduction.
As mentioned earlier, developing potent and selective AXL inhibitors is always a scientists' concern. There is currently a great interest in natural compounds as potent anticancer drugs. The curcumin, is a natural polyphenol substance, isolated from the rhizome of turmeric plant Curcuma longa (Li et al., 2015), acts on multiple targets and signaling pathways (Gupta et al., 2011). Up to now, curcumin has been shown to possess wide range of pharmacological activities, including anti-inflammatory (Ghandadi and Sahebkar, 2017), anticancer (Bar-Sela et al., 2010), osteoarthritis (Panahi et al., 2014), cardiometabolic (Mohammadi et al., 2013), depression (Esmaily et al., 2015), and respiratory (Lelli et al., 2017). These activities have been attributed to methoxy, hydroxyl, α,β-unsaturated carbonyl moiety, or diketone groups in curcumin (Aggarwal et al., 2014).
More than 40 clinical trials using curcumin were developed for the treatment of inflammatory diseases and various human cancers (Huang et al., 1988; Aoki et al., 2007; Kuttan et al., 2007). However, phase I/II clinical trials have shown that curcumin exhibits poor bioavailability in humans (Anand et al., 2007). Major reason is its low absorption causing low plasma and tissue concentration, fast metabolism, and rapid systemic elimination (Anand et al., 2007). Because of that, much work has been focused on modifications of specific functional groups of curcumin that increase its bioavailability, hence increasing its activity. These researches have been greatly facilitated by the combination of classical biochemistry tools with new approach such as the quantitative structure–activity relationship (QSAR), which have radically shortened the time and the cost needed to establish a relationship between molecular structures and their properties. Linking physicochemical properties and biological activities to the molecular structure allows, on the one hand, to explain the origin of these activities/properties and, on the other hand, to predict their activities that are unavailable (Darnag et al., 2010).
In this study, to search the molecules with enhances properties and stability, a 2D quantitative structure–activity relationship (2D-QSAR) was employed to screen out 400 molecules curcumin derivatives with the variations on carbonyl moiety and active methylene group. The QSAR model, developed by partial least square (PLS) regression (Lakhlili et al., 2016) from 128 selected AXL inhibitors, was used to analyze the inhibitory AXL activity of compounds and identify molecular properties that influence activity with a view to provide a better rational design of some more curcumin analogs in the next studies. The molecular docking studies were performed to highlight the binding mode of the most active compounds with our three-dimensional (3D) structure obtained by homology modeling (Fatima et al., 2017).
2. Materials and Methods
2.1. Software
All the software used was open source except the molecular operating environment (MOE); the academic license used was obtained from the Chemical Computing Group ULC, 1010 Sherbooke St. West, Suite 910, Montreal, QC, Canada.
2.2. Data set selection
A total of 123 competitive ATP inhibitor molecules of AXL were selected using the canSAR3.0 (https://cansar.icr.ac.uk) databases on the basis of their molecular weight and the IC50. We converted the IC50 values from units of molarity (M) to pIC50 (−log IC50) to provide numerically larger data values. All molecules were randomly distributed into the training set composed of 95 molecules and the test set realized by the 28 residing molecules. The training set molecules served to build the predictive 2D-QSAR models. The test set used to assess the ability of the prediction and the extrapolation of the models obtained.
2.3. Molecular field descriptors calculation and 2D-QSAR models building
A descriptor is a quantitative property that depends on the structure of molecule. MOE software generates 184 different 2D descriptors for all training set compounds. The “QuaSAR Contingency module,” a statistical application in MOE, was employed systematically to select the good and potent ones. PLS regression in MOE was used to build the predictive models. PLS regression relates the descriptors as independent variables to the biological activity (pIC50) of the compounds as dependent variable. The steps for model developing are as follows: (1) Constitute a database from reliable experimental measurements of the property or activity of each compound. (2) Select descriptors in relation to the activity being studied. (3) Divide this database, randomly, into a series of training set with two-third of the database and a test set constituted by the remaining one-third. (4) Establish mathematical models using the learning series. (5) Characterize the models developed by their internal validation indices and check their robustness by a randomization test (randomization) of the dependent variable Y (reply). (6) Validate the developed models using the test series and calculate their parameters external validation statistics. (7) Develop the applicability domain of the chosen model. (8) Explore and exploit validated models to understand mechanisms and modes action.
2.4. Model validation
2.4.1. Internal validation
The “QuaSAR fit validation” panel application in MOE was used to realize the model validation that assesses how the model can predict the bioactivities of training set compounds accurately. This validation has been expressed by squared correlation coefficient (R2), which compares between predicted and experimental activities. The root-mean squared error (RMSE) employed to show the error between the mean of experimental values and predicted activities. R2 and RMSE approve if the model possesses the predictive quality reflected in the R2.
2.4.2. Cross-validation
The “leave-one-out” (LOO) cross-validation test also implemented in MOE has been used to calculate the cross-validated (CV) correlation coefficient (q2) and cross-RMSE. CV values are considered more characteristic of predictive ability of the model; many authors consider high (q2 > 0.5) as an ultimate proof of the high predictive power of the QSAR model. The data utilized in obtaining q2 are the compounds of training set used to determine R2.
2.4.3. Z-score
The Z-score is another parameter of validation that represents the absolute difference between value of the model and the activity field, divided by the square root of the mean square error of data set. Z-score was used to detect the molecules that are outside of the adjustment say “outliers” (Manoj Kumar et al., 2006).
2.4.4. External validation
Test set is composed by the compounds that were not used in the model development. In several searches, the estimation of the true predictive power correlation in the developed QSAR model was done only by comparison of predicted and observed activities of an external test set (Lakhlili et al., 2016).
2.5. Curcumin-synthetic analogs library selection
A data set of 400 curcumin analogs was extracted in (.sdf) format from Curcumin Resource Database (CRDB) v.1.1 (consulted on August 25, 2017). CRDB also contains the information of various international and national patents on curcumin and its analogs. Currently the database presents the curcumin analogs with their molecular targets curated from public domain databases and published literature in peer-reviewed journals. The CRDB web portal exposes user-friendly interfaces and is expected to be highly useful to the researchers working on structure-/ligand-based molecular design of curcumin analogs.
Before predicting their activities by the developed QSAR model, “ChemBioServer platform” was used to analyze the compound's toxicity and search the toxic moieties based on a list of 25 known organic toxic compounds. The platform server, group of tools, was developed to facilitate computational compound screening and analysis (Athanasiadis et al., 2012). Then, we performed a filtering using Lipinski's Rule-of-Five-SCFBio (www.scfbioiitd.res. in/software) to remove compounds that do not meet the five Lipinski's Rules (Lipinski, 2004). The molecules that reside were downloaded in MOE software in (.sdf) format and that converted to (.mdb) format by the same software. These filtered molecules were screened using the best QSAR model to select those with predicted activity exceeding the threshold.
2.6. Docking studies
Molecular docking was carried out to get better insight about interaction between ligands and target. Among the 400 analogs, 63 having the predict pIC50 exceeding a threshold set (Lakhlili et al., 2016) were docked with the crystal structure of AXL kinase obtained by homology modeling approach using AutoDock Vina (Trott and Olson, 2010). For all ligands, Gasteiger charges were designated and the torsions, allowing to turn during the docking procedure, are added using AutoDock tools v.1.5.6 (Morris et al., 2009). The AXL receptor was prepared, polar hydrogens were assigned, the grid box was set up to provide coverage of the AXL active site, the dimensions were set at 30, 30, and 30 Å (x, y, and z) consisting of active site residues within the box. The receptor and ligands were saved in pdbqt format; visual inspection of the docking results and image building was done by using PyMOL software (Seeliger and de Groot, 2010).
3. Results
3.1. Descriptors calculation and best model validation

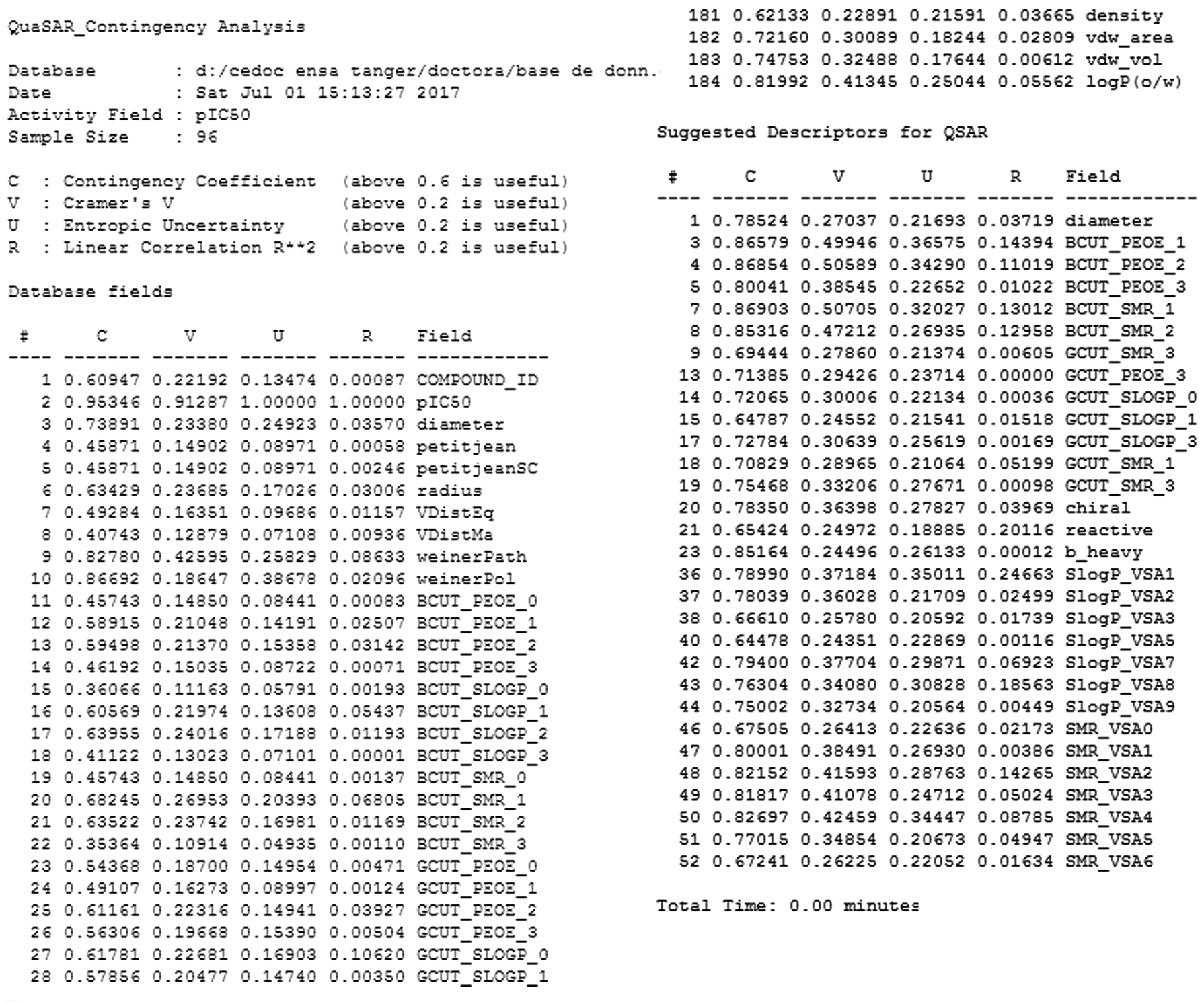

Figure 1 shows the pertinent descriptors selected by “QSAR Contingency,” including the three main physicochemical properties hydrophobicity (SlogP_VSA, BCUT_SlogP, GCUT_SlogP), polarizability (SMR_VSA, BCUT_ SMR, GCUT_SMR), and electrostatic interactions (PEOE_VSA, BCUT_PEOE, GCUT_PEOE).
The (2D) descriptors proposed by “QuaSAR Contingency module” application in MOE software. MOE, molecular operating environment.

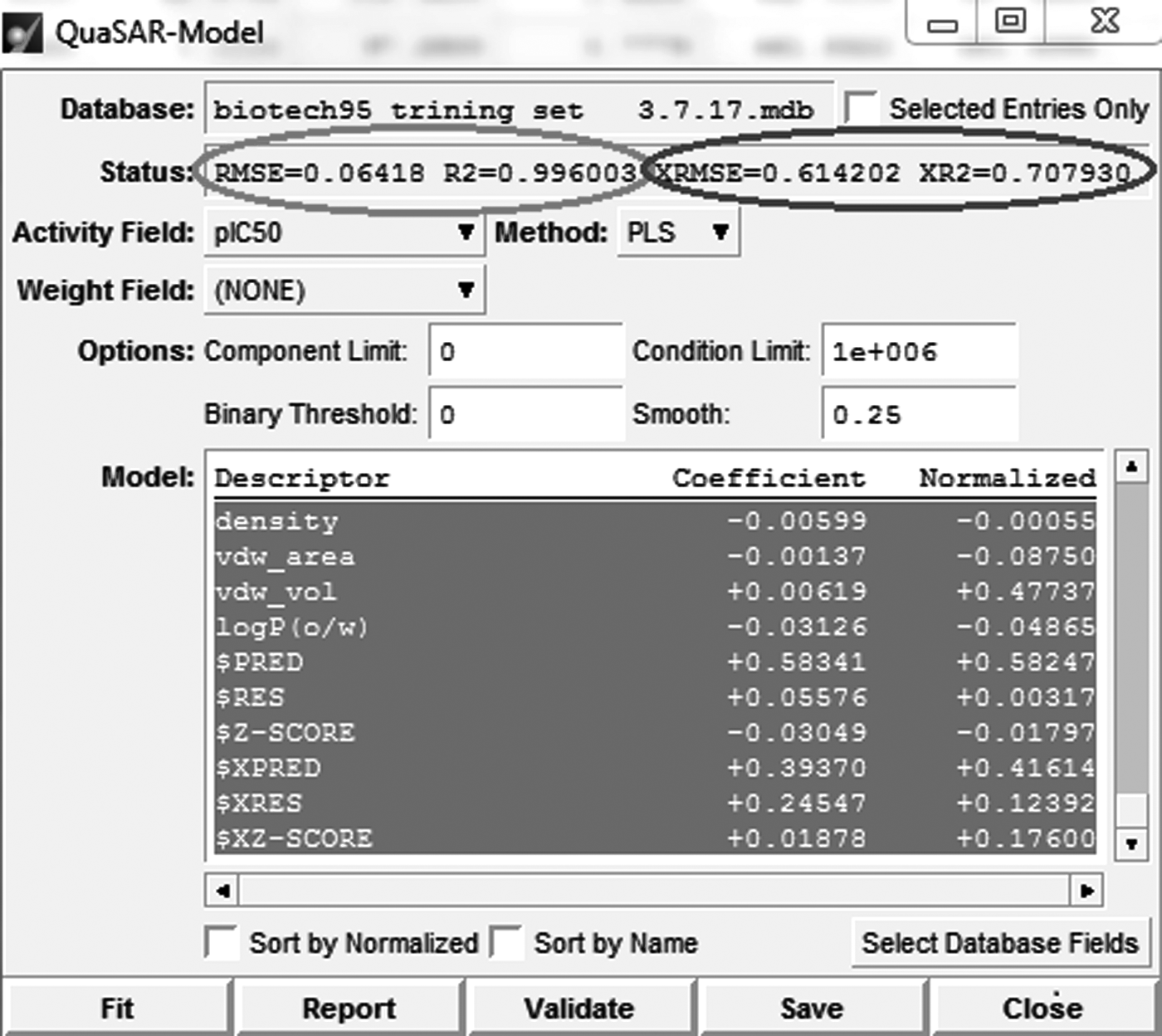

As shown in Figure 2, the PLS regression in conjugation with leave one out (LOO) CV techniques implemented in “QuaSAR-Model” module in MOE was used to develop the 2D-QSAR models through the PLS of the training set (95 compounds). The statistical fitness of the best QSAR model was expressed by means of various statistical parameters such as a correlation coefficient (R2) of 0.99 and an RMSE of 0.560.
Fitting the dependent variable (pIC50) to the independent variables (descriptors) of the training set in the MOE “QuasSAR-Model” to generate the quantitative structure–activity relationship model and the parameters of validation. Note that the gray circle surrounds the validation parameters (R2 and RMSE), whereas the black circle surrounds the cross-validation parameters. RMSE, root-mean squared error.

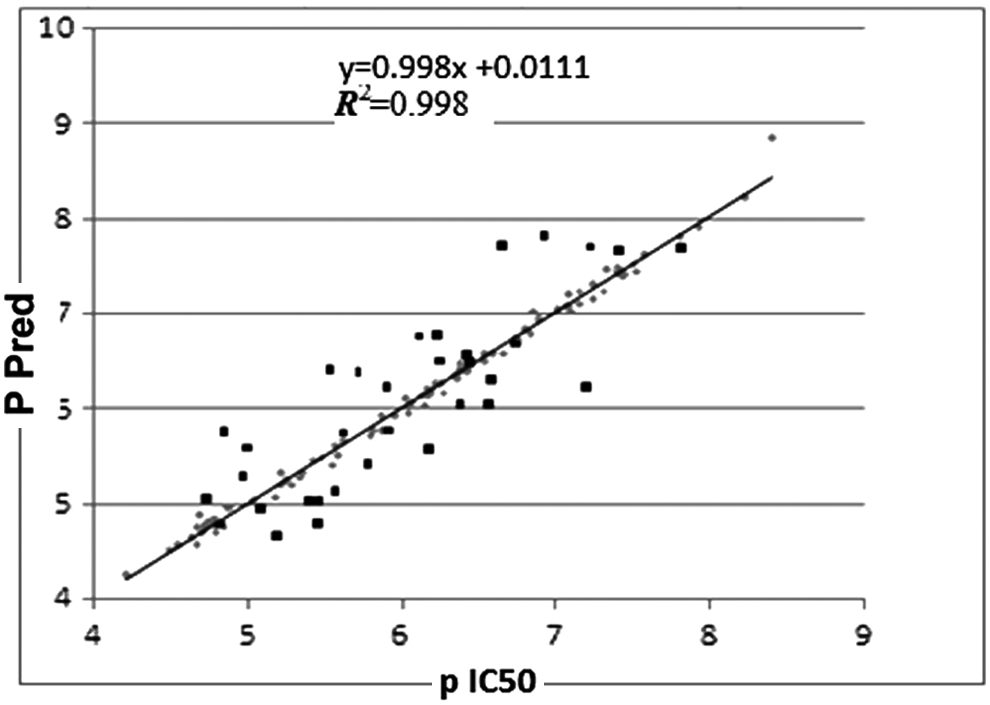

The plot in the Figure 3 presents the relationship between observed and predicted values from the training and test set. The predictive performance on validation confirmed by the CV RMSE of 0.672 and CV correlation coefficient of q2 = 0.707.
Plot of predicted pIC50 values versus experimental ones for the PLS model. Note the compound of training set in dots and prediction set in square. PLS, partial least square.
Any compound with a Z-score value >2.5 was considered as an outlier (Manoj Kumar et al., 2006). Thus, in external validation, the test set compounds were used to evaluate the predictive ability of the best model. The test set molecules are displayed in Table 1 that shows the difference between experimental (pIC50) versus predicted activity ($PRED) in this data is <1.
The External Validation Results for the Predictive Model Generated by Molecular Operating Environment Software
3.2. Curcumin-synthetic analogs library screening
We threaded 400 compounds extracted from CRDB using Lipinski's Rule-of-Five in the FILTER program; then, we analyzed their toxicity. Their activity was predicted by “Model evaluate” procedure in MOE. Only 63 molecules with a pIC50 > 6, considered a threshold (Lakhlili et al., 2016), were prepared and docked into pocket site of AXL tyrosine kinase structure using AutoDock Vina.
3.3. Molecular docking results
The docking scores (affinity) were set between −9.0 and −3.4 kcal/mol; the compounds with the low energy conformations and the best predicted activities were selected to analyze and evaluate their interaction with the AXL active site. Molecular docking studies revealed that the CID10765707, CID11257493, and CID21159180 compounds have a low binding energy −9.0, −8.6, and −8.2 kcal/mol, respectively, and the best predicted activities. They are used further to study their interaction mode with the target protein. At a distance of 4 Å, the active site encompasses 45 amino acids (Messoussi et al., 2014), the most relevant are Leu600 serving as gatekeeper and the triplet Pro 621, Phe 622, and Met623 forming a hinge, Lys 567 (the binding site key residue of ATP), Asp 690, Phe 691, and Gly 692 (the DFG-motif in activation loop) (Fatima et al., 2017).

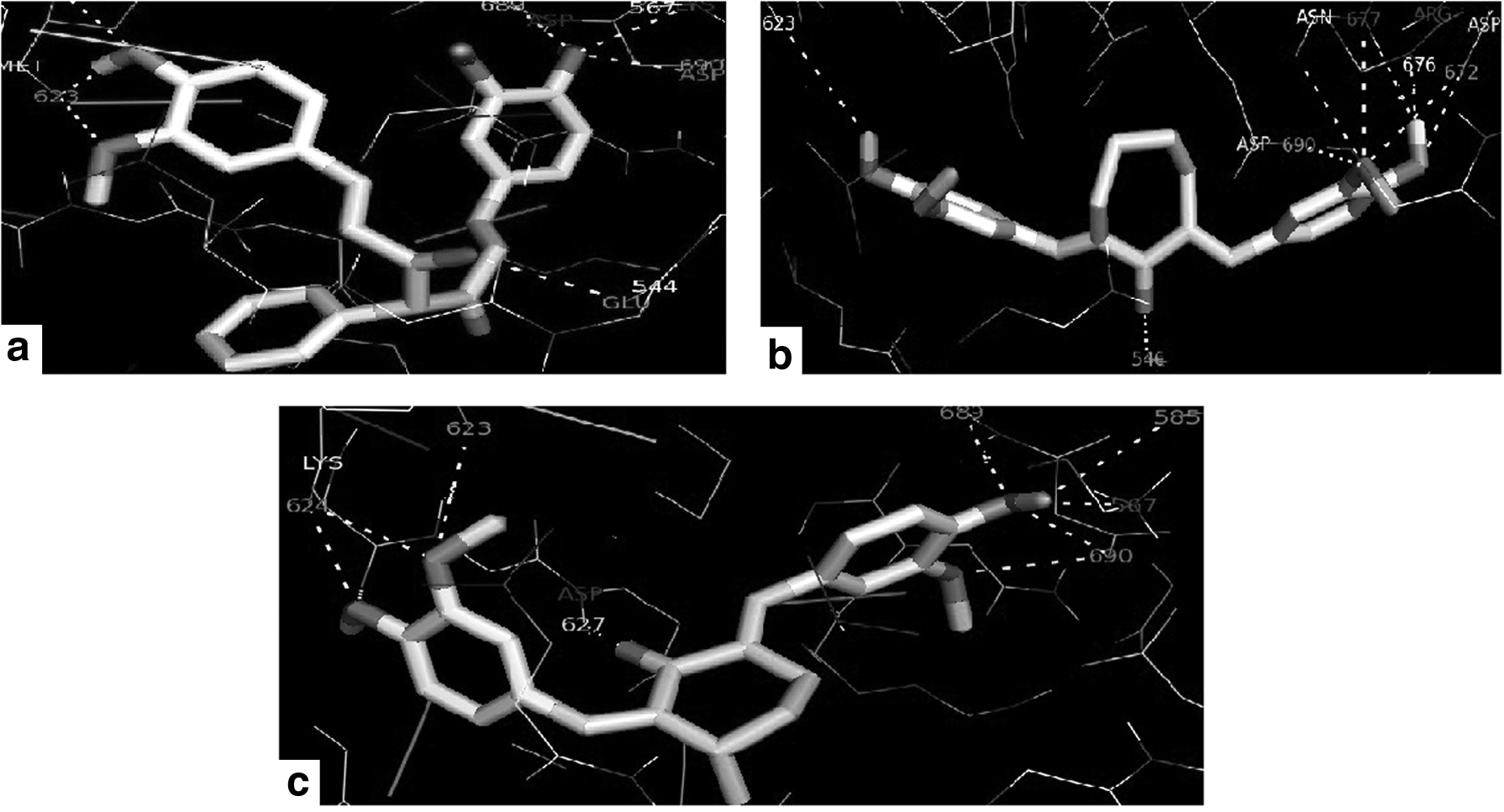

Figure 4 shows that the three compounds interact with the residues around the catalytic site by hydrogen and hydrophobic bonds. Hζ-atom of the Met 623 in the hinge interacts by H bonding with hydroxyl group in phenyl rings oriented in the deep hydrophobic pocket of the three compounds. On the other side, the second hydroxyl phenyl-end exposed to the open gate elaborates the three H bonding with CID10765707 and CID21159180 compounds: the first H bonding with Ala 689 of the activation loop, the second H bonding with Asp 690 one residue of DFG motif in the activation loop, and the third with Lys 567 positioned on a β-sheet of N-lobe (Fatima et al., 2017). The CID21159180 exhibits two other hydrogen bonds with Glu585 and Asp627. As for the CID11257493 compound, the same hydroxyl phenyl-end creates hydrogen bonds with Asp672, Arg676, and Asn677. Several hydrophobic interactions were also observed with Glu544, Glu546, Lys624, and Asp690. The three curcumin synthetic analogs showed a higher affinity to AXL receptor identical to that of curcumin and its natural derivatives (Fatima et al., 2017). The CID 21159180 compound expressed a better predicted activity value reported in Table 2 that includes the 2D structures of three inhibitors (extracted from NCBI-PubChem) and these molecular properties, predicted activities, binding affinity, and key residues that interact with protein target.
Compounds 2D Structure and Molecular Properties, Predicted Activities, Binding Affinity, and the Key Residues That Interact with AXL Kinase
The three ID compounds and the most important residues are shown in boldface.
4. Discussion
In this study, a detailed 2D-QSAR was developed on a series of curcumin synthetic derivatives with methoxy, hydroxyl, α,β-unsaturated β-diketone moiety modifications to detect if they possess an anticancer activity against AXL kinase. Only 2D descriptors generated by “QSAR Contingency” application in MOE were selected to develop the QSAR models by PLS regression; the best one has an acceptable statistical quality and predictive potential as indicated by the value of cross-validated squared correlation coefficient (q2 = 0.707) and the results of the external validation. The ligands library screening was done on 400 curcumin analogs. All ligands were filtered by ChemBioServer platform to remove the compounds that do not meet the Lipinski's Rule-of-Five and having a high toxicity effect. A total of 355 compounds resulting will be used to predict their activities by the developed QSAR model; only 63 with pIC50 ≥ 6 have been selected to test their interaction with AXL kinase by molecular docking.
The docking scores (affinity) were situated between −9.0 and −3.4 kcal/mol. QSAR analyses revealed that the three compounds CID10765707, CID11257493, and CID21159180 exhibit the best predicted activity with high affinity to AXL kinase. They are characterized by their symmetric structures with two hydroxyl groups (OH) at C-4′ and two ortho-methoxy groups (OCH3) at C-3′ in bilateral phenyl rings. The three analogs were designed with the same substitution on α,β-unsaturated β-diketone moiety. In compounds CID11257493 and CID21159180, the β-diketone moiety is removed and replaced by a cyclic ketone, a cycloheptanone is linked to α,β-unsaturated fragment in CID11257493, whereas the second compound a methyl-cyclohexanone group is attached to the same fragment (compound's structure exposed in Table 1). Concerning CID10765707 compound, a phenyl-heptadiene was planted on β-diketone moiety.
In this study, a hydroxyl group attached to the aromatic rings was imperative to enhance the activity of curcumin analogs by building many hydrogen bonds around the active site, either at the hinge or at the activation loop. These results are similar to Leong et al. (2015) study who showed, in structure–activity comparison, that dihydroxylphenyl ring is crucial for analog's bioactivities. Chen et al. indicate that a hydroxyl group removal or substitution resulted in a reduction of analog's activity and low affinity (Ji and Shen, 2009; Chen et al., 2014). Moreover, we noticed that the activity of three analogs is obtained when the phenolic hydroxyl group is present with two methoxy groups of each ring. Also the number of methoxy groups in the each phenyl rang as well as their position was important for phenyl radical stability (Barclay et al., 2000; Chandru et al., 2007); loss of one or two methoxy groups reduced the analog effect (Cocorocchio et al., 2018).
In another side, the high affinity of these three compounds to AXL kinase may be due to the structure modification of a β-diketone moiety since, it has been suggested that diketone fragment of curcumin is not indispensable for the analog activity (Simoni et al., 2008). Selvam et al. (2005) showed that the structure modification of the β-diketone fragment increases the inhibitory effects of curcumin against COX-2 protein. In the same way, deleting β- diketone of curcumin may increase the stability and antiproliferative activity.
Furthermore, Xu et al. (2013) have deduced in their study that a novel α,β-unsaturated cyclohexanone analogs designed through altering its β-diketones exhibit potent antiproliferative activity against EGFR by suppressing levels of protein in two human tumor cell lines. Liang et al. (2009) mentioned that the reactive β-diketone moiety is responsible for the pharmacokinetic limitation of curcumin. It contributes to the instability of curcumin under physiological conditions, poor absorption, and fast metabolism. They designed a cyclopentanone and cyclohexanone analog without β-diketone; their results showed that the stability of these analogs tested in vitro was greatly enhanced and their pharmacokinetic studies realized in vivo were also significantly improved (Liang et al., 2009). On the basis of these findings, it is clear that hydroxyl and methoxy groups implanted in the each phenolic group are essential for the activity. Besides, it has also been found that the removing of β-diketone moiety and its replacement by a cyclic ketone enhances the activity.
Conclusion
In this study, The QSAR approach combined with molecular docking studies have revealed that the compounds CID10765707, CID11257493, and CID21159180, which bear dihydroxy dimethoxyphenoxyl groups and the major modification in α,β-unsaturated β-diketone moiety portion exhibited significantly higher activity and the best affinity against AXL kinase. The three selected compounds will undergo in vitro and in vivo analyses to better understand their physicochemical and structural characteristics associated with their biological properties, which will help further to design novel AXL inhibitors in completion with ATP more stable than curcumin with high potent activity and better bioavailability.
