Uretero-Arterio-Enteric Fistula Formation and Stent Thrombosis After Endovascular Treatment of Ureteroarterial Fistula: A Case Report and Review of Literature

Introduction

Ureteroarterial fistulas (UAFs) are rare occurrences. According to a recent review of literature, there were only 139 UAFs reported between 1899 and 2008. ¹ These fistulas usually occur in the setting of at least one of the following risk factors: chronic indwelling ureteral stent, previous pelvic radiation, previous pelvic surgery, and vascular disease. A high index of suspicion is required for diagnosis; patients usually present with nonspecific hematuria and no single test alone has adequate sensitivity. We present a case of UAF initially treated with endovascular repair but required salvage open surgical intervention.

Case Presentation

The patient is a 51-year-old African American female who presented with multiple episodes of bloody output through her nephrostomy tube and colostomy. She had a total abdominal hysterectomy, loop colostomy, chemotherapy, and radiation for cervical cancer 6 years before presentation. Two years after her cancer treatment, she developed bilateral ureteral strictures that were managed with chronic indwelling ureteral stents, which we exchanged every 2–4 months. Two years after having ureteral stents, she started experiencing intermittent painless gross hematuria and bleeding from her right ureteral orifice during stent exchanges. She had a ureteroscopy showing an area of inflammation and arterial bleeding at the pelvic brim when the ureteral stent was exchanged, suggestive of a UAF. She also had an angiogram and CT angiogram that were negative for signs of bleeding or any vascular abnormalities while the ureteral stent was in place. However, given her multiple episodes of bleeding and our high clinical suspicion for a UAF, our vascular surgeons placed a right external iliac endovascular stent. Active extravasation was not seen at the time of the angiogram and the indwelling ureteral stent was used as the landmark for endovascular stent deployment. The procedure was uneventful and there was no difficulty placing the endovascular stent.

Her right collecting system was subsequently managed with a nephroureterostomy catheter that was exchanged approximately every 2 months. Two years after endovascular stent placement, the patient presented with bloody right nephroureterostomy tube and bloody colostomy output, requiring multiple blood transfusions. She had a negative gastroenterology work-up that included push enteroscopy, upper enteroscopy, colonoscopy, and nuclear bleeding scan. She had a CT angiogram and an MR angiogram that showed an occluded vascular stent, a complex collection of air and fluid surrounding the stent and a loop of bowel, and a large amount of air in the collecting system (Fig. 1).

OPEN IN VIEWER

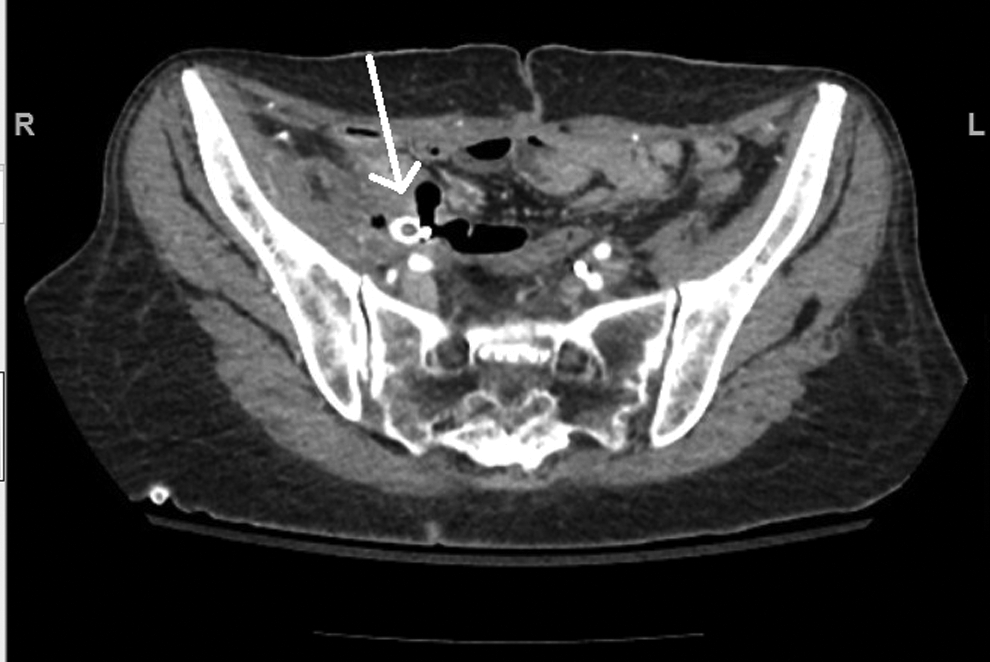

FIG. 1.

CT scan of the uretero-arterio-enteric fistula. The white arrow points to the area of the fistula.

These findings were highly suggestive of a three-way fistula between the small bowel, the occluded endovascular stent, and the ureter (Figs. 2 and 3). The patient was taken to the operating room for exploratory laparotomy, fistula takedown, ligation of the external iliac artery with resection of the vascular stent, ligation of the right ureter, and small bowel resection. Since the occlusion was chronic, the patient did not have evidence of limb ischemia and no revascularization was performed. The patient had no major postoperative complications. The patient was subsequently managed with chronic bilateral nephrostomy tubes that we exchanged every 6–8 weeks. We have followed the patient for 2 years after her last surgery and she had no further episodes of gross hematuria or hematochezia.

OPEN IN VIEWER

FIG. 2.

Diagram of the uretero-arterio-enteric fistula.

OPEN IN VIEWER

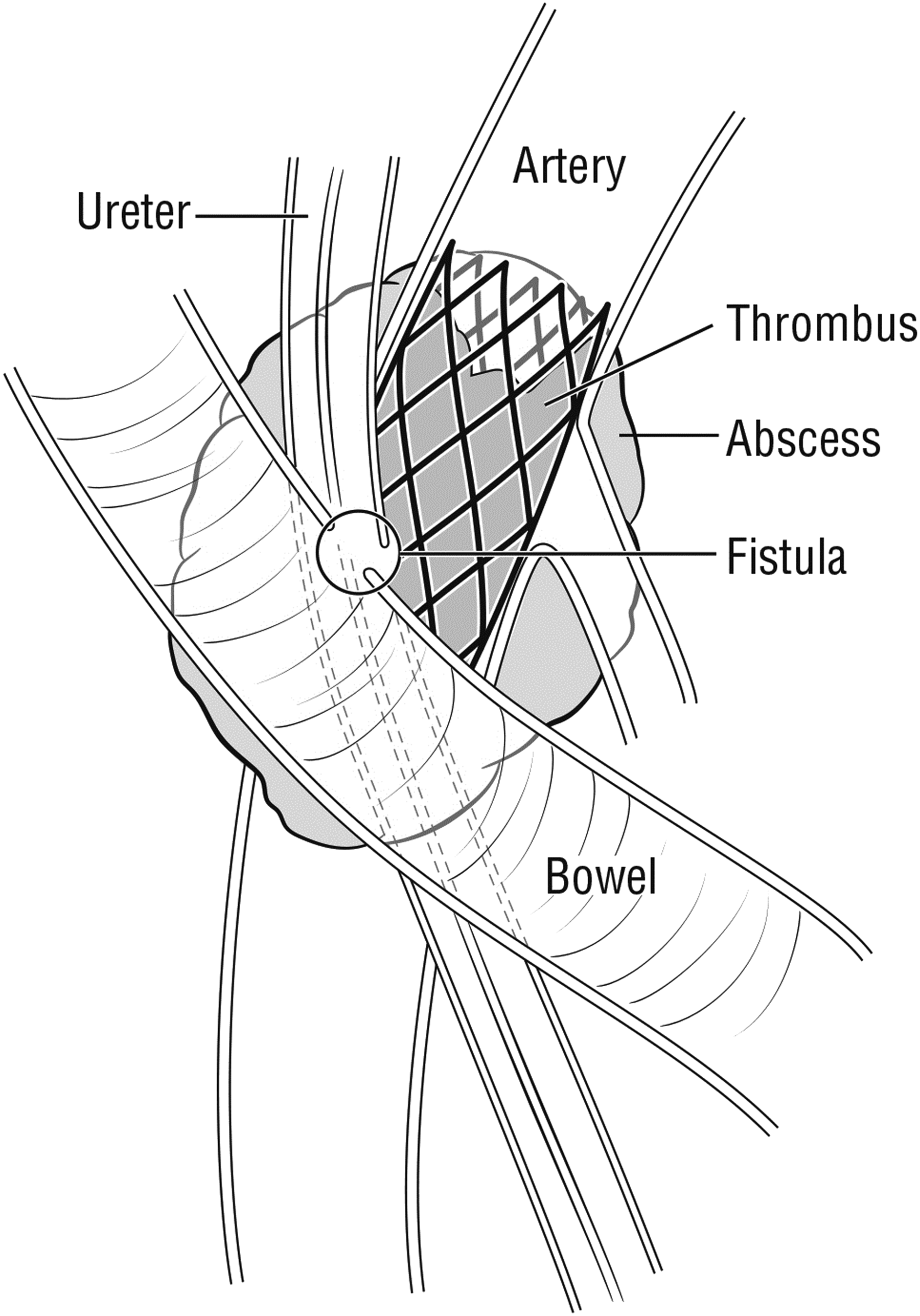

FIG. 3.

Cross-section diagram of the uretero-arterio-enteric fistula.

Discussion

UAFs are rare yet potentially lethal complications of indwelling ureteral stents. In a review of 139 cases from 1899 to 2008, Van den Berg reported 13% cause-specific mortality and 100% mortality if no treatment is pursued. Diagnosis of this rare condition is difficult. Nonspecific hematuria was the initial symptoms in all 139 patients reported in Van den Bergh et al. ¹ In addition, no single diagnostic test is sensitive and specific enough; patients undergo an average of 2.4 diagnostic tests before final diagnosis. (1) CT with contrast (helpful or diagnostic in 42%–55% of cases)^1,2 or angiogram (diagnostic or helpful in 0% to 69% of cases)^1,3 is usually the first line tests, but their efficacy is limited because ureteral stents usually tamponade the bleeding during these tests. Provocative angiogram is more sensitive (63% to 100%) but may cause life-threatening hemorrhages and should, therefore, only be done in a controlled setting.^1,4 Cystoscopy can be useful in diagnosis by localizing the side of bleeding during stent changes. Ureteroscopy may allow the surgeon to directly observe the fistula site. Our case initially presented with sustained life-threatening bleeding episodes and received blood transfusions before diagnosis and treatment. Uretero-iliac-enteric fistula was diagnosed based on unilateral bleeding during stent exchanges and confirmed by the resolution of hematuria after the endovascular stents placement. Her CT angiogram was nondiagnostic. The patient also received numerous negative diagnostic tests for her uretero-iliac-enteric fistula before it was diagnosed. These findings again emphasize the inadequacies of diagnostic tests. In a patient with multiple risk factors and a convincing history, it is reasonable to intervene without definitive radiologic evidence.

Definite treatment involves treating both the artery and the ureter. Many methods have been reported in the literature with variable success. ¹ Minimally invasive endovascular treatments have recently gained popularity because patients who develop these fistulas usually have multiple comorbidities and hostile surgical abdomens from previous surgery and external radiation therapy. Although long-term patency and complication rate of endovascular procedures for aortoiliac occlusive disease are well studied and typically good, they are poorly studied in the setting of urovascular fistulas. van den Bergh and coworkers ¹ reported 100% fistula-specific survival rate after endovascular repair but their results were not replicated by others. Fox et al. ⁴ reported that 2 of 14 patients who were initially treated with an endovascular procedure required open surgery at a median follow-up of only 4.5 months. Okada and coworkers ³ reported a 40% hematuria-free survival and 85.7% freedom from UAF-related mortality at 2 years in a series of 11 patients (mean follow-up 1.5 years). Although there have been a few uretero-arterio-enteric fistula cases reported in the literature, this is the first reported case of this fistula after a failed endovascular repair of a UAF. We believe that maintaining an indwelling nephroureteral catheter after initial treatment, in addition to the patient's multiple risk factors for fistula formation (history of radiation, previous abdominal surgery, and vascular disease), contributed to recurrent fistula formation. Our complication serves as a reminder of the potential risks of endovascular treatment and that we need to have a high index of suspicion and close surveillance after definitive treatment for UAF.

Conclusion

Minimally invasive endovascular treatment is rapidly becoming the most popular treatment option for UAFs. However, the long-term outcome of endovascular intervention in this setting is not well studied. We present a case of failed endovascular treatment of a UAF requiring salvage open surgical intervention for a uretero-arterio-enteric fistula. Our case demonstrates that in a patient with the appropriate risk factors, we should have a high index of suspicion and close surveillance after definitive treatment.
