Factors Associated with Nocturnal Hypoglycemia in At-Risk Adolescents and Young Adults with Type 1 Diabetes

Introduction

Both hypoglycemia and the fear of hypoglycemia remain impediments to good glycemic control among patients with type 1 diabetes (T1D). ¹ A disproportionate share of hypoglycemia occurs at night, making nocturnal hypoglycemia a particularly important issue. In the large continuous glucose monitoring (CGM) JDRF study, ² biochemical hypoglycemia (CGM glucose concentration of ≤60 mg/dL) occurred during 8.5% of nights, with 23% of these events lasting more than 2 h.

Although severe hypoglycemia is associated with adverse events such as seizures and rarely death, less severe nocturnal hypoglycemia is linked to a broad range of adverse consequences, ³ both acutely ^4,5 and long term. ⁶ In a multinational survey of the consequences of nonsevere nocturnal hypoglycemia, Brod et al. ⁷ reported that among the participants who awoke, the average time to return to sleep was over an hour, and some did not return to sleep at all that night. Most respondents reported a moderate to severe impact on ability to function on the following day. A better understanding of the antecedents of nocturnal hypoglycemia could both improve routine clinical diabetes management and help inform the ongoing development of closed-loop insulin delivery systems.

We analyzed data from 885 control nights in a recently completed randomized study ⁸ of a predictive low-glucose suspend (PLGS) system to examine factors associated with nocturnal hypoglycemia.

Research Design and Methods

The study was conducted at three clinical centers. The protocol was approved by each Institutional Review Board, and informed consent and assent were obtained as appropriate. The study assessed the efficacy of a PLGS system as described in a recently published article ⁸ and listed on the ClinicalTrials.gov Web site (clinical trial registration number NCT01591681). Key aspects of the study protocol are described below.

Major eligibility criteria included being 15–45 years of age, having T1D with use of daily insulin therapy for ≥1 year, use of an insulin infusion pump for ≥6 months, hemoglobin A1c (HbA1c) level measured with a point-of-care device of ≤8.0%, at least 1 night with a sensor glucose value of ≤60 mg/dL or at least 3 different nights with a sensor glucose value of ≤70 mg/dL during 10–15 days of CGM preceding the trial, and demonstrated ability to use the PLGS system. Of note is that only three of the 49 subjects enrolled failed to meet these hypoglycemia criteria, and one did not complete a system-use criterion. The PLGS system comprised the Enlite^® glucose sensor and MiniMed Paradigm^® Veo system (Medtronic Diabetes, Northridge, CA), and the proprietary PLGS algorithm was installed on a laptop computer.

During the randomized trial, the system was used until 42 nights with at least 4 h of sensor glucose data were completed, with half the nights randomly assigned to be intervention nights and half control nights.

Each night, upon startup, the system prompted the subject to enter whether or not a bedtime snack was consumed and the level of exercise intensity for that day (Supplementary Figs S1 and S2; Supplementary Data are available online at www.liebertonline.com/dia). The protocol had no specific instructions about bedtime snacks. Timing and size of insulin boluses were obtained from pump downloads. During the day, the participant used the CGM device and pump as it would be prescribed for usual diabetes management (without the algorithm being active). The threshold-based low-glucose suspend feature of the Veo pump was disabled during the study, so as not to interfere with the PLGS algorithm.

Results

The 45 individuals included in the analyses had an age range of 15–45 years (mean age, 30 years); 47% were male, and 93% were white. Median T1D duration was 15 years, and median HbA1c level was 6.8%.

Hypoglycemia, as measured by CGM, occurred during 221 of 885 (25%) control nights. In a multivariate model, nocturnal hypoglycemia was more frequent with younger age (P<0.001), lower HbA1c levels (P=0.006), medium/high-intensity exercise during the preceding day (P=0.003), and the occurrence of biochemical hypoglycemia during the preceding day (P=0.001) (Fig. 1). There was a trend for lower bedtime BG levels to be associated with more frequent nocturnal hypoglycemia that did not meet our criterion for statistical significance (P=0.10). All of these factors had similar odds ratios of about 2 across the clinically relevant ranges.

OPEN IN VIEWER

FIG. 1.

Factors related to overnight hypoglycemia. ^aNights with hypoglycemia had at least 30 min below 60 mg/dL. ^bLinear relationship fitted for continuous factor. ^cExercise intensity and snacks entered by the subjects. BG, blood glucose; HbA1c, hemoglobin A1c.

The probability of nocturnal hypoglycemia as a function of time of daytime hypoglycemia, bedtime BG concentrations, and exercise intensity is shown in Figure 2. Bedtime snack, insulin on board, weekend versus weekday, gender, daily basal insulin, and daily bolus dose were not associated with nocturnal hypoglycemia in the univariate or multivariate analyses. It also was not possible to distinguish the separate effects of age and diabetes duration because these were highly correlated.

OPEN IN VIEWER

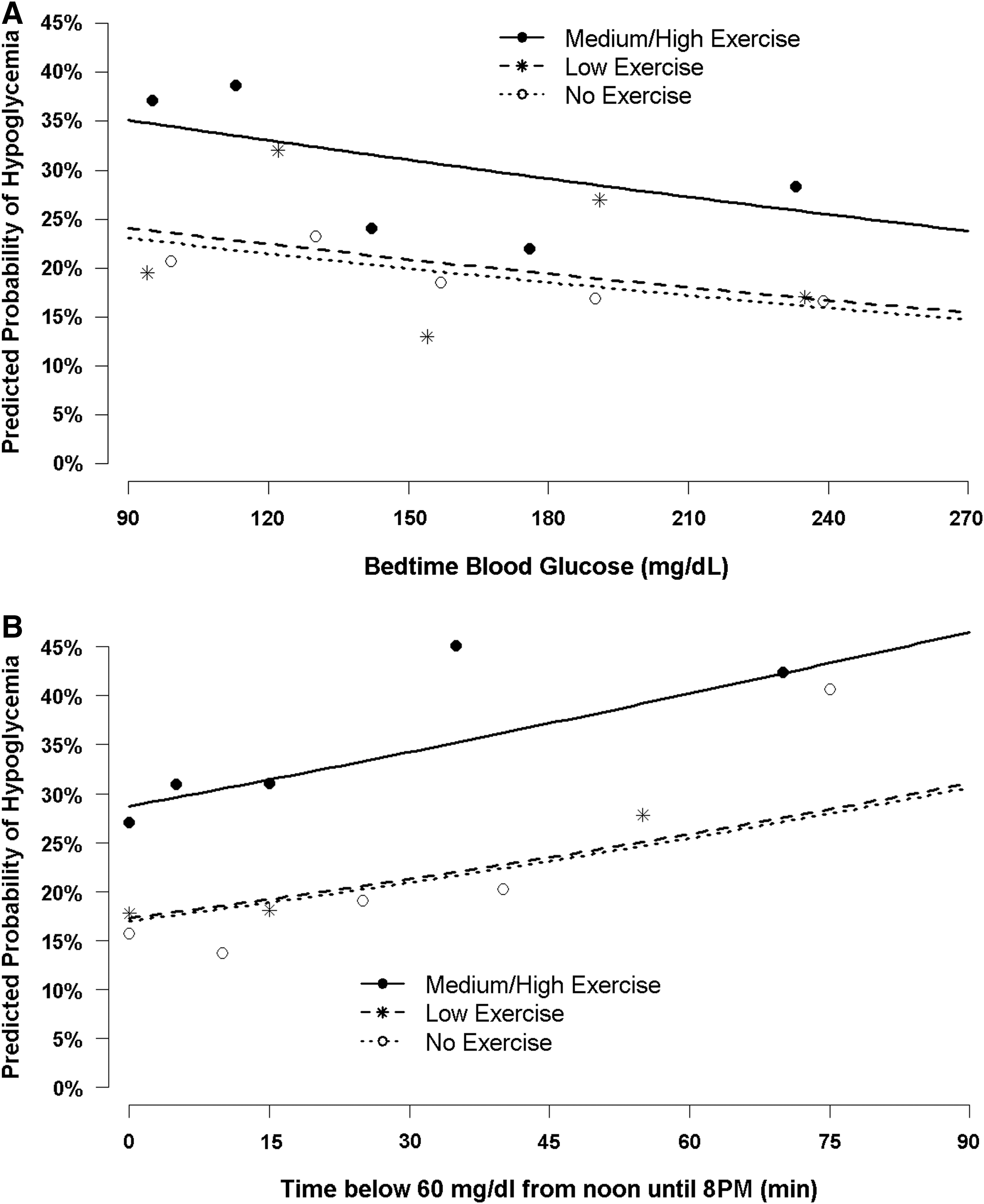

FIG. 2.

Predicted overnight hypoglycemia by (A) bedtime blood glucose or (B) daytime hypoglycemia and exercise. Lines represent the predicted probability of hypoglycemia based on the repeated-measures regression model. Dots represent the least square means of the observed percentage of hypoglycemia.

Discussion

Nocturnal hypoglycemia occurred during 25% of nights, a frequency somewhat higher than the 15% rate found in the pilot for this trial. ⁹ The increase in hypoglycemia may be due to switching from the Sof-Sensor in the pilot trial over to the Enlite sensor in the current study, which has been reported to be biased low. ¹⁰ Even if the Enlite sensor used in our study overestimated the frequency of hypoglycemia, this should not have had an impact on the interpretation of the results of analyses assessing the association of factors with nocturnal hypoglycemia.

By design, we required that our subject population have some nocturnal hypoglycemia during the run-in period of this study, which likely selected for increased hypoglycemia during the study period. The JDRF CGM trial, with broader entry criteria, reported that 8.5% of 36,467 nights had at least two consecutive glucose values ≤60 mg/dL within a 20-min period. ² On the control nights of a recent closed-loop study at home using the FreeStyle Navigator^® sensor (Abbott Diabetes Care, Alameda, CA), Hovorka et al. ¹¹ found that glucose levels fell below 63 mg/dL for at least 20 min on 17% of the nights. Another factor potentially contributing to our higher incidence of nocturnal hypoglycemia was the inability of subjects to use a temporary basal rate when they went to bed (this was not compatible with our system for pump suspensions). It is therefore possible that our high rate of hypoglycemia following moderate to strenuous activity would have been reduced if subjects had access to a temporary reduction in their basal rates on those nights. Subjects were given the option to change their basal rate patterns during the study.

Nocturnal hypoglycemia has been associated with a multitude of antecedent factors. ¹ Although some factors such as gender, age of diagnosis, and duration of diabetes are not modifiable, knowledge about their association with nocturnal hypoglycemia can still be helpful in setting therapeutic targets or closed-loop algorithm parameters.

In the current study, those with HbA1c values >6.5% had significantly less nocturnal hypoglycemia. Of note is that although the range of HbA1c levels in this study was limited (HbA1c ≤8% was an inclusion criterion), there was no difference in the rate of nocturnal hypoglycemia among those with HbA1c values between 6.5% and 7.4% compared with those with a higher HbA1c level (7.5–8%). Whereas many studies ^{12 –14} have found an inverse relationship with HbA1c levels and severe hypoglycemia, recent data support our finding that this relationship is likely waning. Likewise, O'Connell et al. ¹⁵ and Cooper et al. ¹⁶ found a sharp decrease in severe hypoglycemia over about a decade in nearly 1,800 children and adolescents. During that time, average HbA1c levels remained roughly the same, and the investigators further found no association with HbA1c level. Among adults over 26 years of age, Weinstock et al. ¹⁷ reported no consistent relationship between HbA1c level and severe hypoglycemia and reported that the frequency of severe hypoglycemia was lowest in those with HbA1c values between 7.0% and 7.5%. With that said, the results of our study may not apply to those with HbA1c levels of >8%.

Physical exertion during the day is a well-known contributor to subsequent nocturnal hypoglycemia. The current study found that self-reported exercise of moderate to high intensity increased the subsequent rate of nocturnal hypoglycemia. Although nocturnal hypoglycemia occurred across a broad range of bedtime glucose concentrations, there was a trend toward higher rates of nocturnal hypoglycemia following lower bedtime BG levels (Fig. 2A). Following moderate to high exercise intensity, nocturnal hypoglycemia occurred on 37% of nights with a bedtime BG level of ≤130 mg/dL and 27% of nights with a bedtime BG level of >130 mg/dL. The DirecNet group ¹⁸ studied the effect of a uniform, late-afternoon “heavy” exercise challenge in 50 children with T1D and found nocturnal hypoglycemia (a single central laboratory glucose value of <60 mg/dL) developed in 16 (57%) of 28 subjects whose bedtime BG level was ≤130 mg/dL and in eight (36%) of 22 subjects whose level was >130 mg/dL. Although others have found that a bedtime snack can reduce the incidence of nocturnal hypoglycemia after exercise, ¹⁹ we did not find an overall effect of a bedtime snack on nocturnal hypoglycemia. In a recent review of bedtime nutritional strategies and the incidence of nocturnal hypoglycemia, Desjardins et al. ²⁰ concluded that although current evidence does not support the systematic use of bedtime snacks, their use appears to be prudent in many settings when the likelihood of nocturnal hypoglycemia is high. As demonstrated in Figure 2A, we also did not observe a bedtime threshold glucose at which nocturnal hypoglycemia did not occur, similar to the findings of Kaufman et al. ²¹

Daytime hypoglycemia was significantly correlated with nocturnal hypoglycemia. Garg et al. ²² recently reported in the crossover-designed ASPIRE in-clinic study that exercise-induced hypoglycemia was significantly longer in the group that experienced antecedent hypoglycemia, suggesting that “hypoglycemia begets hypoglycemia.” Data from the JDRF CGM trial ²³ showed that severe hypoglycemia was eight times more likely when 30% of CGM values were <70 mg/dL on the previous day (4.5% vs. 0.5%; P<0.001). Although quite significant, the frequency of severe hypoglycemia was low and less than 5%.

Conclusions

We found that younger age, lower HbA1c levels, exercise during the preceding day, and biochemical hypoglycemia during the preceding day were associated with a greater frequency of nocturnal hypoglycemia. Our study strengths include a large number of nights in the home environment where uniform data were collected electronically. Moreover, the study was designed to enroll subjects with a higher likelihood of nocturnal hypoglycemia. Limitations of the study included enrolling subjects across a wider age range and not formally testing for hypoglycemic unawareness. The very nature of the primary study limited us to subjects who were delivering insulin by infusion pumps and use of self-reported data about exercise and snacks. We evaluated hypoglycemia using CGM, which adds possible misclassification noise.

Knowledge of the potentially modifiable daytime factors (increased exercise, lower bedtime BG, and minutes of daytime hypoglycemia) can be used to advise families to monitor subsequent nocturnal glucose levels more closely. However, no factor was strongly predictive of the occurrence of nocturnal hypoglycemia. Some of the risk factors, such as increased physical exercise ²⁴ and reasonable bedtime BG levels, are themselves important in the overall health of patients with diabetes.

Because it is difficult to modify the clinical management of diabetes to avoid nocturnal hypoglycemia, the continued development and commercialization of systems to automatically manage glucose concentrations provide the best hope to decrease nocturnal hypoglycemia while maintaining good overall glycemic control, and significant decreases in nocturnal hypoglycemia and improved glycemic time in range using closed-loop systems have recently been demonstrated. ^{11,25 –27}
